Installation and Operation Instructions
Wireless Vibration/Motion Sensor
Model VMEZIO
2
Description: The motion scoring module measures motion and transmits packets which contain information pertaining to
the motion which it measures. It is installed in locations where motion is to be monitored.
Service Button:Briefly press the service button to activate the module. Press and hold for several seconds, then
release, to deactivate the module.
Packet Structure: Adhoc Motion (41/40)
IDSSSSSSSSSSSSSSSaaaaCCCCKK<CR>
Note: All fields are in ASCII Hex
“ID”
This field is the device type and mode indicator, the value 41 indicates that this is VMEZIO packet; 40 indicates the
VMEZIO Sensor is in service mode.
“SSSSSSSSSSSSSSSS”
The MS-64 bits of these 8-bytes are the serial number of the VMEZIO Vibration/Motion Sensor.
"aaaa" 0-4095 value in ASCII HEX indication the vibration/motion level.
“CCCC”
This field is the CRC-16 error check as was originally received and checked. This CRC is over the first 11 bytes of the
packet starting with the device type and ending with inclusion of the “0000000000” data.
“KK”
This field is the mod 256 sum of all the binary data values as represented by the ASCII hex values in the response but
does not include the <CR>.
3
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC ID: M5ZVMEZIO
MADE IN USA
WARNING:Changes or modifications no
texpressly approved by the manufacturer
for compliance could void the user’s authority to operate the equipment.

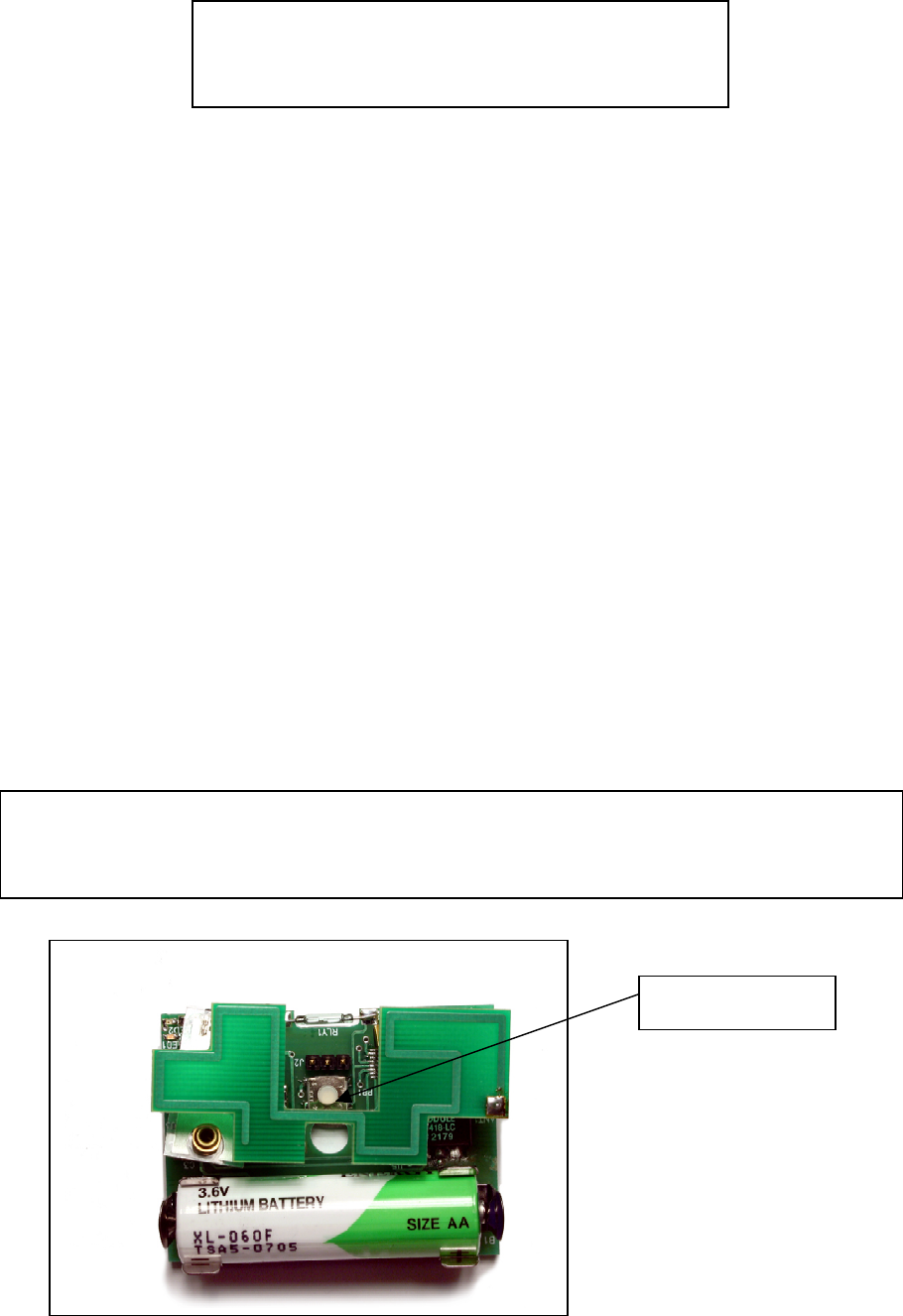

Service Button
