MSI MP54G4 (MS-6833A)
Wireless 11g MiniPCI Card
User’s Guide
![](/img.php?id=457428&img=bg2.png)
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
NOTE: This device is approved for OEM installation with specified antennas as listed in this
Manual. It is the responsibility of the Installer to comply with the separation distance for
satisfying RF exposure compliance.
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTER-
NATIONAL. We take every care in the preparation of this document, but no guaran-
tee is given as to the correctness of its contents. Our products are under continual
improvement and we reserve the right to make changes without notice.
Trademarks
Microsoft Windows and Internet Explorer are registered trademarks or trade
marks of Microsoft Corporation.
All brand names, icons, and trademarks used in this manual are the sole prop-
erty of their respective owners.
![](/img.php?id=457428&img=bg3.png)
Important Safety Precautions
Always read and follow these basic safety precautions carefully when handling any
piece of electronic component.
1. Keep this User’s Manual for future reference.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protects the
equipment from overheating.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into the opening that could damage or cause
electrical shock.
7. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work
according to User’s Manual
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
8. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60O C OR
BELOW -20OC, IT MAY DAMAGE THE EQUIPMENT.
Technical Support
Visit the MSI website for FAQ, technical guide, driver and software
updates, and other information: http://www.msi.com.tw/.
Contact our technical staff at: support@msi.com.tw.
![](/img.php?id=457428&img=bg4.png)
FCC STATEMEMT:
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization. End Product Labeling This transmitter module is authorized only for use in device
where the antenna may be installed such that 20 cm may be maintained between the antenna and users
(for example access points, routers, wireless ADSL modems, and similar equipment). The final end
product must be labeled in a visible area with the following: "Contains TX FCC ID:I4L-MS6833A".
Manual Information for End Users
The end user must not have manual instructions to remove or install the device. The user manual for
end users must include the following information in a prominent location: "IMPORTANT NOTE: To
comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter."
![](/img.php?id=457428&img=bg5.png)
1
Introduction
MP54G4 (MS-6833A) - Wireless 11g
MiniPCI Card
MSI MP54G4 (MS-6833A) Wireless 11g MiniPCI Card
(hereafter called MP54G4), compliant with IEEE802.11g, is
a high-efficiency wireless adapter for wireless networking
at home, in office or in public places. The data rate can be
up to 54 Mbps and auto-negotiated to 48, 36, 24, 18, 12, 9,
6Mbps (IEEE 802.11g), or 11, 5.5, 2, 1Mbps (IEEE802.11b).
With MP54G4, you can roam between conference room
and office without being disconnected the LAN cables; in
addition, sharing files and printers can be easy tasks.
The MP54G4 is available to Microsoft Windows operating
systems (Windows® XP/2000/ME/98SE) and can be inte-
grated into networking with either Ad-hoc mode (computer-
to-computer, without an Access Point) or Infrastructure
mode (computer-to-access point, an Access Point is
required).
>>> 1.1
![](/img.php?id=457428&img=bg6.png)
2
How MP54G4 Works

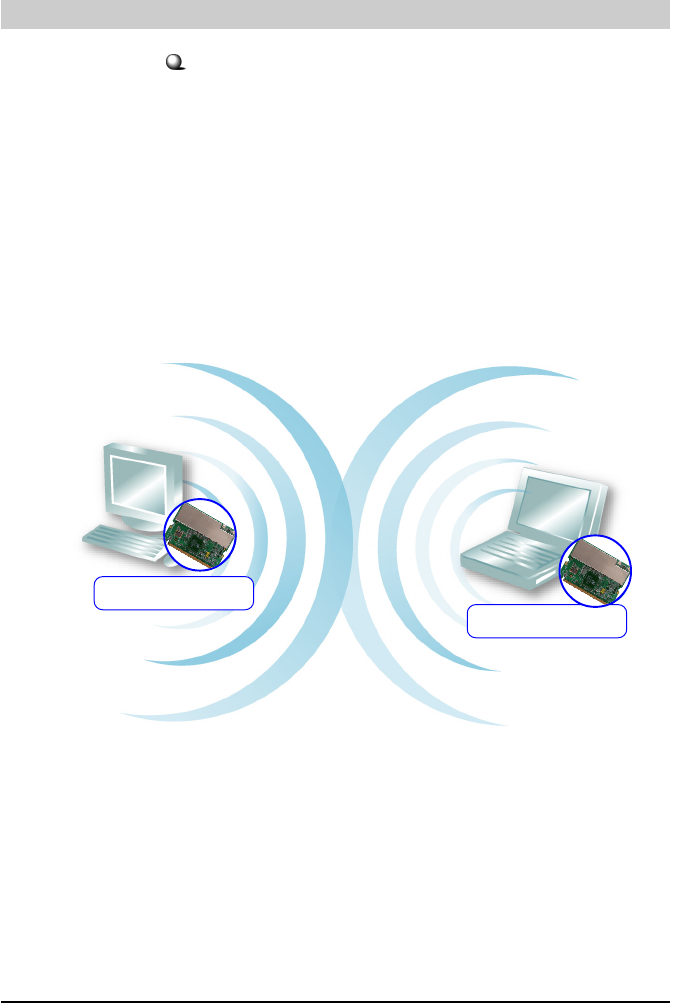

Ad-hoc Mode : An Ad-hoc network is a local area network or
other small network, especially one with wireless or tem-
porary plug-in connections, in which some of the network
devices are part of the network only for the duration of a
communications session. Users in the network can share
files, print to a shared printer, and access the Internet with
a shared modem. In this kind of network, new devices can
be quickly added; however, users can only communicate
with other wireless LAN computers that are in this wireless
LAN workgroup, and are within range.
>>> 1.2
MP54G4
Wireless 11g MiniPCI Card MP54G4
Wireless 11g MiniPCI Card
![](/img.php?id=457428&img=bg7.png)
3

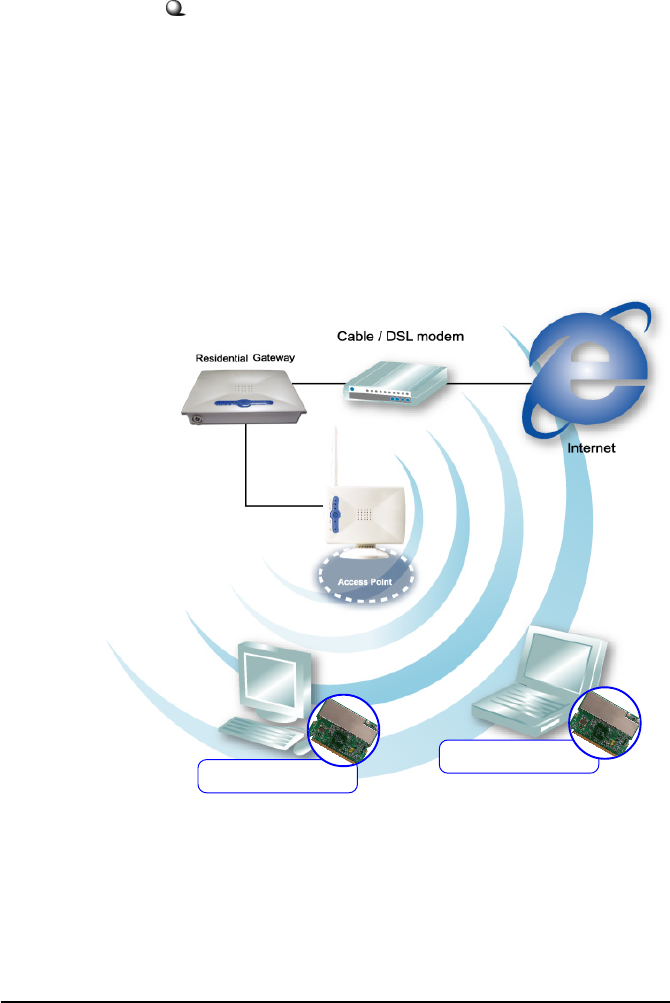

Infrastructure Mode : The difference between Infrastruc-
ture network and Ad-hoc network is that the former one
includes an Access Point. In an Infrastructure network, the
Access Point can manage the bandwidth to maximize band-
width utilization. Additionally, the Access Point enables users
on a wireless LAN to access an existing wired network,
allowing wireless users to take advantage of the wired net-
works resources, such as Internet, email, file transfer, and
printer sharing. The scale and range of the Infrastructure
network are larger and wider than that of the Ad-hoc
networking.
MP54G4
Wireless 11g MiniPCI Card
MP54G4
Wireless 11g MiniPCI Card
![](/img.php?id=457428&img=bg8.png)
4
Specifications>>> 1.3
Hardware Specifications
Compliant Standards
- IEEE 802.11g/b
Bus and Connector Types
- 32-bit 3.3 Volt Type IIIB
- 124-pin Golden Finger
Security Mechanism
- Hardware-Base WEP Privacy
- Hardware-Base AES Privacy (driver update)
Operational Environment
- Operational Temperature: 0 ~ 55OC
- Humidity: 10 ~ 90% (Non-Condensing)
Weight and Dimension
- Weight: 15g
- Dimension: 44.9 x 59.6 x 3.5mm
Radio Frequency Specifications
Raw Data Rates and Modulation Types
- IEEE 802.11b (Auto-Fallback)
CCK: 11 and 5.5 Mbps
DQPSK: 2 Mbps
DBPSK: 1 Mbps
- IEEE 802.11 g (Auto-Fallback)
OFDM: 54, 48, 36, 24, 18, 12, 9, 6Mbps
Communication Protocol
- DSSS (Direct Sequence Spread Spectrum) with
ACK
- Half-Duplex
Access Method
- Infrastructure Mode: Station-To-LAN Architecture
- Ad-Hoc Mode: Station-To-Station Architecture
![](/img.php?id=457428&img=bg9.png)
5
Frequency, Bandwidth, and Channels
- 2.4 ~ 2.4835 GHz Frequency Band
- 13 Channels
- Maximum 3 Non-Overlapped Channels
- 25 MHz Bandwidth Per Channel
Transmitter Output Power
- Output Power: 14 dBm ± 1 dB
Wireless Coverage
- Up to 500m
Receiving Sensitivity
- ≤ -82 dBm @ 11 Mbps (DSSS/CCK)
- ≤ -68 dBm @ 54 Mbps (OFDM)
Software Specifications
Security Mechanism
- 64/128 bit WEP Key
- AES-CCM Authentication Mode (driver update)
- WPA Support (driver update)
- LEAP/PEAP Support (firmware upgrade)
Authentication Mechanism
- Open Authentication (Default)
- Shared-Key Authentication
Operating System
- Microsoft® Windows® 98SE/ME/2000/XP
![](/img.php?id=457428&img=bga.png)
6
System Requirements
Before installing the MP54G4, your PC should meet the
following:
Desktop/notebook PC with an available MiniPCI slot.
Windows® 98SE/ME/2000/XP operating system.
Minimum 5M bytes free disk space for installing the driver
and utilities.
CD-ROM drive, double speed or higher.
Package Contents
Unpack the package and check all the items carefully. If
any item contained is damaged or missing, please contact
your local dealer as soon as possible. Also, keep the box
and packing materials in case you need to ship the unit in
the future. The package should contain the following items:
One Wireless 11g MiniPCI Card - MP54G4.
One Quick Installation Guide.
One Installation CD including drivers, utilities, and the
manuals.
>>> 1.4
>>> 1.5
![](/img.php?id=457428&img=bgb.png)
7
Product View>>> 1.6

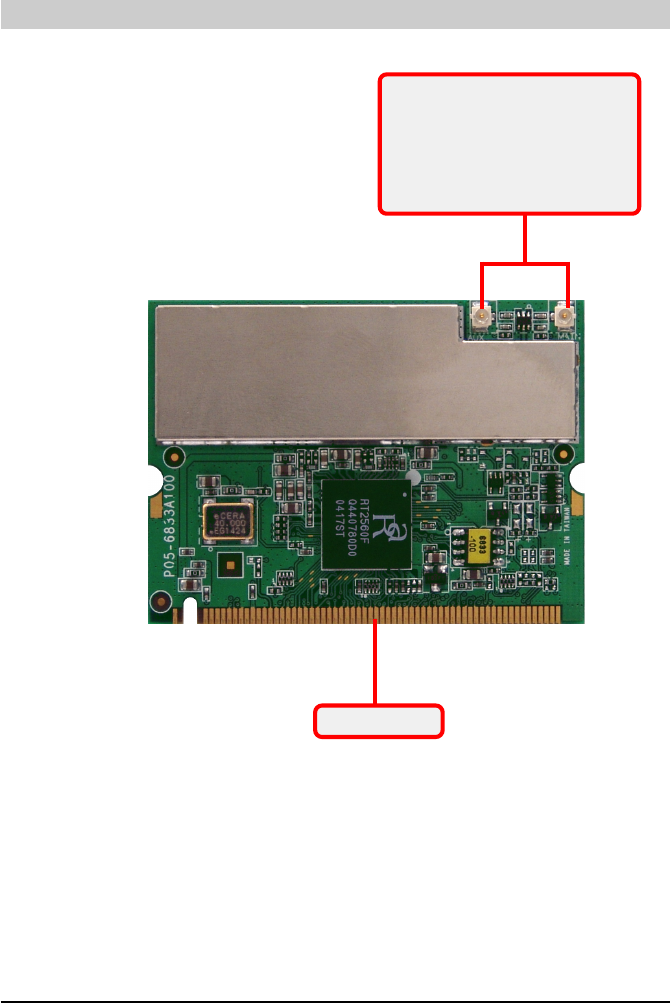

External antenna connectors
Connect to external antennas for
enhanced data transmission and
reception. The external antennas
are well designed on the desktop
or notebook computers.
Golden Finger
![](/img.php?id=457428&img=bgc.png)
8
Hardware Installation
>>> 2.1
The following diagrams provide you a basic installation for
the MP54G4, including how to install and remove the
MiniPCI card. The instruction below is suitable for most
computers with MiniPCI slot. For more information about
the MiniPCI module, please refer to your computer’s
manual.

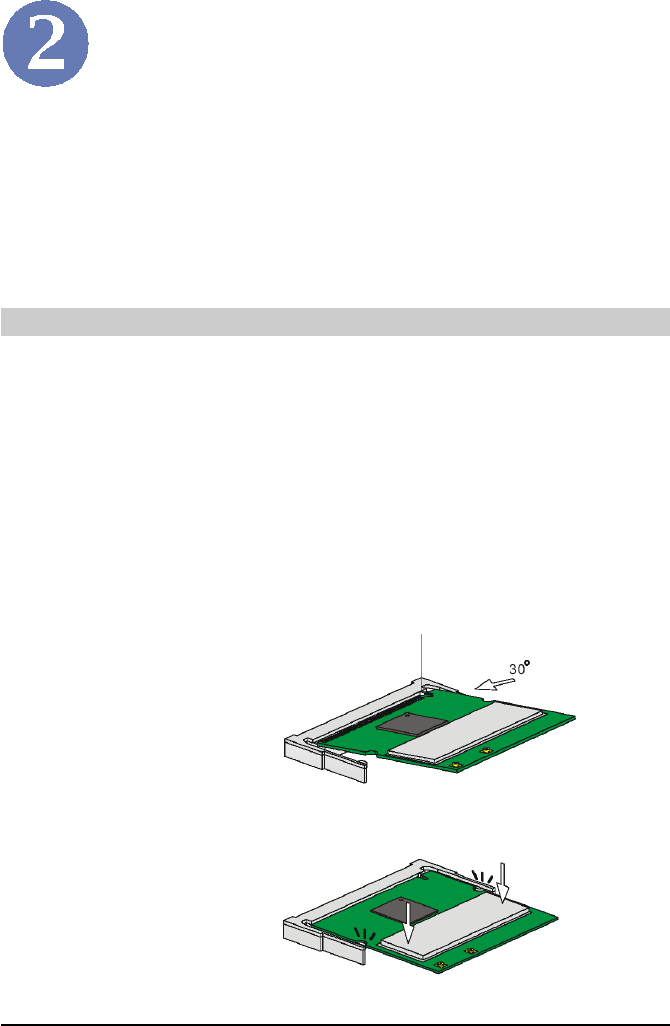

Installing the MP54G4
1. Locate the Mini PCI slot on the mainboard.
2. Place the MP54G4 over the MiniPCI slot (at an
angle of 30 degrees). Then, gently insert it into
the slot until the golden finger of the card gets
fully inserted.
3. Press down the card, and the retaining clips (on
two sides of the slot) will lock onto the notches of
the card.
Foolproof notch
![](/img.php?id=457428&img=bgd.png)
9
>>> 2.2 Removing the MP54G4
1. Locate the MiniPCI slot with MP54G4 installed.
2. Press the retaining clips outwards, and the card
should bound upwards slightly after being
released from the slot.
3. Remove the card from the MiniPCI slot carefully.
![](/img.php?id=457428&img=bge.png)
10
Software Installation
This chapter describes the procedures of installing the
driver and utility. Follow the instruction step by step to
finish the installation. If you use Windows® 98SE/ME,
please prepare the Windows® Setup CD at hand before
installing the driver; because the system will ask you to
insert the Setup CD to copy files during the installation.
Please NOTE that the MP54G4 should be installed into
your computer before installing the driver and utility. Then,
the operating system will detect a new device and start to
configure the new device. Click Cancel here to start instal-
lation from the InstallShield Wizard.
Click
Tip: The wireless LAN adapter
should be installed into your
PC before installing the driver
and utility.
Your Wireless LAN adapter type
Insert the software CD into your CD-ROM drive, and the
Setup program should launch automatically.
If the Autorun program doesn’t launch automatically, click
Start at the taskbar and select Run.... Type E:\setup.exe
(where E is your CD-drive) in the Open box and click OK to
launch the Setup program manually.
The main screen of Setup program will appear as below.
Click the Install Software button.
Step 1.
![](/img.php?id=457428&img=bgf.png)
11
Click
The welcome screen of InstallShield Wizard appears.
Click Next.
Read and accept the License Agreement; then, click Next.
In the following window, enter the user’s information (User
Name, Organization) in the respective fields; then, click
Next.
Step 2. Click Install and the program will copy the necessary files
to the system. The progress indicator shows the install-
ing status.
If you use Windows 98SE/ME, you may be asked to insert
the Windows Setup CD during the installation. Please
insert the Setup CD by the on-screen instruction to continue
the installation.
Step 3.
Click Finish when the installation is completed. The MSI
Wireless LAN icon* will appear in the status area.
Step 4.
MSI Wireless LAN icon
