MP54GBT2 (MS-6855B)
Wireless 11g + Bluetooth
Combo MiniPCI Card
OEM Guide
ii
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
FCC Statement
This device is intended only for OEM integrators under the following
1) The antenna must be installed such that 20 cm is maintained between antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not required. However,
the OEM integrator is still responsible for testing end-product for any additional compli-
ance requirements required with module installed (for example, digital device emissions,
PC peripheral requirements, etc.).
Important Note
In the event that these conditions can not be example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered
valid the FCC ID can not be used on the final product. In these circumstances, OEM
integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
iii
End Product Labeling
This transmitter module is authorized only for use in device where antenna may be
installed such that 20 cm may be maintained between antenna and users (for example
access points, routers, wireless ADSL and similar equipment). The final end product
must be labeled in a area with the following: “ Contains TX FCC ID: I4L-MS6855B”.
Manual Information for End Users
The end user must not have manual instructions to remove or install device. The user
manual for end users must include the following information in a prominent location:
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements,
the antenna used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located operating in conjunction with
any other antenna or transmitter.” as a result of e-mail transmission.”
Important Safety Precautions
Always read and follow these basic safety precautions carefully when handling any
piece of electronic component.
1. Keep this OEM Guide for future reference.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protects the
equipment from overheating.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into the opening that could damage or cause electrical
shock.
7. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work
according to OEM Manual
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
8. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60O C OR
BELOW -20OC, IT MAY DAMAGE THE EQUIPMENT.
“FCC RF exposure requirements: SAR compliance has been established in the laptop computer(s)
configurations as documented in this OEM Installation Manual, and can be used in laptop computer(s)
with substantially similar physical dimensions, construction, and electrical and RF characteristics.
Use in other devices such a PDAs or lappads is not authorized. This transmitter is restricted for use
with the specific antenna(s) tested in the application for Certification. The antenna(s) used for this
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.”
1
Introduction
MSI MP54GBT2, the Wireless 11g + Bluetooth Combo miniPCI
Card, is a Type IIIB card, which can be used to integrate with
such systems as notebook, mini-barebone, PDA, portable PC.
With MSI MP54GBT2 embedded inside, a system could pro-
vide users with the ability and flexibility to connect up to Internet
wirelessly via 802.11g with speed up to 54Mbps, and to link
with peripherals wirelessly through BluetoothTM v2.0 and ad-
vanced EDR (Enhanced Data Rate) technology. BluetoothTM
v2.0 technology increases the data rate of BluetoothTM v1.1/1.2
from 1.0Mbps to 2.1Mbps.
MSI MP54GBT2 is taking advantage of leading technologies
from Ralink and CSR. It addresses the co-existence issues in
PAN (Personal Area Network) and WLAN (Wireless Local Area
Network) markets by providing true simultaneous connectivity
while deploying IEEE 802.11g and Bluetooth v2.0 Along with
this combo solution, a system installed with a single card is able
to offer dual mode capability of WiFi and BluetoothTM. It will
benefit system vendors in miniaturization of system dimension
and BOM cost reduction, as well as also make users happy with
the all-in-one functionality.
>>> 1.1 MP54GBT2 (MS-6855B) - Wireless 11g +
Bluetooth Combo MiniPCI Card
2

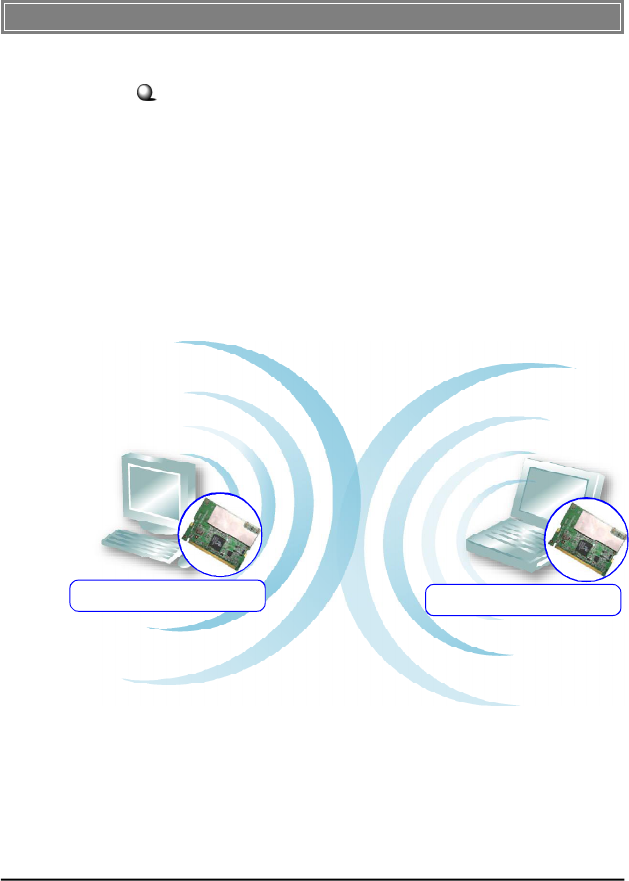

Ad-hoc Mode : An Ad-hoc network is a local area network or
other small network, especially one with wireless or temporary
plug-in connections, in which some of the network devices are
part of the network only for the duration of a communications
session. Users in the network can share files, print to a shared
printer, and access the Internet with a shared modem. In this
kind of network, new devices can be quickly added; however,
users can only communicate with other wireless LAN comput-
ers that are in this wireless LAN workgroup, and are within
range.

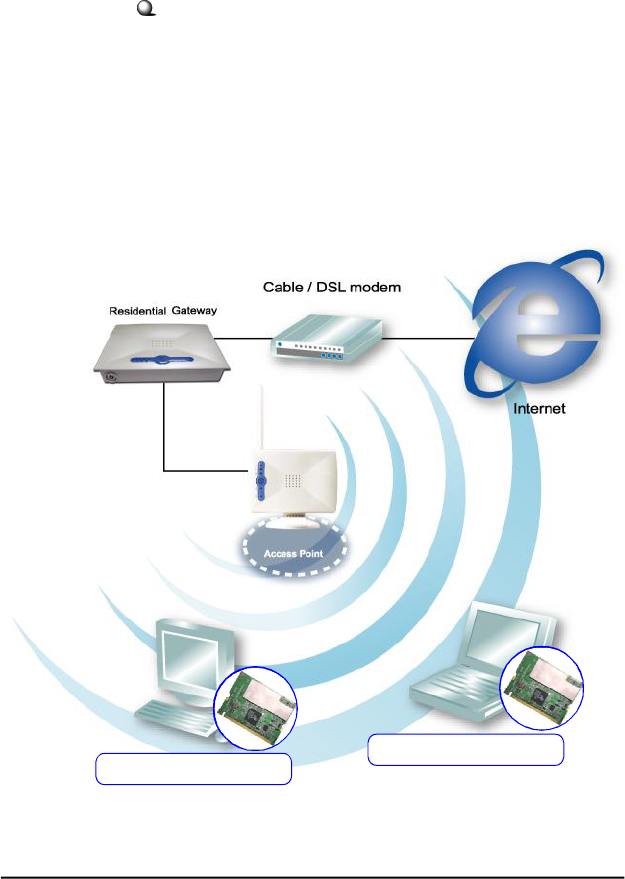

>>> 1.2 How MP54GBT2 Works
MP54GBT2 MP54GBT2
In WLAN Environment1.2.1
WLAN+Bluetooth Combo MiniPCI Card WLAN+Bluetooth Combo MiniPCI Card
3
Infrastructure Mode : The difference between Infrastructure
network and Ad-hoc network is that the former one includes an
Access Point. In an Infrastructure network, the Access Point can
manage the bandwidth to maximize bandwidth utilization. Addi-
tionally, the Access Point enables users on a wireless LAN to
access an existing wired network, allowing wireless users to take
advantage of the wired networks resources, such as Internet,
email, file transfer, and printer sharing. The scale and range of the
Infrastructure networking are larger and wider than that of the
Ad-hoc networking.
MP54GBT2 MP54GBT2
WLAN+Bluetooth Combo MiniPCI Card
WLAN+Bluetooth Combo MiniPCI Card
4
In Bluetooth Connection
The term “Bluetooth” refers to a worldwide standard for the
wireless exchange of data between two devices. In order to ex-
change data, two Bluetooth devices must establish a connection.
Before a connection is established, one device must request a
connection with another. The second device accepts (or rejects)
the connection. The originator of the request is known as the
client. The device that accepts (or rejects) the request is known
as the server. Many Bluetooth devices can act as both client and
server. Every Bluetooth device that provides a service must be
prepared to respond to a connection request. Bluetooth soft-
ware is always running in the background on the server, ready to
respond to connection requests.
1.2.2
Bluetooth-enabled Devices
WLAN+Bluetooth Combo MiniPCI Card
MP54GBT2
5
>>> 1.3 Specifications
Form Factor 32-bit Type IIIB
Operation voltage 3.3V
Antenna Connector Two antenna connectors
Operating System Microsoft® Windows® 98SE/ME/2000
/XP
Environmental - Operating Temperature:
0 ~ 55OC
- Operating Humidity:
10 ~ 90%, non-condensing
Dimensions (WxDxH)59.75 x 44.6 x 3.5mm
Network Standard IEEE 802.11; IEEE 802.11b/g
Frequency Band 2.412-2.484 GHz
Data Rate IEEE 802.11g (auto-fallback):
- OFDM: 54, 48, 36, 24, 18, 12, 9 and
6Mbps
IEEE 802.11b (auto-fallback):
- CCK: 11, 5.5 Mbps
- DQPSK: 2 Mbps
- DBPSK: 1 Mbps
Media Access ControlCSMA/CA with ACK
Transmission DSSS (direct sequential spread
spectrum)
Network ArchitectureAd-Hoc Mode (Peer-to-Peer);
Infrastructure Mode
Antenna Type Two antenna connectors support
Power Consumption TX peak: 380mA RX peak: 250mA
Idle:5mA (TBD)
Radio: disabled: TBD
Hardware
Specification
WLAN
Specification
6
Channel IEEE 802.11g:Ch. 1-11 – N. America
Ch. 1-13 – Japan
Ch. 1-13– Europe ETSI
Ch. 10-11 – Spain
Ch. 10-13 – France
IEEE 802.11b:Ch. 1-11 – N. America
Ch. 1-13 – Japan
Ch. 1-13– Europe ETSI
Ch. 10-11 – Spain
Ch. 10-13 – France
Output Power Output Power(Before Antenna)
11b: 18dBm+/-2 Max
11g: 14dBm+/-2 Max
Receiver Sensitivity 54 Mbps OFDM @ 10% PER = -65 dBm
(Average Value) 48 Mbps OFDM @ 10% PER = -66 dBm
36 Mbps OFDM @ 10% PER = -70 dBm
24 Mbps OFDM @ 10% PER = -74 dBm
18 Mbps OFDM @ 10% PER = -77 dBm
12 Mbps OFDM @ 10% PER = -79 dBm
11 Mbps CCK @ 8% PER = -80 dBm
9 Mbps OFDM @ 10% PER = -81 dBm
6 Mbps OFDM @ 10% PER = -82 dBm
5.5 Mbps CCK @ 8% PER = -82 dBm
2 Mbps QPSK @ 8% PER = -83 dBm
1 Mbps BPSK @ 8% PER = -83 dBm
7
Network Standard Bluetooth v2.0 (Class II)
Frequency Band 2.4-2.483 GHz
Data Rate Up to 2.1Mbps
Channel 79 sub-channels
Transmission FHSS (Frequency Hopping Spread
Spectrum)
Modulation GFSK
Antenna Type One antenna connector support
Power Consumption 100mA (maximum, continuous TX)
Max. Output Power Up to 2dBm
Max. Input Level 0dBm
Receiver Sensitivity -79dBm @ BER<0.1%
Range Up to 30 m
Physical Links Support ACL link
Network Capabilities Support piconet point-to-point and
point-to multipoint connections
Link Manager 3-slot Packets: Yes
5-slot Packets: Yes
Slot Offset: Yes
Timing Accuracy: Yes
Switch: Yes
Hold Mode: Yes
Sniff Mode: Yes
Test Mode: Yes
Park Mode: Yes
RSSI: Yes
Power Control: Yes
Authentication: Yes
Encryption: Yes
Bluetooth
Specification
8
>>> 1.4 System Requirements
Before installing MP54GBT2, your PC should meet the follow-
ing items:
- One desktop/notebook PC with an available MiniPCI slot.
- Windows® 98SE/ME/2000/XP operating system.
- Minimum 5MB free disk space for installing the driver and
utilities.
- One CD-ROM drive, double speed or higher.
>>> 1.5 Package Contents
Unpack the package and check all the items carefully. If any item
contained is damaged or missing, please contact your local dealer
as soon as possible. Also, keep the box and packing materials in
case you need to ship the unit in the future. The package should
contain the following items:
- One Wireless 11g + Bluetooth Combo MiniPCI Card.
- One Installation CD-ROM including drivers, utilities, and the
manual files.
9
>>> 1.6 Product View
Golden Finger
WLAN 11g antenna connectors
Connect to external antennas for
enhanced data transmission and
reception. The external antennas are
well designed on the desktop or note-
book computers.
Bluetooth antenna
Connector
10
Hardware Installation

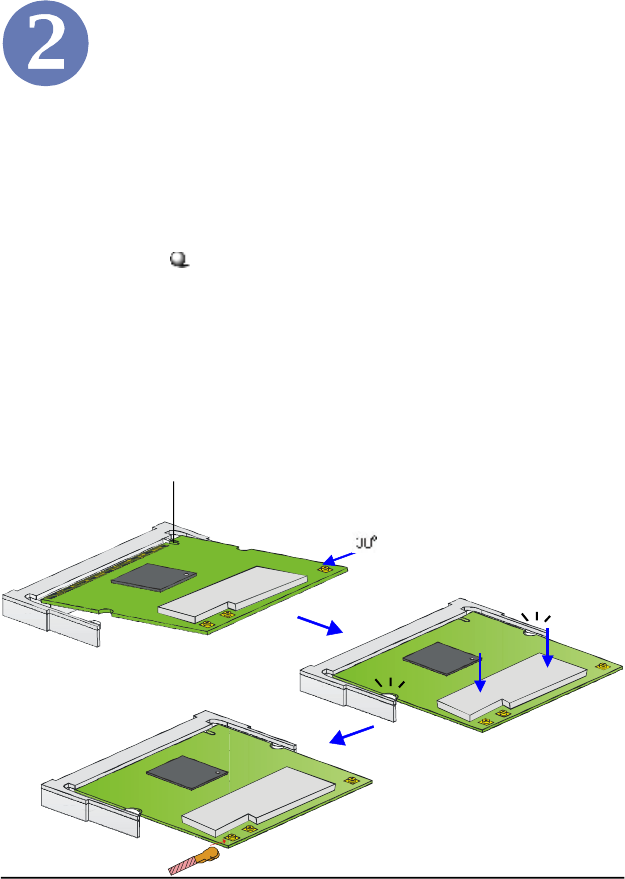

1. Locate the MiniPCI slot on the mainboard.Place your
MP54GBT2 over the MiniPCI slot (at an angle of 30
degrees). Then, gently insert it into the slot until the
golden finger of the card gets fully inserted.
2. Press down the card, and the retaining clips (on two
sides of the slot) will lock onto the notches of the card.
3. Connect the attenna’s cable to the connector on the card.
Foolproof notch
The following diagrams provide you a basic installation for your
MP54GBT2. The instruction below is suitable for most com-
puters with MiniPCI slot. For more information about the
MiniPCI module, please refer to your computer’s manual.
Installing MP54GBT2:
11
Software Installation
This chapter describes the procedures of installing the driver
and utility. Follow the instruction step by step to finish the
installation. If you use Windows® 98SE/ME, please prepare
the Windows® Setup CD at hand before installing the driver;
because the system will ask you to insert the Setup CD to copy
files during the installation.

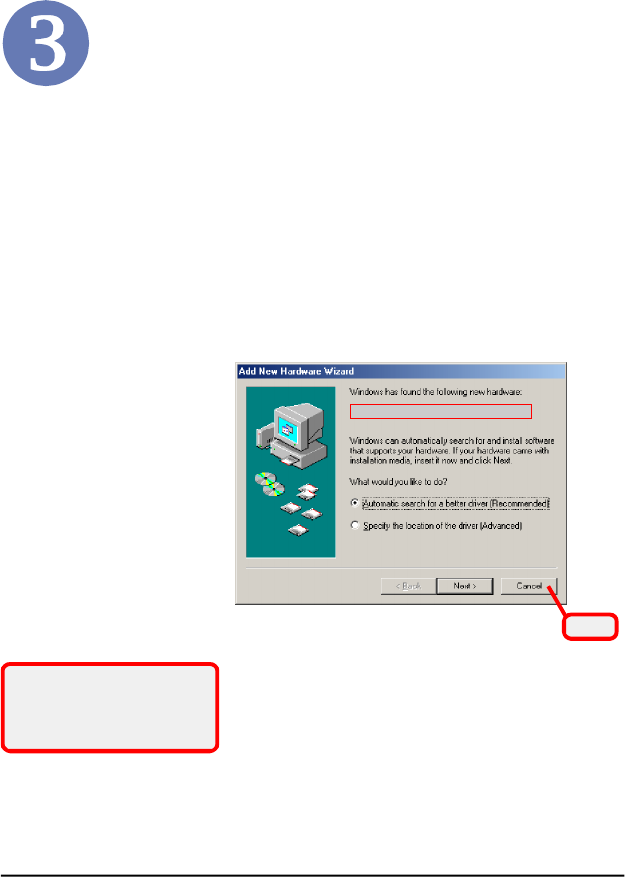

Please NOTE that the MP54GBT2 should be installed into
your computer before installing the driver and utility. Then,
the operating system will detect a new device and start to con-
figure the new device. Click Cancel here to start installation
from the InstallShield Wizard.
Click
Tip: The MP54GBT2 adapter
should be installed into your PC
before installing the driver and
utility.
The adapter model you installed
12
Insert the software CD into your CD-ROM drive, and the Setup
program should launch automatically.
If the Autorun program doesn’t launch automatically, click Start
at the taskbar and select Run.... Type E:\setup.exe (where E is
your CD-drive) in the Open box and click OK to launch the
Setup program manually.

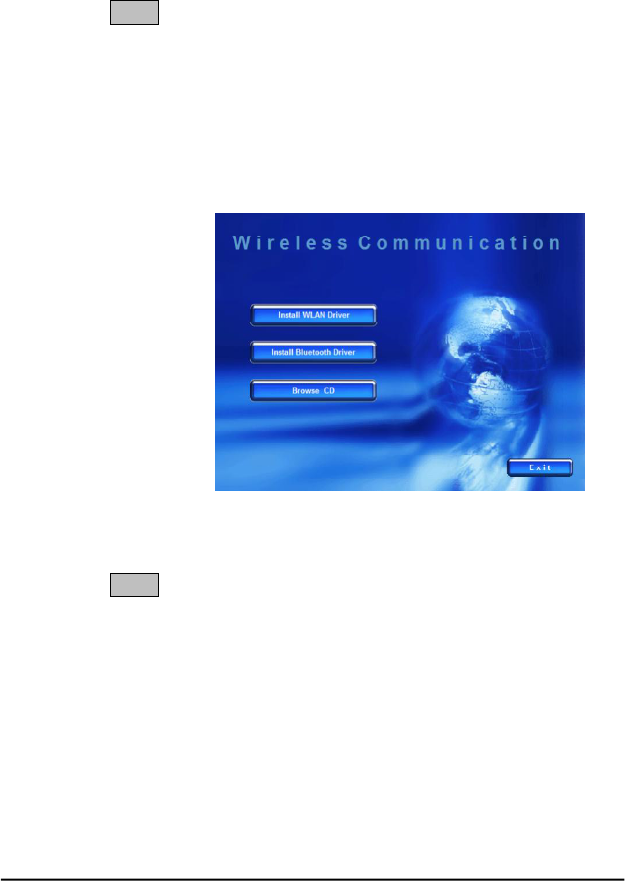

The main screen of Setup program will appear as below.
1. Click the Install WLAN Driver button.
2. The welcome screen of InstallShield Wizard appears.
Click Next.
3. Read and accept the License Agreement; then, click Next.
4. Click Install and the program will copy the necessary
files to the system. The progress indicator shows the
installing status.
5. Click Finish when the WLAN driver installation is
completed.
STEP1
STEP2
13
1. Click the Install Bluetooth Driver button.
2. The welcome screen of InstallShield Wizard appears.
Click Next.
3. Read and accept the License Agreement; then, click Next.
4. Click Next to install the driver in the default destination
folder.
5. Click Install and the program will copy the necessary
files to the system. The progress indicator shows the
installing status.
6. Click Finish when the bluetooth driver installation is
completed.
Wireless LAN icon
STEP3
STEP4Click the Exit button.
The Wireless LAN icon and Bluetooth icon will appear in the
status bar.
Bluetooth icon
Example of Antennas Installation
The distance between WLAN antennas and the user body (excluding hands, wrists,
feet, and ankles) must be more than 20 cm. In the laptop, for example, the antennas
can be located on the top of the screen. See the follows as an illustration:
MS-6855B
WLAN
Main Antenna
WLAN
Aux Antenna
Bluetooth
Antenna
MS-6855B
WLAN
Main Antenna
WLAN
Aux Antenna
Bluetooth
Antenna
>20cm
WLAN Antennas
>20cm
>20cm
WLAN Antennas
>20cm
