Micro Star MS6868F BT AUDIO TRANSMITTER User Manual USERS MANUAL
Micro Star International Co Ltd BT AUDIO TRANSMITTER USERS MANUAL
USERS MANUAL
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
FCC Statement
This device is intended only for OEM integrators under the following
1) The antenna must be installed such that 20 cm is maintained between
antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not required.
However, the OEM integrator is still responsible for testing end-product for any
additional compliance requirements required with module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
Important Note
In the event that these conditions can not be example certain laptop
configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid the FCC ID can not be used on the
final product. In these circumstances, OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a
separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where antenna
may be installed such that 20 cm may be maintained between antenna and
users (for example access points, routers, wireless ADSL and similar
equipment). The final end product must be labeled in a area with the following:
“Contains TX FCC ID: GI4L-MS6868A/B”.
Manual Information for End Users
The end user must not have manual instructions to remove or install device.
The user manual for end users must include the following information in a
prominent location: “IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located operating in conjunction with any other antenna or
transmitter. as a result of e-mail transmission.”
Important Safety Precautions
Always read and follow these basic safety precautions carefully when handling
any piece of electronic component.
1. Keep this User Guide for future reference.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protects the
equipment from overheating.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into the opening that could damage or cause electrical
shock.
7. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work
according to User Manual
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
8. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 65°C OR
BELOW -20°C, IT MAY DAMAGE THE EQUIPMENT.
4
Bluetooth Audio
Transmitter (MS-6868F)
Introduction

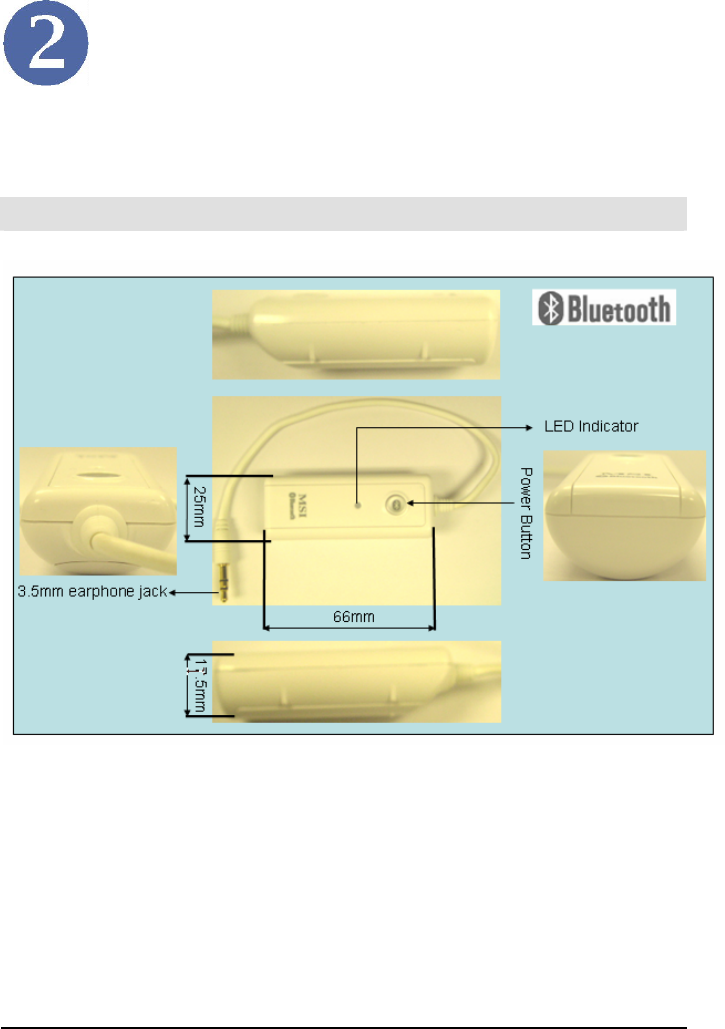

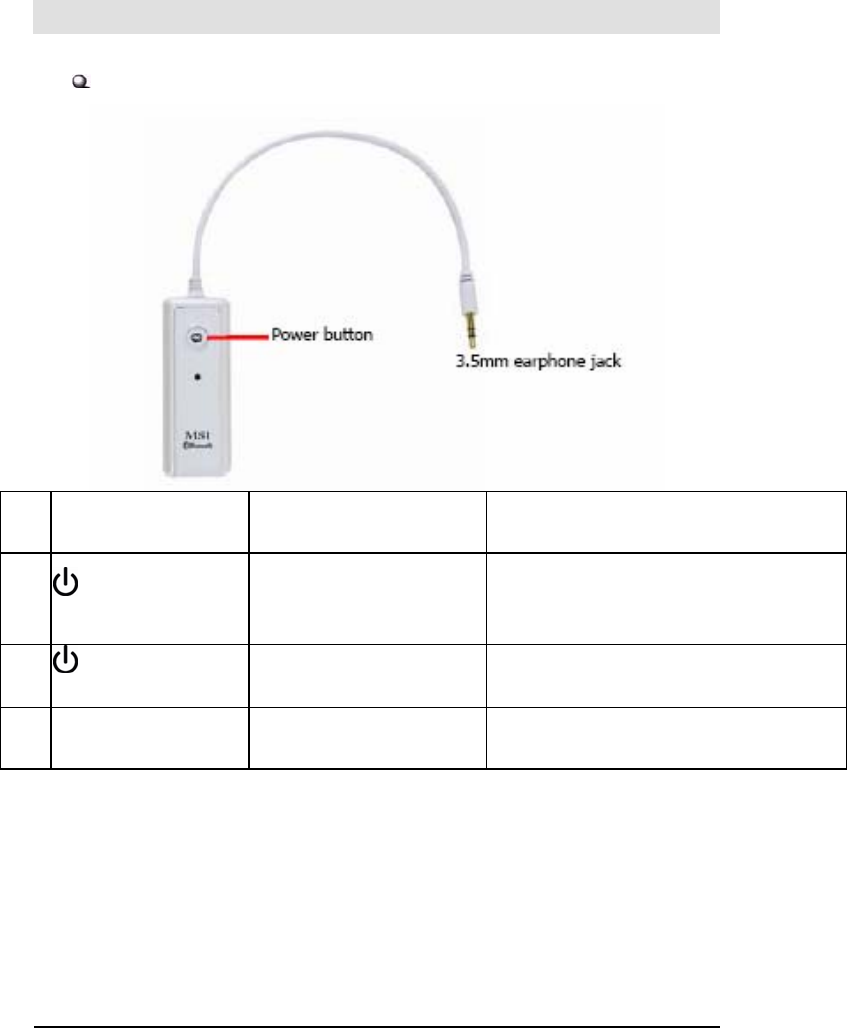

>>> 2.1 Appearance
5
>>> 2.2 Features
A Bluetooth Stereo Transmitter with 3.5mm earphone plug.
General Features
Standard Bluetooth SIG Specification v1.2
Support Profiles A2DP(Advanced Audio Distribution Profile)
Interface 3.5mm line-in jack
Audio Function 1. CD-Quality, 44.1, 48KHz 16bits stereo
2. Freq. Response: 20Hz~20KHz
LED Indicator LED for Power and Mode/Link
Frequency Band 2.400~2.4835GHz unlicensed ISM band
Spectrum FHSS (Frequency Hopping Spread Spectrum)
Modulation GFSK
Output Power 0~4dbm
Receiving Sensitivity
-70dbm @<0.1% BER
Power Class Class 2
Range 10m (Outdoor operating space)
RF Specifications
Antenna Chip Antenna
Buttons Button for Power On/Off and Pairing
Auto-Power Off Device will be auto-power off after 3 minutes in
standby mode.
Low Battery Indicator Blue LED blink
6
Audio Format SBC
Operating Temperature 0° ~ 50°C (32°F ~ 122°F )
Storage Temperature -20° ~ 65°C (-16°F ~ 149°F )
Power Source 1 x AAA Battery
Operating Time A2DP Music Mode: 6 hours
(Based on one 1000mA AAA battery).
Certification CE, FCC, C-Tick, DGT
Dimension 66(L)*25(W)*17.5(H)mm
Weight 21g (without battery)
Bluetooth Interface
Blue
Standard Bluetooth Specification v1.2
Profile A2DP
RF Power Bluetooth Class 2 (0~4dBm)
Chipset CSR BC03MM or equivalent
Audio Codec Sub-Band Codec
Distance 10meters (Outdoor operating space)
7
Battery Installation
Before power on the Bluetooth stereo transmitter, you have to install one AAA
battery into it.

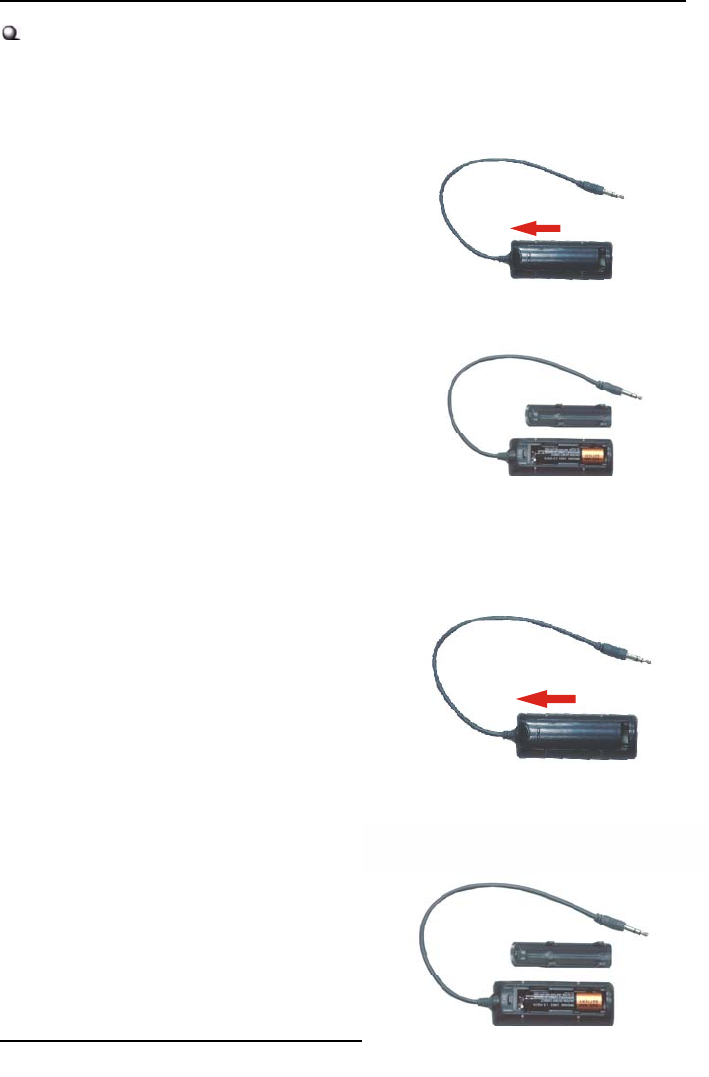

>> How to install the battery?
1. Press the battery cover and
slide it to your right/left side.
2. Open the battery cover and
install the battery in the right
position (+/-). Then take the
cover to slide it to your
right/left side to close the
cover.
>> How to uninstall the battery?
1. Press the battery cover and
slide it to your right/left
side.
2. Open the battery cover and
take out the battery, then
take the cover to slide it to
your right/left side to close
the cover.
8
>>> 2.3 Control and Indications
Function Key and LED indication
Button press
required Blue LED (source) Description
On
press and hold
for 3 secs
light up for 0.5 secs and
off, and then lights up
permanently
After 2 minutes, if the source cannot find
and pair to a device, the source shuts
down.
Off press and hold for
3 secs
light up for 3 quick flashes
and off.
Power off headset; blinking sequence
similar to headset.
Link N/A Blinking 0.3 secs in every
4 secs) The LED indication is different with
Pairing mode.
Note:
LED lights of FS120 uninterrupted indicating pairing process. Afterwards,
LED shall turn to blinks (0.3 secs ON in every 4 secs) one another signifying
link mode.
