Micro Star MS6868I BLUETOOTH STEREO HEADSET User Manual USERS MANUAL
Micro Star International Co Ltd BLUETOOTH STEREO HEADSET USERS MANUAL
USERS MANUAL
Table of Content
1. ENGLISH ...................................... .. 1-1
2. DEUTSCH .................................... ... 2-1
3. FRANÇAIS ................................. ..... 3-1
4. ESPAÑOL ................................... .... 4-1
5. ITALIANO ................................... ..... 5-1
6. NEDERLANDS ................................ 6-1
7. ČESKY ........................................ .... 7-1
8. PORTUGUÊS .................................. 8-1
9. POLSKI ...................................... ..... 9-1
10. РУCCKИЙ .................................. .... 10-1
11. TÜRKÇE ..................................... ... 11-1
12. ......................................................... 12-1
13. FARSI.......................................... .... 13-1
14. ............................................ .. 14-1
15. ..................................... ... 15-1
16. ..................................... ... 16-1
Version 1.0
P/N: G52-68681X1
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
FCC Statement
This device is intended only for OEM integrators under the following
1) The antenna must be installed such that 20 cm is maintained between
antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not required.
However, the OEM integrator is still responsible for testing end-product for
any additional compliance requirements required with module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
Important Note
In the event that these conditions can not be example certain laptop
configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid the FCC ID can not be used on the
final product. In these circumstances, OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a
separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where antenna
may be installed such that 20 cm may be maintained between antenna and
users (for example access points, routers, wireless ADSL and similar
equipment). The final end product must be labeled in a area with the following:
“Contains TX FCC ID: GI4L-MS6868H”.
Manual Information for End Users
The end user must not have manual instructions to remove or install device.
The user manual for end users must include the following information in a
prominent location: “IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located operating in conjunction with any other antenna or
transmitter. as a result of e-mail transmission.”
Important Safety Precautions
Always read and follow these basic safety precautions carefully when handling
any piece of electronic component.
1. Keep this User Guide for future reference.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protects the
equipment from overheating.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into the opening that could damage or cause electrical
shock.
7. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work
according to User Manual
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
8. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60°C OR
BELOW -20°C, IT MAY DAMAGE THE EQUIPMENT.
ii
Hiermit erklärt Micro Star International CO., LTD dass sich dieses
Produkt in Übereinstimmung mit den grundlegenden Anforderungen
und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG
befindet.
Die Konformitätserklärung kann auf folgender website eingesehen
werden:
http://www.msi-technology.de/support/dl_man.php?Prod_Typ=9
Hereby, Micro Star International CO., LTD declares that this device is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
The respective Declaration of conformity can be found online:
http://www.msi-technology.de/support/dl_man.php?Prod_Typ=9
Europe: Frequencies: 2.400 –2.4835 GHz, 79 channels
France: Outdoor use limited to 10 mW within the band; Frequencies:
2.454 –2.4835 GHz, 23 channels
Italy: If used outside of own premises, general authorisation is required
Notified Countries:
Germany, UK, Netherlands, Belgium, Norway, Sweden, Denmark,
Finland, France, Italy, Spain, Austria, Iceland, Ireland, Portugal, Greece,
Luxemburg and Switzerland
BestimmungsgemäßeVerwendung:
Diese Produkt wird an den USB-Anschlußdes PC (oder Hub)
angeschlossen. Der USB Dongle verbindet PCs über eine
Funkverbindung. Es kann auch eine Funkverbindung zu anderen
geeigneten Bluetooth-Geräten hergestellt werden.
Prescribed use:
This is prepared to be connected to any USB-Port of PCs (or Hubs).
The USB Dongle sets up a radio link between to PCs. Additional it is
possible to link to any other Bluetooth device which stick to the
Bluetooth requirement.
iii
Hinweise zur Reichweite:
Der Abstand zwischen Sender und Empfänger (von einem
Bluetooth-Gerät zu einem Bluetooth-Gerät) hängt stark von der
Einsatzumgebung ab. Wände, Betonboden (Eisen), beschichtete
Fensterscheiben, Fahrzeug-Karosserie, etc..
Weitere Beeinflussungen:
- Hochfrequenzaussendungen jeder Art
-Gebäude, Bäume, etc.
- Heizkörper, Stahlbeton, etc.
- offen betriebene Computer, etc.
- Mikrowellenherde, etc,
Die Kommunikation zwischen unterschiedlichen Bluetooth-Geräten ist
von der jeweiligen Software und dem entsprechenden Versionsstand
abhängig
Operating range:
devices varies depending the specific environment. Walls, concrete
floor (iron), laminated windows, vehicle-body, etc..
The transmission range between different Bluetooth
More electromagnetic interferences:
- high frequency emission of any kind,
- Buildings, trees, etc.
- Heaters, ferroconcrete, etc.
- open computer systems, etc.
- Microwave oven, etc,
Communication (exchange data) is dependent on the software
concerned the Bluetooth devices.
iv

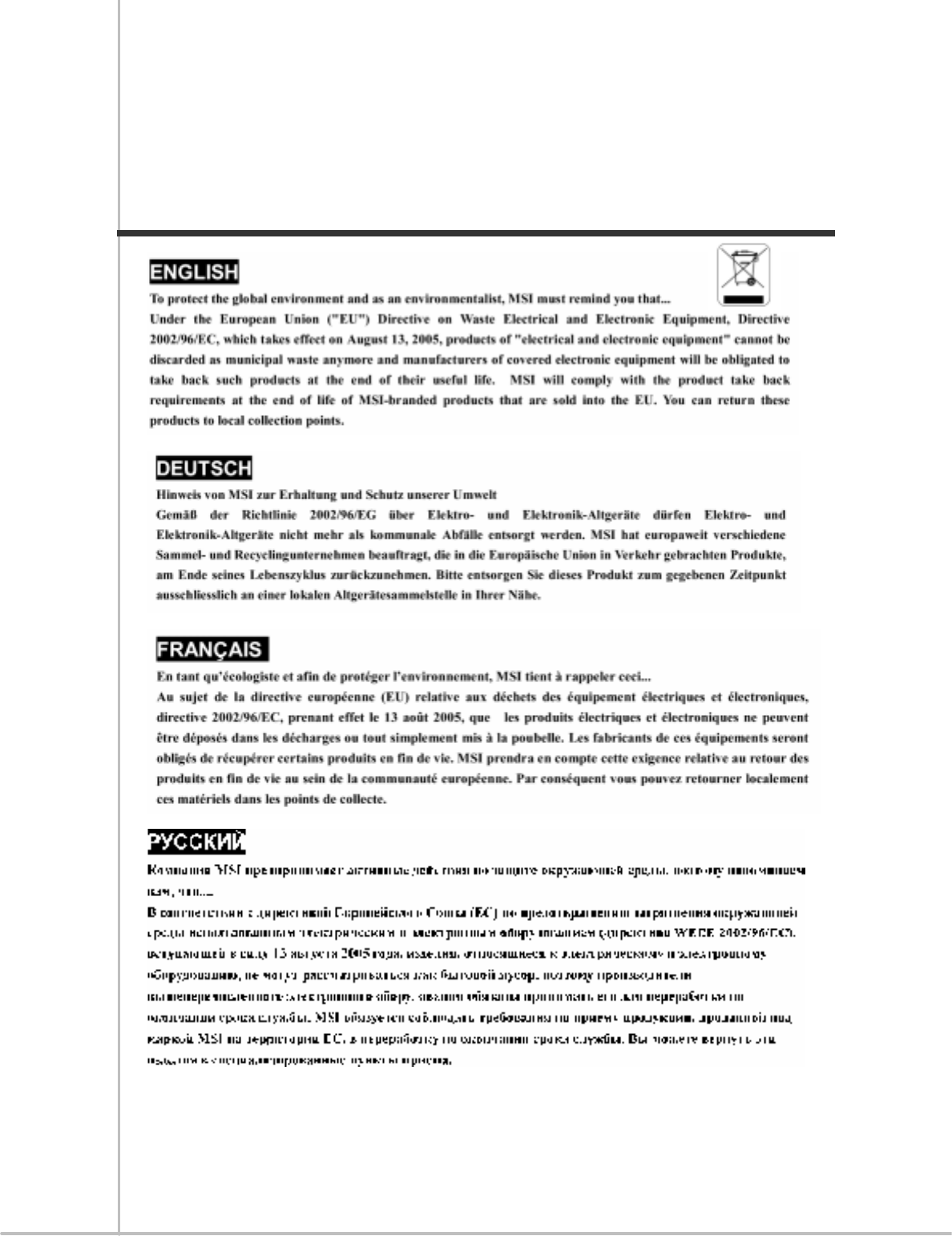

WEEE Statement
v
vi
1-1 1
ENGLISH
Chapter 1
1-2
MSI Stereo Headset FS310
FS310 is equipped with high quality Li-polymer
battery. You can charge battery by either connecting
accompanied cable to any available USB port on
PC/laptop or directly plug the USB cable into the
attached charger. The battery duration could be up to
7.5 hours of music listening after 3.5 hours of charging.
Please make sure of power sufficiency each time when
you are about to use FS310.

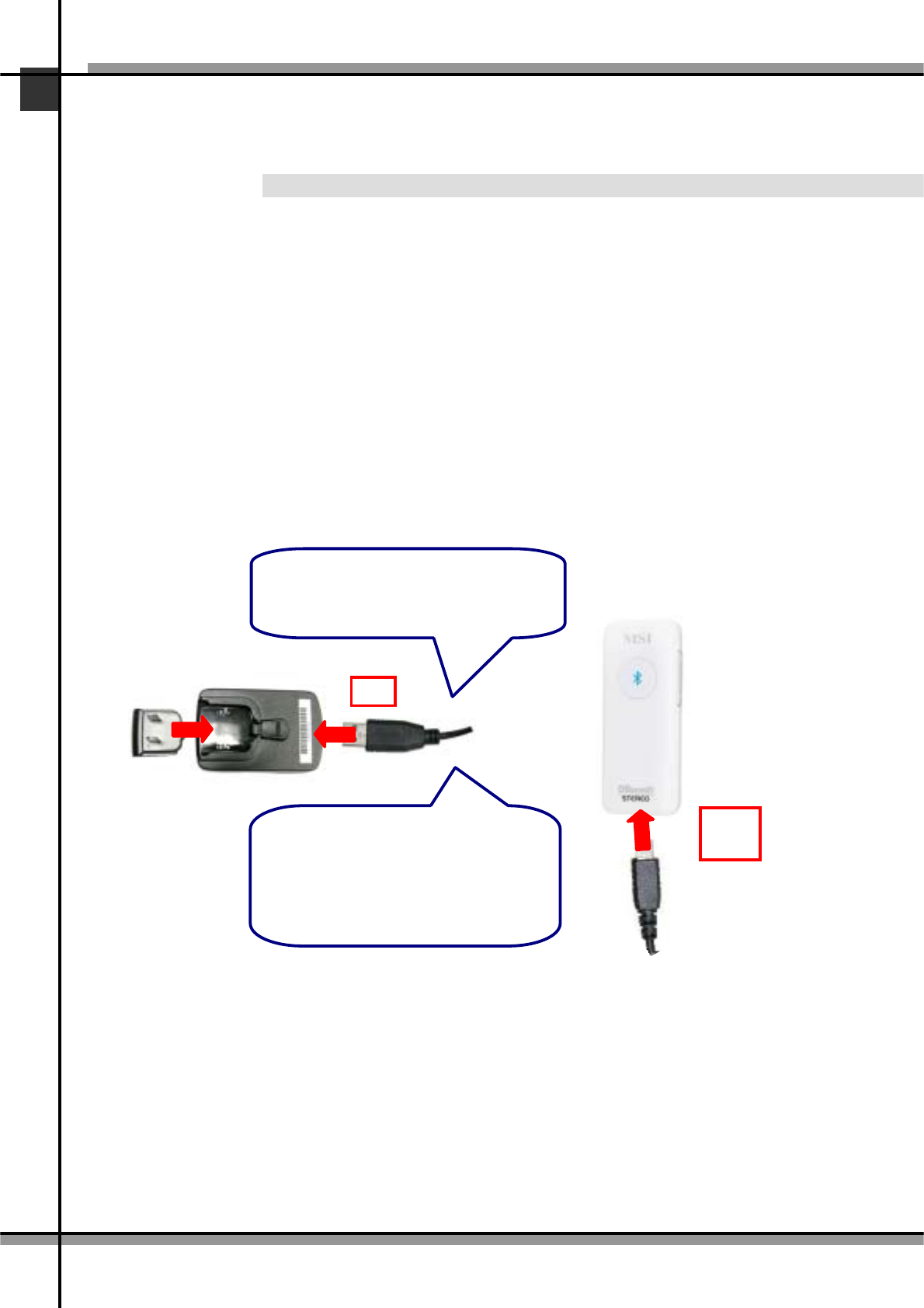

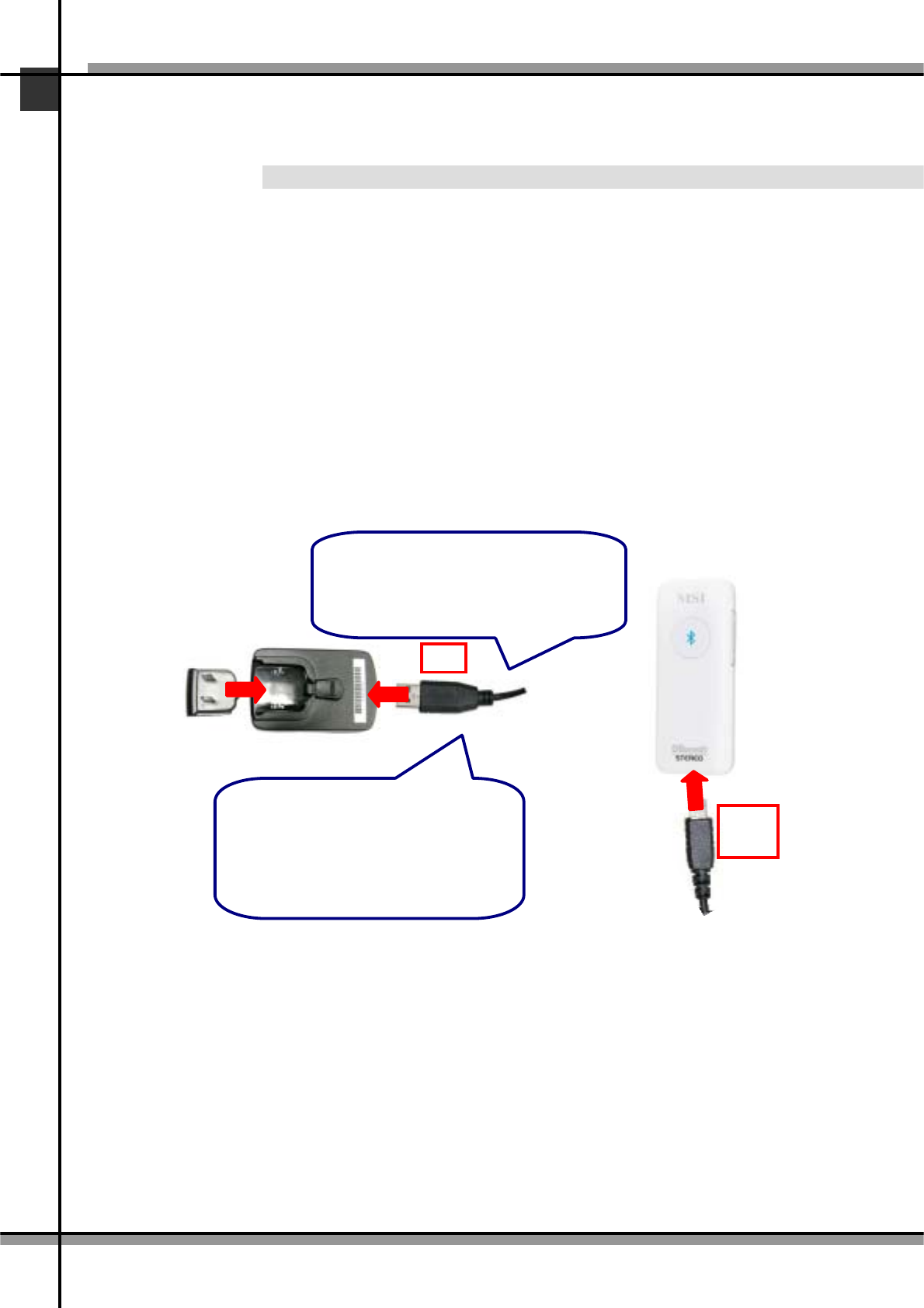

Please assemble the battery charger in either way:
Battery Charging
Plug USB connector to
charger,andminiUSBto
FS310, then
p
lu
g
the char
g
er to
r
eceptac
l
e
.
Or Plug USB connector to any
available USB ports on PC
if plugged , while mini USB to
FS310, plug the charger to
receptacle.
USB
Mini
USB
1-3
ENGLISH

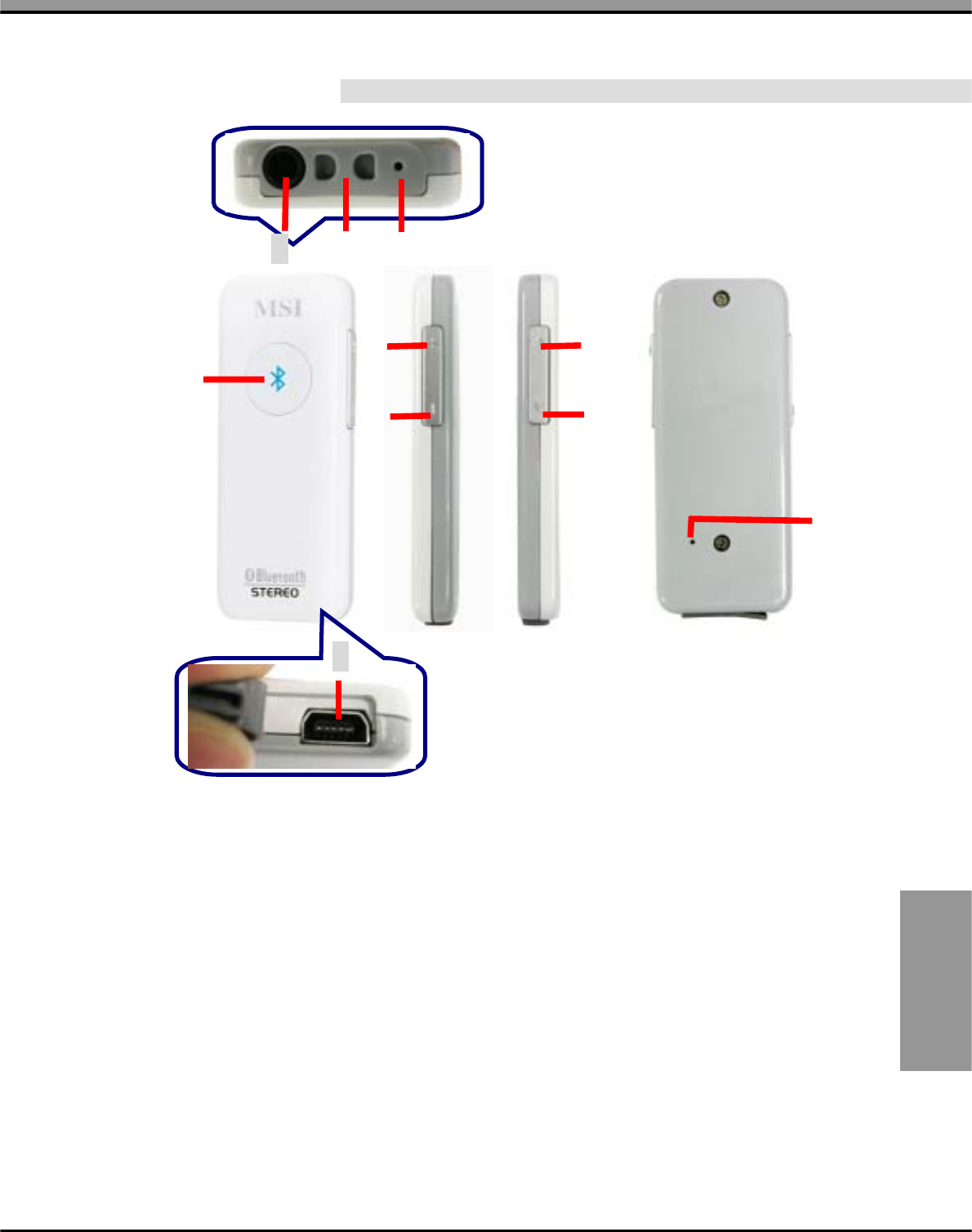

1. Function Button
(Power ON/OFF, answering/rejecting incoming calls)
2. +Volume Up
3. -Volume Dn
4. Forward/ Pick Up Skype
5. Backward/ Hang Up Skype
6. 3.5mm earpiece jack
7. Strap eyelet
8. Microphone
9. Battery Charging ( mini USB port )
10. Reset

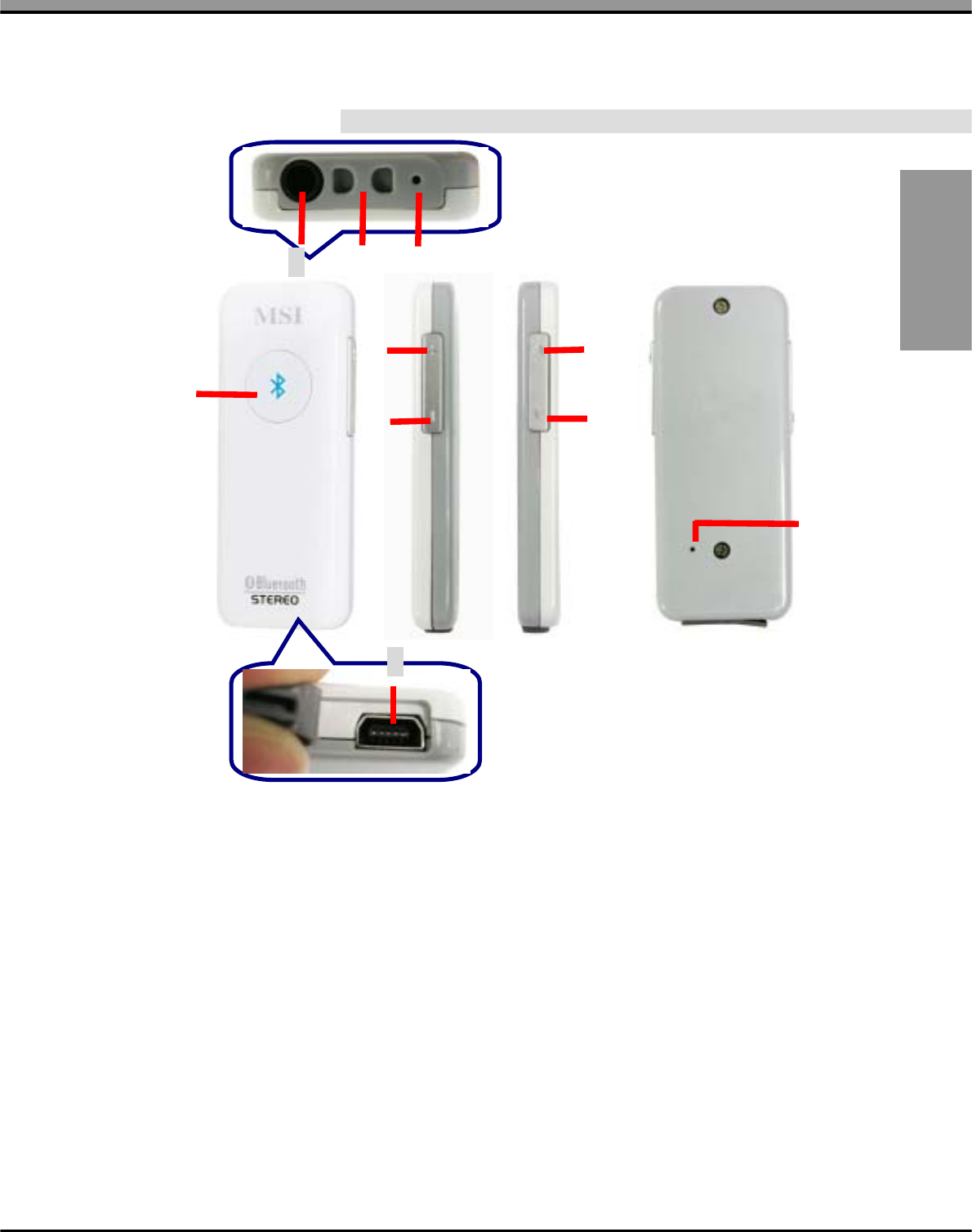

FS310 Button
10
12
3
4
5
Front
Right
Left
Bottom
Bac
k
Top
678
9
1-4
MSI Stereo Headset FS310
FS310 equipped with unique stereo software
system and built-in DSP solution delivers crystal clear
music as CD quality. Embedded noise canceling
microphone enhances audio quality by blocking out
background noises.

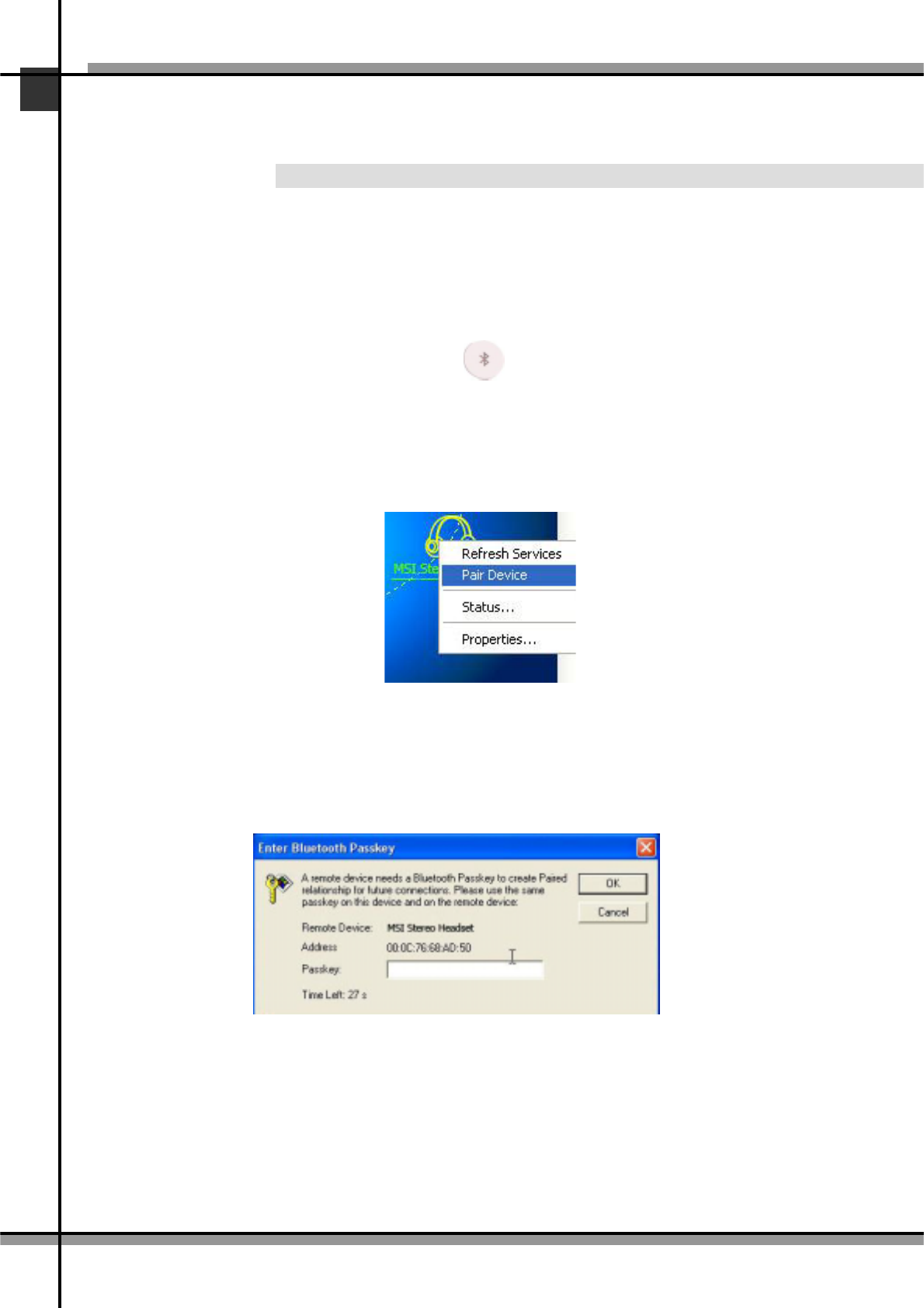

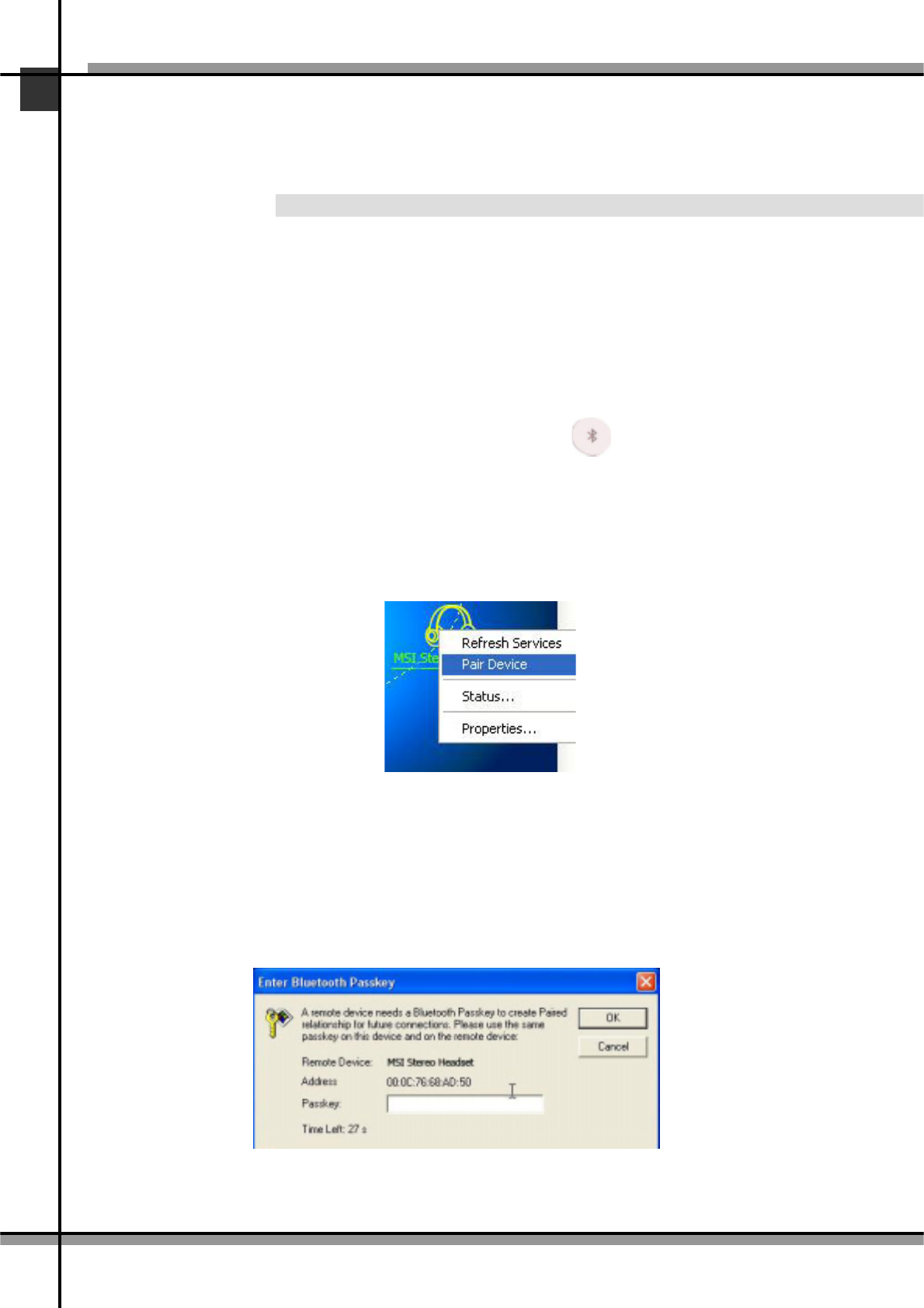

1. Press function button of FS310 to power on it.
FS310 will be in pairing mode by default, you can
search FS310 via Bluetooth software. MSI Stereo
Headset icon shall appear once searched, right-click
to select Pair Device.
You shall be prompted to enter Bluetooth passkey,
enter default passkey 0000, and then click OK to
complete pairing process. The LED indicator of
FS310 shall light up un-interrupted showing pairing
mode.
Listen to Music
1-5
ENGLISH

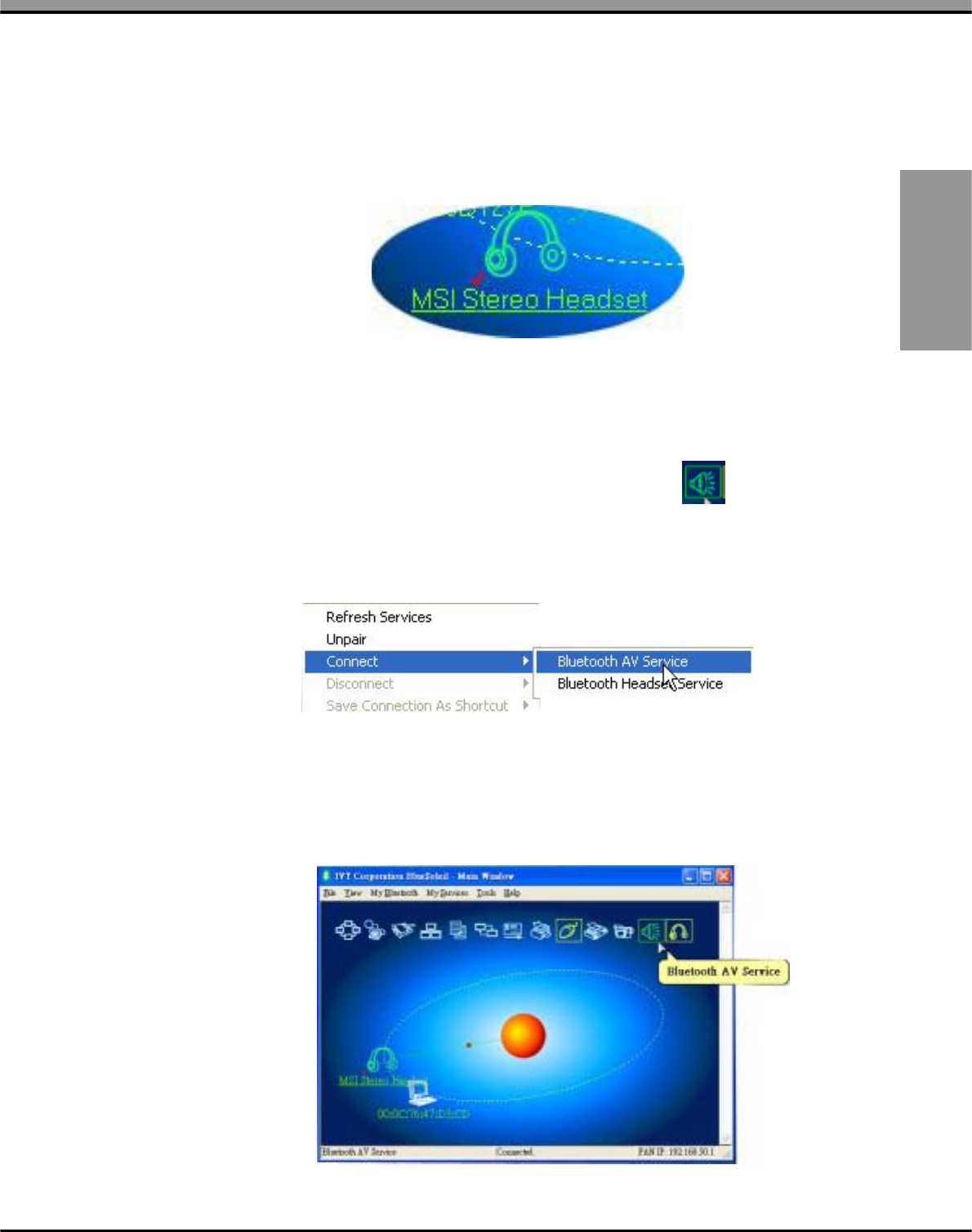

2. A red check shows by MSI Stereo Headset icon
indicates the successful pairing.

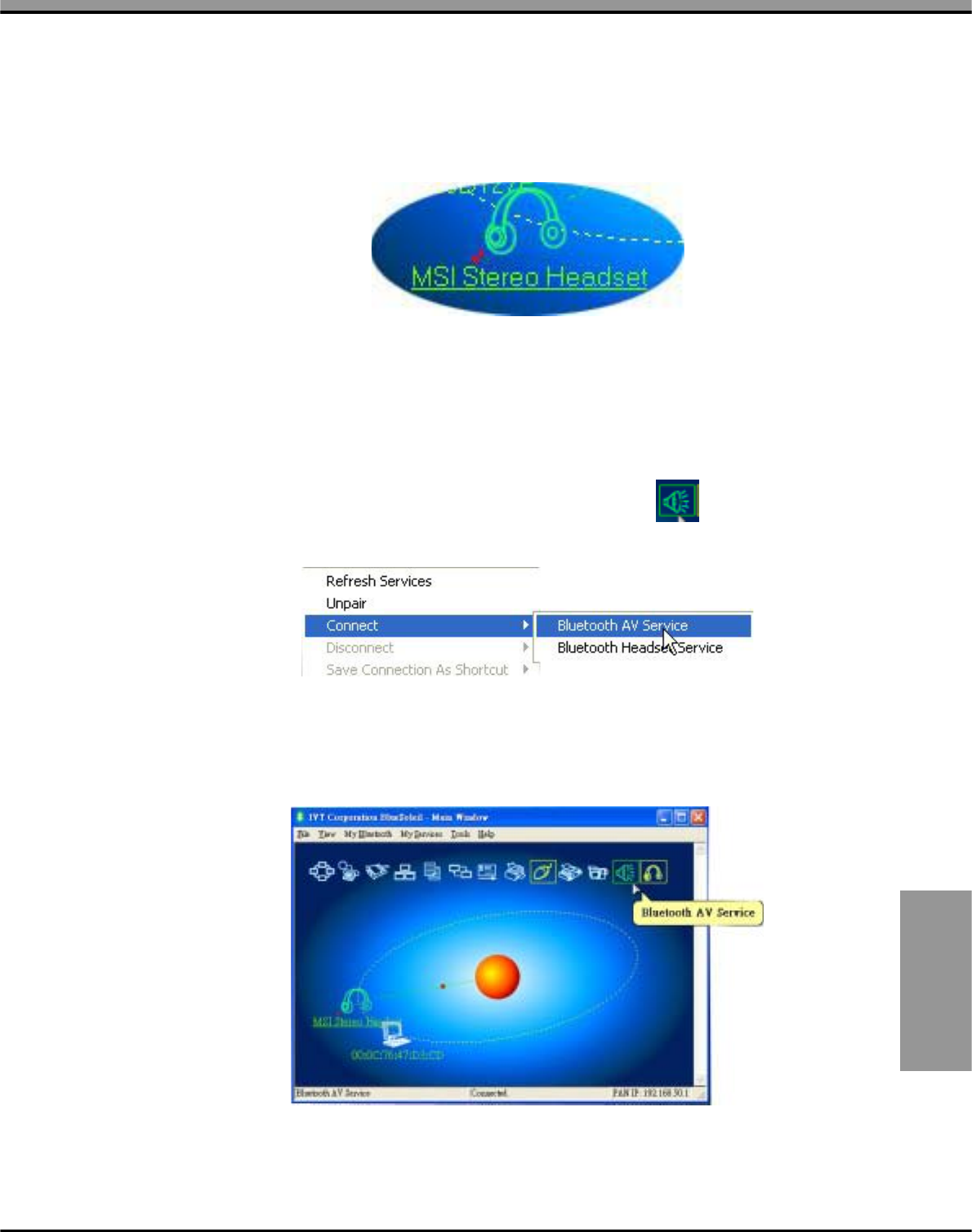

3. Right-click the FS310 (MSI Stereo Headset) icon,
then select Connect/Bluetooth AV Service to
enable BluetoothAV Service function. Or you may
click the Bluetooth AV Service icon on upper
side of the main screen instead to enable this
function.
4. A red dot moves back and forth between the sun
and MSI Stereo Headset icon signifying the
connection has been made.
1-6
MSI Stereo Headset FS310

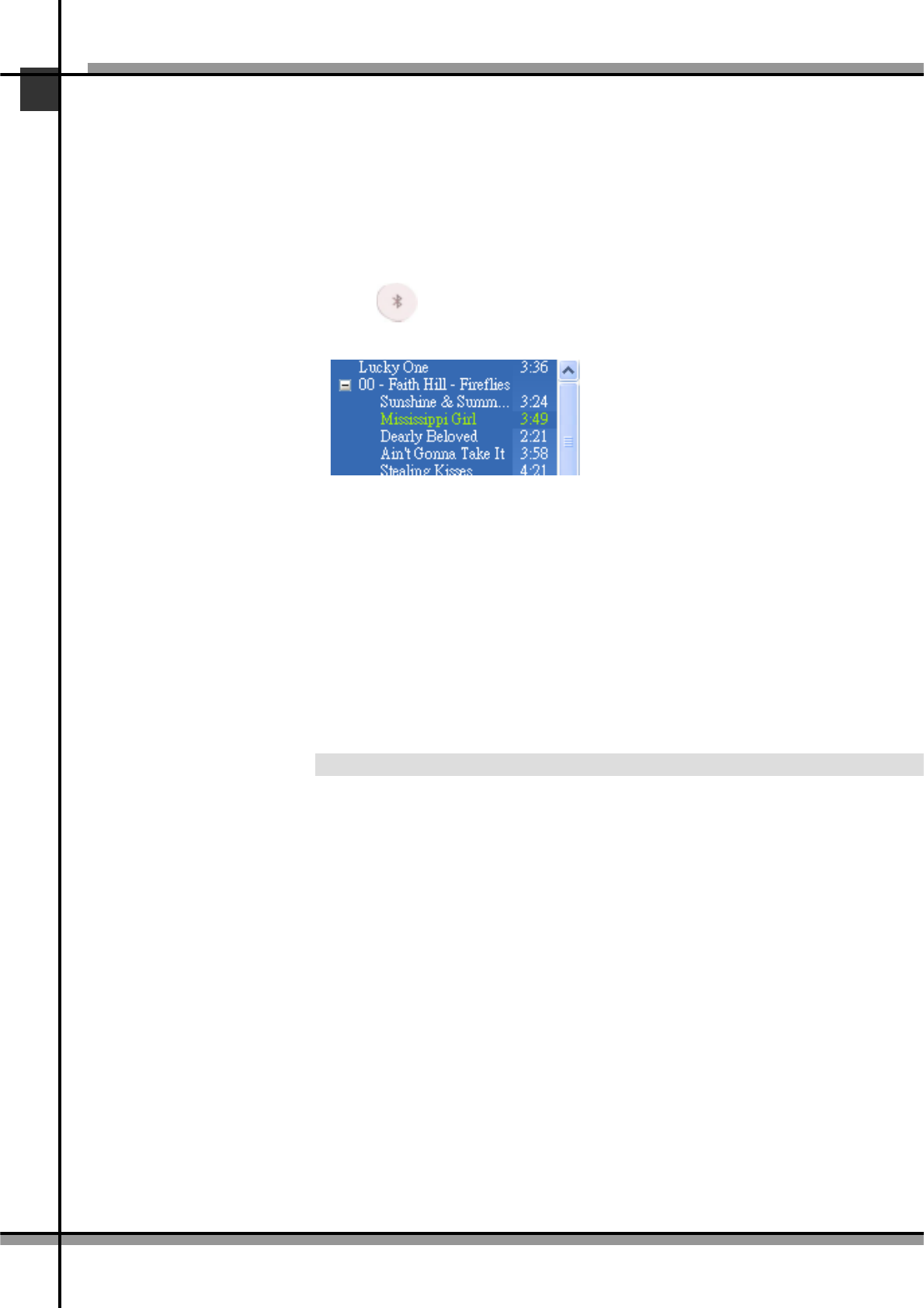

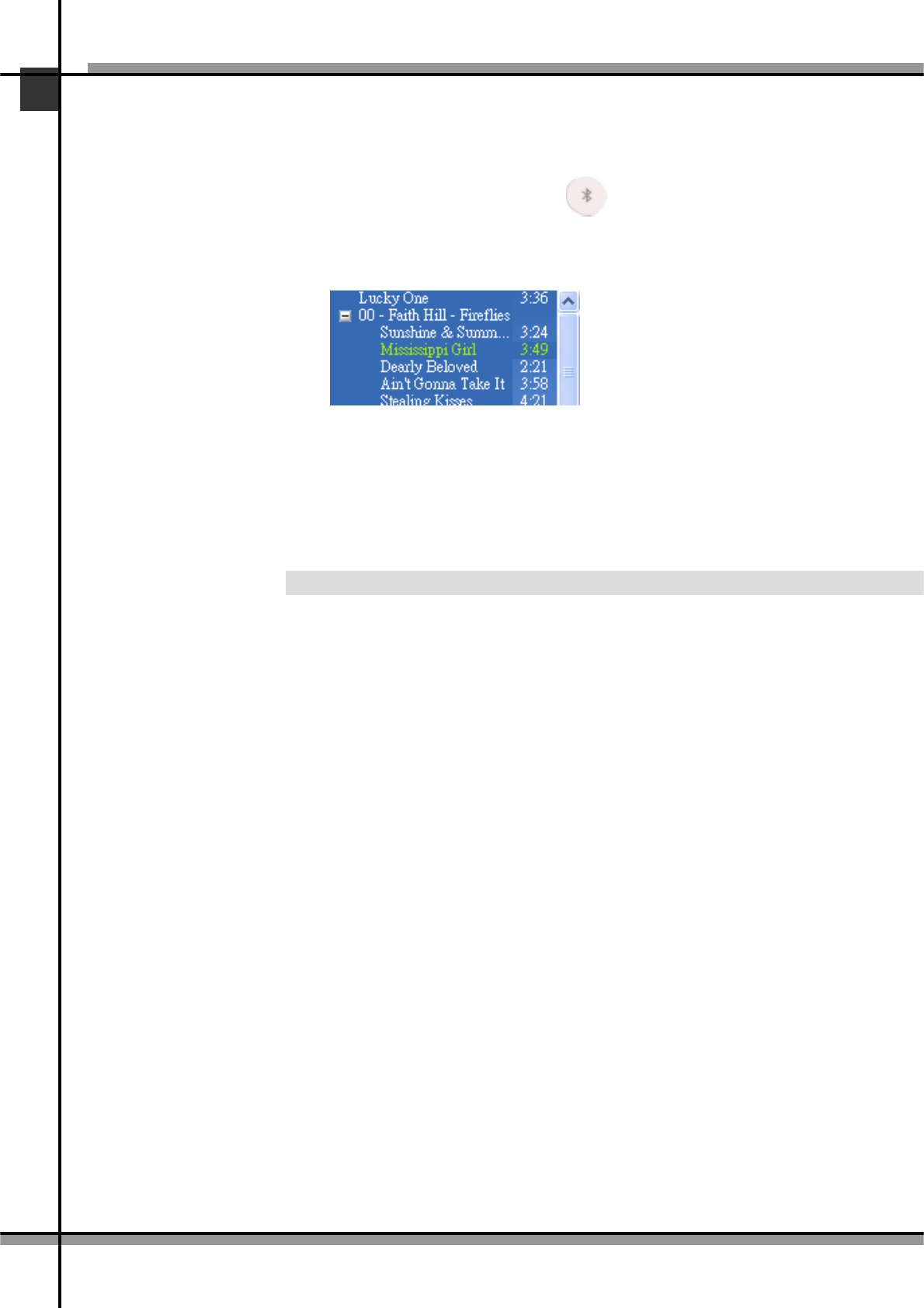

5. Following is an example of listening music via
Windows Media Player. Song volume and
sequence are adjustable by pressing play/pause,
volume up/down (+/-) or forward/backward
(<</>>) button on FS310 at your preference.
Note: IVT BlueSoleil Software supports only Windows Media
Player ,WinAmp and RealOne.
1. Before Connected --- Blue LED flashes always.
2. Under Usage --- Blue LED blinks 0.3 seconds in
every 4 seconds.
3. Low Battery and before connected --- Red LED
flashes always.
4. Low Battery and under connected status ---- Red
LED blinks 0.3 seconds in every 4 seconds.
5. Charging Status --- Orange LED shines, and shall stop
when finished.
LED Indication
1-7
ENGLISH
Before using FS310 together with your
Bluetooth-enabled cell phone, you need to have both
devices paired first.
1. Press function button for about 3 seconds.
2. The pass key of FS310 is “0000”.
3. After both devices have been successfully paired, the
function button of FS310 shall blink at a regular
interval.
Note:
Bluetooth setting might vary due to different brands
models involved. Please refer to your cell phone user
manual for details.
With this function, you won’t miss any important
calls and you may reject calls when you prefer not to be
disturbed by undesired calls.
1. As an incoming call arrives, a tone can be heard, and
the music you were listened to would be paused.
2. Press and release to answer an incoming call
3. Press more than 3 seconds to reject an incoming
call.
Answer/Reject An Incoming Call
Pairing With Bluetooth Cell Phone
1-8
MSI Stereo Headset FS310
1-11 1
16
16-2
MSI
FS310
FS310
USB
USB !"#$%&'()*#
# 3.5 +,-(./)*0 7.5
1234567 FS310 89:;<=>?
@AB
USB C!"D
EF USB FS310G
H#$!I>!$
USB C!
! USB "
EF USB I FS310
,:#$!I>!$
USB
EF
USB
16-3
1.
(
/
/
)
2. +
3. –
4.
/
Skype
5.
/
Skype
6. 3.5mm
7.
8.
!"#
9.
$
(
%&
USB
'(
)
10.
)*
12
3
4
5
10
FS310
678
9
16-4
MSI
FS310
FS310 JKLMNOPQORSDTU
DSP
34VWX CD 112
YZ[\]^%_1`a1
1. FS310 &>FS310
=J'QO
FS310HVMSI Stereo Headset
: Pair Device#
V!"#"$%`&,:#"$
%0000GH' OK ()J'*+FS310
LED ,-./01239J'
16-5
2. MSI Stereo Headset 45$%&'()62
J')
3. 7FS310 MSI Stereo Headset
GH Connect/Bluetooth AV Service8&
9 AV :;<=8'>?@
ABluetooth AV Service &
4. 7BCDE MSI Stereo Headset F9HG9
$%*+2H()
16-6
MSI
FS310
5. 87 Windows Media Player I 12J
KL! FS310 ,-/./012/34 (+/-) 5
678/8 (<</>>) M &NO
PQRST1UEV+
WXIVT BlueSoleil QOYZ[ Windows Media Player\WinAmp
8] RealOne
1. 9 --- ./^_` LED
2. : --- ` LED 54a&^_ 0.3 a
3. 946--- ./^_`LED
4. 46;<=>?---- `LED 54a&^_
0.3 a
5. >? --- ^`LED# ()H&
LED
16-7
7*9 FS310 J79;
)*J'
1. 3a
2. FS310 $%?0000
3. )J'HFS310 8=
F,F^_
@
.=.:
!*97"#
K&H.$%!&&'
4.()*+,=8-.ZI&
1. I&,II5A/70I12=
1,34
2. B7CD-E FG&
3. BH 3a8&.ZI&
/
16-8
MSI
FS310
