MSI MP11BGN (MS-6893)
Wireless 11b/g/n 2T3R MiniPCI Card
User’s Guide

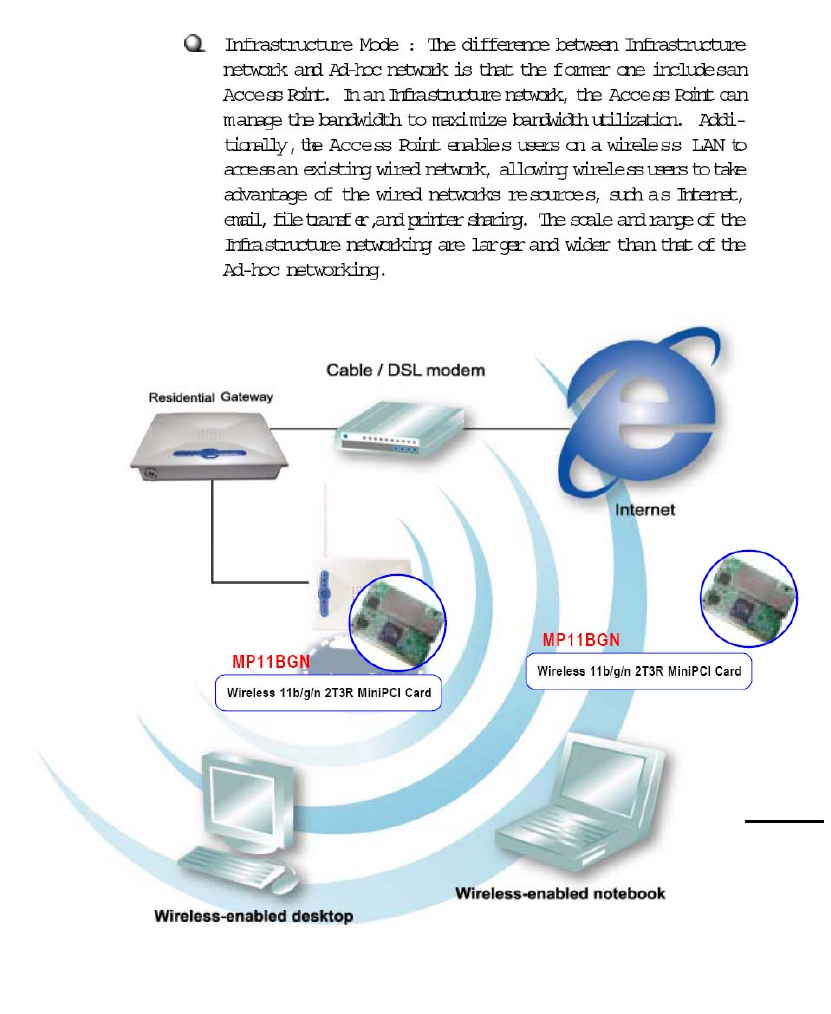

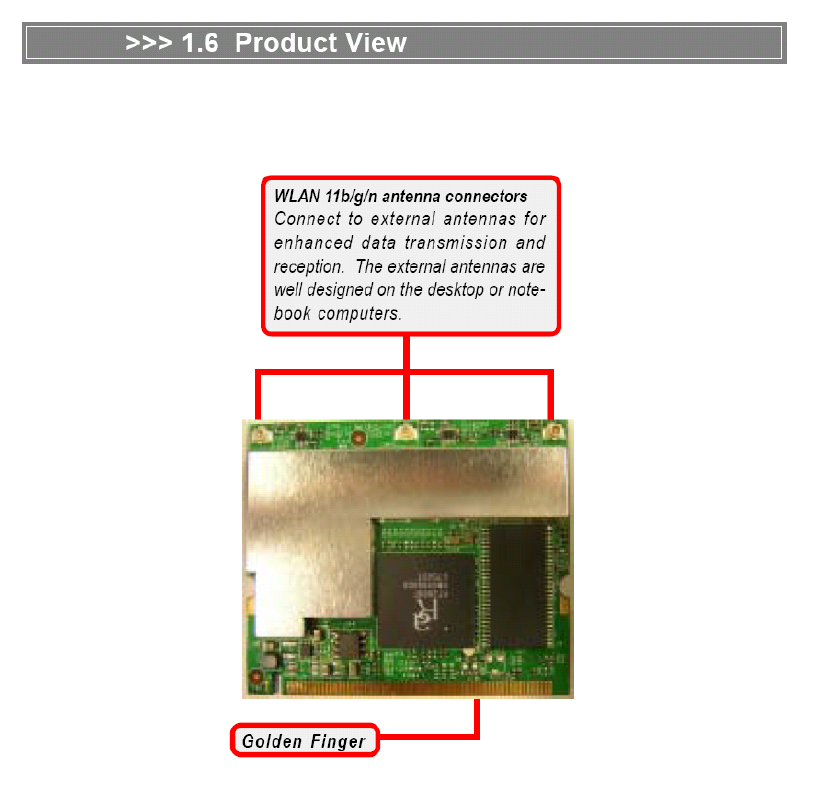

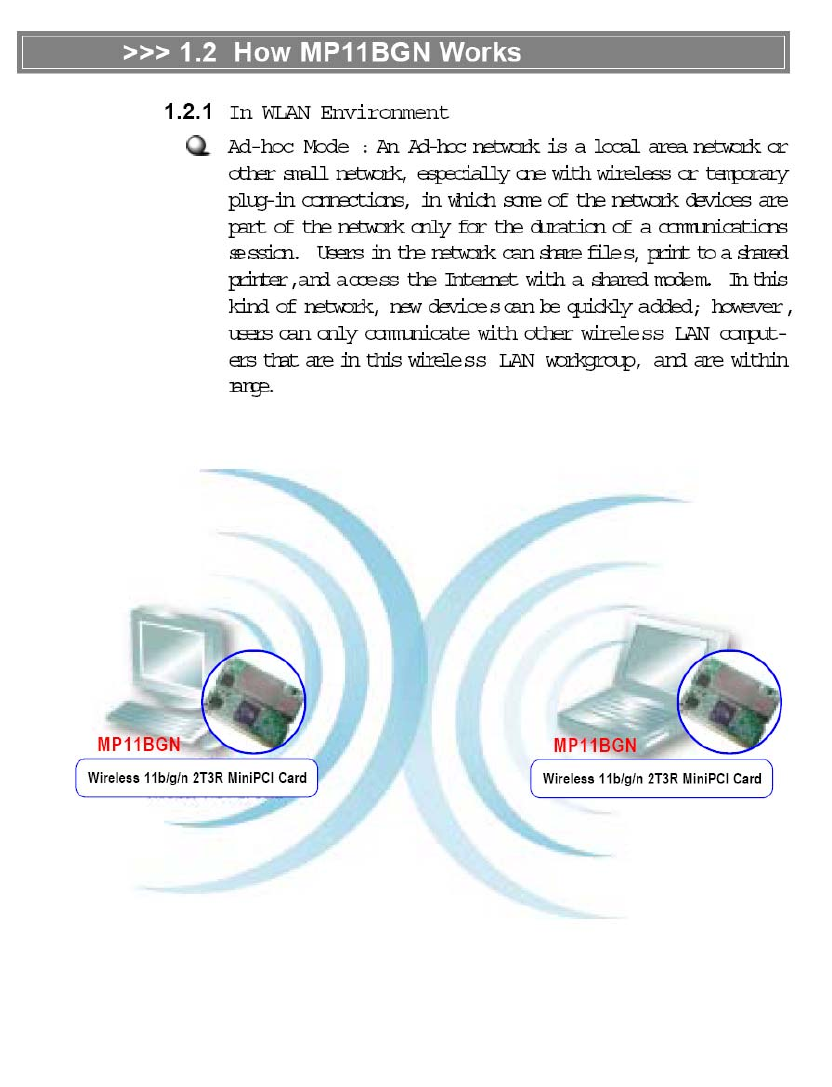

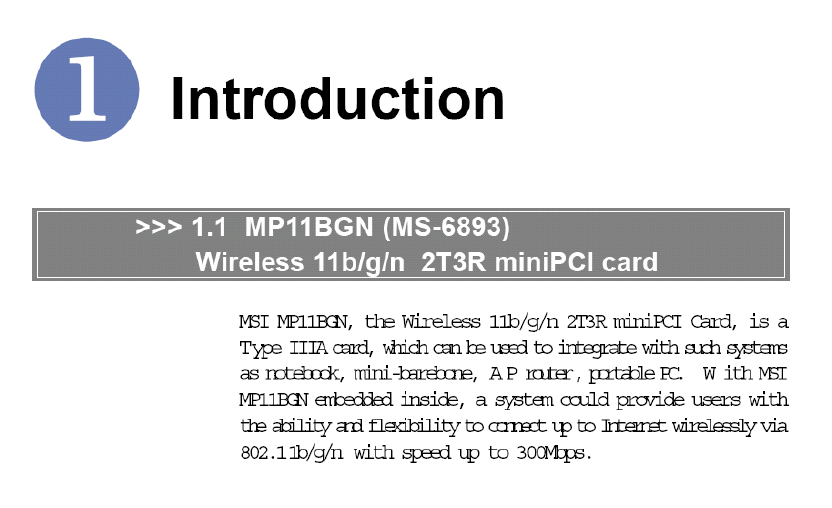

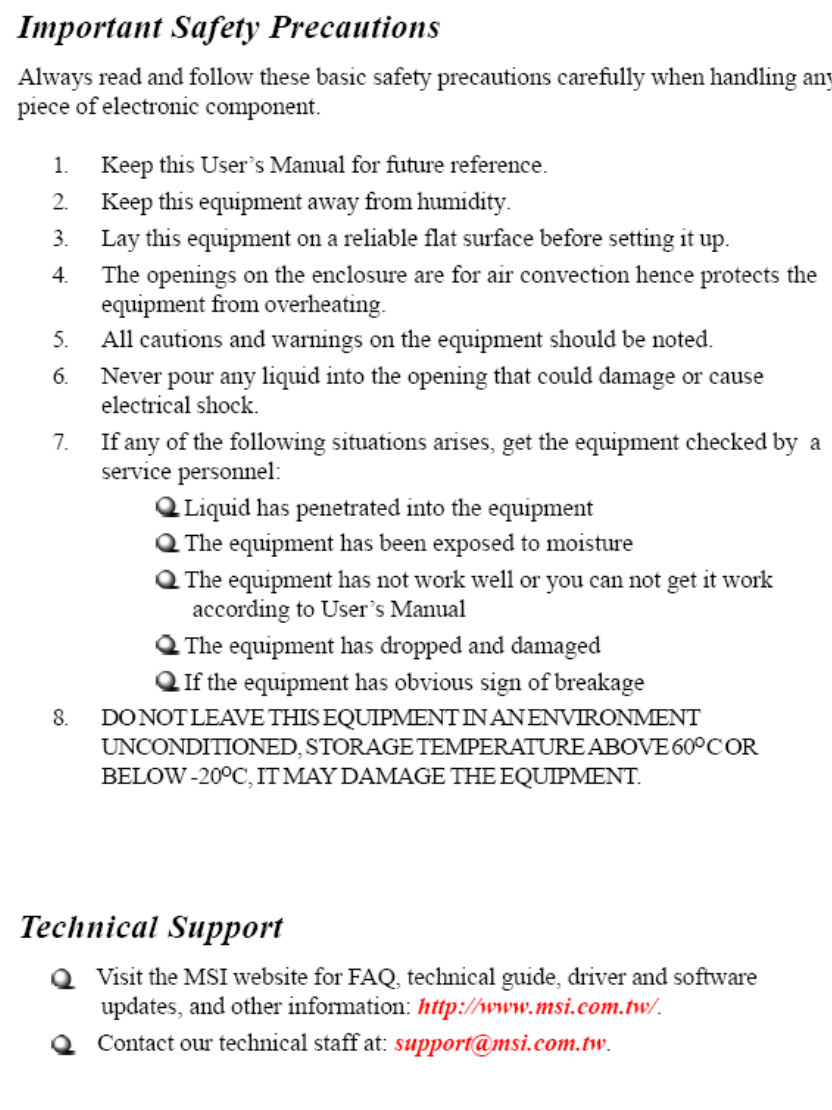

![](/img.php?id=971372&img=bg2.png)
![](/img.php?id=971372&img=bg3.png)
![](/img.php?id=971372&img=bg4.png)
![](/img.php?id=971372&img=bg5.png)
![](/img.php?id=971372&img=bg6.png)
![](/img.php?id=971372&img=bg7.png)
General specification
Network Standard IEEE 802.11n Draft 2.0
IEEE 802.11b
IEEE 802.11g
Frequency Band 2.400-2.4835 GHz
Form factor Mini PCI v1.0 TypeⅢA
Data Rate IEEE 802.11g (auto-fallback):
- OFDM: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
IEEE 802.11b (auto-fallback):
- CCK: 11, 5.5 Mbps
- DQPSK: 2 Mbps
-
DBPSK: 1 Mbps
IEEE 802.11n Draft 2.0 (auto-fallback):
-
OFDM: 6.5 to 300 Mbps (Follow MCS 0~15 standard)
Media Access Control
C
SMA/CA with ACK
IEEE 802.11g/n IEEE 802.11b
Ch. 1-11 – N. America Ch. 1-11 – N. America
Ch. 1-13 – Japan Ch. 1-14 – Japan
Ch. 1-13– Europe ETSI Ch. 1-13– Europe ETSI
Ch. 10-11 – Spain Ch. 10-11 – Spain
Channel
Ch. 10-13 – France Ch. 10-13 – France
Transmission IEEE 802.11b (DSSS)、IEEE 802.11g/n (OFDM)
Modulation IEEE 802.11b (DSSS):
CCK @ 11, 5.5 Mbps
DQPSK @ 2 Mbps
DBPSK @ 1 Mbps
IEEE 802.11n Draft 2.0 (OFDM):
OFDM @ 6.5 to 300 Mbps
(Follow MCS 0~15 standard)
IEEE 802.11g (OFDM):
BPSK @ 6, 9 Mbps
QPSK @ 12, 18 Mbps
16-QAM @ 24, 36 Mbps
64-QAM @ 48, 54 Mbps
Network Architecture Ad-Hoc Mode (Peer-to-Peer)
Infrastructure Mode
Antenna Type Three antenna RF connectors configuration
Temperature Operating Temperature 0° to 70°C

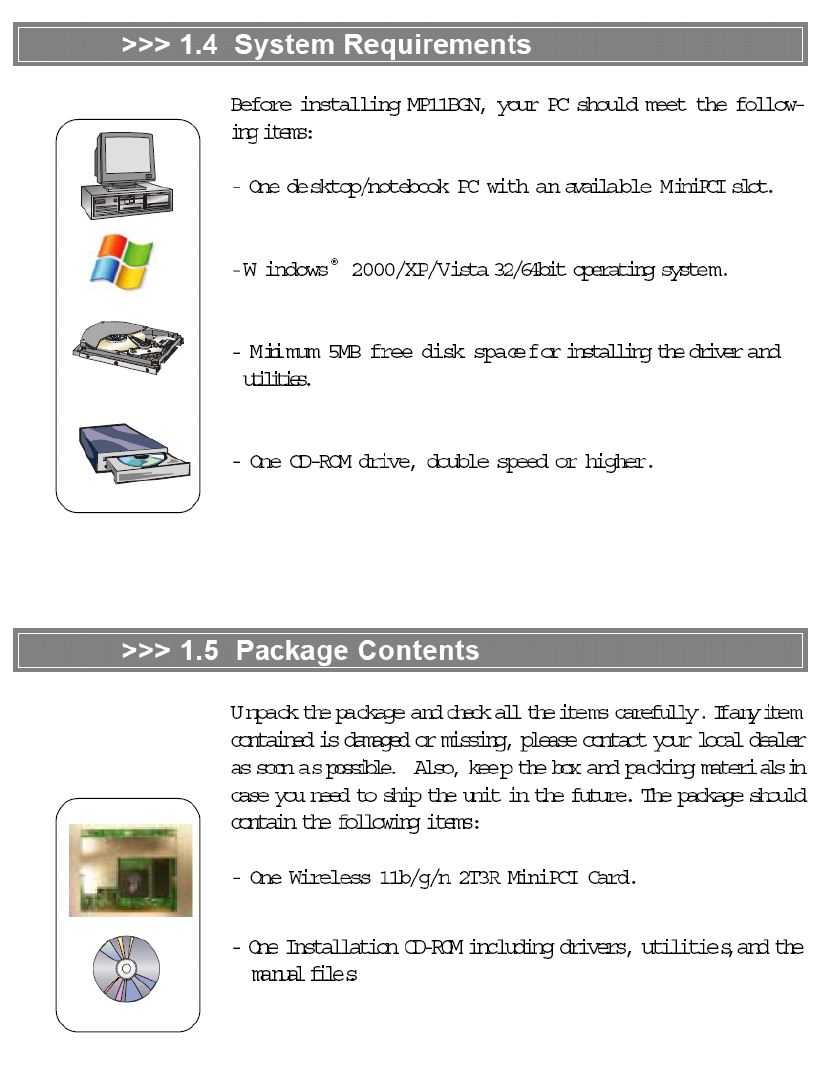

![](/img.php?id=971372&img=bg8.png)
Storage Temperature -20° to 100°C
Humidity 10%-90% (non-condensing)
802.11b (11Mbps):
660mA@3.3V in continue Tx / 520mA@3.3V in continue Rx
802.11g (54Mbps):
670mA@3.3V in continue Tx / 520mA@3.3V in continue Rx
802.11n Draft 2.0:
HT20MHz:740mA@3.3V in continue Tx / 520mA@3.3V in continue Rx
HT40MHz:740mA@3.3V in continue Tx / 520mA@3.3V in continue Rx
Power Consumption
330mA@3.3V in standby mode
Dimension 50.95*59.75*4.5mm
Weight 14g
Operating Voltage 3.3V+/-10%
Output Power (Peak Max) 802.11g (54Mbps): 20.0+/-1 dBm
802.11b (11Mbps): 23.0+/-1 dBm
802.11n Draft 2.0:
HT20MHz: 25.0+/-1 dBm / HT40MHz: 23.0+/-1 dBm
Output Power (Average Max) 802.11g (54Mbps): 15.0+/-1 dBm
802.11b (11Mbps): 15.0+/-1 dBm
802.11n Draft 2.0:
HT20MHz: 15.0+/-1 dBm / HT40MHz: 14.0+/-1 dBm
Error Vector Magnitude (EVM)
(Typical Value)
802.11g (54Mbps): <-25dB
802.11b (11Mbps): <35%
802.11n Draft 2.0: <-28dB
Receiver Sensitivity
(Typical Value)
802.11b (11Mbps): CCK @ 8% PER = -76 dBm
802.11g (54Mbps): OFDM @ 10% PER = -65 dBm
802.11n Draft 2.0:
HT20 @ 10% PER = -64 dBm / HT40 @ 10% PER = -61 dBm
Range Up to 400m (outdoor operating range)
Security 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1X, CCX

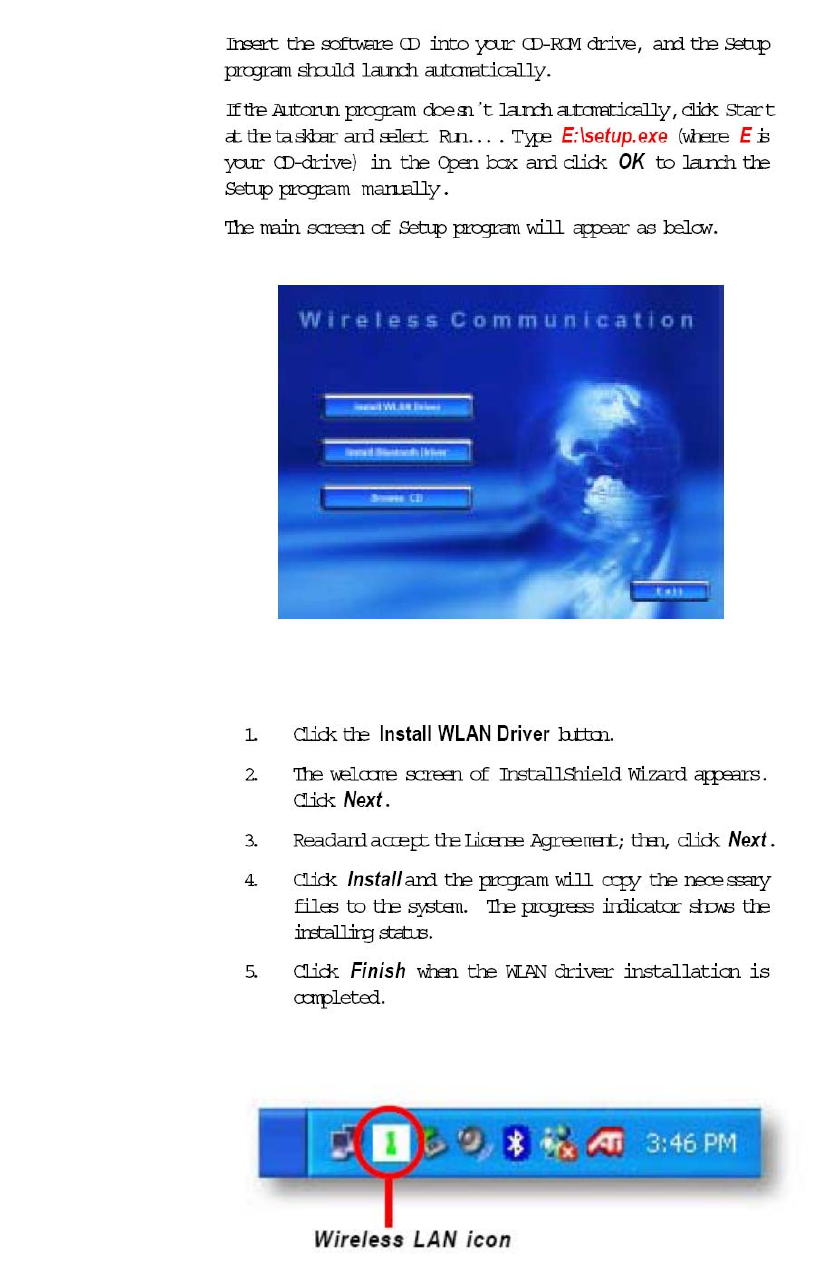

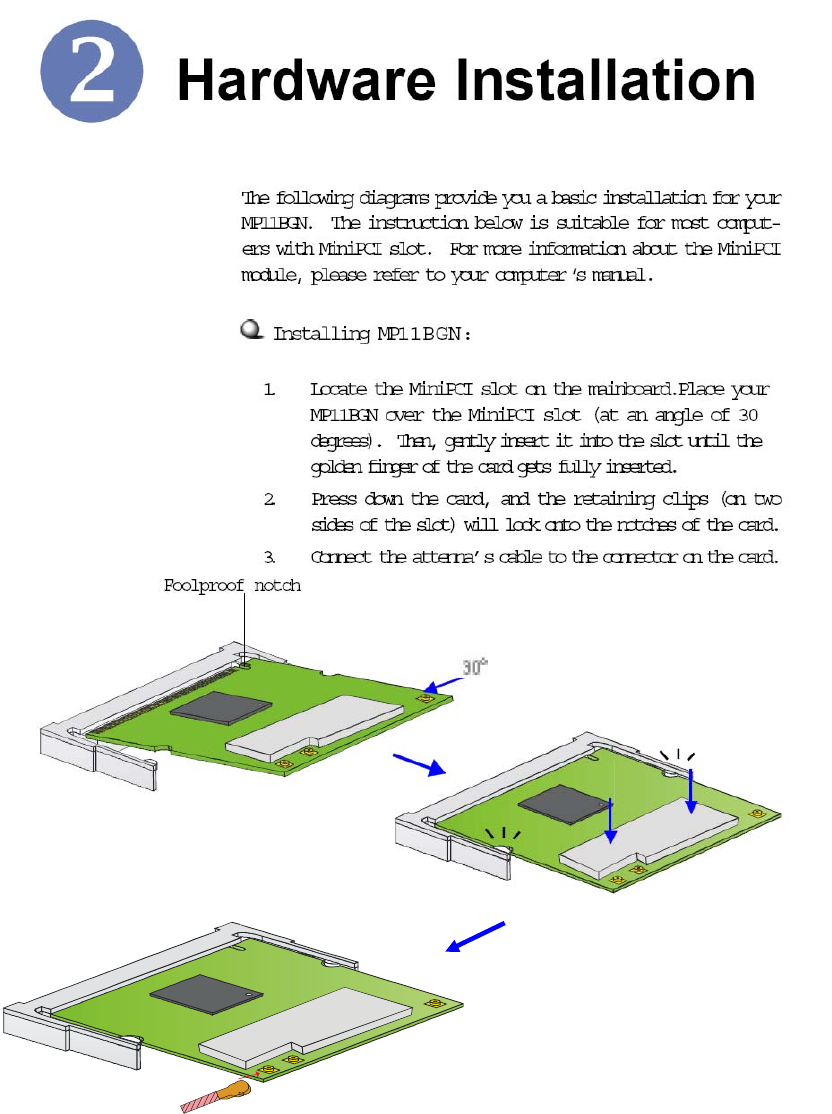

![](/img.php?id=971372&img=bg9.png)
![](/img.php?id=971372&img=bga.png)
![](/img.php?id=971372&img=bgb.png)
![](/img.php?id=971372&img=bgc.png)
![](/img.php?id=971372&img=bgd.png)

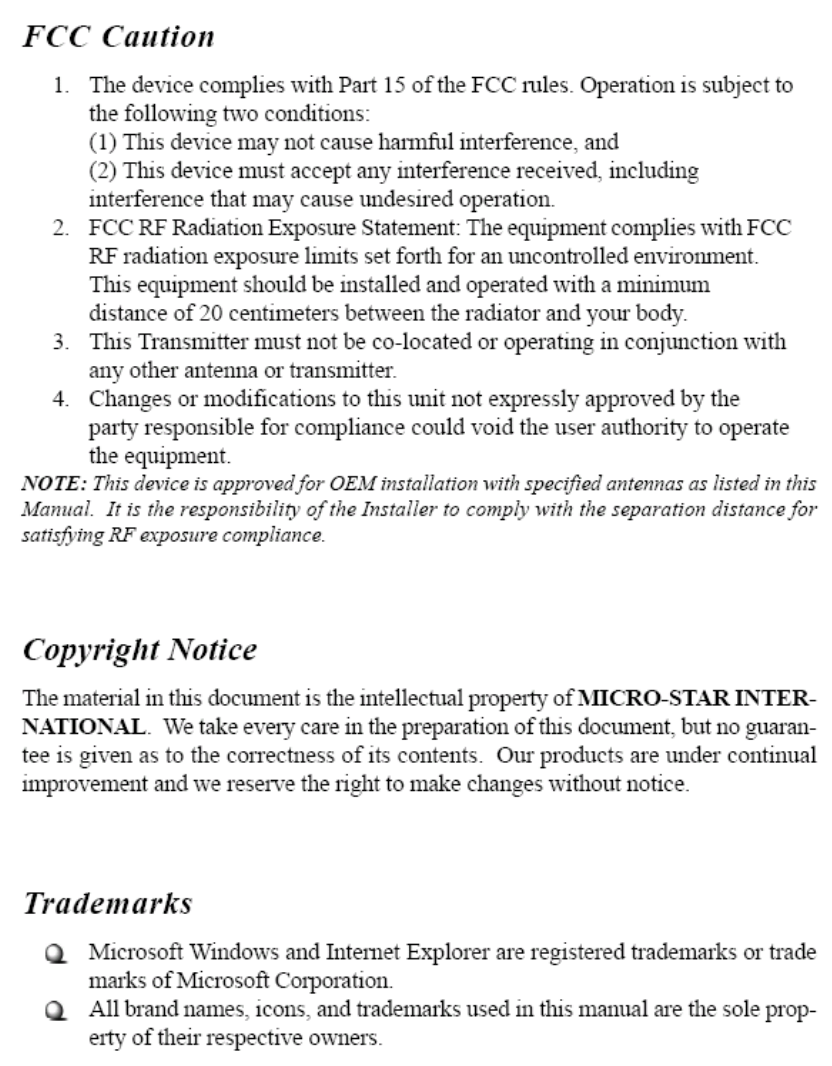

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
RF exposure warning ·
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
