Users Manual
Features
• Compliant with IEEE 802.11a standard
• Up to 26dBm output power with Built-in ESD Protection
• RF ESD/EMP Immunity Threshold: 15KeV ①
• Supports Atheros Proprietary "Super Mode" delivering up to 108 Mbps data link rate
• High efficiency dual-PA design
• High Performance combined with Low Power Consumption
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• Single MMCX/U.FL Antenna Connector
• Suitable for Embeded System or OEM Project
• Affordable and Ideal for a Variety of Applications

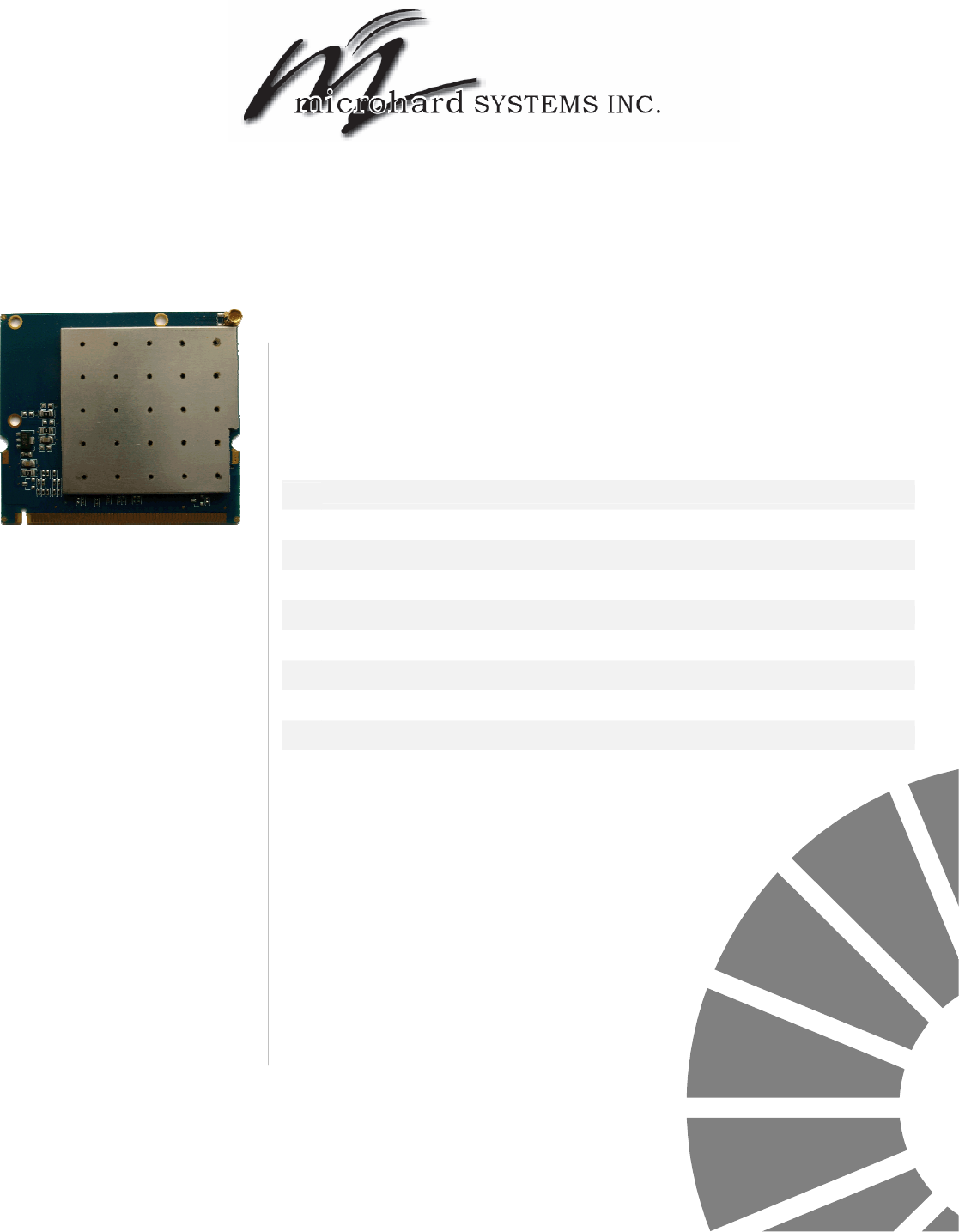

High Power MiniPCI 5.8GHz
XA58-26
Technical Specifications
Chipset Atheros AR54xx series（AR5414）
Host Interface 32-bit mini-PCI Type IIIA+ (1.85mm longer than IIIA type)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 3.5W
11a Cont. Rx 1.9W
Power
Consumption Standby 1.4W
Antenna
Connector 1 x MMCX
IEEE 802.11a: 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps Standards
Conformance Super-A: 108Mbps 96Mbps 72Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 6Mbps
Frequency
Range IEEE
802.11a 5.725 ~ 5.850 GHz (US & Canada)
Modulation
Techniques OFMD: BPSK, QPSK, 16-QAM, 64-QAM
Certification FCC, CE
ROHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90º
Humidity Operating: 5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6 x52.8x 5.5 mm
Weight 20 grams
WLM54A-26-ESD MINIPCI CARD RADIO
TX SPECIFICATIONS RX SPECIFICATIONS
5GHz 5600MHz
5700MHz
5785MHz
5825MHz Tolerance DataRate
Sensitivity
Tolerance
6Mbps 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 6Mbps -96dBm ±2dB
9Mbps 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 9Mbps -96dBm ±2dB
12Mbps 26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB 12Mbps -95dBm ±2dB
18Mbps
26dBm 26dBm 26dBm 26dBm +1.0/-1.5 dB
18Mbps
-88dBm ±2dB
26dBm 26dBm 26dBm 26dBm
+1.0/
-1.5 dB 24Mbps 24Mbps -86dBm ±2dB
36Mbps 24dBm 24dBm 24dBm 24dBm +1.0/-1.5 dB 36Mbps -83dBm ±2dB
48Mbps
23dBm 23dBm 23dBm 23dBm +1.0/-1.5 dB
48Mbps
-79dBm ±2dB
54Mbp
s 22dBm 22dBm 22dBm 22dBm +1.0/-1.5 dB
5GHz
54Mbps
-76dBm ±2dB
ADJUSTABLE CHANNEL SIZE SUPPORT
5MHz 10MHz 20MHz 40MHz
ESD CABLE SPECIFICATIONS
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
ORDERING INFORMATION②
CODES Version CARTON DIMENSIONS
WLM54A26ESD 8BS ESD For 50 pcs / carton,
0.45m*0.45m*0.24m/0.006=8.1KG
• Module grounding cable included
② Configurations are subjected to change without notice
Please contact Compex sales representatives for other available configurations
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
The Host system using XA58-26, should have label indicated "Contains FCC ID: NS912XA58-26"
IC warning
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
- French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
Exposure to Radio Frequency Radiation:
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provided with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
Transmitter Antenna
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
This radio transmitter (Model XA58-26, IC: 3143A-12XA5826) has been approved by
Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
The max antenna gain is 2.00 dBi for test
The Host system using XA58-26, should have label indicated "Contains IC: 3143A-12XA5826"

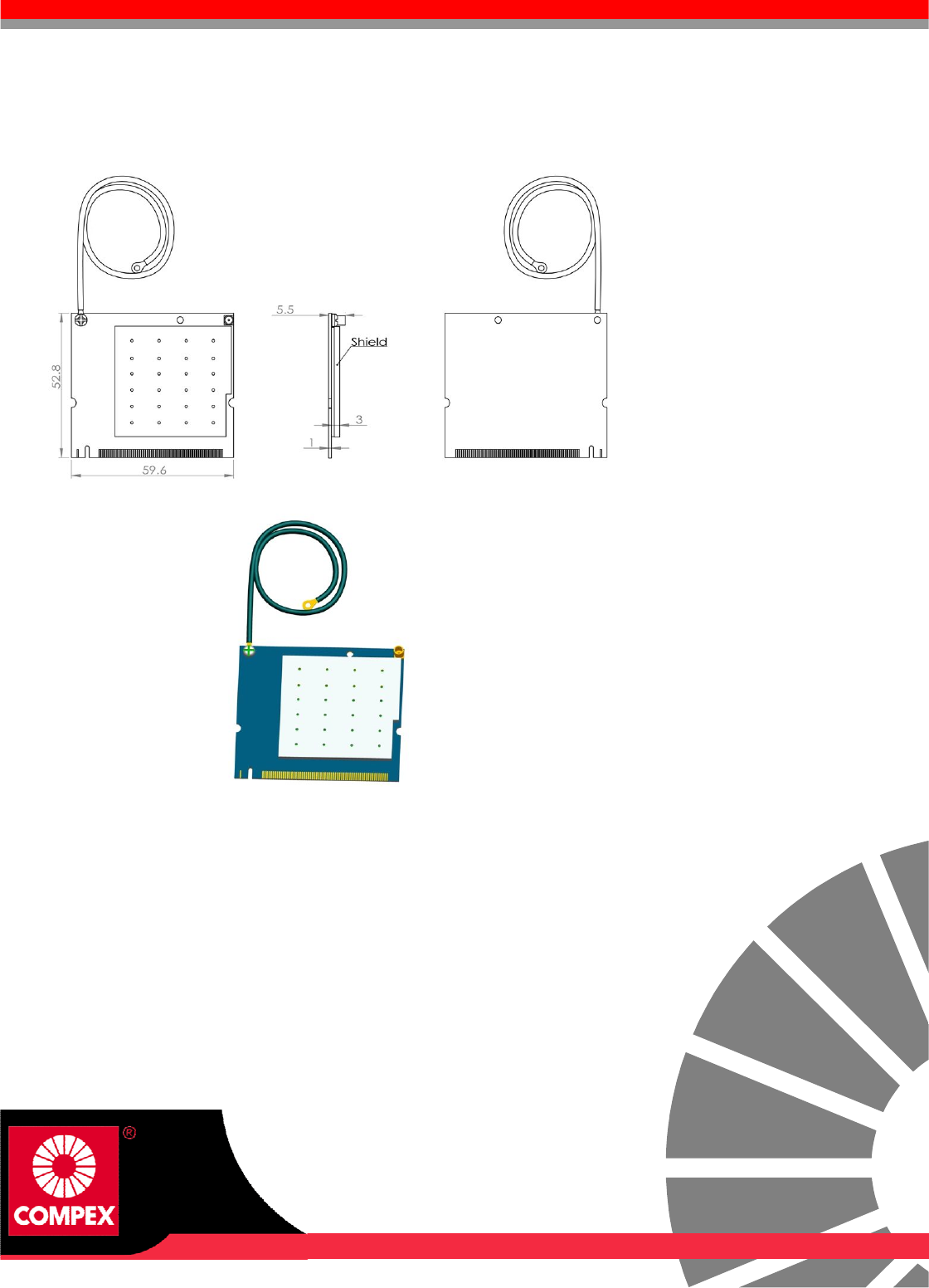

DIMENSIONS DRAWING
Compex Systems Pte., Ltd. Compex (Suzhou) Co., Ltd.
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.1.1 Rocky100528
