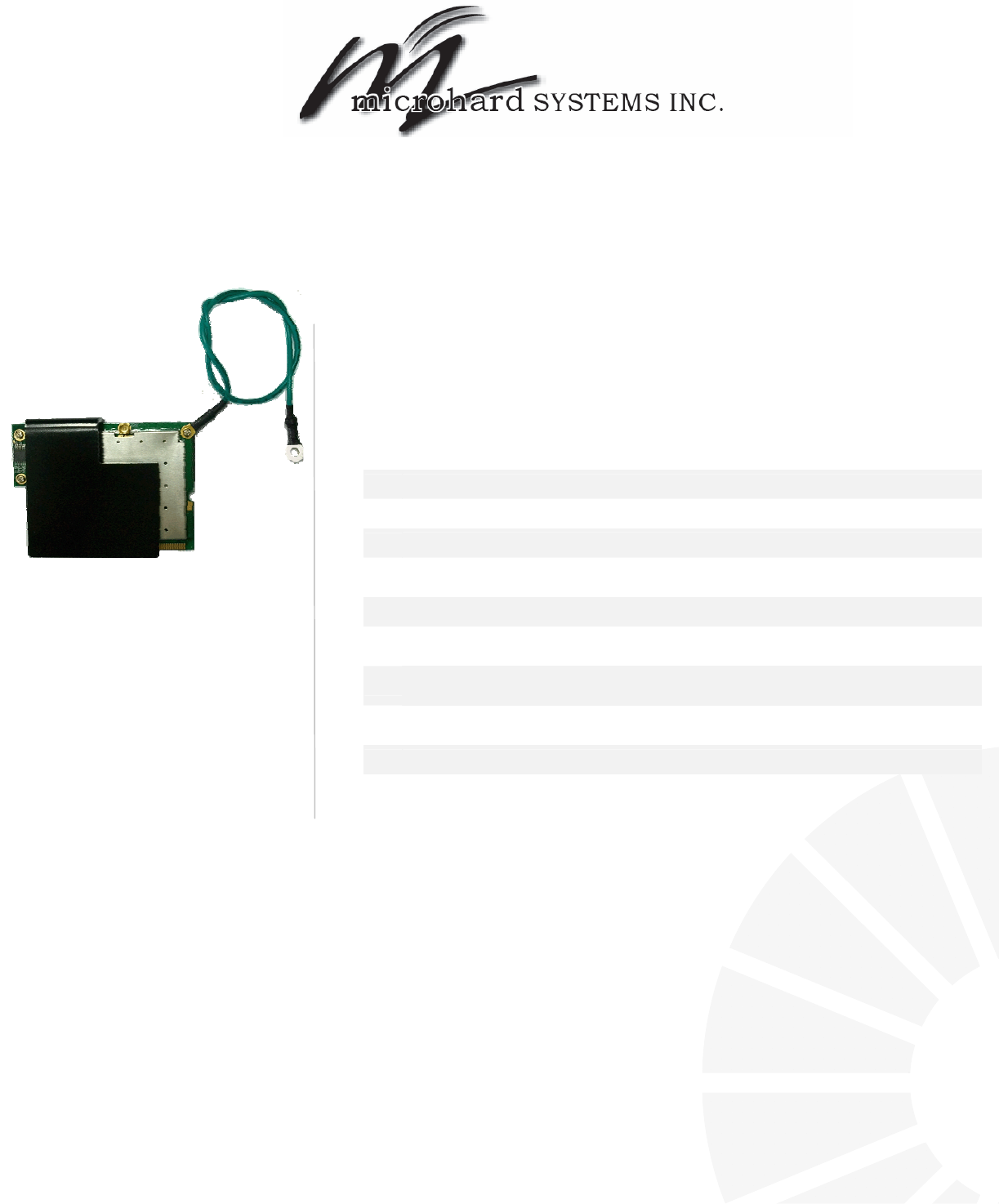

Microhard Systems 12XBG24-30 MiniPCI BG 1W 2.4GHz User Manual XBG24 30
Microhard Systems Inc MiniPCI BG 1W 2.4GHz XBG24 30
(XBG24-30) User Manual_20120413
Features
• IEEE 802.11 b/g standard compliant
• Output Power of up to 30dBm @ b/g Band with built-in ESD Protection
• RF ESD/EMP Immunity Threshold: 15KeV ①
• Supports Atheros Proprietary "Super Mode" deliverin
g
up to 108 Mbps data link
rate
• Transmission Power Control (IEEE 802.11h TPC)
• Extended distances and high performance due to optimized output signal
power
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization
Standard)
• Single MMCX antenna connector allowin
g
for improved mechanical stability and
low loss
• Ideal for long-distance, outdoor broadband wireless applications
MiniPCI BG 1W 2.4GHz
X
BG24-30
TECHNICAL SPECIFICATIONS
Chipset Atheros 2414
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3 VDC
11b Cont. Tx@5.5M 5.0W
11g Cont. Tx@6M 5.5W
11g Cont. Rx 2.5W
Power
Consumption Standby 1.5W
Antenna
Connector 1×MMCX (main)
IEEE 802.11b： 11Mbps 5.5 Mbps 2 Mbps 1 Mbps
IEEE 802.11g: 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
Data Rates Super-G: 108Mbps 96Mbps 72Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 6Mbps
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
Frequency
Range IEEE 802.11b/g: 2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFMD: BPSK, QPSK, 16-QAM, 64-QAM
DSSS: DBPSK, DQPSK, CCK
Certification FCC
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40 ºC to 90 ºC
Humidity Operating: 5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimensions 64.3 mm x 47 mm x 14 mm
XBG24-30 MINIPCI CARD RADIO SPECIFICATIONS
TX SPECIFICATIONS RX SPECIFICATIONS
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 30dBm +1.0/-1.5 dB 1Mbps -96dBm ±2dB
2Mbps 30dBm +1.0/-1.5 dB 2Mbps -93dBm ±2dB
5.5Mbps 30dBm +1.0/-1.5 dB 5.5Mbps -91dBm ±2dB
802.11b
11Mbps 30dBm +1.0/-1.5 dB
802.11b 11Mbps -90dBm ±2dB
6Mbps 30dBm +1.0/-1.5 dB 6Mbps -93dBm ±2dB
9Mbps 30dBm +1.0/-1.5 dB 9Mbps -90dBm ±2dB
12Mbps 30dBm +1.0/-1.5 dB 12Mbps -89dBm ±2dB
18Mbps 30dBm +1.0/-1.5 dB 18Mbps -87dBm ±2dB
24Mbps 30dBm +1.0/-1.5 dB 24Mbps -84dBm ±2dB
36Mbps 28dBm +1.0/-1.5 dB 36Mbps -80dBm ±2dB
48Mbps 27dBm +1.0/-1.5 dB 48Mbps -76dBm ±2dB
802.11g
54Mbps 25dBm +1.0/-1.5 dB
802.11g
54Mbps -74dBm ±2dB
ESD CABLE SPECIFICATIONS
Physical Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
ORDERING INFORMATION②
CODES SPEED Carton Dimensions
XBG24-30
Up to 108 Mbps For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
① Comes with grounding cable
② Configurations are subject to change without notice

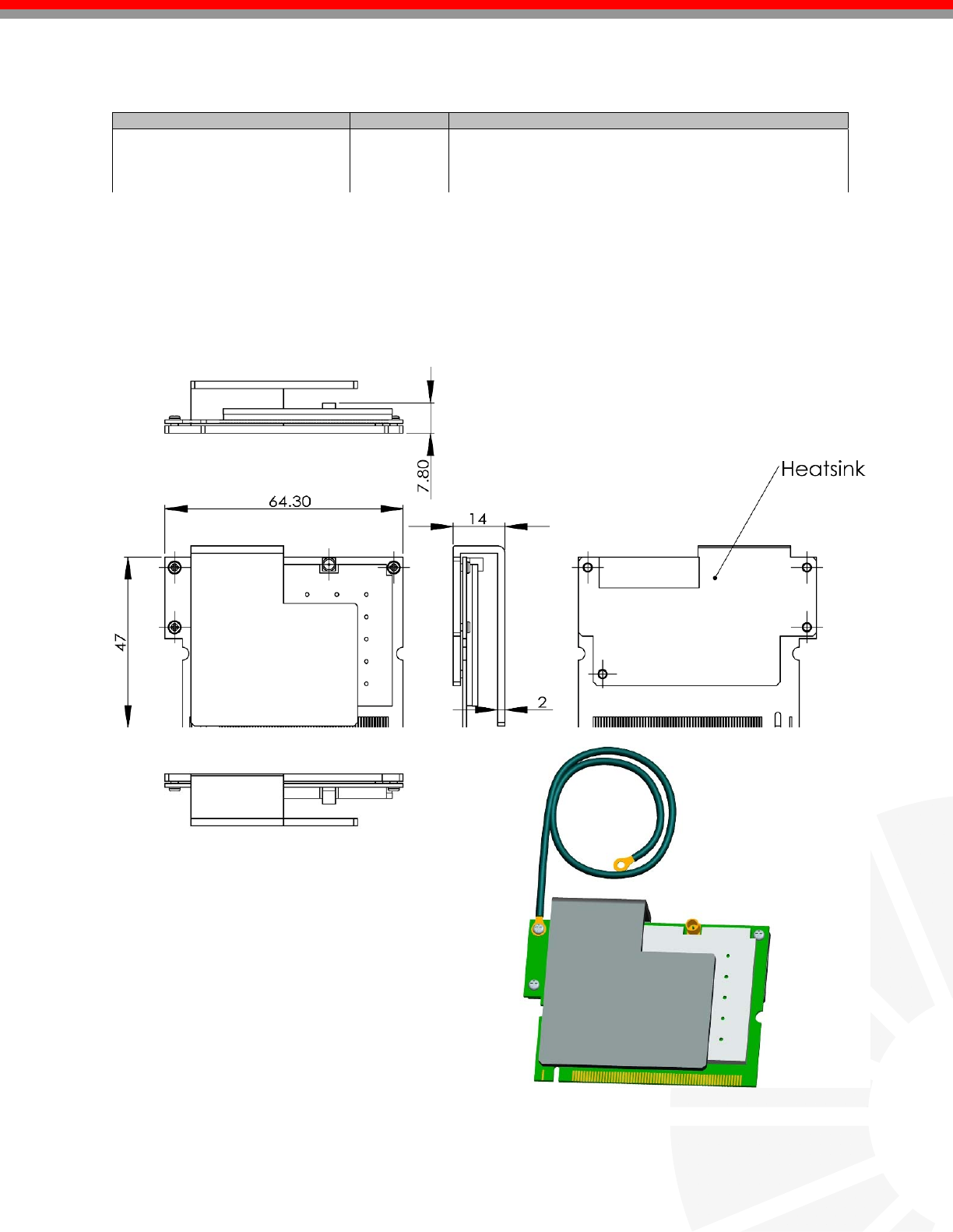

DIMENSIONS DRAWING
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
NOTE:
(1) This device is approved for OEM installation with specified antennas as
listed in this Manual. It is the responsibility of the Installer to comply with the
separation distance for satisfying RF exposure compliance.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
IC Radiation Exposure Statement for Canada:
This device complies with Industry Canada licence-exempt RSS standard(s).
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This radio transmitter (identify the device by certification number, or model number if Category II)
has been approved by Industry Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
(1) the modules FCC ID is notvisible when installed in the host, or
(2) if the host is marketed so that end users do not havestraightforward commonly used
methods for access to remove the module so that the FCC ID ofthe module is visible;
then an additional permanent label referring to the enclosed module:Contains
Transmitter Module
FCC ID : NS912XBG24-30
or Contains FCC ID: NS912XBG24-30mustbe used.
Microhard Systems Inc
Address: 150 Country Hills Landing NW Calgary Alberta Canada
Contact Name: Hany Shenouda
Tel. No: 403-248-0028
Fax No: 403-248-2762
Email: shenouda@microhardcorp.com
