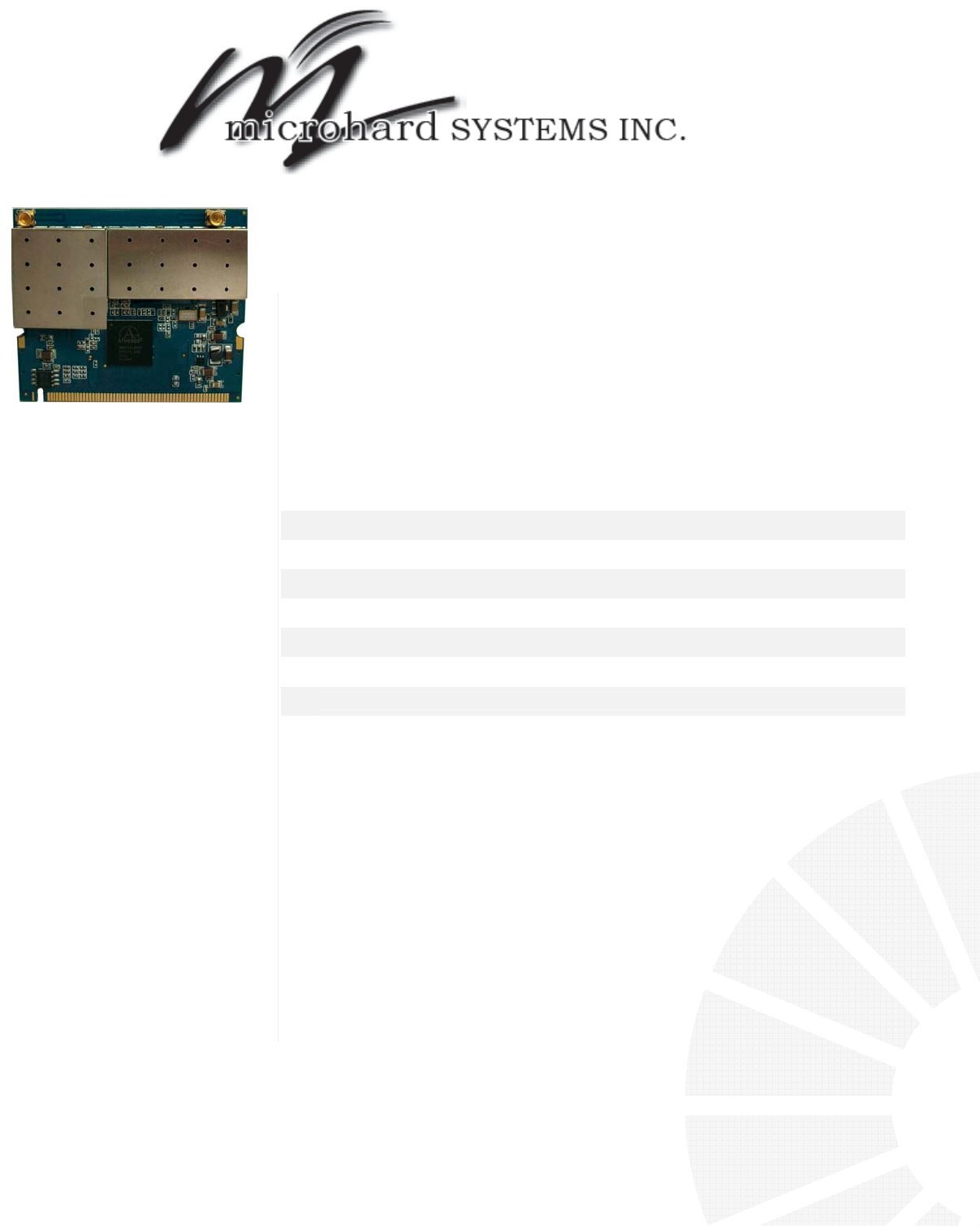

2 x 2 802.11N MIMO mini-PCI Modules
High Power N MiniPCI 5.8GHz
XN58-26
5GHz Single-Band 802.11n MIMO 2 x 2 miniPCI
Features
• Atheros XSPAN family chipset
• IEEE 802.11n compliant and backward compatible with 802.11a
• Enhanced sensitivity
• Optimized isolation path
• Superior thermal performance
• Maximum output power 26dBm@802.11a / 28dBm MIMO aggregate
• Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ①
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x MMCX connectors allowing for improved mechanical stability and low loss
XN58-26 MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS
DataRate TX Power
(per chain
)
TX Power
(2 chains
)
Tolerance
6-24Mbps 26dBm 28dBm ±2dB
36Mbps 25dBm 28dBm ±2dB
48Mbps 24dBm 27dBm ±2dB
802.11a
54Mbps 23dBm 26dBm ±2dB
DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance
MCS 0/8 25dBm 28dBm ±2dB MCS 0/8 24dBm 27dBm ±2dB
MCS 1/9 25dBm 28dBm ±2dB MCS 1/9 24dBm 27dBm ±2dB
MCS 2/10 23.5dBm 26.5dBm ±2dB MCS 2/10 22.5dBm 25.5dBm ±2dB
MCS 3/11 23.5dBm 26.5dBm ±2dB MCS 3/11 22.5dBm 25.5dBm ±2dB
MCS 4/12 22.5dBm 25.5dBm ±2dB MCS 4/12 22dBm 25dBm ±2dB
MCS 5/13 22dBm 25dBm ±2dB MCS 5/13 20.5dBm 23.5dBm ±2dB
MCS 6/14 21dBm 24dBm ±2dB MCS 6/14 20.5dBm 23.5dBm ±2dB
5GHz
11n
HT 20
MCS 7/15 20dBm 23dBm ±2dB
5GHz
11n
HT 40
MCS 7/15 17dBm 20dBm ±2dB
RX SPECIFICATIONS
DataRate Sensitivity
(2 chains) Tolerance DataRate Sensitivity
(2 chains) Tolerance
6M -96dBm ±2dB 24M -89dBm ±2dB
9M -96dBm ±2dB 36M -86dBm ±2dB
12M -95dBm ±2dB 48M -82dBm ±2dB
802.11a
18M -93dBm ±2dB
802.11a
54M -79dBm ±2dB
MCS0 -95dBm ±2dB MCS0 -92dBm ±2dB
MCS1 -93dBm ±2dB MCS1 -90dBm ±2dB
MCS2 -90dBm ±2dB MCS2 -87dBm ±2dB
MCS3 -89dBm ±2dB MCS3 -84dBm ±2dB
MCS4 -85dBm ±2dB MCS4 -81dBm ±2dB
MCS5 -81dBm ±2dB MCS5 -77dBm ±2dB
MCS6 -79dBm ±2dB MCS6 -76dBm ±2dB
5GHz
11n
HT 20
MCS7 -75dBm ±2dB
5GHz
11n
HT 40
MCS7 -74dBm ±2dB
Technical Specifications
Chipset Atheros AR9220
Host Interface 32-bit mini-PCI Type IIIA+ (6.55mm longer than IIIA type)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 4.9W
11na Cont. Tx@HT20 MCS0 4.3W
11na Cont. Tx@HT40 MCS0 4.8W
11a Cont. Rx 2.5W
Power
Consumption
Standby 0.8W
Antenna
Connector 2 x MMCX connector
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
5.725 ~ 5.850 GHz (US & Canada)
5.725 ~ 5.875 GHz (Europe)
Frequency
Range IEEE 802.11a/n:
Modulation
Techniques OFDM: BPSK, QPSK, 16-QAM, 64-QAM
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6mm x 57.5mm x 7.5mm
ESD CABLE SPECIFICATION
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
Ordering Information②
CODES Connectors type Carton Dimension
XN58-26 MMCX For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
c Module grounding cable included
d Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations

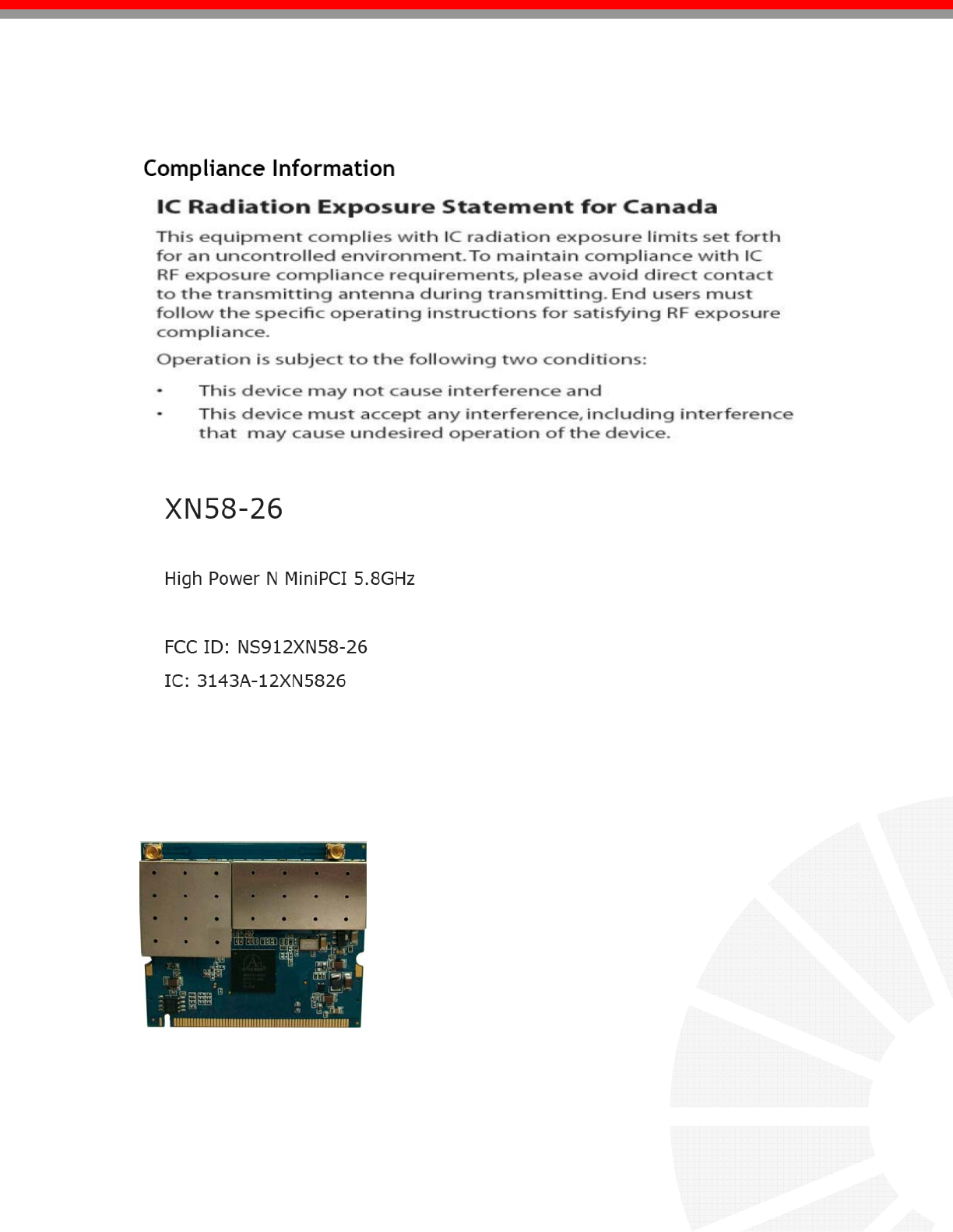

COMPLIANCE INFORMATION
