Microlab Electronics MD212 MULTIMEDIA SPEAKER User Manual 1

Microlab Electronics Co.,Ltd. MULTIMEDIA SPEAKER 1

User Manual

MD212
www.microlab.cn
Microlab Electronics Company Ltd.
Made in China
© 2012 All rights reserved
Disclaimer: All symbols and logos belong to the respective brand holder or registered holder. All
specifications and information are subject to changes without further notice. Slight variations and
differences might appear between the printed photos and actual product due to product enhancement.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Microlab Electronic Co., Ltd is under license. other trademarks and trade names are those of
their respective owners.
QDID: B019889
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or
moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.
Explanation of Graphical Symbols:
The lightning flash within an equilateral triangle is intended to alert you to the presence of
uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to
constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.
English 2
WARNINGS:
1. Read Instructions - All the safety and operating instructions must be read before the product is
operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product
for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be
adhered to.
4. Follow instructions - All operating and users instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by
the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully inserted
into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the
product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one
blade wide than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug. When using an extension power-supply cord or a power-supply cord other than that
supplied with the product, it should be fitted with the appropriate molded plugs and carry safety
approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on,
kinked or pinched by items placed on or against them, paying particular attention to cords from plugs,
receptacles and the point where they exit from the appliance.
9. Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can result in a risk
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other
similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products including amplifiers that produce heat. No naked flame sources, such as lighted candles,
should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train,
dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near
water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, or etc.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they
may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the
product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer
may be cleaned by dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not
spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturers, as
they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table.
The product may fall, causing serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. Any mounting of the product should follow the
manufacturers’ instructions and should use a mounting accessory recommended by the
manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the product and cart combination to overturn.
18. Un-use periods - The power cord of the device should be unplugged from the outlet during lightning
storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug form the main power source or wall power source when not in use. When
plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating.
The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If
you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the
power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product
must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40°C.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Enhance and power your tablets music and sound. Compact
design and small soundbar system with two quality speaker
drivers. Broaden your tablet sound range and listen to distinct sound
effects. Stream music wirelessly from your smartphone, tablet, or even
your notebook. Listen to enhanced amplified sound from your favourite
gadgets. Connects to any products with Bluetooth® wireless technology
using A2DP and HFP profiles.
Talk and pickup your smart phone calls directly with built-in speaker
phone feature. Easy connection with alternative 3.5mm stereo plug for
wide range gadget support. Mount your tablet or smart phone in front
with quick pull-out tray. Comes with rechargeable battery for portability.
Travel with your tablet, or smartphone, and enjoy to enhanced sound
everywhere you go.
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
FCC EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits setforth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance
20cm between theradiator & your body
Wireless music streaming with Bluetooth® wireless technology
Supports A2DP and HFP profiles
Quality stereo speaker system with built-in amplifier
Ideal for movies, gaming, music and PC applications
Clear and uncoloured sound
Soundbar type design
Connects to any 3.5mm stereo jack easily e.g., tablet, PC, notebook,
Mp3/Mp4, CD/DVD player, etc.
Rechargeable battery with easy replacement
MD212 speaker 1 pc
USB cable 1 pc
Rechargeable battery, BL-5C 1 pc
User manual 1 pc

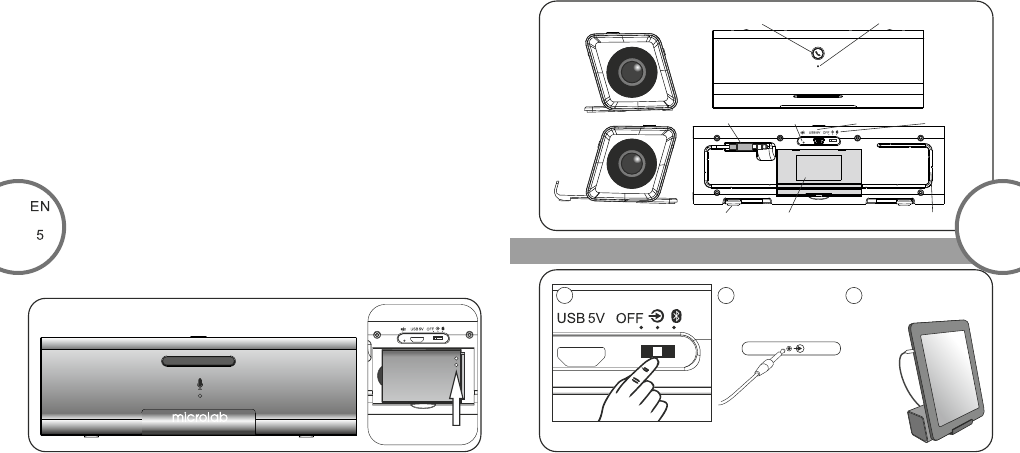

Front View
EN
6
1 2 3
Connect to
3.5 mm stereo
jack
Audio
input jack
on playback
device
Handsfree function LED: AUX / Bluetooth Pairing
3.5 mm stereo plug Charging LED Mini-USB Off/AUX/Bluetooth
Support leg Battery compartment Audio cable recess
Top
view
Rear
view
Right
Left
Illustrations
Features
Packing List
Connection (AUX)
+
I
BL-5C
Battery
orientation
Switch to AUX mode
Pull out tray and
mount tablet or
smartphone
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
1 2 3
5
4
Top view
Pull tray out

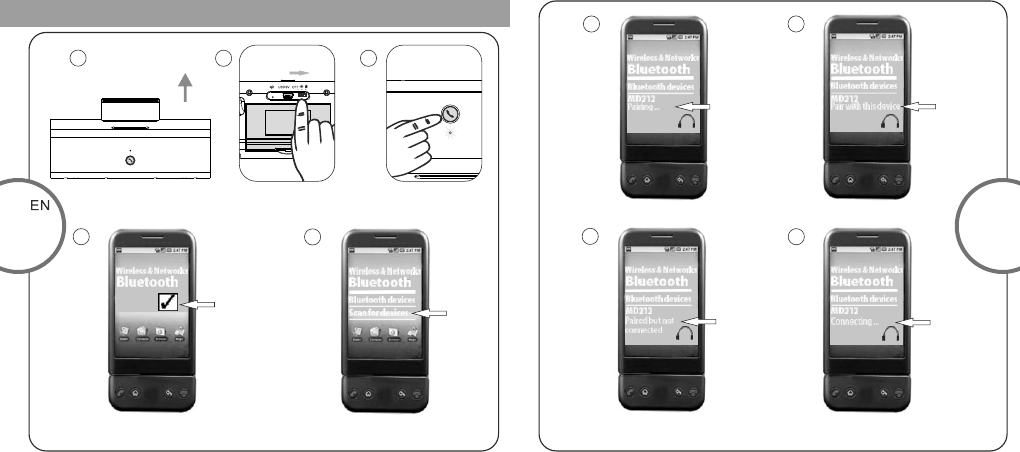

Connection (Bluetooth®)
7
or
switch to
Bluetooth® mode Turn on Bluetooth®
pairing mode:
a) Pairing timeout
b) Change pairing
smartphone
Pairing mode: Blue LED blink rapidly
Smartphone:
Turn on
Bluetooth®
mode
Scan for
devices
7
Pair with the
speaker
9
Select connect with speaker
6
Pairing
process
EN
8
8
Paired
not
connected
more than
2 secs
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
BL-5C
USB charging LED
(red when charging /
illumination off - full charged)
Mini-USB
USB cable
BL-5C type Lithium battery
(Battery to remain in compartment
during usage)
Power from PC / Notebook / USB hub
11
10
12
Connected
to speaker
Commence music playback

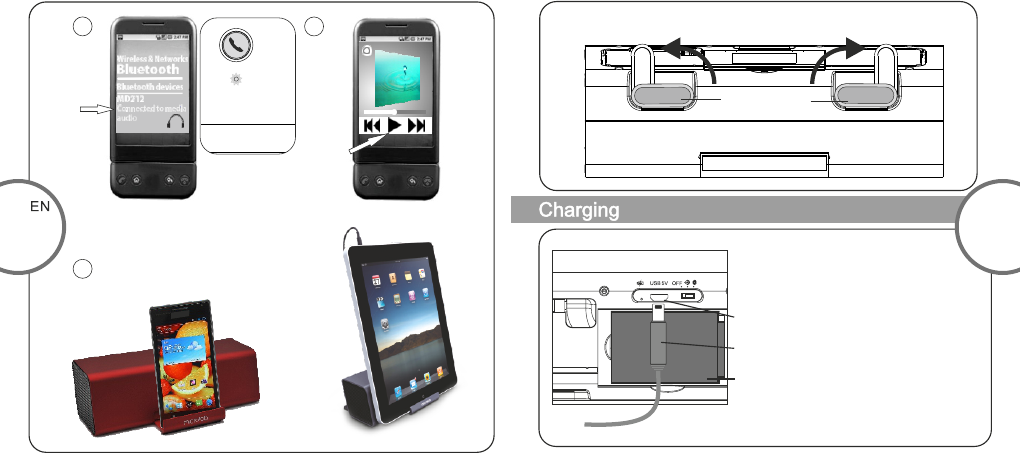

Place the smartphone or tablet
upright on the tray
# smartphone and tablet
not included in package.
Trademar ks and logos belong to their respective owners.
EN
10
9
Bottom view
Swing open for additional support
Support legs
1) Charge for 4 hours
before initial use
2) During use, charge till
red LED turns off
Blue LED
illuminates
steadily
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
-+

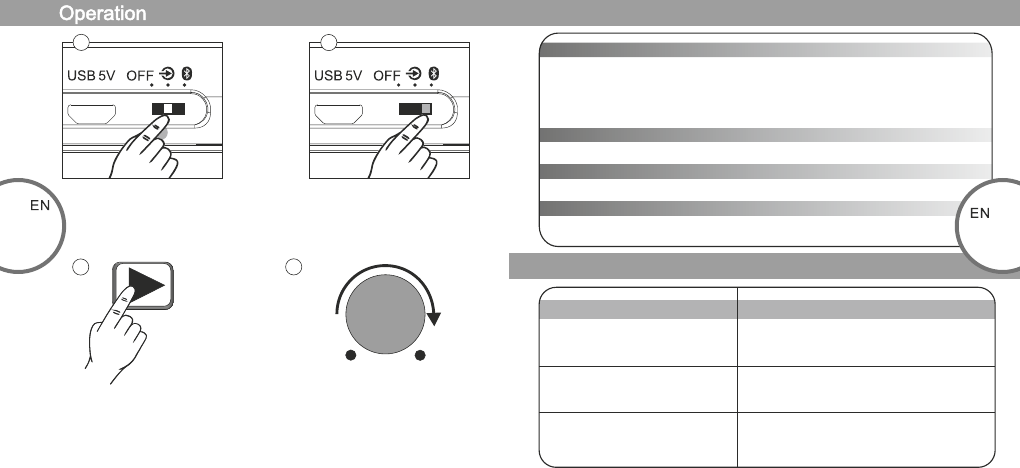

1
34
Start
playback
on media
player such as
smartphone, tablet,
iPad, notebook or
Mp3/Mp4 player
Media player
Output power: 2 Watt RMS
Power distribution: 1 Watt x 2 RMS
Harmonic distortion: < 0.5% 1 W 1 kHz
Frequency response: 150 Hz - 20 kHz
Signal/Noise ratio: > 75 dB
Separation: > 45 dB
Driver type: 1.5" x 2
Driver rated power: 3 Watt x 2, 4 Ohm
Input: 3.5mm stereo, Mini-USB
Bluetooth® wireless technology Bluetooth® v2.1, A2DP, HFP
Battery, BL5C 3.7 V / 1000 mAh Lithium
rechargeable battery
Power
Amplifier
Speaker
Interface
2
or
AUX mode: from 3.5 mm plug Bluetooth® mode: initiate
pairing and connection
Technical Information
Frequently Asked Questions
Question Answer
Pairing failed Ensure device supports
Bluetooth® v2.1 and above
How to tell Pairing is
successful?
Blue LED is lit steadily, please
start the music playback
Battery charging and use Initial charge for 4 hours, and
keep battery inside during use
11 12
80-MD220-97-0001-01 2012-02-07
80-MD212-97-0001-01 2012-11-12
