Microlife BP3GT1-6B Upper Arm Automatic Digital Blood Pressure Monitor User Manual GT1 6B Master IB
Microlife Corporation Upper Arm Automatic Digital Blood Pressure Monitor GT1 6B Master IB
user manual
MicrolifeBP3GT1‐6BInstructionManualv01
1
Model#BP3GT1‐6B
MicrolifeBP3GT1‐6BInstructionManualv01
2
MicrolifeBP3GT1‐6BInstructionManualv01
3

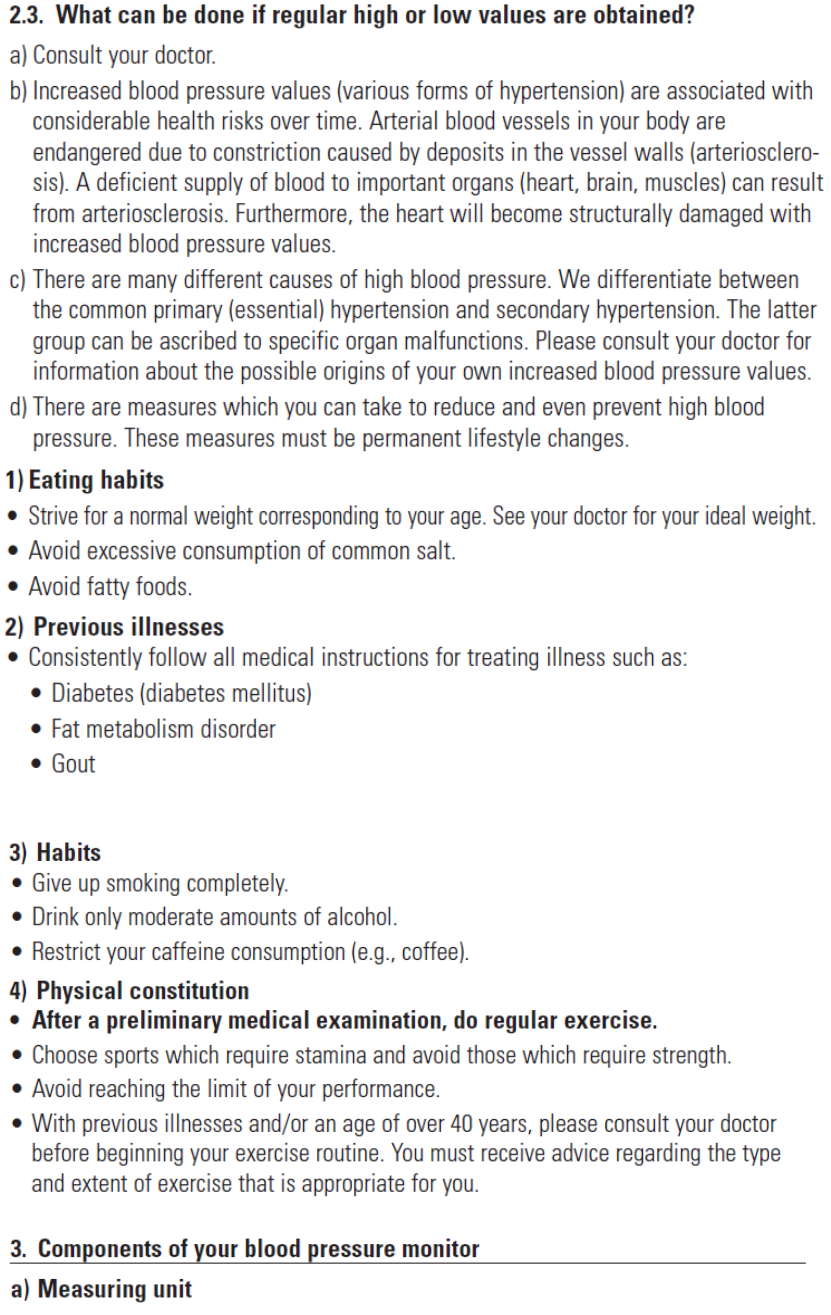

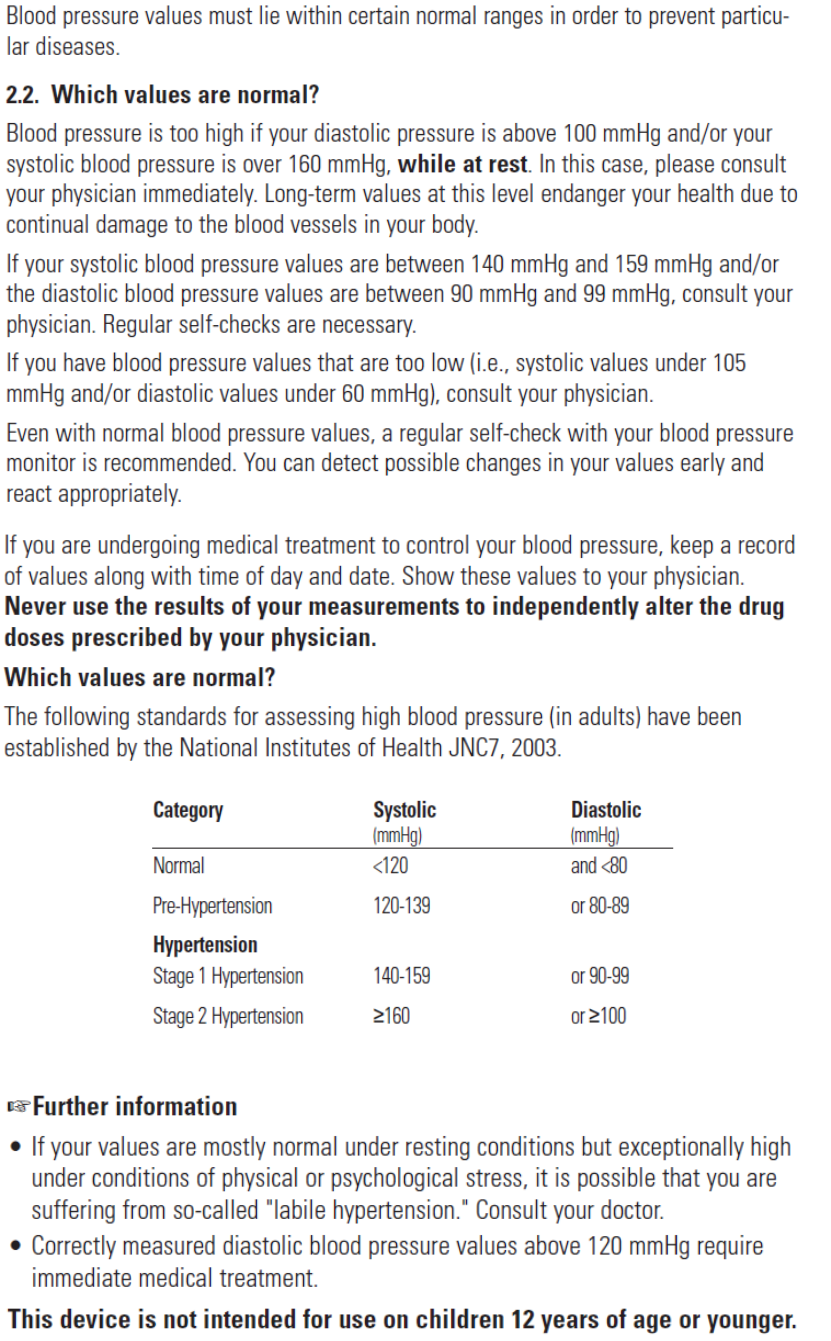

MicrolifeBP3GT1‐6BInstructionManualv01
4
MicrolifeBP3GT1‐6BInstructionManualv01
5

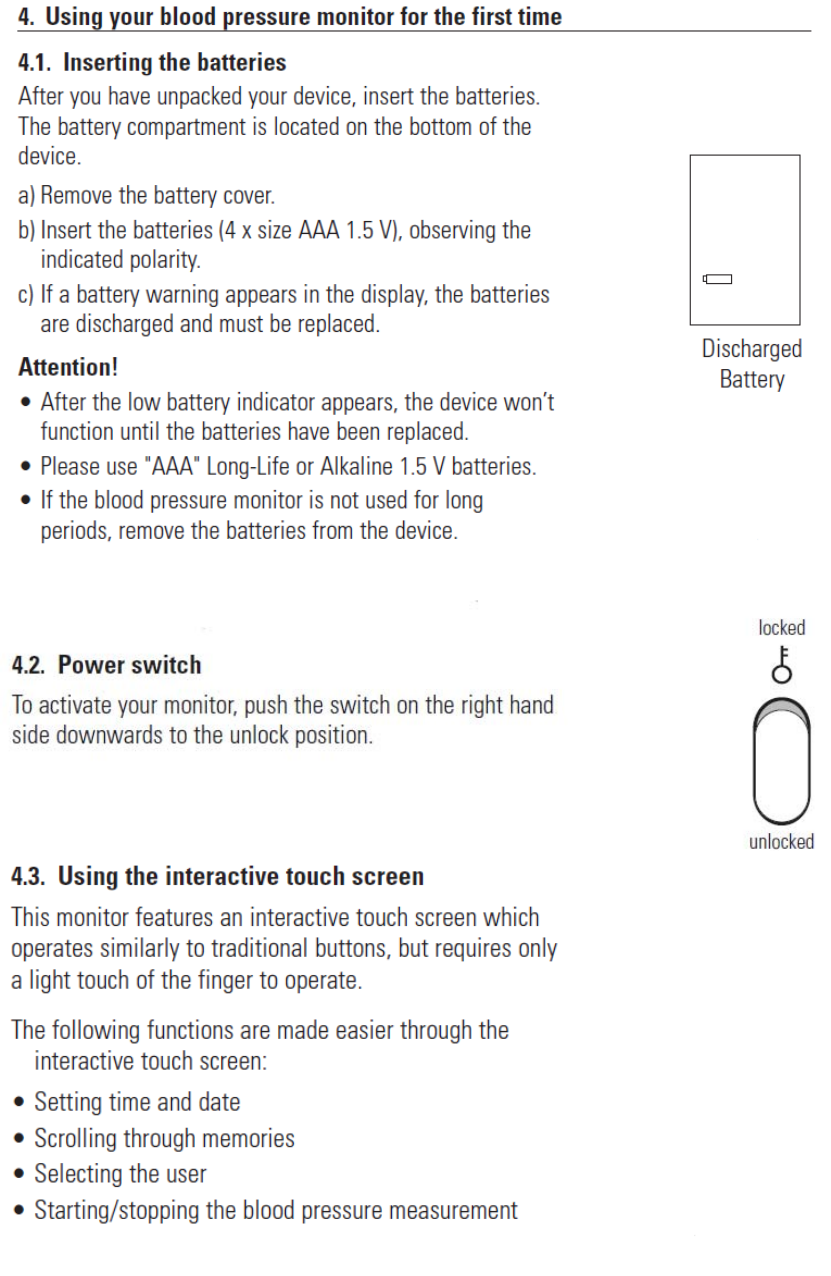

MicrolifeBP3GT1‐6BInstructionManualv01
6
MicrolifeBP3GT1‐6BInstructionManualv01
7

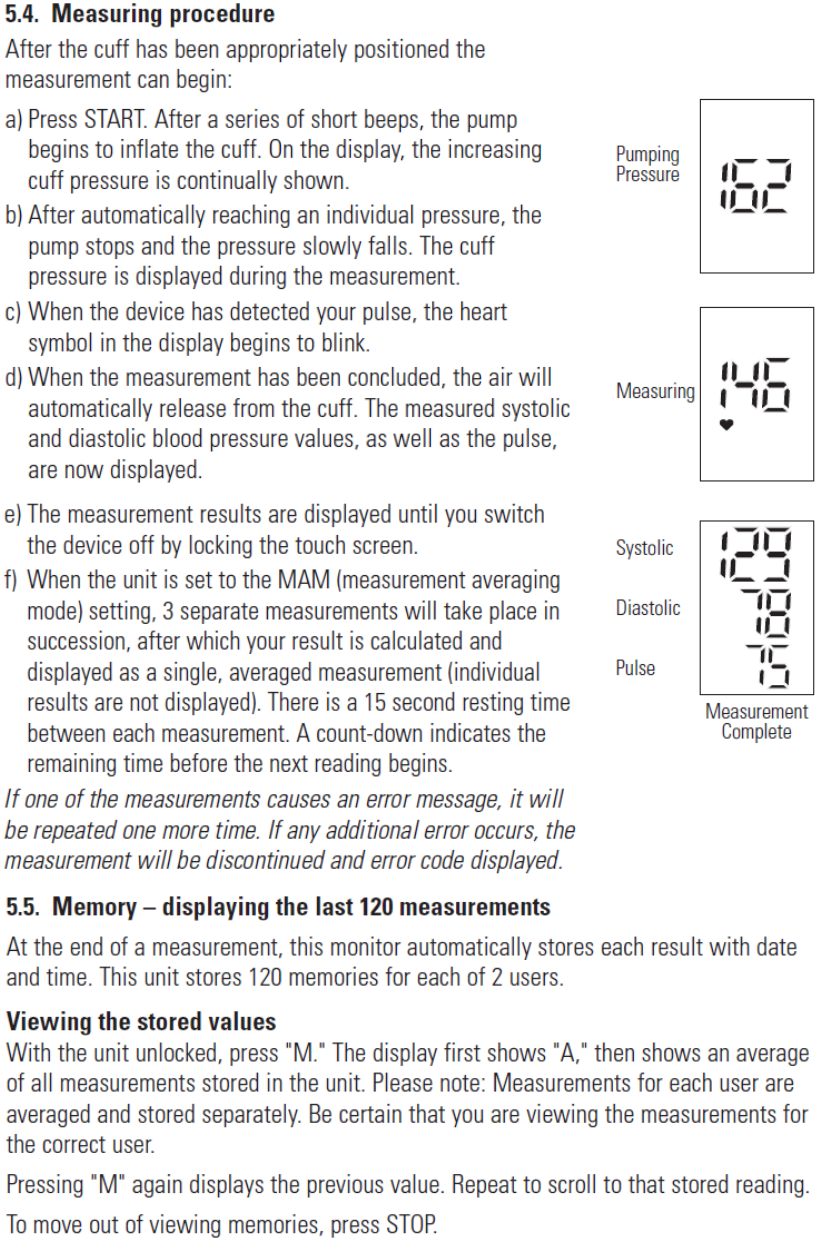

MicrolifeBP3GT1‐6BInstructionManualv01
8

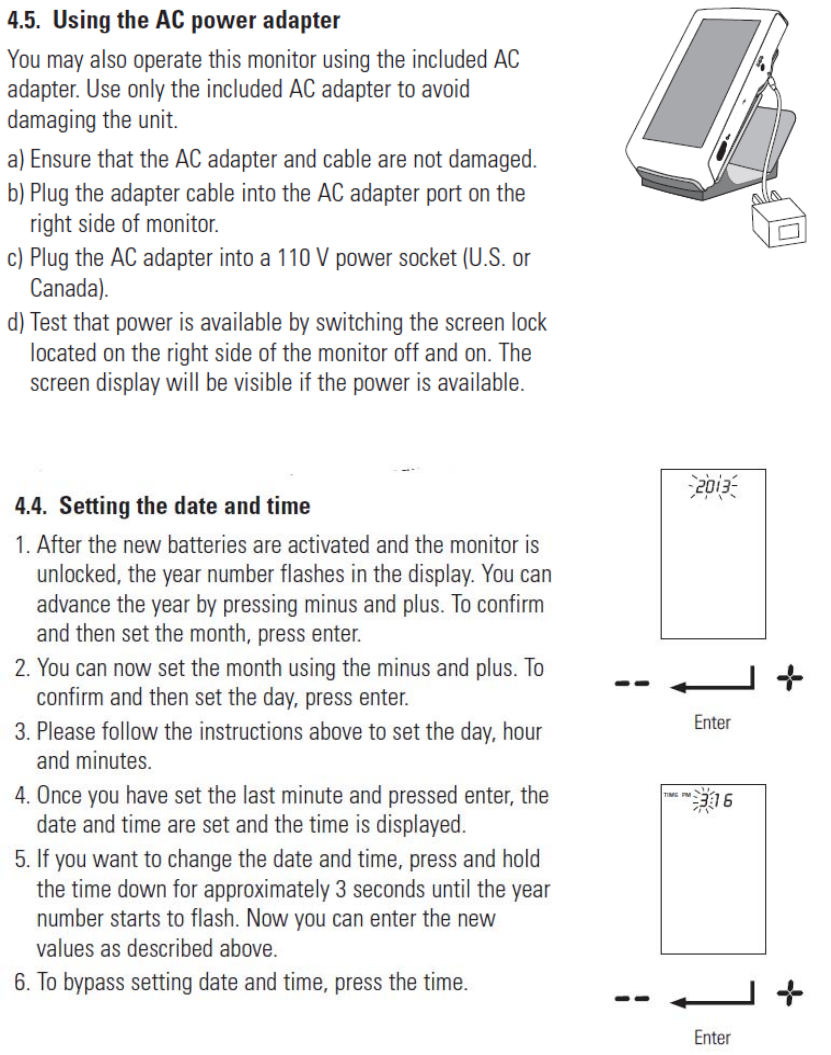

MicrolifeBP3GT1‐6BInstructionManualv01

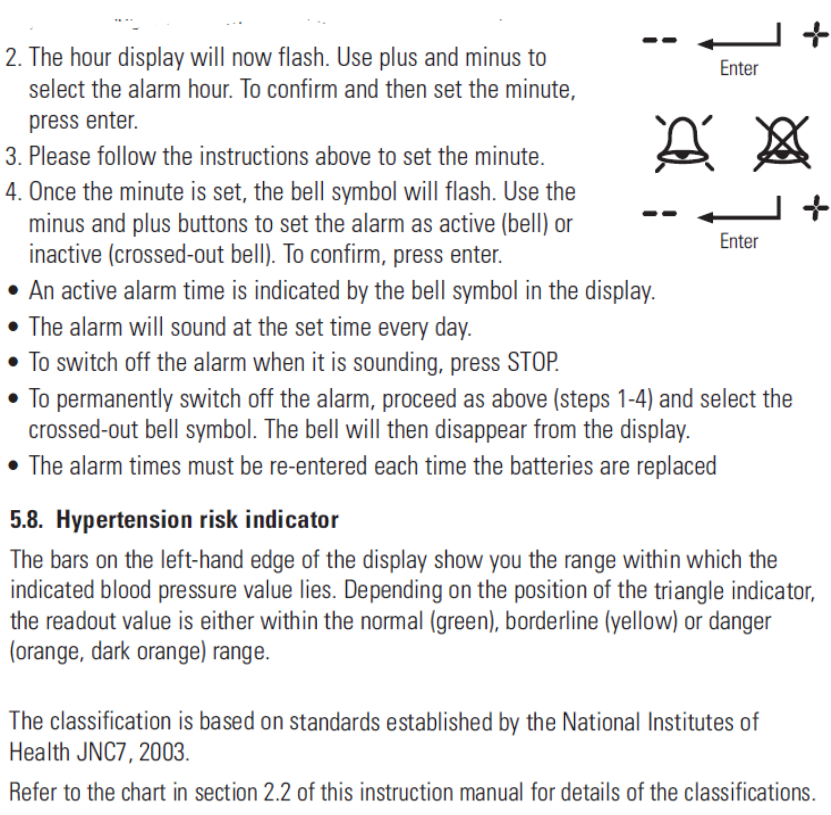

9

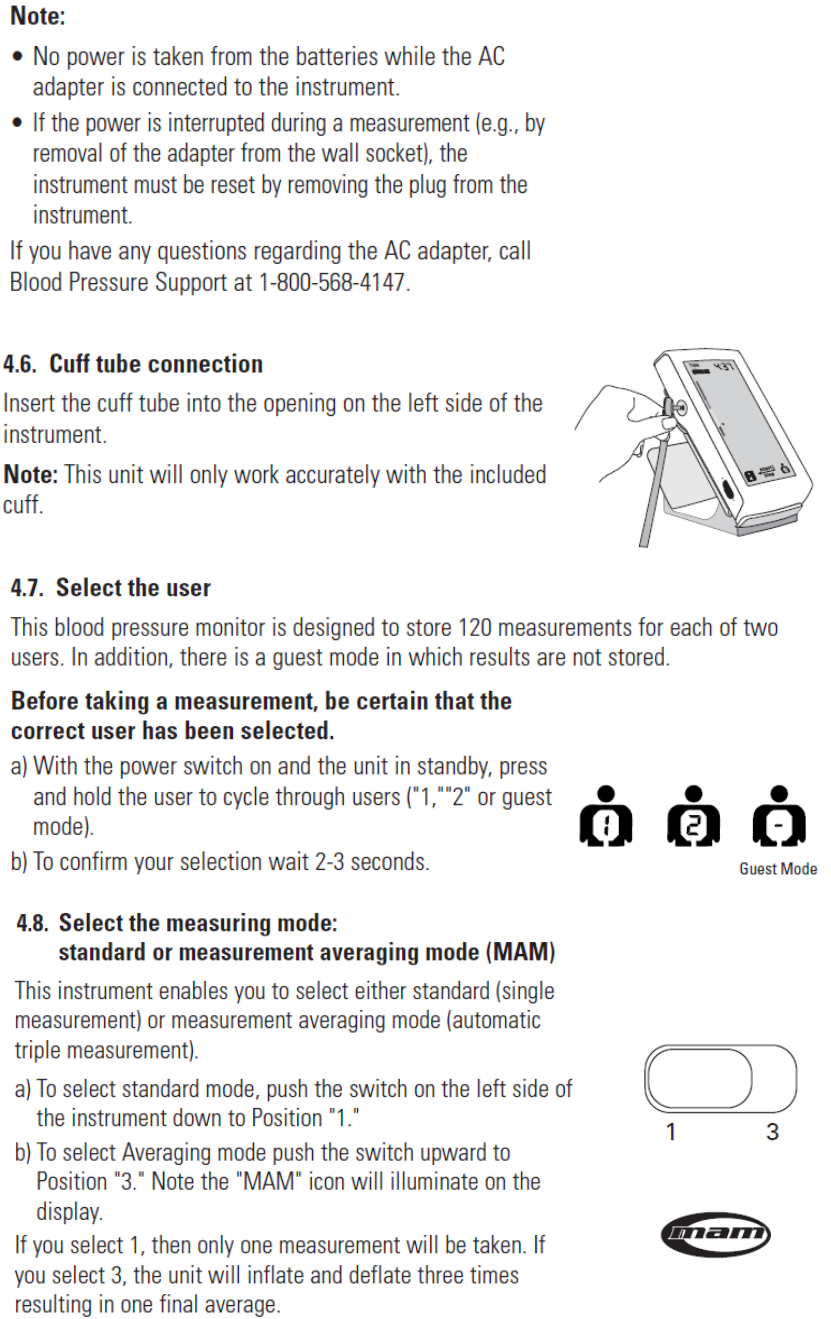

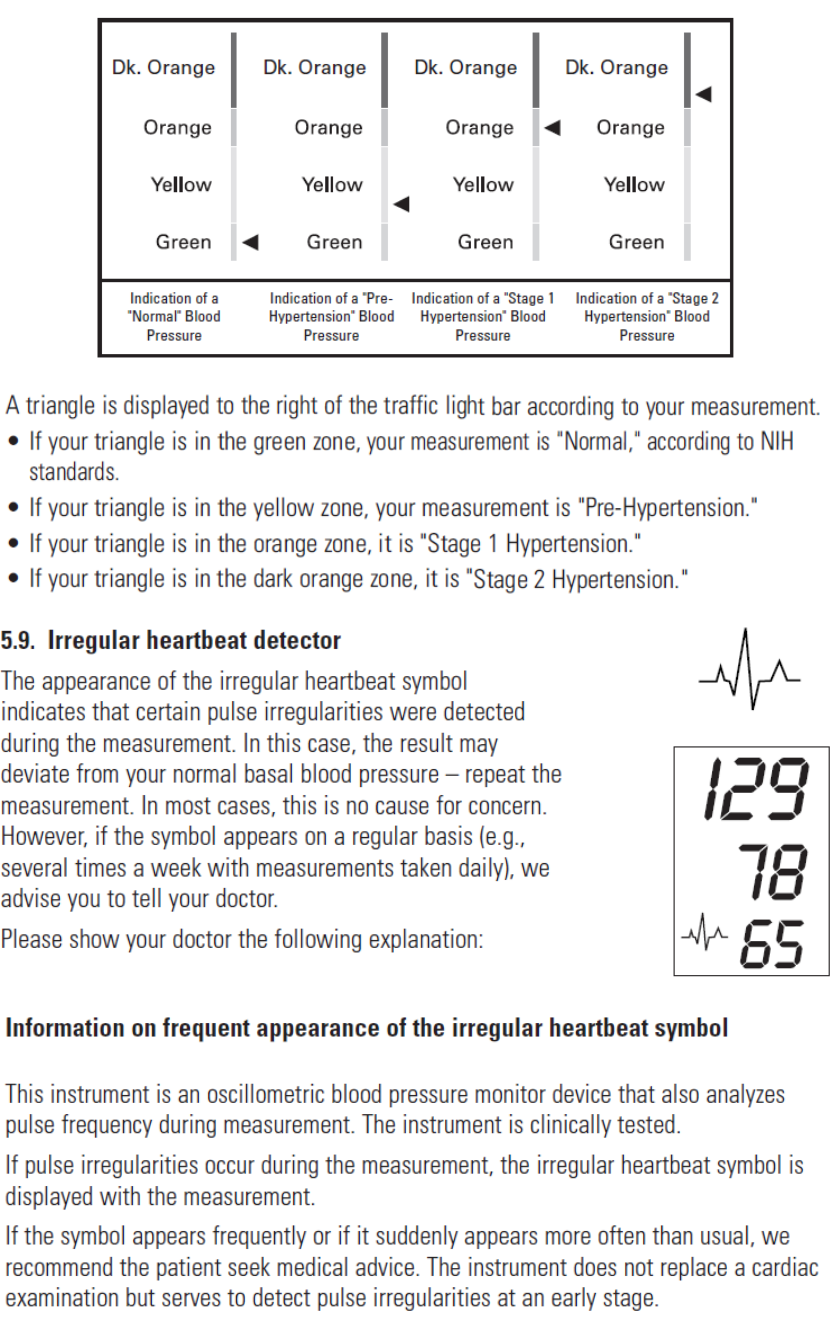

MicrolifeBP3GT1‐6BInstructionManualv01

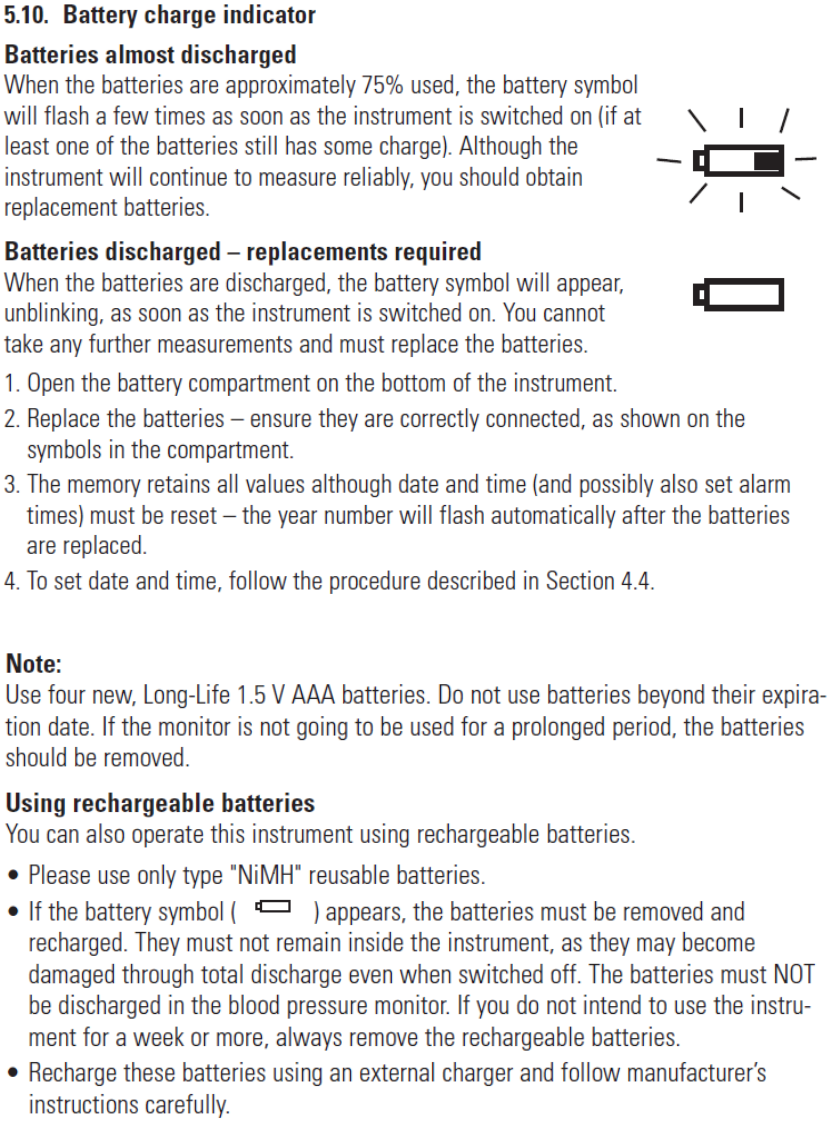

10
MicrolifeBP3GT1‐6BInstructionManualv01

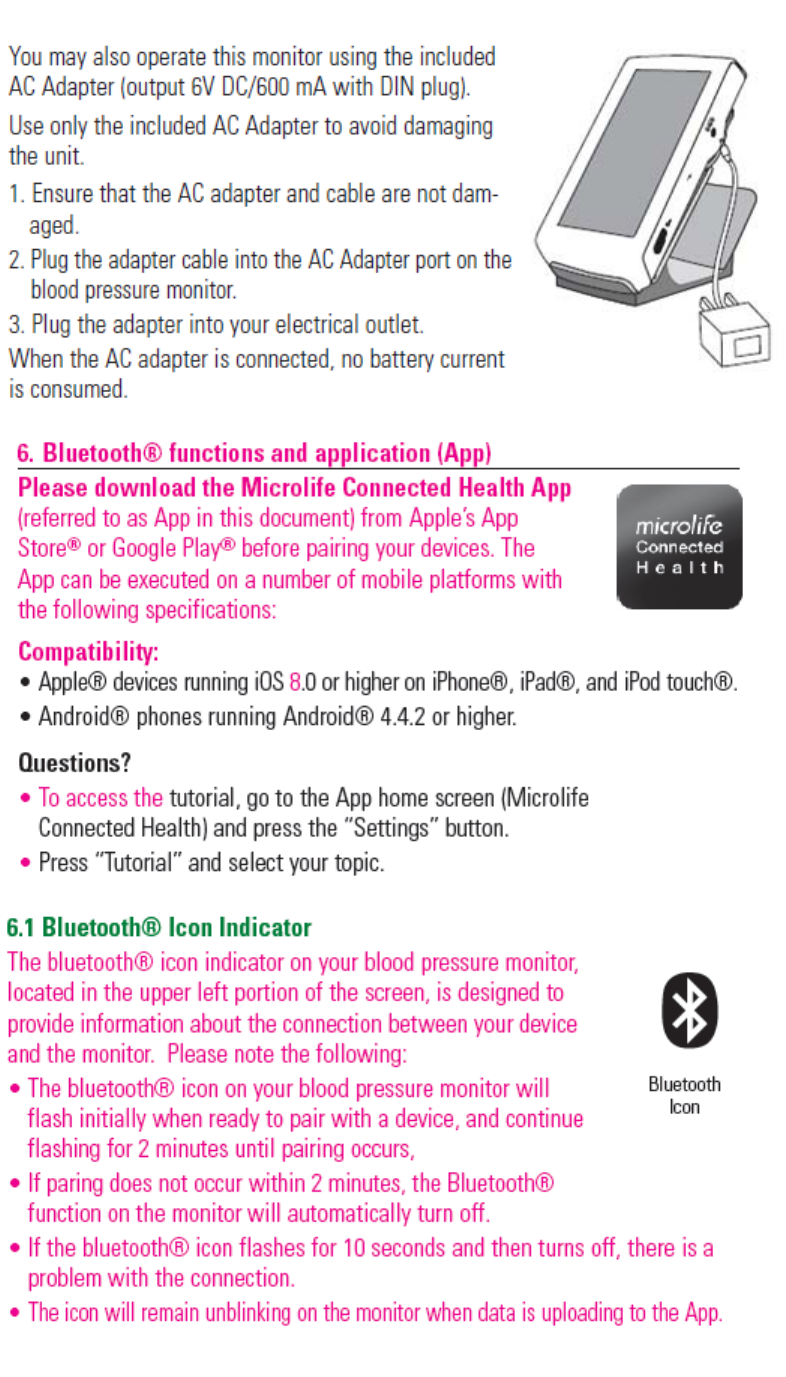

11

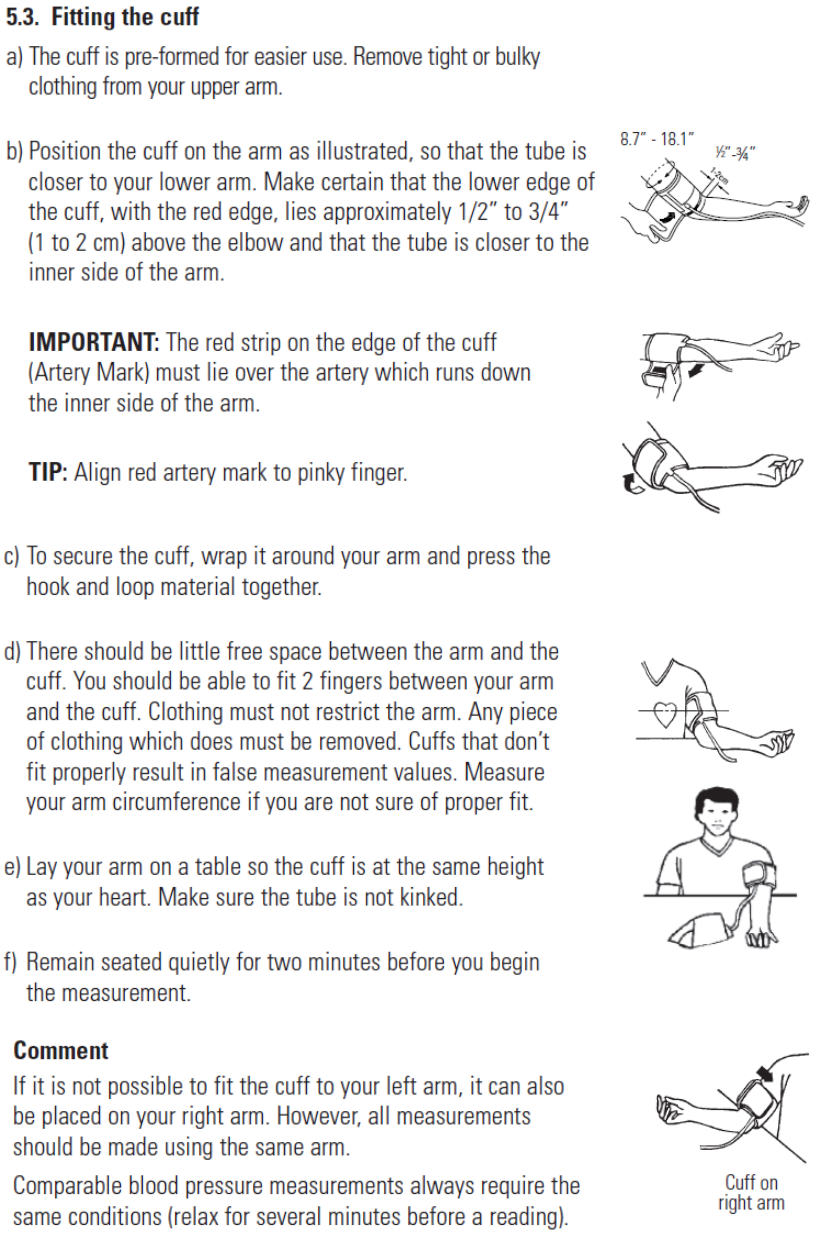

MicrolifeBP3GT1‐6BInstructionManualv01

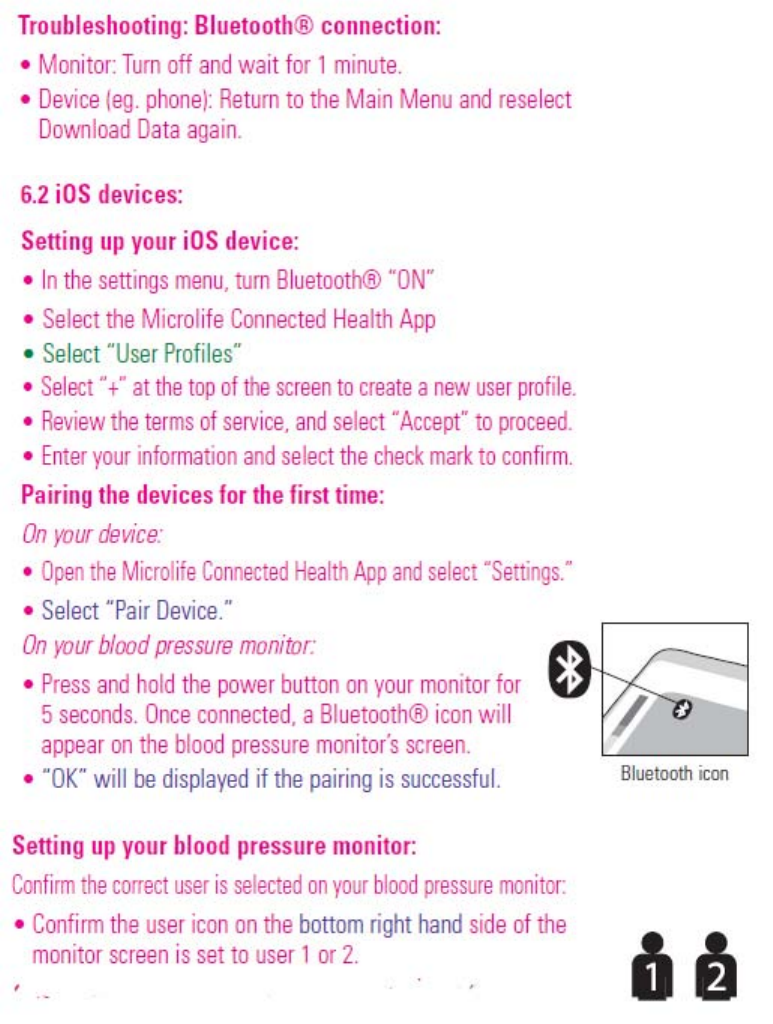

12
MicrolifeBP3GT1‐6BInstructionManualv01

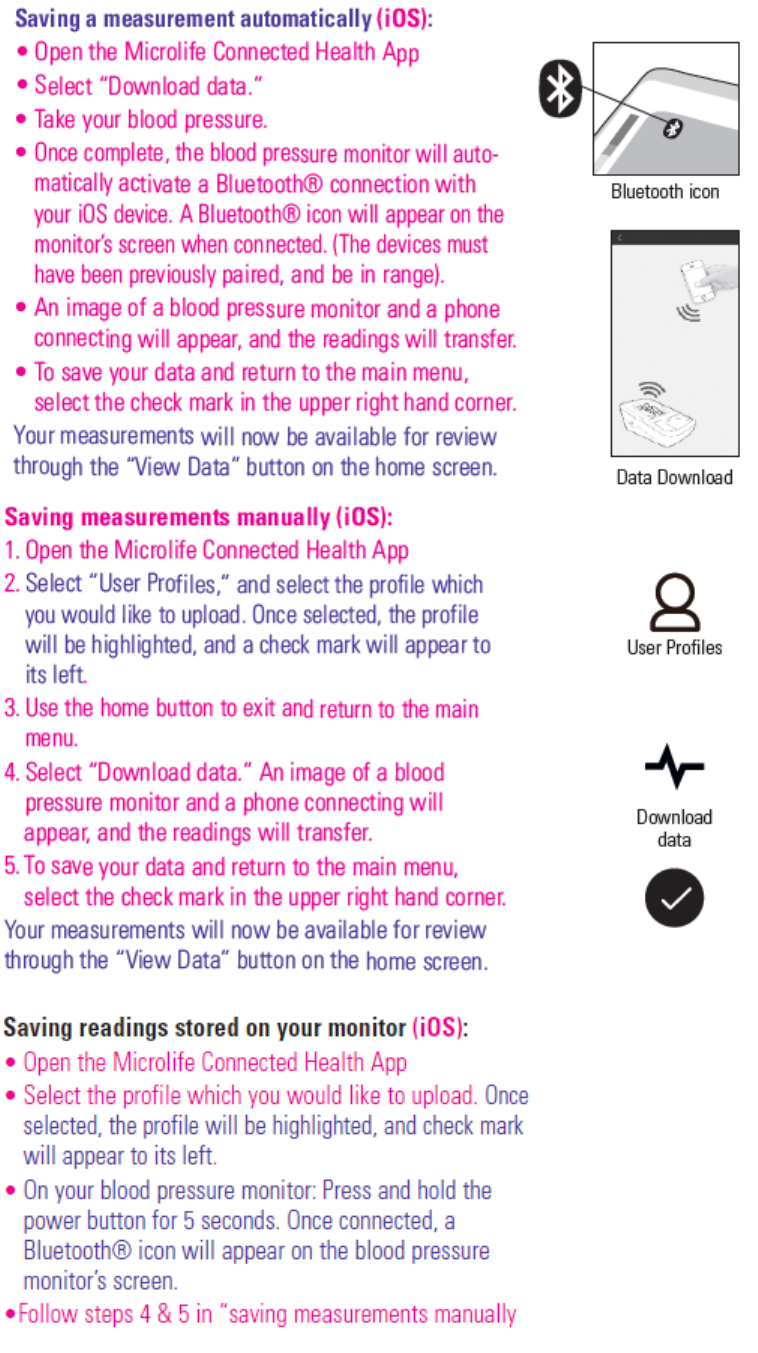

13

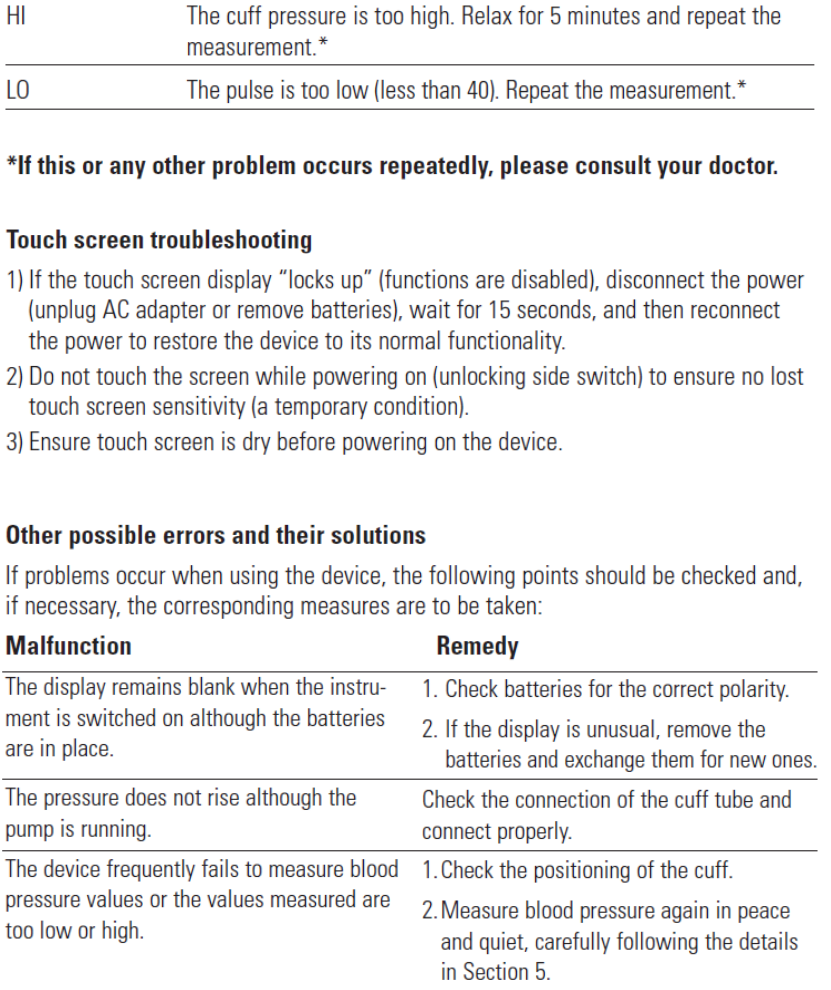

MicrolifeBP3GT1‐6BInstructionManualv01
14

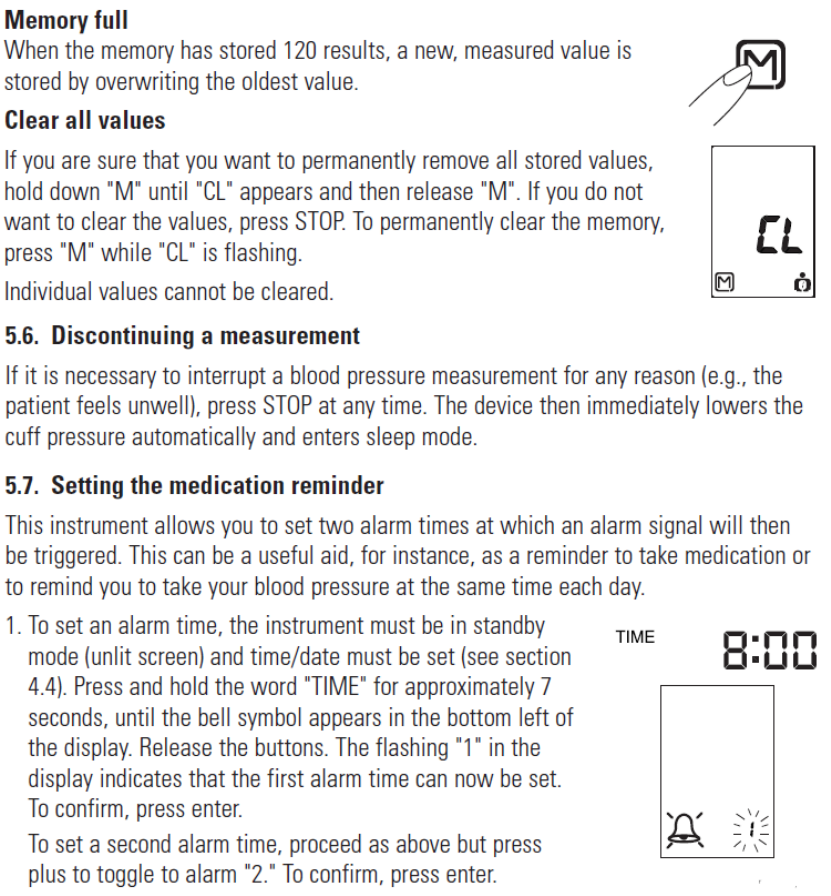

MicrolifeBP3GT1‐6BInstructionManualv01
15
MicrolifeBP3GT1‐6BInstructionManualv01
16
MicrolifeBP3GT1‐6BInstructionManualv01
17
MicrolifeBP3GT1‐6BInstructionManualv01
18
MicrolifeBP3GT1‐6BInstructionManualv01

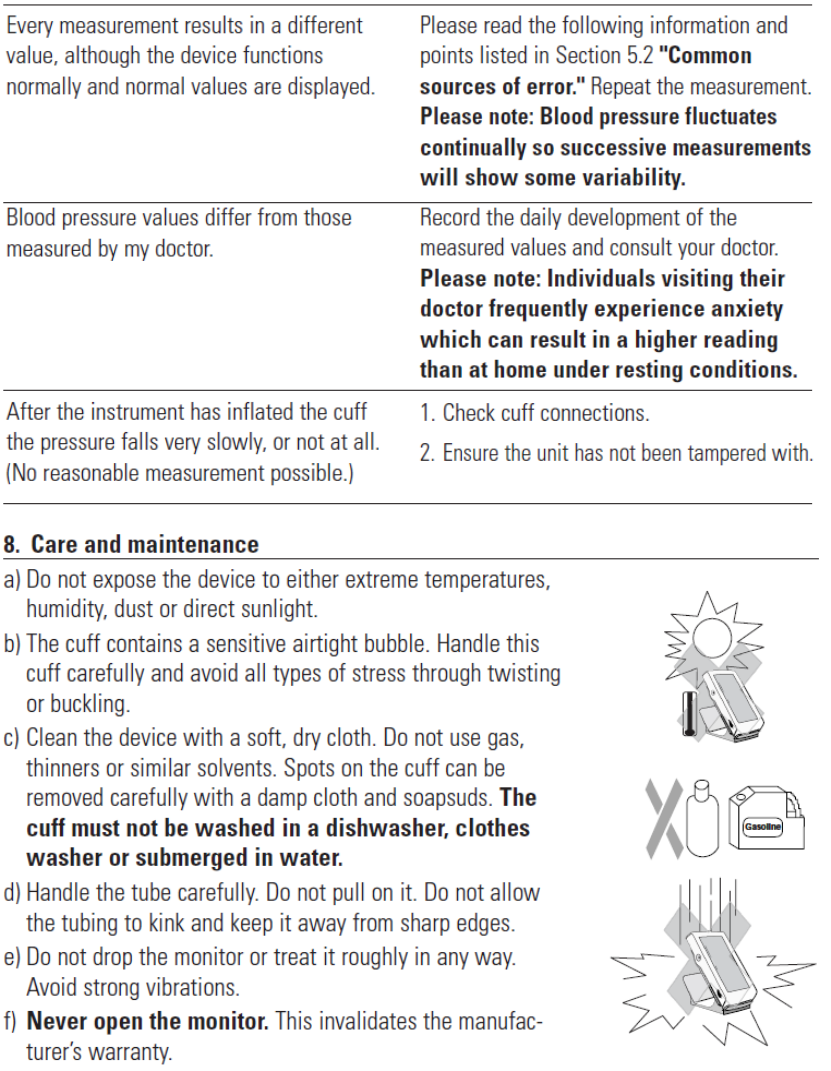

19

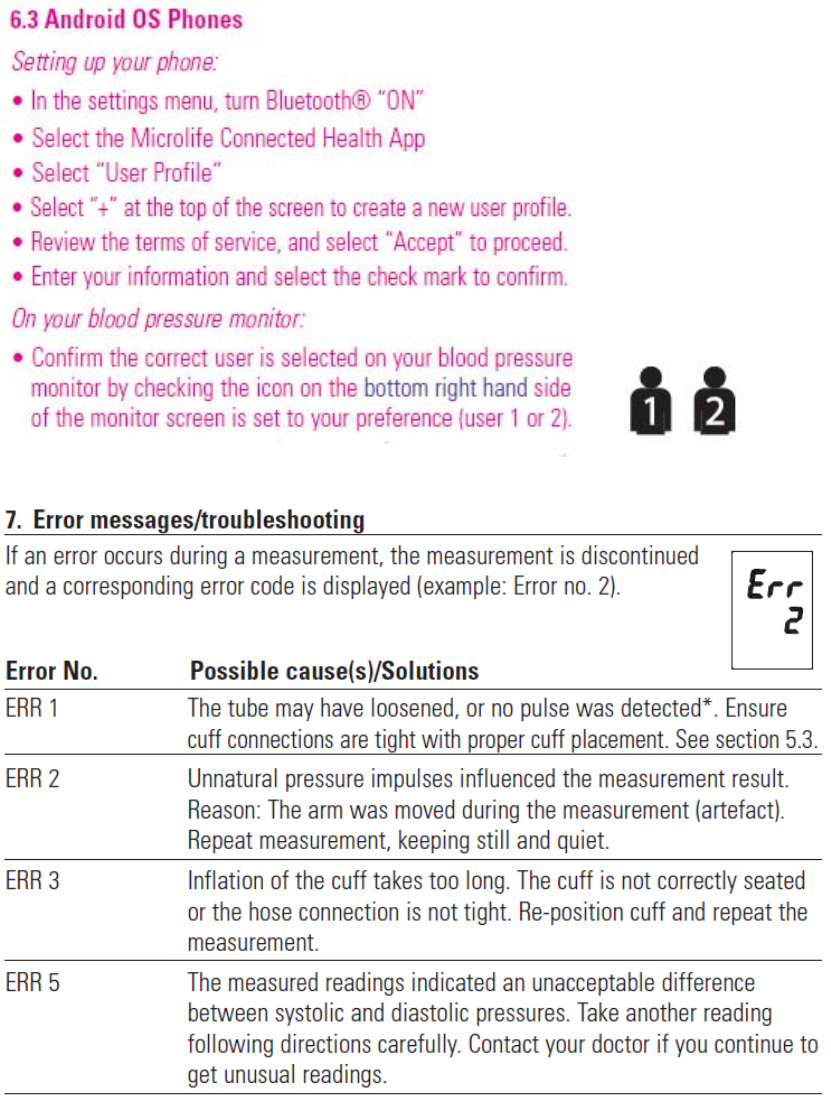

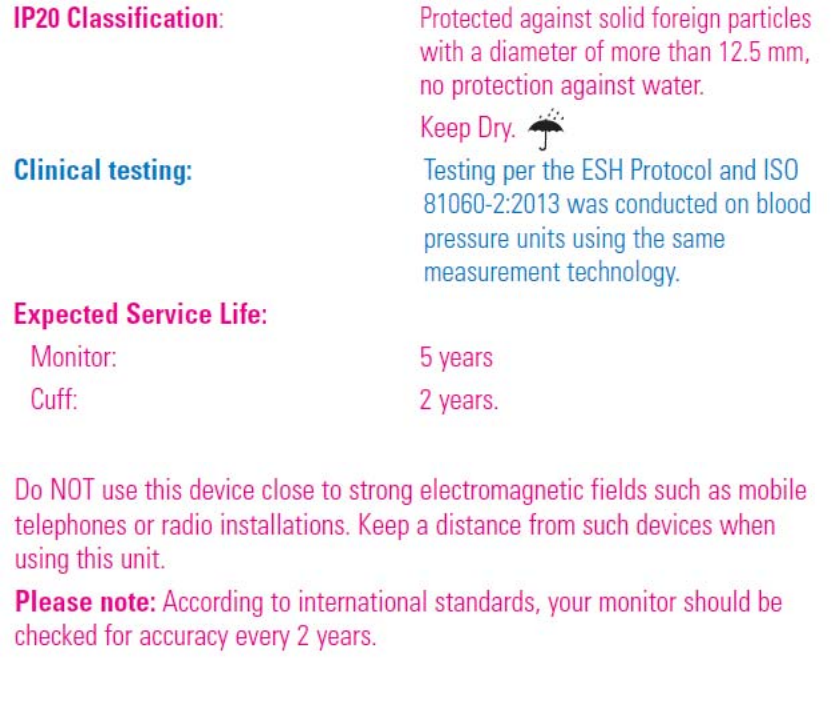

MicrolifeBP3GT1‐6BInstructionManualv01
20
MicrolifeBP3GT1‐6BInstructionManualv01
21
MicrolifeBP3GT1‐6BInstructionManualv01
22
MicrolifeBP3GT1‐6BInstructionManualv01
23
MicrolifeBP3GT1‐6BInstructionManualv01
24

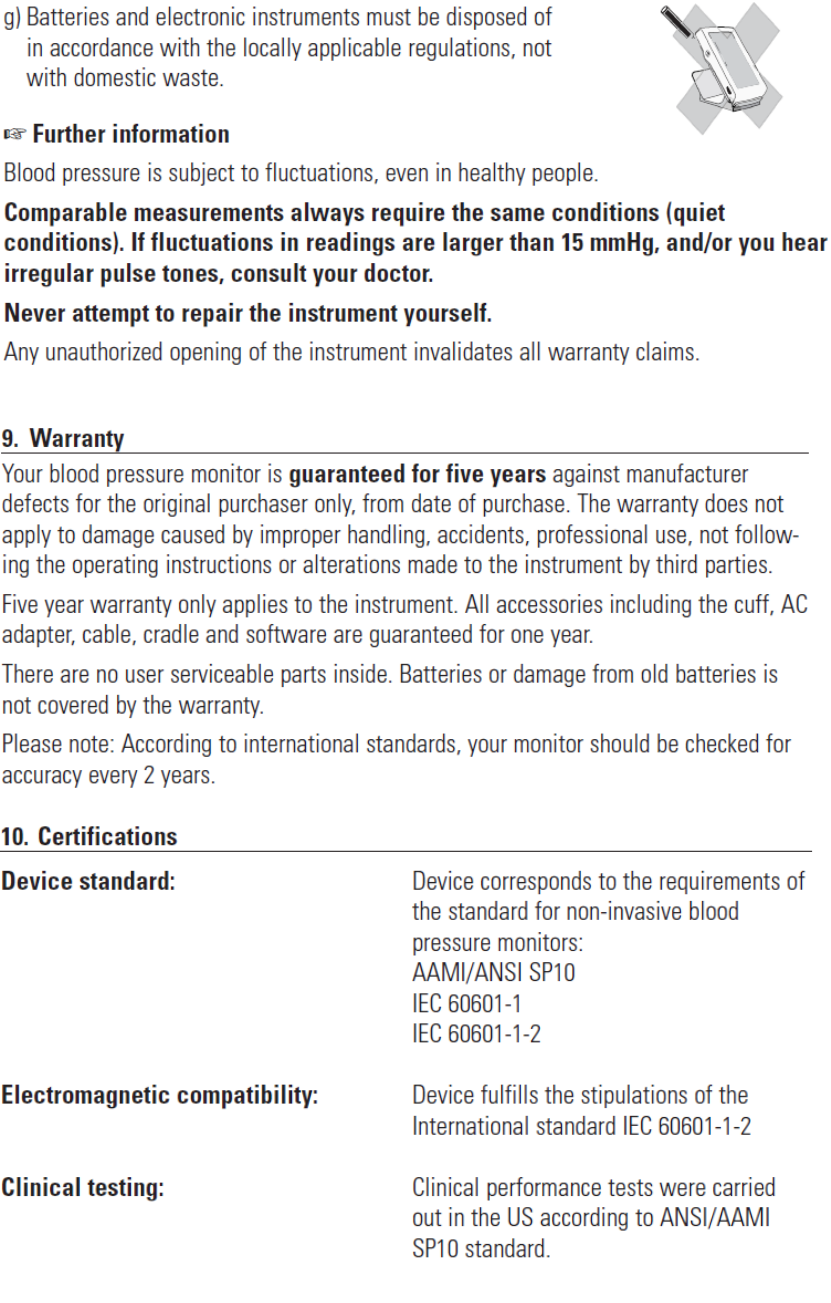

MicrolifeBP3GT1‐6BInstructionManualv01
25
Microlife BP3GT1-6B Instrucon Manual v01
26

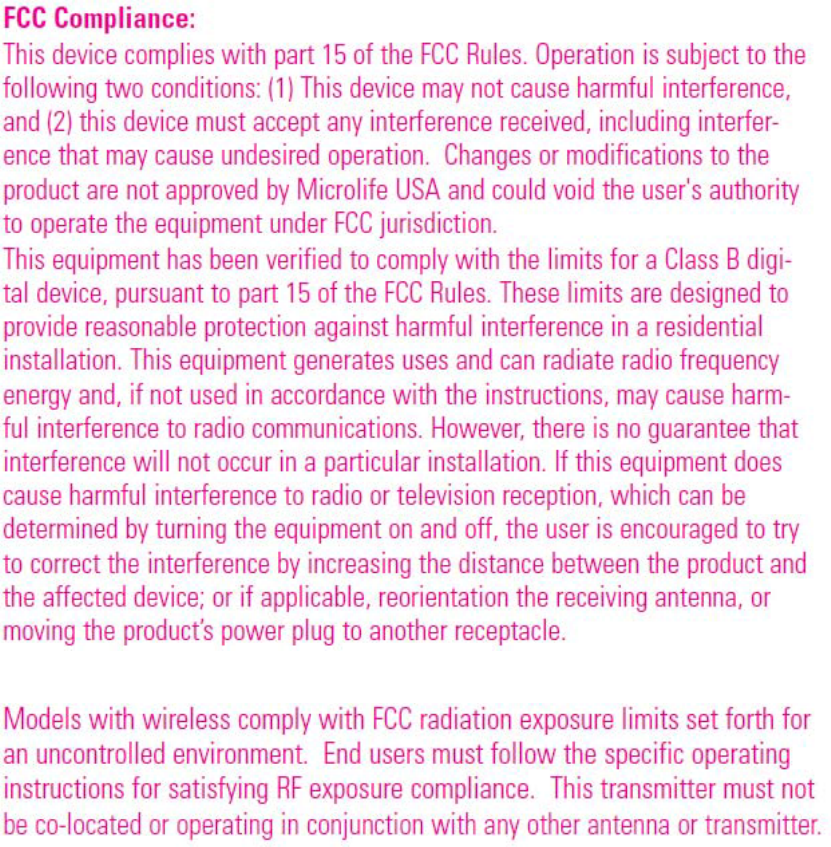

or consult the dealer or
an experienced radio/TV technician for help.
For body worn operation, this device has been tested and meets FCC RF exposure
guidelines. When used with an accessory that contains metal may not ensure
compliance with FCC RF exposure guidelines.
Microlife BP3GT1-6B Instrucon Manual v01
27
1. Weight:326 g(with baeries)
2. Size:82x160x35 mm
3. Storage/ transportaon Condion: Temperature: -20℃ ~ +55℃ (Humidity: 15%
- 90% RH; non-condensed)
4. Operaon Condion: Temperature: 10℃ ~ 40℃ (Humidity: 15% ~ 90% RH;
non-condensed)
5. Display: LCD-Display(Liquid Crystal Display)
6. Measuring method: Oscillometric
7. Pressure sensor: Capacive
8. Measuring range:
Pressure (SYS/DIA): 20 to 280 mmHg
Pulse: 40 to 200 beats/per min
9. Cuff pressure display range:0-299 mmHg
10. Memory: Automacally stores the last 120 measurements for 2 users(total 240)
11. Measuring resoluon: 1 mmHg
12. Accuracy: Pressure within ± 3 mmHg; Pulse ± 5% of the reading
13. Power source: a) 4 AAA baeries, 1.5 V ; b) Cerficated AC adapter 6 V DC 600
mA(voltage 4.5 V DC to 6 V DC)
14. Accessories:
Wide range cuff for arm circumference 22-46 cm (8.7”-18.1”)
Cradle
Storage case
15. Adaptor Vendor: Deevan
16. Adaptor model: DSA-6E-05
17. atmospheric pressure：（80-105）KPa

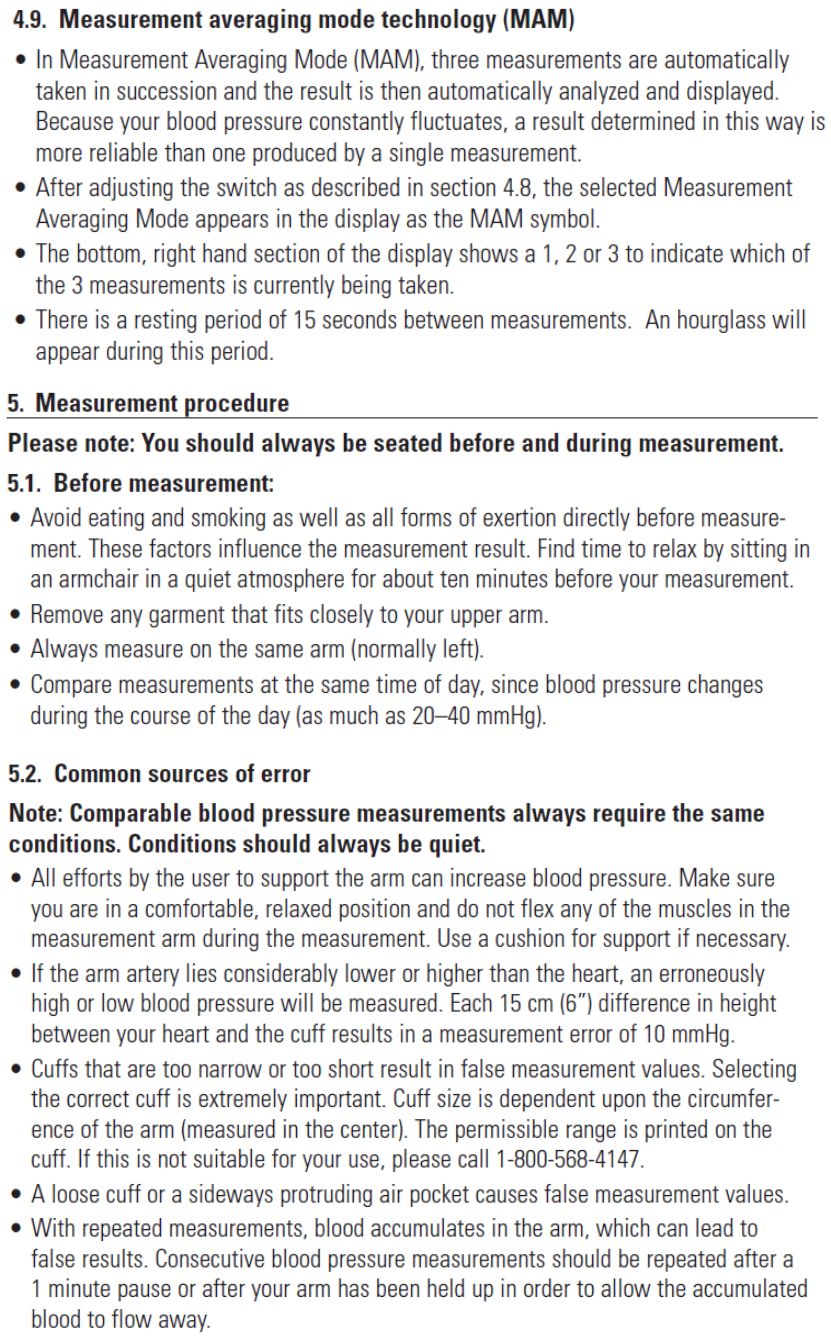

Operang instrucons
1) comfortably seated
2) legs uncrossed
3) feet flat on the floor
4) back and arm supported
5) middle of the CUFF at the level of the right atrium of the heart
MicrolifeBP3GT1‐6BInstructionManualv01
28
Microlife BP3GT1-6B Ins Manual v01
29
safety warning:
1. To avoid accidental strangulation, keep this product away from children and baby.
2. If this equipment is modified, appropriate inspection and testing must be conducted to
ensure continued safe use of equipment
3. Only use accessories provided with the equipment. Otherwise erroneous results will be
recorded.
4. regarding the effect of blood flow interference and resulting harmful injury to the
PATIENT caused by continuous CUFF pressure due to connection tubing kinking;
5. indicating that too frequent measurements can cause injury to the PATIENT due to blood
flow interference;
6. regarding the application of the CUFF over a wound, as this can cause further injury;
7. regarding the application of the CUFF and its pressurization on any limb where
intravascular access or therapy, or an arterio-venous (A-V) shunt, is present because of
temporary interference to blood flow and could result in injury to the PATIENT;
8. regarding the application of the CUFF and its pressurization on the arm on the side of a
mastectomy;
9. regarding the information that pressurization of the CUFF can temporarily cause loss of
function of simultaneously used monitoring ME EQUIPMENT on the same limb;
10.regarding the need to check (for example, by observation of the limb concerned) that
operation of the AUTOMATED SPHYGMOMANOMETER does not result in
prolonged impairment of the circulation of the blood of the PATIENT.
Guidance and manufacturer’s declaration-electromagnetic emissions
The BP3GT1-6B is intended for use in the electromagnetic environment
specified below.
The customer or the user of the BP3GT1-6B should assure that it is used in
such an environment.
Emission test Compliance Electromagnetic
environment-guidance
RF emissions
CISPR 11
Group 1 The BP3GT1-6B uses RF energy only for
its internal function. Therefore, its RF
emissions are very low and are not likely
to cause any interference in nearby
electronic equipment.
RF emissions
CISPR 11
Class B The BP3GT1-6B is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic purposes.
Harmonic
emissions
IEC 61000-3-2
Class A
Voltage
fluctuations
/flicker emissions
IEC 61000-3-3
Compliance
Guidance and manufacturer’s declaration-electromagnetic immunity
The BP3GT1-6B is intended for use in the electromagnetic environment specified below.
The customer or the user of the BP3GT1-6B should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance level Electromagnetic
environment-guidance
Electrostatic
discharge(ESD) IEC
61000-4-2
+ 6 kV contact
+ 8 kV air
+ 6 kV contact
+ 8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%
Electrical fast
transient/burst IEC
61000-4-4
+ 2kV for power
supply lines
+ 1kV for input/output
lines
+ 2kV for power
supply lines
Not applicable
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge IEC 61000-4-5 + 1kV line(s) to line(s)
+ 2kV line(s) to earth
+ 1kV differential
mode
Not applicable
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage Dips, short
interruptions and voltage
variations on power supply
input lines IEC 61000-4-11
<5% UT(>95% dip in
UT) for 0,5 cycle
40% UT(60% dip in
UT) for 5 cycles
70% UT(30% dip in
UT) for 25 cycles
<5% UT(>95% dip in
UT) for 5 s
<5% UT(>95% dip in
UT) for 0,5 cycle
40% UT(60% dip in
UT) for 5 cycles
70% UT(30% dip in
UT) for 25 cycles
<5% UT(>95% dip in
UT) for 5 s
Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the BP3GT1-6B
requires continued operation
during power mains
interruptions, it is recommended
that the BP3GT1-6B be powered
from an uninterruptible power
supply or a battery.
Power frequency(50, 60
Hz) magnetic field IEC
61000-4-8
3 A/m 3 A/m The BP3GT1-6B power
frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration-electromagnetic immunity
The BP3GT1-6B is intended for use in the electromagnetic environment specified below.
The customer or the user of the BP3GT1-6B should assure that is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 KHz to 80 MHz
3 V/m
80MHz to 2,5 GHz
3 Vrms
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the BP3GT1-6B including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in metres
(m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in
each frequency range.b
Interference may occur in the vicinity of
equipment marked with the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the BP3GT1-6B is used exceeds the applicable RF
compliance level above, the BP3GT1-6B should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as re-orienting or relocating the BP3GT1-6B.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between
portable and mobile RF communications equipment and the BP3GT1-6B
The BP3GT1-6B is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the BP3GT1-6B can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the
BP3GT1-6B as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d =1,2√P
80 MHz to 800 MHz
d =1,2√P
800 MHz to 2,5 GHz
d =2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in
metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where p is the
maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
