operational sequence
Actions LCD display Description Remark

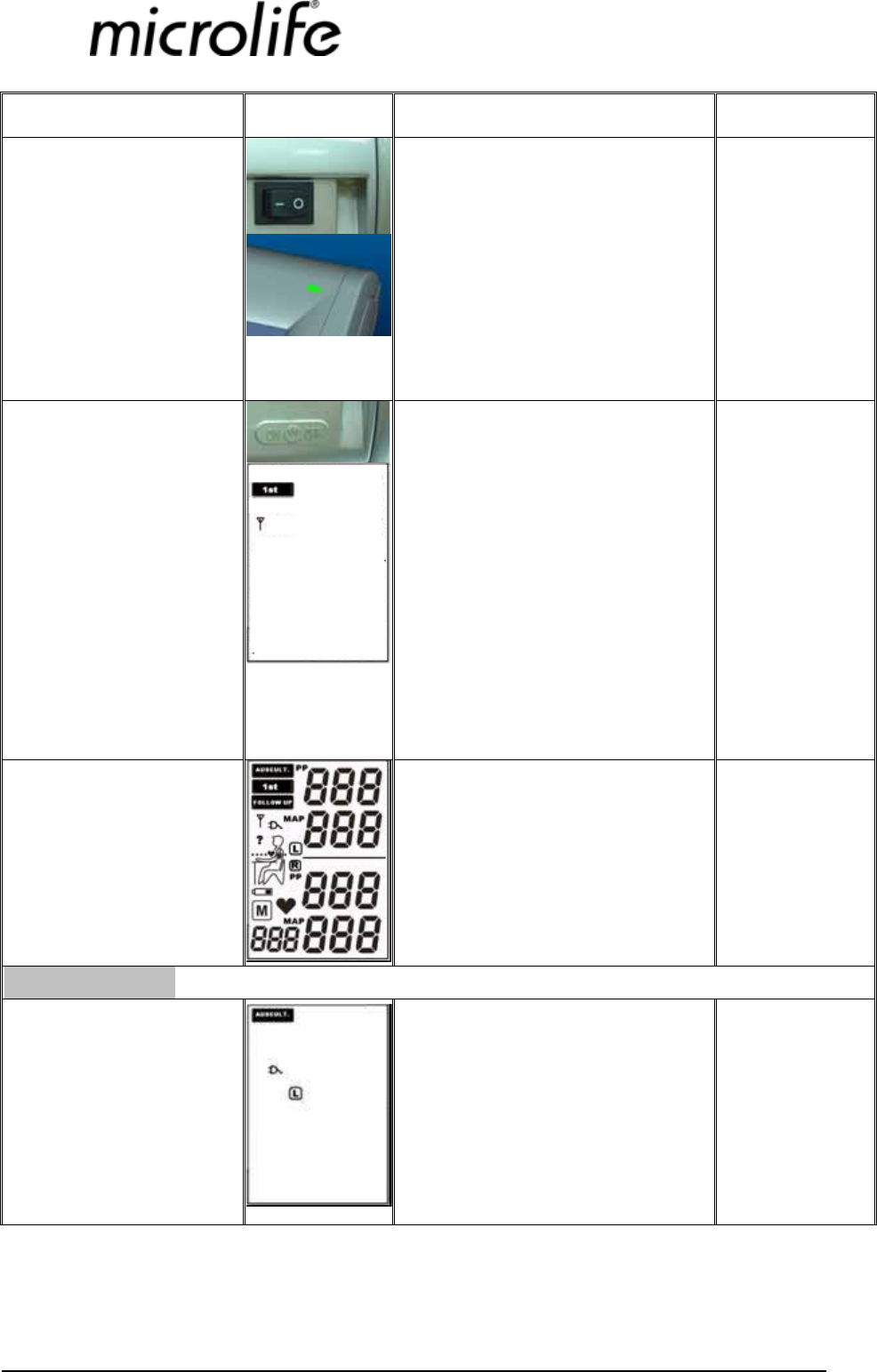

* Power –Up the WatchBP
Pro
z Locate the black power switch
on the back side.
z Turn it on
z The green indicator light on the
top right front of the WatchBP
Pro will illuminate and remain
lit.
*Power –Up the Bluetooth
z Locate the silver BT switch
on the back side.
z Turn it on
z “Antenna” icon is flashing and
waiting for connection
z Please refer to User’s guideline
for WatchBP Pro Middleware
*First time switch on z Switch on the O/I button at the
b
ack side of the unit, LCD full
segments display for 1 second
with backlight on

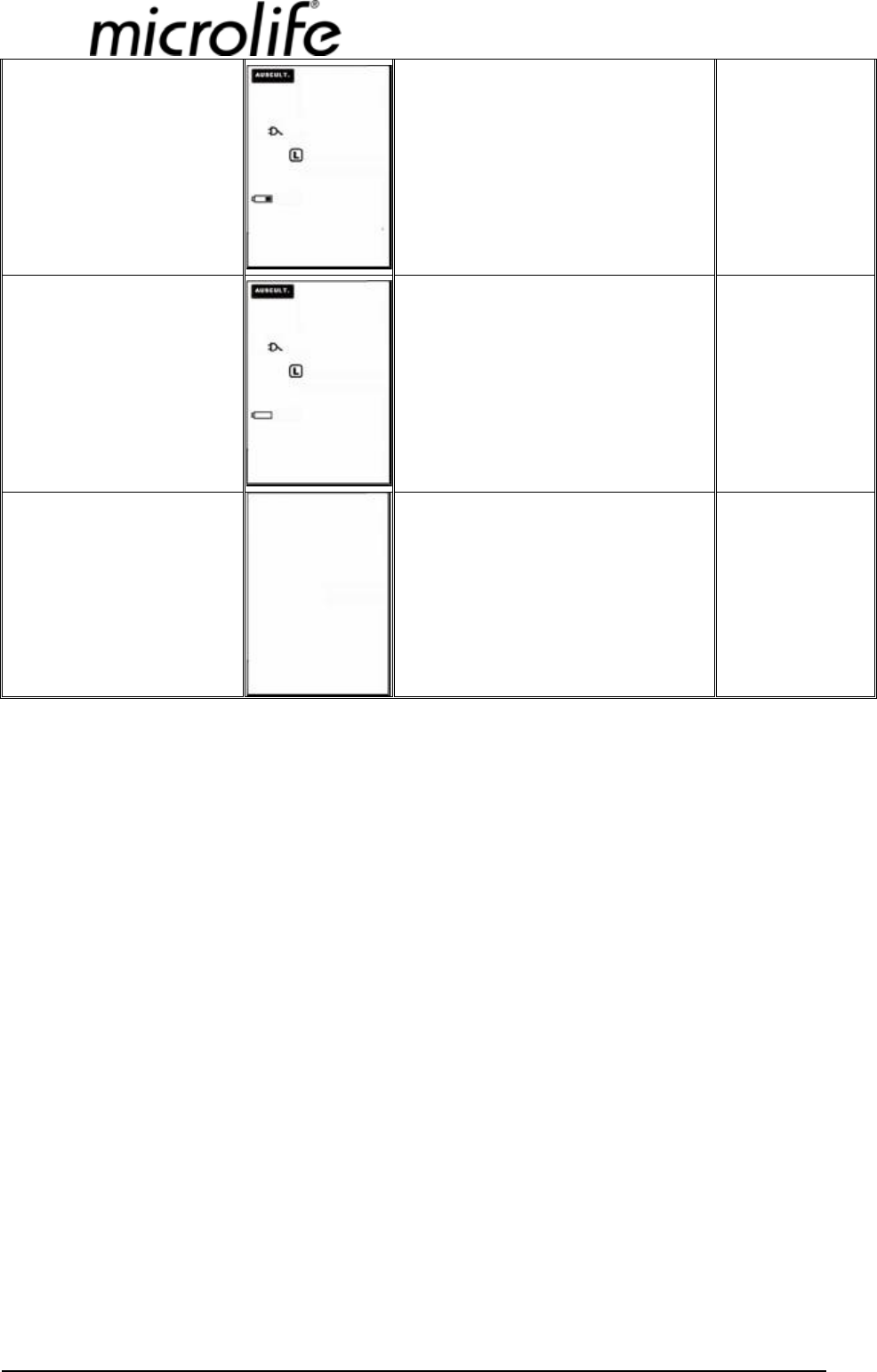

Auscultative Mode (one time measurement, on left arm).
*Measuring mode selection z Mode switch to AUSCULT.,
device ready for measuring.
z Plug icon shows on LCD i
f
7.5V, 2.0A adaptor is used.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Cuff connection z Binding left-arm cuff on your
left arm and place chest-piece
of stethoscope on your brachial
artery correctly.
*Press Start/Stop button z LCD full segment displays for
2 seconds with backlight on
*Auto zero reset z Display shows “0” when device
in auto zero reset.
z 5 short “B”s
* Fuzzy inflation
z Pumping starts, and cuf
f
pressure increases to working
pressure (for fuzzy inflation).
* Deflation z Pumping stops, pressure in
deflation by 2~4 mmHg/sec.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Catch the SYS pressure. z Press “M” button when a faint,
rhythmic tapping or thumping
sound is heard, which stands
for your SYS reading.
*Catch the DIA pressure z Press “M” button when your
diastolic reading reaches and
thumping sound stops, this is
DIA reading.
* Measurement finishes z When measuring finishes, cuf
f
deflates completely and a long
beep sounds.

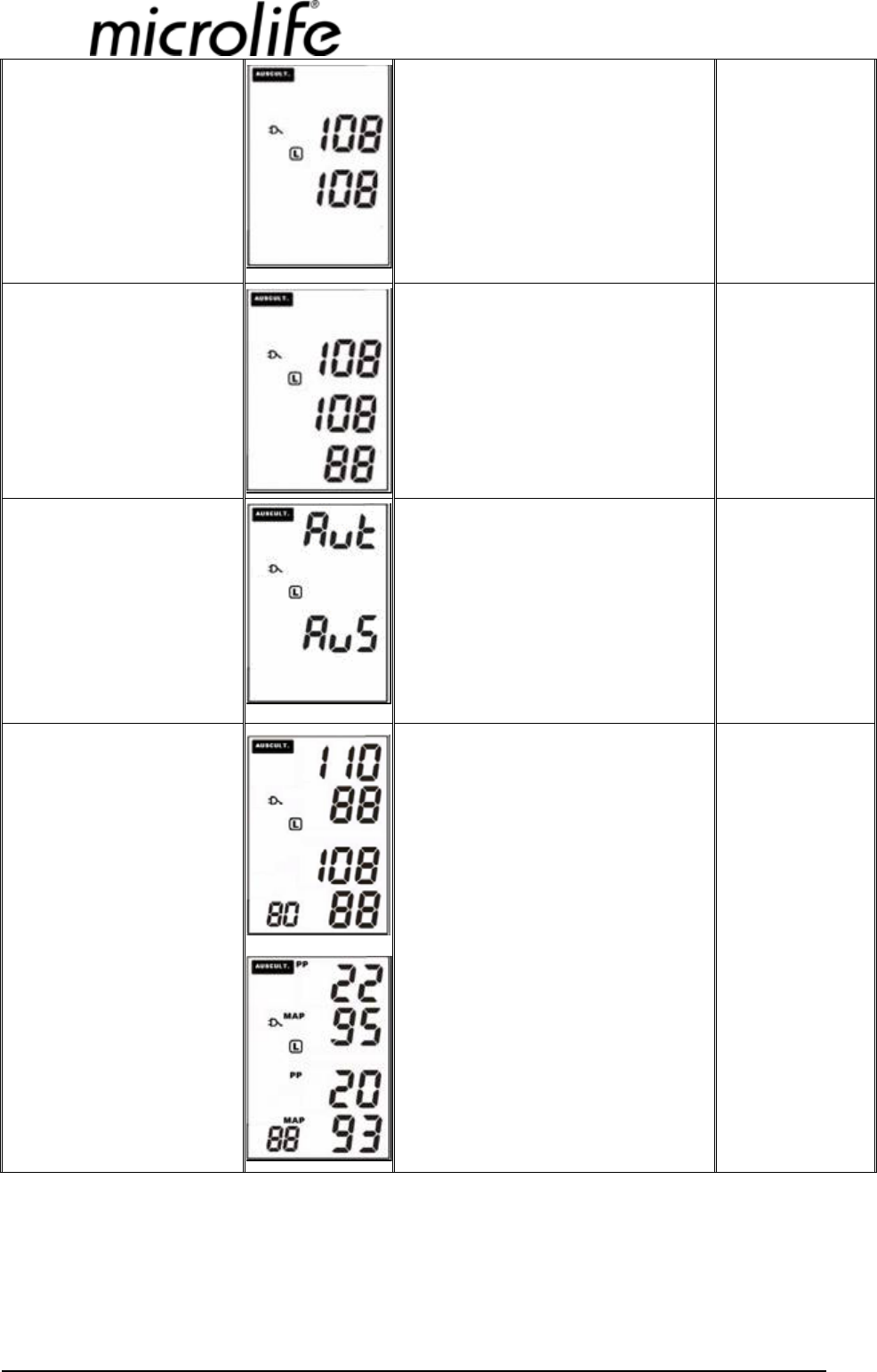

z AUT (auto-measured result),
AUS (Aus-measured result)
display for about 2 sec with
backlight on simultaneously.
z A long beep

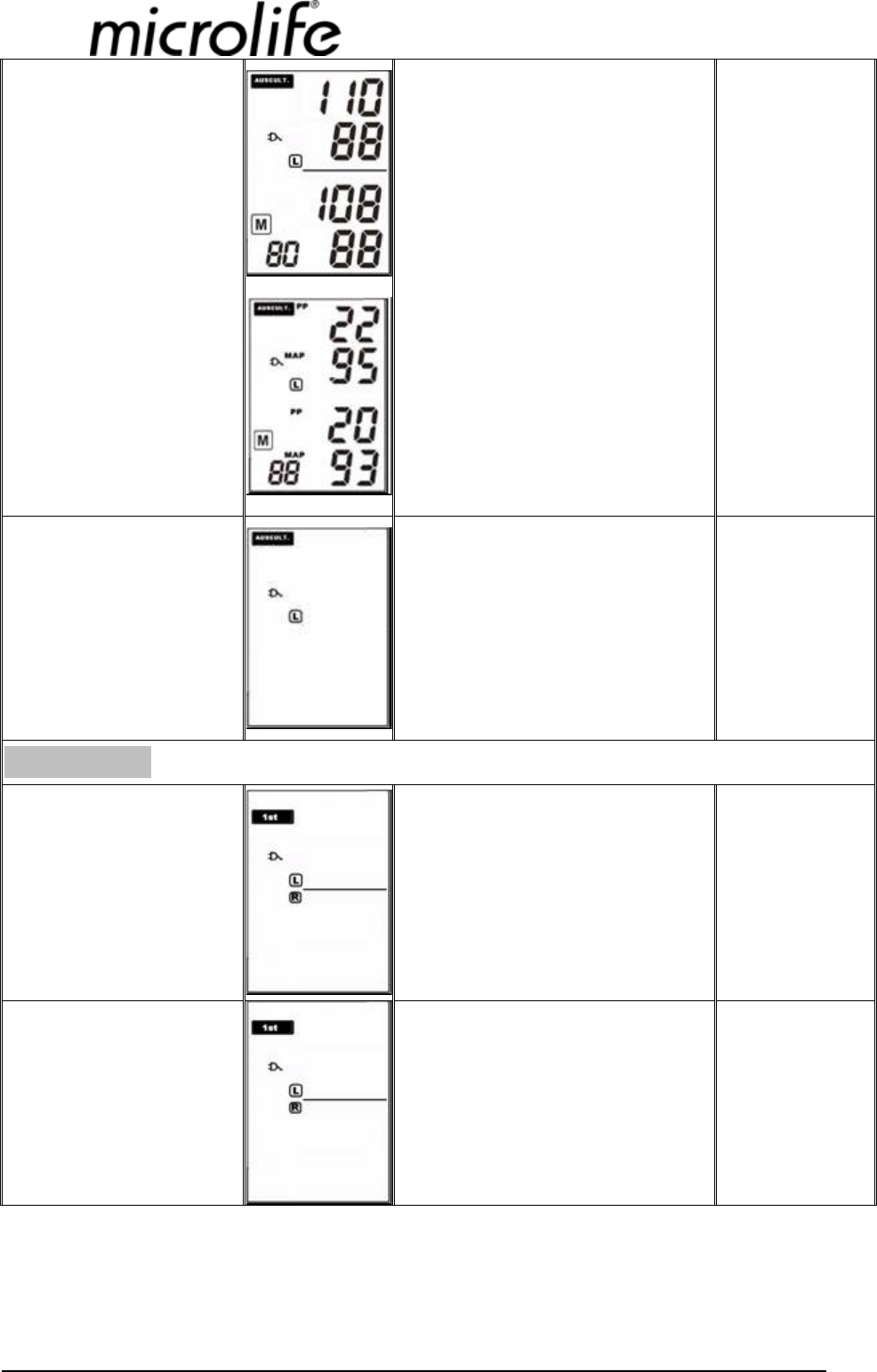

*Display measured values z Device first displays of SP/DP,
followed by MAP & PP values.
z SP/DP and MAP/PP values
display one after the other.
z Backlight remains on 40 sec.
*Under auscult. mode, device auto
measures patient’s BP & pulse and
shows the results on the upper side
of LCD (AUT).
z PP=SP-DP
z MAP=
DP+1/3 PP
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Memory reading z Device auto memorizes one set
of measured values. Press M
b
utton, LCD shows AUE/AUS,
then memory readings, with
backlight on simultaneously
z Memory SP/DP and MAP/PP
displays one after the other.
z Backlight remains on 40 sec.
z
*Withdraw from readings z Press Start/Stop button or put
the device untouched for 5’ to
terminate measurement display.
z
First Visit mode (3 times measurement in succession, on both arms).
*Measuring mode selection z Mode switch to 1st and device
ready for measuring.
*Cuff and blue tooth
connection
z Binding left & right arm cuffs
on your both arms correctly.
z Push blue-tooth switch on the
b
ack side of device (ON/OFF
sculpted) to “ON” for computer
connection if remote control.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Press Start/Stop button or
remote control.
z LCD full segment displays for
1 second with backlight on

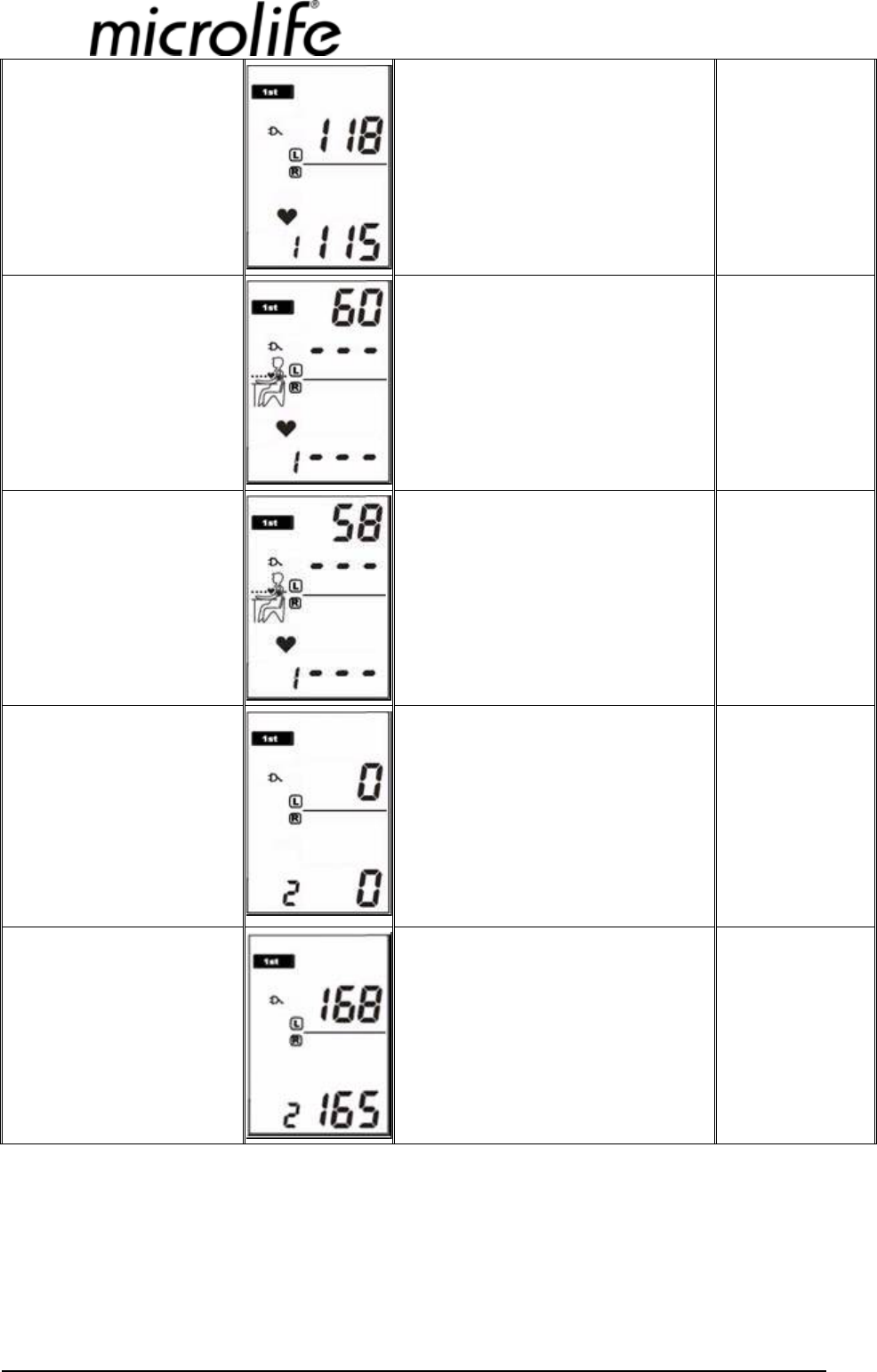

*60 sec count down before
measurement.
z Beeper sounds 5 seconds before
the 1st measurement.
z Press Start/Stop button or
remote control to skip over
count down and begin 1st turn
measuring immediately.
z 5 short “B”s

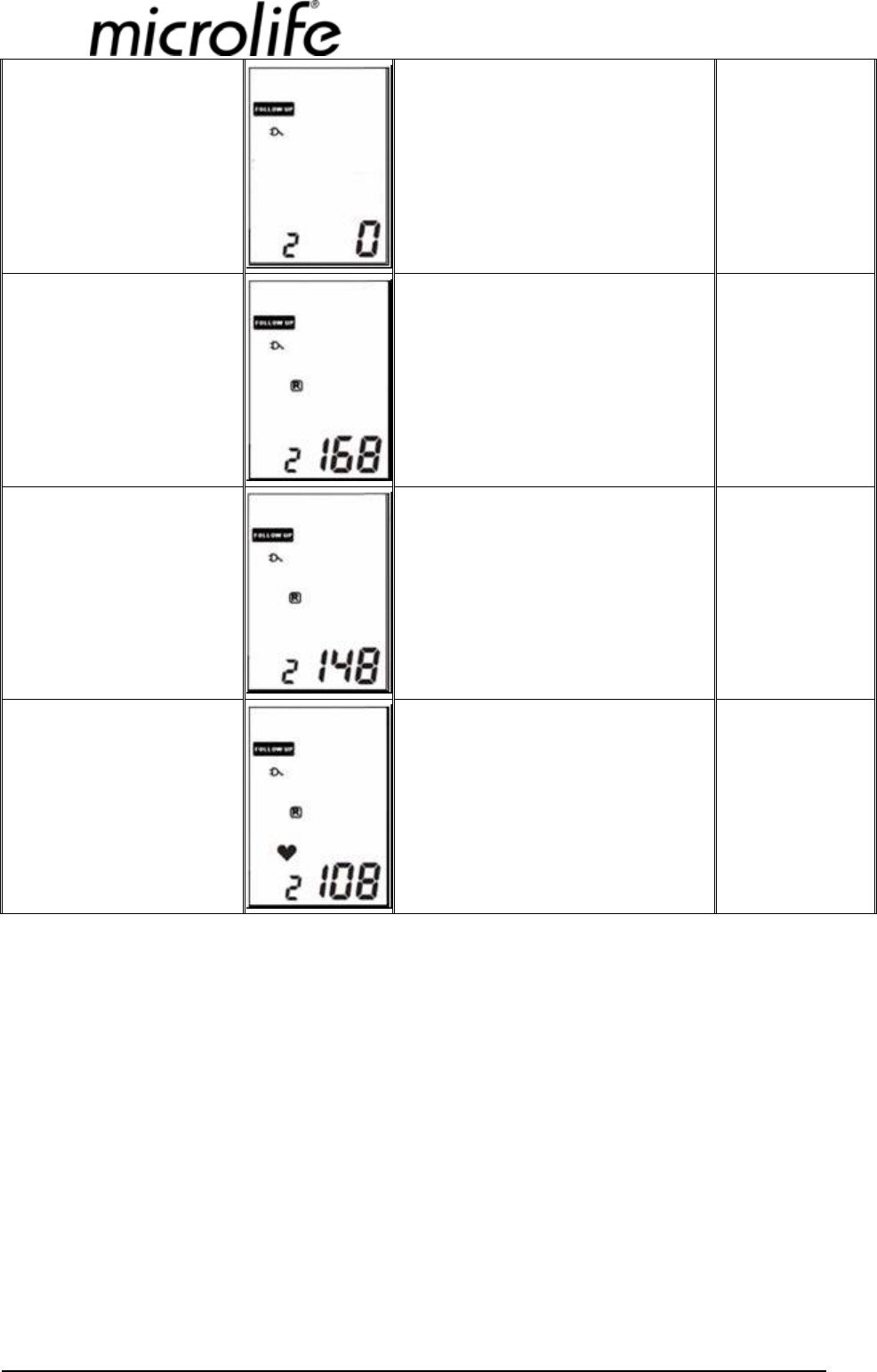

* Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “Bs”
* First turn fuzzy inflation. z Pumping starts & cuff pressure
increases to working pressure
(for fuzzy inflation).
*First turn deflation. z Pumping stops, pressure in
deflation by 4~6 mmHg/sec.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro

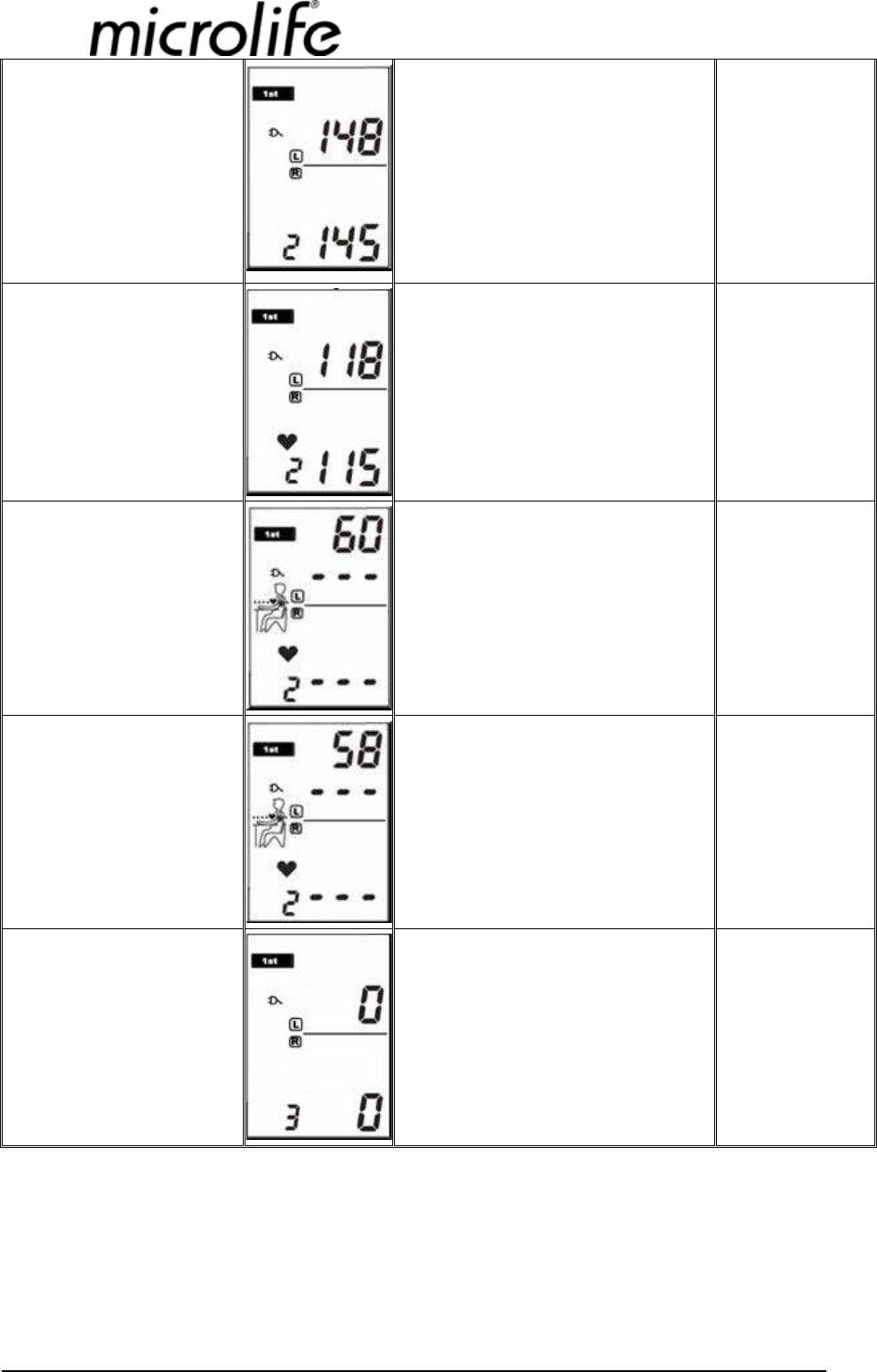

*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z Beeper each
pulse
*First turn measurement
finishes
z After first turn measuring, cuf
f
deflates completely, and a long
beeper sounds
z After another two close beeps,
device comes into 60 sec count
down.
z A long “B”,
and 2 short

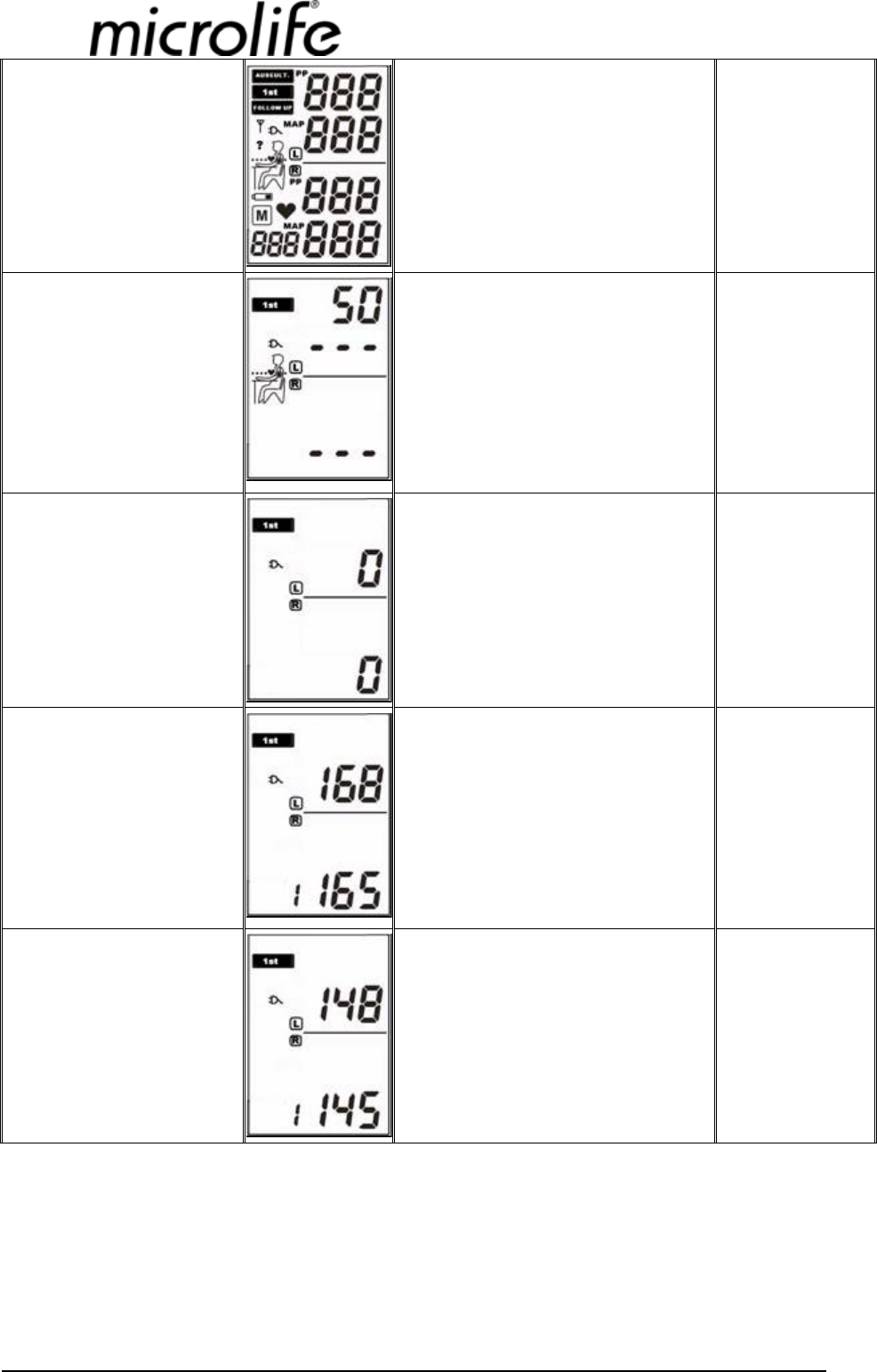

*60 sec count down z Beeper sounds 5 seconds before
the 2nd measurements.
z Press Start/Stop button or
remote control to skip over
count down and begin 2nd turn
measuring immediately.
z 5 short “Bs”
* Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “Bs”
* 2nd turn fuzzy inflation. z Pumping starts & cuff pressure
increases to working pressure
(for fuzzy inflation).
z
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*2nd turn deflation. z Pumping stops, pressure in
deflation by 4~6 mmHg/sec.
z
*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z A beep each
pulse

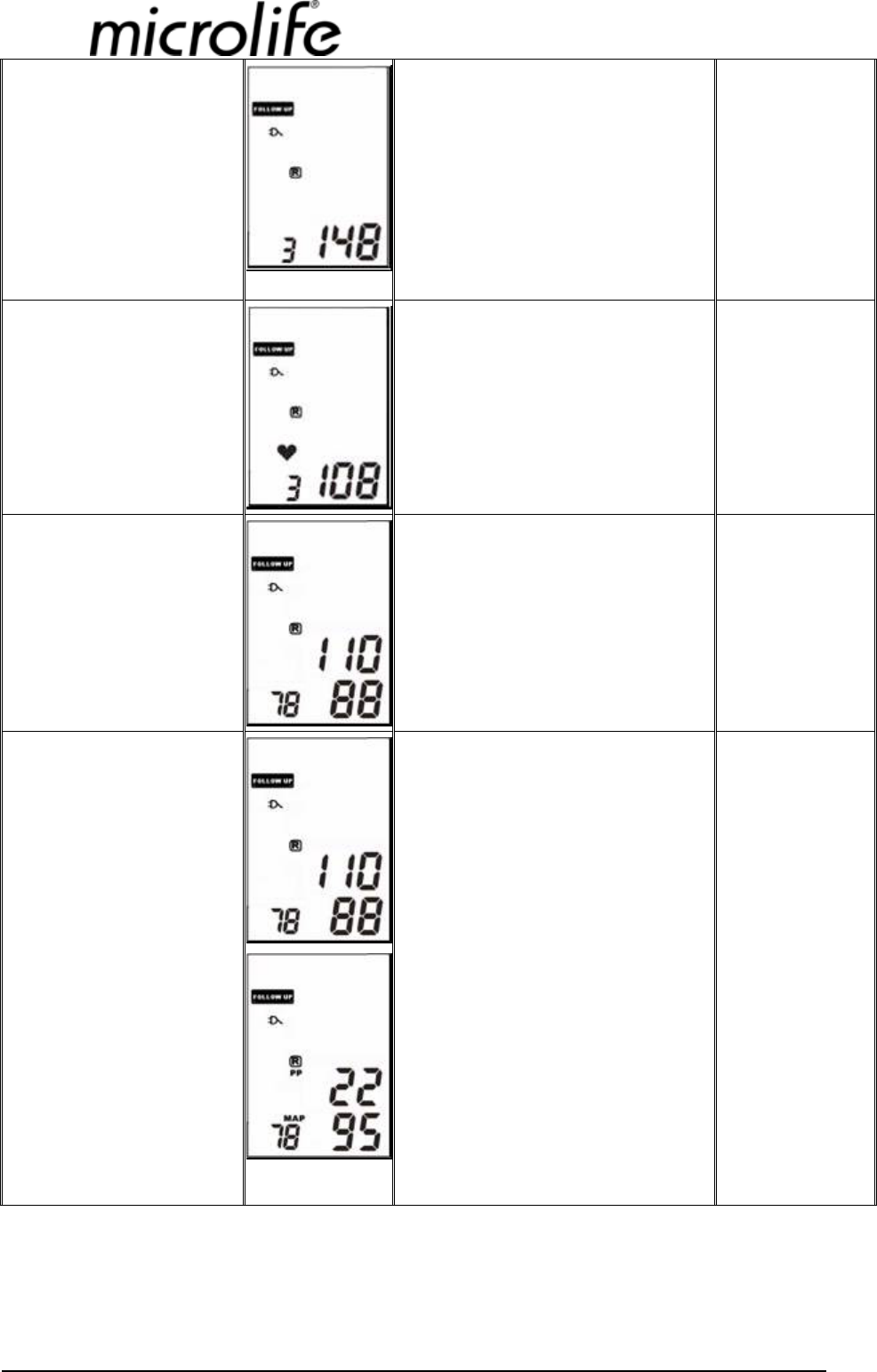

*2nd turn measurement
finishes
z After 2nd turn measuring, cuf
f
deflates completely, and a long
beeper sounds
z After another two close beeps,
device comes into 60 sec count
down.
z A long “B”,
and 2 short
*60 sec count down z Beeper sounds 5 seconds before
the 2nd measurements.
z Press Start/Stop button or
remote control to skip over
count down and begin 3rd turn
measuring immediately.
z 5 short “Bs”
*Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “Bs”
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*3rd turn fuzzy inflation. z Pumping starts & cuff pressure
increases to working pressure
(for fuzzy inflation).
*3rd turn deflation. z Pumping stops, pressure in
deflation by 4~6 mmHg/sec.
*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z A beep each
pulse
*The 3rd turn measuring
finishes
z After 3rd turn measuring, cuf
f
deflates completely, and a long
beeper sounds
z A long “B”.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro

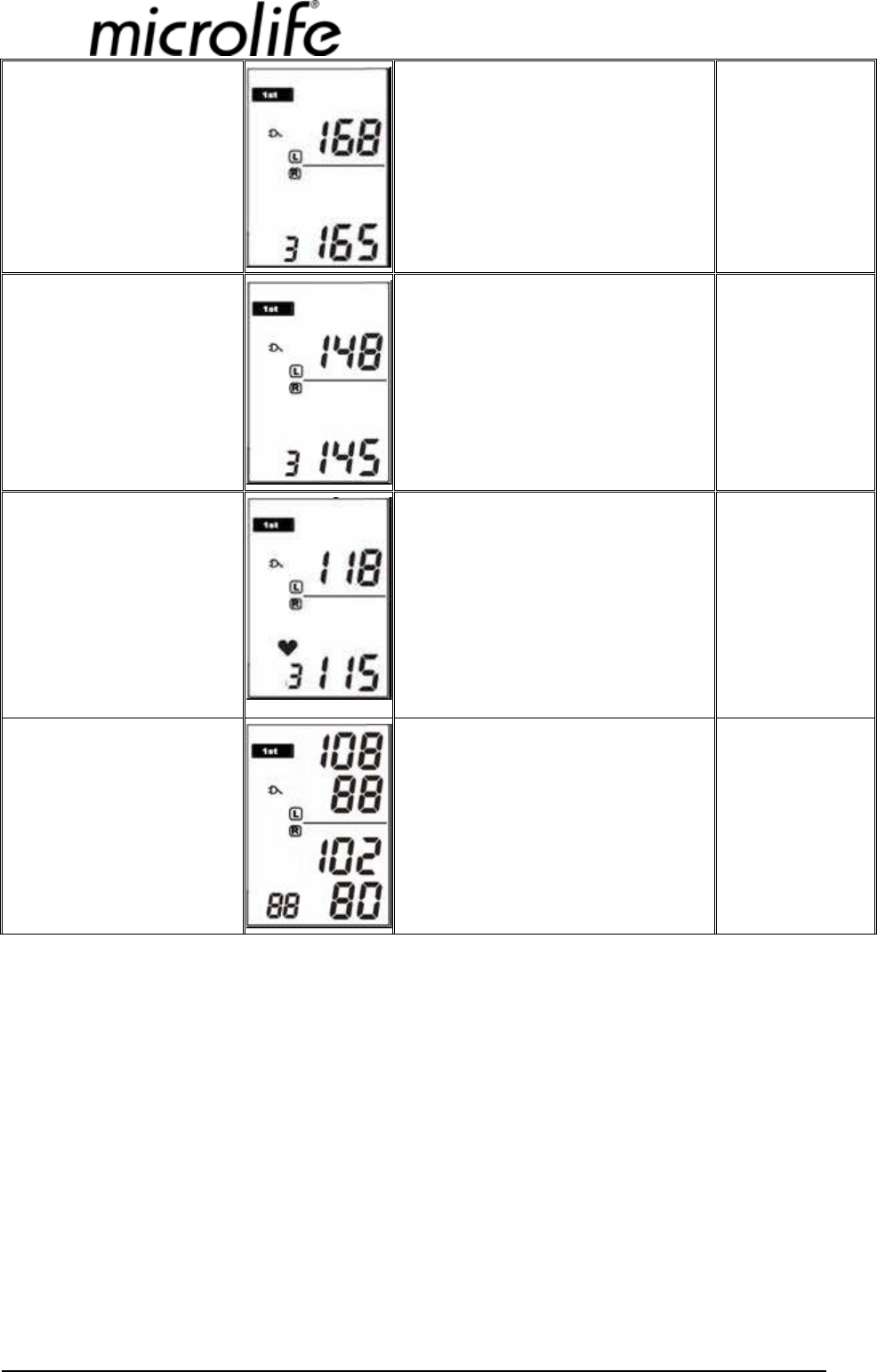

* Display of average values z LCD displays values averaged
from 3 times measurement with
backlight on simultaneously.
z Left arm BP values will flash 5
times by default if difference
between L and R values are less
than 10 mmHg, otherwise, the
higher (L or R) flashes 5 times.
z Display of SP/DP, following
which, MAP & PP shows on.
z SP/DP and MAP/PP values
display one after the other till
device auto off.
z Backlight remains on 40 sec.
*Data transmission. z Through blue tooth, measured
values are submitted to
computer for further analysis.

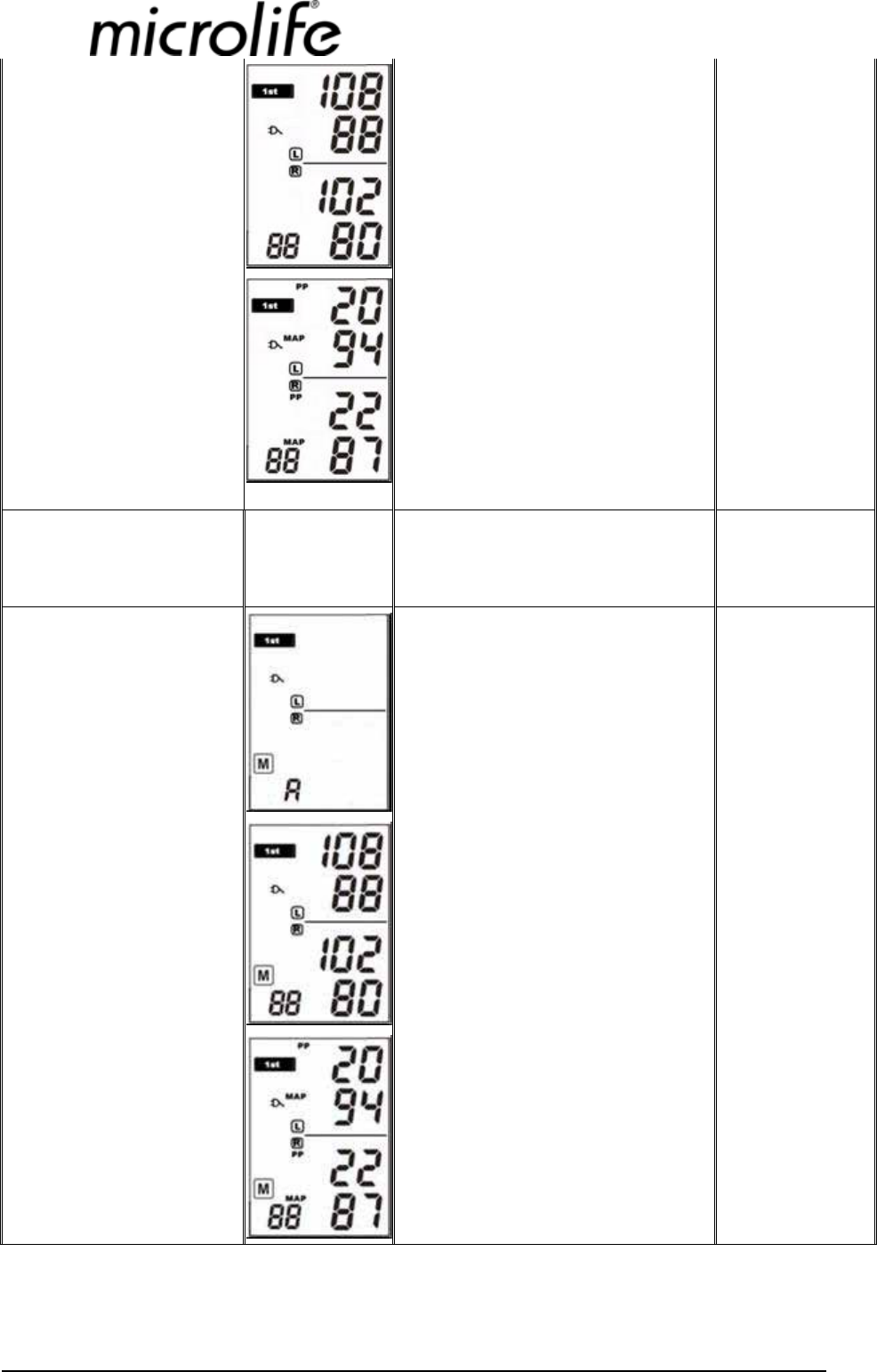

*Memory reading--average
values display. z Device auto memorizes 3 times
measured values and their
average readings.

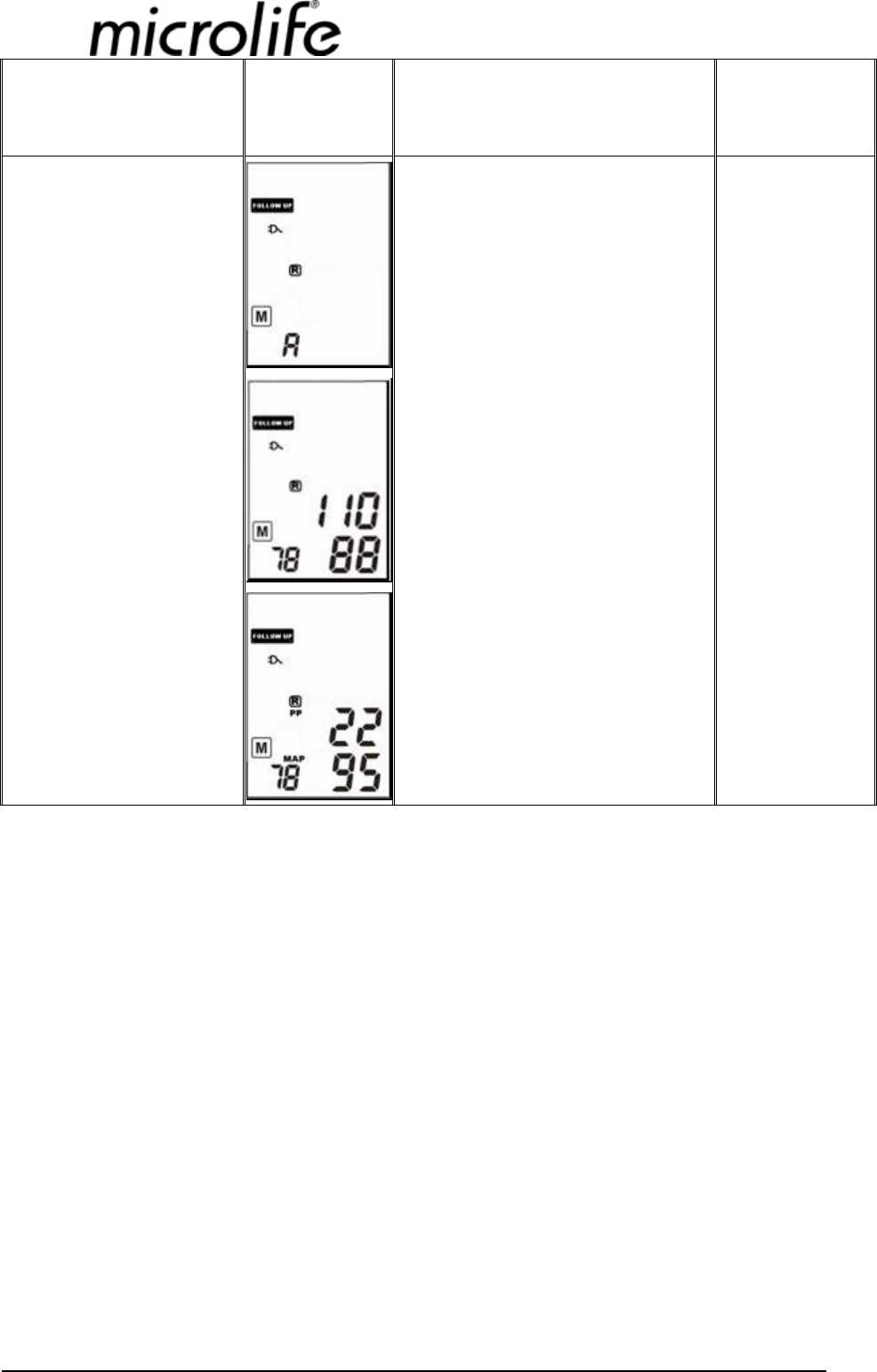

z Press M button, LCD shows an
“A” then average readings,
with backlight on
simultaneously
z Averaged SP/DP and MAP/PP
displays one after the other.
z Backlight remains on 40 sec.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro

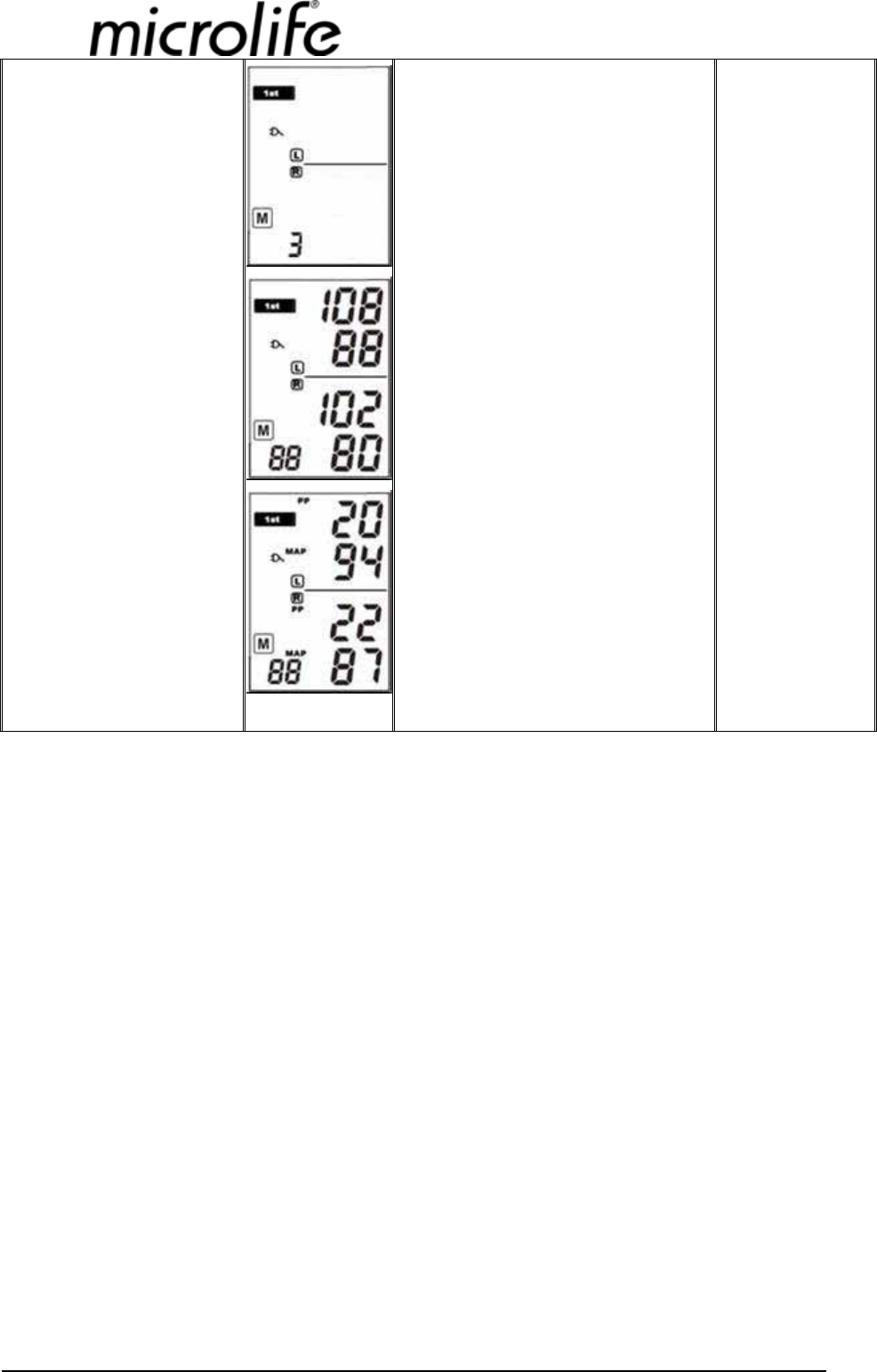

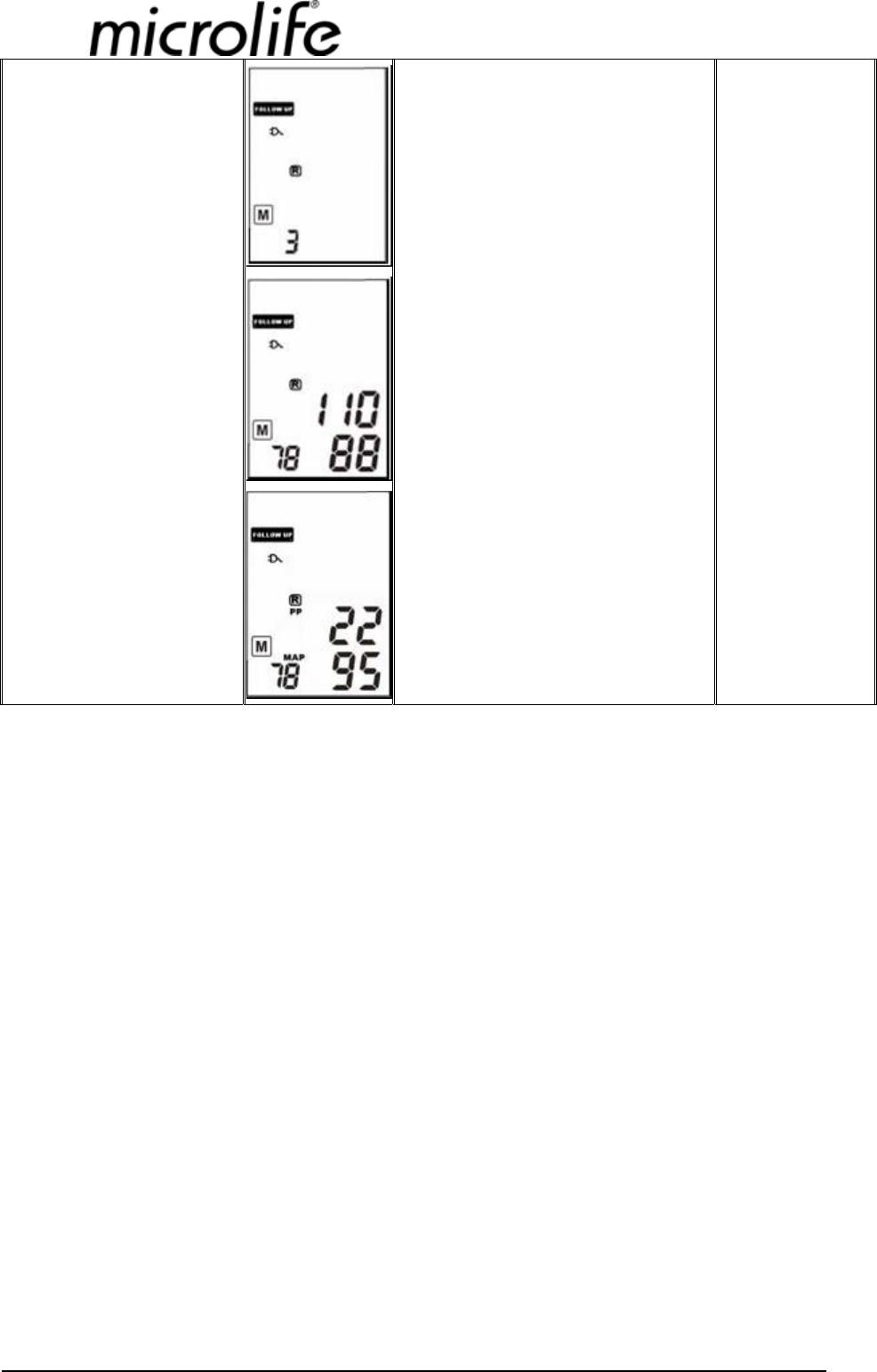

* Memory reading--3rd turn
measured values display.
z Press M button again, LCD
shows a “3” then displays o
f
the 3rd turn measured values.
z SP/DP and MAP/PP displays
one after the other.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro

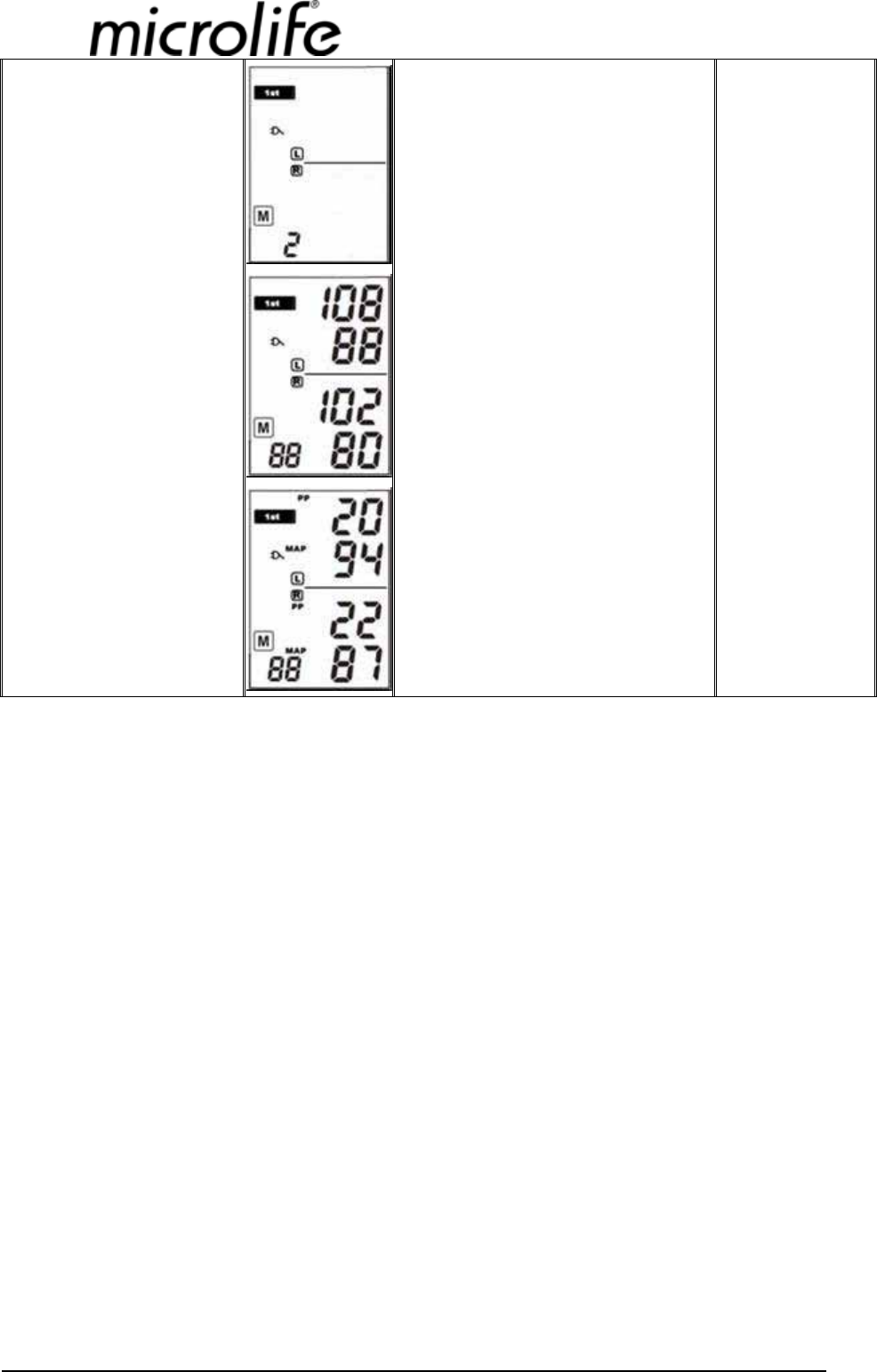

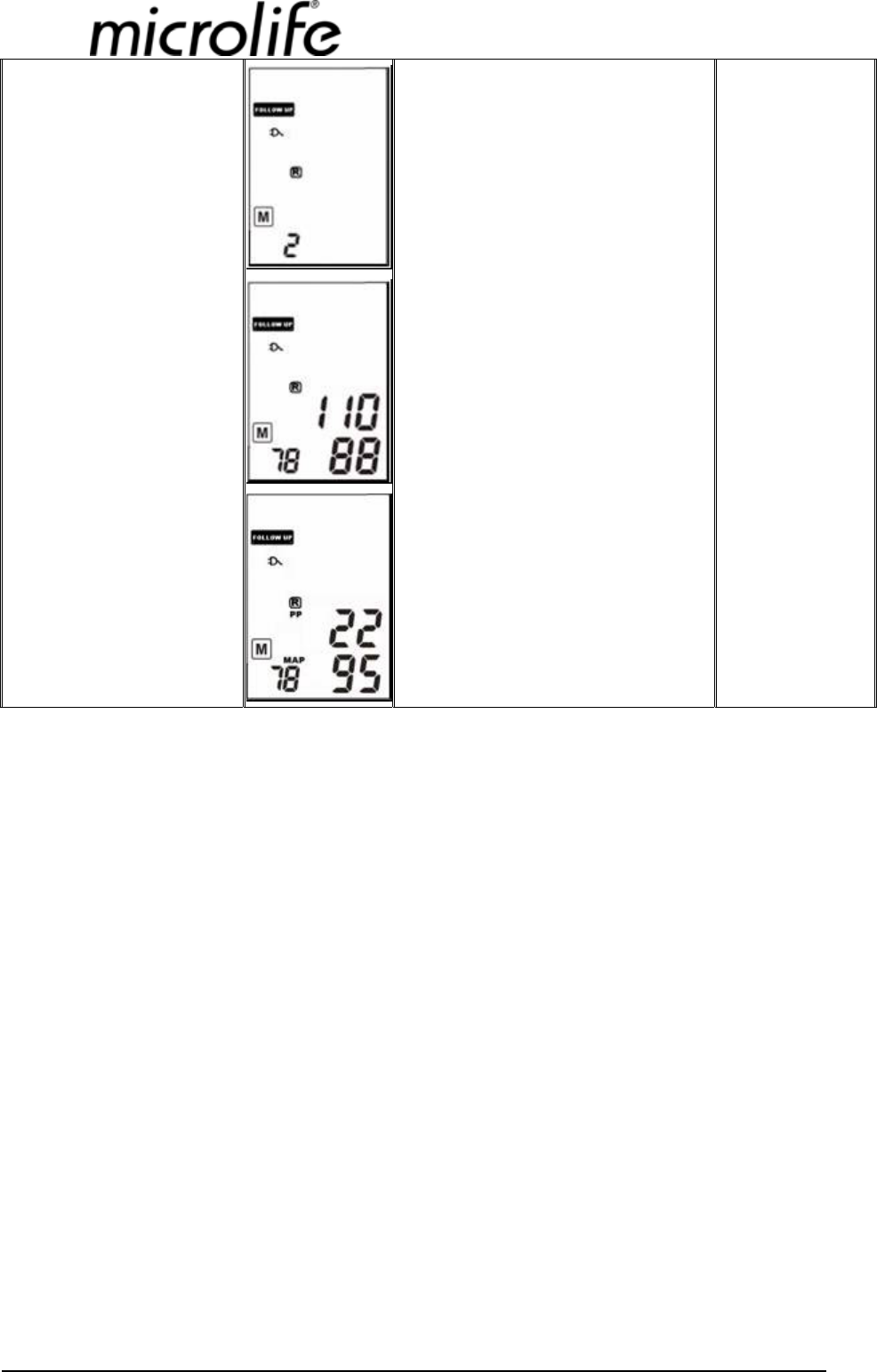

*Memory reading--2nd turn
measured values display.
z Press M button again, LCD
shows a “2” then displays o
f
the 2nd turn measured values.
z SP/DP and MAP/PP displays
one after the other.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro

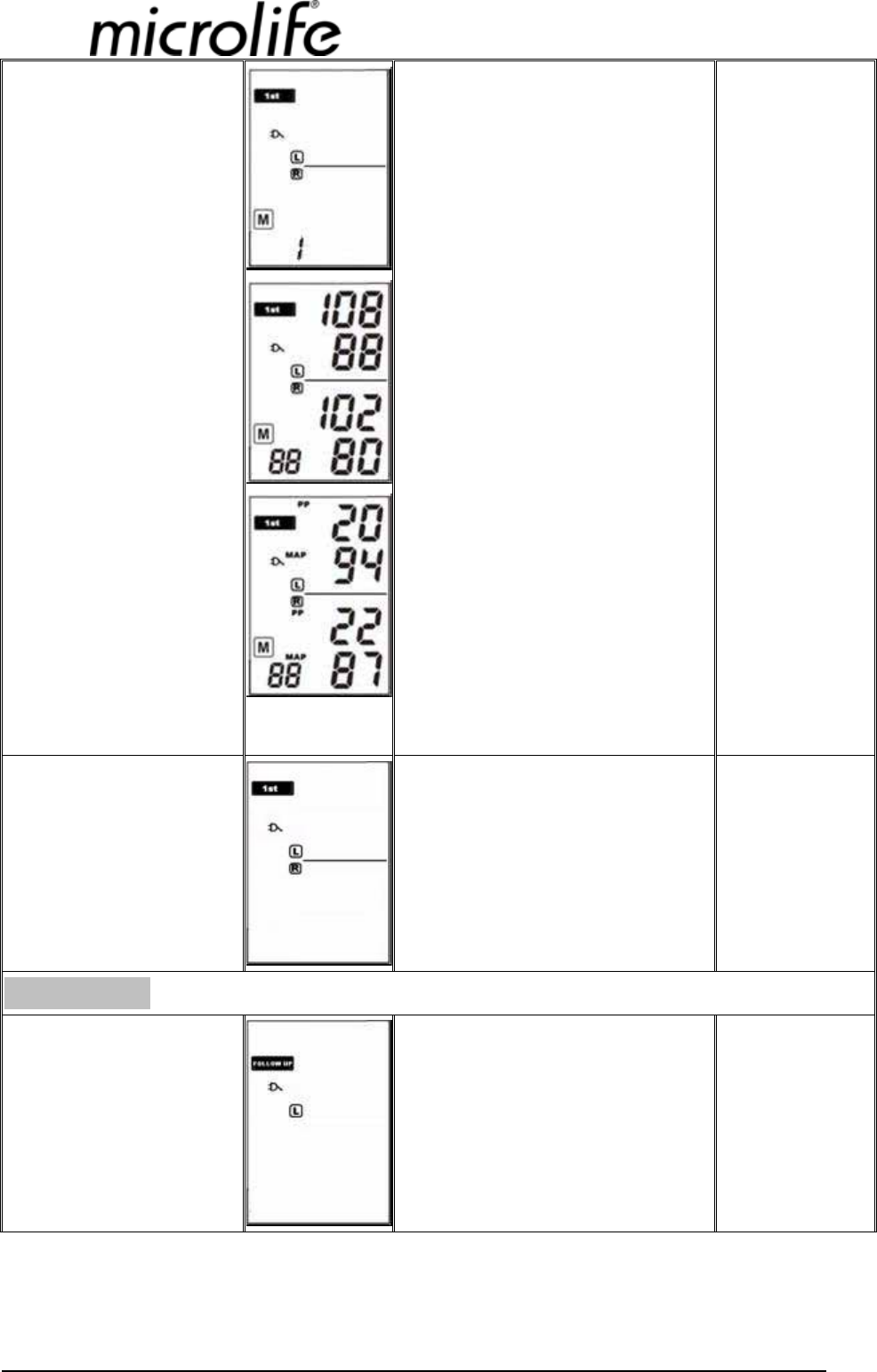

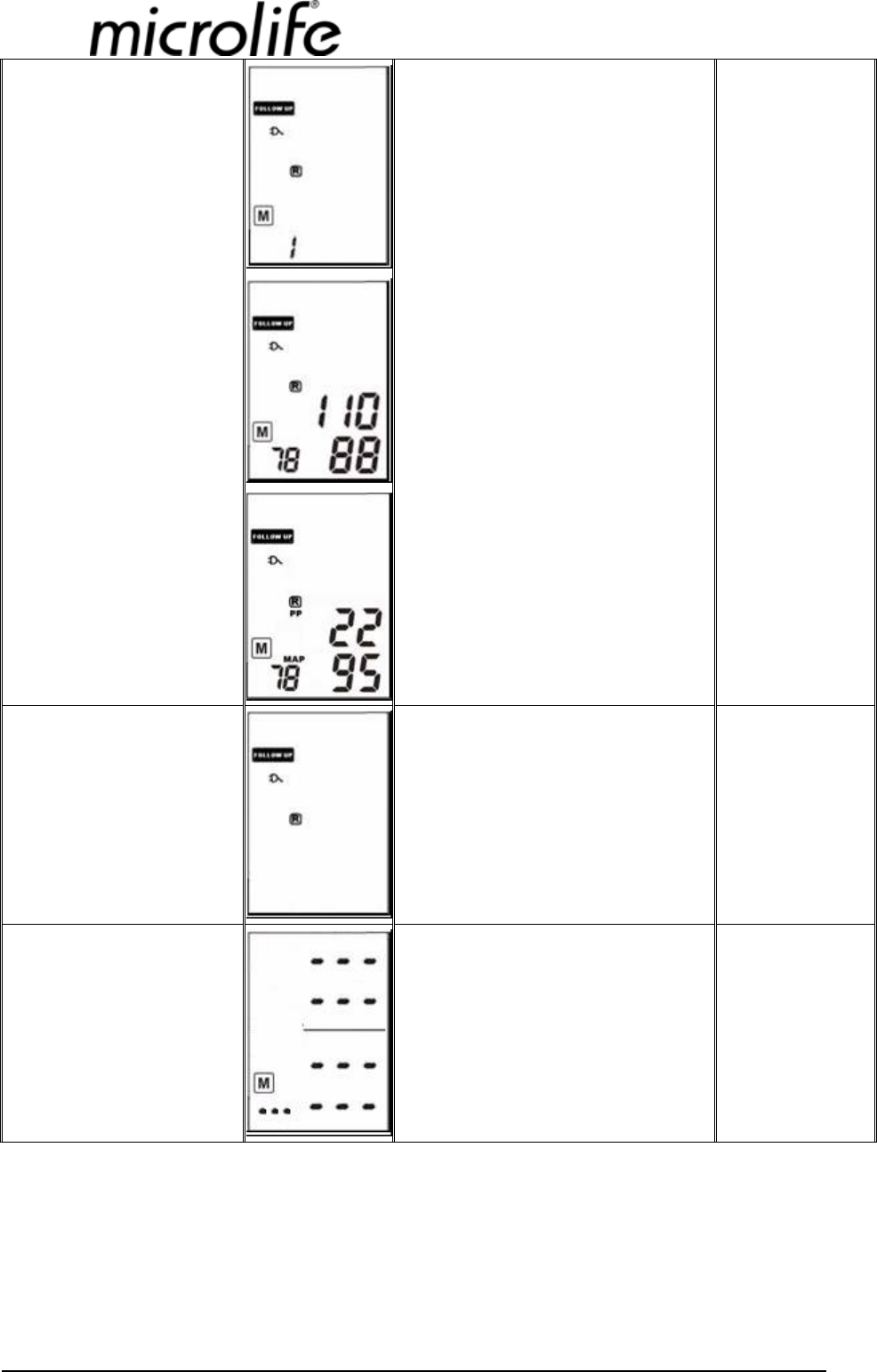

*Memory reading--1st turn
measured values display.
z Press M button again, LCD
shows a “1” then display of the
1st turn measured values.
z SP/DP and MAP/PP displays
one after the other.
*Withdraw from readings z Press Start/Stop button or put
the device untouched for 5’ to
terminate measurement display.

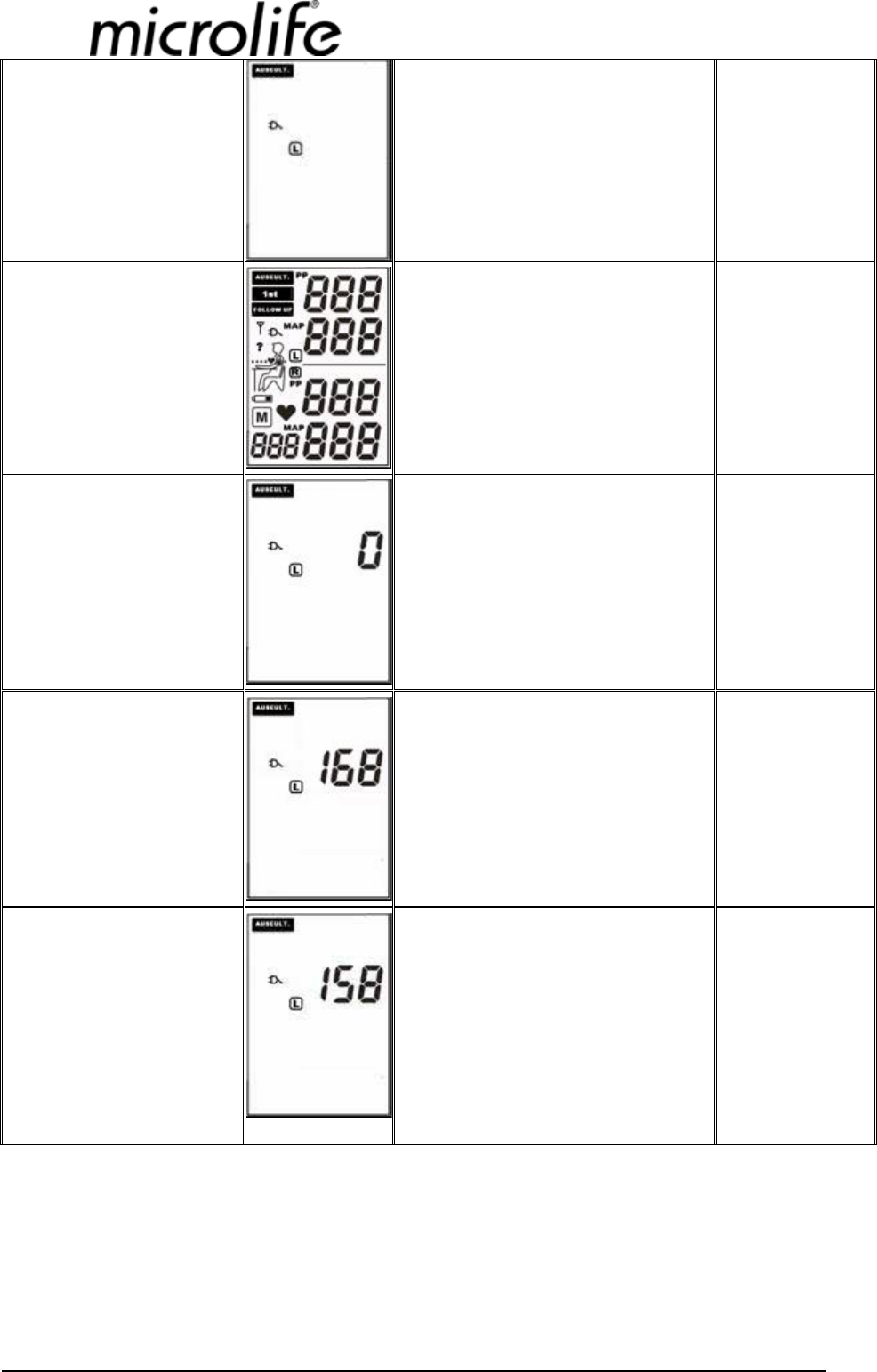

Follow up mode (3 times measurement in succession, optional on left or right arm).
*Measuring mode selection z Mode switch to “FOLLOW UP”
and device ready for measuring.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Cuff and blue tooth
connection
z Binding left & right arm cuffs
on your both arms correctly.
z Push blue-tooth switch on the
b
ack side of device (ON/OFF
sculpted) to “ON” for computer
connection if remote control.

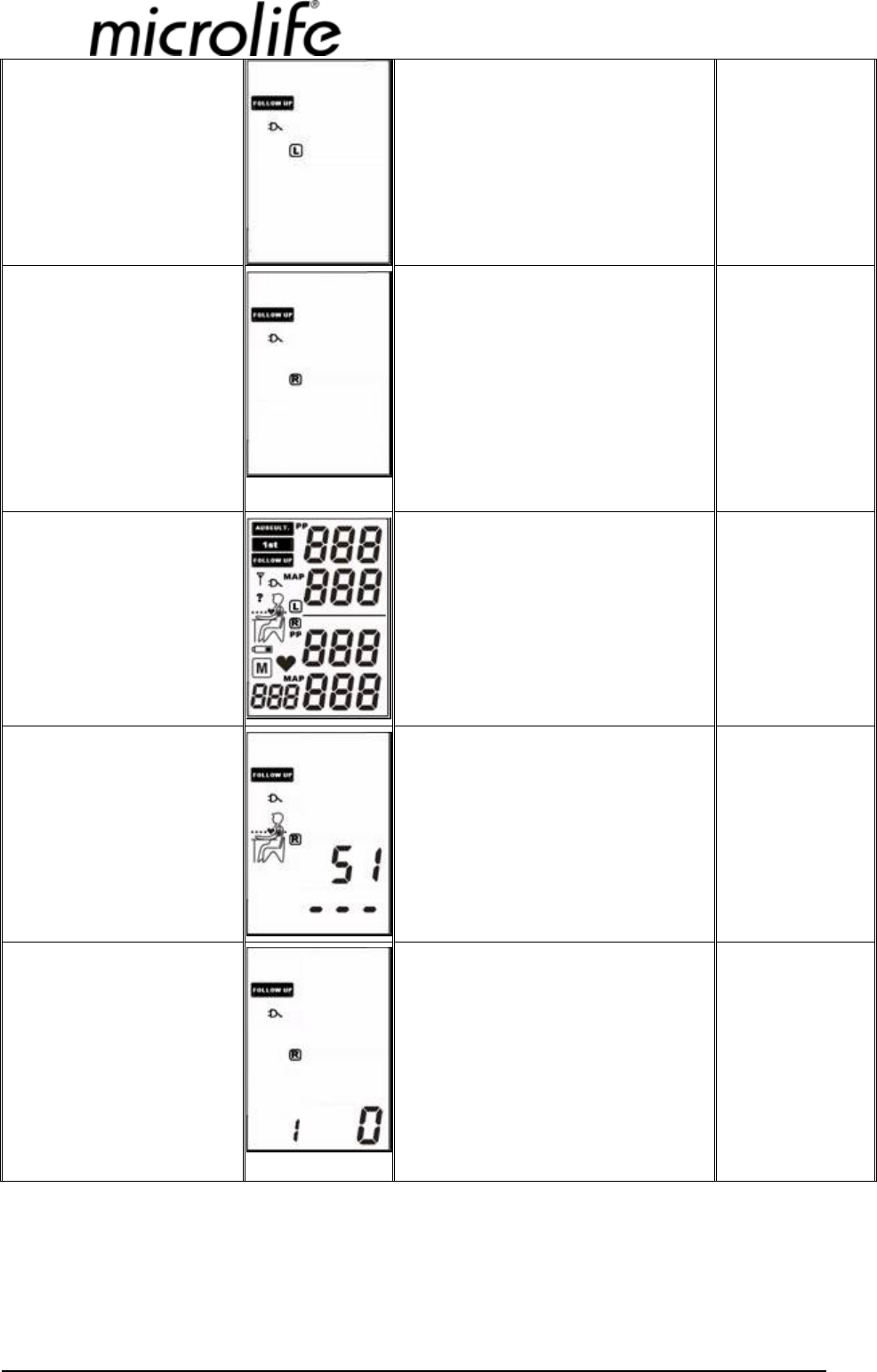

*Choose one preferred arm
for measurement.
z Hold down M button for 3 sec,
memory shows with backlight
on, till L or R flashes.
z Press M button to choose that
preferred arm for measurement,
and press Start/Stop button for
confirmation.
*Press Start/Stop button or
remote control.
z LCD full segment displays for
1 second with backlight on
*60 sec count down before
measurement.
z Beeper sounds 5 seconds
before the 1st measurement.
z Press Start/Stop button or
remote control to skip over
count down and begin 1st turn
measuring immediately.
z 5 short “B”s
*Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “B”s
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
* First turn fuzzy
inflation.
z
P
umping starts & cuff
p
ressure increases to
w
orking pressure (for
fuzzy inflation).
*First turn deflation. z Pumping stops, pressure in
deflation by 4~6 mmHg/sec.
*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z Beeper each
pulse
*First turn measurement
finishes
z After first turn measuring, cuf
f
deflates completely and device
comes into 60 sec count down.

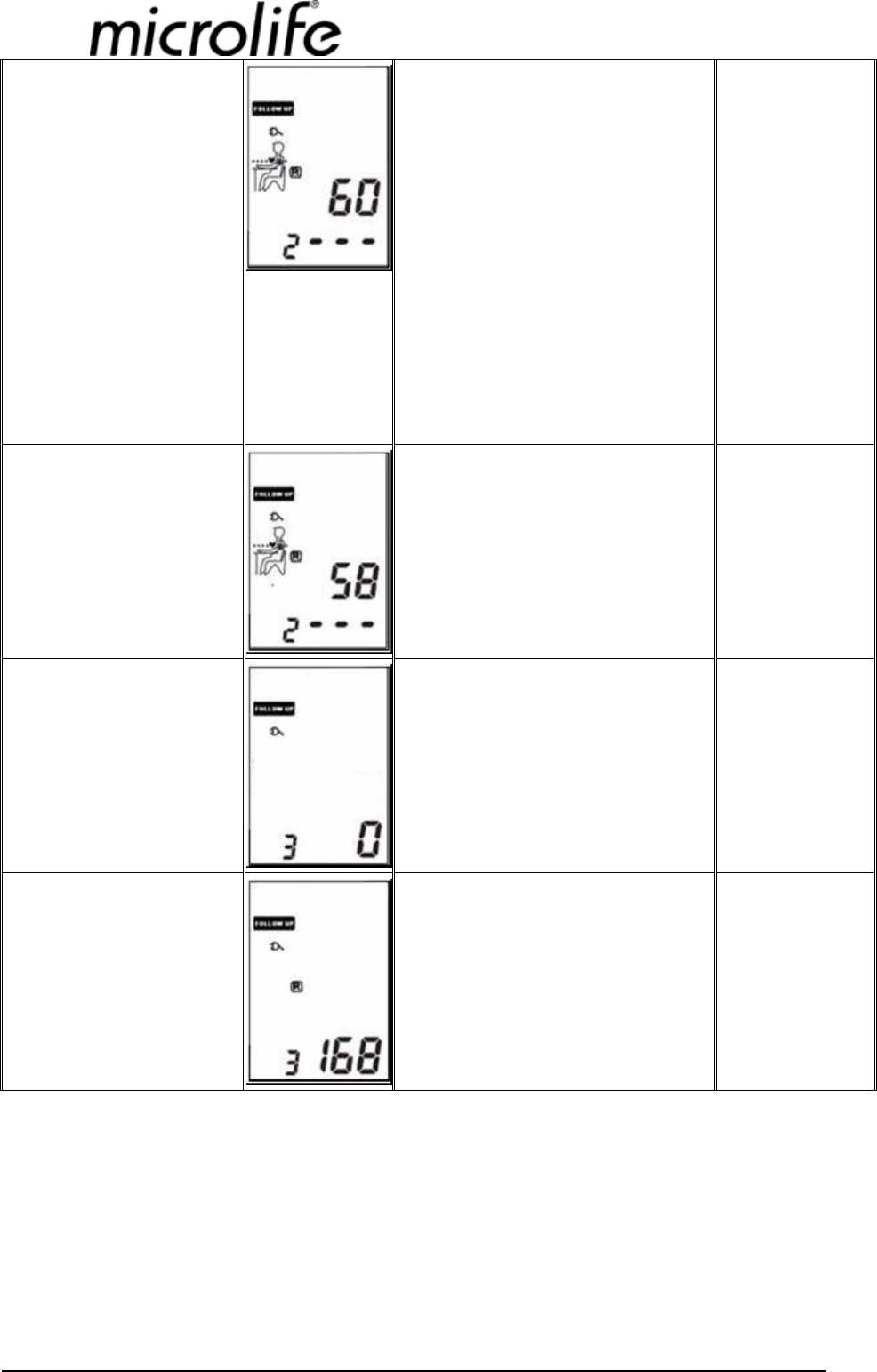

*60 sec count down z Beeper sounds 5 seconds
before the 2nd measurements.
z
P
ress Start/Stop button
o
r remote control to
s
kip over count down
and begin 2nd turn
measuring immediately.
z 5
sh
ort
“B
”s
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
* Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “Bs”
* 2nd turn fuzzy inflation. z Pumping starts & cuff pressure
increases to working pressure
(for fuzzy inflation).
*2nd turn deflation. z Pumping stops, pressure in
deflation by 4~6 mmHg/sec.
*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z A beep each
pulse
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*2nd turn measurement
finishes
z After 2nd turn measuring, cuf
f
deflates completely.
z If a difference of 5mmHg exists
between 1st&2nd time measured
sys or dia pressure, device auto
comes into 60 sec count down
and takes the 3rd measurement.
*Measuring finishes with a long
b
eep and average values display i
f
difference between 1st & 2nd turn
measured sys or dia pressure is less
than 5 mmHg.
*60 sec count down z Beeper sounds 5 sec before the
3rd turn measurement.
z
P
ress Start/Stop button
o
r remote control to
s
kip over count down
and begin 3rd turn
measuring immediately.
z 5
sh
ort
“B
”s
*Auto zero reset z Display shows “0” for 2 sec
when device in auto zero reset.
z 5 short “Bs”
* 3rd turn fuzzy inflation. z Pumping starts & cuff pressure
increases to working pressure
(for fuzzy inflation).
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*3rd turn deflation. z Pumping stops, pressure in
deflation by 2~4 mmHg/sec.
*Pulse detected z Detect the pulse, “♥” icon start
to flash and a beep is heard for
every heartbeat.
z A beep each
pulse
*3rd turn measurement
finishes
z After 3rd turn measuring, cuf
f
deflates completely, and a long
beeper sounds
z A long “B”.
* Display of average values z LCD displays values averaged
from 3 times measurement with
backlight on simultaneously.
z Display of SP/DP, following
which, MAP & PP shows on.
z SP/DP and MAP/PP values
display one after the other till
device auto off.
z Backlight remains on 40 sec.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Data transmission. z Through blue tooth, measured
values are submitted to
computer for further analysis.
*Memory reading--average
values display. z Device auto memorizes 3 times
measured values and their
average readings.
z Press M button, LCD shows an
“A” then average reading, with
backlight on simultaneously.
z Averaged SP/DP and MAP/PP
displays one after the other.
z Backlight remains on 40 sec.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
* Memory reading--3rd turn
measured values display.
z Press M button again, LCD
shows a “3” then displays o
f
the 3rd turn measured values.
z SP/DP and MAP/PP displays
one after the other.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Memory reading--2nd turn
measured values display.
z Press M button again, LCD
shows a “2” then displays o
f
the 2nd turn measured values.
z SP/DP and MAP/PP displays
one after the other.
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
*Memory reading--1st turn
measured values display.
z Press M button again, LCD
shows a “1” then display of the
1st turn measured values.
z SP/DP and MAP/PP displays
one after the other.
*Withdraw from readings z Press Start/Stop button or put
the device untouched for 5’ to
terminate measurement display.
*Memories deletion. z Hold down M button for 7 sec
till 3 short beepers are heard
and bars appear on LCD with
b
acklight on simultaneously,
which means memory readings
are deleted successfully.
z 3 short “B”
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
* Battery low indication
z When voltage inside batteries is
lower to 4.8V, LCD shows low
b
attery icon and batteries begin
to be charged if adaptor is
connected.
z Once voltage inside batteries is
lower to 4.6V, LCD shows low
battery icon, then batteries must
be charged again.
*Turn off the device. z Switch off O/I button at the
back side of the unit
z Memories won’t be stored once
the device is turned off.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly
approved by the part responsible for compliance could void the user’s
authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
© 2007 Microlife Corporation
Document: Instruction Manual of WatchBP Pro
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference
that may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
