Microsoft BH-806 Bluetooth Headset User Manual

Microsoft Mobile Oy Bluetooth Headset

User Manual

Nokia Bluetooth Headset BH-806
5555555/1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Introduction
About your headset
With the Nokia Bluetooth Headset BH-806,
you can handle calls hands-free, even when
you are using two mobile devices at the same
time.
Note: The surface of this product does
not contain nickel in the platings. The surface of
this device contains stainless steel.
Read this user guide carefully before using the
product. Also, read the user guide for the device
that you connect to the product.
For more information, go to
www.nokia.com/support.
About Bluetooth connectivity
You can use Bluetooth to make a wireless
connection to other compatible devices, such
as mobile devices.
This device is compliant with Bluetooth
Specification 2.1 + EDR supporting the following
profiles: Headset Profile 1.1 and Hands-Free
Profile 1.5. Check with the manufacturers of
other devices to determine their compatibility
with this device.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Get started

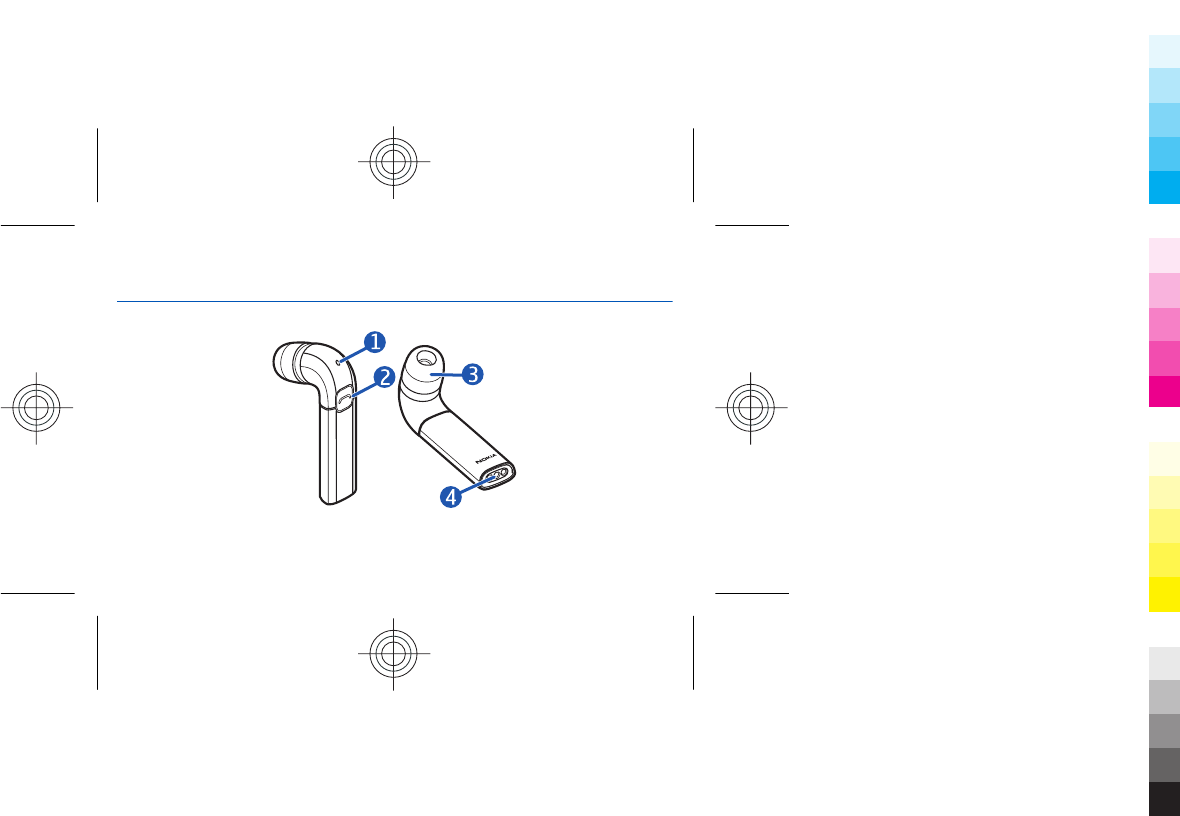

Keys and parts
1 Indicator light
2 Multifunction key
3 Earpiece
4 Microphone
5 Carrying clip
6 Charger connector
Start using your headset
The headset comes with different sized
earpads. Select the earpad that fits the best
and is the most comfortable for your ear. To
change the earpad, pull the current earpad
from the earpiece, and push the new earpad
into place.
1. To switch the headset on, remove it from
the carrying clip. If the headset doesn't
switch on, charge the battery.
2. Gently push the earpiece into your ear.
3. To select the language, follow the voice
prompts. You can select English or
Chinese. Pairing mode is activated.
4. To pair the headset with a compatible
device, follow the voice prompts.

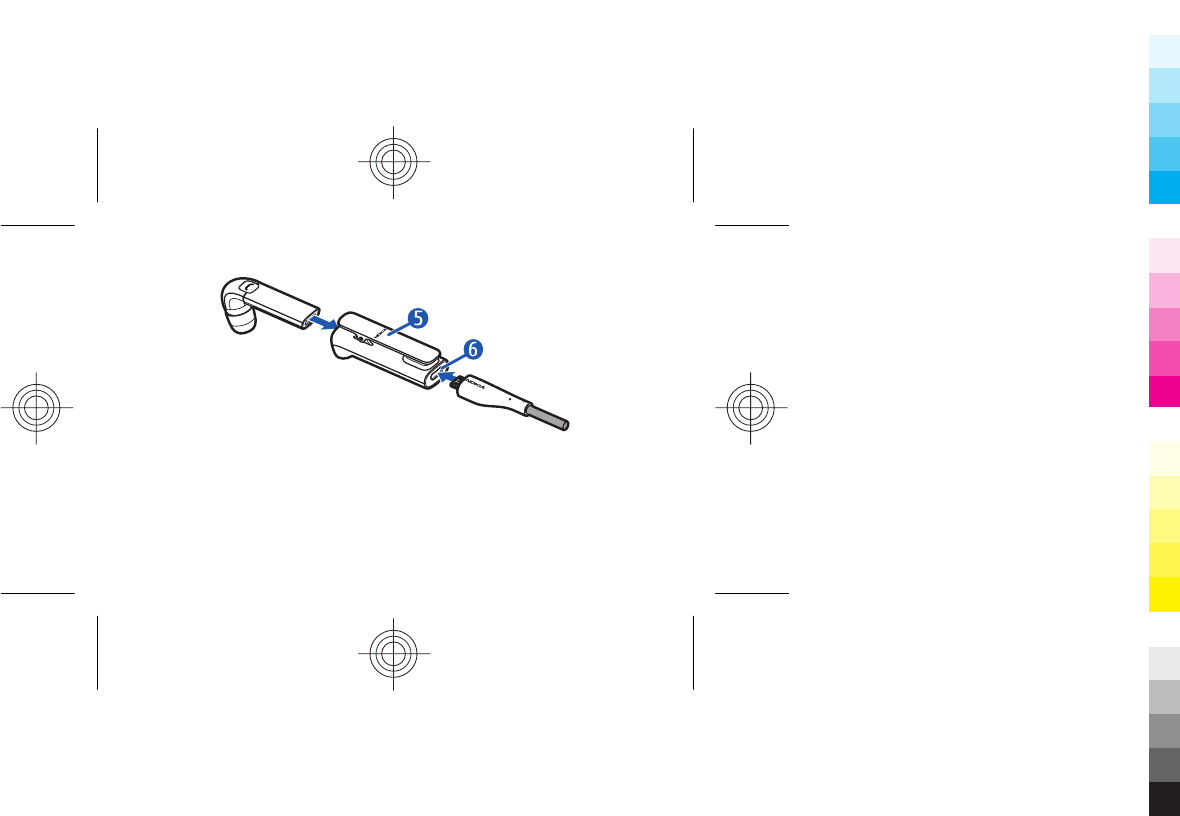

Charge the battery
1. Connect the charger to a wall outlet.
2. Place the headset in the carrying clip.
3. Connect the charger cable to the charger
connector in the clip. The red indicator
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
light turns green when the battery is fully
charged.
4. Disconnect the charger from the carrying
clip, then from the wall outlet.
The fully charged battery has power for up to
5 hours of talk time and up to 100 hours of
standby time. If you keep the headset in the
carrying clip, the standby time is up to 3
months.
When the battery charge is low, the red
indicator light flashes, and you hear a voice
prompt every 5 minutes. If you have
deactivated voice prompts, the headset
beeps every 5 minutes.
Check the battery charge — Make sure the
headset is switched on, and touch and hold
for 2 seconds. A voice prompt tells you the
battery charge level.
Switch the headset on or off
Switch on — Remove the headset from the
carrying clip. The headset beeps, and a green
indicator light flashes once.
The headset connects to the last connected
device. If you have never paired the headset
with a device, or you have cleared the device
pairings, pairing mode is activated.
Switch off — Place the headset in the
carrying clip. The headset beeps, and a red
indicator light flashes once. All active calls are
ended.
If not connected to a device within 30
minutes, the headset switches off.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Tip: Don't have the carrying clip with
you? To switch the headset off, press
and hold for 4 seconds. To switch
the headset on, press .
Pair and connect the headset to your
mobile device
Before using the headset, you must pair and
connect it to a compatible device.
1. To switch the headset off, press and hold
for 4 seconds.
2. Switch on the device to pair with.
3. If you have never paired the headset with
a device, or you have cleared the device
pairings, switch the headset on.
If you have previously paired your headset
with another device, press and hold for
5 seconds.
Pairing mode is activated, and a blue
indicator light starts to flash quickly.
Follow the voice prompts.
4. Within 3 minutes, activate Bluetooth on
the device, and set it to search for
Bluetooth devices. For details, see the user
guide of the device.
5. Select the headset from the list of found
devices.
6. If required, enter the passcode 0000.
You can pair your headset with 8 compatible
devices, but you can only connect it to a
maximum of 2 devices at the same time.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
With some mobile devices, you may need to
make the connection separately after
pairing.
Wear the headset
Gently push the earpiece into your ear.
When you're not using your headset, keep it
in the carrying clip.
Tip: Have your headset always at
hand — clip it to your pocket as you
would a pen.
Make calls
Make and receive calls
To make and receive calls using your headset,
you need to connect it to your mobile device.
Make a call — Make a call in the normal way.
Answer a call — Remove the headset from
the carrying clip.
Tip: If the headset is not in the
carrying clip, touch .
End a call — Place the headset in the
carrying clip.
Tip: To end a call, you can also touch
twice.
Reject a call — Touch twice.
Switch a call between your headset and
mobile device — Touch and hold for 2
seconds.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
You can redial the last called number or use
voice dialling, if your mobile device supports
these features with the headset.
Redial the last called number — When no
call is in progress, press .
Use voice dialling When no call is in
progress, press and hold for 2 seconds, and
follow the instructions in the user guide of
your mobile device.
Change the volume
Set the desired volume level on your
connected mobile device. The selected
volume level is saved as the minimum
volume level for the device that is currently
connected to the headset. Your headset
adjusts the volume automatically according
to the level of background noise.
Pair and connect the headset to two
devices
When you use the headset for the first time,
it automatically connects to your mobile
device. You can also connect your headset to
another device, and manage calls from, for
example, both your personal and your work
mobile device at the same time.
1. To switch the headset off, press and hold
for 4 seconds.
2. Activate pairing mode, and pair the
headset with the second device.
3. Make sure Bluetooth is activated on both
devices, and switch the headset off and
back on. The headset connects to both
devices.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Handle calls from two devices
End an ongoing call, and answer a call on
another device — Touch .
Put an ongoing call on hold, and answer
a call on another device — Touch and hold
for 2 seconds.
Switch between active and held calls
Touch and hold for 2 seconds.
End an ongoing call, and activate a held
call — Touch .
If you redial or use voice dialling, the call is
made on the device you last had an active call
on with the headset.
Settings
Deactivate voice prompts
Make sure the headset is switched on, and
touch and hold for 9 seconds. You hear a
voice prompt, and a yellow indicator light
flashes once.
Activate voice prompts — Touch and hold
for 9 seconds. You hear a voice prompt,
and a green indicator light flashes once.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Clear device pairings
When you clear the device pairings, you need
to select the language again.
1. To switch the headset off, press and hold
for 4 seconds.
2. Press and hold for 9 seconds. The
headset beeps twice, and the red and
green indicator lights alternate.
3. When the headset switches on, follow the
voice prompts. Pairing mode is activated.
Change the language
When you change the language, your device
pairings are cleared, and you need to pair and
connect your headset to your device again.
1. To switch the headset off, press and hold
for 4 seconds.
2. Press and hold for 9 seconds. The
headset beeps twice, and the red and
green indicator lights alternate.
3. When the headset switches on, follow the
voice prompts. Pairing mode is activated.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Product and safety information
Compatible chargers
This device is intended for use when supplied
with power from the following chargers: AC-10,
AC-6, DC-10, DC-6, DC-11, DC-11K, DT-600, and
CA-146C. The exact charger model number may
vary depending on the type of plug. The plug
variant is identified by one of the following: E, X,
AR, U, A, C, K, or B.
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this
BH-806 product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at
www.nokia.com/phones/
declaration_of_conformity/.
© 2010 Nokia. All rights reserved.
Bluetooth is a registered trademark of Bluetooth
SIG, Inc.
FCC/INDUSTRY CANADA NOTICE
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any
interference received, including interference
that may cause undesired operation. This
equipment has been tested and found to comply
with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures: Reorient
or relocate the receiving antenna. Increase the
separation between the equipment and
receiver. Connect the equipment into an outlet
on a circuit different from that to which the
receiver is connected. Consult the dealer or an
experienced radio/TV technician for help. NOTE:
FCC Radiation Exposure Statement: This
equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any
other antenna or transmitter. NOTE: Changes or
modifications not expressly approved by Nokia
could void the user's authority to operate the
equipment.
ENGLISH
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Droits d'auteur et autres avis
DÉCLARATION DE CONFORMITÉ
NOKIA CORPORATION déclare par la présente que
le produit BH-806 est conforme aux exigences
essentielles et aux dispositions applicables de la
Directive 1999/5/EC. Vous trouverez une copie de
la déclaration de conformité à l'adresse
www.nokia.com/phones/
declaration_of_conformity/.
© 2010 Nokia. Tous droits réservés.
Bluetooth est une marque déposée de Bluetooth
SIG, Inc.
AVIS DE LA FCC ET D'INDUSTRIE CANADA
Cet appareil est conforme aux dispositions de la
section 15 du règlement de la FCC. Son utilisation
est assujettie aux deux conditions suivantes : 1.
Ce dispositif ne doit pas causer d'interférence
nuisible; et 2) ce dispositif doit accepter toute
interférence reçue, y compris l'interférence qui
pourrait causer un fonctionnement non désiré.
Cet appareil a été vérifié et s'est révélé conforme
aux limites pour un dispositif numérique de
classe B, conformément à la section 15 du
règlement de la FCC. Ces limites sont définies
pour offrir une protection raisonnable contre les
interférences nuisibles au sein d'une installation
résidentielle. Cet appareil produit, utilise et peut
émettre de l'énergie de radiofréquence et, s'il
n'est pas installé et utilisé conformément aux
directives, causer de l'interférence nuisible aux
communications radio. Il n'y a toutefois pas de
garantie qu'aucune interférence ne surviendra
FRANÇAIS CANADIEN
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
dans une installation donnée. Si cet appareil
cause de l'interférence nuisible à la réception de
la radio ou de la télévision, ce qui peut être
déterminé en éteignant et en allumant
l'appareil, essayez de corriger l'interférence au
moyen des mesures suivantes : Réorientez ou
déplacez l'antenne. Augmentez la distance entre
l'appareil et le récepteur. Connectez l'appareil
dans la prise d'un circuit différent de celui où est
connecté le récepteur. Consultez le fournisseur
ou un technicien en radio/télévision qualifié
pour obtenir de l'aide. REMARQUE : Énoncé de la
FCC relatif à l’exposition aux rayonnements : Cet
appareil est conforme aux limites d’exposition
aux rayonnements définies par la FCC dans un
environnement non contrôlé. Cet émetteur ne
doit pas être placé près d’une autre antenne ou
d’un autre type d'émetteur ni être utilisé avec ce
type d’équipement. REMARQUE : Les
changements et modifications non
formellement approuvés par Nokia pourraient
annuler le droit de l'utilisateur de se servir de
l'appareil.
FRANÇAIS CANADIEN
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Navigation menu
