■Introduction
This installation guide has been prepared to provide the basic information necessary to
install the car kit. This guide is not intended to be definitive, because different types and
models of vehicles will require different installation work. The information given is for
general guidance only.
The terms of warranty demand that this car kit be installed by an expe-
rienced installer and only genuine Nokia parts are used. An end user
should never attempt to install this car kit without professional assis-
tance as the installation requires special tools and knowledge.
All installations should take into account any special requirements of
the customer. However, should the customer require an installation
that is illegal or unsafe these facts must be pointed out to the cus-
tomer and a policy of non-compliance adopted.
Please refer to the phone's User's Guide for instructions on the phone's
operation, care and maintenance, including important safety informa-
tion.
Copyright © Nokia 2003. All rights reserved.
Note: Read the warnings below before beginning the installation pro-
cedure.
Nokia Corporation 935XXXX issue 1
CK-IW IG_en1.fm Page 2 Tuesday, February 25, 2003 9:57 AM
3
■WARNINGS
1. ENSURE THAT THE VEHICLE'S BATTERY IS DISCONNECTED BEFORE
YOU START THE INSTALLATION PROCEDURE, AND THAT IT REMAINS
DISCONNECTED DURING THE PROCEDURE.
2. DO NOT SMOKE OR USE OPEN FLAMES WHEN WORKING NEAR THE
VEHICLE'S FUEL SYSTEM.
3. ENSURE THAT THE VEHICLE'S ELECTRICAL CABLES, HYDRAULIC
LINES, FUEL LINES, AND SAFETY EQUIPMENT ARE NOT DAMAGED
DURING INSTALLATION.
4. ENSURE THAT NORMAL CONTROL AND OPERATION OF THE VEHICLE
IS NOT IMPAIRED BY THE INSTALLATION, PARTICULARLY THE BRAKES
AND STEERING. ENSURE THAT AIRBAG OPERATION IS NOT
OBSTRUCTED.
5. ELECTRONIC AND OTHER SOPHISTICATED SYSTEMS (e.g. SPEED
CONTROL, ABS ANTI-LOCK BRAKE, FUEL INJECTION-, NAVIGATION-,
AND AIR-BAG SYSTEMS) ARE RELATIVELY IMMUNE TO
MALFUNCTION CAUSED BY NEARBY RADIO TRANSMISSIONS. HOW
EVER, SHOULD YOU EXPERIENCE FALSE OPERATION OF THESE
SYSTEMS OR ARE IN ANY DOUBT WHATSOEVER AS TO THEIR
FUNCTIONALITY, PLEASE CONSULT THE VEHICLE'S DEALER.
6. THE CAR KIT IS SUITABLE FOR USE ONLY IN VEHICLES WITH A 12 V
NEGATIVE GROUNDING. USE ON OTHER SUPPLY VOLTAGES OR
ALTERNATIVE POLARITY WILL DAMAGE THE EQUIPMENT.
7. THE PHONE SHOULD NOT BE LEFT SWITCHED ON FOR EXTENDED
PERIODS WITHOUT RUNNING THE VEHICLE'S ENGINE. FAILURE TO
COMPLY COULD DRAIN THE VEHICLE'S BATTERY.
CK-IW IG_en1.fm Page 3 Tuesday, February 25, 2003 9:57 AM
4

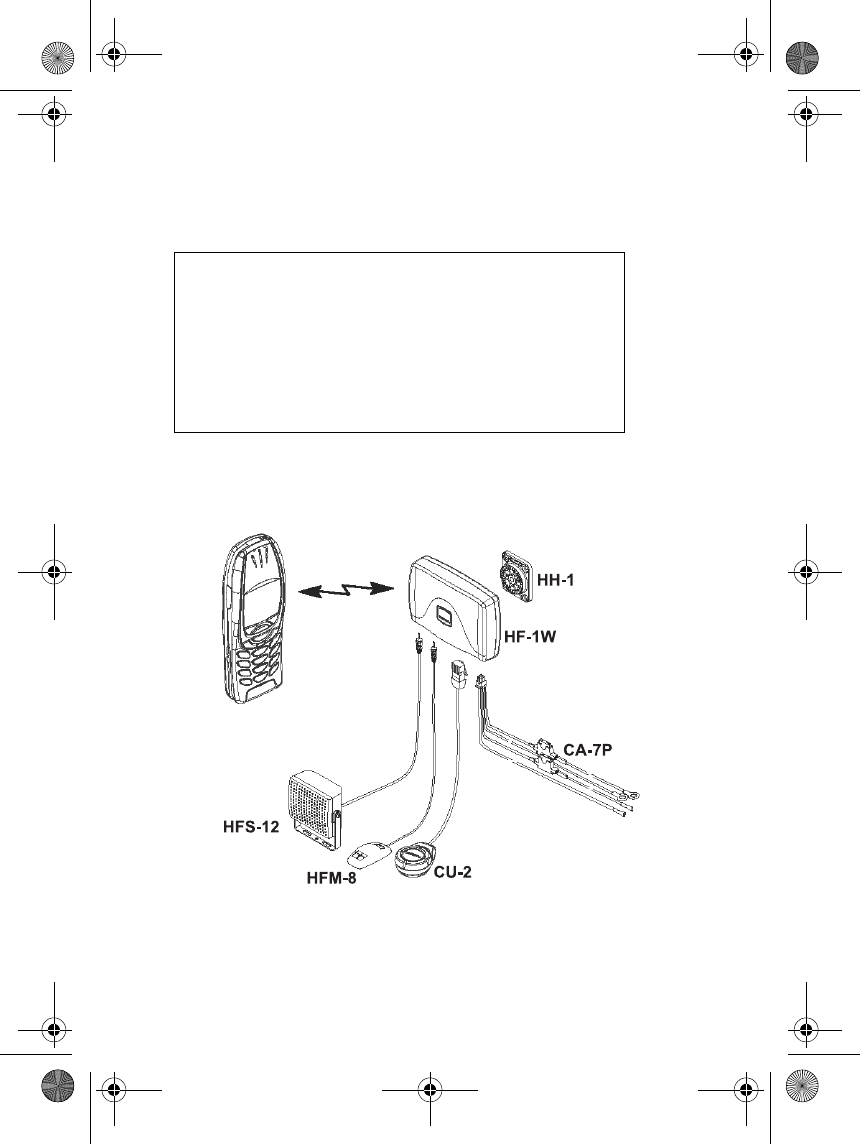

■Unpacking
Carefully unpack the equipment and ensure that the following
items are present.
Wireless Hands Free Unit HF-1W
Remote Control Button CU-2
Power Cable CA-7P
Mounting Plate HH-1
HF Microphone HFM-8
HF Speaker HFS-12
CK-IW IG_en1.fm Page 4 Tuesday, February 25, 2003 9:57 AM
5

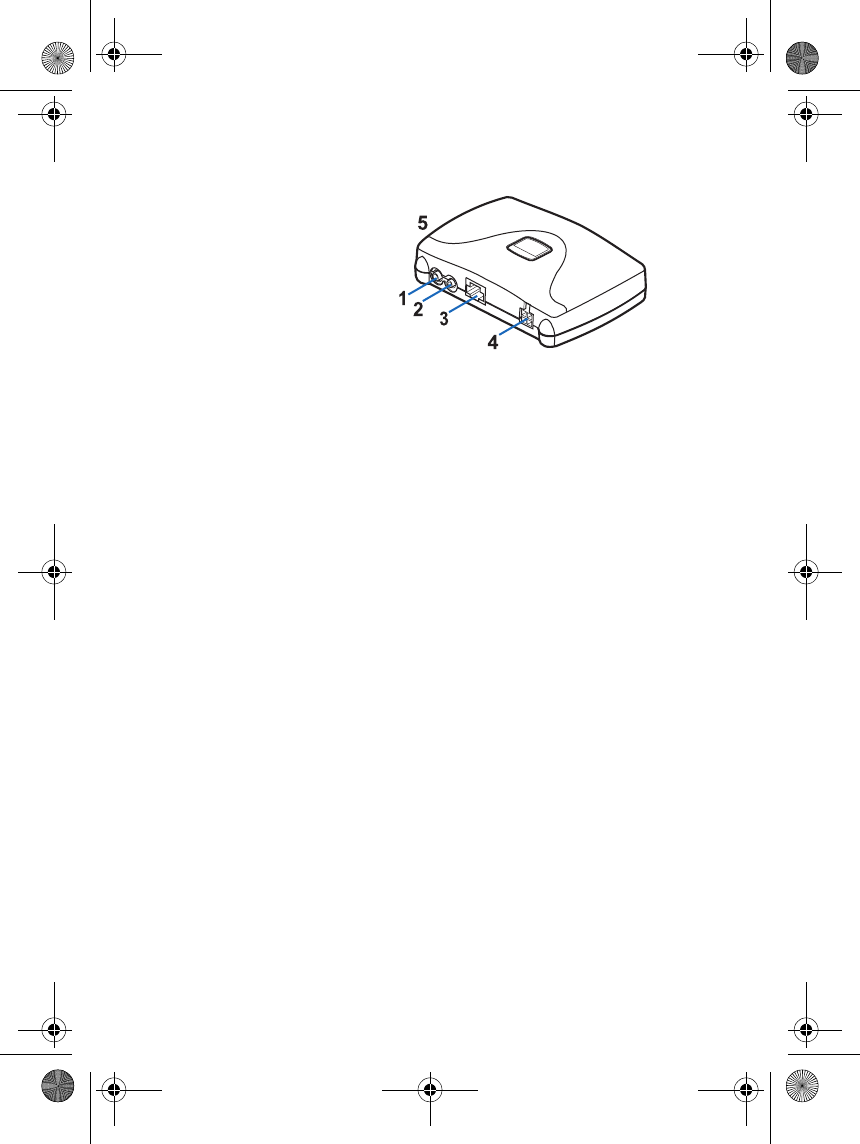

■Wireless HF Unit HF-1W
1. Speaker
2. Mic
3. Remote
4. DC
5. Internal bluetooth
antenna
The HF-1W is used in a fixed car installation and it offers a wireless
handsfree function and a wireless connection to compatible external
devices.
The HF-1W unit is attached to the vehicle interior using the mounting
plate HH-1. HF-1W is secured to HH-1 with a screw (included with
HH-1). Power is supplied to DC socket from the vehicle's battery via the
power cable CA-7P.
The HF microphone HFM-8, connects to the MIC socket. And the HF
speaker HFS-12, connects to the SPEAKER socket.
The HF-1W is always connected to a car battery. To save the car battery
the HF-1W goes to a sleep mode. Sleep mode is activated when the
ignition is turned off and there is no active call.
■Installation
After tightening the HH-1 screws, secure HF-1W installation to the HH-
1 mounting plate with the screw going through HF-1W. The Nokia logo
lid is placed on the HF-1W to cover the recess.
Do not install the HF-1W unit in a metal casing (or similar location) that
can prevent the unit from transmitting radio frequencies. Aim the
internal Bluetooth antenna (see picture) towards the user (Bluetooth
phone).
■Mounting Plate HH-1
HH-1 is a fixed position mounting plate. It is used to attach Wireless
HF Unit (HF-1W) to the vehicle.
CK-IW IG_en1.fm Page 5 Tuesday, February 25, 2003 9:57 AM
6
■Remote Control Button CU-2
The Remote Control Button (CU-2) allows convenient operation of the
phone.
The speaker volume of the HF-1W can be controlled with a ring (rotary
switch) in the CU-2. It is possible to receive a call or to dial by pressing
a send/end push button in the CU-2 (also voice dialing).
■Connecting the remote control button to the
handsfree unit
When the Wireless Car Kit is installed in your car, connect the remote
control button to the HF-1W handsfree unit.

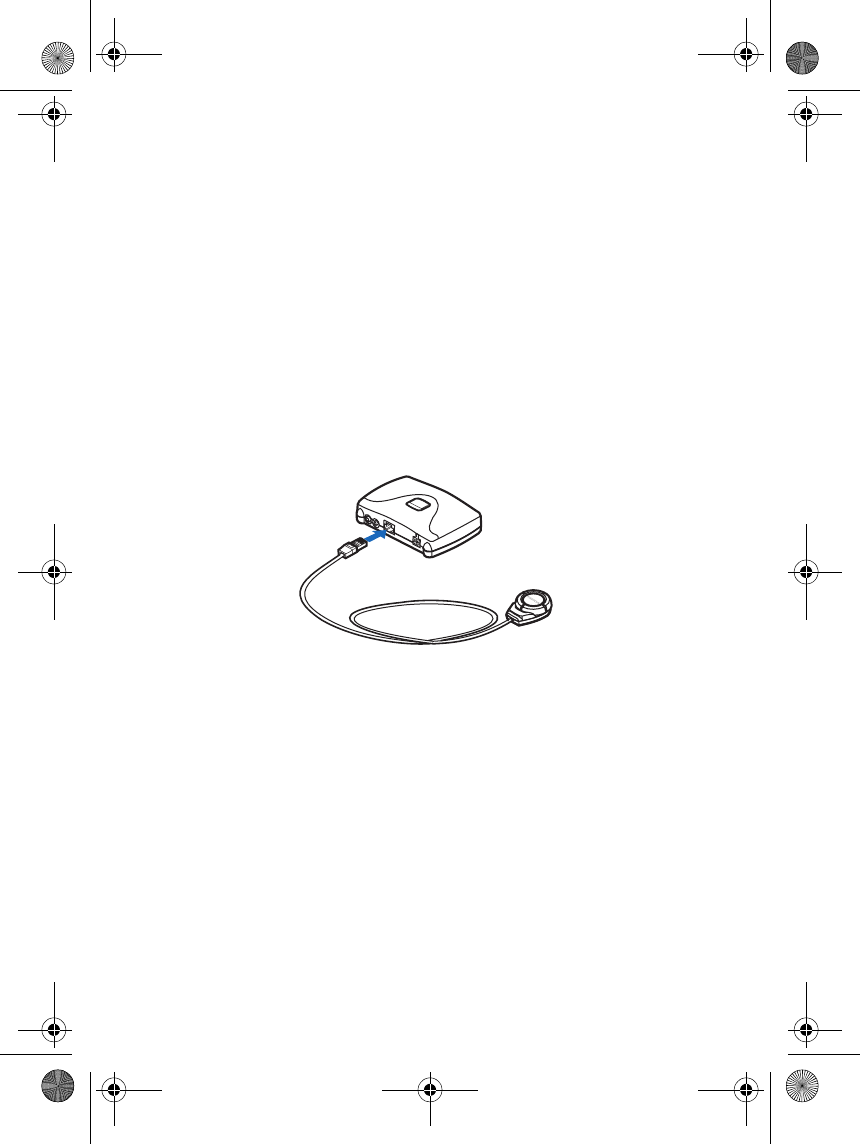

To connect the remote control button to the handsfree unit: Carefully
insert the connection cable into the "CONTROL" socket in the hands-
free unit as shown below.
To read more about the use of CU-2, see CK-1W User's Guide.
■Installation
The positioning of the Remote Control Button CU-2 is important, to
achieve the most comfortable position for the user.
The location of the CU-2 should be selected so that the visibility of the
Remote Control Button is good under all lighting conditions, but not so
that the driver's attention is easily distracted. The CU-2 should be
located so that the driver can easily reach it. Under no circumstances
should the CU-2 prevent the driver from controlling or operating the
vehicle in any way or observing traffic.

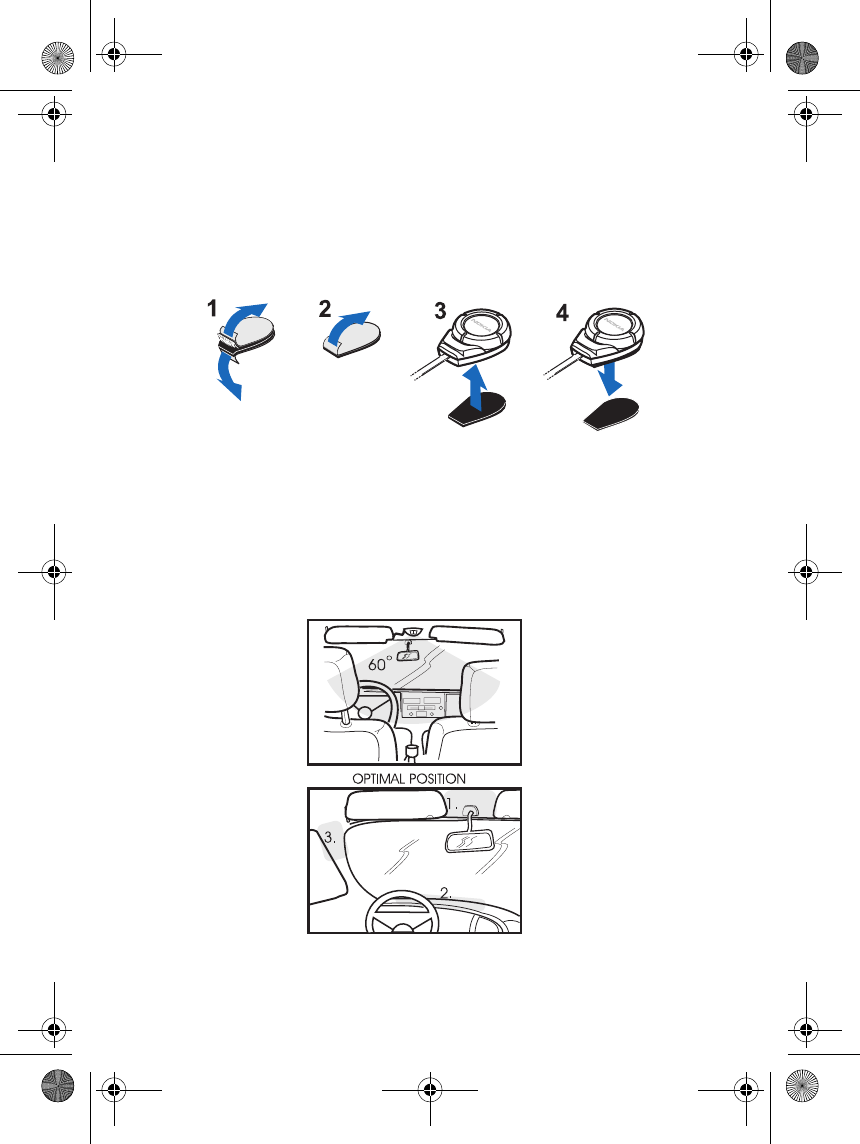

To attach the Remote Control Button:
1. Detach the two grip pads from each other.
2. Peel off the protective sheet (pad with soft fabric) from the adhesive
side and attach the pad to the desired location in the car. Make sure
CK-IW IG_en1.fm Page 6 Tuesday, February 25, 2003 9:57 AM
7
the surface where you attach this pad is dry and clean from dirt and
dust.
3. Peel off the protective sheet (pad with rugged fabric) from the adhe-
sive side and attach the pad to the bottom of the Remote Control But-
ton.
4. Press the Remote Control Button against the pad in the car until
button is firmly in place..
■HF Microphone HFM-8
The HF microphone should be installed according to the directions in
the following pictures.
Ensure the microphone is as close to the driver's mouth as possible, and
attached to a surface that is mechanically quiet.
The microphone should be mounted at least 3 ft./1 m away from the
handsfree unit speaker to avoid acoustic feedback.
Insert the HFM-8 plug into the MIC socket in HF-1W and turn 90°
clockwise to lock firmly in place.
CK-IW IG_en1.fm Page 7 Tuesday, February 25, 2003 9:57 AM
8
■HF Speaker HFS-12
Install the HF speaker so that it is at least 3 ft./1 m away from the
HFM-8 microphone to avoid acoustic feedback. Insert the HFS-12 plug
into the SPEAKER socket and turn 90° clockwise to lock firmly in place.
Under no circumstances should the HFS-12 prevent the driver from
controlling or operating the vehicle in any way or observing traffic.

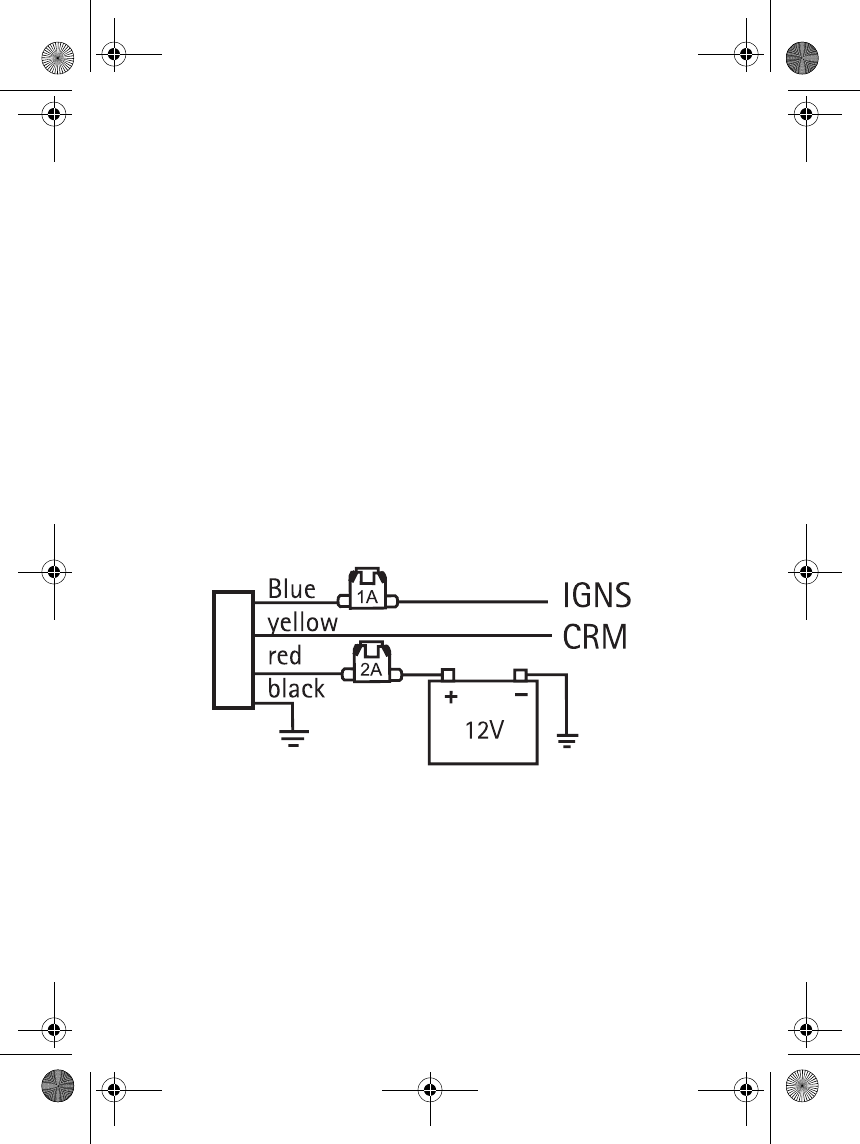

■Power Cable CA-7P
The power cable connects the wireless handsfree unit HF-1W to the
vehicle's power supply (DC socket).
The red wire must be connected to the + voltage on the vehicle's power
supply via the supplied fused connector.
The black wire must be attached to a good negative GND connection.
The blue ignition sense (IGNS) wire is connected to +12 V voltage con-
trolled by the vehicle's ignition key via the supplied fused connector.
See section "Ignition Sense".
The yellow wire is used for car radio muting (CRM). The line goes down
to 0 volts during a call. See section "Car Radio Muting".
■Cables
Ensure cables are routed as far away as possible from the vehicle's
electronic systems (refer to WARNINGS)*. Also, ensure that cables are
not subjected to undue mechanical stress e.g. under seats or against
sharp edges.
* To prevent disturbance, cables should be routed as far away from the
interference source as possible.
CK-IW IG_en1.fm Page 8 Tuesday, February 25, 2003 9:57 AM
9
■Ignition Sense IGNS
The blue wire of the power cable CA-7P is used for the ignition sense
feature. The use of ignition sense is recommended to prevent acciden-
tal draining of the car's battery and making the automatic connection
to the phone. The wire is connected via a 1 A fuse to a 12 volt potential
that is controlled by the ignition key.
Please connect the blue IGNS wire so that when the car engine is
started the voltage in the IGNS line is not interrupted. Do not connect
IGNS directly to the high voltage sections of the ignition circuit.

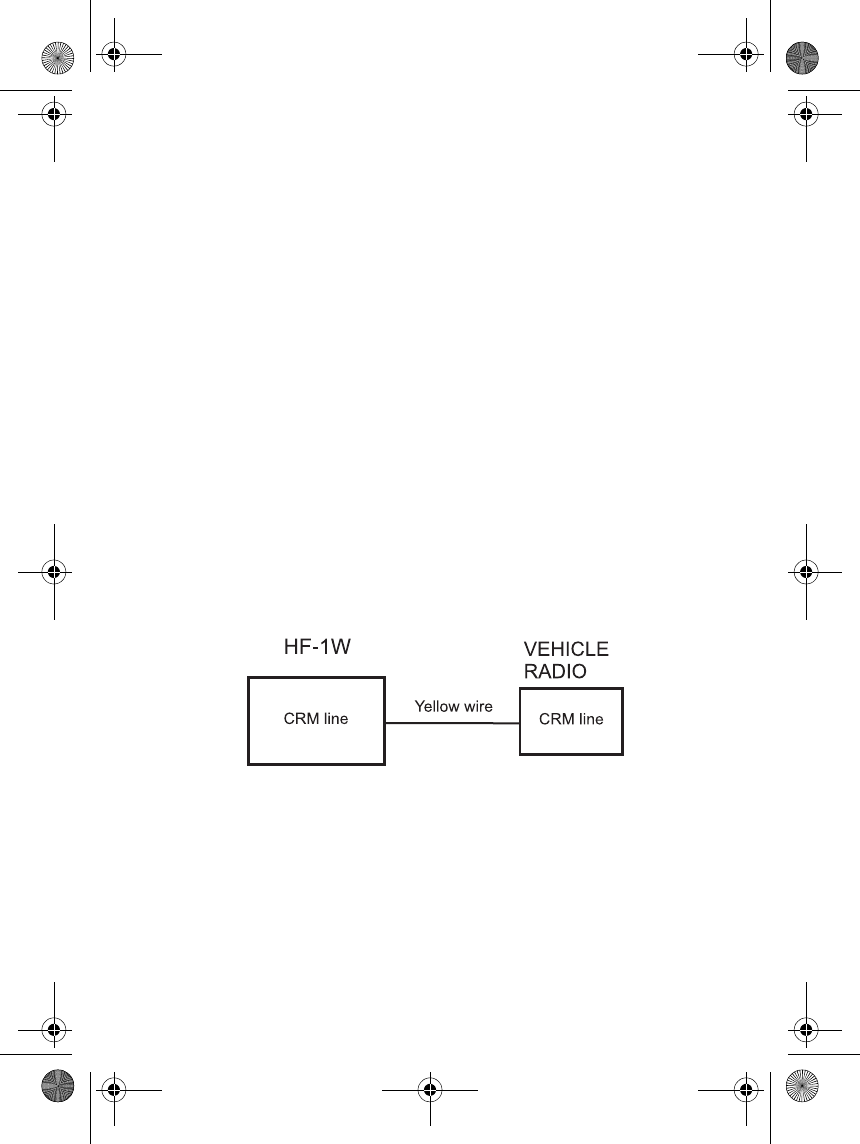

■Car Radio Muting CRM
The car kit offers a feature that can mute the car radio automatically
during a phone call. The car radio muting feature is based on a
grounded line, so it means that in standby, the yellow wire (CRM) is not
grounded and car radio works normally, but during a call, line is
grounded and car radio is muted.
Some radios have separate outputs for amplifiers and motors. Also
power supply line for memory backup purposes. Very often these radios
have a secret code system, which activates itself if a break in the mem-
ory power supply is detected. Be careful while installing not to break
the memory power supply line (usually marked ACC or +MEM).
Note that all car radios do not support the car radio mute function.
■Testing
Once installed, the equipment should be tested to ensure that it is
operating satisfactorily and that the position of the units does not
impair on the driver's ability to control and operate the vehicle in any
way.
You can reset the car kit to the original settings, for example, to
change the default user of the car kit.
To reset the car kit: Make sure that the ignition is off.
CK-IW IG_en1.fm Page 9 Tuesday, February 25, 2003 9:57 AM
10
Press and hold the button until the indicator light starts to blink. When
the blinking stops the car kit has been reset.
For operating information refer to the CK-1W User's Guide or User's
Guide supplied with the phone.
