Nokia Wireless Headset (HS-26W)
User Guide
9240373
Issue 1
9240373_en1.fm Page 1 Thursday, June 30, 2005 8:21 AM
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product HS-26W is
in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of
the Declaration of Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product
must be taken to separate collection at the product end-of-life. Do not dispose of
these products as unsorted municipal waste.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Unauthorized changes or modifications to this device may void the user's authority to
operate the equipment.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9240373/Issue 1 EN
9240373_en1.fm Page 2 Thursday, June 30, 2005 8:21 AM
3
Contents
1. Introduction ......................... 4
Bluetooth wireless technology .......... 4
2. Get started............................ 5
Overview .................................................. 5
Chargers and batteries......................... 6
Charge the battery................................ 6
Switch the headset on or off ............. 7
Pair the headset with a compatible
phone ........................................................ 7
Disconnect the headset from the
phone..................................................... 7
Reconnect the paired headset to your
phone..................................................... 8
Troubleshooting ..................................... 8
3. Basic use ............................... 9
Place the headset on the ear ............. 9
Call handling........................................... 9
Adjust the earphone volume............ 10
Mute or unmute the microphone... 10
Switch the call between phone
and headset........................................... 10
Use the headset with
several phones...................................... 10
Clear the settings ................................ 10
4. Battery information ........... 11
Care and maintenance ........... 12
9240373_en1.fm Page 3 Thursday, June 30, 2005 8:21 AM
Introduction
4
1. Introduction
You can connect the Nokia Wireless Headset (HS-26W) to a compatible
phone that supports Bluetooth wireless technology. This allows you
freedom to make and receive calls while on the move or in the office.
Read this user guide carefully before using the headset. Read also the
user guide for your phone, which provides important safety and
maintenance information. Keep the headset out of reach of small
children.
■Bluetooth wireless technology
Bluetooth wireless technology makes it possible to connect compatible
communication devices without using cables. A Bluetooth connection
does not require that the phone and the headset be in line of sight, but
both devices should be within 10 meters (30 feet) of each other.
Connections can be subject to interference from obstructions, such as
walls or other electronic devices.
The wireless headset is compliant with Bluetooth Specification 2.0
supporting the following profiles: Headset Profile 1.1 and Hands-free
Profile 1.0. Check with the manufacturers of other devices to determine
their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
9240373_en1.fm Page 4 Thursday, June 30, 2005 8:21 AM
Get started
5
2. Get started
■Overview

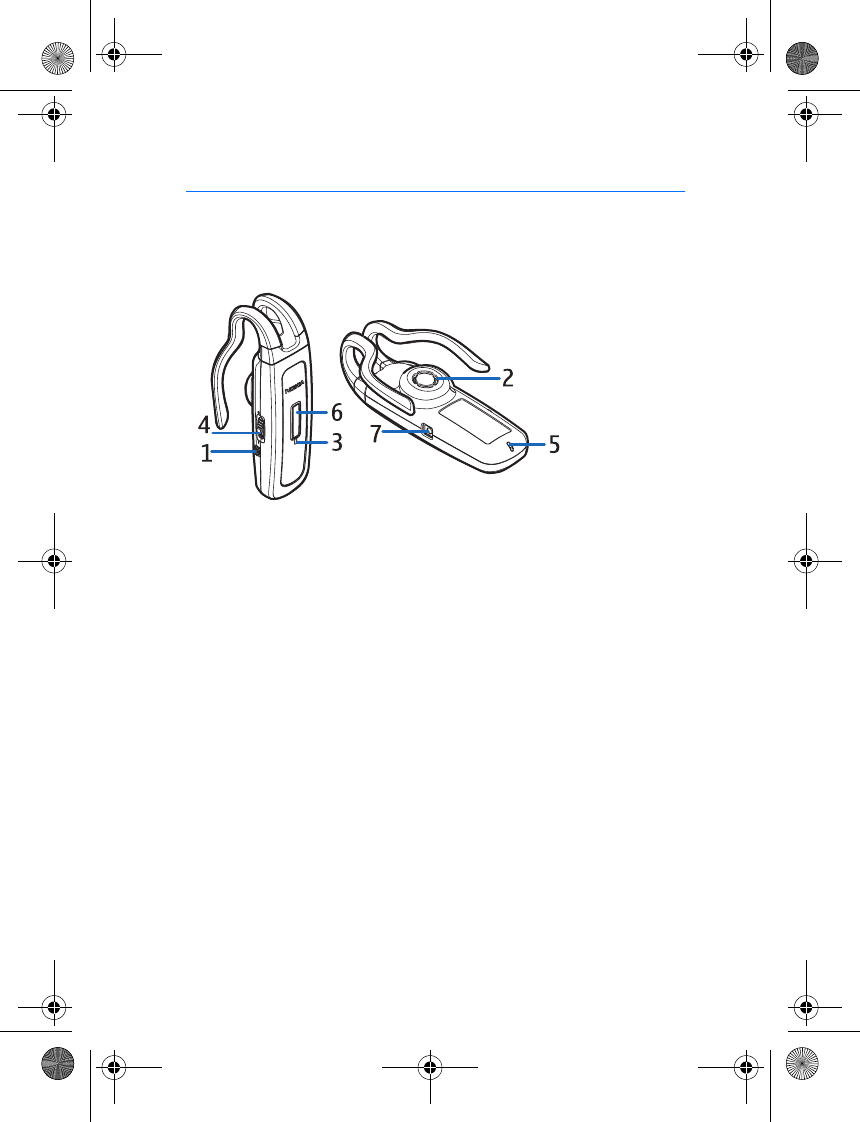

The headset contains the following parts as shown in the figure:
• Power key (1) switches the headset on and off.
• Earphone (2) relays the caller’s voice.
• Indicator light (3) displays the current status of the headset.
• Volume key (4) increases or decreases the earphone volume during a
call. To mute or unmute the ongoing call, press the middle part of the
volume key briefly.
• Microphone (5) picks up your voice.
• Answer/end key (6) answers or ends a call. This key can also be used
for voice dialing, redialing, and switching an active call between the
headset and the compatible phone.
• Charger connector (7)
Before you can start using the headset, you must charge the battery and
pair the headset with a compatible phone.
9240373_en1.fm Page 5 Thursday, June 30, 2005 8:21 AM
Get started
6
Note: Parts of the headset are magnetic. Metallic materials may be
attracted to the headset, and persons with a hearing aid should not
hold the headset to the ear with the hearing aid. Do not place credit
cards or other magnetic storage media near the headset, because
information stored on them may be erased.
■Chargers and batteries
Check the model number of any charger before using it with this device. The
Nokia Wireless Headset (HS-26W) is intended for use with the AC-3, AC-4, and
DC-4 chargers.
Warning: Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When
you disconnect the power cord of any enhancement, grasp and pull the plug, not
the cord.
■Charge the battery
This device has an internal, non-removable, rechargeable battery. Do
not attempt to remove the battery from the device as you may damage
the device.
1. Connect the charger cable to the headset as
shown in the figure.
2. Connect the charger to a wall outlet. The red
indicator light is displayed during charging.
Charging the battery fully may take up to 2
hours.
3. When the battery is fully charged, the green indicator light is
displayed. Disconnect the charger from the wall outlet and the
headset.
The fully charged battery has power for up to 5 hours of talk-time or up
to 150 hours of standby time. However, the talk and standby times may
vary when used with different mobile phones, products that use a
Bluetooth connection, usage settings, usage styles, and environments.
9240373_en1.fm Page 6 Thursday, June 30, 2005 8:21 AM
Get started
7
When the battery is running out of power, the headset beeps, and the
red indicator light starts to flash.
■Switch the headset on or off
To switch on, press the power key for 3 seconds. The headset beeps, and
the green indicator light starts to flash quickly. The flashing is slower
after the headset is connected to your phone.
To switch off, press and hold the power key for 2 seconds. The headset
beeps, and the red indicator light is displayed briefly.
■Pair the headset with a compatible phone
1. Switch on your phone and the headset.
2. Activate the Bluetooth feature on the phone, and set the phone to
search for Bluetooth devices. See the user guide of your phone for
instructions.
3. Select the headset (Nokia HS-26W) from the list of found devices.
4. Enter the passcode 0000 to pair and connect the headset to your
phone. In some phones you may need to make the connection
separately after pairing. See the user guide of your phone for details.
You only need to pair the headset with your phone once.
5. If the pairing was successful, the headset beeps and appears in the
phone menu where you can view the currently paired Bluetooth
devices.
Disconnect the headset from the phone
To disconnect the headset from your phone (for example, to connect the
phone to another Bluetooth device), do one of the following:
• Switch off the headset.
• Disconnect the headset in the Bluetooth menu of your phone.
• Move the headset more than 10 meters (30 feet) away from the
phone.
You do not need to delete the pairing with the headset to disconnect it.
9240373_en1.fm Page 7 Thursday, June 30, 2005 8:21 AM
Get started
8
Reconnect the paired headset to your phone
To connect the headset to your phone, switch on the headset, make the
connection in the Bluetooth menu of your phone, or press and hold the
answer/end key.
You can set your phone to connect with the headset automatically
when the headset is switched on. To do this in Nokia phones, change
your paired device settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your phone, do as follows:
• Ensure that the headset is charged, switched on, paired with and
connected to your phone.
• Ensure that the Bluetooth feature is activated on your phone.
• Check that the headset is within 10 meters (30 feet) of your phone
and that there are no obstructions between the headset and the
phone, such as walls or other electronic devices.
• If the headset stops functioning, although it has been charged, reset
the headset by pressing the power key and the middle part of the
volume key briefly, while the headset is plugged into a charger. This
reset does not clear your settings (for example, pairing settings).
9240373_en1.fm Page 8 Thursday, June 30, 2005 8:21 AM
Basic use
9
3. Basic use
■Place the headset on the ear

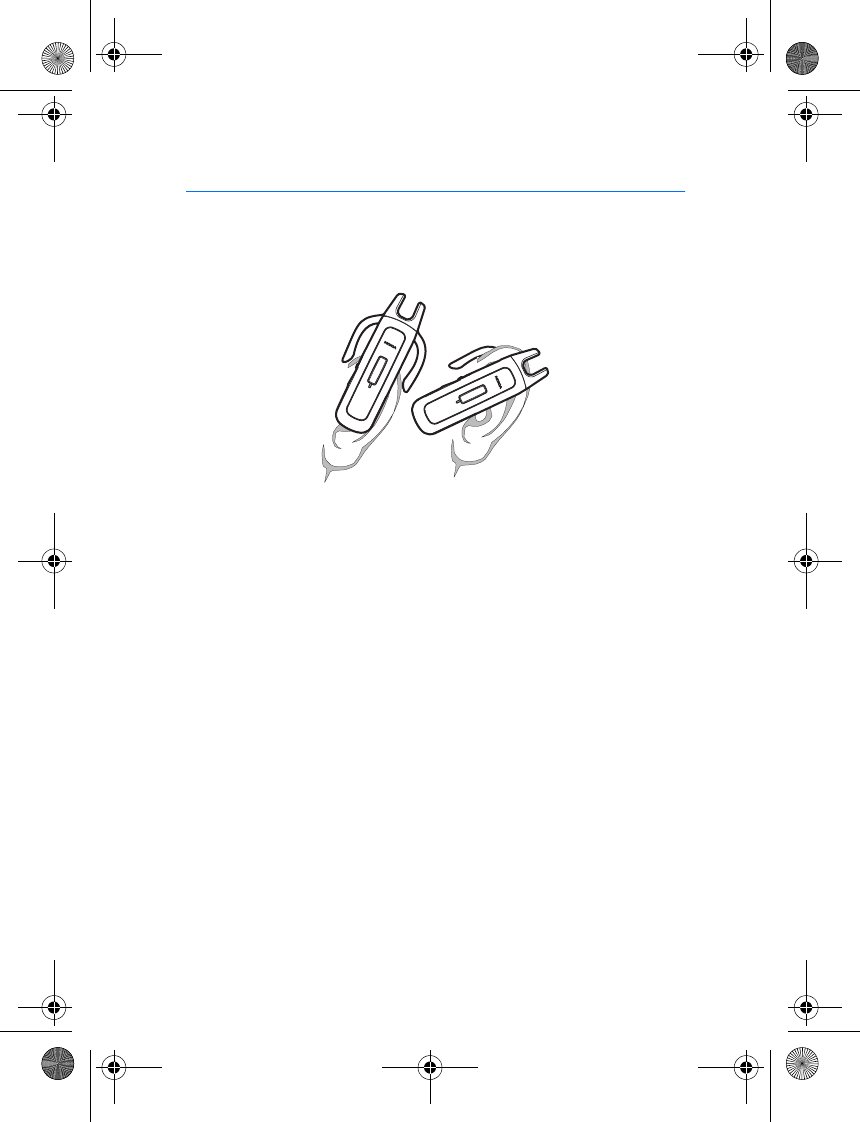

Slide the headset onto your ear as shown in the figure..
■Call handling
To make a call, use your phone in the normal way when the headset is
connected to your phone.
If your phone supports redialing, press the answer/end key twice briefly
while no call is in progress.
If your phone supports voice dialing, press and hold the answer/end key
when no call is in progress, and proceed as described in the user guide of
your phone.
To answer a call, press the answer/end key, or use the phone keys. If the
automatic answer function is set on in your phone, the phone
automatically answers the incoming call after one ring.
To reject an incoming call, briefly press the answer/end key twice.
To end a call, press the answer/end key, or use the phone keys.
9240373_en1.fm Page 9 Thursday, June 30, 2005 8:21 AM
Basic use
10
■Adjust the earphone volume
Press the volume key up to increase or down to decrease the volume
during a call. To adjust the volume quickly, press and hold the key in the
desired direction.
■Mute or unmute the microphone
To mute or unmute the microphone during a call, press the middle part
of the volume key briefly. A long tone is played. When the microphone is
muted, the green indicator light flashes continuously.
■Switch the call between phone and headset
To switch the call between the headset and a compatible Nokia phone,
press and hold the answer/end key, or use the respective function in
your phone.
■Use the headset with several phones
You can pair the headset with up to eight phones but connect it to only
one phone at a time.
The phone that was first paired with the headset is the default phone. If
the headset is switched on within 10 meters (30 feet) of several paired
phones, the headset tries to connect to the default phone.
If the headset cannot connect to the default phone, the headset tries to
connect to the last used phone. If the headset cannot connect to this
phone either, start the connection from the desired phone.
■Clear the settings
If you want to clear all the settings from the headset (for example, the
list of paired devices), press and hold the power key and the volume key
up for 10 seconds. After the settings are cleared, the headset beeps
twice, and the red and green indicator lights alternate for several
seconds.
9240373_en1.fm Page 10 Thursday, June 30, 2005 8:21 AM
Battery information
11
4. Battery information
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, replace the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers designated for this
device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
9240373_en1.fm Page 11 Thursday, June 30, 2005 8:21 AM
Care and maintenance
12
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow the device to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility.
9240373_en1.fm Page 12 Thursday, June 30, 2005 8:21 AM
FCC Notice - Nokia Wirelesss Headset (HS-26W)
13
FCC Notice - Nokia Wirelesss Headset
(HS-26W)
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. NOTE:
Modifications not expressly approved by Nokia could void the user's
authority to operate the equipment.
9240373_en1.fm Page 13 Thursday, June 30, 2005 8:21 AM
