2Volume key

The volume key turns the volume up or down on the earpiece, the headset,

and the loudspeaker.

3Music key

The music key takes you to the Music player and FM radio without going

through the menu. You can also switch the music off with this key.

i) Short press and long press of the music key

The first short press of the music key will take you to the music menu.

j) Once you are in the music menu, a short press switches or scrolls

through the menu choices (Music player, Radio, and Switch music

off). The choices are highlighted as you move or switch from one

menu choice to the next.

k) A long press on a highlighted choice selects and starts the music

player or radio, or switches the music off.

4Four-way scroll key

Up , down , left and right

Use the scroll key to scroll through contact names, phone numbers,

menus or settings. You can also do a station search in the radio, adjust

the music settings, and access music functions such as play, stop, fast

forward, and rewind.

While listening to the music player or radio, press once to skip back

to the beginning of a song on the music player, or press twice to skip

backwards to the previous recording or previous radio station.

Press to skip forward to the next recording or radio station.

In standby mode, press to go to the first name stored in Contacts.

Press to go to the last name stored in Contacts. Press to go to

Messages to create a new message. Press to go to a calendar of the

current month with the current day highlighted. You can also scroll up

and down to see previous and future months.

5Selection keys and

In standby mode the selection keys are Menu and Contacts. As you go

through the menus, the selection keys give you different options. For

example, if you press the selection key below Contacts, you will see

Select and Exit.

6Send and End keys

Press the send key to dial a phone number or answer a call. If you

press this key in standby mode, it shows the last phone number you

dialed.

Press the end key to end a call. This key is also a quick way to exit

from any function.

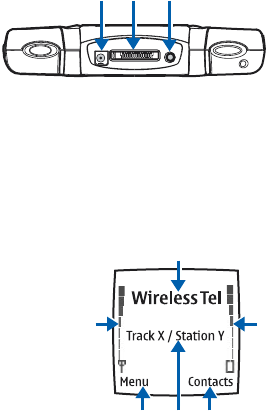

Connectors

1Charger connector

2Pop-PortTM connector for

headsets, the USB data cable,

and loopset

3Audio ADE-2 recording cable

connector to connect the phone

to external audio equipment

such as a CD player or PC

Standby mode

The phone is in standby mode when it is on and ready to use, but you have

not entered any numbers or characters.

1Indicates the wireless system that is in use.

2Shows the signal strength of the cellular

system at your current location. The higher

the bar, the stronger the signal.

3Shows the battery charge level. The higher

the bar, the more power in the battery.

4The left selection key in standby mode is

Menu.

5The right selection key in standby mode is

Contacts.

1 2 3

4 6 5

6When the music player is on, the track title is shown. When the radio is

on, the radio station is shown.

You can show the time and date in standby mode. See Clock and Date for

instructions. Also see Icons in standby mode.

Screen saver

Your phone has an automatic screen saver for saving power in standby mode.

A digital clock is displayed when no phone functions are in use. You can set

the timer to activate the screen saver. See Screen saver timeout. To deactivate

the screen saver, press any key.

If you have not set the time, 00:00 is displayed. To set the time, see Clock.

Wallpaper

You can select and set a wallpaper or background picture to display when the

phone is in standby mode. See Wallpaper.

Icons in standby mode

The following list shows different icons seen on the screen in standby mode

to let you know you have received messages or which settings are active.

You have received one or more text or picture

messages. See Read and reply to a message.

You have received one or more multimedia

messages. See Read and reply to a multimedia

message.

You have received one or more voice messages.

See Voice messages.

The phone keypad is locked.

See Keypad lock (keyguard).

The phone does not ring at an incoming call or text

message when Incoming call alert is set to Off and

Message alert tone is set to Off. See Tone settings.

The alarm clock is set to On.

See Alarm clock.

The countdown timer is running.

See Countdown timer.

The stopwatch timer is running in the background.

See Stopwatch.

A GPRS connection is established. The indicator is

shown on the top left of the display.

The GPRS connection is on hold, for example, if

there is an incoming or outgoing call during a GPRS

connection.

All your calls are forwarded to another number,

Forward all voice calls. If you have two phone lines,

the forward indicator for the first line is and

for the second line . See Call forwarding.

or If you have two phone lines, indicates the selected

phone line. See Line for outgoing calls.

The loudspeaker has been activated.

Track name The music player is on.

Radio station

name

The radio is on.

Calls are limited to a closed user group.

See Security settings.

Wrist strap

You can attach a wrist strap to your phone. Thread

the strap through the holes behind the music key as

shown in the picture, and pull to tighten.

Headset

Connect

Insert the headset plug into the Pop-

PortTM connector on the top of the

phone. The cable is connected

correctly when the arrowhead points

toward the display screen and the cord

falls toward the music key on the left

side.

When the headset is connected,

appears on the screen.

The timed profile is selected.

See Profiles (Menu 4).

A headset accessory is connected to the phone.

A loopset accessory is connected to the phone.

Disconnect

Remove the headset cable from the Pop-PortTM connector by grasping the

plug (not the cord) and pulling it out.

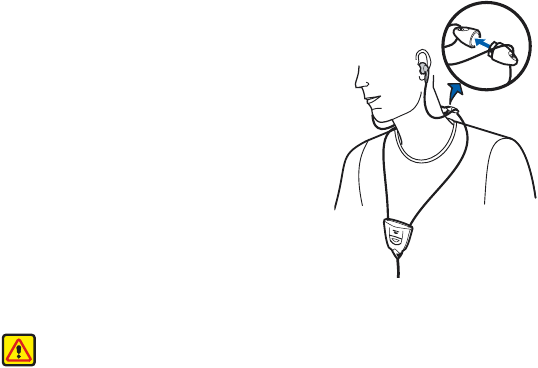

Wear the HDS-3H Stereo Headset as shown in

the picture.

The headset cable functions as the radio

antenna, so let it hang freely.

Answer a call with the headset

Press the headset button to answer and end a

call.

Headset button

Press the headset button to change tracks

while listening to the music player, or to

change stations while listening to the radio.

A long press of the headset button activates

voice recognition for voice tags you have saved.

Warning: This headset may affect your ability to hear sounds around

you. Do not use this headset in situations that may endanger your

safety.

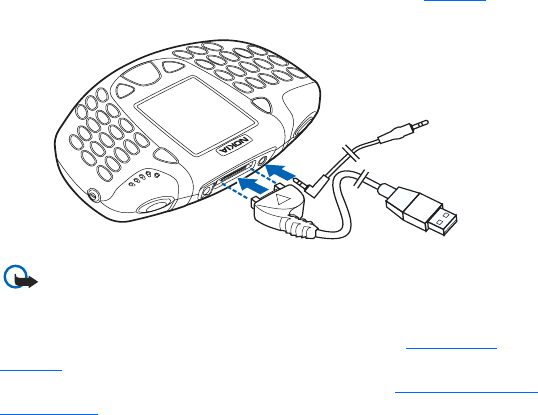

Attach and use supplied cables

You can connect your phone to a compatible PC with the supplied DKU-2 USB

data cable (1). The cable is connected correctly when the arrowhead points

toward the display screen and the cord falls toward the music key on the left

side. To record music, you can connect your phone to external audio

equipment with the supplied ADE-2 recording cable (2). See Recorder.

Important: Disconnect the USB data cable from the phone

to make a call.

Use the Nokia Audio Manager software to handle your music files and transfer

them from the PC to the memory card in your phone. See Nokia Audio

Manager. You can also drag and drop music files from your PC to a folder

created when you first connect the USB data cable. See Disconnect the USB

cable properly before you begin transferring files.

Note: Close all applications on the phone and disconnect the audio

line-in cable before connecting your phone to a PC with the USB data

cable.

Important: Do not connect the USB cable to your PC before you have

installed the Nokia Audio Manager PC software from the CD-ROM.

Disconnect the phone from the PC

When you connect your phone to the PC, the Unplug or Eject Hardware icon

appears at the right on the Windows taskbar. This indicates that a USB mass

storage device has been connected to the PC.

To disconnect the phone from the PC:

1Click on the Unplug or Eject Hardware icon.

2Choose Stop USB Mass Storage Device - Nokia 3300.

3When Windows notifies you that it is safe, unplug the connectivity cable.

Important: To ensure that all memory card operations are completed

in a controlled way, do not unplug the connectivity cable until

Windows notifies you that it is safe to do so. Uncontrolled completion

of the memory card operations may cause the memory card and the

information stored on it to become corrupted. A corrupted memory

card may have to be formatted before it can be used again. When a

memory card is formatted, all information on the card is permanently

lost.

4. Getting started

Install the SIM card and battery

The SIM card and the gold contacts on the card can be damaged by scratches

or by bending the card. Be careful when inserting, removing, or handling the

card.

Warning: Keep all miniature SIM cards out of the reach of small

children.

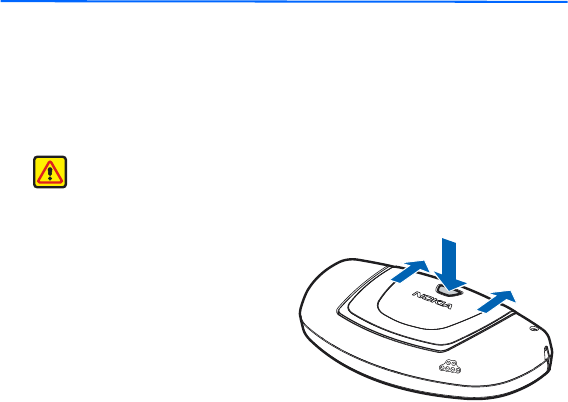

1Before you install the SIM

card, make sure the phone is

switched off.

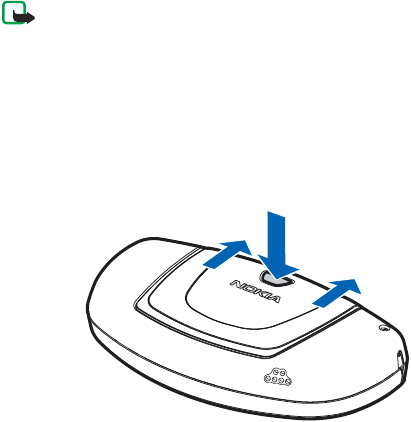

2Remove the back cover of the

phone with the back of the

phone facing you.

3Press the back cover release

button (1) and slide the cover

forward.

(1)

Cover release button

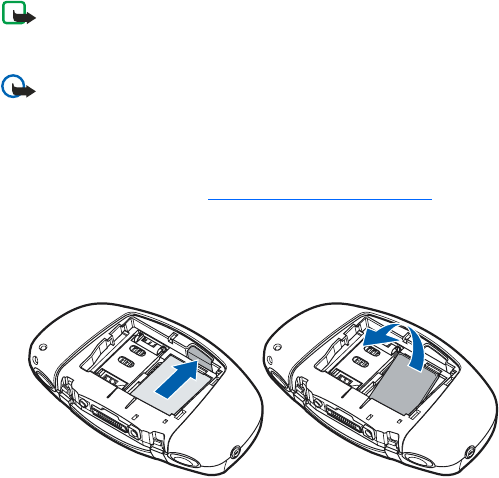

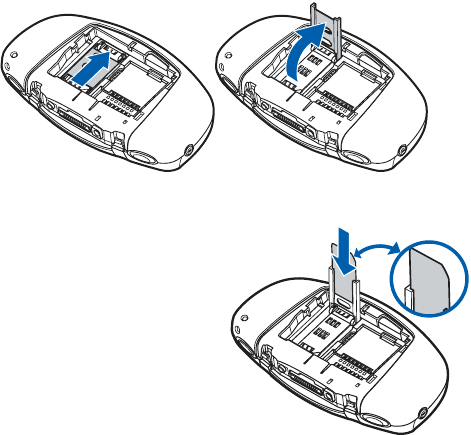

4Slide the SIM card holder down (3) and pull up to open (4).

5Insert the SIM card into the SIM card holder (5).

The SIM card is inserted

correctly with the bevelled

corner on the card up. The gold

contact area on the card is

facing the connectors on the

phone.

6Close the SIM card holder (6) and push up to lock (7).

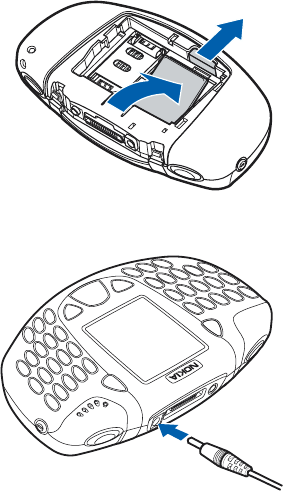

7Insert the battery (8) with the gold contacts on the battery aligned with

the gold contacts in the battery slot.

8To replace the back cover (9), insert the locking catches on the back cover

in the corresponding slots in the phone, and slide the cover until it locks

into place.

Remove and install the memory card

Your phone comes with a 64MB, pre-installed, ready-to-use memory card.

Note: Do not remove the memory card in the middle of an operation.

Be sure to close all memory card applications before removing the

card.

Important: Keep all memory cards out of the reach of small children.

1Make sure the phone is switched off.

2With the back of the phone facing you, slide the cover open and remove

the battery. See step 1 in Install the SIM card and battery.

3To remove the memory card, press the memory card release button (1) and

lift the card off (2).

Be careful not to scratch the gold contacts on the card.

4To install the memory card,

gently press the memory card

in place (3) while pressing the

memory card release button

(4). Make sure that the gold

contacts of the card are facing

down.

5Replace the battery and cover.

Charge the battery

1Connect the plug from the

charger to the socket on the

top of your phone.

2Connect the charger to an ac

wall socket.

Charging is displayed briefly

if the phone is switched on. If

the battery is completely

discharged, it may take a few

minutes before the charging

indicator appears on the

display or any calls can be

made.

You can use your phone while the charger is connected.

Charging time depends on the charger and the battery used. For example,

charging a BLD-3 battery with the ACP-12 charger takes up to one hour and

30 minutes while the phone is in standby mode.

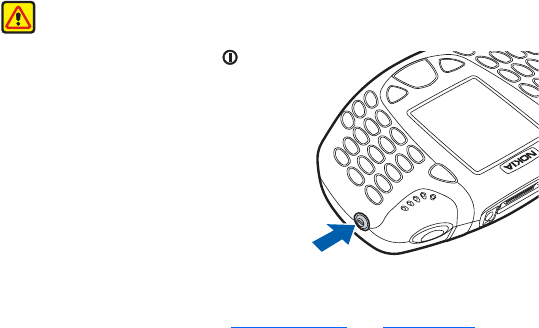

Switch the phone on and off

Warning: Do not switch the phone on when wireless phone use is

prohibited or when it may cause interference or danger.

Press and hold the power key located

on the right side of your phone until the

display lights come on.

If the phone displays Insert SIM card even

though the SIM card is properly inserted,

or SIM card not supported, contact your

service provider. Your phone does not

support 5-V SIM cards and the card may

need to be changed.

• If the phone asks for a PIN code, key in

the PIN code (displayed as ****), and press OK.

See also PIN code request in Security settings and Access Codes.

• If the phone asks for a security code, key in the security code

(displayed as *****), and press OK.

Change the security code, PIN code, PIN2 code or restriction password.

Codes can only include numbers from 0 to 9.

EFFICIENT OPERATION: Your phone has a

built-in antenna. As with any other radio

transmitting device, do not touch the

antenna unnecessarily when the phone is

switched on. Contact with the antenna

affects call quality and may cause the phone

to operate at a higher power level than

otherwise needed. Not touching the antenna

area during a phone call optimizes the

antenna performance and the talktime of

your phone.

Keypad lock (keyguard)

You can lock the keypad to prevent the keys being accidentally pressed when

you are carrying your phone.

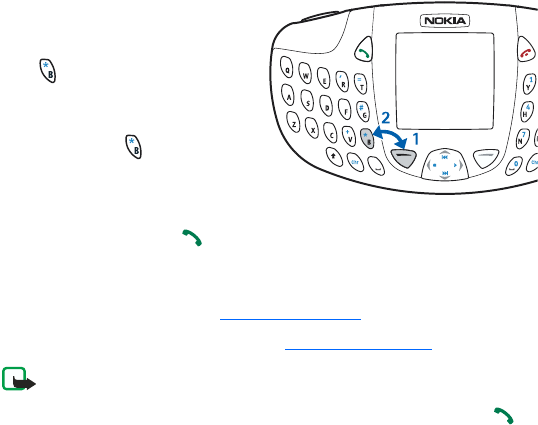

Lock the keypad

In standby mode, press the left

selection key under Menu and

then within 1.5 seconds.

Unlock the keypad

Press the left selection key under

Unlock and then within 1.5

seconds.

If you receive a call while the keypad

is locked, you do not need to unlock

it to answer a call. Press , and during a call, the phone can be operated

normally. When you end or reject a call, the keypad will automatically remain

locked.

For automatic keypad lock, see Automatic keyguard.

For locking the keypad during a call, see Options during a call.

Note: When keyguard is on, calls may be possible to the emergency

number programmed into your phone (such as 911 or other official

emergency numbers). Key in the emergency number and press .

The number is displayed only after you have keyed in the last digit.

Change the covers

Note: Before removing the cover, always switch off the power and

disconnect the charger and any other device. Avoid touching electronic

components while changing the covers. Always store and use the

device with the covers attached.

Before changing the cover, always switch off the power and disconnect the

phone from the charger or any other device. Always store and use the phone

with the covers attached.

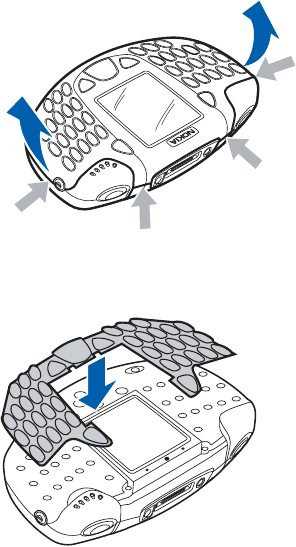

1Remove the back cover.

2To remove the front cover,

gently pull the cover on

both sides (1) and remove

the cover starting from the

top (2).

3Remove the key mat from

the front cover and

replace on the phone (3).

Microsoft NEM-2 GSM850/1900 Cellular Telephone User Manual 3300 ENv1 9355979 060503 CDROM

Microsoft Mobile Oy GSM850/1900 Cellular Telephone 3300 ENv1 9355979 060503 CDROM

Contents

Manual part 2

Navigation menu

Namespaces

Views

Navigation
