Users Manual
User’s Guide
9354993
Issue 1
DRAFT
npl-2_en1_1.fm Page 1 Wednesday, August 7, 2002 10:18 AM
The wireless phone described in this guide is approved for use in GSM 900, 1800
and 1900 networks.
LEGAL INFORMATION
Part No. 9354993 Issue No. 1
Copyright ©2003 Nokia. All rights reserved.
Nokia is a registered trademark of Nokia Corporation.
Nokia, Nokia Connecting People, Xpress-on, Pop-Port, the Original Accessories
logos, Space Impact, Snake II, and Bumper are trademarks of Nokia Corporation
and/or its affiliates.
Printed in Canada 02/2003
US Patent No 5818437 and other pending patents.
T9 text input software Copyright ©1999-2002. Tegic Communications, Inc. All
rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
The information contained in this user guide was written for Nokia 6100 phone.
Nokia operates a policy of continuous development. Nokia reserves the right to
make changes and improvements to any of the products described in this
document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF
DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS
REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF
THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR
WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This product contains commodities, technology or software exported from the
United States in accordance with the Export Administration regulations.
Diversion contrary to U.S. law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a
telephone in close proximity to receiving equipment). The FCC or Industry Canada
can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This
device complies with part 15 of the FCC rules. Operation is subject to the
condition that this device does not cause harmful interference.
FCC_Layout.fm Page 91 Monday, February 10, 2003 5:16 PM
Contents
3
Contents
FOR YOUR SAFETY................... 5
General information 7
Stickers in the sales package............. 7
Access codes........................................... 7
Overview of the functions in the
phone........................................ 9
Multimedia messaging
service (MMS)......................................... 9
Polyphonic sound (MIDI)..................... 9
General Packet Radio Service (GPRS) 9
Loudspeaker.......................................... 10
MIDP JavaTM applications................ 10
Nokia OTA settings service............... 10
Dynamic memory................................. 11
1. Your phone......................... 12
Keys and connectors........................... 12
Standby mode....................................... 13
Screen saver....................................... 13
Wallpaper........................................... 13
Essential indicators
in standby mode............................... 14
Putting on the wrist strap................. 15
2. Getting started................... 16

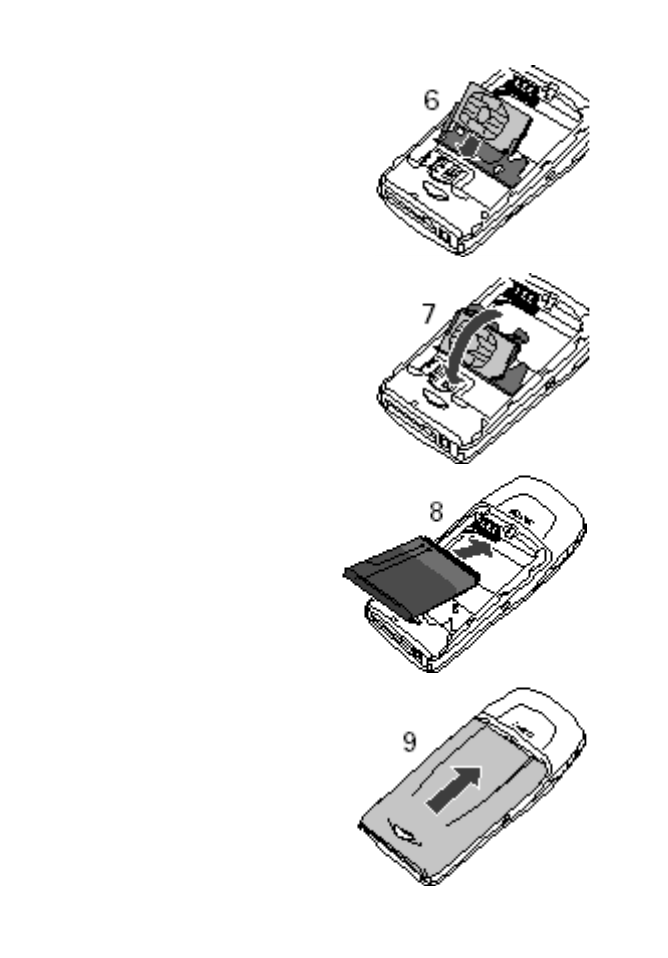

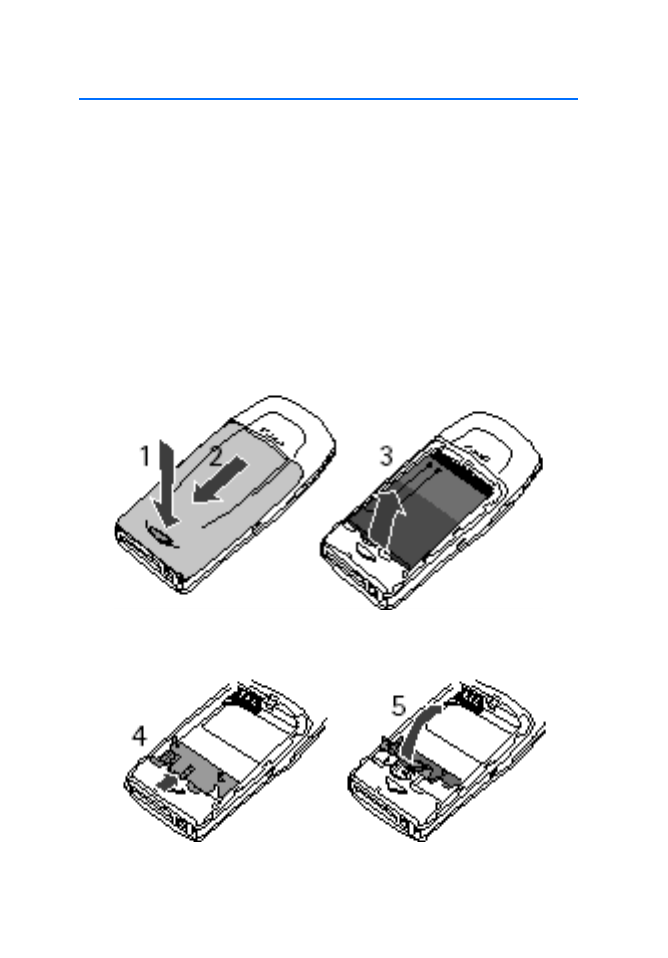

Installing the SIM card
and the battery.................................... 16
Charging the battery.......................... 18
Switching the phone on and off..... 18
Normal operating position................ 19
Keypad lock (Keyguard)..................... 19

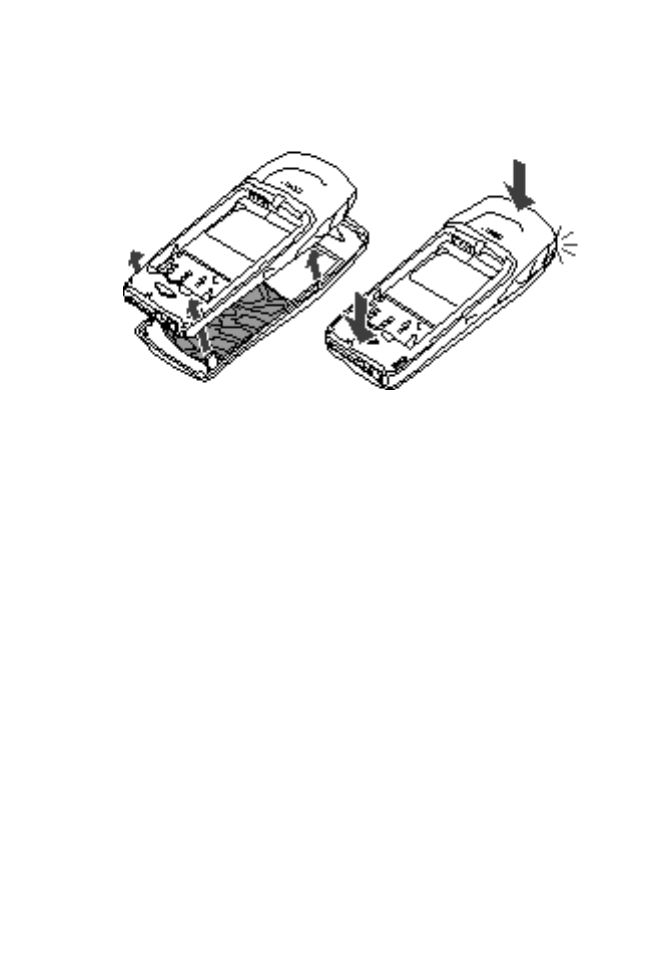

Changing the front cover.................. 20
3. Call functions..................... 22
Making a call........................................ 22
Speed dialling a phone number... 22
Making a conference call.............. 23
Answering or rejecting
an incoming call.................................. 23
Call waiting ....................................... 23
Options during a call.......................... 24
Loudspeaker....................................... 24
4. Writing text ........................ 25
Setting predictive
text input on or off............................. 25
Using predictive text input............... 25
Writing compound words.............. 26
Using traditional text input.............. 26
Tips for writing text............................ 27
5. Phone book (Names) .......... 28
Selecting the phone book settings. 28
Saving names and phone
numbers (Add name).......................... 28
Saving multiple numbers
and text items per name................ 29
Searching for a name
in the phone book............................... 30
Editing a name, number
or text item........................................... 30
Erasing names and numbers............ 30
Copying phone books......................... 30
Sending and receiving
a business card..................................... 31
Speed dials............................................ 32
Info numbers......................................... 32
Service numbers................................... 32
My numbers.......................................... 32
Caller groups......................................... 33
6. Using the menu .................. 34
Accessing a menu function.............. 34
List of menu functions....................... 35
7. Menu functions .................. 38
Messages (Menu 1)............................. 38
Text messages................................... 38
Multimedia messages..................... 43
Multimedia messages
npl-2_en1_1.fm Page 3 Wednesday, August 7, 2002 1:56 PM
Contents
4
memory full....................................... 46
Erasing messages............................. 47
Chat..................................................... 47
Voice messages................................ 48
Info messages................................... 48
Message settings............................. 48
Service commands.......................... 51
Call register (Menu 2)........................ 51
Recent calls lists.............................. 51
Call counters and call timers....... 52
Profiles (Menu 3)................................. 53
Settings (Menu 4).............................. 54
Time and date settings................... 54
Call settings...................................... 54
Phone settings.................................. 56
Display settings................................ 58
Tone settings..................................... 60
Accessory settings........................... 60
Security settings.............................. 61
Restore factory settings................. 62
Alarm clock (Menu 5)........................ 62
Gallery (Menu 6)................................. 62
Organiser (Menu 7)............................ 64
Calendar............................................. 64
To-do list............................................ 66
Games (Menu 8).................................. 67
Launching a game........................... 67
Game services................................... 67
Memory status for games............. 68
Game settings................................... 68
Applications (Menu 9)....................... 68
Launching an application.............. 68
Downloading an application........ 69
Memory status for applications.. 71
Extras (Menu 10)................................. 71
Calculator.......................................... 71
Countdown timer ............................ 72
Stopwatch ......................................... 72
Wallet ................................................. 73
Connectivity (Menu 11).................... 75
Infrared............................................... 75
GPRS.................................................... 76
Services (Menu 12)............................. 77
Basic steps for accessing
and using WAP services................. 78
Setting up the phone
for a WAP service............................ 78
Making a connection
to a WAP service.............................. 80
Browsing the pages
of a WAP service.............................. 81
Ending a WAP connection............ 83
Appearance settings
of WAP browser............................... 83
Cookie settings................................. 83
Bookmarks......................................... 84
Service inbox.................................... 84
The cache memory.......................... 85
Authority certificates..................... 85
Browser security.............................. 86
SIM services (Menu 13)..................... 88
8. PC Connectivity.................. 89
PC Suite................................................. 89
GPRS and HSCSD............................. 90
Using data communication
applications.......................................... 90
9. Battery statements............. 91
Charging and Discharging................ 91
10.Technical information ...... 92
11.Patents .............................. 93
CARE AND MAINTENANCE ... 94
IMPORTANT SAFETY
INFORMATION........................ 95
APPENDIX ............................. 100
A message from the CTIA.... 100
A message from the U.S. Food
and Drug Administration..... 103
npl-2_en1_1.fm Page 4 Wednesday, August 7, 2002 1:56 PM
FOR YOUR SAFETY
5
FOR YOUR SAFETY
Read these simple guidelines. Breaking the rules may be dangerous or illegal.
Further detailed information is given in this manual.
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Don't use a hand-held phone while driving.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any regulations or rules. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELLING
Don't use the phone at a refuelling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Don't use the phone where blasting is in progress. Observe
restrictions, and follow any regulations or rules.
USE SENSIBLY
Use only in the normal position. Don't touch the antenna
unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user's guide for
detailed safety instructions. Do not connect incompatible products.
npl-2_en1_1.fm Page 5 Monday, September 2, 2002 2:35 PM
FOR YOUR SAFETY
6
BACKUP COPIES
Remember to make backup copies of all important data.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
CALLING
Ensure the phone is switched on and in service. Enter the phone
number, including the area code, then press . To end a call,
press . To answer a call, press .
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press as many
times as needed (e.g. to exit a call, to exit a menu, etc.) to clear the
display. Enter the emergency number, then press . Give your
location. Do not end the call until told to do so.
■Network Services
The wireless phone described in this guide is approved for use on the EGSM 900,
GSM 1800 and GSM 1900 network.
Triband is a network dependent feature. Check with your local service provider if
you can subscribe to and use this feature.
A number of features included in this guide are called Network Services. These
are special services that you arrange through your wireless service provider.
Before you can take advantage of any of these Network Services, you must
subscribe to them through your service provider and obtain instructions for their
use from your service provider.
Note: Some networks may not support all language-dependent
characters and/or services.
■About accessories
Check the model number of any charger before use with this device. This device is
intended for use when supplied with power from ACP-12 and LCH-12.
Warning: Use only batteries, chargers and accessories approved by the
phone manufacturer for use with this particular phone model. The use
of any other types may invalidate any approval or warranty applying to
the phone, and may be dangerous.
For availability of approved accessories, please check with your dealer.
When you disconnect the power cord of any accessory, grasp and pull the plug,
not the cord.
npl-2_en1_1.fm Page 6 Monday, September 2, 2002 2:35 PM
General information
7
General information
■Stickers in the sales package
The stickers contain important information for services and customer
support purposes.
Attach the sticker to your warranty card.
Attach the sticker to the Nokia Club Invitation Card supplied in the
sales package.
■Access codes
•Security code (5 to 10 digits): The security code protects your
phone against unauthorised use, and is supplied with the phone. The
preset code is 12345. Change the code, and keep the new code secret
and in a safe place separate from your phone. To change the code,
and to set the phone to request the code, see Security settings on
page 61.
•PIN code and PIN2 code (4 to 8 digits): The PIN (Personal
Identification Number) code protects your SIM card against
unauthorised use. The PIN code is usually supplied with the SIM card.
Set the phone to request the PIN code each time the phone is
switched on, see Security settings on page 61.
The PIN2 code may be supplied with the SIM card and is required to
access some functions, such as charging unit counters.
If you key in an incorrect PIN code several times, the phone may
display SIM blocked and ask you to key in the PUK code. Contact your
service provider to get the PUK code.
•PUK and PUK2 codes (8 digits): The PUK (Personal Unblocking Key)
code is required to change a blocked PIN code. The PUK2 code is
required to change a blocked PIN2 code.
If the codes are not supplied with the SIM card, contact your local
service provider for the codes.
npl-2_en1_1.fm Page 7 Monday, September 2, 2002 2:35 PM
General information
8
•Barring password (4 digits): The barring password is needed when
using the Call barring service, see Security settings on page 61. You
can obtain the password from your service provider.
•Signing PIN: The signing PIN is needed for the digital signature. See
Digital signature on page 88. The signing PIN is supplied with the
SIM card if the SIM card contains a security module.
If you key in an incorrect PIN code several times, the phone may
display SIM blocked and ask you to key in the PUK code. Contact your
service provider to get the PUK code.
•Wallet code (4-10 digits): The wallet code is needed to access the
wallet services. If you key in a wrong wallet code several times, the
wallet application is blocked for five minutes. For further
information, see Wallet on page 73.
npl-2_en1_1.fm Page 8 Monday, September 2, 2002 2:35 PM
Overview of the functions in the phone
9
Overview of the functions in the phone
The Nokia 6100 phone provides many functions which are practical for
daily use, such as Calendar, Clock, Alarm clock, Calculator, and many
more. Also a range of Nokia Xpress-onTM colour covers is available for
your phone. To change the cover, see Changing the front cover on
page 20.
■Multimedia messaging service (MMS)
The phone is able to send multimedia messages made up of text and a
picture, and to receive messages containing text, pictures and sounds.
You can save the pictures and sounds for personalising your phone. See
Multimedia messages on page 43.
■Polyphonic sound (MIDI)
Polyphonic sound consists of several sound components played at the
same time like a real melody through a speaker. Polyphonic sounds are
used in ringing tones and message alert tones. Your phone has sound
components from over 40 instruments that can be used for polyphonic
sounds but the phone can play four instruments simultaneously. The
phone supports the Scalable Polyphonic MIDI (SP-MIDI) format.
You can receive polyphonic ringing tones via multimedia service, see
Reading and replying to a multimedia message on page 45, or download
them via the gallery menu, see Gallery (Menu 6) on page 62 or via the PC
suite, see PC Suite on page 89.
■General Packet Radio Service (GPRS)
GPRS technology allows mobile phones to be used for sending and
receiving data over the mobile network. GPRS as such is a data bearer
that enables wireless access to data networks like the Internet. The
applications that use GPRS are WAP services, MMS and SMS messaging,
MIDP JavaTM application downloading and the GPRS dial-up (for
example, Internet and e-mail).
npl-2_en1_1.fm Page 9 Monday, September 2, 2002 2:35 PM
Overview of the functions in the phone
10
Before you can use GPRS technology
• Contact your network operator or service provider for availability
and subscription to the GPRS service.
• Save the GPRS settings for each of the applications used over GPRS.
See Setting up the phone for a WAP service on page 78, Message
settings on page 48 and GPRS on page 76.
Pricing for GPRS and applications
Both the active GPRS connection and the applications used over GPRS
are priced. For more detailed information on pricing, contact your
network operator or service provider.
■Loudspeaker
The loudspeaker allows you to use your phone as a speakerphone, also
during a conference call. See Loudspeaker on page 24.
■MIDP JavaTM applications
Your phone supports Java technology and includes some MIDP Java
applications and games that have been specially designed for mobile
phones. You can download new applications and games to your phone
from a PC with a Java installer software or from WAP services, e.g. from
Club Nokia. See Applications (Menu 9) on page 68.
■Nokia OTA settings service
In order to use WAP, MMS, GPRS and other wireless services you need to
set proper settings in your phone. You may receive the settings directly
as an OTA (Over The Air) message and you only need to save the settings.
For more information and availability of the settings, contact your
nearest authorised Nokia dealer.
npl-2_en1_1.fm Page 10 Monday, September 2, 2002 2:35 PM
Overview of the functions in the phone
11
■Dynamic memory
Your phone uses dynamic memory for some functions. Dynamic memory
means that the phone’s memory is shared between different functions.
In addition to the dynamic memory, a minimum amount of memory is
reserved for each of the functions. The phone displays a note if there is
not enough memory for a function. In the Gallery, Games and
Applications menu you can view the size of the downloaded graphic and
ringing tone files and the downloaded Java applications. The maximum
size of the memory for a function is available if enough dynamic
memory is free
The following functions share the phone’s dynamic memory
• Phone book (Names), see page 28.
You may save up to 300 names and phone numbers.
• Text messages, see page 38.
You may save up to 150 text messages or 50 picture or multi-part
messages.
• Multimedia messages, see page 43.
You may save up to 15 messages with the maximum size of 30kB
each.
• Gallery (Menu 6) for ringing tones and images, see page 62.
You may save up to 60 ringing tones with an average size of 5kB of
which 20 are removable and up to 35 images with an average size of
10kB.
• Calendar, see page 64. You may save up to 250 calendar notes.
• To-do list, see page 66. You may save up to 30 notes.
• Java applications, see Games (Menu 8) on page 67 and Applications
(Menu 9) on page 68.
You may save up to six applications and/or games with a maximum
size of 64kB each.
npl-2_en1_1.fm Page 11 Monday, September 2, 2002 2:35 PM
Your phone
12
1. Your phone
■Keys and connectors
1. Power key
Switches the phone on and
off. For example, when the
keypad is locked, pressing
the power key briefly turns
the phone’s display lights
on for approximately 15
seconds.
2. Volume keys
Keys to adjust the earpiece,
headset and loudspeaker
volume.
3. Selection keys
and
The function of the keys
depends on the guiding text
shown on the display above
the keys, for example,
Menu and Names in
standby mode.
4. 4-way scroll key with , , and
Enables scrolling through names, phone numbers, menus or settings
and in the calendar. In standby mode, pressing opens the Create
message menu and pressing opens the Calendar menu.
5. dials a phone number, and answers a call. In standby mode it
shows the most recently called number.
6. ends an active call. Exits from any function.
7. - enter numbers and characters.
and are used for various purposes in different functions.
npl-2_en1_1.fm Page 12 Monday, September 2, 2002 2:35 PM
Your phone
13
1. Charger connector
2. Pop-PortTM connector for
headset and data cable, for
example
3. Infrared (IR) port
■Standby mode
When the phone is ready for use, and you have not keyed in any
characters, the phone is in standby mode.
1. Indicates in which cellular network the
phone is currently being used.
2. Shows the signal strength of the cellular
network at your current location. The
higher the bar, the stronger the signal.
3. Shows the battery charge level. The
higher the bar, the more power in the
battery.
4. The left selection key in standby mode is Menu.
5. The right selection key in standby mode is Names.
See also Essential indicators in standby mode on page 14.
Screen saver
The phone automatically activates the screen saver, a digital clock view,
for power saving in standby mode. It will be activated after a certain
time when no function of the phone is used. See Screen saver on
page 59. Press any key to deactivate the screen saver.
Note that if you have not set the time, 00:00 is displayed. To set the
time, see Clock on page 54.
Wallpaper
You can set your phone to display a background picture, wallpaper,
when the phone is in standby mode. See Wallpaper on page 58.
npl-2_en1_1.fm Page 13 Monday, September 2, 2002 2:35 PM
Your phone
14
Essential indicators in standby mode
You have received one or several text or picture messages. See
Reading and replying to a message or an e-mail on page 40.
You have received one or several multimedia messages. See
Reading and replying to a multimedia message on page 45.
You have received one or several voice messages. See Voice
messages on page 47.
The phone’s keypad is locked. See Keypad lock (Keyguard) on
page 19.
The phone does not ring at an incoming call or text message
when Incoming call alert is set to Off and Message alert tone is
set to Off. See Tone settings on page 60.
The alarm clock is set to On. See Alarm clock (Menu 5) on
page 62.
The countdown timer is running. See Countdown timer on
page 72.
The stopwatch timer is running in the background. See
Stopwatch on page 72.
A GPRS dial-up connection is established, refer to GPRS modem
settings on page 77. The indicator is shown on the top left of
the display.
There is an incoming or outgoing call or a text message during a
GPRS dial-up connection. The GPRS connection is suspended.
Infrared connection indicator, see Infrared on page 75.
All your calls are diverted to another number, Divert all voice
calls. If you have two phone lines, the divert indicator for the
first line is and for the second line . See Call divert on
page 54.
or Indicates the selected phone line, if you have two phone lines.
See Line for outgoing calls on page 56.
npl-2_en1_1.fm Page 14 Monday, September 2, 2002 2:35 PM
Your phone
15
The loudspeaker has been activated, see Loudspeaker on
page 24.
Calls are limited to a closed user group. See Security settings on
page 61.
The timed profile is selected. See Profiles (Menu 3) on page 53.
,
or
Headset, handsfree or loopset accessory is connected to the
phone.
To set the phone to show the time and date in standby mode, see Clock
on page 54 and Date on page 54.
■Putting on the wrist strap
Thread the strap as shown in the picture and
then tighten it.
npl-2_en1_1.fm Page 15 Monday, September 2, 2002 2:35 PM
Getting started
16
2. Getting started
■Installing the SIM card and the battery
Keep all miniature SIM cards out of the reach of small children.
• The SIM card and its contacts can easily be damaged by scratches or
bending, so be careful when handling, inserting or removing the
card.
• Before removing the battery switch off the phone.
1. To remove the back cover from the phone:
With the back of the phone facing you, push the back cover release
button (1) and slide the back cover off (2).
Remove the battery by lifting it with the finger grip.
2. To release the SIM card holder, gently pull the locking of the card
holder (4) and open it (5).
npl-2_en1_1.fm Page 16 Monday, September 2, 2002 2:35 PM
Getting started
17
3. Insert the SIM card into the SIM card
holder (6). Make sure that the SIM
card is properly inserted and that the
golden contact area on the card is
faced like shown.
4. Close the SIM card holder (7) and
press it as it locks.
5. Insert the battery (8).
6. Slide the back cover into its
place (9).
npl-2_en1_1.fm Page 17 Monday, September 2, 2002 2:35 PM
Getting started
18
■Charging the battery
1. Connect the lead from the
charger to the socket on
the bottom of your phone.
2. Connect the charger to an
AC wall socket.
The text Charging is
displayed briefly if the
phone is switched on. If the battery is completely empty, it may take
a few minutes before the charging indicator appears on the display
or any calls can be made.
You can use the phone while the charger is connected.
The charging time depends on the charger and the battery used. For
example, charging a BL-4C battery with the ACP-12 charger takes up to
one hour and 30 minutes in standby mode.
■Switching the phone on and off
Press and hold the power key .
Note that if the phone displays Insert SIM card
even though the SIM card is properly inserted, or
SIM card not supported, contact your network
operator or service provider. Your phone does not
support 5 Volt SIM cards and the card may need to
be changed.
• If the phone asks for a PIN code, key in the PIN
code (displayed as ****), and press OK.
See also PIN code request in Security settings on page 61 and Access
codes on page 7.
• If the phone asks for a security code, key in the security code
(displayed as *****), and press OK.
See also Access codes on page 7.
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
npl-2_en1_1.fm Page 18 Monday, September 2, 2002 2:35 PM
Getting started
19
■Normal operating position
Use the phone only in its normal operating position.
Your phone has a built-in antenna. As with any other
radio transmitting device, do not touch the antenna
unnecessarily when the phone is switched on. Contact
with the antenna affects call quality and may cause the
phone to operate at a higher power level than otherwise
needed.
Not touching the antenna area during a phone call
optimises the antenna performance and the talktime of
your phone.
■Keypad lock (Keyguard)
You can lock the keypad to prevent the keys being
accidentally pressed, for example, when your phone is in your handbag.
•Locking the keypad
In standby mode, press Menu and
then within 1.5 seconds.
•Unlocking the keypad
Press Unlock and then within
1.5 seconds.
To answer a call when the keypad is
locked, press . During a call, the
phone can be operated normally. When
you end or reject the call, the keypad
will automatically be locked again.
For automatic keypad lock, see Automatic keyguard on page 56.
For locking the keypad during a call, see Options during a call on
page 24.
Note: When the keypad is locked, calls may be possible to the
emergency number programmed into your phone (e.g. 112, 911 or other
official emergency number). Key in the emergency number and press
. The number is displayed only after you have keyed in its last
digit.
npl-2_en1_1.fm Page 19 Monday, September 2, 2002 2:35 PM
Getting started
20
■Changing the front cover
Before changing the front cover, always switch off the power and disconnect the
phone from the charger or any other device. Always store and use the phone with
the covers attached.
1. Remove the back cover of the phone. See step 1 in Installing the SIM
card and the battery on page 16.
2. To remove the front cover,
gently disperse the back part
of the phone and the front
cover beginning at the
bottom of the phone.
3. Insert the key mat on the new
front cover.
npl-2_en1_1.fm Page 20 Monday, September 2, 2002 2:35 PM
Getting started
21
4. To attach the front cover, first place the back part of the phone and
the front cover properly together and then gently push on the
bottom and the top of the phone until the catches are locked
properly.
5. Slide the back cover into its place. See step 6 in Installing the SIM
card and the battery on page 16.
npl-2_en1_1.fm Page 21 Monday, September 2, 2002 2:36 PM
Call functions
22
3. Call functions
■Making a call
1. Key in the phone number, including the area code. If you key in a
wrong character, press Clear to delete it.
For international calls, press twice for the international prefix
(the + character replaces the international access code) and then key
in the country code, area code without the leading 0, if necessary,
and the phone number.
2. Press to call the number.
3. Press to end the call or to cancel the call attempt.
See also Options during a call on page 24.
Making a call using the phone book
• See Searching for a name in the phone book on page 30. Press
to call the number on the display.
Last number redialling
• In standby mode, press once to access the list of the 20
numbers you last called or attempted to call. Scroll to the number or
name you want, and press to call the number.
Calling your voice mailbox
• In standby mode, press and hold , or press and .
If the phone asks for the voice mailbox number, key it in and press
OK. See also Voice messages on page 47.
Speed dialling a phone number
Assign a phone number to one of the speed dialling keys, from to
, see Speed dials on page 32. Call the number in either of the
following ways:
• Press the speed dialling key you want and then press .
•If Speed dialling is set to on, press and hold a speed dialling key until
the call is started. See Speed dialling on page 55.
npl-2_en1_1.fm Page 22 Monday, September 2, 2002 2:36 PM
Call functions
23
Making a conference call
Conference calling is a network service that allows up to six persons to
take part in a conference call.
1. Make a call to the first participant.
2. To make a call to a new participant, press Options and select New
call.
3. Key in, or retrieve from the phone book, the phone number of the
new participant and press Call. The first call is put on hold.
4. When the new call has been answered, join the first participant in
the conference call. Press Options and select Conference.
5. To add a new participant to the call, repeat steps 2 to 4.
6. To have a private conversation with one of the participants:
Press Options and select Private and select the desired participant.
Rejoin the conference call as described in step 4.
7. To end the conference call, press .
■Answering or rejecting an incoming call
Press to answer the incoming call and press to end the call.
Press to reject the incoming call.
Press Silence, if available, to mute the ringing tone. Then either answer
or reject the call.
If the headset HDB-4 is connected to the phone, you can answer and
end a call by pressing the headset key.
Tip: If the Divert if busy function is activated to divert the calls,
for example to your voice mailbox, rejecting an incoming call
will also divert the call. See Call divert on page 54.
Call waiting
During a call, press to answer the waiting call. The first call is put
on hold. Press to end the active call.
To activate the Call waiting function, see Call waiting on page 55.
npl-2_en1_1.fm Page 23 Monday, September 2, 2002 2:36 PM
Call functions
24
■Options during a call
Many of the options that you can use during a call, are network services.
Press Options during a call for some of the following options:
Mute or Unmute, End call, End all calls, Phone book, Menu and Hold or
Unhold, New call, Conference, Private, Answer, Reject and Loudspeaker
or Handset.
Lock keypad to activate the keypad lock.
Send DTMF to send DTMF tone strings, for example, passwords or bank
account numbers. Key in the DTMF string or search for it in the phone
book and press OK. Note that you can key in the wait character w and
the pause character p by repeatedly pressing .
Swap to switch between the active call and the call on hold, Transfer to
connect a call on hold to an active call, and disconnect yourself from the
calls.
Loudspeaker
You can use your phone as a loudspeaker during a call. Do not hold the
phone to your ear during loudspeaker operation.
• To activate the loudspeaker, press Options and select Loudspeaker,
or press Loudsp., if available.
• To deactivate the loudspeaker during a call, press Options and select
Handset, or press Handset, if available.
If you have connected the handsfree unit CARK126 or the headset to
the phone, Handset in the options list is replaced with Handsfree or
Headset and the selection key Handset with Handsfr. or Headset,
respectively.
The loudspeaker is automatically deactivated when you end the call
or call attempt or connect the handsfree unit or headset to the
phone.
npl-2_en1_1.fm Page 24 Monday, September 2, 2002 2:36 PM
Writing text
25
4. Writing text
You can key in text, for example when writing messages, using the
traditional or predictive text input.
When you are writing text, the predictive text input is indicated by
and the traditional text input by at the top left of the display. The
character case is indicated by , , or next to the text input
indicator. You can change the character case by pressing . The
number mode is indicated by , and you can change between the
letter and number mode by pressing and holding .
■Setting predictive text input on or off
When writing text, press Options and select Dictionary.
• To set the predictive text input on, select a language in the dictionary
options list. Predictive text input is only available for the languages
on the list.
• To change back to the traditional text input, select Dictionary off.
Tip: To quickly set the predictive text input on or off when
writing text, press twice, or press and hold Options.
■Using predictive text input
You can key in any letter with a single keypress. The predictive text input
is based on a built-in dictionary to which you can also add new words.
1. Start writing a word by using the keys to . Press each key
only once for one letter. The word changes after each keystroke.
Example: To write Nokia when the English dictionary is
selected, press once for N, once for o, once
for k, once for i and once for a:
To insert a number while in letter mode, press and hold the desired
number key.
npl-2_en1_1.fm Page 25 Monday, September 2, 2002 2:36 PM
Writing text
26
More instructions for writing text, see Tips for writing text on
page 27.
2. When you have finished writing the word and it is correct, confirm it
by adding a space with or by pressing any of the scroll keys.
Pressing a scroll key also moves the cursor.
If the word is not correct, press repeatedly or press Options and
select Matches. When the word you want appears, confirm it.
If the ? character is displayed after the word, the word you intended
to write is not in the dictionary. To add the word to the dictionary,
press Spell, key in the word (traditional text input is used) and press
Save. When the dictionary becomes full, the new word replaces the
oldest one that was added.
3. Start writing the next word.
Writing compound words
Key in the first part of the word and confirm it by pressing . Write the
last part of the word and confirm the word.
■Using traditional text input
Press a number key, to , repeatedly until the desired
character appears. Not all characters available under a number key are
printed on the key. The characters available depend on the language
selected in the Language menu, see Language on page 56.
To insert a number while in letter mode, press and hold the desired
number key.
• If the next letter you want is located on the same key as the present
one, wait until the cursor appears, or press any of the scroll keys and
then key in the letter.
• The most common punctuation marks and special characters are
available under the number key .
More instructions for writing text, see Tips for writing text on page 27.
npl-2_en1_1.fm Page 26 Monday, September 2, 2002 2:36 PM
Writing text
27
■Tips for writing text
The following functions may also be available for writing text:
• To insert a space, press .
• To move the cursor to the left, right, down or up, press the scroll keys
, , or , respectively.
• To delete a character to the left of the cursor, press Clear. Press and
hold Clear to delete the characters more quickly.
To delete all the characters at once when writing a message, press
Options and selectClear text.
• To insert a word when using the predictive text input, press Options
and select Insert word. Write the word using the traditional text
input and press Save. The word is also added to the dictionary.
• To insert a special character when using the traditional text input,
press , or when using the predictive text input, press and hold
, or press Options and select Insert symbol.
Press any of the scroll keys to scroll to a character and press Use to
select the character.
You can also scroll to a character by pressing , , or
, and select the character by pressing .
The following options are available when writing text messages:
• To insert a number while in letter mode, press Options and select
Insert number. Key in the phone number or search it in the phone
book and press OK.
• To insert a name from the phone book, press Options and select
Insert name. To insert a phone number or a text item attached to the
name, press Options and select View details.
npl-2_en1_1.fm Page 27 Monday, September 2, 2002 2:36 PM
Phone book (Names)
28
5. Phone book (Names)
You can save names and phone numbers in the phone’s memory
(internal phone book) and in the SIM card’s memory (SIM phone book).
• The internal phone book may save up to 300 names with numbers
and textual notes for each name. How many names can be saved
depends on the length of the names, and the number and length of
phone numbers and text items.
The internal phone book uses dynamic memory, see Dynamic
memory on page 11.
• The phone supports SIM cards that can save up to 250 names and
phone numbers. Names and numbers saved in the SIM card’s
memory, are indicated by .
■Selecting the phone book settings
Press Names and select Settings. Select
•Memory in use to select the phone book you want to use. To recall
names and numbers from both phone books, select Phone and SIM.
The names and numbers will be saved in the phone’s memory.
•Phone book view to select how the names (and numbers) in the
phone book are displayed.
•Memory status to see how many names and phone numbers are
currently saved and how many can still be saved in the selected
phone book.
■Saving names and phone numbers (Add name)
Names and numbers will be saved in the used memory, see Selecting the
phone book settings above.
1. Press Names and select Add name.
2. Key in the name and press OK. See Using traditional text input on
page 26.
3. Key in the phone number, and press OK. To key in the numbers, see
Making a call on page 22.
npl-2_en1_1.fm Page 28 Monday, September 2, 2002 2:36 PM
Phone book (Names)
29
4. When the name and number are saved, press Done.
Tip: Quick save In standby mode, key in the phone number. Press
Options, and select Save. Key in the name, press OK and Done.
Saving multiple numbers and text items per name
You can save different types of phone numbers and short text items per
name in the phone’s internal phone book.
The first number saved is automatically set as the default number and it
is indicated with a frame around the number type indicator, for example
. When you select a name from the phone book, for example to make
a call, the default number is used unless you select another number.
1. Make sure that the memory in use is either Phone or Phone and SIM.
See Selecting the phone book settings on page 28.
2. To access the list of names and phone numbers, press or in
standby mode.
3. Scroll to the name saved in the phone’s internal phone book to which
you want to add a new number or text item, and press Details.
4. Press Options and select Add number or Add detail.
5. Select one of the following number types General, Mobile,
Home, Office and Fax,
or text types E-mail address, Web address, Postal address
and Note.
To change the type of a number or text, select Change type in the
options list.
6. Key in the number or text item and press OK to save it.
7. Press Back and then Exit to return to standby mode.
Changing the default number
Press or in standby mode, scroll to the name you want and press
Details. Scroll to the number you want to set as the default number.
Press Options and select Set as default.
npl-2_en1_1.fm Page 29 Monday, September 2, 2002 2:36 PM
Phone book (Names)
30
■Searching for a name in the phone book
1. Press Names and select Search.
2. You can key in the first characters of the name you are searching for
in the pop-up window.
Press and to scroll through the names in the list, and and
to move the cursor in the pop-up window.
3. Scroll to the name you want, and press Details. Scroll to view the
details of the selected name.
Tip: To quickly find a name and phone number, press or in
standby mode. Key in the first letter(s) of the name, and/or scroll
to the name you want.
■Editing a name, number or text item
Search for the name (and number) you want to edit and press Details.
Scroll to the name, number or text item you want to edit, and press
Options. Select Edit name, Edit number, or Edit detail, and edit the
name, number, or text and press OK.
■Erasing names and numbers
Press Names and select Delete.
• To delete names and numbers one by one, select One by one and
scroll to the name (and number) you want to delete. Press Delete and
press OK to confirm.
• To delete names and numbers in the phone book all at once, select
Delete all and then scroll to the phone book, Phone or SIM card and
press Delete. Press OK and confirm with the security code.
■Copying phone books
You can copy names and phone numbers from the phone’s memory to
your SIM card’s memory and vice versa.
1. Press Names and select Copy.
2. Select the copying direction, From phone to SIM card or From SIM
card to phone.
npl-2_en1_1.fm Page 30 Monday, September 2, 2002 2:36 PM
Phone book (Names)
31
3. Select One by one, All or Default nos..
• If you select One by one, scroll to the name you want to copy and
press Copy.
Default nos. is shown if you copy from the phone to the SIM card.
Only the default numbers will be copied.
4. To choose whether you want to keep or delete the original names
and numbers, select Keep original or Move original.
• If you select All or Default nos., press OK when Start copying? or
Start moving? is displayed.
■Sending and receiving a business card
You can send and receive a person’s contact information as a business
card either via IR or as an OTA message if supported by the network.
Receiving a business card
To receive a business card via IR, make sure that your phone is ready to
receive data through its IR port, see Infrared on page 75. The user of the
other phone can now send the name and phone number via Infrared.
When you have received a business card via IR or as an OTA message,
press Show. Press Save to save the business card in the phone’s memory.
To discard the business card, press Exit and then OK.
Sending a business card
You can send a business card via IR or as an OTA message to a
compatible phone or other handheld device which supports the vCard
standard.
1. Search for the name and phone number you want to send from the
phone book, press Details and Options and select Send bus. card.
2. To send the business card via IR, make sure that the other phone or
the PC is set up to receive data via its IR port and select Via infrared.
To send the business card as an OTA message, select Via text
message.
npl-2_en1_1.fm Page 31 Monday, September 2, 2002 2:36 PM
Phone book (Names)
32
■Speed dials
To make a call by using the speed dialling keys, see Speed dialling a
phone number on page 22.
Assigning a number to a speed dialling key
Press Names, select Speed dials and scroll to the speed dialling key
number you want.
Press Assign, press Search, and select first the name and then the
number you want to assign. If a number is already assigned to the key,
press Options, and you can view, change or delete the assigned number.
■Info numbers
You can call the information numbers of your service provider if the
numbers are included in your SIM card.
Press Names and select Info numbers. Scroll in a category to an
information number and press to call the number.
■Service numbers
You can call the service numbers of your service provider if the numbers
are included in your SIM card.
Press Names and select Service numbers. Scroll to a service number and
press to call the number.
■My numbers
The phone numbers assigned to your SIM card are saved in My numbers
if this is allowed by the card. To view the numbers press Names and
select My numbers. Scroll to the desired name or number, and press
View.
npl-2_en1_1.fm Page 32 Monday, September 2, 2002 2:36 PM
Phone book (Names)
33
■Caller groups
You can arrange the names and phone numbers saved in the phone book
into caller groups. For each caller group, you can set the phone to play a
specific ringing tone and show a selected logo on the display when you
receive a call from a phone number in the group, see below. To set the
phone to ring only upon calls from phone numbers belonging to a
selected caller group, see Alert for in Tone settings on page 60.
Press Names, and select Caller groups and select the desired caller
group. Select
•Group name, key in a new name for the caller group and press OK.
•Group ringing tone and select the ringing tone for the group. Default
is the ringing tone selected for the currently active profile.
•Group logo and select On to set the phone to display the group logo,
Off not to display it, or View to view the logo.
•Group members to add a name to the caller group, press Options and
select Add name. Scroll to the name you want to add to the group
and press Add.
To remove a name from a caller group, scroll to the name you want to
remove, and press Options and select Remove name.
npl-2_en1_1.fm Page 33 Monday, September 2, 2002 2:36 PM
Using the menu
34
6. Using the menu
The phone offers you an extensive range of functions which are grouped
in menus. Most of the menu functions are provided with a brief help
text. To view the help text, scroll to the menu function you want and
wait for 15 seconds. To exit the help text, press Back. See Help text
activation on page 58.
■Accessing a menu function
By scrolling
1. To access the menu, press Menu.
2. Scroll with or through the menu and select, for example,
Settings by pressing Select.
3. If the menu contains submenus, select the one you want, for
example Call settings.
4. If the selected submenu contains further submenus, repeat step 3.
Select the next submenu, for example Anykey answer.
5. Select the setting of your choice.
6. Press Back to return to the previous menu level, and Exit to exit the
menu.
By shortcut
The menus, submenus and setting options are numbered and you can
access them by using their shortcut number.
• To access the menu, press Menu. Key in quickly, within two seconds,
the index number of the menu function you want to access.
Example: To set the Anykey answer On, press Menu, , ,
and . Press Back to return to the previous menu level,
and Exit to exit the menu.
npl-2_en1_1.fm Page 34 Monday, September 2, 2002 2:36 PM
Using the menu
35
■List of menu functions
1. Messages
1. Text messages
1. Create message
2. Inbox
3. Create e-mail
4. Sent items
5. Archive
6. Templates
7. My folders
8. Distribution lists
9. Delete messages
2. Multimedia msgs.
1. Create message
2. Inbox
3. Outbox
4. Sent items
5. Saved items
6. Delete messages
3. Chat
4. Voice messages
1. Listen to voice messages
2. Voice mailbox number
5. Info messages
1. Info service
2. Topics
3. Language
4. Info topics saved
on SIM card
5. Read
6. Message settings
1. Text messages
2. Multimedia msgs.
3. Other settings
7. Service commands
2. Call register
1. Missed calls
2. Received calls
3. Dialled numbers
4. Delete recent call lists
1. All
2. Missed
3. Received
4. Dialled
5. Call duration
1. Last call duration
2. Received calls' duration
3. Dialled calls' duration
4. All calls' duration
5. Clear timers
6. Call costs
1. Last call units
2. All calls' units
3. Call cost settings
7. GPRS data counter
1. Data sent in last session
2. Data received in last
session
3. All sent data
4. All received data
5. Clear counters
8. GPRS connection timer
1. Duration of last session
2. Duration of all sessions
3. Clear timers
3. Profiles
1. General
1. Activate
2. Personalise
3. Timed
2. Silent (same submenus as in
General)
3. Meeting (same submenus as
in General)
npl-2_en1_1.fm Page 35 Monday, September 2, 2002 2:36 PM
Using the menu
36
4. Outdoor (same submenus as
in General)
5. Pager (same submenus as in
General)
4. Settings
1. Time and date
settings
1. Clock
2. Date
3. Auto-update of
date & time
2. Call settings
1. Call divert
2. Anykey answer
3. Automatic redial
4. Speed dialling
5. Call waiting service
6. Summary after call
7. Send my caller identity
8. Line for outgoing calls1
3. Phone settings
1. Language
2. Automatic keyguard
3. Cell info display
4. Welcome note
5. Network selection
6. Confirm SIM service
actions
7. Help text activation
8. Start-up tone
4. Display settings
1. Wallpaper
2. Colour schemes
3. Operator logo
4. Screen saver timeout
5. Display brightness
5. Tone settings
1. Incoming call alert
2. Ringing tone
3. Ringing volume
4. Vibrating alert
5. Message alert tone
6. Keypad tones
7. Warning tones
8. Alert for
6. Accessory settings2
1. Headset
2. Handsfree
3. Loopset
7. Security settings
1. PIN code request
2. Call barring service
3. Fixed dialling
4. Closed user group
5. Security level
6. Access codes
8. Restore factory settings
5. Alarm clock
6. Gallery
1. View folders
1. Images
2. Tones
2. Delete folder
3. Rename folder
4. Add folder
5. Downloads
1. For availability, contact your network operator or service provider.
2. This menu is shown only if the phone is or has been connected to a headset,
handsfree unit or loopset available for the phone.
npl-2_en1_1.fm Page 36 Monday, September 2, 2002 2:36 PM
Using the menu
37
7. Organiser
1. Calendar
2. To-do list
8. Games
1. Select game
2. Game services
3. Memory
4. Settings
1. Game sounds
2. Game lights
3. Shakes
4. Club Nokia ID
9. Applications
1. Select application
2. App. services
3. Memory
10.Extras
1. Calculator
2. Countdown timer
3. Stopwatch
4. Wallet
1. Cards
2. Personal notes
3. Settings
11.Connectivity
1. Infrared
2. GPRS
1. GPRS connection
2. GPRS modem settings
12.Services
1. Home
2. Bookmarks
3. Service inbox
4. Settings
1. Active service settings
2. Edit active service settings
3. Appearance settings
4. Cookies
5. Authority certificates
6. Security module settings
7. Service inbox settings
5. Go to address
6. Clear the cache
13.SIM services1
1. Only shown if supported by your SIM card. The name and contents vary
depending on the SIM card
npl-2_en1_1.fm Page 37 Monday, September 2, 2002 2:36 PM
Menu functions
38
7. Menu functions
■Messages (Menu 1)
You can read, write, send and save text, multimedia, and
e-mail messages. All the messages are organised in
folders.
Before you can send any text, picture, and e-mail messages, you need to
save your message centre number, see Message settings on page 48.
Text messages
Your phone is able to send and receive multi-part messages made of
several ordinary text messages (network service). Invoicing is based
upon how many ordinary messages are needed for a multi-part
message.
You can also send and receive text messages which contain pictures.
Each of these picture messages is made up of several text messages.
Therefore, sending one picture message may cost more than sending
one text message.
Note: Picture message function can be used only if it is supported by
your network operator or service provider. Only phones that offer
picture message features can receive and display picture messages.
Writing and sending messages
The number of available characters and the current part number of a
multi-part message are shown at the top right of the display.
1. Press Menu, and select Messages, Text messages and Create
message.
Tip: To quickly open the Create message menu, press in
standby mode.
2. Key in a message. See Writing text on page 25. To insert text
templates or a picture in the message, see Templates on page 41.
3. To send the message, press Options and select Send.
npl-2_en1_1.fm Page 38 Monday, September 2, 2002 2:36 PM
Menu functions
39
4. Enter the recipient’s phone number or search for the phone number
in the phone book.
Press OK to send the message.
Note: When sending messages via the SMS network service, your phone
may display the words Message sent. This is an indication that the
message has been sent by your phone to the message centre number
programmed into your phone. This is not an indication that the message
has been received at the intended destination. For more details about
SMS services, check with your service provider.
Options for sending a message
After you have written a message, press Options and select Sending
options.
• To send a message to several recipients, select Send to many. When
you have sent the message to everyone you want to send it to, press
Done.
• To send a message to a predefined distribution list, select Send to list.
To define and edit distribution lists, see Distribution lists on page 42.
• To send a message using a message profile, first select Sending
profile and then the desired message profile.
To define a message profile, see Message settings on page 48.
Writing and sending an e-mail
Before you can send any e-mails via SMS you need to save the settings
for e-mail sending, see Message settings on page 48. For availability and
subscription to the e-mail service, contact your network operator or
service provider. To save an e-mail address in the phone book, see Saving
multiple numbers and text items per name on page 29.
1. Press Menu, and select Messages, Text messages and Create e-mail.
2. Key in the recipient’s e-mail address or search for it in the phone
book and press OK.
3. You can key in the subject for the e-mail if you want and press OK.
4. Key in the e-mail message. See Writing text on page 25. The number
of characters you can key in, is shown at the top right of the display.
E-mail address and subject are included in the total number of
characters.
npl-2_en1_1.fm Page 39 Monday, September 2, 2002 2:36 PM
Menu functions
40
See also Inserting a text template in a message or in an e-mail on
page 41. Inserting a picture is not possible.
5. To send the e-mail, press Options and selectSend e-mail. If you have
not saved the settings for e-mail sending, the phone asks for the e-
mail server number.
Press OK to send the e-mail.
Note: When sending e-mails via the SMS network service, your phone
may display the words Message sent. This is an indication that the e-
mail has been sent by your phone to the e-mail server. This is not an
indication that the e-mail has been received at the intended
destination. For more details about e-mail services, check with your
service provider.
Reading and replying to a message or an e-mail
When you have received a message or an e-mail, the indicator and
the number of new messages followed by messages received is shown.
You may be able to receive up to 75 text messages or 25 picture or
multi-part messages. Received messages are automatically stored in
dynamic memory, see Dynamic memory on page 11.
The blinking indicates that the message memory is full. Before you
can receive new messages, delete old messages.
1. Press Show to view the message, or press Exit to view it later.
Reading the message later:
Press Menu, and select Messages, Text messages and Inbox.
2. If more than one message is received, select the message you want
to read. An unread text message is indicated by in front of it and
an unviewed picture message by .
3. While reading or viewing the message, press Options.
You can select, for example, an option to delete, forward or edit the
message as a text message or an e-mail, move and rename the
message you are reading.
Select Copy to calendar to copy text from the beginning of the
message to your phone’s calendar as a reminder note for the current
day.
npl-2_en1_1.fm Page 40 Monday, September 2, 2002 2:36 PM
Menu functions
41
Select Message details to view the sender’s name and phone number,
the message centre used, reception date and time.
Select Use detail to extract numbers, e-mail addresses and website
addresses from the current message.
When reading a picture message, select Save picture to save the
picture in the Templates folder.
4. Select Reply to reply to a message. Select Original text to include the
original message in the reply, or select a standard answer to be
included in the reply, or select Empty screen.
When replying to an e-mail, first confirm or edit e-mail address and
subject. Write your reply message.
5. Press Options, select Send, and press OK to send the message to the
displayed number.
Inbox and outbox folders
The phone saves the incoming text messages in the Inbox folder and the
sent messages in the Sent items folder of the Text messages submenu.
The text messages you want to send later, can be saved in the Archive,
My folders or Templates folder.
Templates
Your phone offers you text templates, indicated with , and picture
templates, indicated with .
To access the template list, press Menu, and select Messages, Text
messages and Templates.
Inserting a text template in a message or in an e-mail
• When you are writing or replying to a message, or an e-mail, press
Options. Select Use template and select the template you want to
insert.
Inserting a picture in a text message
• When you are writing or replying to a message, press Options. Select
Insert picture and select a picture to view it. Press Insert to insert the
picture into your message. The indicator on the header of the
message indicates that a picture has been attached. The number of
npl-2_en1_1.fm Page 41 Monday, September 2, 2002 2:38 PM
Menu functions
42
characters that you can enter in a message, depends on the size of
the picture.
To view the text and the picture together before sending the
message, press Options and select Preview.
Archive folder and my folders
To organise your messages, you can move some of your messages to the
Archive folder, or add new folders for your messages.
While reading a message, press Options. Select Move, scroll to the folder
where you want to move the message and press OK.
To add or delete a folder, press Menu, and select Messages and My
folders.
• To add a folder, press Options and select Add folder.
• To delete a folder, scroll to the folder you want to delete, press
Options and select Delete folder.
Distribution lists
If you need to send messages more often to a fixed group of recipients,
you can define a distribution list containing those recipients and use
this list, when sending a message. You can define up to 10 distribution
lists containing up to 20 recipients.
Note: As recipients in a distribution list, phone book entries
that are stored in your phone memory are used. Phone book
entries that are stored on your SIM can be copied to your phone
memory, see Copying phone books on page 30.
To view and edit distribution lists, press Menu, and select Messages,
Text messages and Distribution lists.
Press Options to get the following options to edit distribution lists:
•View list to view the names in the selected distribution list.
•Add list to add a new distribution list.
•Rename list to rename the selected distribution list.
•Clear list to delete all names in the selected distribution list.
•Delete list to delete the selected distribution list.
npl-2_en1_1.fm Page 42 Monday, September 2, 2002 2:38 PM
Menu functions
43
To edit the content of a distribution list, you have to be in the list
view with the option View list. Press Options to get the following
options to edit the content of a distribution list:
•Add name to add a name to the distribution list.
•View details to view the details of the selected name.
•Delete name to delete the selected name in the distribution list.
To send a message to the recipients in a distribution list, after writing
the message, press Options and select Sending options and Send to list.
While sending the message to the recipients, the phone displays the
progress with the number of messages left to send.
If a message failed to send to one or more recipients, the message is
stored in Failed messages, which you can find in the list of
Distribution lists. Select Failed messages and press Options to get the
following options to handle the failed message:
•Resend to list to resend the message to the failed recipients.
•View list to view the list of failed recipients.
•Delete list to delete the listof failed recipients.
•View message to view the failed message.
Multimedia messages
Note: This function can be used only if it is supported by your network
operator or service provider. Only phones that offer multimedia
message features can receive and display multimedia messages.
A multimedia message can contain text, picture and sound. The phone
supports multimedia messages of size up to 30 KB. If that maximum size
is exceeded, the phone may not be able to receive the message.
Depending on the network, you may receive a text message including an
Internet address where you can view the multimedia message.
If the message contains a picture, the phone scales them down to fit the
display area.
Note: The default setting of the multimedia message service is on
(Allow multimedia reception is set Yes), and your operator or service
provider may charge you for every message you receive.
npl-2_en1_1.fm Page 43 Monday, September 2, 2002 2:38 PM
Menu functions
44
Multimedia messaging supports the following formats:
• Picture: JPEG, GIF, PNG, and BMP.
• Sound: Scalable Polyphonic MIDI (SP-MIDI) and monophonic ringing
tones.
If the received message contains any unsupported elements, they may
be replaced with the file name and the text Object format not supported
Note that you are not able to receive any multimedia messages if you
have a call in progress, a game or another Java application running, or
an active WAP connection over GSM data (see Keying in the service
settings manually on page 79). Because delivery of multimedia
messages can fail for a variety of reasons, do not rely solely upon them
for essential communications.
Writing and sending a multimedia message
To set the settings needed for multimedia messaging, see Settings for
the multimedia messages on page 49. For availability and subscription
to the multimedia messaging service, contact your network operator or
service provider.
1. Press Menu, and select Messages, Multimedia msgs. and Create
message.
2. Key in a message. See Writing text on page 25.
You can insert one picture in a multimedia message. To insert a
picture, press Options, and select Insert image. The list of available
folders in the Gallery is shown. To open the desired folder, select it
and then select the desired picture. The indicator on the header
of the message indicate that a picture has been attached.
To insert a name from the phone book, press Options and select More
options and Insert name. Scroll to the desired name, press Options
and select Insert name.
To insert a number, press Options and select More options and Insert
number. Key in the number or search it in the phone book, and press
OK.
3. To view the message before sending it, press Options and select
Preview.
npl-2_en1_1.fm Page 44 Monday, September 2, 2002 2:38 PM
Menu functions
45
4. To send the message, press Options and select Send to number (or
Send to e-mail).
5. Enter the recipient’s phone number (or e-mail address) or search for
the phone number (or e-mail address) in the phone book. Press OK
and the message is moved to the Outbox folder for sending.
Sending a multimedia message takes more time than sending a text
message. During sending the animated indicator is displayed and
you can use other functions of the phone. If the sending is
interrupted, the phone tries to resend it for a few times. If the
sending fails, the message remains in the Outbox folder and you can
try to resend it.
The sent messages will be saved in the Sent items folder if the setting
Save sent messages is set to Yes. See Settings for the multimedia
messages on page 49.
Reading and replying to a multimedia message
When your phone is receiving a multimedia message, the animated
indicator is displayed. When the message is received, the indicator
and the text Multimedia message received is shown.
The blinking indicates that the memory for multimedia messages is
full, see Multimedia messages memory full on page 46.
1. Press Show to view the message, or press Exit to view it later.
Reading the message later: Press Menu, and select Messages,
Multimedia msgs. and Inbox.
2. Scroll to view the message. Press Options and some of the following
options may be available.
•Delete message to delete a saved message.
•Reply to reply to a message. To send the reply message, press
Options and select Send. Sender’s phone number (or e-mail
address) is used as the default value.
•Forward to no. or Forward to e-mail to use a phone number or e-
mail address.
•Edit to edit a message. You can only edit messages you have
written. See Writing and sending a multimedia message on page
44.
npl-2_en1_1.fm Page 45 Monday, September 2, 2002 2:38 PM
Menu functions
46
•Message details to view the message subject, size and class.
•Play to listen to the sound in the message.
•Save sound clip to save the sound in the Gallery.
•Zoom in to zoom the picture in the message bigger.
•Save image to save the picture in the Gallery.
Inbox, Outbox, Saved and Sent items folders
The phone saves the received multimedia messages in the Inbox folder
of the Multimedia msgs. submenu.
Multimedia messages to be sent are moved to the Outbox folder of the
Multimedia msgs. submenu.
The multimedia messages you want to send later, can be saved in the
Saved items folder of the Multimedia msgs. submenu.
The sent multimedia messages are saved in the Sent items folder of the
Multimedia msgs. submenu.
Multimedia messages memory full
You may be able to receive up to 15 multimedia messages with the
maximum size of 30kB each. Received messages are automatically
stored in dynamic memory, see Dynamic memory on page 11.
When you have a multimedia message waiting and the memory for the
messages is full, the indicator is blinking and Multimedia memory
full, view waiting msg. is shown. To view the waiting message, press
Show. To save the message, press Options, select Save message and
delete old messages by first selecting the folder and then an oId
message to be deleted.
To discard the waiting message, press Exit and Yes. If you press No, you
can view the message.
Erasing messages
1. To delete the text messages, press Menu, and select Messages, Text
messages and Delete messages.
To delete the multimedia messages, press Menu, and select
Messages, Multimedia msgs. and Delete messages.
npl-2_en1_1.fm Page 46 Monday, September 2, 2002 2:38 PM
Menu functions
47
2. To delete all the messages in a folder, scroll to the folder and press
OK. Then press OK when Delete all read messages from folder? is
displayed.
To delete all read messages from all the folders, scroll to All read and
press OK . Then press OK when Delete read messages from all folders?
is displayed.
Chat
You can have a conversation with another person using this text
messaging application. You cannot save received or sent messages, but
you can view them while chatting. Each chat message is priced as a text
message.
1. To start a chat, press Menu, select Messages and Chat. Key in or
search in the phone book the phone number of the person with
whom you want to start the chat session and press OK.
Another way to start a chat: When you have received a message,
press Show to read it. To start a chat, press Options and select Chat.
2. Key in your nickname for the chat and press OK.
3. Write your chat message, see Writing text on page 25.
4. To send the message, press Options and select Send.
5. The reply message from the other person is shown above your
original message.
To reply to the message, press OK and repeat the steps 3 and 4.
6. To end the chat session, press OK and select Quit.
To view the latest messages of the current chat session, press Options
and select Chat history. The messages you sent are indicated by "<" and
your nickname and the messages you received by ">", and the sender’s
nickname. Press Back to return to the message you are writing. To edit
your nickname, select the option Chat name.
Voice messages
Voice mailbox is a network service and you may need to subscribe to it
first. For more information and for the voice mailbox number, contact
your service provider.
npl-2_en1_1.fm Page 47 Monday, September 2, 2002 2:38 PM
Menu functions
48
Press Menu, and select Messages and Voice messages. Select
•Listen to voice messages to call your voice mailbox at the phone
number you have saved within the Voice mailbox number menu.
Each phone line may have its own voice mailbox number, see Line for
outgoing calls on page 56.
•Voice mailbox number to key in, search for or edit your voice mailbox
number and press OK to save it.
If supported by the network, the indicator will indicate new voice
messages. Press Listen to call your voice mailbox number.
Tip: Pressing and holding calls your voice mailbox.
Info messages
With the info message network service you can receive messages on
various topics, for example weather or traffic conditions, from your
service provider. For available topics and relevant topic numbers,
contact your service provider.
If the GPRS connection is set to Always online, the info messages may
not be received. In that case, set the GPRS connection to When needed,
see GPRS connection on page 76.
Message settings
The message settings affect the sending, receiving or viewing of the
messages.
Settings for text and e-mail messages
1. Press Menu, and select Messages, Message settings, Text messages
and Sending profile.
2. If more than one message profile set is supported by your SIM card,
select the set you want to change.
• Select Message centre number to save the phone number of the
message centre needed for sending text messages. You receive
the number from your service provider.
• Select Messages sent as to select the message type Text or E-mail,
Paging and Fax.
npl-2_en1_1.fm Page 48 Monday, September 2, 2002 2:38 PM
Menu functions
49
•Select Message validity to select the time for how long the
network should attempt to deliver your message.
• For message type Text, select Default recipient number to save a
default number to send messages for this message profile.
For message type E-mail, select E-mail server to save the e-mail
server number.
•Select Delivery reports to request the network to send delivery
reports on your messages (network service).
•Select Use GPRS to set GPRS as the preferred SMS bearer.
•Select Reply via same centre to allow the recipient of your
message to send you a reply message via your message centre
(network service).
•Select Rename sending profile to change the name of the selected
message profile. The message profile sets are displayed only if
your SIM card supports more than one set.
Overwrite settings
When the text message memory is full, the phone cannot receive or send
any new messages. However, you can set the phone to automatically
replace old text messages in the Inbox and Sent items folders with the
new ones.
Press Menu, and select Messages, Message settings, Text messages and
Overwriting in inbox or Overwriting in sent items. Select Allowed to set
the phone to replace the old text messages with new ones in the Inbox
or the Sent items folder, respectively.
Settings for the multimedia messages
Press Menu, and select Messages, Message settings and Multimedia
msgs.. Select
•Save sent messages. Select Yes to set the phone to save the sent
multimedia messages in the Sent items folder. If you select No, the
sent messages are not saved.
•Allow multimedia reception. Choose No, Yes or In home network to
use multimedia service. If you choose In home network, you cannot
receive multimedia messages when outside your home network.
npl-2_en1_1.fm Page 49 Monday, September 2, 2002 2:38 PM
Menu functions
50
•Incoming multimedia messages. Select Retrieve to set the phone
automatically to fetch received multimedia messages, or select
Reject if you do not wish to receive multimedia messages.
•Connection settings. Define WAP connection settings for retrieving
multimedia messages. Activate the set where you want to save the
connection settings and then edit the settings. Refer also Keying in
the service settings manually on page 79.
•Settings' name. Key in the new name for the connection set and
press OK.
•Homepage. Key in the homepage address of the WAP service that
you want to use, press for a dot, and press OK.
•Session mode. Select Permanent or Temporary.
•Data bearer. Select GPRS.
•GPRS access point. Key in the access point name and press OK. An
access point name is needed to establish a connection to a GPRS
network. You obtain the access point name from your network
operator or service provider.
•IP address. Key in the address, press for a dot, and press OK.
You obtain the IP address from your network operator or service
provider.
•Authentication type. Select Secure or Normal.
•User name . Key in the user name and press OK.
•Password. Key in the password and press OK.
•Allow adverts. You can receive or reject adverts.
To receive the multimedia connection settings as a text message
You may receive the service settings as a text message from the network
operator or service provider that offers the WAP service that you want
to use. For more information, contact your network operator or service
provider, or visit Club Nokia’s website (www.club.nokia.com).
Font size setting
To select the font size for reading and writing messages, press Menu,
and select Messages, Message settings, Other settings and Font size.
npl-2_en1_1.fm Page 50 Monday, September 2, 2002 2:38 PM
Menu functions
51
Service commands
Press Menu, and select Messages and Service commands. Key in and
send service requests (also known as USSD commands) such as
activation commands for network services, to your service provider.
■Call register (Menu 2)
The phone registers the phone numbers of missed,
received and dialled calls, and the approximate length
and cost of your calls.
The phone registers missed and received calls only if the network
supports these functions, the phone is switched on and within the
network’s service area.
When you press Options in the Missed calls, Received calls and Dialled
numbers menu, you can, for example, view the date and the time of the
call, edit or delete the phone number from the list, save the number in
the phone book, or send a message to the number.
Recent calls lists
Press Menu, and select Call register and then select
•Missed calls to view the list of the last ten phone numbers from
which somebody has tried to call you (network service). The number
in the front of the (name or) phone number indicates the amount of
call attempts from that caller.
Tip: When a note about missed calls is being displayed, press List
to access the list of phone numbers. Scroll to the number you
would like to call back and press .
•Received calls to view the list of the last ten phone numbers from
which you have most recently accepted calls (network service).
•Dialled numbers to view the list of the 20 phone numbers that you
have most recently called or attempted to call. See also Last number
redialling on page 22.
•Delete recent call lists to delete the recent calls lists. Select whether
you want to delete all the phone numbers in the recent call lists, or
npl-2_en1_1.fm Page 51 Monday, September 2, 2002 2:38 PM
Menu functions
52
only those numbers in the missed calls, received calls or dialled
numbers lists. You cannot undo the operation.
Call counters and call timers
Note: The actual invoice for calls and services from your service
provider may vary, depending upon network features, rounding-off for
billing, taxes and so forth.
Press Menu, and select Call register and then select
•Call duration, scroll to view the approximate duration of your
incoming and outgoing calls in hours, minutes and seconds. To clear
the timers, the security code is needed.
Each phone line has its own call timers and the timers of the selected
line are displayed. See Line for outgoing calls on page 56.
•Call costs (network service). Select Last call units or All calls' units to
check the cost of your last call or all calls in terms of units specified
within the Show costs in function.
Select Call cost settings and select Clear counters to clear the
counters, or select Show costs in to set the phone to show the
remaining talk time in terms of charging units, Units, or units of
currency, Currency. Contact your service provider for charging unit
prices.
Select Call cost limit to limit the cost of your calls to a certain
amount of charging units or units of currency. The PIN2 code is
needed for the call cost settings.
Note: When no more charging units or currency units are left, calls
may only be possible to the emergency number programmed into
your phone (e.g. 112, 911 or other official emergency number).
•GPRS data counter and scroll to check the amounts of sent and
received data in last session, data sent and received in total, and to
clear the counters. The counters unit is a byte. To clear the counters,
the security code is needed.
•GPRS connection timer scroll to check the duration of the last GPRS
connection or the total GPRS connection. You can also clear the
timers. To clear the timers, the security code is needed.
npl-2_en1_1.fm Page 52 Monday, September 2, 2002 2:38 PM
Menu functions
53
■Profiles (Menu 3)
Your phone has various setting groups, profiles, for which
you can customise the phone tones for different events
and environments. At first, personalise the profiles to your liking and
then you only need to activate a profile to use it. Available profiles are
General, Silent, Meeting, Outdoor, and Pager.
Press Menu, and select Profiles. Scroll to a profile and press Select.
• To activate the selected profile, select Activate.
• To set the profile to be active for a certain amount of time up to 24
hours, select Timed and set the end time. When the time set for the
profile expires, the previous profile that was not timed, becomes
active.
• To personalise the profile, select Personalise. Select the setting you
want to change and make the changes.
The settings can also be changed in the Tone settings menu, see Tone
settings on page 60.
In addition you can rename a profile, Profile name. The General
profile can not be renamed.
Tip: To change the profile quickly in standby mode, press the
power key , scroll to the profile you want to activate and press
Select.
npl-2_en1_1.fm Page 53 Monday, September 2, 2002 2:38 PM
Menu functions
54
■ Settings (Menu 4)
Time and date settings
Clock
Press Menu, and select Settings, Time and date settings and Clock.
Select Show clock to show the clock on the top right of the display in
standby mode. Select Set the time, to adjust the clock to the right time,
and Time format to select the 12-hour or 24-hour time format.
The clock serves the functions Messages, Call register, Alarm clock,
timed Profiles , Calendar and screen saver, for example.
If the battery is removed from the phone for a long time, you may need
to set the time again.
Date
Press Menu, and select Settings, Time and date settings and Date.
Select Show date and the date is shown on the display when the phone
is in standby mode. Select Set the date to adjust the date. You can also
select the date format.
Auto update of date and time
Press Menu, and select Settings, Time and date settings and Auto-
update of date & time (network service). To set the phone to
automatically update the time and date according to the current time
zone, select On. To set the phone to ask for a confirmation before the
update, select Confirm first.
Automatic update of date and time does not change the time you have
set for the alarm clock, calendar or the alarm notes. They are in local
time. Updating may cause some alarms you have set to expire.
Call settings
Call divert
Press Menu, and select Settings, Call settings and Call divert (network
service). With call divert you can direct your incoming calls to another
number, for example, to your voice mailbox number. For details, contact
npl-2_en1_1.fm Page 54 Monday, September 2, 2002 2:38 PM
Menu functions
55
your service provider. Divert options not supported by your SIM card or
your network operator may not be shown.
Select the divert option you want, for example, select Divert if busy to
divert the voice calls when your number is busy or when you reject an
incoming call.
To set the divert setting to on, select Activate, to set the divert setting to
off, select Cancel, or Check status to check whether the divert is
activated or not. To change the timeout when the call is diverted, first
select Set delay if this is available for the divert option, and then select
Activate to set the divert setting to on. Several divert options may be
active at the same time.
To see the divert indicators in standby mode, see Standby mode on
page 13.
Anykey answer
Press Menu, and select Settings, Call settings and then Anykey answer.
Select On and you can answer an incoming call by briefly pressing any
key, except , selection keys and , and .
Automatic redial
Press Menu, and select Settings, Call settings and Automatic redial.
Select On and your phone will make a maximum of ten attempts to
connect the call after an unsuccessful call attempt.
Speed dialling
Press Menu, and select Settings, Call settings and Speed dialling. Select
On and the names and phone numbers assigned to the speed dialling
keys, from to , can be dialled by pressing and holding the
corresponding number key.
Call waiting
Press Menu, and select Settings, Call settings and Call waiting. Select
Activate and the network will notify you of an incoming call while you
have a call in progress (network service). See Call waiting on page 23.
npl-2_en1_1.fm Page 55 Monday, September 2, 2002 2:38 PM
Menu functions
56
Summary after call
Press Menu, and select Settings, Call settings and Summary after call.
Select On and the phone will briefly display the duration and cost
(network service) of the last call.
Send my caller identity
Press Menu, and select Settings, Call settings and Send my caller
identity. Select Yes and your phone number will be displayed to the
person you are calling (network service). Select Set by network and the
setting agreed upon with your service provider is used.
Line for outgoing calls
Line for outgoing calls is a network service to select the phone line 1 or
2, that is subscriber number, for making calls.
Press Menu, and select Settings, Call settings and Line for outgoing calls.
If you select Line 2 and have not subscribed to this network service, you
will not be able to make calls. However, calls on both lines can be
answered regardless of the selected line.
If supported by your SIM card, you can prevent the line selection by
selecting the option Lock.
For more information on availability, contact your network operator or
service provider.
Tip: In standby mode you can switch from one line to the other
by pressing and holding .
Phone settings
Language
Press Menu, and select Settings, Phone settings and Language. Select
the language for the display texts. If Automatic is selected, the phone
selects the language according to the information on the SIM card.
Automatic keyguard
Note: When the keypad is locked, calls may be possible to the
emergency number programmed into your phone (e.g. 112, 911 or other
official emergency number). Key in the emergency number and press
. The number is displayed only after you have keyed in its last
digit.
npl-2_en1_1.fm Page 56 Monday, September 2, 2002 2:38 PM
Menu functions
57
You can set the keypad of your phone to lock automatically after a
preset time delay. You can set the delay time from 10 seconds up to 60
minutes and when the time is up, the keypad locks automatically
preventing accidental keypresses.
Press Menu, and select Settings, Phone settings and Automatic
keyguard.
• To activate the automatic keyguard, select On and the phone
displays Set delay:. Key in the time and press OK.
• To deactivate the automatic keyguard, select Off.
Refer also Keypad lock (Keyguard) on page 19.
Cell info display
Press Menu, and select Settings, Phone settings and Cell info display.
Select On to set the phone to indicate when it is used in a cellular
network based on Micro Cellular Network (MCN) technology.
If the GPRS connection is set to Always online, the info messages may
not be received. In that case, set the GPRS connection to When needed,
see GPRS connection on page 76.
Welcome note
Press Menu, and select Settings, Phone settings and Welcome note. Key
in the note you would like to be shown briefly when the phone is
switched on. To save the note, press Options, and select Save.
Network selection
Press Menu, and select Settings, Phone settings and Network selection.
Select Automatic and the phone automatically selects one of the
cellular networks available in your area.
If you select Manual, you can select a network that has a roaming
agreement with your home network operator. If No access is displayed,
you must select another network. The phone stays in manual mode until
the automatic mode is selected or another SIM card is inserted into the
phone.
Confirm SIM service actions
See SIM services (Menu 13) on page 88.
npl-2_en1_1.fm Page 57 Monday, September 2, 2002 2:38 PM
Menu functions
58
Help text activation
To set the phone to show or not to show the help texts, press Menu, and
select Settings, Phone settings and Help text activation.
See also Using the menu on page 34.
Start-up tone
To set the phone to play or not to play a start-up tone when the phone is
switched on, press Menu, and select Settings, Phone settings and Start-
up tone.
Display settings
Wallpaper
You can set your phone to display a background picture, wallpaper,
when the phone is in standby mode. Some pictures are presaved in the
Gallery menu. You can also receive pictures via multimedia message,
download them from WAP pages or transfer them with PC Suite from
your PC and then save them in Gallery. Your phone supports JPEG, GIF,
BMP and PNG formats.
To select a wallpaper picture
1. Press Menu, and select Settings, Display settings and Wallpaper.
2. Select Change image and the folder list in the Gallery menu will be
shown.
3. Select the folder and scroll to the desired picture.
4. To set the picture as wallpaper, press Options and select Set as
wallpaper.
Note that if you delete the selected wallpaper picture from the gallery, it
will still be used as wallpaper until you replace it with another picture.
Note that the wallpaper is not displayed when the phone activates the
screen saver.
To activate or deactivate the wallpaper
Press Menu, and select Settings, Display settings and Wallpaper. To
activate/deactivate the wallpaper, select On/Off, respectively.
npl-2_en1_1.fm Page 58 Monday, September 2, 2002 2:38 PM
Menu functions
59
Colour schemes
You can change the colour in some display components, for example,
indicators and signal bars.
Press Menu, and selectSettings, Display settings and Colour schemes.
Select the desired colour scheme.
Operator logo
To set your phone to display or hide the operator logo, press Menu, and
selectSettings, Display settings and Operator logo.
Note that the operator logo is not displayed when the phone activates
the screen saver.
For more information and availability of an operator logo via SMS, MMS
or WAP, contact your network operator and/or WAP service provider,
and see also PC Suite on page 89.
Screen saver
The screen saver showing a digital clock is used for power saving in
standby mode. It will be activated when no function of the phone is
used for a certain time. Press any key to deactivate the screen saver.
Screen saver is also deactivated when the phone is out of the network
coverage area.
Press Menu, and selectSettings, Display settings and Screen saver
timeout. Select the timeout from 5 seconds to 5 minutes when the
digital clock display will be activated.
Note that the screen saver overrides all the graphics and texts on the
display in standby mode.
Display brightness
You can change the display contrast level used on the phone display.
Press Menu, and selectSettings, Display settings and Display brightness.
Scroll with and to decrease and increase the contrast level, and
press OK to accept it.
npl-2_en1_1.fm Page 59 Monday, September 2, 2002 2:38 PM
Menu functions
60
Tone settings
Press Menu, and select Settings and then Tone settings. You can find the
same settings in the Profiles menu, see Profiles (Menu 3) on page 53.
Note that the settings you make, change the settings in the active
profile.
Select Incoming call alert to select how the phone notifies you of an
incoming voice call. The options are Ringing, Ascending, Ring once, Beep
once and Off.
Select Ringing tone for incoming voice calls. To select ringing tones
saved in the Gallery, select Open gallery from the ringing tone list.
Select Ringing volume and Vibrating alert for incoming voice calls and
incoming messages. The vibrating alert does not work when the phone is
connected to a charger, desktop stand, or a car kit.
Tip: If you receive a ringing tone via OTA or by downloading, you
can save the ringing tone in the Gallery.
Select Message alert tone to set the alert tone for the incoming
messages, Keypad tones, or Warning tones to set the phone to sound
tones for example, when the battery is running out of power.
Select Alert for to set the phone to ring only upon calls from phone
numbers that belong to a selected caller group. Scroll to the caller group
you want or All calls and press Mark.
Accessory settings
Accessory settings menu is shown only if the phone is or has been
connected to one of the following accessories: headset HDB-4,
handsfree unit CARK126, or mobile inductive loopset LPS-4.
Press Menu, and select Settings and Accessory settings. You can select
Headset, Handsfree or Loopset if the corresponding accessory is or has
been connected to the phone.
•Select Default profile to select the profile you want to be
automatically activated when you connect the selected accessory.
You can select another profile while the accessory is connected.
npl-2_en1_1.fm Page 60 Monday, September 2, 2002 2:38 PM
Menu functions
61
•Select Automatic answer to set the phone to answer an incoming
call automatically after five seconds. If the Incoming call alert is set
to Beep once or Off, automatic answer will not be in use.
•Select Lights to set the lights permanently On. Select Automatic to
set the lights on for 15 seconds after a keypress. The Lights option is
available only when Handsfree is selected.
Security settings
Note: When security features that restrict calls are in use (call barring,
closed user group and fixed dialling), calls may be possible to certain
emergency numbers in some networks (e.g. 112, 911 or other official
emergency numbers).
Press Menu, and select Settings and Security settings. Select
•PIN code request to set the phone to ask for your PIN code every time
the phone is switched on. Some SIM cards do not allow the PIN code
request to be turned off.
•Call barring service (network service) to restrict incoming calls to and
outgoing calls from your phone. A barring password is required.
•Fixed dialling to restrict your outgoing calls to selected phone
numbers if this function is supported by your SIM card. The PIN2
code is required.
•Closed user group. Closed user group is a network service that
specifies the group of people whom you can call and who can call
you. For more information contact your network operator or service
provider.
•Security level. Select Phone and the phone will ask for the security
code whenever a new SIM card is inserted into the phone.
Select Memory and the phone will ask for the security code when
SIM card’s memory is selected and you want to change the memory
in use, (see Selecting the phone book settings on page 28) or copy
from one memory to another (Copying phone books on page 30).
•Access codes to change the security code, PIN code, PIN2 code or
barring password. Codes can only include numbers from 0 to 9.
npl-2_en1_1.fm Page 61 Monday, September 2, 2002 2:39 PM
Menu functions
62
Restore factory settings
To reset some of the menu settings to their original values, press Menu,
and select Settings and Restore factory settings. Key in the security code
and press OK. Note that the data you have keyed in or downloaded, for
example, the names and phone numbers saved in the phone book are
not deleted.
■Alarm clock (Menu 5)
The alarm clock uses the time format set for the clock.
The alarm clock works even when the phone is switched
off.
Press Menu, and select Alarm clock. Key in the alarm time and press OK.
To change the time when the alarm time is set, select On.
When the alarm time expires
The phone will sound an alert tone, and flash Alarm! and the current
time on the display.
Press Stop to stop the alarm. If you let the phone continue to alarm for a
minute or press Snooze, the alarm stops for about ten minutes and then
resumes.
If the alarm time is reached while the phone is switched off, the phone switches
itself on and starts sounding the alarm tone. If you press Stop, the phone asks
whether you want to activate the phone , Switch the phone on?. Press No to
switch off the phone or Yes to switch on the phone.
Note: Do not press Yes when wireless phone use is prohibited or when it
may cause interference or danger.
■Gallery (Menu 6)
Note: Your phone must be switched on to use this
function. Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
You can save images and ringing tones, for example, if received in a
multimedia message, in the folders of the gallery, see Reading and
replying to a multimedia message on page 45.
npl-2_en1_1.fm Page 62 Monday, September 2, 2002 2:39 PM
Menu functions
63
You may save up to 60 ringing tones with an average size of 5kB of
which 20 are removable and up to 35 images with an average size of
10kB. The gallery uses dynamic memory, see Dynamic memory on page
11.
1. Press Menu and select Gallery. The list of options is shown.
2. Select View folders to open the list of folders.
Other options available are:
•Delete folder to select the folder you want to delete. You can not
delete the original folders in the phone.
•Rename folder to select the folder you want to give a new name.
You can not rename the original folders in the phone.
•Add folder to add a new folder. Key in a name for the folder and
press OK.
•Gallery services to download more images and tones. Select
Image services or Tone services, respectively. The list of available
WAP bookmarks is shown. Select More bookmarks to access the
list of WAP bookmarks in the Services menu, see Bookmarks on
page 84.
Select the appropriate bookmark to connect to the desired WAP
page. If the connection fails, you may not be able to access the
WAP page from the WAP service whose connection settings are
currently active. In this case, enter the Services menu and
activate another set of service settings, see Making a connection
to a WAP service on page 80. Try again to connect to the WAP
page.
For the availability of different WAP services, pricing and tariffs,
contact your network operator and/or the WAP service provider.
3. Select the desired folder and the list of files in the folder is shown.
Images and Tones are the original folders in the phone.
npl-2_en1_1.fm Page 63 Monday, September 2, 2002 2:39 PM
Menu functions
64
4. Scroll to the desired file. Press Options and some of the following
options are available:
•Open to open the seleted file.
•Delete to delete the seleted file.
•Set as wallpaper to set the selected file as wallpaper.
•Set as ring tone to set the selected file as ringing tone.
•Move to move a file to another folder.
•Rename folder to give a new name for the file.
•Details to see the details of the file, the size, for example.
•Sort to sort the files and folders by date, type, name or size.
■Organiser (Menu 7)
Note: Your phone must be switched on to use the
functions in Organiser menu. Do not switch the phone on when wireless
phone use is prohibited or when it may cause interference or danger.
Calendar
The calendar helps you to keep track of reminders, calls that you need to
make, meetings, and birthdays.
You may save up to 250 calendar notes. The calendar uses dynamic
memory, see Dynamic memory on page 11.
Press Menu, and select Organiser and Calendar.
Tip: To quickly open the Calendar menu, press in standby
mode.
Scroll to the day you want. The current day is indicated with a frame
around the day. If there are any notes set for the day, the day is bolded.
To view the day notes, press Options and select Day notes.
To view a single note, scroll to the note you want to view, press Options
and select View. The note view allows you to view the details of the
selected note. You can scroll through the note.
npl-2_en1_1.fm Page 64 Monday, September 2, 2002 2:39 PM
Menu functions
65
The other options for the calendar views may include:
• Options for making a note, for sending a note via IR, or as a note
directly to another phone’s calendar or as a text message.
• Options for deleting, editing, moving and repeating a note and for
copying a note to another day.
•Settings to set the date, time, date or time format, or the first day of
the week. In the Auto-delete option you can set the phone to delete
old notes automatically after a specified time. However, the repeat
notes, for example, birthday notes, will not be deleted.
Making a calendar note
For keying in letters and numbers, see Writing text on page 25.
Press Menu, and select Organiser and Calendar. Scroll to the date you
want, press Options and select Make a note. Select one of the following
note types:
• Meeting - Key in the note or search for the name in the phone
book. Press Options and select Save. Key in the location for the
meeting and press OK. Key in the start time for the meeting and
press OK, and then the end time and press OK. To set the alarm for
the note, select With tone or Silent (no alarm tone) and then set the
alarm time.
• Call - Key in the phone number, press Options and select Save.
Key in the name, press Options and select Save. (Instead of keying in
the phone number, you can press Options to search for the name and
number in the phone book.) Then key in the time for the call and
press OK. To set the alarm for the note, select With tone or Silent (no
alarm tone) and then set the alarm time.
• Birthday - Key in the person’s name (or press Options to search
for it in the phone book), press Options and select Save. Then key in
the year of birth, and press OK. To set the alarm for the note, select
With tone or Silent (no alarm tone) and then set the alarm time.
• Memo - Key in the note, press Options and select Save. Key in the
end day for the note and press OK. To set the alarm for the note,
select With tone or Silent (no alarm tone) and then set the alarm
time.
npl-2_en1_1.fm Page 65 Monday, September 2, 2002 2:39 PM
Menu functions
66
• Reminder - Key in the subject for the reminder, press Options and
select Save. To set the alarm for the note, select Alarm on and then
set the alarm time.
When you have set the alarm, the indicator is displayed when you
view the notes.
When the phone alarms for a note
The phone beeps, and displays the note. With a call note on the
display, you can call the displayed number by pressing . To stop the
alarm and view the note, press View. To stop the alarm without viewing
the note, press Exit.
To-do list
You can save a note for a task that you have to do, select a priority level
for the note and mark it as done when you have completed it. You can
sort the notes by priority or by date.
You may save up to 30 notes. The to-do list uses dynamic memory, see
Dynamic memory on page 11.
Press Menu, and select Organiser and To-do list and the list of notes is
shown. Press Options, or scroll to the desired note and press Options.
• To add a new note, select Add. Key in the subject for the note. When
you have keyed in the maximum number of characters for a note,
more characters are not accepted. Press Options and select Save.
Select the priority for the note, High, Medium, or Low.
Dictionary, refer to Setting predictive text input on or off on page 25.
• You can set, delete and edit the deadline and an alarm for a note, and
also view, delete or edit the selected note and delete all the notes
that you have marked as done. You can edit the priority of the
selected note, send a note to another phone, save a note as a
calendar note, or access the calendar.
npl-2_en1_1.fm Page 66 Monday, September 2, 2002 2:39 PM
Menu functions
67
■Games (Menu 8)
Note: Your phone must be switched on to use this
function. Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Launching a game
1. Press Menu, and select Games and Select game.
2. Scroll to a game or a game set (name depends on the game).
3. Press Options and select Open or press . If the selection is a
single game it will be launched.
Otherwise, a list of games in the selected game set is displayed. To
launch a single game, scroll to the desired game and press Options
and select Open, or press .
Other options available for a game or game set
Options for games, see Other options available for an application or
application set on page 69.
Game services
Press Menu, and select Games and Game services. The list of available
WAP bookmarks is shown. Select More bookmarks to access the list of
WAP bookmarks in the Services menu, see Bookmarks on page 84.
Select the appropriate bookmark to connect to the desired WAP page. If
the connection fails, you may not be able to access the WAP page from
the WAP service whose connection settings are currently active. In this
case, enter the Services menu and activate another set of service
settings, see Making a connection to a WAP service on page 80. Try
again to connect to the WAP page.
For the availability of different WAP services, pricing and tariffs, contact
your network operator and/or the WAP service provider.
Note that when downloading a game or an application, it may be saved
in Applications menu instead of the Games menu.
npl-2_en1_1.fm Page 67 Monday, September 2, 2002 2:39 PM
Menu functions
68
Memory status for games
To view the size of memory available for game and application
installations, press Menu, and select Games and Memory.
You may save up to six applications and/or games with a maximum size
of 64kB each. The games use dynamic memory, see Dynamic memory on
page 11.
Game settings
Press Menu, and select Games and Settings to set sounds, lights and
shakes for the game. You can save your Club Nokia membership number,
Club Nokia ID. For more information on Club Nokia and the game
services, visit www.club.nokia.com. Availability may vary by country.
■Applications (Menu 9)
Note: The phone must be switched on to use this
function. Do not switch on the phone when the use of a wireless phone
is prohibited or when it may cause interference or danger.
This menu allows the management of Java applications installed on your
phone. Your phone software includes some Java applications specially
designed for this Nokia phone. Various service providers offer other
applications via WAP services. Before you can use one of these
applications you have to download it to your phone.
Launching an application
1. Press Menu, and select Applications and Select application.
2. Scroll to an application or an application set (name depends on the
application).
3. Press Options and select Open or press . If the selection is a
single application it will be launched.
Otherwise, a list of applications in the selected application set is
displayed. To launch a single application, scroll to the desired
application and press Options and select Open, or press .
npl-2_en1_1.fm Page 68 Monday, September 2, 2002 2:39 PM
Menu functions
69
Other options available for an application or application set
•Delete to delete the application or application set from the phone.
Note that if you delete a pre-installed application or an application
set from your phone, you may download it back to your phone from
the Nokia Software Market, www.softwaremarket.nokia.com/wap.
•Web access to restrict the application for accessing the network.
Select Ask first and the phone asks for net access, Allowed to allow
the net access, or Not allowed not to allow the net access.
•Check version to check if a new version of the application is available
for download from the WAP services.
•Web page to provide further information or additional data for the
application from an Internet page. This feature needs to be
supported by the network. It is only shown if an Internet address has
been provided with the application.
•Details to give additional information about the application.
Downloading an application
You can download new Java applications in different ways:
• Press Menu, and select Applications and App. services and the list of
available WAP bookmarks is shown. Select More bookmarks to
access the list of WAP bookmarks in the Services menu, see
Bookmarks on page 84.
Select the appropriate bookmark to connect to the desired WAP
page. If the connection fails, you may not be able to access the WAP
page from the WAP service whose connection settings are currently
active. In this case, enter the Services menu and activate another set
of service settings, see Making a connection to a WAP service on
page 80. Try again to connect to the WAP page.
For the availability of different WAP services, pricing and tariffs,
contact your network operator and/or the WAP service provider.
• Press Menu, and select Services to find a WAP page to download an
appropriate Java application. See Browsing the pages of a WAP
service on page 81.
• Use the game download functionality, see Game services on page 67.
npl-2_en1_1.fm Page 69 Monday, September 2, 2002 2:39 PM
Menu functions
70
• Use the Java Application installer from PC Suite to download the
applications in your phone.
Note that Nokia does not warrant for applications from non-Nokia
sites. If you choose to download Java applications from them, you
should take the same precautions, for security or content, as you would
with any site.
Note that when downloading a game or an application, it may be saved
in Games menu instead of the Applications menu.
The following texts may appear during a download or during an
operation of a Java application:
•Action failed , too many applications in the phone. Erase any
unwanted application and download again.
•Application error , an error occurs in the running application.
•Application not supported , the application is incompatible with the
phone.
•Call in progress , the application tries to establish a web connection
while the phone is already in call.
•File format not recognised , either the application is invalid or the
transfer from PC has not finished.
•File too large , a file is too large to run on the phone or the gateway
does not support large files.
•Invalid file , the application is invalid.
•Launch failed , the phone couldn't start the application. Please try
again.
•Unable to run application , there is insufficient resource to run the
application. End any active calls or features and try to open the
application again.
•Unknown (appearing in the Application's list), the application has no
name.
npl-2_en1_1.fm Page 70 Monday, September 2, 2002 2:39 PM
Menu functions
71
Memory status for applications
To view the size of memory available for game and application
installations, press Menu, and select Applications and Memory.
You may save up to six applications and/or games with a maximum size
of 64kB each. The applications use dynamic memory, see Dynamic
memory on page 11.
■Extras (Menu 10)
Note: Your phone must be switched on to use the
functions in Extras menu. Do not switch the phone on when wireless
phone use is prohibited or when it may cause interference or danger.
Calculator
The calculator in your phone adds, subtracts, multiplies, divides, counts
the square and the square root and converts currency values.
This calculator has a limited accuracy and rounding errors may occur, especially
in long divisions.
1. Press Menu, and select Extras and Calculator.
2. When ’0’ is displayed on the screen, key in the first number in the
calculation, press for a decimal point.
3. Press Options and select Add, Subtract, Multiply, Divide, Square,
Square root or Change sign.
Tip: Alternatively, press once to add, twice to subtract,
three times to multiply or four times to divide.
4. Key in the second number.
5. For a total, press Options and select Equals. Repeat steps 3 to 5 as
many times as is necessary.
6. To start a new calculation, first press and hold Clear.
npl-2_en1_1.fm Page 71 Monday, September 2, 2002 2:39 PM
Menu functions
72
Making a currency conversion
1. Press Menu, and select Extras and Calculator.
2. To save the exchange rate, press Options and select Exchange rate.
Select either of the displayed options. Key in the exchange rate, press
for a decimal point, and press OK. The exchange rate remains in
the memory until you replace it with another one.
3. To make the currency conversion, key in the amount to be converted,
press Options and select In domestic or In foreign.
Tip: You can also make the currency conversion in standby mode.
Key in the amount to be converted, press Options and select In
domestic or In foreign.
Countdown timer
Press Menu, and select Extras and Countdown timer. Key in the alarm
time in hours and minutes and press OK. If you wish, write your own
note text which is displayed when the time expires, and press OK to
start the countdown timer.
• To change the countdown time, select Change time, or to stop the
timer, select Stop timer.
If the alarm time is reached when the phone is in standby mode, the
phone sounds a tone and flashes the note text if it is set or else
Countdown time up. Stop the alarm by pressing any key. If no key is
pressed, the alarm automatically stops within 30 seconds. To stop the
alarm and to delete the note text, press OK.
Stopwatch
You can measure time, take intermediate times or lap times using the
stopwatch. During timing, the other functions of the phone can be used.
To set the timing in the background, press .
Using the stopwatch consumes the battery and the phone's operating time will
be reduced. Be careful not to let it run in the background when performing other
operations with your phone.
npl-2_en1_1.fm Page 72 Monday, September 2, 2002 2:39 PM
Menu functions
73
Time observation and time splitting
1. Press Menu, and select Extras, Stopwatch and Split timing. You can
select Continue if you have set the timing in the background.
2. Press Start to start the time observation. Press Split every time you
want to take an intermediate time. The intermediate times are listed
below the running time on the display. Scroll to view the times.
3. Press Stop to stop the time observation.
4. Press Options and select
Start to start the time observation again. The new time is added to
the previous time.
Save to save the time. Key in a name for the measured time and press
OK. If no name is keyed in, the total time is used as a title.
Reset to reset the time without saving it.
Lap times
Press Menu, and select Extras, Stopwatch and Lap timing. Press Start to
start the time observation and Lap to take a lap time. Press Stop to stop
the lap timing. Press Options and you can save or reset the lap times.
Refer to Time observation and time splitting above.
Viewing and deleting times
Press Menu, and select Extras, and Stopwatch.
If the stopwatch is not reset, you can select Show last to view the latest
measured time. Select View times and a list of names or final times of
the time sets is shown, select the time set you want to view.
To delete the saved times, select Delete times. Select All at once and
press OK, or select One by one, scroll to the times you want to delete,
press Delete and press OK.
Wallet
In Wallet you can save personal information, for example, credit card
information and make purchases with your phone.
You can access the wallet via the Wallet menu or via the WAP browser,
see Options while browsing on page 82.
npl-2_en1_1.fm Page 73 Monday, September 2, 2002 2:39 PM
Menu functions
74
When you access the wallet for the first time, you need to create your
own wallet code. At Create wallet code: key in the code and press OK to
confirm it and at Verify wallet code: key in the code again and press OK.
If you want to delete all the content of the wallet and the wallet code,
key in *#3925538# (*#ewallet# in letters) in standby mode. You also
need the security code of the phone. See also Access codes on page 7
Saving and changing personal card information
To access the wallet, press Menu, select Extras and Wallet. If needed,
key in your wallet code and press OK, see Wallet settings on page 75.
Select Cards to view the list of cards. The maximum amount of cards is
five. Scroll to the desired card.
• To save information on a card, press Options and select View. Select
•Card info to key in, for example, the card holder’s name, card type,
number and expiry information.
•User info to save user name and password.
•Shipping info to save your contact information.
•Billing info to save the contact information in case the invoicing
address differs from the stored address, which may be the case
with company credit cards.
•Receipt info to save phone numbers and e-mail addresses where
you want the service provider to send a receipt of your purchase.
• To make a copy of the card, press Options and select Copy card.
• To delete all the information of the card, press Options and select
Clear card.
• To rename the card, press Options and select Rename card.
Personal notes
You can save up to 30 confidential personal notes, for example,
passwords, codes or notations.
Press Menu, select Extras, Wallet and Personal notes. Press Options and
you can view, add, edit a selected note and sort notes either by name or
date. Send as text copies the note to a text message. Copy to calendar
copies the note to the calendar as a reminder. Use number extracts
numbers from a note.
npl-2_en1_1.fm Page 74 Monday, September 2, 2002 2:39 PM
Menu functions
75
Wallet settings
Press Menu, select Extras, Wallet and Settings. Select
•Code request to set the wallet code request to on or off. You need to
key in the correct wallet code before you can set the code request to
on or off.
•Change code to change the wallet code.
Guidelines for paying your purchases with wallet
1. Access the desired WAP site to do shoppings, see Making a
connection to a WAP service on page 80, and choose the product you
want to buy.
2. To pay your purchases, press Options and select Use wallet info. See
Options while browsing on page 82.
3. Select the card you want to pay with. Fill in the data form you receive
from the service provider by transferring the credit card details from
the wallet. If you want to fill in all the fields automatically, select Fill
in all fields. The option is shown only when the WAP service supports
the Electronic Commerce Modeling Language standard. You can also
fill the form by selecting information fields from the card one by one.
The phone displays the filled form.
4. Approve the purchase, and the information is sent forward.
5. To close the wallet, select Close wallet. See Options while browsing
on page 82.
■Connectivity (Menu 11)
Infrared
You can set up the phone to receive data through its infrared (IR) port.
To use an IR connection, the device with which you want to establish a
connection must be IrDA compliant. You can send or receive data such
as business cards and calendar notes to or from a compatible phone or
data device (for example, a computer) via the IR port of your phone.
Do not point the IR (infrared) beam at anyone's eye or allow it to interfere with
other IR devices. This device is a Class 1 Laser product.
npl-2_en1_1.fm Page 75 Monday, September 2, 2002 2:39 PM
Menu functions
76
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or when it
may cause interference or danger.
Sending and receiving data via IR
• Ensure that the IR ports of the sending and receiving devices are
pointing at each other and that there are no obstructions between
the devices. The preferable distance between the two devices in an
infrared connection is 60 cm (24 inches) at most.
• To activate the IR port of your phone to receive data via IR, press
Menu, and select Connectivity and Infrared.
• The user of the sending phone selects the desired IR function to start
data transfer.
If data transfer is not started within two minutes after the activation of
the IR port, the connection is cancelled and has to be started again.
IR connection indicator
• When is shown continuously, the IR connection is activated and
your phone is ready to send or receive data via its IR port.
• When blinks, your phone is trying to connect to the other device
or a connection has been lost.
GPRS
GPRS connection
You can set the phone to automatically register to a GPRS network
when you switch the phone on. Press Menu, and select Connectivity,
GPRS, GPRS connection and Always online. Starting a WAP or PC dial-up
application, or sending/receiving multimedia messages creates the
connection between phone and network and data transfer is possible.
When you end the application, GPRS connection is ended but the
registration to the GPRS network remains.
If you select When needed, the GPRS connection is established when an
application needs it and closed when you end the application.
npl-2_en1_1.fm Page 76 Monday, September 2, 2002 2:39 PM
Menu functions
77
GPRS modem settings
You can connect the phone via infrared or data cable connection to a
compatible PC and use the phone as a modem to enable GPRS
connectivity from the PC.
Press Menu, and select Connectivity, GPRS and GPRS modem settings.
Select Active access point and activate the access point you want to use.
Select Edit active access point to change the access point settings.
• Scroll to Alias for access point and press Select. Key in the name you
would like for the activated access point and press OK.
• Scroll to GPRS access point and press Select. Key in the Access Point
Name (APN) and press OK.
An access point name is needed to establish a connection to a GPRS
network. You can obtain the Access Point Name from your network
operator or service provider.
You can also set the GPRS dial-up service settings (Access Point Name)
on your PC by using the Nokia Modem Options software, see PC Suite on
page 89. If you have set the settings both on your PC and on your phone,
note that the settings set on the PC will be used.
■Services (Menu 12)
You can access various WAP services such as banking,
news, weather reports and flight times. These services
are specially designed for mobile phones and they are maintained by
WAP service providers.
Check the availability of WAP services, pricing and tariffs with your
network operator and/or the service provider whose service you wish to
use. Service providers will also give you instructions on how to use their
services.
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or when it
may cause interference or danger.
WAP services use the Wireless Mark-Up Language (WML) on their WAP
pages. Internet web pages cannot be viewed on your phone.
npl-2_en1_1.fm Page 77 Monday, September 2, 2002 2:39 PM
Menu functions
78
Basic steps for accessing and using WAP services
1. Save the service settings that are needed to access the WAP service
that you want to use. See page 83.
2. Make a connection to the given WAP service. See page 80.
3. Start browsing the pages of the WAP service. See page 81.
4. Once you are finished browsing, end the connection to the WAP
service. See page 83.
Setting up the phone for a WAP service
You may receive the service settings as a text message from the network
operator or service provider that offers the WAP service that you want
to use. For more information, contact your network operator or service
provider, or visit Club Nokia’s website (www.club.nokia.com).
You can also key in the settings manually or add and edit the settings
with PC Suite. For appropriate settings, contact your network operator
or service provider. The WAP settings may be available, for example, on
their website.
Saving the service settings received as a text message
When you receive the service settings as a text message, Service settings
received is displayed.
• To save the received settings, press Options and select Save.
If no settings are saved in Active service settings, the settings are
saved under the first free connection set and also activated.
If there are settings saved in Active service settings, Activate saved
service settings? will be displayed. To activate the saved settings,
press Yes, or to save them only, press No.
• To discard the received settings, press Options and select Discard.
• To view the received settings first, press Options and select View. To
save the settings, press Save.
npl-2_en1_1.fm Page 78 Monday, September 2, 2002 2:39 PM
Menu functions
79
Keying in the service settings manually
1. Press Menu, and select Services, and Settings.
2. Select Active service settings.
You need to activate the set where you want to save the service
settings. A set is a collection of settings needed for making a
connection to a WAP service.
3. Scroll to the set you would like to activate and press Activate.
4. Select Edit active service settings.
Select each of the following service settings one by one and key in all
the required settings.
•Settings' name - Key in the new name for the connection set and
press OK.
•Homepage - Key in the homepage address of the WAP service
that you want to use, press for a dot, and press OK.
•Session mode - Select Permanent or Temporary.
•Connection security - Select On or Off.
When the connection security is On, the phone tries to use a
secure connection with the WAP service. If a secure connection is
not available, the connection will not be made. If you wish to
connect anyway, with a non-secure connection, you must set the
connection security to Off.
•Data bearer - Select GSM data or GPRS. Settings for the selected
bearer, see Settings when GSM data is the selected data bearer
and Settings when GPRS is the selected data bearer below.
For pricing, connection speed and other information, contact
your network operator or service provider.
Settings when GSM data is the selected data bearer
•Dial-up number - Key in the phone number and press OK.
•IP address - Key in the address, press for a dot, and press OK. You
obtain the IP address from your network operator or service provider.
•Authentication type - Select Secure or Normal.
•Data call type - Select Analogue or ISDN.
npl-2_en1_1.fm Page 79 Monday, September 2, 2002 2:39 PM
Menu functions
80
•Data call speed - Select the speed you want to use, or select
Automatic. Automatic is available only if the current selected data
call type is Analogue. The actual data call speed depends on the
service provider.
•Login type - Select Manual or Automatic.
•User name - Key in the user name and press OK.
•Password - Key in the password and press OK.
Settings when GPRS is the selected data bearer
•GPRS access point - Key in the access point name and press OK.
An access point name is needed to establish a connection to a GPRS
network. You obtain the access point name from your network
operator or service provider.
•IP address - Key in the address, press for a dot , and press OK. You
obtain the IP address from your network operator or service provider.
•Authentication type - Select Secure or Normal. If you select
Automatic, the login type uses the user name and password keyed in
the following settings. If you select Manual, the login information is
required when establishing a connection.
•Login type - Select Manual or Automatic.
•User name - Key in the user name and press OK.
•Password - Key in the password and press OK.
Making a connection to a WAP service
Firstly, make sure that the service settings of the WAP service you want
to use are activated. To activate the settings:
•Press Menu, and select Services and Settings. Select Active service
settings and scroll to the set you want to activate and press Activate.
Secondly, make a connection to the WAP service. There are three ways
to connect:
npl-2_en1_1.fm Page 80 Monday, September 2, 2002 2:39 PM
Menu functions
81
• Open the homepage of the WAP service:
Press Menu, and select Services and Home.
Tip: To quickly open the homepage, press and hold in
standby mode.
OR
• Select a bookmark of the WAP service:
Press Menu, and select Services, Bookmarks, and select a bookmark.
If the bookmark does not work with the current active service
settings, activate another set of service settings and try again.
OR
• Key in the address of the WAP service:
Press Menu, and select Services and then Go to address. Key in the
address of the WAP service, press for special characters, and
press OK.
Note that it is not necessary to add the prefix http:// in front of the
address since it will be added automatically.
Browsing the pages of a WAP service
After you have made a connection to the WAP service, you can start
browsing its WAP pages. The function of the phone keys may vary in
different WAP services. Follow the text guides on the phone display. For
more information, contact your WAP service provider.
Note that if GPRS is selected as the data bearer, the indicator is
shown on the top left of the display during browsing. If you receive or
make a call during a GPRS connection, the indicator will be shown on
the top right of the display to indicate that the GPRS connection is
suspended.
Using the phone keys while browsing
• Use the scroll keys or to browse the WAP page.
• To select a highlighted item, press .
• To enter letters and numbers, press the keys - and to
enter special characters, press the key .
npl-2_en1_1.fm Page 81 Monday, September 2, 2002 2:40 PM
Menu functions
82
Options while browsing
Press Options and select one of the options available. The service
provider may also offer other options. Select
•Home to go back to the homepage of the WAP service.
•Bookmarks. See page 84.
•Call / Edit / Open row / Open link / Open list to call, to key in text or to
select a highlighted item on the WAP page.
•Add bookmark to save the WAP page as a bookmark.
•View image or View images to view images and animations from the
WAP page.
•Go to address to key in the address of the WAP service you want to
access.
•Service inbox. See page 84.
•Use wallet info and Close wallet. See Guidelines for paying your
purchases with wallet on page 75.
•Appear. settings. See Appearance settings of WAP browser on
page 83.
•Cookie settings. See page 83.
•Use number to copy a number from the WAP page for saving or
making a call. If the WAP page contains several numbers, you may
select the desired one.
•Reload to reload and update the current WAP page.
•Clear the cache. See The cache memory on page 85.
•Security info to view security information about the current WAP
connection and the server.
•Quit. See Ending a WAP connection on page 83.
Direct calling
The WAP browser supports functions which you can access while
browsing. You can make a voice call, send DTMF tones while a voice call
is in progress, and save in the phone book a name and a phone number
from a WAP page.
npl-2_en1_1.fm Page 82 Monday, September 2, 2002 2:40 PM
Menu functions
83
Ending a WAP connection
To quit browsing and to end the connection, press Options and select
Quit. When Quit browsing? is shown, press Yes.
Alternatively, press . If GSM data is the selected data bearer, press
twice. The phone ends the connection to the WAP service.
Appearance settings of WAP browser
1. While browsing, press Options and select Appear. settings, or in
standby mode, press Menu, and select Services, Settings and
Appearance settings.
2. Select Text wrapping or Show images.
3. Select On or Off for Text wrapping and Yes or No for Show images.
When Text wrapping is set to On, the text continues on the next line
if it cannot be shown on one line. If you select Off, the text is
abbreviated if it is too long to be shown on one line.
When Show images is set to No, any pictures appearing on the WAP
page are not shown. This can speed up the browsing of WAP pages
that contain a lot of pictures.
Cookie settings
You can set the phone to allow or prevent receiving cookies.
A cookie is data that a WAP site saves in your phone’s browser cache
memory. The data can be, for example, your user information or your
browsing preferences. Cookies will be saved until you clear the cache
memory, see The cache memory on page 85.
1. While browsing, press Options and select Cookie settings, or in
standby mode, press Menu, and select Services and Settings.
2. Select Cookies and select Allow or Reject to allow or prevent the
phone receiving cookies.
npl-2_en1_1.fm Page 83 Monday, September 2, 2002 2:40 PM
Menu functions
84
Bookmarks
You can save up to 30 WAP page addresses as bookmarks in the phone’s
memory.
1. While browsing, press Options and select Bookmarks, or in standby
mode, press Menu, and select Services and Bookmarks.
2. Scroll to the bookmark you want to use and press Options.
3. Select one of the following options:
Go to to make a connection to the WAP page associated with the
bookmark.
Edit or Delete to modify or delete the selected bookmark.
Send to send the selected bookmark directly to another phone select
As bookmark, or to send the bookmark as a text message, select As
text message.
New bookmark to create a new bookmark without connection to the
WAP service. Key in the address and the title of the WAP page and
press OK.
Note that your phone may have some pre-installed bookmarks for sites
not affiliated with Nokia. Nokia does not warrant or endorse these sites.
If you choose to access them, you should take the same precautions, for
security or content, as you would with any Internet site, for example.
Receiving a bookmark
When you have received a bookmark as a text message, press Options
and select View to view the bookmark, Save to save the bookmark, or
Discard to discard it.
Service inbox
The phone is able to receive service messages (pushed messages) sent by
your service provider. Service messages are notifications of, for example,
news headlines, and they may contain a text message or address of a
WAP service.
To access the Service inbox in standby mode, when you have received a
service message, press View.
npl-2_en1_1.fm Page 84 Monday, September 2, 2002 2:40 PM
Menu functions
85
• If you press Exit the message is moved to the Service inbox. To
access the Service inbox later, press Menu, and select Services, and
Service inbox.
To access the Service inbox while browsing, press Options and select
Service inbox. Scroll to the message you want, press Options and select
•Retrieve to activate the WAP browser and download the indicated
content.
•Details to display detailed information on the service notification.
•Delete to delete the selected service notification.
To set the phone to receive service messages
Press Menu, and select Services, Settings, Service inbox settings, and
Service messages. To set the phone to receive service messages, select
On. If you select Off, the phone will not receive service messages.
The cache memory
Note: The information or services you have accessed are stored in the
cache of your phone. A cache is a buffer memory, which is used to store
data temporarily. If you have tried to access or have accessed
confidential information requiring passwords (for example, your bank
account), empty the cache of your phone after each use.
To empty the cache,
• while browsing, press Options and select Clear the cache, or
• in standby mode, press Menu, and select Services, and Clear the
cache.
Authority certificates
For using some WAP services, such as banking services, you need
security certificates. Using the certificates can help you improve the
security of connections between your phone and a WAP gateway or
WAP server, if the Connection security is set to On.
You can download authority certificate from a WAP page, if the WAP
service supports the use of authority certificates. After the download,
you can view the certificate and then save or delete it. If you save the
certificate, it is added to the certificate list in the phone.
npl-2_en1_1.fm Page 85 Monday, September 2, 2002 2:40 PM
Menu functions
86
The phone indicates if the identity of the WAP server or WAP gateway
cannot be verified, if the WAP server or WAP gateway certificate is not
authentic or if you do not have the correct authority certificate in your
phone.
Viewing the list of authority certificates
Press Menu, select Services, and Settings. Select Authority certificates.
See also Security info in Using the phone keys while browsing on
page 81.
Security indicator
If the security indicator is displayed during a WAP connection, the
data transmission between the phone and the WAP gateway or WAP
server (identified by the IP address in the Edit active service settings) is
encrypted.
However, the security indicator does not indicate that the data
transmission between the gateway and the content server (the location
where the requested resource is stored) is secure. It is up to the service
provider to secure the data transmission between the gateway and the
content server.
Browser security
Security features are needed for some WAP services, such as banking or
shopping services on a WAP site. For such connections you need security
certificates and probably a security module which may be available on
your SIM card. For more information, contact your service provider.
Security module
The security module provides security services for WAP related
applications, and allows you to use digital signatures. The security
module can contain user and/or authority certificates as well as private
and public keys. The certificates are saved in the security module by the
SIM card issuer or the service provider.
Press Menu, and select Services, Settings and Security module settings.
Select
•Security module details to show the security module title, its status,
manufacturer and serial number.
npl-2_en1_1.fm Page 86 Monday, September 2, 2002 2:40 PM
Menu functions
87
•Change signing PIN to select the signing PIN you want to change.
Key in the current signing PIN code. Press Change and key in the new
code twice.
See also Access codes on page 7.
Certificates
There are three kinds of certificates; server certificates, authority
certificates and user certificates. Authority certificates can either be
saved in the security module by the SIM card issuer or service provider,
or they can be downloaded from a WAP page and be saved in the
phone’s memory or on the SIM card. User certificates are saved in the
security module by the SIM card issuer or the service provider. Server
certificates are not saved.
• Server certificates
A server certificate is sent from the WAP server to the phone and its
validity is checked using the authority certificates saved in the phone
or the security module. The phone indicates if the identity of the
WAP server or WAP gateway cannot be verified, if the WAP server or
WAP gateway certificate is not authentic or if you do not have the
correct authority certificate in your phone.
The security indicator is displayed during a WAP connection, if the
data transmission between the phone and the WAP gateway or WAP
server (identified by the IP address in the Edit active service settings)
is encrypted.
It is up to the service provider to secure the data transmission
between the gateway and the content server.
• Authority certificates
Authority certificates are used by some WAP services, such as
banking services, for checking signatures of server certificates or
other authority certificates.
• User certificates
User certificates are issued to users by a Certifying Authority. They
associate a user with a specific private key in a security module and
are used for digital signature.
npl-2_en1_1.fm Page 87 Monday, September 2, 2002 2:40 PM
Menu functions
88
Digital signature
You can make digital signatures with your phone. The signature can be
traced back to you via the user certificate that was used to perform the
signature. Making the digital signature can be the same as signing your
name to a paper bill, contract or other document.
For issuing a digital signature, select a link on a WAP page, for example,
the title of the book you want to buy and its price. The text to sign,
possibly including amount and date, for example, will be shown.
Check that the header text is Read and the digital signature icon is
shown.
Note: If the digital signature icon does not appear, there is a
security breach, and you should not enter any personal data
such as your signing PIN.
To sign the text, read all of the text first and then you can select Sign.
Note:
The text may not fit within a single screen. Therefore, make
sure to scroll through and read all of the text before signing.
Select the user certificate you want to use. Key in the signing PIN (see
Access codes on page 7) and press OK. The digital signature icon will
disappear, and the WAP service may display a confirmation of your
purchase.
■SIM services (Menu 13)
In addition to the functions available on the phone, your
SIM card may provide additional services that you can
access in menu 13. Menu 13 is shown only if it is supported by your SIM
card. The name and contents of the menu depends on the available services.
Note: For availability, rates and information on using SIM services,
contact your SIM card vendor, e.g. network operator, service provider or
other vendor.
You can set the phone to show you the confirmation messages sent
between your phone and the network when you are using the SIM
services by selecting the option Yes within the menu Confirm SIM
service actions, menu 4-3-6.
Note that accessing these services may involve sending a text message
(SMS) or making a phone call for which you may be charged.
npl-2_en1_1.fm Page 88 Monday, September 2, 2002 2:40 PM
PC Connectivity
89
8. PC Connectivity
You can send and receive e-mails, and access the Internet when your
phone is connected to a compatible PC via an IR connection or a data
cable. You can use your phone with a variety of PC connectivity and data
communications applications. With the PC suite you can, for example,
send text and picture messages, synchronise contacts, calendar and to-
do notes between your phone and the PC and manage your WAP
bookmarks and connection sets.
You may find more information and downloadable files on the Nokia
website, www.nokia.com/phones/productsupport/6100.
■PC Suite
The PC Suite contains the following applications :
•Nokia Application Installer to install Java applications from the PC
to the phone.
•Nokia Image Converter to make images usable for multimedia
messages, wallpapers or operator logos and to transfer them to your
phone.
•Nokia Sound Converter to edit polyphonic ringing tones to be
compatible with your phone and to transfer them to your phone.
•Nokia Content Copier to copy data or back-up data from your phone
to PC or to another Nokia phone.
•Nokia PC WAP Manager to edit and send your WAP bookmarks or
update the connection sets to your phone.
•Nokia Phone Editor to send text messages and edit the phone book,
profiles and message settings of your phone.
•Nokia PC Sync to synchronise the phone book, calendar and to-do
notes between your phone and PC.
•Nokia PC Graphics to create and edit picture messages for previous
compatible Nokia phone models, for example, Nokia 8310.
•Nokia PC Composer to create monophonic ringing tones for previous
compatible Nokia phone models, for example, Nokia 8310.
npl-2_en1_1.fm Page 89 Monday, September 2, 2002 2:40 PM
PC Connectivity
90
• Nokia 6100 data modem drivers enable you to use your phone as a
modem.
•Nokia Modem Options contains settings for HSCSD and GPRS
connections.
•Nokia Connection Manager to select the connection type between
the PC and the phone.
GPRS and HSCSD
With your phone you can use GPRS (General Packet Radio Service) and
HSCSD (High Speed Circuit Switched Data) high-speed data services.
For availability and subscription to high-speed data services, contact
your network operator or service provider.
Note that the use of HSCSD service consumes the phone’s battery faster
than normal voice or data calls. You may need to connect the phone to a
charger for the duration of data transfer.
See GPRS modem settings on page 77.
■Using data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
1. If you use IR connection:
• Activate the IR connection in the phone, see Infrared on page 75.
Make sure that the connection is active in your PC.
If you use the cable DKU-5:
• Connect the cable to the USB port on the back of your computer
and to the connector on your phone.
2. Start using the data communications application on the computer.
Note that making or answering phone calls during a computer
connection is not recommended as it might disrupt the operation.
For better performance during data calls, place the phone on a
stationary surface with the keypad facing downward. Do not move the
phone by holding it in your hand during a data call.
npl-2_en1_1.fm Page 90 Monday, September 2, 2002 2:40 PM
Battery statements
91
9. Battery statements
■Charging and Discharging
Your phone is powered by a rechargeable battery.
Note that a new battery's full performance is achieved only after two or three
complete charge and discharge cycles!
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk-time and standby time) is
noticeably shorter than normal, it is time to buy a new battery.
Use only batteries approved by the phone manufacturer and recharge your
battery only with the chargers approved by the manufacturer. Unplug the
charger when not in use. Do not leave the battery connected to a charger for
longer than a week, since overcharging may shorten its lifetime. If left unused a
fully charged battery will discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object (coin, clip or pen) causes direct connection of the + and -
terminals of the battery (metal strips on the battery) for example when you carry
a spare battery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A phone with a hot
or cold battery may temporarily not work, even when the battery is fully charged.
Batteries' performance is particularly limited in temperatures well below
freezing.
Do not dispose of batteries in a fire !
Dispose of batteries according to local regulations (e.g. recycling). Do not dispose
as household waste.
npl-2_en1_1.fm Page 91 Wednesday, August 7, 2002 10:20 AM
92
10. Technical Information
Weight....................................77 grams (6.4 ounces) with BL-4C battery
Battery....................................720 mAh Li-polymer Battery
Networks................................Wireless networks GSM 900, 1800 and1900
Size (volume)........................3.69 cubic inches (60.3 cc)
Frequency range (Tx)
..................................................GSM 900: 880 - 915 Mhz
..................................................GSM 1800: 1710 - 1785 Mhz
..................................................GSM1900: 1850 - 1910 Mhz
Frequency range (Rx)
..................................................GSM 900: 925 - 960 Mhz
..................................................GSM1800: - 1805 - 1865 Mhz
..................................................GSM1900: - 1930 - 1990 Mhz
Tx output power..................2 W (Max)
Battery voltage ....................3.7 v DC
Number of channels...........299
FCC_Layout.fm Page 92 Monday, September 2, 2002 2:52 PM
93
11 . Pa t e n t s
Manufactured or sold under one or more of the following US Patents.
Asterisk (*) indicates design patents pending.:
4558302
4868846
4969192
4969192
5001372
5045973
5061928
5101175
5212834
5230091
5233634
5241284
5241583
5303404
5311179
5331638
5335362
5353328
5384782
5390223
5396657
5400949
5416435
5442521
5444816
5446364
5479476
5487084
5493255
5519885
5526366
5553125
5557639
5581244
5625274
5640395
5664053
5669069
5677620
5692032
5699406
5699482
5699482
5701392
5701392
5729534
5729541
5734683
5754976
5754976
5760568
5782646
5794142
5802465
5805084
5805301
5818437
5827082
5835889
5839101
5844884
5845219
5857151
5862178
5870683
5887266
5889770
5892475
5898925
5907823
5914796
5915440
5917868
5920826
5926138
5926769
5930233
5946651
5953541
5956625
5956633
5960389
5963901
5966374
5966378
5970059
5987137
5991716
5991857
5999523
6005857
6011554
6011853
6014573
6026161
6028567
6029128
6038238
6043760
6047196
6049796
6055439
6060193
6069923
6081534
6084962
6088746
6094587
6097964
6112099
6115617
6118775
6122498
6128322
6128509
6138091
6144243
6144676
6151485
6151507
6163609
6164547
6167248
6170073
6185295
6188909
6195338
6199035
6201876
6219560
6240076
6240079
6249584
6266330
6282373
6289205
6292668
6295286
6310609
6324412
29137976*
29137979*
29137984*
29138033*
29138035*
29138036*
D406261
D410623
D410892
D412484
D417428
D425480
D426830
D445415
RE32580
FCC_Layout.fm Page 93 Wednesday, August 7, 2002 1:34 PM
94
CARE AND MAINTENANCE
Your phone is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you to fulfil any warranty
obligations and to enjoy this product for many years.
• Keep the phone and all its parts and accessories out of the reach of small
children.
• Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
• Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
• Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
• Do not attempt to open the phone. Non-expert handling may damage it.
• Do not drop, knock or shake the phone. Rough handling can break internal
circuit boards.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
• Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
• Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications or attachments could damage the phone and may
violate regulations governing radio devices.
All of the above suggestions apply equally to your phone, battery, charger or any
accessory. If any of them is not working properly, take it to your nearest qualified
service facility. The personnel there will assist you and, if necessary, arrange for
service.
FCC_Layout.fm Page 94 Wednesday, August 7, 2002 1:34 PM
95
IMPORTANT SAFETY INFORMATION
■Traffic safety
Don’t use a hand-held telephone while driving a vehicle. If you’re using
a hand-held phone, park the vehicle before conversing. Always secure
the phone in its holder and don’t place the phone on the passenger seat
or where it can break loose in a collision or sudden stop.
■Operating environment
Remember to follow any special regulations and always switch off your
phone wherever forbidden, or when it may cause interference or danger.
When connecting the phone or accessory to another device, read its
user’s guide for safety instructions. Don’t connect incompatible
products. As with other mobile radio transmitting equipment, users are
advised to operate this equipment only in the normal operating position
(held to your ear with the antenna pointing over your shoulder).
■Pacemakers
Pacemaker manufacturers recommend a distance of 20 cm (6 inches) be
maintained between a hand-held wireless phone and a pacemaker to
avoid interference with the pacemaker. These recommendations are
consistent with independent research and recommendations of Wireless
Technology Research.
PERSONS WITH A PACEMAKER:
• Should always keep the phone more than 20 cm (6 inches) from their
pacemaker when the phone is switched on.
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the potential
for interference.
• Should switch off the phone immediately if there is any reason to
suspect that interference is taking place.
FCC_Layout.fm Page 95 Wednesday, August 7, 2002 1:34 PM
96
■Hearing aids
Some digital wireless phones may interfere with hearing aids. In the
event of such interference, consult your wireless provider.
Other medical devices
Operation of any radio transmitting equipment, including cellular
phones, may interfere with the functionality of inadequately protected
medical devices. Consult a physician or the manufacturer of the medical
device to determine if it is adequately shielded from external RF energy,
or if you have any questions.
Switch off your phone in health care facilities when regulations posted
in these areas instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to RF energy.
■Electronic devices
Most modern electronic equipment is shielded from radio frequency (RF)
signals. However, certain electronic equipment may not be shielded
against the RF signals emanating from your wireless phone.
■Posted facilities
Switch your phone off in any facility where posted notices so require.
■Potentially explosive atmospheres
Switch off your phone when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even death.
Users are advised to switch off the phone when at a refuelling point
(service station). Users are reminded of the need to observe restrictions
regarding the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting operations are in
progress.
Areas with a potentially explosive atmosphere are often but not always
clearly marked. They include below deck on boats, chemical transfer/
storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals or particles,
such as grain, dust or metal powders, and any other area where you
would be advised to turn off your vehicle engine.
FCC_Layout.fm Page 96 Wednesday, August 7, 2002 1:34 PM
97
■Vehicles
Only qualified personnel should install or service the phone in a vehicle.
Faulty installation or service may be dangerous and invalidate the
warranty. RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles (for example, electronic
fuel injection systems, electronic anti-skid (anti-lock) braking systems,
electronic speed control systems, air bag systems). Check with the
manufacturer or its representative regarding your vehicle.
You should also consult the manufacturer of any equipment that has
been added to your vehicle. Ensure all wireless phone equipment in your
vehicle is mounted and operating properly. Don’t carry or store
flammable liquids, gases or explosive materials in the same
compartment as the phone or its accessories. For vehicles equipped with
an air bag, remember that an air bag inflates with great force. Don’t
place any objects in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious injury could result.
■Aircraft
FCC regulations prohibit using your phone while in the air.Switch off
your phone before boarding an aircraft. The use of wireless telephones
in an aircraft may be dangerous to the operation of the aircraft, disrupt
the wireless telephone network, and may be illegal. Failure to observe
these instructions may lead to suspension or denial of telephone
services to the offender, legal action, or both.
■Emergency calls
Important: This phone, like any wireless phone, operates using radio
signals, wireless, and landline networks as well as userprogrammed
functions. Because of this, connections in all conditions cannot be
guaranteed.Therefore you should never rely solely upon any wireless
phone for essential communications (for example, medical
emergencies).
FCC_Layout.fm Page 97 Wednesday, August 7, 2002 1:34 PM
98
MAKING AN EMERGENCY CALL
Note: Some networks may require that a valid SIM card be properly
inserted in the phone. Official emergency numbers vary by location (for
example, 911 or other official emergency number).
1. If the phone is not on, switch it on. Check for adequate signal
strength.
2. Press as many times as needed (for example, to exit a call, to
exit a menu, etc.) to clear the display and ready the phone for calls.
3. Enter the emergency number for your present location (for example,
911 or other official emergency number). Emergency numbers vary
by location.
4. Press .
If certain features are in use, you may first need to turn those features
off before you can make an emergency call. Consult this user guide and
your local cellular service provider.When making an emergency call,
remember to provide all information as accurately and clearly as
possible. Remember that your wireless phone may be the only means of
communication at the scene of an accident - don’t cut off the call until
given permission to do so.
■CERTIFICATION INFORMATION (SAR)
THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health. The exposure standard
for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.*
Tests for SAR are conducted using standard operating positions accepted by
the FCC with the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the highest
FCC_Layout.fm Page 98 Monday, February 10, 2003 4:10 PM
99
certified power level, the actual SAR level of the phone while operating can be
well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base station antenna,
the lower the power output. Before a phone model is available for sale to the
public, it must be tested and certified to the FCC that it does not exceed the
limit established by the government-adopted requirement for safe exposure.
The tests are performed in positions and locations (for example, at the ear and
worn on the body) as required by the FCC for each model. The highest SAR
value for this model phone as reported to the FCC when tested for use at the
ear is 0.88 W/kg and when worn on the body, as described in this user guide, is
1.21 W/kg. (Body-worn measurements differ among phone models, depending
upon available accessories and FCC requirements). While there may be
differences between the SAR levels of various phones and at various positions,
they all meet the government requirement. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant
section of http://www.fcc.gov/oet/fccid after searching on FCC ID PPINPL-2 or
PPINPL-2H. The FCC ID of your phone can be found on the type label under the
battery.
For body worn operation, this phone has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and that
positions the handset a minimum of 5/8 inch (1.5 cm) from the body. Use of
other accessories may not ensure compliance with FCC RF exposure guidelines.
If you do not use a body worn accessory, and are not holding the phone at the
ear, position the handset a minimum of 5/8 inch (1.5 cm) from your body when
the phone is switched on.
*In the United States and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
SAR values may vary depending on national reporting equirements and the
network band. For SAR information in other regions please look under product
information at www.nokia.com. For body worn operation, this phone has been
tested and meets the FCC RF exposure guidelines when used with the Nokia
accessories supplied or designated for this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
FCC_Layout.fm Page 99 Monday, February 10, 2003 4:10 PM
100
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association.
All Rights Reserved.
1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the u.s. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful
ability to communicate by voice--almost anywhere, anytime--with the
boss, with a client, with the kids, with emergency personnel or even with
the police. each year, americans make billions of calls from their
wireless phones, and the numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that
every wireless phone user must uphold. When driving a car, driving is
your first responsibility. A wireless phone can be an invaluable tool, but
good judgment must be exercised at all times while driving a motor
vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires
alertness, caution and courtesy. It requires a heavy dose of basic
common sense---keep your head up, keep your eyes on the road, check
your mirrors frequently and watch out for other drivers. It requires
obeying all traffic signs and signals and staying within the speed limit. It
means using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This
brochure is a call to wireless phone users everywhere to make safety
their first priority when behind the wheel of a car. Wireless
telecommunications is keeping us in touch, simplifying our lives,
protecting us in emergencies and providing opportunities to help others
in need.
FCC_Layout.fm Page 100 Wednesday, August 7, 2002 1:34 PM
101
When it comes to the use of wireless phones, safety is your most
important call.
Wireless Phone “Safety Tips”
Below are safety tips to follow while driving and using a wireless phone
which should be easy to remember.
1. Get to know your wireless phone and its features such as speed dial
and redial. Carefully read your instruction manual and learn to take
advantage of valuable features most phones offer, including
automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your
attention off the road.
2. When available, use a hands free device. A number of hands free
wireless phone accessories are readily available today. Whether you
choose an installed mounted device for your wireless phone or a
speaker phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make sure you place
your wireless phone within easy reach and where you can grab it
without removing your eyes from the road. If you get an incoming
call at an inconvenient time, if possible, let your voice mail answer it
for you.
4. Suspend conversations during hazardous driving conditions or
situations. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are
reading an address book or business card, or writing a “to do” list
while driving a car, you are not watching where you are going. It’s
common sense. Don’t get caught in a dangerous situation because
you are reading or writing and not paying attention to the road or
nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you
are not moving or before pulling into traffic. Try to plan your calls
FCC_Layout.fm Page 101 Wednesday, August 7, 2002 1:34 PM
102
before you begin your trip or attempt to coincide your calls with
times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple
tip--dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not
mix--they are distracting and even dangerous when you are behind
the wheel of a car. Make people you are talking with aware you are
driving and if necessary, suspend conversations which have the
potential to divert your attention from the road.
8. Use your wireless phone to call for help. Your wireless phone is one
of the greatest tools you can own to protect yourself and your
family in dangerous situations--with your phone at your side, help
is only three numbers away. Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident, road hazard or medical
emergency. Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in emergencies. Your
wireless phone provides you a perfect opportunity to be a “Good
Samaritan” in your community. If you see an auto accident, crime in
progress or other serious emergency where lives are in danger, call
9-1-1 or other local emergency number, as you would want others
to do for you.
10. Call roadside assistance or a special wireless non-emergency
assistance number when necessary. Certain situations you
encounter while driving may require attention, but are not urgent
enough to merit a call for emergency services. But you still can use
your wireless phone to lend a hand. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured or a vehicle you know
to be stolen, call roadside assistance or other special non-
emergency wireless number.
Careless, distracted individuals and people driving irresponsibly
represent a hazard to everyone on the road. Since 1984, the Cellular
Telecommunications Industry Association and the wireless industry
have conducted educational outreach to inform wireless phone users of
FCC_Layout.fm Page 102 Wednesday, August 7, 2002 1:34 PM
103
their responsibilities as safe drivers and good citizens. As we approach a
new century, more and more of us will take advantage of the benefits of
wireless telephones. And, as we take to the roads, we all have a
responsibility to drive safely.
The wireless industry reminds you to use your phone safely when
driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
© 2001 Cellular Telecommunications & Internet Association.
All Rights Reserved.1250
Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
■A message from the U.S. Food and Drug
Administration
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no proof,
however, that wireless phones are absolutely safe. Wireless phones emit
low levels of radiofrequency energy (RF) in the microwave range while
being used. They also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce health effects (by heating
tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF
exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings
have not been confirmed by additional research. In some cases, other
researchers have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
2. What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as it
does with new drugs or medical devices. However, the agency has
FCC_Layout.fm Page 103 Wednesday, August 7, 2002 1:34 PM
104
authority to take action if wireless phones are shown to emit
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
• Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to
the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in
the United States must comply with FCC safety guidelines that limit RF
exposure. FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than do
the wireless phones themselves, the RF exposures that people get from
these base stations are typically thousands of times lower than those
FCC_Layout.fm Page 104 Wednesday, August 7, 2002 1:34 PM
105
they can get from wireless phones. Base stations are thus not the
subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with
built-in antennas, often called cell mobile or PCS phones. These types of
wireless phones can expose the user to measurable radiofrequency
energy (RF) because of the short distance between the phone and the
user’s head. These RF exposures are limited by Federal Communications
Commission safety guidelines that were developed with the advice of
FDA and other federal health and safety agencies. When the phone is
located at greater distances from the user, the exposure to RF is
drastically lower because a person's RF exposure decreases rapidly with
increasing distance from the source. The so-called cordless phones;
which have a base unit connected to the telephone wiring in a house,
typically operate at far lower power levels, and thus produce RF
exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many
studies have suffered from flaws in their research methods. Animal
experiments investigating the effects of radiofrequency energy (RF)
exposures characteristic of wireless phones have yielded conflicting
results that often cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could accelerate
the development of cancer in laboratory animals. However, many of the
studies that showed increased tumor development used animals that
had been genetically engineered or treated with cancer-causing
chemicals so as to be pre-disposed to develop cancer in the absence of
RF exposure. Other studies exposed the animals to RF for up to 22 hours
per day. These conditions are not similar to the conditions under which
people use wireless phones, so we don’t know with certainty what the
results of such studies mean for human health.
Three large epidemiology studies have been published since December
2000. Between them, the studies investigated any possible association
between the use of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies demonstrated the
FCC_Layout.fm Page 105 Wednesday, August 7, 2002 1:34 PM
106
existence of any harmful health effects from wireless phone RF
exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these
studies was around three years.
5. What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the data
that are needed. Lifetime animal exposure studies could be completed in
a few years. However, very large numbers of animals would be needed to
provide reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly applicable to
human populations, but 10 or more years follow-up may be needed to
provide answers about some health effects, such as cancer. This is
because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is hampered by
difficulties in measuring actual RF exposure during day-to-day use of
wireless phones. Many factors affect this measurement, such as the
angle at which the phone is held, or which model of phone is used.
6. What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radiofrequency energy (RF). FDA has been a
leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed
agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped
develop a series of public information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA)
have a formal Cooperative Research and Development Agreement
(CRADA) to do research on wireless phone safety. FDA provides the
scientific oversight, obtaining input from experts in government,
FCC_Layout.fm Page 106 Wednesday, August 7, 2002 1:34 PM
107
industry, and academic organizations. CTIA-funded research is
conducted through contracts to independent investigators. The initial
research will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment of
additional research needs in the context of the latest research
developments around the world.
7. How can I find out how much radiofrequency energy exposure I
can get by using my wireless phone?
All phones sold in the United States must comply with Federal
Communications Commission (FCC) guidelines that limit radiofrequency
energy (RF) exposures. FCC established these guidelines in consultation
with FDA and the other federal health and safety agencies. The FCC limit
for RF exposure from wireless telephones is set at a Specific Absorption
Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is
consistent with the safety standards developed by the Institute of
Electrical and Electronic Engineering (IEEE) and the National Council on
Radiation Protection and Measurement. The exposure limit takes into
consideration the body’s ability to remove heat from the tissues that
absorb energy from the wireless phone and is set well below levels
known to have effects.
Manufacturers of wireless phones must report the RF exposure level for
each model of phone to the FCC. The FCC website (http://www.fcc.gov/
oet/rfsafety) gives directions for locating the FCC identification number
on your phone so you can find your phone’s RF exposure level in the
online listing.
8. What has FDA done to measure the radiofrequency energy coming
from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a
technical standard for measuring the radiofrequency energy (RF)
exposure from wireless phones and other wireless handsets with the
participation and leadership of FDA scientists and engineers. The
standard, Recommended Practice for Determining the Spatial-Peak
Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques, sets forth the first
consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses a
FCC_Layout.fm Page 107 Wednesday, August 7, 2002 1:34 PM
108
tissue-simulating model of the human head. Standardized SAR test
methodology is expected to greatly improve the consistency of
measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by
the whole body or a small part of the body. It is measured in watts/kg (or
milliwatts/g) of matter. This measurement is used to determine whether
a wireless phone complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products--and at this point we do not know
that there is--it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy (RF). Since time is a
key factor in how much exposure a person receives, reducing the
amount of time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source of
the RF, since the exposure level drops off dramatically with distance. For
example, you could use a headset and carry the wireless phone away
from your body or use a wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are
harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce
your RF exposure from wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radiofrequency energy (RF), the measures described
above would apply to children and teenagers using wireless phones.
Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.Some
groups sponsored by other national governments have advised that
children be discouraged from using wireless phones at all. For example,
the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence
exists that using a wireless phone causes brain tumors or other ill
FCC_Layout.fm Page 108 Wednesday, August 7, 2002 1:34 PM
109
effects. Their recommendation to limit wireless phone use by children
was strictly precautionary; it was not based on scientific evidence that
any health hazard exists.
11. What about wireless phone interference with medical
equipment?
Radiofrequency energy (RF) from wireless phones can interact with
some electronic devices. For this reason, FDA helped develop a detailed
test method to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard sponsored by the
Association for the Advancement of Medical instrumentation (AAMI).
The final draft, a joint effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers and defibrillators are
safe from wireless phone EMI. FDA has tested hearing aids for
interference from handheld wireless phones and helped develop a
voluntary standard sponsored by the Institute of Electrical and
Electronic Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless phones so that
no interference occurs when a person uses a compatible phone and a
accompanied hearing aid at the same time. This standard was approved
by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful interference be
found to occur, FDA will conduct testing to assess the interference and
work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
FDA web page on wireless phones
http://www.fda.gov/cdrh/phones/index.html
Federal Communications Commission (FCC) RF Safety Program
http://www.fcc.gov/oet/rfsafety
International Commission on Non-Ionizing Radiation Protection
http://www.icnirp.de
FCC_Layout.fm Page 109 Wednesday, August 7, 2002 1:34 PM
110
World Health Organization (WHO) International EMF Project
http://www.who.int/emf
National Radiological Protection Board (UK)
http://www.nrpb.org.uk/
July 18, 2001 For updates: http://www.fda.gov/cdrh/phones
FCC_Layout.fm Page 110 Wednesday, August 7, 2002 1:34 PM
