Microsoft NPM-6X PCS Band GSM Cellular Transceiver User Manual Manual
Microsoft Mobile Oy PCS Band GSM Cellular Transceiver Manual
Manual
[ 1 DRAFT ]
Safety first
1Safety first
Read these simple guidelines. Breaking the rules may be dangerous or
illegal. Further detailed information is given in this manual.
Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Don't use a hand-held phone while driving.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any regulations or rules. Switch the phone off near
medical equipment.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Don't use the phone at a refuelling point. Don't use near fuel
or chemicals.
SWITCH OFF NEAR BLASTING
Don't use the phone where blasting is in progress. Observe
restrictions, and follow any regulations or rules.
USE SENSIBLY
Use only in the normal position. Don't touch the antenna
unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair phone
equipment.
[ 2 DRAFT ]
OBSERVE INFRARED PRECAUTIONS
Do not point the IR beam at anyone’s eyes or allow it to
interfere with other IR devices.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user's guide for
detailed safety instructions. Do not connect incompatible
products.
BACKUP COPIES
Remember to make backup copies of all important data.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
CALLING
Ensure the phone is switched on and in service. Enter the phone
number, including the area code, then press the Talk key. To
end a call, press the End key. To answer a call, press the Talk
key.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press the End
key as s many times as needed (e.g. to exit a call, to exit a
menu, etc.) to clear the display. Enter the emergency number,
then press the Talk key. Give your location. Do not end the call
until told to do so.

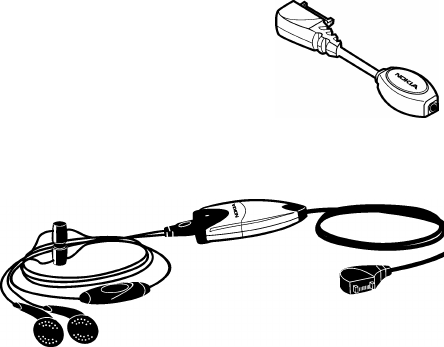

• ABOUT ACCESSORIES
Check the model number of any charger before use with this device.
This device is intended for use when supplied with power from ACP-12
and LCH-12.
[ 3 DRAFT ]
Safety first
Warning: Use only batteries, chargers and accessories approved
by the phone manufacturer for use with this particular phone
model. The use of any other types may invalidate any approval or
warranty applying to the phone, and may be dangerous.
For availability of approved accessories, please check with
your dealer.
When you disconnect the power cord of any accessory, grasp and
pull the plug, not the cord.
[ 4 DRAFT ]
2An overview of functions
• MULTIMEDIA MESSAGING SERVICE (MMS)
Your phone is able to send and receive multimedia messages made up of
text and pictures. You may also be able to receive polyphonic ringing
tones. You can also save pictures and ringing tones to personalize your
phone. See “Multimedia Messages” on page70 for more information.
This feature uses shared memory. Please see “Shared memory” on
page15 for more information.
• POLYPHONIC SOUND (MIDI)
Polyphonic sounds are used in ringing tones and message alert tones. They
consist of several sound components played at the same time, like an
actual melody through a speaker. Your phone has sound components from
over 40 instruments that can be used for polyphonic sounds and the
phone can play four instruments simultaneously. The phone supports
Scalable Polyphonic MIDI (SP-MIDI) format.
You can receive polyphonic ringing tones via multimedia service,
(see “Read and reply to a multimedia message” on page74), or
download them via the gallery menu, see “Gallery (Menu 7)” on page113
for more information.
• GENERAL PACKET RADIO SERVICE (GPRS)
GPRS technology allows mobile phones to send and receive data
over a mobile network. Applications such as WAP, MMS, text messaging,
and JavaTM use GPRS. Your phone supports up to three simultaneous GPRS
connections.
For more information on GPRS, see “GPRS” on page137. Also, consult the
PC Connectivity Guide. The PC Connectivity Guide, Nokia PC Suite, and all
related software can be downloaded from the U.S. Mobile Phone products
section of www.nokia.com.
[ 5 DRAFT ]
An overview of functions
Before you can use GPRS technology
•Contact your network operator or service provider for availability and
subscription to the GPRS service.
•Save the GPRS settings for each of the applications used over GPRS.
PRICING FOR GPRS AND APPLICATIONS
Your wireless provider may charge for GPRS services. For more
information on pricing, contact your wireless provider.
• SPEAKERPHONE
You can use your phone as a speakerphone during a call.
•To activate the speakerphone, press Loudsp.
•To deactivate the speakerphone during a call, press Handset.
The speakerphone deactivates automatically when you end the call,
attempt to make a new call, or when you connect a headset.
• FLASHLIGHT
There is a flashlight in your phone. You can activate it while in standby
mode when the keypad is not locked.
•To activate the flashlight, press and hold the up scroll key. To switch
off the flashlight, release the scroll key.
•To have the flashlight on continuously, quickly press the up scroll key
twice. To switch it off again, press the up scroll key once.
• JAVATM APPLICATIONS
Your phone supports JavaTM and includes some Java applications and
games that have been specially designed for mobile phones. You may be
able to download new applications and games to your phone from a PC
with Java installer software or from some Mobile Internet services. See
“Applications (Menu 10)” on page124 for more information.
[ 6 DRAFT ]
This feature uses shared memory. Please see “Shared memory” on
page15 for more information.
• FM STEREO RADIO
Your phone has an integrated FM stereo radio. You can listen to the radio
through a headset or the handsfree speaker (with the headset attached).
See “Radio (Menu 6)” on page110 for more information.
[ 7 DRAFT ]
Welcome and quick guide
3Welcome and quick guide
Congratulations on your purchase of the Nokia 5100 mobile phone.
Your phone provides many functions which are practical for daily use,
such as a Calendar, Radio, Alarm clock, Calculator, and more. A variety of
Xpress-onTM color shells are also available. Your phone can also connect
to a PC, laptop, or other device using the data cable or built-in IR port. For
more information on connectivity, refer to the PC Connectivity Guide. The
PC Connectivity Guide, Nokia PC Suite, and all related software can be
downloaded from the U.S. Mobile Phone products section of
www.nokia.com.
Improved durability
The Nokia 5100 phone has been designed for an active lifestyle. It is a
phone with enduring quality and reliability. It has an improved protection
against water splashes, dust, and bumps. The rubbery surface and
ergonomic shape provide a firm and reliable grip and convenience.
The top and bottom shells provide improved protection against water
splashes and dust. Also the inner module including the bottom connector
has resistance to splashes and dust when the shells and key mat are
mounted. There are membranes and gaskets to give protection for inner
parts.
The phone has improved durability to protect against accidental bumps
(e.g. if phone drops from your pocket or desk). The bottom flap gives extra
protection for the connectors against knocks and dirt.
• GET THE MOST OUT OF THIS GUIDE
The tips that follow can help you get the most from this guide as you learn
to use your phone.
[ 8 DRAFT ]
Learn text conventions
This user guide provides text clues to help make instructions clear and
easy to follow. These clues are called conventions.
Follow graphic clues
This guide uses certain icons to alert you to important information.
Tip: Indicates a shortcut or alternate method of doing something.
Note: Explains a feature or points out an important concept.
Important:Indicates critical information on using a feature.
Caution: Warns when you may lose information.
Warning:Helps you avoid personal injury, damage to the phone, or
property damage.
Access alternate formats
This user guide is available in alternate formats, contact
Nokia at www.nokiaaccessibility.com or call 1-888-665-4228 for
more information.
Look for updates
From time to time, Nokia updates this guide to reflect changes. The latest
version may be available at www.nokia.com.
Also, an interactive tutorial may be available at www.nokiahowto.com.
Convention What it means
bold The word or phrase appears on the phone’s display
bold and blue The text refers to an address on the world wide web
italics Indicates emphasis. Pay close attention to any
information in italics
[ 9 DRAFT ]
Welcome and quick guide
• UNDERSTAND WIRELESS NETWORK SERVICES
The wireless phone described in this guide is approved for use on the
GSM 900, GSM 1800, and GSM 1900 networks.
A number of features included in this guide are called Network Services.
These are special services you arrange through your wireless service
provider. Before you can take advantage of any of these Network Services,
you must subscribe to them through your service provider and obtain
instructions for their use from your service provider.
Some networks may not support all language-dependent characters and/
or services.
• REGISTER YOUR PHONE
Make sure to register your phone at www.warranty.nokiausa.com or
1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs
better if you should need to call the center or have your phone repaired.
• E-NEWSLETTERS
When you register your phone, you can sign up for Nokia's e-newsletter,
Nokia Connections, if you would like. You will receive tips and tricks on
using your phone, accessory information, and special offers.
[ 10 DRAFT ]
• UNDERSTAND YOUR PHONE
Power key
Volume keys
Left select key Right select key
End keyTalk key
Display screen
Earpiece
Number keys
IR Port
Microphone
Pop-PortTM connector
Charger jack
4-way scroll keys
+
-
[ 11 DRAFT ]
Welcome and quick guide

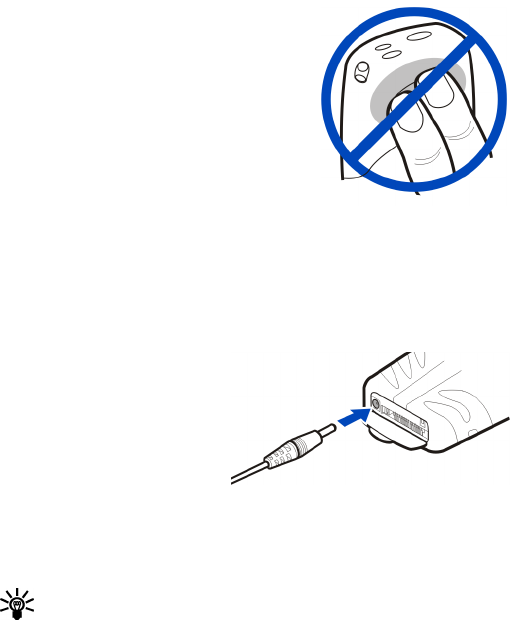

Use the antenna
Your phone has a built-in antenna. As with
any other radio transmitting device, do not
touch the antenna unnecessarily when the
phone is switched on. Contact with the
antenna affects call quality and may cause
the phone to operate at a higher power level
than otherwise needed. Not touching the
antenna area during a phone call optimizes
the antenna performance and the talk time
of your phone.

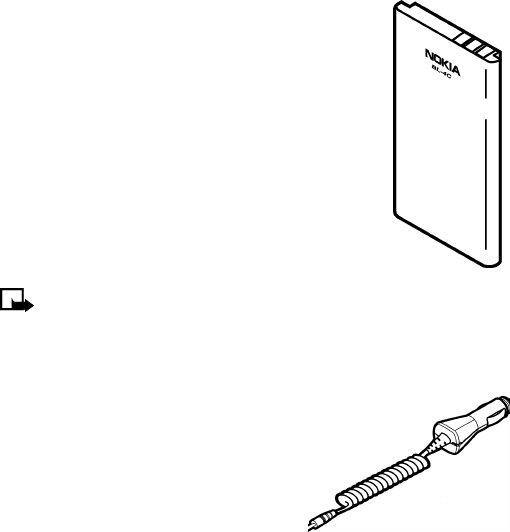

Use the battery
CHARGE THE BATTERY
1Plug the charger transformer in to a standard AC outlet.
2Insert the charger output
jack into the round
connector at the bottom
end of the phone.
After a few seconds, the
battery indicator in the
display starts to scroll from
bottom to top. If the battery is completely flat, it may take a few
minutes before the charging indicator appears on the display or any
calls can be made.
Tip: You can use the phone while the charger is connected.
[ 12 DRAFT ]
IMPORTANT BATTERY INFORMATION
Important:Your phone is powered by a rechargeable battery.
Use only batteries approved by Nokia and recharge your battery only with
the chargers approved by Nokia. Never use any charger or battery which
is damaged.
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk-time and standby
time) is noticeably shorter than normal, it is time to buy a new battery.
PROLONG THE BATTERY
Use the following guidelines to obtain the best performance from
your battery:
•With your phone turned off, charge your new battery for three hours
before its first use. Use the battery until it is fully discharged. Repeat
this procedure twice for a total of three charging cycles.
•Note that a new battery's full performance is achieved only after two
or three complete charge and discharge cycles. Battery operation
time may be less than the estimated times during the first charges.
This condition is normal.
•You can use your phone while the battery is charging. However, if the
battery is completely empty, it may need to recharge a few minutes
before you can make or receive calls or the battery indicator appears.
•After the first charge, you can make and receive calls during the
charging cycle, but the calls interrupt the charge. When the phone
call ends, the charge will resume.
•The bars on the screen stop scrolling and remain constant when the
phone is fully charged. If you leave the phone connected to the
charger, the battery receives an additional charge. If you switch the
phone on when charging is complete, the message Battery full
momentarily appears in the display.
Note: The battery will accept a "trickle charge" for an additional
two hours.
[ 13 DRAFT ]
Welcome and quick guide
REMOVE THE LOWER SHELL
1With the back of the phone facing
you, push the lower shell release
indentions.
2Slide the bottom of the shell
to remove.
REMOVE THE BATTERY
3After you’ve removed the lower shell,
grasp the removal flap and gently
pull; the battery lifts from its
compartment.
Install the SIM card
Warning: Keep all miniature SIM cards out of the reach of small
children.
•The SIM card and its contacts can easily be damaged by scratches or
bending, so be careful when handling, inserting or removing the card.
•Before installing the SIM card, always make sure that the phone is
switched off and that you’ve removed the shell and battery.
1Slide the SIM card holder
toward the bottom end of
the phone until it
unlocks.
2Swing the SIM card
holder open.
1
2
1
[ 14 DRAFT ]
3Insert the SIM card into the holder,
(beveled corner last) and the gold
contacts facing toward the top end
of the phone.
4Close the SIM card holder.
5Slide the SIM card holder toward
the top end of the phone until it
locks into place.
REPLACE THE BATTERY
The SIM card must be installed before
installing the battery.
1Position the battery so the gold
contacts match up with those on
the phone. The battery label should
be facing away from the phone.
2Insert the battery, contact end first
into the battery slot.
3Snap the other end of the battery
into place and snap the back of the
phone closed.
3
4
5
[ 15 DRAFT ]
Welcome and quick guide
REPLACE THE LOWER SHELL
1Place the phone into the lower
shell.
2Slide the shell forward until it
clicks into place.
Shared memory
The following features in your phone
use shared memory: Phone book, text and multimedia messages, images
and ringing tones in gallery, calendar and to-do notes, and JavaTM games
and applications. Using any of these features leaves less memory for other
features. This is especially true with heavy use of any of the features. For
example, saving many images may take all of the shared memory and your
phone may display that the memory is full. In this case, delete some of the
information or entries reserving the shared memory.
The following functions use shared memory that is dependent on the data
quantity per item and shared memory available at a time in the Nokia
5100.
•Phone book (up to 300 entries)
•SMS messages (up to 150 text messages or 50 picture/concatenated
messages)
•Calendar notes (up to 250 entries)
•To-do list (up to 30 entries)
•Fixed ring tones (11 preset, not removable)
The following features share a memory pool of 725kB:
•MMS messages (max size of 30kB per MMS message)
•Ring tones in Gallery (20 preset, all removable)
•Images (10 preset, all removable)
•JavaTM applications (3 preset, max download size 64kB per
application)
[ 16 DRAFT ]
The following functions use static memory:
•WAP cache (up to 20 entries)
•WAP bookmarks (up to 30 entries)
•WAP security cache and certificates (up to 20 entries)
• GET HELP
Find your phone’s label
If you need help, Nokia Customer Care
is available for assistance. Before
calling, however, please read
“Frequently Asked Questions” on
page162.
We also recommend that you write
down the following information and
have it available if you call. The
information can be found on back of
the phone, beneath the battery.
•The International Mobile Equipment Identifier (IMEI)
•We also ask that you write down your zip code.
Information label
[ 17 DRAFT ]
Welcome and quick guide
Contact Nokia
Please have your phone or accessory with you when contacting either of
the numbers below.
Nokia Customer Care Center, USA Customer Interaction
Center, Canada
Nokia, Inc.
7725 Woodland Center Boulevard
Suite #150
Tampa, Florida 33614
Tel: 1-888-NOKIA2U (1-888-665-4228)
Fax: 1-813-249-9619
TTY: 1-800-24NOKIA (hearing impaired only)
(1-800-246-6542)
Nokia Products Ltd.
601 Westney Road South
Ajax, Ontario L1S 4N7
Tel: 1-888-22NOKIA
(1-888-226-6542)
Fax: 1-905-427-1070
[ 18 DRAFT ]
• GET STARTED WITH THE QUICK GUIDE
Make a call Enter phone number, press the talk key
Answer a call Press Answer or the talk key
Answer a call with a
call waiting Press the talk key or Options and select Answer call
End a call Press the end key
Ignore a call Press Silence when your phone rings
Redial last number Press the talk key twice
Adjust call volume Press up or down on the side volume key
Use the in-call menu While in a call, press Options
Use 1-touch dialing Press and hold any key 2 through 9
Save a name and number Enter a number, press Options, and select Save, then
enter a name and press OK
Recall a name/number Press Names, select Find. Enter name and press Find or List
Check voice mail Press and hold the 1 key OR dial your voice mailbox
number
Write and send a
text message Press Menu 01-1-1. After a pause, write the message.
Press Options, scroll to Send, press Select, enter the
recipient’s number, press OK
Write and send an
E-mail message Press Menu 01-1-2. After a pause, enter the recipient’s
e-mail address. Press OK, enter a subject, and press OK.
Write your e-mail message, press Options, scroll to Send
e-mail and press Select. Enter the e-mail server number
if necessary and press OK. Your e-mail is sent.
Read a new message Press Show, then press Select
Reply to a message Press Options, select Reply, write the reply, press
Options, select Send, and press OK
Reply to an
E-mail message Press Options, scroll to Reply, and press Select. Compose
your message and press Options. Scroll to Sending options
and press Select. Scroll to Sending profile and press Select.
Highlight your email profile and press Select. Press Options,
Accept, enter the e-mail address, press OK.
Send a business card Recall a name from the phone book. Press Details, then
press Options, scroll to Send bus. card, scroll to Via text
message and press Select. Enter the recipient’s number
or press Find to retrieve a number from the Phone book.
Press OK . The business card is sent.
[ 19 DRAFT ]
Welcome and quick guide
• MENU SHORTCUTS
To access a menu or item, press
“Menu,” then enter the numbers
associated with the desired
menu or item. For example,
press Menu 2-2-1 to view any
Missed calls.
1MESSAGES
Text messages. . . . . . . . . . . . 01-1
Multimedia messages. . . . . . 01-2
Chat. . . . . . . . . . . . . . . . . . . . 01-3
Voice messages. . . . . . . . . . . 01-4
Info messages. . . . . . . . . . . . 01-5
Message settings . . . . . . . . . 01-6
Service commands . . . . . . . . 01-7
2CALL LOG
Missed calls. . . . . . . . . . . . . . . 2-1
Received calls. . . . . . . . . . . . . 2-2
Dialed numbers. . . . . . . . . . . . 2-3
Delete recent call lists. . . . . . 2-4
Call timers. . . . . . . . . . . . . . . . 2-5
Call costs. . . . . . . . . . . . . . . . . 2-6
GPRS Data counter. . . . . . . . . 2-7
GPRS Connection timer. . . . . 2-8
3PROFILES
Normal . . . . . . . . . . . . . . . . . . 3-1
Silent. . . . . . . . . . . . . . . . . . . . 3-2
Meeting. . . . . . . . . . . . . . . . . . 3-3
Outdoor. . . . . . . . . . . . . . . . . . 3-4
Pager. . . . . . . . . . . . . . . . . . . . 3-5
4SETTINGS
Time and date settings. . . . . . 4-1
Call settings . . . . . . . . . . . . . . 4-2
Phone settings . . . . . . . . . . . . 4-3
Display settings . . . . . . . . . . . 4-4
Tone settings. . . . . . . . . . . . . . 4-5
Accessory settings . . . . . . . . . 4-6
Security settings. . . . . . . . . . . 4-7
Restore factory settings . . . . . 4-8
5ALARM CLOCK
6RADIO
7GALLERY
8ORGANIZER
Calendar. . . . . . . . . . . . . . . . . . 8-1
To-do list . . . . . . . . . . . . . . . . . 8-2
9GAMES
Select game. . . . . . . . . . . . . . . 9-1
Game downloads. . . . . . . . . . . 9-2
Memory . . . . . . . . . . . . . . . . . . 9-3
Settings . . . . . . . . . . . . . . . . . . 9-4
10 APPLICATIONS
Select application. . . . . . . . .10-1
App. downloads. . . . . . . . . . . 10-2
Memory . . . . . . . . . . . . . . . . .10-3
11 EXTRAS
Calculator . . . . . . . . . . . . . . . 11-1
Countdown timer . . . . . . . . .11-2
Stopwatch . . . . . . . . . . . . . . . 11-3
Calorie counter . . . . . . . . . . . 11-4
Thermometer. . . . . . . . . . . . .11-5
Sound meter . . . . . . . . . . . . .11-6
12 CONNECTIVITY
Infrared . . . . . . . . . . . . . . . . .12-1
GPRS. . . . . . . . . . . . . . . . . . . . 12-2
13 SERVICES
Home . . . . . . . . . . . . . . . . . . . 13-1
Bookmarks. . . . . . . . . . . . . . . 13-2
Service inbox. . . . . . . . . . . . .13-3
Settings . . . . . . . . . . . . . . . . .13-4
Go to address. . . . . . . . . . . . .13-5
Clear the cache. . . . . . . . . . . 13-6
[ 20 DRAFT ]
Contact your service provider
To use the network services available in your phone, you’ll need to sign
up with a wireless provider. In many cases, the wireless provider will
make available descriptions of their services and instructions for using
features such as:
•Voice mail and voice privacy
•Call waiting, call forwarding, and caller ID
•Messaging
•News and information services
•Selected Internet services
Wireless providers may differ in their support of features. Before you sign
up, make sure a wireless provider supports the features that you need.
Receive accessibility information
Nokia is committed to making mobile phones easy to use for all
individuals, including those with disabilities. For more information, visit
the Nokia World Wide Web site www.nokiaaccessibility.com.
[ 21 DRAFT ]
Welcome and quick guide
• SWITCH YOUR PHONE ON OR OFF
Warning:Do not switch the phone on when
wireless phone use is prohibited or when it may
cause interference or danger.
1To turn your phone on or off, press and hold
the power key on top of the phone for at least
3 seconds.
If the phone displays Insert SIM card even though
the SIM card is properly inserted, or SIM card not
supported, contact your wireless provider.
2Enter the PIN code if necessary and press OK.
3Enter the security code if necessary and press OK.
Note: If the language that appears in your display is not correct,
see “Set the display language” on page100 for information on
changing your phone’s display language.
[ 22 DRAFT ]
• CHECK THE START SCREEN
The Start screen is “home base” and indicates your phone is in idle mode.
[ 23 DRAFT ]
Welcome and quick guide
What’s on the Start screen
Understand indicators and icons
HOME Your wireless provider’s name may appear here
Signal strength A higher bar indicates a stronger network signal
Battery level A higher bar indicates more power in the battery
Icon Indicates...
You have one or more text or picture messages. See
“Reply to a message or e-mail” on page69
You have one or more multimedia messages. See
“Read and reply to a multimedia message” on page74
You have one or more voice messages. See “Voice
messages” on page76
Your phone’s keypad is locked, see “Lock the keypad
(Keyguard)” on page43
Your phone is set to the Silent profile. “Profiles (Menu
3)” on page91
The alarm clock is set to On. See “Alarm clock (Menu
5)” on page108
Battery level
Names
Signal strength
Menu
[ 24 DRAFT ]
The countdown timer is running. See “Use the
countdown timer” on page129
The stopwatch timing is running in the background,
see “Use the stopwatch” on page130
A GPRS dial-up connection is established, see “GPRS
dial-up connections” on page138
You have an incoming or outgoing call during a GPRS
dial-up connection. GPRS is suspended
IR connection indicator, see “Infrared” on page136
Forward all voice calls. All calls are forwarded to
another number. If you have two phone lines, the
indicator for line 1 is and for line 2
If you have two phone lines, indicates that you are on
the 2nd phone line. See “Phone settings” on page100
Integrated handsfree is active, see “Speakerphone” on
page5
Calls are limited to a closed user group; see “Closed
user groups” on page48
The timed profile is selected, see “Profiles (Menu 3)”
on page91
, or A headset, handsfree or loopset accessory is
connected to the phone
Icon Indicates...
[ 25 DRAFT ]
Welcome and quick guide
• USE THE SELECTION AND SCROLL KEYS
Below each corner of the display
are the selection keys. Press the
left selection key when Menu
appears above it to show the first
of numerous menus. Page through
the rest of the menus using the up
and down scroll keys. Press the
right selection key when Names appears above it to enter the Phone book.
Tip: Press an up or down scroll key from the Start screen to view
any entries in your Phone book.
Use four-way scrolling
In features, such as the calendar monthly view, text
messages, and special characters, you can move the
cursor up and down as well as left and right. To move
the cursor:
• BROWSE PHONE MENUS
Your phone's features are grouped according to function and are accessed
through your phone's main menus. Each main menu contains submenus
and lists from which you can select or view items, and customize your
phone's features. You can access these menus and submenus by using the
scroll method or by using a shortcut.
Note: Some features may not be available, depending
on your network. For more information, contact your
wireless provider.
Left, press the
left scroll key
Up, press the up
scroll key
Down, press the
down scroll key
Right, press the right
scroll key
Right
select
Left
select
[ 26 DRAFT ]
Use the scroll method
1At the Start screen, press Menu, then scroll through the main menus
using the up and down scroll keys.
As you scroll through the menus, the menu
number appears in the upper right corner of
the display. Below the menu number is a scroll
bar with a tab. The tab moves up or down as
you scroll through the menus, providing a
visual representation of your current position
in the menu structure.
2When you arrive at a menu, press Select (the left selection key) to
enter that menu’s submenus.
•Press Exit (the right selection key) to return to the previous menu
•Press the end key to return to the Start screen from any menu or
submenu.
Use a shortcut
You can go directly to almost any menu or submenu, as well as activate
most features by using a shortcut.
•Press Menu, then within 3 seconds, press the key or keys associated
with the menu function you’d like to view or activate.
For example, to select the Meeting profile, press Menu 3-3-1 from
the Start screen (Menu - 3Profiles - 3Meeting - 1Select). After a brief
pause, the Meeting profile is activated.
A complete list of shortcuts begins on the following page.
Check in-phone help
Many features have brief descriptions (help text) which can be viewed on
the display. To view these descriptions, scroll to a feature and wait for
about 10 seconds. Press More to view all of the description (if necessary),
or press Back to exit.
[ 27 DRAFT ]
Welcome and quick guide
ACTIVATE OR DEACTIVATE HELP TEXT
1At the Start screen, press Menu 4-3-7 (Settings > Phone settings >
Help text activation).
2After a brief pause, On and Off appear in the display.
3Scroll to On or Off and press Select. A confirmation message appears
in the display indicating your selection.
[ 28 DRAFT ]
Menu shortcuts
1MESSAGES
To access a
menu or item, press “Menu,”
then enter the numbers
associated with the desired
menu or item. For example,
press Menu 2-2-1
(Call log - Missed calls) to view
any Missed calls.
TEXT MESSAGES . . . . . . . 01-1
Create message. . . . . . . 01-1-1
Create e-mail . . . . . . . . 01-1-2
Inbox . . . . . . . . . . . . . . . 01-1-3
Sent items . . . . . . . . . . . 01-1-4
Archive. . . . . . . . . . . . . . 01-1-5
Templates . . . . . . . . . . . 01-1-6
My folders . . . . . . . . . . . 01-1-7
Delete messages . . . . . . 01-1-8
MULTIMEDIA MSGS . . . . . . 01-2
Create message. . . . . . . 01-2-1
Inbox . . . . . . . . . . . . . . . 01-2-2
Outbox. . . . . . . . . . . . . . 01-2-3
Sent items . . . . . . . . . . . 01-2-4
Saved items . . . . . . . . . . 01-2-5
Delete messages . . . . . . 01-2-6
CHAT. . . . . . . . . . . . . . . . . .01-3
VOICE MESSAGES. . . . . . . . 01-4
Listen to
voice messages . . . . . . . 01-4-1
Voice mailbox number . 01-4-2
INFO MESSAGES . . . . . . . . . 01-5
Info service . . . . . . . . . . 01-5-1
Topics. . . . . . . . . . . . . . . 01-5-2
Language. . . . . . . . . . . . 01-5-3
Info topics
saved on SIM card . . . . 01-5-4
Read (if received only). .01-5-5
MESSAGE SETTINGS . . . . . 01-6
Text messages . . . . . . . .01-6-1
Multimedia msgs. . . . . .01-6-2
Other settings . . . . . . . .01-6-3
SERVICE COMMANDS . . . . 01-7
2CALL LOG
MISSED
CALLS . . . . . . . . . . . . . . . . . 2-1
RECEIVED CALLS . . . . . . . . . 2-2
DIALED NUMBERS . . . . . . . . 2-3
DELETE RECENT
CALL LISTS. . . . . . . . . . . . . . 2-4
All. . . . . . . . . . . . . . . . . . .2-4-1
Missed . . . . . . . . . . . . . . .2-4-2
Received . . . . . . . . . . . . . .2-4-3
Dialed . . . . . . . . . . . . . . . .2-4-4
CALL TIMERS . . . . . . . . . . . . 2-5
Duration of last call. . . . .2-5-1
Duration of dialed calls. .2-5-2
Duration of
received calls . . . . . . . . . .2-5-3
Duration of all calls. . . . .2-5-4
Clear timers . . . . . . . . . . .2-5-5
CALL COSTS. . . . . . . . . . . . . 2-6
Last call units. . . . . . . . . .2-6-1
Units of all calls. . . . . . . .2-6-2
Call cost settings. . . . . . .2-6-3
GPRS DATA COUNTER . . . . . 2-7
Data sent in last session.2-7-1
Data received
in last session. . . . . . . . . .2-7-2
All sent data. . . . . . . . . . .2-7-3
All received data . . . . . . .2-7-4
Clear counters . . . . . . . . .2-7-5
GPRS CONNECTION TIMER . . 2-8
Duration of last session .2-8-1
Duration of all sessions. .2-8-2
Clear timers . . . . . . . . . . .2-8-3
[ 29 DRAFT ]
Welcome and quick guide
3PROFILES
NORMAL3-1
Select . . . . . . . . . . . . . . . .3-1-1
Customize . . . . . . . . . . . . .3-1-2
Ringing options. . . . .3-1-2-1
Ringing tone. . . . . . .3-1-2-2
Ringing volume. . . . .3-1-2-3
Vibrating alert. . . . . .3-1-2-4
Message alert tone . .3-1-2-5
Keypad tones. . . . . . .3-1-2-6
Warning tones . . . . .3-1-2-7
Alert for. . . . . . . . . . .3-1-2-8
Timed. . . . . . . . . . . . . . . . .3-1-3
SILENT . . . . . . . . . . . . . . . . . 3-2
Select . . . . . . . . . . . . . . . .3-2-1
Customize . . . . . . . . . . . . .3-2-2
Ringing options. . . . .3-2-2-1
Ringing tone. . . . . . .3-2-2-2
Ringing volume. . . . .3-2-2-3
Vibrating alert. . . . . .3-2-2-4
Message alert tone . .3-2-2-5
Keypad tones. . . . . . .3-2-2-6
Warning tones . . . . .3-2-2-7
Alert for. . . . . . . . . . .3-2-2-8
Profile name . . . . . . .3-2-2-9
Timed. . . . . . . . . . . . . . . . .3-2-3
Submenus for Meeting, Outdoor,
and Pager are the same as Silent
MEETING . . . . . . . . . . . . . . . 3-3
OUTDOOR . . . . . . . . . . . . . . 3-4
PAGER . . . . . . . . . . . . . . . . . 3-5
4SETTINGS
TIME AND DATE SETTINGS . . 4-1
Clock. . . . . . . . . . . . . . . . .4-1-1
Date. . . . . . . . . . . . . . . . . .4-1-2
Auto-update
of date & time . . . . . . . . 4-1-3
CALL SETTINGS . . . . . . . . . . 4-2
Automatic volume control
. . . . . . . . . . . . . . . . . . . . . 4-2-1
Call forwarding . . . . . . . . 4-2-2
Anykey answer . . . . . . . . 4-2-4
Automatic redial . . . . . . 4-2-4
Speed dialing. . . . . . . . . . 4-2-5
Call waiting . . . . . . . . . . . 4-2-6
Summary after call. . . . . 4-2-7
Send my caller identity. . 4-2-8
Line for outgoing calls1 . 4-2-9
PHONE SETTINGS. . . . . . . . . 4-3
Language. . . . . . . . . . . . . 4-3-1
Automatic keyguard . . . . 4-3-2
Cell info display. . . . . . . . 4-3-3
Welcome note . . . . . . . . . 4-3-4
System selection. . . . . . . 4-3-5
Confirm SIM
service actions. . . . . . . . . 4-3-6
Help text activation . . . . 4-3-7
Start-up tone . . . . . . . . . 4-3-8
DISPLAY SETTINGS. . . . . . . . 4-4
Wallpaper . . . . . . . . . . . . 4-4-1
Color schemes. . . . . . . . . 4-4-2
Screen saver timeout . . . 4-4-3
Operator logo . . . . . . . . . 4-4-4
Display brightness. . . . . . 4-4-5
TONE SETTINGS. . . . . . . . . . 4-5
Ringing options. . . . . . . . 4-5-1
Ringing tone . . . . . . . . . . 4-5-2
Ringing volume . . . . . . . . 4-5-3
Vibrating alert. . . . . . . . . 4-5-4
Message alert tone. . . . . 4-5-5
Keypad tones. . . . . . . . . . 4-5-6
Warning tones. . . . . . . . . 4-5-7
1For availability, contact your wireless provider.
[ 30 DRAFT ]
Alert for. . . . . . . . . . . . . . 4-5-8
ACCESSORY SETTINGS . . . . . 4-6
Headset . . . . . . . . . . . . . . 4-6-1
Default profile. . . . . 4-6-1-1
Automatic answer. . 4-6-1-2
Loopset . . . . . . . . . . . . . . 4-6-2
Use loopset . . . . . . . 4-6-2-1
Automatic answer. . 4-6-2-2
Automatic answer. . 4-6-2-3
SECURITY SETTINGS . . . . . . . 4-7
PIN code request. . . . . . . 4-7-1
Call restrictions. . . . . . . . 4-7-2
Fixed dialing . . . . . . . . . . 4-7-3
Closed user group. . . . . . 4-7-4
Security level. . . . . . . . . . 4-7-5
Access codes. . . . . . . . . . 4-7-6
RESTORE
FACTORY SETTINGS . . . . . . . . 4-8
5ALARM CLOCK
6RADIO
OPTIONS . . . . . . . . . . . . . . . . 6-1
7GALLERY
8ORGANIZER
CALENDAR . . . . . . . . . . . . . . 8-1
TO-DO LIST . . . . . . . . . . . . . . 8-2
9GAMES
SELECT GAME. . . . . . . . . . . . 9-1
GAME SERVICES . . . . . . . . . . 9-2
MEMORY . . . . . . . . . . . . . . . 9-3
SETTINGS . . . . . . . . . . . . . . . 9-4
Game sounds . . . . . . . . . .9-4-1
Game lights . . . . . . . . . . .9-4-2
Shakes . . . . . . . . . . . . . . .9-4-3
10 APPLICATIONS
SELECT APPLICATION . . . . . 10-1
APP. DOWNLOADS. . . . . . . 10-2
MEMORY . . . . . . . . . . . . . . 10-3
11 EXTRAS
CALCULATOR . . . . . . . . . . . 11-1
COUNTDOWN TIMER . . . . . 11-2
STOPWATCH . . . . . . . . . . . 11-3
CALORIE COUNTER . . . . . . 11-4
THERMOMETER . . . . . . . . . 11-5
SOUND METER. . . . . . . . . . 11-6
12 CONNECTIVITY
INFRARED . . . . . . . . . . . . . 12-1
GPRS . . . . . . . . . . . . . . . . . 12-2
GPRS modem settings. .12-2-1
GPRS connection. . . . . .12-2-2
13 SERVICES
HOME . . . . . . . . . . . . . . . . 13-1
BOOKMARKS . . . . . . . . . . . 13-2
SERVICE INBOX . . . . . . . . . 13-3
SETTINGS . . . . . . . . . . . . . . 13-4
Active service settings. .13-4-1
Edit active
service settings . . . . . . .13-4-2
Appearance settings . . .13-4-3
Cookie settings . . . . . . .13-4-4
Authority certificates . .13-4-5
Service inbox settings. .13-4-6
GO TO ADDRESS . . . . . . . . 13-5
CLEAR THE CACHE . . . . . . . 13-6
[ 31 DRAFT ]
Basic operations
4Basic operations
• SET THE CLOCK
Before many functions such as call timers and other features will operate
properly, you need to set the clock.
1At the Start screen, press Menu 4-1-1 (Settings - Time and date
settings - Clock).
After a brief pause, Show clock (or Hide clock) Set the time,
and Time format appear in the display with Show clock (or Hide
clock) highlighted.
2Scroll to Set the time and press Select.
3Enter the time (in hh:mm format) and press OK.
4Scroll to am or pm and press Select. The time is set.
• MAKE AND ANSWER CALLS
Note: Your phone must be switched on to use this function. Do
not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
Use the keypad
1Enter the phone number (including the area code), and press the talk
key.
•To delete a character to the left of the cursor, press Clear.
2Press the end key to end the call or to cancel the call attempt.
Use the phone book
1At the Start screen, press the up or down scroll key and scroll to the
entry you wish to view.
2Press the talk key to make the call or press Details to view details of
[ 32 DRAFT ]
the entry.
Tip: To quickly search the list of entries in your Phone book, press
any key in which the letters match the first letter of the name for
which you’re searching.
Answer or reject an incoming call
•Press the Talk key to answer the call
•Press the end key to reject the call; the call is diverted to your
voicemail
If you press Silence, only the ringing tone is muted. You can then
either answer or reject the incoming call.
Tip: If the HDB-4 or HDS-3 headset is connected, you can answer
or end a call by pressing the key on the headset.
Answer a call with the keypad locked
To answer a call with keyguard on, simply press the talk key. During the
call, all features function as normal. When you end or reject the call, the
keypad automatically re-locks.
Note: When Keyguard is on, calls may be possible to dial
emergency numbers (for example, 911 or other official emergency
numbers). Key in the emergency number and press the talk key. The
number is displayed only after you have keyed in its last digit.
Redial the last number
1At the Start screen, press the talk key to display the last 20 numbers
you have dialed.
2Press the talk key to redial the last number, or scroll to the number
(or name) you wish to redial and press the talk key.
[ 33 DRAFT ]
Basic operations
Adjust the earpiece volume
•To increase the volume of a call, press the
volume up key on the left side of the phone.
•To decrease the volume of a call, press
the volume down key on the left side of
the phone.
When adjusting the volume, a bar chart
appears in the display indicating the
volume level.
• CALL AND SETUP YOUR VOICEMAIL
1Once you’ve saved the voice mailbox number, press and hold the 1
key.
2When you connect and the pre-recorded greeting begins, follow the
automated instructions to setup your voicemail.
Listen to your voice messages
Once you’ve setup voicemail, you can dial the number one of 3 ways:
•Dial the number using the keypad
•Press and hold the 1 key
•Press Listen if there’s a notification message in the display
When you connect and the pre-recorded greeting begins, follow the
automated instructions to listen to your voice messages.
Make a conference call
Conference calling is a network service that allows up to six persons to
take part in a conference call.
1Make a call to the first participant.
2To call a new participant, press Options, scroll to New call, and
press Select.
3Enter the phone number of the new participant (or press Find to
Volume key
[ 34 DRAFT ]
retrieve a number from your Phone book) and press Call. The first call
is put on hold.
4When the new call picks up, press Options, scroll to Conference, and
press Select to connect the calls.
5To add a new participant to the call, repeat steps 2 through 4.
HAVE A PRIVATE CONVERSATION WITH ONE OF THE PARTICIPANTS:
6Press Options, select Private and select the desired participant. Rejoin
the conference call as described in step 4.
7To end the conference call, press the end key.
• OPTIONS DURING A CALL
Many of the options that you can use during a call, are network services.
Press Options during a call to display those listed in the following table.
•Scroll to an option and press Select to activate the option or enter
its submenu
Option Function
Mute Mute your voice; you can hear the other party but
they can’t hear you
Unmute Return to normal from mute status
End call End the call
End all calls End all calls within a conference call
Phone book Open the Phone book menu
Menu Display the main menus
Hold Place the current call on hold
Unhold Remove the current call from hold status
New call Place a new call; the first call is put on hold
Conference Call another party and invite them into the call
[ 35 DRAFT ]
Basic operations
Press Swap to switch between the active call and the call on hold,
Transfer to connect a call on hold, and the end key to disconnect yourself
from all calls.
• SET UP YOUR PHONE
Use the Optional headset
The HDB-4 may be purchased with your phone or separately as
an accessory.
Connect the headset
1Plug the headset jack into the
Pop-PortTM connector at the bottom
end of your phone.
Private Have a private conversation with one participant in a
conference call
Answer Answer another incoming call
Reject Reject a call; the calling party receives a busy signal
Loudspeaker Enable the handsfree feature in your phone
Handset Disable handsfree and return to normal use (earpiece)
Touch tones Send touch tones generated by your phones keypad
Swap Switch between the active call and the call on hold
Option Function
[ 36 DRAFT ]
2Position the headset on your ear
as it appears in the illustration to
the right.
With the headset connected, you
can make, answer, and end calls
as usual.
•Use the keypad to enter numbers
•Press the talk key to place a call
•Press the end key to end a call
Adjust display brightness
1Press Menu 4-4-5 (Settings - Display settings - Display brightness).
After a brief pause, a bar chart appears in the display indicating the
current brightness level.
2Press the left or right scroll keys to adjust the brightness to your
preference.
Change the Xpress-onTM shells
Important: Before changing the shells, always switch off the
power and disconnect the phone from the charger or any other
device. Always store the phone with the shells attached.
Note: To avoid fingerprints, try to keep your fingers away from
your phone’s screen once the upper shell has been removed.
REMOVE THE LOWER SHELL
1Push the lower shell release
indentions at the top of the
phone.
2Slide the lower shell away from
the phone to remove.
[ 37 DRAFT ]
Basic operations
REMOVE THE BATTERY
3After you’ve removed the lower
shell, grasp the removal flap and
gently pull; the battery lifts from its
compartment
REMOVE THE UPPER SHELL
4Press the metal release bumps on
the sides of the phone while gently
sliding the upper shell away from
the rest of the phone.
INSTALL THE KEY MAT AND
NEW SHELLS
5Remove the key mat from
the old lower shell and
place it into the new lower
shell as shown.
6Slide the upper shell over
the top of the phone until it
clicks into place.
7Repace the battery. Position
the battery so the gold contacts
match up with those on the
phone. The battery label should
be facing away from the phone.
8Insert the battery, contact end
first into the battery slot.
9Snap the other end of the battery into place and snap the back of the
[ 38 DRAFT ]
phone closed.
10 Place the phone into the lower shell.
11 Slide the shell forward until it
clicks into place.
[ 39 DRAFT ]
Text entry
5Text entry
You can use two methods for entering text and numbers.
•The standard mode is the only way to enter names into such things
as the Phone book, calendar notes, and renaming caller groups
•Predictive text input is a quick and easy method for writing messages
• STANDARD MODE
Enter text (Abc)
•Press a key once to insert the first letter on the key, twice for the
second letter, and so on. If you pause briefly, the last letter in the
display is accepted and your phone awaits the next entry.
•Press the 0 key to enter a space thereby accepting a completed word
•Press the 1 key to enter a period (.)
•Press the star key to display special characters. See more about
special characters on the following pages
Enter numbers (123)
To switch to 123 mode from Abc mode, press and hold the pound key at
any message entry screen until the icon in the upper left corner of the
display switches from Abc to 123 (or vice versa).
CLEAR THE SCREEN
•Press Clear to backspace the cursor and delete a character
•Press and hold Clear to backspace continuously and delete
[ 40 DRAFT ]
Enter punctuation and special characters
While at any text entry screen, press the star key to display special
characters (press and hold the star key if predictive text is on). The
following special characters are available
Use four-way scrolling
Navigate special characters using the scroll
keys much as you would a joystick. Once a
character is highlighted, press Insert to
insert the character into your message.
• PREDICTIVE TEXT INPUT
Predictive text input allows you to quickly write messages using your
keypad and the phone’s built-in dictionary. You can use predictive text to
write messages, create a calendar notes, make to-do lists, and more.
Activate/deactivate predictive text
•At a text entry screen, press and hold Options. T9 prediction off or
T9 prediction on appears (depending on the prior mode).
OR
1If predictive text is off, press Options, scroll to Predictive text, and
press Select.
2Scroll to the language of your choice and press Select.
Predictive text is turned on. The predictive text icon () appears in
., ‘ ?!“-()@/
:_;+&%*=<>£
$¥¤[ ] { } \~^
¡¿§#l
Up
Down
Left Right
[ 41 DRAFT ]
Text entry
the upper left corner of the display.
Note: The Language setting in predictive text affects the time and
date formats of the Clock, Alarm clock, and Calendar.
Write with predictive text
For example, to write Nokia with the English dictionary selected, press
each of the following keys only once: (with predictive text on). The
illustration below simulates your display each time a key is pressed.
6 6 5 4 2
PREDICTIVE TEXT TIPS
•Press the 0 key to enter a space and begin writing the next word
•If a displayed word is not correct, press the star key to see other
matches
•If ? appears after a word, press Spell to add the word to the dictionary
•Press the 1 key to insert a period into your message
•Press and hold Options to turn predictive text on and off
•Press and hold the star key to display special characters. See “Enter
punctuation and special characters” and “Use four-way scrolling” on
the previous page for the easiest way to enter special characters
[ 42 DRAFT ]
Note: Press the pound key to switch predictive text on and off or
to cycle through the various modes available. As you press the
pound key, the following icons (not descriptions) appear in the
display:
Add new words to the dictionary
If you encounter a word that predictive text doesn’t recognize, a question
mark (?) follows the word and Spell appears in the lower left of the
display.
•Press Spell, enter your new word using the keypad, and press Save.
The word is added to the dictionary as well as the message you’re writing.
NOTES ABOUT ADDING WORDS
•New words that you accept by pressing Select, the 0 key, or deleting
the space between two words are saved to the dictionary.
•Depending on the language and the length of the words, you may be
able to add hundreds of words to the dictionary.
•When the dictionary is full, the most recent addition replaces the first.
Uppercase text
Predictive text is Off Sentence case text
Predictive text is On
Lowercase text
Predictive text is Off Lowercase text
Predictive text is On
[ 43 DRAFT ]
Manage phone security
6Manage phone security
Lock the keypad (Keyguard)
Remember to lock your phone’s keypad to prevent accidental calls. If the
keypad is locked, it unlocks when you receive a call. After the call, the lock
automatically reactivates.
Important: When Keyguard is on, calls may be possible to dial
emergency numbers (for example, 911 or other official emergency
numbers). Key in the emergency number and press the talk key. The
number appears in the display after you’ve keyed in the last digit.
•To lock the keypad, press Menu then the star key.
Unlock the keypad
•At the Start screen, press Unlock then the star key.
• SECURITY LEVELS
The security level determines your access to features when a “non-owner”
SIM card is used. A “non-owner” SIM card is one (other than the original)
that is inserted after you power off the phone. There are 3 security levels:
Set your security level
1At the Start screen, press Menu 4-7-5 (Settings - Security settings -
Security level).
Security levels
Off Owner and Non-owner cards are treated the same
Memory
Non-owner cards can access SIM memory. Any changes to
the memory setting requires the security code.
The owner card has access to all features, but the security
code is required to change a memory setting
Phone The security code is required upon power-up
[ 44 DRAFT ]
2After a brief pause, you’re prompted to enter the security code.
The default code is 12345. Enter the security code and press OK.
3Scroll to Off, Memory, or Phone and press Select. A message appears
in the display confirming your selection
• FIXED DIALING
Once you setup and activate a fixed dialing list, your phone can make
calls only to those numbers that you’ve defined in the fixed dialing list.
Fixed dialing is a network feature and must be supported by your wireless
provider.
Note: When fixed dialing is set on, calls may be possible to certain
emergency numbers in some networks (such as 911 or other
official emergency numbers).
Set up and activate a fixed dialing list
1At the Start screen, press Menu 4-7-3 (Settings - Security Settings -
Fixed dialing). After a brief pause, the options in the following table
appear in the display.
Note: If you activate fixed dialing and the number list is empty, all
outgoing calls, except for emergency numbers such as 911, require
entry of the PIN2 code.
2Scroll to Number list and press Select. Fixed dialing not active and
then Fixed dialing list empty appear in the display.
3You’re prompted to enter the PIN2 code. Enter the PIN2 code and
press OK.
Fixed dialing options
On Activate fixed dialing (see note above)
Off Deactivate fixed dialing
Number list View the numbers in your fixed dialing list
[ 45 DRAFT ]
Manage phone security
4Enter the fixed dialing number, or press Find to retrieve a number
from your Phone book and press OK.
5Enter a name for the number and press OK. A confirmation note
appears in the display and you’re returned to the fixed dialing
number list.
6Press Back, scroll to On, and press Select to activate fixed dialing.
View or edit the fixed dialing list
1At the Start screen, press Menu 4-7-3 (Settings - Security Settings -
Fixed dialing).
2Scroll to Number list and press Select.
3You’re prompted to enter the PIN2 code. Enter the PIN2 code and
press OK.
4Any numbers which you’ve assigned to fixed dialing appear in
the display.
5Scroll to a number and press Options.
6The options in the following table appear in the display.
•Use the scroll keys to highlight an option
•Press Select to activate or enter an option’s submenu
Fixed dialing number options
View number View the number for an entry
Add Add a number to your fixed dialing list
Edit Edit the highlighted entry
Delete Delete the highlighted entry
Delete all Delete all entries in your fixed dialing list
[ 46 DRAFT ]
Notes about fixed dialing
•If a SIM card with fixed dialing that is activated is inserted into a
phone that doesn’t support fixed dialing, the SIM card is rejected
•If you try to add a name (without a number) to the fixed dialing list,
you’ll receive an error message
•If you try to browse the fixed dialing list, but haven’t stored any
numbers, Fixed dialing list empty appears in the display
•You cannot access SIM memory manually (view or copy numbers on
the SIM card) while fixed dialing is active
• ACCESS CODES
Use access codes to change your security code, PIN code, and PIN2 code.
Note: Avoid using codes similar to emergency numbers such as
911 to prevent accidental dialing of the emergency number.
The security code
The security code controls access to features such as the security level and
is supplied with the phone. The preset code is 12345.
Note: If you enter the wrong security code five times in
succession, you won’t be able to enter a code for five minutes,
even if you power off the phone between incorrect entries.
CHANGE YOUR SECURITY CODE
Once you change the security code from its preset of 12345, keep the new
code secret, and in a safe place separate from your phone.
1Press Menu 4-7-6-1 (Settings - Security settings - Access codes -
Change security code).
After a brief pause, you’re prompted to enter the current security code
(default is 12345).
2Enter the current security code and press OK. You’re prompted to
enter the new security code.
3Enter the new security code (up to 10 characters) and press OK.
[ 47 DRAFT ]
Manage phone security
You’re asked to re-enter the new security code for verification.
4Enter the new security code again and press OK. A message appears
in the display confirming your security code has been changed.
The PIN code
The PIN code protects the SIM card from unauthorized access. The PIN code
can be 4- 8 digits in length. After three successive incorrect entries the
PIN code is blocked and you’ll be asked to enter the personal unblocking
key (PUK) code.
Note: The PIN code must be obtained from your wireless provider.
The PIN code is typically provided with your SIM card.
PIN CODE REQUEST
Enable your phone to request the PIN code upon power-up. This provides
extra security in case your phone is lost or stolen.
1Press Menu 4-7-1 (Settings - Security settings - PIN code request).
2After a brief pause, you’re prompted to enter the current PIN code.
Enter the PIN code and press OK.
3Scroll to On and press OK. A message appears in the display
confirming your selection.
CHANGE YOUR PIN CODE
Before you can change your PIN code, you’ll need to enable PIN code
request. See “PIN code request” immediately preceding this section.
1Press Menu 4-7-6-2 (Settings - Security settings - Access codes -
Change PIN code).
2After a brief pause, you’re prompted to enter the current PIN code.
Enter the PIN code and press OK.
3You’re prompted to enter the new PIN code. Enter the new PIN code
and press OK.
4You’re prompted to re-enter the new PIN code for verification.
Enter the new PIN code again and press OK.
[ 48 DRAFT ]
A message appears in the display confirming your PIN code has
been changed.
The PIN2 Code
The PIN2 code is required for features such as Fixed dialing. If you enter
an incorrect PIN2 code three times in succession, the PIN2 code is blocked
and you’ll have to enter the PUK2 code.
Note: The original PIN2 code must be obtained from your
wireless provider.
CHANGE YOUR PIN2 CODE
1Press Menu 4-7-6-3 (Settings - Security settings - Access codes -
Change PIN2 code). You’re prompted to enter the current PIN2 code.
2Enter the current PIN2 code and press OK. You’re prompted to enter
the new PIN2 code.
3Enter the new PIN2 code and press OK. You’re asked to verify the new
PIN2 code by entering it again.
4Enter the new PIN2 code again and press OK. A message appears in
the display confirming you’ve changed the PIN2 code.
Personal unblocking key (PUK) codes
PUK and PUK2 codes are used to restore blocked PIN and PIN2 codes.
Both PUK and PUK2 codes are eight characters in length and cannot
be changed. PUK and PUK2 codes must be obtained from your
wireless provider.
Important: If you enter an incorrect PUK or PUK2 code 10 times
in succession, the message SIM rejected appears in the display and
the SIM card can no longer be used. You must contact your wireless
provider for a new SIM card.
Closed user groups
A closed user group is a network service that specifies the group of people
whom you can call and who can call you. For more information contact
your network operator or service provider.
[ 49 DRAFT ]
The Phone book
7The Phone book
Your Phone book can save up to 300 names, with multiple numbers and
text notes for each name. The amount of numbers and text entries that
you can save may vary, depending on their length and the total number
of entries in the Phone book.
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
• VIEW THE PHONE BOOK MENU
1At the Start screen, press the right selection key under
Names. The menu items in the left column of the following table
appear in the display.
2Scroll to an item. Press Select to activate the feature or enter
its submenu.
Menu item Function
Find Find a name or select from a list
Add entry Add a name to your Phone book
Edit name Edit an existing name
Delete Delete a name and its associated numbers
Copy Copy entries from Phone memory to SIM and vice versa
Add number Add a number to an existing name
Settings Set memory in use (Phone or SIM), change your Phone
book view, and check the memory status of your Phone
and SIM card
[ 50 DRAFT ]
• SAVE NAMES AND NUMBERS
You can save names and numbers to phone memory or to SIM memory.
Quickly save a name and number
1At the Start screen, enter the phone number you wish to save.
2Press Options, ensure Save is highlighted, and press Select.
3Enter a name for the number and press OK. A confirmation message
appears in the display indicating your entry has been saved.
Quickly save (only) a number
You can save a phone number as a stand-alone entry in your phonebook.
1At the Start screen, enter the number you wish to save.
2Press and hold Options. A message appears in the display confirming
your number is saved.
Save an entry using the Phone book menu
1At the Start screen, press Names, scroll to Add entry and press Select.
2Enter a name using the keypad and press OK.
3Enter a number and press OK.
1-touch
dialing Display the list of 1-touch dialing numbers saved
to memory
Service
numbers Display a list of numbers related to your
wireless provider
Own numbers View the numbers (line 1, line 2, data) in use by your
SIM card
Caller groups View and edit the properties (such as the ring tone) for
any of the caller groups
Menu item Function
[ 51 DRAFT ]
The Phone book
4Press Done to return to the Start screen.
Save addresses and notes
To save an email address, you’ll need to add it to an existing entry (name).
1Find the entry (name) in your Phone book to which you’d like to add
an address or note.
2With the entry highlighted, press Details.
3Press Options, scroll to Add detail and press Select.
4Scroll to the address or note of your choice and press Select.
5Enter the text for the note or address and press OK.
Select your Phone book view and memory
1Press Names, scroll to Settings, and press Select.
2Scroll to any of the options in the following table. Press Select to
enter the option’s submenu.
Option Function
Memory
in use Select the memory you wish to use. Options are Phone, SIM
card, or Phone and SIM combined. With Phone and SIM
selected, names and numbers are saved to phone memory
but entries saved to both memories appear in the display
Phone
book
view
Select the Name list, Name and number, or Name only view
Memory
status View the amount of phone or SIM memory used as well as
the amount of phone or SIM memory available
[ 52 DRAFT ]
Save multiple numbers and text items per name
You can save different types of phone numbers and short text items per
name to the Phone book. The first number you save for any entry is
automatically set as the default, or primary number.
1At the Start screen, press the up or down scroll key and scroll to the
entry to which you wish to add a number or text item.
2Press Details, and then press Options.
3Scroll to Add number or Add detail and press Select.
4Scroll to one of the following types and press Select:
5Enter the number or text for the type you’ve selected and press OK.
•To change the type, select Change type in the options list.
CHANGE THE DEFAULT (PRIMARY) NUMBER
1At the Start screen, press the up or down scroll key to scroll to the
entry you wish to change and press Details.
2Scroll to the number you wish to set as default and press Options.
3Scroll to As primary no. and press Select.
Search for a name in the Phone book
1At the Start screen, press the up or down scroll key to display the
contents of your Phone book.
2Press the key which corresponds to the first letter of the name for
which you are performing a search.
3Press the up or down scroll key to scroll up and down through names
in the list.
Press the left or right scroll key to move the cursor left or right in the
General Mobile Home Work Fax
E-mail
address Web address Street
address Note
[ 53 DRAFT ]
The Phone book
search window at the bottom of the display, if necessary.
4Press Details to view the details of the selected name.
Edit a name, number or text item
1Search for the entry as described in the previous section and
press Details.
2Scroll to the name, number or text item you wish to edit and
press Options.
3Scroll to Edit name, Edit number, or Edit detail and press Select.
4Edit the name, number, or detail to your preference and press OK.
Delete names and numbers
1At the Start screen, press Names, scroll to Delete, and press Select.
2To delete individual names and numbers, scroll to One by one and
press Select.
3Scroll to the entry you wish to delete, press Delete, and press OK to
confirm the deletion.
4To delete the entire contents of your Phone book, scroll to Delete all,
then scroll to the phone book you wish to delete (Phone or SIM card).
5Press Delete, then press OK to confirm. You’re asked to enter the
security code.
6Enter the security code and press OK.
[ 54 DRAFT ]
• COPY PHONE BOOK ENTRIES
1At the Start screen, press Names, scroll to Copy, and press Select.
2Scroll to From phone to SIM card or From SIM card to phone and
press Select. The following options appear in the display:
3Scroll to the copy method of your choice and press Select.
a) If you selected One by one, go to step 4.
b) If you selected All or Primary nos., go to step 6.
4Scroll to the entry you wish to copy and press Copy.
5Scroll to Keep original or Move original and press Select. The entry
is copied and you’re returned to the list of Phone book entries.
6If you selected All or Primary nos. in step 3, scroll to Keep original or
Move original and press Select.
7Press OK to confirm your choice. All entries are copied to the selected
destination. Press Back to return to the list of Phone book entries, or
press the end key to exit and return to the Start screen.
Caution: Select Keep original if you’re unsure of which copy
method to use. This ensures original entries are merely copied to
the new location. Move original deletes files after copying.
Send and receive business cards
You can send and receive an entry in your Phone book via IR or text
message, if supported by your wireless provider.
RECEIVE A BUSINESS CARD VIA IR
1Press Menu 12-1 (Connectivity - Infrared) to ensure IR is activated.
When you receive the business card, your phone beeps and a message
One by one Select and copy entries one by one
All Copies all entries from the SIM card or Phone
*Primary nos. Copies only primary numbers. This appears only if you
select From phone to SIM.
[ 55 DRAFT ]
The Phone book
appears in the display.
2Select Save to save the business card in the phone’s memory, or press
Exit (or OK) to discard the business card.
SEND A BUSINESS CARD
You can send a business card via IR or as an text message to a compatible
phone or other handheld device.
1Highlight an entry from the Phone book that you wish to send and
press Details.
2Press Options, scroll to Send bus. card and press Select.
•To send the business card via IR, make sure the receiving device
is set up to receive data via its IR port and select Via infrared.
•To send the business card as a message, select Via text message.
3If you selected Via infrared (and the entry has multiple sub-entries)
scroll to Primary no. or All details and press Select. Your business
card is sent.
4If you selected Via text message (and the entry has multiple sub-
entries), scroll to Primary no. or All details and press Select.
5Enter the number for your recipient or press Find to retrieve a number
from your Phone book.
6Press OK and the business card is sent.
• 1-TOUCH DIALING
You can associate any entry in your Phone book with keys 2 through 9 and
then dial those entries by pressing and holding the assigned key.
Assign a key to 1-touch dialing
1At the Start screen, press Names, scroll to 1-touch dialing and
press Select.
2Scroll to any empty slot and press Assign.
[ 56 DRAFT ]
3Enter the number (including the area code) and press OK, or press
Find to retrieve a number from your Phone book.
4Enter a name for the number and press OK.
•If 1-touch dialing is off, the phone displays a prompt asking if you’d
like to turn 1-touch dialing on. Press Yes to activate 1-touch dialing.
5The entry appears in the slot you’ve assigned.
Make a call with 1-touch dialing
•Press and hold the key to which an entry has been assigned. Your
phone dials the entry assigned to the key.
CHANGE 1-TOUCH DIALING NUMBERS
1At the Start screen, press Names, scroll to 1-touch dialing and
press Select.
2Scroll to the 1-touch dialing entry you wish to change and
press Options.
3Scroll to Change and press Select.
4Enter the new number, or press Find to retrieve a number from your
Phone book, and press OK.
5Enter a name for the entry and press OK.
DELETE 1-TOUCH DIALING NUMBERS
1At the Start screen, press Names, scroll to 1-touch dialing and
press Select.
2Scroll to the 1-touch dialing location you wish to delete and
press Options.
3Scroll to delete and press Select. You’re asked to confirm the deletion.
4Press OK to delete the key assignment.
• VIEW INFO, SERVICE, AND OWN NUMBERS
Your wireless provider may have saved your phone’s operating number, as
well as various information and service numbers to your SIM card.
[ 57 DRAFT ]
The Phone book
Note: This feature may not be supported by your SIM card. If so,
contact your wireless provider for more information.
1Press Names at the Start screen, scroll to one of the number types in
the following table, and press Select.
2To view details of any of the number types in the previous table, press
Details when the number type appears in the display.
Caller groups
You can add Phone book entries to any of 5 caller groups, and then assign
a unique ringing tone or graphic to that group. This enables you to
identify callers from the group by their unique ringing tone or graphic. A
caller group can be as small as one person or as large as your entire Phone
book. Caller groups can be renamed to suit your preference.
CALLER GROUP OPTIONS
1At the Start screen, press Names, scroll to Caller groups, and press
Select. The following Caller groups are available.
2Use the up and down scroll keys to highlight a group. Press Select to
display the following caller group options:
Number type Used this number to...
Info numbers Contact your wireless provider to obtain information
Service numbers Contact your wireless provider to obtain service
Own numbers Display the operating number, or numbers which
have been assigned to your phone by your wireless
provider
Family VIP Friends Business Other
Rename group Rename the group to your preference
Group ringing tone Set the ringing tone for the group
Group logo Turn the graphic for the caller group on or off
Group members Add or remove members from the caller group
[ 58 DRAFT ]
Setup a caller group
1At the Start screen, press the up or down scroll key to display a list of
entries in your Phone book.
Tip: Perform a “quick find” when Phone book entries are displayed
by entering the first letter of a name. appears at the bottom
of the display to indicate you’re performing a search.
2Scroll to a name you’d like to add to a caller group and press Details.
3Press Options, scroll to Caller groups, and press Select.
4Scroll to the caller group to which you’d like to add the name and
press Select. A confirmation message appears in the display.
[ 59 DRAFT ]
Menu functions
8Menu functions
Messages (Menu 1)
If you’ve subscribed to a message service, you can
send and receive messages to compatible phones
that are also subscribed to a message service. You
can also send and receive picture messages,
multimedia messages, and e-mail if supported by
your network. Composed messages can be up to 450 characters in length.
Linked messages
Your phone can send and receive long messages (up to 450 characters) in
sequences. While receiving linked messages, you can start reading the
first part before the phone has received the entire message.
While viewing the message, you may see *some text missing* on the
display. This is normal, and the message content will be updated as soon
as the missing sequence arrives.
If the memory is full, you may have to delete a message from your inbox
or outbox before your phone can update the missing text.
Before you can send and receive messages
You’ll need the following to send and receive messages:
•A messaging service through your wireless provider
•A message center number, which must be saved to your phone (if your
wireless provider hasn’t done so already)
[ 60 DRAFT ]
Message icons
Icons that precede the title of a message indicate the following:
Choose your message type
You can choose the type of message sent by your phone. Types include
Text and Fax.
Note: The default message type is Text.
Note: This feature must be supported by your wireless provider.
1At the Start screen, press Menu 01-6 (Messages - Message settings).
2After a brief pause, Text messages appears highlighted. Press Select.
3Sending profile is highlighted. Press Select.
4Default profile is highlighted. Press Select.
5Scroll to Messages sent as and press Select.
6Scroll to the message type of your choice and press Select. A message
appears in the display confirming your selection.
Save your message center number
Messages sent by your phone are routed through your wireless provider’s
message center. Normally, this number is saved to your phone by your
wireless provider. To save the number manually, do the following:
1At the Start screen, press Menu 01-6 (Messages - Message settings).
2Text messages is highlighted. Press Select.
The message has not been read
The message has been read
A message (which you’ve composed) has not been sent
iThe message is a delivery report
The message is a MMS (multimedia message)
[ 61 DRAFT ]
Menu functions
3Sending profile is highlighted. Press Select.
4Default profile is highlighted. Press Select.
5If the box in the display is empty, enter the number given by your
wireless provider and press OK.
6If the box is in the display is full, edit the number only if you are
sure the number is incorrect, or you’d like to change the number, and
press OK.
A message appears in the display confirming your number is saved.
• TIPS FOR COMPOSING A MESSAGE
Predictive text input
Predictive text allows you to write messages using a built-in dictionary.
It’s much faster than using the traditional “multi-tap” method. For each
letter of the word that you’re spelling, you only need to press the
corresponding key on your keypad once. You can use predictive text to
write a message, create a calendar note, make a to-do list, and more.
Activate/deactivate predictive text
•At any text entry screen, press and hold Options. Predictive text is
turned on (or off), depending on its previous mode.
OR
1At a text entry screen, press Options, scroll to Predictive text, and
press Select.
2Scroll to the language of your choice and press Select.
Predictive text is turned on. The predictive text icon () appears in
the upper left corner of the display.
Note: The Language setting affects the time and date formats of
the Clock, Alarm clock, and Calendar.
[ 62 DRAFT ]
Use predictive text
For example, to write Nokia, with the English dictionary selected, press
each of the following keys once: (with predictive text on):
6 6 5 4 2
The illustration above simulates your display each time a key is pressed.
•Press the 0 key to enter a space and begin writing the next word.
•If a displayed word is not correct, press the star key to see other
matches. To return to the previous word in the list of matches, press
Previous.
•If ? appears after a word, press Spell to add the word to the
dictionary.
•Press the 1 key to insert a period into your message.
•Press and hold the star key to display special characters. Press the star
key again to cycle through all available characters. See “Use special
characters” in the following section for more information on special
characters.
Note: Press the pound key to switch predictive text on or off and
to use predictive text in various modes. As you press the pound
key, the following icons (not the descriptions) appear in the upper
left of the display:
Uppercase text
Predictive text is Off Sentence case text
Predictive text is On
Lowercase text
Predictive text is Off Lowercase text
Predictive text is On
[ 63 DRAFT ]
Menu functions
Add new words to the dictionary
If you encounter a word that predictive text doesn’t recognize, a question
mark (?) follows the word and Spell appears in the lower left of the
display.
•Press Spell, enter your new word using the keypad, and press Save.
The word is added to the dictionary as well as the message you’re writing.
NOTES ABOUT ADDING WORDS
•New words that you accept by pressing Select, the 0 key, or deleting
the space between two words are saved to the dictionary.
•Depending on the language and the length of the words, you may be
able to add hundreds of words to the dictionary.
•When the dictionary is full, the most recent addition replaces the first.
Use special characters
While entering text, press and hold the star key to display the following
special characters. Press the star key again to cycle through all available
characters:
., ‘ ?!“-()@/
:_;+&%*=<>£
$¤[ ] { } \~^¡
¿§#
[ 64 DRAFT ]
Use four-way scrolling
In features, such as the calendar monthly view, text
messages, and special characters, you can move the
cursor up and down as well as left and right.
• WRITE AND SEND A TEXT MESSAGE
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
1At the Start screen, press Menu 01-1-1 (Messages - Text messages
> Create message).
Tip: To go quickly to the Create message display, press the left
scroll key at the Start screen.
2After a brief pause, the message entry screen appears in the display.
3Compose a message using the keypad and press Options.
4Scroll to Send and press Select.
5Enter the recipient’s phone number, or press Find to retrieve a number
from your Phone book, and press OK. Your message is sent.
Read messages
When you receive a message, your phone beeps and Message received
appears in the display as well as the unopened letter icon ( ).
1Press Show to read the message, or Exit to move it to your inbox.
Note: When you have unopened messages in your inbox, is
shown in the upper left corner of the Start screen as a reminder.
2Use the up and down scroll keys to view the whole message if
necessary.
Left, press the
left scroll key
Up, press the up
scroll key
Down, press the
down scroll key
Right, press the right
scroll key
[ 65 DRAFT ]
Menu functions
Tip: Keep scrolling to view other information, such as the sender
number and time the message was sent.
3Press Back to move the message to the Inbox, or press Options for
other choices, such as Reply or Forward.
Read linked messages
Your phone can receive one long message (up to 459 characters) in
sequences. You can start reading the first part before the phone has
received the entire message.
While viewing the message, you may see *some text missing* on the
display. This is normal, and the message content will be updated as soon
as the missing sequence arrives.
If the memory is full, you may have to delete a message from your inbox
or outbox before your phone can update the missing text.
Reply to a message
1While viewing a message, press Options, scroll to Reply, and
press Select.
2Compose your reply using the keypad, then press Options, scroll to
Send, and press Select.
3The number of the original sender appears in the display. Press OK and
your reply is sent.
Forward a message
1While viewing a message, press Options.
2Scroll to Forward and press Select.
3Enter the recipient’s phone number, or press Find to retrieve a number
from your Phone book.
4Press OK. The message is forwarded.
[ 66 DRAFT ]
• PICTURE MESSAGES
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
Your phone comes with 10 pre-loaded pictures. You can, however, over-
write any of the 10 pictures that come with your phone. Pictures can be
attached to a message and sent via text message to compatible phones.
Picture messages behave the same as text messages, but pictures take up
more space than text. Pictures are stored in the “Templates” folder under
Messages - Templates.
Note: You cannot send a picture message via e-mail.
Download pictures
Your phone can download pictures, or receive them from compatible
phones via text messaging to use in messages. You can also create
pictures and send them to your phone or other compatible phones using
Nokia PC Suite.
Note: This function can be used only if it is supported by your
wireless provider. Only phones that offer picture message features
can receive and display picture messages. Contact your wireless
provider for details.
When you receive a picture message
When you receive a picture message, your phone beeps and Message
received appears in the display as well the message icon ( ).
1Press Show to view the picture message, or press Exit to move it to
your inbox.
2If you have more than one picture message, scroll to the message of
your choice and press Select to view the message.
Note: When you have unopened picture messages in your
inbox, is shown in the upper left corner of the Start screen
as a reminder.
3Use the scroll keys to view the whole picture if necessary.
[ 67 DRAFT ]
Menu functions
Tip: Keep scrolling to view other information, such as the sender
number and time the message was sent.
4Once you’re finished, press Back to move the picture message to the
Inbox, or press Options for other choices, such as Reply or Forward.
TO SAVE THE PICTURE
If you’d like to save the picture to your Templates folder for later use:
1Press Options, scroll to Save picture, and press Select. You can then
enter a title for the picture and press OK.
Note: If your templates folder is full of pictures, just scroll to the
picture you’d like to replace and press Select.
Compose and send a picture message
One picture message is equivalent in size to 3 text messages. When you
insert a picture into a message, you’ll have enough remaining space for
about 121 characters in the message. If you try and insert a picture into
a message that is almost full of text, a beep sounds and you’re prompted
to delete some text before proceeding.
1At the Start screen, press Menu 01-1-1 (Messages - Text messages
- Create message).
After a brief pause, the message edit screen appears in the display.
2Write a message using the keypad (or enter nothing if you choose to
just send a picture), and press Options.
Tip: Insert pictures before adding text. You can then check
remaining space for text in the upper right corner of the display.
3Scroll to Insert picture and press Select. A list of pictures appears in
the display.
4Scroll to a picture and press View.
5Press Insert to insert the picture into your message, otherwise:
a) Press Back, scroll to another picture, and press View again.
b) Press Insert to insert the picture into your message.
[ 68 DRAFT ]
6To send the picture message, press Options, scroll to Send, and
press Select.
7Enter the phone number for your recipient (or press Find to retrieve a
number from your Phone book) and press OK. The message is sent.
PREVIEW, CHANGE, OR DELETE A PICTURE MESSAGE
1After a picture has been inserted into your message, press Options at
the message edit screen.
2Scroll to one of the following options and press Select.
a) Preview - Previews the inserted message before sending.
Press Back to return to the list of options.
b) Change picture - Takes you back to the picture list.
Scroll to highlight a new picture, press View and then press Insert
to replace the previous picture in your message.
c) Delete picture - Press OK to delete the picture from your
message, or press Back to return to the list of options.
• E-MAIL
You can send e-mail up to 160 characters in length to anyone with an
e-mail address. First, you’ll need to setup an e-mail profile and modify a
few other settings. It takes just a few minutes, and you only need to do
this once.
Important:The e-mail address is included in the total character
count for an e-mail message, which is 160 characters.
Note: You cannot insert pictures into e-mail.
Note: Wireless providers may customize the text message settings
interface. For more details about text message services, please
contact your wireless provider.
[ 69 DRAFT ]
Menu functions
Write and send e-mail
Note: See “Tips for composing a message” on page61 for ways to
write messages faster.
1At the Start screen, press Menu 01-1-2 (Messages - Text messages
- Create e-mail).
After a brief pause, you’re prompted to enter the e-mail address.
2Enter the e-mail address, or press Find to retrieve an e-mail address
from your Phone book, and press OK.
3Enter a subject for the e-mail and press OK.
4Compose your e-mail using the keypad and press Options.
Tip: Be sure and leave enough space in the total character count
(160) for the e-mail address.
5Scroll to Send e-mail, if necessary, and press Select. Your e-mail
is sent.
Reply to a message or e-mail
When you have received a text message or e-mail, , the number of
new messages and ___ Message(s) received appears in the display.
Note: The blinking indicates that the message memory is
full. Before you can receive new messages, delete some of your
old messages. See “Delete messages” on page82 for more
information.
•Press Show to view the message now, or Exit to view it later.
READING THE MESSAGE LATER:
1Press Menu, and select Messages, Text messages and Inbox.
2If more than one message is received, select the message you want to
read and press Select.
An unread text message is indicated by in front of the message,
and an unviewed picture message by .
[ 70 DRAFT ]
• MULTIMEDIA MESSAGES
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
A multimedia message (MMS) can contain text, images, and sounds. Your
phone has a multimedia message viewer for playing messages and a
multimedia inbox for storing saved messages. Once you save the
multimedia message, you can use the image as a screen saver or the
sound as a ringing tone.
Note: This function can be used only if it is supported by
your wireless provider. Only compatible devices can receive and
display multimedia messages.
A multimedia message can contain text, images and sounds. Your phone
supports multimedia messages of up to 45 kB. If the maximum size is
exceeded, the phone may not be able to receive the message. Depending
upon your network, you may receive a message that includes an Internet
address where you can go to view the multimedia message.
Pictures included in multimedia messages are scaled down to fit the size
of your display.
Note: The default setting of the multimedia message service is on,
and your wireless provider may charge for messages received.
Multimedia messaging supports the following formats:
•Picture: JPEG, GIF, PNG, OTA-BMP and WBMP.
•Sound: MIDI
Note: If a received message contains unsupported elements, they
may be replaced with the text Object format not supported
[ 71 DRAFT ]
Menu functions
Define MMS settings
Before you can use the multimedia message feature, you need to first
define the way you want to receive the messages.
ALLOW MULTIMEDIA RECEPTION
You can choose to receive all messages or to receive messages only when
you are in the service provider’s home network.
1At the Start screen, press Menu 01-6-2-2 (Messages - Message
settings - Multimedia msgs. - Allow multimedia reception). After a
brief pause, a list of options appears in the display.
•Yes to allow all incoming messages
•In home system to allow incoming messages only if you are in the
service provider’s home system.
2After selecting one of the reception options, scroll to Incoming
multimedia messages, then press Select.
3Scroll to Retrieve, then press Select.
BLOCK MULTIMEDIA RECEPTION
1At the Start screen, press Menu 01-6-2-2 (Messages - Message
settings - Multimedia msgs. - Allow multimedia reception). After a
brief pause, a list of options appears in the display.
2Scroll to No and press Select.
ALLOW OR NOT ALLOW ADVERTISEMENTS
1At the Start screen, press Menu 01-6-2-5 (Messages - Message
settings - Multimedia msgs. - Allow advertisements). After a brief
pause, Yes and No appear in the display.
2Scroll to the setting of your choice and press Select.
[ 72 DRAFT ]
Other MMS settings
Other multimedia settings include saving your messages to the Sent
items folder and editing your connection settings.
1At the Start screen, press Menu 01-6-2 (Messages - Message
settings - Multimedia msgs.). After a brief pause, a list of options
appears in the display.
2Scroll to an option. Press Select to activate the option or to enter
its submenu.
Edit multimedia connection settings
1At the Start screen, press Menu 01-6-2-4 (Messages - Message
settings - Multimedia msgs. - Connection settings).
2Scroll to Edit active multimedia settings and press Select.
Message
Setting Function
Save sent
messages Saves sent multimedia messages to the Sent
items folder
Allow
multimedia
reception
Chooses Yes, No, or In home network for your
multimedia service. In home network can’t receive
multimedia messages outside the home network.
Incoming
multimedia
messages
Select Retrieve to receive multimedia messages, or
Reject if you don’t wish to receive multimedia
messages.
Connection
settings Define WAP settings for retrieving multimedia
messages. Activate the set where you want to save
the connection settings and then edit the settings.
Allow
advertisements Allows you to enable or disable reception of
automatic multimedia advertisements
[ 73 DRAFT ]
Menu functions
3The connection settings in the following table appear in the display.
Scroll to a setting. Press Select to enter the setting’s submenu.
ABOUT CONNECTION SETTINGS
You may be able to receive multimedia connection settings as a text
message from your wireless provider. For more information, contact your
wireless provider.
SELECT A FONT SIZE FOR YOUR MESSAGES
1Press Menu 01-6-3-1 (Messages - Message settings - Other settings
- Font size). After a brief pause a list of choices appear in the display.
2Scroll to Small font or Large font and press Select. A message
appears in the display confirming your selection.
Connection
setting Function
Settings’ name Rename the setting to your preference
Homepage Enter the homepage where your browser retrieves
multimedia messages
Session mode Select session modes Temporary or Permanent
Data bearer Select the data bearer
GPRS access
point Define the access point
IP address Enter or change the IP address
Authentication
type Select from Normal or Secure
User name Edit or enter your user name
Password Edit or enter a password
[ 74 DRAFT ]
Write and send a multimedia message
For availability and subscription to the multimedia messaging service,
contact your wireless provider.
1At the Start screen, press Menu 01-2-1 (Messages - Multimedia
messages - Write message). After a brief pause, the message entry
screen appears in the display.
2Enter the text of your message and press Options.
3Scroll to Insert image or Insert sound clip and press Select.
4Choose your image or sound clip from the list and press Select.
5Scroll to Send to number or Send to e-mail and press Select.
Note: If you’ve attached a picture or sound clip to the message,
you cannot send the message via e-mail.
6Enter the number of the recipient, or the e-mail address and press
Select. The message is sent.
Read and reply to a multimedia message
When a multimedia message is being received, appears (blinking) in
the display. Once the message has been fully downloaded, and
Multimedia message received appears in the display.
1To view the message, press Show. To view the message later, press
Exit (and then No when asked to discard).
2While viewing the message, press Options. Some or all of the
following options may appear in the display. Scroll to an option and
press Select to activate the option or enter its submenu.
Option Function
Delete
message Delete a saved message
Reply Reply to the message. Press Options and then Send. The
sender’s phone number or e-mail is used as the default
Forward to no. Forward the message to another number
[ 75 DRAFT ]
Menu functions
Note: If blinks and Multimedia memory full, view waiting
msg. appears in the display, memory for multimedia messages is
full. You need to delete some of your old messages. See “Delete
messages” on page82 for more information.
Chat
You can have a conversation with another person using this “faster text
messaging” application. You can’t save messages, but you can view them
while chatting. Chat messages costs about the same as text messages.
START A CHAT SESSION
1At the Start screen, press Menu 01-3 (Messages - Chat). After a brief
pause, you’re prompted to enter the recipient’s phone number.
2Enter the recipient’s number or press Find to retrieve a number from
the phone book, and press OK.
3Enter your Chat name (up to 5 characters) and press OK.
Another way to start a chat: When you have received a message, press
Show to read it. To start a chat, press Options and select Chat.
4Enter your chat message using the keypad. For faster ways to write a
message, see “Write with predictive text” on page41.
Forward to
e-mail Forward the message to an e-mail address
Edit Edit the message. You can only edit messages that
you’ve written
Details View the message subject, size, and class
Play Listen to a sound clip in the message, if one is included
Save tone Save a ringing tone, if included, to the gallery
Zoom in Enlarge the picture
Save image Save any picture that is attached to your picture gallery
Option Function
[ 76 DRAFT ]
5When you’re ready to send the message, press Options, scroll to Send,
and press Select.
6When you receive a reply, the message from the other person is
shown above your original message.
7To reply to the message, press OK and repeat the steps 4 and 5.
8To end the chat session, press OK and select Quit.
•To view the latest messages of the current chat session, press Options
and select Chat history. The message that you have sent is indicated
by "<" and your nickname. The messages from your chat partner are
indicated by ">" and that sender’s nickname.
•Press Back to return to the message you are writing. To edit your
nickname, press Options, scroll to Chat name and press Select.
• VOICE MESSAGES
If you subscribe to voicemail, your wireless provider will furnish you with
a voice mailbox number. You need to save this number to your phone to
use voicemail. When you receive a voice message, your phone lets you
know by beeping, displaying a message, or both. If you receive more than
one message, your phone shows the number of messages received.
Save your voice mailbox number
Your wireless provider may have already saved your voice mailbox number
to your phone. If so, the number will appear in the display in step 2. Press
OK to leave the number unchanged.
1At the Start screen, press Menu 01-4-2 (Messages - Voice messages -
Voice mailbox number).
2After a brief pause, the Voice mailbox number screen appears in
the display.
3If the box is empty, enter the voice mailbox area code and number.
4Press OK. Your phone confirms the number has been saved.
[ 77 DRAFT ]
Menu functions
Tip: Save yourself the trouble of entering the mailbox codes each
time you dial voicemail. See “Automate voicemail” later in this
section for more information.
Call and setup your voicemail
1Once you’ve saved the voice mailbox number, press and hold the 1
key.
2When you connect to voicemail and the pre-recorded greeting begins,
follow the service’s automated instructions to setup your voicemail.
Listen to your voice messages
Once you’ve setup voicemail, you can dial the number in one of 4 ways:
•Dial the number using the keypad
•Press and hold the 1 key
•Press Listen if there’s a notification message in the display
•Press Menu 01-4-1 (Messages - Voice messages - Listen to
voice messages). After a brief pause, your phone dials the
voicemail number.
Once you connect and the pre-recorded greeting begins, follow the
automated instructions to listen to your voice messages.
• AUTOMATE VOICEMAIL
You can insert special characters called “dialing codes” into phone numbers
such as voicemail and then save the number to a 1-touch dialing location.
Dialing codes instruct the receiving system to pause, wait, bypass, or
accept the numbers that follow them in the dialing string.
Note: Each voicemail service can vary. The examples and steps
that follow are for clarification. Check with your wireless provider
if you have specific questions about your voicemail service.
Write down some information
1Write down your voice mailbox number.
[ 78 DRAFT ]
2Call and check your voicemail as you normally would.
3Write down your interaction with the recorded prompts step-by-step.
Keep in mind that each voicemail service may vary. However, it should
look something like this:
Dial 2145551212, pause 5 seconds, press 1, pause 2 seconds, press
1234, press pound key.
Important: Be precise, you’ll need this information in “Setup
voicemail with dialing codes” later in this section.
LEARN HOW TO INSERT DIALING CODES
Press the star key repeatedly to cycle through dialing codes. Once the
desired code appears in the display, pause briefly and the code is inserted
into the dialing string.
For example, press the star key four times to display the “w” (wait
character). Pause briefly and the wait character is inserted into the dialing
string. Available dialing codes are as follows:
Setup voicemail with dialing codes
1At the Start screen, press Names, scroll to 1-touch dialing, and
press Select.
2Scroll to an empty 1-touch dialing slot and press Assign.
3Enter your voice mailbox number, including the area code.
4Refer to the table entitled “dialing codes,” and enter any codes as
necessary using the information that you wrote down earlier.
Dialing codes
*Bypasses a set of instructions
+Precedes an international telephone number
pPauses for 2.5 seconds before sending any numbers that follow
wWait. Your phone waits for you to press the talk key before it
sends any numbers or codes that follow.
[ 79 DRAFT ]
Menu functions
For example, if you pause for 5 seconds after connecting to voicemail,
enter p twice after the voice mailbox number, such as
2145551212pp.
5Enter any remaining pauses, PIN codes, and other information that
allows you to listen to your messages, then press OK.
6Enter a name (such as Voicemail) and press OK. A message appears in
the display confirming your 1-touch dialing location has been saved.
Now, to dial and listen to your voicemail, just press and hold the
assigned 1-touch dialing key at the Start screen. No other keypresses
should be necessary to connect and listen to your messages.
• MESSAGE OPTIONS
Some or all of the options in the following table are available for text
messages, picture messages, multimedia messages, and e-mail.
1While viewing a text, picture, multimedia message, or e-mail
press Options.
2Scroll to highlight an option. Press Select to activate the option or
enter its submenu.
Option Function
Delete Delete the message you’re viewing
Reply Reply to the message; you’ve the option to include the
Original text in the reply, a template, or empty screen
Use detail Extract numbers, e-mail addresses and website
addresses from the current message
Forward Forward the message to another recipient
Edit Edit the message
Move Move the message to a folder you specify
[ 80 DRAFT ]
• ORGANIZE MESSAGES WITH FOLDERS
Save messages to folders
You can save messages to an existing folder or to a folder that
you’ve created.
1Press Menu 01-1-1 (Messages - Text message - Create message).
After a brief pause, the message entry screen appears in the display.
2Write your message and press Options.
3Scroll to Save message and press Select.
4Scroll to the Archive, Templates, or My folders (if you’ve created a
folder of your own) and press Select. The message is saved.
View saved messages
1At the Start screen, press Menu 01-1 (Messages - Text messages).
2After a brief pause, scroll to the folder containing the message you
wish to view and press Select.
3Once the folder opens, scroll to the message you wish to view and
press Select.
Inbox folder
Messages are automatically stored in the inbox after they’ve been read or
if you press Back when Message received appears on the Start screen.
Rename Rename the message before it’s saved to a folder
Copy to
Calendar Copy text from the beginning of the message to your
phone’s calendar as a reminder note for the current
day.
Message
details View the sender’s name and phone number, the
message center used, reception date and time.
Option Function
[ 81 DRAFT ]
Menu functions
Archive folder
Store messages that have been read in the Archive folder.
Templates folder
Pictures and pre-written templates are stored in the Templates folder.
Pre-loaded templates can be edited/customized.
My folders
Keep your messages organized by creating custom folders and saving
some of your messages there.
ADD A FOLDER OF YOUR OWN
1At the Start screen, press Menu 01-1-7 (Messages - Text messages
- My folders). After a brief pause, the folder opens.
2Press Options. Scroll to Add folder and press Select.
3Enter a name for the new folder and press OK. The folder is added.
REMOVE A FOLDER
Only folders created in My folders can be deleted. The Inbox, Outbox,
Archive, and Template folders are protected. When you delete a folder, all
messages in the folder are also deleted.
1At the Start screen, press Menu 01-1-7 (Messages - Text messages
- My folders). After a brief pause, the folder opens.
2Any folders that you’ve created appear in the display. Scroll to the
folder you wish to remove and press Options.
3Scroll to Delete folder and press Select. You’re asked to confirm the
deletion.
4Press OK to delete or Back to exit.
Move a message to a folder
1While viewing the message, press Options.
2Scroll to Move and press Select.
3Scroll to the destination folder and press Select.
[ 82 DRAFT ]
• DELETE MESSAGES
If your message memory is full and you have more messages waiting at
the network, blinks in on Start screen. You can do the following to
create more space:
•Read some of the unread messages and then delete them
•Delete messages from some of your folders
Delete a single message
To delete a single message, you need to open it first.
1Press Menu 01-1 (Messages - Text messages). After a brief pause, a
list of options appears in the display.
2Scroll to the folder containing the message you wish to delete and
press Select. A list of messages, if you have any, appears in the
display.
3Scroll to the message you wish to delete and press Select. The
message opens.
4Press Options, scroll to Delete, and press Select.
5You’re asked to confirm the erasure. Press OK to delete the message
or Back to exit.
Delete all messages in a folder
1At the Start screen, press Menu 01-1-8 (Messages - Text messages
- Delete messages). After a brief pause, a list of your folders appears
in the display.
2Scroll to the folder containing the messages you wish to delete and
press Select. You’re asked to confirm your erasure.
Important: If you select All messages, it deletes any messages
which have been read in all of the folders.
3Press OK to empty the folder.
[ 83 DRAFT ]
Menu functions
Change text, e-mail and picture message settings
1At the Start screen, press Menu 01-6-1-1 (Messages - Message
Settings - Text messages - Sending profile).
2If more than one message profile set is supported by your SIM card,
scroll to the set you wish to change and press Select.
Message
Setting Function
Message
center
number
Save the phone number of the message center, which
is necessary for sending text messages; obtain this
number is from your wireless provider
Default
recipient
number
For text messages, the default number used to
send messages
Use GPRS Set GPRS as the preferred method of sending
text messages
Reply via
same center Allow the recipient of your message to send you a reply
message via your message center (network service).
Messages
sent as Select the message type Text, E-mail, Page, or Fax
Message
validity Define how long the network attempts to send your
messages before it gives up
E-mail server
number For e-mail messages, the default number used to
send e-mail
Delivery
reports Request the network to send delivery reports on
your messages
Rename
sending
profile
Change the name of the selected sending profile;
the sending profile sets display only if your SIM card
supports more than one set
[ 84 DRAFT ]
OVERWRITE SETTINGS FOR TEXT, E-MAIL, AND PICTURE MESSAGES
When the message memory is full, your phone can’t send or receive any
new messages. However, you can set your phone to automatically replace
old messages in the Inbox and Outbox folders when new ones arrive.
1Press Menu, 01-6-1 (Messages - Message settings - Text messages).
After a brief pause, a list of options appear in the display.
2Scroll to Overwriting in sent items or Overwriting in inbox and
press Select.
3Scroll to Allowed and press Select to replace the old messages with
new ones in the Sent items or Inbox folder, respectively.
Change multimedia message settings
1At the Start screen, press Menu 01-6-2 (Messages - Message
settings - Multimedia msgs.). After a brief pause, a list of options
appears in the display.
2Scroll to an option. Press Select to activate the option or to enter
its submenu.
Message
setting Function
Save sent
messages Saves sent multimedia messages to the
Sent items folder
Allow
multimedia
reception
Chooses Yes, No, or In home network for your
multimedia service. In home network can’t receive
multimedia messages outside the home network
Incoming
multimedia
messages
Select Retrieve to receive multimedia messages, or
Reject if you don’t wish to receive multimedia
messages
Allow
advertisement Allows you to enable or disable reception of automatic
multimedia advertisements
[ 85 DRAFT ]
Menu functions
RECEIVE MULTIMEDIA CONNECTION SETTINGS AS A
TEXT MESSAGE
You may be able to receive multimedia connection settings as a text
message from your wireless provider. For more information, contact your
wireless provider.
SELECT A FONT SIZE
1Press Menu 01-6-3-1 (Messages - Message settings - Other settings
- Font size). After a brief pause, a list of choices appear in the display.
2Scroll to Small font or Large font and press Select. A message
appears in the display confirming your selection.
Use the info message service
With the info message network service, you can receive short text
messages on various topics, such as weather and traffic conditions, from
your wireless provider.
1At the Start screen, press Menu 01-5 (Messages - Info messages).
After a brief pause, the list of options in the following table appears
in the display.
2Scroll to an option. Press Select to activate the option or to enter
its submenu.
Message
setting Function
Info service Select On or Off to activate or deactivate the service
Topics Options for selecting, adding, editing, and deleting
info topics
Language Select the language in which info messages
are received. The language you select does not affect the
language you select under the Phone settings menu
Info topics
saved on
SIM card
Select one or more info topics to save to your SIM card
[ 86 DRAFT ]
Note: For more information on topics, contact your
wireless provider.
Use service commands
Use the Service commands editor to enter and send service requests (also
known as USSD commands) to your wireless provider. Contact your
wireless provider for information about specific service commands.
1At the Start screen, press Menu 01-7 (Messages -
Service commands).
2Enter a service request, such as an activation command for a specific
network service, and press Send.
[ 87 DRAFT ]
Menu functions
Call log (Menu 2)
Call log stores information about the last 10
missed, 10 received, or 20 dialed calls. It also adds
the total duration of all calls. When the number of
calls exceed the maximum, the most recent call
replaces the oldest. For Call log to work properly:
•Your wireless provider must support caller ID, and it must be enabled
•Your calls can’t be blocked
•Your phone must be on and within the service area
• CALL LOG OPTIONS
Whether you are viewing missed, received, or dialed calls, each of the
menu options will be the same. Please refer to the following table
regarding menu options for these features.
Missed, received, and dialed call options
Call time Display the date and time of the call
Send message Send a message to the number
View number Display the number
Edit number Edit the number and associate a name with the number
Save Enter a name for the number and save it to your
Phone book
Add to name Add the number to an existing entry in your Phone
book, if the number is not associated with a name
Delete Clear the number from memory
Call Call the number
[ 88 DRAFT ]
• VIEW MISSED CALLS
Missed calls are calls that were never answered. You can check for missed
calls in two ways:
Note: The Missed calls feature does not function while your phone
is off or outside of the service area.
1If # missed call appears in the display, press List. The phone number
appears in the display.
2Press Options to display the options listed in the table on page87.
3Scroll to an option, press Select to activate the option or to enter
its submenu.
OR
1At the Start screen, press Menu 2-1 (Call log - Missed calls).
After a brief pause, a list of missed calls appears in the display
(if any exist).
2Scroll to a name or number and press Options to display the options
listed in the table on page87.
3Scroll to an option, press Select to activate the option or to enter
its submenu.
• VIEW RECEIVED CALLS
Received calls are calls that have been answered.
1At the Start screen, press Menu 2-2 (Call log - Received calls).
After a brief pause, a list of received calls appears in the display
(if any exist).
2Scroll to a name or number and press Options to display the options
listed in the table on page87.
3Scroll to an option, press Select to activate the option or enter
its submenu.
[ 89 DRAFT ]
Menu functions
• VIEW DIALED NUMBERS
You can view dialed numbers in one of two ways:
1At the Start screen, press the talk key. Your most recently dialed
numbers appear in the display.
OR
2At the Start screen, press Menu 2-3 (Call log - Dialed numbers).
After a brief pause, your most recently dialed numbers appear in
the display.
3Scroll to a name or number and press Options to display the options
listed in the table on page87.
4Scroll to an option, press Select to activate the option or enter
its submenu.
Call times
You can receive up to five calls from the same number and view the time
each call occurred. Your clock must be set for this feature to work accurately.
See “Set the clock” on page31 for instructions on setting your clock.
1While viewing a missed or received call, press Options, scroll to Call
time, and press Select.
2The time that the last call occurred appears in the display.
3Press the down scroll key to view other call times from this number.
Press Back to return to the options list.
• CLEAR CALL LISTS
To clear any missed, dialed, or received calls from your phone’s memory:
1At the Start screen, press Menu 2-4 (Call log - Delete recent
call lists).
After a brief pause, All, Missed, Received and Dialed appear in
the display.
2Scroll to the call type you’d like to clear and press Select.
[ 90 DRAFT ]
• VIEW CALL DURATION
1Duration of last call. At the Start screen, press Menu 2-5-1
(Call log - Call timers - Duration of last call). The duration of
your last call appears in the display.
2Duration of dialed calls. At the Start screen, press Menu 2-5-2
(Call log - Call timers - Duration of dialed calls). The duration of
all dialed calls appears in the display.
3Duration of received calls. At the Start screen, press Menu 2-5-3
(Call log - Call timers - Duration of received calls). The duration of all
received calls appears in the display.
4Duration of all calls. At the Start screen, press Menu 2-5-4
(Call log - Call timers - Duration of all calls). The duration of all
calls (missed, dialed, and received) appears in the display.
[ 91 DRAFT ]
Menu functions
Profiles (Menu 3)
Profiles define how your phone reacts when you
receive a call or a message, how your keypad sounds
when you press a key, and more. Ringing options,
keypad tones, and other settings for each of the 5
available profiles can be left at their default setting, or customized to suit
your needs. Select and customize the most suitable profile for your
situation, such as when you are in a meeting or outdoors. The following
profiles are available:
Note: Profiles are also available for accessories such as a headset
and car kit. See “Accessory settings” on page106 for more
information about accessory profiles.
• SELECT A PROFILE
1At the Start screen, press Menu 3 (Profiles).
After a brief pause, the list of profiles appears in the display.
2Scroll through the available profiles and press Select once the profile
of your choice is highlighted.
3Scroll to Select and press Select.
• CUSTOMIZE A PROFILE
You can customize any of the profiles a variety of ways.
1At the Start screen, press Menu 3 (Profiles).
After a brief pause, the list of profiles appears in the display.
2Scroll to the profile you wish to customize and press Select.
3Scroll to Customize and press Select.
•Normal •Silent •Meeting •Outdoor •Pager
[ 92 DRAFT ]
4Use the scroll keys to display each of the options in the following table.
Once you arrive at the option you’d like to customize, press Select.
Note: You cannot rename the Normal profile.
• SET A TIMED PROFILE
Timed profiles can be used to prevent missed calls. For example, suppose
you attend an event that requires your phone be set to Silent before the
event starts, but you forget to return it to Normal until long after the
Custom profile options
Ringing options Select the ringing tone style
Ringing tone Select the ringing tone for incoming calls
Ringing volume Set the volume of your ringing tone
Vibrating alert Turn the vibrating alert on or off
Light alert Set the phone to flash the flashlight during an
incoming call. If you switched the flashlight
on before receiving the call, the flashlight will
not flash.
Message alert tone Select the tone for received messages
Keypad tones Set the volume of your keypad tones (or turn
them off)
Warning tones Turn warning and confirmation tones on or off
Alert for Define which caller groups the selected profile
will accept or decline. See “Caller groups” on
page57 for more information.
Profile name Rename the profile (up to 16 characters)
[ 93 DRAFT ]
Menu functions
event. During this time, you’ve missed several calls because the ringing
tone was silent. A timed profile can prevent this by automatically
returning your phone to the default profile at a time you specify.
Note: Timed profiles can be set up to 24 hours in advance.
1At the Start screen, press Menu 3 (Profiles).
After a brief pause, the list of profiles appears in the display.
2Scroll to the profile you wish to activate and set for timed expiration,
then press Select.
3Scroll to Timed and press Select.
4Enter the time for the profile to expire and press OK.
The profile you’ve set for expiration is now active and appears in the
Start screen along with a small “clock” icon
[ 94 DRAFT ]
Settings (Menu 4)
Set the clock
1At the Start screen, press Menu 4-1-1
(Settings - Time and date settings - Clock).
After a brief pause, Show clock (or Hide clock)
Set the time, and Time format appear in the display with Show clock
(or Hide clock) highlighted.
2Scroll to Set the time and press Select.
3Enter the time (in hh:mm format) and press OK.
4Scroll to am or pm and press Select. The time is set.
Show/hide the clock
You have the option of displaying (or not displaying) the clock on the
Start screen.
1At the Start screen, press Menu 4-1-1 (Settings - Time and date
settings - Clock).
After a brief pause, Show clock (or Hide clock) Set the time,
and Time format appear in the display with Show clock (or Hide
clock) highlighted.
2Press Select.
•If your clock was previously “hidden,” (not shown on the display), it
will now appear in the upper right corner of the Start screen.
•If your clock was previously shown in the display, it will now be
hidden from view.
Change the time format
You can set the time format for am/pm or 24 hour format (military time).
1At the Start screen, press Menu 4-1-1 (Settings - Time and date
settings - Clock).
[ 95 DRAFT ]
Menu functions
After a brief pause, Show clock (or Hide clock) Set the time,
and Time format appear in the display with Show clock (or Hide
clock) highlighted.
2Scroll to Time format and press Select.
3Scroll to 24-hour or am/pm and press Select. A message appears in
the display confirming your selection.
Set the date
1At the Start screen, press Menu 4-1-2 (Settings - Time and
date settings - Date). After a brief pause, a list of options appears in
the display.
2Scroll to Set the date and press Select.
3Enter the date and press OK. The date is set.
Set or change the date format
1At the Start screen, press Menu 4-1-2 (Settings - Time and date
settings - Date).
2Scroll to Date format and press Select.
3Scroll to the format of your choice and press Select.
4Scroll to the date separator of your choice (period, slash, hyphen, or
space) and press Select. A message appears in the display confirming
your selection.
• CALL SETTINGS
Call forwarding
Call forwarding tells your network to redirect incoming calls to
another number.
Note: Call forwarding is network-dependent and may not work
the same in all networks. Contact your wireless provider
for availability.
[ 96 DRAFT ]
ACTIVATE CALL FORWARDING
Note: This is a network dependent feature. All options listed in the
following table may not appear in the display. Contact your
wireless provider for more information.
1At the Start screen, press Menu 4-2-2 (Settings - Call settings -
Call forwarding).
2After a brief pause, the forwarding options listed in the following
table appear in the display.
3Scroll to the option of your choice and press Select.
4Scroll to Activate and press Select.
5Scroll to the destination to which your calls will be forwarded
(such as To other no.) and press Select.
6Enter the number to which your calls, data, or other information will
be forwarded and press OK.
Forward all
voice calls Forward all calls to the number you specify
Forward if busy Forward incoming calls when you’re in a call
Forward if
not answered Forward incoming calls to another number if
you’re unable to answer. You can also set a
delay before forwarding takes place
Forward if out of
reach Forward incoming calls when your phone is off
Forward when not
able to take calls Forward calls that aren’t picked up. You can
also set a delay before forwarding takes place
Forward all fax calls Forward all fax calls to a fax mailbox
Forward all data calls Forward all data calls to a data mailbox
Cancel all
call forwarding Cancel any call forwarding options you may
have set
[ 97 DRAFT ]
Menu functions
Your phone calls the network to activate the feature you’ve requested.
The network sends a confirmation note when the feature has been
activated successfully.
CANCEL CALL FORWARDING
•At the Start screen, press Menu 4-2-2-8 (Settings - Call settings -
Call forwarding - Cancel all call forwarding).
Note: Cancel all call forwarding may affect your ability to receive
voice mail messages. Contact your wireless provider for specific details.
Automatic volume control
Automatic volume control automatically adjusts your phone’s earpiece
volume according to the noise level in your environment. If the
environmental noise level changes, automatic volume control adjusts the
earpiece’s volume level accordingly.
Note: Setting automatic volume control during an active call
affects only the current call. Automatic volume control is available
only in handportable mode.
ACTIVATE AUTOMATIC VOLUME CONTROL VIA THE MENU
1At the Start screen press Menu 4-2-1 (Settings - Call settings -
Automatic volume control).
2Scroll to Off or On and press Select. The default setting is Off.
ACTIVATE AUTOMATIC VOLUME CONTROL DURING A CALL
1During a call, press Options.
2Scroll to Auto volume on and press Select.
•To deactivate, scroll to Auto volume off and press Select.
If you increase the volume during an active call by pressing the volume
key , the phone’s volume level increases regardless of whether or not
automatic volume control is activated.
When you end the call, the volume returns to the level set before
automatic volume control was activated.
[ 98 DRAFT ]
Anykey answer
Anykey answer allows you to answer an incoming call by briefly pressing
any key except the power key,the left scroll key, the right scroll key, and
the end key.
1At the Start screen, press Menu 4-2-3 (Settings - Call settings -
Anykey answer). After a brief pause, On and Off appear in the display.
2Scroll to your choice and press Select.
Automatic redial
Occasionally, your network may experience heavy traffic, resulting in a
“fast” busy signal when you dial. With automatic redial activated, your
phone redials the number up to 10 times, and notifies you once the
network becomes available.
ACTIVATE OR DEACTIVATE AUTOMATIC REDIAL
1At the Start screen, press Menu 4-2-4 (Settings - Call settings -
Automatic redial). After a brief pause, On and Off appear in the
display.
2Scroll to your choice and press Select.
1-touch dialing
You can assign any entry in your Phone book to keys 2 through 9, and then
dial those entries by pressing and holding the assigned key.
ASSIGN A KEY TO 1-TOUCH DIALING
1At the Start screen, press Names, scroll to 1-touch dialing and
press Select.
2Scroll to any empty slot and press Assign.
3Enter the number (including the area code) and press OK, or press
Find to retrieve a number from your Phone book.
4Enter a name for the number and press OK.
MAKE A CALL WITH 1-TOUCH DIALING
•Press and hold the key to which an entry has been assigned.
[ 99 DRAFT ]
Menu functions
OR
•Press the key to which an entry has been assigned and then press the
talk key.
Call waiting
If supported by your wireless provider, call waiting notifies you of an
incoming call even while you’re in a call. You can then accept, reject, or
ignore the incoming call.
ACTIVATE CALL WAITING
1Press Menu, scroll to Settings, and press Select.
2Scroll to Call settings and press Select.
3Scroll to Call waiting and press Select.
4Scroll to Activate and press Select.
USE CALL WAITING
•During a call, press the talk key to answer the waiting call. The first
call is put on hold.
•Press the end key to end the active call.
Activate/deactivate summary after call
Your phone can display the time spent on a call when you hang up.
TURN ON SUMMARY AFTER CALL
1At the Start screen, press Menu 4-2-6 (Settings - Call settings -
Summary after call).
After a brief pause, On and Off appear in the display.
2Scroll to On and press Select.
TURN OFF SUMMARY AFTER CALL
1At the Start screen, press Menu 4-2-6 (Settings - Call settings -
Summary after call).
After a brief pause, On and Off appear in the display.
2Scroll to Off and press Select.
[ 100 DRAFT ]
Send my caller identity with next call
You can prevent your number from being displayed on the receiving
party’s caller ID. This feature is network dependent and works on a
call-by-call basis. Contact your wireless provider for more information.
1At the Start screen, press Menu 4-2-8 (Settings - Call settings -
Send my caller identity). After a brief pause, Default, Yes, and No
appear in the display.
2Scroll to the selection of your choice and press Select. A message
appears in the display confirming your selection.
Select a line for outgoing calls
Note: This is a network dependent feature. Check with your
wireless provider for availability and a description of the feature.
1At the Start screen, press Menu 4-2-9 (Settings - Call settings - Line
for outgoing calls). After a brief pause, Line 1 and Line 2 appear in
the display.
Important: If you select Line 2 and have not subscribed to this
network service, you will not be able to place calls. However, calls
on both lines can be answered regardless of the selected line.
2Scroll to Line 1 or Line 2 and press Select. A message appears in the
display confirming your selection.
Tip: If supported by your SIM card, you can prevent the line
selection by using the Lock option.
• PHONE SETTINGS
Set the display language
1At the Start screen, press Menu 4-3-1 (Settings - Phone
settings - Language).
After a brief pause, Automatic, English, Português, Español, and
Français appear in the display.
[ 101 DRAFT ]
Menu functions
2Scroll to the language of your choice and press Select.
Note: The Language setting affects the time and date formats of
the Clock, Alarm clock, and Calendar.
ACTIVATE OR DEACTIVATE AUTOMATIC KEYGUARD
Important: When keyguard is on, it may be possible to dial
emergency numbers (for example, 911 or other official emergency
numbers). Key in the emergency number and press the talk key. The
number is displayed only after you have keyed in its last digit.
You can set the keypad of your phone to lock automatically after a preset
time delay (from 10 seconds to 60 minutes). When the preset delay
expires, the keypad locks automatically.
1At the Start screen, press Menu 4-3-2 (Settings - Phone settings -
Automatic keyguard). After a brief pause, On and Off appear in
the display.
2Scroll to On (or Off to deactivate) and press Select.
3If you selected On, Set delay appears in the display.
4Enter the delay (in minutes and seconds) and press OK.
Cell info display
Note: Cell info display is network-dependent and may not work
the same in all networks. Contact your wireless provider
for availability.
When this function is selected, your phone will indicate when it is
used in a system cell based on Micro- Cellular Network technology. MCN
technology increases the capacity of wireless networks in urban areas. The
setting will remain in effect even if the SIM card is changed or the phone
is switched off.
1Press Menu 4-3-3 (Settings - Phone settings - Cell info display). After
a brief pause, On and Off appear in the display.
2Scroll to On (or Off) and press Select. A message appears in the
display confirming your selection.
[ 102 DRAFT ]
Note: If the GPRS connection is set to Always online, info
messages may not be received. In that case, set the GPRS
connection to When needed, see “GPRS” on page137 for more
information.
Welcome note
You can write a welcome note which shows up briefly on your display
whenever you power up your phone.
Note: Predictive text input is unavailable for entering Welcome
note text.
1At the Start screen, press Menu 4-3-4 (Settings - Phone settings -
Welcome note).
After a brief pause, the message edit screen appears in the display
awaiting text input.
2Enter a note (up to 44 characters).
•Press the star key to display and select from available special
characters. For more information on special characters, “Enter
punctuation and special characters” on page40.
3When you’re finished, press Options, scroll to Save, and press Select.
Scroll to Delete and press Select if you want to delete the previous
text and begin writing another note.
System selection
You may be able to manually search for another network which has a
roaming agreement with your home wireless provider.
1At the Start screen, press Menu 4-3-5 (Settings - Phone settings -
System selection). After a brief pause, Automatic and Manual appear
in the display.
[ 103 DRAFT ]
Menu functions
2Scroll to Automatic or Manual and press Select.
Note: If No system access appears in the display, you’ll need
to switch to Automatic mode, or insert another SIM card into
the phone.
Confirm SIM service actions
This option allows you to request notification when your service provider
makes changes to SIM-related services (such as activating GPRS service).
1Press Menu 4-3-6 (Settings - Phone settings - Confirm SIM service
actions). After a brief pause, Yes and No appear in the display.
2Scroll to the selection of your choice and press Select. A message
appears in the display confirming your selection.
Help text
Your phone displays brief descriptions for most menu items. When you
arrive at a feature or menu, pause for about 10 seconds. Use the scroll
keys to page through the full help text, if necessary.
ACTIVATE/DEACTIVATE HELP TEXT
The default setting for Help text is On. However, you can turn help text
on or off by doing the following from the Start screen.
1Press Menu 4-3-7 (Settings - Phone settings - Help text activation).
After a brief pause, On and Off appear in the display.
2Scroll to your choice and press Select. A message appears in the
display confirming your selection.
Option Function
Automatic Your phone defaults to those settings which have been
preset by your wireless provider
Manual Your phone searches for a network which has a
roaming agreement with your wireless provider
[ 104 DRAFT ]
START-UP TONE
You can set your phone to play (or not to play) a start-up tone when the
phone is switched on.
1At the Start screen, press Menu 4-3-8 (Settings - Phone settings -
Start-up tone). After a brief pause, On and Off appear in the display.
2Scroll to your choice and press Select. A message appears in the
display confirming your selection.
• DISPLAY SETTINGS
Wallpaper
You can set your phone to display a background picture (wallpaper) on
the Start screen. Some pictures are pre-saved in the Gallery menu. You
can also receive pictures via multimedia message, download them from
WAP pages or transfer them with PC Suite from your PC and then save
them in the Gallery. Your phone supports JPEG, GIF, BMP, PNG, and
WBMP formats.
SELECT WALLPAPER
1Press Menu 4-4-1 (Settings - Display settings - Wallpaper). After a
brief pause, On, Off, and Change image appear in the display.
2Scroll to Change image and press Select to browse the gallery for
another image.
3Use the up and down scroll keys to browse the image gallery. When
you arrive at the image of your choice, press Options, scroll to Set as
wallpaper, and press Select.
4If Replace current wallpaper? appears in the display, press OK. A
message appears in the display confirming your selection.
ACTIVATE/DEACTIVATE WALLPAPER
1Press Menu 4-4-1 (Settings - Display settings - Wallpaper). After a
brief pause, On, Off, and Change image appear in the display.
2Scroll to On or Off and press Select.
[ 105 DRAFT ]
Menu functions
Color schemes
You can change the color of some display components in your phone, such
as indicators and signal bars.
1At the Start screen, press Menu 4-4-2 (Settings - Display settings -
Color Schemes). After a brief pause, a list of color schemes appear in
the display.
2Scroll to the color scheme of your choice and press Select. A message
appears in the display confirming your selection.
Screen saver
The screen saver is activated when no function of the phone is used after
a preset period of time. Press any key to deactivate the screen saver. The
screen saver is also deactivated when the phone is out of the network
coverage area.
1At the Start screen, press Menu 4-4-3 (Settings - Display settings -
Screen saver timeout). After a brief pause, 2 minutes, 5 minutes, and
Other appear in the display.
2Scroll to 2 minutes or 5 minutes and press Select.
3If you want to set a custom time (up to 60 minutes), scroll to Other
and press Select. Enter the custom time and press OK. A message
appears in the display confirming your selection.
SCREEN SAVER TIMEOUT
You can set your phone to display a screen saver after a preset time or
after a custom time (up to 60 minutes) of your choosing.
Display brightness
You can change the brightness of your phone’s display.
1Press Menu 4-4-5 (Settings - Display settings - Display brightness).
After a brief pause, a bar chart appears in the display indicating the
current brightness level.
2Use the left and right scroll keys or the side volume keys to adjust the
contrast level to your preference.
[ 106 DRAFT ]
3Press OK to accept your settings.
• TONE SETTINGS
You can adjust the ringing volume, keypad tones, and more for the
currently active profile. The same options are described in detail under
“Customize a profile” on page91.
Accessory settings
The Accessory settings menu is shown only if the phone is or has been
connected to one of the compatible accessories such as the headset, car
kit, or mobile inductive loopset.
1At the Start screen, press Menu 4-6 (Settings - Accessory settings).
The following options may be available:
2Scroll to Headset, Handsfree or Loopset and press Select.
IF YOU SELECTED HEADSET
The following options are available. Scroll to the option of your choice and
press Select to enter the option’s submenu and modify its settings.
•Default profile - Choose the profile you wish to be automatically
activated when a headset is connected
•Automatic answer - Calls are answered automatically after 1 ring
when a headset is connected. Scroll to On or Off and press Select
IF YOU SELECTED HANDSFREE
The following options are available. Scroll to the option of your choice and
press Select to enter the option’s submenu and modify its settings.
•Default profile - Choose the profile you wish to be automatically
activated when your phone is connected to a car kit.
•Automatic answer - Calls are answered automatically after 1 ring
when a car kit is connected. Scroll to On or Off and press Select.
•Lights - Choose to keep the phone lights always on, or to shut off
automatically after several seconds. Scroll to On or Automatic and
press Select.
[ 107 DRAFT ]
Menu functions
IF YOU SELECTED LOOPSET
The following options are available. Scroll to the option of your choice and
press Select to enter the option’s submenu and modify its settings.
•Use loopset - Enable use of the LPS-4 mobile inductive loopset. Scroll
to Yes or No and press Select.
•Default profile - Choose the profile you wish to be automatically
activated when a loopset is connected.
•Automatic answer - Calls are answered automatically after 1 ring
when a loopset is connected. Scroll to On or Off and press Select.
Security settings
For information on PIN code request, Call restrictions, Fixed dialing, and
other security features, see “Manage phone security” on page43.
Restore factory settings
You can reset some of the menu settings to their original values.
1At the Start screen, press Menu 4-8 (Settings - Restore
factory settings). After a brief pause, you’re prompted to enter the
security code.
2Enter the security code (the default is 12345) and press OK. A
message appears in the display confirming your original settings have
been restored.
Note: Any data that you have entered, such as names and numbers
in your Phone book will not be deleted.
[ 108 DRAFT ]
Alarm clock (Menu 5)
The alarm clock is based on your phone’s internal
clock. It sounds an alert any time you specify and
even works if the phone is off.
• SET AN ALARM
IF AN ALARM HAS NOT BEEN SET
1At the Start screen, press Menu 5 (Alarm clock). After a brief pause,
you’re prompted to enter a time for the alarm.
2Enter the time for the alarm in hh:mm format and press OK.
3Scroll to am or pm and press Select. Alarm on appears briefly in the
display and appears on the Start screen.
IF AN ALARM HAS PREVIOUSLY BEEN SET
1At the Start screen, press Menu 5 (Alarm clock). After a brief pause,
On and Off appear in the display.
2Scroll to On and press Select. You’re prompted to set the alarm time.
3Enter the time for the alarm in hh:mm format and press OK.
4Scroll to am or pm and press Select. Alarm on appears briefly in the
display and appears on the Start screen.
When the alarm sounds
Your phone beeps, vibrates, and the display lights up. Stop and Snooze
appear in the bottom of the display.
WITH THE PHONE ON
Press Stop to shut the alarm off.
OR
Press Snooze. The alarm stops for 10 minutes and Snoozing appears in the
display.
[ 109 DRAFT ]
Menu functions
Note: If you don’t press a key, the alarms stops (snoozes) for 5
minutes, and then sounds again.
WITH THE PHONE OFF
1The alarm sounds. If you press Stop the following appears in
the display:
Switch the phone on?
Note: The phone will only power up if you select Yes when Switch
the phone on? appears in the display.
2Press Yes to power up the phone. Press No to keep it switched off.
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
• TURN OFF AN ALARM THAT HAS BEEN SET
1At the Start screen, press Menu 5 (Alarm clock). After a brief pause,
On and Off appear in the display.
2Scroll to Off and press Select. Alarm off appears briefly in the display.
[ 110 DRAFT ]
Radio (Menu 6)
Note: Your phone must be switched on to
use this function. Do not switch the phone
on when wireless phone use is prohibited
or when it may cause interference or
danger.
To listen to the FM radio on your phone connect
the HDS-3 stereo headset or HDB-4 boom headset
to the connector on the bottom of the phone. The leads of the headset
function as the antenna, so let it hang freely.
Note: The quality of the radio broadcast depends on the radio
station’s coverage in that particular area.
• TURN THE RADIO ON AND OFF
•At the Start screen, press Menu 6 (Radio).
•To quickly turn off the radio, press and hold e.
• USE THE RADIO
Note: When you place or receive a call, the radio automatically
mutes. Once the call is ended, the radio automatically switches
back on.
•With the radio on, press Options to choose from the options listed in
the following table. Press the up or down scroll key to scroll to an
option. Press Select to activate the option or enter its submenu.
Option Function
Turn off Turn off the radio
Save channel Save the current station to one of 20 locations
[ 111 DRAFT ]
Menu functions
Tip: To quickly set the radio frequency, press the star key with the
radio on.
Tip: To manually tune the radio, press the pound key with the radio
on.
Note: When an application using a GPRS connection is sending
or receiving data, it may interfere with the radio.
Automatic
tuning Briefly press either scroll key to start the channel
search up or down. Press OK when a channel is found.
Manual tuning Press the up or down scroll key to search in
increments of 0.1 Mhz
Set frequency Manually enter the frequency of a known radio station
Delete
channel Delete a saved channel
Loudspeaker Listen to the radio through the speakerphone
Mono output/
Stereo output Listen to the radio in monaural mode. If already in
manual mode, Stereo output appears in the display
Option Function
[ 112 DRAFT ]
• SAVE A RADIO CHANNEL
You can save a preset station to any one of 20 locations in memory, and
then tune to that station by simply pressing the up or down scroll key with
the radio on.
1With the radio on, press and hold the up or down scroll key to start
the channel search. Searching stops when a channel is found.
2To save the channel, press Options, scroll to Save channel, and press
Select.
3Enter a name for the channel and press OK.
4Next, scroll to an (empty) location to save the channel and
press Select.
Tip: To quickly save an FM station to a memory location from 1 to
9, press and hold the corresponding number key while the radio is
playing. Then, enter the name of the channel and press OK.
[ 113 DRAFT ]
Menu functions
Gallery (Menu 7)
You can save pictures and ringing tones to folders
in the gallery, or create folders of your own and
save them there. You can download images and
tones via MMS, WAP, or Nokia PC Suite.
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
Note: Your phone must be switched on to use this function. Do
not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
• OPEN THE GALLERY
•At the Start screen, press Menu 7 (Gallery). After a brief pause, the
submenus in the following table appear in the display.
Option Function
View folders Explore the folders in the gallery menu. See “View
folders” in the following section for more info
Delete folder Delete a folder you’ve created
Rename folder Rename a folder you’ve created
Add folder Add a folder of your own
aGallery
downloads
a. The phone tries to connect to the Internet using your WAP
browser and the currently active set of gallery downloads.
If the connection fails, you may need to activate another
set or change the current settings. See “Set up for brows-
ing” on page141 for more information.
Use the image and tone downloads in your phone;
see the following for more information
[ 114 DRAFT ]
• VIEW FOLDERS
1At the Start screen, press Menu 7-1(Gallery - View folders), and then
press Select. A list of folders appear in the display.
2Scroll to a folder, such as Images or Tones and press Open.
3Scroll through the list of images or tones, and press Options. Press
Select to activate the option or to enter its submenu.
Option Function
Open/Play Open the selected file; in the Tones folder, this option
is named Play
Delete Delete the selected file
Move Move the file to another folder
Rename Rename the selected file
Set as
wallpaper/Set
as ring tone
Set the graphic as wallpaper. In the Tones folder, this
option is Set as ringing tone; the tone is applied to
profile in use
Details View details of the file, such as the name, time and date
the file was created
Sort Sort the files according to date, type, name, or size
[ 115 DRAFT ]
Menu functions
Organizer (Menu 8)
Note: Your phone must be switched on to
use this function. Do not switch the phone
on when wireless phone use is prohibited or when
it may cause interference or danger.
Your phone has many useful features for
organizing your everyday life, including a calendar
and a to-do list.
• CALENDAR
The calendar keeps track of reminders, calls you need to make, meetings,
and birthdays. It can even sound an alarm for any of these events.
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
OPEN THE CALENDAR
At the Start screen, press Menu 8-1 (Organizer -
Calendar). After a brief pause, the Monthly
view appears in the display with the current
date highlighted by a black box.
Tip: To quickly open the Calendar, press
the right scroll key at the Start screen.
Monthly view
[ 116 DRAFT ]
USE FOUR-WAY SCROLLING
You can move the cursor in some calendar views using
the left, up, down, and right scroll keys much the same
as a joystick. To move the cursor:
• MONTHLY VIEW
Monthly view provides an overview of the selected month and weeks. It
also allows you to jump to a specific date. Any days or dates that appear
in bold font contain calendar notes such as a meeting or reminder.
• GO TO A DATE
1Press Menu 8-1 (Organizer - Calendar). After a brief pause, the
monthly view appears in the display.
2Press Options, scroll to Go to date, and press Select.
3Enter the date (for example 12/15/2002) and press OK. The monthly
view appears in the display with the “jump date” highlighted.
Make a note for a specific date
You can choose from five types of notes; Meeting, Call, Birthday, Memo,
and Reminder. Your phone asks for further information depending on
which note you choose. You also have the option to set an alarm for any
note that you select.
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
1Go to the date for which you want to set a reminder. See “Go to a
date” in the previous section if you need more information.
2From the monthly view (with the go to date highlighted),
Left, press the
left scroll key
Up, press the up
scroll key
Down, press the
down scroll key
Right, press the right
scroll key
[ 117 DRAFT ]
Menu functions
press Options.
3Scroll to Make a note, and press Select.
4Scroll to one of the following note types and press Select
5Enter your note, press Options, scroll to Save, and then press Select.
•For a Meeting note, you’re prompted to enter a subject, location, and
then a start/end time. You’re then given the option to set an alarm.
•For a Call note, you’re prompted to enter a phone number, a name,
and the time. You’re then given the option to set an alarm.
•For a Birthday note, you’re prompted to enter the person’s name, and
year of birth. You’re then given the option to set an alarm.
•For a Memo note, you’re prompted to enter a subject and then an end
date. You’re then given the option to set an alarm.
•For a Reminder note, you’re prompted to enter the subject you wish
to be reminded about, you’re then given the option to set an alarm.
View calendar notes - the Day view
After you’ve created some calendar notes, you can view them as follows:
1At the Start screen, press Menu 8-1 (Organizer - Calendar).
After a brief pause, the monthly view appears in the display with the
current date highlighted. Any dates that contain calendar notes will
be in bold font.
2Use four-way scrolling to go to the date containing the note.
3Press Options, scroll to View day, and press Select. Any notes you
have for the day will appear in a list format.
4To view the body of a highlighted note, press Options, scroll to View
and press Select.
Meeting Call Birthday Memo Reminder
[ 118 DRAFT ]
Options while viewing a list of notes
1Press Options while viewing a day’s notes to display those options
listed in the following table.
2Scroll to an option. Press Select to activate the option or to enter
its submenu.
*Indicates an option that is available only while viewing the body of
a note (not the header).
• SEND A CALENDAR NOTE TO ANOTHER DEVICE
Send a note via Infrared or text message
Note: If sending via IR (infrared), ensure the other device is set to
receive data via IR. For more information on enabling the receiving
device’s IR, refer to the user guide for the receiving device.
Calendar note options
View View the full note
Make a note Make another note for the selected date
*Delete Delete the note
*Edit Edit the note
*Move Move the note to another date on your calendar
*Repeat Enable the note to recur on a regular basis (daily,
weekly, bi-weekly, monthly, and yearly)
Go to date Jump to another date on your calendar
*Send note Send the note to another device via Infrared or as a text
message or in vCal format
*Copy Copy the note. You can then “paste” the note to
another date
*Settings Set the date and time, date and time format, the day
each week starts, and whether you want your notes to
auto-delete after a specified time
Go to
to-do list Takes you to the to-do list for today’s date
[ 119 DRAFT ]
Menu functions
1At the Start screen, press Menu 8-1 (Organizer - Calendar). After a
brief pause, the monthly view appears in the display.
2Jump, or scroll to the date containing the note you wish to send.
Tip: Any days containing notes will be in bold font.
3Press Options, scroll to View day, and press Select.
4Scroll to the note you wish to send and press Options.
5Scroll to Send note and press Select.
6Scroll to Via Infrared, As note, or As text message, and press Select.
7If you selected Via Infrared, align the infrared ports of both devices
and press Select. The note is sent.
8If you selected As note, enter the number for the recipient
(or press Find to retrieve a number from your Phone book), and
press OK. The note is sent.
If you selected As text message, the note appears in the display.
9Press Options, scroll to Send, and press Select.
10 Enter the number for the recipient (or press Find to retrieve a number
from your Phone book), and press OK. The note is sent.
RECEIVE CALENDAR NOTES FROM ANOTHER DEVICE
When you receive a Calendar note, your phone displays Calendar note
received. You can then save the note in your Calendar and set an alarm
for any date and time.
VIEW RECEIVED CALENDAR NOTES
1When your phone displays Calendar note received, press Show.
2The text of your note appears in the display. Use the scroll keys
to view the entire message, if necessary.
SAVE RECEIVED CALENDAR NOTES
1After viewing the Calendar note, press Options.
2Scroll to Save and press Select.
[ 120 DRAFT ]
DISCARD VIEWED CALENDAR NOTES
1After viewing the Calendar note, press Options.
2Scroll to Discard and press Select.
• MAKE A TO-DO LIST
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
You can keep track of your tasks with the to-do list feature. You may be
able to save up to 30 notes, depending on their length.
Note: To-do notes are not related to specific dates.
Add a to-do note
1At the Start screen, press Menu 8-2 (Organizer - To-do list).
2After a brief pause, press Options. If this is your first time to use the
to-do list, Add is highlighted. You can also go to the Calendar.
3Press Select, enter your to-do note and press Options.
4Scroll to Save and press Select.
5Scroll to High, Medium, or Low priority and press Select. The to-do
note is saved.
[ 121 DRAFT ]
Menu functions
Options while viewing notes
Press Options while viewing the header or body of a particular note and
the following options appear in the display.
Header view Option Body view Option
View View the body of a note Edit Edit the content of a note
Add Add another note Set
deadline Set a deadline for
the note
Delete Delete the note Mark note
as done Mark a note or task as
complete; no more
reminders will follow
Sort by
deadline Sort the notes according
to their deadline Delete Delete the note
Send Send the note as a text
message Edit
priority Change the priority to
high, medium, or low
Go to
calendar Leave the to-do list and
go to the calendar Send Send the note as a
text message
Save to
calendar Save the to-do note to a
date on your calendar Go to
calendar Leave the to-do list and go
to the calendar
N/A N/A Save to
calendar Save the to-do note to a
date on your calendar
[ 122 DRAFT ]
Games (Menu 9)
Note: Your phone must be switched on
to use this function. Donot switch the
phone on when wireless phone use is
prohibited or when it may cause
interference or danger.
1At the Start screen, press Menu 9 (Games).
After a brief pause, the list of game submenus
in the following table appear in the display.
2Scroll to a submenu. Press Select to enter the submenu and choose
other settings.
Note: Some menus listed in the following table are network
dependent. Contact your wireless provider for more information.
Submenu Function
Select game Select a game or enter a game’s option list. See “Game
options” on page123 for more info on game options
Game
downloads Connect to game downloads on the Internet using your
WAP browser
Memory Check the available memory for games and game
related applications
Settings Turn game sounds, lights, and shakes on or off
[ 123 DRAFT ]
Menu functions
• LAUNCH A GAME
1Press Menu 9-1 (Games - Select game). After a brief pause, a list of
games appears in the display.
2Scroll to a game and press the talk key. If the selection is a single
game it will launch. Otherwise, a list of games within the selected
game set appears in the display. To launch a single game, scroll to the
desired game and press the talk key.
Tip: If a game uses the whole display area, selection keys such as
Options or Back will not appear in the display. Press the left or
right scroll key to show the options keys Select or Back (returns to
the game).
Game options
•While viewing the games list, press Options to display those listed in
the following table. Scroll to an option and press Select to activate
the option or enter its submenu.
Option Function
Open Play the game
Delete Delete the game
Web access Options for restricting network access
Check version Display the version of the highlighted game
Details Display details of the game
[ 124 DRAFT ]
Applications (Menu 10)
The phone must be switched on to use this
function. Do not switch on the phone when
the use of a wireless phone is prohibited or
when it may cause interference or danger.
With the Applications menu you can manage the
JavaTM applications installed on your phone, or
those that may be offered by your wireless provider.
Note: This feature uses shared memory. Please see “Shared
memory” on page15 for more information.
• LAUNCH AN APPLICATION
1At the Start screen, press Menu 10-1 (Applications - Select
application). After a brief pause, one or more applications appear in
the display.
2Scroll to an application or an application set and press Options, or
press the talk key.
3If the selection is a single application it will be launched. Otherwise,
a list of applications in the selected application set is displayed.
•To launch a single application within the set, scroll to the desired
application and press Options, then press Select or the talk key.
[ 125 DRAFT ]
Menu functions
• APPLICATION OPTIONS
• DOWNLOAD APPLICATIONS
You can download new JavaTM applications in different ways.
Use Application downloads
1At the Start screen, press Menu 10-2 (Applications - App.
downloads). After a brief pause, the list of available WAP bookmarks
appears in the display.
Note: This feature is network dependent. Contact your wireless
provider for more information.
•Scroll to More bookmarks (if necessary) and press Select to access
the list of WAP bookmarks in your Services menu.
2Scroll to the appropriate bookmark that contains the application you
wish to download, and press Select to connect to the WAP page. See
Option Function
Open Opens the selected application or application set
Delete Delete the application or application set from
your phone.
Web access Provides options for restricting network access
Ask first (ask for net access)
Allowed (allow net access)
Not allowed (to not allow net access)
Check version Check if a new version of the application is available
for download
Web page Provides further information or data for the
application from an Internet page; this feature is
network dependent and only appears if an Internet
address has been provided with the application
Details Shows additional information about the application
[ 126 DRAFT ]
“Navigate the wireless Internet” on page142 for information on
browsing WAP pages.
Use the Game downloads menu
•At the Start screen, press Menu 9-2 (Games - Game downloads).
After a brief pause, your phone connects to the WAP pages using the
currently active set of WAP settings.
Note: If the connection fails, you may enter the Services menu
and activate another set of service settings. See “Use browser
options” on page142 for more info on browser settings.
Use PC Suite
Use the JavaTM Application installer from PC Suite to download the
applications in your phone.
Note: Nokia does not warrant for applications from non-Nokia
sites. If you choose to download Java applications from non-
Nokia sites, take precautions for security or content.
Note: When you download a game or an application,
it may be saved in the Games menu instead of the
Applications menu.
Memory status for applications
You can view the size of memory available for game and
application installations.
•At the Start screen, press Menu 10-3 (Applications - Memory). After
a brief pause, the amount of free memory appears in the display.
[ 127 DRAFT ]
Menu functions
Extras (Menu 11)
Note: Your phone must be switched on
to use this function. Do not switch the
phone on when wireless phone use is
prohibited or when it may cause
interference or danger.
• USE THE CALCULATOR
The calculator in your phone adds, subtracts, multiplies, divides, counts
the square and the square root and converts currency values.
Note: Your phone must be switched on to use this function. Do
not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
Note: Calculator has a limited accuracy and rounding errors may
occur, especially in long divisions.
1Press Menu 11-1 (Extras - Calculator). After a brief pause, the
calculator screen appears in the display.
2Enter the first number in the calculation Press the pound key for a
decimal point if necessary.
3Press the star (*) key to cycle through the add (+), subtract (-),
multiply (*), and divide (/) characters. Pause briefly to select the
currently displayed character.
Note: To perform a square or square root calculation, press
Options, scroll to Square or Square root and press Select.
4Enter the second number in your calculation.
5Press Options. Equals is highlighted. Press Select. The sum of your
calculation appears in the display.
[ 128 DRAFT ]
• USE THE CURRENCY CONVERTER
You can convert foreign currency to domestic, or vice versa directly from
the Start screen.
1At the Start screen, enter a currency amount to convert.
2Press Options, scroll to one of the following and press Select:
If you haven’t done so already, you’re prompted to enter the
exchange rate.
3Enter the exchange rate and press OK. Press the pound key to insert
a decimal. The converted amount appears in the display.
Edit the exchange rate
1At the Start screen, press Menu 11-1 (Extras > Calculator). After a
brief pause, the calculator screen appears in the display.
2Press Options (Exchange rate is highlighted), then press Select and
scroll to highlight or display one of the following options:
3Press Select to edit your choice.
4Enter the exchange rate and press OK. The exchange rate is saved.
To home Converts foreign currency to domestic currency
To foreign Converts domestic currency to foreign currency
Foreign units in home units Enter the number of home units it takes to
make one unit of foreign currency
Home units in foreign units Enter the number of foreign units it takes
to make one unit of your home currency
[ 129 DRAFT ]
Menu functions
• USE THE COUNTDOWN TIMER
The countdown timer is like an egg-timer or the timer on your microwave
oven. You can enter a specified time (up to 99 hours and 59 minutes), and
when the time runs out, your phone sounds an alarm.
Note: Your phone must be switched on to use this function.
Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Note: The countdown timer only works when the phone is on.
Once you turn off your phone, the timer is no longer active.
Set the countdown timer
1At the Start screen, press Menu 11-2 (Extras - Countdown timer).
2After a brief pause, you’re prompted to enter the time. Enter 2 digits
for hours, 2 digits for minutes, then press OK.
3Enter a note for the timer, then press OK. The timer begins running.
CHANGE THE TIME
After you’ve set the timer, you can change the time.
1At the Start screen, press Menu 11-2 (Extras - Countdown timer).
After a brief pause, Change time and Stop timer appear in
the display.
2Scroll to Change time and press Select.
3Enter the new time and press OK.
4Leave the note as it was, or enter a new note and press OK. The timer
begins running.
WHEN THE ALARM SOUNDS
When the time runs out, your phone sounds an alarm, displays the timer
note, and flashes its lights.
•Press any key during the alarm to stop the timer.
•After 30 seconds the timer alert expires automatically.
[ 130 DRAFT ]
STOP THE TIMER BEFORE THE ALARM SOUNDS
1At the Start screen, press Menu 11-2 (Extras - Countdown timer).
After a brief pause, Change time and Stop timer appear in
the display.
2Scroll to Stop timer and press Select. Timer stopped appears in
the display.
• USE THE STOPWATCH
Your phone has a stopwatch that can be used to track time at sporting
events or other occasions. The stopwatch displays time in hours, minutes,
seconds and fractions of a second. 00:00:00:0
Note: Your phone must be switched on to use this function. Do
not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
Note about stopwatch operation
Using the stopwatch consumes the battery and the phone's operating
time will be reduced. Be careful not to let it run in the background when
performing other operations with your phone.
If you press the end key and return to the Start screen, the clock continues
to run in the background and the icon appears in the upper left corner
of the screen.
To return to the Stopwatch screen, take the following steps:
1Press Menu 11-3 (Extras - Stopwatch). After a brief pause, a list of
options appear in the display.
2Scroll to Continue and press Select.
•To stop the clock, press Stop.
Measure time
1Press Menu 11-3 (Extras - Stopwatch). After a brief pause, a list of
options appear in the display.
2Scroll to Split timing and press Select.
[ 131 DRAFT ]
Menu functions
3Press Start to begin split timing. The running time appears on
the screen.
Measure split time
You can use the split time function for such things as a long distance race
when you need to pace yourself.
1Press Menu 11-3 (Extras - Stopwatch). After a brief pause, a list of
options appear in the display.
2Scroll to Split timing, then press Select.
3Press Start.
4Take an intermediate time by pressing Split. The timer continues
to run. The split time appears below the running time.
If you split the time more than once, the new measured time appears at
the beginning of the list. You can scroll to see previous measured times.
Measure lap time
You can use the lap time function when you want to track how long it
takes to complete each cycle or lap.
1Press Menu 11-3 (Extras - Stopwatch). After a brief pause, a list of
options appear in the display.
2Scroll to Lap timing and press Select.
3Press Start. The running time appears on the screen.
4Take a lap time by pressing Lap.
The clock stops, then starts immediately from zero. The lap time appears
below the running time.
If you take more than 1 lap time, the new measured time appears at
the beginning of the list. You can scroll to see previous measured times.
When you press Stop, the total time appears at the top.
SAVE THE LAP TIME
1While the clock is running, press Stop, then press Options.
2Scroll to Save and press Select.
[ 132 DRAFT ]
3Enter a name for the measurement and press OK. If you don’t enter a
name, the total time is used as the default title for the lap time.
STOP THE LAP TIMER
Press Stop to end the lap timer.
Choose other stopwatch options
You can choose the following options when using the Stopwatch.
Note about stopwatch operation
Using the stopwatch consumes the battery and the phone's operating
time will be reduced. Be careful not to let it run in the background when
performing other operations with your phone.
If you press the end key and return to the Start screen, the clock continues
to run in the background and the icon appears in the upper left corner
of the screen.
To return to the Stopwatch screen, take the following steps:
1Press Menu 11-3 (Extras - Stopwatch). After a brief pause, a list of
options appear in the display.
2Scroll to Continue and press Select.
•To stop the clock, press Stop.
Choice Function
Continue Shows up when the Stopwatch is working in the
background.
Show last
time Allows you to view the last measured time.
View times Allows you to browse the saved times.
Delete
times Allows you to delete any saved times. You can delete
the saved times one by one or all at once.
[ 133 DRAFT ]
Menu functions
• CALORIE COUNTER
The calorie counter estimates the amount of energy used in various
physical activities. The energy used depends on age, weight and gender.
You can save up to 10 activities in your phone.
Saving personal data
1Press Menu 11-4 (Extras - Calorie counter).
2Scroll to Settings and press Select.
3Type in your weight and age, then select your gender.
4Press OK after each entry to save the data.
You can select the weight, calorie and velocity format by scrolling down
the Settings menu and selecting the formats one by one.
Selecting an activity
1Press Menu 11-4-1 (Extras - Calorie counter - Activities).
2Press Add new.
3Select an activity from the list. If available, you can also add an
intensity level.
4Add the duration of activity in hh:mm format and press OK.
The summary data with the energy cost is displayed.
5Press OK to save the activity.
Editing and deleting activities
•To edit activities, press Options in the Activities main view.
You can now add a new activity, edit an existing one, count the total
calorie amount or delete an activity.
Tip: After you’ve made the Total calories calculation you can make
a calendar entry of the calorie consumption by selecting Options
- Save to calendar and entering the date.
•To delete all activities at once, select Extras-Calorie counter-Delete
[ 134 DRAFT ]
all and press OK.
• THERMOMETER
The thermometer measures the approximate temperature in both
Fahrenheit and Celsius. You can set the temperature to display on the
Start screen.
Set the temperature format
1Press Menu 11-5 (Extras - Thermometer).
2Scroll to Temp. format and press Select.
3Scroll to Celsius or Fahrenheit and press Select.
Show or hide the thermometer
1Press Menu 11-5 (Extras - Thermometer).
2Scroll to Show thermom. (if thermometer hidden) or Hide
thermometer (if thermometer shown) and press Select.
Note: To receive the best result, place the phone on a flat surface
in a windless environment preferably for 5 minutes.
If your phone is being charged or the radio is on, the thermometer shows
no temperature.
• SOUND METER
The sound meter measures the level of sound in your phone’s immediate
vicinity, giving an approximation of the actual dB (decibel) level. The
vertical bar scrolls up and down, showing the changing noise level. The
number in the upper box shows the peak value in decibels. The number
in the lower box shows the current sound level in decibels.
Note: It is not possible to measure the estimated noise level of a
call in progress. Also, you can not use the sound meter when the
FM radio is on.
[ 135 DRAFT ]
Menu functions
From the Start screen press Menu 11-6 (Settings - Sound meter).
Press Options for the following choices:
•Reset peak resets the peak value.
•Hold peak displays both values, but the peak value is updated only
when the current noise level is greater than the peak value.
•Dynamic peak displays both values, but the peak value is valid for
only 5 seconds.
•Noise tuning simulates the sensitivity of your phone’s hearing
mechanism for different frequencies. You can choose between low
noise (sounds < 85 dB) and loud noise (sounds > 85 dB).
[ 136 DRAFT ]
Connectivity (Menu 12)
Note:Your phone must be switched
on to use this function. Do not switch the
phone on when wireless phone use is
prohibited or when it may cause
interference or danger.
You can make a serial connection between your
phone and a PC using the DKU-5 data cable, which
is available for purchase as an accessory . Once you establish this connection,
you can access phone information from your PC, or use your phone as a
wireless modem. It may also be possible to make this same serial
connection between your phone and an Infrared-equipped laptop or IR-
equipped desktop PC using your phone’s infrared port.
• INFRARED
You can set up the phone to receive data through its infrared (IR) port. To
use an IR connection, transmission and reception must be to or from an
infrared compatible phone or device. You can send or receive data such as
business cards and calendar notes to or from a compatible phone or data
device (such as a computer) via the IR port of your phone.
Important:Do not point the IR (infrared) beam at anyone's eye or
allow it to interfere with other IR devices. This device is a Class 1
Laser product.
[ 137 DRAFT ]
Menu functions
SEND AND RECEIVE DATA
VIA IR
•Ensure that the IR ports of
the sending and receiving
devices are pointing at
each other and that there
are no obstructions
between the devices. The
preferable distance
between the two devices
in an infrared connection
is from 3 inches to 3 feet.
•Activate IR in your phone
by pressing Menu 12-1
(Connectivity - Infrared) at
the Start screen.
•The user of the other
device should activate IR as well.
If data transfer is not started within two minutes after the activation of
the IR port, the connection is cancelled and has to be started again.
IR CONNECTION INDICATOR
•When is shown continuously, the IR connection is activated and
your phone is ready to send or receive data via its IR port.
•When blinks, your phone is trying to connect to the other device
or a connection has been lost.
• GPRS
General Packet Radio Service (GPRS) is a technology used to send and
receive data via short bursts or packets over the wireless network. With
GPRS, you can stay connected to the Internet and allow for faster
downloads without completing a dial-up connection. Applications using
GPRS include the WAP browser, text messaging and dial-up connections
for making digital data calls.
3 ft. maximum
distance
[ 138 DRAFT ]
GPRS dial-up connections
When you use your Nokia phone as a wireless modem, you have the option
of enabling GPRS connectivity from your PC or laptop computer.
Note: Before you can use GPRS for dial-up connections you must
first subscribe to the GPRS network service. Contact your service
provider for details on pricing and availability.
Some service providers may have already set up information for your
GPRS dial-up connection.
For more information, see the PC/PDA connectivity guide. This document
can be downloaded from the Nokia website at http://www.nokia.com.
Using data communication applications
For information on using a data communication application, refer to the
documentation provided with the application.
If you use IR connection:
•Activate the IR connection in your phone by pressing Menu 12-1
(Connectivity - Infrared). Also, make sure that the connection is active
in your PC.
If you use the DKU-5 data cable:
1Connect the cable to the USB port on the back of your computer and
to the connector on your phone.
2Start using the data communications application on the computer.
Note:Making or answering phone calls during a computer
connection is not recommended as it might disrupt the operation.
For better performance during data calls, place the phone on a
stationary surface with the keypad facing downward. Do not
move the phone by holding it in your hand during a data call.
[ 139 DRAFT ]
Menu functions
• NOKIA PC SUITE
Once your phone is connected to your PC, you can use PC Suite to:
•Make a backup copy of the data in your phone (Content Copier)
•Edit Phone book names and numbers, profiles, and settings via your
PC's keyboard (Phone Editor)
•Create ringing tones and transfer them to your phone (PC Composer)
•Create caller group icons or pictures for use with picture messaging
(PC Graphics)
•Image converter
•Sound converter
•Applications installer
•Synchronize the Phone book and reminders with PIM applications such
as Microsoft Outlook, Outlook Express, and Lotus Organizer (PC Sync)
Please refer to the Nokia PC Suite Connectivity Guide for installation and
setup instructions.
• DOWNLOAD PC SUITE SOFTWARE
PC Suite software and documentation for the Nokia 5100 can be
downloaded from the U.S. Mobile Phone products section of
www.nokia.com.
[ 140 DRAFT ]
Services (Menu 13)
Your phone has a built-in browser you can use to
connect to selected services on the Internet. You
can view weather reports, check news or flight
times, view financial information, and much more.
Note: This feature is network dependent.
Contact your wireless provider for more information.
• NOTES ON WIRELESS INTERNET ACCESS
This section gives a brief overview of wireless Internet technology.
Technology background
WAP
A technology called Wireless Application Protocol (WAP) is to mobile
devices what the World Wide Web (WWW) is to personal computers.
The mobile community began developing WAP several years ago to
provide access to the Internet for mobile users.
Today, most WAP sites are made up of text and hyperlinks. Some pages
even contain low-resolution graphics, or require data input. Your service
provider and others are free to design WAP sites as they choose, so the
sites are as variable as Web pages on the Internet.
Internet content on your personal computer is called a “web page.”
Internet content on your mobile phone is called a “page,” or “WAP card.”
The wireless provider’s role
Because wireless Internet content is designed to be viewed from your
phone, your wireless provider now becomes your “wireless Internet service
provider” as well.
[ 141 DRAFT ]
Menu functions
It’s likely that your wireless provider has created a home page and set up
your browser to go to this page when you log on to the Internet. Once at
your service provider’s home page, you may find links to a number of
other sites.
• SET UP FOR BROWSING
It shouldn’t be necessary to manually configure the browser on your
phone. Normally this is done by your wireless provider once you’ve
subscribed to the feature. Contact your wireless provider if you have
problems using the browser.
• SIGN ON TO THE WIRELESS INTERNET
Use the Services menu to connect to the Internet.
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
Press Menu 13-1 (Services - Home). After a brief pause, you’re phone
attempts to connect to your wireless provider’s home page.
OR
At the Start screen, press and hold the 0 key.
Your phone connects to the Internet and to your service provider’s
home page.
If you see the message Check service settings, the phone may not be set
up for browsing. Contact your wireless provider to make sure that your
phone is configured properly.
[ 142 DRAFT ]
• USE BROWSER OPTIONS
The Services menu gives you the options shown in the following table.
Some wireless providers may have customized the options on the Services
menu. Contact your wireless provider for more information if any of the
options shown in the following table are not available.
• NAVIGATE THE WIRELESS INTERNET
Since your phone’s screen is much smaller than a computer screen,
Internet content is displayed differently than you may be accustomed to
seeing. This section contains guidelines for using phone keys to navigate a
WAP site. Examples of how to read a WAP site follow the guidelines.
General guidelines for using the phone keys
•Use the up or down scroll keys to browse the WAP site.
•To select a highlighted item, press the talk key.
•To enter letters and numbers, press the keys 0 through 9.
•To enter special characters, press the star key.
Choice What it does
Home Starts the browser and takes you to your service
provider’s home page.
Bookmarks Shows a list of all saved bookmarks. Bookmarks help
you find a WAP site quickly.
Service
inbox Allows you to receive notifications from your service
provider about new e-mail messages, changes in stock
prices, and so on
Settings Provides options for changing connection settings,
appearance settings, and authority certificate.
Go to
address Accepts an address you enter.
Clear the
cache Empties the browser’s temporary memory. It’s advisable
to empty the cache at the end of each session.
[ 143 DRAFT ]
Menu functions
Examples of wireless Internet sites
The following illustrations show most of the elements you may find on a
wireless Internet site. These are examples only.
1) Header line: shows the
current Internet site.
2) Active link: appears as a
highlighted word.
3) Inactive link: appears as an
underlined word.
Scroll through the list of links
using the up and down scroll
keys.
4) Selection list: Brackets [ ]
appear when you have the
option to enter information.
5) Options: Press Options to
go to the site’s menu and/or
browser page.
6) Back: Press Back to return
to the previous page.
7) Data entry field: Brackets
[ ] that enclose dots indicate
when you need to enter
information. In this example,
you can enter your zip
code to receive the local
weather forecast.
1)
2)
3)
6)
4)
5)
7)
[ 144 DRAFT ]
• USE BOOKMARKS
You can save addresses for your favorite sites as bookmarks. A bookmark
helps you find a site again, just as a slip of paper helps you find a page in
a book. You can add up to 30 bookmarks to your browser.
Set a bookmark while browsing
1Press Menu 13-2 (Services - Bookmarks). After a brief pause, a list of
bookmarks (if any) appear in the display.
2Press Options, scroll to New bookmark (if necessary), and
press Select.
3Enter an address for the bookmark and press OK.
4Enter a title for the bookmark and press OK. A message appears in the
display confirming your bookmark is saved.
Disconnect from the Internet
To close your connection, simply press the end key twice.
Security issues
BE SURE TO CLEAR THE CACHE MEMORY
The information or services you access with the WAP browser are
temporarily saved in the cache memory of the phone. A cache is a buffer
memory, which is used to store data temporarily.
If you tried to access or have accessed confidential information requiring
passwords (for example, your bank account), empty the cache of your
phone after each use.
CLEAR THE CACHE
1Press Menu 13 (Services). After a brief pause, a list of options appear
in the display.
2Scroll to Clear the cache and press Select.
CLEAR THE CACHE WHILE BROWSING
•Press Options, scroll to Clear the cache and press Select.
[ 145 DRAFT ]
Menu functions
About authority certificates
To use some WAP services, such as banking services, you need an
authority certificate. Using the certificate can help you to improve the
security of connections between your phone and a WAP server.
You can download the certificate from a WAP page if the WAP service
supports the use of authority certificates. After the download, you can
view the certificate, then save or delete it. If you save the certificate, it is
added to the list of certificates in the phone.
Your phone alerts you if the identity of the WAP server or WAP gateway
cannot be verified or is not authentic.
VIEW THE LIST OF AUTHORITY CERTIFICATES
1Press Menu 13-4 (Services - Settings). After a brief pause, a list of
settings appears in the display.
2Scroll to Authority certificates and press Select.
• GPRS ICONS
The following icons appear on the screen to show you the status of your
GPRS connection.
Note: In order to use GPRS, you must first subscribe to the
network service. Contact your service provider for details on
availability and pricing.
Shows up in the upper left corner of the screen. Indicates an
active GPRS connection, for example, when you are using
the WAP browser.
Indicates that circuit switched (CS) or voice calls are not
possible when using GPRS.
Indicates that the GPRS connection has been interrupted by
a voice call.
[ 146 DRAFT ]
Set up an automatic connection
Some service providers may have customized the options on the Services
menu. Contact your service provider for more information if the options
shown here are not available.
Important: GPRS may not be available in all wireless networks.
The establishment and continuation of a GPRS and Internet
connection depends on network availability, service provider
support, and signal strength.
You can choose one of the following options for your GPRS connection.
1At the Start screen, press Menu 12-2-2 (Connectivity - GPRS - GPRS
connection). After a brief pause, the following options appear in the
display.
2Scroll to an option and press Select to activate the option or to enter
its submenu.
•Always online: the phone is automatically registered to a GPRS network
when you turn your phone on. When you use the WAP browser, the
connection between your phone and the network is created and data
transfer is possible. When you exit the WAP browser, the GPRS
connection ends but the registration to the GPRS network remains.
•When needed: the GPRS connection is established when you use the
WAP browser and is closed when you exit the WAP browser.
Receive a call while online
If you are using the WAP browser over GPRS, you can still receive a voice
call. Your data call is put on hold and you can choose to answer the call.
•To answer the incoming call, press the talk key.
•To reject the incoming call, press the end key.
Note: After you end your voice call, the GPRS connection
automatically resumes.
[ 147 DRAFT ]
Menu functions
Make a call while online
When you are browsing a WAP card and want to make a call, you can
select Use number. Your phone then searches the information on the
WAP card for a string of numbers. You can then choose from the number
or numbers displayed to place the call.
An alternate way is to press the end key to disconnect from the Internet,
then place your call by searching the phone book for a name and number
or
by keying in the phone number.
Make an emergency call while online
If you are using GPRS to connect to the Internet, you can end your data
connection and then make an emergency call.
1To close your Internet connection, simply press the end key.
2Enter the emergency number for your present location (for example,
911 or any other official emergency number—emergency numbers
vary by location).
3Press the talk key.
[ 148 DRAFT ]
9Accessories
Standard 720 mAh Li-Ion Battery (BL-4C)
Provides up to 5 hours of talk time.
Provides up to 3 hours talk time with the speaker.
Provides up to 10 days of standby time.
Radio and headset up to 20 hours.
Radio and speaker up to 8 hours.
Note: Operation times are estimates and may
vary depending on network conditions, charging and phone use.
Mobile Charger (LCH-12)
Quickly charges the phone’s battery from
your vehicle.
[ 149 DRAFT ]
Accessories
Rapid Travel Charger (ACP-12)
This lightweight AC charger can be used with all battery
options. To use the charger, plug it into a standard 120V AC
wall outlet, and connect the lead from the charger to the
base of your phone. Calls can be made during charging, even
with a fully discharged battery. The charger can also be used
together with the optional Desktop Stand (DCV-14).
Boom Headset (HDB-4)
New over-the-ear design concept boom headset is small,
lightweight, and provides excellent audio quality.
Stereo Headset (HDS-3)
Distinctive Nokia design enabling the use of stereo FM
radio available on some Nokia phones. Provides
excellent audio quality and handsfree functionality with
an integral send/end button.
[ 150 DRAFT ]
Loopset (LPS-4)
With the Nokia Loopset, people who use a T-coil equipped
hearing aid have the freedom to talk on a digital mobile
phone. The loopset goes around your neck - so it can be
worn comfortably and discreetly.
Data Cable (DKU-5)
For e-mail, faxes, Internet and data
transmissions. Easy and convenient
connection with no modem or PC
card needed.
Xpress-onTM Color Shells
Express yourself with Xpress-onTM color shells that match your own
unique style. Nokia 5100 color shells available in yellow, black, and red.
[ 151 DRAFT ]
Accessories
HDA-10 TTY Adapter
For use with a TTY device.
HS-1C Camera
Headset
[ 152 DRAFT ]
10 Referenceinformation
This section provides information about your phone’s batteries, accessories,
chargers, safety guidelines and technical information. Be aware that the
information in this section is subject to change as batteries, chargers, and
accessories change.
• BATTERIES AND CHARGERS
This phone is intended for use when supplied with power from the
ACP-12U and LCH-12 chargers. Other usage could invalidate any approval
given to this apparatus and might be dangerous.
Warning:When you purchase batteries, chargers, and accessories
for your phone, use only batteries, chargers, and accessories that
have received approval from the phone’s manufacturer. The use of
any other type of phone-related hardware will invalidate any
approval or warranty applying to the phone, and could also be
dangerous. For availability of approved batteries, chargers, and
accessories, check with your dealer.
•When the battery is fully charged, the indicator will tell you that the
battery is fully charged.
•When you are not using a charger, disconnect it from the power
source. Do not leave the battery connected to a charger for more than
a week, since overcharging could shorten its lifespan. If left unused,
a fully charged battery will discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
Therefore, allow it to cool down or warm up before trying to charge it.
When the battery is running out of power and your phone only has a few
minutes of talk time remaining, a warning tone sounds and the Battery
low message appears briefly. When no more talk time is left, a warning
tone is sounded and the phone switches off.
[ 153 DRAFT ]
Referenceinformation
Do not short-circuit the battery. Accidental short-circuiting can occur when
a metallic object, like a coin, a clip, or a pen causes a direct connection of
the + and - terminals of the battery, which are metal strips on the end of
the battery.
An example of short-circuiting could occur if you carry a spare battery in
your pocket or purse, where the battery could come into contact with
such objects as a coin. Short-circuiting could damage either the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in either
summer or winter conditions, will reduce the capacity and lifetime of the
battery. Always try to keep the battery between 59° F and 77° F (15° C and
25° C).
A phone with a hot or cold battery might not work temporarily, even if the
battery is fully charged. The performance of Li-Ion batteries is particularly
limited in temperatures below 32° F (0° C).
The following list provides guidelines that you can follow:
•When the operating time (talk time and standby time) is noticeably
shorter than normal, buy a new battery.
•Use the battery only for its intended purpose.
•Never use any charger or battery that is damaged and/or worn out.
•Batteries must be recycled or disposed of properly. Do not dispose of
batteries by putting them in fire!
•When you disconnect the power cord of any accessory, grasp and pull
the plug, not the cord.
[ 154 DRAFT ]
• IMPORTANT SAFETY INFORMATION
Traffic safety
Do not use a wireless telephone while driving a vehicle. Always secure the
phone in its holder; do not place the phone on the passenger seat or
where it can break loose in a collision or sudden stop.
Remember road safety always comes first!
Operating environment
Remember to follow any special regulations and always switch off your
phone wherever forbidden, or when it may cause interference or danger.
When connecting the phone or accessory to another device, read its user’s
guide for safety instructions. Don’t connect incompatible products.
As with other mobile radio transmitting equipment, users are advised to
operate this equipment only in the normal operating position (held to
your ear with the antenna pointing over your shoulder).
Pacemakers
Pacemaker manufacturers recommend a distance of 20 cm (6 inches)
be maintained between a hand-held wireless phone and a pacemaker
to avoid interference with the pacemaker. These recommendations are
consistent with independent research and recommendations of
Wireless Technology Research.
PERSONS WITH A PACEMAKER:
•Should always keep the phone more than 20 cm (6 inches) from their
pacemaker when the phone is switched on.
•Should not carry the phone in a breast pocket.
•Should use the ear opposite the pacemaker to minimize the potential
for interference.
•Should switch off the phone immediately if there is any reason to
suspect that interference is taking place.
[ 155 DRAFT ]
Referenceinformation
Hearing aids
Some digital wireless phones may interfere with hearing aids. In the event
of such interference, consult your wireless provider.
Other medical devices
Operation of any radio transmitting equipment, including cellular phones,
may interfere with the functionality of inadequately protected medical
devices. Consult a physician or the manufacturer of the medical device to
determine if it is adequately shielded from external RF energy, or if you
have any questions.
Switch off your phone in health care facilities when regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to RF energy.
Electronic devices
Most modern electronic equipment is shielded from radio frequency (RF)
signals. However, certain electronic equipment may not be shielded
against the RF signals emanating from your wireless phone.
Posted facilities
Switch your phone off in any facility where posted notices so require.
Potentially explosive atmospheres
Switch off your phone when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
Users are advised to switch off the phone when at a refuelling point
(service station). Users are reminded of the need to observe restrictions
regarding the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting operations are in
progress.
Areas with a potentially explosive atmosphere are often but not always
clearly marked. They include below deck on boats, chemical transfer/
storage facilities, vehicles using liquefied petroleum gas (such as propane
[ 156 DRAFT ]
or butane), areas where the air contains chemicals or particles, such as
grain, dust or metal powders, and any other area where you would be
advised to turn off your vehicle engine.
Vehicles
Only qualified personnel should install or service the phone in a vehicle.
Faulty installation or service may be dangerous and invalidate the
warranty.
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles (for example, electronic fuel
injection systems, electronic anti-skid (anti-lock) braking systems,
electronic speed control systems, air bag systems).
Check with the manufacturer or its representative regarding your vehicle.
You should also consult the manufacturer of any equipment that has been
added to your vehicle.
Ensure all wireless phone equipment in your vehicle is mounted and
operating properly.
Don’t carry or store flammable liquids, gases or explosive materials in the
same compartment as the phone or its accessories.
For vehicles equipped with an air bag, remember that an air bag inflates
with great force. Don’t place any objects in the area over the air bag or in
the air bag deployment area. If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious injury could result.
Aircraft
Switch off your phone before boarding an aircraft. The use of wireless
telephones in an aircraft may be dangerous to the operation of the
aircraft, disrupt the wireless telephone network, and may be illegal.
Failure to observe these instructions may lead to suspension or denial of
telephone services to the offender, legal action, or both.
[ 157 DRAFT ]
Referenceinformation
Emergency calls
Important: This phone, like any wireless phone, operates using
radio signals and cannot be guaranteed to connect in all conditions.
Therefore, you should never rely solely upon any wireless phone for
essential communications (such as medical emergencies).
Remember, to make or receive any calls the phone must be switched on
and in a service area with adequate signal strength. Emergency calls may
not be possible on all wireless phone networks or when certain network
services and/or phone features are in use. Check with local wireless
providers for more information.
MAKING AN EMERGENCY CALL:
1If the phone is not on, switch it on.
Important: Some networks may require that a valid SIM card be
properly inserted in the phone.
2Press and hold the end key to return to the Start screen.
3Enter the emergency number for your present location (for example,
911 or other official emergency number). Emergency numbers vary
by location.
4Press the talk key.
If certain features are in use (Keyguard, fixed dialing, and so on), you may
first need to turn those features off before you can make an emergency
call. Consult this guide and your local wireless provider for more
information.
When making an emergency call, remember to provide all information as
accurately and clearly as possible. Remember that your wireless phone
may be the only means of communication at the scene of an accident -
don’t cut off the call until given permission to do so.
[ 158 DRAFT ]
Certification Information
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below
the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
Before a phone model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by
the government-adopted requirement for safe exposure. The tests are
performed in positions and locations (for example, at the ear and worn on
the body) as required by the FCC for each model. The highest SAR value
for this model phone as reported to the FCC when tested for use at the
ear is 0.40W/kg, and when worn on the body, as described in this user
guide, is .88W/kg. (Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements).
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement.
[ 159 DRAFT ]
Referenceinformation
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file
with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID LJPNPM-6X.
For body worn operation, this phone has been tested and meets the
FCC RF exposure guidelines for use with an accessory that contains no
metal and that positions the handset a minimum of 5/8 inch (1.5 cm) from
the body. Use of other accessories may not ensure compliance with FCC
RF exposure guidelines. If you do not use a body-worn accessory and are
not holding the phone at the ear, position the handset a minimum of 5/8
inch (1.5 cm) from your body when the phone is switched on.
Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
*In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in
measurements. SAR values may vary depending on national reporting
requirements and the network band. For SAR information in other regions
please look under product information at http://www.nokia.com.
[ 160 DRAFT ]
11 Care and maintenance
Your phone is a product of superior design and craftsmanship and should
be treated with care. The suggestions below will help you to fulfill any
warranty obligations and to enjoy this product for many years. When
using your phone, battery, charger, or any accessory:
•Keep all parts and accessories out of small children’s reach.
•Keep all parts and accessories dry. Precipitation, humidity, and liquids
contain minerals that will corrode electronic circuits.
•Don’t use or store parts or accessories in dusty, dirty areas. Moving
parts can be damaged.
•Don’t store parts or accessories in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries, and warp or
melt certain plastics.
•Don’t store parts or accessories in cold areas. When the phone warms
up (to its normal temperature), moisture can form inside the phone,
which may damage electronic circuit boards.
•Don’t attempt to open. Non-expert handling could cause damage.
•Don’t drop, knock or shake. Rough handling can break internal circuit
boards.
•Don’t use harsh chemicals, cleaning solvents, or strong detergents to
clean parts or accessories. Wipe it with a soft cloth slightly dampened
in a mild soap-and-water solution.
•Don’t paint. Paint can clog moving parts and prevent proper
operation.
•Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications or attachments could damage
the phone and may violate regulations governing radio devices.
•If the phone, battery, charger, or any accessory is not working properly,
take it to your nearest qualified service facility. The personnel there
will assist you, and if necessary, arrange for service.
[ 161 DRAFT ]
Care and maintenance
• TROUBLESHOOTING
The following table lists some common problems and their solutions.
Problem Possible cause Possible solution
My phone isn’t
charging
The charger and phone aren’t
properly connected Securely connect the
charger to the phone
The charger is not properly
plugged into the wall Ensure the charger is
plugged in correctly
My phone isn’t
making/
receiving calls
The battery isn’t charged Charge the battery
The signal strength is poor If you are indoors,
move toward a
window
I can’t listen to
my voice
messages
You don’t have voicemail
service Call your wireless
provider
You haven’t setup your
voicemail service with your
wireless provider
Call your wireless
provider
You haven’t saved your
voicemail number to
your phone
See “Save your voice
mailbox number” on
page76
You’ve forgotten your password
or are entering it incorrectly Call your wireless
provider
The voicemail number you’ve
saved to your phone is incorrect Call your wireless
provider
When I insert
my SIM card
into another
phone, it’s
rejected
Fixed dialing is activated on
your SIM card and the receiving
phone doesn’t support fixed
dialing
Deactivate fixed
dialing on the SIM
[ 162 DRAFT ]
12 Frequently Asked Questions
This section lists answers to the most frequently asked questions. Some of
the answers contain menu shortcuts. For a list of shortcuts, see “Menu
shortcuts” on page19.
Q. What is my security code?
A. The default security code is 12345. However, Nokia recommends that
you change this code immediately. Certain features can be used only
after the correct security code has been successfully entered.
Q. How do I lock and unlock the keypad?
A. Lock the keypad by pressing Menu, then the star key. To unlock the
keypad, press Unlock, then the star key.
Q. How do I make the phone ring louder?
A. Press Menu 3 (Profiles), and scroll through the list of profiles until you
find the one for which you want to set the ringing volume. Then press
Select.
•Scroll to Customize and press Select.
•Scroll to Ringing volume and press Select.
•Scroll to the volume level of your preference and press Select.
Q. How do I change the ringing tone?
A. Press Menu 3 (Profiles) and scroll through the list of profiles until
you find the one for which you want to set the ringing tone. Then
press Select.
•Scroll to Customize and press Select.
•Scroll to Ringing tone, and then press Select.
•Scroll through the options. After you hear the tone you want to
use, press Select.
[ 163 DRAFT ]
Frequently Asked Questions
Q. How do I store my voice mailbox number?
A. Press Menu 01-4-2 (Messages - Voice messages - Voice mailbox
number). Enter your voice mailbox phone number, and press OK.
Q. How do I call my voice mailbox number (retrieve voice messages)?
A. When your phone alerts you to new voice messages, press Listen and
follow the instructions on the phone. If you’d rather listen to your
messages later, press Exit.
To listen to your voice messages at a later time, perform one of the
following actions:
•Press and hold the 1 key.
•Press Menu 01-4-1 (Messages > Voice messages > Listen to
voice messages). Follow the recorded voice prompts to listen to
your messages.
Q. How do I redial the last-dialed number?
A. Press the talk key twice.
Q. How do I assign a key to 1-touch dialing?
A. Press Names and scroll to 1-touch dialing.
Press Select.
Scroll to the first (empty) slot and press Assign.
Enter or retrieve the name/number you want to assign to the key and
press OK. Repeat these steps as many times as necessary.
Q. How do I check the Phone book memory status?
A. Press Names, scroll to Settings, and press Select. Scroll to Memory
status and press Select. Scroll to Phone or SIM card and press Select.
The memory status for your selection appears in the display.
[ 164 DRAFT ]
Q. How do I find my phone’s Model number and IMEI number?
A. The model number and IMEI numbers are located on a label under the
phone’s battery. Turn your phone off, remove the lower shell and then
remove the battery from the phone.
Q. How do I clear my call timers?
Important:Clearing call timers cannot be undone.
A. Press Menu 2-5-5 (Call log - Call timers - Clear timers).
When the security code prompt appears, enter your security code
and press OK.
[ 165 DRAFT ]
Glossary
13 Glossary
Business card A business card is the same as an entry in the phone
book. It may contain a name, phone number, and text
entry. It can also be sent to other devices.
Call forwarding A network services feature you use to forward
incoming calls to another number.
Call lists A list used to track numbers for incoming, outgoing,
or missed calls.
Call log A log that registers information about calls you make
and receive.
Call timers Timers used to track the amount of time you spend
on calls.
Call waiting A network services feature that enables your phone
to beep while you are in the middle of a call. The beep
lets you know that someone else is calling you.
International
Mobile
Equipment
Identifier (IMEI)
The identification number that is assigned to the
phone. This number is located under the battery.
In-call options Features available for use while you are in a call.
Keyguard Locks the keypad to prevent accidental key presses.
Keypad tones The tone you hear when you press a key.
Menu A list of choices you can make to change settings on
your phone or use various phone features.
[ 166 DRAFT ]
Predictive text A method of entering information in your phone
that uses a dictionary to predict, or guess, what you
are writing.
Profile A group of settings you can use to customize the way
your phone works.
Quick save A fast method for saving a number.
Ringing tone The sound your phone makes when you receive a call.
Ringing tones can be ringing sounds or short tunes.
Scroll bar A bar that appears on the right side of the screen
when you scroll through the main menus.
Start screen Your phone’s idle screen.
Voice mail A network services feature that enables people who
call and miss you to leave a voice message on your
phone.
Warning tones Sounds your phone makes during error conditions,
during confirmations, when the battery is low, and
when you need to recharge the battery.
[ 167 DRAFT ]
Technical information
14 Technical information
Feature Specification
Weight 2.92 oz. (82.78 grams) with BL-4C 700 mAh
Li-Ion Battery
Wireless networks GSM 900, 1800, and 1900 networks
Size (volume) 104g/ 89cc / 108.5x49.5x22mm
Frequency Range (Tx) GSM 900: 880 - 915 Mhz
GSM 1800: 1710 - 1785 Mhz
GSM 1900: 1850 - 1910 Mhz
Frequency Range (Rx) GSM 900: 925 - 960 Mhz
GSM 1800: 1805 -1865 Mhz
GSM 1900: 1930 - 1990 Mhz
Tx Output Power 2W (max)
Battery Voltage 3.6 v DC
Number of channels 299
Memory locations Up to 300 in phone memory
[ 168 DRAFT ]
15 Nokia One-Year Limited
Warranty
Nokia Inc. (“Nokia”) warrants that this cellular phone (“Product”) is free
from defects in material and workmanship that result in Product failure
during normal usage, according to the following terms and conditions:
1The limited warranty for the Product extends for ONE (1) year beginning
on the date of the purchase of the Product. This one year period is
extended by each whole day that the Product is out of your possession
for repair under this warranty.
2The limited warranty extends only to the original purchaser (“Consumer”)
of the Product and is not assignable or transferable to any subsequent
purchaser/end- user.
3The limited warranty extends only to Consumers who purchase the
Product in the United States of America.
4During the limited warranty period, Nokia will repair, or replace, at
Nokia’s sole option, any defective parts, or any parts that will not
properly operate for their intended use with new or refurbished
replacement items if such repair or replacement is needed because
of product malfunction or failure during normal usage. No charge
will be made to the Consumer for any such parts. Nokia will also
pay for the labor charges incurred by Nokia in repairing or replacing
the defective parts. The limited warranty does not cover defects in
appearance, cosmetic, decorative or structural items, including
framing, and any non-operative parts. Nokia’s limit of liability under
the limited warranty shall be the actual cash value of the Product at
the time the Consumer returns the Product for repair, determined by
the price paid by the Consumer for the Product less a reasonable
amount for usage. Nokia shall not be liable for any other losses or
damages. These remedies are the Consumer’s exclusive remedies for
breach of warranty.
[ 169 DRAFT ]
Nokia One-Year Limited Warranty
5Upon request from Nokia, the Consumer must prove the date of the
original purchase of the Product by a dated bill of sale or dated
itemized receipt.
6The Consumer shall bear the cost of shipping the Product to Nokia in
Melbourne, Florida. Nokia shall bear the cost of shipping the Product
back to the Consumer after the completion of service under this
limited warranty.
7The Consumer shall have no coverage or benefits under this limited
warranty if any of the following conditions are applicable:
a) The Product has been subjected to abnormal use, abnormal
conditions, improper storage, exposure to moisture or dampness,
unauthorized modifications, unauthorized connections,
unauthorized repair, misuse, neglect, abuse, accident, alteration,
improper installation, or other acts which are not the fault of
Nokia, including damage caused by shipping.
b) The Product has been damaged from external causes such as
collision with an object, or from fire, flooding, sand, dirt,
windstorm, lightning, earthquake or damage from exposure to
weather conditions, an Act of God, or battery leakage, theft,
blown fuse, or improper use of any electrical source, damage
caused by computer or Internet viruses, bugs, worms, Trojan
Horses, cancelbots or damage caused by the connection to other
products not recommended for interconnection by Nokia.
c) Nokia was not advised in writing by the Consumer of the alleged
defect or malfunction of the Product within fourteen (14) days
after the expiration of the applicable limited warranty period.
d) The Product serial number plate or the accessory data code has
been removed, defaced or altered.
e) The defect or damage was caused by the defective function of the
cellular system or by inadequate signal reception by the external
antenna, or viruses or other software problems introduced into
the Product.
[ 170 DRAFT ]
8Nokia does not warrant uninterrupted or error-free operation of the
Product. If a problem develops during the limited warranty period, the
Consumer shall take the following step-by-step procedure:
a) The Consumer shall return the Product to the place of purchase
for repair or replacement processing.
b) If “a” is not convenient because of distance (more than 50 miles)
or for other good cause, the Consumer shall ship the Product
prepaid and insured to:
Nokia Inc., Attn.: Repair Department
795 West Nasa Blvd.
Melbourne, FL 32901
c) The Consumer shall include a return address, daytime phone
number and/or fax number, complete description of the problem,
proof of purchase and service agreement (if applicable). Expenses
related to removing the Product from an installation are not
covered under this limited warranty.
d) The Consumer will be billed for any parts or labor charges not
covered by this limited warranty. The Consumer will be
responsible for any expenses related to reinstallation of the
Product.
e) Nokia will repair the Product under the limited warranty within
30 days after receipt of the Product. If Nokia cannot perform
repairs covered under this limited warranty within 30 days, or
after a reasonable number of attempts to repair the same defect,
Nokia at its option, will provide a replacement Product or refund
the purchase price of the Product less a reasonable amount for
usage. In some states the Consumer may have the right to a
loaner if the repair of the Product takes more than ten (10) days.
Please contact the Customer Service Center at Nokia at the
telephone number listed at the end of this warranty if you need
a loaner and the repair of the Product has taken or is estimated
to take more than ten (10) days.
[ 171 DRAFT ]
Nokia One-Year Limited Warranty
f) If the Product is returned during the limited warranty period, but
the problem with the Product is not covered under the terms and
conditions of this limited warranty, the Consumer will be notified
and given an estimate of the charges the Consumer must pay to
have the Product repaired, with all shipping charges billed to the
Consumer. If the estimate is refused, the Product will be returned
freight collect. If the Product is returned after the expiration of
the limited warranty period, Nokia’s normal service policies shall
apply and the Consumer will be responsible for all shipping charges.
9YOU (THE CONSUMER) UNDERSTAND THAT THE PRODUCT MAY
CONSIST OF REFURBISHED EQUIPMENT THAT CONTAINS USED
COMPONENTS, SOME OF WHICH HAVE BEEN REPROCESSED. The used
components comply with Product performance and reliability
specifications.
10 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION
OF THE FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE
FOREGOING LIMITED WARRANTY IS THE CONSUMER’S SOLE AND
EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED. NOKIA SHALL NOT BE LIABLE FOR SPECIAL,
INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING
BUT NOT LIMITED TO LOSS OF ANTICIPATED BENEFITS OR PROFITS,
LOSS OF SAVINGS OR REVENUE, LOSS OF DATA, PUNITIVE DAMAGES,
LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT,
COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR
FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES,
INCLUDING CUSTOMERS, AND INJURY TO PROPERTY, RESULTING
FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM
BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF
NOKIA KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. NOKIA SHALL
NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE
LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE
PRODUCT IS BEING REPAIRED.
[ 172 DRAFT ]
11 Some states do not allow limitation of how long an implied warranty
lasts, so the one year warranty limitation may not apply to you (the
Consumer). Some states do not allow the exclusion or limitation of
incidental and consequential damages, so certain of the above
limitations or exclusions may not apply to you (the Consumer). This
limited warranty gives the Consumer specific legal rights and the
Consumer may also have other rights which vary from state to state.
12 Nokia neither assumes nor authorizes any authorized service center
or any other person or entity to assume for it any other obligation or
liability beyond that which is expressly provided for in this limited
warranty including the provider or seller of any extended warranty or
service agreement.
13 This is the entire warranty between the Nokia and the Consumer, and
supersedes all prior and contemporaneous agreements or understandings,
oral or written, relating to the Product, and no representation, promise
or condition not contained herein shall modify these terms.
14 This limited warranty allocates the risk of failure of the Product
between the Consumer and Nokia. The allocation is recognized by
the Consumer and is reflected in the purchase price.
15 Any action or lawsuit for breach of warranty must be commenced
within eighteen (18) months following purchase of the Product.
16 Questions concerning this limited warranty may be directed to:
Nokia Inc.
Attn.: Customer Service
7725 Woodland Center Blvd., Suite. 150
Tampa, FL 33614
Telephone: 1-888-NOKIA-2U (1-888-665-4228)
Facsimile: (813) 287-6612
TTY/TDD Users Only: 1-800-24-NOKIA (1-800-246-6452)
17 The limited warranty period for Nokia supplied attachments and
accessories is specifically defined within their own warranty cards
and packaging.
[ 173 ]
Appendix A
Appendix A
Message from the CTIA (Cellular
Telecommunications & Internet
Association) to all users of mobile
phones.
© 2001 Cellular Telecommunications & Internet Association. All Rights
Reserved.1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
[ 174 ]
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless telephone.
Quite simply, the wireless phone gives people the powerful ability to communicate
by voice--almost anywhere, anytime--with the boss, with a client, with the kids,
with emergency personnel or even with the police. Each year, Americans make
billions of calls from their wireless phones, and the numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that every wireless
phone user must uphold. When driving a car, driving is your first responsibility. A
wireless phone can be an invaluable tool, but good judgment must be exercised at
all times while driving a motor vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires alertness,
caution and courtesy. It requires a heavy dose of basic common sense---keep your
head up, keep your eyes on the road, check your mirrors frequently and watch out
for other drivers. It requires obeying all traffic signs and signals and staying within
the speed limit. It means using seatbelts and requiring other passengers to do the
same.
But with wireless phone use, driving safely means a little more. This brochure is a
call to wireless phone users everywhere to make safety their first priority when
behind the wheel of a car. Wireless telecommunications is keeping us in touch,
simplifying our lives, protecting us in emergencies and providing opportunities to
help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless Phone "Safety Tips"
Below are safety tips to follow while driving and using a wireless phone which
should be easy to remember.
1Get to know your wireless phone and its features such as speed dial and redial.
Carefully read your instruction manual and learn to take advantage of valuable
features most phones offer, including automatic redial and memory. Also, work
to memorize the phone keypad so you can use the speed dial function without
taking your attention off the road.
2When available, use a hands free device. A number of hands free wireless phone
accessories are readily available today. Whether you choose an installed
mounted device for your wireless phone or a speaker phone accessory, take
advantage of these devices if available to you.
3Position your wireless phone within easy reach. Make sure you place your
wireless phone within easy reach and where you can grab it without removing
your eyes from the road. If you get an incoming call at an inconvenient time, if
possible, let your voice mail answer it for you.
4Suspend conversations during hazardous driving conditions or situations. Let
the person you are speaking with know you are driving; if necessary, suspend
[ 175 ]
Appendix A
the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow and
ice can be hazardous, but so is heavy traffic. As a driver, your first responsibility
is to pay attention to the road.
5Do not take notes or look up phone numbers while driving. If you are reading
an address book or business card, or writing a "to do" list while driving a car,
you are not watching where you are going. It’s common sense. Don’t get caught
in a dangerous situation because you are reading or writing and not paying
attention to the road or nearby vehicles.
6Dial sensibly and assess the traffic; if possible, place calls when you are not
moving or before pulling into traffic. Try to plan your calls before you begin
your trip or attempt to coincide your calls with times you may be stopped at a
stop sign, red light or otherwise stationary. But if you need to dial while driving,
follow this simple tip--dial only a few numbers, check the road and your
mirrors, then continue.
7Do not engage in stressful or emotional conversations that may be distracting.
Stressful or emotional conversations and driving do not mix--they are
distracting and even dangerous when you are behind the wheel of a car. Make
people you are talking with aware you are driving and if necessary, suspend
conversations which have the potential to divert your attention from the road.
8Use your wireless phone to call for help. Your wireless phone is one of the
greatest tools you can own to protect yourself and your family in dangerous
situations--with your phone at your side, help is only three numbers away. Dial
9-1-1 or other local emergency number in the case of fire, traffic accident, road
hazard or medical emergency. Remember, it is a free call on your wireless
phone!
9Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a "Good Samaritan" in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
10 Call roadside assistance or a special wireless non-emergency assistance number
when necessary. Certain situations you encounter while driving may require
attention, but are not urgent enough to merit a call for emergency services. But
you still can use your wireless phone to lend a hand. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident
where no one appears injured or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless number.
Careless, distracted individuals and people driving irresponsibly represent a hazard
to everyone on the road. Since 1984, the Cellular Telecommunications Industry
Association and the wireless industry have conducted educational outreach to
inform wireless phone users of their responsibilities as safe drivers and good
citizens. As we approach a new century, more and more of us will take advantage
of the benefits of wireless telephones. And, as we take to the roads, we all have a
responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
[ 176 ]
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
© 2001 Cellular Telecommunications & Internet Association. All Rights
Reserved.1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone:
(202) 785-0081
[ 177 ]
Appendix B
Appendix B
Message from the FDA (U.S. Food
and Drug Administration) to all users
of mobile phones.
July 18, 2001...... For updates: http://www.fda.gov/cdrh/phones
[ 178 ]
Consumer Update on Wireless Phones
U.S. Food and Drug Administration
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy
(RF) in the microwave range while being used. They also emit very low levels of RF
when in the stand-by mode. Whereas high levels of RF can produce health effects (by
heating tissue), exposure to low level RF that does not produce heating effects causes
no known adverse health effects. Many studies of low level RF exposures have not
found any biological effects. Some studies have suggested that some biological effects
may occur, but such findings have not been confirmed by additional research. In
some cases, other researchers have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
2. What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new drugs
or medical devices. However, the agency has authority to take action if wireless
phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to
the user. In such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the phones so that
the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA has
urged the wireless phone industry to take a number of steps, including the following:
•Support needed research into possible biological effects of RF of the type emitted
by wireless phones;
•Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
•Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this working group:
•National Institute for Occupational Safety and Health
•Environmental Protection Agency
•Federal Communications Commission
•Occupational Safety and Health Administration
•National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones. FCC also
regulates the base stations that the wireless phone networks rely upon. While these
base stations operate at higher power than do the wireless phones themselves, the
[ 179 ]
Appendix B
RF exposures that people get from these base stations are typically thousands of
times lower than those they can get from wireless phones. Base stations are thus not
the subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with built-in
antennas, often called cell mobile or PCS phones. These types of wireless phones can
expose the user to measurable radiofrequency energy (RF) because of the short
distance between the phone and the user’s head. These RF exposures are limited by
Federal Communications Commission safety guidelines that were developed with
the advice of FDA and other federal health and safety agencies. When the phone is
located at greater distances from the user, the exposure to RF is drastically lower
because a person's RF exposure decreases rapidly with increasing distance from the
source. The so-called cordless phones; which have a base unit connected to the
telephone wiring in a house, typically operate at far lower power levels, and thus
produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have
suffered from flaws in their research methods. Animal experiments investigating the
effects of radiofrequency energy (RF) exposures characteristic of wireless phones
have yielded conflicting results that often cannot be repeated in other laboratories.
A few animal studies, however, have suggested that low levels of RF could accelerate
the development of cancer in laboratory animals. However, many of the studies that
showed increased tumor development used animals that had been genetically
engineered or treated with cancer-causing chemicals so as to be pre-disposed to
develop cancer in the absence of RF exposure. Other studies exposed the animals to
RF for up to 22 hours per day. These conditions are not similar to the conditions
under which people use wireless phones, so we don’t know with certainty what the
results of such studies mean for human health.
Three large epidemiology studies have been published since December 2000.
Between them, the studies investigated any possible association between the use of
wireless phones and primary brain cancer, glioma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of
the studies demonstrated the existence of any harmful health effects from wireless
phone RF exposures. However, none of the studies can answer questions about long-
term exposures, since the average period of phone use in these studies was around
three years.
5.What research is needed to decide whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually
using wireless phones would provide some of the data that are needed. Lifetime
animal exposure studies could be completed in a few years. However, very large
numbers of animals would be needed to provide reliable proof of a cancer promoting
effect if one exists. Epidemiological studies can provide data that is directly
applicable to human populations, but 10 or more years follow-up may be needed to
provide answers about some health effects, such as cancer. This is because the
interval between the time of exposure to a cancer-causing agent and the time tumors
develop - if they do - may be many, many years. The interpretation of epidemiological
studies is hampered by difficulties in measuring actual RF exposure during day-to-
day use of wireless phones. Many factors affect this measurement, such as the angle
at which the phone is held, or which model of phone is used.
[ 180 ]
6. What is FDA doing to find out more about the possible health effects
of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF).
FDA has been a leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996. An influential
result of this work has been the development of a detailed agenda of research needs
that has driven the establishment of new research programs around the world. The
Project has also helped develop a series of public information documents on EMF
issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a
formal Cooperative Research and Development Agreement (CRADA) to do research
on wireless phone safety. FDA provides the scientific oversight, obtaining input from
experts in government, industry, and academic organizations. CTIA-funded research
is conducted through contracts to independent investigators. The initial research
will include both laboratory studies and studies of wireless phone users. The CRADA
will also include a broad assessment of additional research needs in the context of
the latest research developments around the world.
7. How can I find out how much radiofrequency energy exposure I can
get by using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC
established these guidelines in consultation with FDA and the other federal health
and safety agencies. The FCC limit for RF exposure from wireless telephones is set
at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC
limit is consistent with the safety standards developed by the Institute of Electrical
and Electronic Engineering (IEEE) and the National Council on Radiation
Protection and Measurement. The exposure limit takes into consideration the body’s
ability to remove heat from the tissues that absorb energy from the wireless phone
and is set well below levels known to have effects.
Manufacturers of wireless phones must report the RF exposure level for each model
of phone to the FCC. The FCC website (http://www.fcc.gov/oet/rfsafety) gives
directions for locating the FCC identification number on your phone so you can find
your phone’s RF exposure level in the online listing.
8. What has FDA done to measure the radiofrequency energy coming
from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical
standard for measuring the radiofrequency energy (RF) exposure from wireless
phones and other wireless handsets with the participation and leadership of FDA
scientists and engineers. The standard, Recommended Practice for Determining the
Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques, sets forth the first consistent
test methodology for measuring the rate at which RF is deposited in the heads of
wireless phone users. The test method uses a tissue-simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the
consistency of measurements made at different laboratories on the same phone. SAR
is the measurement of the amount of energy absorbed in tissue, either by the whole
[ 181 ]
Appendix B
body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of
matter. This measurement is used to determine whether a wireless phone complies
with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products--and at this point we do not know that there is-
-it is probably very small. But if you are concerned about avoiding even potential
risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives,
reducing the amount of time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could
place more distance between your body and the source of the RF, since the exposure
level drops off dramatically with distance. For example, you could use a headset and
carry the wireless phone away from your body or use a wireless phone connected to
a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are harmful. But
if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless phone
use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including
children and teenagers. If you want to take steps to lower exposure to radiofrequency
energy (RF), the measures described above would apply to children and teenagers
using wireless phones. Reducing the time of wireless phone use and increasing the
distance between the user and the RF source will reduce RF exposure.Some groups
sponsored by other national governments have advised that children be discouraged
from using wireless phones at all. For example, the government in the United
Kingdom distributed leaflets containing such a recommendation in December 2000.
They noted that no evidence exists that using a wireless phone causes brain tumors
or other ill effects. Their recommendation to limit wireless phone use by children was
strictly precautionary; it was not based on scientific evidence that any health hazard
exists.
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some electronic
devices. For this reason, FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers and defibrillators are safe from
wireless phone EMI. FDA has tested hearing aids for interference from handheld
wireless phones and helped develop a voluntary standard sponsored by the Institute
of Electrical and Electronic Engineers (IEEE). This standard specifies test methods
and performance requirements for hearing aids and wireless phones so that no
interference occurs when a person uses a compatible phone and a accompanied
hearing aid at the same time. This standard was approved by the IEEE in 2000.
[ 182 ]
FDA continues to monitor the use of wireless phones for possible interactions with
other medical devices. Should harmful interference be found to occur, FDA will
conduct testing to assess the interference and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
•FDA web page on wireless phones
http://www.fda.gov/cdrh/phones/index.html
•Federal Communications Commission (FCC) RF Safety Program
http://www.fcc.gov/oet/rfsafety
•International Commission on Non-Ionizing Radiation Protection
http://www.icnirp.de
•World Health Organization (WHO) International EMF Project
http://www.who.int/emf
•National Radiological Protection Board (UK)
http://www.nrpb.org.uk/
July 18, 2001For updates: http://www.fda.gov/cdrh/phones
