Nokia 9290

Communicator

User Guide

The wireless phone described in this guide is approved for use in GSM 1900 networks.

LEGAL INFORMATION

Part No. 9354379, Issue No. 1

Nokia is a registered trademark of Nokia Corporation.

Printed in Canada February/2002

Nokia, Nokia Connecting People and the Original Accessories logos are trademarks of Nokia Corporation and/or its affiliates.

US Patent No 5818437 and other pending patents.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written

permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names

mentioned herein may be trademarks or tradenames of their respective owners.

Symbian OS and all Symbian OS -based trademarks and logos are trademarks of Symbian Limited.

Java™ is a trademark of Sun Microsystems, Inc

This software contains portions of the file translation library of Conversions Plus, a product of DataViz Inc., 55 Corporate Drive,

Trumbull, CT 06611 USA (203) 268-0030.

International CorrectSpell™ English spelling correction system, 1995 by Lernout & Hauspie Speech Products N.V. All rights

reserved. Reproduction or disassembly of embodied algorithms or database prohibited.

English spelling software developed by Lernout & Hauspie Speech Products N.V.

reserved. Reproduction or disassembly of embodied programs and databases prohibited.

Incorporates MPPC® compression from Hi/fn™

5126739, 5146221, and 5414425. Other patents pending.

Incorporates LZS® compression from Hi/fn™.

Other patents pending.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

This product uses certificates for security functionality. More information on Nokia certificates can be acquired from Nokia web

pages.

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

The information contained in this user guide was written for Nokia 9290 phone. Nokia operates a policy of continuous

development. Nokia reserves the right to make changes and improvements to any of the products described in this document

without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL,

AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF

ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS

DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

EXPORT CONTROLS

This product contains commodities, technology or software exported from the United States in accordance with the Export

Administration regulations. Diversion contrary to U.S. law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment).

The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require

assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the

condition that this device does not cause harmful interference.

Contents

Getting started 17

Using the phone 17

First start-up 18

Communicator interface 23

Setup configuration 25

PC connectivity 27

Desk 29

Telephone 29

Messaging 31

Internet 34

Contacts 36

Calendar 37

Office 39

Extras 43

Phone 45

Introduction 48

Getting help 49

Facts about your communicator 51

General information 57

Communicator display 57

Communicator keyboard 62

Connectors 66

Charging the battery 67

Memory card 71

General features 72

Install software from the CD-ROM 81

Activate the infrared connection 82

Phone 83

Selection keys 84

Display indicators 85

Make a call 86

Answer a call 89

Manage calls 89

Keypad lock 90

Change profiles 91

View help 92

Using the menus 92

Messages (Menu 1) 94

Call log (Menu 2) 96

Settings (Menu 3) 100

Forwarding (Menu 4) 105

Infrared (Menu 5) 106

SIM services (Menu 6) 106

Desk 107

Main view 107

Telephone 111

Make a call manually 112

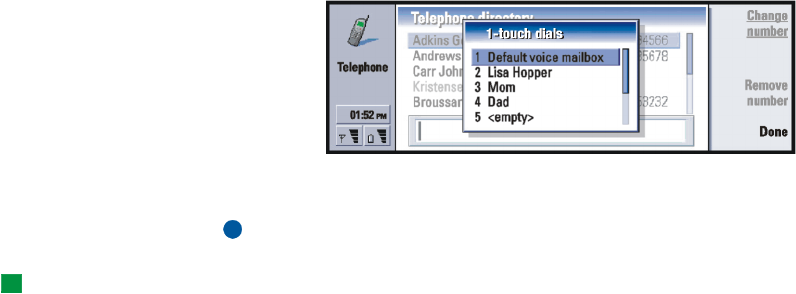

Call a number in the telephone directory 112

Call a number in a recent calls list 113

Answer a call 113

Call and create a voice mailbox 114

Record a call 115

Make a new call during a call 115

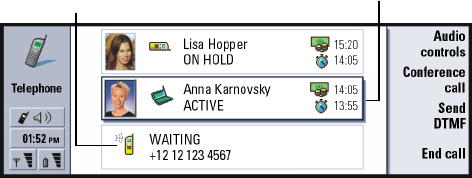

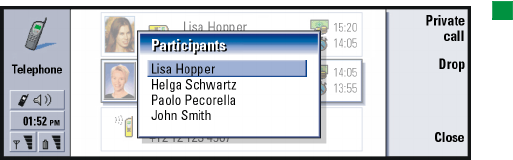

Make conference calls 116

Transfer calls 118

Answer a waiting call 118

Send touch tones during a call 119

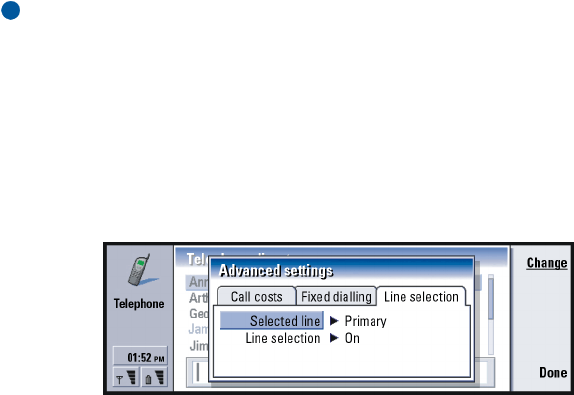

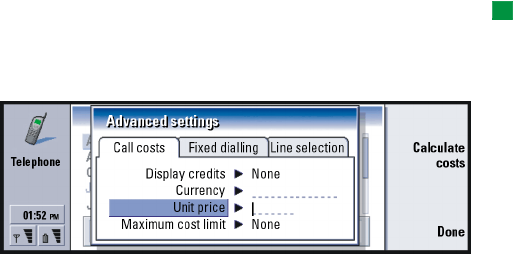

Telephone Settings 119

Flight profile 133

Contacts 135

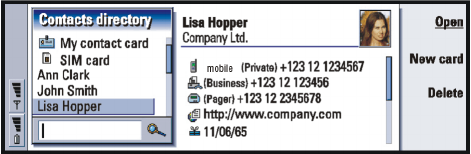

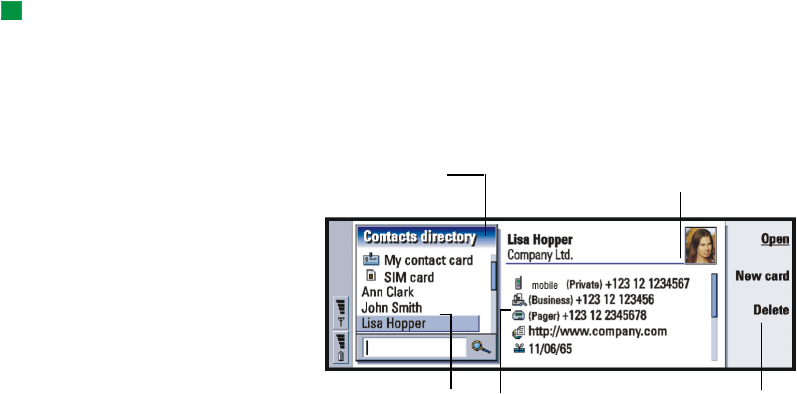

Contacts directory 135

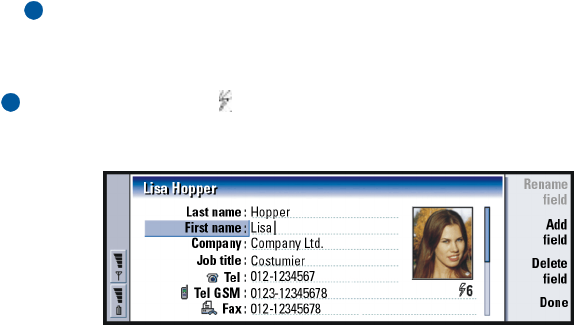

Make a contact card 136

Open a contact card 138

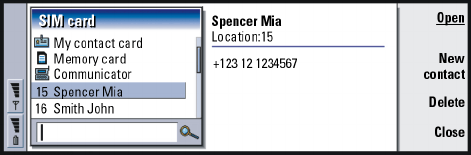

Move or copy contacts from a SIM card 138

Search for a contact card 138

Change fields in a contact card 139

Attach a ringing tone 140

Insert a picture 141

Create or modify templates 141

Store touch tones 142

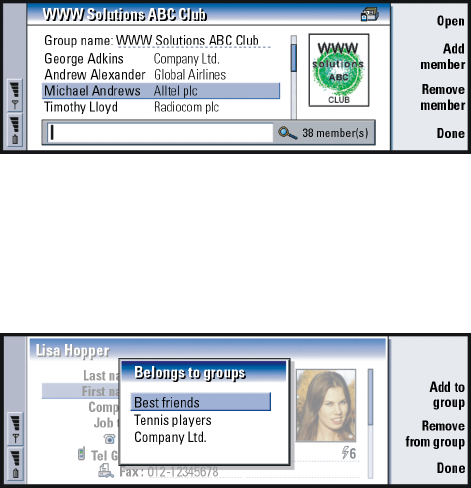

Create contact groups 143

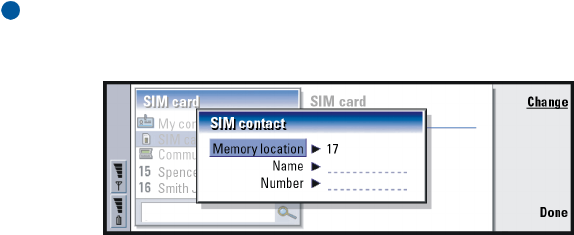

Create a SIM contact card 145

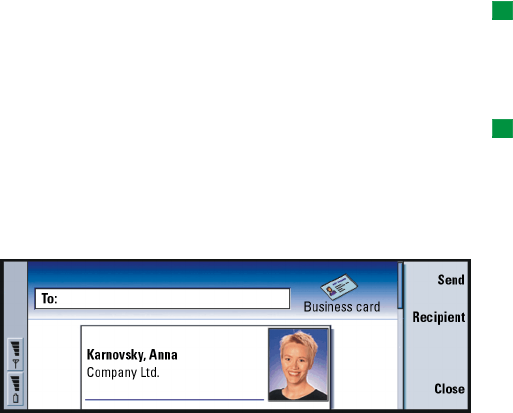

Send a contact card as a business card 147

Receive a business card 148

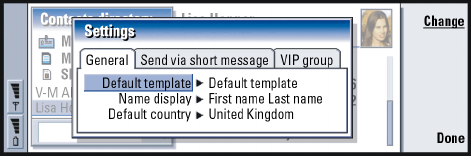

Settings 148

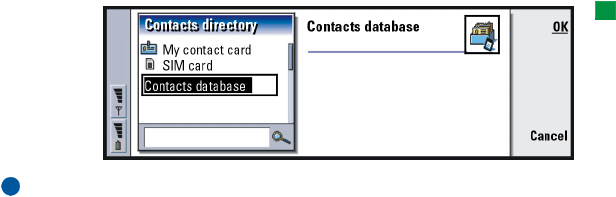

Create a new contacts database 150

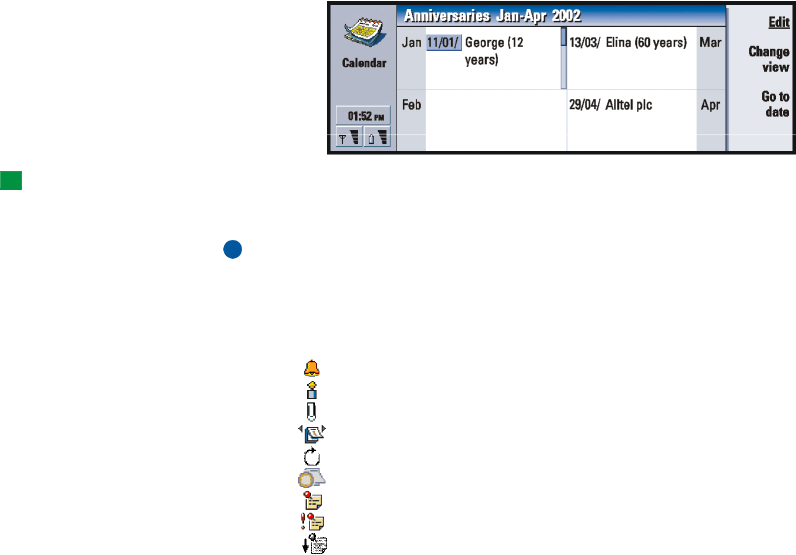

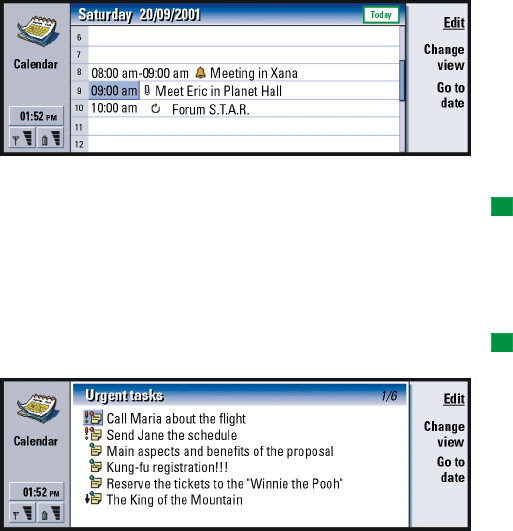

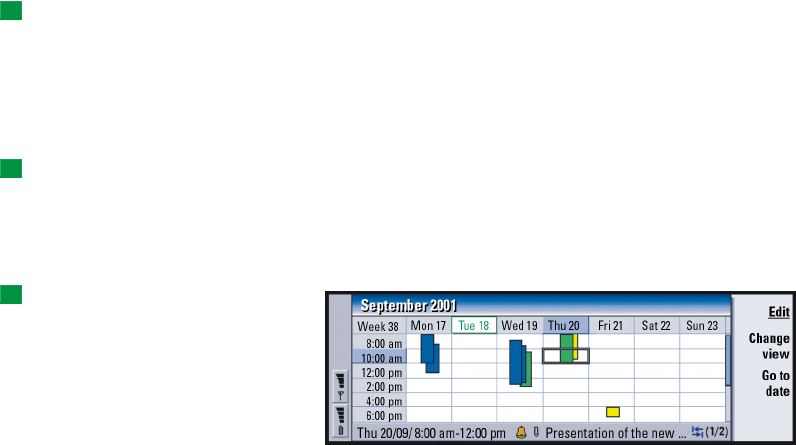

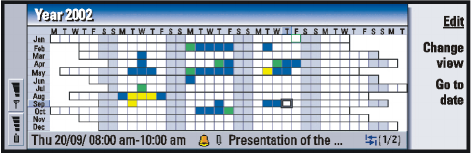

Calendar 153

Calendar entries 153

Icons 166

Task lists 167

Search for Calendar entries 168

Settings 169

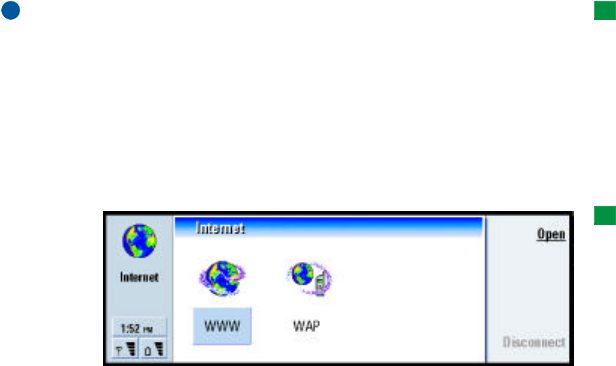

Internet 173

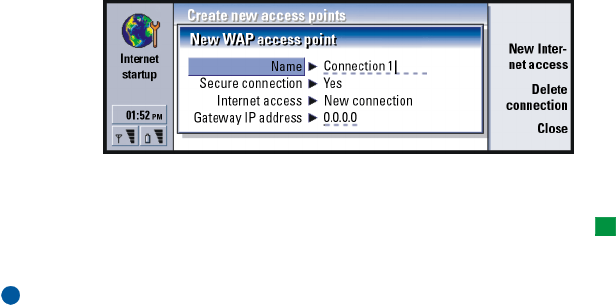

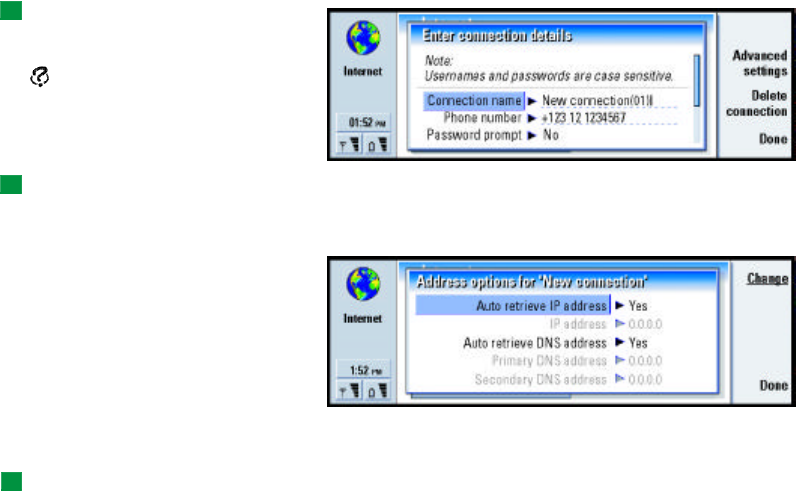

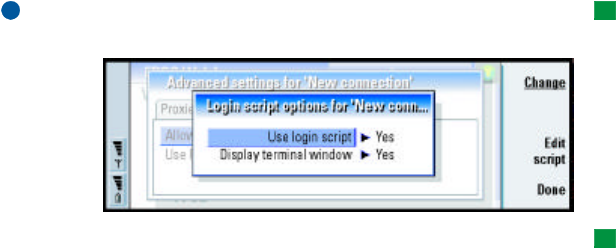

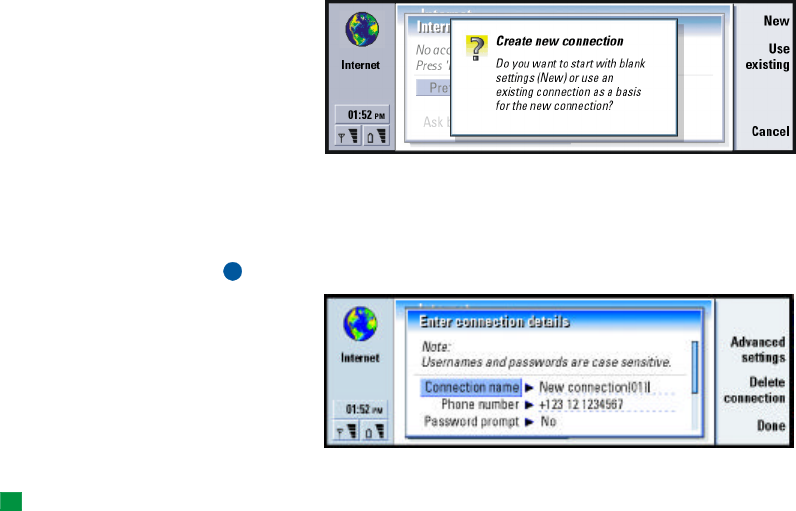

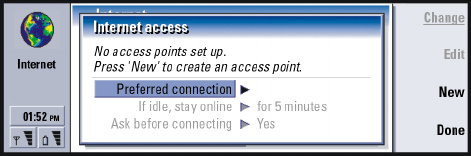

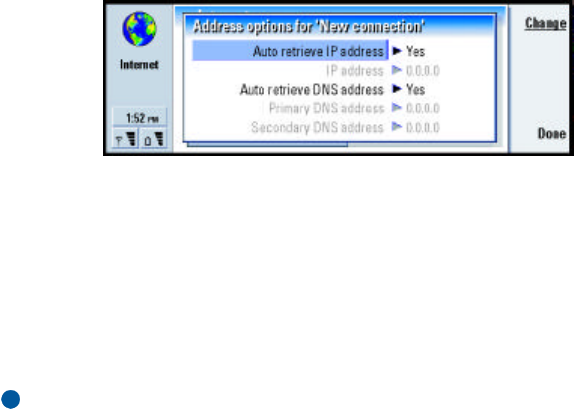

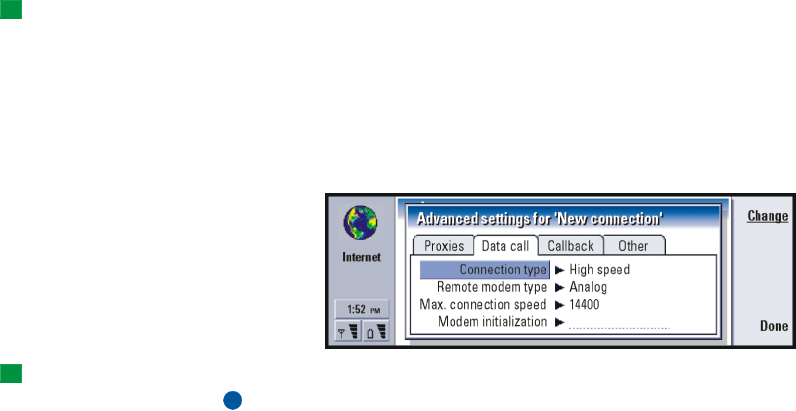

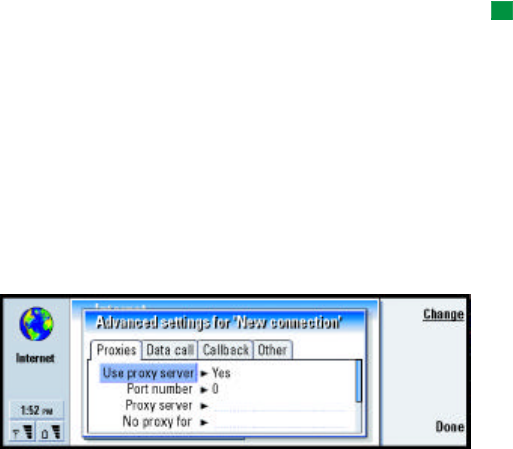

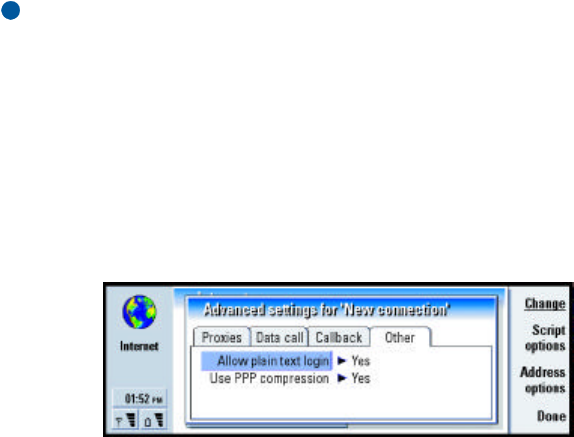

Setting up your Internet access point 173

Connect to the World Wide Web 183

Navigate in WWW 185

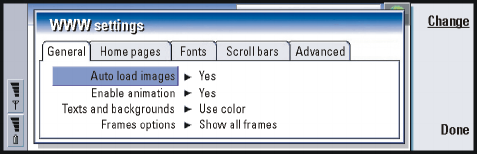

WWW settings 188

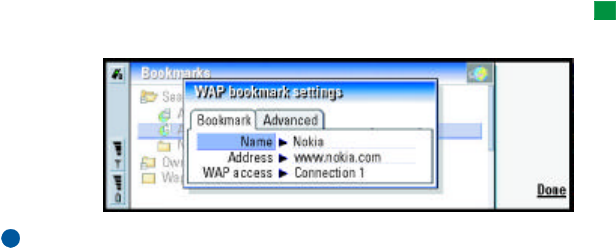

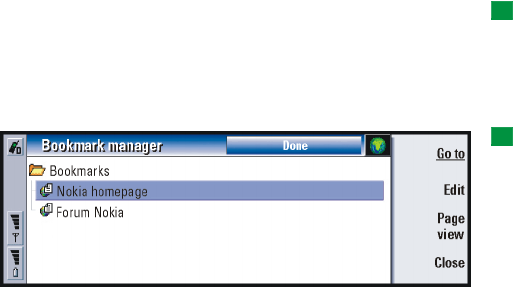

Bookmarks 191

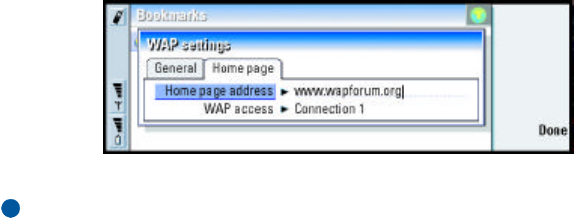

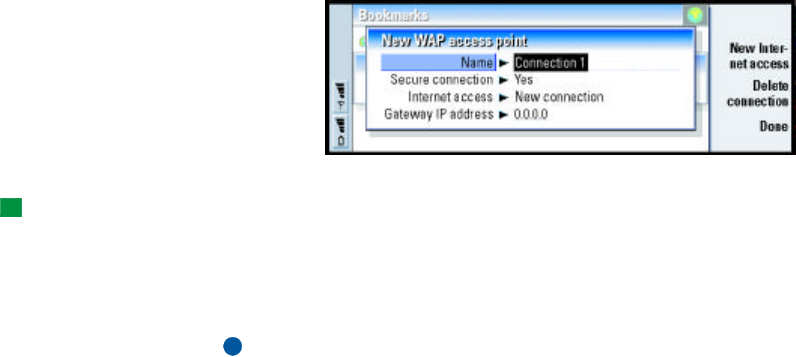

WAP 192

Java 197

Messaging 199

Messaging center 200

Fax 208

Mail 212

Short Message Service 226

Office 231

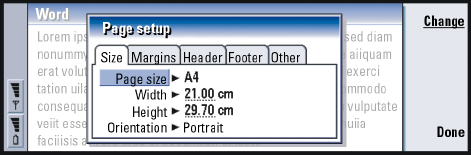

Document 231

Sheet 236

Presentation viewer 244

File manager 246

Extras 253

Clock 253

Calculator 255

Control panel 256

Recorder 270

Imaging 271

Video player 274

Cell broadcast 275

Fax modem 278

Accessories guide 283

Power management 283

Vehicle accessories 288

Wearables 292

Carrying cases 293

Mobile office 294

Troubleshooting 296

Reference information 309

Important safety information 309

Certification Information (SAR) 315

Care and maintenance 325

Accessory safety 326

Battery safety 327

Technical data 328

NOKIA One Year Limited Warranty for US 329

Nokia One Year Limited Warranty for Canada 335

Glossary 339

FOR YOUR SAFETY Read these simple guidelines. Breaking the rules may be

dangerous or illegal. Further detailed information is given in this User guide.

ROAD SAFETY COMES FIRST Do not use the communicator while driving;

park the vehicle first.

INTERFERENCE All wireless phones may get interference which could affect

performance.

SWITCH OFF IN HOSPITALS Follow any regulations or rules. Switch off the

phone near medical equipment.

SWITCH OFF IN AIRCRAFT Wireless phones can cause interference. Using

them on an aircraft is illegal.

SWITCH OFF WHEN REFUELING Do not use the phone at a fueling point.

Do not use near fuel or chemicals.

SWITCH OFF NEAR BLASTING Do not use the phone where blasting is in

progress. Observe restrictions, and follow any regulations or rules.

USE SENSIBLY Use only in the normal position (to ear). Do not touch the

antenna unnecessarily.

USE QUALIFIED SERVICE Only qualified service personnel may install or

repair equipment.

ACCESSORIES AND BATTERIES Use only approved accessories and

batteries. Do not connect incompatible products.

MAKING CALLS VIA THE PHONE Close the cover and make sure the phone

is switched on and in service. Enter the phone number, including the area

code, then press . To end a call press . To answer a call press .

EMERGENCY CALLS Close the device cover. Make sure the phone is

switched is on and in service. Hold for several seconds, to clear the

display. Enter the emergency number, then press . Give your location. Do

not end the call until told to do so.

MAKE BACKUP COPIES Remember to make backup copies of all important

data.

CONNECTING TO OTHER DEVICES When connecting to any other device,

read its user’s guide for detailed safety instructions. Do not connect

incompatible products.

INFRARED PRECAUTIONS Do not point the IR beam at anyone’s eye or

allow it to interfere with other IR devices.

DISCLAMER

It is possible that you may not be able to activate your phone on all wireless systems.

Please see your service provider for details.

USING THIS GUIDE

A number of features included in this guide are called Network Services. They are

special services provided by wireless service providers. Before you can take advantage

of any of these Network Services, you must subscribe to the service(s) from your home

service provider and obtain instructions for their use.

CONTACTING NOKIA

To help Nokia promptly answer your questions, please have your phone’s model

number, IMEI number, and your local zip code ready when you call Customer

Service. The IMEI and model number are on the back of your phone under the

battery. If you’re calling about an accessory, please have it available for reference.

Nokia Customer Care Center

7725 Woodland Center Boulevard

Suite 150

Tampa, FL 33614

Tel: 1-888-NOKIA2U (1-888-665-4228)

Fax: 1-813-249-9619

For the hearing-impaired only (TTY):

1-800-24NOKIA (1-800-246-6542)

Customer Care, Canada

Nokia Products Ltd.

575 Westney Rd. South

Ajax, Ontario L1S 4N7

Tel: 1-888-22NOKIA (1-888-226-6542)

Getting started

1. Getting started

Congratulations on purchasing the Nokia 9290 Communicator. It is a complete

communications tool: it is a wireless phone, messaging device, and a palmtop

organizer in one pocketable package.

When you open your sales package, check that it contains the following:

•Two peel-off stickers attached on the sales package.

•The Nokia 9290 Communicator

•Memory card

•The Nokia 9290 Communicator User guide, the Getting Started guide,

and the Add-on applications guide

•High Power Battery BLL-3

•ACP-12U Charger

•RS232 DLR-2L Adapter Cable

•CD-ROM with PC connectivity software

•Stickers with the serial number and lock code of the communicator

Using the phone

Tip: To use the online

help, open the cover and

press the (help) key.

To be able to send and receive calls and messages on your Nokia 9290

Communicator, you must have the following:

•the phone must be turned on,

•a valid SIM card must be inserted, and

•you must be located in the service area of the wireless network.

Emergency calls to the emergency number 911 may be made without the SIM card.

Getting started

IMPORTANT: Your communicator can be locked with a lock code. The default

lock code is 12345. For security reasons, it is imperative that you change

the lock code. Keep the code secret and in a safe place, separate from the

communicator. For more information on changing the lock code, see

section ‘Security’ on page 256 of the user guide.

First start-up

Note: Keep all miniature SIM cards out of the reach of small children.

1Close the device cover and ensure that the phone is turned off.

If it is on, press .

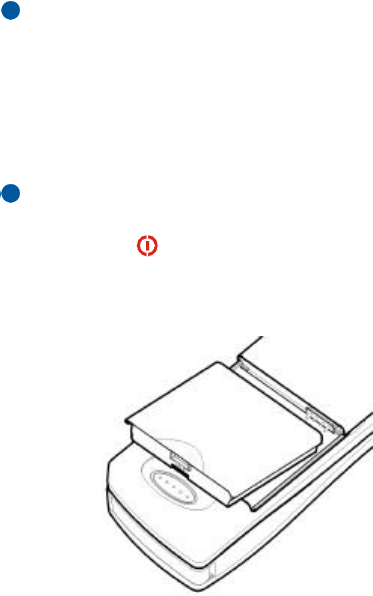

2If the battery is connected to the communicator, remove the battery. Press the

catch at the top of the of the battery and lift the battery away from the battery

cavity. See Figure 1.

Figure 1

Getting started

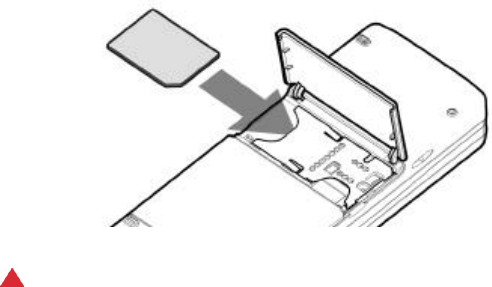

3Slide the SIM card into the SIM card slot: ensure that the gold contacts of the

SIM card are facing down and that the bevelled corner of the card is on the

right. See Figure 2.

Figure 2

When the card is properly inserted into the SIM card slot, the bevelled corner

remains visible, as shown in Figure 3.

Getting started

Figure 3

4When you are sure that the SIM card is correctly installed, replace the battery.

If there is little or no charge in the battery, it is recommended that you connect

the communicator to the charger and start charging the battery before

continuing with the start-up procedure.

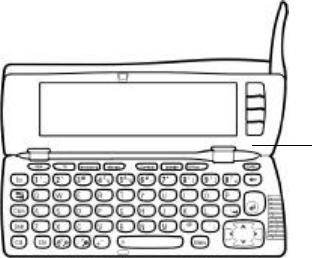

5Open the cover of the communicator. You will see a welcome screen while the

communicator performs a self-test.

6After the self-test is complete, if the choice of multiple keyboard layouts is

supported, you will be prompted to select the correct keyboard setup. Press OK

to confirm the keyboard selection.

If not, you will see a list of cities on the display.

bevelled corner is

visible

Getting started

Tip: You can later change

the home city, time zone,

date, and time formats of

your communicator in the

Control panel with Date and

time and Regional settings

applications.

7Scroll to the name of your home city with the Arrows key and press OK. A view

showing the current time and date opens.

You can search for a city by typing the name of the city in the search field at

the bottom of the view.

8Change the time and date if necessary and press OK.

9Next you can modify your personal information in a business card. Press OK.

If a valid SIM card is inserted in your communicator, the business card may have

retrieved some information from the SIM card.

Tip: You can later attach

a picture to your business

card in the Contacts

application.

10 A note confirming that you have completed start-up successfully appears. Press

OK.

Note: The battery does not fit into place if the SIM card is not correctly

installed. Do not force the battery into place! Check that you have

inserted the SIM card into the slot as described above. If the SIM card is

incorrectly installed, remove it by pulling it out of the slot, and insert it

again.

Charge the battery

Tip: To see the current

battery level, see the battery

indicator on the

communicator or phone

display.

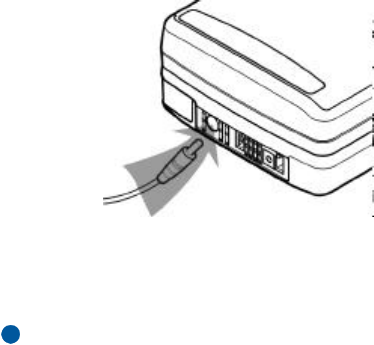

1Connect the charger cable to the bottom of the communicator, as shown in

Figure 4.

Getting started

Figure 4

2Connect the charger to the proper voltage AC wall outlet. While charging is in

progress, the battery charge indicator scrolls on the phone display.

3When the battery is fully charged, the bars stop scrolling and four bars are

displayed. You may now remove the charger plug from the communicator.

Note: The communicator can be used normally during charging.

Getting started

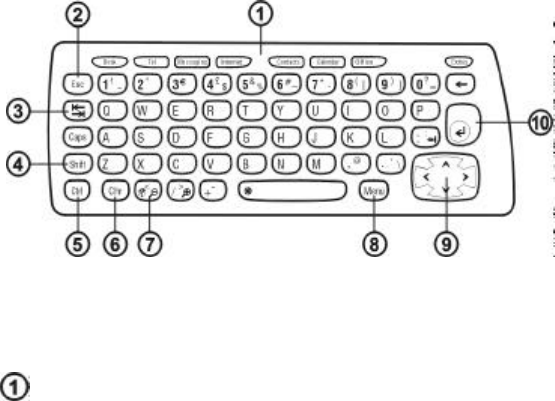

Communicator interface

Figure 5

The main features of the communicator interface, including the display, are shown

in Figure 5. The display is turned on simply by opening the cover. The application

that was active the last time the communicator was used is shown on the display.

When you close the cover, the communicator interface saves all data and turns off

its display.

Note: You need not specifically save information. When you press Close, switch

to another application, or close the device cover, the Nokia 9290

Communicator saves all data automatically.

Command

buttons

Arrows

keyMenu key

Keyboard Help key

Application

buttons

Display

Getting started

Use the applications

The buttons at the top of the keyboard start the corresponding applications. The

application buttons are: Desk, Telephone, Messaging, Internet, Contacts,

Calendar, Office, and Extras.

Tip: You can select

running applications in the

‘Task Menu’ at the left-hand

end of the menu bar.

To switch to another application or application group, press the corresponding

application button. You can do this even during a call. You need not exit any

application before starting another. All inactive applications remain in the

background until you start them again.

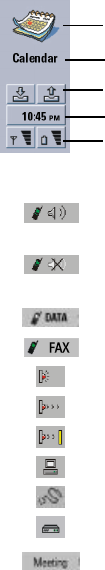

Display elements

Figure 6

This item is

selected

The right-hand frame. Press

the Tab key to highlight it.

This left-hand frame is

highlighted

Details of item The commands

that you can apply

Getting started

Example: When the user

guide instructs you to ‘press

Open’, it means that you

must press the command

button next to the

command name Open.

The main elements of the display are shown in Figure 6. Commands always relate

to the four command buttons on the right side of the display. In the guides,

commands are in bold and items shown on the display and on the menu bar are in

italics.

The scroll bar indicates that there are more items than currently shown on the

display. You can scroll the display with the Arrows key at the bottom right-hand

corner of the keyboard.

When there is a search field at the bottom of the display, you can search for items

by using the keyboard to enter text into the search field.

If there is more than one frame in the view, the selected one is always highlighted.

To move around a selected frame and select items, use the Arrows key.

Press the Menu key to get access to menu commands.

Setup configuration

To access the Internet, WAP services, and your remote mailbox, you need to

configure the relevant settings.

Note: To help you configure these settings, see the Settings checklist delivered

in your sales package. In the checklist you can see the information you

need, where to get it from, and where to enter it in your communicator.

More importantly, add the information to the checklist for future

reference and use it to communicate with your service providers about

the information you need to receive from them.

1Press the Extras application button on the keyboard.

Getting started

2Select the Internet startup icon with the Arrows key and press Open. Three icons

appear: Internet access, WAP access, and Mail account.

3Select Internet access and press Open. A dialog opens.

Tip: For help on the

information required in this

and the next dialogs, press

the key on the keyboard

to view the online Help;

also, see the User guide.

Figure 7

Tip: To move between

pages, press the Menu key.

4Enter the details and press Advanced settings. A dialog with four pages opens.

Enter the details on each page.

On the Other page, press Address options. A dialog opens.

Figure 8

Define the IP and DNS addresses.

Press Done to return to the view with three icons.

Tip: For details, see the

Internet chapter of this

guide.

5Select WAP access and press Open. A dialog opens.

Getting started

Figure 9

Enter the details on each page and return to the view with three icons by

pressing Close.

Tip: For details, see the

Messaging chapter of the

User guide.

6Select Mail account and press Open. A dialog with four pages opens.

Enter the details on each page and return to the view with three icons by

pressing Done.

Note: For more information on defining your Internet and mail settings, see the

Internet and Messaging chapters of the User Guide.

PC connectivity

You can connect your communicator to a compatible PC or laptop using the PC

Suite for Nokia 9290 Communicator program found in the communicator sales

package CD-ROM. The CD-ROM also contains PC Suite Guide in the Using Nokia

9290 Communicator section.

PC Suite for Nokia 9290 Communicator is a PC application that works with

Windows 95/98, 2000, and NT. It integrates the file system of your communicator

to the file system of your PC, allowing you to quickly and easily move, copy,

rename, and delete files and folders on and between your communicator and your

PC.

Getting started

With PC Suite you can synchronize application data like contacts or e-mails

between your communicator and your PC and back up data to your PC. You can

also automate synchronisation and backups so they happen at predefined times or

on connection.

You can also use PC Suite when it is not connected to your communicator (offline

mode). When you connect the two devices the next time, the changed information

can be updated from your PC to your communicator and vice versa.

WARNING: Beware of viruses. Only install software onto the communicator

that you have obtained from sources that offer adequate

protection against viruses. See ’Certificate Management’ in the

user guide.

Connect your communicator to your PC

1If you use a cable, connect the larger end of the RS-232 cable to the serial

(COM) port of the PC, and the smaller end to the connector at the bottom of

the communicator.

2If you use infrared or a serial port other than COM1, double-click the PC Suite

connection icon on the WIndows taskbar and choose the right connection port.

3Open your communicator.

4If you use an infrared link, make sure that the infrared port of the

communicator faces the infrared port of the PC. Press Chr + (the key with

the infrared symbol) to activate the infrared link on your communicator. For

more information about activating infrared on your communicator, see the User

guide.

5Start the PC Suite software on the PC.

Getting started

The PC Suite software should now connect to your communicator

automatically.

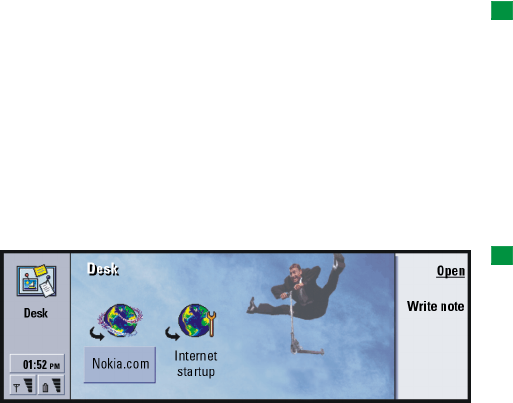

Desk

The Desk application group is used for managing and using various links to your

favorite applications or third-party software. You create these links in the relevant

applications.

Adding a link

1Open the item in the appropriate application.

2Press the Menu key and then select Add to Desk.

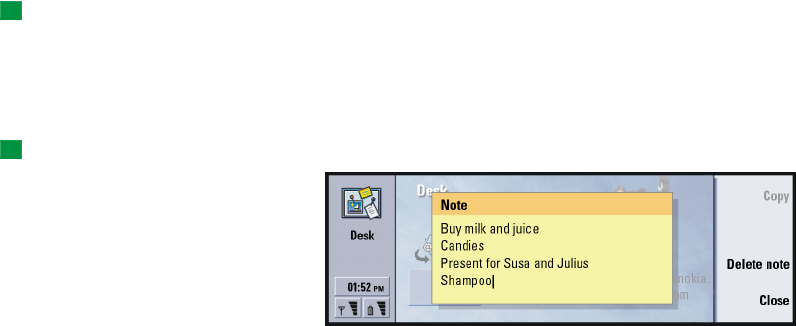

Writing notes

1Press Write note. A simple text editor opens.

2Write the note.

3Press Close to save the document. The note will now appear in the main view

of Desk.

Telephone

Telephone is used for making and receiving voice calls and adjusting the telephone

settings. To start Telephone, open the communicator cover and press the Tel

application button on the keyboard. Many of the actions you do in the Telephone

application you can also do using the front cover of the communicator.

Getting started

To make phone calls,

•the phone must be switched on,

•the communicator must have a valid SIM card fitted, and

•you must be located in a service area of the wireless system.

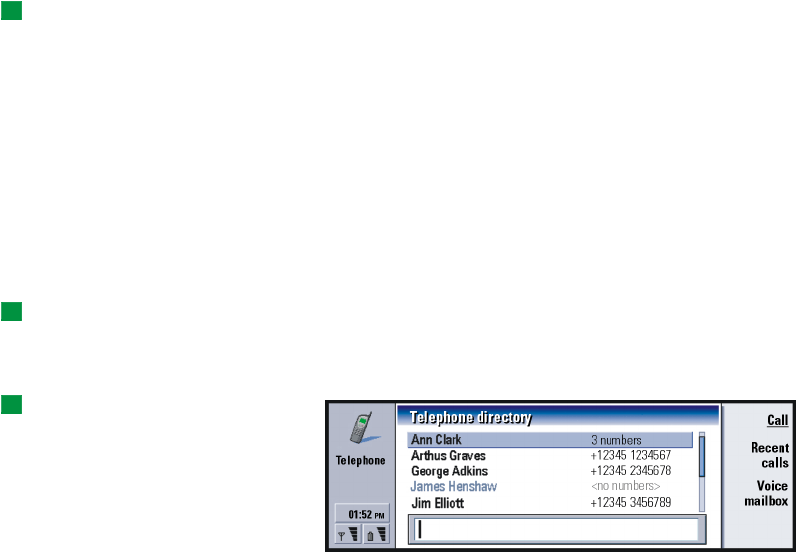

Making a call

There are two main ways to make a call:

•Select a contact from the Telephone directory and press Call. If the contact has

only one phone number, the number is called immediately.

•If the contact has several phone numbers, a list opens showing the phone

numbers; choose a number from the list and press Call.

•Enter the phone number in the search field at the bottom of the main view and

press Call.

Answering a call

When you receive a phone call, a note appears on the display. Depending on the

profile settings, you may also hear a ringing tone.

To answer the call, press Answer.

If you do not wish to answer it, press Decline.

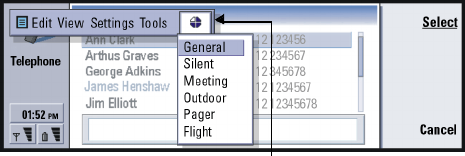

Flight profile

The Flight profile prevents you from accidentally turning on the phone in an

aircraft. To select the Flight profile:

1In the Telephone main view press Menu key, scroll across the menu bar to the

Profiles icon , then highlight Flight.

Getting started

2Press Select.

With the Flight profile active, you may perform tasks which do not require

communication with the wireless network. For example, you can read previously

downloaded mail, write mail, notes, short messages, faxes, or update your

calendar. Once you have left the aircraft, turn off flight profile in the Telephone

application by pressing Exit profile. Then you can turn on the phone by pressing

, and your short messages, faxes, and mail will be sent automatically.

When the communicator is in the flight profile, emergency calls must be made

from the phone (close the communicator cover) as follows:

1Press . The phone display will read Flight profile is active.

2While the note is visible (for approximately five seconds) you can dial an

emergency number programed into your communicator, for example 911.

3Press.

IMPORTANT! Never use the phone when in an aircraft. If the aircraft personnel

allow use of the communicator interface, you MUST activate the Flight

profile. The Flight profile will allow use of the communicator interface

only and will prevent use of the phone. Be aware that all

communications applications require use of the phone.

Messaging

Messaging contains the following applications: Fax, Mail, and SMS (Short

Messaging Service). Start Messaging by pressing the Messaging application button

on the keyboard.

To send and receive faxes, mail and short messages,

Getting started

•the phone must be turned on,

•the system you are using must support fax calls, data calls, and SMS,

•the fax, data, and SMS services must be activated for your SIM card,

•you must have obtained an Internet Access Point (IAP) from an Internet service

provider and have entered the proper Internet and Mail settings

•the SMS message center number must be stored in the settings of the SMS

application.

Contact your home service provider for details.

Note: The Nokia 9290 Communicator mail system is compliant with the

Internet standards SMTP, IMAP4, and POP3.

Write and send faxes, mail, and short messages

You write, edit, and send faxes, mail, and short messages in their corresponding

editors, which you can enter in any one of three ways:

•Write and format text in any application that allows it in the communicator. To

send the text, press the Menu key, select File > Send and select one of the

sending options available in the submenu.

•Press any of the following commands in the main view of Messaging: Write

fax, Write mail, or Write short message.

•Press the Menu key in the main view of Messaging and select Write > New

message…. Then select the appropriate message type.

Select recipients

Note: A fax or a short message can have only one recipient.

There are two ways to select recipients to your fax, mail, and short messages:

Getting started

1Press Recipient in the corresponding message editor. A dialog listing your

contacts opens.

Search for a contact or contacts in the left frame and press Select.

2Press Done.

Alternatively, type the name of the recipient into the header of the fax, mail, or

short message and check it against your contacts database.

Receive and read faxes and short messages

Faxes are received automatically, provided that this service is available, the phone

is turned on, and within wireless network coverage. Short messages are received

automatically, provided your phone is switched on.

There are two ways you can read a received fax or short message:

•When you see a note on the display or hear a tone indicating a received item,

press Open. The tone will sound only in certain conditions.

•Go to the Messaging application. From the Inbox, select the received item and

press Open. The fax or short message opens in the appropriate viewer.

Retrieve and read mail

Mail addressed to you is not automatically received by your communicator, but by

your remote mailbox. To read your mail, you must first connect to the remote

mailbox and then select the messages you wish to retrieve to your communicator.

Connection to a remote mailbox is established via a data call.

Connect to a remote mailbox

1Select the remote mailbox in the left frame of the Messaging center main view.

Getting started

2Press Retrieve mail.

3When the connection to the remote mailbox has been established, press the

Menu key and select Retrieve > New or Selected or All mail messages.

4When all the mail messages you have requested are retrieved, press Go offline.

5Select a mail that you wish to read and press Open.

Note: You can define your remote mailbox account settings to retrieve only

message headers. When you retrieve your mail using these settings, you

will be prompted to download the rest of the selected message after you

press Open.

Internet

To obtain access to the Internet,

•the wireless system you use must support data calls,

•the data service must be activated for your SIM card,

•you must have obtained an Internet Access Point (IAP) from an Internet service

provider (ISP), and

•you must have entered the appropriate Internet settings. Follow the

instructions in the User guide. Use the single card Settings checklist in the sales

package to record your settings.

Your ISP will give you instructions on how to configure the Internet settings.

Follow the instructions carefully.

Note: You must have your phone turned on, within network coverage, and free

of any other voice or data call to connect to the Internet.

To establish an Internet connection:

Getting started

1Press the Internet application button on the communicator keyboard.

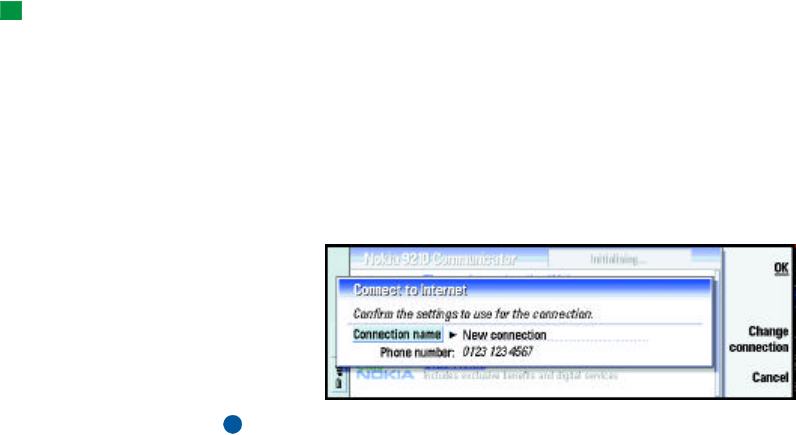

2Select the application you want, for example WWW, and press Open. When the

application needs to make a connection, a dialog opens, showing the

Connection name and Phone number of the Internet access point you are using

to establish a connection.

3Press OK to establish a connection.

4To close an application, press Done.

5To disconnect from the Internet, in any of the Internet applications, press the

Internet application button on the keyboard and press Disconnect.

Disconnection is immediate.

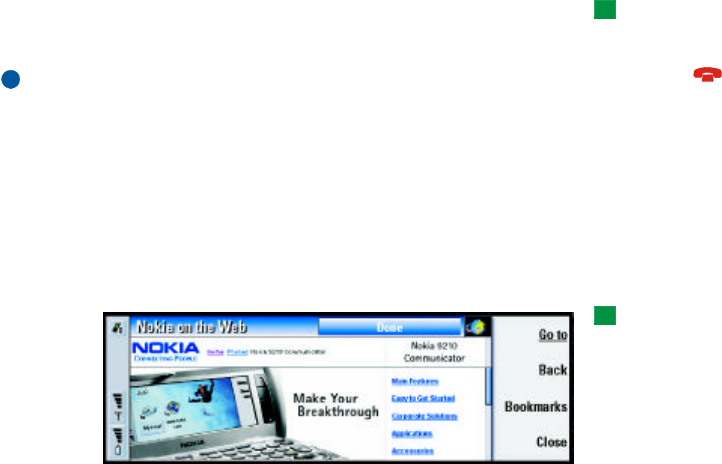

World Wide Web (WWW) browser

Example: An example of a

URL address is:

www.Nokiausa.com.

The WWW is a hypertext system for finding and accessing resources on the

Internet. To navigate in the World Wide Web:

Tip: Some Web sites

require your user name and

password before the WWW

page can be retrieved.

1Press the Menu key and select File > Open > Web page…

2Enter a URL address into the address field or select a bookmark in the

Bookmarks list and press Go to. You can also navigate to other sites from the

opening page of your WWW browser.

3When a page is retrieved and open, to select links or hotspots, press the Tab key.

To move backwards, use Shift+Tab. Alternatively use the Pointer tool; you can

turn it on via the shortcut Ctrl+Q. For more information on the Pointer tool,

see the User guide.

4To go to another page or site, select a hyperlink or hotspot and press Go to.

Getting started

WAP

The WAP services application is a hypertext system used to access Internet services

containing news, weather reports, flight times, dictionaries, and so on. It is

intended for mobile users with mobile devices.

To obtain access to WAP services:

•you need to be within the coverage area of a system which supports data calls,

•a data service must be activated for your SIM card,

•you must have obtained a WAP access point from a WAP service provider, and

•you must have entered the WAP settings. Follow the instructions in the User

guide.

Navigate WAP services

To open a WAP page:

1Press the Menu key and select File > Open page. A dialog opens. Enter the

address of the URL, for example: www.nokia.com. Use the Arrows key to scroll

the view to choose hyperlinks and hotspots.

Note: Some servers have access restrictions that require a valid user name and

password. In this case, you will be asked to enter the user name and

password before a connection to the service can be established.

Contacts

Start Contacts by pressing the Contacts application button on the keyboard. Use

Contacts for creating, editing, and managing all contact information, such as

phone numbers and addresses. The entries in the Contacts directory are called

Getting started

contact cards. You can synchronize your contacts with a compatible PC. For more

information on synchronizing contacts, see the PC Suite Guide on the sales

package CD-ROM.

The main contacts database is in the communicator’s memory. You can also store

contacts in separate databases on an attached memory card.

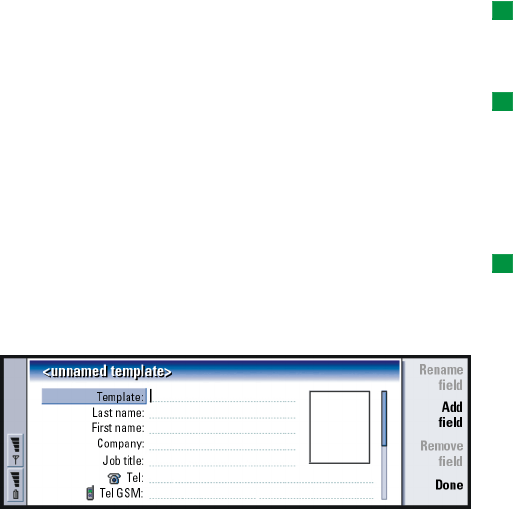

Making a contact card

1In the Contacts main view, press New card.

2When the contact card opens, enter information in the various fields.

3To save your contact card, press Done.

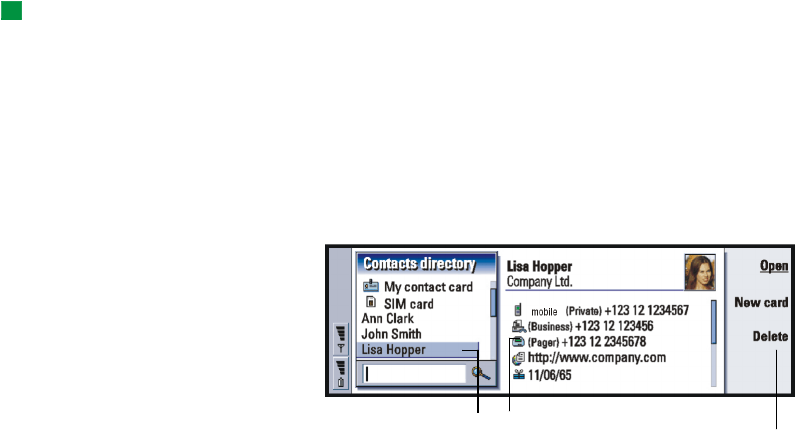

Calling a contact

The Contacts main view consists of two frames, left and right. Press the Tab key to

move across to the right-hand frame. Highlight a telephone number of the contact

and press Call.

Calendar

In the Calendar application, you can check your scheduled events, appointments,

anniversaries, birthdays, as well as list things to do. You can set alarms to all of the

calendar entries. To start the Calendar application, press the Calendar application

button on the communicator keyboard.

Getting started

You can synchronize your calendar and tasks with Microsoft Windows and Lotus

programs when you connect your communicator to a compatible PC. For more

information on synchronization, see the PC Suite Guide on the sales package CD-

ROM.

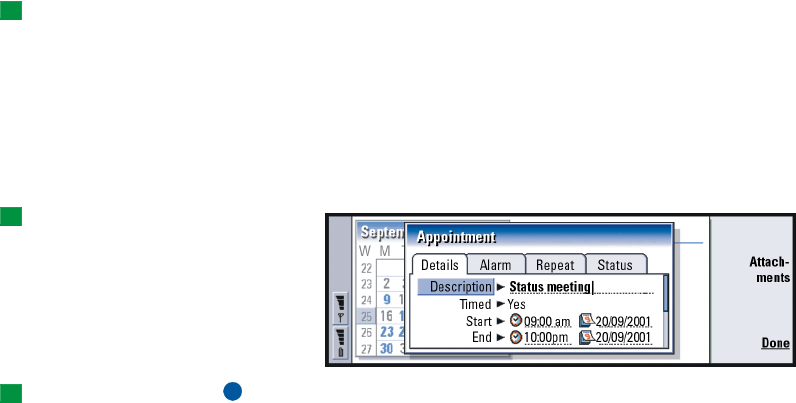

Create a new calendar entry

One way to create a new calendar entry is:

1Press the Menu key and select File > New entry. Select the entry you wish to

create: Appointment…, Event…, Anniversary…, or Task….

2Enter information into the fields in the pages of the dialog.

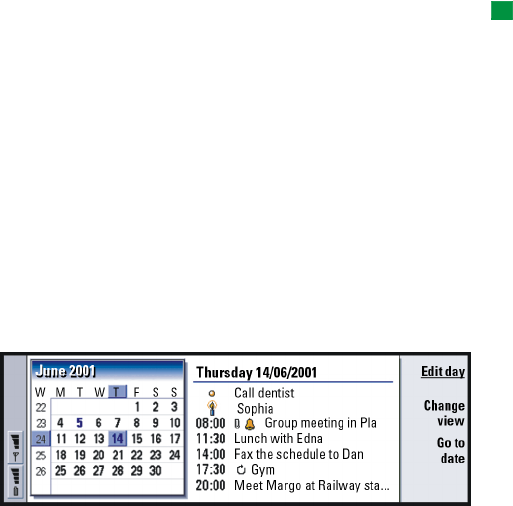

Month view

The month view is the main view of Calendar. If you have entered information into

Calendar for a particular month, you will see a list of events on the right-hand side

of the display. To edit an event:

1Press the Enter key or Edit day to highlight the right-hand frame.

2Select the event, and press Edit. The entry details form opens.

3Change the information about the entry as necessary.

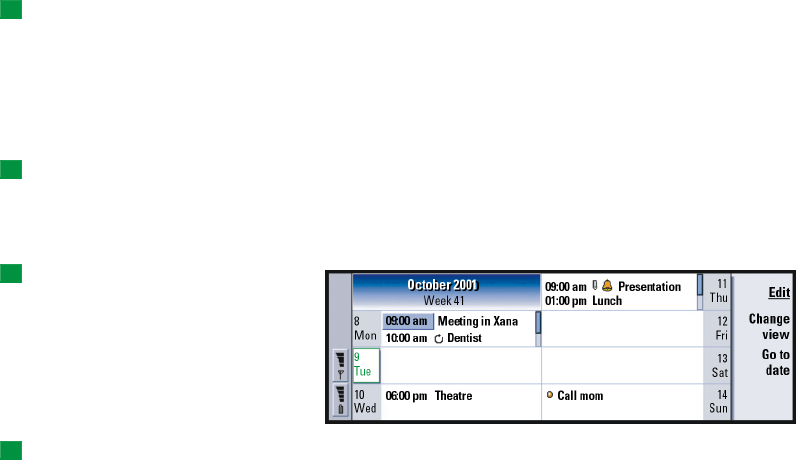

Week view

The week view shows the timetable of the selected week. To check the week view,

press Change view and select Week.

Getting started

Day view

The day view displays entries of the selected day. To open the day view, press

Change view and select Day.

Task lists

The task lists show one task list at a time. You can use task lists to list and organize

tasks. You can set deadlines dates and priorities for your tasks. You can also have

several task lists, for example, one for business tasks and another for personal

tasks.

Other views

The communicator contains other views, such as the Year schedule and the

Anniversaries view.

Office

Office contains the following applications: Document, Sheet, Presentation viewer,

and File manager, which are all compatible with Microsoft Windows.

Create a document

When you open the Document application, a new file is opened. You can start

writing immediately.

To save the document, press Close. A dialog opens. You should now name the

document and choose the folder in which you would like to save it.

Getting started

Sheet

In Sheet you can work and store your data in a file that is called a workbook. Each

workbook contains at least one worksheet. A workbook can also contain

chartsheets; a chartsheet is a spreadsheet document containing a chart that is

based on data from a worksheet.

Create a workbook and worksheets

Tip: To add a worksheet

to the Desk application,

press the Menu key and

select File > Add to Desk.

To create a new workbook, press the Menu key and select File > New workbook.

To save a workbook, press the Menu key in the worksheet view and select File >

Save.

To create a new worksheet in a workbook, press the Menu key and select Insert >

New worksheet.

To enter data, select a cell with the Arrows key and start typing the data in the

selected cell.

To confirm what you have entered in a cell, press Enter, OK, or go to another cell

with the Arrows key. To dismiss the action, press Esc or Cancel.

To determine the category to which you want the data in the cell to belong, press

Function. The categories are as follows: All, Financial, Date and time, Mathematical,

Statistical, Lookup, Text, Logical, and Information. Each category has a set of

functions, which you can see from the list next to Function name.

Create chartsheets

There can be seven different kinds of charts: Column, Stacked column, Line, Pie, Bar,

Stacked bar, and X/Y scatter.

Getting started

1Select a range of cells on a worksheet. These will provide the data for your new

chartsheet.

2Press the Menu key and select Insert > New chart. A dialog opens.

3Define the following: Chart name, Chart type, 3-D, Background color, and Axis

color.

4Press Close to create a new chartsheet and Cancel to dismiss it.

Presentation viewer

To open a presentation press Open in the Presentation main view to select and

view a document. To close the application, press Close.

Tip: You can zoom in and

out to get a better view of

the presentation.

When a document is opened, the top of the first slide is shown. To view the next

slide, press Next or Enter. To view the previous slide, press Previous. To scroll the

current slide, use the Arrows key.

File manager

You can use File manager to manage the contents and properties of various folders.

In the folder frame, the tree can contain folders from two roots, the communicator

and memory card.

Under the communicator root there is C:\Documents\ folder that contains four

default folders: \Documents\Downloaded\, \Documents\Photo gallery\,

\Documents\Templates\, and \Documents\Tones\.

Getting started

In the files frame, the file list shows all the files that can be found from the source

or folder currently selected in the left frame. The title of the file list frame shows

the path of the currently selected file. The file list frame also shows the

application-related icon, name, and the last modification date of the file. The files

are sorted in alphabetical order.

View the contents of a folder

1Choose a folder in the left folder tree frame and press Open.

A view of all the subfolders and files of the parent folder opens.

2To view any possible subfolder, select it and press Open.

3Press Done to return to the main view.

Open a file

1Select a file and press Open. The file will then open in the corresponding

application.

2To return to the main view, press Close folder.

Create new folders

1Press the Menu key in the main view of File manager and select File > New

folder. A dialog opens.

2Name the new folder.

Search for files and folders

1Choose the folder or memory storage where you want the search to take place.

2Press the Menu key > Tools > Find…. A dialog opens.

3Type in the field the string you wish to search for.

4Press Options to define the search in more detail.

Press Change to change the value of a list item.

Getting started

When ready, press Close.

5Press Find to start the search.

To interrupt the search, press Stop.

6When the search is over, press Open to open the folder or file found.

To start a new search, press New find.

7To return to the main view, press Close.

Extras

Press the Extras application button on the keyboard to see extra applications. To

start an application, use the Arrows key to highlight an application and press

Open.

You can install additional applications from the CD-ROM in the sales package.

Clock

The Clock shows the time and date in your home city and country, as well as in

several other cities and countries in the world. The Clock also includes an alarm

clock.

Set an alarm

Tip: You can set calendar

alarms in the Calendar

application.

1Press Alarm clock in the main Clock view. An alarm clock view opens.

The currently active alarms are listed next to the clock.

2To create a new alarm, press New alarm.

To edit an alarm, press Edit alarm.

A dialog opens.

3Define the requirements of your alarm such as the Time.

Getting started

4Press Close to accept the set alarm.

Turn off the alarm sound

Press Stop or any key on the keypad of the phone cover.

Press Snooze to silence the alarm for a set time.

Calculator

There are two modes in Calculator: a desk calculator for simple arithmetic

operations, and scientific calculator for more complicated mathematical

calculations.

There are two ways to perform calculations, either by entering characters in the

input field or selecting symbols from the function map. A calculation is executed

by pressing Enter or =. The calculation and its result can be seen on the output

sheet on the left on the display. To move between the input field, output sheet, and

function map, press the Tab key or Change focus.

Control panel

In the Control panel you can view or modify the following: Security, Data call

restrictions, Profiles, Display, Accessories, Certificate manager, Date and time, Install/

Remove software, Internet access, About product, Memory, Regional settings, and

Default folder

Modifying these features affects the operation of your communicator across all

the applications.

To open a program for editing, select it with the Arrows key and press Open.

Getting started

Recorder

Tip: With the Recorder

you can record sounds and

speech and set them as

ringing tones.

The Recorder allows you to record telephone conversations and voice memos. You

can also listen to and edit your recordings and other sound files.

WARNING! In some states it is unlawful to record a phone conversation

without first advising all call participants.

Phone

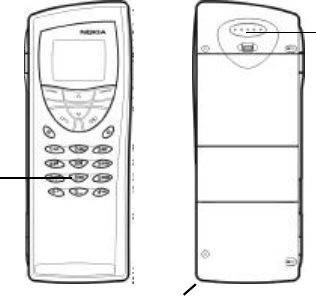

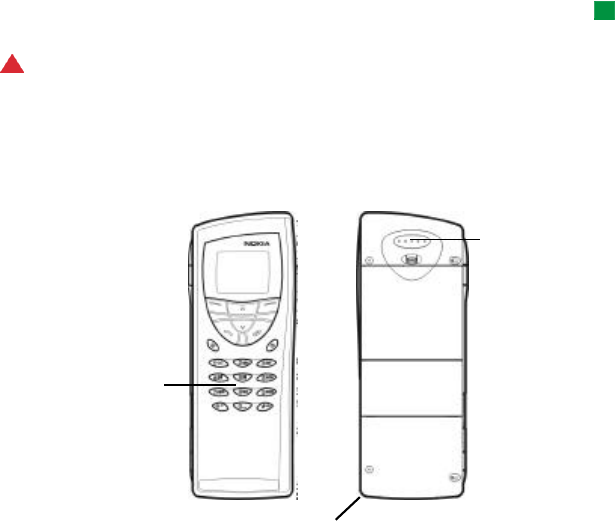

Figure 10

Phone

Earpiece

Front

Back

Microphone

Getting started

Switch on the phone

1Close the device cover, if it is open.

2Press and hold to switch on the phone.

If you are prompted for the PIN code, enter your PIN code, which is provided with

the SIM card, and press the key directly under the ‘OK’ text on the display.

IMPORTANT! Do not switch on the phone when the use of wireless phones is

prohibited, or when it may cause interference or danger.

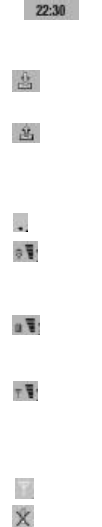

Display indicators

The display indicators inform you about the current operation of the phone. The

indicators described below are shown when the phone is ready for use, with no

characters entered on the display.

SYSTEM NAME or LOGO

- Indicates which wireless system the phone is currently using.

and bars above this symbol.

- Indicates the signal strength at your current location. The more bars are visible,

the stronger the signal.

and bars above this symbol.

- Indicates the remaining charge in the battery. The more bars are visible, the more

charge remains in the battery.

For information on other display indicators, see Phone chapter of this guide.

Getting started

Making and answering calls

To make a call, enter the area code and the phone number, then press .

To answer a call, press .

To end a call, press .

Selection keys

Switches between profiles.

Scroll through menus, submenus, or settings. If there are no active

calls, you can use the scroll keys to browse through the memory contents. When a

call is active, you can adjust the volume level by pressing the scroll keys.

to The number and alphabet keys. To call your voice mailbox, press

and hold .

Used for special functions. If you have subscribed to two phone lines,

you can switch between them by pressing and holding .

The function of these two selection keys depends on the text shown

at the bottom of the display.

Note: The earpiece and microphone are at the rear of the device.

Introduction

2. Introduction

The Nokia 9290 Communicator consists of two parts: the phone and the

communicator interface. The phone is on the device cover and the communicator

interface is inside the cover, as shown in Figure 11.

Figure 11

Both these parts use the same information from the memory of the communicator

- they are not separate devices. For example, the phone uses the names and phone

numbers stored in the Contacts directory of the communicator interface, and the

communicator interface uses the phone for voice and data communications, for

example, when sending and receiving faxes and connecting to the Internet.

communicator

interface

Introduction

Tip: The communicator

interface has no power on/

off button - it switches on

when you open the cover

and switches off when you

close the cover.

The communicator interface contains many organizer and communications

applications. The large keyboard, command buttons, and display make using the

applications easy.

The phone is designed for making and answering calls quickly. The communicator

looks and operates like other Nokia wireless phones, except the earpiece and

microphone are at the rear of the device. The phone is switched on and off by

pressing the button on the cover.

IMPORTANT: Do not switch on the phone when wireless phone use is

prohibited or when it may cause interference or danger.

Getting help

Online Help

The communicator has a help function, which you can access from any application

or view.

To view help, press the key on the communicator interface keyboard. You are

shown a page of information relevant to the task you are doing. You can also

search the help topics for specific subjects and keywords.

Tip: The key is on the

bottom row of the keyboard.

Forum Nokia

The Nokia Wireless Data Forum is a Web service for third parties developing

applications and services for Nokia platforms. The Web site provides information

on different development possibilities as well as marketing support programs for

developers, system integrators, and other Nokia partners.

Introduction

The Nokia Wireless Data Forum also offers product support for the Nokia 9290

Communicator and other Nokia wireless data products. The Web site contains

documents, drivers, quick guides, information on compatibility issues, and more.

For those interested in data transmissions in mobile networks, the Web site

provides documents concerning different technologies related to wireless data.

You can find the Nokia Wireless Data Forum at http://www.forum.nokia.com

About the guides in the sales package

The Nokia communicator sales package contains the following guides either in

print or as PDF files.

•To help you begin to use your communicator, turn to the Getting Started

chapter in the user guide. It explains the start-up procedure and gives basic

information on how to use the various applications.

•This user guide explains in more detail how the Nokia 9290 Communicator

operates. “General information” identifies the various parts of the

communicator and their functions, as well as the common features of the

communicator.

The rest of this user guide deals with the communicator applications and the

phone. There is a short glossary of Internet and wireless terms and

abbreviations at the back of the user guide.

•The PC Suite Guide explains the functionality of PC Suite for Nokia 9290

Communicator. With PC Suite you can move, copy, synchronize, back up, and

restore data between your communicator and a compatible PC.

•The Software on CD-ROM Guide explains in detail the functionality of the

applications found on the CD-ROM that you can install on your communicator.

Introduction

•The Add-on Applications Guide gives a brief introduction of other software

available for the Nokia 9290 Communicator. This guide is only available in a

printed version.

•The Getting Started guide fold-out poster and the Getting Started CD-ROM

helps you to connect your Nokia 9290 Communicator with different kinds of

wireless services.

The PC Suite Guide and the Software on CD-ROM Guide are both on the CD-ROM

under the section “Using the Nokia 9290 Communicator”.

In this user guide in the Getting Started chapter, the names of the commands on

the display are in bold and the settings and options are in italics.

Facts about your communicator

About system services

The wireless phone described in this user guide is GSM 1900 MHz.

A number of features included in this user guide are called network or system

services. They are special services provided by wireless service providers. Before you

can take advantage of any of these services, you must subscribe to the service(s)

you require from your home service provider and obtain instructions for their use.

You can then activate these functions as described in this user guide. The manual

activation commands for various services are not presented in this user guide (for

example, using the and characters for activating or deactivating services).

The Nokia 9290 Communicator, nevertheless, is capable of handling commands

given in that form. For these commands, please consult with your service providers.

Introduction

Services that need to be subscribed to are typically the short message service,

Internet, and fax.

Because the number of special services depends on what services are available in

your home network, it is, unfortunately, impossible to provide a comprehensive list

of the services and settings you need in this user guide. Therefore, this user guide

gives general information about additional services. Please contact your service

provider for further information about the availability and the details of services

in your home system.

Tip: Write the

information you obtain from

your service provider down

on the Getting Started card

for future reference.

If a service requires separate phone numbers or specific settings, they must be

stored in the settings of the communicator. For example:

Sending and receiving short messages requires that this service is supported by the

system you are using and activated for your SIM card, and that the phone number

of the message

is stored in the settings of the SMS application.

Internet access requires that data service is supported by the system you are using

and activated for your SIM card. In addition, you must have obtained an Internet

access point from an Internet service provider.

Access codes

The Nokia 9290 Communicator uses several access codes to protect against

unauthorized use of your communicator and SIM card. The access codes you need

most often are:

•the lock code to lock up your communicator, and

•the PIN code, which is provided with the SIM card.

Introduction

IMPORTANT: The default lock code is 12345. For security reasons, it is

imperative that you change the lock code. Keep the code secret and in a

safe place, separate from the communicator. For more information on

changing access codes, see section ‘Security’ on page 212.

You can change access codes that are used by both the phone and the

communicator interface via either of them, provided that the code can be changed.

For further details on access codes, see ‘Security’ on page 212.

The Internet applications of the communicator use passwords and user names to

protect against unauthorized use of the Internet and its services. These passwords

are changed in the settings of the Internet applications.

Contact information

Tip: You can synchronize

the contact information on

your communicator with a

corresponding application

on a compatible PC. See the

PC Suite Guide on the CD-

ROM for details.

All contact information that you store in the Contacts application, such as names,

addresses, and phone numbers, goes into the Contacts directory. The phone, the

communicator interface, and each of the applications have their own views of the

Contacts directory. The information shown depends on the information the

selected application can use. For example, when you are making a call via the

phone, you can view the name and phone number(s) of the contact. Possible fax

numbers, e-mail addresses, job titles, and so on, are not shown.

GSM data transmission

The Nokia 9290 Communicator employs the data transmission capabilities of the

GSM 1900 MHz system to send faxes, short messages, and e-mail, and to establish

connections with remote computers.

Introduction

Wireless data connections can be made from most locations where your phone

operates. However, it is recommended that you move the communicator to a

location where the strongest possible wireless signal can be obtained. When the

signal is strong, data transmission is efficient. In general, you should not expect

the same performance from wireless data communications as from landline

communications, due to the inherent characteristics of the wireless environment.

The following factors may impair wireless connections:

Noise

Radio interference from electronic appliances and equipment, as well as from

other phones will affect the quality of wireless data transmission.

Cell handover

As the phone user moves from one network cell to another, the signal strength of

the channel drops and the wireless telephone exchange may handover the user to

a different cell and frequency, where the signal is stronger. A cell handover may

also occur when the user is stationary, due to varying wireless traffic loads. Such

handovers may cause slight delays in the transmission.

Electrostatic discharge

A discharge of static electricity from a finger or a conductor may cause erroneous

functions in electric devices. The discharge may result in distorted display and

unstable software operation. Wireless connections may become unreliable, data

may become corrupted, and the transmission halted. In this case you need to end

Introduction

the existing call (if any), close the cover and switch off the phone (if on) and

remove the battery. Then replace the battery and establish a new wireless

connection.

Dead spots and dropouts

Dead spots are areas where radio signals cannot be received. Dropouts occur when

the phone user passes through an area where the radio signal is blocked or reduced

by geographical features or large structures.

Signal impairment

Distance and obstacles can cause signals to become out-of-phase. They can also

cause reflected signals. Both situations result in a loss of signal strength.

Low signal strength

Due to either distance or obstacles, the radio signal strength from a cell site may

not be strong or stable enough to provide a reliable data connection for

communication. Therefore, to ensure the best possible communication, remember

the following points:

•The data connection works best when the communicator is in a stationary

position. Attempting wireless data communication while in a moving vehicle is

not recommended. Fax transmission is more easily impaired than data or short

message transmission.

•Do not place the communicator on a metal surface.

Introduction

•Check that the signal strength on the communicator display is sufficient.

Moving the communicator within a room, especially towards a window, may

result in a stronger signal. If signals are not strong enough to support a voice

call, data connection should not be attempted until you can find a location with

better signal reception.

Note: When the antenna is up, the signal is stronger.

General information

3. General information

This chapter explains how the communicator operates and how to supply power to

the communicator. For information on first start-up and setup of your

communicator, see the Getting Started chapter in this user guide.

Communicator display

Figure 12

The communicator interface is turned on by opening the cover. The application

that was active the last time the communicator was used is shown on the display.

When you close the cover, the communicator interface turns off its display and

saves all data.

Scroll bar

Commands

Command buttons

Search fieldIndicator area

Name and icon of application

Menu bar

General information

Tip: When a command is

dimmed, it cannot be used.

The commands always correspond to the command buttons, as shown in Figure 13.

The applications are run in the middle of the display. The indicators show

application and system-related information.

To move around a selected frame and select items, use the Arrows key at the lower

right-hand corner of the keyboard.

Where there is a search field at the bottom of the display, you can search for items

by using the keyboard to enter text into the search field.

Figure 13

If there is more than one frame in the view, the selected one is always highlighted.

You can move from one frame to another by pressing the Tabulator key.

See Figure 14.

This item is selected. Details of item.

The left hand frame is highlighted. Press the Tab key to highlight

the right frame.

The commands that

you can apply.

General information

Dialogs and pages

Figure 14

An example of a dialog which contains several pages is shown in Figure 14.

Indicators

The application icon and application name in the indicator area display the

application you are in at the moment, as shown below.

The icons that appear on the Inbox/Outbox indicator rows change according to the

application and current situation. The battery level and signal strength indicators

are the same as shown on the phone display when the phone is on.

This is a page.

This is a dialog.

Use the Arrows key to move

within a page.

Another page. To go to it,

press the Menu key.

General information

Call status

- You have a voice call, and the handsfree loudspeaker and

microphone are on.

- A voice call with the handsfree off. The loudspeaker and

microphone are muted.

- An open data connection, see the Internet chapter on page 173.

- The communicator is receiving or sending a fax.

- The communicator is trying to establish an infrared connection.

- An infrared connection has been established.

- The infrared connection is obstructed.

- The communicator is connected to a PC.

- The communicator is connected to a PC via cable.

- The communicator is being used as a fax modem.

- The communicator is in a profile, in this case in the ‘Meeting’

profile. See ‘Telephone Settings’ on page 119.

Application icon

Application name

Inbox/Outbox

Signal strength and battery level

Time

General information

- Time. You can adjust time in the Clock application. See page 253.

Inbox/Outbox

- The inbox indicator informs you that you have received a fax, short

message, or mail.

- The document Outbox contains unsent messages. See ‘Outbox’ on page

203.

Battery level

- The battery is low and you should recharge it.

- The battery is charging. The bar scrolls until the battery is fully charged.

The outlet plug icon indicates that the communicator is connected to an external

power source.

- The battery is fully charged. All the four bars are displayed.

Signal strength

- The communicator is connected to a wireless system. When all the four

bars are shown, the wireless signal reception is good. If the signal is weak, make

sure the antenna is up. You can also try to improve the reception by moving the

communicator slightly or by using it in the handsfree mode.

- The phone is on, but it is outside system coverage.

- The phone is off. You cannot make or receive calls, and you cannot receive

messages with any of the communications applications (SMS, data, fax, or mail).

General information

Communicator keyboard

Figure 15

In addition to the normal character and number keys, the keyboard has a number

of special keys, as shown in Figure .

Application buttons

The buttons at the top of the keyboard start the corresponding applications or

open application groups. The buttons are: Desk, Telephone, Messaging, Internet,

Contacts, Calendar, Office and Extras.

General information

To use the applications

When the cover is opened, the application that was active the last time the

communicator was used, is shown on the display.

To switch to another application or application group, press the corresponding

application button. You can even do this during a call. You need not exit an

application before starting another. All inactive applications remain in the

background until you activate them again.

Note: When you open the WWW application, all other applications are closed

to reserve memory for WWW.

To send or receive calls or messages with any of the communications applications,

remember that the phone must be switched on and in a service area with adequate

wireless signal strength.

Note: Information need not be specifically saved. When you press Close, switch

to another application, or close the device cover, the Nokia 9290

Communicator saves all data.

Create a keyboard shortcut to a preferred link or application

Some applications buttons like Office, Desk, and Extras do not open applications

directly. However, you can specify an application in an application group as the

preferred application or a link on Desk as the preferred link and access it directly

from the keyboard. You can open a preferred application by clicking Ctrl + the

application button.

General information

Example: If you make the

Document application

preferred inside the Office

application group, you can

press Ctrl+Office within any

application to open

Document.

To make an application preferred, open an application group (such as Office), press

the Menu key, and select Tools > Preferred application. Select the application from

the list. See the example in the column adjacent to this paragraph.

To make a link preferred, open Desk, press the Menu key and select Tools > Preferred

link… Select the link from the list.

Escape (Esc)

To cancel an action, you can either press the Esc key or Cancel. Pressing the Esc

key also cancels and dismisses a dialog, and dismisses an information note.

Tabulator or Tab

You can use the Tab (Tabulator) key to move from one frame to another. When

writing or editing documents, the Tab key moves the cursor to the next tab stop.

Shift

The Shift key is used together with letter keys to insert capital letters and used

together with number keys to insert special characters. The Shift key does not need

to be held down when pressing a key: pressing first Shift and then a letter or

number key generates an uppercase or special character.

In combination with Control key and a particular letter key it generates shortcut

commands. See ‘Shortcuts’ on page 74.

In writing and editing text, the Shift key and the Arrows key can be used to select

text, see ‘Shortcuts’ on page 74.

General information

Control (Ctrl)

Pressed together with other keys on the keyboard, the control key generates

shortcut commands which can be used in viewing and writing text. See ‘Shortcuts’

on page 74.

Character (Chr)

Press the character key to open a character table where you can select special

characters. The character key is also used to access characters and commands that

are shown in green color on the keyboard. The character key is also used with other

keys to zoom the view and activate or deactivate infrared.

Help ()

For online help at any time, press the key on the communicator keyboard. For

more information, see ‘Online Help’ on page 49.

Tip: Using the menu key,

the Zoom option is

sometimes available. It

allows you to magnify the

view on display.

Pressing the Menu key reveals options. The options available depend on the

application you are in. Use the Arrows key to move to the desired option and press

Select.

The chosen option only affects the item that is currently selected, open, or being

sent. The Menu may also contain the generic option Settings.

General information

Arrows key

Tip: In the WWW

browser application, use the

Arrows key to move a

pointer around the display.

See page 187.

The Arrows key can be used to move the cursor or selected frame.

Enter

When the cursor is shown, pressing Enter moves the cursor to the beginning of the

next text line or adds a new line. Enter can also be used to open folders,

applications, and documents. When a command is underlined, you can press Enter

instead of the command button. When information notes are shown, press Enter

instead of OK. In options and settings, when a value can be toggled, you may press

Enter instead of Change.

Connectors

The Nokia 9290 Communicator can be connected to a variety of devices.

See Figure 16.

General information

Figure 16

Use the infrared port for connecting to a compatible PC, printer, digital camera, or

another communicator.

Charging the battery

Note: See important safety information on battery usage on page 69.

Tip: To check the current

battery level, see the battery

indicator on the

communicator or phone

display.

1Connect the charger cable to the bottom of the communicator, as shown in

Figure 17.

Infrared

connection

Charger

connection

RS232 adapter

cable DLR-2L or

headset HDC-8L

connection

General information

Figure 17

2Connect the charger to the proper voltage AC wall outlet. While charging is in

progress, the battery level indicator scrolls on the phone display.

3When the battery is fully charged, the bars stop scrolling and four bars are

displayed. You may now remove the charger plug from the communicator.

Note: You can use all the features of the communicator during charging.

When the battery level is low and only a few minutes of operation time remain, a

warning tone will sound, and the message BATTERY IS LOW will be repeated at

regular intervals on the phone display. When the charge level becomes too low for

operation, the RECHARGE BATTERY message will be displayed, accompanied by a

warning tone. If you do not connect the communicator to a charger, the

communicator switches itself off.

Note: When you connect a communicator with a fully discharged battery to a

charger, it will take 30-60 seconds before the CHARGING message

appears on the display and the battery indicator bar starts scrolling. After

that, it may take 10-30 seconds before you can switch the phone on.

General information

Battery information

Tip: Read this section for

information on how to

prolong the life of your

battery.

Use the battery only for its intended purpose.

Never use any charger or battery that is damaged or worn out.

Do not short-circuit the battery. Accidental short-circuiting can occur when a

metallic object (for example coin, clip, or pencil) causes direct connection of the +

and - terminals of the battery (metal strips on the bottom of the battery), for

example, when you carry a spare battery in your pocket or purse. Short-circuiting

the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold conditions, such as in a closed car in summer or

winter conditions, will reduce the capacity and lifetime of the battery. Always try

to keep the battery between +15°C (+59°F) and +25°C (+77°F). A communicator

with a hot or cold battery may temporarily not work, even when the battery is fully

charged. The performance of Lithium-ion batteries is particularly limited in

temperatures below 0°C (+32°F).

Do not dispose of batteries in a fire!

Batteries must be recycled or disposed of properly. Batteries must not be disposed

of in municipal waste.

Note that a new battery’s full performance is achieved only after two or three

complete charge and discharge cycles.

Use only batteries approved by the communicator manufacturer and recharge the

battery only with the chargers approved by the manufacturer. With approved

chargers and accessories, the battery can be charged continuously.

General information

The battery need not be fully discharged before recharging. When a charger is not

in use, disconnect it from the power source. Do not leave the battery connected to

a charger for longer than a week, since excessive charging may shorten its life. If

left unused, a fully charged battery will discharge itself over time.

The battery can be charged and discharged hundreds of times, but it will eventually

wear out. When the operating time (talk-time and stand-by time) is noticeably

shorter than normal, it is time to buy a new battery.

Temperature extremes will affect the ability of your battery to charge: allow it to

cool down or warm up first.

Battery operation time is affected by the following: whether both the phone and

the communicator interface are on, radio signal strength, various phone settings,

and the length of the screen blanker period.

It is recommended always to keep a charged battery in the communicator. Keeping

the battery charged maximizes the lifetime of the backup battery supplying power

to the real-time clock of the communicator. In case the backup battery is drained,

it will be automatically charged the next time a charged battery is reconnected to

the communicator.

Always close the device cover before removing the battery. Closing the cover will

save all data.

Note: The battery does not fit into place if the SIM card is not correctly

installed. Do not force the battery into place! Check that you have

inserted the SIM card as described in the Getting Started Guide. If the

SIM card is incorrectly installed, remove it by pulling it out of the slot,

and insert it again.

General information

Memory card

You can use the memory card delivered in your sales package to manage your

documents, contacts databases, applications, backups, and so on.

Use the items on the memory card in the same way as corresponding items on the

communicator. You can, for example, install and remove software to and from the

memory card with the Install/Remove software application, and send messages to

contacts in the contacts directory of the memory card.

Note: Do not remove the memory card in the middle of an operation.

Inserting the memory card

1Close the device cover and make sure that the phone is switched off. If it is on,

press .

2Open the hatch at the back of the communicator, using a minimum of two

fingers - one finger on each side of the hatch.

3Slide the memory card under the memory card holder as shown in Figure 18.

Make sure that the gold contacts of the card are facing down.

General information

Figure 18

4When you have secured the card in place, close the hatch.

WARNING: Keep all memory cards out of the reach of small children.

General features

Select several items at once

Where multi-selection is available, you can select several items at once. The

selected items are highlighted. The commands you use affect all the selected items.

Multi-selection works in most lists.

To select items one by one, scroll to the item and press and hold down Ctrl. While

pressing down Ctrl, scroll to each item you want to select and press space bar.

To select a larger set of consecutive items, paint the items by pressing and holding

Shift + using the ∧ and ∨ arrows on the Arrows key.

General information

Multi-selection is cleared when you press the Arrows key.

Special characters

The character key Chr on the communicator keyboard is used to create characters

that are not included on the keyboard. The character key can always be used when

you are able to enter characters from the keyboard.

Note: Some special characters may get distorted when sent out of your

communicator. This happens, for example, with mail or short messages,

and is because of differences in system protocols.

Insert special characters from the character table

1Press and release the Chr key. A dialog opens.

2Press the Menu key to select the page with the character you want to insert.

3Select the special character or characters, then press Insert.

Insert special characters from the keyboard

There are two ways to insert special characters directly from the keyboard.

To insert a characters printed on the keys with green , press and hold the Chr key

and simultaneously press a key with a special character printed in green.

To generate special characters by using certain unmarked keys, for example, “a”

and “e”, do as follows:

1Press and hold the Chr key and simultaneously press a letter key. The first

special character matching the letter key is displayed.

2Continue to hold down the Chr key and press the letter key again. The second

special character is shown in place of the first one, and so on, until the first

character is shown again.

General information

3Press Shift or the Caps lock key to change the case of the special character.

Shortcuts

Tip: Many shortcuts are

also displayed next to menu

commands in applications.

There are several shortcuts you can use in the document applications. The

shortcuts vary depending on the application used. The following table lists some

of the available shortcuts:

Shortcut Function

Ctrl + a

Ctrl + c

Ctrl + x

Ctrl + v

Ctrl + z

Selects all

Copies selected text

Cuts selected text

Pastes selected text

Undoes (the last action)

Ctrl + b

Ctrl + i

Ctrl + u

Applies bold

Applies italics

Applies underlining

Ctrl + t

Ctrl + d

Full screen mode (if available)

Deletes files, messages, shortcuts and other items.

Ctrl + pPrint or Properties

Ctrl + n

Ctrl + o

Ctrl + e

Creates a new file

Open

Ctrl + s

Ctrl + Shift + s Save

Save as

General information

Save files

When you close a new file for the first time, or want to save it, you will be asked

to enter a name for the file and to identify a folder in which it should be saved.

Figure 19

The following commands become available in the dialog:

OK - Confirms the name of the document and saves the document.

Chr + left/right arrow (on Arrows key) Moves the cursor to the beginning or end of the line

Chr + up/down arrow (on Arrows key) Moves up or down a page

Chr + Ctrl + up/down arrow (on Arrows key) Moves to start or end of document

Shift + Ctrl + left/right arrow (on Arrows key) Selects the previous or next word

Shift + right/left/up/down arrow (on Arrows key) Selects one text character or line

Shift + Chr + up/down arrow (on Arrows key) Selects text, page by page, inside a document

Shortcut Function

General information

Browse - Opens a dialog in which you can browse for a location where you save

your file.

Change format - Opens a list of formats. You can now change the format of the

document being saved.

Cancel - No saving is done and the dialog is closed.

Note: If you want to quit the application, but you do not want to save the file,

press the Menu key and select File> Discard changes, then close the file.

Send documents

In addition to sending messages in the Messaging application, you can also send

documents out of the communicator in the applications where the Send function

is available on the Menu list.

As a fax - You can send the document as a fax.

As a mail - You can send the document as a mail message.

As a short message - You can send the document as a short message.

Via infrared - You can send the document via infrared.

Note: When you open a document, the document is opened in the appropriate

editor or viewer. The commands vary according to the editor/viewer.

Search for text

You can search for text strings in the applications where this function is available

on the Menu list.

1Press the Menu key and select Edit > Find…. A dialog opens.

General information

2Type the text string in the search field and press Find.

3Once a text string match is found, it is highlighted.

To find out if there are more of the same text strings in the document, press

Find next.

4To refine the search, press Options. A dialog opens where you can define

options of Case sensitive or Match whole word.

Replace text

1Press the Menu key, and select Edit > Find….

Press Replace.

2Type the text string to be replaced in the Find: field and the text you want to

replace it with in Replace with: field.

3For more search and replace options press Options. In the Find options dialog

you can select a case sensitive search or a search only matching whole words

and not parts of a word. You can also choose to replace all occurrences of a text

in the document without further confirmation.

Tip: Replace all is

available only if you have

selected Yes in the Replace

all dialog.

4Press Replace or Replace all.

Check spelling

Note: You can spell check only English text and words.

You can check words and text for spelling in the applications where Spell check… is

available on the Menu list. To be able to use this function, you first need to install

the Spell checker from the CD-ROM found in the sales package of your

communicator. For details, see ‘Install software from the CD-ROM’ on page 81.

General information

Tip: You can select

individual words to spell

check. Otherwise the whole

text is searched and spell

checked.

1Press the Menu key and select Tools > Spell check…. If the Spell checker comes

across a word it does not recognize, a dialog opens.

2You can type in the correction in the correction field. Or, move to the

Suggestions field and press the Tab or Enter keys to open a list of suggestions.

3Select a word from the list of suggestions, then press Replace to accept the

correction or suggestion.

4If during step 2 you want to add an unrecognized word to the dictionary, press

Add.

You can print various items, such as documents, pictures, faxes, mails, and short

messages.

Refer to the user guide of the printer for detailed safety instructions on the

printing device.

To view or modify the page setup, press the Menu key and select File > Printing >

Page setup…

To preview the document before printing it, press the Menu key and select File >

Printing > Print preview

To print a document or a file,

1Press the Menu key and select File > Printing > Print…. A note appears, showing

the print range, connection type, and printer used.

2Press Print. A dialog opens. To change the printing options, press Options.

3To preview what you are about to print, press Print preview. A dialog opens.

To define page setup, press Page setup.

General information

Figure 20

When printing via infrared, make sure that the infrared port of the communicator

faces the infrared port of the printer. Keep the infrared connection clear. If the

connection is obstructed for too long, for example, if something is moved between

the infrared sensors or the communicator is moved, printing is interrupted. For

details on infrared connection, see page 82.

Log

Log contains information about the communication history of your communicator.

The log shows all, or certain types of communication events in chronological order.

With log files you can monitor your communications, use the information to create

or complete contact cards, or reply directly to the sender in the log.

General information

Tip: The shortcut to open

the log is Shift+Ctrl+L.

Figure 21

Tip: To change the

categories Date and time and

Duration to Subject and

Status, press < and > on the

Arrows key.

Access the log

You can access the log from the Menu of several applications.

Press the Menu key and select Tools > Log.

Make use of an individual communication event

1Choose a log event and press Use. The command buttons change.

Tip: A communication

type can have one of the

following delivery statuses:

pending, delivered, failed,

sent, not sent, and scheduled.

2You can now do the following: send a fax or short message to the contact, call

the contact, or add the contact to your Contacts directory. Check the command

buttons for available options.

View only certain communication types

1Press Filter by type to choose a communication type you want to view.

Press Filter by direction to choose whether you want to view communications

originated by you or by the remote party.

2Select from the options.

3Press OK.

General information

Erase the contents of the log

Log events remain in the log database for only a set number of days after which

they are automatically erased to free memory on your communicator. To redefine

the number of days, press the Menu key and select Tools > Log duration….

1To erase some or all the contents of the log, press the Menu key and select File

> Clear log….

2Type in the date. All log events with an earlier date will be removed from the

log.

3Press Clear.

Install software from the CD-ROM

The applications and files on the communicator’s CD-ROM are ready to be installed

or moved to the communicator. Proceed with installation as follows:

1Ensure that you have installed PC Suite on your computer. You can find this

program on the CD-ROM in the sales package.

Tip: For more

information about PC Suite,

see the PC Suite Guide on

the CD-ROM.

2Insert the CD-ROM into the CD-ROM drive of your computer.

3Either: Connect your communicator to your computer using the adapter cable

supplied in the sales package.

Or: Prepare the communicator and the computer for an infrared connection. For

more information, see ‘Activate the infrared connection’ on page 82.

4If the CD-ROM user interface does not open automatically, double-click the file

‘Nokia9290.exe’ in the CD-ROM file structure.

5Select a program you want to install from the CD-ROM user interface and click

‘Install’.

General information

Tip: See the Add on

Applications Guide for

information on other

software available for your

communicator.

Note: Remember to install applications in the same language as your

communicator.

Use the memory card in the communicator to gain more space for the different

applications and files on the CD-ROM.

Note: For information on the installable applications, see the Software on CD-

ROM Guide on the CD-ROM.

Activate the infrared connection

Tip: To activate the

infrared, you can also press

the Menu key and select

Tools > Receive via infrared.

1Make sure that the infrared port of the communicator faces the infrared port

of the other device.

2To activate the infrared connection, press Chr + (the key with the infrared

symbol; this key is on the right-hand side of the keyboard, next to the Enter

key).

3To end the infrared connection, press Chr + again.

Note: Your communicator is a Class 1 Laser product.

Phone

4. Phone

Figure 22

With the cover phone you can make, receive, and manage calls, send and receive

short messages, search for phone numbers, change profiles and define many

settings. For more complicated tasks like sending long touch tone sequences or

modifying phone settings, use the Telephone application. See the Telephone

chapter, starting on page 111.

Phone

Earpiece

Front

Back

Microphone

Phone

Selection keys

When operating the phone, press keys one at a time. The phone keypad is not

functional when the cover of the communicator is open.

Switches the phone on and off.

Switches between profiles. See ‘Profile settings’ on page 120.

Scroll through menus, submenus or settings. If there are no active calls,

you can use the scroll keys to browse through the phone book. When a call is

active, you can adjust the volume level by pressing the scroll keys.

Tip: To call your voice

mailbox, press and hold

Dials a phone number and answers a call. Sends the ongoing call to hold

if pressed during a call. In the standby mode shows the list of the most recently

dialed numbers.

Ends any active call, cancels a dialed call, or clears the display.

0...9 The number and alphabet keys.

Tip: If you have

subscribed to two phone

lines, you can switch

between them by pressing

and holding .

Used for creating functions.

The function of these two selection keys depends on the text shown

on the bottom of the display. See Figure 23.

Note: Hold the phone as you would any other mobile phone with the antenna

pointed up and over your shoulder. Do not touch the antenna

unnecessarily when the phone is switched on. Contact with the antenna

affects call quality and may cause the phone to operate at a higher

power level than otherwise needed.

IMPORTANT! Do not switch on the phone when the use of wireless phones is

prohibited, or when it may cause interference or danger.

Phone

Use the selection keys

Figure 23

Example: Pressing the

selection key under the text

Menu gains access to the

menu functions.

Selection keys are the keys located right below the right and left corners of the

cover display. Commands on the display vary according to the situation and

previous selections.

Tip: A press of the

key will return the display to

stand-by mode.

Often you must confirm the selection by pressing OK. If available, you can use

Back command to return to the previous menu level without making any changes.

Display indicators

The display indicators inform you about the current operation of the phone. The

indicators described below are shown when the phone is ready for use, with no

characters entered on the display.

SYSTEM NAME or LOGO - The wireless system you are currently using.

and bar - The current signal strength at your location. The more bars visible,

the stronger the signal.

Phone

and bar - Battery charge level. The more bars visible, the more charge there is

in the battery.

- The phone keypad is locked or the lock code is active.

- The phone will not ring to notify you of an incoming call.

- You have received one or several new voice messages.

- You have received one or several new short messages.

- You have received one or several new faxes.

- Infrared transmission is active.

- Call forwarding is active.

Make a call

To make and receive calls,

•the phone must be switched on,

•the communicator must have a valid SIM card fitted, and

•you must be located in a service area of the wireless system.

Tip: When a call is active,

you can use the and

keys to lower or raise

the volume level of the

earpiece.

1Key in the area code and the phone number of the person you wish to call. If

you make a mistake, you can remove the digits one at a time by pressing Clear

repeatedly. To clear the whole display, press and hold Clear.

2Press to dial the phone number.

3To end the call, press .

Note: The microphone and earpiece are on the rear of the device.

Phone

International calls

When making international calls, start by pressing twice quickly. The

international call character ‘+’ appears on the display, which informs the system

center to select the international dialing prefix.

After this you can enter the country or region code, area code and phone number.

Note: Calls described here as international may in some cases be made between

regions of the same nation.

Search for phone numbers

You can retrieve phone numbers from memory by the name with which the phone

number was stored. For more information, see ‘Call a number in the telephone

directory’ on page 112.

Tip: To choose which

memory to use, press

Names, scroll to Options and

press Select twice. Scroll to

choose Device, SIM card, or a

contacts database you have

created and press Select.

1Press Names.

2Scroll to Search and press Select.

3Key in the name of the person whom you want to call, or the first letter(s) of

the name.

4Press Search. The name closest to the keyed characters will appear.

5If the name found was not the one you searched for, scroll through the names

with and until you reach the correct one.

6Press Details to view the details of the highlighted name, or

press to call the person. If the person has several numbers, scroll the

selection frame onto the one you want and press .

Phone

Example: Press 2 if the

1-touch dial location for the

phone number is 2.

1-touch dialing

1-touch dialing is a handy way to call frequently-used phone numbers. You must

enable 1-touch dialing, see ‘Call settings (3-1)’ on page 100. You can define up to

eight 1-touch dial numbers in the communicator memory. For information on how

to set 1-touch dials, see page 123.

1Key in the number of the 1-touch dial location where you have stored the

phone number.

2Press . The phone will display the phone number briefly, and then dial it.

Tip: Pressing and holding

dials your voice

mailbox number.

1-touch dialing is not possible during a call.

Call service numbers

Your service provider may have stored service numbers on your SIM card. For more

information, see ‘Call a number in the telephone directory’ on page 112.

1Press Names.

2Scroll to Service Nos. and press Select.

3Scroll to the service number and press to call the number.

Send touch tones

If you need to send long touch tone sequences, it is more convenient to send them

via the communicator interface, see ‘Send touch tones during a call’ on page 119.

Tip: For an explanation of

touch tones, see the

Glossary on page 339.

1Make the call to the desired phone number.

2Key in the digits you want to send as touch tones. The digits are sent one by

one to the system.

Phone

Answer a call

Tip: To change your

ringing tone, see ‘Attach a

ringing tone’ on page 140.

When you receive a call, the phone gives a ringing tone and the text Call flashes

on the display. If silent-profile is active, only the keypad and display light will flash.

If the caller can be identified, the caller’s name or phone number, and the text

Calling, will be displayed.

Tip: You can answer the

call even while using the

search or menu functions.

1To answer the call, press .

If you do not want to answer the call, press . The caller will hear the

alerting tone change to a busy tone.

To mute the ringing tone of an incoming call, press Mute.

Tip: If the Forward if busy

is activated to forward the

calls, for example, to your

voice mailbox, declining an

incoming call will also

forward the call. See

‘Forward voice calls’ on page

125.

2To end the call, press .

Manage calls

There are a number of functions you can use during a call. Many of the in-call

options are system services.

To access the functions, press Options during a call. Some or all of the following

in-call options may become available:

Answer - Allows you to answer an incoming call.

Decline - Allows you to decline an incoming call.

Hold/Activate - Hold allows you to put the current call on hold, so that another call

can be made. To activate the original call again, select Activate.

New call - Puts the active call on hold and dials a new phone number.

Phone

Send touch tones - Transmits touch tones. See ‘To send touch tones during a call’

on page 75.

End active call - Ends the active call.

End all calls - Ends both the active and held call.

Contacts - Opens the phone book.

Menu - Opens the Menu.

Mute/Unmute - Switches the microphone of the communicator off or on. If the

communicator is connected to a handsfree car kit, Mute also turns off the

microphone of the car kit.

Swap - Allows you to alternate between two calls, an active and a held call.

Transfer - Enables you to connect two voice calls together and disconnect yourself

from both calls. See ‘Transfer calls’ on page 118.

Conference - If one call is active and another call is on hold, this option merges

them into a conference call.

Private - During a conference call, Private allows you to converse privately with a

selected participant.

Keypad lock

The keypad lock prevents the keypad keys being pressed accidentally.

When the keypad is locked, you can answer calls normally by pressing . During

a voice call, the keypad is unlocked and the communicator can be operated in the

usual way. After the call, the keypad is automatically locked again.

Phone

The keypad will be unlocked automatically when the communicator is connected

to a car kit. When the communicator is removed from the car kit, without being

switched off, the keypad will be locked automatically again.

Lock the keypad

Press Menu and then the key within 3 seconds.

Note: While the keypad is locked, the icon and the Unlock command are

displayed.

Unlock

Press Unlock and then the key within 3 seconds.

Note: When the keypad is locked, calls may be possible to the emergency

number preprogramed into your communicator (for example, 911 or

other official emergency number).

Change profiles

Example: If you use the

Meeting profile in a meeting

the phone rings only once

and does not disturb others

so much.

You can use the Profiles key to adjust phone tones for the various operating

environments of the communicator. One profile is always in use.

For more detailed information on the various profiles, how to adjust the settings

and so on, see ‘Profile settings’ on page 120.

Tip: You can also use the

scroll key and OK to select a

profile.

1Press the key on the keypad.

2Press the key again until the selection frame is on the desired profile.

3To select the profile, press and hold .

Phone

View help

Most menu functions are provided with a help text, which gives a brief description

of the displayed function.

1Scroll to the menu function about which you want help.

2Wait for a few seconds. The first page of the help text will appear. The text

scrolls automatically. If you want to scroll it manually, press the scroll keys or

More.

3To exit help, press Back.

Using the menus

Tip: You can access the

menu functions even during

a call.

The phone offers a set of menu functions that allow you to tailor the phone for

your particular use. The menus and submenus can be accessed by scrolling the

menu or using the appropriate shortcuts.

Scrolling the menus

1Press Menu.

2Press either or to scroll the list of menus until you reach the desired

menu.

3Press Select to access the menu. If the menu contains submenus, reach the one

you want with either or and press Select.

4To return to the previous menu level, press Back.

To exit the menu without changing any settings and to return to the stand-by

mode, press .

Phone

Using menu shortcuts

All the menus, submenus and settings are numbered. This number is shown in the

upper right corner of the display.

Example: To set the Anykey

answer on, first press Menu

and then press the numbers

3, 1, 1, and 1 in sequence.

1Press Menu.

2Key in the index number of the menu you wish to access.

Menu structure

The following menu table lists the names of the main menus and their submenus.

Some menus are subject to the availability of the service in your area. Third-level

menus are not shown.

Menu Function Submenus

MENU 1 MESSAGES 1 Write message, 2 Inbox, 3 Drafts, 4 Sent, 5 Cell broadcast, 6 Service com-

mand editor, 7 Voice messages

MENU 2 CALL LOG 1 Missed calls, 2 Received calls, 3 Dialed numbers, 4 Clear recent call lists, 5

Call duration, 6 Call costs

MENU 3 SETTINGS 1 Call settings, 2 Phone settings, 3 Security settings, 4 Restore factory settings

MENU 4 FORWARDING

1 Forward all voice calls, 2 Forward if busy, 3 Forward if not answered,

4 Forward if out of reach, 5 Forward if not available 6 Forward all fax calls, 7

Forward all data calls, 8 Cancel all forwards

MENU 5 INFRARED

MENU 6 SIM SERVICES Only available, if supported by your SIM card.

Phone

Messages (Menu 1)

The Short Message Service (SMS) is a system service which enables you to receive

and send short messages. Contact your service provider for details.

Write a message (1-1)

In this menu you can write and send a short message.

Inbox (1-2)

Tip: To change the tone

of an incoming SMS

message, see ‘Profile

settings’ on page 120.

When you receive a short message or picture message, the text %N messages

received and the indicator will appear on the display and a tone will sound,

unless the communicator is set to a silent profile. You cannot view received picture

messages with the Nokia 9290 Communicator.

A note is also shown when you receive faxes or mail. To read received faxes or mail,

you must use the respective applications of the communicator interface.

Tip: You can call the

phone number while

viewing the message by

pressing , pressing

Select, and pressing

again.

1Press Read twice to view the message, or press Exit to view it later.

If you view a message later, press Menu > 1 > 2, scroll to the desired message

and press Read to view the message.

2While viewing the message, press Options to scroll through the list of options

and press Select at the highlighted option to select it. The available options are:

Delete - Erases the selected message from the memory.

Reply- Opens the editor for a reply. Key in the reply and press Options > Send.

Forward- Asks for the number where the message should be forwarded. Enter

the number and press OK to forward the message.

Phone

Edit- Opens the current message in the editor where you can modify the

message.

Use number - Copies the phone number from the message and moves it onto the

phone display. You can now call the number with .

Details - Shows the sender’s name and number, the date and time the message

was sent, and the number of the message center.

Drafts (1-3)

In this menu you can view, modify, and send your draft short messages.

Sent (1-4)

In this menu you can view and modify the short messages you have sent.

Cell broadcast (1-5)

This system service allows you to receive SMS messages on topics that you have

predefined on the communicator interface. See ‘Cell broadcast’ on page 275.

For available topics and relevant topic numbers, contact your service provider.

On - Sets the information message reception on.

Off - Turns the information message reception off.

Service command editor (1-6)

Tip: These requests are

also known as USSD

commands.

In this submenu, you can send service requests, such as activation commands for

system services, to your service provider. For more information, contact your

service provider.

Phone

Voice messages (1-7)

Listen to voice messages (1-7-1)

Tip: To call your voice

mailbox quickly, press and

hold .

When you enter this submenu, the phone automatically calls your voice mailbox

at the phone number stored in menu 1-7-2. If required, key in the access code for

your mailbox or answering machine when the connection has been made.

If the voice mailbox number has not been saved before, the phone asks for you to

save it first.

Note that the voice mailbox is a system service and you may need to subscribe to

it first.

Voice mailbox number (1-7-2)

In this submenu, you can store and edit your voice mailbox number. A voice

mailbox can be a system service or your personal answering machine. For more

information and for the voice mailbox number, contact your service provider.

Call log (Menu 2)

Missed calls (2-1)

Tip: Received calls and

Missed calls functions are

system services which work

only in systems that allow

you to view the caller’s

phone number.

Lists calls that you have missed.

Note: The communicator only registers missed calls when the phone is switched

on and within system coverage.

Phone

Received calls (2-2)

Lists calls that you have received.

Dialed numbers (2-3)

Lists calls that you have dialed.

Clear recent call lists (2-4)

Select which calls you want to erase. The options are All/Missed/Dialed/Received.

IMPORTANT: The phone numbers are erased without warning. You cannot

undo the operation.

Call duration (2-5)

Shows the duration of your outgoing and incoming calls, and allows you to reset

the timers.

Last call duration (2-5-1)

Shows the duration of the last outgoing or incoming call in hours, minutes or

seconds, for example, 0:02:15.

All calls’ duration (2-5-2)

Shows the total duration of all calls made and received with any SIM card that you

have used with the communicator.

Phone

Received calls’ duration (2-5-3)

Shows the total duration of calls received with any SIM card that you have used

with the communicator.

Dialed calls’ duration (2-5-4)

Shows the total duration of calls made with any SIM card that you have used with

the communicator.

Clear timers (2-5-5)

Asks for the lock code and then resets all timers. You cannot undo the reset

operation.

Note: The actual time invoiced for calls and services by your service provider

may vary, depending upon system features, rounding-off for billing,

taxes and so on.

Call costs (2-6)

This system service allows you to check various call costs. The costs are shown in

charging units or units of currency that you have set in Menu 2-6-3-2. The call

cost is shown for each SIM card separately. For these settings you need the PIN2

code, the PIN code, or no code at all, depending on your service provider. Contact

your service provider for more information.

Last call cost/units (2-6-1) & All calls’ cost/units (2-6-2)

Last call cost/units (2-6-1) shows the cost or units of the last, or current call. All

calls’ cost/units (2-6-2) shows the total cost or units of all calls made with the

current SIM card.

Phone

Whichever menu you choose, press Options to access the following three

submenus:

Clear cost counters (2-6-3-1)

Resets all cost counters. You cannot undo the reset operation.

Show cost / Show in units (2-6-3-2)

You may select whether the call costs and call cost limits will be displayed in

currency or charging units. Contact your system service provider for the prices of

charging units.

The display shows the option that is currently not selected. To select the option

shown on the display, press Select. If you selected Show cost, key in the charging

unit price. Use or to insert a decimal point. Next, enter the currency name.

Call cost limit (2-6-3-3)

This function allows you to limit the total costs of outgoing calls to a specified

number of charging units or units of currency that you have set in Menu 2-6-3-2.

To turn the limit on, select On. Key in the cost limit in charging units or currency

units. If you define the limit in currency units, you can press or to insert

a decimal point.

After the limit has been turned on, the number of remaining units is shown on the

display when in stand-by mode. When all units have been used, no calls can be

made.

To turn the limit off, select Off.

100

Phone

Note: In some systems, calls to the emergency number programed into your

communicator (for example, 911 or other official emergency number)

may be made even if there are no charging units left.

Note: The actual time invoiced for calls and services by your service provider

may vary, depending upon system features, rounding-off for billing,

taxes and so on.

Settings (Menu 3)

Call settings (3-1)

Anykey answer (3-1-1)

When selected, you can answer an incoming call by pressing any key on the

keypad, except , , , Mute selection key, or the blank selection key.

Automatic redial (3-1-2)

When this function is selected and you call a number that is busy or does not

answer, the phone will attempt to call the number until the call is connected. The

maximum number of redials is 10.

Press to end the call attempts.

1-touch dialing (3-1-3)

When selected, you can dial phone numbers stored in the 1-touch dial locations

by simply pressing and holding the assigned 1-touch dial key. See ‘1-touch dials’

on page 123 for more information.

101

Phone

Call waiting (3-1-4)

Call waiting is a system service. Contact your operator for subscription. For more

information see ‘Answer a waiting call’ on page 118.

Choose Activate to enable call waiting, Cancel to disable call waiting, or Check

status to show whether call waiting is active and for which call types.

Send caller ID when calling (3-1-5)

This system service allows you to set your phone number either to be displayed or

to be hidden from the person you are calling. Set by system resets the phone to the

default setting, On or Off, that you have agreed upon with your service provider.

Summary after call (3-1-6)

If you set this function to On, the phone will briefly display the duration and cost

(system service) after each call.

Line for outgoing calls (3-1-7)

If your system supports this service, you can have two phone lines in your

communicator. You can select which line you want to use for making calls. For

more information, see ‘Line selection page’ on page 132.

Phone settings (3-2)

Clock (3-2-1)

You can select whether the time is shown on the display.

102

Phone

Cell info display (3-2-2)

When this function is selected, the phone will indicate when it is used in a system

cell based on Micro-Cellular Network technology. MCN technology increases the

capacity of wireless networks in urban areas. The setting will remain in effect even

if the SIM card is changed or the phone is switched off.

Welcome note (3-2-3)

You can write a message of up to 44 characters which appears on the display when

you switch on the phone.

System selection (3-2-4)

The system to which you are connected can be selected either automatically or

manually.

If you select Automatic, the phone automatically selects one of the wireless

systems available in your area. Outside your home system service area, the

communicator will select one of the systems that has a roaming agreement with

your home system.

If you select Manual, the phone will show a list of available systems and you can

select the system you wish to use if this network has a roaming agreement with

your home system service operator. If no such agreement is in force, the text No

access will be displayed and you must select another system.

Security settings (3-3)

The purpose of the security system is to prevent unauthorized use or altering of

important settings. In most cases, activating or changing the security options

requires the appropriate access code. See ‘Security’ on page 256.

103

Phone

Note: When security features which restrict calls are in use (for example, call

restrictions, fixed dialing, or system lock etc.), calls may be possible to

certain emergency numbers in some systems (for example, 911 or other

official emergency number).

PIN code request (3-3-1)

The options are On and Off. See ‘Security’ on page 256.

Call restrictions (3-3-2)

Tip: A restriction

password is required for

using this function.

This system service allows you to restrict incoming calls to, and outgoing calls from

your phone.

The options are: Outgoing calls/International calls/International calls except to home

country/Incoming calls/Incoming calls when roaming/Cancel all restrictions.

Closed user group (3-3-3)

This system service allows you to set the communicator to accept calls to and from

a selected group of people. For details on creating a user group and activating this

service, contact your system service provider.

Preset - Resets the phone to use a user group the SIM card owner has agreed upon

with the system service provider.

On - Uses a particular user group. Calls can be made to or received from the

members of the selected group only.

Off - Calls can be made and received in the normal way. You can use this option

only if you are entitled to do so.

104

Phone

Lock if SIM changed(3-3-4)

You can protect your phone against unauthorized use with the lock code. To do

this, you need to select SIM change security. For details, see ‘Security’ on page 256.

Change of access codes (3-3-5)

In this submenu, you can change the lock code, the PIN code, the PIN2 code and

the restriction password. See ‘Security’ on page 256.

The access codes may only include the digits 0 to 9.

Lock system(3-3-6)

Tip: You can also press

Menu and # to enter your

lock code.

In this submenu, you can lock the communicator. Press Select and enter your lock

code. The communicator locks immediately. When communicator is locked, you

can make emergency calls to predefined numbers using the cover phone. You can

also answer incoming calls and make emergency calls using the Telephone

application. All other actions are blocked. Even if you remove and replace the

battery and switch on the phone, the communicator will remain locked. To unlock

the communicator, press Unlock and enter the lock code. For more information on

locking and other security options, see ‘Security’ on page 256.

IMPORTANT: The default lock code is 12345. For security reasons, it is

imperative that you change the lock code. Keep the code secret and in a

safe place, separate from the communicator. For information on

changing the lock code, see section ‘Security’ on page 256.

105

Phone

Restore factory settings (3-4)

You can reset some of the menu settings to their original values. You need the lock

code for this function. This function will not affect stored phone numbers and

names, access codes, earpiece volume setting, call timers, cost counters, selected

application tones or SMS messages.

Forwarding (Menu 4)

Tip: The icon is

shown in the stand-by mode

when you have activated the

Forward all voice calls.

This system service allows you to direct your incoming voice calls to another phone

number when you do not want to be disturbed, or when the phone is switched off

or outside the system coverage area. For details, see ‘Forward voice calls’ on page

125.

The options are: Forward all voice calls/Forward if busy/Forward if not answered /Forward

if out of reach/Forward if not available/Forward all fax calls/Forward all data calls/Cancel

all forwards.

Select Activate to set the forward setting on if allowed by the system, Cancel to set

the setting off. Select Check status to check whether the forward is activated or not.

If you select Forward if not answered or Forward if not available, you can also select

Set delay to choose a delay time before the call is forwarded. The options are 5 sec/

10 sec/15 sec/20 sec/25 sec/30 sec.

106

Phone

Infrared (Menu 5)

If you want to receive data from another device via infrared, use this function.

Make sure that the infrared port of the communicator faces the infrared port of

the other device and press Activate. For more information, see ‘Activate the

infrared connection’ on page 82.

Note: Your communicator is a Class 1 Laser product.

SIM services (Menu 6)

In addition to the functions available in the phone, your SIM card may provide

additional services that you can access in the menu 6. Menu 6 is shown only if it

is supported by your SIM card. The name and contents of the menu depend entirely

on the services available.

For availability, rates and information on using the SIM services, contact your SIM

card vendor, for example your system service provider, service provider or other

third-party vendor.

Note: Accessing these services may involve sending a text message (SMS) or

making a phone call for which you may be charged.

107

Desk

5. Desk

Tip: Your favorite links

can be, for example, certain

WWW pages, WAP services,

applications, documents,

and photo albums.

Desk is an application where you can create and manage links to your favorite

documents, applications, or third-party software.

Main view

When you first use Desk, the main view has at least the following links by default:

an Internet shortcut to Internet setup, a document named ‘Start here!’, and a

WWW link to the official Nokia Web site.

You cannot select more than one link at a time. You can delete Desk links only in

the Desk application.

Tip: You can change the

order in which a link

appears. Select the link,

press the Menu key, and

select File > Move. Using the

Arrows key, move the link

across the display and press

Place here.

Figure 24

108

Desk

Add a link

Tip: To view and change

the icon, label or parameters

of a link, select the link,

press the Menu key, and

then select File >

Properties….

1Select the program, program group, or other item for which you want to add a

shortcut to Desk.

2Press the Menu key and then select File > Add to Desk.

Write notes

Tip: You can start writing

a note quickly in any

application or even during a

phone call by pressing the

Desk application button

twice.

1Press Write note. A simple text editor opens.

Figure 25

2Write the note.

3Press Close to save the document. The note will now appear in the main view

of Desk.

Change the background image

You can also customize the background image of the Desk main view.

1Press the Menu key and select Tools > Settings…. A dialog opens.

2Define the following:

Background image: The options are Yes/No.

109

Desk

Image file: Press Change to browse for an image. Press Preview to view the

image.

3Press Done.

Note: The image file you choose as a background image should be scaled to

appear equal to or bigger than the screen size. For details, see ‘Imaging’

on page 271.

110

Desk

111

Telephone

6. Telephone

Tip: You can also switch

to other applications during

a phone call.

You can use the Telephone application to make and receive phone calls, handsfree

calls, or conference calls. You can record and redirect calls, use voice mailboxes,

and manage settings and profiles.

Open the Telephone application by pressing the Tel application button on the

keyboard.

To make phone calls,

•the phone must be switched on,

•the communicator must have a valid SIM card inserted, and

•you must be located in a service area of the wireless system.

Some of the operations explained here can also be made using the cover of the

communicator.

Note: Opening or closing the cover does not affect active phone calls. If you

have made a voice call using the Telephone application and you close the

cover, you can continue the call with the cover phone.

112

Telephone

Make a call manually

Tip: To disable the

handsfree mode, press the

Menu key, select Settings >

Call… > Audio when cover

opened and press Change to

switch the handsfree mode

Off.

1Type the telephone number in the field at the bottom of the main view.

2Press Call. Use the handsfree mode to speak and listen to the communicator

from a short distance when the cover is opened, or close the cover and continue

with the cover phone.

Call a number in the telephone directory

When you have no active voice calls, the Telephone application main view shows

the Telephone directory. The default directory is in the communicator memory.

From the top of the telephone list, you can select directories contained in the SIM

card and - if inserted - directories contained in a memory card. Contact cards that

do not contain any phone numbers appear dimmed.

1Select a contact in the directory either by scrolling or by using the search field.

Tip: To redial the last

dialed number you can also

press the shortcut keys

Chr+Tel.

2Press Call. If the contact has more than one phone number, a list opens, listing

all the contact’s phone numbers. Choose a number from the list and press Call.

Tip: You can zoom in and

out to either make the text

more readable or fit more

entries on display. Press the

Menu key and select View >

Zoom in or Zoom out

Figure 26

113

Telephone

Call a number in a recent calls list

Tip: A shortcut to open

the Missed calls view is Ctrl +

Tel.

1In the main view, press Recent calls. The Dialed calls dialog opens. If you have

new missed calls, the Missed calls dialog opens.

2To see calls from one of the other lists, select a command button on the right

of the display. For example, to see a list of received calls, press Received calls.

Tip: You can create a

new contact card by using a

telephone number listed in

Recent calls. In the main

view, press Recent calls.

Select a call, press the Menu

key, and Edit > Add to

contacts.

3Select a number from the list and press Call. Now you can either leave the

cover open to use the handsfree option or close the cover and continue the call

normally.

Answer a call

Tip: To adjust the volume

of the speaker during an

active call, use the Arrows

key: pressing > increases the

volume, pressing <

decreases the volume.

Figure 27

114

Telephone

Tip: The caller’s name

appears in the note if the

telephone number is sent

with the call, and if the

caller’s number is listed in

your Contacts directory.

1When you receive a call and the communicator cover is open, a note about the

incoming call appears. To answer the call, press Answer or close the device

cover and answer the call via the cover phone.

2If you do not want to take the call, press Decline. To mute the ringing tone,

press Mute tone.

Note: You cannot have two active calls at the same time unless you are in a

conference call. A current call is automatically put on hold when you

answer a new incoming call. For information about conference calls, see

‘Make conference calls’ on page 116.

Call and create a voice mailbox

Voice mailboxes work just like an answering machine. You can use them to store

incoming messages of missed calls. Many service providers furnish a voice mailbox

service with the SIM card. If your SIM voice mailbox does not have a number, you

can type it yourself. Note that you are still required to contact your service provider

for a phone number to use with this voice mailbox.

Tip: Another way to call

your voice mailbox is to

press and hold the

key on the front cover of the

phone.

To call your voice mailbox, in the main view of the Telephone directory, press Voice

mailbox. See Figure 26. If you have more than one voice mailbox, a dialog prompts

you to choose a mailbox from a list.

You can also create additional voice mailboxes as follows:

1Contact your service provider for a number to use with an additional voice

mailbox.

2Press the Menu key and select Settings > Voice mailboxes….

3When the Voice mailboxes dialog appears, press Add. Type a name and number.

115

Telephone

Record a call

You can record the conversation during a call. Once a call is in progress, press the

Menu key and select Call > Record to open the Recorder application. For more

information on the Recorder application, see page 270.

Note: Obey all local laws governing recording of calls.

Make a new call during a call

You can have an active call and a call on hold at the same time. You can switch

between the two calls. This situation applies whether you made or received either

of the calls.

The display can show a maximum of three calls, although you can have only two

calls connected at the same time. See Figure 28. To answer the WAITING call you

must first end either the ON HOLD or the ACTIVE call.

1If you already have an active call and a call on hold, drop one of the calls or

merge them into a conference call.

2Press New call and make the new call. The previous call will be put on hold.

3To switch between calls, use the Arrows key. The active call is framed with a

dark line. The command buttons change according to the status of the selected

call. For example, a call on hold can be changed to an active call by highlighting

it with the Arrows key and then pressing Activate.

116

Telephone

Figure 28

4To end a call, select the call you want to end with the Arrows key and press End

call.

Make conference calls

The conference call is a system service. Contact your service provider to check if

this service is available. In a conference call, you and up to five persons can hear

each other simultaneously. The display shows a conference call as a single call.

1Make a call.

2Once the called person has answered, make a call to a second person by

pressing New call. The first call is put on hold.

3Wait until the second person answers the call.

4To place both persons into a conference call, press Conference call. The display

shows a single conference call. Press Conference commands to list the two

participants of the conference call.

This call - with the dark line

Call status icon

117

Telephone

5To include another person, press New call. The conference call is put on hold.

When the person answers the call, press Conference call. This new person is

included in the conference call.

6To include further persons, repeat step 5.

Tip: You can close the

cover and continue the call

via the cover phone after

you have included all

participants in the

conference call.

Figure 29

Remove a conference call participant

1Press Conference commands.

2Select the caller from the list of participants and press Drop. See Figure 29.

Talk privately with one of the conference call

participants

1Press Conference commands.

2Select a participant from the list and press Private call. The call is now split

into two: the conference call is on hold and the one-to-one call is active.

3Once you have finished the private conversation, you can return to the

conference call by pressing Conference call.

118

Telephone

Tip: To view log files of

all calls, press the Menu key

and select Tools > Log. The

log shows all calls, both

incoming and outgoing,

voice and data.

Transfer calls

Call transfer is a system service where you connect two calls together and

disconnect yourself from both calls. Contact your service provider to check if this

service is available.

When you have one call on hold, and another call active or an outgoing call

alerting, press the Menu key and select Call > Transfer to connect the calls together.

Note: You may be charged for some of the cost of the transferred call; contact

your service provider for details.

Note: You can only transfer voice calls. Fax, data, or conference calls cannot be

transferred.

Answer a waiting call

To know that you have a call waiting, and to be able to answer it, you must first

subscribe to the call waiting system service. Call waiting is selected in system

services. For more information, see page 124.

1When you receive a new call while you already have an active call, you hear a

sound and see a note informing you of a new incoming call.

2Press Answer. The active call is put on hold.

119

Telephone

Send touch tones during a call

Dual tone multi-frequency tone system is used by all touch-tone telephones. Touch

tones assign a specific frequency, or tone, to each key so that it can easily be

identified by a microprocessor. Touch tones allow you to communicate with voice

mailboxes, computerized telephony systems, etc.

To send touch tones during a call, you have two methods:

Tip: Besides the numbers

0 - 9, you can also use the

characters p, w, *, and #

when sending touch tones.

For information on these

characters, see ‘To store

touch tones’ on page 99.

•Type the digits with the communicator keyboard. No menu or command button

selection is needed before starting to type the digits. Each keystroke generates

a touch tone which is transmitted while the call is active.

•Alternatively,

1Press Send tone. The touch tones sequences you have stored in the contact

card of the person you are talking with are shown. For information on how

to store touch tones sequences, see page 142.

2Select a touch tones sequence. You can edit the sequence. If there are no

stored sequences, you can type a new touch tones sequence into the input

field.

3Press Send tone.

Note: You can send touch tones during a conference call by typing the digits

with the communicator keyboard, but you cannot access stored touch

tone sequences.

Telephone Settings

In the Telephone main view, press the Menu key and select Settings to select one

of the following settings.

120

Telephone

Profile settings

The profiles are used for grouping the settings of different operating environments

of the communicator. In the settings you can modify the profile features. One

profile is always in use.

To change the profile in use, press the Menu key. Use the Arrows key to select the

Profiles icon at the right-hand end of the menu bar and a new profile from the

menu list.

Figure 30

To select and modify a profile, press the Menu key and select Settings > Profiles….

The profiles provided with your communicator are:

Normal - The default profile of the communicator.

Silent - You can set this profile on when you want all the alert tones to remain

silent (except Clock and Calendar alarms - see ‘Note’ on page 121).

Meeting - You can specify how the communicator operates when you are in a

meeting, such as setting the volume of the tones low.

Outdoor - You can specify how the communicator operates when you are outdoors.

Profiles icon

121

Telephone

Pager - You can set this profile on when you want the communicator to act as a

pager. The default settings are that there is no ringing tone and that you get an

alert tone for received short messages.

Flight - Sets the Flight profile on. For more information, see ‘Flight profile’ on page

133.

Note: If you have turned on the Clock alarm or an alarm for timed entry in

Calendar, it remains on in all profiles, including Silent.

Create a new profile

1To create a new profile, press the Menu key, select Settings > Profiles…, and press

New. The current values of the Normal profile are copied to the new profile.

2To modify the settings of any of the profiles, highlight a profile name and press

Edit. A dialog with four pages opens, as shown in Figure 31. For each of the

pages, define the following:

Figure 31

Normal page

Name: Type the name of the profile. Some profiles cannot be renamed.

122

Telephone

Ringing type: Choose the ringing type for the ringing tone. The options are Normal/

Ascending/Ring once.

Ringing tone: Define the sound for the incoming call. Press Change to choose from

sound files provided with the communicator or to browse for other sound

files, if available. To record a tone, see page 270.

Ringing tone, line 1: and Ringing tone, line 2: Define the sound for incoming calls on

two alternate lines, if available. Press Change to choose from sound files

that have been provided with the communicator or to browse for other

sound files, if available.

Personal tones: Define whether the personal ringing tone of callers are used. The

options are On/Off. For information about attaching a ringing tone to a

contact card, see ‘Attach a ringing tone’ on page 140.

Alerts page

Clock alarm, Calendar alarm, Received SMS, and Received fax: Choose a specific

sound for each of these situations to alert you. Highlight an option, then

press Change to choose from sound files provided with the communicator

or browse for other sound files. To adjust the volume of an alarm, press

Volume.

Notifications page

Keyboard tone: Adjusts the keyboard sound. The options are Off/Quiet/Loud.

Phone keypad tone: Adjusts the keypad sound. The options are Off/ Quiet/Loud.

Notification tones: Switches the notification tones between On/Off. Notification

tones are tones made by the communicator alerting you to an error (such

as an incorrect key press) or to a situation (such as a low battery).

123

Telephone

Other page

Play ringing tone for: Allows you to choose which incoming calls will make a

ringing sound. The options are All calls/VIP group only/None. If you choose

VIP group only, only the calls coming from someone defined as a VIP will

ring; see page 150 in the Contacts chapter. All other calls alert on the

display with a message, but will not ring.

1-touch dials

Tip: See also ‘1-touch

dialing’ on page 88.

1-touch dialing is a quick way to call frequently used numbers. You can assign 1-

touch dials to eight phone numbers. An example is shown in Figure 32.

1Press the Menu key and select Settings > 1-touch dials….

2To assign a number to a 1-touch dial location or to change an existing number,

press either Add number or Change number. You see a list of contacts from

the contacts database in your communicator’s internal memory.

3Highlight a contact card and press Select. When a contact card without phone

number is highlighted, the Select command is dimmed.

Location number 1 is reserved for calling your default voice mailbox; see page 127

for more information. You cannot change its value. For more information on voice

mailboxes, see page 114.

124

Telephone

Figure 32

System services settings

Note: System services may not be provided by all operators. If services are

provided, you may have to subscribe to them.

Tip: To change voice call

forwarding or restriction

settings, the phone must be

switched on.

Information about the status of these services is stored in the system. Therefore,

the current settings are not shown until you request the information from the

system as follows:

1Press the Menu key and select Settings > System services

2For example, to check the setting of Forward if busy, select Call forwarding…,

highlight it with the Arrows key, then press Check status. While the

communicator is making a request to the system, a query note is shown on the

display.

3After a successful request, the new status now appears in the settings list.

125

Telephone

Figure 33

Forward voice calls

Voice call forwarding allows you to direct your incoming voice calls to another

phone number. This is also known as call forwarding.

1Press the Menu key and select Settings > System services > Call forwarding…. A

dialog opens.

2Choose forward options:

Forward all calls — All incoming calls are forwarded.

Forward if busy — Incoming calls are forwarded when you are engaged in

another call.

Forward if out of reach — Incoming calls are forwarded when the phone is

switched off or outside the system service area.

Forward if not answered — Incoming calls are forwarded if you do not answer

them within a certain time period.

Time delay — Applies to the option Forward if not answered. Time delay allows you

to choose the time period after which the call is forwarded. You can set the

delay to Default/5 seconds/10 seconds/15 seconds/20 seconds/25 seconds/30

seconds

Forward if not available — In a single action, this option turns on forwarding of

Forward if busy/Forward if out of reach/Forward if not answered.

126

Telephone

3Press Change, and select one of the following options:

To: — Type the number to which you want to forward the calls.

Default voice mailbox — Calls are forwarded to your voice mailbox. If you have

more than one mailbox, you must choose one from a list shown to you. See page

127 for more information.

Off — Turn off the forward.

Restrict voice calls

To restrict voice calls you use the voice call restriction system service. To use call

restrictions or change the restriction settings you need a restriction password,

which you can obtain from the service provider.

1Press the Menu key and select Settings > System services > Call restrictions…. The

Voice call restrictions dialog opens.

2Choose one of the available options:

Outgoing calls — Calls cannot be made.

Incoming calls — Calls cannot be received.

International calls — Calls cannot be made to other countries or regions.

Incoming calls when roaming — Calls cannot be received when you are outside

your home region or country.

International except to home country - If you have enabled international roaming

with your service provider, you cannot make international calls abroad, except

to your home country.

Note: Calls described here as international may in some cases be made between

regions of the same nation.

If you subscribe to the alternate line system service, voice call restriction applies

only to the Selected line.

127

Telephone

Note: If voice call restriction is in use, calls may still be possible to certain

emergency numbers, in some systems.

To cancel all call forwards or restrictions, press Cancel all.

Other system services

1Press the Menu key and select Settings > System services > Other services…

2Other system service settings contains the following options:

System selection — Allows you to change the way a system is selected and also

or Manual. In automatic system selection, the communicator selects the most

appropriate system. In manual system selection, the communicator searches for

available systems and presents you with a list of systems found; you can then

select which system to use.

Call waiting - Press Change to choose On or Off. For a brief description of call

waiting, see ‘Answer a waiting call’ on page 118.

Send caller own ID when calling — Determines whether your number is hidden or

presented to the person you are calling. Press Change to see the options

Default/On/Off.

Voice mailbox settings

For information on voice mailboxes, see page 114.

1Press the Menu key and select Settings > Voice mailboxes.

2To change the settings of a voice mailbox, highlight it and press Edit. A dialog

with two pages opens. See Figure 34.

128

Telephone

Figure 34

Properties page

Define the following options:

Name: Type a descriptive name for the mailbox.

Number: Type a number for the mailbox obtained from the system service.

Note: The type of voice mailbox determines whether you can edit both of these

fields. For example, the name and number of a SIM voice mailbox cannot

be edited.

Touch tones page

Touch

tones:Define touch tones for a voice mailbox not provided with your SIM card.

Each tone is represented by a character. Press Add to type characters and

store them with a label, such as touch tones2. You can also select No

touch tones. If you are editing a voice mailbox provided with your SIM

card, this page is dimmed.

Call settings

1Press the Menu key and select Settings > Call….

129

Telephone

2Define the following options:

Audio when cover opened: Determines whether the handsfree mode is selected

automatically when you open the cover. Press Change to toggle On/Off.

Automatic redial: When this setting is set On and you call a number that is busy

or does not answer, the communicator attempts to call the number until the

call is connected. Press Change to toggle On/Off.

Advanced settings

1Press the Menu key and select Settings > Advanced….

2Define the following options:

Call costs page

Tip: To see the phone

serial number, press the

Menu key and select Tools>

Serial number (IMEI). Your

service provider may ask you

for this information.

If your system supports the call charging display service, use this page to change

call charge settings and to view cost counters. Your communicator will prompt you

for your PIN2 code. If this page is dimmed, your SIM does not support this system

service.

Figure 35

Display credits: Determines the information about call costs shown in the call

display during a call. The options are No/Used/Remaining. Credits are

amounts of money, measured either in units or currency.

130

Telephone

Currency: Type a maximum of three characters to indicate your choice of currency.

You can type numbers or letters. For example, you can type ‘FIM’ for

Finnish currency. This field is used with Unit price below and with Show in

currency.

Unit price: If you use currency to measure call costs, type a decimal number for the

price of each charging unit. You must also complete the Currency field

above.

Maximum cost limit: You have two options: No limit or a value that you can define

in the field. You can define the limit in either units or in currency. If you

are in a call when the cost limit is reached, the call ends. You cannot make

any more calls. You see a note on the display before and after the call

limit is reached.

Press Calculate costs: The information in this dialog is:

Last call: - The cost of the last call made.

All calls: - The cost of all calls made since the cost counter was reset. See

Figure 36.

Remaining credits - If you have defined a limit in Maximum cost limit this field

displays the amount of money or units remaining.

Press either Show in units or Show in currency to choose how you want

call costs to be displayed in your communicator. ‘Units’ is a system

measurement, such as 21 units. ‘Currency’ is shown in the characters you

have typed in the Currency field.

Press Clear costs to clear the cost counters. You are required to enter your

PIN2 code.

131

Telephone

Figure 36

Note: The actual invoice for calls and services from your service provider may

vary, depending upon system features, rounding-off for billing, taxes,

and so on.

Fixed dialing page

Fixed dialing is a system service which allows you to restrict your calling to a limited

set of numbers stored in the SIM card. The service is offered by some service

providers. When the fixed dialing service is active, the SIM phone book list shows

only numbers in the fixed dialing list. You still have access to the communicator’s

Telephone directory, but you cannot call those numbers. If your SIM card does not

support this system service, this page is dimmed.

Figure 37

132

Telephone

If you want to change the settings or view the fixed numbers, you are required to

enter your PIN2 code. When the service is set to On, press Edit numbers to add,

modify, or delete numbers.

You are required to enter names and numbers into the fixed dialing list.

Note: When fixed dialing is set to on, calls may be possible to certain

emergency numbers in some systems (such as 911 or other official

emergency number).

Line selection page

If you need two lines (phone numbers) for your communicator, you must subscribe

to the alternate line system service and check that this feature is activated in your

communicator. If this service is unavailable or you do not use it, the Line selection

page appears dimmed.

Each line can have different settings for some of the Telephone features.

Figure 38

The options on this page are:

Selected line: Defines the line used for outgoing calls. The options are Primary/

Alternate. Fax calls always use the primary line. If Block line selection is

active (see the next paragraph) you cannot change the line in use.

133

Telephone

Block line selection: Allows you to block the changing of the selected line. The

values are On/Off. Changing the value requires you to enter your PIN2

code.

Note: Block line selection option is only provided by some service providers.

Flight profile

The flight profile prevents you from accidentally turning on the phone in an

aircraft. To select the flight profile:

1In the Telephone main view, press the Menu key, scroll across the menu bar to

the Profiles icon , then highlight Flight.

2Press Select.

With the flight profile active, you may do tasks which do not require the use of

wireless system. For example, you can read previously downloaded mail, write mail,

notes, short messages, faxes, or update your calendar. Once you have left the

aircraft, turn off the flight profile by pressing Exit profile. Then you can turn on

the phone by pressing , and your short messages, faxes, and mail will be sent

automatically.

When the flight profile has been selected, emergency calls must be made from the

phone (close the communicator cover):

1Press . The phone display will read Flight profile is active.

2While the note is visible (for approximately five seconds) you can dial an

emergency number preprogramed into your communicator, for example, 911.

3Press.

134

Telephone

IMPORTANT! Never use the phone when in an aircraft. If the aircraft personnel

allow use of the communicator interface, you MUST activate the flight

profile. The flight profile will allow use of the communicator interface

only and will prevent use of the phone. Be aware that all

communications applications require use of the phone.

135

Contacts

7. Contacts

You can use the Contacts application to create, edit, and manage all contact

information, such as phone numbers and addresses.

Start the Contacts application by pressing the Contacts application button on the

keyboard.

The main contacts database is in the communicator’s memory. You can also store

contacts in the SIM card and in databases on an attached memory card.

You can synchronize your contacts with Microsoft Outlook, Lotus Notes, and Lotus

Organizer programs when you connect your communicator to a compatible PC. For

information on synchronising your contacts with a PC, see the PC Suite Guide on

the sales package CD-ROM.

Contacts directory

The main view of Contacts contains two frames.

Figure 39

136

Contacts

Tip: You can toggle

between the two frames

with the Arrows or Tab keys.

In the left-hand frame, there is a list of contacts in the currently open contacts

database. At the top of the list there is your own card and other available contacts

databases. Below the list there is a search box for finding entries.

In the right-hand frame there is the currently selected contact card.

Contacts databases can be located in the communicator’s internal memory, on a

memory card, or on a SIM card. A memory card may contain several contact

databases. Contact data is shown for one contacts database at a time. For example,

to see contacts stored on the SIM card, use the Arrows key to scroll down the list

to the SIM card and press Open.

An individual contact card contains the information of one person. A group contact

card contains more than one contact person. You can see the name of a group

contact card in bold font in the list.

Contacts are listed by name. You can change the sort order of the list. See ‘General

page’ on page 149.

You can create more than one contacts database in a memory card. For more

information see page 150.

Note: You cannot delete your own business card, the internal contacts

database of the communicator, the contacts database on a SIM card, a

read-only memory card contacts database, or contacts in a read-only

contacts database.

Make a contact card

1In the Contacts directory main view, with the left-hand frame highlighted,

press New card. A new card is created using the default template.

137

Contacts

2To make a new contact card using a particular template, press the Menu key

and select File > New card. You are prompted to choose a template from a list.

3When the contact card opens, enter information into the various fields. You can

fill in the information on your own business card using the same method. See

an example in Figure 40.

Note: The title of the P.O. Box field is only displayed when editing the fields.

To display the words ‘P.O. Box’ before the P.O. Box number after

editing type, for example, ‘P.O. Box 123’ in the field.

4To save your contact card, press Done.

Note: The 1-touch dial icon next to a contact card telephone number means

that you have defined a 1-touch dial for that telephone number with the

Telephone application.

Figure 40

138

Contacts

Open a contact card

Tip: To copy or move a

range of contacts, select,

the contacts, press the

Menu key and select File >

More options > Copy to or

Move to.

1In the Contacts main view, with the left-hand frame highlighted, select a card.

2Press Open to open the card in a full display view.

Move or copy contacts from a SIM card

1In the Contacts main view, with the left-hand frame highlighted, select the SIM

card and press Open.

2Press the Menu key and select File > More options > Copy to or Move to.

3Choose the Contacts database as the target directory and press Select.

Search for a contact card

Tip: If you cannot find

the contact in this database,

go to the top of the Contacts

directory list, and open

either the SIM card or the

memory card database. You

may have stored your

contact in one of these

other locations.

1In the search field under the Contacts directory list, enter characters which

match the beginning of the name of the contact. For example, to find Manfred,

enter M or Ma or Man. The names of contacts which match the characters you

entered are displayed.

For more information on the rules of searching, see ‘Notes on using the search

field’ on page 138.

2Using the Arrows key, select a contact and press Open.

Notes on using the search field

A search checks the most important fields in a contact card. The matching of

search criteria is limited to the beginning of words. For example, to search using

the characters ‘Ann’ finds ‘Annabel’ but not ‘Joanne’.

139

Contacts

Example:

john.carr@florida.edu or

http://florida.edu/

~john.carr

The search also checks the contents which follow the following characters: '.'

(period) or '/' (forward slash) or '@' (‘at’ symbol) or '~’ (tilde).

Change fields in a contact card

To add a field

You can add fields to a contact card to suit your own circumstances. For more

information on specific fields, see ‘Information on fields’ on page 139.

1Open a contact card.

2Press Add field. A list opens, showing fields you can add to the card.

3Using the Arrows key, select a field and press Select.

Rename a field

You can rename fields to suit your contacts. For example, after adding three new

Tel fields, you could rename them to Tel (Business), Tel (Private), and Tel (Car)

respectively.

Tip: If you want to delete

a field on all cards based on

the same template, it is

simpler to delete it from the

template attached to the

card. See ‘Create or modify

templates’ on page 141.

1Open a contact card.

2Select the field you want to rename.

3Press Rename field. A list of alternative names for the field opens. If you are

not allowed to rename the field, the Rename field command button is dimmed.

Information on fields

Company, First name, Last name, Suffix, Title, Middle Name, Job title, Birthday - You can

have only one of each of these fields.

140

Contacts

Telephone number fields - Storing a ‘+’ (plus) character before the country or

region code allows you to use the same phone number abroad. Enter mobile phone

numbers in this field to send short messages.

Country or region- Enter a country or region name. If you want the address of a

contact to be displayed in the format of the country or region, use the same

country or region names as listed in the option Default country or region on page

149.

Note: Some extra types of field, such as Job description, may appear only if they

exist in an imported contact card.

Attach a ringing tone

Tip: To play a ringing

tone, use the File manager

application to open a

ringing tone file. See ‘Open a

file’ on page 248. The

default ringing tones are not

displayed in the File

manager.

You can set a specific ringing tone for each contact card. When that contact calls

you, the communicator plays the chosen ringing tone (if the telephone number is

sent with the call).

1Open the contact card.

2Press the Menu key and select Card > Ringing tone. A dialog showing the current

ringing tone of this contact is displayed.

3Press Change. A list of default sounds is displayed.

4Select a sound and press Select. Press Browse to search for other sound files

stored in the communicator.

Note: To use personal ringing tones, this feature must be active in the profile

that you are using. For more information, see ‘Create a new profile’ on

page 121.

141

Contacts

Insert a picture

Tip: To define your

default folder, go to Control

panel and open the Default

folder application.

1Open the contact card.

2Press > on the Arrows key to select the picture frame on the right-hand side of

the card. Press Insert picture. A dialog displaying the contents of the default

folder opens. Press Browse to search for image files, if necessary.

Tip: Alternatively, to

insert a picture, press the

Menu key and select Card >

Insert picture.

3Select a file and press OK. The image is opened in an image viewer. The framed

area will be inserted into the contact card. Move the area with the Arrows key

and enlarge or reduce the frame size with the + and - buttons. Press Insert. For

more information, see ‘Imaging’ on page 271.

Create or modify templates

Tip: Templates do not

apply to contact cards in the

SIM card, because the

layout of a SIM contact card

is fixed.

Templates define a set of fields which the communicator uses when creating or

displaying a contact card. The default template provides a typical range of fields.

You can modify the default template. You can also create custom templates with

fields suitable for a particular group of people, such as those living overseas.

Figure 41

1Press the Menu key and select Tools > Card templates. A list of templates opens.

142

Contacts

2Either press New to create a new template, or move to an existing template in

the list and press Open. A contact card template opens.

3Edit the template. You can change the name of the template and add or remove

fields.

After you have created a contact card, the card and its template are linked as

follows:

•In a template, if you add or change fields or their labels, changes affect all

contact cards created from that template. If a field is deleted from the

template, the field is deleted from all the cards, except where the field contains

data.

•In a card, if you remove fields that belong to a template, the empty field will

still be there the next time you open the card.

Store touch tones

Touch tones are the tones you hear when you press the number keys on the phone

keypad. Touch tones allow you to communicate with voice mailboxes,

computerized telephony systems, etc.

You can store a sequence of touch tones for a contact card. When you make a call

to the contact, you can retrieve the sequence. It will save you from re-entering the

characters.

1Open or create a contact card.

2Press Add field. A list opens.

3Scroll down the list to Touch tones and press Select. The touch tone field is

inserted in the contact card.

4Enter a touch tone sequence in the touch tone field.

143

Contacts

If you need a phone number-touch tone combination number for a contact, store

the phone number followed by the touch tone sequence in the Tel field. You can

use the following non-numeric characters:

Create contact groups

You can create contact groups to save time by sending e-mails and short messages

to all members of the contact group in one action.

1With the Contacts directory main view displayed, press the Menu key and select

File > New group…. A blank group contact card opens.

2Enter a name for your group.

3To add contacts to the group, press Add member. A list of contact cards and

groups opens.

4Select a contact and press Add. Note that you can add another contact group

to a group.

5To attach a picture for the group, press > on the Arrows key to move to the

picture frame. Alternatively, press the Menu key and select Group > Insert

picture. A dialog displaying the contents of the default folder opens. Select a file

and press OK, or press Browse to search for a picture file.

Character Function

*# The asterisk and hash symbols may be used if the touch tone service requires

them

pInserts a pause of approx. 2 seconds before, or between, touch tone characters

wIf you use this character, the remaining sequence is not sent until you press

Send tone again during the call.

144

Contacts

6To save the group contact card, press Done.

An example of a contact group with members is shown in Figure 42.

Figure 42

The company name, if it also exists in the original contact card, appears to the right

of the name of the contact. Select Open to view the details of any of the group

members.

Change group memberships for a contact or a

group

Figure 43

145

Contacts

1To view or change the groups to which a contact or a group belongs, open the

contact card, press the Menu key, and select Card or Group > Belongs to groups.

A list opens, showing memberships for the contact or group.

2To add the card to a new group, press Add to group. A list of contact groups in

the current database opens.

3Select a group and press Add. Your contact card or group contact card is added

to the group.

4Press Done to save your changes.

Create a SIM contact card

You can view the SIM directory by selecting SIM card in the Contacts directory. The

contacts in your SIM card are displayed with SIM location numbers, as shown

below:

Figure 44

1In the SIM card main view, press New contact. A dialog opens, as shown in

Figure 44. If fixed dialing is active, the SIM contents show only your fixed

dialing numbers. For more information on fixed dialing, see page 131.

2The memory location shows the first free location number. To change the

location, press Change.

146

Contacts

3Type a name for the contact.

4Type a number for the contact.

Note: The length of the name and the phone number you can enter is defined

by the SIM card. For example, some SIM cards allow a maximum of only

fourteen characters.

Figure 45

SIM directory options

You can sort the contents of the SIM directory in alphabetical order or by memory

location. Press the Menu key and select View > Sort by > Name, or Sort by > SIM

location.

To see a summary of the usage of the SIM database, press the Menu key and select

File > Properties. If fixed dialing is active, you can see only information about fixed

dialing numbers.

147

Contacts

Send a contact card as a business card

Tip: You can send only

one business card in each

message you send; however,

you can send it to many

recipients.

When you send or receive a contact card between the communicator and other

devices, the term ‘business cards’ is used. A business card is a contact card in a

format suitable for transmission, usually vCard format. You can add received

business cards to your Contacts directory, where they become contact cards.

1In the Contacts directory main view, select the card you want to send.

Tip: PC mail and the

short message service are

explained in the ‘Messaging’

chapter, starting on page

199. If a contact card is sent

as a short message, the card

is sent in the Sending format

defined on page 150.

2Press the Menu key and select File > Send. In the Send submenu, make a further

choice of media: As a mail/As a short message/Via infrared. You may have other

sending options if you have installed additional software. An editor dialog

opens, depending on the sending medium you have chosen, as shown in the

example below. The contact card you want to send has now become a ‘business

card’.

Figure 46

3To choose who receives the sent card messages, press Recipient.

148

Contacts

Tip: If you change the

setting to include images in

the message, do not forget

to change it back after you

have sent the message to

reduce call charges.

4If you are sending via the short message service, the images are left out by

default to reduce call charges. If you want to include the image in the message,

you must change the setting. See ‘Send as a short message page’ on page 150.

5If you are about to send via infrared, make sure you activate the receiving of

infrared in the other device first.

6Press Send.

Receive a business card

When you receive a business card from another device, you are alerted by a

notification message. This message appears automatically on the display, in any

application. Follow the screen prompts to view the business card.

Note the following information about the contents of received card(s):

A field is displayed if it is recognized; if not, it is ignored.

Audio data, in a supported format, is set as the personal ringing tone of the contact

(if you choose to add the card to your Contacts directory)

To add the received card to your Contacts directory, press Add to Contacts. The

card is converted to contact card format. To decline the card, press Delete.

Settings

Press the Menu key and select Tools > Settings, then select a page, as follows:

149

Contacts

General page

Figure 47

Default template: Allows you to define which template is used when creating a new

contact card. When you press Change, you can choose a template from a

list of templates used with the current database.

Name display: Allows you to define the display order of names in the Contacts

directory main view. The values are First name Last name/Last name, First

name. The names will be displayed in the same order in the Telephone

application and the cover phone.

Default country or region: Concerns the country or region whose address format is

used when viewing contact card addresses in various displays in the

communicator. By default, the address format of the country or region

you enter in the Country or region field of a contact card is used. If you do

not enter information in the Country or region field, the communicator

uses the address format of the Default country or region. Each country or

region has a predefined address format. Press Change to see a list of

countries and regions.

150

Contacts

Send as a short message page

Example: The Nokia 9290

Communicator and most of

the major e-mail clients

support the vCard format.

Sending format: Allows you to define the format used when sending a business card

via the short message service. The values are Compact/vCard. Compact is

more widely supported but the number of fields sent is more restricted.

Use vCard format if you know the receiving device understands vCard

format. Using vCard format, you can send all fields except Note and touch

tones.

Send contact card pictures: Allows you to control the attaching of pictures when

sending business cards in vCard format via the short message service. The

options are No/Yes.

VIP group page

VIP group: Allows you to nominate an existing contact card group to be treated as

VIP group. You can restrict the ringing of incoming calls so that only calls

from a member of a VIP group will ring, the others will not ring. See Profile

settings, ‘Other page’ on page 123.

Create a new contacts database

Contacts databases are created on a memory card.

1Press the Menu key and select File > More options > New database.

2Type the name of your database, then press the Enter key. See Figure 48. Your

new database is added to the Contacts directory as a folder.

151

Contacts

3To add a new card to the new database, select and open the database in the

Contacts directory, then press New card. To copy or move contacts to the new

database, select existing contacts from the Contacts directory, press the Menu

key, and select File > More options > Copy to or > Move to.

Tip: To see a summary of

the usage of the database,

press the Menu key and

select File > Properties.

Figure 48

Note: If you have a read-only memory card, you cannot make changes to the

contacts or databases on that card.

152

Contacts

153

Calendar

8. Calendar

•In the Calendar application, you can create and check your scheduled events,

appointments, anniversaries, and birthdays. You can also list things to do and

set alarms to all of the calendar entries.

•You can synchronize your calendar and tasks with Microsoft and Lotus

programs when you connect your communicator to a compatible PC. For

information on synchronization, see the PC Suite Guide on the CD-ROM.

Calendar entries

•There are four types of entry that you can store in the Calendar application:

Example: Use appointment

entries for meetings and

business lunches.

•Appointment entries are the basic entries in your calendar.

•Event entries are related to the whole day, not to a specific time of day. Event

entries do not appear in the Weekly time schedule.

•Anniversary entries are repeated annually on the same date. Use Anniversary

entries for annual reminders of important dates, such as birthdays or

celebrations.

Tip: You can use the

standard clipboard

command shortcuts Ctrl+X

and Ctrl+V to cut entries

and paste them to a

different place.

•Task entries are for writing down lists and things to do. These tasks can be

prioritized and organized into task lists. Tasks can also have deadlines.

There are seven different views to view entries. Press Change view to choose a

view. For more information about different views, see ‘Views’ on page 160.

154

Calendar

Create new calendar entries

There are two ways to create calendar entries:

Tip: To send a calendar

entry to reserve a time in

other device calendars,

move to the date that

contains the entry and

select the entry with the

Arrows key, press the Menu

key and select Send > As a

short message or Via infrared

•Start typing your entry. As you enter characters, Calendar opens the default

entry dialog of the current view.

•Press the Menu key and select File > New entry. Select the entry you want to

create. The options are: Appointment…, Event…, Anniversary…, or Task….

•This is the way to create a new calendar entry when you do not want to use

the default entry type for the particular view.

Define information in a calendar entry

Tip: To change the

default values of an entry

details dialog, press the

Menu key and select Entry >

Default settings.

Figure 49

Tip: To see how

attachments are added to an

entry, see page 160.

Note: Day, event, anniversary, and task entry all have slightly different entry

dialogs. The following descriptions of each dialog page list all the

possibilities.

Details page

•Description: •The description of the entry.

155

Calendar

Tip: An untimed entry is

displayed with a icon.

•Timed: •Specifies whether a day entry is timed or untimed. ‘Timed’ means

that the entry has a specific start time, end time, and duration. ‘Untimed’

means that the entry happens on a particular date, but at no specific time.

If you select No, you may have to define the date for the day entry in the

field below. If you select Yes, you must define the starting and ending

time.

•Date: •The date of the entry.

•Start: •The time or date when the entry starts, depending on the entry type.

Example: The start year may

be a person’s year of birth,

and the number of years

since the start year may be a

person’s age.

•Display year: •Displays the start year of the anniversary, the number of years

that have passed since the start year, or no year information. The options

are Starting year/In number of years/None.

•Duration: •The duration of the entry. If you change the value in the Start and

End fields, this field is updated.

•End: •The time when the entry ends.

•Priority: •The priority of a task. The options are High/Normal/Low.

•Task list: • The task list to which the task entry is connected.

•Due date: • The deadline of a task.

•Start warning: • The days before the due date when a task starts being shown

in today’s entry list.

Alarm page

Tip: You can set an alarm

for a task entry only if you

have also set a Due date.

•Set alarm: • Specifies whether an alarm is set for the entry.

•Time before: • The time when an alarm set for a timed day entry will go off.

•Alarm time: • The time when an alarm set for an untimed entry will go off.

•Days before: • The number of days before an entry when an alarm will go off.

156

Calendar

Repeat page

Example: If your club has a

meeting which takes place

on the first Monday of every

month, you can set the entry

to recur accordingly by

selecting Monthly by day.

•On this page you can determine whether and when you want an entry to be

repeated:

•Repeat type: • The repeat type for the entry. The options are No repeat/Daily/

Working days/Weekly/Monthly by day/Monthly by date/Yearly by day/Yearly by

date.

Note: Define Repeat type first since the choice of options in the rest of the fields

depends on what you have selected.

• Repeat on days: • The days on which the entry is repeated. Use the Arrows

key to go to a day you want to select and press Select. You can select

more than one day at a time. See Figure 50.

Figure 50

•Repeat on dates: • The dates on which the entry is repeated. Use the Arrows

key to go to a date you want to select and press Select. You can select

more than one date at a time. See Figure 51.

157

Calendar

Figure 51

Example: To define an entry

that is repeated Daily with

two days between every

repeat, define “every 3 days”

in Repeat interval.

•Repeat interval: • The time period between repeats.

•Repeat indefinitely: • Frequency of the repetition. The options are Yes / No.

Note: It is still possible to remove or edit a single entry even if the entry is

repeating. If you edit an entry and change any options except the repeat

options, a selection list appears. You then choose how you want the

change to take place from the following options: All occurrences/Only this

occurrence/This and future occurrences/This and past occurrences.

Status page

•On this page you can define a background color and status for the entry, as

well as specify whether you want to synchronize the entry:

Tip: color is a handy way

to categorize entries - you

see more easily how your

time is reserved.

•color marking: • Allows you to define the color and letter for the entry

symbol, which appears after the text of the entry in all views. When you

check your calendar entries in the Weekly time or Year schedules, the

color is used for the bar indicating the entry. The letter is used to filter

Calendar entries in the Year schedule.

Example: If you are not sure

if an entry will take place,

you can mark it as Tentative.

•Tentative: • Whether an entry is confirmed or not. A tentative entry is

indicated with icon next to the entry text.

158

Calendar

•Crossed out: • Whether an entry has been completed or not. Crossing out an

entry does not remove it from the calendar.

•Synchronization: • Whether your calendar entries are shown to others when

you connect to the network and synchronize your calendar. The options

are Public, Private, and No synchronization. See the PC Suite Guide on the

CD-ROM for more information about synchronization.

Edit an entry

1Select the entry in the view.

2Press Enter. A details dialog for the entry opens. Edit the details on the various

pages.

3You can now, for example, reset the alarm or redefine how the entry is

repeated in the calendar. See ‘Define information in a calendar entry’ on page

154.

Change an entry type

Example: You might have

entered an event, but you

now want to change it to an

appointment.

1Select the entry in the view.

2Press the Menu key and select Entry > Change entry type….

3Choose a new entry type from the list.

159

Calendar

Tip: To change the

default entry type of a

particular view, press the

Menu key and select View >

View settings…. See Default

entry type in ‘View settings’

on page 170.

Delete entries

•Calendar entries accumulate over time and consume memory. To save

memory, delete entries no longer needed from time to time.

Note: You can also back up your calendar data to a compatible PC. See the PC

Suite Guide on the sales package CD-ROM for details.

Delete a single entry

•There are two ways to delete a single entry:

Tip: The shortcut to

delete a single entry is to

select it and press Ctrl+D.

•Select the entry in the view, then press the backspace key. A note is displayed

asking you to confirm the deletion.

•Select the entry in the view, press the Menu key, and then select File >Delete

entry. To confirm the deletion, press OK.

Delete a range of entries using defined criteria

Tip: You can move entries

to another file and then to a

PC to free up memory.

1Press the Menu key and select Tools > Move/Delete…. A dialog box is displayed

with a suggested range of entries to be deleted.

2Press OK to delete all the entries defined in the dialog box at step 1, or press

Options to define further criteria (including whether you want to ‘move’ or to

‘delete’. A dialog with two pages opens. Define the following and press Done to

return to the previous dialog.

Details page

•Action: • The consequences of removing the entries. The options are Delete/

Move to a file.

•Entries: •The types of entries which will be removed. The options are All/

Crossed out.

160

Calendar

•Time period: •The time scope of the removal. The options are Whole calendar/

Until today/From today/Other.

•Start: • The start date of the entries to be removed.

•End: • The end date of the entries to be removed.

Entry types page

•Choose from the following options: Appointments/Events/Anniversaries/Tasks.

View, create, and delete attachments

1Open a calendar entry by pressing Enter. The entry details dialog with four

pages opens.

2Press Attachments. A selection list of attachments linked to the calendar entry

opens.

3To view a selected attachment, press Open.

4To create a new attachment, press New.

5To delete an attachment, press Delete.

6If you want to add a new attachment, select the type of attachment and press

Insert new to create the new attachment or Insert existing to browse for an

existing attachment.

Views

Tip: You can press the

Calendar application button

repeatedly to cycle the view.

•The Calendar consists of seven views. The purpose of each view is to help you

organize your calendar so that you manage your time effectively on a daily,

weekly, monthly, and yearly basis. You can customize the display of each

view.

161

Calendar

Commands in all views

Tip: In most of the views

you can go to today’s date

by pressing the Space key on

the keyboard.

•The following command buttons are available in all of the views:

•Edit - Opens a selected calendar entry for editing.

New entry - Enables you to create a new calendar entry if there are no

entries for that day. You can also create a new calendar entry by just starting

to enter characters on the keyboard, see ‘Create new calendar entries’ on

page 154.

Change view - Opens a selection list from which you can switch to any of

the other calendar views. The options are Month/Week/Day/Task lists/Weekly

time schedule/Year schedule/Anniversaries.

Go to date- Opens a search dialog from which you can, by typing in the

desired date, switch to any date in the calendar. Enter the date and press OK.

Press Today to go to today’s date. Press Browse to browse through the

calendar.

Month view

Figure 52

162

Calendar

Left frame

Tip: To edit an event, the

right frame must be active.

If you are in the left frame,

go to the desired date and

press the Enter key. The

focus moves to the right

frame.

•One row in the day table equals one week. Abbreviations for the days of the

week are in the highest row.

•Today’s date is marked in green.

•Dates that have scheduled events are marked in bold and blue.

•The currently selected date is highlighted.

Right frame

Tip: To see a list of icons

that are displayed in all

views, see page 166.

•The events of the currently selected date are shown in the day details frame

on the right.

Week view

Tip: To change the

starting day of the week,

press Extras, open the

Control panel, and select

Regional settings. Choose

Date page and then First day

of the week.Figure 53

Tip: To move the position

of the title box from left to

right, press the Menu key

and select View > View

settings…. See Title location in

‘View settings’ on page 170.

•The week view shows the events for the selected week in seven day boxes.

•The colored indicator area next to a day box shows the date and name of the

day. Today’s indicator area is framed green.

163

Calendar

Day view

Figure 54

•The day view shows the events for the selected day.

Tip: To change the time

period covered in one time

slot, press the Menu key and

select View > View settings… .

See Time slot allocation in

‘View settings’ on page 170.

•Events are grouped into one time slot according to their starting time.

•To view the day view of the previous day, press < on the Arrows key. To view

the next day, press >.

Tip: In day and week

views, you can quickly move

to a different date by

pressing the Tab key,

selecting the desired date

with the Arrows key, and

pressing Enter.

Task lists

Figure 55

164

Calendar

Tip: To see how to-do

task lists are created, see

page 167.

•You can create one or several business or personal task lists which may

contain tasks with or without deadlines. You can also set an alarm or a repeat

for a task.

•The page number in the upper right corner of the Task list view indicates the

position of the task list among the other task lists. For example, in Figure 55,

‘1/6’ means that there are altogether six task lists and ‘Urgent tasks’ is the

first list.

Tip: To see a list of all

task lists, press the Tab key.

•To view the previous task list, press < on the Arrows key. To view the next

task list, press >.

•Due dates are shown to the right of a task, in brackets.

Weekly time schedule

Tip: You can select

different bar colors for

different types of entries.

See ‘Status page’ on page

157.

Figure 56

•The weekly time schedule shows the reserved hours for the selected week.

This means that only timed entries are shown The currently selected time box

is framed.

•Entries are marked with bars.

165

Calendar

Example: Use a green bar

for hobbies and a red bar for

business trips to get a quick

overview of your activities

during a week. See ‘View

settings’ on page 170.

•If a time box contains entries, the bar across the bottom of the weekly time

schedule shows the details of the entry. The numbers to the right of the entry

description indicate the number of entries contained in that time box. For

example, 1/2 in Figure 56 means that you are seeing the details of the first

of two entries.

•If a time box contains more than one entry, you can view a list of the entries

by pressing the Tab key.

Year schedule

Figure 57

•The year schedule shows the timetable for the selected year. Only entries

with colors are shown in the year schedule. If there are several colors

connected to the day, only one can be shown.

•Abbreviations for the days of the week are in the highest row and the months

of the year in the far left column.

•Time boxes have the same functions as in the Weekly time schedule.

166

Calendar

Anniversaries

Figure 58

Tip: To change the

number of months shown in

the anniversary view, press

the Menu key and select

View > View settings…. See

Months in view in ‘View

settings’ on page 170.

•The anniversary view shows the anniversaries for four months at a time. You

can add here all the birthdays and other anniversaries that you want to be

reminded of.

Note: Only anniversary entries are shown in the anniversary view.

Icons

•You can see the following symbols in Calendar:

•- Alarm

•- Anniversary

•- Attachment

•- Event

•- Repeating entry

•- Tentative entry

•- Task

•- Task, with high importance

•- Task, with low importance

167

Calendar

•- Untimed entry

Task lists

Create a new task list

1Press the Menu key and select File > New task list…. A dialog with two pages

opens.

2Define the task list on the two pages of the dialog. See ‘Details page’ and

‘Visibility page’ below.

3When you are ready, press Close. The new task list is added in Task lists.

Details page

Tip: If you choose to sort

a task list manually, all tasks

on the list appear numbered.

You can enter a new task

entry randomly by focusing

on a location in the list. You

can also change the order of

the tasks by cutting and

pasting (Ctrl+X and

Ctrl+V).

•List name: •The name of the task list.

•Position: • The position of the task list among the other task lists.

•Sorting: •How the tasks are sorted hierarchically in the task list. The options

are Manual/Priority then date/Date then priority.

Visibility page

•Show tasks: •The views in which the tasks on the list will be shown. The

options are All views/Task list view.

•Task position: •The position of the tasks in an event list if the tasks are all

shown in All views.

Edit a task list

1Open the task list.

168

Calendar

2Press the Menu key and select View > Task list settings…. A dialog with two pages,

Details and Visibility, opens, as explained above.

Delete a task list

1Open the task list.

2Press the Menu key and select File > Delete task list.

Search for Calendar entries

You can search through the entries for particular pieces of texts.

1Press the Menu key and select Tools > Find entry…. A search field opens.

2Enter a key word for the entry you want to search for, or

3press Options to restrict the search by defining a set of qualifications. A dialog

with two pages opens.

4Define the following:

5Details page

6Refine search: Defines the search. The options are No/Entries with an alarm/

Entries with repetition/Crossed out entries.

7Time period: The time scope of the search. The options are Whole calendar/Until

today/From today/User defined.

8From: The starting point of the search.

9Until: The ending point of the search.

10Entry types page

11Choose the type of entries you want to find. The options are: Appointments/

Events/Anniversaries/Tasks.

169

Calendar

Tip: You can stop a

search by pressing Stop.

12 To start searching, press Find. A chronological list of the find results is shown.

See Figure 59.

Figure 59

13 Select an entry and press:

•Edit to open the entry details dialog for editing,

•Go to to go to the date or view where the entry is located or,

•New find to start a new search.

14 Press Close to return to the currently active view.

Settings

General settings

1Press the Menu key and select Tools > General settings…. A dialog opens.

2Define the following:

3Default view: The default view when opening either another or a new calendar

file.

4Display untimed entries: The location of untimed appointment, event, and

anniversary entries in the entry list of all the timed views.

5Press Done to return to the currently active view.

170

Calendar

View settings

You can define the appearance of the view and default entry types for each view

by following these steps:

1Go to the view you want to define.

2Press the Menu key and select View > View settings…. A dialog with two pages

opens.

3Define the view settings on the two pages of the dialog. See ‘Details page’ and

‘Entry types’ below.

4Press Done to return to the currently active view.

Note: The contents of the dialog vary in different views. The following is a list

of all the possibilities.

Details page

•Default entry type: •The entry type which is inserted in the view by default

when you create a new entry. The options are Appointment/Event/

Anniversary/Task.

•Wrap text: •Specifies whether or not the information in the entry is wrapped

when viewed in any of the views.

•Title location: •Specifies whether the title of the week is on the left or right

of the display in the weekly view.

•Time slotTime slot allocation: •The time period covered in one time slot of the

daily views and weekly time schedules. The options are 2 hours/1 hour/30

minutes/15 minutes.

•Day starts: • The time when a day starts in the Daily view.

•Day ends: •The time when a day ends in the Daily view.

171

Calendar

•Show color markings: • Specifies whether all entry symbols or only symbols

with the letter specified in Default color are shown in the year view.

•Default color: • The symbols and background colors of the different entry

types in the particular view.

•Months in view: •The number of month boxes in the anniversary view.

Entry types

•On the Entry types page you can choose the entry types you want to appear

in the view you are defining: Appointments/Events/Anniversaries/Tasks.

172

Calendar

173

Internet

9. Internet

This chapter describes how to get access to the Internet and how to use the

Internet applications, WWW browser and WAP browser.

Note: The Mail application, described in the Messaging chapter, also uses an

Internet connection. See ‘Mail’ on page 213.

To connect to the Internet,

•the wireless system you use must support data calls,

•the data service must be activated for your SIM card,

•you must have obtained an Internet access point from an Internet Service

Provider (ISP), and

•you must have entered the proper Internet settings.

Your ISP can give you instructions on how to configure the Internet settings.

Follow the instructions carefully.

Note: You must have your phone turned on, within system coverage and free

of any other voice or data call to connect to the Internet.

Setting up your Internet access point

Note: To be able to use the Internet services, you need to configure an Internet

connection. Some Internet service providers may offer you the possibility

to configure your Internet settings by sending you a smart message via

174

Internet

SMS. This might reduce the number of settings you may need to enter

yourself, or eliminate the need altogether. Please contact your Internet

Service Provider (ISP) for details.

Internet connections

To set up and change the Internet settings, you have two choices:

•Go to the Control panel in the Extras application and open Internet access, see

page 256, or,

•From the Internet application main view, press the Menu key and select Tools >

Internet access…. A dialog opens, see Figure 60.

Figure 60

The first two lines contain a summary of the details of the preferred connection.

Define the following:

175

Internet

Tip: You may have to set

up several Internet

connections, depending on

the sites you want to access.

For example, browsing the

WWW may require one

setup; browsing your

company’s intranet may

require another connection.

Preferred connection: The default connection which will be used to connect to the

Internet.

If idle, stay online: The connection to the Internet will automatically close after the

inactivity period defined here. The options are For 2 minutes/For 5 minutes/For 10

minutes/For 60 minutes.IMPORTANT: Some Internet connections may appear

inactive, but they may still be sending and receiving data in the

background. These connections may delay the start of the inactivity

period specified here, and therefore postpone the closing of the

connection.

Ask before connecting: The options are Yes/No. If you choose Yes, a connection

dialog appears every time you connect to the Internet, asking you to

either confirm, change, or cancel the connection, or change the Internet

access point. If you choose No, the communicator will choose the default

Internet access point.

Create a new connection or edit an existing

connection

1In the Internet connections dialog, press New to create a new connection or

Edit to edit an existing connection.

176

Internet

Figure 61

2If you already have connections defined, you can use an existing connection as

a basis for the new connection. After you have pressed New, press Use existing.

Choose the connection you want from the list which appears, and press OK.

3A dialog on connection details opens. See Figure 62.

Note: The exact values for the settings are provided by your ISP.

Figure 62

4Define the following:

Tip: All your connections

should have different

names.

Connection name: Give a descriptive name for the connection.

Phone number: The modem telephone number of the IAP.

177

Internet

Tip: Often the minimum

requirement for an Internet

connection is: Phone number,

Username, and Password.

Password prompt: If you must type in a new password every time you log on to a

server, or if you do not want to save your password, choose Yes. The

options are Yes/No.

Username: Type in a user name if required by the Internet Service Provider (ISP).

The user name may be needed to connect to the Internet, and is usually

provided by the ISP. The user name is often case-sensitive.

Password: Type in a password if required by the ISP. The password may be needed

to connect to the Internet, and is usually provided by the ISP. The

password is often case-sensitive.

Confirm password: Confirm your password by retyping it in this field.

Press Advanced settings to define the Advanced settings of the connection. A

dialog with four pages opens. See Figure 62.

Figure 63

Proxies page

You may want to use a proxy to quicken access to the Internet. Note also that some

ISPs require the use of Web proxies. Contact your ISP to determine proxy details.

178

Internet

When you have made an Internet connection for your company’s intranet, and you

are unable to retrieve Web pages from the general WWW, you may need to setup

a proxy server to retrieve Web pages outside your company’s intranet.

Tip: If you set Use proxy

server to No, Port number,

Proxy server, and No proxy for

are dimmed.

Use proxy server: To use the proxy server, select Yes. The options are Yes/No. Use of

a proxy server is dependent on the protocol.

Port number: The number of the proxy port. The port number is related to the

protocol. Common values are 8000 and 8080, but vary with proxy server.

Example: Example domain

names are: company.com

and organization.org. In a

list, separate domain names

with semicolons.

Proxy server: The IP address of the proxy server, or the domain name.

No proxy for: Define here the domains for which the HTTP proxy is not needed.

Data call page

Figure 64

Tip: To forward and

restrict data calls, go to the

Internet application main

view, then press Tools >

Control panel > Data call

restrictions.

Connection type: The options are Normal/High speed.

Note: To be able to use High speed, the system service provider has to support

this feature, and if necessary, to activate it for your SIM card.

179

Internet

Remote modem type: The options are Analog/V.110 ISDN /V.120 ISDN . This setting can

depend on both your GSM service provider and ISP, because some GSM

systems do not support certain types of ISDN connections. For details,

contact your Internet service provider. If ISDN connections are available,

they establish connections more quickly than analog methods.

Tip: A very basic GSM

data connection is:

Connection type: Normal,

Remote modem type: Analog,

and Max. connection speed:

Automatic.

Max. connection speed: The options are Automatic/9600/14400/19200/28800/38400/

43200, depending on what you have chosen in Connection type and Remote

modem type. This option allows you to limit the maximum connection

speed when High speed is used. Higher data rates may cost more,

depending on the system service provider.

Note: The speeds above are the maximum speed at which your connection will

operate. During the connection, the operating speed may be less,

depending on network conditions.

Modem initialization: Controls your communicator using modem AT commands. If

required, enter characters specified by your GSM system service provider

or ISP.

Callback page

Use callback: This option allows a server to call you back once you have made the

initial call, so you have a connection without paying for the call. Contact

your Internet service provider to subscribe to this service. The options are

Yes/No.

Note: Charges may apply for certain types of received calls, such as roaming

and high speed data calls. Contact your GSM service provider for more

information.

180

Internet

Note: The communicator expects the callback call to use the same data call

settings that were used in the callback-requesting call. The system must

support that type of call in both directions, to and from the

communicator.

Callback type: The options are Use server number/Use server number (IETF)/Use number

below. Ask your Internet service provider for the correct setting to use. The

setting depends on the service provider’s configuration.

Callback number: Type in your communicator’s data phone number which the dial

back server uses. Usually, this number is the data call phone number of

your communicator.

Other page

Figure 65

Allow plain text login: If you select Yes, the password at connection may be sent in

clear. The options are Yes/No. For optimum security, use option No. Some

Internet service providers require that this setting is Yes.

Use PPP compression: If you select Yes, this option speeds up the data transfer, if it

is supported by the remote PPP server. The options are Yes/No. If you have

problems with establishing a connection, try setting this to No. Contact

your Internet service provider for guidance.

181

Internet

Script options

If you need to define script options for your Internet connection, press Script

options on the Other page. A script can automate the connection between the

communicator and the server. See Figure 66.

Tip: Your Internet service

provider may be able to

provide you with a script.

Note: Scripts are not usually required when you establish a connection. To find

out whether you need a script, contact your Internet service provider.

Figure 66

Tip: Advanced users will

find scripting an advantage,

where use of scripting is

allowed. You can obtain

instructions from Forum

Nokia at URL

www.forum.nokia.com

Press Edit script to edit the script. In the Edit script dialog you can press Import

script to import a script. On importing, it replaces the current contents of the

script file.

Define the following:

Use login script: The options are Yes/No.

Display terminal window: The options are Yes/No. If you choose Yes, once a

connection is established you see the execution of the script. Use this

window when resolving connection problems related to scripting, with

your Internet service provider.

182

Internet

Address options

Press Address options on the Other page, to define the IP and DNS addresses. See

Figure 67.

Define the following:

Figure 67

Auto retrieve IP address: If you select Yes, the IP address is obtained automatically

from the server. The options are Yes/No. This setting is also called ‘dynamic

IP address’.

IP address: The IP address of the communicator. If the IP address is obtained

automatically, then you are not required to enter details here.

Auto retrieve DNS address: If you select Yes, the DNS (Domain Name Server) address

is obtained automatically from the server. The options are Yes/No.

Primary DNS address: The IP address of the primary DNS server.

Secondary DNS address: The IP address of the secondary DNS server.

Note: If you need to enter the IP address, Primary DNS address, or Secondary DNS

address, contact your Internet service provider to obtain these addresses.

183

Internet

Connect to the World Wide Web

To connect to the World Wide Web,

•the GSM data service must be activated for your SIM card, and

•you must configure an Internet access point. For more information, see page

173.

Tip: When you are

browsing the WWW, some

Web pages may prompt you

to save (download) a file to

your local disk (your

communicator). See the

IMPORTANT note in this

section warning about

viruses.

IMPORTANT: Beware of viruses. Only install onto the communicator software

you have obtained from sources that offer adequate protection against

viruses. For information on software installation and security

certificates, see ‘Certificate manager’ on page 262.

To change the internet access point you use to connect to the WWW, press the

Menu key in the main view of the WWW application and select Tools > Edit Internet

access….

Tip: There is a glossary

containing Internet terms

and abbreviations at the

back of this user guide.

Figure 68

When you take your communicator into use, it already has the following browser

applications:

WWW - A World Wide Web (WWW) browser supporting frames and SSL protocol.

184

Internet

Tip: To access WAP

services, you need both an

Internet access point and a

WAP access point. See page

192.

WAP - A browser for accessing various types of information, entertainment, and

other services in Wireless Application Protocol (WAP) format. WAP is suited to

mobile devices with small screen displays and limited amounts of memory. WAP

uses mainly text but does support pictures.

To open the WWW browser,

1Press the Internet application button on the communicator keyboard.

2Select the WWW application and press Open. A dialog with the Connection

name and Phone number of the Internet access point you are using is displayed.

See Figure 69. You can also choose not to see the connection dialog when the

connection is made; see ‘Internet connections’ on page 174.

Figure 69

Note: In order to free up additional memory for large Web pages, all other

applications are closed automatically when the WWW browser is

opened.

To change the Internet access point, press Change connection.

3Press OK to establish a connection.

4If you have not redefined your default homepage, a Nokia 9290 link page opens.

This page is located in the memory of your communicator and does not require

an internet connection.

185

Internet

5For information on opening Web pages and navigating in the Web, see

‘Navigate in WWW’ on page 185. For information on adding a page to your

bookmark list, see ‘Bookmarks’ on page 191

6To close an application, press Close.

Tip: An alternative way

to disconnect from the

Internet is to close the cover

and press the key.

7To disconnect from the Internet, in any of the Internet applications, press the

Internet button on the keyboard, then press Disconnect. Disconnection is

immediate.

Note: Depending on the network configuration and load, establishing an

Internet connection may take a minute or more.

Navigate in WWW

There are several ways to navigate in the World Wide Web.

•If you know the address of the Web page that you want to visit, press the Menu

key and select File > Open > Web page…, type the URL address into the address

field, press Go to, select the Connection name in the Connect to Internet dialog,

if required, and press OK.

Tip: To check the

properties of a Web page

that is currently open, press

the Menu key and select

Tools > Information > Page….

Figure 70

186

Internet

Example: An example of a

URL address is

www.nokia.com

•If you have a bookmark of the page you want to visit, press Bookmarks, select

a bookmark in the Bookmarks list and press Go to.

•Select a link on your default home page and press Go to.

Note: If the page and its components are encrypted by a security protocol, the

security icon appears in the line on top of the display.

Note: Some servers have access restrictions that require a valid user name and

password. In this case, you will prompted for your user name and

password before the Web page can be retrieved.

Tip: For help on problems

you may experience when

downloading Web pages,

see the Troubleshooting

chapter.

When the Web page is being retrieved, the line on top of the display shows the

status of the connection, the title of the page, and the percentage of the page

received.

To select links or hotspots, press the Tab key. To move backwards, use Shift+Tab.

Alternatively use the Pointer tool; you can turn it on via the shortcut Ctrl+Q. See

‘Pointer’ on page 187 .

Tip: To go to your home

page, press the Menu key

and select Go > Home page.

After the Web page has been retrieved, the following commands become available,

depending on what is selected on the page:

•Go to - Takes you to the highlighted URL or link, which can be a hyperlink or

hotspot.

Tip: To save frames, links,

and images on a Web page

in your communicator, press

the Menu key, select File >

Save, and select the

appropriate submenu

command.

•Load image - Enables you to retrieve an image and save it in your

communicator.

•Write mail - Opens the mail editor for you to write a mail to the address in

question.

•Back - Allows you to retrieve the previous page, if you have browsed through

at least two pages.

•Bookmarks - Opens the Bookmarks view.

•Stop - Interrupts the retrieve operation.

187

Internet

•Close - Closes the WWW browser application.

Pointer

Tip: You can scroll the

page up and down by

pressing Chr+∧/∨ on the

Arrows key.

To make navigation in the WWW browser and Java applications easier, you can use

the pointer. The functionality of the pointer is similar to a mouse, but it is

controlled via the Arrows key and Enter key.

To turn the pointer on or off, press Ctrl + Q on the keyboard or press the Menu key

and select View > Pointer.

To click with the pointer, press Enter . To select and areas, keep Enter pressed down

and move the pointer over the area with the Arrows key.

Tip: Useful shortcuts are:

Ctrl+R for Reload, and

Ctrl+Z for Stop loading.

Note: If a Web page is slow to load, you can choose to reload the page or stop

loading altogether; press the Menu key and select View > Reload or Stop

loading. The reasons for slow loading may vary. For example, it can be due

to the network configuration and load on the Internet and wireless

system.

Note: Stored passwords to individual Web sites are removed when the

communicator is restarted or the cache is emptied. You can turn on

Empty cache on exit; see ‘Advanced page’ on page 190.

Change frame sizes

Tip: To change the active

frame when a Web page

contains frames, press

Ctrl+Tab. To move forward

inside a frame, press Tab.

Where a Web page contains frames, you can change the frame sizes of the page,

to view better the contents of a selected frame.

1Press the Menu key and select View > Change frame sizes. The selected border is

highlighted with arrows.

188

Internet

2Realign the border with the cursor and press OK or the Enter key.

To cancel the previous move, press Cancel.

To continue to realign another border, press Next border.

Open a frame as a new page

To open the currently active frame as a new page and discard the other frames,

press the Menu key and select File > Open > Frame as new page

WWW settings

To change the WWW settings, press the Menu key and select Tools > Settings. A

dialog with five pages opens. See Figure 71.

Figure 71

General page

Auto load images: The options are Yes/No. If you select Yes the WWW browser loads

all the pictures on a Web page when it displays the Web page.

Enable animation: Determines whether animated pictures are animated or not. The

options are Yes/No.

189

Internet

Texts and backgrounds: The options are Use color/Use black and white. Some Web

pages use colors which make reading difficult, so you may prefer to make

the setting Use black and white.

Tip: See information on

navigating in Web pages

which contain frames in

‘Change frame sizes’ on

page 187.

Frame options: The options are Show all frames/Show frames one by one/Show links

only/Do not use frames. Some Web pages are split into several frames,

which makes reading difficult, so choose an option which suits you.

Home pages page

Home page address: Type in the location of your home page. The location can be a

page on the Internet. You can also choose a file in the memory of the

communicator.

Tip: In Search page

address, you can enter the

URL address for your

favorite search engine or

portal.

Search page address: Type in the location of your search page.

Load at startup: Determines which Web page will open when you start the Web

browser. The options are Home page/Search page/None.

Fonts page

Standard font: Defines the default font used.

Fixed width font: Defines the fixed width font to use on certain Web pages.

Font size: Defines the default font size.

Scroll bars page

Horizontal scroll bar: The options are Always on/Off/Automatic.

Vertical scroll bar: The options are Always on/Off/Automatic.

190

Internet

Advanced page

Use cookies: Some Web pages store data on your communicator in files called

‘cookies’. Use this setting to determine whether to accept cookies, and if

you accept them, whether you wish to be prompted each time a cookie is

stored. The options are Always/Never/Ask.

Cache size: When you view a page on the WWW, it is downloaded and stored in the

communicator’s cache memory. This saves you from downloading the

page from the WWW each time you view the page, speeding the display

of the page in the browser. Since storing Web pages consumes memory,

you can select the amount of memory to use for the cache. The options

are Small/Large.

Empty cache on exit: If you select Yes, the cache memory is emptied when you exit

the WWW browser. The options are Yes/No.

NOTE To view and empty the cache, press the Menu key and select Tools >

Information > Cache….

NOTE If you have tried to access or have accessed confidential information

requiring passwords (for example, your bank account password), empty

the cache after each use to maintain confidentiality.

Empty history on exit: If you select Yes, the history list is emptied when you exit the

WWW browser. The options are Yes/No.

191

Internet

Bookmarks

Tip: When you scroll

through the bookmarks, the

full URL address of the

currently selected bookmark

is shown on top of the view.

To open the Bookmarks view, press Bookmarks in the main view of the WWW

application. See Figure 72.

The Bookmarks view lists links to WWW pages in related folders. You can organize,

edit, and view these bookmarks. You can also search for them and then connect to

the URL addresses directly. See Figure 72.

Tip: To create and

rename folders, press the

Menu key and select File >

Folder > Create new folder or

Rename folder.

Figure 72

To retrieve the currently highlighted Web page, press Go to.

To open and close folders, press Open folder and Close folder.

To search for bookmarks, press the Menu key and select Edit > Find.

To edit the name or address of a bookmark, press Edit.

To return to the main view, press Page view.

Add a new bookmark

You can add a Web page, or a frame or link on a Web page, as a bookmark to your

Bookmarks list.

192

Internet

1On an open Web page, press the Menu key and select Bookmarks > Add

bookmark, Add frame as bookmark or Add link as bookmark, depending on what you

want to bookmark.

2Edit the name and address of the bookmark, if necessary.

3Press OK.

WAP

The WAP application can be used to access Internet services which are based on

the Wireless Application Protocol (WAP). These services can contain news, weather

reports, flight times, dictionaries, and so on.

Note: The content of each service depends on the content provider of that

service. To use such a service, follow the instructions provided by the

content provider.

Obtain access to WAP services

•you must be within the coverage of a system which supports data calls,

•a data service must be activated for your SIM card,

•you must have obtained a WAP access point from a WAP service provider, and

•you must have entered the proper WAP settings.

Differences between the WWW and WAP services

applications

The WAP application is similar to the WWW application, but there are two

differences:

193

Internet

•To access WAP services you need to define WAP access points in your

communicator. WAP access points are additional to the Internet settings. You

can receive WAP access points directly via a short message from your WAP

service provider, or define them manually. This chapter contains instructions for

manual setup.

•Certain bookmarks can be accessed through a specific access point, for

example, banking services may have to be accessed through the bank’s own

access point. The easiest way to use these kinds of services is to define an

altogether new bookmark which uses the correct WAP and Internet access

point.

Set up WAP connections

Note: Before you can use the WAP services, you need to configure your WAP

settings. Your WAP service provider will provide you with the exact

values for the WAP settings. Follow the instructions carefully. You can

use this information to define and edit the settings manually.

Furthermore, your service provider may be able to send some, or all, of

the required settings to you via a special short message, an Over The Air

(OTA) message. After you have received the settings, you can start using

the WAP application or edit the settings as described below.

Define and edit WAP connections

1Press the Menu key and select Tools > WAP access. A dialog opens.

2Press New to create a new connection, and Edit to edit an existing connection.

A dialog opens. See Figure 73.

194

Internet

Figure 73

3Press Close when you are ready.

Tip: The shortcut to

define and edit WAP access

points is Ctrl + Shift + X.

Name: Name of the connection. All your connections should have different

names. You can define each name freely.

Secure connection: Whether the security protocol TLS is used for the connection.

The options are Yes/No. Follow the instructions given to you by your WAP

service provider. See also Glossary term ‘Transport Layer Security’ on page

346.

Note: Some secure connections use authentication procedures. If

authentication fails, you may need to download some certification keys.

Contact your WAP service provider for details.

Internet access: Choose from a selection list the IAP you wish to use for this

connection. If you have no IAPs, you create a new one by pressing New

Internet access. See page 175.

Gateway IP address: The IP address that the required WAP gateway uses.

Changing WAP access points

1To change WAP access points, press the Menu key and select Tools > WAP access.

A dialog opens.

195

Internet

2Press Change to change the connection. A list opens.

3Choose the connection from the list and press OK.

Bookmarks

The Bookmarks view is the main view of the WAP application. You can organize,

edit, and view these bookmarks in the same way as WWW bookmarks, see page

191.

Tip: The shortcut to add a

bookmark is Ctrl+B.

To add a bookmark, press the Menu key, then select Bookmarks > Add bookmark. A

dialog opens. See Figure 74.

Figure 74

Note: A bookmark always uses the same connection defined in the WAP access

field. To set up a WAP access point, see page 191.

To open a WAP page defined in a bookmark, select the bookmark, then press Go to.

To edit bookmark settings, select the bookmark, then press Edit.

To import or export bookmarks, press the Menu key, then select Bookmarks > Import

bookmarks or Export bookmarks, respectively.

196

Internet

Navigate WAP services

There are three ways to open a WAP page, either:

•Choose a WAP bookmark from the list of bookmarks and press Go to. The page

is retrieved; or

Tip: The shortcut to go to

the home page is Ctrl+H.

•Go to the WAP application home page. Press the Menu key, then select Go to >

Home page. For more information on defining the WAP home page, see ‘WAP

settings’ on page 196; or

Tip: The shortcut to open

a URL is Ctrl+O.

•Open a URL; press the Menu key, then select File > Open page. A dialog opens.

Enter the address of the URL, for example: www.nokia.com.

Once the WAP page is opened, use the ∧ and ∨ arrows on the Arrows key to scroll

the view and to choose hyperlinks and hotspots.

Note: Some servers have access restrictions that require a valid user name and

password. In this case, you will be asked to type in the user name and

password before a connection to the service can be established.

WAP settings

To define WAP service settings, press the Menu key and select Tools > Settings. A

dialog with two pages opens.

197

Internet

Figure 75

Here you can change settings such as your WAP home page.

NOTE: You can use a file on the communicator as your home page.

Java

The Java in the Nokia 9290 Communicator is a Personal Java application

environment designed especially for the communicator. Java enables you to use

Java applications downloaded from the Internet.

Java Software Development Kit (SDK) is available in Forum Nokia.

198

Internet

Microsoft RAB-3N PCS Band GSM Communicator User Manual Linda 2

Microsoft Mobile Oy PCS Band GSM Communicator Linda 2

Contents

Manual Part 1

Navigation menu

Namespaces

Views

Navigation
