Manual
User’s Guide
9356281
Issue 1
The wireless phone described in this guide is approved for use in GSM 900, 1800
and 1900 networks.
LEGAL INFORMATION
Part No. 9356281 Issue No. 1
Copyright ©2003 Nokia. All rights reserved.
Nokia is a registered trademark of Nokia Corporation.
Nokia, Nokia Connecting People, Xpress-on, Pop-Port, the Original Accessories
logos, Space Impact, Snake II, and Bumper are trademarks of Nokia Corporation
and/or its affiliates.
Printed in Canada 06/2003
US Patent No 5818437 and other pending patents.
T9 text input software Copyright ©1999-2003. Tegic Communications, Inc. All
rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA
Security.
Java is a trademark of Sun Microsystems, Inc.
The information contained in this user guide was written for the Nokia 3100
phone.
Nokia operates a policy of continuous development. Nokia reserves the right to
make changes and improvements to any of the products described in this
document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF
DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS
REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF
THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR
WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This product contains commodities, technology or software exported from the
United States in accordance with the Export Administration regulations.
Diversion contrary to U.S. or Canadian law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a
telephone in close proximity to receiving equipment). The FCC or Industry Canada
can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This
device complies with part 15 of the FCC rules. Operation is subject to the
condition that this device does not cause harmful interference.
Contents
3
Contents
FOR YOUR SAFETY................... 6
General information ................ 8
Access codes ........................................... 8
Extended user’s guide .......................... 8
Overview of the functions
in the phone............................. 9
Shared memory ...................................... 9
1. Your phone ......................... 10
Keys and connectors........................... 10
Standby mode....................................... 10
Power saving ..................................... 11
Essential indicators.......................... 11
2. Getting started................... 12
Installing the SIM card and
the battery............................................. 12
Charging the battery .......................... 13
Switching the phone on and off ..... 13
Normal operating position................ 14
Keypad lock (Keyguard) ..................... 14

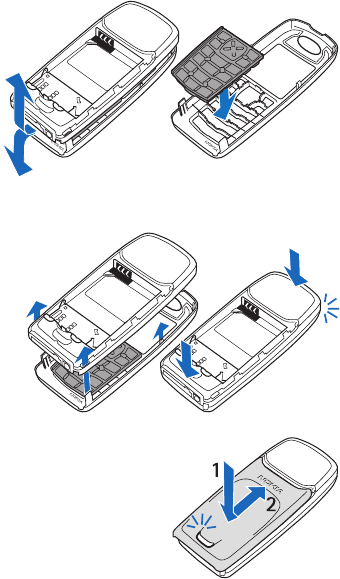

Changing the front and
back cover.............................................. 14
Charging the glow-in-the-dark
cover........................................................ 15
3. Basic functions................... 16
Making a call ........................................ 16
Speed dialling a phone number ... 16
Answering or rejecting an
incoming call ........................................ 17
Call waiting........................................ 17
Options during a call .......................... 17
Loudspeaker....................................... 17
Writing text........................................... 18
Setting predictive text input
on or off.............................................. 18
Using predictive text input ........... 18
Writing compound words .......... 19
Using traditional text input .......... 19
4. Using the menu .................. 20
List of menu functions....................... 20
Messages (Menu 1)............................. 22
Text messages ................................... 22
Writing and sending messages. 22
Options for sending a message 23
Writing and sending an
SMS e-mail..................................... 23
Reading and replying to
a message or an SMS e-mail .... 23
Inbox and outbox folders ........... 24
Templates........................................ 24
Archive folder and my folders... 24
Distribution lists ........................... 25
Message counters......................... 25
Multimedia messages ..................... 25
Writing and sending a
multimedia message.................... 26
Reading and replying to a
multimedia message.................... 27
Multimedia messages Inbox,
Outbox, Saved and Sent items
folders .............................................. 27
Multimedia messages
memory full ....................................... 27
Deleting messages ........................... 27
Voice messages................................. 28
Info messages ................................... 28
Message settings.............................. 28
Settings for text and e-mail
messages......................................... 28
Overwrite settings for text
and e-mail messages................... 28
Settings for the multimedia
messages......................................... 29
Contents
4
Font size setting ........................... 29
Service commands .......................... 29
Call register (Menu 2)........................ 30
Recent call lists................................ 30
Call counters and call timers ....... 30
Contacts (Menu 3).............................. 30
Searching for a name in
contacts.............................................. 31
Saving multiple numbers,
text items and an image
per contact ........................................ 31
Profiles (Menu 4)................................. 32
Settings (Menu 5)............................... 33
Personal shortcuts........................... 33
Screen saver...................................... 33
Time and date settings................... 33
Call settings ...................................... 34
Call divert....................................... 34
Anykey answer.............................. 34
Automatic redial........................... 34
Speed dialling................................ 34
Call waiting.................................... 35
Summary after call...................... 35
Send my caller identity .............. 35
Line for outgoing calls................ 35
Phone settings.................................. 35
Language ........................................ 35
Automatic keyguard.................... 35
Cell info display ............................ 36
Welcome note............................... 36
Network selection........................ 36
Confirm SIM service actions..... 36
Help text activation .................... 36
Start-up tone ................................ 36
Display settings................................ 36
Wallpaper....................................... 36
Colour schemes............................. 37
Operator logo ................................ 37
Display brightness........................ 37
Tone settings..................................... 37
Enhancement settings.................... 37
Security settings.............................. 38
Restore factory settings ................ 38
Alarm clock (Menu 6) ........................ 39
Gallery (Menu 7) ................................. 39
Calendar (Menu 8).............................. 40
Making a calendar note................. 40
When the phone alarms
for a note........................................... 40
Games (Menu 9).................................. 40
Launching a game........................... 41
Game downloads ............................. 41
Game settings................................... 41
Applications (Menu 10)..................... 41
Launching an application.............. 42
Other options available for
an application ............................... 42
Downloading an application ........ 42
Extras (Menu 11)................................. 43
Calculator .......................................... 43
Making calculations .................... 43
Making a currency conversion . 44
Countdown timer ............................ 44
Stopwatch ......................................... 44
Services (Menu 12)............................. 45
Setting up the phone for
a service ............................................. 45
Saving the service settings
received as an OTA message..... 45
Keying in the service settings
manually ......................................... 45
Making a connection to a service 46
Browsing the pages of a service . 46
Using the phone keys while
browsing ......................................... 46
Direct calling ................................. 47
Disconnect from a service............. 47
Appearance settings of the
multi-mode browser....................... 47
Selecting Cookie settings.............. 48
Bookmarks ......................................... 48
Receiving a bookmark................. 48
Downloading..................................... 48
Service inbox .................................... 49
Contents
5
Clearing the cache memory .......... 49
Authority certificates...................... 49
Viewing the list of authority
certificates...................................... 50
Security indicator ......................... 50
Go to (Menu 13) .................................. 50
SIM services (Menu 14) ..................... 50
5. PC Connectivity.................. 51
PC Suite.................................................. 51
6. Battery statements............. 52
Charging and Discharging................. 52
7. Technical Information......... 53
8. Patents .................................54
CARE AND MAINTENANCE.... 55
IMPORTANT SAFETY
INFORMATION........................ 56
APPENDIX ................................62
A message from the CTIA................... 62
A message from the U.S. Food and Drug
Administration ...................................... 65
FOR YOUR SAFETY
6
FOR YOUR SAFETY
Read these simple guidelines. Breaking
the rules may be dangerous or illegal.
Further detailed information is given in
this manual.
Do not switch on the phone
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Do not use a hand-held phone
while driving.
INTERFERENCE
All wireless phones may get
interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any regulations or rules.
Switch the phone off near
medical equipment.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause
interference in aircraft.
SWITCH OFF WHEN REFUELLING
Do not use the phone at a
refuelling point. Do not use
near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Do not use the phone where
blasting is in progress. Observe
restrictions, and follow any
regulations or rules.
USE SENSIBLY
Use only in the normal
position. Do not touch the
antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may
install or repair phone
equipment.
ACCESSORIES AND BATTERIES
Use only approved accessories
and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your phone is not water-
resistant. Keep it dry.
BACKUP COPIES
Remember to make backup
copies of all important data.
CONNECTING TO OTHER DEVICES
When connecting to any other
device, read its user’s guide for
detailed safety instructions.
Do not connect incompatible
products.
CALLING
Ensure the phone is switched
on and in service. Enter the
phone number, including the
area code, then press . To
end a call, press . To
answer a call, press .
EMERGENCY CALLS
Ensure the phone is switched
on and in service. Press
as many times as needed (e.g.
to exit a call, to exit a menu,
etc.) to clear the display. Enter
the emergency number, then
press . Give your
location. Do not end the call
until told to do so.
FOR YOUR SAFETY
7
■Network Services
The wireless phone described in this guide is approved for use on the EGSM 900,
GSM 1800 and GSM 1900 network.
Triband is a network dependent feature. Check with your local service provider if
you can subscribe to and use this feature.
A number of features included in this guide are called Network Services. These
are special services that you arrange through your wireless service provider.
Before you can take advantage of any of these Network Services, you must
subscribe to them through your service provider and obtain instructions for their
use from your service provider.
Note: Some networks may not support all language-dependent
characters and/or services.
■About accessories
Check the model number of any charger before use with this device. This device is
intended for use when supplied with power from ACP-7, ACP-12 and LCH-12.
Warning: Use only batteries, chargers and accessories approved by the
phone manufacturer for use with this particular phone model. The use
of any other types may invalidate any approval or warranty applying to
the phone, and may be dangerous.
For availability of approved accessories, please check with your dealer.
When you disconnect the power cord of any accessory, grasp and pull the plug,
not the cord.
General information
8
General information
■Access codes
•Security code: This code, supplied with the phone, protects your
phone against unauthorised use. The preset code is 12345.
Refer to Security settings on page 38 to see how it works.
•PIN code: This code, supplied with the SIM card, protects the card
against unauthorised use.
Set on the PIN code request in the Security settings menu (see
Security settings on page 38), so that the code is requested each
time the phone is switched on.
If you key in an incorrect PIN code three times in succession, the SIM
card is blocked. You must key in the PUK code to unblock the SIM
card and set a new PIN code.
•PIN2 code: This code is supplied with some SIM cards and is required
to access certain services, such as charging unit counters. If you key
in an incorrect PIN2 code three times in succession, PIN2 code
blocked appears on the display, and you will be asked for the PUK2
code.
Change the security code, PIN code and PIN2 code in Change of
access codes in the Security settings menu (see Security settings on
page 38). Keep the new codes secret and in a safe place separate
from your phone.
•PUK and PUK2 code: These codes may be supplied with the SIM
card. If this is not the case, contact your local service provider.
•Barring password (4 digits): The barring password is needed when
using the Call barring service, see Security settings on page 38. You
can obtain the password from your service provider.
■Extended user’s guide
You may find an extended user’s guide for your phone model in the
support area on the Nokia’s web site, www.nokia.com.
Overview of the functions in the phone
9
Overview of the functions in the phone
The Nokia 3100 phone provides many functions which are practical for
daily use, such as Calendar, Clock, Alarm clock, Profiles, and many more.
Some functions are
• MMS - Multimedia Messaging Service, see Multimedia messages on
page 25.
• Polyphonic MIDI ringing tones enable richer ringing tones with a
wide variety of sounds.
• GPRS - General Packet Radio Service is used for sending and
receiving data over the mobile network.
•MIDP Java
TM applications specially designed for mobile phones. See
Applications (Menu 10) on page 41.
• Nokia OTA settings service. Several services need proper settings in
your phone. You may receive the settings directly as an OTA (Over
The Air) message and you only need to save the settings. Contact
your nearest authorised Nokia dealer for more information.
■Shared memory
The following features in this phone share memory: phone’s contacts
directory, text and multimedia messages, images and ringing tones in
gallery, calendar, bookmarks, and Java games and applications. Using
any such features may reduce the memory available for any features
sharing memory. This is especially true with heavy use of any of the
features. For example, saving many images, Java applications, etc. may
take all of the shared memory and your phone may display a message
that the memory is full. In this case, delete some of the information or
entries stored in the shared memory features before continuing.
Your phone
10
1. Your phone
■Keys and connectors
1. Power key
2. Selection keys and
3. 4-way scroll key with , , and
4. dials a phone number, and answers a
call. In standby mode it shows the most
recently called number.
5. ends an active call. Exits from any
function.
6. - enter numbers and
characters.
and are used for various purposes
in different functions.
7. Charger connector
8. Pop-PortTM connector for headset and
data cable, for example
■Standby mode
When the phone is ready for use, and you have not keyed in any
characters, the phone is in standby mode.
1. Indicates the operator logo.
2. Shows the signal strength of the cellular
network at your current location.
3. Shows the battery charge level.
4. The left selection key in standby mode is Menu.
5. The right selection key in standby mode is
Contacts or Go to (personal shortcut) or it has an operator specific
name to access an operator’s homepage. To set the functions for
your personal shortcut, see Personal shortcuts on page 33.
78
Your phone
11
Power saving
For power saving a digital clock view overwrites the
display when no function of the phone has been used for
a certain period of time.
Essential indicators
You have received one or several text or picture messages. See
Reading and replying to a message or a SMS e-mail on page 23.
You have received one or several multimedia messages. See
Reading and replying to a multimedia message on page 27.
The phone’s keypad is locked. See Keypad lock (Keyguard) on
page 14.
The phone does not ring at an incoming call or text message
when Incoming call alert is set to Off and Message alert tone is
set to Off. See Tone settings on page 37.
The alarm clock is set to On. See Alarm clock (Menu 6) on
page 38.
All your calls are diverted to another number, Divert all voice
calls. If you have two phone lines, the divert indicator for the
first line is and for the second line . See Call divert on
page 34.
The loudspeaker has been activated. See Loudspeaker on
page 17.
The phone has registered a missed call. See Call register (Menu
2) on page 30.
Getting started
12
2. Getting started
■Installing the SIM card and the battery
Keep all miniature SIM cards out of the reach of small children.
• The SIM card and its contacts can easily be damaged by scratches or
bending, so be careful when handling, inserting or removing the
card.
• Before installing the SIM card, always make sure that the phone is
switched off and disconnected from any enhancement.
1. Remove the back cover from the phone. With the back of the phone
facing you, push the back cover release button (1) and slide the back
cover off (2).
Remove the battery by
lifting it with the
finger grip (3).
2. Release the SIM card
holder. Gently pull the
locking clip of the card
holder (4) and open it
(5).
3. Insert the SIM card
into the SIM card holder (6). Make sure that
the SIM card is properly inserted and that
the golden contact area on the card is
positioned as shown.
Getting started
13
4. Close the SIM card holder (7) and press it
until it snaps into position.
5. Insert the battery (8).
6. Slide the back cover
into its place (9).
■Charging the battery
1. Connect the lead from the charger to
the socket on the bottom of your phone.
2. Connect the charger to an AC wall
socket.
The text Charging is displayed briefly if
the phone is switched on. If the battery
is completely empty, it may take a few minutes before the charging
indicator appears on the display or any calls can be made.
The charging time depends on the charger and the battery used. For
example, charging a BL-5C battery with the ACP-7 charger takes up to 3
hours in standby mode.
■Switching the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the power key .
If the phone asks for a PIN code, key in the PIN code
(displayed as ****).
Getting started
14
■Normal operating position
Use the phone only in its normal operating position.
Your phone has a built-in antenna. As with any other radio
transmitting device, do not touch the antenna unnecessarily
when the phone is switched on. Contact with the antenna
affects call quality and may cause the phone to operate at a
higher power level than otherwise needed.
Not touching the antenna area during a phone call optimises
the antenna performance and the talktime of your phone.
■Keypad lock (Keyguard)
You can lock the keypad to prevent the keys being accidentally pressed.
Press (Menu or Unlock) and then within 1.5 seconds to lock or
unlock the keypad.
An incoming call can be handled normally. When you end or reject the
call, the keypad will automatically be locked again.
For automatic keypad lock, see Automatic keyguard on page 35.
Note: When the keypad is locked, calls may be possible to the
emergency number programmed into your phone (e.g. 112, 911 or other
official emergency number). Key in the emergency number and press
. The number is displayed only after you have keyed in its last
digit.
■Changing the front and back cover
Before changing the covers, always switch off the power and disconnect the
phone from the charger or any other device. Always store and use the phone with
the covers attached.
1. Remove the back cover of the phone.
With the back of the phone facing you,
push the back cover release button (1)
and slide the back cover off (2).
Getting started
15
2. To remove the
front cover,
gently prise the
back part of the
phone away from
the front cover
beginning at the
bottom of the
phone.
3. Insert the key mat on the new front cover.
4. To attach the front
cover, first place
the phone and the
front cover properly
together and then
gently push on the
top of the phone
until the catch is
locked properly.
5. Place the back cover and the phone
properly together (1) and slide the back
cover into its place (2) until the back
cover release button is properly locked.
■Charging the glow-in-the-dark cover
The front cover of your Nokia 3100 phone has a glow-in-the-dark
element. To make the cover glow you need to charge it with a bright
light source for at least 15 minutes.
Basic functions
16
3. Basic functions
■Making a call
1. Key in the phone number, including the area code. If you key in a
wrong character, press Clear to delete it.
For international calls, press twice for the international prefix
(the + character replaces the international access code) and then key
in the country code, area code without the leading 0, if necessary,
and the phone number.
2. Press to call the number.
3. Press to end the call or to cancel the call attempt.
Making a call using the contacts list
In standby mode, press or to find the name or key in the first
character(s) of the name you are looking for. See also Searching for a
name in contacts on page 31. Press to call the number on the
display.
Last number redialling
In standby mode, press once to access the list of up to 20 numbers
you last called or attempted to call. Scroll to the number or name you
want, and press to call the number.
Speed dialling a phone number
Assign a phone number to one of the speed dialling keys, from to
, see menu option Speed dials in chapter Contacts (Menu 3) on
page 30. Call the number in either of the following ways:
• Press the speed dialling key you want and then press .
•If Speed dialling is set to on, press and hold a speed dialling key until
the call is started. See Speed dialling on page 34.
Basic functions
17
■Answering or rejecting an incoming call
Press to answer the incoming call and press to end the call.
Press to reject the incoming call.
Press Silence, if available, to mute the ringing tone. Then either answer
or reject the call.
Tip: If the Divert if busy function is activated to divert the calls,
for example to your voice mailbox, rejecting an incoming call
will also divert the call. See Call divert on page 34.
Call waiting
During a call, press to answer the waiting call. The first call is put
on hold. Press to end the active call.
To activate the Call waiting function, see Call waiting on page 34.
■Options during a call
Many of the options that you can use during a call, are network services.
Press Options during a call for some of the following options:
End call, End all calls, Mute, Unmute, Contacts, Menu, Hold, Unhold,
Swap, Transfer, New call, Conference, Private, Answer, Reject, Send
DTMF, Loudspeaker, Handset, Lock keypad.
For more information, see the extended user’s guide for your phone
model in the support area on the Nokia’s web site, www.nokia.com.
Loudspeaker
You can use your phone as a loudspeaker during a call.
Warning: Do not hold the phone near to your ear when the
loudspeaker is in use, because the volume may be extremely
loud.
To activate the loudspeaker, press Options and select Loudspeaker, or
press selection key Loudsp., if available.
To deactivate the loudspeaker during a call, press Options and select
Handset, or press selection key Handset, if available.
Basic functions
18
■Writing text
You can key in text in two different ways, using the traditional text
input, indicated with , or using the predictive text input indicated
with at the top left of the display. The character case is indicated
by , , or next to the text input indicator. You can change
the character case by pressing . The number mode is indicated by
, and you can change between the letter and number mode by
pressing and holding ..
Setting predictive text input on or off
When writing text, press Options and select Dictionary.
• To set the predictive text input on, select a language in the dictionary
options list.
• To change back to the traditional text input, select Dictionary off.
Tip: To quickly set the predictive text input on or off when
writing text, press twice, or press and hold Options.
Using predictive text input
Predictive text input is an easy way to write text.
The predictive text input is based on a built-in dictionary to which you
can also add new words.
1. Key in the word you want by pressing each key once for one letter.
The word changes after each keystroke. For example, to write ‘Nokia’
when the English dictionary is selected, press , , ,
, .
• To delete the character to the left of the cursor, press Clear. Press
and hold Clear to delete the characters more quickly.
• To switch between upper and lower cases, or between traditional
and predictive text input, press repeatedly and check the
indicator at the top of the display.
• To insert a number, press and hold the desired key. To switch
between letters and numbers, press and hold .
• To get some punctuation marks, press repeatedly.
Basic functions
19
• To get a list of special characters, press and hold , select the
character you want, or press again to select a smiley from the
offered list. Press Use to insert a special character or a smiley.
2. If the displayed word is the one you want, press and start
writing the next word.
• If you want to change the word, press repeatedly to the word
you want.
• If the "?" is displayed after the word, the word is not in the
dictionary. To add the word to the dictionary, press Spell, key in
the word (traditional text input is used) and press OK.
Writing compound words
Key in the first half of the word, press , and then key in the second
half.
Using traditional text input
Press the key marked with the letter that you want repeatedly until the
letter appears.
Use the following functions to edit the text:
• To add a space, press .
• To add a punctuation mark or special character, press
repeatedly, or press , select the desired character, and press Use.
• To add a smiley, press twice and select the desired smiley, and
press Use.
• To move the cursor to the left, right, down or up, press the scroll keys
, , or , respectively.
• To delete a character to the left of the cursor, press Clear. Press and
hold Clear to delete the characters more quickly.
• To switch between upper and lower case, press .
• To add a number, press and hold the desired key. To switch between
letters and numbers, press and hold .
• To key in a letter which is on the same key as the previous one, press
or (or wait until the cursor appears), and key in the new
letter.
Using the menu
20
4. Using the menu
The phone offers you an extensive range of functions which are grouped
in menus.
To access the menu, press Menu. Scroll with or through the
menus and select the menu by pressing Select. Select submenus and
settings of your choise in the same way.
Press Back to return to the previous menu level, and Exit to exit the
menu.
■List of menu functions
1. Messages
1. Text messages
2. Multimedia msgs.
3. Voice messages
4. Info messages
5. Message settings
6. Service commands
2. Call register
1. Missed calls
2. Received calls
3. Dialled numbers
4. Delete recent call lists
5. Call duration
6. Call costs
7. GPRS data counter
8. GPRS connection timer
3. Contacts
1. Search
2. Add contact
3. Delete
4. Copy
5. Settings
6. Speed dials
7. Info numbers1
8. Service numbers1
9. My numbers
10.Caller groups
4. Profiles
1. General
2. Silent
3. Discreet
4. Loud
5. My Style 1
6. My Style 2
5. Settings
1. Personal
shortcuts
2. Screen saver
3. Time and date settings
4. Call settings
1. Only shown if supported by your SIM card.
Using the menu
21
5. Phone settings
6. Display settings
7. Tone settings
8. Enhancement settings1
9. Security settings
10.Restore factory settings
6. Alarm clock
1. Alarm time
2. Alarm tone
7. Gallery
1. View folders
2. Add folder
3. Delete folder
4. Rename folder
5. Gallery downloads
8. Calendar
9. Games
1. Select game
2. Game downloads
3. Memory
4. Settings
10.Applications
1. Select application
2. App. downloads
3. Memory
11.Extras
1. Calculator
2. Countdown timer
3. Stopwatch
12.Services
1. Home
2. Bookmarks
3. Download links
4. Service inbox
5. Settings
6. Go to address
7. Clear the cache
13.Go to
14.SIM services2
1. This menu is shown only if the phone is or has been connected to a compatible
headset, handsfree unit or loopset available for the phone.
2. Only shown if supported by your SIM card. The name and contents vary
depending on the SIM card.
Using the menu
22
■Messages (Menu 1)
You can read, write, send and save text, multimedia, and
e-mail messages. Before sending a message, you need to
save your message centre number, see Message settings on page 28.
Text messages
Using SMS (Short Message Service), your phone can send and receive
multi-part messages, which consist of several ordinary text messages
(network service). Invoicing may be based on the number of parts
needed for your message. If you use special (Unicode) characters, more
parts may be needed for the message than otherwise. Note that
predictive text input may use Unicode characters.
You can also send and receive text messages that contain pictures.
Note: Picture message function can be used only if it is supported by
your network operator or service provider. Only phones that offer
picture message features can receive and display picture messages.
Writing and sending messages
The number of available characters / the current part number of a multi-
part message are shown on the top right of the display, for example
120/2.
1. Press Menu, and select Messages, Text messages and Create
message.
2. Key in a message. See Writing text on page 18. Following options
may be available: Use template, Insert picture, Insert smiley, Insert
number. Each picture message is made up of several text messages.
Therefore, sending one picture message may cost more than sending
one text message.
3. To send the message, press Options and select Send.
4. Key in the recipient’s phone number or search for a phone number in
Contacts. Press OK to send the message.
Note: When sending messages via the SMS network service, your phone
may display the words Message sent. This is an indication that the
message has been sent by your phone to the message centre number
programmed into your phone. This is not an indication that the message
has been received at the intended destination. For more details about
SMS services, check with your service provider.
Using the menu
23
Options for sending a message
After you have written a message, press Options and select Sending
options:
With Send to many you can send the message to several recipients and
Send to list sends the message to a predefined distribution list.
Distribution lists see on page 25.
With Sending profile you can use a predifined message profile to send
the message. For the message profile, see Message settings on page 28.
Writing and sending a SMS e-mail
Before you can send any e-mails via SMS you need to save the settings
for e-mail sending, see Message settings on page 28. To check e-mail
service availability and to subscribe to the service, contact your service
provider. To save an e-mail address in the contacts list, see Saving
multiple numbers, text items and an image per contact on page 31.
1. Press Menu, and select Messages, Text messages and Create SMS e-
mail.
2. Key in the recipient’s e-mail address or search for it in the contacts
list, key in the subject and the e-mail message.
3. To send the e-mail, press Options and select Send e-mail.
Note: When sending e-mails via the SMS network service, your phone
may display the words Message sent. This is an indication that the e-
mail has been sent by your phone to the e-mail server. This is not an
indication that the e-mail has been received at the intended
destination. For more details about e-mail services, check with your
service provider.
Reading and replying to a message or a SMS e-mail
When you have received a message or an e-mail, the indicator and
the number of new messages followed by messages received is shown.
Received messages are automatically stored in shared memory.
The blinking indicates that the message memory is full. Before you
can receive new messages, delete old messages.
1. Press Show to view the message, or press Exit to view it later.
If more than one message is received, select the message you want
to read. An unread text message is indicated by in front of it.
Using the menu
24
2. While reading or viewing the message, press Options.
You can select, for example, an option to delete, forward or edit the
message as a text message or an e-mail, move and rename the
message you are reading. With Copy to calendar you can copy the
text from the beginning of the message to your phone’s calendar as a
reminder note. Select Message details to view the sender’s name and
phone number, the message centre used, reception date and time.
Select Use detail to extract numbers, e-mail addresses and website
addresses from the current message. When reading a picture
message, select Save picture to save the picture in the Templates
folder.
3. Select Reply to reply to a message. Select Empty screen, Original text
or select a standard answer to be included in the reply. Confirm or
edit e-mail address and subject. Write your reply message.
Press Options, select Send, and press OK to send the message to the
displayed number.
Inbox and outbox folders
The phone saves the incoming text messages in the Inbox folder and the
sent messages in the Sent items folder of the Text messages submenu.
The text messages you want to send later, can be saved in the Archive,
My folders or Templates folder.
Templates
Your phone offers you text templates , and picture templates .
To access the template list, press Menu, and select Messages, Text
messages and Templates.
Archive folder and my folders
You can organise your messages in the Archive folder or in new added
folders. While reading a message, press Options. Select Move, scroll to
the folder where you want to move the message and press OK.
To add or delete a folder, press Menu, and select Messages, Text
messages and My folders. Press Options and select Add folder or Delete
folder.
Using the menu
25
Distribution lists
If you often need to send messages to a fixed group of recipients, you
can define distribution lists in the phone’s directory.
To view the names in the selected distribution list, press Menu, and
select Messages, Text messages and Distribution lists. Press Options and
select View list. Press Options again to edit the content of a distribution
list: Add contact, View details or Delete contact.
To edit the distribution lists, press Menu, and select Messages, Text
messages and Distribution lists. Press Options and select Add list,
Rename list, Clear list or Delete list.
If a message cannot be sent to certain recipients on the distribution list,
select Undelivered. Press Options and select Resend to list (to resend the
message to the recipients on the Undelivered list), View list, Delete list or
View message.
Message counters
To view your message counters, press Menu, and select Messages, Text
messages, Message counter and Sent messages or Received messages.
To clear the counters press Clear counters.
Multimedia messages
Note: This function can be used only if it is supported by your network
operator or service provider. Only phones that offer multimedia
message features can receive and display multimedia messages.
A multimedia message can contain text, picture and sound. The phone
supports multimedia messages of size up to 45 kB.
Note: If Allow multimedia reception is set to Yes or In home network,
your operator or service provider may charge you for every message you
receive.
Multimedia messaging supports the following formats:
• Picture: JPEG, GIF, PNG, and BMP.
• Sound: Scalable Polyphonic MIDI (SP-MIDI) and monophonic ringing
tones.
You are not able to receive any multimedia messages if you have a call
in progress, a game or another Java application running, or an active
Using the menu
26
service connection. Because delivery of multimedia messages can fail
for a variety of reasons, do not rely solely upon them for essential
communications.
Writing and sending a multimedia message
To set the settings needed, see Settings for the multimedia messages on
page 29. For availability and subscription to the multimedia messaging
service, contact your service provider.
1. Press Menu, and select Messages, Multimedia msgs. and Create
message.
2. Key in a message.
To insert a picture or a sound clip from Gallery, press Options, and
select Insert image or Insert sound clip. The list of available folders in
the Gallery is shown. Open a specific folder, scroll to the desired
picture or sound, press Options and select Insert. The or
indicator on the header of the message indicate that a picture or
sound has been attached.
To key in a name from the contacts list, press Options and select
More options and Insert contact.
To insert a number, press Options and select More options and Insert
number.
To view the message before sending it, press Options and select
Preview.
3. To send the message, press Options and select Send to number (or
Send to e-mail or Send to many).
4. Key in the recipient’s phone number (or e-mail address) or search for
the phone number (or e-mail address) in the contacts list and
confirm the number.
During sending the animated indicator is displayed and you can
use the other functions of the phone. If the sending fails, the phone
tries to resend it for a few times. After that the message remains in
the Outbox folder and you can try to resend it.
Copyright protection may prevent some images, ringing tones and
other content from being copied, modified, transferred or forwarded.
Using the menu
27
Reading and replying to a multimedia message
During receiving a multimedia message, the animated indicator is
displayed. A received message is indicated with and the text
Multimedia message received is shown.
1. Press Show to view the message, or press Exit to view it later.
2. Scroll to view the message. Press Options and some of the following
options may be available: Delete message, Reply or Reply to all,
Forward to no., Forward to e-mail or Send to many, Edit, Message
details, Play, Save sound clip or Save image.
Multimedia messages Inbox, Outbox, Saved and Sent items
folders
The phone saves the received multimedia messages in the Inbox folder.
Multimedia messages to be sent are moved to the Outbox folder. The
multimedia messages you want to send later, can be saved in the Saved
items folder. The sent multimedia messages are saved in the Sent items
folder if the setting Save sent messages is set to Yes. See Settings for the
multimedia messages on page 29.
Multimedia messages memory full
Received messages are automatically stored in the shared memory.
When you have a multimedia message waiting and the memory for the
messages is full, the indicator is blinking and Multimedia memory
full, view waiting msg. is shown. To view the waiting message, press
Show. To save the message, press Options, select Save message and
delete old messages by first selecting the folder and then an oId
message to be deleted.
To discard the waiting message, press Exit and Yes. To view the message,
press No.
Deleting messages
Press Menu, and select Messages, Text messages or Multimedia msgs.
and Delete messages.
• To delete all messages from one folder, select the folder.
• To delete all messages from all text message folders, select All
messages and confirm Delete all messages from all folders? .
Using the menu
28
If the folders contain unread messages, the phone will ask whether you
want to delete them also.
Voice messages
Voice mailbox is a network service and you may need to subscribe to it
first. For details, contact your service provider.
Press Menu, and select Messages and Voice messages. To call your voice
mailbox ,select Listen to voice messages. To key in, search for or edit
your voice mailbox number, select Voice mailbox number.
If supported by the network, the indicator will indicate new voice
messages. Press Listen to call your voice mailbox number.
Tip: In standby mode, pressing and holding calls your voice
mailbox.
Info messages
With this network service you can receive messages on various topics
(such as traffic conditions). For details, contact your service provider.
Message settings
The message settings affect the sending, receiving or viewing of the
messages.
Settings for text and e-mail messages
Press Menu, and select Messages, Message settings, Text messages and
Sending profile. If more than one message profile set is supported by
your SIM card, select the set you want to change.
Each set has the following settings: Message centre number (delivered
from your service provider), Messages sent via, Message validity, Default
recipient number (text messages) or E-mail server (e-mail), Delivery
reports, Use GPRS, Reply via same centre (network service) and Rename
sending profile.
Overwrite settings for text and e-mail messages
Press Menu, and select Messages, Message settings, Text messages and
Overwriting in inbox or Overwriting in sent items. Select Allowed to set
the phone to replace the old text messages with new ones in the Inbox
Using the menu
29
or the Sent items folder, respectively when the text message memory is
full.
Settings for the multimedia messages
Press Menu, and select Messages, Message settings and Multimedia
msgs.. Select
•Save sent messages. Select Yes to save the sent multimedia messages
in the Sent items folder. With settingNo, the sent messages are not
saved.
•Delivery reports to ask the network to send delivery reports about
your messages (network service).
•Allow multimedia reception. Choose No, Yes or In home network to
use multimedia service. In home network does not allow to receive
multimedia messages when outside your home network.
•Incoming multimedia messages. Select Retrieve to allow the
reception of multimedia messages, or select Reject.
•Connection settings. Define service connection settings for retrieving
multimedia messages. Activate the set where you want to save the
connection settings and then edit the settings. You may be able
receive the service settings as an OTA message from the service
provider that offers the service that you want to use. For details,
contact your service provider. Refer also Setting up the phone for a
service on page 45.
•Allow adverts. You can choose to allow or to reject advertisement.
Font size setting
To select the font size for reading and writing messages, press Menu,
and select Messages, Message settings, Other settings and Font size.
Service commands
Press Menu, and select Messages and Service commands. Key in and
send service requests (also known as USSD commands) such as
activation commands for network services, to your service provider.
Using the menu
30
■Call register (Menu 2)
The phone registers the phone numbers of missed,
received and dialled calls, and the approximate length
and cost of your calls.
The phone registers if it is switched on and within the network’s service
area, and the network supports these functions.
Recent call lists
When you press Options in the Missed calls, Received calls or Dialled
numbers menu, you can view the time of the call, edit, view or call the
registered phone number, add it to the memory, or delete it from the list.
You can also send a text message (Send message).
Call counters and call timers
Note: The actual invoice for calls and services from your service
provider may vary, depending upon network features, rounding-off for
billing, taxes and so forth.
Press Menu, and select Call register and then select
•Call duration to show the approximate duration of your calls.
•Call costs (network service) to show the cost of your last call or all
calls in terms of units specified within the Show costs in function.
Note: When no more charging units or currency units are left, calls
may only be possible to the emergency number programmed into
your phone (e.g. 112, 911 or other official emergency number).
•GPRS data counter and scroll to check the amounts of sent and
received data, and to clear the counters. The counters unit is a byte.
•GPRS connection timer scroll to check the duration of the GPRS
connections, and to clear the timers.
■Contacts (Menu 3)
You can save names and phone numbers (contacts) in
the phone’s contacts directory and in the SIM card’s
memory.
Using the menu
31
• The phone’s directory may save names with numbers and textual
notes for each name. You can also save an image for a certain
number of names. The phone’s contacts directory uses shared
memory.
• Names and numbers saved in the SIM card’s memory, are indicated
by .
Searching for a name in contacts
Press Menu, and select Contacts and Search.
The following options may also be available:
•Add contact and Delete.
•Copy to copy names and phone numbers from the phone´s contact
directory to the SIM card´s memory, or vice versa.
•Settings to select how the names and numbers in contacts are
displayed. Select Memory status to view the free and used memory
capacity.
•Speed dials to assign a number to a speed dialling key. To activate
speed dialling see Speed dialling on page 34.
•Info numbers to call the information numbers of your service
provider if the numbers are included on your SIM card (network
service).
•Service numbers to call the service numbers of your service provider
if the numbers are included on your SIM card (network service).
•My numbers to view the phone numbers assigned to your SIM card.
Only shown, if the numbers are included on your SIM card.
•Caller groups to arrange the names and phone numbers saved in the
memory into caller groups with different ringing tone.
Saving multiple numbers, text items and an image per
contact
You can save different types of phone numbers and short text items per
name in the phone’s contacts directory.
Using the menu
32
The first number saved is automatically set as the default number. It is
indicated with a frame around the number type indicator. When you
select a name from the contacts directory this number is used to make a
call.
1. Make sure that the memory in use is either Phone or Phone and SIM.
2. Scroll to the name to which you want to add a new number or text
item, and press Details.
3. Press Options and select Add number, Add detail or Add image. If the
name is stored in the SIM card’s memory, the name will be moved to
the phone’s contacts directory.
4. Select one of the following number types General, Mobile,
Home, Office and Fax, and key in the number,
or text types E-mail address, Web address, Postal address
and Note, and key in the text item.
or open Images in Gallery and scroll to the desired image. Press
Options and select Save to contacts. A copy of the image is added to
the contact.
■Profiles (Menu 4)
Your phone has various setting groups, called profiles,
for which you can customise the phone tones for
different events and environments.
Press Menu, and select Profiles. Scroll to a profile and press Select.
• To activate the selected profile, select Activate.
• To set the profile to be active for a certain amount of time up to 24
hours, select Timed and set the end time. When the time set for the
profile expires, the previous profile that was not timed, becomes
active.
• To personalise the profile, select Personalise. Select the setting you
want to change and make the changes.
Using the menu
33
■Settings (Menu 5)
Personal shortcuts
You can add some specific functions to your personal shortcut list and
activate them either in standby mode by pressing the right selection key
(Go to) or accessing the Go to menu. Refer to Standby mode on page 10
and Go to (Menu 13) on page 50.
Press Menu, and select Settings and Personal shortcuts.
To select the name for the right selection key displayed in standby mode,
select Right selection key. Select Go to or Contacts.
To select the desired functions for your personal shortcut list, select
Select options and the list of available functions is shown. Scroll to the
desired function and press Mark to add it to the shortcut list. To remove
a function from the list, press Unmark.
To rearrange the functions on the list, select Organise and the desired
function. Press Move and select where you want to move the function.
Screen saver
Press Menu, and select Settings and Screen saver. With Select s. saver
you can choose an animation or a still image as screen saver from
Gallery. Select in Timeout after which time the screen saver will be
activated. Select On to activate the screen saver.
Independent of the screen saver settings, for power saving a digital
clock view will overwrites the whole display when for a certain time no
function of the phone has been used. See Power saving on page 11.
Time and date settings
Press Menu, and select Settings, Time and date settings.
Select Clock to set the phone to show the clock in standby mode, adjust
the clock and select the time format.
Select Date to set the phone to show the date in standby mode, set the
date, the date format and the date separator.
Select Auto-update of date & time (network service) to set the phone to
update the time and date according to the current time zone.
Using the menu
34
The automatic update of the date and time does not change the time
that you have set for the alarm clock, calendar or the alarm notes. They
are in local time. Updating may cause some alarms that you have set to
expire.
Call settings
Call divert
Press Menu, and select Settings, Call settings and Call divert (network
service) to divert your incoming calls. For details, contact your service
provider.
To set the divert setting to on, select Activate, and then select the
timeout after which the call is diverted, if this is available for the divert
option. To set the divert setting to off, select Cancel. To check whether
the call divert is activated or not, select Check status, if this is available
for the divert option. Several divert options may be active at the same
time.
Anykey answer
Press Menu, and select Settings, Call settings and Anykey answer. Select
On and you can answer an incoming call by briefly pressing any key,
except , selection keys and , and .
Automatic redial
Press Menu, and select Settings, Call settings and Automatic redial.
Select On and your phone will make up to ten attempts to connect the
call after an unsuccessful call attempt.
Speed dialling
Press Menu, and select Settings, Call settings and Speed dialling. Select
On and the names and phone numbers assigned to the speed dialling
keys, from to , can be dialled by pressing and holding the
corresponding number key.
Call waiting
Press Menu, and select Settings, Call settings and Call waiting. Select
Activate and the network will notify you of an incoming call while you
have a call in progress (network service). See Call waiting on page 17.
Using the menu
35
Summary after call
Press Menu, and select Settings, Call settings and Summary after call.
Select On and the phone will briefly display the duration and cost
(network service) of the last call.
Send my caller identity
Press Menu, and select Settings, Call settings and Send my caller
identity. Select Yes and your phone number will be displayed to the
person you are calling (network service) or select Set by network.
Line for outgoing calls
Line for outgoing calls is a network service to select the phone line 1 or
2 for making calls. Only shown if supported by your SIM card.
Phone settings
Language
Select the language the phone shall display. Press Menu, and select
Settings, Phone settings and Phone language. With Automatic the
language according to the information on the SIM card is used.
Automatic keyguard
Note: When the keypad is locked, calls may be possible to the
emergency number programmed into your phone (e.g. 112, 911 or other
official emergency number). Key in the emergency number and press
. The number is displayed only after you have keyed in its last
digit.
Press Menu, and select Settings, Phone settings and Automatic
keyguard. Select On and key in the time delay (minutes:seconds). The
keypad automatically locks in standby mode after the time delay to
prevent accidental keypresses. Refer also Keypad lock (Keyguard) on
page 14.
Cell info display
Press Menu, and select Settings, Phone settings and Cell info display
(network service). Select On and the phone indicates when it is used in a
cellular network based on Micro Cellular Network (MCN) technology.
Using the menu
36
Welcome note
Press Menu, and select Settings, Phone settings and Welcome note. Key
in the note which is shown briefly when the phone is switched on.
Network selection
Press Menu, and select Settings, Phone settings and Network selection.
With Automatic the phone automatically selects one of the cellular
networks available in your area. With Manual, you can select a network
that has a roaming agreement with your home network operator.
Confirm SIM service actions
See SIM services (Menu 14) on page 50.
Help text activation
To set the phone to show or not to show the help texts, press Menu, and
select Settings, Phone settings and Help text activation.
Start-up tone
To set the phone to play or not to play a start-up tone when the phone is
switched on, press Menu, and select Settings, Phone settings and Start-
up tone.
Display settings
Wallpaper
Let your phone display a background picture (wallpaper) from Gallery
menu when the phone is in standby mode.
To select a picture, press Menu, and select Settings, Display settings and
Wallpaper. Select Select image and choose a picture from a folder in the
Gallery. To set the picture as the wallpaper, press Options and select Set
as wallpaper. To activate/deactivate the wallpaper, select On/Off,
respectively.
Colour schemes
To change the colour in some display components, for example,
indicators and signal bars, press Menu, and select Settings, Display
settings and Colour schemes.
Using the menu
37
Operator logo
To set your phone to display or hide the operator logo, press Menu, and
select Settings, Display settings and Operator logo.
Display brightness
To change the display contrast level used on the phone display, press
Menu, and select Settings, Display settings and Display brightness. Use
and to adjust the contrast level.
Tone settings
You can change the settings of the selected active profile.
Press Menu, and select Settings and Tone settings. Select and change
Incoming call alert, Ringing tone, Ringing volume, Rhythmic backlight
alert, Vibrating alert, Message alert tone, Keypad tones and Warning
tones. You can find the same settings in the Profiles menu, see Profiles
(Menu 4) on page 32.
Select Alert for to set the phone to ring only upon calls from phone
numbers that belong to a selected caller group. Scroll to the caller group
you want or All calls and press Mark.
Enhancement settings
This menu is shown only if the phone is or has been connected to some
compatible Nokia audio enhancements, for example to a headset.
Press Menu, and select Settings and Enhancement settings. Select one
of the displayed enhancements.
Select Default profile to select the profile the phone uses when the
enhancement is connected.
Select Automatic answer to set the phone to automatically answer an
incoming call after five seconds. If the Incoming call alert is set to Beep
once or Off, automatic answer will not be available.
Select Lights to set the lights permanently On. Select Automatic to set
the lights on for 15 seconds after a keypress. The Lights option is
available only when Handsfree is selected.
Using the menu
38
Security settings
Note: When security features that restrict calls are in use (call barring,
closed user group and fixed dialling), calls may be possible to certain
emergency numbers in some networks (e.g. 112, 911 or other official
emergency numbers).
Press Menu, and select Settings and Security settings. Select
•PIN code request to set the phone to ask for your PIN code every time
the phone is switched on. Some SIM cards do not allow turning this
function off.
•Call barring service (network service) to restrict incoming calls to and
outgoing calls from your phone.
•Fixed dialling to restrict your outgoing calls to selected phone
numbers if this function is supported by your SIM card.
•Closed user group. With this network service you can specify a group
of people whom you can call and who can call you.
•Security level. The preset security code is 12345.
Select Phone to set the phone to ask for the security code when a
new SIM card is inserted. Select Memory and the phone will ask for
the security code when the SIM card’s memory is selected and you
want to change the memory in use.
•Access codes to change the security code, PIN code, PIN2 code or
barring password.
Restore factory settings
To reset some of the menu settings to their original values, press Menu,
and select Settings and Restore factory settings. Key in the security
code. The names and phone numbers saved in the contacts list are not
deleted.
■Alarm clock (Menu 6)
You can set the phone to alarm at a desired time. Press
Menu, and select Alarm clock.
To set the alarm, select Alarm time and key in the alarm time. To change
the time when the alarm time is set, select On.
Using the menu
39
To set a tone for the alarm, select Alarm tone and the desired tone.
When the alarm time expires
The phone will sound an alert tone, and flash Alarm! and the current
time on the display, even if the phone was switched off. Press Stop to
stop the alarm. If you let the phone alarm for a minute or press Snooze,
the alarm stops for about ten minutes and then resumes.
If the alarm time is reached while the phone is switched off, the phone switches
itself on and starts sounding the alarm tone. If you press Stop, the phone asks
whether you want to activate the phone, Switch the phone on?. Press No to
switch off the phone or Yes to switch on the phone.
Note: Do not press Yes when wireless phone use is prohibited or when it
may cause interference or danger.
■Gallery (Menu 7)
You can save images and ringing tones, for example, if
received in a multimedia message, in the folders of the
gallery, see Reading and replying to a multimedia message on page 27.
The gallery uses shared memory.
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or when it
may cause interference or danger.
To view the folders, press Menu, and select Gallery and View folders. The
list of options is shown. Open the desired folder and the list of files in
the folder is shown. Scroll to the desired file. Press Options and some of
the following options may be available: Open, Delete, Send, Move,
Rename, Set as wallpaper, Set as ring tone, Details and Sort.
Other options are: Add folder, Delete folder, Rename folder, Gallery
downloads to download more images and tones.
■Calendar (Menu 8)
The calendar uses shared memory.
Note: Your phone must be switched on to use the
functions in the Calendar menu. Do not switch the phone on when
wireless phone use is prohibited or when it may cause interference or
danger.
Using the menu
40
Press Menu and select Calendar.
The current day is indicated with a frame. A day with a note appears in
bolded. To view the day notes, scroll to a day, press Options and select
Day notes.
Tip: To scroll to the day notes day by day press or .
To view a single note, press Options and select View.
Other options for the calendar view may be:
• Options for making a note, sending a note to another phone, copying
a note to another day or deleting, editing, moving and repeating a
note.
•Settings to set the date, time, date or time format, or the first day of
the week. In the Auto-delete option you can set the phone to delete
old notes automatically after a specified time.
Making a calendar note
Press Menu, and select Calendar. Scroll to the date you want, press
Options and select Make a note. Select one of the following note types:
Reminder, Call or Birthday.
When the phone alarms for a note
The phone beeps, and displays the note. With a call note , you can
call the displayed number by pressing . To stop the alarm and view
the note, press View. To stop the alarm without viewing the note, press
Exit.
■Games (Menu 9)
Your phone software includes some games specially
designed for this Nokia phone.
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or when it
may cause interference or danger.
Using the menu
41
Launching a game
Press Menu, and select Games and Select game. Select a game or a
game set, press Options and select Open or press .
Other options for games, see Other options available for an application
on page 42.
Game downloads
Press Menu, and select Games and Game downloads. The list of
available bookmarks is shown. Select More bookmarks to access the list
of bookmarks in the Services menu, see Bookmarks on page 48.
Select a bookmark to connect to the desired service. For the availability
of different services, pricing and tariffs, contact your service provider.
The games use shared memory. To view the size of memory available for
game installations, press Menu, and select Games and Memory.
Note that Nokia does not warrant for applications from non-Nokia
sites. If you choose to download applications from them, you should
take the same precautions, for security or content, as you would with
any site.
Game settings
Press Menu, and select Games and Settings to set sounds, lights and
shakes for the game.
■Applications (Menu 10)
Your phone software includes some Java applications
specially designed for this Nokia phone.
Note: The phone must be switched on to use this function. Do not
switch on the phone when the use of a wireless phone is prohibited or
when it may cause interference or danger.
Launching an application
Press Menu, and select Applications and Select application. Scroll to an
application, press Options and select Open or press .
Using the menu
42
Other options available for an application
•Delete to delete the application from the phone.
•Web access to restrict the application from accessing the network.
•Update version to check if a new version of the application is
available for download from the services if supported by the
application.
•Web page to provide further information or additional data for the
application from an Internet page. This feature needs to be
supported by the network. It is only displayed if an Internet address
has been provided with the application.
•Connect via the specific default settings that some applications need
for the browser.
•Details to give additional information about the application.
Downloading an application
Your phone supports J2METM Java applications. Make sure that the
application is compatible with your phone before downloading it. You
can download new Java applications in different ways:
•Press Menu, and select Applications and App. downloads. The list of
available bookmarks is shown. Select More bookmarks to access the
list of bookmarks in the Services menu, see Bookmarks on page 48.
Select the appropriate bookmark to connect to the desired page. For
the availability of different services, pricing and tariffs, contact your
service provider.
•Press Menu, and select Services and Download links. Select to
download an appropriate application or game. See Downloading on
page 48.
• Use the game download functionality, see Game downloads on
page 41.
• Use the Nokia Application installer from PC Suite to download the
applications from a compatible PC in your phone.
Note that Nokia does not warrant for applications from non-Nokia
sites. If you choose to download Java applications from them, you
should take the same precautions, for security or content, as you would
with any site.
Using the menu
43
Note that when downloading a game or an application, it may be saved
in Games menu instead of the Applications menu.
The applications use shared memory. To view the size of memory
available for application installations, press Menu, and select
Applications and Memory.
The following texts may appear during a download or during an
operation of a Java application: Action failed, Application error,
Application not supported, Call in progress, File format unknown, File too
large, Invalid file, Unable to start, Unable to run application, Unknown.
■Extras (Menu 11)
Your phone provides some practical functions in this
menu.
Note: Your phone must be switched on to use the functions in Extras
menu. Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Calculator
The phone is provided with a calculator which can also be used for
rough currency conversions.
This calculator has a limited accuracy and rounding errors may occur, especially
in long divisions.
Press Menu, and select Extras and Calculator.
Making calculations
The keys - insert a digit. inserts a decimal point. To
delete the last digit, press Clear. To change the sign, press Options and
select Change sign. Press once for "+", twice for "-", three times for
"*"or four times for "/". To get the result, press Options and select
Equals. To clear the display for a new calculation, press and hold Clear.
Making a currency conversion
To save the exchange rate: Press Options, and select Exchange rate.
Select Foreign unit in domestic units or Domestic unit in foreign units,
and key in the value (press for a decimal point).
Using the menu
44
To make the conversion: key in the currency amount to be converted,
press Options, and select In domestic or In foreign.
Countdown timer
You can set the alarm to sound after a period of lapsed time.
Press Menu, and select Extras and Countdown timer. Key in the alarm
time and if desired a note. When the timer is running, is shown in
standby mode. To change the countdown time, select Change time, or to
stop the timer, select Stop timer.
When the alarm time is reached, the phone sounds a tone and flashes
the related text. Press any key to stop the alarm.
Stopwatch
Press Menu, and select Extras and Stopwatch. Select Split timing or Lap
timing, and press Start. Press Split to record a split time, Lap to record a
lap time or Stop to finish timing. You can scroll through the recorded
times shown below the overall time.
When the timing is stopped, you can press Options for Start (split times
only), Save, or Reset. If you select Start, timing continues from the
previously timed event. If you select Reset, the split or lap times are
reset.
Setting the timing to continue in the background
While the time is running, press . When the stopwatch is on, is
shown in standby mode. To view the timing, key in the Stopwatch menu
and select Continue.
Running the stopwatch consumes battery. Be careful not to let it run
unintentionally in the background.
■Services (Menu 12)
Some services are specially designed for mobile phones.
With your phone’s multi-mode browser you can view
the services that use Wireless Mark-Up Language (WML) or extensible
HyperText Markup Language (xHTML) on their pages.
Using the menu
45
Check the availability of these services, pricing and tariffs with your the
service provider and network operator. They will also give you
instructions on how to use their services.
Note: Your phone must be switched on to use this function. Do not
switch the phone on when wireless phone use is prohibited or when it
may cause interference or danger.
Setting up the phone for a service
You may be able to receive the service settings as an OTA message from
the service provider that offers the service that you want to use. You can
also key in the settings manually or add and edit the settings with PC
Suite.
For more information and for appropriate settings, contact your service
provider.
Saving the service settings received as an OTA message
When you receive the service settings as an OTA message, Service
settings received is displayed.
To save the settings, press Options and select Save. If no settings are
saved in Active service settings, the settings are saved under the first
free connection set and also activated. If there are settings saved in
Active service settings, Activate saved service settings? will be displayed.
To activate the saved settings, press Yes, or to save them only, press No.
To view the received settings first, press Options and select View and
then save the settings. To discard the settings press Options and select
Discard.
Keying in the service settings manually
Press Menu, and select Services, Settings, Connection settings and
Active service settings. Select the set where you want to save the service
settings and press Activate.
Select Edit active service settings and then select and key in the settings
according to the information you have received from your service
provider. Note that some of the settings depend on the Bearer settings
menu.
Using the menu
46
Making a connection to a service
First activate the settings of the service, press Menu, and select
Services, Settings and Connection settings. Select Active service
settings and scroll to the set you want to use and press Activate.
To make a connection to the service use one of the following ways:
• Open the start page of the service: Press Menu, and select Services
and Home, or in standby mode press and hold .
• Select a bookmark of the service: Press Menu, and select Services,
Bookmarks, and select a bookmark.
If the bookmark does not work with the current active service
settings, activate another set of service settings and try again.
• Key in the address of the service: Press Menu, and select Services and
Go to address, and key in the address.
Browsing the pages of a service
The function of the phone keys may vary in different services. Follow the
text guides on the phone display.
During a GPRS connection the indicator is shown. If you receive a call
or a text message, or make a call during a GPRS connection, the
indicator will be shown on the display to indicate that the GPRS
connection is suspended (on hold).
Using the phone keys while browsing
• Use the scroll keys or to browse the page.
• To select a highlighted item for example a link shown as underlined
text, press .
• To key in letters and numbers, press the keys - and to
key in special characters, press the key .
Some of the following options may be available while browsing. Press
Options and select the desired option: Home (start page of the selected
service), Bookmarks (see page 48), Add bookmark, View image (or View
images), Go to address, Shortcuts (to open a new list of options that are,
for example, specific to the page, Service inbox (see page 48), Appear.
settings (see page 47), Cookie settings (see page 47), Use detail, Reload,
Using the menu
47
Clear the cache (see page 49), Security info, Quit (to disconnect the
connection, see page 47). The service provider may also offer other
options.
Note: If you have tried to access or have accessed confidential
information requiring passwords (for example, your bank
account), clear the cache of your phone after each use.
To empty the cache, see Clearing the cache memory on page 49.
Direct calling
The multi-mode browser supports functions which you can access while
browsing. You can make a voice call, send DTMF tones while a voice call
is in progress, and save in contacts a name and a phone number from a
page.
Disconnect from a service
To quit browsing and to end the connection, press Options and select
Quit. When Quit browsing? is shown, press Yes.
Alternatively, press . If GSM data is the selected data bearer, press
twice. The phone ends the connection to the service.
Appearance settings of the multi-mode browser
Press Menu, and select Services, Settings and Appearance settings, or
while browsing, press Options, and select Other options and Appear.
settings. Select Text wrapping and On to let the text continue on the
next line if it cannot be shown on one line. If you select Off, the text is
abbreviated if it is too long to be shown on one line. Select Show images
and No and any pictures appearing on the page are not shown. This can
speed up the browsing of pages that contain a lot of pictures.
Selecting Cookie settings
A cookie is data that a site saves in your phone’s browser cache memory.
Cookies will be saved until you clear the cache memory, see Clearing the
cache memory on page 49.
Using the menu
48
While browsing, press Options, and select Other options and Security, or
in standby mode, press Menu, and select Services, Settings and Security
settings. Select Cookies and select Allow or Reject.
Bookmarks
You can save page addresses as bookmarks in the phone. The bookmarks
use shared memory.
While browsing, press Options and select Bookmarks, or in standby
mode, press Menu, and select Services and Bookmarks.
Scroll to the bookmark you want to use and press Options (or ) to
connect to the page associated with the bookmark, or press Options for
the following functions: Go to, View, Edit, Delete, Send, New bookmark.
Note that your phone may have some pre-installed bookmarks for sites
not affiliated to Nokia. Nokia does not warrant or endorse these sites. If
you choose to access them, you should take the same precautions, for
security or content, as you would with any Internet site.
Receiving a bookmark
When you have received a bookmark as an Over The Air (OTA) message,
press Save to save it to the bookmark list, or press Options and View or
Discard.
Downloading
To download more tones, images, games or applications to your phone,
press Menu, and select Services and Download links. Select Tone
downloads, Image downloads, Game downloads or App. downloads to
download tones, images, games or applications, respectively.
Download content only from the sources you trust. See also Game
downloads on page 41 and Downloading an application on page 42.
Service inbox
The phone is able to receive service messages sent by your service
provider (network service).
To set the phone to receive service messages: Press Menu, and select
Services, Settings, Service inbox settings, Service messages, and On.
Using the menu
49
To view a received service message, press View. Or press Exit to move
the message in the Service inbox. To access the Service inbox later, press
Menu, and select Services, and Service inbox, or while browsing, press
Options, and select Other options and Service inbox. Press Options and
select Retrieve to activate the multi-mode browser and download the
indicated content, or select Details or Delete.
Clearing the cache memory
Note: The information or services you have accessed are stored in the
cache of your phone. A cache is a buffer memory, which is used to store
data temporarily. If you have tried to access or have accessed
confidential information requiring passwords (for example, your bank
account), empty the cache of your phone after each use.
Press Menu, and select Services, and Clear the cache. While browsing,
press Options, and select Other options and Clear the cache.
Authority certificates
For using some services, such as banking services, you need security
certificates. Using the certificates can help you improve the security of
connections between your phone and a gateway or server, if the
Connection security is set to On.
You can download authority certificate from a page, if the service
supports the use of authority certificates. After the download, you can
view the certificate and then save or delete it. Saved certificates are
added to the certificate list in the phone.
The phone indicates if the identity of the server or gateway cannot be
verified, if the server or gateway certificate is not authentic or if you do
not have the correct authority certificate in your phone.
Viewing the list of authority certificates
Press Menu, select Services, Settings, Security settings and Authority
certificates.
See also Security info in Using the phone keys while browsing on
page 46.
Using the menu
50
Security indicator
If the security indicator is displayed during a connection, the data
transmission between the phone and the gateway or server (identified
by the IP address in the Edit active service settings) is encrypted.
However, the security indicator does not indicate that the data
transmission between the gateway and the content server (the location
where the requested resource is stored) is secure. It is up to the service
provider to secure the data transmission between the gateway and the
content server.
■Go to (Menu 13)
To access some specific functions quickly, press Menu
and select Go to and select the desired function from
the list.
If you wish to add some functions to the list, press Add, scroll to the
function that you want to add and press Mark.
To remove or add more functions on the list, see Personal shortcuts on
page 33.
■SIM services (Menu 14)
Your SIM card may provide additional services that you
can access in this menu that is shown only if it is
supported by your SIM card. The name and contents of the menu depends on
the available services.
Note: For availability, rates and information on using SIM services,
contact your SIM card vendor, e.g. network operator, service provider or
other vendor.
Note that accessing these services may involve sending a text message
(SMS) or making a phone call for which you may be charged. See also
Confirm SIM service actions, menu 4-3-6.
PC Connectivity
51
5. PC Connectivity
With the PC suite you can, for example, create and send text and picture
messages, synchronise contacts and calendar between your phone and a
compatible PC.
You may find more information and downloadable files, e.g. PC suite in
the support area on the Nokia’s web site, www.nokia.com.
■PC Suite
The PC Suite contains the following features:
•Nokia Application Installer to install Java applications from the PC
to the phone.
•Nokia Image Converter to make images usable for multimedia
messages or wallpapers and to transfer them to your phone.
•Nokia Sound Converter to edit polyphonic ringing tones to be
compatible with your phone and to transfer them to your phone.
•Nokia Content Copier to copy information or back-up information
from your phone to the PC or to another compatible Nokia phone.
•Nokia PC WAP Manager to edit and send your bookmarks or update
the connection sets to your phone.
•Nokia Phone Editor to send text messages and edit the contacts
directory and message settings of your phone.
•Nokia PC Sync to synchronise the contacts directory and calendar
between your phone and a compatible PC.
•Nokia Connection Manager to select the connection type between
the PC and the phone.
•Nokia PC Browser to copy images and tones from your phone to your
PC and vice versa.
Note: Copyright protection may prevent some images, ringing
tones and other content from being copied, modified,
transferred or forwarded.
Battery statements
52
6. Battery statements
■Charging and Discharging
Your phone is powered by a rechargeable battery.
Note that a new battery’s full performance is achieved only after two or three
complete charge and discharge cycles!
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk-time and standby time) is
noticeably shorter than normal, it is time to buy a new battery.
Use only batteries approved by the phone manufacturer and recharge your
battery only with the chargers approved by the manufacturer. Unplug the
charger when not in use. Do not leave the battery connected to a charger for
longer than a week, since overcharging may shorten its lifetime. If left unused a
fully charged battery will discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object (coin, clip or pen) causes direct connection of the + and -
terminals of the battery (metal strips on the battery) for example when you carry
a spare battery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A phone with a hot
or cold battery may temporarily not work, even when the battery is fully charged.
Batteries' performance is particularly limited in temperatures well below
freezing.
Do not dispose of batteries in a fire !
Dispose of batteries according to local regulations (e.g. recycling). Do not dispose
as household waste.
53
7. Technical Information
Weight....................................85 grams (3 ounces) with BL-5C battery
Battery....................................850 mAh Li-Ion Battery
Networks................................Wireless networks GSM 900, 1800 and1900
Size (volume)........................4.21 cubic inches (69 cc)
Frequency range (Rx)
..................................................EGSM 900: 880 - 915 MHz
..................................................GSM 900: 890 - 915 MHz
..................................................GSM 1800: 1710 - 1785 MHz
..................................................GSM1900: 1850 - 1910 MHz
Frequency range (Tx)
..................................................EGSM 900: 925 - 960 MHz
..................................................GSM 900: 935 - 960 MHz
..................................................GSM1800: 1805 - 1880 MHz
..................................................GSM1900: 1930 - 1990 MHz
Tx output power..................2 W (max)
Battery voltage ....................3.7 V DC
Number of channels...........299
54
8. Patents
Manufactured or sold under one or more of the following US Patents:
4558302
4868846
4969192
5001372
5045973
5061928
5101175
5212834
5230091
5233634
5241284
5241583
5303404
5311179
5331638
5335362
5353328
5384782
5390223
5396657
5400949
5416435
5442521
5444816
5446364
5479476
5487084
5493255
5519885
5526366
5553125
5557639
5581244
5625274
5640395
5664053
5669069
5677620
5692032
5699406
5699482
5701392
5729534
5729541
5734683
5754976
5760568
5782646
5794142
5802465
5805084
5805301
5818437
5827082
5835889
5839101
5844884
5845219
5857151
5862178
5870683
5887266
5889770
5892475
5898925
5907823
5914796
5915440
5917868
5920826
5926138
5926769
5930233
5946651
5953541
5956625
5956633
5960389
5963901
5966374
5966378
5969192
5970059
5987137
5991716
5991857
5999523
6005857
6011554
6011853
6014573
6026161
6028567
6029128
6038238
6043760
6047196
6049796
6055439
6060193
6069923
6081534
6084962
6088746
6094587
6097964
6112099
6115617
6118775
6122498
6128322
6128509
6138091
6144243
6144676
6151485
6151507
6163609
6164547
6167248
6170073
6185295
6188909
6195338
6199035
6201876
6219560
6240076
6240079
6249584
6266330
6282373
6289205
6292668
6295286
6310609
6324412
D406261
D425480
D426830
D445415
RE32580
55
CARE AND MAINTENANCE
Your phone is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you to fulfil any warranty
obligations and to enjoy this product for many years.
• Keep the phone and all its parts and accessories out of the reach of small
children.
• Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
• Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
• Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
• Do not attempt to open the phone. Nonexpert handling may damage it.
• Do not drop, knock or shake the phone. Rough handling can break internal
circuit boards.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
• Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
• Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications or attachments could damage the phone and may
violate regulations governing radio devices.
All of the above suggestions apply equally to your phone, battery, charger or any
accessory. If any of them is not working properly, take it to your nearest qualified
service facility. The personnel there will assist you and, if necessary, arrange for
service.
56
IMPORTANT SAFETY INFORMATION
■Traffic safety
Do not use a handheld telephone while driving a vehicle. Always secure
the phone in its holder; do not place the phone on the passenger seat or
where it can break loose in a collision or sudden stop.
Remember road safety always comes first!
■Operating environment
Remember to follow any special regulations and always switch off your
phone wherever forbidden, or when it may cause interference or danger.
Use the phone only in its normal operating positions.
When connecting the phone or accessory to another device, read its
user’s guide for safety instructions. Don’t connect incompatible
products. As with other mobile radio transmitting equipment, users are
advised to operate this equipment only in the normal operating position
(held to your ear with the antenna pointing over your shoulder).
■Electronic devices
Most modern electronic equipment is shielded from radio frequency (RF)
signals. However, certain electronic equipment may not be shielded
against the RF signals from your wireless phone.
Pacemakers
Pacemaker manufacturers recommend a distance of 6 inches (20 cm) be
maintained between a handheld wireless phone and a pacemaker to
avoid interference with the pacemaker. These recommendations are
consistent with independent research and recommendations of Wireless
Technology Research.
PERSONS WITH A PACEMAKER:
• Should always keep the phone more than 20 cm (6 inches) from their
pacemaker when the phone is switched on.
• Should not carry the phone in a breast pocket.
57
• Should use the ear opposite the pacemaker to minimize the potential
for interference.
• If you have any reason to suspect that interference is taking place,
switch off your phone immediately.
Hearing aids
Some digital wireless phones may interfere with hearing aids. In the
event of such interference, consult your wireless provider.
Other medical devices
Operation of any radio transmitting equipment, including cellular
phones, may interfere with the functionality of inadequately protected
medical devices. Consult a physician or the manufacturer of the medical
device to determine if they are adequately shielded from external RF
energy or if you have any questions.
Switch off your phone in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to external RF
energy.
■Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles (for example, electronic fuel
injection systems, electronic antiskid/antilock braking systems,
electronic speed control systems, air bag systems). Check with the
manufacturer or its representative regarding your vehicle. You should
also consult the manufacturer of any equipment that has been added to
your vehicle.
■Posted facilities
Switch your phone off in any facility where posted notices so require.
■Potentially explosive atmospheres
Switch off your phone when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even death.
Users are advised to switch off the phone when at a refueling point
58
(service station). Users are reminded of the need to observe restrictions
on the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting operations are in
progress.
Areas with a potentially explosive atmosphere are often but not always
clearly marked. They include below deck on boats; chemical transfer or
storage facilities; vehicles using liquefied petroleum gas (such as
propane or butane); areas where the air contains chemicals or particles,
such as grain, dust, or metal powders; and any other area where you
would normally be advised to turn off your vehicle engine.
■Vehicles
Only qualified personnel should service the phone or install the phone in
a vehicle. Faulty installation or service may be dangerous and may
invalidate any warranty which may apply to the unit.
Check regularly that all wireless phone equipment in your vehicle is
mounted and operating properly.
Do not store or carry flammable liquids, gases, or explosive materials in
the same compartment as the phone, its parts, or accessories.
For vehicles equipped with an air bag, remember that an air bag inflates
with great force. Do not place objects, including both installed or
portable wireless equipment in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious injury could result.
■Aircraft
FCC regulations prohibit using your phone while in the air.Switch off
your phone before boarding an aircraft. The use of wireless telephones
in an aircraft may be dangerous to the operation of the aircraft, disrupt
the wireless telephone network, and may be illegal.
Failure to observe these instructions may lead to suspension or denial of
telephone services to the offender, legal action, or both.
59
■Emergency calls
Important: This phone, like any wireless phone, operates using radio
signals, wireless, and landline networks as well as userprogrammed
functions. Because of this, connections in all conditions cannot be
guaranteed. Therefore you should never rely solely upon any wireless
phone for essential communications (for example, medical
emergencies).
Emergency calls may not be possible on all wireless phone networks or
when certain network services and/or phone features are in use. Check
with local service providers.
MAKING AN EMERGENCY CALL
Note: Some networks may require that a valid SIM card be properly
inserted in the phone. Official emergency numbers vary by location (for
example, 911 or other official emergency number).
1. If the phone is not on, switch it on. Check for adequate signal
strength.
2. Press as many times as needed (for example, to exit a call, to
exit a menu, etc.) to clear the display and ready the phone for calls.
3. Enter the emergency number for your present location (for example,
911 or other official emergency number). Emergency numbers vary
by location.
4. Press the key.
If certain features are in use, you may first need to turn those features
off before you can make an emergency call. Consult this user guide and
your local cellular service provider.
When making an emergency call, remember to give all the necessary
information as accurately as possible. Remember that your wireless
phone may be the only means of communication at the scene of an
accident - do not end the call until given permission to do so.
■CERTIFICATION INFORMATION (SAR)
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure to
radiofrequency (RF) energy set by the Federal Communications
60
Commission of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by
the government-adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest SAR value for
this model phone as reported to the FCC when tested for use at the ear is
0.72 W/kg and when worn on the body, as described in this user guide, is
0.58 W/kg.
(Body-worn measurements differ among phone models, depending
upon available accessories and FCC requirements). While there may be
differences between the SAR levels of various phones and at various
positions, they all meet the government requirement. The FCC has
granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file
with the FCC and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID PPIRH-19
For body-worn operation, this phone has been tested and meets the FCC
RF exposure guidelines for use with a carry case, belt clip or holder that
61
contains no metal and that positions the handset a minimum of
7/8 inch (2.2 cm) from the body. Use of other carry cases, belt clips or
holders may not ensure compliance with the FCC RF exposure
guidelines. If you do not use a body-worn enhancement and are not
holding the phone at the ear, position the handset a minimum of
7/8 inch (2.2 cm) from your body when the phone is switched on.
*In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of
tissue. The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements. SAR values may vary depending on national reporting
requirements and the network band. For SAR information in other
regions please look under product information at www.nokia.com.
62
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association.
All Rights Reserved.
1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful
ability to communicate by voice--almost anywhere, anytime--with the
boss, with a client, with the kids, with emergency personnel or even with
the police. Each year, Americans make billions of calls from their
wireless phones, and the numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that
every wireless phone user must uphold. When driving a car, driving is
your first responsibility. A wireless phone can be an invaluable tool, but
good judgment must be exercised at all times while driving a motor
vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires
alertness, caution and courtesy. It requires a heavy dose of basic
common sense---keep your head up, keep your eyes on the road, check
your mirrors frequently and watch out for other drivers. It requires
obeying all traffic signs and signals and staying within the speed limit. It
means using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This
brochure is a call to wireless phone users everywhere to make safety
their first priority when behind the wheel of a car. Wireless
telecommunications is keeping us in touch, simplifying our lives,
protecting us in emergencies and providing opportunities to help others
in need.
63
When it comes to the use of wireless phones, safety is your most
important call.
Wireless Phone “Safety Tips”
Below are safety tips to follow while driving and using a wireless phone
which should be easy to remember.
1. Get to know your wireless phone and its features such as speed dial
and redial. Carefully read your instruction manual and learn to take
advantage of valuable features most phones offer, including
automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your
attention off the road.
2. When available, use a hands free device. A number of hands free
wireless phone accessories are readily available today. Whether you
choose an installed mounted device for your wireless phone or a
speaker phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make sure you place
your wireless phone within easy reach and where you can grab it
without removing your eyes from the road. If you get an incoming
call at an inconvenient time, if possible, let your voice mail answer it
for you.
4. Suspend conversations during hazardous driving conditions or
situations. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are
reading an address book or business card, or writing a “to do” list
while driving a car, you are not watching where you are going. It’s
common sense. Don’t get caught in a dangerous situation because
you are reading or writing and not paying attention to the road or
nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you
are not moving or before pulling into traffic. Try to plan your calls
64
before you begin your trip or attempt to coincide your calls with
times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple
tip--dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not
mix--they are distracting and even dangerous when you are behind
the wheel of a car. Make people you are talking with aware you are
driving and if necessary, suspend conversations which have the
potential to divert your attention from the road.
8. Use your wireless phone to call for help. Your wireless phone is one
of the greatest tools you can own to protect yourself and your
family in dangerous situations--with your phone at your side, help
is only three numbers away. Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident, road hazard or medical
emergency. Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in emergencies. Your
wireless phone provides you a perfect opportunity to be a “Good
Samaritan” in your community. If you see an auto accident, crime in
progress or other serious emergency where lives are in danger, call
9-1-1 or other local emergency number, as you would want others
to do for you.
10. Call roadside assistance or a special wireless non-emergency
assistance number when necessary. Certain situations you
encounter while driving may require attention, but are not urgent
enough to merit a call for emergency services. But you still can use
your wireless phone to lend a hand. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured or a vehicle you know
to be stolen, call roadside assistance or other special non-
emergency wireless number.
Careless, distracted individuals and people driving irresponsibly
represent a hazard to everyone on the road. Since 1984, the Cellular
Telecommunications Industry Association and the wireless industry
have conducted educational outreach to inform wireless phone users of
65
their responsibilities as safe drivers and good citizens. As we approach a
new century, more and more of us will take advantage of the benefits of
wireless telephones. And, as we take to the roads, we all have a
responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
© 2001 Cellular Telecommunications & Internet Association.
All Rights Reserved.
1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
■A message from the U.S. Food and Drug
Administration
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no proof,
however, that wireless phones are absolutely safe. Wireless phones emit
low levels of radiofrequency energy (RF) in the microwave range while
being used. They also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce health effects (by heating
tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF
exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings
have not been confirmed by additional research. In some cases, other
researchers have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
2. What is FDA’s role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as it
does with new drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to emit
66
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
• Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to
the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in
the United States must comply with FCC safety guidelines that limit RF
exposure. FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than do
the wireless phones themselves, the RF exposures that people get from
these base stations are typically thousands of times lower than those
67
they can get from wireless phones. Base stations are thus not the
subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with
built-in antennas, often called cell mobile or PCS phones. These types of
wireless phones can expose the user to measurable radiofrequency
energy (RF) because of the short distance between the phone and the
user’s head. These RF exposures are limited by Federal Communications
Commission safety guidelines that were developed with the advice of
FDA and other federal health and safety agencies. When the phone is
located at greater distances from the user, the exposure to RF is
drastically lower because a person's RF exposure decreases rapidly with
increasing distance from the source. The so-called cordless phones;
which have a base unit connected to the telephone wiring in a house,
typically operate at far lower power levels, and thus produce RF
exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many
studies have suffered from flaws in their research methods. Animal
experiments investigating the effects of radiofrequency energy (RF)
exposures characteristic of wireless phones have yielded conflicting
results that often cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could accelerate
the development of cancer in laboratory animals. However, many of the
studies that showed increased tumor development used animals that
had been genetically engineered or treated with cancer-causing
chemicals so as to be pre-disposed to develop cancer in the absence of
RF exposure. Other studies exposed the animals to RF for up to 22 hours
per day. These conditions are not similar to the conditions under which
people use wireless phones, so we don’t know with certainty what the
results of such studies mean for human health.
Three large epidemiology studies have been published since December
2000. Between them, the studies investigated any possible association
between the use of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies demonstrated the
68
existence of any harmful health effects from wireless phone RF
exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these
studies was around three years.
5. What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the data
that are needed. Lifetime animal exposure studies could be completed in
a few years. However, very large numbers of animals would be needed to
provide reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly applicable to
human populations, but 10 or more years follow-up may be needed to
provide answers about some health effects, such as cancer. This is
because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is hampered by
difficulties in measuring actual RF exposure during day-to-day use of
wireless phones. Many factors affect this measurement, such as the
angle at which the phone is held, or which model of phone is used.
6. What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radiofrequency energy (RF). FDA has been a
leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed
agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped
develop a series of public information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA)
have a formal Cooperative Research and Development Agreement
(CRADA) to do research on wireless phone safety. FDA provides the
scientific oversight, obtaining input from experts in government,
69
industry, and academic organizations. CTIA-funded research is
conducted through contracts to independent investigators. The initial
research will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment of
additional research needs in the context of the latest research
developments around the world.
7. How can I find out how much radiofrequency energy exposure I
can get by using my wireless phone?
All phones sold in the United States must comply with Federal
Communications Commission (FCC) guidelines that limit radiofrequency
energy (RF) exposures. FCC established these guidelines in consultation
with FDA and the other federal health and safety agencies. The FCC limit
for RF exposure from wireless telephones is set at a Specific Absorption
Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is
consistent with the safety standards developed by the Institute of
Electrical and Electronic Engineering (IEEE) and the National Council on
Radiation Protection and Measurement. The exposure limit takes into
consideration the body’s ability to remove heat from the tissues that
absorb energy from the wireless phone and is set well below levels
known to have effects.
Manufacturers of wireless phones must report the RF exposure level for
each model of phone to the FCC. The FCC website (http://www.fcc.gov/
oet/rfsafety) gives directions for locating the FCC identification number
on your phone so you can find your phone’s RF exposure level in the
online listing.
8. What has FDA done to measure the radiofrequency energy coming
from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a
technical standard for measuring the radiofrequency energy (RF)
exposure from wireless phones and other wireless handsets with the
participation and leadership of FDA scientists and engineers. The
standard, Recommended Practice for Determining the Spatial-Peak
Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques, sets forth the first
consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses a
70
tissue-simulating model of the human head. Standardized SAR test
methodology is expected to greatly improve the consistency of
measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by
the whole body or a small part of the body. It is measured in watts/kg (or
milliwatts/g) of matter. This measurement is used to determine whether
a wireless phone complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products--and at this point we do not know
that there is--it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy (RF). Since time is a
key factor in how much exposure a person receives, reducing the
amount of time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source of
the RF, since the exposure level drops off dramatically with distance. For
example, you could use a headset and carry the wireless phone away
from your body or use a wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are
harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce
your RF exposure from wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radiofrequency energy (RF), the measures described
above would apply to children and teenagers using wireless phones.
Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.Some
groups sponsored by other national governments have advised that
children be discouraged from using wireless phones at all. For example,
the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence
exists that using a wireless phone causes brain tumors or other ill
71
effects. Their recommendation to limit wireless phone use by children
was strictly precautionary; it was not based on scientific evidence that
any health hazard exists.
11. What about wireless phone interference with medical
equipment?
Radiofrequency energy (RF) from wireless phones can interact with
some electronic devices. For this reason, FDA helped develop a detailed
test method to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard sponsored by the
Association for the Advancement of Medical instrumentation (AAMI).
The final draft, a joint effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers and defibrillators are
safe from wireless phone EMI. FDA has tested hearing aids for
interference from handheld wireless phones and helped develop a
voluntary standard sponsored by the Institute of Electrical and
Electronic Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless phones so that
no interference occurs when a person uses a compatible phone and a
accompanied hearing aid at the same time. This standard was approved
by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful interference be
found to occur, FDA will conduct testing to assess the interference and
work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
FDA web page on wireless phones
http://www.fda.gov/cdrh/phones/index.html
Federal Communications Commission (FCC) RF Safety Program
http://www.fcc.gov/oet/rfsafety
International Commission on Non-Ionizing Radiation Protection
http://www.icnirp.de
72
World Health Organization (WHO) International EMF Project
http://www.who.int/emf
National Radiological Protection Board (UK)
http://www.nrpb.org.uk/
July 18, 2001
For updates: http://www.fda.gov/cdrh/phones
