FCC DRAFTFCC DRAFT

Nokia 6175i User Guide

FCC DRAFT

Part No. 9250401, Issue No. 1

Nokia, Nokia Connecting People, Pop-Port, and the Nokia Original Enhancements logos are

trademarks or registered trademarks of Nokia Corporation. Other company and product

names mentioned herein may be trademarks or trade names of their respective owners.

US Patent No 5818437 and other pending patents. T9 text input software Copyright

Bluetooth wireless technology is a registered trademark of Bluetooth SIG, Inc.

Includes RSA BSAFE cryptographic or security protocol software from

RSA Security.

Java is a trademark of Sun Microsystems, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to make

changes and improvements to any of the products descrived in this document without prior

notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR

INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES

HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT

AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO

THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE

RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

The availability of particular products may vary by region. Check with the Nokia dealer

nearest you. This device may contain commodities, technology, or software subject to export

laws and regulations from the U.S. and other countries. Diversion contrary to law is

prohibited.

content from being copied, modified, transferred, or forwarded.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close

proximity to receiving equipment). The FCC or Industry Canada can require you to stop using

your telephone if such interference cannot be eliminated. If you require assistance, contact

your local service facility. This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may

cause undesired operation. Any changes or modifications not expressly approved by Nokia

could void the user’s authority to operate this equipment.

Contents

FCC DRAFTFCC DRAFT

Contents

Phone at a glance ..................................................................................................................9

Set up your phone ...............................................................................................................15

Text entry ............................................................................................................................... 21

Messaging .............................................................................................................................24

Log ........................................................................................................................................... 40

Contacts .................................................................................................................................43

Gallery..................................................................................................................................... 52

Media ...................................................................................................................................... 54

Settings .................................................................................................................................. 65

Organizer................................................................................................................................ 90

Mobile web......................................................................................................................... 102

Extras ................................................................................................................................... 105

Push to talk .........................................................................................................................106

PC connectivity ..................................................................................................................108

Enhancements ................................................................................................................... 109

Battery information ..........................................................................................................111

Index .....................................................................................................................................120

For your safety

FCC DRAFT

For your safety

Read these simple guidelines. Not following them may be dangerous or illegal.

Read the complete user guide for further information.

Switch on safely

Do not switch the phone on when wireless phone use is prohibited or

when it may cause interference or danger.

Road safety comes first

Obey all local laws. Always keep your hands free to operate the

vehicle while driving. Your first consideration while driving should be

road safety.

Interference

All wireless phones may be susceptible to interference, which could

affect performance.

Switch off in hospitals

Follow any restrictions. Switch the phone off near medical

equipment.

Switch off in aircraft

Follow any restrictions. Wireless devices can cause interference in

aircraft.

Switch off when refueling

Do not use the phone at a refueling point. Do not use near fuel or

chemicals.

Switch off near blasting

Follow any restrictions. Do not use the phone where blasting is in

progress.

Use sensibly

Use only in the normal position as explained in the product

documentation. Do not touch the antenna unnecessarily.

Qualified service

Only qualified personnel may install or repair this product.

For your safety

FCC DRAFTFCC DRAFT

Enhancements and batteries

Use only approved enhancements and batteries. Do not connect

incompatible products.

Water-resistance

Your phone is not water-resistant. Keep it dry.

Back-up copies

Remember to make back-up copies or keep a written record of all

important information stored in your phone.

Connecting to other devices

When connecting to any other device, read its user guide for detailed

safety instructions. Do not connect incompatible products.

Emergency calls

Ensure the phone is switched on and in service. Press the end key as

many times as needed to clear the display and return to the start

screen. Enter the emergency number, then press the call key. Give

your location. Do not end the call until given permission to do so.

■About your device

The wireless device described in this guide is approved for use on the CDMA 800

and 1900, AMPS 800, and GPS networks. Contact your service provider for more

information about networks.

When using the features in this device, obey all laws and respect privacy and

legitimate rights of others.

When taking and using images or video clips, obey all laws and respect local

customs as well as privacy and legitimate rights of others.

Warning: To use any features in this device, other than the alarm clock,

the device must be switched on. Do not switch the device on when

wireless device use may cause interference or danger.

■Network services

To use the phone you must have service from a wireless service provider. Many of

the features in this device depend on features in the wireless network to

function. These network services may not be available on all networks or you may

have to make specific arrangements with your service provider before you can

For your safety

FCC DRAFT

utilize network services. Your service provider may need to give you additional

instructions for their use and explain what charges will apply. Some networks

may have limitations that affect how you can use network services. For instance,

some networks may not support all language-dependent characters and services.

Your service provider may have requested that certain features be disabled or not

activated in your device. If so, they will not appear on your device menu. Your

device may also have been specially configured. This configuration may include

changes in menu names, menu order, and icons. Contact your service provider for

more information.

This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP

protocols. Some features of this device, such as Mobile web, require network

support for these technologies.

■Shared memory

The following features in this device may share memory: Messaging, Contacts,

Gallery, Organizer, and Extras. Use of one or more of these features may reduce

the memory available for the remaining features sharing memory. For example,

saving many photos to the Gallery may use all of the available memory. Your

device may display a message that the memory is full when you try to use a

shared memory feature. In this case, delete some of the information or entries

stored in the shared memory features before continuing. Some of the features,

such as Messaging and Contacts, may have a certain amount of memory specially

allotted to them in addition to the memory shared with other features.

Welcome

FCC DRAFTFCC DRAFT

Welcome

Congratulations on your purchase of the Nokia 6175i mobile phone. Your phone

provides many functions which are practical for daily use, such as a handsfree

loudspeaker, camera, music player, video recorder, and more. Your phone can also

connect to a PC, laptop, or other device using a USB data cable or Bluetooth

wireless technology.

■Register your phone

Make sure to register your phone at www.warranty.nokiausa.com or call

1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if

you need to call a customer center or have your phone repaired.

■Getting help

Find your phone label

If you need help, the Nokia Care Contact

Center is available for assistance. Before

calling, we recommend that you write down

the following information and have it

available:

• Electronic Serial Number (ESN) or Mobile

Equipment Identity (MEID), depending on

your service provider

• Your zip code (only in the US)

The ESN or MEID is found on the type label, which is located beneath the battery

on the back of the phone. See "Remove the back cover," p. 15 and "Remove the

battery," p. 15.

Check www.nokia.com/support or your local Nokia Web site for the latest

version of this guide, additional information, downloads, and services related to

your Nokia product.

Welcome

FCC DRAFT

Accessibility solutions

Nokia is committed to making mobile phones easy to use for all individuals,

including those with disabilities. For more information visit the Web site at

www.nokiaaccessibility.com.

Phone at a glance

FCC DRAFTFCC DRAFT

1. Phone at a glance

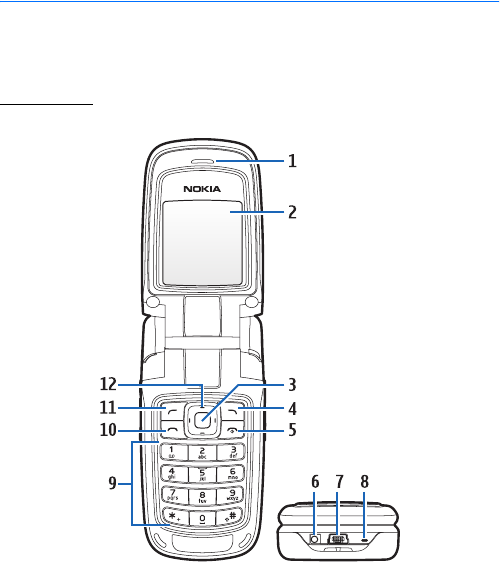

■Keys and parts

Front view

Earpiece (1) Mini-USB port (7)

Display (2) Microphone (8)

Center selection key (3) Keypad (9)

Right selection key (4) Call key (10)

End/power key (5) Left selection key (11)

Charger port (6) Scroll key (12)

Phone at a glance

FCC DRAFT

Side view

■Standby mode

Depending on your wireless service provider and the model number of your

phone, some or all of the following selection keys may appear in the standby

mode.

The standby mode indicates your phone is

idle.

Battery level (1)—A filled-in battery indicates

more power.

Names or network operator menu (2)—Press

the right selection key to select this option.

Go to (3)—Press the left selection key to select

this option.

Menu (4)—Press the center selection key to

select this option.

Signal strength (5)—More bars indicate a stronger network signal.

Retractable antenna (1) Volume keys (6)

2.5 mm stereo headset port (2) Push-to-talk key (7)

Camera key (3) Camera flash (8)

Back cover removal key (4) Camera lens (9)

Self-portrait mirror (5)

Go to Names

Phone at a glance

FCC DRAFTFCC DRAFT

■Quick keys (shortcuts)

Depending on your wireless service provider and the model number of your

phone, some or all of the following scroll key shortcuts may be available.

In the standby mode, the four-way scroll and center selection keys instantly take

you to frequently-accessed menus:

Scroll up key—Go to the contacts list or network operator menu.

Scroll right key—View the calendar.

Scroll down key—Go to the contacts list.

Scroll left key—Create a text message.

Center selection key—Displays available applications or selects highlighted

menus and submenus.

■Indicators and icons

To identify the icons on your phone, select Menu > Settings > Phone details >

Icon details.

■Phone menus

Phone features are grouped according to function and are accessed through the

main menus. Each main menu contains submenus and lists from which you can

select or view items and customize your phone features. To access these menus

and submenus, use the scroll method or use a shortcut.

Some features may not be available, depending on your network. For more

information, contact your wireless provider.

Scroll method

1. Select Menu using the center selection key. Scroll through

the main menu using the scroll key.

On the right side of the screen, a scroll bar is displayed with

a tab that moves up or down as you move through the

menus. This provides a visual representation of your current

position in the menu structure.

2. When you arrive at a menu, press Select (the center selection key) to enter

submenus.

Phone at a glance

FCC DRAFT

Select Back from the submenu level to return to the previous menu.

Press the end key to return to the standby mode from any menu or submenu.

Main menu display

You can control whether your phone main menu is displayed as a list or grid.

Select Menu > Options > Main menu view > List or Grid.

If supported by your wireless service provider, you can also change the order of

menus in your main menu.

Select Menu > Options > Organize. Scroll to a menu, and select Move. Scroll to a

new location, and select OK. You can repeat this procedure to customize your

main menu.

Select Done > Yes to save the changes.

In-phone help

Many features have brief descriptions (help text) that can be viewed on the

display. To view these descriptions, scroll to a feature, and wait for about

15 seconds. Scroll down to view all of the description, or select Back to exit.

To view the descriptions, you must activate help text.

Select Menu > Settings > Phone > Help text activation and an option.

■Security settings

The security feature protects your device from unauthorized outgoing calls or

denies access to the stored information with a lock or security code. The lock

code is a four-digit number, while the security code is a five-digit number. By

default, the security feature uses the lock code (defaulted to the last four digits

of your phone number), instead of the security code.

You must enter your lock code to access the Security menu.

To access the Security menu, do the following:

1. Select Menu > Settings > Security.

2. Enter the lock code, and select OK. See "Security," p. 79.

Depending on your wireless service provider, the preset lock code may be

1234 or 0000 instead of the last four digits of your phone number. If none of

these work, contact your wireless service provider for more help.

Phone at a glance

FCC DRAFTFCC DRAFT

To enter the lock code to restore the factory settings, do the following:

1. Select Menu > Settings > Restore settings.

2. Enter the lock code, and select OK.

Depending on your wireless service provider, your phone may ask for the

security code (defaulted to 12345 or 00000) instead of the lock code.

If you enter the wrong lock code five times in succession, your phone will not

accept your current lock code for 5 minutes. This occurs even if when you power

down the phone between incorrect attempts.

■Go to functions

The Go to menu allows you to change the function of the left selection key on

your phone so that your most frequently used functions can be quickly accessed

from the Go to menu.

Select options

1. Select Go to > Options > Select options.

2. Scroll to the options you want to add.

3. Select Mark to add an option or Unmark to remove an option.

4. Select Done when you have added all desired options.

5. Select Yes to save the changes.

6. Select Go to to display a list of the options that you selected in step 3.

Organize functions

Select Go to > Options > Organize. Scroll to an option, and select Move. Scroll to

move the option to a new location, and select OK. You can repeat this procedure

to customize your Go to menu.

Select Done > Yes to save the changes.

Set up your phone

FCC DRAFT

2. Set up your phone

■Antenna

Your device has an external antenna. Extend the

antenna fully.

Hold the device as you would any other telephone

with the antenna area pointed up and over your

shoulder.

Note: As with any other radio transmitting device, do not touch the

antenna unnecessarily when the device is switched on.

Contact with the antenna affects call quality and may cause the device

to operate at a higher power level than otherwise needed. Avoiding

contact with the antenna area when operating the device optimizes the

antenna performance and the battery life.

■Battery

Always switch off the power and disconnect the charger and any other device

before removing the battery. Avoid touching electronic components while

changing the covers. Always store and use the device with the covers attached.

Prolonged, continuous use of your device may increase the device temperature.

The increased temperature is a normal function of this product and does not pose

a safety concern for you or the device. If the temperature is uncomfortable to

you, use a headset or allow your device to return to room temperature before

your next call.

Set up your phone

FCC DRAFTFCC DRAFT

Remove the back cover

1. With the back of the phone facing you, press

down and hold the back cover latch.

2. Slide the back cover toward the bottom of

the phone, lift up, and remove.

Remove the battery

After you have removed the back cover, insert

your finger into the finger grip, and lift the

battery from its compartment.

UIM (CDMA SIM) card slot

Your phone has a UIM card slot built into the mechanics. However, the UIM is not

functional in this phone model. Avoid placing anything into the UIM card slot.

Replace the battery

1. Insert the battery, gold-colored contact

end first, into the battery slot.

2. Push down on the other end of the

battery to snap the battery into place.

Replace the back cover

1. Set the back cover on the phone with

the cover tabs aligned with the slots in

the phone.

2. Press the back cover latch down and

slide the back cover toward the top of

phone.

3. Ensure the back cover latch is secure.

Set up your phone

FCC DRAFT

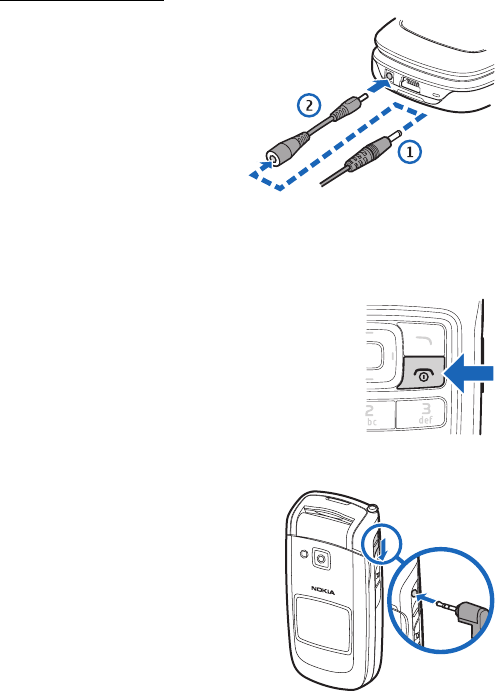

Charge the battery

1. Plug the charger transformer into

a standard wall outlet.

2. Insert the charger output plug (1)

into the round jack at the bottom

end of the phone.

If necessary, you can use a CA-44

adapter cable (2) to connect a

charger and the phone.

After a few seconds, the battery indicator on the display scrolls. If the battery

is completely discharged, it may take a few minutes before the charging

indicator appears on the display or before any calls can be made.

■Switch your phone on or off

1. To switch your phone on or off, press and hold the

end key for at least three seconds.

2. Enter the lock code, if necessary, and select OK.

■Connect the headset

A compatible headset, such as the Nokia

HS-9 or HS-49 models, may be purchased

with your phone or separately as an

enhancement. See "Enhancements," p. 79.

1. Move the headset port cover down to

reveal the 2.5 mm stereo headset port.

2. Plug a compatible headset into the

headset port to allow handsfree

operation.

3. Position the headset on your ear.

With the headset connected, you can make, answer, and end calls as usual.

Set up your phone

FCC DRAFTFCC DRAFT

Warning: When you use the headset, your ability to hear outside sounds

may be affected. Do not use the headset where it can endanger your

safety.

■Make calls

Call using the keypad

1. Enter the phone number (including the area code), and press the call key.

To delete a character to the left of the cursor, select Clear.

2. To end the call, press the end key. To cancel the call attempt, select End call.

Call a stored contact

See "Contacts," p. 42.

Call the last dialed number

1. Press the call key to display the last 30 numbers dialed.

2. Scroll to the number or name you wish to redial, and press the call key.

Make a conference call

Conference calling is a network service that allows you to take part in a

conference call with two other participants.

1. Make a call to the first participant.

2. With the first participant on the line, select Options > Add new call.

3. Enter the phone number of the second participant; or, to retrieve a number

from your contacts, select Search and the number you want to call.

4. Press the call key. The first participant is put on hold.

5. When the second participant answers, press the call key to connect the calls.

6. To end the conference call, select Options > End all calls, or press the end key.

■Answer calls

You can answer a call when the keypad is locked. When you end or reject the call,

the keypad automatically relocks. See "Keyguard," p. 19.

Set up your phone

FCC DRAFT

Answer or silence an incoming call

To answer the call, press the call key or select Answer.

To reject the call, press the end key.

Select Silence to mute the ringing tone. Select Dismiss or do nothing, and the call

is eventually forwarded to voice mail.

If your phone is set to Silent in the Profiles menu, select Dismiss, and the call is

forwarded to voice mail.

Adjust the earpiece volume

Press the up or down arrow on the volume key to adjust the volume of the

earpiece.

When adjusting the volume, a bar chart appears on the display indicating the

volume level.

Mute the phone

To mute your phone during a call, select Mute; to unmute the phone, select

Unmute. When the phone is muted, you can hear the caller but the caller cannot

hear you.

In-call options

Many of the options that you can use during a call are network services. Check

with your wireless service provider for more information.

During a call, select Options and one of the following:

Loudsp. or Normal—Activate or deactivate the loudspeaker while in a call. The

loudspeaker is deactivated automatically when a call or a call attempt ends or

when certain enhancements are connected.

Warning: Do not hold the device near your ear when the loudspeaker is

in use because the volume may be extremely loud.

Add new call—Initiate a conference call. See "Make a conference call," p. 17 for

information.

Save—Save a number entered during a call.

Add to contact—Add a number entered during a call to a contact in your list.

End all calls—Disconnect from all active calls.

Set up your phone

FCC DRAFTFCC DRAFT

Send touch tones—Enter the numbers, and select Tones to send the numbers as

tones.

Contacts—View the contacts list.

Menu—View the phone menu.

■Send business cards

You can send a business card to a compatible phone or other handheld device.

1. Scroll down to display your list of contacts.

2. Select the contact to which you want to send a business card, and select

Details.

3. Scroll to the phone number for the contact, and select Options > Send bus.

card > Via multimedia, Via text message, or Via Bluetooth.

4. Select Primary number or All details.

5. Enter the number for your recipient, or select Search to retrieve a number

from your contacts; select OK.

If you selected Via Bluetooth > All details, select a Bluetooth device. The

business card is sent to the device.

■Keyguard

With the keyguard, you can lock the keypad to prevent keys from accidental

keypresses. If the keypad is locked, it unlocks when you receive a call. After the

call, the lock automatically reactivates.

When the keyguard is on, calls may be possible to the official emergency number

programmed into your device.

To lock the keypad when the phone is open, select Menu, and press * within two

seconds.

To unlock the keypad when the phone is open, select Unlock, and press * within

two seconds.

Text entry

FCC DRAFT

3. Text entry

You can use two methods for entering text and numbers: standard mode and

predictive text mode.

■Standard mode

Standard mode is the only way to enter text in the contacts list and to rename

caller groups.

Text (Abc) and numbers (123)

• Press a key once to insert the first letter on the key, twice for the second

letter, and so on. If you pause briefly, the last letter on the display is accepted

and your phone awaits the next entry.

• Press 0 to enter a space and accept a completed word.

• Press 1 as many times as necessary to scroll through a list of commonly used

characters.

• Press and hold * to display a complete list of special characters.

• Press # multiple times to turn predictive text on and off, or to change the

capitalization mode. See "Predictive text mode," p. 21 and "Change case and

mode," p. 22.

• Press and hold # to switch to the number mode. After you type a number,

press and hold # again to return to text mode.

Change language

To change the language, do the following:

1. Press and hold #.

2. In Editor settings, select Writing language and the new language.

The phone returns to the message entry screen, and you can compose in the new

language.

Text entry

FCC DRAFTFCC DRAFT

Punctuation and special characters

While at any text entry screen, press * to display special characters. Press * again

to cycle through all available characters. Scroll to navigate through the list of

special characters. When a character is highlighted, select Insert to insert the

character into your message.

■Predictive text mode

Predictive text input allows you to write messages quickly using your keypad and

the built-in dictionary. It is much faster than the standard mode method,

because for each letter, you only press the corresponding key on your keypad

once.

Activate and deactivate

At any text entry screen, select and hold Options to turn predictive text on or off

depending on the previous mode; or, select Options > Prediction on or Prediction

off. Press # twice to change from predictive text mode to standard mode and

back.

Enter text

The following illustration simulates your display each time a key is pressed. For

example, to write Nokia with predictive text on and with the English dictionary

selected, press each of the following keys once:

•Press 0 to enter a space and begin writing the next word.

• If a displayed word is not correct, press * to see other matches. To return to

the previous word in the list of matches, select Prev..

• If ? appears after a word, it is not in the dictionary. Select Spell to add the

word to the dictionary.

•Press 1 to insert a period into your message.

•Press and hold * to display special characters. Press * again to cycle through

all available characters.

Text entry

FCC DRAFT

• Press and hold the specific number key to enter a number, or press and hold #

to switch to number mode.

■Change case and mode

Press # to switch between uppercase, lowercase, and sentence case, as well as

standard and predictive text modes. Press and hold # to switch to number mode.

Case and mode are indicated by the following icons that appear in the upper left

of the display screen.

Uppercase text: standard mode is on.

Lowercase text: standard mode is on.

Sentence case text: standard mode is on. This is only available at the

beginning of a sentence.

Uppercase text: predictive text is on.

Lowercase text: predictive text is on.

Sentence case text: predictive text is on. This is only available at the

beginning of a sentence.

123: number mode is on. Enter a number, and press and hold # again

to return to text mode.

■Delete text

To delete text, use one of the following options:

• Select Clear to backspace the cursor and delete a character.

• Select and hold Clear to backspace continuously and delete characters.

Messaging

FCC DRAFTFCC DRAFT

4. Messaging

Your phone is capable of creating and receiving text, multimedia, voice, and

minibrowser messages. Check with your service provider to see what messaging

is available for you.

■Text messages

Text messaging is a network service. See "Network services," p. 83. If your

wireless service provider supports this feature, you can send and receive text

messages to compatible phones that are also subscribed to the service.

When composing text messages, check the number of characters allowed in the

top right corner of the message. Using special (unicode) characters takes up more

space. If there are special characters in your message, the indicator may not show

the message length correctly. Before the message is sent, the phone tells you if

the message exceeds the maximum length allowed for one message.

Your device supports the sending of messages beyond the character limit of a

single message. Longer messages are sent as a series of two or more messages.

Your service provider may charge accordingly.

Note: When sending messages, your device may display Message sent.

This is an indication that the message has been sent by your device to the

message center number programmed into your device. This is not an

indication that the message has been received at the intended

destination. For more details about messaging services, check with your

service provider.

Text message folders and options

Select Menu > Messaging > Text messages and from the following:

Create message—Create and send messages.

Inbox—Check for received text messages. Text messages are automatically stored

in the Inbox when they are received. A notification appears when a message

arrives in the Inbox.

Outbox—Check for outgoing text messages. Text messages are automatically

stored in the Outbox as they are sent. If your service is interrupted while sending,

the text message is stored in the Outbox until another delivery attempt is made.

Sent items—Sent text messages are stored in Sent items.

Messaging

FCC DRAFT

Drafts—Store drafts of text messages in the Drafts folder to be completed at a

later time.

Archive—Save text messages in Archive.

Templates—Select from a collection of prewritten templates when creating text

messages. Preloaded templates can be edited and customized.

My folders—Create and name personal folders.

Delete messages—Delete messages from a selected folder or all folders.

Message settings—Change settings for reading, writing, and sending text

messages.

Send numeric page—Send a numeric page.

Add-ins—Add a sound, animation, or image.

Write and send text messages

1. Select Menu > Messaging > Text messages > Create message.

To go quickly to the Create message screen, scroll left. Shortcut keys such as

scroll left may be changed by your service provider.

2. Compose a text message using the keypad. See "Text message options," p. 25

for composing options.

3. Select Send to > Recently used, Send to number, Send to e-mail, Send to

many, or Send to distrib. list (if you have created one).

4. Select a number or distribution list, enter the recipient’s phone number or e-

mail address, or select Search to retrieve a number or e-mail address from

your contacts list; select Send.

Templates

Templates are short, prewritten messages that can be retrieved and inserted into

new text messages.

1. Select Menu > Messaging > Text messages > Create message > Options >

Use template.

2. Select one of the available templates, and complete the text message using

the keypad.

Messaging

FCC DRAFTFCC DRAFT

Read and reply to text messages

When you receive a text message, a notification appears, and the unopened letter

icon ( ) is displayed.

1. Select Show to read the text message or Exit to dismiss the notification.

Scroll to view the whole message, if necessary.

When unopened messages are in your inbox, is shown in the upper left

corner in the standby mode as a reminder.

2. Select Reply > Empty screen, Original text, Template, or one of the predefined

answers provided.

3. Compose your reply with the keypad, and select Send.

Text message options

Create message options

When you create or reply to a text message, depending on the mode of text input

you are using and the features supported by your wireless service provider, some

or all of the following are available:

Sending options—Mark or Unmark a message as Urgent, Delivery note, Callback

no., or Signature.

Clear text—Erase all text from your message.

Add-ins—Add a sound, animation, or image.

Styles—Change font appearance and size, and text alignment.

Insert contact—Insert a detail from your contacts list into your message.

Insert number—Insert a phone number or find a phone number in the contacts

list.

Save—Save the message in Drafts.

Exit editor—Exit the message editor.

Use template—Insert a predefined template.

Insert word or Edit word—Enter or edit the text of a new word that might not

appear in the predictive text dictionary. This is displayed only when predictive

text is on.

Insert symbol—Insert a special character. This is displayed only when predictive

text is on.

Messaging

FCC DRAFT

Predictive text—Choose the language you want to use.

Prediction on or Prediction off—Turn predictive text on or off.

Matches—View matches found in the predictive text dictionary for the word you

want to use. This is displayed only when predictive text is on.

Read message options

When you read a text message, the following options are available:

Delete—Discard the text message.

Message details—View the details of the text message.

Use detail > Number, E-mail address, or Web address—Select Save to create a

new contact; select Options > Add to contact, Send message, or Call for other

options.

Move—Save the message to Archive, Templates, or a folder you have created.

Forward—Forward the text message to another phone number.

Lock or Unlock—Lock or unlock the text message. The appropriate option appears.

Rename—Edit the title of the text message.

Custom folders

Your phone has a folder system that saves and stores text messages. You canalso

create custom folders.

Create a custom folder

To organize your messages, create custom folders, and save messages you want

to keep there.

1. Select Menu > Messaging > Text messages > My folders > Add fold. to create

your initial custom folder.

Select Menu > Messaging > Text messages > My folders > Options > Add

folder to create an additional custom folder.

2. Enter a name for the new folder, and select OK.

Rename a custom folder

1. Select Menu > Messaging > Text messages > My folders.

2. Folders you have created appear on the display. Scroll to the folder you wish

to rename, and select Options > Rename folder.

Messaging

FCC DRAFTFCC DRAFT

3. Select and hold Clear to delete the existing entry; enter a new name for the

folder; select OK to confirm or Back to exit.

Delete a custom folder

Only folders in My folders can be deleted. The Inbox, Outbox, Sent items, Drafts,

Archive, and Templates folders are protected. When you delete a folder, all

messages in the folder are also deleted.

1. Select Menu > Messaging > Text messages > My folders.

2. Scroll to the folder you wish to delete, and select Options > Delete folder.

3. Select Yes to delete or No to exit.

Delete text messages

If your message memory is full and you have more text messages waiting at the

network, blinks. You can do the following:

• Read some of the unread text messages, and delete them.

• Delete text messages from some of your folders.

Delete a single text message

To delete a single text message, you need to open it first.

1. Select Menu > Messaging > Text messages.

2. Select the folder containing the text message you wish to delete.

3. Select the message you wish to delete and Options > Delete.

4. Select Yes to delete the message or No to exit.

Delete all messages in a folder

1. Select Menu > Messaging > Text messages > Delete messages and one of the

following:

All—Deletes all text messages in the folder.

All read—Deletes only the read text messages in the folder.

All unread—Deletes all unread text messages in the Inbox.

2. If you select All or All read, select Mark or Unmark to choose the folders from

which to delete text messages. Select Options > Mark all to choose all folders.

3. Select Done after choosing the folders.

Messaging

FCC DRAFT

4. Select Yes to delete the message or No to exit.

Text message settings

Sending options

Select Menu > Messaging > Text messages > Message settings > Sending

options and the setting you wish to change:

Priority > Normal or Urgent—Select the priority of the message.

Delivery note—Select On to receive a note confirming delivery of a text message.

Send callback number—Select OK to send your default phone number to the

recipient.

Signature—Select On to add a signature to an outgoing text message. If you have

not created a signature, select On; enter a signature, and select OK.

Other settings

Select Menu > Messaging > Text messages > Message settings > Other settings

and the setting you wish to change:

Message overwriting > Sent items only, Inbox only, S. items & Inbox, or Off—Set

your phone to automatically replace old messages in Inbox or Sent items when

new ones arrive. When the message memory is full, your phone cannot send or

receive any new messages.

Save sent messages—Select Always save or Always prompt to save sent text

messages to Sent items. Select Off to not save messages.

Queue msgs. when digital unavailable—Select On or On prompt to store text

messages in the Outbox until they can be sent with a digital service. Select Off to

not store messages.

Auto-playback of sounds—If you have enhanced text messaging, select On or Off

to control sound clips.

■Multimedia messages

Multimedia messaging is a network service. See "Network services," p. 83. If your

wireless service provider supports this feature, you can send and receive

multimedia messages to compatible phones that are also subscribed to the

service.

A multimedia message can contain text, sound, an image, a video clip, a business

card, a calendar note, and a slide. Your phone supports multimedia messages that

Messaging

FCC DRAFTFCC DRAFT

are up to 600 KB. If the maximum size is exceeded, the phone may not be able to

receive the message.

Note: Only compatible devices that offer multimedia message features

can receive and display multimedia messages. The appearance of a

message may vary depending on the receiving device.

Depending on your network, you may receive a message that includes an Internet

address where you can view the multimedia message. Images are scaled to fit the

display area of the phone. Your phone has a multimedia message viewer for

playing messages and a multimedia inbox for storing saved messages. After you

save the multimedia message, you can use the image as a screen saver or the

sound as a ringing tone.

content from being copied, modified, transferred, or forwarded.

Multimedia messaging only supports the following formats:

• Images: JPEG, GIF, animated GIF, WBMP, BMP, and PNG

• Sound: MP3, WMA, AAC, AAC+, eAAC, eAAC+, MIDI, AMR-NB, QCELP, and

monophonic ringing tones

• Video: clips in MPEG4, MP4, H.263, and H.264 format with QCIF image size

You cannot receive multimedia messages if you have a call in progress, games or

other applications running, or an active browsing session. Because delivery of

multimedia messages can fail for a variety of reasons, do not rely solely upon

them for essential communications.

Multimedia message folders and options

Select Menu > Messaging > Multimedia messages and from the following:

Create message—Create and send multimedia messages.

Inbox—Check for received multimedia messages. Multimedia messages are

automatically stored in the Inbox when they are received. You receive a

notification when a message arrives in your Inbox.

Outbox—Check for outgoing multimedia messages. Multimedia messages are

automatically stored in the Outbox as they are sent. If your service is interrupted

while sending, messages are stored in the Outbox until another delivery attempt

is made.

Sent items—Sent multimedia messages are stored in Sent items.

Saved items—Save multimedia messages for later use in Saved items.

Messaging

FCC DRAFT

Delete messages—Delete multimedia messages from the Inbox, Outbox, Sent

items, or Saved items.

Message settings—Change the settings for multimedia messages.

Write and send multimedia messages

1. Select Menu > Messaging > Multimedia messages > Create message.

2. Scroll to the row you want to select, and select Insert and an option. See

"Multimedia message options," p. 32 for more information on the options.

3. When you have completed adding text or multimedia files to the first row,

repeat step 2 to add additional text or multimedia files to the message.

4. When you have completed adding all text and multimedia files to the

message, select Send.

5. In the To: field, enter the recipient’s phone number, or select Add or one of the

following options:

Recently used—Select a recently used contact.

Contact—Select a contact from the Contacts list.

Distribution lists—Select a distribution list.

Send to album—Send the message to an online album. This is an online

network service. Check with your service provider for more information.

Repeat this step as many times as you want to add multiple contacts.

6. When you have entered all the contacts you want, scroll to the Subject: field,

and enter a subject.

7. Scroll to the Presentation: field, and select Edit.

8. Select Options, and make changes to any option you want. The options affect

the sequence of the attachments and the layout options of the message for

presentation.

9. When you are finished making changes, select Send.

The multimedia message is moved to the Outbox for sending.

The wireless network may limit the size of multimedia messages. If the inserted

image exceeds this limit, the device may make it smaller so that it can be sent by

multimedia messaging.

Messaging

FCC DRAFTFCC DRAFT

It takes more time to send a multimedia message than to send a text message.

While the multimedia message is being sent, the animated indicator is

displayed, and you can use other functions on the phone. If there is an

interruption while the message is being sent, the phone automatically tries to

resend it a few times. If this fails, the message remains in the Outbox, and you

can try to manually resend it later. Check your Outbox for unsent messages.

Note: When sending messages, your device may display the words

Multimedia message sent. This is an indication that the message has

been sent by your device to the message center number programmed

into your device. This is not an indication that the message has been

received at the intended destination. For more details about messaging

services, check with your service provider.

Messages that you send are saved in the Menu > Messaging > Multimedia

messages > Sent items folder if the setting Save sent messages is set to Yes. See

"Multimedia message settings," p. 34. This is not an indication that the message

has been received at the intended destination.

Read and reply to multimedia messages

When a multimedia message is received, appears on the display along with

the download progress. When the message has been fully downloaded, and

a notification appear on the display.

1. To view the multimedia message immediately, select Show.

To save the message to the inbox for later viewing, select Exit.

To view a saved message, select Menu > Messaging > Multimedia

messages > Inbox and the message you want to view.

While viewing a message, select Play to play the entire message.

2. Select Reply or Options > Reply to all, and compose your reply.

3. Select Send.

If blinks and Multimedia me-mory full. View waiting msg. appears, the

memory for multimedia messages is full. To view the waiting message, select

Show. Before you can save the message, you need to delete some of your old

messages. See "Delete multimedia messages," p. 34.

Important: Exercise caution when opening messages. Multimedia

message objects may contain malicious software or otherwise be

harmful to your device or PC.

Messaging

FCC DRAFT

Multimedia message options

Create message options

When you create or reply to a multimedia message, some or all of the following

options are available from the Menu > Messaging > Multimedia messages >

Create message screen:

Insert—Choose from the following options:

•Text—Compose a text message.

•Image—Search the Images or Gallery folders to add an image, or open the

camera to create a new image that you attach to the message.

•Video clip—Search for a video clip, or record a new video clip to be attached

to the message.

•Sound clip—Open the voice recorder to create a new sound clip, or to search

for a new sound clip, to be attached to the message.

content from being copied, modified, transferred, or forwarded.

•Business card—Insert a contact as a business card.

•Calendar note—Insert a calendar note.

•Slide—Insert a slide into your message. Each slide can contain text, a business

card, a calendar note, one image, and one sound clip.

Send to—Forward the message to another contact or to multiple contacts.

Preview—Preview the message or slide presentation before sending it. Select Stop

to end the preview. Select Play to start the preview again or Back to return to the

list of options.

Remove—Remove the object.

Move slide—Move the slide.

Previous slide—Move to the previous slide.

Next slide—Move to the next slide.

Slide list—View a list of all slides. Select the slide you wish to edit.

Slide timing—Set the timing interval for each slide. By default, each slide appears

for 12 seconds.

Place text first or Place text last—Move text to the top or bottom of the slide. By

default, the text appears at the bottom or last.

Messaging

FCC DRAFTFCC DRAFT

Save—Save the message to Saved items.

Exit editor—Exit the message editor.

Insert smiley—Insert a smiley.

Insert word or Edit word—Enter or edit the text of a new word that might not

appear in the predictive text dictionary. This appears only when predictive text is

on.

Insert symbol—Insert a special character. This appears only when predictive text

is on.

Writing language—Choose the language you want to use.

Prediction on or Prediction off—Turn predictive text on or off.

Matches—View matches found in the predictive text dictionary for the word you

want to use. This appears only when predictive text is on.

Read message options

When you read a multimedia message, the following options are available:

Objects—View all objects attached to the message.

Delete—Delete the message you are viewing.

Use detail—Use a corresponding number or e-mail address. The number or e-mail

address must be highlighted.

Send to—Forward the message to another contact or to multiple contacts.

Edit—Edit the message.

Message details—View the sender’s name and phone number, the message center

used, reception date and time, and message size and type.

Set contrast—Adjust the contrast of an image. This option is only available when

viewing an image.

Details—Display the details of a highlighted file attachment.

Save image, Save sound clip, or Save video clip—Save the corresponding file to

the Gallery. Images, sound clips, and video clips must be opened before you can

save them.

Save link—Save the corresponding Web link. This appears only when a Web link is

highlighted.

Activate image, Activate tone, or Activate video clip—View or listen to the

corresponding file.

Business card—Open an attached business card.

Messaging

FCC DRAFT

Calendar note—Open an attached calendar note.

Reply or Reply to all—Enter a reply, and send it to the original sender and any

other recipients of the message.

Album—Forward the message to an online album. This is an online network

service. Check with your service provider for more information.

Delete multimedia messages

If your message memory is full and you have more multimedia messages waiting

at the network, blinks. You can do the following:

• Read some of the unread multimedia messages, and delete them.

• Delete multimedia messages from some of your folders.

Delete a single multimedia message

1. Select Menu > Messaging > Multimedia messages.

2. Select the folder containing the multimedia message you wish to delete.

3. Select the message you wish to delete and Options > Delete.

4. Select Yes to delete or No to exit.

Delete all multimedia messages in a folder

1. Select Menu > Messaging > Multimedia messages > Delete messages >

Inbox, Outbox, Sent items, or Saved items.

2. Select Yes to delete the all messages in the folder or No to exit.

Multimedia message settings

Select Menu > Messaging > Multimedia messages > Message settings and one

of the following options:

Save sent messages—Select whether you want the multimedia messages that you

send saved in the Sent items folder.

Delivery reports—Request delivery reports to inform you if a message is delivered.

Scale image down—Select whether you want images to be automatically scaled

down.

Default slide timing—Enter the default time for slides in mm:ss format, and select

OK.

Messaging

FCC DRAFTFCC DRAFT

Allow multimedia reception—Specify whether you want to receive a message at

all times or only if you are in the service provider’s home system. This is a network

service. Check with your service provider for more information. Select one of the

following options:

•Yes—Allow all incoming messages.

•In home network—Allow incoming messages only if you are in the service

provider’s home system. This is a network service. Check with your service

provider for more information.

•No—Block all incoming messages.

Incoming multi- media messages—Select how your phone retrieves incoming

multimedia messages. Select one of the following options:

•Retrieve—Sets the phone to automatically retrieve all multimedia messages.

When new messages arrive, you are notified that a multimedia message is

received. If you choose to automatically retrieve messages, you can select

Show to read the multimedia message or Exit to view them in your inbox

later.

•Retrieve manually—Choose the messages you wish to retrieve. When new

messages arrive, you are notified that a multimedia message is available for

retrieval. If you select to manually retrieve messages, select Show to open the

message notification, then Retrieve. Select Exit to save the notification to

your inbox, and retrieve the message later.

•Reject—Sets the phone to reject multimedia messages.

Allow advertisements—Select whether to block or allow advertisements. This

setting is not available if multimedia reception is blocked. This is a network

service. Check with your service provider for more information.

■Distribution lists

Distribution lists allow you to send text or multimedia messages to a designated

group of people.

Create distribution lists

1. Select Menu > Messaging > Distribution lists > New list.

If you create a second distribution list, select Menu > Messaging >

Distribution lists > Options > Create new list.

Messaging

FCC DRAFT

2. Enter a name for the list, and select OK.

3. To add a contact to this list, select Add new, and add the contacts one by one.

A distribution list only contains phone numbers of recipients.

Add and remove contacts

To add contacts, select Menu > Messaging > Distribution lists > the list > Add

new. Add the contacts one by one.

To remove contacts, select Menu > Messaging > Distribution lists > the list >

Options > remove contact name.

Distribution lists

1. Select Menu > Messaging > Distribution lists.

2. Lists you create are displayed. Scroll to the list you wish to modify; select

Options and one of the following:

Create new list—Create a new distribution list.

Send message—Send a message to the distribution list.

Rename list—Rename the distribution list.

Clear list—Clear the distribution list of all current contacts.

Delete list—Delete the distribution list.

■Voice messages

If you subscribe to voice mail, your wireless provider will give you a voice mailbox

number. You need to save this number to your phone to use voice mail. When you

receive a voice message, your phone beeps, displays a message, or both. If you

receive more than one message, your phone shows the number of messages

received.

Save voice mailbox number

Your wireless provider may have already saved your voice mailbox number to

your phone. If so, the number appears on the display in step 2. Select OK to leave

the number unchanged.

1. Select Menu > Messaging > Voice messages > Voice mailbox number.

Messaging

FCC DRAFTFCC DRAFT

2. If the number is not displayed or incorrect, enter your voice mailbox area code

and number.

3. Select OK.

Set up your voice mail

1. After you save the voice mailbox, press and hold 1.

2. When you connect to voice mail and the prerecorded greeting begins, follow

the automated instructions to set up your voice mail.

Listen to your voice mail

After you set up voice mail, you can dial the number in one of four ways:

• Dial the number using the keypad.

•Press and hold 1.

• Select Listen if there is a notification on the display.

• Select Menu > Messaging > Voice messages > Listen to voice messages.

When you connect and the prerecorded greeting begins, follow the automated

instructions to listen to your voice messages.

Automate voice mail

Voice mail services vary by service provider. The following instructions are

examples of common operations. Check with your service provider for specific

instructions for using your voice mail service.

Write down number and process

1. Write down your voice mailbox number.

2. Call and check your voice mail as you normally would.

3. Write down your interaction with the recorded prompts step-by-step. Note

that each voice mail service may vary. Your steps may resemble the following:

Dial 2145551212, pause for five seconds, press 1, pause for two seconds,

press 1234, and press *.

Be precise; you need this information to setup up voice mail with dialing codes.

Messaging

FCC DRAFT

Set up voice mail with dialing codes

You can access your voice mail using 1-touch dialing if you assign your voice

mail number to a number on the keypad. See "Assign a key to 1-touch dialing," p.

48.

■Minibrowser messages

Minibrowser messaging is a network service. See "Network services," p. 83.

If your wireless service provider supports this feature, you can check for e-mail

messages using the minibrowser. Select Menu > Messaging > Minibrowser

messages > Connect.

To use your phone to access web pages, see "Mobile web," p. 96.

Log

FCC DRAFTFCC DRAFT

5. Log

Log stores information about the last 30 missed, 30 received, or 30 dialed calls. It

also displays the total duration of all calls. When the number of calls exceeds the

maximum, the most recent call replaces the oldest.

When viewing missed, received, or dialed calls, the menu options are the same:

Time of call—Display the date and time of the call.

Send message—Send a message to the number.

Use number—Edit the number and associate a name with the number.

Save—Enter a name for the number and save it to your contacts list.

Add to contact—Add the number to an existing name in your contacts list, if the

number is not associated with a name.

Delete—Clear the number from memory.

Call—Call the number.

■View missed calls

The missed calls feature does not function when your phone is switched off.

Missed calls are calls that were never answered.

1. Select Menu > Log > Missed calls; if a missed call notification appears, select

List.

2. Scroll to a name or number, select Options, and a menu option.

■View received calls

Received calls are calls that have been answered.

1. Select Menu > Log > Received calls.

2. Scroll to a name or number, select Options, and a menu option.

■View dialed numbers

Dialed calls are numbers you have previously dialed from your phone:

1. Press the call key, or select Menu > Log > Dialed numbers.

2. Scroll to a name or number, select Options, and a menu option.

Log

FCC DRAFT

■Time of call

You can make or receive up to five calls to or from the same number and view the

time each call occurred. Your clock must be set for this feature to work

accurately.

1. While viewing a missed, received, or dialed call, select Options > Time of call.

2. Scroll down to view the most recent call times from this number.

3. Select Back to return to the options list.

■Clear log lists

You can delete any missed, dialed, or received calls from phone memory.

Select Menu > Log > Clear log lists > All call lists, Missed calls, Received calls,

Dialed numbers, or Message recipients.

■Call timers

Note: The actual invoice for calls and services from your service provider

may vary, depending on network features, rounding off for billing, taxes,

and so forth.

To view the duration of your calls, select Menu > Log > Call timers and one of the

following options:

Last call duration—Check the time of your last call.

Dialed calls' duration—Check the combined time of calls you dialed for either

Home or Roaming.

Received calls' duration—Check the combined time of calls you received for either

Home or Roaming.

All calls' duration—Check the combined time of all calls.

Life timer—Check the total airtime minutes logged on your phone.

Clear timers—Enter your lock code, and select OK to clear all timers on your

phone.

Note: Some timers, including the life timer, may be reset during service

or software upgrades.

Log

FCC DRAFTFCC DRAFT

■Duration of data or fax calls

Data/fax calls are a network service. See "Network services," p. 83. If your

wireless service provider supports this feature, you can view the size or duration

of sent or received data and fax calls.

Note: The actual invoice for calls and services from your service provider

may vary, depending on network features, rounding off for billing, taxes,

and so forth.

Select Menu > Log > Data/fax calls and one of the following options:

Last sent data/fax—View the size (KB) of the last sent data or fax call.

Last received data/fax—View the size (KB) of the last received data or fax call.

All sent data/fax—View the size (KB) of all sent data and fax calls.

All received data/fax—View the size (KB) of all received data and fax calls.

Duration of last data/fax call—View the duration of the last data or fax call.

Duration of all data/fax calls—View the duration of all calls.

Clear all data/fax logs—Select Yes to clear all data and fax logs.

■Duration of minibrowser calls

Minibrowser is a network service. See "Network services," p. 83. If your wireless

service provider supports this feature, you can view the size or duration of sent or

received data from the minibrowser.

Note: The actual invoice for calls and services from your service provider

may vary, depending on network features, rounding off for billing, taxes

and so forth.

Select Menu > Log > Minibrowser calls and one of the following options:

Last sent browser data—View the size (KB) of the last sent browser data.

Last received browser data—View the size (KB) of the last received data.

All sent browser data—View the size (KB) of all sent browser data.

All received browser data—View the size (KB) of all received browser data.

Last browser session—View the duration of the last browser session.

All browser sessions—View the duration of all browser sessions.

Clear all browser logs—Select OK > Yes to clear all browser logs.

Contacts

FCC DRAFT

6. Contacts

The contacts list can hold up to 500 contacts with multiple numbers and text

notes for each contact. The amount of numbers and text entries that you can

save may vary, depending on length and the total number of entries in the

contacts list.

1. Scroll down to view your contacts.

To search for a contact, scroll down and enter the first letter for the contact

name.

Note: If the right selection key on your phone is Names, you can

select Names > Options > Search in the standby mode.

2. Scroll to the contact, and select Details.

3. Scroll to a phone number, and select Call.

■Contacts menu options

Select Menu > Contacts and from the following options:

Names—List of contacts currently on your phone. Select Details to view the

contact information. See "Add new contacts," p. 43, "More contact options," p.

45, and "Modify contact settings," p. 46.

Settings—Change your contact settings.

Groups—Assign contacts to caller groups. See "Set up caller groups," p. 46.

1-touch dialing—Assign phone numbers to keys on the keypad. See "Set up 1-

touch dialing," p. 48.

My number—View the current number assigned to the phone. See "Display phone

number," p. 49.

Delete all contacts—Delete all contacts on your phone. See "Delete contacts," p.

49.

Move contacts—Move contacts to a different storage location.

Copy contacts—Copy contacts to a different storage location.

Contacts

FCC DRAFTFCC DRAFT

■Add new contacts

Add a contact

1. Enter the phone number you wish to save.

Select Options > Insert pause ('p') to insert a pause code or Options > Insert

wait (’w’) to insert a wait code. See "Insert dialing codes," p. 43 for more

information about dialing codes.

2. Select Save.

Select and hold Options if you want to save the phone number without

adding a name.

3. Enter the last name and first name, verify the phone number is correct, and

select Save.

You can also save a contact by selecting Menu > Contacts > Names > Options >

Add new. Enter the name and phone number, and select Save.

Insert dialing codes

Dialing codes instruct the receiving system to pause, wait, bypass, or accept the

numbers that follow them in the dialing string. Press * repeatedly to cycle

through dialing codes. When the desired code appears on the display, pause

briefly, and the code is inserted into the dialing string.

You can also insert dialing codes into contact numbers, and save the number to a

1-touch dialing location. This is useful for accessing your voice mail. See "Add

new contacts," p. 43 and "Set up 1-touch dialing," p. 48.

The following dialing codes are available:

* Bypasses a set of instructions.

+ Causes the international access code to be replaced by +.

p Pauses for 2.5 seconds before sending any numbers that follow.

w Waits for you to press the call key before sending the numbers

or codes that follow.

Contacts

FCC DRAFT

Add contact details

You can add details to a contact when you are adding a new contact, or when

you are editing an existing contact.

To add details when you are adding a new contact, select Options > Add detail.

See "Add a contact," p. 43.

To add details to an existing contact, scroll to the contact, and select Details >

Options > Add detail. See "Contacts," p. 42.

Select any of the following options:

•Number > General, Mobile, Home, Work, or Fax—Add a new phone number to

the contact. Enter the phone number, and select Save.

The first number you save for any entry is automatically set as the default, but

the default number can always be changed. To change the number type, scroll

to the number, and select Details > Options > Change type > General,

Mobile, Home, Work, or Fax.

•E-mail address—Add the contact’s e-mail address, and select Save.

•Video—Select From Gallery to search for an existing video clip, or select New

video clip to create a new video. The phone plays the video in place of a

ringing tone when the contact calls you.

•Tone—Select Open Gallery to search for a tone in the Gallery. The phone plays

the tone you select when the contact calls you. If you have already selected a

video clip, you cannot select a tone unless you first delete the video from the

contact details.

•Web address—Enter a web address, and select Save.

•Company—Enter the contact’s company name, and select Save.

•Job title—Enter the contact’s job title, and select Save.

•Formal name—Enter the contact’s formal name, and select Save.

•Nickname—Enter the contact’s nickname, and select Save.

•Street address—Enter the contact’s street address (home or work), and select

Save.

•Birthday—Enter the contact’s birth date, and select Save. The Birthday option

is replaced with the birth date you entered.

Contacts

FCC DRAFTFCC DRAFT

•Note—Enter the text for the note, and select Save. The Note option is replaced

with the first 11 characters of the note.

•Image—Select From Gallery to search for an existing image to add to the

contact, or select New image to take a new photo using the camera. The

phone displays the image when the contact calls you.

Change default number

You can change the default number for an existing contact.

1. Scroll down to display your list of contacts.

2. Select the contact for which you want to change the default number and

Details.

3. Scroll to the new default number, and select Options > Set as default.

■More contact options

After you create a contact and add details to the contact, you have many options

for updating or removing contact details. The type of detail you scroll to in the

contact information list determines what options are available for you to

perform.

1. Scroll down to display your list of contacts.

2. Scroll to a contact, and select Details.

3. Scroll to the contact detail you wish to edit, and select Options.

The following list of options varies depending on the contact detail:

View—View the phone number of the contact.

Add detail—See "Add contact details," p. 44.

Edit—Edit the details currently associated with the contact.

Play voice tag—Play the voice tag assigned to the contact. See "Voice

commands," p. 73.

Change image—Change the image associated with the contact.

Delete—Delete the detail from this contact.

Delete contact—See "Delete contacts," p. 49.

Send message—Create and send a message to the contact. See "Messaging," p.

23.

Contacts

FCC DRAFT

Use number—Display the phone number, ready for use.

Set as default—Make the number the default for the contact.

Change type > General, Mobile, Home, Work, or Fax—Change the number type.

Copy number—Copy the phone number.

Go to—Open the web address.

Send bus. card—See "Send business cards," p. 19.

Add to group—See "Set up caller groups," p. 46.

1-touch dialing—Assign the contact to your 1-touch dialing list. See "Set up 1-

touch dialing," p. 48.

■Modify contact settings

Select Menu > Contacts > Settings and the setting you wish to change:

Memory in use—Select where you want your contacts stored.

Scrolling view—Select Normal name list, Name and number, Large name list, or

Name and image view.

Name display—Select First name first or Last name first to change how the name

displays in the Contacts list.

Memory status—View the amount of used and available memory.

■Set up caller groups

You can add contacts to any of five caller groups, and assign a unique ringing

tone or graphic to that group. This enables you to identify callers from the group

by their unique ringing tone or graphic.

Create a new caller group

1. Select Menu > Contacts > Groups.

2. If you have not previously added a caller group, press Select.

If you have previously added a caller group, select Options > Add new group.

3. In the Group name: field, enter a name for the group, and scroll down.

4. In the Group image: field, select Add > From Gallery to search for an existing

image to add to the group profile, or select New image to take a new photo

Contacts

FCC DRAFTFCC DRAFT

using the camera. The phone displays the image when a member of the group

calls you.

5. In the Group tone: field, select Change > Default to select the default ringing

tone, or Open Gallery to search for a ringing tone in the Gallery.

6. Select Save to save the new caller group.

Add or remove contacts from a caller group

You can add or remove contacts from a caller group. You must have already set

up a caller group to use this feature.

Follow these steps to add a contact to a caller group:

1. Scroll down to display your list of contacts.

2. Scroll to a caller group, and select View > Add.

3. Select a contact. The contact is added to the caller group.

Follow these steps to delete a contact from a caller group:

1. Scroll down to display your list of contacts.

2. Scroll to a caller group, and select View.

3. Scroll to the contact you want to remove, and select Options > Remove

member. The contact is removed from the caller group.

Change or delete a caller group

Select Menu > Contacts > Groups and select a group and one of the following

options:

Delete group—Delete the caller group.

Group details—Change the existing caller group details such as the group name,

image, and tone. See "Create a new caller group," p. 46 for more information

about these fields.

■Voice tags

Voice tags are automatically created for all contacts. Voice tags cannot be edited

or deleted.

Note: Using voice tags may be difficult in a noisy environment or during

an emergency, so you should not rely solely upon voice dialing in all

circumstances.

Contacts

FCC DRAFT

Dial using a voice tag

1. Select and hold Names.

2. When you hear several beeps and Speak now appears, release the key.

3. Pronounce the voice tag clearly into the microphone.

When the phone finds the voice tag, a notification appears, and the phone

automatically dials the number. If the phone does not locate a number or

recognize the voice tag, No match found appears.

Play a voice tag

1. Scroll down to display your list of contacts.

2. Scroll to a contact, and select Details.

3. Scroll to the contact name with the voice tag icon next to it, and select

Options.

4. Select Play voice tag.

■Set up 1-touch dialing

You can associate any entry in your contacts with a key from 2 to 9; to dial those

entries, press and hold the assigned key. You can also assign your voice mail

number to a key to access your voice mail using 1-touch dialing.

Assign a key to 1-touch dialing

1. Select Menu > Contacts > 1-touch dialing.

2. Scroll to any empty slot, and select Assign.

3. Enter the number (including the area code), and select OK; or select Search >

Select to retrieve a number from your contacts and select it.

You can access your voice mail by assigning your voice mailbox number to a

slot. Enter your voice mailbox number, including the area code.

Enter any dialing codes as necessary using the information that you saved

from "Write down number and process," p. 37. See "Insert dialing codes," p.

43 for more information about dialing codes.

4. If necessary, enter the contact name for the number (such as "Voice mail" if

you are assigning the slot for your voice mail), and select Save.

Contacts

FCC DRAFTFCC DRAFT

If 1-touch dialing is off, the phone displays a prompt asking if you want to

activate 1-touch dialing. Select Yes to activate 1-touch dialing.

Change or delete 1-touch dialing numbers

1. Select Menu > Contacts > 1-touch dialing.

2. Scroll to the 1-touch dialing entry you wish to change or delete, and select

one of the following: Options > Change.

3. Select Options, and one of the following:

Change—Change the phone number. Enter the number (including the area

code), and select OK; or select Search > Select to retrieve a number from your

contacts and select it.

Delete > Yes—Delete the key assignment.

■Display phone number

Select Menu > Contacts > My number to display your phone number.

■Delete contacts

Delete individual contacts

1. Scroll down to display your list of contacts.

2. Scroll to a contact, and select Options > Delete contact > Yes or No.

Delete all contacts

1. Select Menu > Contacts > Delete all contacts.

2. Enter your security code, and select OK. See "Security," p. 79.

Gallery

FCC DRAFT

7. Gallery

You can save images, video clips, recordings, music files, and ringing tones to

folders in the Gallery, and add new folders to the ones already there. You can

download images and tones using multimedia messaging, text messaging, mobile

Internet sites, or Nokia PC Suite.

Your phone supports a digital rights management system to protect content that

you have acquired. A piece of content, such as a ringing tone, can be protected

and associated with certain usage rules, for example, the number of usage times

or a certain usage period. The rules are defined in the content activation key that

can be delivered with the content or separately, depending on the service

provider. You may be able to update these activation keys. Always check the

delivery terms of any content and activation key before acquiring them, as they

may be subject to a fee.

from being copied, modified, transferred, or forwarded.

Your phone has about 20 MB of memory for storing files in the Gallery. This

memory is not shared with other functions, such as contacts. If the phone

displays a message that the memory is full, delete some existing files before

proceeding.

■Open a folder

Select Menu > Gallery to view the folder system. The phone folder system

includes:

Images—By default, camera photos are saved to this folder.

Video clips—By default, camera video clips are saved to this folder.

Graphics—A set of graphics included with your phone are stored here.

Tones—A set of ringing tones included with your phone are stored here.

Recordings—By default, voice recordings are saved to this folder.

Themes—A set of themes included with your phone are stored here.

Your folders—Folders you create appear after the preset folders.

To open a folder, scroll to the folder and select Open. After you open the folder

list and scroll to a file, you can access the file or the options associated with that

file type.

Gallery

FCC DRAFTFCC DRAFT

■Gallery options

Select Menu > Gallery > Options and one of the following:

Delete folder—Delete a folder you created. You cannot delete a preset folder.

Move—Move the selected folder into another folder. After selecting Move, scroll

to another folder, and select Move to. You cannot move a preset folder.

Rename folder—Rename a folder you created. You cannot rename a preset folder.

Details—Show the name, size, and date of creation of the selected folder.

Type of view—Choose whether to view the folders as a list with details, list only,

or grid.

Sort—Sort the contents of the selected folder by name, date, format, or size.

Add folder—Create a new folder.

Memory status—Check the available memory for the phone.

Mark or Mark all—Allows you to mark Gallery folders to be moved into another

folder. This function only applies to folders you created.

Other options appear depending on the type of files that exist in the folders.

Media

FCC DRAFT

8. Media

■Camera

You can take photos and record video clips with the built-in camera and adjust

its settings. The camera lens is on the back of the phone.

The camera produces photos in JPEG format and video clips in H.263 (QCIF)

format. After you take a photo or record a video, you can attach it to a

multimedia message, save it as a wallpaper, save it to a compatible PC using

Nokia PC Suite software, and upload it to a Web address with the content image

uploader. When you attach an image to a contact, the image is displayed when

the contact calls you.

If there is not enough memory to take a new photo, delete old photos or other

files in the Gallery. See "Gallery," p. 50.

This device supports an image capture resolution of 1600 x 1200 pixels and

displays a 320 x 240 pixel resolution on the display. The image resolutions in

these materials may appear different.

Keep a safe distance when using the flash. Do not use the flash on people or

animals at close range. Do not cover the flash while taking a photo.

When the phone is in the camera mode, the interface switches from portrait to

landscape. Turn the phone on its side to use the camera and view the available

options.

Take a photo

You can use your camera to take photographs. To take a photo, complete the

following steps:

Media

FCC DRAFTFCC DRAFT

1. Press the camera key, or select Menu > Media

> Camera. This activates the camera.

If you are in the Video mode, select Options >

Still image to switch to the Still image mode.

2. Press the volume keys or use the scroll keys to

zoom in and out.

Press the camera key or select Capture to take

the photo.

When taking a photo, you hear a shutter

sound. The phone saves the photo in the

Images folder of the Gallery menu. The saved photo is shown on the display.

3. Select Back to take another photo, Delete to erase the photo, or Options and

one of the following:

New image—Return to camera mode.

Send—Select Via multimedia or Via Bluetooth to send the photo to a

compatible phone or PC.

Attach to contact—Attach the photo to a contact.

Rename—Edit the name of the photo.

Open Gallery—Open the Gallery, where photos are saved.

Zoom—Zoom in on a captured photo. Scroll to navigate around the photo.

Set contrast—Scroll to adjust the contrast of the photo.

Edit image—Open the photo for editing. See "Edit photos in the gallery," p. 57.

Print—Print the photo. A PictBridge compatible printer must be attached to

the phone using a USB data cable to print the photo.

Use image > Set as wallpaper, Set as scr. saver, or Set as cont. image—Use the

photo.

Details—View details of the photo.

Self-timer

You can use the camera self-timer to delay taking a photo for approximately

10 seconds.

Opt. Exit

Capture

222

960

222

Media

FCC DRAFT

1. Select Menu >Media > Camera > Opt. > Self-timer on.

2. Select Start.

A beep sounds while the self-timer is running, and beeps faster when the

camera is about to capture the photo. After the time-out, the camera takes

the photo and saves it to the Images folder of the Gallery menu.

Take a sequence of photos

You can use the camera image sequence option to take up to four photos in quick

succession.

1. Select Menu > Media > Camera > Opt. > Img. sequence on.

2. Select Sequen..

The camera takes the photos in sequence. After the photos are taken, the

camera saves them to a folder in the Images folder of the Gallery menu.

Record a video

1. Press the camera key, or select Menu > Media > Camera. This activates the

camera. The display is now landscape.

If you are in the Still image mode, select Opt. > Video to switch to the Video

mode.

2. Select Record to begin recording the video clip.

While you are recording, the indicator and the remaining recording time is

shown at the top of the display.

3. Select Pause to pause the recording, Continue to resume the recording, or

Stop to stop the recording.

The phone saves the video clip in the Video clips folder of the Gallery menu.

4. Select Back to take another video clip, Play to play the video clip, or Options

and one of the following:

Delete—Delete the video clip from the Gallery.

New video clip—Return to the Video mode.

Send > Via multimedia or Via Bluetooth—Send the video clip to a compatible

phone or PC.

Rename—Edit the name of the video clip.

Media

FCC DRAFTFCC DRAFT

Open Gallery—Open the Gallery, where video clips are saved.

Mute audio or Unmute audio—Turn the video clip sound on or off.

Set contrast—Use the scroll keys to adjust the contrast of the video clip.

Use video clip > Set as scr. saver, Set as call video, Set as cont. video—Use the

video clip.

Details—View details of the video clip.

Camera options

These options are only available before you take a photo or record a video. See

"Take a photo," p. 52 for information about the options that are available after

you take a photo.

Select Menu > Media > Camera > Opt. and from the following:

Still image or Video—Choose the camera mode to take a photo or record a video.

Mute or Unmute—Turn the sound on or off for the video clip. This option only

appears when the camera is in the Video mode.

Night mode on or Night mode off—Switches the camera night mode on and off.

Flash on or Flash off—Turns the camera flash on and off.

Self-timer on or Self-timer off—Turns the self-timer on and off. This option only

appears in the Still image mode.

Img. sequence on or Img. sequence off—Turns image sequencing on or off. The

images are then saved to the gallery. This option only appears in Still image

mode.

Effects—Select a special color effect to apply to the photo or video. The feature

you select remains the default until you end the camera session.

White balance—Adjust the color balance of a photo to compensate for the

ambient lighting (existing lighting in a photo). Choose from one of the following

options:

•Auto—Adjust the white balance automatically.

•Daylight—Adjust the white balance based on daylight (outdoor) ambient

light.

•Tungsten—Adjust the white balance based on tungsten (indoor) ambient

light.

Media

FCC DRAFT

•Fluorescent—Adjust the white balance based on fluorescent (indoor) ambient

light.

•Horizon—Adjust the white balance based on the horizon ambient lighting.

View previous—View the previous photo or video taken. This option only appears

if a photo has been taken but the photo has not been saved.

Open Gallery—Open the Gallery to view saved images, videos, and recordings.

Settings—Change the settings for the phone camera.

Camera settings

Select from the following camera settings found in the Menu > Media >

Camera > Opt. > Settings menu:

Image quality—Select the default file compression when saving the image. High-

quality images have less file compression and provide the best image quality, but

take more memory.

Image size—Set the size of an image when taking a photo. A larger image has

better resolution, but takes more memory.

Video clip length—Change the maximum length of a video clip. The maximum size

of a video clip can be 600 KB. A recording stops when it reaches the maximum

size, even if the maximum length is set longer. Only video clips that are default

length or shorter can be sent in a multimedia message.

Video clip quality—Change the maximum length of a video clip. The maximum

size of a video clip can be 600 KB. A recording stops when it reaches the

maximum size, even if the maximum length is set longer. Only video clips that are

default length or shorter can be sent in a multimedia message.

Video resolution—Change the resolution of a video clip.

Image preview time—Select the amount of time an image preview is shown on

the camera display. Select End manually if you want to preview the image until

you select another option. Select No preview if you do not want to preview any

images.

Camera sounds—Turn the camera sounds that happen when a photo is taken or

video recorded on or off.

Self-timer lights—Turn the self-timer lights on or off that appear when a photo is

taken on or off.

Media

FCC DRAFTFCC DRAFT

Default title—Change the default title your phone uses to assign names to new

photos and video clips. If you select My title, enter the text to use as a base for

file names the phone creates.

Default mode—Change the default mode of your phone camera to Standard

photo mode or Video mode.

■Edit photos in the gallery

1. Select Menu > Gallery, and open a folder and an image file.

2. Select Options > Edit image > Options and one of the following options:

Insert text—Insert text into the image. Enter the text you want to insert, and

select OK. After you enter the text, select Options > Font style, Font size, Font

color, or Rotate to modify the text.

Insert frame—Insert a frame around the image.

Insert clip-art—Insert clip-art into the image.

Insert image—Insert another image into the image. Open a folder, and select

the image you want to insert.

Crop image > Portrait size or Adjustable size > Crop—Crop the image.

3. Scroll to move an inserted frame, clip-art, image, or text.

■Media player

With Media player you can download, view, and play compatible images, audio

and video files, and animated images from a variety of sources. Media player

plays streaming videos and audio from a network server. Streaming is a network

service and requires network support. Check the availability of these services,

pricing, and tariffs with your network operator or the service provider whose

service you wish to use. Service providers also give you instructions on how to use

their services. Select Menu > Media > Media player and one of the following:

Online media—Connect to the operator’s network. This is a network service.

Open Gallery—Open the Gallery. From the Gallery, you can play stored audio and

video files. See "Gallery," p. 50.

FF/Rew interval—Choose the interval at which a video clip fast forwards or

rewinds.

Media

FCC DRAFT

■Music player

Your phone includes a Music player for listening to music or other tracks in MP3

or AAC format. You can transfer files from a PC to your phone using a USB data

cable or a Bluetooth wireless technology connection. To transfer music tracks

from a compatible PC and manage the music tracks and track lists, see the

instructions for the Nokia Audio Manager application in the Nokia PC Suite

online help. See "USB data cable transfer," p. 77 and "Bluetooth connectivity," p.

74 for more information on transferring music tracks to your phone.

Music files stored in the Music files folder of the Gallery are automatically

detected and added to the default playlist. Music files stored elsewhere must be

defined in a track list before you can listen to them. You can listen to the sound

files through a compatible headset or the phone loudspeaker. You can make or

answer a call while using Music player. During a call, the playback is paused.

When the call ends, Music player restarts where it left off.

Warning: Listen to music at a moderate level. Continuous exposure to

high volume may damage your hearing.

Play music tracks

Select Menu > Media > Music player. If there are no music files in the Music files

folder, you can select another folder before opening the Music player. The details

of the first track on the default track list are shown.

To use the graphical keys, , , , or , on the display, scroll left or

right to the desired key, and select it.

Play track—To play a track, select .

Adjust volume—To adjust the volume level, use

the volume key or the left and right selection

keys.

Stop track—To stop the playing, select or

press and hold the end key.

Skip tracks—To skip to the beginning of the next

track, select . To skip to the beginning of the

previous track, select twice.

Rewind or fast forward—To rewind the current

track, select and hold . To fast forward the

current track, select and hold . Release the key at the position you want.

Media

FCC DRAFTFCC DRAFT

Music player options

Select Music files or another music folder, Options and one of the following:

Play via Bluetooth—Make a connection to an audio enhancement using

Bluetooth connectivity.

Track list—View all the tracks available on a track list. To play a track, scroll to the

track, and select Play. Select Options > Send to send the music file. Select

Options > Refresh all tracks to refresh the track list (for example, after adding

new tracks to the list). Select Options > Change track list to change the track list

that is shown when you open the Music player menu, if several track lists are

available in the phone.

Play options—Select Random to play the tracks on the track list in random order.

Select Repeat to play the current track or the entire track list repeatedly.

Media equalizer—The equalizer enhances the sound quality when using a headset

(only) with the Music player by amplifying or attenuating frequency bands. There

are five preset equalizer settings (Normal, Pop, Rock, Jazz, and Classical) and two

customizable settings.

Headset or Loudspeaker—With the headset attached you can toggle between

listening to the Music player through a headset or the loudspeaker. When using a

compatible headset, to skip to the next track, press the headset key quickly. To

stop the playing, press and hold the headset key.

Warning: When using the stereo headset your ability to hear outside

sounds may be affected. Do not use the stereo headset where it can

endanger your safety.

Send > Via multimedia or Via Bluetooth—Send music files to a compatible device.

Memory status—View used and free memory.

■Radio

Your phone has an FM radio that also functions as an alarm clock radio. You can

listen to the FM radio on your phone through the handsfree speaker

enhancement or with a headset. For FM stereo, connect a compatible music

stand or stereo headset to the connector on the bottom of the phone or connect

a 2.5 mm headset to the headset port on the side of the phone.

The FM radio depends on an antenna other than the wireless device antenna. A

compatible headset or enhancement needs to be attached to the device for the

FM radio to function properly. The quality of a radio broadcast depends on

coverage of the radio station in that particular area.

Media

FCC DRAFT

Warning: Listen to music at a moderate level. Continuous exposure to

high volume may damage your hearing.

Play radio

With an enhancement or headset connected, select Menu > Media > Radio. The

Radio turns on and plays the last radio frequency you used.

To use the graphical keys, , , , or , on the display, scroll left or

right to the desired key, and select it.

Channel search—To start a channel search, select

and hold or . To change the radio

frequency in 0.1 MHz steps, briefly press or

Switch off—Press and hold the end key to turn off

the radio.

Adjust volume—To adjust the volume level, use

the volume key.

Save channel—To save the channel to a memory

location 1 to 9, press and hold the corresponding

number key. To save a channel to a memory

location 10 to 20, briefly press 1 or 2, then press

and hold the desired number. Enter the name of the channel, and select OK.

Select channel—To select to a channel, select or . To go directly to a

saved channel, briefly press the corresponding number keys.

When an application using a browser connection is sending or receiving data, it

may interfere with the radio.

When you place or receive a call, the radio automatically mutes. When the call

ends, the radio switches back on.

Radio options

Select Menu > Media > Radio. The radio turns on. Select Options and one of the

following:

Turn off—Turns off the radio.

Save station—Enter a name for the channel, and select OK. Select one of 20

locations to save the channel location.

Media

FCC DRAFTFCC DRAFT

Stations—Select from a list of saved channels on your phone. Select Options >

Delete station to clear channels or Options > Rename to rename channels.

Mono output or Stereo output—Listen to the radio in monaural mode or in stereo

(default). Stereo output is available through a stereo enhancement.

Headset or Loudspeaker—With the headset attached, listen to the radio through

a headset or the loudspeaker.

Set frequency—Manually enter the frequency of a known radio station, and select

OK. Press * to set a frequency.

■Recorder

Recorder allows you to make a short (up to 3 minutes) recording and save it to

the Recordings folder or another folder in the Gallery. The recorder cannot be

used when a data call or GPRS connection is active.

Record speech or sound

1. Select Menu > Media > Recorder.

2. To start the recording, select the record button on the display.

3. Hold the phone in the normal position near your ear, and record your

message.

4. When you are finished recording, select the stop button on the display.

The recording is given a default name and saved to the Recordings list. The

default location of the Recordings list is the Recordings folder in the Gallery.

After you make a recording, select Play last recorded to replay the recording and

Send last recorded > Via Bluetooth or Via multimedia to send the recording to a

compatible phone. These options are only available during the current recording

session.

Recording list

1. Select Menu > Media > Recorder > Recordings list.

2. Navigate through the Recordings folder, and select a recording you want to

modify.

3. Select Open to open and play the recording or Options to use the Gallery

options.

Media

FCC DRAFT

■Equalizer

The equalizer enhances the sound quality when using Music player by amplifying

or attenuating frequency bands. There are five preset equalizer settings (Normal,

Pop, Rock, Jazz, and Classical) and two customizable settings.

Activate an equalizer set

Select Menu > Media > Equalizer, and scroll to the desired equalizer setting, and

select Activate. Select Options > View to display the equalizer settings.

Create a custom equalizer set

1. Select Menu > Media > Equalizer.

2. Scroll to a customizable setting, and select Options > Edit.

The selected set appears on the display with the bar on the far left

highlighted. The bars adjust frequencies, from the lowest (the far left bar) to

the highest (the far right bar). The higher the indicator on a particular bar, the

more that frequency is amplified.

3. To adjust the lowest frequency, scroll up and down to move the indicator on

the bar.

4. To adjust other frequencies, scroll right and left to move to the other bars.

5. Repeat steps 3 and 4 to adjust the setting for each frequency.

6. When you are finished, select Save.

7. To rename the setting, select Options > Rename, enter a new name, and

select OK.

8. To activate the setting, select Activate.

Settings

FCC DRAFTFCC DRAFT

9. Settings

Use the Settings menu to change profiles, display settings, themes, tone settings,

time and date settings, call settings, phone settings, voice commands,

connectivity, enhancements, security settings, application settings, network

settings, network services, restore factory settings, and view phone details.

■Profiles

Profiles define how your phone reacts when you receive a call or message, how

your keypad sounds when you press a key, and more. Ringing options, keypad

tones, and other settings for each of the available profiles can be left at their

default setting, or customized to suit your needs. The following profiles are

available: Normal, Silent, Meeting, Outdoor, and two customizable profiles.

Profiles are also available for enhancements such as a headset and car kit. See

"Enhancements," p. 79.

Activate a profile

Select Menu > Settings > Profiles > Normal, Silent, Meeting, Outdoor, or custom

profile > Activate.

Customize a profile

To modify a profile, do the following:

Select Menu > Settings > Profiles > Normal, Silent, Meeting, Outdoor, or custom

profile > Customize > and a profile option. You cannot rename the Normal

profile. To customize profile tones, see "Tones," p. 67.

Set a timed profile

Timed profiles can be used to prevent missed calls. For example, suppose you

attend an event that requires your phone be set to Silent before the event starts,

but you forget to return it to Normal until long after the event. A timed profile

can prevent missed calls by returning your phone to the default profile at a time

you specify.

To set a timed profile, do the following:

Settings

FCC DRAFT

1. Select Menu > Settings > Profiles > Normal, Silent, Meeting, Outdoor, or

custom profile > Timed.

2. Enter the time for the profile to expire, and select OK.

Timed profiles can be set up to 24 hours in advance.

■Main display settings

Standby mode settings

Active standby

You can change the options that are shown when the phone is in the standby

mode.

1. Select Menu > Settings > Main display > Standby mode settings > Active

standby > My active standby > Options.

2. Select one of the following options:

Personalize view—Select items that you want to appear on the display when

the phone is in the standby mode.

Scroll to an empty slot, and select Assign. Select an option that you want to

appear on the display in the standby mode. When you are finished selecting

options, select Done. Select Yes to save your changes.

Move content—Rearrange your personalized active standby items.

Scroll to a menu item, and select Move. Scroll up or down to select the new

location, and select OK.

Enabling standby—To select how you want to activate the active standby

mode, select Navigation key up, Navigat. key down, or Nav. key up/down.

3. To turn off the Active standby mode, select Menu > Settings > Main display >

Standby mode settings > Active standby > Off.

Wallpaper

You can set your device to display a background image (wallpaper).

1. Select Menu > Settings > Main display > Standby mode settings > Wallpaper

> Wallpapers.

2. Select one of the following:

Settings

FCC DRAFTFCC DRAFT

Image—Browse your selected folder containing the graphic or image of your

desired wallpaper, and select the graphic.

Slide set—Browse to a folder containing the images you want to designate as

the slide set for your wallpaper. All images in the selected folder rotate as

wallpaper slides.

Open Camera—Select Capture > Set to take a photo and set it as the

wallpaper.

3. To activate or deactivate wallpaper, select Menu > Settings > Main display >

Wallpaper > On or Off. If you deactivate the wallpaper and reactivate it, the

last graphic you selected as wallpaper is activated.

4. To select a set of images to rotate as wallpaper slides, select Slide set >

Images.

Font color

You can set font color of your phone when in the standby mode.

1. Select Menu > Settings > Main display > Standby mode settings > Standby

mode font color, and select a font color.

2. Scroll to select a color from the color grid.

Navigation key icons

You can set whether the navigation key icons are displayed while in the standby

mode. Select Menu > Settings > Main display > Standby mode settings >

Navigation key icons > On or Off.

Screen saver

Select Menu > Settings > Main display > Screen saver > On, Off, Screen savers, or

Time-out.

If you selected Screen savers, select Image, Slide set, Video clip, Open Camera,

Analog clock, or Digital clock. If prompted, select the folder where the file is

located, and select the file.

If you selected Time-out, enter the amount of time you want the screen saver to

time out, and select OK.

Settings

FCC DRAFT

Power saver

To turn the power saver on and off, select Menu > Settings > Main display >

Power saver > On or Off.

Banner

Banner is a network service. If your network operator supports this feature, you

can choose whether the display shows the operator logo when the phone is in the

standby mode. Select Menu > Settings > Main display > Banner > Default or

Customize.

Backlight time-out

You can choose how long to set the backlights on. Select Menu > Settings > Main

display > Backlight time-out > Default or Customize (to enter the time-out

ranging from 15 seconds to 5 minutes).

■Mini display settings

Wallpaper

You can set your device to display a background image (wallpaper).

1. Select Menu > Settings > Mini display > Wallpaper > Wallpapers.

2. Select one of the following:

Image—Browse to the folder containing the graphic or image of your

desired wallpaper, and select the graphic.

Slide set—Browse to the folder containing the images you want to designate

as the slide set for your wallpaper. All images in the selected folder rotate as

wallpaper slides.

Open Camera—Select Capture > Set to take a photo and set it as the

wallpaper.

3. To activate or deactivate wallpaper, select Menu > Settings > Mini display >

Wallpaper > On or Off. If you deactivate the wallpaper and reactivate it, the

last graphic you selected as wallpaper is activated.

Screen saver

Select Menu > Settings > Mini display > Screen saver > On, Off, Screen savers, or

Time-out.

Settings

FCC DRAFTFCC DRAFT

If you selected Screen savers, select Image, Slide set, Analog clock, Digital clock,

or Open Camera. If prompted, select the folder where the file is located, and

select the file.

Power saver

To turn the power saver on and off, select Menu > Settings > Mini display >

Power saver > On or Off.

■Themes

Themes allows you to personalize the ringtone, screen saver, and background on

your phone. Select Menu > Settings > Themes > Select theme > Themes, a

theme, and Apply.

■Tones

You can adjust the ringing volume, keypad tones, and more for the active

profile.Select Menu > Settings > Tones. Scroll up or down to the field you want

to change:

Incom. call alert:—Select how your phone alerts you when there is an incoming

call: Ringing, Ascending, Ring once, Beep once, or Off.

Ringing tone:—Select Change > Open Gallery > Tones to select the ringing tone

for incoming calls.

Ringing volume:—Scroll left and right to set the volume of your ringing tone.

Incom. call video:—Select Change > Open Gallery, the folder containing the video

clip, and Yes.

Vibrating alert:—Select On to activate the vibrating call alert.

Msg. alert tone:—Select the alert tone for incoming messages: Off, Standard,

Special, Beep once, Long & loud, or Ringing tone.

Keypad tones:—Scroll left and right to set the volume of your keypad tones (or

turn them off).

Other tones:—Turn notification tones on or off.

App. tones:—Turn application tones (such as game tones) on and off.

Alert for:—Set the phone to alert only when a member of a selected caller group

calls. See "Set up caller groups," p. 46.

Settings

FCC DRAFT

■Time and date

Select Menu > Settings > Time and date and from the following options:

Clock—Set the phone to show the clock in the standby mode, adjust the clock,

and select the time zone and the time format.

Date—Set the phone to show the date in the standby mode, set the date, and

select the date format and date separator.

Auto-update of date & time (network service)—Set the phone to automatically

update the time and date according to the current time zone.

■Call

Select the following options from the Menu > Settings > Call menu.

Location info sharing

You can set your phone to always have the GPS signal activated, or to only

activate the GPS signal when you make a call to the emergency serivces. Select

Location info sharing > Emergency or On.

GPS should not be used for precise location measurement, and you should never

rely solely on location data from the GPS receiver.

This feature is not designed to support positioning requests for related calls.

Contact your service provider for more information about how your phone

complies with government regulations on location-based emergency calling

services.

Anykey answer

When Anykey answer is on, briefly press any key except the right selection or end

key to answer a call. Select Anykey answer > On or Off.

Automatic redial

Occasionally, your network may experience heavy traffic, resulting in a fast busy

signal when you dial. With automatic redial activated, your phone redials the

number, and notifies you when the network is available. Select Automatic

redial > On or Off.

Settings

FCC DRAFTFCC DRAFT

1-touch dialing

To activate or deactivate 1-touch dialing, select 1-touch dialing > On or Off. See

"Set up 1-touch dialing," p. 48.

Answer when fold is opened

Set your phone to answer a call when you open the fold. If the setting is off, you

must press the call key after you open the fold. Select Answer when fold is

opened > On or Off.

Automatic update of service

If supported by your wireless service provider, this feature allows you to set your

phone to automatically receive updates from your network that may improve

service and coverage. Select Automatic update of service > On or Off.

Calling card

If you use a calling card for long distance calls, you can save the calling card

numbers in your phone. Your phone can store up to four calling cards.

Save information

1. Select Calling card.

2. Enter your security code or lock code, and select OK. See "Security," p. 79.

3. Scroll to one of the four memory locations, and select Options > Edit >

Dialing sequence.

4. Select one of the following sequence types:

Access no.+ phone no.+ card no.—Dial the access number, the phone number,

and the card number (and PIN, if required).

Access no.+ card no.+ phone no.—Dial the access number, the card number

(and PIN, if required), and phone number.

Prefix+ phone no.+ card no.—Dial the prefix (numbers that must precede the

phone number), the phone number you want to dial, and the card number

(and PIN, if required).

5. Enter the required information (access number or prefix and card number),

and select OK to confirm your entries.

6. Select Card name.

Settings

FCC DRAFT

7. Enter the card name, and select OK.

Contact your calling card company for more information.

Make calls

After you have saved your calling card information in your phone, you can make a

call using your calling card.

1. Select Calling card.

2. Enter your security code or lock code, and select OK.

3. Scroll to the calling card of your choice, and select OK.

4. Press the end key to return to the standby mode; then enter the phone

number, including any prefix (such as 0 or 1) that your calling card may

require when you make a calling card call. See your calling card for

instructions.

5. Press and hold the call key for a few seconds until Card call is displayed.

6. When you hear the tone or system message, select OK.

International prefix

If supported by your service provider, you can store an international prefix into

your phone. When you enter + at the beginning of a phone number, your phone

automatically inserts the international prefix that you have stored.

1. Select International prefix.

2. Enter the international prefix (for example, 0011), and select OK.

3. Enter + and the phone number you want to call (for example, +3546789).

The phone dials the international prefix you have stored in your phone and

the phone number you have entered. For example, the phone dials

0011354789.

Data and fax calls

Receive data or fax calls

Data/fax calls is a network service. See "Network services," p. 83.

If your wireless service provider supports this feature, you can set up the phone to

send or receive data or fax calls when connected to a device, such as a PDA or PC.

Settings

FCC DRAFTFCC DRAFT

For better performance during data calls, place the phone on a stationary surface.

Do not move the phone by holding it in your hand during a data call.

For more information on connectivity, refer to the PC/PDA Connectivity Guide.

The PC/PDA Connectivity Guide can be downloaded from the Nokia website at

www.nokiausa.com.

1. Select Data/fax calls > Incoming data/fax call and one of the following:

Normal—The phone receives incoming calls as usual.

Data calls only—The phone receives only data calls.

Fax calls only—The phone receives only fax calls.

2. If you selected Data calls only or Fax calls only, select Via cable or Via

Bluetooth.

3. When you are finished receiving the fax or data call, repeat steps 1 and 2 (if

necessary), and select Normal.

View data transfer

You can view the transmission speed when sending or receiving data or fax calls.

Select Data/fax calls > Data rate display > Graphic or Off.

Call summary

Your phone can display the time spent on a call when you hang up. Select Call

summary >On or Off.

Show all time on display

Your phone can display the call time during the phone call. Select Show call time

on display > On or Off.

Ringing tone for no caller ID

You can select a different ringing tone for calls received with no caller ID or with

a restricted number.

Select Ringing tone for no caller ID > On or Off. See "Customize a profile," p. 63

for more information on selecting a ringing tone.

■Phone

Select Menu > Settings > Phone to access the following options.

Settings

FCC DRAFT

Language settings

Phone language allows you set the language of the display text seen on the

phone. Select Language settings > Phone language and the language of your

choice.

Voice playback language allows you to set the language for voice playback. Select

Menu > Settings > Phone > Language settings > Voice playback language and

the language of your choice.

Navigation key

If supported by your wireless service provider, you can set the features that are

activated when you press the scroll key.

1. Select Navigation key.

2. Scroll to the arrow you want to change, and select Change.

3. Select a function to assign to the action.

Memory status

You can view the memory usage of your phone. Some or all of the following

options are available on your phone. Select Memory status and a memory option.

Free memory shows the amount of phone memory available for file storage.

Security keyguard

If supported by your wireless service provider, Automatic keyguard controls

whether the security keyguard is on or off. Select Menu, and press *. The keyguard

is locked. To unlock the keyguard, select Unlock, and press *.

Touch tones

Touch tones are the tones that sound when you press the keys on your phone

keypad. You can use Touch tones for many automated dial-up services such as

banking and airlines or for entering your voice mailbox number and password.

Touch tones are sent during an active call. You can send them manually from your

phone keypad, or send them automatically by saving them in your phone.

Set type

Select Manual touch tones and one of the following:

Continuous—The tone sounds for as long as you press and hold a key.

Settings

FCC DRAFTFCC DRAFT

Fixed—Set tones to the duration you specify in the Touch tone length option.

Off—Turn off tones. No tones are heard when you press a key.

Set length

You can also specify touch tone length when using the Fixed option. Select Touch

tone length > Short (0.1 seconds) or Long (0.5 seconds).

Start-up tone

If the Start-up tone is activated, the tone sounds when you switch on your phone.

Select Start-up tone and an option.

Help text activation

Your phone displays brief descriptions for most menu items. When you arrive at a

feature or menu, pause for about 15 seconds, and wait for the help text to

display. Scroll through the full help text, if necessary. Select Help text

activation and an option.

■Voice commands

You can set up Voice commands, for handsfree operation of certain phone

features. Select Menu > Settings > Voice commands to access the following

options.

Add or remove voice tags

Before using Voice commands, you must first add a voice tag to the phone

function. Select Options > Add all or Remove all to add or remove all voice tags.

The voice tag icon appears next to the function options for which you added

a voice tag.

Play or edit voice tags

Select a menu option, and select a voice tag, Select Playback to listen to the voice

tag, or Options to select an edit or remove voice tag option.

Use voice commands

After you activate voice commands, you can issue a command by speaking the

voice tag.

Settings

FCC DRAFT

1. Select and hold Names.

2. When Speak now appears, pronounce the voice tag clearly into the

microphone.

When the phone finds the voice command tag, Found: appears, and the phone

plays the recognized voice tag through the earpiece. The function you requested

is activated.

■Connectivity

You can connect the phone to a compatible PC using a USB data cable. You can

also use the phone as a modem to enable connectivity from the PC.

For more information, see the Nokia PC Suite online help. Nokia PC Suite and all

related software can be downloaded from the U.S. Mobile Phone products

section of www.nokiausa.com/pcsuite.

Important: Only install and use applications and other software from

sources that offer adequate security and protection against harmful

software.

Bluetooth connectivity

Bluetooth wireless technology enables cost-free wireless connections between

electronic devices and can be used to send and receive images, text, gallery files,

voice recordings, video clips, notes, business cards, and calendar notes. It can also

be used to connect wirelessly to other products that use Bluetooth wireless

technology, such as computers. You can synchronize your phone and your PC

using Bluetooth connectivity.

Since devices with Bluetooth connectivity communicate using radio waves, your

phone and the other device do not need to be in direct line-of-sight.

The two devices only need to be within 10 meters (30 feet) of each other. The

connection can be subject to interference from obstructions such as walls or

other electronic devices.

Features using Bluetooth technology, or allowing such features to run in the

background wihle using other features, increase the demand on battery power

and reduce the battery life.

Whether used actively or in the background, the Bluetooth wireless technology

application consumes the battery and reduces the operating time of the phone.

Settings

FCC DRAFTFCC DRAFT

This device is compliant with Bluetooth Specification 1.2 and supports the

following profiles:

• Object push profile (OPP)

• File transfer profile (FTP)

• Dial-up networking profile (DUN)

• Generic object exchange profile (GOEP)

• Headset profile (HSP)

• Handsfree profile (HFP)

• Generic access profile (GAP)

• Serial port profile (SPP)

To ensure interoperability between other devices supporting Bluetooth

technology, use Nokia approved enhancements for this model. Check with the

manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations.

Check with your local authorities or service provider. If you want more

information on this function, visit the Bluetooth Technology organization

website: https://www.bluetooth.org/.

Pairing

You can set up a permanent association (pairing) between your phone and

another device with Bluetooth technology. Some devices may require pairing

before data transfer can take place.

To pair with a device, you and the owner of the other device must agree on a

passcode of 1–16 numeric characters. The first time you try to connect the

devices, you must each enter the same passcode. After the devices are paired, you

do not need to use the passcode again, so there is no need to remember it.

Paired devices are placed in your paired device list. You can view the list even

when Bluetooth connectivity is not active or when the devices in the list are not

available for connection.

Select Menu > Settings > Connectivity > Bluetooth > Paired devices > Options

and one of the following:

Assign short name—Give a nickname to the selected device (visible to you only).

Allow this device to connect automatically?—Select No if you want the phone

to connect to the selected device automatically or Yes if you want the phone to

ask for your permission first.

Settings

FCC DRAFT

Delete pairing—Delete the pairing to the selected device.

Pair new device—Search for active devices with Bluetooth technology within

range, scroll to the desired device, and select Pair to establish pairing with that

device. Do not accept Bluetooth connectivity from sources you do not trust.

Bluetooth connectivity settings

You can define how your phone is shown to other devices with Bluetooth

connectivity.

Select Menu > Settings > Connectivity > Bluetooth and one of the following:

My phone's visibility—Select Perm. visibil. or Temp. visibil. to show the phone to

all other devices with Bluetooth connectivity, or select Hidden to show the phone

only to the paired devices. Operating the phone in Hidden mode is a safer way to

avoid malicious software.

My phone's name—Change your phone name that is seen by other users.

Set up a connection

1. Select Menu > Settings > Connectivity > Bluetooth > Bluetooth > On. The

active Bluetooth technology connection is indicated by at the top of the

display.

2. Select Search for audio enhancements to search for compatible devices with

Bluetooth connectivity. The list of found devices appears on the display.

3. Select the desired device. If required, enter the Bluetooth connectivity

passcode to pair with your device.

4. If required, enter the Bluetooth connectivity passcode of the device to pair

with the device.

Your phone connects to the device. You can start data transfer.

To view the device you are connected to, select Menu > Settings >

Connectivity > Bluetooth > Active devices.

To view all inactive and active devices to which your phone is connected, select

Menu > Settings > Connectivity > Bluetooth > Paired devices.

To deactivate Bluetooth connectivity, select Menu > Settings > Connectivity >

Bluetooth > Bluetooth > Off. Deactivation of the Bluetooth technology

connection does not affect other functions of the phone.

Settings

FCC DRAFTFCC DRAFT

Send data

Instead of using the Connectivity menu, you can use other phone menus to send

various types of data to other devices with Bluetooth connectivity. For example,

you can send a video clip from the Video clips folder of the Gallery menu. See the

appropriate sections of the user guide for information about sending different

types of data.

Receive a data transfer

When a Bluetooth technology connection is active in your phone, you can receive

notes, business cards, video clips, and other types of data transfers from another

device with Bluetooth connectivity. When you receive a data transfer, an alarm

sounds, and a message appears in the standby mode.

To view the transferred item immediately from the standby mode, select Show. To

view the item at a later time, select Exit.

Depending on the nature of the item, it is saved in the appropriate menu in your

phone. For example, a business card is saved in Contacts, and a calendar note is

saved in Calendar.

USB data cable transfer

You can transfer data between your phone and a compatible PC or PictBridge

printer using a DKU-2 USB data cable. Check the documentation that came with

your printer to see if it supports PictBridge. Disconnect the USB data cable from

the phone to make a call.

Enable default mode connection

Connect to your PC in Nokia mode to transfer phone data and files between your

phone and PC using Nokia PC Suite.

1. Connect your PC and your phone with a DKU-2 USB data cable. A notification

appears on the display that asks which mode you want to select.

2. Select Accept > Nokia mode. A notification appears on the display stating a

connection is active.

You can now use PC Suite to connect to your phone.

Enable printing connection

Connect to your PictBridge printer using the Printing mode to print photos stored

on your phone.

Settings

FCC DRAFT

1. Connect your PictBridge compatible printer and your phone with a DKU-2

USB data cable. A notification appears on the display that asks which mode

you want to select.

2. Select Accept > Printing. A notification appears on the display stating a

connection is active.

You can now print photos stored on your phone.

Enable data storage connection

Connect to your PC in the Data storage mode to transfer music, photo, and video

files to the phone, and from the phone to your PC with Windows Explorer.

1. Connect your PC and your phone with a DKU-2 USB data cable. A notification

appears on the display that asks which mode you want to select.

2. Select Accept > Data storage. The notification Data storage mode is displayed

while the phone is in the data transfer mode.

3. Open Windows Explorer. Your phone appears as a local drive (named Nokia

6175i by default), and with a drive letter assigned to it.

4. Click on the folders to display a window that shows the contents of the folder

on the phone.

5. Open a second instance of Windows Explorer and display the contents of the

folder on your PC where you have audio, photo files, or video files stored.

6. Select the files on your PC that you wish to transfer to the phone.

7. Drag and drop the files from the second window into the first window and

place in a folder.

8. The files are transferred to the phone and can be played by the Music player

or accessed by the Media player.

If you selected a file or files that require more memory than can fit on the

available phone memory, you receive an error note. Deselect some of your

selected files until the required memory is less than or equal to the available

memory on your phone.

Disable data storage connection

1. To disable the USB data cable, double-click the green arrow on the taskbar at

the bottom of your PC screen.

An Unplug or Eject Hardware message is displayed.

Settings

FCC DRAFTFCC DRAFT

2. Click USB Device in the Hardware devices window.

The Stop a Hardware device message is displayed.

3. Highlight USB device, and click OK.

The pop-up window Safe to Remove Hardware is displayed with the message

"The ‘USB Device’ device can now be safely removed from the system.

4. Click OK.

Data and fax transfer

You can make data and fax transfers during a phone call. See "Data and fax calls,"

p. 70.

■Enhancements

Select Menu > Settings > Enhance-ments. You can select an enhancement menu

if the phone is or has been connected to a compatible enhancement type.

Depending on enhancement, select from the following options:

Default profile—Choose the profile you wish to be automatically activated when

a headset, car kit, or loopset is connected.

Automatic answer—Answer calls automatically after one ring when a headset,

car kit, loopset, or charger is connected. Select On or Off.

Lights (for Handsfree or Charger only)—Choose to keep the phone lights always

on, or to shut off automatically after several seconds. Select On or Automatic.

If the Loopset is connected and recognized through the Pop-Port™ connector, the

phone automatically uses the Loopset.

TTY/TDD (network service)—Connect to a TTY/TDD device. Check with the

manufacturer of the TTY/TDD device for a connecting cable that is compatible

with your phone. Check with your service provider for availability and description

of services.

■Security

To access Security for the first time, you must enter the preset lock code.

Depending on your wireless service provider, the preset lock code may be a four

digit number such as 1234, 0000, or the last four digits of your phone number.

If you enter the wrong lock code five times in succession, your phone will not

accept your current lock code for 5 minutes.This occurs even if when you power

Settings

FCC DRAFT

down the phone between incorrect attempts. You may also be asked to enter the

security code (defaulted to 12345).

Depending on your wireless service provider, your phone may ask for the security

code instead of the lock code. See "Security settings," p. 12. If none of these

options work, contact your wireless service provider for help.

Select Menu > Settings > Security, and enter the lock code (or security code)

and select OK to access the following options.

Phone lock

The phone lock feature protects your phone from unauthorized outgoing calls or

unauthorized access to information stored in the phone. When the phone lock is

activated, Phone locked is displayed each time you turn your phone on.

When the device is locked, you can still call the official emergency number

programmed into your phone.

Select Phone lock and one of the following:

Off—Immediately turns off the phone lock feature.

Lock now—Immediately turns on the phone lock feature.

On power-up—Turns on the phone lock feature the next time you turn the phone

on.

If you select Lock now, you must enter your lock code before the phone can

function normally.

Call not allowed appears if you attempt to place a call while your phone is locked.

To answer a call with the phone lock on, select Answer, or press the call key.

Allowed numbers

With the phone lock on, the only outgoing calls you can make are to the

emergency number programmed into your phone and the numbers stored in the

Allowed no. when phone locked location.

1. Select Allowed no. when phone locked > Assign.

2. Enter the phone number, or select Search to retrieve the number from the

contacts list, and select OK.

To place a call to an allowed number when the phone is locked, enter the allowed

number, and press the call key.

Settings

FCC DRAFTFCC DRAFT

Change lock code

When changing the lock code, avoid using codes similar to emergency numbers

to prevent accidental dialing of an emergency number. Make sure to remember

your lock code. If necessary, write it down and store it in a safe place away from

your phone.

1. Select Change lock code.

2. Enter the new lock code (only 4 characters), and select OK.

3. Enter the new lock code again for verification, and select OK.

Call restrictions

Call restrictions allows you to block or allow numbers for incoming or outgoing

calls.

1. Select Call restrictions and the type of calls you wish to restrict:

Restrict outgoing calls—Set restrictions on making calls.

Restrict incoming calls—Set restrictions on receiving calls.

2. Select whether to block or allow numbers:

Blocked numbers—Set numbers that are blocked on incoming calls, allowing

all other numbers. When a number is blocked, the call is sent to voice mail.

Allowed numbers—Set numbers that are allowed, blocking all other numbers.

3. To modify the restriction list, select from the following options:

Select—Add numbers to the restriction list.

Add restriction—Add a restriction to a number (unavailable if memory is full).

Edit—Edit a restriction on a number.

Delete—Delete a number from restriction list.

When calls are restricted, calls may be possible to the official emergency number

programmed into your device.

Voice privacy

Voice privacy is a network service, and its function depends on a variety of

services. Contact your service provider for more information.

Settings

FCC DRAFT

If your wireless service provider supports this feature, the voice privacy feature

protects the privacy of your current phone conversation from other callers

placing phone calls on your same network. Select Voice privacy > On or Off.

■Network

The menu options you see in your phone are based on your service provider’s

network. Check with your service provider for more information.

The Network menu customizes the way your phone chooses a network in which

to operate while you are within or outside of your primary or home system. Your

phone is set to search for the most cost-effective network. If your phone cannot

find a preferred network, it selects a network automatically based on the option

you choose in the Network menu.

Roaming options

If supported by your wireless service provider, you can select which roaming

option you wish to use. Select Menu > Settings > Network > Roaming options

and one of the following.

Home only—You can make and receive calls in your home area only.

Automatic A—The phone automatically roams to another digital network. The

roaming rate applies when not in the home service area.

Automatic B—The phone automatically searches for service in another digital

network. If one is not found, the phone uses analog service. The roaming rate

applies when not in the home service area.

Mode

If supported by your wireless service provider, you can choose whether your

phone uses digital or analog service. Select Menu > Settings > Network > Mode

and one of the following.

Digital preferred—You prefer to make calls on a digital network, but will find

another network, if necessary.

Digital only—You can make and receive calls on a digital network only.

Analog per call—You can select an analog network on a call-to-call basis.

IS-95 per call—You can select an IS-95 network on a call-to-call basis.

Settings

FCC DRAFTFCC DRAFT

■Network services

The following features are network services. See also "Network services," p. 83.

Select Menu > Settings > Network services to access the following options.

Store a feature code

Network feature setting allows you to activate network services in your phone

using feature codes received from your service provider. When you enter a

network feature code successfully, the feature becomes visible in the Network

services menu.

1. Select Network feature setting.

2. Enter the feature code from your service provider (for example, *900 for

activating Forward if busy), and select OK.

3. Select Call forwarding.

4. Scroll to the type of forwarding that matches the feature code you entered,

and select Activate.

The activated feature code is now stored in your phone, and you are returned to

the Feature code: prompt. Continue entering other feature codes (for example,

*900 to cancel Forward if busy), or press the end key to return to the standby

mode.

Call forwarding

Call forwarding tells your network to redirect incoming calls to another number.

Call forwarding is a network service and may not work the same in all networks,

so contact your wireless provider for availability and information.

To activate, do the following:

1. Select Call forwarding and one of the following:

Forward all calls—Forward all calls to the number you specify.

Forward if busy—Forward incoming calls when you are in a call.

Forward if not answered—Forward incoming calls to another number if you

are unable to answer. You can set a delay before forwarding takes place.

Forward if out of reach—Forward incoming calls when your phone is off.

2. Select Activate.

3. Enter the number to which your calls, data, or other information are

forwarded, and select OK.

Settings

FCC DRAFT

To cancel, select Call forwarding > Cancel all call forwarding.

Cancel all call forwarding may affect your ability to receive voice mail messages.

Contact your wireless provider for details.

Call waiting

If your wireless provider supports this feature, call waiting notifies you of an

incoming call even while you are in a call. You can accept, reject, or ignore the

incoming call.

To activate, select Call waiting > Activate.

During a call, select Answer or press the call key to answer the waiting call. The

first call is put on hold. Press the end key to end the active call.

To cancel, select Call waiting > Cancel.

Send my caller ID

If your wireless service provider supports this feature, you can prevent your

number from appearing on the receiving party’s caller ID. Select Send my caller

ID > Yes or No.

My number selection

To view your phone number, select My number selection. This is a network

service.

■Restore factory settings

You can reset some of the menu settings to their original values. Data that you

have entered or downloaded is not deleted (for example, entries in your contacts

list are not affected).

1. Select Menu > Settings > Restore settings.

2. Enter the lock code, and select OK.

Depending on your wireless service provider, your device may request the security

code (defaulted to 12345) instead of the lock code.

■Phone details

You can view the current details of your phone. Select Menu > Settings > Phone

details and one of the following options:

User details—Shows the phone’s current number details.

Settings

FCC DRAFTFCC DRAFT

Version details—Shows the phone model, hardware, software, and browser

version information for the phone.

System details—Shows the digital network the phone is on.

Icon details—Shows the icons used.

Organizer

FCC DRAFT

10. Organizer

Your phone contains features to help organize your everyday life, including an

alarm clock, calendar, calculator, countdown timer, and stopwatch.

■Alarm clock

Select Select Menu > Organizer > Alarm clock to access the following options.

Set an alarm

The alarm clock is based on the phone clock. It sounds an alert any time you

specify and even works if the phone is turned off.

1. Select Alarm time.

2. Enter the time for the alarm in hh:mm format, and select OK.

3. Select am or pm if 12-hour clock format is on.

Alarm on appears briefly on the display, and appears.

To reset the alarm, select Alarm time > On.

To turn off the alarm, select Alarm time > Off.

Repeat alarm

You can set the alarm to repeat every day or only on certain days of the week.

1. Select Repeat alarm > On.

2. Check the day or days of the week you wish to repeat the alarm, and select

Mark. Select Unmark to remove a day.

3. Select Done when you have added all desired days.

To revise the days for a repeated alarm, select Repeat alarm > Repetition days.

To stop a repeated alarm, select Repeat alarm > Off.

Set the alarm tone

You can set which tone is played when the alarm sounds.

Select Alarm tone and one of the following:

Standard—Select the default alarm.

Organizer

FCC DRAFTFCC DRAFT

Radio—Select the radio as the alarm.

Open Gallery—Select a tone from the Gallery as the alarm.

If the alarm time is reached while the phone is switched off, the phone switches

itself on and starts sounding the alarm tone. If you select Stop, the device asks

whether you want to activate the phone for calls. Select No to switch off the

device or Yes to make and receive calls. Do not select Yes when wireless phone

use may cause interference or danger.

Set the snooze time-out

You can set the Snooze time-out for the alarm. Select Snooze time-out and a

snooze time.

When the alarm sounds, your phone beeps, vibrates (if the vibrate alert is on in

the active profile), and lights up.

With the phone on, select Stop to shut the alarm off or Snooze. If you select

Snooze, the alarm stops for the amount of time you specified.

If you do not press a key, the alarm stops (snoozes) for the Snooze time-out, then

sounds again.

■Calendar

Select Menu > Organizer > Calendar.

The current day is indicated by a frame. If there are any notes set for the day, the

day is in bold type. To view the day notes, select View. To view a week, select

Options > Week view. To delete all notes in the calendar, select the month or

week view, and select Options > Delete all notes.

Other options of the day view may be Make a note, Delete, Edit, Move, Go to date

or Go to today; Copy a note to another day; and Send note as text message or

multimedia message with IR or Bluetooth technology to the calendar of another

compatible phone.

To set the date and time settings, select Settings. To set the phone to delete old

notes automatically after a specified time, select Settings > Auto-delete notes.

Make a calendar note

Select Menu > Organizer > Calendar. Scroll to the date you want, and select

Options > Make a note > Meeting, Call, Birthday, Memo, or Reminder.

Organizer

FCC DRAFT

A note alarm

The phone beeps and displays the note. With a call note on the display, to call the

displayed number, press the call key. To stop the alarm and view the note, select

View. To stop the alarm for approximately 10 minutes, select Snooze. To stop the

alarm without viewing the note, select Exit.

■Notes

You can write text notes with Notes. You can also send notes in a text message or

using Bluetooth connectivity.

Select Menu > Organizer > Notes to select from the following options. You see

your current list of notes.

If there are no notes, select Add note to create your first note. If there are existing

notes, scroll to a note, and select View.

Make a note

To create the first note, select Add note. Create your note, and select Save.

To create additional notes, select Options > Make a note. Create your note, and

select Save.

Create note options

When you create a note, select Options and one of the following options:

Insert time & date—Add the time and date to your note.

Close—Return to the notes list.

Insert smiley—Insert a smiley into your message.

Insert word or Edit word—Enter or edit the text of a new word that might not

appear in the predictive text dictionary. This option only appears when predictive

text is on.

Insert symbol—Insert a special character into your message. This option only

appears when predictive text is on.

Writing language—Choose the language you want to use.

Prediction on or Prediction off—Turn predictive text on or off.

Matches—View matches found in the predictive text dictionary for the word you

want to use. This option only appears when predictive text is on.

Organizer

FCC DRAFTFCC DRAFT

Send a note

Scroll to the note you wish to send, and select Options > Send note and an option

to send the note in a text message, in a multimedia message, or directly to

another device.

Notes options

These note options appear only when you have created one or more notes. Select

Options and one of the following:

Make a note—Create a new note.

Delete—Delete the note you selected.

Edit—Edit the note you selected.

Use detail—Use a detail contained in the note.

Send note—Send a note in a text message, in a multimedia message, or directly to

another device.

Delete all notes—Delete all notes.

■To-do list

Use the To-do list feature to keep track of your tasks. You can save a task or

errand as a to-do list note, select a priority level for the to-do list note, and mark

it as done when you have completed it. You can sort the to-do list notes by

priority or by date.

Select Menu > Organizer > To-do list to access the following options.

Make a to-do list note

To make the first to-do list note, select Add note. Enter the subject, and select

Next. Select Change > High, Medium, or Low to change the priority. Continue

changing the remaining fields on the screen, and select Save.

To make additional to-do list notes, select Options > Add. Enter the subject, and

select Next. Select Change > High, Medium, or Low to change the priority.

Continue changing the remaining fields on the screen, and select Save.

To-do list note options

When you create a to-do list note, select Options to access the following options:

Insert smiley—Insert a smiley into your message.

Organizer

FCC DRAFT

Insert word or Edit word—Enter or edit the text of a new word that might not

appear in the predictive text dictionary. This option only appears when predictive

text is on.

Insert symbol—Insert a special character into your message. This option only

appears when predictive text is on.

Writing language—Choose the language you want to use.

Prediction on or Prediction off—Turn predictive text on or off.

Matches—View matches found in the predictive text dictionary for the word you

want to use. This option only appears when predictive text is on.

Edit to-do list notes

Select View > Edit. Edit the subject and any additional fields, and select Save.

View or send to-do list notes

Select View > Options and select from the following options:

Mark note as done or Mark as not done—Indicate whether the to-do list note is

completed.

Delete—Delete the to-do list note.

Use detail—Use a detail contained in the note.

Edit priority—Change the priority to High, Medium, or Low.

Send > Send as message, Via calendar or Via Bluetooth—Send the to-do list note

in calendar format (vCal), in a text message, in a multimedia message, or directly

to another device.

Go to calendar—Leave the to-do list, and go to the calendar.

Save to calendar—Save the to-do list note to your calendar.

To-do list options

These to-do list options appear only when you have created one or more notes.

Select Options and one of the following:

Add—Create a new to-do list note.

Delete—Delete the to-do list note you selected.

Mark note as done or Mark as not done—Indicate whether the to-do list note is

completed.

Organizer

FCC DRAFTFCC DRAFT

Use detail—Use a detail contained in the note.

Sort by deadline or Sort by priority—Sort the to-do list by date or priority.

Send—Send the to-do list note in calendar format (vCal), in a text message, in a

multimedia message, or directly to another device.

Go to calendar—Leave the to-do list, and go to the calendar.

Save to calendar—Save the to-do list note you selected to your calendar.

Delete done notes—Delete the completed to-do list note you selected.

Delete all notes—Delete all to-do list notes.

■Calculator

The calculator in your phone adds, subtracts, multiplies, divides, calculates the

square and the square root, changes the sign of the number entered, and

converts currency values. Select Menu > Organizer > Calculator.

Note: This calculator has a limited accuracy and is designed for simple

calculations.

Use calculator

1. Enter the first number in the calculation.

Press # for a decimal point if necessary.

Scroll up or down to change the sign of your number or value.

Press * to cycle through the add (+), subtract (-), multiply (*), and divide (/)

characters. Pause briefly to select the displayed character.

2. Enter the second number in your calculation.

3. Select Equals.

To perform a square or square root calculation, select Options > Square or Square

root.

Currency converter

You can convert foreign currency to domestic, or vice versa, directly from the

standby mode or from the Calculator menu.

Note: When you change base currency, you must enter the new rates

because all previously set exchange rates are cleared.

1. Select Options > Exchange rate and one of the following options:

Organizer

FCC DRAFT

Foreign units in home units—The number of home units it takes to make one

unit of foreign currency.

Home units in foreign units—The number of foreign units it takes to make one

unit of your home currency.

2. Enter the exchange rate (press # to insert a decimal), and select OK.

3. Select Back to return to the Calculator screen, and enter the currency amount

to convert.

4. Select Options > To home or To foreign.

To home—Converts foreign currency to domestic currency.

To foreign—Converts domestic currency to foreign currency.

5. If you have not already entered an exchange rate, the device prompts you to

enter it. Select OK. You can edit the exchange rate at any time.

■Timer

The countdown timer in your device enables you to enter a specific time (up to 99

hours, 59 minutes, and 59 seconds). When the time runs out, your device sounds

an alarm.

The countdown timer only works when the phone is on. After you turn off your

phone, the timer is no longer active Select Menu > Organizer > Timer to select

from the following options.

Set the normal timer

1. Select Normal timer.

2. Enter the time (in hh:mm:ss format), and select OK.

3. Enter a note for the timer, and select Start.

and the timer (in hh:mm:ss format) appear when the countdown timer is

running.

When the time runs out, your phone sounds an alarm, vibrates, and flashes its

lights. If you are in the standby mode, select Restart or Exit. If you are not in the

standby mode, press any key during the alarm to stop the timer.

After 60 seconds the timer alert expires automatically. Select Exit or press the

end key to clear the timer note.

Organizer

FCC DRAFTFCC DRAFT

Change a normal timer

After you have set a timer, you can change the time.

1. Select Change time.

2. Enter the new time, and select OK.

3. Leave the note as it is, or enter a new note, and select Start.

Create a new interval timer

1. Do one of the following:

If you there are no existing interval timers, select Interval timer > Add new

timer.

If there is an existing interval timer, select Interval timer. Select an existing

timer, and Add new timer.

2. Enter a name for the timer, and select Save.

3. Enter a name for the first period of the interval timer, and select Save.

4. Enter a time limit for the first period, and select OK.

5. The first period is displayed on the screen. Select the period, and Add period,

and repeat steps 3 and 4 to add any additional interval periods. The maximum

number of interval periods you can create is 10.

Set an existing interval timer

This option only appears if you have not previously created an interval timer.

1. Select Interval timer and an existing timer.

2. Select one of the following options:

Start timer—Start the interval timer.

View timer—View all periods in the interval timer. Select a period and Options

to add a period, edit the existing period, delete the period, or start the timer.

Edit timer—Edit the timer name or the name and time for the interval periods.

Add new timer—Add a new interval timer. See "Create a new interval timer,"

p. 93.

Delete timer—Delete the selected timer.

Organizer

FCC DRAFT

Set interval period transitions

You can set the interval timer to automatically start the next interval period

when the current interval period is completed.

Select Settings > Continue to the next period > Confirm first to manually start the

next interval period, or Automatic to automatically start the next interval period.

Stop the timer before the alarm sounds

After you have set the timer, you can stop the timer. Select Menu > Organizer >

Timer > Stop timer.

■Stopwatch

Your phone has a stopwatch that can be used to track time. The stopwatch

displays time in hours, minutes, seconds, and fractions of a second in hh:mm:ss.ss

format.

Using the stopwatch or allowing it to run in the background when using other

features increases the demand on battery power and reduces the battery life.

Measure split or lap time

Use the split time or lap time functions for activities where you need to pace

yourself.

1. Select Menu > Organizer > Stopwatch > Split timing or Lap timing > Start.

Split timing—Use the split time function when you need to pace yourself (for

example, a long-distance race). Select Split to note the lapsed time. The timer

continues to run and the split time appears below the running time. Each

time you select Split, the new measured time appears at the beginning of the

list. The maximum number of splits is 20.

Lap timing—Use the lap time function when you want to track how long it

takes to complete each cycle or lap. Select Lap to note the lap time. The clock

stops, then immediately restarts from zero. The lap time appears below the

running time. Each time you select Lap, the new measured time appears at

the beginning of the list. The maximum number of laps is 20.

2. Select Stop to end timing and display total time.

Organizer

FCC DRAFTFCC DRAFT

Save a time

To save a time while the clock is running, select Stop > Save, enter a name for the

measurement, and select OK. If you do not enter a name, the total time is used as

the default title for the lap or split time.

Stopwatch options

Select Menu > Organizer > Stopwatch and one of the following:

Continue—Continues to measure time. This option only appears if the clock is

running and you are returning to the stopwatch screen.

Show last time—View the last measured time.

Split timing—Use the split time function.

Lap timing—Use the lap time function.

View times—Browse saved times.

Delete times > One by one or Delete all—Delete saved times.

Operation note

If you press the end key and return to the standby mode, the clock continues to

run in the background, and appears at the top of the screen.

To return to the Stopwatch screen, do the following:

1. Select Menu > Organizer > Stopwatch > Continue.

2. To stop the clock, select Stop.

Mobile web

FCC DRAFT

11. Mobile web

Mobile web is a network service. See "Network services," p. 83.

Your phone has a built-in browser you can use to connect to selected services on

the mobile Internet. If your wireless service provider supports this feature, you

can view weather reports, check news or flight times, view financial information,

and much more. The Web browser on your phone can display WAP-based

content.

Your device may have some bookmarks loaded for sites not affiliated with Nokia.

Nokia does not warrant or endorse these sites. If you choose to access them, you

should take the same precautions, for security or content, as you would with any

Internet site.

If the security indicator ( ) is displayed during a connection, the data

transmission between the device and the Internet gateway or server is encrypted.

The service provider secures the data transmission between the gateway and the

content server.

Important: Use only services that you trust and that offer adequate

security and protection against harmful software.

■Mobile Internet access

Because mobile Internet content is designed to be viewed from your phone, your

wireless provider is now your mobile Internet service provider as well.

Your wireless provider has created a home page and set up your browser to go to

this page when you log on to the mobile Internet. Your service provider’s home

page may contain links to a number of other sites.

It should not be necessary to manually configure the browser on your phone.

Normally this is done by your wireless provider when you subscribe to the

feature. Contact your wireless provider if you have problems using the browser.

■Sign on to the mobile Internet

Select Menu > Mobile web.

After a brief pause, your phone attempts to connect to your wireless provider’s

home page. If you receive an error message, your phone may not be set up for

browsing. Contact your wireless provider to ensure that your phone is configured

properly.

Mobile web

FCC DRAFTFCC DRAFT

■Navigate the mobile Internet

Since your phone screen is much smaller than a computer screen, mobile Internet

content is displayed differently than you may be accustomed to seeing. This

section contains guidelines for using phone keys to navigate a WAP site.

Phone keys

• To browse the WAP site, scroll up or down.

• Select a highlighted item.

• To enter text, press # to switch text input modes, and press 0-9.

• To enter special characters, press *.

Receive a call while online

Depending on your wireless service provider, you may still be able to receive a

voice call while using the WAP browser.

• To answer the incoming call, press the call key.

• To reject the incoming call, press the end key.

After you end your voice call, the mobile Internet connection automatically

resumes.

If your wireless service provider does not support incoming calls while browsing,

incoming calls are automatically forwarded to voice mail.

Make an emergency call while online

You can end your data connection and make an emergency call.

1. To close your mobile Internet connection, press the end key.

2. Press the end key as many times as needed to clear the display and ready the

phone for calls.

3. Enter the emergency number for your present location. Emergency numbers

may vary by location.

4. Press the call key.

Mobile web

FCC DRAFT

Clear the cache and disconnect

A cache is a memory location that is used to store data temporarily. If you have

tried to access or have accessed confidential information requiring passwords,

empty the cache after each use. The information or services you have accessed

are stored in the cache. To empty the cache while in the browser menu, select

Navigate > Advanced > Clear. Scroll to Cache , and select > Clear. The cache also

clears when you press and hold the end key to power off your device.

To close your mobile Internet connection while browsing, press the end key.

Extras

FCC DRAFTFCC DRAFT

12. Extras

■Collection

Select Menu > Extras > Collection, and an application. Scroll to an application

and select Open, or press the call key.

An application may require a few seconds to load. When you open an application,

wait for the launch screen to disappear. At that point, the application is ready.

Leaving applications running in the background increases the demand on battery

power and reduces the battery life.

Important: Only install applications from sources that offer adequate

protection against harmful software.

In an application, select Options to view available options. The options available

vary per application.

Push to talk

100

FCC DRAFT

13. Push to talk

Push to talk (PTT) is a two-way radio service available on your network service.

PTT provides direct voice communication. All users of PTT must first subscribe to

the service. Contact your service provider to subscribe.

You can use PTT to talk with one person or among a group of people. These

individuals or groups must first be set up in your PTT contacts list. When your call

is connected, the person or group you are calling receives a beeping sound. There

is no ringing. You can set your phone to listen either with the earpiece or the

loudspeaker.

You can use other functions of the phone while using PTT. However, certain

features are not available for PTT, such as voice mail.

Warning: Do not hold the device near your ear when the loudspeaker is

in use, because the volume may be extremely loud.

■Connect to PTT

Press the PTT key on the phone. See "Side view," p. 10. The phone connects to the

PTT service. If the connection is successful, the icon appears; and you see the

PTT contacts list.

If the connection is not successful, the icon appears. If you cannot connect to

the PTT service, contact your service provider.

■Set up PTT

Set up PTT contacts

To call a person using PTT, you must first add the person to your PTT contact list.

1. Connect to your PTT service.

2. Select Add new , and enter the mobile number of a PTT subscriber.

3. Select OK, and enter the name of the contact.

4. Select OK. The contact is added to the contact list.

5. Similarly, add additional contacts.

Push to talk

101

FCC DRAFTFCC DRAFT

Set up PTT groups

You can add individual subscribers to groups. When you call a group, all members

who are connected hear your calling tone. Each member can answer the call and

take turns transmitting to the group.

From the PTT contacts screen, select Options > New PTT group, enter the name of

the group, and select OK.

PTT settings

You can enable, disable, and customize your PTT settings. Select Menu > Settings

> Push to talk settings and one of the following options:

Push to talk service > Enable or Disable—Enable or disable the PTT service.

Default audio > Loudspeaker or Handset—Turn the loudspeaker on or off.

Confirm push to talk calls > Yes or No—Answer PTT calls manually or

automatically.

■Make a PTT call

To make a call to an individual or a group:

1. From the standby mode, press the PTT key to open the PTT contacts list.

Your PTT contacts list shows the availability of each contact.

or —The contact, or at least one member of the group, is available.

or —The contact or group is not available.

or —The contact or group is busy; try again later.

or —The contact or group has requested a status of do not disturb;

try later.

or —The contact or group is unknown to the service. Check that the

contact or members of the group are subscribed to the service.

2. Select the person or group to call, and press the PTT key again.

3. When the screen displays Conversation open, press the PTT key, and wait for a

double tone. Speak into the phone, and release the PTT key to listen.

4. When the call is complete, select End call. Your phone returns to the standby

mode.

PC connectivity

102

FCC DRAFT

14. PC connectivity

■PC data transfer

You can transfer data, such as music, photos, and videos, from your device to a

compatible PC or from a compatible PC to your device using a Bluetooth or USB

connection. See "Connectivity," p. 74.

There may be restrictions on using Bluetooth technology in some locations.

Check with your local authorities or service provider.

■Nokia PC Suite

Nokia PC Suite software is available for this phone. Nokia PC Suite is a collection

of powerful tools that you can use to manage your phone features and data. Each

component is a separate program that includes online help. Remember to make

back-up copies of all important data.

Nokia PC Suite software, installation instructions, and other documentation is

provided free of charge and can be downloaded from the software downloads

section of the Nokia web site: www.nokiausa.com/pcsuite.

Only install and use applications and other software from sources that offer

adequate protection against harmful software.

To disconnect the cable from the device, hold the connector, and remove the

cable.

Some of the features in your phone require network support. Contact your service

provider for availability and configuration instructions.

Enhancements

103

FCC DRAFTFCC DRAFT

15. Enhancements

Check the model number of any charger before use with

this device. This device is intended for use when supplied

with power from the AC-3 or AC-4 charger.

Warning: Use only batteries, chargers and enhancements approved by

Nokia for use with this particular model. The use of any other types may

invalidate any approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer.

A few practical rules about accessories and enhancements:

• Keep all accessories and enhancements out of the reach of small children.

• When you disconnect the power cord of any accessory or enhancement, grasp

and pull the plug, not the cord.

• Check regularly that enhancements installed in a vehicle are mounted and

are operating properly.

• Installation of any complex car enhancements must be made by qualified

personnel only.

Power

• Standard 970mAh Li-Ion Battery (BL-5C)

• Compact Charger (AC-3)

• Travel Charger (AC-4)

• Mobile Charger (DC-4)

• Charger Adapter (CA-44)

Use the CA-44 charger adapter to connect the phone with Nokia chargers

with a larger barrel size, including ACP-7, ACP-8, ACP-9, ACP-12, AC-1

(retractable charger), and LCH-12 (mobile charger).

USB data cable

•USB Connectivity Cable (DKU-2)

•USB Cable with miniUSB Jack (DKE-2)

Handsfree

• CDMA Headrest Handsfree 2.5 mm (BHF-4)

Enhancements

104

FCC DRAFT

• Wireless Plug-in Handsfree (HF-6W)

• Wireless Plug-in Car Handsfree (HF-9W)

Headsets

• CDMA 2.5 mm Stereo Headset (HS-9)

• Wireless Headsets (HS-11W, HS-13W, HS-21, HS-24W, HS-25W, HS-26W,

HS-36W, HS-37W)

Miscellaneous

• Inductive Loopset (LPS-4)

•TTY Adapter (HDA-10)

• Advanced Car Kit (CK-1W)

• Universal Car Installation Kit (CK-7W)

• Mobile Holder (CR-39)

•Audio Adapter (AD-15)

• Music Stand (MD-1)

Battery information

105

FCC DRAFTFCC DRAFT

16. Battery information

■Charging and discharging

Your device is powered by a rechargeable battery. The full performance of a new

battery is achieved only after two or three complete charge and discharge cycles.

The battery can be charged and discharged hundreds of times, but it eventually

wears out. When the talk and standby times are noticeably shorter than normal,

replace the battery. Use only Nokia approved batteries, and recharge your battery

only with Nokia approved chargers designated for this device.

If a replacement battery is being used for the first time or if the battery has not

been used for a prolonged period, it may be necessary to connect the charger

then disconnect and reconnect it to start the charging.

Unplug the charger from the electrical plug and the device when not in use. Do

not leave fully charged battery connected to a charger, since overcharging may

shorten its lifetime. If left unused, a fully charged battery loses its charge over

time.

If the battery is completely discharged, it may take a few minutes before the

charging indicator appears on the display or before any calls can be made.

Use the battery only for its intended purpose. Never use any charger or battery

that is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a

metallic object such as a coin, clip, or pen causes direct connection of the

positive (+) and negative (-) terminals of the battery. (These look like metal strips

on the battery.) This might happen, for example, when you carry a spare battery

in your pocket or purse. Short-circuiting the terminals may damage the battery

or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or

winter conditions, reduces the capacity and lifetime of the battery. Always try to

keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or

cold battery may not work temporarily, even when the battery is fully charged.

Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also

explode if damaged. Dispose of batteries according to local regulations. Please

recycle when possible. Do not dispose as household waste.

Battery information

106

FCC DRAFT

■Nokia battery authentication guidelines

Always use original Nokia batteries for your safety. To check that you are getting

an original Nokia battery, purchase it from an authorized Nokia dealer, look for

the Nokia Original Enhancements logo on the packaging, and inspect the

hologram label using the following steps:

Successful completion of the three steps is not a total assurance of the

authenticity of the battery. If you have any reason to believe that your battery is

not an authentic original Nokia battery, you should refrain from using it and take

it to the nearest authorized Nokia service point or dealer for assistance. Your

authorized Nokia service point or dealer will inspect the battery for authenticity.

If authenticity cannot be verified, return the battery to the place of purchase.

Authenticate hologram

When looking at the hologram on the label, you should see

the Nokia connecting hands symbol from one angle and

the Nokia Original Enhancements logo when looking from

another angle.

When you angle the hologram left, right, down, and up,

you should see 1, 2, 3, and 4 dots on each side respectively.

Scratch the side of the label to reveal a 20-digit code, for

example, 12345678919876543210. Turn the battery so

that the numbers are facing upwards. The 20-digit code

reads starting from the number at the top row followed by

the bottom row. Confirm that the 20-digit code is valid by

following the instructions at www.nokia.com/

batterycheck.

What if your battery is not authentic?

If you cannot confirm that your Nokia battery with the hologram on the label is

an authentic Nokia battery, please do not use the battery. Take it to the nearest

authorized Nokia service point or dealer for assistance. The use of a battery that

Battery information

107

FCC DRAFTFCC DRAFT

is not approved by the manufacturer may be dangerous and may result in poor

performance and damage to your device and its enhancements. It may also

invalidate any approval or warranty applying to the device.

To find out more about original Nokia batteries, visit www.nokia.com/battery.

Care and maintenance

108

FCC DRAFT

Care and maintenance

Your device is a product of superior design and craftsmanship and should be

treated with care. The suggestions below will help you protect your warranty

coverage.

• Keep the device dry. Precipitation, humidity, and all types of liquids or

moisture can contain minerals that will corrode electronic circuits. If your

device does get wet, remove the battery, and allow the device to dry

completely before replacing it.

• Do not use or store the device in dusty, dirty areas. Its moving parts and

electronic components can be damaged.

• Do not store the device in hot areas. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the device in cold areas. When the device returns to its normal

temperature, moisture can form inside the device and damage electronic

circuit boards.

• Do not attempt to open the device other than as instructed in this guide.

• Do not drop, knock, or shake the device. Rough handling can break internal

circuit boards and fine mechanics.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean

the device.

• Do not paint the device. Paint can clog the moving parts and prevent proper

operation.

• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity

sensor, and light sensor lenses.

• Use only the supplied or an approved replacement antenna. Unauthorized

antennas, modifications, or attachments could damage the device and may

violate regulations governing radio devices.

• Use chargers indoors.

• Always create a backup of data you want to keep, such as contacts and

calendar notes, before sending your device to a service facility.

All of the above suggestions apply equally to your device, battery, charger, or any

enhancement. If any device is not working properly, take it to the nearest

authorized service facility for service.

Additional safety information

109

FCC DRAFTFCC DRAFT

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the

reach of small children.

■Operating environment

Remember to follow any special regulations in force in any area and always

switch off your device when its use is prohibited or when it may cause

interference or danger. Use the device only in its normal operating positions. This

device meets RF exposure guidelines when used either in the normal use position

against the ear or when positioned at least 2.2 centimeters (7/8 inches) away

from the body. When a carry case, belt clip, or holder is used for body-worn

operation, it should not contain metal and should position the device the above

stated distance from your body. To transmit data files or messages, this device

requires a quality connection to the network. In some cases, transmission of data

files or messages may be delayed until such a connection is available. Ensure the

above separation distance instructions are followed until the transmission is

completed.

Parts of the device are magnetic. Metallic materials may be attracted to the

device, and persons with a hearing aid should not hold the device to the ear with

the hearing aid. Do not place credit cards or other magnetic storage media near

the device, because information stored on them may be erased.

■Medical devices

Operation of any radio transmitting equipment, including wireless phones, may

interfere with the functionality of inadequately protected medical devices.

Consult a physician or the manufacturer of the medical device to determine if

they are adequately shielded from external RF energy or if you have any

questions. Switch off your device in health care facilities when any regulations

posted in these areas instruct you to do so. Hospitals or health care facilities may

be using equipment that could be sensitive to external RF energy.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of

15.3 centimeters (6 inches) be maintained between a wireless phone and a

pacemaker to avoid potential interference with the pacemaker. These

recommendations are consistent with the independent research by and

Additional safety information

110

FCC DRAFT

recommendations of Wireless Technology Research. Persons with pacemakers

should do the following:

• Always keep the device more than 15.3 centimeters (6 inches) from the

pacemaker

• Not carry the device in a breast pocket

• Hold the device to the ear opposite the pacemaker to minimize the potential

for interference.

If you suspect interference, switch off your device and move the device away.

Hearing aids

Some digital wireless devices may interfere with some hearing aids. If

interference occurs, consult your service provider.

■Vehicles

RF signals may affect improperly installed or inadequately shielded electronic

systems in motor vehicles such as electronic fuel injection systems, electronic

antiskid (antilock) braking systems, electronic speed control systems, and air bag

systems. For more information, check with the manufacturer or its representative

of your vehicle or any equipment that has been added.

Only qualified personnel should service the device, or install the device in a

vehicle. Faulty installation or service may be dangerous and may invalidate any

warranty that may apply to the device. Check regularly that all wireless device

equipment in your vehicle is mounted and operating properly. Do not store or

carry flammable liquids, gases, or explosive materials in the same compartment

as the device, its parts, or enhancements. For vehicles equipped with an air bag,

remember that air bags inflate with great force. Do not place objects, including

installed or portable wireless equipment in the area over the air bag or in the air

bag deployment area. If in-vehicle wireless equipment is improperly installed and

the air bag inflates, serious injury could result.

Using your device while flying in aircraft is prohibited. Switch off your device

before boarding an aircraft. The use of wireless teledevices in an aircraft may be

dangerous to the operation of the aircraft, disrupt the wireless telephone

network, and may be illegal.

■Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere

and obey all signs and instructions. Potentially explosive atmospheres include

areas where you would normally be advised to turn off your vehicle engine.

Additional safety information

111

FCC DRAFTFCC DRAFT

Sparks in such areas could cause an explosion or fire resulting in bodily injury or

even death. Switch off the device at refueling points such as near gas pumps at

service stations. Observe restrictions on the use of radio equipment in fuel

depots, storage, and distribution areas; chemical plants; or where blasting

operations are in progress. Areas with a potentially explosive atmosphere are

often but not always clearly marked. They include below deck on boats, chemical

transfer or storage facilities, vehicles using liquefied petroleum gas (such as

propane or butane), and areas where the air contains chemicals or particles such

as grain, dust, or metal powders.

■Emergency calls

Important: Wireless phones, including this phone, operate using radio

signals, wireless networks, landline networks, and user-programmed

functions. Because of this, connections in all conditions cannot be

guaranteed. You should never rely solely on any wireless phone for

essential communications like medical emergencies.

To make an emergency call:

1. If the phone is not on, switch it on. Check for adequate signal strength.

2. Press the end key as many times as needed to clear the display and ready the

phone for calls.

3. Enter the official emergency number for your present location. Emergency

numbers vary by location.

4. Press the call key.

If certain features are in use, you may first need to turn those features off before

you can make an emergency call. Consult this guide or your service provider.

When making an emergency call, give all the necessary information as accurately

as possible. Your wireless phone may be the only means of communication at the

scene of an accident. Do not end the call until given permission to do so.

■Certification information (SAR)

THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to

exceed the limits for exposure to radio waves recommended by international

guidelines. These guidelines were developed by the independent scientific

organization (ICNIRP) and include safety margins designed to assure the

protection of all persons, regardless of age and health.

The exposure guideline for mobile devices employ a unit of measurement known

as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP

Additional safety information

112

FCC DRAFT

guidelines is 2.0 watts/kilogram (W/kg) transmitting at its highest certified

power level in all tested frequency bands. The actual SAR level of an operating

device can be well below the maximum value because the device is designed to

use only the power required to reach the network. That amount changes

depending on a number of factors such as how close you are to a base station.

The highest SAR value under ICNIRP guidelines for use of this device at the ear is

0.84 W/kg.

Use of device accessories and enhancements may result in different SAR values.

Additional SAR information may be provided under product information at

www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to

radio waves established by the Federal Communications Commission (USA) and

Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over

one gram of tissue. The highest SAR value reported under this standard during

product certification for use at the ear is 1.3 W/kg and when properly worn on

the body is 1.08 W/kg. Information about this device model can be found at

http://www.fcc.gov/oet/fccid by searching the equipment authorization system

using FCC ID: QMNRM-120.

■Hearing aid compatibility (HAC)

Warning: For hearing aid compatibility, you must turn off the Bluetooth

radio.

Your mobile device model complies with FCC rules governing hearing aid

compatibility. These rules require an M3 microphone or higher value. The

M-value of this device (M3), refers to lower radio frequency (RF) emissions. A

higher M-value generally indicates that a device model has a lower RF emissions

level, which may improve the likelihood that the device will operate with certain

hearing aids. Some hearing aids are more immune than others are to

interference. Please consult your hearing health professional to determine the M

rating of your hearing aid and whether your hearing aid will work with this

device. More information on accessibility can be found at

www.nokiaaccessibility.com.

For best results, fully extend the antenna for hearing aid compatibility.

Additional safety information

113

FCC DRAFTFCC DRAFT

■Technical information

■Battery information

This section provides information about battery charging times with the Nokia

Compact Charger (AC-3), the Nokia Travel Charger (AC-4), talk-times, and

standby times. Be aware that the information in this section is subject to change.

For more information, contact your service provider.

See "Charging and discharging," p. 105 and "Battery," p. 14.

Charging times

The following charging times are approximate with the BL-5C 970 mAh Li-Ion

battery:

Travel Charger (AC-4): up to 1 hour 45 minutes

Compact Charger (AC-3): up to 3 hours

Feature Specification

Dimensions Width, 46.5 mm; length, 94 mm; depth, 22.3 mm

Weight 101 g with BL-5C Li-Ion Battery

Wireless networks CDMA 800 and 1900 MHz, AMPS, GPS, and Bluetooth

wireless technology

Volume 74 cc

Frequency range (Tx) AMPS: 824.04–848.97 MHz

PCS: 1851.25–1908.75 MHz

Cellular: 824.70–848.37 MHz

Bluetooth: 2402-2480 MHz

Frequency range (Rx) AMPS: 869.04–893.97 MHz

PCS: 1931.25–1988.75 MHz

Cellular: 869.70–893.37 MHz

Bluetooth: 2402-2480 MHz

GPS 1575.42 MHz

Additional safety information

114

FCC DRAFT

Talk and standby times

Operation times are estimates only and depend on signal strength, phone use,

network conditions, features used, battery age and condition (including charging

habits), temperatures to which the battery is exposed, and many other factors.

Talk time: 3.5 hours (digital)

Standby time: 8 to 14 days

Index

115

FCC DRAFTFCC DRAFT

Index

Numerics

1-touch dialing 49, 72

1-touch, assign 49

accessibility 8

active profile 65

alarm clock

repeat 90

settings 90

tone 90

allowed number 84

AMPS 5

analog service 86

answer calls 18, 72

antenna 15

anykey answer 71

applications, collection 105

automatic

keyguard 75

redial 71

update of service 72

update of time and date 71

voice mail 38

back cover

remove 16

replace 16

backlight time-out 68

battery

authentication guidelines 112

charge 17

charging times 119

information 119

overview 15

remove, replace 16

supported 109

talk and standby times 119

Bluetooth connectivity

overview 77

receive data 80

set up 79

settings 79

business cards 20

calendar

make notes 92

options 91

overview 91

receive, send notes 93

settings 93

call

forward 87

log 40

settings 71

summary 74

time of 41

timers 41

waiting 88

caller

groups 47

ID, send my 88

no ID ring tone 74

calling cards 72, 73

calls

answer 18, 72

conference 18

dismiss 19

display timer 74

duration 41

end 19

make 18

missed 40

received 40

restrictions 85

silence 19

camera

options 57

overview 54

photo sequence 56

photos 54

self-timer 55

videos 56

CDMA 5

CDMA SIM card slot 16

certification information 117

charger

connect 17

settings 82

supported 109

times 119

Index

116

FCC DRAFT

clock settings 70

collection applications 105

conference calls 18

confirmation tones 69

contacts

add 44

delete 50

edit 46

settings 47

countdown timer 98

currency converter 97

custom profile 65

data

call duration 42

calls 74

transfer 108

date

change 70

settings 70

dialed numbers 40

dialing codes 44

digital service 86

display

icons and indicators 11

main menu 12

phone number 50

settings, main 66

settings, mini 68

distribution lists 36

DTMF tones, see touch tones

earpiece, volume 19

electronic serial number 7

emergency calls 103, 117

end calls 19

enhancements

approved 109

settings 82

equalizer 64

ESN, see electronic serial number

extras 105

fax calls 42, 74

FCC information 118

file transfer 81

FM radio, see radio

folders 52

gallery

folders 52

options 53

global positioning system 5

go to functions 14

GPS, see global positioning system

handsfree settings 83

headset

connect 17

settings 83

supported 109

hearing aid settings 82

help

get 7

in-phone 13

text activation 13, 76

icons 11

indicators 10, 11

international prefix 73

Internet, see wireless Internet

keyguard, lock and unlock 20, 75

keypad tones 69, 76

keys and parts 9

language 75

lap time 100

location information sharing 71

lock code

change 85

preset 84

settings 13

logs

clearing 41

dialed numbers 40

Index

117

FCC DRAFTFCC DRAFT

missed calls 40

received calls 40

time of call 41

loopset settings 83

main display settings 66

main menu

grid view 12

list view 12

maintenance services 8

make calls 18

media player 59

MEID, see mobile equipment

identity

memory

checking status 75

shared 6

messages

minibrowser 39

multimedia 29

text 24

voice mail 37, 38

mini display settings 68

minibrowser

call duration 42

messages 39

missed calls 40

mobile equipment identity 7

mobile web 102

multimedia messages 29

create 31, 33

delete 35

folders 30

overview 29

reply 32

send 31

settings 35

music player 60

mute phone 19

my phone number, display 50

navigation key 75

network

approved for 5

services 5, 87

settings 86

no caller IDs 74

Nokia Care Contact Center 7

Nokia PC Suite 108

notes

make 94

options 95

overview 94

send 95

organizer 90

PC connectivity 108

phone

allowed numbers 84

care and maintenance 114

details 89

display number 50

keys and parts 9

language 75

lock 84

open to answer 72

set up 15

volume 19, 69

photos 54

play

music tracks 60

radio 62

power switch 17

predictive text 22

profiles 65

PTT, see push to talk

push to talk 106

quick keys 11

radio

options 62

play 62

two-way

received calls 40

record sound 63

Index

118

FCC DRAFT

reject calls 19

repeat alarm 90

restore factory settings 88

ring

tone for no caller ID 74

tones 69

volume 69

roaming options 86

safety information

battery 119

certification 117

explosive environments 116

hearing aids 116

operating environment 115

overview 4

pacemakers 115

vehicles 116

SAR, see specific absorption rate

scroll keys 12

scrolling 12

security

code 13

keyguard 75

settings 13, 84

selection keys 10

self-timer, camera 55

send my caller ID 88

sequence of photos 56

set

alarm 90

date 70

time 70

settings

Bluetooth 79

calendar 93

call 71

charger 82

clock 70

contacts 47

enhancements 82

factory 88

handsfree 83

headset 83

hearing aid 82

main display 66

mini display 68

multimedia messages 35

network 86

overview 65

security 13, 84

standby mode 66

text messages 29

time and date 70

TTY/TDD 83

shared memory 6

shortcut keys 11

SIM card slot 16

snooze time-out 91

sound, record 63

specific absorption rate 118

speech, record 63

speed dials, see 1-touch dialing

split time 100

standby mode

overview 10

settings 66

standby time 119

start-up tone 76

stereo headset 17

stopwatch 100

switch phone on or off 17

talk time 119

text entry

changing language 21

predictive 22

standard 21

text messages

create 25

delete 28

folders 24

overview 24

reply 26

send 25

settings 29

templates 25

themes 69

time

change 70

lap 100

of calls 41

set 70

settings 70

talk and standby 119

Index

119

FCC DRAFTFCC DRAFT

timed profiles 65

to-do list

edit 96

make 95

options 96

tones

keypad 69, 76

overview 69

start-up 76

touch 76

touch tones 76

transfer files 81

TTY/TDD settings 83

turn phone on or off 17

two-way radio 106

UIM card slot 16

update service 72

vibrating alert 69

videos 56

voice

commands 76

privacy 86

recorder 63

voice mail

access 49

play 38

voice messages

automate 38

listen 38

mailbox number 37

overview 37

setting up mailbox 38

voice tags, use 49

volume 19, 69

wallpaper 66, 67, 68

warning tones 69

wireless Internet

access 102

clear cache 104

disconnect 104

make emergency call while

online 103

receive call while online 103

sign on 102

Index

120

FCC DRAFT

Microsoft RM-120 CDMA 800/1900 Cellular Phone w/Bluetooth User Manual

Microsoft Mobile Oy CDMA 800/1900 Cellular Phone w/Bluetooth

Manual

Navigation menu

Namespaces

Views

Navigation
