Microsoft RM-121 CDMA Cellular Phone User Manual 2355 FCC Draft
Microsoft Mobile Oy CDMA Cellular Phone 2355 FCC Draft
Manual rev
1
FCC DRAFT

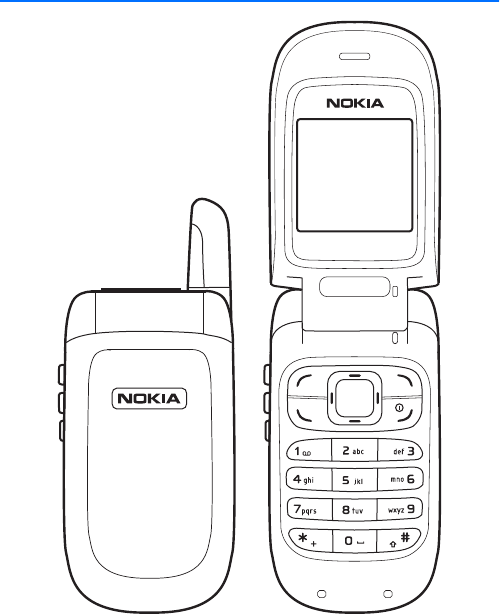

Nokia 2355 User Guide
2
FCC DRAFT
Part No. XXXXXXXXX, Issue No. 1
Copyright ©2005 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia 2355, and the Nokia Original Enhancements logos are
trademarks or registered trademarks of Nokia Corporation. Other company and product
names mentioned herein may be trademarks or trade names of their respective owners.
US Patent No 5818437 and other pending patents. T9 text input software Copyright
©1999-2004. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from
RSA Security.
Java is a trademark of Sun Microsystems, Inc.
The information contained in this user guide was written for the Nokia 2355 product. Nokia
operates a policy of ongoing development. Nokia reserves the right to make changes to any
of the products described in this document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT
AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This device may contain commodities, technology, or software subject to export laws and
regulations from the U.S. and other countries. Diversion contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your telephone if such interference cannot be eliminated. If you require assistance, contact
your local service facility. This device complies with part 15 of the FCC rules. Operation is
subject to the condition that this device does not cause harmful interference.
Contents
3
FCC DRAFT
Contents
1. Phone at a glance......................................................................... 9
2. Set up your phone...................................................................... 14
3. Text entry.................................................................................... 21
4. Messages ..................................................................................... 24
5. Call log ........................................................................................ 39
6. Contacts ...................................................................................... 42
7. Gallery ......................................................................................... 50
8. Media .......................................................................................... 51
9. Settings ....................................................................................... 54
10.Organizer.................................................................................... 71
11.Mobile web ............................................................................... 81
12.Enhancements............................................................................ 84
13.Reference information ............................................................... 85
For your safety
4
FCC DRAFT
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
Switch on safely
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
Road safety comes first
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
Interference
All wireless phones may be susceptible to interference, which could
affect performance.
Switch off in hospitals
Follow any restrictions. Switch the phone off near medical
equipment.
Switch off in aircraft
Follow any restrictions. Wireless devices can cause interference in
aircraft.
Switch off when refueling
Do not use the phone at a refueling point. Do not use near fuel or
chemicals.
Switch off near blasting
Follow any restrictions. Do not use the phone where blasting is in
progress.

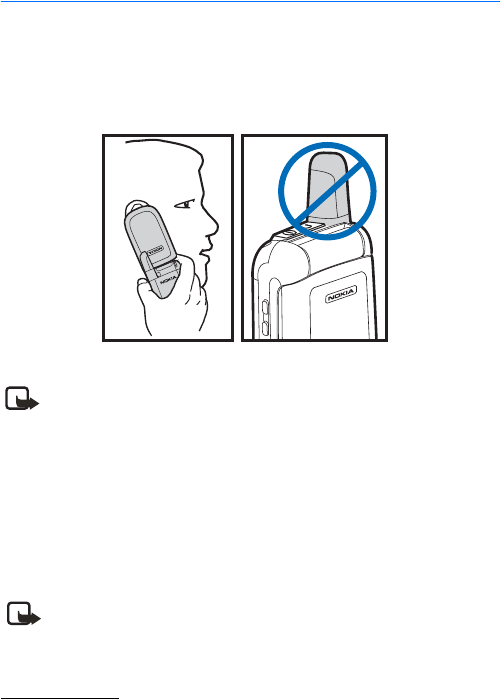

Use sensibly
Use only in the normal position as explained in the product
documentation. Do not touch the antenna unnecessarily.
Qualified service
Only qualified personnel may install or repair this product.
For your safety
5
FCC DRAFT
Enhancements and batteries
Use only approved enhancements and batteries. Do not connect
incompatible products.
Water-resistance
Your phone is not water-resistant. Keep it dry.
Backup copies
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
Connecting to other devices
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
Emergency calls
Ensure the phone is switched on and in service. Press the end key as
many times as needed to clear the display and return to the start
screen. Enter the emergency number, then press the call key. Give
your location. Do not end the call until given permission to do so.
■About your device
The wireless devices described in this guide are approved for use on the CDMA
800 networks. Contact your service provider for more information about
networks.
When using the features in this device, obey all laws and respect privacy and the
legitimate rights of others.
Warning: To use any features in this device, other than the alarm clock,
the device must be switched on. Do not switch the device on when
wireless phone use may cause interference or danger.
■Network Services
To use the device you must have service from a wireless service provider. Many of
the features in this device depend on features in the wireless network to
function. These network services may not be available on all networks or you may
have to make specific arrangements with your service provider before you can
utilize them. Your service provider may need to give you additional instructions
for their use and explain what charges will apply. Some networks may have
For your safety
6
FCC DRAFT
limitations that affect how you can use network services. For instance, some
networks may not support all language-dependent characters and services.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, they will not appear on your device menu. Contact
your service provider for more information.
■Shared memory
The following device features may share memory: contacts; text messages;
images, and tones in gallery; calendar notes; games; and applications. Use of one
or more of these features may reduce the memory available for the remaining
features sharing memory. If your phone displays a message that the memory is
full when you try to use a shared memory feature, delete some of the information
or entries stored in the shared memory features before continuing. Some of the
features, such as photos, images, and tones in gallery; text messages; and
applications may have a certain amount of memory specially allotted to them in
addition to the memory shared with other features.
Welcome
7
FCC DRAFT
Welcome
Congratulations on your purchase of the Nokia 2355 mobile phone. Your phone
provides many functions which are practical for daily use, such as a hands-free
loudspeaker, alarm clock, calculator, calendar, and more.
■Register your phone
Make sure to register your phone at www.warranty.nokiausa.com or call
1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if
you should call a customer center or to have your phone repaired.
■Getting help

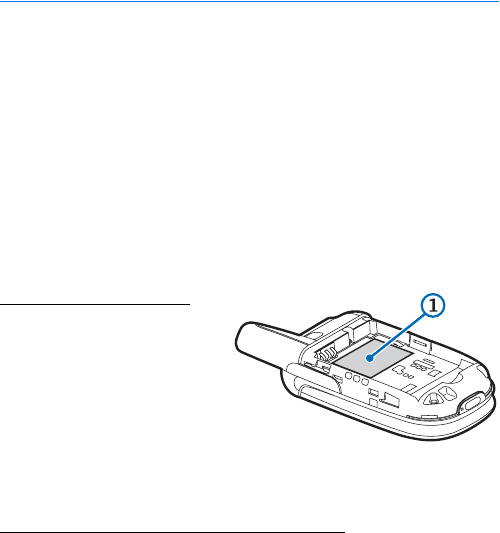

Find your phone label
If you need help, Nokia Customer
Care is available for assistance.
Before calling, we recommend that
you write down the following
information and have it available:
• Electronic serial number (ESN)
The ESN is found on the type label,
which is located beneath the battery on the back of the phone.
Nokia support and contact information
Check www.nokia.com/support or your local Nokia Web site for the latest version
of this guide, additional information, downloads and services related to your
Nokia product.
On the Web site, you can get information on the use of Nokia products and
services. If you need to contact customer service, check the list of local Nokia
Care contact centers at www.nokia.com/customerservice.
Welcome
8
FCC DRAFT
Updates
Check www.nokia.com/support or your local Nokia Web site for the latest
version of this guide, additional information, downloads, and services related to
your Nokia product.
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals,
including those with disabilities. For more information visit the Web site at
www.nokiaaccessibility.com.
Phone at a glance
9
FCC DRAFT
1. Phone at a glance
■Open the fold
To use the device, you must open the fold. Do not try to open the fold more than
the hinge allows.
To close the fold, push from the top part of the device, not from the hinge.

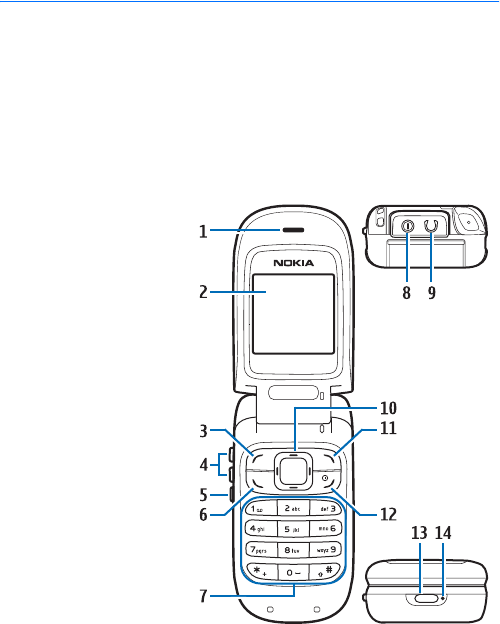

■Device keys, indicators, and connectors
• Earpiece and
speakerphone (1)
• Display screen (2)
• Left selection key (3)
• Volume keys (4)
• Flashlight key (5)
• Call key (6)
• Keypad (7)

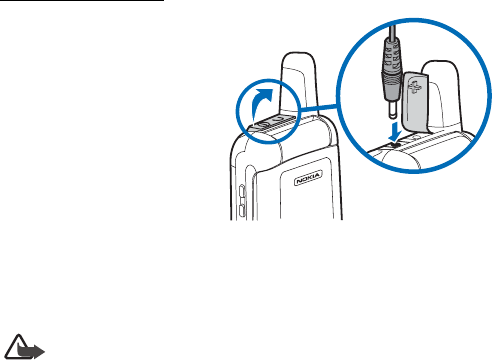

• Charger connector
(8)— under the rubber
cover

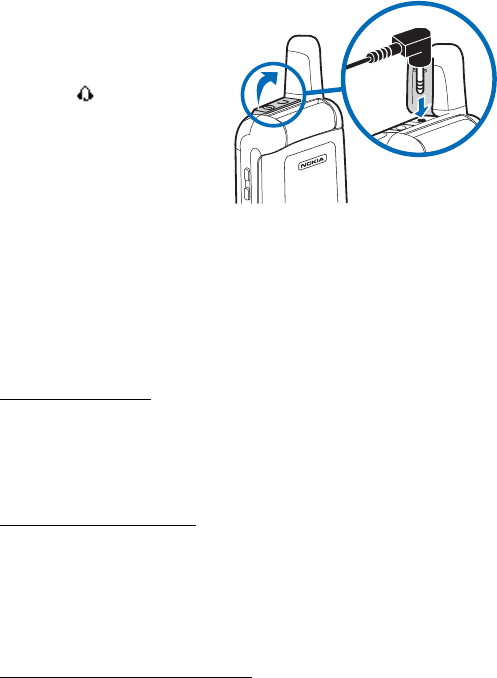

• Headset connection
(9)—under the rubber
cover
• 4-way scroll key (10)
• Right selection key
(11)
• End and power key
(12)
• Flashlight lens (13)
• Microphone (14)
Phone at a glance
10
FCC DRAFT
■Standby mode
The standby mode is home base and indicates your phone is in idle mode.
Signal strength (1)—A higher bar indicates a stronger network signal.
Battery level (2)—A higher bar indicates more power in the battery.
Menu (3)—Press the left selection key to select this option.
ContactsGo to (4)—Press the right selection key to select this option.
■Quick keys
In the standby, the four-way scroll key instantly takes you to frequently-accessed
menus:
•Scroll up key—View contacts.
•Scroll right key—View the calendar.
•Scroll down key—View contacts.
•Scroll left key—Write a text message.
■Indicators and icons
Depending on your wireless service provider, your phone may support some of the
following indicators and icons:
You have new text or picture messages. See "Read and reply," p. 26.
You have attached a picture to a text message. See "Write and send," p. 24.
You have new voice messages. See "Voice messages," p. 35.
Your phone’s keypad is locked. See "Lock the keypad (keyguard)," p. 20.
Your phone is set to the Silent profile. See "Profiles," p. 54.
The alarm clock is On. See "Alarm clock," p. 71.
The countdown timer is running. See "Countdown timer," p. 77.
The stopwatch timer is running in the background. See "Stopwatch," p. 78.
Phone at a glance
11
FCC DRAFT
Integrated handsfree speaker is active. See "Using the loudspeaker," p. 19.
The timed profile is selected. See "Profiles," p. 54.
or An enhancement is connected to the phone. See "Enhancement
settings," p. 65.
You are in a digital network. See "Network Services," p. 5.
You are in a 1XRTT network. See "Network Services," p. 5.
■Phone menus
Phone features are grouped according to function and are accessed through the
main menus. Each main menu contains submenus and lists from which you can
select or view items and customize your phone features. You can access these
menus and submenus by using the scroll method or by using a shortcut.
Note: Some features may not be available, depending on your network.
For more information, contact your wireless provider.
User interface features
You can choose from two types of menu interface: List and Grid. See "Menu
view," p. 64 for more information.
In the List interface, full-color images introduce the
menu. Scroll up and down to navigate through the
menus. The menu icons shown in this user guide
represent the List interface icons.
In the Grid interface, multiple menu icons appear on a
single display. Use the four-way scroll keys to navigate
through the icons.
Scroll method
1. In the standby mode, select Menu and scroll up and
down through the main menus.
As you scroll through the menus, the menu number appears in
the upper right corner of the display. Below the number is a scroll
bar with a tab that moves up or down on the right side of the
Phone at a glance
12
FCC DRAFT
display screen as you scroll through the menus, providing a visual
representation of your current position in the menu structure.
2. When you arrive at a menu, press the left selection key (or Select) to enter
submenus.
Select Back (the right selection key) to return to the previous menu.
Press the end key to return to the standby mode from any menu or submenu.
Shortcuts
You can go directly to almost any menu or submenu, as well as activate most
features, by using a shortcut.
In the standby mode, select Menu; then within 3 seconds, press the key or keys
associated with the menu function you would like to view or activate.
For example, to go directly to the calculator, select Menu 7-4 from the standby
mode (Menu > 7Organizer > 4Calculator). After a brief pause, the calculator
opens.
Shortcut keys
The four-way scroll keys and the zero key also have menu shortcuts.
• Scroll left to go to the SMS text editor.
• Scroll right to view the monthly calendar.
• Scroll up or down to see a list of names in Contacts.
• A long press of the 0 (zero) launches the browser.
In-phone help
Many features have brief descriptions (help text) which can be viewed on the
display. To view these descriptions, scroll to a feature and wait for about 15
seconds. Select More to view all of the description, or select Back to exit.
In order to view the descriptions, you must first activate help text.
In the standby mode, select Menu > Settings > Phone settings > Help text
activation > On or Off.
■Lock code security settings
Your device has a security option allowing you to lock your phone with a code.
When the code is set and turned on, no outgoing calls are allowed and the menu
Phone at a glance
13
FCC DRAFT
cannot be accessed without entering the correct code first. This prevents
unauthorized outgoing calls or access to any information stored on your device.
The Security option is in the Settings menu. The first time you access the Security
option, you must enter a lock code. The default lock code may vary depending on
your wireless service provider. The preset lock code may be the last four digits of
your phone number, 1234 or 0000. If none of these work, contact your wireless
service provider for help.
You must enter the lock code to access the following Security option:
1. In the standby mode, select Menu > Settings > Security.
2. Enter the lock code, and select OK. See ""Change lock code," p. 66" 66.
■Go to functions
The Go to menu is the right selection key on your phone. With this function, you
can quickly access your most frequently used functions from the Go to menu in
the standby mode. See "Personal shortcuts," p. 55 for more information on
choosing and organising functions in Go to.
Set up your phone
14
FCC DRAFT
2. Set up your phone
■Antenna
Your device has an internal antenna located towards the top of the phone. Hold
the phone as you would any other telephone with the antenna area pointed up
and over your shoulder.
Note: As with any other radio transmitting device, do not touch the
antenna unnecessarily when the device is switched on. Contact with the
antenna affects call quality and may cause the device to operate at a
higher power level than otherwise needed. Avoiding contact with the
antenna area when operating the phone optimizes the antenna
performance and the battery life. Not touching the antenna area during
a phone call optimizes the antennae performance and the talktime of
your device.
■Insert the battery
Note: Always switch the device off and disconnect the charger before
removing the battery. Always use original Nokia batteries. See "Batteries
and chargers," p. 85.
UIM card slot
Your phone has a UIM (CDMA SIM) card slot built into the mechanics. However,
the UIM is not functional in this phone model. Avoid placing anything into the
UIM card slot.
Set up your phone
15
FCC DRAFT

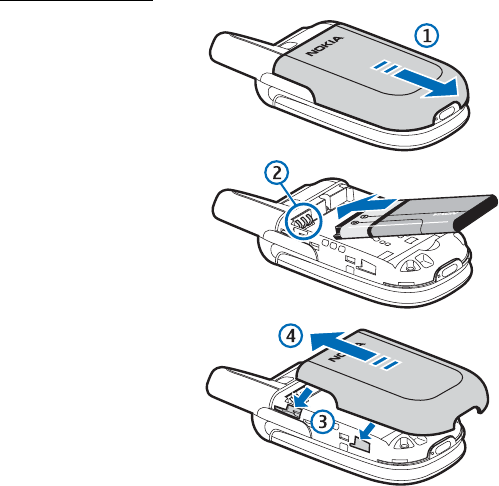

Insert the battery
Slide the back cover off to
remove it (1).
Insert the battery so that the
gold-colored connectors on the
battery align with the
connectors on the device (2).
Replace the back cover: align
the catches (3) together, and
slide the cover (4) forward.
Set up your phone
16
FCC DRAFT
Charge the battery
1. Plug the charger transformer
into a standard ac outlet.
2. Open the rubber cover located
at the top of the phone.
Connect the charger plug into
the connector in the device.
The battery indicator bar starts
scrolling. When the battery is
fully charged, the bar stops
scrolling.
3. Disconnect the charger from the device and the ac outlet.
■Turn your phone on and off
Warning: Do not switch the device on when wireless phone use is
prohibited, or when it may cause interference or danger.
The on-off function for this device is combined with the end key. To switch the
device on or off, press and hold the end key.
When you switch the device on, it may request a PIN code or security code. Enter
the code and select OK. The preset security code is 12345. For information about
device codes, see "Security settings," p. 65.
■Connect the headset
A compatible headset may be purchased with your phone or separately as an
enhancement. See "Enhancements," p. 84 for information.
Set up your phone
17
FCC DRAFT
1. Plug the headset connector
into the connector at the top
end of your phone.
2. Position the headset on your
ear. The icon appears in the
standby mode.
With the headset connected,
you can make, answer, and end
calls as usual.
• Use the keypad to enter
numbers.
• Press the call key to place a call.
• Press the end key to end a call.
■Make a call
Using the keypad
1. Enter the phone number (including the area code), and press the call key. (To
delete a character to the left of the cursor, select Clear.)
2. Press the end key to end the call or End call to cancel the call attempt.
Using the contacts list
1. In the standby mode, scroll up or down to the entry you wish to view.
2. Press the call key to make the call, or select Details to view details of the
entry.
See "Contacts," p. 42 for more information on using the contacts list.
Using the last dialed number
1. In the standby mode, press the call key to display the last 20 numbers dialed.
2. Scroll to the number (or name) you wish to redial, and press the call key.
Set up your phone
18
FCC DRAFT
Carrier selection provisioning (CSP)
CSP functionality enables you to choose a preferred long distance carrier by
entering a carrier code. The carrier code default value is null. See ""Preferred
carrier," p. 56" 56.
Note: CSP function affects only long distance and international calls.
If CSP is active, a 2-digit preferred carrier code is displayed with the first digit of
the phone number entered. This code appears after you press the call key and
before you make the call.
1. Enter the long distance or international number you want to call, press the
call key, and verify that the 2-digit CSP code appears after the first digit of
the number entered.
2. Determine whether you want to turn the CSP function on or off. If you select
On, you will be prompted to change or enter the CSP code. If you select Off,
the CSP code will remain the same.
■Answer calls
Answer or silence an incoming call
1. Press the call key to answer the call.
2. Press the end key or Silence to mute the ringing tone; then select Answer to
answer the call, or do nothing, and the call is eventually diverted to voicemail.
Answer a call with the keypad locked
To answer a call with the keypad locked, simply press the call key. During the call,
all features function as normal. When you end the call or do not answer it, the
keypad automatically re-locks. See "Lock the keypad (keyguard)," p. 20 for more
details.
When the phone is locked, calls still may be possible to the official emergency
number programmed into your phone.
Adjust the earpiece volume
While in a call, press up or down on the volume key, located on the left side of the
phone, to adjust the volume of the earpiece.
Set up your phone
19
FCC DRAFT
When adjusting the volume, a bar chart appears in the display indicating the
volume level.
Using the loudspeaker
You can use your phone as a loudspeaker during a call. Do not hold the phone to
your ear during the loudspeaker operation.
• To activate the loudspeaker, select Loudsp.
• To deactivate the loudspeaker during a call, select Handset.
The loudspeaker is deactivated automatically when a call (or a call attempt) ends
or when certain enhancements are connected.
Set up your phone
20
FCC DRAFT
Options during a call
Many of the options that you can use during a call are Network Services. Check
with your wireless service provider for more information.
1. Select Options during a call to display a list of options available during a call.
2. Select an option to activate it or enter its submenu.
■Lock the keypad (keyguard)
The keypad lock protects the device from accidental key presses. To lock or unlock
the keypad, press the left selection key and quickly press *. Keyguard is not
activated when you close the fold.
To answer a call when the keyguard is on, press the call key. When you end or
decline the call, the keypad automatically relocks. When the keyguard is on, calls
may be possible to the official emergency number programmed into your phone.
Enter the emergency number and press the call key.
Text entry
21
FCC DRAFT
3. Text entry
You can use two methods for entering text and numbers: standard mode and
predictive text mode.
■Standard mode
Standard mode is the only way to enter text into the contacts list, and to rename
caller groups.
Text (Abc)
• Press a key once to insert the first letter on the key, twice for the second
letter, etc. If you pause briefly, the last letter in the display is accepted and
your phone awaits the next entry.
• Press 0 to enter a space, thereby accepting a completed word.
• Press 1 as many times as necessary to scroll through a list of commonly used
characters.
• Press * to display a complete list of special characters.
• Press and hold # to access Editor settings > Number mode, Dictionary on or
Dictionary off, or Writing language.
Numbers (123)
To switch to 123 mode from Abc mode:
1. Press and hold #.
2. At the Editor settings menu list, select Number mode.
The phone will return to the message entry screen and switch the ABC icon in the
upper left corner of the display to the 123 icon.
Change language
To change the language, do the following:
1. Press and hold #.
Text entry
22
FCC DRAFT
2. At the Editor settings menu list, select Writing language, and the new
language.
The phone will return to the message entry screen, and you can compose in the
new language.
Punctuation and special characters
While at any text entry screen, press * to display special characters (press and
hold * if predictive text is on). Press * again to cycle through all available
characters. Scroll to navigate through the list of special characters. Once a
character is highlighted, select Use to insert the character into your message.
■Predictive text mode
Predictive text input allows you to write messages quickly using your keypad and
the built-in dictionary. It is much faster than the standard mode method,
because for each letter, you only press the corresponding key on your keypad
once.
Activate and deactivate
At any text entry screen, select and hold Options or select Options > Dictionary
on or Dictionary off.
Predictive text is turned on and off, depending on its previous mode.
Enter text

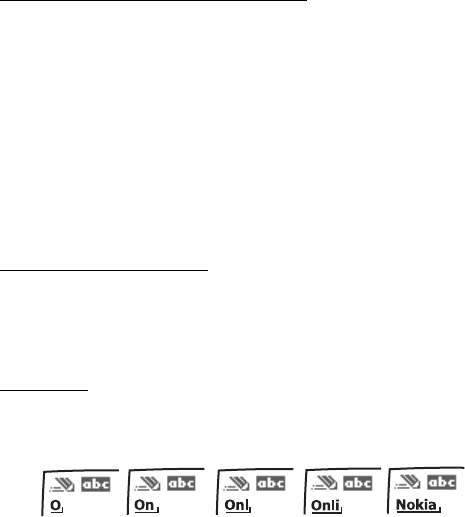

The illustration below simulates your display each time a key is pressed. For
example, to write Nokia with predictive text on and with the English dictionary
selected, press each of the following keys once:
• Press 0 to enter a space and begin writing the next word.
• If a displayed word is not correct, press * to see other matches. To return to
the previous word in the list of matches, select Previous.
• If ? appears after a word, it is not in the dictionary. Select Spell to add the
word to the dictionary.
Text entry
23
FCC DRAFT
• Press 1 to insert a period into your message.
• Press and hold * to display special characters. Press * again to cycle through
all available characters.
• Press and hold the specific number key to enter a number.
• Press and hold # to access Editor settings > Number mode, Dictionary on or
Dictionary off, or Writing language.
■Change case and mode
Press # to switch between uppercase, lowercase, and sentence case, as well as
standard and predictive text modes. Case and mode are indicated by the
following icons that appear in the upper left of the display screen.
Uppercase text: standard mode is on.
Lowercase text: standard mode is on.
Sentence case text: standard mode is on. Only available at the
beginning of a sentence.
Uppercase text: predictive text is on.
Lowercase text: predictive text is on.
Sentence case text: predictive text is on. Only available at the
beginning of a sentence.
■Delete text
To delete text, use one of the following options:
• Select Clear to backspace the cursor and delete a character.
• Select and hold Clear to backspace continuously and delete characters.
Messages
24
FCC DRAFT
4. Messages
If you have subscribed to a messaging service through your
wireless provider, you can send and receive messages to compatible phones that
also subscribe to a compatible message service. You may also be able to send and
receive picture messages and e-mail messages.
When composing text messages, picture messages, or multimedia messages,
check the number of characters allowed in the top right corner of the message.
Using special (Unicode) characters takes up more space. If there are special
characters in your message, the indicator may not show the message length
correctly. Before the message is sent, the phone will tell you if the message
exceeds the maximum length allowed for one message.
Note: When sending messages, your device may display Message sent.
This is an indication that the message has been sent by your device to
the message center number programmed into your device. This is not an
indication that the message has been received at the intended
destination. For more details about messaging services, check with your
service provider.
Important: E-mail messages or multimedia message objects may
contain viruses or otherwise be harmful to your device. Do not open any
attachment if you are not sure of the trustworthiness of the sender.
■Text messages
Write and send
1. In the standby mode, select Menu > Messages > Text messages > Create
message.
To go quickly to the Create message display, scroll left from the standby
mode.
After a brief pause, the message entry screen appears in the display.
2. Compose a message using the keypad and select Options.
3. Select Send to > Send to number, Send to many or Send to distrib. list.
Send to distrib. list option appears only if a distribution list has been created.
See "Distribution lists," p. 27.
Messages
25
FCC DRAFT
4. Enter the recipient’s phone number or e-mail address, or select Search to
retrieve a number from your contacts list; select Send.
Templates
Templates are short, prewritten messages which can be recalled and inserted into
new text messages when you are short on time.
1. In the standby mode, select Menu > Messages > Text messages > Create
message.
2. Select Options > Use template and one the available templates.
3. Complete your new message, and select Options > Send to > Send to number,
Send to many or Send to distrib. list.
Send to distrib. list option appears only if a distribution list has been created.
See "Distribution lists," p. 27.
4. Enter the recipient’s phone number or e-mail address, or select Search to
retrieve an entry from your contacts list, and select Send.
Options
When you create a text message, depending on the mode of text input you are
using and the features supported by your wireless service provider, some or all of
the following options are available:
Send to—Choose Send to number, Send to many or Send to distrib. list to send the
message to one ore more recipients. (Send to distrib. list option appears only if a
distribution list has been created. See "Distribution lists," p. 27.)
Send options—Set the priority of the message, choose to receive a delivery note
when a message is sent, or to send a callback number.
Clear text—Erase the text from the message editor.
Insert contact—Insert a name from your contacts list into your message.
Insert number—Insert a phone number or find a phone number in the contacts
list.
Save message—Select Drafts to save the message to your drafts folder; select
Templates to save the message as one of your predefined templates.
Exit editor—Automatically saves the message to the Drafts folder and exits the
message editor.
Use template—Insert a predefined template into your message.
Insert smiley—Insert the smiley face of your choice into your message.
Messages
26
FCC DRAFT
Insert word—Enter the text of a new word that might not appear in the
dictionary.
Edit word—Edit the text of a new word that might not appear in the dictionary.
Insert symbol—Insert a special character into your message.
Matches—View matches found in the dictionary for the word you want to use.
Dictionary on or Dictionary off—Turn the dictionary on or off.
Writing language—Choose the language of the text editor.
Read and reply
When you receive a message, your phone beeps, and 1 message received and the
unopened letter icon ( ) appear in the display.
When you have unopened messages in your Inbox, is shown in the upper left
corner of the screen as a reminder.
1. Select Show to read the message, or Exit to dismiss the notification.
Scroll up or down to view the whole message if necessary.
2. Select Options > Reply.
3. Select a Reply option; then compose your reply using the keypad.
4. Select Options > Send.
When you read a text message, the following options are available:
Delete—Discard the message.
Reply—Reply to the message. Create the message, and select Options > Send. The
sender’s phone number or e-mail is used as the default
Use number—Choose Save, Add to contact, Send message, or Call.
Save—Save the message to a folder.
Forward—Forward the message to another phone number.
Rename—Edit the title of the message.
When you reply to a text message, your options are the same as when creating a
message. See "Options," p. 25 for more information.
Change sending options
1. In the standby mode, select Menu > Messages > Text messages > Message
settings > Sending options.
Messages
27
FCC DRAFT
2. Select the setting you wish to change:
Priority—Set the priority of the note.
Delivery note—A note is sent to you confirming delivery of the message.
Send callback number—Include your callback number in a text message.
Change other settings
When the message memory is full, your phone cannot send or receive any new
messages. However, you can set your phone to automatically replace old
messages in the Inbox and Outbox folders when new ones arrive.
1. In the standby mode, select Menu > Messages > Text messages > Message
settings > Other settings.
2. Select the setting you wish to change:
Message font size—Select Small font or Large font.
Message overwriting—Select Sent items only, Inbox only, S. items & Inbox, or
Off.
Save to sent items as sending—Select to Always save, Always prompt, or Off.
Queue msgs. when digital unavailable—Select On, On prompt, or Off.
Distribution lists
You can send a text message to multiple recipients at one time. First, you must
create a distribution list using the entries in your contacts list.
1. In the standby mode, select Menu > Messages > Text messages >
Distribution lists.
2. Select Options > Add list.
3. Enter the name of the list and select OK.
4. With the list highlighted, select Options > View list > Add contact.
5. Select the contact you want to add to the distribution list.
6. Select the phone number you want to add.
Repeat steps 4–6 to add additional contacts to the distribution list.
Send a message
To send a message to all contacts in a created distribution list:
Messages
28
FCC DRAFT
1. In the standby mode, select Menu > Messages > Text messages > Create
message.
After a brief pause, the message entry screen appears in the display.
2. Compose a message using the keypad and select Options.
3. Select Send to > Send to distrib. list.
4. Select the distribution list you are sending to, and select OK.
Options
1. In the standby mode, select Menu > Messages > Text messages >
Distribution lists.
2. Highlight a distribution list and select Options.
3. Select one of the following:
Add list—Create a distribution list using your contacts list.
View list—View the list of contacts or numbers in a distribution list that you
have created.
Send message—Send a text message to the distribution list selected.
Rename list—Rename a distribution list that you have created.
Clear list—Delete the contacts or numbers from a distribution list that you
have created.
Delete list—Delete a distribution list that you have created.
■Text message folders
Save messages to folders
You can save sent or received messages to an existing folder or to a folder that
you have created.
1. Open the received message or create a new message, and select Options.
2. Select Save message and scroll to the folder available:
Sent items—Messages that have been sent by the network are automatically
stored in the Sent items folder.
Drafts—Messages that you create can be stored in the Drafts or Templates
folder.
Messages
29
FCC DRAFT
Archive—Store messages that have been read in the Archive folder.
Templates—Prewritten templates are stored in the Templates folder. You can
also save received messages in the Templates folder to use as templates.
Preloaded and saved templates can be edited and customized.
My folders—Keep your messages organized by creating custom folders and
saving some of your messages there. Select Options > Add folder to add a
custom folder. You can also select Options > Rename folder or Options >
Delete folder to rename or delete a folder you have created.
Note: Only folders created in My folders can be deleted. The Inbox,
Outbox, Sent items, Drafts, Archive, and Templates folders are
protected. When you delete a folder, all messages in the folder are
also deleted.
View saved messages
1. In the standby mode, select Menu > Messages > Text messages.
2. After a brief pause, select folder containing the message you wish to view.
3. Once the folder opens, select the message you wish to view.
■Multimedia messages
A multimedia message (MMS) is a network service. If your wireless service
provider supports this feature, then an MMS can be created in SMIL presentation
format. SMIL presentation format means that MMS can hold multiple slides each
containing1image, 1 sound clip, and text, or a single slide that contains video and
text only. If supported by your wireless service provider, you may also be able to
receive business cards and calendar notes. Maximum MMS size is reached at 100
KB. If the maximum size is exceeded, the phone may not be able to send or
receive the message. Once you save the MMS, you can play back the video clip,
use the image as a screen saver, or use the sound as a ringing tone. In some
networks, you may receive a message that includes an internet address where
you can view the multimedia message.
The default setting of the multimedia message service is generally on. The
appearance of a multimedia message may vary depending on the receiving
device.
Messages
30
FCC DRAFT
Note: Only devices that offer compatible multimedia message or e-mail
features can receive and display multimedia messages. Multimedia
message objects may contain viruses or otherwise be harmful to your
device or PC. Do not open any attachment if you are not sure of the
trustworthiness of the sender.
Note: When your phone is dedicated to a call in progress, an application
(such as a game), or an active web browser connection, the phone
cannot receive multimedia messages.
Multimedia messaging supports JPEG, GIF, PNG, AGIF, BMP and WBMP picture
formats; MIDI, SP-MIDI and monophonic ringing tones; QCELP and AMR audio
encoders and decoders; and H.263 and MPEG4 video format.
The appearance of a multimedia message may vary depending on the receiving
device.
Copyright protections may prevent some images, ringing tones, video clips and
other content from being copied, modified, transferred, or forwarded.
Write and send
1. In the standby mode, select Menu > Messages > Multimedia msgs. > Create
message.
2. Enter the text of your message, and select Options > Insert > Image, Sound
clip, Video clip, or Slide.
3. Choose the object, and select Insert.
4. Select Options > Send to number, Send to e-mail or Send to many.
5. Enter the recipient’s phone number or e-mail address, or select Search to
retrieve a number from your contacts list, and select OK.
Sending options
When you create an MMS, depending on the mode of text input you are using,
whether you have already attached content, and whether your phone supports
the feature, some or all of the following options are available:
Send to number—Send the MMS to a single recipient’s phone number.
Send to e-mail—Send the MMS to a single recipient’s e-mail address.
Send to many—Send the MMS to more than one phone number or e-mail address.
Insert—Insert an Image, Sound clip, Video clip, or Slide into the MMS.
Messages
31
FCC DRAFT
Delete—Delete a Video clip, Image, Sound clip, or Slide that has been inserted into
the MMS.
Clear text—Erase the text from the message editor.
Preview—View the MMS before sending it.
Previous slide—Go back to the previous slide.
Next slide—Jump to the next slide.
Slide list—View a list of all slides for the MMS.
Slide timing—Defines the display time of a slide.
Place text first or Place text last—Choose where the text appears in relation to the
attached content in a slide.
Save message—Select Saved items to save the message into your saved items
folder.
More options—Choose Insert contact, Insert number, Message details, or Edit
subject.
Exit editor—Saves the message to your Saved items folder automatically, and
leave the message editor.
Insert smiley—Insert the smiley face of your choice into your message.
Insert word—Enter the text of a new word that might not appear in the
dictionary.
Edit word—Edit the text of a new word that might not appear in the dictionary.
Insert symbol—Insert a special character into your message.
Matches—View matches found in the dictionary for the word you are trying to
use.
Dictionary on or Dictionary off—Turn the dictionary on or off.
Writing language—Choose the language of the text editor.
Read and reply
When a multimedia message is being received, appears. Once the message
has been fully downloaded, and Multimedia message received appear.
1. To view the message, select Show.
2. To view the message later, select Exit > No when asked to discard.
3. While viewing the message, select Options > Reply.
4. Compose your reply using the keypad.
Messages
32
FCC DRAFT
5. Select Options > Send.
Note: If blinks and Multimedia message memory full, view waiting
message? appears, delete some of your old multimedia messages. See
"Delete text or multimedia messages," p. 34 for more information.
Reading options
When you open an MMS that is in SMIL presentation format and if supported by
your phone, some or all of the following options are available:
Play presentation—Play the entire presentation, including any image, sound clip,
video clip, business card, or calendar note that is attached.
Continue present.—Appears if you have stopped a slide presentation without
playing it all the way through. The presentation will begin with the slide in focus.
View text—View the text attached to the MMS.
Open image—View the image, if one is included.
Open sound clip—Select an option associated with the sound clip, if one is
included.
Open video clip—Select an option associated with the video clip, if one is
included.
Open bus. card—Open the business card, if one is included.
Open calend. note—Open the calendar note, if one is included.
When you open an MMS that contains objects (pictures, tones, or text) that are
not part of an SMIL presentation and if supported by your phone, the following
options are available:
Zoom—Enlarge the picture.
Set contrast—Adjust the contrast of the image.
Save image—Save a picture, if included, to the Gallery menu.
Play—Listen to a sound clip or play a video, if one is included.
Save sound clip—Save a sound clip, if included, to the Gallery menu.
Save video clip—Save a video clip, if included, to the Gallery menu.
Details—View the file name, size, date created, and other details of the object in
focus.
Open calend. note—Open the attached calendar note, if one is included.
Open bus. card—Open the attached business card, if one is included.
Messages
33
FCC DRAFT
The following options are available when you open any MMS, if supported by
your phone or wireless service provider.
Delete message—Delete a saved message.
Reply or Reply to all—Reply to the message. Select Options > Send. The sender’s
phone number or e-mail is used as the default.
Use detail—Extracts any phone numbers, e-mail addresses or URLs found in an
MMS and, depending on the content, allows you to open, save, or use.
Edit—Edit the message. You can only edit messages that you have written.
Forward to no.—Forward the message to another number.
Forward to e-mail—Forward the message to an e-mail address.
Forward to many—Forward the message to several recipients.
Message details—View the message subject, size, and class.
Multimedia message settings
You will need to define the MMS settings. MMS settings include saving your
messages to the Sent items folder, receiving delivery reports, and more.
1. In the standby mode, select Menu > Messages > Multimedia msgs. >
Message settings.
2. Select on of the following options, to activate it or enter its submenu:
Save sent messages—Select Yes or No to save sent multimedia messages to
the Sent items folder.
Delivery reports—Select On or Off to be notified by the network if the
message was sent successfully.
Scale image down—Select Yes or No to scale the image size smaller.
Default slide timing—Default time is 12 seconds. You can customize the time
to your preference.
Allow multimedia reception—Select Yes, No, or In home network for your
multimedia service. In home network means that you will not receive any
multimedia messages that are received outside the home network until you
return to the home network.
Incoming multi- media messages—Select Retrieve to automatically download
multimedia messages or Ask first to receive a prompt each time a multimedia
Messages
34
FCC DRAFT
message is waiting to be downloaded. Ask first allows you to retrieve or reject
each MMS on an individual basis.
Multimedia message folders
You can save created messages to the Saved items folder.
1. Open the received message or create a new message and select Options.
2. Select Save message > Saved items.
Sent or received messages are automatically saved to one of the following
folders:
Inbox—Multimedia messages are automatically stored here after they are
received or if you select Back when Multimedia message received appears.
Multimedia messages that have been read are also stored in the inbox.
Outbox—Multimedia messages that you have created and sent are temporarily
stored here until they are sent by the network.
Sent items—Multimedia messages that have been sent by the network are
automatically stored here.
■Delete text or multimedia messages
If your text message memory is full and you have more messages waiting at the
network, blinks on the screen.
If your multimedia message memory is full, blinks on the screen and
Multimedia message memory full, view waiting message? appears.
You can do the following:
• Read some of the unread messages, and delete them.
• Delete messages from some of your folders.
A single message
To delete a single message, you need to open it first.
1. In the standby mode, select Menu > Messages > Text messages or
Multimedia msgs..
2. Select the folder containing the message you wish to delete.
3. Select the message you wish to delete.
4. Select Options > Delete message.
Messages
35
FCC DRAFT
5. Select OK to delete the message or Back to exit.
All SMS messages in a folder
1. In the standby mode, select Menu > Messages > Text messages > Delete
messages.
2. Select the folder containing the messages you wish to delete and one of the
following:
All—Deletes all messages in the folder you choose.
All read—Deletes all read messages in the folder you choose.
All unread—Deletes all unread messages in the Inbox.
3. Select OK to empty the folder.
All MMS messages in a folder
1. In the standby mode, select Menu > Messages > Multimedia msgs. > Delete
messages.
2. Select the folder containing the messages you wish to delete and one of the
following:
Inbox—Deletes all messages in Inbox folder.
Outbox—Deletes all messages in Outbox folder.
Sent items—Deletes all messages in Sent items folder.
Saved items—Deletes all messages in Saved items folder.
3. Select OK to empty the folder.
■Voice messages
If you subscribe to voice mail, your wireless provider will furnish you with a voice
mailbox number. You need to save this number to your phone to use voice mail.
When you receive a voice message, your phone lets you know by beeping,
displaying a message, or both. If you receive more than one message, your phone
shows the number of messages received.
Messages
36
FCC DRAFT
Save voice mailbox number
Your wireless provider may have already saved your voice mailbox number to
your phone. If so, the number will appear in the display in step 2. Select OK to
leave the number unchanged.
1. In the standby mode, select Menu > Messages > Voice messages > Voice
mailbox number.
After a brief pause, the Voice mailbox number screen appears in the display.
2. If the box is empty, enter the voice mailbox area code and number.
3. Select OK.
Call and setup your voice mail
1. Once you have saved the voice mailbox number, press and hold 1.
2. When you connect to voice mail and the prerecorded greeting begins, follow
the service’s automated instructions to setup your voice mail.
Listen to your voice messages
Once you have setup voice mail, you can dial the voice mailbox number in one of
four ways:
• Dial the voice mailbox number using the keypad.
• Press and hold 1.
• Select Listen if there is a notification message in the display.
• In the standby mode, select Menu > Messages > Voice messages > Listen to
voice messages.
Once you connect and the prerecorded greeting begins, follow the automated
instructions to listen to your voice messages.
Clear voicemail icon
To clear the new voicemail icon from the standby mode, select Menu >
Messages > Voice messages > Clear voice mail icon.
Messages
37
FCC DRAFT
Automate voice mail
You can insert special characters called dialing codes into phone numbers such
as voice mail, and save the number to a 1-touch dialing location. Dialing codes
instruct the receiving system to pause, wait, bypass, or accept the numbers that
follow them in the dialing string.
Note: Voice mail services vary by service provider. The following
instructions are examples of common operations. Please check with
your service provider for specific instructions for using your voice mail
service.
Write down voice mailbox number and process
1. Write down your voice mailbox number.
2. Call and check your voice mail as you normally would.
3. Write down your interaction with the recorded prompts step-by-step. Keep in
mind that each voice mail service may vary. However, it should look
something like this:
Dial 2145551212, pause 5 seconds, press 1, pause 2 seconds, press 1234,
press #.
Be precise; you will need this information in "Setup voice mail with dialing
codes," p. 37.
Insert dialing codes
Press * repeatedly to cycle through dialing codes. Once the desired code appears
in the display, pause briefly and the code is inserted into the dialing string.
The following dialing codes are available:
*—Bypasses a set of instructions.
p—Pauses for 2.5 seconds before sending any numbers that follow.
w—Waits for you to press the call key before sending the numbers or codes that
follow.
Setup voice mail with dialing codes
1. In the standby mode, select Menu > Contacts > Speed dial.
2. Scroll to an empty 1-touch dialing slot and select Assign.
3. Enter your voice mailbox number, including the area code.
Messages
38
FCC DRAFT
4. Refer to dialing codes and enter any codes as necessary using the information
that you wrote down from "Write down voice mailbox number and process,"
p. 37.
For example, if you pause for 5 seconds after connecting to voice mail, enter p
twice after the voice mailbox number, for example, 2145551212pp.
5. Enter any remaining pauses or other information that allows you to listen to
your messages, and select OK.
6. Enter a name (such as Voice Mail), and select OK.
To dial and listen to your voice mail, press and hold the assigned 1-touch dialing
key while in standby mode.
If 1-touch dialing is off, the phone displays a prompt asking if you would like to
turn 1-touch dialing on.
■Minibrowser messages
Minibrowser messaging is a network service. See "Network Services," p. 5 for
more information.
If your wireless service provider supports this feature, you can check for e-mail
messages using the minibrowser. In the standby mode, select Menu >
Messages > Minibrowser messages, and select Connect.
Call log
39
FCC DRAFT
5. Call log
Call log stores information about your last 30 missed, received, and dialed calls
respectively and adds the total duration of all calls. When the number of calls
exceeds the maximum, the most recent call replaces the oldest.
Whether viewing missed, received, or dialed calls, select Options to access these
menu options:
Time of call—Displays the date and time of the call.
Send message—Sends a message to the number.
Edit number—Edits the number and associates a name with the number.
Save—Enters a name for the number and saves it to your contacts list.
Add to contact—Adds a number to a contact and saves it to your contacts list
(available only with the number not yet stored in your contacts list).
Delete—Clears the number from memory.
Call—Calls the number.
■View missed calls
The missed calls feature does not function with your device switched off. Missed
calls are calls you have never answered. To view missed calls, do the following:
1. In the standby mode, select Menu > Call log > Missed calls, or with missed
call notification displayed, select List.
2. Scroll to a name or number, and select Options and an option to view or
activate.
■View received calls
Received calls are calls that have been answered.
1. In the standby mode, select Menu > Call log > Received calls.
2. Scroll to a name or number, and select Options and an option to view or
activate.
■View dialed numbers
Dialed calls are previous numbers you have dialed from your device.
Call log
40
FCC DRAFT
1. In the standby mode, press the call key, or select Menu > Call log > Dialed
numbers.
2. Scroll to a name or number, and select Options.
3. Select an option to view or activate.
View call times
You can make or receive calls to or from the same number and view up to five
calls displayed with the time each call occurred. Your device clock must be set for
this feature to work accurately.
1. In the standby mode, select Menu > Call log > Missed calls, Received calls, or
Dialed numbers.
2. Highlight your desired name or number, and select Options > Time of call.
3. Scroll down to view the call times from this number; select Back to return to
the options list.
■Delete call logs
You can delete any missed, dialed, or received calls from your device memory.
1. In the standby mode, select Menu > Call log > Delete recent calls list.
2. Select the call type you want to clear: All, Missed, Received, or Dialed.
■Call duration
Contact your network operator for the actual calls and services invoice, which
may vary depending on network features, rounding off for billing, taxes, and so
forth.
Select Menu to view the duration of your last call, all your dialed calls, all your
received calls, all your calls, your life timer, or to clear your timers. After you
select Clear timers, enter your lock code, and select OK. See ""Change lock code,"
p. 66" 66.
Note: All call timers, except the life timer, are reset to zero with Clear
timers selected.
Note: Some timers, including the life timer, may be reset during service
or software upgrades.
Call log
41
FCC DRAFT
To activate the call timer on the display screen, in the standby mode, select Menu
> Call log > Call timers > Show call time on display >On.
To activate the call timer in the standby mode while in a call, select Details >
Show call time on display > On or Off.
To view the duration of dialed or received calls placed while in the home network
or while roaming, select Details > Home or Roaming.
■Minibrowser duration
Minibrowser is a network service. See ""Network Services," p. 5" 5. If your
network operator supports this feature, you can view the size or duration of sent
or received data from the minibrowser.
Note: The actual time invoiced for calls and services by your network
operator may vary, depending on network features, rounding off for
billing, taxes, and so forth.
In the standby mode, select Menu > Call log > Minibrowser calls and one of the
following options:
Last sent browser data—View the size (KB) of the last sent browser data.
Last received browser data—View the size (KB) of the last received data.
All sent browser data—View the size (KB) of all sent browser data.
All received browser data—View the size (KB) of all received browser data.
Last browser session—View the duration time of the last browser session.
All browser sessions—View the duration time of all browser sessions.
Clear all browser logs > OK > Yes —Clear all browser logs.
Contacts
42
FCC DRAFT
6. Contacts
The contacts list can hold up to 500 contacts, with multiple numbers
and text notes for each contact. The amount of numbers and text entries that you
can save may vary, depending on length and the total number of entries in the
contacts list.
Select Contacts in the main menu to access all options in the menu. To quickly
find names saved in the Contacts list, scroll up or down with the four-way scroll.
■Add new contacts
Save a name and number
1. In the standby mode, enter the phone number you wish to save.
2. Select Options > Save.
3. Enter the name, and select OK > Done.
Save (only) a number
1. In the standby mode, enter the phone number you wish to save.
2. Select and hold Options.
Save an entry
1. In the standby mode, select Menu >Contacts > Add new.
2. Enter the name, and select OK.
3. Enter the phone number, and select OK > Done.
Save multiple numbers and text items
You can save different types of phone numbers, addresses, and notes to entries in
the contacts list. The first number you save for any entry is automatically set as
the default, or primary number, but the default number can always be changed.
1. In the standby mode, scroll down to the entry you wish to add a phone
number or text item.
2. Select Details > Options > Add number or Add detail.
Contacts
43
FCC DRAFT
If you selected Add number, select General, Mobile, Home, Work, or Fax.
If you selected Add detail, select E-mail address, Web address, Street address,
or Note.
3. Enter the number or text for the type you have selected, and select OK.
4. To change a number type (General, Mobile, Home, Work, or Fax), select
Change type in the options list.
You can also change which phone number is the default number for the contact
entry.
1. In the standby mode, scroll down to the number you wish to change, and
select Details.
2. Scroll to the number you wish to set as default, and select Options > Set as
default.
Voice dialing
You can dial up to 25 stored numbers using voice dialing (voice tags).
Before using voice tags, note that:
• Voice tags are not language dependent. They are dependent on the speaker’s
voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them
in a quiet environment.
• Very short names are not accepted. Use long names and avoid similar names
for different numbers.
Note: Using voice tags may be difficult in a noisy environment or during
an emergency, so you should not rely solely upon voice dialing in all
circumstances.
Assign a voice tag to an entry
Before you can use voice dialing, you must first assign a voice tag to the number.
1. In the standby mode, scroll down to enter the contacts list.
2. Highlight the contact you want to assign a voice tag, select Details >
Options > Add voice tag > Start.
3. Speak clearly into the microphone.
Contacts
44
FCC DRAFT
Note: Do not select Quit unless you want to cancel the recording.
The phone automatically stops recording and saves and replays the voice tag. The
icon appears next to commands which have voice tags assigned.
If recording is not successful, your phone displays an error message. Select
Options > Add voice tag and repeat Step 3.
Dial a number
1. Select and hold Contacts > Go to.
2. When you hear several beeps and Speak now appears, release the key.
3. Pronounce the voice tag clearly into the microphone.
When the phone finds the voice tag, Found: appears, and the phone
automatically dials the number. If the phone does not locate a number or
recognize the voice tag, No match found appears.
Options
After you have associated a voice tag to a contact, you can choose one of the
following options:
Play back
1. Select Menu > Voice > Voice tags.
2. Scroll to the voice tag you want to hear.
3. Select Options > Playback.
Change
1. Select Menu > Voice > Voice tags.
2. Scroll to the voice tag you want to change.
3. Select Options > Change.
4. Select Start. The phone repeats your voice tag, and Voice tag saved appears.
Delete
1. Select Menu > Voice > Voice tags.
Contacts
45
FCC DRAFT
2. Scroll to the voice tag you want to erase.
3. Select Options >Delete. Delete voice tag? appears.
4. Select OK to erase the voice tag.
Caller groups
You can add contacts list entries to any of five caller groups, and then assign a
unique ringing tone or graphic to that group. This enables you to identify callers
from the group by their unique ringing tone or graphic.
Setup a group
1. In the standby mode, scroll down to display the list of entries in your contacts
list.
2. Scroll to a name you would like to add to a caller group, and select Details.
3. Select Options > Caller groups.
4. Select the caller group to which you would like to add the name.
Options
1. In the standby mode, select Menu > Contacts > Caller groups.
Family, VIP, Friends, Business, and Other are the available caller groups.
2. Select a group to display the following caller group options:
Group name—Rename the group to your preference.
Group ringing tone—Set the ringing tone for the group.
Group logo—Turn the graphic for the caller group on or off.
Group members—Add or remove members from the caller group.
Set up 1-touch dialing
You can associate any entry in the contacts list with a key from 2–9; then dial
those entries by pressing and holding the assigned key.
Assign a key to 1-touch dialing
1. In the standby mode, select Menu > Contacts > 1-touch dialing.
2. Scroll to any (empty) slot, and select Assign.
Contacts
46
FCC DRAFT
3. Enter the number (including the area code), and select OK; or select Search to
retrieve a number from the contacts list.
4. Enter a name for the number, and select OK.
If 1-touch dialing is off, the phone displays a prompt asking if you would like
to turn 1-touch dialing on.
5. Select Yes to activate 1-touch dialing.
Change 1-touch dialing numbers
1. In the standby mode, select Menu > Contacts > 1-touch dialing.
2. Scroll to the 1-touch dialing entry you wish to change, and select Options >
Change.
3. Enter the new number; or select Search to retrieve a number from the
contacts list, and select OK.
4. Enter a name for the entry, and select OK.
Delete 1-touch dialing numbers
1. In the standby mode, select Menu > Contacts > 1-touch dialing.
2. Scroll to the 1-touch dialing location you wish to delete, and select Options >
Delete.
3. Select OK to delete the key assignment.
■Edit contacts list entries
1. In the standby mode, scroll down to the contact entry you would like to edit,
and select Details.
2. Scroll to the phone number, e-mail address, web address, postal address, or
note you wish to edit, and select Options.
Depending upon the contact entry you are editing, you may select from the
following options:
Add voice tag—Add a voice tag to the contact.
Edit number—Edit an existing phone number of the contact.
Delete number—Delete a phone number from the contact.
Use number—Displays the phone number on the screen, ready to be called.
Contacts
47
FCC DRAFT
View—View the details of the contact entry.
Change type—Change the number type to General, Mobile, Home, Work, or
Fax or the detail type to E-mail address, Web address, Street address, or Note.
Set as default—Change the default number of the contact.
Add number—Add a number to the contact.
Add detail—Add an address or note to the contact.
Add image—Add an image from the gallery to the contact.
Caller groups—Add the contact to an existing caller group.
Custom tone—Add a custom ring tone to the contact.
Send bus. card—Send the contact via text message to another phone.
Send message—Create and send the contact a message.
1-touch dialing—Add the contact to your 1-touch dialing list.
Edit name—Edit the name of the contact.
View name—View the name of the contact.
Delete—Delete the entire contact entry from your contacts list.
Edit detail—Allows you to edit e-mail address, web address, postal address, or
note.
Delete detail—Deletes e-mail address, web address, postal address, or note.
Open—Launches the Minibrowser to the highlighted web address.
3. Edit the option to your preference, and select OK.
■Delete contacts list entries
1. In the standby mode, select Menu > Contacts > Delete.
2. To delete individual entries, select One by one.
3. Scroll to the entry you wish to delete, select Delete > OK to confirm.
4. To delete the entire contents of your contacts list, select Delete all.
5. Select OK to confirm.
6. Enter the security code and select OK. (See "Security settings," p. 65 for more
information.)
Contacts
48
FCC DRAFT
■View Contacts
In the standby mode, select Menu > Contacts and one of the following options:
Search—Find a name or select from a list.
Add new—Add a contact to your contacts list.
Edit name—Edit an existing name.
Delete—Delete a name and its associated numbers.
Add number—Add a number to an existing name.
Settings—Change the contacts list view or check the memory status of your
phone.
1-touch dialing—View or modify the list of 1-touch dialing numbers.
Voice tags—Attach, listen to, or modify a voice tag to a contact in the
contacts list.
My number—View your own phone number.
Caller groups—View and edit the properties for any of the caller groups, including
Family, VIP, Friends, Business, or Other.
Search for a name
1. In the standby mode, scroll down to display the contents of your contacts list.
2. Press the key which corresponds to the first letter of the name for which you
are performing a search. Press the key as many times as necessary until the
desired letter appears.
3. Scroll up or down to select a contact, and select Details to view the details.
Configure settings
You can select how the contacts appear in your contacts list and view the
amount of memory used or available in your phone.
1. In the standby mode, select Menu > Contacts >Settings.
2. Select one of the following options:
Scrolling view—Select Name list, Name and number, or Name and image view.
Memory status—View the amount of phone memory used as well as the
amount of phone memory available
Contacts
49
FCC DRAFT
Note: For more information on used and available memory, see "Shared
memory," p. 6.
■Send and receive contacts (business cards)
If supported by your wireless provider, you can send and receive a business card
as a text message to a compatible phone or other handheld device.
Send a business card
1. Highlight the entry from the contacts list that you wish to send and select
Details > Options > Send bus. card > Via text message.
2. Select Primary number or All details (if more than one number or detail exists
for the contact entry).
3. Enter the number for your recipient, or select Search to retrieve a number
from your contacts list.
4. select OK and the business card is sent.
Gallery
50
FCC DRAFT
7. Gallery
You can save pictures and ringing tones to folders in the gallery, or
create folders of your own and save them there. You can also download images
and tones using web sites.
Note: Only devices that offer compatible multimedia message or e-mail
features can receive and display multimedia messages.
■Open the gallery
In the standby mode, select Menu > Gallery. The following submenus are
displayed:
View folders—Explore the folders in the gallery menu. See View folders in the
following section for more info.
Add folder—Add a folder of your own.
Delete folder—Delete a folder you have created.
Rename folder—Rename a folder you have created.
■View folders
1. In the standby mode, select Menu > Gallery > View folders > Images,
Graphics, Clip-arts, Tones or Recordings > Open.
2. Scroll through the list of images, graphics, clip-arts, tones or recordings,
select Options > Open, Delete, Send, Edit image, Move, Rename, Set as
wallpaper or Set as ring tone, Details, Sort, or Open in sequence.
Media
51
FCC DRAFT
8. Media
■Radio
Your phone has an FM radio that also functions as an alarm clock radio. To listen
to the FM radio on your phone, connect a headset to the connector on the top of
the phone. The FM radio uses the wire of the headset as an antenna. A
compatible headset needs to be attached to the device for the FM radio to
function properly.The quality of a radio broadcast depends on coverage of the
radio station in that particular area.
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing.
Turn the radio on and off
1. Connect the phone to a compatible headset or music stand.
2. From the start screen, select Menu > Media > Radio.
3. To turn off the radio, press and hold the end key.
Use the radio
With the radio on, select Options and one of the following options:
Turn off—Turn off the radio.
Save channel—Save the current station to one of 20 locations.
Automatic tuning—Use the scroll key up or down to start the channel search.
Select OK when a channel is found.
Manual tuning—Press the scroll key up or down to search in increments of
0.1 MHz.
Set frequency—Manually enter the frequency of a known radio station.
Delete channel—Delete a saved channel.
Rename—Rename a saved channel, and select OK.
Loudspeaker or Headset—Listen to the radio through the speakerphone or
through the headset.
To set the radio frequency, press * and use the keypad to enter the frequency of a
known radio station. To tune the radio manually, press #; then press the scroll key
up or down to search in increments of 0.1 MHz.
Media
52
FCC DRAFT
To adjust the radio volume, press the upper volume key to increase or lower
volume key to decrease the volume.
When an application that uses a browser connection sends or receives data, it
may interfere with the radio. When you place or receive a call, the radio
automatically mutes. Once the call is ended, the radio switches back on.
Save a radio channel
You can save a preset station to any one of 20 locations in memory, and then
tune to that station with the 4-way scroll key.
1. With the radio on, press and hold the scroll key up or down to start the
channel search. Searching stops when a channel is found.
2. To save the channel, select Options > Save channel.
3. Enter a name for the channel, and select OK.
4. Select an (empty) location to save the channel.
While the radio is playing, you can quickly save an FM station to 1–9 memory
locations.
1. Press and hold the corresponding number key while the radio is playing.
2. Enter the name of the channel, and select OK.
■Voice recorder
This feature allows you to record pieces of speech or sound with your device and
listen to them later. The total available time is 3 minutes if no memos have been
stored. The maximum length of a recording depends on how much memory is
available.
From the start screen, select Menu > Media > Voice recorder > Record to start the
recording. Select Recordings list to manage the folders you have defined for
recording storage. You can save recordings to the Recordings folder or to another
folder in the Gallery menu.
Record speech or sound
1. In the standby mode, select Menu > Media > Voice recorder > Record.
2. After the recorder start tone is heard, begin recording speech or sound.
3. When you are finished recording, select Stop and your recording is saved to
the Recordings folder in the Gallery menu.
Media
53
FCC DRAFT
4. Select Recordings list, open the Recordings folder in the Gallery and scroll to
the recording you created.
Options
After you have saved the recording to the Recordings folder, select Recordings
list, open the Recordings folder in the Gallery, and scroll to the recording you
created. Select using the earpiece or Options and the following options:
Open or Play—Listen to the recording.
Delete—Erase the recording.
Rename—Change the name of the recording.
Details—Show the name, size, date of creation, length, format, and copyright of
the selected recording.
Sort—Sort the contents of the selected folder by name, date, format, or size.
Settings
54
FCC DRAFT
9. Settings
Use this menu to set or change your profiles, personal shortcuts, call settings,
phone settings, time and date settings, display settings, tone settings, voice
commands, enhancement settings, security settings, network, network services,
and to restore the factory settings.
■Profiles
Profiles define how your phone reacts when you receive a call or message, how
your keypad sounds when you press a key, and more. You can choose from one of
the prenamed profiles, or customize profiles of your own. The following profiles
are available: Normal, Silent, Meeting, Outdoor, My profile1, and My profile 2.
Ringing options, keypad tones, and other settings for each of the available
profiles can be left at their default setting, or customized to suit your needs.
Profiles are also available for enhancements such as a headset and car kit. See
"Enhancement settings," p. 65 for more information about enhancement profiles.
Activate a profile
1. In the standby mode, select Menu > Settings > Profiles.
2. Select the profile of your choice.
3. Select Activate.
Customize a profile
You can persomalize any of the profiles a variety of ways.
1. In the standby mode, select Menu > Settings > Profiles.
2. Select the profile you wish to customize.
3. Select Customize.
4. Select the option you want to personalize (Incoming call alert, Ringing tone,
Ringing volume, Vibrating alert, Light alert, Message alert tone, Keypad tones,
Warning tones, or Alert for ).
Note: You cannot rename the Normal profile.
Settings
55
FCC DRAFT
Set a timed profile
Timed profiles can be used to prevent missed calls. For example, suppose you
attend an event that requires your phone be set to Silent before the event starts,
but you forget to return it to Normal until long after the event. A timed profile
can prevent missed calls by returning your phone to the default profile at a time
you specify.
Note: Timed profiles can be set up to 24 hours in advance.
1. In the standby mode, select Menu > Settings > Profiles.
2. Select the profile you wish to activate and set for timed expiration.
3. Select Timed.
4. Enter the time for the profile to expire, and select OK.
■Personal shortcuts
The personal shortcuts menu allows you to change the function of the right
selection key on your phone so that your most frequently used functions can be
quickly accessed from the Go to menu while in standby mode.
Choose ’Go to’ functions
1. In the standby mode, select Menu > Settings > Personal shortcuts > Select
'Go to' options.
2. Scroll up and down to highlight the desired functions from the list of
available functions.
3. Select Mark to add a function. Use Unmark to remove a function.
4. Select Done when you have added all desired functions.
5. Select Yes to save the changes.
6. In the standby mode, select Go to to display a list of the functions that you
selected in step 3.
Organize functions
1. In the standby mode, select Menu > Settings > Personal shortcuts > Organize
'Go to' options.
Settings
56
FCC DRAFT
2. Scroll up and down to highlight the function you wish to rearrange, and
select Move.
3. Select Move up, Move down, Move to top, or Move to bottom.
4. Select Done > Yes to save the changes.
■Call settings
Anykey answer
Anykey answer allows you to answer an incoming call by briefly pressing any key
except the right selection, or end key.
In the standby mode, select Menu > Settings > Call settings > Anykey answer >
On or Off.
Preferred carrier
Preferred carrier chooses a preferred long distance carrier. In the standby mode,
select Menu > Settings > Call > Preferred carrier > On or Off.
With this feature enabled, you must enter the 2-digit carrier code.
Automatic redial
Occasionally, your network may experience heavy traffic, resulting in a fast busy
signal when you dial. With automatic redial activated, your phone redials the
number (number of redials depends on your wireless service provider), and
notifies you once the network is available.
In the standby mode, select Menu > Settings > Call settings > Automatic redial >
On or Off.
1-touch dialing
You can activate or deactivate 1-touch dialing. For more information, see
"Set up 1-touch dialing," p. 45.
Calling card
If you use a calling card for long distance calls, you can save the calling card
numbers in your phone. Your phone can store up to four calling cards.
Settings
57
FCC DRAFT
Save information
1. In the standby mode, select Menu > Settings > Call settings > Calling card.
2. Enter your security code, and select OK. (See "Security settings," p. 65 for
more information.)
3. Scroll to one of the four memory locations, and select Options > Edit > OK >
Dialing sequence.
4. Select one of the following sequence types:
Access no.+ phone no.+ card no.—Dial 1-800 access number, phone number,
then card number (+ PIN if required)
Access no.+ card no.+ phone no.—Dial 1-800 access number, card number (+
PIN if required), then phone number
Prefix+ phone no.+ card no.—Dial the prefix (numbers that must precede the
phone number) and phone number you want to dial, then card number (+ PIN
if required)
5. Enter the required information (access number or prefix and card number),
and select OK to confirm your entries.
6. Select Card name.
7. Enter the card name, and select OK.
Note: Contact your calling card company for more information.
Make calls
After you have saved your calling card information in your phone, you can make a
call using your calling card.
1. In the standby mode, select Menu > Settings > Call settings > Calling card.
2. Enter your security code, and select OK. (See "Security settings," p. 65 for
more information.)
3. Scroll to the calling card of your choice, select Options > Select > OK.
4. Press the end key to return to standby mode; then enter the phone number,
including any prefix (such as 0 or 1) that your calling card may require when
you make a calling card call.
See your calling card for instructions.
Settings
58
FCC DRAFT
5. Press and hold the call key for a few seconds until Card call is displayed.
6. When you hear the tone or system message, select OK.
International prefix
You can store an international dialing prefix into your phone. When you enter "+"
at the beginning of a phone number, your phone automatically inserts the
international dialing prefix that you have stored.
Note: Entering the international dialing prefix with the "+" is a network service.
Check with your service provider for availability.
1. In the standby mode, select Menu > Settings > Call settings > International
prefix.
2. Enter the international dialing prefix (for example, 0011) and select OK.
3. In the standby mode, press the */+ key twice to use "+" to enter the phone
number you wish to call. (For example, +3546789.)
The phone dials the international dialing prefix you have stored in your phone
and the phone number you have entered. (For example, the phone dials
0011354789.)
Call summary
You can view the time spent on a call when you hang up.
In the standby mode, select Menu > Settings > Call settings > Call summary >
On or Off.
■Phone settings
Language settings
1. In the standby mode, select Menu > Settings > Phone settings > Language
settings > Phone language or Writing language.
Phone language—Changes the display language on your phone.
Writing language—Changes the language of the text editor.
2. Select the language of your choice.
Settings
59
FCC DRAFT
The Phone language setting affects the time and date formats of the clock, alarm
clock, and calendar.
Automatic keyguard
You can set the keypad of your phone to lock automatically after a preset time
delay (from 10 seconds to 60 minutes).
1. In the standby mode, select Menu > Settings > Phone settings > Automatic
keyguard > On or Off.
2. If you selected On, Set delay: appears in the display.
3. Enter the delay (in mm:ss format), and select OK.
Important: When keyguard is on, it may be possible to dial the
emergency number programmed into your phone. Key in the emergency
number and press the call key. The number is displayed only after you
have keyed in its last digit.
Touch tones
Touch tones, are the tones that sound when you press the keys on your device
keypad. You can use touch tones for many automated dial-up services such as
banking and airlines or for entering your voice mailbox number and password.
Touch tones are sent during an active call. You can send them manually from
your device keypad, or send them automatically by saving them in your device.
Set type
In the standby mode, select Menu > Settings > Phone settings > Touch tones >
Manual touch tones and one of the following options:
Continuous—Used to set the tone sound for as long as you press and hold a key.
Fixed—Used to send tones of the duration you specify in the Touch tone length
option.
Off—Used to turn off tones. No tones are sent when you press a key.
Set length
You can specify touch-tone length for the Fixed option. In the standby mode,
select Menu > Settings > Phone settings > Touch tones > Touch tone length >
Short (95 ms) or Long (350 ms).
Settings
60
FCC DRAFT
Start-up tone
You can set your phone to play (or not to play) a start-up tone when the phone is
powered on.
In the standby mode, select Menu > Settings > Phone settings > Start-up tone >
On or Off.
Welcome note
You can write a welcome note which briefly appears on the display screen
whenever you switch your phone on.
Note: Dictionary mode is not available for entering welcome note text.
1. In the standby mode, select Menu > Settings > Phone settings > Welcome
note.
2. Enter a note (up to 44 characters).
Press * to display and select from available special characters.
3. When you are finished, select Options > Save. Select Options > Delete to
delete the previous text and begin creating another welcome note.
Choose a banner
Banner is a carrier-dependent feature. If your network operator supports this
feature, you can choose whether the display shows the operator logo when the
phone is in the idle state. In the standby mode, select Menu > Settings > Phone
settings > Banner > Default or Customize.
Help text activation
Your phone displays brief descriptions for most menu items. When you arrive at a
feature or menu, pause for about 15 seconds and wait for the help text to display.
Use the scroll keys to page through the full help text, if necessary.
The default setting for Help text is on. However, you can turn help text on or off
by doing the following.
In the standby mode, select Menu >Settings > Phone settings > Help text
activation > On or Off.
Settings
61
FCC DRAFT
■Voice commands
You can set as many as 10 voice commands, which allow hands-free operation of
certain phone features.
Add a voice command
Before using voice commands, you must first add a voice tag to the phone
function.
1. In the standby mode, select Menu > Voice > Voice commands.
2. Select the phone function you wish to tag (Profiles, Voice mailboxRadio,
Radio, Voice recorder, or Call log).
3. If necessary, select an option associated with that function.
4. Select Options > Add command.
5. Select Start, and speak the voice tag clearly into the microphone.
Note: Do not select Quit unless you want to cancel the recording.
The phone replays and then saves the recorded tag. The icon appears next to
commands which have voice tags assigned.
Activate a voice command
After you have associated a voice tag with a phone function, you can issue a
command by speaking the voice tag.
1. Select and hold ContactsGo to.
2. When Speak now appears, pronounce the voice tag clearly into the
microphone.
When the phone finds the voice tag, Found: appears, and the phone plays the
recognized voice tag through the earpiece. The function you requested is
activated.
Options
After you have associated a voice tag to a command, you can choose one of the
following options:
• Select Playback to listen to the voice command.
• Select Change to change the voice command.
Settings
62
FCC DRAFT
• Select Delete to erase the voice command.
■Time and date settings
Time
Show/hide the clock
In the standby mode, select Menu > Settings > Time and date settings > Clock >
Show clock or Hide clock.
Set the time
1. In the standby mode, select Menu > Settings > Time and date settings >
Clock > Set the time.
2. Enter the time (in hh:mm format), and select OK.
3. Select am or pm if 12-hour format is used.
Change the format
In the standby mode, select Menu > Settings > Time and date settings > Clock >
Time format > 24-hour or 12-hour.
Date
Show/hide the date
In the standby mode, select Menu > Settings > Time and date settings > Date >
Show date or Hide date.
Set the date
1. In the standby mode, select Menu > Settings > Time and date settings >
Date > Set the date.
2. Enter the date, and select OK.
Change the date format
1. In the standby mode, select Menu > Settings > Time and date settings > Date.
2. Select Date separator.
3. Select a separator of your choice.
4. Select Date format.
5. Select the format of your choice.
Settings
63
FCC DRAFT
Set the auto-update of date & time
Auto-update is a network service. See "Network Services," p. 5 for more
information.
If your wireless service provider supports this feature, you can allow the digital
network to set the clock, which is useful when you are out of your home area, for
instance when you have traveled to another network or time zone.
In the standby mode, select Menu > Settings > Time and date settings > Auto-
update of date & time > On, Confirm first, or Off.
If you use the Auto-update of date & time option while outside your digital
network, you may be prompted to enter the time manually. Network time will
replace the time and date when you re-enter your digital network.
If your battery has been removed or has drained outside the digital network, you
may be prompted to enter the time manually (once the battery is replaced/
recharged, and you are still outside of the digital network).
■Display settings
Wallpaper
You can set your phone to display a background picture (wallpaper) while in
standby mode.
1. In the standby mode, select Menu > Settings > Display settings >
Wallpaper > Select wallpaper.
2. Browse the folders in the gallery, highlight a folder, and select Open.
3. Highlight the image of your choice, select Options > Set as wallpaper.
To activate or deactivate wallpaper, in the standby mode, select Menu >
Settings > Display settings > Wallpaper > On or Off.
Color schemes
You can change the color of some display components in your phone, such as
indicators and signal bars.
In the standby mode, select Menu > Settings > Display settings > Color schemes
and color scheme of your choice.
Settings
64
FCC DRAFT
Screen saver
If you have turned the screen saver on, then the screen saver is activated when no
function of the phone is used after a preset period of time. Press any key to
deactivate the screen saver.
In the standby mode, select Menu > Settings > Display settings > Screen saver.
and one of the following options:
On—Activate the screen saver.
Off—Deactivate the screen saver.
Select s. saver—Choose a screen saver from the Graphics folder in the Gallery
menu.
Time-out—Set your phone to display a screen saver after a preset time or after a
custom time (up to 60 minutes) of your choosing.
Menu view
You can choose whether the menu items in your phone appear as a list or as a
3x3 grid. (Grid is the default selection in your phone.) For more information, see
"User interface features," p. 11.
In the standby mode, select Menu > Settings > Display settings > Menu view >
List or Grid.
Display brightness
You can change the brightness of your phone display.
1. In the standby mode, select Menu > Settings > Display settings > Display
brightness.
2. Scroll left and right to adjust the contrast level to your preference, and select
OK to accept your settings.
Backlight time-out
The light on the screen (backlight) times out after 15 seconds of no activity.
However, you can personalize the backlight to time out for up to 5 minutes.
In the standby mode, select Menu > Settings > Display settings > Backlight
time-out > Always off, 7 seconds, 15 seconds, or 30 seconds.
Settings
65
FCC DRAFT
■Tone settings
From this menu, you can adjust the ringing volume, keypad tones, and other tone
settings for the currently active profile. See "Customize a profile," p. 54 for more
information on profile settings.
■Enhancement settings
The Enhancement settings menu is shown only if the phone is or has been
connected to a compatible enhancement.
In the standby mode, select Menu > Settings > Enhancement settings > Headset
or Charger.
Note: This phone does not support Text phone.
Headset
Select an option to enter the submenu and modify its settings.
Default profile—Choose the profile you wish to be automatically activated when
a headset is connected
Automatic answer—Calls are answered automatically after one ring when a
headset is connected. Select On or Off.
Charger
Select an option to enter the submenu and modify its settings.
Default profile—Choose the profile you wish to be automatically activated when
a charger is connected
Lights—Choose to keep the phone lights always on, or to shut off automatically
after several seconds. Select On or Automatic.
■Security settings
Security settings
When first accessing the security settings, enter the preset lock code, by default,
the last four digits of your phone number. Depending on your wireless service
provider, the preset lock code can be a four digit number such as 1234 or 0000. If
none of these work, contact your wireless service provider for help.
Settings
66
FCC DRAFT
Phone lock
The phone lock feature protects your device from unauthorized outgoing calls or
unauthorized access to information stored in the device. With phone lock
activated, Phone locked is displayed each time you turn your device on or off.
With the device locked, calls may still be possible to the official emergency
number programmed into your device.
1. In the standby mode, select Menu > Settings > Security.
2. Enter the lock code, and select OK. See ""Change lock code," p. 66" 66.
3. Select Phone lock and one of the following options:
Off—Immediately turns off the device lock feature.
Lock now—Immediately turns on the device lock feature.
On power-up—Turns on the device lock feature the next time you turn the
device on.
With Lock now selected, you must enter your lock code before the device can
function normally. With the lock code accepted, your device functions normally.
Call not allowed is displayed if you attempt to place a call with your device
locked. To answer a call with phone lock on, select Answer, or press the call key.
Allow numbers
With phone lock on, the only outgoing calls you can make are to the emergency
number programmed into your device (for example, 911) or the number stored in
the Allowed no. when phone locked location:
1. In the standby mode, select Menu > Settings > Security.
2. Enter the lock code, and select OK. See ""Change lock code," p. 66" 66.
3. Select Allowed no. when phone locked. With an empty folder selected, select
Assign, and enter the phone number; or select Assign > Find to recall the
number from your contacts list. Select OK.
To call the allowed phone number, in the standby mode, scroll down to highlight
the number you want to call, or enter it on the keypad; press the call key to place
the call.
Change lock code
The preset lock code, by default, is the last four digits of your phone number.
Depending on your wireless service provider, the preset lock code can be a four
Settings
67
FCC DRAFT
digit number such as 1234 or 0000. If none of these work, contact your wireless
service provider for help.
To ensure the security of your device, you may want to change the preset lock
code to your own selected four digit number. Avoid using codes similar to
emergency numbers such as 911 to prevent accidental dialing of the emergency
number.
If you enter an incorrect lock code five times in a row, your device may ask you
for the security code. By default, the security code is 12345, a five digit number.
Note: With the wrong lock code entered five times in succession, your
phone will not accept your correct lock code for 5 minutes, even if you
power off the device between incorrect entries.
1. In the standby mode, select Menu > Settings > Security.
2. Enter the lock code, and select OK.
3. Select Change lock code.
4. Enter the new lock code (must be 4 characters in length).
5. Reenter the new lock code for verification, and select OK.
When changing your lock code, make sure you store it in a safe place, away from
your device. Avoid entering access codes similar to emergency numbers to
prevent accidental emergency calls.
Call restrictions
Select call restrictions to block or allow numbers for incoming and outgoing calls.
With any numbers entered as allowed numbers, all those entered as blocked
numbers are ignored. With a number blocked, the phone blocks any call from it,
and send the caller to the voice mail.
1. In the standby mode, select Menu > Settings > Security.
2. Enter the lock code, and select OK. See ""Change lock code," p. 66" 66.
3. Select Call restrictions.
4. Select the types of calls you want to restrict:
Restrict outgoing calls—Set restrictions on making calls.
Restrict incoming calls—Set restrictions on receiving calls.
5. Select whether to block or allow numbers:
Blocked numbers—Set the numbers the phone can only block, allowing all the
rest.
Settings
68
FCC DRAFT
Allowed numbers—Set the numbers the phone can only call or receive,
blocking all the rest.
6. Select one of these options: Select, Add restriction (unavailable with memory
full), Edit (unavailable with no number added), or Delete (unavailable with no
number added).
Note: With restricted calls, you may still call the official emergency
number programmed into your device.
■Network
The following features are network services. See "Network Services," p. 5 for more
information. The menu options you see in your phone are based on your service
provider’s network. The network determines which options actually appear in the
phone menu. Check with your service provider for more information.
The Network menu allows you to customize the way your phone chooses a
network in which to operate while you are within or outside of your primary or
home system. Your phone is set to search for the most cost-effective network. If
your phone cannot find a preferred network, it selects a network automatically
based on the option you choose in the Network menu.
In the standby mode, select Menu > Settings > Network and one of the following
options:
Home only—You can make and receive calls in your home are only. While
roaming, No network coverage appears and you cannot make or receive calls.
Automatic—The phone automatically roams to another digital network. The
roaming rate applies when not in the home service area.
■Network services
The following features are network services. See ""Network Services," p. 5".
Store a feature code
1. In the standby mode, select Menu > Settings > Network services > Network
feature setting.
2. Enter the feature code from your service provider (for example, *633), and
select OK.
Settings
69
FCC DRAFT
3. Select the type of service that matches the feature code you entered (for
example, Call forwarding).
The activated feature code is now stored in your device, and you are returned
to the Feature code: field. Continue entering other feature codes (for
example, *633), or press the end key to return to the standby mode. When you
enter a network feature code successfully, the feature becomes visible in the
Network services menu.
Call forwarding
Call forwarding tells your network to redirect incoming calls to another number.
Call forwarding is a network service and may not work the same in all networks,
so contact your wireless service provider for availability.
Activate
The following options may not all appear in the display. Contact your wireless
service provider for more information.
1. In the standby mode, select Menu > Settings > Network services > Call
forwarding and one of the following options:
Forward all calls—Divert all calls to the number you specify.
Forward if busy—Divert incoming calls when you are in a call.
Forward if not answered—Divert incoming calls to another number if you are
unable to answer. You can set a delay before diverting takes place.
Forward if out of reach—Divert incoming calls when your device is off.
2. Select Activate.
3. Enter the number to which to divert your calls, and select OK.
Cancel
In the standby mode, select Menu > Settings > Network services > Call
forwarding > Cancel all diverts. Cancel all diverts may affect your ability to
receive voice mail messages. Contact your wireless service provider for specific
details.
Settings
70
FCC DRAFT
Call waiting
If your wireless service provider supports this feature, call waiting notifies you of
an incoming call even while you are in a call. You can then accept, reject, or
ignore the incoming call.
1. In the standby mode, select Menu > Settings > Network services > Call
waiting > Activate or Cancel.
2. During a call, select Answer, or press the call key or voice key to answer the
waiting call. The first call is put on hold.
3. Press the end key to end the active call.
Send my caller ID
If your wireless service provider supports this feature, then you can prevent your
number from appearing on the receiving party’s caller ID.
In the standby mode, select Menu > Settings > Network services > Send my caller
ID >Yes or No
View your phone number
In the standby mode, select Menu > Settings > Network services > Own number
selection.
■Restore factory settings
You can reset some of the menu settings to their original values. Data that you
have entered or downloaded is not deleted, for example, entries in your contacts
list are not affected.
1. In the standby mode, select Menu > Settings > Restore factory settings.
2. Enter the security code, and select OK. (See "Security settings," p. 65 for more
information.)
Organizer
71
FCC DRAFT
10. Organizer
Your phone contains features to help organize your everyday life,
including an alarm clock, calendar, to-do list, calculator, countdown timer,
stopwatch, and calorie calculator.
■Alarm clock
Set an alarm
The alarm clock is based on the phone clock. It sounds an alert any time you
specify and even works if the phone is turned off. If you have not set the time on
your phone clock, you will be prompted to do so before setting an alarm.
1. In the standby mode, select Menu > Organizer > Alarm clock > Alarm time.
2. Enter the time for the alarm in hh:mm format, and select OK.
3. Select am or pm (if using 12-hour format).
Alarm on appears briefly in the display and appears while in standby
mode.
Change the time
1. In the standby mode, select Menu > Organizer > Alarm clock > Alarm time >
On.
2. Enter the time for the alarm in hh:mm format, and select OK.
3. Select am or pm (if using 12-hour format).
Alarm on appears briefly in the display and appears while in standby
mode.
Organizer
72
FCC DRAFT
Set the alarm tone
You can set which tone is played when the alarm sounds.
1. In the standby mode, select Menu > Organizer > Alarm clock > Alarm tone.
2. Select Standard, Radio, Ringing tone, or Open Gallery to choose the tone of
your choice.
Note: Connect a headset to the phone when using the radio for an
alarm tone.
Repeat an alarm
You can set the alarm to repeat every day or only on certain days of the week.
1. In the standby mode, select Menu > Organizer > Alarm clock > Repeat
alarm > On.
2. Highlight the day (or days) of the week you wish to repeat the alarm and
select Mark. (Use Unmark to remove a day.)
3. Select Done when you have added all desired days.
Alarm conditions
When the alarm sounds, your phone beeps and the display lights up.
With the phone on, select Stop to shut the alarm off, or select Snooze. The alarm
stops for 10 minutes and Snooze on appears in the display. Select Stop at any
time to turn the snooze off.
The alarm sounds for one minute. If you do not press a key, the alarm stops
(snoozes) for 10 minutes, then sounds again.
If the alarm time is reached while the phone is switched off, the phone switches
itself on and starts sounding the alarm tone. If you select Stop, the device asks
whether you want to activate the phone for calls. Select No to switch off the
device or Yes to make and receive calls. Do not select Yes when wireless phone
use may cause interference or danger.
Turn an alarm off
In the standby mode, select Menu > Organizer > Alarm clock > Alarm time > Off.
Organizer
73
FCC DRAFT
■Calendar
The calendar keeps track of reminders, memos, calls you need to make, meetings,
and birthdays. You can even set an alarm for any of these events.
Monthly view provides an overview of the selected month and weeks. It also
allows you to jump to a specific date. Any days or dates that appear in bold font
contain calendar notes such as a meeting or reminder.
Open
In the standby mode, select Menu > Organizer > Calendar.
Note: To open the calendar quickly, scroll right while in standby mode.
You can move the cursor in some calendar views by scrolling.
Go to date
1. In the standby mode, select Menu > Organizer > Calendar > Options > Go to
date.
2. Enter the date (for example, 06/30/2005), and select OK.
Make a note
You can choose from five types of notes: Meeting, Call, Birthday, Memo, and
Reminder. Your phone asks for further information depending on which note you
choose. You also have the option to set an alarm for any note that you select.
1. Go to the date for which you want to set a reminder. (See "Go to date," p. 73 if
you need more information.)
2. From the monthly view (with the date highlighted), select Options > Make a
note.
3. Select one of the following note types, and select Options > Save:
Meeting—Enter a subject, location, and a start and end time. Choose an alarm
option.
Call—Enter a phone number, a name, and the time. Choose an alarm option.
Birthday—Enter the person’s name, and year of birth. Choose an alarm option.
Organizer
74
FCC DRAFT
Memo—Enter a subject, a start date, and an end date. Choose an alarm
option.
Reminder—Enter the subject you wish to be reminded about. Choose an alarm
option.
View notes (day view)
After you have created some calendar notes, you can view them as follows:
1. In the standby mode, select Menu > Organizer > Calendar.
2. Scroll to the date containing the note. Any days containing notes will be in
bold font.
3. Select Options > Day notes.
4. To view more details of a highlighted note, select Options > View.
Options while viewing a list of notes
Select Options while viewing a day’s notes to access the following options:
The options listed below are available either while viewing the body of a note or
viewing the header of a note.
View—View the full details of the note.
Make a note—Create a new note for the selected date.
Delete—Delete the note.
Edit—Edit the note.
Move—Move the note to another date on your calendar.
Repeat—Enable the note to recur on a regular basis (daily, weekly,
biweekly, monthly, or yearly).
Go to date—Jump to another date on your calendar.
Send note—Send the note to another device using text message or in vCal format.
Copy—Copy the note. You can then paste the note to another date.
Settings—Set the date and time, date and time formats, the day each week starts,
and whether you want your notes to auto-delete after a specified time.
Go to to-do list—Takes you to the to-do list for the selected date.
Organizer
75
FCC DRAFT
Send a calendar note
1. In the standby mode, select Menu > Organizer > Calendar.
2. Scroll to the date containing the note you wish to send. Any days containing
notes will be in bold font.
3. Select Options > Day notes.
4. Scroll to the note you wish to send, and select Options > Send note > Via
calendar or Via text message.
5. If you selected Via calendar, enter the recipient’s phone number or e-mail
address, and select OK; or select Search to retrieve a number from your
contacts list, and select Send. The note is sent.
6. If you selected Via text message, the note appears in the display as a text
message.
Select Options > Send to > Send to number, Send to e-mail, Send to many, or
Send to distrib. list.
Send to distrib. list is available only if there are distribution lists programmed
in the phone.
Enter the recipient’s phone number or e-mail address, and select OK; or select
Search to retrieve a number from your contacts list, and select Send. The note
is sent.
Receive a calendar note
When you receive a calendar note, your phone displays Calendar note received.
You can then save the note in your Calendar and set an alarm for a date and time.
View notes
1. When your phone displays Calendar note received, select Show.
2. Scroll to view the entire message, if necessary.
Save notes
After viewing the calendar note, select Options > Save.
Discard notes
After viewing the calendar note, select Options > Discard.
Organizer
76
FCC DRAFT
■To-do list
You can keep track of your tasks with the To-do list feature. The number of notes
you can save depends on their length and the unused memory of the phone. To-
do notes are not related to specific dates.
Add a To-do note
1. In the standby mode, select Menu > Organizer > To-do list > Options > Add.
If this is your first time to use the to-do list, Add is highlighted.
2. Enter your to-do note, and select Options > Save > High, Medium, or Low
priority.
Options while viewing To-do notes
Select Options while viewing the header or body of a note, and select an option
to activate it or enter its submenu.
■Calculator
Use calculator
The calculator in your phone adds, subtracts, multiplies, divides, calculates the
square and the square root, and converts currency values.
Note: This calculator has a limited accuracy and is designed for simple
calculations.
1. In the standby mode, select Menu > Organizer > Calculator.
2. Enter the first number in the calculation.
Press # for a decimal point if necessary.
To perform a square or square root calculation, select Options > Square or
Square root.
3. Press * to cycle through the add (+), subtract (-), multiply (*), and divide (/)
characters. Pause briefly to select the displayed character.
4. Enter the second number in your calculation.
5. Select Options > Equals.
Organizer
77
FCC DRAFT
Use currency converter
You can convert foreign currency to domestic or vice versa.
1. In the standby mode, enter a currency amount to convert.
2. Select Options > In domestic or In foreign.
In domestic—converts foreign currency to domestic currency.
In foreign—converts domestic currency to foreign currency.
If you have not done so already, you are prompted to enter the exchange rate.
3. Enter the exchange rate (press # to insert a decimal), and select OK.
Change exchange rate
At any time, you can edit the exchange rate used by the currency converter.
Note: When you change base currency, you must key in the new rates
because all previously set exchange rates are set to zero.
1. In the standby mode, select Menu > Organizer > Calculator > Options >
Exchange rate > Foreign unit in domestic units or Domestic unit in foreign
units.
Foreign unit in domestic units—the number of home units it takes to make
one unit of foreign currency
Domestic unit in foreign units—the number of foreign units it takes to make
one unit of your home currency
2. Enter the exchange rate, and select OK.
■Countdown timer
You can enter a specified time (up to 99 hours, 59 minutes, and 59 seconds).
When the time runs out, your phone sounds an alarm.
Note: The countdown timer only works when the phone is on. Once you
turn off your phone, the timer is no longer active.
Set the countdown timer
1. In the standby mode, select Menu > Organizer > Countdown timer.
2. Enter the time (in hh:mm:ss format), and select OK.
Organizer
78
FCC DRAFT
3. Enter a note for the timer, and select OK.
The icon appears on the screen when the countdown timer is set.
When the time runs out, your phone sounds an alarm, displays the timer note,
and flashes its lights.
• Press any key during the alarm to stop the alarm.
• After 30 seconds the timer alert expires automatically.
Change the time
After you have set the timer, you can change the time.
1. In the standby mode, select Menu > Organizer > Countdown timer > Change
time.
2. Enter the new time, and select OK.
3. Leave the note as it was, or enter a new note, and select OK.
Stop the timer before the alarm sounds
After you have set the timer, you can stop the timer.
In the standby mode, select Menu > Organizer > Countdown timer > Stop timer.
■Stopwatch
Your phone has a stopwatch that can be used to track time. The stopwatch
displays time in hours, minutes, seconds and fractions of a second in hh:mm:ss:s
format.
Using the stopwatch or allowing it to run in the background when using other
features increases the demand on battery power and reduces the battery life.
Measure split or lap time
Use the split time or lap time functions for activities where you need to pace
yourself.
1. In the standby mode, select Menu > Organizer > Stopwatch > Split timing or
Lap timing > Start.
Split timing—Use the split time function for such activities as a long distance
race when you need to pace yourself. Select Split to note the lapsed time. The
timer continues to run and the split time appears below the running time.
Organizer
79
FCC DRAFT
Each time you select Split, the new measured time appears at the beginning
of the list.
Lap timing—Use the lap time function when you want to track how long it
takes to complete each cycle or lap. Select Lap to note the lap time. The clock
stops, then immediately restarts from zero. The lap time appears below the
running time. Each time you select Lap, the new measured time appears at
the beginning of the list.
2. Select Stop to end timing and display total time.
Save the time
1. While the clock is running, select Stop > Options > Save.
2. Enter a name for the measurement, and select OK.
If you do not enter a name, the total time is used as the default title for the
time.
Options
You can choose the following options when using the stopwatch for split timing
or lap timing:
Continue—Shows up when the stopwatch is working in the background.
Show last—Allows you to view the last measured time.
Split timing—Track a long distance race when you need to pace yourself.
Lap timing—Track how long it takes to complete each cycle or lap.
View times—Allows you to browse the saved times.
Delete times—Allows you to delete any saved times. You can delete the saved
times one by one or all at once.
Operation note
If you press the end key and return to standby mode while the stopwatch is still
running, the stopwatch continues to run in the background and the icon
appears in the upper left corner of the screen.
To return to the stopwatch screen:
1. In the standby mode, select Menu > Organizer > Stopwatch >Continue.
2. To stop the clock, select Stop.
Organizer
80
FCC DRAFT
■Calorie calculator
The calorie calculator estimates the amount of energy used in various physical
activities. The energy used depends on age, weight, and gender. You can save up
to 10 activities in your phone.
The calorie calculator provides general measurements for personal use that may
vary from scientific measurements.
Save personal data
1. In the standby mode, select Menu > Organizer > Calorie counter > Settings.
2. Enter Weight, Age, Gender, and if desired, change the Weight format, Calorie
format, or Velocity format.
3. Select OK.
Select an activity
1. In the standby mode, select Menu > Organizer > Calorie counter > Activities,
and select Add new; or select Options > Add new.
2. Select an activity.
3. If prompted, select an intensity level.
4. Enter the duration of the activity (in hh:mm format), and select OK.
5. Select OK to save the activity.
Edit and delete activities
1. To edit activities, select Options while in the Activities menu.
2. You can now add a new activity, edit an existing one, total the calorie amount
of all selected activities, or delete an activity.
3. To delete all activities at once, select Menu > Organizer > Calorie counter >
Delete all > OK.
Mobile web
81
FCC DRAFT
11. Mobile web
Minibrowser is a network service. See "Network Services," p. 5.
Your device has a built-in browser you can use to connect to selected services on
the mobile internet. If your network operator supports this feature, then you can
view weather reports, check news or flight times, view financial information, and
much more. The web browser on your device can display WAP-based content.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
internet site.
The security icon does not indicate that the data transmission between the
gateway and the content server (or place where the requested resource is stored)
is secure. The network operator secures the data transmission between the
gateway and the content server.
■Mobile Internet access
Because mobile Internet content is designed to be viewed from your device, your
network operator is now your mobile Internet service provider as well.
It is likely that your network operator has created a home page and set up your
browser to go to this page when you log on to the mobile Internet. At your service
provider’s home page, you may find links to a number of other sites.
It should not be necessary to manually configure the browser on your device.
Normally this is done by your network operator after you subscribe to the feature.
Contact your network operator if you have problems using the browser.
■Sign on
In the standby mode, select Menu >Mobile web > Minibrowser > Connect or the
operator provided menu item.
After a brief pause, your device attempts to connect to your network operator’s
home page. If you receive an error message, your device may not be set up for
browsing. Contact your network operator to make sure that your device is
configured properly.
Mobile web
82
FCC DRAFT
■Navigate the mobile Internet
Since your device screen is much smaller than a computer screen, mobile Internet
content is displayed differently than you may be accustomed to seeing. This
section contains guidelines for using the keys to navigate a WAP site.
Phone keys
• Press the power key to display the minibrowser home screen.
• Scroll up or down to browse the WAP site.
• Select an item.
• To enter letters and numbers, press a key from 0–9.
• To enter special characters, press *.
Receive a call while online
If your data connection is not active, you may still be able to receive a voice call
while using the WAP browser.
• To answer the incoming call, press the call key.
• To reject the incoming call, press the end key (a carrier-dependent feature).
While in the voice call, you are not able to load new pages in the browser.
Note: If your data connection is active, the incoming calls are
automatically forwarded to voice mail, depending on your carrier.
Make an emergency call while online
You can end your data connection and make an emergency call.
1. To close your mobile Internet connection, press the end key.
2. Press the end key as many times as needed to clear the display and ready the
device for calls.
3. Enter the emergency number for your present location (for example, 911).
Emergency numbers vary by location.
4. Press the call key.
Mobile web
83
FCC DRAFT
Clear the cache and disconnect
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
empty the cache after each use. The information or services you have accessed
are stored in the cache. To empty the cache while in the browser menu, select
Navigate > Advanced > Clear > Cache from the home page. To clear the cache
and power off your device, press and hold the power key.
To close your mobile internet connection while browsing, press the end key.
Enhancements
84
FCC DRAFT
12. Enhancements
Check the model number of any charger before use
with this device. This device is intended for use when
supplied with power from ACP-12 or other compatible
charger.
Warning: Use only batteries, chargers and
enhancements approved by Nokia for use with this particular model. The
use of any other types may invalidate any approval or warranty, and may
be dangerous.
Your device and its enhancements may contain small parts. Keep them out of
reach of small children.
A few practical rules about accessories and enhancements:
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp
and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and
are operating properly.
• Installation of any complex car enhancements must be made by qualified
personnel only.
For availability of approved enhancements, please check with your dealer.
Power
• Standard 970 mAh Li-Ion Battery (BL-5C)
• Standard Charger (ACP-7)
• Travel Charger (ACP-12)
• Compact Charger (AC-1)
Audio
• UHJ Headset (HS-9)
Car
• Universal Headrest Handsfree (BHF-4)
• Mobile Charger LCH-12
Reference information
85
FCC DRAFT
13. Reference information
This section provides information about your phone batteries, enhancements,
chargers, safety guidelines, and technical information. Be aware that the
information in this section is subject to change as batteries, chargers, and
enhancements change.
■Batteries and chargers
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, replace the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers designated for this
device.
If a replacement battery is being used for the first time or if the battery has not
been used for a prolonged period, it may be necessary to connect the charger and
then disconnect and reconnect it to start the charging.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
If the battery is completely discharged, it may take a few minutes before the
charging indicator appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
Reference information
86
FCC DRAFT
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting
an original Nokia battery, purchase it from an authorized Nokia dealer, look for
the Nokia Original Enhancements logo on the packaging and inspect the
hologram label using the following steps:
Successful completion of the three steps is not a total assurance of the
authenticity of the battery. If you have any reason to believe that your battery is
not an authentic original Nokia battery, you should refrain from using it and take
it to the nearest authorized Nokia service point or dealer for assistance. Your
authorized Nokia service point or dealer will inspect the battery for authenticity.
If authenticity cannot be verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram on the label, you
should see the Nokia connecting hands symbol from
one angle and the Nokia Original Enhancements logo
when looking from another angle.
2. When you angle the hologram left, right, down,
and up, you should see 1, 2, 3, and 4 dots on each
side respectively.
Reference information
87
FCC DRAFT
3. Scratch the side of the label to reveal a 20-digit
code, for example 12345678919876543210. Turn
the battery so that the numbers are facing upwards.
The 20-digit code reads starting from the number at
the top row followed by the bottom row. Confirm
that the 20-digit code is valid by following the
instructions at www.nokia.com/batterycheck.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is
an authentic Nokia battery, please do not use the battery. Take it to the nearest
authorized Nokia service point or dealer for assistance. The use of a battery that
is not approved by the manufacturer may be dangerous and may result in poor
performance and damage to your device and its enhancements. It may also
invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
Care and maintenance
88
FCC DRAFT
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity
sensor, and light sensor lenses.
• Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the device and may
violate regulations governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and
calendar notes, before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Additional safety information
89
FCC DRAFT
Additional safety information
■Operating environment
This device meets RF exposure guidelines when used either in the normal use
position against the ear or when positioned at least 1.5 cm (5/8 inches) away
from the body. When a carry case, belt clip or holder is used for body-worn
operation, it should not contain metal and should position the device the above-
stated distance from your body.
In order to transmit data files or messages, this device requires a good quality
connection to the network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15.3 centimeters (6 inches) be maintained between a wireless phone and a
pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers
should:
• always keep the device more than 15.3 centimeters (6 inches) from the
pacemaker;
• not carry the device in a breast pocket; and
• hold the device to the ear opposite the pacemaker to minimize the potential
for interference.
If you suspect interference, switch off your device and move the device away.
Additional safety information
90
FCC DRAFT
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Only qualified personnel should service the device, or install the device in a
vehicle. Faulty installation or service may be dangerous and may invalidate any
warranty that may apply to the device. Check regularly that all wireless device
equipment in your vehicle is mounted and operating properly. Do not store or
carry flammable liquids, gases, or explosive materials in the same compartment
as the device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refuelling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas, chemical plants or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust, or metal powders.
Additional safety information
91
FCC DRAFT
■Emergency calls
Important: Wireless phones, including this phone, operate using radio
signals, wireless networks, landline networks, and user-programmed
functions. Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless phone for
essential communications like medical emergencies.
To make an emergency call:
1. If the phone is not on, switch it on. Check for adequate signal strength.
2. Press the end key as many times as needed to clear the display and ready the
phone for calls.
3. Enter the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. Consult this guide or your service provider.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless phone may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to
exceed the limits for exposure to radio waves recommended by international
guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. Tests
for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
actual SAR level of an operating device can be below the maximum value
because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how
close you are to a network base station. The highest SAR value under the ICNIRP
guidelines for use of the device at the ear is 0.80 W/kg.
Additional safety information
92
FCC DRAFT
Use of device accessories and enhancements may result in different SAR values.
SAR values may vary depending on national reporting and testing requirements
and the network band. Additional SAR information may be provided under
product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission (USA) and
Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this standard during
product certification for use at the ear is 1.25 W/kg and when properly worn on
the body is 0.92 W/kg. Information about this device model can be found at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system
using FCC ID: QMNRM-121.
■Technical information
Dimensions: Width (43 mm), Length (81 mm), Depth (22 mm)
Weight: 78 g with BL-5C 970 mAh Li-Ion Battery
Volume: 66 cc
Wireless networks—CDMA 800
Frequency range (Tx)—Cellular: 824.70–848.37 MHz
Frequency range (Rx)—Cellular: 869.70–893.37 MHz
■Battery information
This section provides information about battery charging times with the Travel
Charger (ACP-12), the Standard Charger (ACP-7), talk-times, and standby times.
Be aware that the information in this section is subject to change. For more
information, contact your service provider.
Charging times
The following charging times are approximate.
Charger options with BL-5C 970 mAh Li-Ion Battery
ACP-12 (800mA) - 1.5 hours
ACP-7 (340mA) - 3.5 hours
Talk and standby times
Operation times are estimates only and depend on signal strength, phone use,
network conditions, features used, battery age and condition (including charging
habits), temperatures to which the battery is exposed, and many other factors.
Additional safety information
93
FCC DRAFT
Talk time: up to 3.9 - 4.3 hours
Standby time: up to 5.3 - 8.8 days
Index
94
FCC DRAFT
Index
NUMERICS
1-touch dialing 45, 56
A
alarm clock 71
antenna 14
anykey answer 56
automate voicemail 37
automatic keyguard 59
automatic redial 56
auto-update 63
B
battery 85
charge 16
charging times 93
information 93
talk and standby times 93
business cards 49
C
calculator 76
calendar 73
call duration 40
call forwarding 69
call log 39
call restrictions 67
call settings 56
call summary 58
call waiting 70
caller groups 45
calling cards 56
calls
answering 18
in-call options 20
making 17
calorie calculator 80
certification information (SAR) 91
charger 65, 85
connect 16
times 93
clear the cache 83
clip-arts 50
color schemes 63
contacts 42
add 42
delete 47
edit 46
send 49
settings 48
view 48
countdown timer 77
currency converter 77
D
deleting call logs 40
display brightness 64
display settings 63
distribution list 27
E
emergency calls 91
while using wireless Internet 82
with keypad locked 59
enhancement settings 65
charger 65
headset 65
enhancements 84
ESN 7
exchange rate 77
F
FCC information 92
feature codes 68
G
gallery 50
go to 55
organize 55
Go to functions 13
H
headset 16, 65
help
getting 7
help text 12, 60
Index
95
FCC DRAFT
I
indicators and icons 10
Insert the battery 14
international dialing prefix 58
K
keyguard 20
L
languages 58
lock code 66
loudspeaker 19
M
menu
contacts 42
gallery 50
messages 24
organizer 71
settings 54
menu view 64
grid 64
list 64
messages
delete 34
minibrowser messages 38
multimedia messages 29
text messages 24
voice messages 35
minibrowser 81
minibrowser duration 41
minibrowser messages 38
mobile web 81
multimedia messages 29
N
network 68
network services 5, 68
Nokia Customer Care 7
O
on or off switch 16
organizer 71
P
personal shortcuts 55
phone lock 66
change lock code 66
phone settings 58
predictive text 22
preferred carrier 56
profiles 54
activate 54
customize 54
timed 55
Q
quick keys 10
R
Radio 51
register your phone 7
restore factory settings 70
roaming 68
S
safety guidelines 4
screen saver 64
screen savers 50
scrolling 11
security settings 65
send own caller ID 70
set
date 62
time 62
settings 54
shared memory 6
shortcuts 12
standby
time 93
standby mode 10
start-up tone 60
stopwatch 78
switch phone on or off 16
T
talk time 93
technical information 93
text entry 21
changing language 21
Index
96
FCC DRAFT
predictive mode 22
standard mode 21
text messages 24
time and date settings 62
to-do list 76
tone settings 65
tones 50
Touch tones 59
U
user interface 11
V
view
call duration 40
call times 40
dialed numbers 39
minibrowser duration 41
missed calls 39
own phone number 70
received calls 39
voice commands 61
voice dialing 43
voice messages 35
voice recorder 52
voicemail 36
volume
adjusting 18
using the loudspeaker 19
W
wallpaper 63
welcome note 60
wireless Internet 81
make an emergency call 82
receive a call while online 82
sign off 83
sign on 81
wireless networks 93
