Microsoft RM-13 GSM 900/1800/1900 w BT User Manual 8800 ENv1 9238830
Microsoft Mobile Oy GSM 900/1800/1900 w BT 8800 ENv1 9238830
Manual
1
Nokia 8800 User Guide Draft
9232467
Issue 1_draft07
2
LEGAL INFORMATION
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RM-13 is in
conformity with the provisions of the following Council Directive:1999/5/EC.
A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
PART NO. 9238830, ISSUE NO. 1
Copyright © 2005 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia 8800, Pop-Port, PC Suite, and the Nokia Original
Enhancements logos are trademarks or registered trademarks of Nokia Corporation. Other
company and product names mentioned herein may be trademarks or trade names of their
respective owners.
Nokia tune is a sound mark of Nokia Corporation.
US Patent No 5818437 and other pending patents. T9 text input software
Copyright © 1999-2004. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA
Security.
Java is a trademark of Sun Microsystems, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL
STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR
INFORMATION ENCODED BY A CONSUMER FOR PERSONAL AND NONCOMMERCIAL USE
WITHOUT REMUNERATION; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED
BY MPEG LA, L.L.C.
The information contained in this user guide was written for the Nokia 8800 product. Nokia
operates a policy of ongoing development. Nokia reserves the right to make changes to any
of the products described in this document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT
AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR
3
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This device may contain commodities, technology, or software subject to export laws and
regulations from the U.S. and other countries. Diversion contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your telephone if such interference cannot be eliminated. If you require assistance, contact
your local service facility. This device complies with part 15 of the FCC rules. Operation is
subject to the condition that this device does not cause harmful interference.
Contents
4
Contents
1. Welcome................................ 8
2. Getting started .................. 11
3. Your phone......................... 15
4. Phone security ................... 18
5. Call functions..................... 20
6. Phone menus...................... 22
7. Messages ............................ 23
8. Contacts ............................. 40
9. Call log ............................... 47
10.Settings............................. 49
11.Operator menu ................. 60
12.Gallery............................... 61
13.Media ................................ 63
14.Organizer .......................... 69
15.Applications...................... 78
16.Web................................... 80
17.SIM services...................... 88
18.Computer connectivity .... 89
19.Enhancements .................. 90
20.Reference information..... 91
Index..................................... 102
For your safety
5
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any regulations or rules. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELLING
Don't use the phone at a refuelling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Don't use the phone where blasting is in
progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Don't touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
For your safety
6
BACKUP COPIES
Remember to make back-up copies or keep a written record of all
important information.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press the end key as
many times as needed to clear the display and return to the start
screen. Enter the emergency number, then press the call key. Give
your location. Do not end the call until given permission to do so.
■About your device
The wireless device described in this guide is approved for use on the EGSM 900,
GSM 1800, and GSM 1900 networks.
When using the features in this device, obey all laws and respect privacy and
legitimate rights of others.
Warning: To use any features in this device, other than the alarm clock,
the phone must be switched on. Do not switch the device on when
wireless phone use may cause interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features in this device depend on features in the wireless network to
function. These Network Services may not be available on all networks or you
may have to make specific arrangements with your service provider before you
can utilize Network Services. Your service provider may need to give you
additional instructions for their use and explain what charges will apply. Some
networks may have limitations that affect how you can use Network Services. For
instance, some networks may not support all language-dependent characters
and services.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, they will not appear on your device menu. Contact
your service provider for more information.
For your safety
7
■Shared memory
The phone has two different memories. The following features in this device may
share the first memory: contacts, text messages, multimedia messages (but no
attachments), instant messages, groups, voice tags, calendar, and to-do notes.
The second shared memory is used by files stored in the Gallery, attachments of
multimedia messages, e-mail, and Java applications. Use of one or more of these
features may reduce the memory available for the remaining features sharing
memory. For example, saving many JavaTM applications may use all of the
available memory. Your device may display a message that the memory is full
when you try to use a shared memory feature. In this case, delete some of the
information or entries stored in the shared memory features before continuing.
Some of the features, such as text messages, may have a certain amount of
memory specially allotted to them in addition to the memory shared with other
features.
Welcome
8
1. Welcome
Congratulations on your purchase of the Nokia 8800 mobile phone. Since this is a
product of superior design and craftsmanship, please handle your phone with
special care. Besides the Nokia 8800 mobile phone’s stainless steel covers and
scratch resistant glass display, some its other features include a calendar, a clock,
an alarm clock, a radio, a music player, and a built-in camera.
■Updates
From time to time, Nokia may update this guide to reflect changes. The latest
version may be available at www.nokiausa.com. Also, an interactive tutorial may
be available at www.nokiausa.com.
■Register your phone
Make sure to register your phone at www.warranty.nokiausa.com or call
1-888-NOKIA-2U (1-888-665-4228) so that we can serve your needs better if
you should need to call a customer center or to have your phone repaired.
■Get help

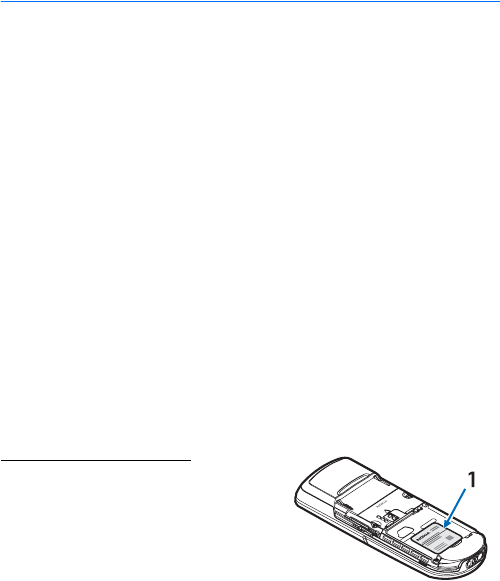

Find your phone label
If you need to call the Nokia Customer Care
Center or your service provider, you will
need to provide specific information about
your phone. This information is provided on
the phone label (1), which is on the back of
the phone (under the battery). It contains
the model and serial numbers, as well as
other important information about your phone.
To help Nokia promptly answer your questions, please have the following
information available before contacting the Nokia Customer Care Center:
• Your phone model number (8800)
• Type number (RM-13)
• International mobile equipment identity (IMEI)
Welcome
9
• Your zip code
• The phone or enhancement in question
■Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals,
including those with disabilities. For more information, visit the web site at
www.nokiaaccessibility.com.
■E-newsletters
When you register your phone, you can sign up for the Nokia e-newsletter, Nokia
Connections. You will receive tips and tricks on using your phone, enhancement
information, and special offers.
■Copyright protection
Copyright protections may prevent some images, ringing tones, and other
content from being copied, modified, transferred, or forwarded.
■Configuration settings service
To use some of the network services, such as mobile Internet services, multimedia
messaging service (MMS), or remote Internet server synchronization, your phone
needs the correct configuration settings. You may be able to receive the settings
directly as a configuration message. After receiving the settings, you need to save
them on your phone. The service provider may provide a PIN that is needed to
save the settings. For more information on availability of the settings, contact
your service provider.
When you have received a configuration message, Configuration settings
received is displayed.
• To save the settings, select Show >Save. If the phone requests Enter
settings' PIN:, enter the PIN code for the settings, and select OK. To receive
the PIN code, contact the service provider who supplies the settings. If no
settings are saved yet, these settings are saved and set as default
configuration settings. Otherwise, the phone asks, Activate saved
configuration settings?.
• To discard the received settings, select Show > Discard.
Welcome
10
• To edit the settings, see "Configuration" on page 57.
■Network support
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as text messages, multimedia
messages, instant messages, e-mail, presence enhanced contacts, mobile
Internet services, content and application downloads, and synchronization with a
remote Internet server, require network support for these technologies.
Getting started
11
2. Getting started
■SIM card installation
Keep all SIM cards out of the reach of small children. For availability and
information on using SIM card services, contact your SIM card vendor. This may
be the service provider, network operator, or another vendor. Before installing
the SIM card and removing the battery, always make sure that the phone is
switched off and disconnected from any enhancement.
The SIM card and its contacts can easily be damaged by scratches or bending, so
be careful when handling, inserting, or removing the card.
To install the SIM card:
1. Push the sideways release buttons to
release the back cover of the phone.
2. Slide the back cover to remove it from the
phone.
3. Remove the battery, as shown in the
illustration.
4. Insert the SIM card into the SIM card
holder as shown. Make sure that the gold
colored contact area on the SIM card is
facing downwards.
Getting started
12
5. Position the
battery so the
gold colored
contacts match
up with those on
the phone. Insert
the battery,
contact end first
into the battery slot. Snap the other end of the battery into place.
6. Slide the back cover into place.
■Charge the battery
Warning: Use only batteries, chargers, and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
This device is intended for use with the BL-5X battery. Always use original Nokia
batteries. See "Nokia battery authentication guidelines" on page 92.
Check the model number of any charger before use with this device. This device is
intended for use when supplied with power from the ACP-12 charger.
For availability of approved enhancements, please check with your dealer.
1. Connect the charger to a standard
wall outlet.
2. Insert the charger plug into the
round jack in the bottom of the
phone. If the battery is completely
empty, it may take a few minutes
before the charging indicator
appears on the display or before
any calls can be made.
3. Disconnect the charger from the
phone when the battery is fully charged.
You can use the phone while the charger is connected. The charging time
depends on the charger and the battery used. For example, charging a BL-5X
Getting started
13
battery with the ACP-12 charger takes approximately 1 hour and 5 minutes while
the phone is in the standby mode.
■Turn the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the power key as shown. If the phone asks for a
PIN, enter the code, and select OK.
When you turn on your phone for the first time, the phone is in
standby mode (see "Standby mode" on page 16) and a query
appears, asking for the configuration settings from your service
provider (network service). Confirm or decline the query. See
"Configuration settings service" on page 9.
■Open the keypad
1. Hold the phone in one hand.
2. With the other hand, press your thumb on the part of the
phone that is below the display screen.
3. Push the top part of the phone (slide) upwards, as shown in
the illustration.
■Normal operating position
Use the phone only in its normal operating
position.
Your device has an internal antenna.
Getting started
14
Note: As with any other radio transmitting device, do not touch the
antenna unnecessarily when the device is switched on. Contact with
the antenna affects call quality and may cause the device to operate at
a higher power level than otherwise needed. Avoiding contact with the
antenna area when operating the device optimizes the antenna
performance and the battery life.
Your phone
15
3. Your phone
■Keys and parts
• Power key (1)
• Loudspeaker (2)
• Earpiece (3)
• Left selection key (4)
Right selection key (5)
Middle selection key (6)
The function of the selection key depends
on the guiding text shown on the display
above the key.
• 4-way scroll key (7) that allows you to scroll
up, down, left and right.
• Call key (8) dials a phone number and answers
a call
• End key (9) ends an active call and allows you
to exit from any function
• Battery cover release buttons (10)
• Microphone (11)
• Charger connector (12)
• Enhancements connector (13)
• Camera lens (14)
• Headset HS-15, rotating clip (15)
15
Your phone
16
■Standby mode
When you turn on your phone, the first screen that appears is the start screen,
which indicates your phone is in the standby mode. When your phone is in the
standby mode, the selection keys access specific functions, and the indicators
appear on the start screen. Indicators show the status of the phone.
• The name of the wireless service provider (1) displays
in the middle of the start screen.
• The signal strength indicator (2) shows the strength
of the signal to your phone. The higher the bar, the
stronger the signal.
• The battery strength indicator (3) shows how much
power is left in your phone battery. The higher the
bar, the more power in the battery.
• The left selection key (4) in the standby mode is Go to. Your most frequently
used functions can be quickly accessed from the Go to menu.
To activate a function, select it.
To view a list with available functions, select Options > Select options. To
add a function to the shortcut list, select Mark or to remove a function from
the list, select Unmark.
To rearrange the functions in your personal shortcut list, select Options >
Organize. Scroll to the function you want, select Move, and scroll to where
you want to move the function.
• The middle selection key in the standby mode is Menu (5).
• The right selection key in the standby mode may be Names (6) to access the
Names menu, an operator-specific key to access an operator’s home page, or
a specific function that you have selected in the right selection key menu.
Power saving screen saver
To save power, a digital clock screen saver overwrites the
display when no function of the phone has been used for a
certain period of time. Select Menu > Settings > Display >
Power saver > On to activate the screen saver or press any key
to deactivate it.
Your phone
17
■Indicators and icons
Your phone has two types of identifiers: indicators and icons.
Indicators
See "Standby mode" on page 16 for information on indicators.
Icons
Icons are graphical representations of a specific item or situation. The following
list describes each icon.
You have received one or several text or multimedia messages.
You have received one or several multimedia messages.
The phone registered a missed call.
The phone keypad is locked.
The phone does not ring for an incoming call or text message when
Incoming call alert is set to Off and Message alert tone is set to Off.
The alarm clock is set.
Shown in the top left of the display when the packet data connection
mode Always online is selected and the packet data service is available.
Shown in the top left of the display when the packet data connection is
established.
Shown in the top right of the display when the packet data connection
is suspended (on hold); for example, if there is an incoming or outgoing
call during the packet data connection.
Indicates an active Bluetooth wireless connection.
Phone security
18
4. Phone security
Your phone is equipped with different security features that allow you to avoid
making accidental calls and prevent unauthorized use of your phone.
■Keypad lock (keyguard)
The keyguard disables your keypad to prevent accidental key presses.
• To lock the keypad and the power key, close the slide and confirm Lock
keypad? with Yes; or select Menu and press * within 3.5seconds.
• To unlock the keypad, open the slide; or select Unlock and press * within 1.5
seconds.
If the Security keyguard is set to On, enter the security code if requested.
To answer a call when the keyguard is on, press the call key. When you end or
reject the call, the keypad is automatically locked.
When the keyguard is on, calls still may be possible to the official emergency
number programmed into your phone. Enter the emergency number and press the
call key.
For information about Automatic keyguard and Security keyguard, see "Phone"
on page 56.
■Access codes
Security code
The security code (5 to 10 digits) helps to protect your phone against
unauthorized use. The preset code is 12345. To change the code, and to set the
phone to request the code, see "Security" on page 58.
PIN codes, module PIN, and signing PIN
The PIN (personal identification number) code and the UPIN (universal personal
identification number) code (4 to 8 digits) help to protect your SIM card against
unauthorized use. See "Security" on page 58.
The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is required to
access some functions, such as call counters.
Phone security
19
The module PIN is required to access the information in the security module. See
"Security module" on page 85.
The signing PIN is required for the digital signature. See "Digital signature" on
page 87.
PUK codes
The PUK (personal unblocking key) code and the UPUK (universal personal
unblocking key) code (8 digits) is required to change a blocked PIN code and UPIN
code, respectively. The PUK2 code (8 digits) is required to change a blocked PIN2
code.
Call restrictions password
The call restrictions password (4 digits) is required when using the Call
restrictions function. See "Security" on page 58.
Wallet code
The wallet code (4 to 10 digits) is required to access the wallet services. For
further information, see "Wallet" on page 71.
Call functions
20
5. Call functions
■Make a call
1. Enter the phone number, including the area code. To delete an incorrect
character, select Clear.
For international calls, press * twice for the international prefix (the +
character replaces the international access code) and then enter the country
code, the area code without the leading 0, if necessary, and the phone
number.
2. To call the number, press the call key.
3. To end the call or to cancel the call attempt, press the end key, or close the
slide.
1-touch dialing
Assign a phone number to one of the 1-touch dialing keys, 2 to 9. Call the
number by one of the following ways:
• Press a 1-touch dialing key and then press the call key.
•If 1-touch dialing is set to On, press and hold a 1-touch dialing key until the
call is started. See 1-touch dialing in "Call" on page 55.
■Answer or reject a call
• Open the slide or press the call key to answer the call. To mute the ringing
tone, select Silence.
• To reject an incoming call when the slide is open, press the end key.
If Forward if busy is activated in your voice is activated in your voice mailbox,
the call is forwarded to your voice mail. If not, the call is rejected. If a
compatible headset supplied with the headset key is connected to the phone,
press the headset key to answer and end a call.
Call waiting (network service)
To answer the waiting call during an active call, press the call key. The first call is
put on hold. To end the active call, press the end key.
Call functions
21
To activate the Call waiting function, see "Call" on page 55.
■Options during a call
Many of the options that you can use during a call are network services. For
availability, contact your network operator or service provider.
For some of the following options, select Options during a call:
Mute or Unmute, Contacts, Menu, Record, Lock keypad, Audio enhancing,
Loudspeaker or Handset, and the network services Hold or Unhold, Answer and
Decline, New call, Touch tones (to send tone strings), Swap (to switch between
the active call and the call on hold), Transfer calls (to connect a call on hold to an
active call and disconnect yourself), Conference (to make a conference call that
allows up to five persons to take part in a conference call), Add to conference,
Private call (to discuss privately in a conference call), End call, and End all calls.
Do not hold the device near your ear when the loudspeaker is in use, because the
volume may be extremely loud.
Phone menus
22
6. Phone menus
Phone features are grouped according to function and are accessed through the
main menus of your phone. Each main menu contains submenus and lists from
which you can select or view items and customize phone features. You can
access these menus and submenus by using the scroll method.
Some menus may not be available, depending on your network. For more
information, contact your service provider.
■Menu views
Your phone may have two types of menu views: List and Grid.
In the List interface, images introduce every menu. Use the scroll up and scroll
down keys to navigate through the menus. As you scroll through the menus, the
menu number appears in the upper right corner of the display. Below the menu
number is a scroll bar with a tab. The tab moves up or down as you scroll through
the menus, providing a visual representation of your current position in the menu
structure.
In the Grid interface, multiple menu icons appear on a single display. Use the
four-way scroll key to navigate through the icons. The name of the menu appears
at the top of the display and the icon for the selected menu is outlined.
To change the menu view, select Options > Main menu view > List or Grid.
■Access a menu function
1. Select Menu and the menu you want.
2. If the menu contains submenus, select the one that you want.
3. If the selected menu contains further submenus, select the one that you want
4. To return to the previous menu level, select Back. To exit the menu, select
Exit.
Messages
23
7. Messages
You can use mobile messages to keep in touch with friends,
family, and business associates by using the short message
service (SMS). Not all messaging features are available in all
wireless networks. Contact your service provider for availability
and subscription information.
When sending messages, your phone may display the words Message sent. This is
an indication that the message has been sent by your device to the message
centre number programmed into your device. This is not an indication that the
message has been received at the intended destination. For more details about
messaging services, check with your service provider.
■Text messages (network service)
Your device supports the sending of text messages beyond the character limit for
a single message. If your message exceeds 160 characters, it will be sent as a
series of two or more messages. In the navigation bar, you can see the message
length indicator counting backwards from 160. For example, 10/2 means that
you can still add 10 characters for the text to be sent as two messages.
Using special (Unicode) characters, such as ë, â, á, ì, takes up more space. If there
are special characters in your message, the indicator may not show the message
length correctly. Before the message is sent, the device tells you if the message
exceeds the maximum length allowed for one message. You can cancel sending
by selecting Cancel or you can save the message in the inbox.
You can add pictures and templates to your text messages. Text templates are
indicated by and picture templates are indicated by . Each picture
message is made up of several text messages. Therefore, sending one picture
message may cost more than sending one text message. Contact your service
provider for pricing information.
Before you can send any text, picture, or e-mail message, you need to save some
message settings. See "Message settings" on page 36.
To check SMS e-mail service availability and to subscribe to the service, contact
your service provider.
Messages
24
Text entry
You can enter text while writing messages by using traditional or predictive text
input. When using traditional text input, press a number key, 1 to 9, repeatedly
until the character you want appears. In predictive text input you can enter a
letter with a single key press.
When you write text, appears at the top left of the display, indicating
predictive text input, and appears, indicating traditional text input. ,
, or appears next to the text input indicator, indicating the character
case. To change the character case, press #. indicates number mode. To
change from the letter to number mode, press and hold #, and select Number
mode.
Settings
To set the writing language to a language other than that selected (see Phone
language on page 56), select Options > Writing language. Predictive text input
is only available for the languages on the list.
To set the predictive text input option, select Options > Dictionary on, or to set
traditional text input option select Options > Dictionary off.
Predictive text input
Predictive text input allows you to write text quickly by using the phone keypad
and a built-in dictionary.
1. Start writing a word, using the keys, 2 to 9, and press each key only once for
one letter. The word changes after each keystroke.
2. When you finish writing the word and it is correct, press 0.
3. If a displayed word is not correct, press * repeatedly or select Options >
Matches. When the word that you want appears, select Use.
4. If the ? character is displayed after the word, the word you intended to write
is not in the dictionary. To add the word to the dictionary, select Spell. The
phone displays the entered letters. Enter the word (traditional text input is
used), and select Save.
Traditional text input
Press a number key, 1 to 9, repeatedly until the character you want appears. Not
all characters available under a number key are printed on the key. The characters
available depend on the selected writing language. See "Settings" on page 24
Messages
25
If the next letter you want is located on the same key as the present one, wait
until the cursor appears, or press any of the navigation keys, and enter the letter.
The most common punctuation marks and special characters are available under
the number key 1 and a space can be inserted by pressing 0.
Write and send
1. Select Menu > Messages > Create message > Text message.
2. Enter a message. See "Text entry" on page 24.
3. To insert a template to the text message, select Use template and the
template you want to insert.
4. To send the message, select Send > Recently used, To phone number, To
many, or To e-mail address and enter a phone number or e-mail address.
5. To send a message using a predefined message profile, select Via sending
profile
For the sending profile, see "Text and SMS e-mail" on page 36.
Read and reply
is shown when you have received a message or an e-mail using SMS. The
blinking indicates that the message memory is full. Before you can receive
new messages, delete some of your old messages in the Inbox folder.
1. To view a new message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messages > Inbox. If more than one
message has been received, select the message that you want to read.
indicates an unread message.
2. While reading a message, select Options and delete or forward the message,
edit the message as a text message or an SMS e-mail, rename the message
you are reading or move it to another folder, or view or extract message
details. You can also copy text from the beginning of the message to your
phone calendar as a reminder note. To save the picture in the Templates
folder when reading a picture message, select Save picture.
3. To reply as a message, select Reply > Text message or Multimedia msg.
Enter the reply message. When replying to an e-mail, first confirm or edit the
e-mail address and subject.
Messages
26
4. To send the message to the displayed number, select Send > OK.
Templates
To access the template list, select Menu > Messages > Saved items > Text
messages > Templates.
■Multimedia messages (network service)
Note: Only devices that offer compatible multimedia message or e-mail
features can receive and display multimedia messages. Multimedia
message objects may contain viruses or otherwise be harmful to your
device or PC. Do not open any attachment if you are not sure of the
trustworthiness of the sender.
A multimedia message can contain text, sound, a picture, a calendar note, a
business card, or a video clip. The phone supports multimedia messages that are
up to 300KB in size. If the message is too large, the phone may not be able to
receive it. Some networks allow text messages that include an Internet address
where you can view the multimedia message.
Multimedia messaging supports the following formats:
• Picture: JPEG, GIF, WBMP, BMP, and PNG
• Sound: MP3, AAC, Scalable polyphonic MIDI (SP-MIDI), AMR audio and
monophonic ringing tones
• Video clips: 3GP format with QCIF and SubQCIF image size and AMR, WB
AMR, or ACC LC audio
You cannot receive multimedia messages during a call, a game, another Java
application, or an active browsing session over GSM data. Because delivery of
multimedia messages can fail for various reasons, do not rely solely upon them
for essential communications.
Write and send
To set the settings for multimedia messaging, see "Multimedia" on page 37. To
check availability and to subscribe to the multimedia messaging service, contact
your service provider.
1. Select Menu > Messages > Create message > Multimedia msg.
2. Enter a message. See "Text entry" on page 24.
Messages
27
• To insert a file from the Gallery, select Options > Insert > Image, Sound
clip or Video clip and the option you want.
If you select Options >Insert > New sound clip, the Recorder opens, and
you can start a new recording. When you have finished the recording, it is
added to the message.
If you select Options >Insert >New image, the Camera opens, and you
can take a new photo to add to the message.
• To insert a business card or a calendar note in the message, select
Options > Insert > Business card or Calendar note.
• Your phone supports multimedia messages that contain several pages
(slides). Each slide can contain text, one image, a calendar note, a
business card, and one sound clip. To insert a slide in the message, select
Options > Insert > Slide.
To open the slide you want (if the message contains several slides), select
Options > Previous slide > Next slide or Slide list.
To set the interval between the slides, select Options > Slide timing. To
move the text component to the top or bottom of the message, select
Options > Place text first or Place text last.
• The following options may also be available: Delete to delete an image,
slide or sound clip from the message, Clear text, Preview, Save message.
In More options, the following options may be available: Insert contact,
Insert number, Message details, and Edit subject.
3. To send the message, select Send > Recently used, To phone number, To e-
mail address or To many.
4. Enter the recipient’s phone number or e-mail address, or search for it in
Contacts > Names. Select OK and the message is moved to the Outbox folder
for sending.
While the multimedia message is being sent, the animated icon is
displayed and you can use other functions on the phone. If the sending fails,
the phone tries to resend it a few times. If this fails, the message remains in
the Outbox folder and you can try to resend it later.
If Save sent messages > Yes is selected, the sent message is saved in the Sent
items folder. See "Multimedia" on page 37. When the message is sent, it is
Messages
28
not an indication that the message has been received at the intended
destination.
Read and reply
The default setting of the multimedia message service is generally on. The
appearance of a multimedia message may vary depending on the receiving
device.
When your phone is receiving a multimedia message, the animated icon is
displayed. When the message has been received, and the text Multimedia
message received are shown.
1. To read the message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messages > Inbox. In the list of
messages, indicates an unread message. Select the message that you
want to view.
2. The function of the middle selection key changes according to the currently
displayed attachment in the message.
To view the whole message if the received message contains a presentation,
select Play.
Otherwise, select Play to listen to a sound clip or view a video clip attached to
the message. To zoom in on an image, select Zoom. To view a business card or
a calendar note, or to open a theme object, select Open. To open a streaming
link, select Load.
3. To reply to the message, select Options > Reply > Text message or
Multimedia msg. Enter the reply message, and select Send. You can send the
reply message only to the person who sent you the original message.
Select Options and some of the following options may be also available: Play
presentation, View text, Open image, Open sound clip or Open video clip,
Save image, Save sound clip, Save video clip, Details, Delete message, Reply,
Reply to all, Forward to no., Forward to e-mail or Forward to many, Edit,
and Message details.
Memory full
When you have a new multimedia message waiting and the memory for the
messages is full, blinks and Multimedia memory full. View waiting
Messages
29
message. is shown. To view the waiting message, select Show. To save the
message, select Save. To delete old messages, select the folder and the message
you want to delete.
To discard the waiting message, select Exit > Yes. If you select No, you can view
the message.
Folders
The phone saves received text and multimedia messages in the Inbox folder.
Multimedia messages that have not yet been sent are moved to the Outbox
folder.
If you have selected Message settings > Text messages >Save sent messages >
Yes > Message settings > Multimedia msgs.> Save sent messages > Yes, the
sent messages are saved in the Sent items folder.
To save the text message that you are writing and wish to send later in the Saved
items folder, select Options > Save message > Saved text msgs. For multimedia
messages, select the option Save message. indicates unsent messages.
To organize your text messages, you can move some of them to My folders, or
add new folders for your messages. Select Messages > Saved items > Text
messages > My folders.
To add a folder, select Options > Add folder. If you have not saved any folders,
select Add.
To delete or rename a folder, scroll to the folder you want, and select Options >
Delete folder or Rename folder.
■Instant messaging (network service)
You can take text messaging to the next level by experiencing instant messaging
(IM) in a wireless environment. You can engage in instant messaging with friends
and family, regardless of the mobile system or platform (like the Internet) they
are using, as long as you all use the same instant messaging service.
Before you can start using instant messaging, you must first subscribe to your
wireless service provider’s text messaging service and register with the instant
messaging service you want to use. You must also obtain a user name and
password before you can use instant messaging. See "Register with an instant
messaging service" on page 30 for more information.
Messages
30
Note: Depending on both your IM service provider and your wireless
service provider, you may not have access to all of the features described
in this guide.
To set the required settings for the instant messaging service, see Connect.
settings in "Access" on page 30. The icons and texts on the display may vary,
depending on the instant messaging service.
Depending on the network, the active instant messaging conversation may
consume the phone battery faster, and you may need to connect the phone to a
charger.
Register with an instant messaging service
You can do this by registering over the Internet with the IM service provider you
have selected to use. During the registration process, you will have the
opportunity to create the user name and password of your choice. For more
information about signing up for instant messaging services, contact your
wireless service provider.
Access
To access the menu while still offline, select Menu > Messages > Instant
messages. If more than one set of connection settings for instant messaging
service is available, select the one you want. If there is only one set defined, it is
selected automatically.
The following options are shown: Login to connect to the instant messaging
service, Saved conversations to view, erase or rename the instant messages
conversations that you have saved during the instant messages session, or
Connect. settings to edit the settings needed for messaging and presence
connection.
Connect
To connect to the instant messaging service, open the Instant messages menu,
activate an instant messaging service, and select Login. When the phone has
successfully connected, Logged in is displayed.
To disconnect from the instant messaging service, select Logout.
Sessions
Connect to the instant messaging service and select one of the following
Messages
31
Conversations to view the list of new and read instant messages or invitations to
instant messaging during the active instant messaging session. Scroll to the
message or invitation that you want and select Open to read the message.
• indicates a new group message
• indicates a read group message
• indicates a new instant message
• indicates a read instant message
• indicates an invitation
The icons and texts on the display may vary, depending on the instant messaging
service you have selected.
IM contacts includes the contacts that you have added. Scroll to the contact
with whom you would like to chat and select Chat or Open if a new contact is
shown in the list. To add contacts see "IM contacts" on page 32.
indicates the online and the offline contacts in the phone contacts
memory. indicates a blocked contact. indicates a contact that has been
sent a new message.
Groups > Public groups. The list of bookmarks to public groups provided by the
service provider is displayed. To start a instant messaging session with a group,
scroll to a group, and select Join. Enter the screen name that you want to use in
the conversation. When you have successfully joined the group conversation, you
can start a group conversation. To create a private group, see "Groups" on
page 33.
Search > Users or Groups to search for other instant messaging users or public
groups on the network by phone number, screen name, e-mail address, or name.
If you select Groups, you can search for a group by a member in the group, or by
group name, topic, or ID.
To start the conversation when you have found the user or the group that you
want, select Options > Chat or Join group.
Accept or reject an invitation
In the standby mode, when you are connected to the instant messaging service
and you receive a new invitation, New invitation received is displayed. To read it,
select Read. If more than one invitation is received, scroll to the invitation you
want, and select Open. To join the private group conversation, select Accept, and
enter the screen name; or to reject or delete the invitation, select Options >
Reject or Delete.
Messages
32
Read an instant message
In the standby mode, when you are connected to the instant messaging service,
and you receive a new message that is not a message associated with an active
conversation, New instant message is displayed. To read it, select Read. If you
receive more than one message, scroll to the message, and select Open.
New messages received during an active conversation are held in Instant
messages > Conversations. If you receive a message from someone who is not in
IM contacts, the sender ID is displayed. To save a new contact that is not in the
phone memory, select Options > Save contact.
Participate in a conversation
Join or start an IM session by selecting Write. Write your message, and select
Send or press the call key to send it. If you select Options, some of the following
options are available: View conversation, Save contact, Group members, Block
contact, and End conversation.
Set your availability
You can determine if other users can tell whether you are available or not.
1. Connect to the instant messaging service.
2. To view and edit your own availability information, or screen name, select My
settings.
3. To allow all the other instant messaging users to see you as being online,
select Availability > Available for all.
To allow only the contacts in your instant messaging contacts list to see you
as being online, select Availability > Avail. for contacts.
To appear as being offline, select Availability > Appear offline.
When you are connected to the instant messaging service, indicates that you
are online and that you are not visible to others.
IM contacts
To add contacts to the instant messaging contacts list, connect to the instant
messaging service, and select IM contacts. To add a contact to the list, select
Options > Add contact, or if you have no contacts added, select Add. Select
Enter ID manually, Search from serv., Copy from server, or By mobile number.
Messages
33
Scroll to a contact, and to start a conversation, select Chat, or select Options >
Contact info, Block contact (or Unblock contact), Add contact, Remove
contact, Change list, Copy to server, or Availability alerts.
Block or unblock messages
To block messages, connect to the instant messaging service, and select
Conversations > IM contacts; or join or start a conversation. Scroll to the
contact from whom you want to block incoming messages, select Options >
Block contact > OK.
To unblock the messages, connect to the instant messaging service, and select
Blocked list. Scroll to the contact from whom you want to unblock the messages,
and select Unblock.
Groups
You can create your own private groups for an instant messaging conversation,
or use the public groups provided by the service provider. The private groups exist
only during an instant messaging conversation, and the groups are saved on the
server of the service provider. If the server you are logged into does not support
group services, all group-related menus are dimmed.
Public
You can bookmark public groups that your service provider may maintain.
Connect to the instant messaging service, and select Groups > Public groups.
Scroll to a group with which you want to chat, and select Join. If you are not in
the group, enter your screen name as your nickname for the group. To delete a
group from your group list, select Options > Delete group.
To search for a group, select Groups > Public groups > Search groups. You can
search for a group by a member in the group, by group name, topic, or ID.
Private
Connect to the instant messaging service, and select Groups > Create group.
Enter the name for the group and the screen name that you want to use. Mark
the private group members in the contacts list, and write an invitation.
■E-mail application
The e-mail application allows you to access your compatible e-mail account from
your phone when you are not in the office or at home. This e-mail application is
different from the SMS e-mail function.
Messages
34
Your phone supports POP3 and IMAP4 e-mail servers. Before you can send and
retrieve any e-mails, you may need to do the following:
• Obtain a new e-mail account or use the current one. For availability of your
e-mail account, contact your e-mail service provider.
• For the settings required for e-mail, contact your e-mail service provider. You
may receive the e-mail configuration settings as a configuration message.
See "Configuration settings service" on page 9. You can also enter the
settings manually. See "Configuration" on page 57.
To activate the e-mail settings, select Menu > Messages > Message
settings > E-mail messages. See "E-mail" on page 37.
This application does not support keypad tones.
Write and send
1. Select Menu > Messages > E-mail > Create e-mail.
2. Enter the recipient’s e-mail address, a subject, and the e-mail message.
3. To attach a file to the e-mail, select Options > Attach and the file you want
from the Gallery.
4. Select Send > Send now.
Download
1. To download e-mail messages that have been sent to your e-mail account,
select Menu > Messages > E-mail > Retrieve.
2. To download new e-mail messages and to send e-mails that have been saved
in the Outbox folder, select Menu > Messages > E-mail > Options >
Retrieve and send.
3. To first download the headings of the new e-mail messages that have been
sent to you e-mail account, select Options > Check new e-mail. Then, to
download the selected e-mails, mark the ones you want, and select
Options > Retrieve.
4. Select the new message in Inbox. To view it later, select Back. indicates
an unread message.
Messages
35
Read and reply
Select Menu > Messages > E-mail > Inbox and Options to view the available
options.
To reply to an e-mail, select Reply > Original text or Empty screen. To reply to
many e-mails, select Options > Reply to all. Confirm or edit the e-mail address
and subject, then write your reply. To send the message, select Send > Send now.
Inbox and other folders
Your phone saves e-mails that you have downloaded from your e-mail account in
the Inbox folder. Other folders contains the following folders: Drafts for saving
unfinished e-mails, Archive for organizing and saving your e-mails, Outbox for
saving e-mails that have not been sent, and Sent items for saving e-mails that
have been sent.
To manage the folders and their e-mail content, select Options > Manage folder.
Delete messages
1. Select Menu > Messages > E-mail > Options > Manage folder and the
folder you want.
2. Select the messages that you want to delete and Options > Delete.
Deleting an e-mail from your phone does not delete it from the e-mail server. To
set the phone to delete the e-mail from the e-mail server, select Menu >
Messages > E-mail > Options > Extra settings > Leave c. on server > Delete
retr. msgs.
■Voice messages (network service)
If you subscribe to voice mail, your service provider will furnish you with a voice
mailbox number. You need to save this number to your phone to use voice mail.
When you receive a voice message, your phone lets you know by beeping,
displaying a message, or both. If you receive more than one message, your phone
shows the number of messages received.
To call your voice mailbox, select Menu > Messages > Voice messages > Listen
to voice messages. To enter, search for, or edit your voice mailbox number, select
Voice mailbox number.
If supported by the network, shows new voice messages. Select Listen to
call your voice mailbox number.
Messages
36
■Info messages (network service)
With the message network service, you can receive short text messages from
your service provider on various topics, such as weather and traffic conditions.
Contact your service provider for more information.
■Service commands
Use the Service commands editor to enter and send service requests (also known
as USSD commands) to your service provider. Contact your service provider for
information about specific service commands.
Select Menu > Messages > Service commands.
■Delete all messages
1. Select Menu > Messages > Delete messages, the folder from which you want
to delete the messages, and Yes.
2. If the folder contains unread messages, select Yes.
■Message settings
Text and SMS e-mail
The message settings affect the sending, receiving, and viewing of messages.
1. Select Menu > Messages > Message settings >Text messages > Sending
profile.
2. If more than one message profile set is supported by your SIM card, select the
set you want to change and one of the following options, which may be
available:
Message center number (delivered from your service provider), Messages
sent via, Message validity, Default recipient number (text messages) or
E-mail server (e-mail), Delivery reports, Use packet data, Reply via same
center (network service), and Rename sending profile.
Select Save sent messages >Yes to set the phone to save the sent text messages
in the Sent items folder.
Messages
37
Multimedia
The message settings affect the sending, receiving, and viewing of multimedia
messages.
Select Menu > Messages > Message settings > Multimedia msgs. and one of
the following options:
•Save sent messages > Yes to set the phone to save sent multimedia messages
in the Sent items folder.
•Delivery reports to ask the network to send delivery reports about your
messages (network service).
•Scale image down to define the image size when you insert an image to a
multimedia message.
•Default slide timing to define the default time between slides in multimedia
messages.
•Allow multimedia reception. To receive or to block the multimedia message,
select Yes or No. If you select In home network, you cannot receive
multimedia messages when outside your home network.
•Incoming multimedia messages. To allow the reception of multimedia
messages automatically, manually after being prompted, or to reject the
reception, select Retrieve, Retrieve manually, or Reject, respectively.
•Configuration settings > Configuration. Only the configurations that
support multimedia messaging are shown. Select a service provider, Default,
or Personal config. for multimedia messaging.
Select Account and a multimedia messaging service account contained in the
active configuration settings.
•Allow advertisements to receive or reject advertisements. This setting is not
shown if Allow multimedia reception is set to No.
E-mail
The settings affect the sending, receiving and viewing of e-mail.
You may receive the configuration settings for the e-mail application as a
configuration message. See "Configuration settings service" on page 9. You can
also enter the settings manually. See "Configuration" on page 57.
Messages
38
To activate the settings for the e-mail application, select Menu > Messages >
Message settings > E-mail messages and one of the following options:
•Configuration. Select the set that you would like to activate.
•Account. Select an account provided by the service provider.
•My name. Enter your name or nickname.
•E-mail address. Enter your e-mail address.
•Include signature. You can define a signature that is automatically added to
the end of your e-mail when you write your message.
•Reply-to address. Enter the e-mail address to which you want the replies to
be sent.
•SMTP user name. Enter the name that you want to use for outgoing mail.
•SMTP password. Enter the password that you want to use for outgoing mail.
•Display terminal window. Select Yes to perform manual user authentication
for intranet connections.
•Incoming server type. Select either POP3 or IMAP4 depending on the type of
e-mail system that you are using. If both types are supported, select IMAP4.
•Incoming mail settings
If you selected POP3 as the incoming server type, the following options are
shown: Retrieve e-mails, POP3 user name, POP3 password, and Display
terminal window.
If you selected IMAP4 as the incoming server type, the following options are
shown: Retrieve e-mails, Retrieval method, IMAP4 user name, IMAP4
password, and Display terminal window.
Other settings
To select other settings for messages, select Menu > Messages > Message
settings > Other settings.
• To change the font size for reading and writing messages, select Font size.
• To set the phone to replace character-based smileys into graphical ones,
select Graphical smileys > Yes.
Messages
39
Message counter
The message counter gives you information on how many text messages have
been sent and received. You can view the amount of sent and received messages,
view details about the messages and reset the counter. To access the message
counter, select Menu > Messages > Message counter.
Contacts
40
8. Contacts
In Contacts, you can store and manage contact information, such as
names, phone numbers, and addresses. You can save names and
numbers in the internal memory of the phone, the SIM card memory,
or in a combination of the two. Names and numbers saved in the
SIM card memory, are indicated by .
■Search
Select Menu > Contacts > Names > Options > Find and scroll though the list of
contacts or enter the first letter of the name you are trying to find.
■Save names and phone numbers
Names and numbers are saved in the used memory.
1. Select Menu > Contacts > Names > Options > Add new contact.
2. Enter the name and the phone number.
■Save numbers, items, or an image
In the phone memory for contacts, you can save different types of phone
numbers and short text items per name.
The first number you save is automatically set as the default number, and it is
indicated with a frame around the number type indicator (for example, ).
When you select a name, the default number is used unless you select another
number.
1. Make sure that the memory in use is either Phone or Phone and SIM.
2. Scroll to the name to which you want to add a new number or text item, and
select Details > Options > Add detail.
3. To add a number, select Number and one of the number types.
4. To add another detail, select a text type, or an image from the Gallery.
5. To search for an ID from the server of your service provider (if you have
connected to the presence service), select User ID > Search. See "My
presence (network service)" on page 42. If only one ID is found, it is
Contacts
41
automatically saved. Otherwise, to save the ID, select Options > Save. To
enter the ID, select Enter ID manually.
6. To change the number type, scroll to the number you want, and select
Options >Change type. To set the selected number as the default number,
select Set as default.
7. Enter the number or text item; to save it, select OK.
8. To return to standby mode, select Back > Exit.
■Copy a contact
Search for the contact you want to copy, and select Options > Copy. You can
copy names and phone numbers from the phone contact memory to the SIM card
memory, or vice versa. The SIM card memory can save names with one phone
number attached to them.
■Edit contact details
1. Search for the contact you want to edit, select Details, and scroll to the name,
number, text item, or image you want.
2. To edit a name, number, or text item, or to change image, select Options >
Edit name, Edit number, Edit detail, or Change image.
You cannot edit an ID when it is on the IM contacts or the Subscribed names
list.
■Delete contacts or details
To delete all the contacts and the details attached to them from the phone or SIM
card memory, select Menu > Contacts > Delete all contacts > From phone
mem., or From SIM card. Confirm with the security code.
To delete a contact, search for the contact you want, and select Options > Delete
contact.
To delete a number, text item, or an image attached to the contact, search for the
contact, and select Options > Contact details. Scroll to the detail you want, and
select Options >Delete > Delete number, Delete detail, or Delete image.
Deleting an image from contacts does not delete it from the Gallery.
Contacts
42
■Business cards
You can send and receive a person’s contact information from a compatible
device that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you want to
send, and select Details > Options > Send bus. card >Via multimedia, Via text
message, or Via Bluetooth.
When you have received a business card, select Show > Save to save the business
card in the phone memory. To discard the business card, select Exit > Yes.
■My presence (network service)
With the presence service, you can share your presence status with other users
with compatible devices and access to the service. Presence status includes your
availability, status message, and personal logo. Other users who have access to
the service and who request your information are able to see your status. The
requested information is shown in Subscribed names in the viewers’ Contacts
menu. You can personalize the information that you want to share with others
and control who can see your status.
Before you can use presence, you must subscribe to the service. To check the
availability and costs, and to subscribe to the service, contact your network
operator or service provider, from whom you also receive your unique ID,
password, and the settings for the service. See "Configuration" on page 57.
While you are connected to the presence service, you can use the other functions
of the phone, and the presence service is active in the background. If you
disconnect from the service, your presence status is shown for a certain amount
of time to viewers depending on the service provider.
Select Menu > Contacts > My presence and one of the following options:
•Connect to 'My presence' service or Disconnect from service to connect to
or disconnect from the service.
•View my presence to view the status in Private presence and Public
presence.
•Edit my presence to change your presence status. Select My availability, My
presence message, My presence logo, or Show to.
•My viewers > Current viewers, Private list, or Blocked list.
•Settings > Show current presence in idle, Synchronize with profiles,
Connection type, or Presence settings.
Contacts
43
■Subscribed names
You can create a list of contacts for whom you want presence status information
available. You can view the information, if it is allowed by the contacts and the
network. To view these subscribed names, scroll through the contacts, or use the
Subscribed names menu.
Make sure that the memory in use is either Phone or Phone and SIM.
To connect to the Presence service, select Menu > Contacts > My presence >
Connect to 'My presence' service.
Add contacts
1. Select Menu > Contacts > Subscribed names.
2. If you have no contacts in your list, select Add. Otherwise, select Options >
Subscribe new. The list of your contacts is shown.
3. Select a contact from the list and if the contact has an user ID saved, the
contact is added to the subscribed names list.
View
To view the presence information, see "Search" on page 40.
1. Select Menu > Contacts > Subscribed names.
The status information of the first contact in the subscribed names list is
displayed. The information that the person wants to give to the others may
include text and some of the following icons:
, or indicate that the person is either available, discreet or not
available.
indicates that the person’s presence information is not available.
2. Select Details to view the details of the selected contact; or select Options >
Subscribe new, Chat, Send message, Send bus. card, or Unsubscribe.
Unsubcribe
To unsubscribe a name, select Menu > Contacts > Subscribed names >
Options > Unsubscribe.
To unsubscribe a contact from the Contacts list, select the contact and Details;
then select the user ID and Options > Unsubscribe > OK.
Contacts
44
■Settings
Select Menu > Contacts > Settings, and select either Memory in use to select
SIM card or phone memory for your contacts. To recall names and number from
both memories, select Phone and SIM. In that case, the names and numbers will
be saved in the phone memory. To select how the names and numbers in contacts
are displayed, select Contacts view. To view the free and used memory capacity,
select Memory status.
■Groups
Select Menu > Contacts > Groups to arrange the names and phone numbers
saved in the memory into caller groups with a different ringing tone and a group
image.
■1-touch dialing
To assign a number to a 1-touch dialing key, select Menu > Contacts > 1-touch
dialing, and scroll to the 1-touch dialing number that you want.
Select Assign, or if a number has already been assigned to the key, select
Options > Change. Select Find and the name first and then the number you want
to assign. If the 1-touch dialing function is off, the phone asks whether you
want to activate it.
To make a call using 1-touch dialing, see "1-touch dialing" on page 20.
■Voice dialing
You can make a phone call by saying a voice tag that has been added to a phone
number. Any spoken words, such as a name, can be a voice tag. The number of
voice tags you can create is limited.
Before using voice tags, note that:
• Voice tags are not language-dependent. They are dependent on the speaker's
voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them
in a quiet environment.
• Very short names are not accepted. Use long names and avoid similar names
for different numbers.
Contacts
45
Note: Using voice tags may be difficult in a noisy environment or during
an emergency, so you should not rely solely upon voice dialing in all
circumstances.
Add and manager voice tags
Save or copy to the phone memory the contacts for which you want to add a
voice tag. You can also add voice tags to the names in the SIM card, but if you
replace your SIM card with a new one, you first must delete the old voice tags
before you can add new ones.
1. Search for the contact to which you want to add a voice tag.
2. Select Details, scroll to the phone number you want, and select Options >
Add voice tag.
3. Select Start, and say clearly the words you want to record as a voice tag. After
recording, the phone plays the recorded tag.
appears after the phone number with a voice tag in Contacts.
To check the voice tags, select Menu > Contacts > Voice tags. Scroll to the
contact with the voice tag that you want, and select an option to listen to, delete,
or change the recorded voice tag.
Make a call using a voice tag
If the phone has an application running that is sending or receiving data using a
GPRS connection, you must end the application before voice dialing.
1. In the standby mode, press and hold the right selection key. A short tone is
heard, and Speak now is displayed.
2. Say the voice tag clearly. The phone plays the recognized voice tag, and dials
the phone number of the voice tag after 1.5 seconds.
If you are using a compatible headset with the headset key, press and hold the
headset key to start the voice dialing.
■Info, service and my numbers
Select Menu > Contacts and one of the following functions, which may be
available:
Info numbers to call the information numbers of your service provider if the
numbers are included on your SIM card (network service).
Contacts
46
My numbers to view the phone numbers assigned to your SIM card, if the
numbers are included on your SIM card.
Service numbers to call the service numbers of your service provider if the
numbers are included on your SIM card (network service).
Call log
47
9. Call log
The phone registers the phone numbers of identified missed,
received, and dialed calls, and the approximate length of your
calls. The phone registers missed and received calls only if the
network supports these functions, and the phone is switched on
and within the network’s service area.
■Recent calls list
When you select Options in the Missed calls, Received calls, Dialed numbers, or
Message Recipients menu, you can view the time of the call; edit, view or call the
registered phone number; add it to the memory; or delete it from the list. You can
also send a text message. To delete the recent calls lists, select Delete recent call
lists.
■Counters and timers
Note: The actual invoice for calls and services from your service
provider may vary, depending upon network features, rounding-off for
billing, taxes and so forth.
Some timers may be reset during service or software upgrades.
Select Menu > Call log > Call timers, Packet data counter, or Packet data conn.
timer for approximate information on your recent communications.
■Positioning information
The network may send you a location request. You can ensure that the network
will deliver location information of your phone only if you approve it (network
service). Contact your service provider to subscribe and to agree upon the
delivery of location information. Some networks allow you to request the
position of the phone (network service).
To accept or reject the location request, select Accept or Reject. If you miss the
request, the phone automatically accepts or rejects it according to what you have
agreed with your service provider. The phone displays 1 missed position request.
To view the missed location request, select Show.
Call log
48
To view the information on the 10 most recent privacy notifications and requests
or to delete them, select Menu > Call log > Positioning > Position log > Open
folder or Delete all.
Settings
49
10. Settings
Use this menu to set or change your profiles, themes, personal
shortcuts, time and date settings, call settings, phone settings,
display settings, tone settings, enhancement settings,
configuration settings, security settings, and to restore factory
settings.
■Profiles
Your phone has various setting groups, called profiles, for which you can
customize the phone tones for different events and environments.
Select Menu > Settings > Profiles. Scroll to a profile, and select it.
• To activate the selected profile, select Activate.
• To set the profile to be active until a certain time (up to 24 hours), select
Timed and set the time you want the profile setting to end. When the time set
for the profile expires, the previous profile (that was not timed) becomes
active.
• To personalize the profile, select Customize, and select the setting you want
to change: then, make the changes.
To change your presence status information, select My presence > My
availability, or My presence message. The My presence menu is available if
you set Synchronize with profiles to On. See "My presence (network service)"
on page 42.
■Themes
You can change the look of your phone display by activating a theme. A theme
can include a wallpaper image, a ringing tone, a screen saver, and a color scheme
to customize your phone for different events and environments. Themes are
stored in the Gallery.
Select Menu > Settings > Themes and one of the following options:
•Select theme to set a theme in your phone. A list of folders in the Gallery
opens. Open the Themes folder, and select a theme.
Settings
50
•Theme downloads to open a list of links to download more themes. See
"Downloads (network service)" on page 84.
■Tones
You can change the settings of the selected active profile.
Select Menu > Settings > Tones. Select and change Incoming call alert, Ringing
tone, Ringing volume, Vibrating alert, Message alert tone, Instant message
alert tone, Keypad tones, and Warning tones. You can find the same settings in
the Profiles menu. See "Profiles" on page 49.
To set the phone to ring only upon calls from phone numbers that belong to a
selected caller group, select Alert for. Scroll to the caller group you want or All
calls and select Mark.
To download more tones, select Tone downloads.
■Display
Select Menu > Settings > Display and one of the following options:
•Wallpaper > Select wallpaper or Select slide set, and an image or a slide
from the Gallery to set your phone to display it when the phone is in standby
mode. To activate the wallpaper, select On.
•Screen saver. To choose a screen saver from the Gallery, select Screen
savers > Image, Slide set, Video clip, Analog clock or Digital clock. To enter
the time after which the screen saver is activated, select Time-out. To
activate the screen saver, select On.
•Power saver > On to save some battery power. A digital clock is displayed
when no function of the phone is used for a certain time.
•Color schemes to change the color of some display components in your
phone, such as indicators, signal bars, and the background image that
appears when using a menu function.
•Idle state font color to select the color for the texts on the display in the
standby mode.
•Operator logo to set your phone to display or hide the operator logo.
Settings
51
■Time and date
Select Menu > Settings > Time and date and one of the following options:
•Clock to set the phone to show the clock in the standby mode, adjust the
clock, and select the time zone and the time format.
•Date to set the phone to show the date in the standby mode, set the date, and
select the date format and date separator.
•Auto-update of date & time (network service) to set the phone to
automatically update the time and date according to the current time zone.
■My shortcuts
You can set your most frequently used functions to be quickly accessed through
the My shortcuts feature.
Right selection key
To set a specific function (from a predefined list) to the right selection key, select
Menu > Settings > My shortcuts > Right selection key. This function can be
used only if it is supported by your service provider.
Navigation key
To assign other phone functions (from a predefined list) to the navigation key,
select Menu > Settings > My shortcuts > Navigation key.
Voice tags
To activate phone functions by saying a voice tag, select Menu > Settings > My
shortcuts > Voice commands. Select a folder, scroll to a function to which you
want to add a voice tag, and select Add. indicates a voice tag.
■Connectivity
You can connect your phone to compatible devices by using Bluetooth wireless
technology. You can also define the settings for packet data dial-up connections.
Settings
52
Bluetooth wireless technology
This device is compliant with Bluetooth Specification 1.2 supporting the
following profiles: Hands-free, stereo headset, object push profile, file transfer
profile, dial-up networking profile, SIM access profile, service discovery profile,
generic access profile, serial port profile, generic access exchange profile,
advanced audio distribution profile, and audio video remote control profile. To
ensure interoperability between other devices supporting Bluetooth technology,
use Nokia approved enhancements for this model. Check with the manufacturers
of other devices to determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some locations.
Check with your local authorities or service provider.
Features using Bluetooth technology, or allowing such features to run in the
background while using other features, increase the demand on battery power
and reduce the battery life.
Bluetooth technology allows you to connect the phone to a compatible
Bluetooth device within approximately 33 feet (10 meters). Since devices using
Bluetooth technology communicate using radio waves, your phone and the other
devices do not need to be in direct line-of sight, although the connection can be
subject to interference from obstructions, such as walls, or from other electronic
devices.
To set up a Bluetooth connection, do the following:
1. Select Menu > Settings > Connectivity > Bluetooth.
2. To activate or deactivate the Bluetooth function, select Bluetooth > On or
Off. indicates an active Bluetooth connection.
3. To search for compatible Bluetooth audio devices, select Search for audio
enhancements. Select the device that you want to connect to the phone.
To search for any Bluetooth device in range, select Paired devices. Select New
to list any Bluetooth device in range. Scroll to a device, and select Pair.
4. Enter the Bluetooth passcode of the device to associate (pair) the device to
your phone. You must only give this passcode when you connect to the device
for the first time. Your phone connects to the device, and you can start data
transfer.
Settings
You should only accept Bluetooth transmissions from known and trusted sources.
Settings
53
For maximum security, you should set your Bluetooth visibility to Hidden. To do
this, select Menu > Settings > Connectivity > Bluetooth > Bluetooth
settings > My phone's visibility or My phone's name
Connection
Select Menu > Settings > Connectivity > Bluetooth. To check which Bluetooth
connection is currently active, select Active device. To view a list of Bluetooth
devices that are currently paired with the phone, select Paired devices.
Select Options to access some of the following functions depending on the
status of the device and the Bluetooth connection. Select Connect > Assign
short name or Auto-conn. without confirmation.
■Packet data (EGPRS) (network service)
Enhanced general packet radio service (EGPRS), packet data, is a network service
that allows mobile phones to send and receive data over an Internet protocol
(IP)-based network. It enables wireless access to data networks, such as the
Internet.
The applications that may use packet data are MMS, video streaming, browsing
sessions, e-mail, remote SyncML, Java application downloading, and the PC dial-
up.
To define how to use the service, select Menu > Settings > Connectivity >
Packet data > Packet data connection and one of the following:
•When needed — to set the packet data registration and connection to
established when an application using packet data needs it and closed when
you end the application.
•Always online — to set the phone to automatically register to an packet data
network when you switch the phone on. is shown.
Modem settings
You can connect the phone to a compatible computer by using Bluetooth
wireless technology. The phone can be used as a modem to enable EGPRS
connectivity from the computer.
To define the settings for connections from the PC, select Menu > Settings >
Connectivity > Packet data > Packet data settings > Active access point,
activate the access point you want to use, and select Edit active access point.
Select Alias for access point, and enter a nickname for the currently selected
Settings
54
access point. Select Packet data access point, and enter the access point name
(APN) to establish a connection to an EGPRS network.
You can also set the dial-up service settings (access point name) on the
computer, by using the Nokia Modem Options software. See "Nokia PC Suite" on
page 89. If you have set the settings both on the PC and your phone, the PC
settings are used.
Data transfer and synchronization
Synchronize your data from calendar, notes, and contacts with another
compatible device (for example, a mobile phone), a compatible PC, or a remote
Internet server (network service).
Partner list
To copy or synchronize data from your phone, the name of the device and the
settings must be in the list of partners in transfer contacts. If you receive data
from another compatible device, the partner is automatically added to the list,
using the contact data from the other device. Server sync and PC sync settings
are the original items in the list.
To add a new partner to the list, such as a new device, select Menu > Settings >
Connectivity > Data transfer >Transfer contacts > Options > Add transfer
contact > Phone sync or Phone copy, and enter the settings according to the
transfer type.
To edit the copy and synchronize settings, select a contact from the partner list,
and select Options > Edit.
To delete a selected partner, select Options > Delete. You cannot delete Server
sync and Phone sync.
Data transfer with a compatible device
For synchronization, Bluetooth wireless technology is used. The other device is in
the standby mode.
To start a data transfer, select Menu > Settings > Connectivity > Data
transfer > Transfer contacts, and the transfer partner from the list, other than
Server sync and Phone sync. Based upon the settings, the selected data will be
copied or synchronized.
Data transfer with SIM card
Your phone allows the data transfer without having a SIM card inserted.
Settings
55
Turn on your phone (with no SIM card inserted), and select Transfer and from the
following options:
Transfer contacts and select a contact, other than Server sync and Phone sync,
from the partner list to transfer data from your phone. The phone starts a
synchronization or copy session.
Select Receive data >Via Bluetooth to receive data from the other phone.
Synchronize from a compatible PC
To synchronize data from calendar, notes, and contacts from a compatible PC,
use Bluetooth wireless technology. You also need the correct version of Nokia PC
Suite software for your phone installed on the PC. See "Computer connectivity"
on 89 for information about Nokia PC Suite.
Synchronize the data in the phone contacts, calendar, and notes to correspond
with the data of your compatible PC by starting the synchronization from the PC.
Synchronize from a server
To use a remote Internet server, you have to subscribe to a synchronization
service. For more information and the settings required for this service, contact
your service provider. You may receive the settings as a configuration message.
See "Configuration settings service" on page 9 and "Configuration" on page 57.
If you have saved data on the remote Internet server, you can synchronize your
phone by starting the synchronization from your phone.
Select Menu > Settings > Connectivity > Data transfer > Server sync.
Depending on the settings, select Initializing sync or Initializing copy.
If the contacts or calendar are full, synchronizing may take up to 30 minutes to
complete, when synchronizing for the first time, or after an interrupted
synchronization.
■Call
Select Menu > Settings > Call and one of following options:
•Call forwarding (network service) — to forward your incoming calls. You may
not be able to forward your call if some call restrictions functions are active.
See Call restrictions in "Security" on page 58.
•Anykey answer > On — to answer an incoming call by briefly pressing any
key, except the power key, the left and right selection keys, or the end key.
Settings
56
•Automatic redial > On — to set your phone to make a maximum of ten
attempts to connect the call after an unsuccessful call attempt.
•Audio enhancing > Active — to enhance speech intelligibility, especially in
noisy environments.
•1-touch dialing > On and the names and phone numbers assigned to the
1-touch dialing keys, 2 to 9. To dial, press and hold the corresponding number
key.
•Call waiting > Activate — to set the network to notify you of an incoming
call while you have a call in progress (network service). See "Call waiting
(network service)" on page 20.
•Summary after call > On — to briefly display the approximate duration and
cost (network service) of the call after each call.
•Send my caller ID (network service) > Yes, or Set by network.
•Line for outgoing calls (network service) — to select the phone line 1 or 2 to
make calls, if supported by your SIM card.
■Phone
Select Menu > Settings > Phone and one of the following options:
•Phone language — to set the display language of your phone. If you select
Automatic, the phone selects the language according to the information on
the SIM card.
•Memory status — to view the free memory and the used memory for each
function in the list.
•Automatic keyguard — to set the keypad of your phone to lock automatically
after a pre-set time delay when the phone is in the standby mode and no
function of the phone has been used. Select On, and you can set the time
from 5 seconds to 60 minutes.
•Security keyguard — to set the phone to ask for the security code when you
unlock the keyguard. Enter the security code, and select On. When the
keyguard is on, calls still may be possible to the official emergency number
programmed into your device.
•Cell info display > On — to receive information from the service provider,
depending on the network cell used (network service).
Settings
57
•Welcome note — to be shown briefly when the phone is switched on. You can
create your welcome note for your phone.
•Operator selection > Automatic — to set the phone automatically to select
one of the cellular networks available in your area. With Manual, you can
select a network that has a roaming agreement with your service provider.
•Confirm SIM service actions. See "SIM services" on page 88.
•Help text activation — to select whether the phone shows help texts.
•Start-up tone — to select whether the phone plays a start-up tone when the
phone is turned on.
■Enhancement
This menu is shown only if the phone is or has been connected to a compatible
mobile enhancement, other than the charger.
Select Menu > Settings > Enhancements. You can select an enhancement menu
if the corresponding enhancement is or has been connected to the phone.
Depending on the enhancement, select from one of the following options:
•Default profile — to select the profile that you want to be automatically
activated when you connect to the selected enhancement.
•Automatic answer — to set the phone to answer an incoming call
automatically after five seconds. If Incoming call alert is set to Beep once or
Off, automatic answer is off.
•Lights — to set the lights permanently On. Select Automatic to set the lights
on for 15 seconds after a key press.
•TTY/TDD > Use TTY > Yes — to use the text phone settings instead of headset
or loopset settings.
■Configuration
You can configure your phone with settings that are required for certain services
to function correctly. The services are browser, multimedia messaging, remote
Internet server synchronization, presence, e-mail application, and streaming. You
can get the settings from your SIM card or from a service provider as a
configuration message, or you can enter your personal settings manually.
Configuration settings from up to 10 different service providers can be stored in
the phone and can be managed within this menu.
Settings
58
To save the configuration settings received as a configuration message, see
"Configuration settings service" on page 9.
Select Menu > Settings > Configuration and one of the following options:
•Default configuration settings — to view the service providers saved in the
phone. Scroll to a service provider, and select Details to view the applications
that the configuration settings of this service provider supports. To set the
configuration settings of the service provider as default settings, select
Options > Set as default. To delete configuration settings, select Delete.
•Activate default in all applications — to activate the default configuration
settings for supported applications.
•Preferred access point — to view the saved access points. Scroll to an access
point, and select Options > Details to view the name of the service provider,
data bearer, and packet data access point or GSM dial-up number.
•Connect to service provider support — to download the configuration
settings from your service provider.
•Personal configuration settings — to add new personal accounts for various
services manually, and to activate or delete them. To add a new personal
account if you have not added any, select Add new; otherwise, select
Options > Add new. Select the service type, and enter each of the required
parameters. The parameters differ according to the selected service type. To
delete or activate a personal account, scroll to it, and select Options > Delete
or Activate.
■Security
When security features that restrict calls are in use (such as call restrictions,
closed user group, and fixed dialing) calls still may be possible to the official
emergency number programmed into your device.
Select Menu > Settings > Security and one of the following options:
•PIN code request — to set the phone to ask for your PIN or UPIN code every
time the phone is switched on. Some SIM cards do not allow the code request
to be turned off.
•Call restrictions (network service) — to restrict incoming calls to and
outgoing calls from your phone. A password is required.
Settings
59
•Fixed dialing — to restrict your outgoing calls to selected phone numbers, if
this function is supported by your SIM card.
•Closed user group (network service) — to specify a group of people whom you
can call and who can call you.
•Security level > Phone — the phone asks for the security code whenever a
new SIM card is inserted into the phone. Select Memory and the phone asks
for the security code when the SIM card’s memory is selected and you want
to change the memory in use.
•Access codes — to set the PIN code or UPIN code in use, or to change the
security code, PIN code, UPIN code, PIN2 code, and call restrictions password.
•Code in use — to select whether the PIN code or UPIN code should be active.
•Pin2 code request — to select whether a PIN2 code is required when using a
specific phone feature which is covered by the PIN2 code.
■Restore factory settings
To reset some of the menu settings to their original values, select Menu >
Settings > Restore factory settings and enter the security code. Data that you
have entered or downloaded is not deleted. For example, names and numbers in
Contacts are not affected.
Operator menu
60
11. Operator menu
Your service provider may have programmed an operator-specific menu into your
phone. If this menu exists in your phone, its functions depend entirely upon the
service provider. Contact your service provider for more information.
Gallery
61
12. Gallery
In this menu, you can manage graphics, images, recordings, and
tones. These files are arranged in folders.
Your phone supports an activation key system to protect acquired
content. Always check the delivery terms of any content and
activation key before acquiring them, as they may be subject to a
fee.
The files stored in the Gallery use a memory that may have a capacity of
approximately 52 MB in the phone.
1. Select Menu > Gallery.
The original folders in the Gallery are: Images, Video clips, Music files,
Themes, Graphics, Tones, Recordings, and Received files.
2. Scroll to the folder you want, select Open, scroll to an image, tone or voice
recording, select Options and one of the following options may be available:
Downloads, Delete folder, Move, Rename folder, Details, Type of view, Sort,
Add folder, Memory status, and Activation key list.
3. Scroll to the file you want to view and select Open.
4. Select Options, and use one of the following functions that may be available
for the selected file: Downloads, Delete, Move, Rename, Apply theme, Set as
wallpaper, Set as ring tone, Details, Type of view, Sort, Add folder, or
Memory status.
The following options are also available:
Send — to send the selected file using MMS or Bluetooth wireless technology.
Delete all — to delete all the files and folders in the selected folder.
Edit image — to insert text, a frame, or clip-art into the selected picture, or to
crop the image.
Open in sequence — to view the files in the folder one by one.
Zoom — to increase the size of the image.
Mute audio (Unmute audio) — to mute (unmute) the sound file.
Set contrast — to adjust the contrast level of the image.
Gallery
62
Activate content — to update the activation key of the selected file. The
option is only shown if the activation key update is supported by the file.
Activation key list — to view the list of all available activation keys. You can
delete expired keys.
Media
63
13. Media
■Camera
You can take photos or record video clips with the built-in camera.
The camera produces pictures in JPEG format and video clips in 3GP
format.
When taking and using images or video clips, obey all laws and
respect local customs, as well as privacy and legitimate rights of
others.
Take a photo
1. Select Menu > Media > Camera > Capture.
The phone saves the photo in Gallery > Images
2. To take another photo, select Back.
3. To send the photo as a multimedia message, select Send.
4. To view the options, select Options.
Record a video clip
Select Menu > Media > Camera. To select the video mode, scroll left or right, or
select Options > Video, and select Record. To pause the recording, select Pause;
to resume the recording, select Contin. To stop the recording, select Stop. The
phone saves the recording in Gallery > Video clips. To view the options, select
Options.
■Media player
With the media player you can view, play, and download files, such as images,
audio, video and animated images. You can also view compatible streaming
videos from a network server (network service).
Select Menu > Media > Media player > Open gallery, Bookmarks, Go to
address, or Media downloads.
When pressing the navigation key right (fast forward button) or the navigation
key left (rewind button), select FF/rew interval to set the length of a scrolling
jump during streaming audio.
Media
64
Set for streaming service
You may receive the configuration settings required for the streaming as a
configuration message from the network operator or service provider. See
"Configuration settings service" on page 9. To enter the settings manually, see
"Configuration" on page 57.
Select Menu > Media > Media player > Streaming settings and one of the
following options:
Configuration — only the configurations that support streaming are shown.
Select a service provider, Default, or Personal config.
Account and a streaming service account contained in the active configuration
settings.
■Music player
Your phone includes a music player for listening to music tracks, recordings, or
other MP3 or AAC sound files that you have transferred to the phone with the
Nokia Audio Manager application. Music files are automatically detected and
added to the default track list.
Play music tracks
1. Select Menu > Media > Music player. The details of the first track on the
default track list are shown.
2. To play a track, scroll to the track that you want, and select .
3. To skip to the beginning of the next track, select . To skip to the beginning
of the previous track, select twice.
4. To rewind the current track, select and hold . To fast forward the current
track, select and hold . Release the key at the position you want.
5. To stop the playing, select .
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing. Do not hold the device near
your ear when the loudspeaker is in use, because the volume may be
extremely loud.
Settings
In the Music player menu, the following options may be available:
Media
65
•Volume — to change the volume level by pressing the navigation key left or
right
•Play via bluetooth — to make a connection to an audio enhancement using a
Bluetooth connection.
•Track list — to view all the tracks available on the track list. To play a track,
scroll to the track you want, and select Play. Select Options > Refresh all
tracks or Change track list — to refresh the track list (for example, after
adding new tracks to the list) or change the track list that is shown when you
open the Music player menu, if several track lists are available in the phone.
•Play options > Random > On — to play the tracks in the track list in random
order. Select Repeat > Current track or All tracks to play the current track or
the entire track list repeatedly.
•Media equalizer — to open the list of media equalizer sets. See "Equalizer" on
page 67.
•Loudspeaker or Headset — to listen to the music player through the
loudspeaker or a compatible headset connected to the phone. When using a
headset, you can skip to the next track by pressing the headset key.
•Send — to send the selected file using MMS or a Bluetooth connection.
•Music downloads — to connect to a browser service related to the current
track. This function is only available when the address of the service is
included in the track.
•Memory status — to view the free and used memory capacity.
■Radio
The FM radio uses the wire of the headset as an antenna. A compatible headset
needs to be attached to the device for the FM radio to function properly.
Note: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing.
Select Menu > Media > Radio. To use the graphical keys , , , or on
the phone display, scroll left or right to the key you want and select it.
Media
66
Save channels
1. To start the channel search, select and hold or . To change the radio
frequency in 0.05 MHz steps, press or .
2. To save the channel to a memory location 1 to 9, press and hold the
corresponding number key.
3. To save the channel in the memory location from 10 to 20, press 1 or 2, and
press and hold the number key (0 to 9) you want.
4. Enter the name of the channel, and select OK.
Listen
1. Select Menu > Media > Radio.
2. To scroll to the channel you want, select or , or press the headset key.
3. To select a radio channel location, briefly press the corresponding number
keys.
4. Select Options and one of the following options:
•Turn off — to turn off the radio.
•Volume — to change the volume level by pressing the navigation key left
or right.
•Save channel — to save a new channel by entering the channel’s name.
•Channels — to select the list of saved channels. To delete or rename a
channel, scroll to the channel you want, and select Options > Delete
channel or Rename.
•Loudspeaker or Headset — to listen to the radio using the loudspeaker or
headset. Keep the headset connected to the phone. The lead of the
headset functions as the radio antenna.
•Set frequency — to enter the frequency of the radio channel you want.
You can normally make a call or answer an incoming call while listening to the
radio. During the call, the volume of the radio is muted.
When an application using a packet data or HSCSD connection is sending or
receiving data, it may interfere with the radio.
Media
67
■Recorder
You can record pieces of speech, sound, or an active call. This is useful when
recording a name and phone number for writing them down later.
The recorder cannot be used when a data call or GPRS connection is active.
Record sound
1. Select Menu > Media > Recorder.
2. To start the recording, select . To start the recording during a call, select
Options > Record. While recording a call, all parties to the call hear a faint
beeping sound approximately every five seconds. When recording a call, hold
the phone in the normal position near to your ear.
3. To end the recording, select .
The recording is saved in Gallery > Recordings.
4. To listen to the latest recording, select Options > Play last recorded.
5. To send the last recording using Bluetooth, or as a multimedia message,
select Options > Send last recorded.
List of recordings
1. Select Menu > Media > Recorder > Options > Recordings list.
The list of folders in the Gallery is shown.
2. Open Recordings to see the list with recordings.
3. Select Options to select options for files in the Gallery. See "Gallery" on
page 61.
Define a storage folder
To use a folder other than Recordings as the default folder in the Gallery, select
Menu > Media > Recorder > Options > Select memory and a folder from the
list.
■Equalizer
You can control the sound quality when using the music player by amplifying or
attenuating frequency bands.
Media
68
1. Select Menu > Media > Equalizer.
2. To activate a set, scroll to one of the equalizer sets, and select Activate.
3. To view, edit, or rename a selected set, select Options > View, Edit, or
Rename.
Not all sets can be edited or renamed.
Organizer
69
14. Organizer
Your Nokia 8800 mobile phone has many useful features for
organizing your everyday life. The following features are found in
Organizer: alarm clock, calendar, to-do list, notes, wallet, calculator,
countdown timer, and stopwatch.
■Alarm clock
The alarm clock uses the time format set for the clock. The alarm clock works
even when the phone is switched off if there is enough power in the battery.
To set the alarm, select Menu > Organizer > Alarm clock > Alarm time, and
enter the alarm time. To change the alarm time when the alarm time is set, select
On. To set the phone to alert you on selected days of the week, select Repeat
alarm.
To select the alarm tone or set a radio channel as the alarm tone, select Menu >
Organizer > Alarm clock > Alarm tone. If you select the radio as an alarm tone,
connect the headset to the phone. The phone uses the last channel you listened
to as the alarm, and the alarm plays through the loudspeaker. If you remove the
headset or switch off the phone, the default alarm tone replaces the radio.
To set a snooze time-out, select Snooze time-out.
Alert tone and message
The phone sounds an alert tone, and Alarm! and the current time are displayed,
even if the phone is switched off. To stop the alarm, select Stop. If you let the
phone continue to sound the alarm for a minute, or select Snooze, the alarm
stops for the selected snooze timeout and then resumes.
If the alarm time is reached while the device is switched off, the device switches
itself on and starts sounding the alarm tone. If you select Stop, the device asks
whether you want to activate the device for calls. Select No to switch off the
device or Yes to make and receive calls. Do not select Yes when wireless phone
use may cause interference or danger.
■Calendar
The calendar helps you keep track of reminders, calls that you need to make,
meetings, and birthdays.
Organizer
70
Select Menu > Organizer > Calendar.
The current day is indicated by a frame. If there are any notes set for the day, the
day is in bold type. To view the day notes, select View. To view a week, select
Options > Week view. To delete all notes in the calendar, select the month or
week view, and select Options > Delete all notes.
Other options for the calendar day view can be make a note; delete, edit, move, or
repeat a note; copy a note to another day; send a note with Bluetooth
technology; or send a note as a text message or multimedia message to the
calendar of another compatible phone. In Settings, you can set the date and time
settings. In the Auto-delete notes option, you can set the phone to delete old
notes automatically after a specified time.
Make a note
1. Select Menu > Organizer > Calendar and the date you want.
2. Select Options > Make a note and one of the following note types:
Meeting, Call, Birthday, Memo or Reminder.
Note alarm
The phone beeps, and displays the note. If a call note appears, you can call the
displayed number by pressing the call key. To stop the alarm and to view the note,
select View. To stop the alarm for 10 minutes, select Snooze. To stop the alarm
without viewing the note, select Exit.
■To-do list
You can save a note for a task that you have to do, select a priority level for the
note, and mark it as done when you have completed it. You can sort the notes by
priority or by date.
Add a to-do note
1. Select Menu > Organizer > To-do list.
2. If no note is added, select Add; otherwise, select Options > Add.
3. Write the note, and select Save, the priority, the deadline and the alarm type
for the note.
4. To view a note, scroll to it, and select View.
Organizer
71
Options
You can also select an option to delete the selected note and delete all the notes
that you have marked as done. You can sort the notes by priority or by deadline,
send a note as a text message or a multimedia message to another phone, save a
note as a calendar note, or access the calendar.
While viewing a note, you can also select an option to edit the deadline or
priority for the note, or mark the note as done.
■Notes
You can use this function for writing and sending notes to compatible devices by
Bluetooth, SMS, or MMS.
1. Select Menu > Organizer > Notes.
2. To make a note if one is not added, select Add; otherwise, select Options >
Make a note.
3. Write the note, and select Save.
4. To view a note, scroll to it, and select View.
Options
Other options for notes include deleting and editing a note. While editing a note,
you can also exit the text editor without saving the changes. If the note is too
long to be sent as a text message, the phone prompts you to delete the
appropriate number of characters from your note.
■Wallet
In Wallet, you can save personal information, such as credit card numbers,
addresses, and access codes to services that require a user name and password.
You can easily retrieve the information in the wallet to fill in online forms, if the
service supports it.
The first time you access the wallet, you must define the wallet code that
protects your encrypted data.
1. When Create wallet code: appears, enter the code, and select OK.
2. When Verify wallet code: appears, enter the code again, and select OK. See
"Wallet code" on page 19.
Organizer
72
3. If you want to delete all the content of the wallet and the wallet code, enter
*#7370925538# (*#res wallet# in letters) while in the standby mode. You
also need the security code of the phone. See "Security code" on page 18.
4. To add or edit contents, open the Wallet menu. To use the content of the
wallet in a mobile service, access the wallet from the browser. See "Web" on
page 80.
Access the menu
1. Select Menu > Organizer > Wallet, enter your wallet code, and select OK.
2. Select one of the following options:
Wallet profiles — to create card combinations for different services. A wallet
profile is helpful if the service asks you to fill in many data items. You can
select the appropriate wallet profile instead of selecting different cards
separately.
Cards — to save personal card information. You can save payment, loyalty,
and access card information, such as user name and password combinations
for different services, addresses, and user data. See "Save card details" on
page 72.
Tickets — to save the notifications of e-tickets that you bought through a
mobile service. To view the tickets, select Options > View.
Receipts — to save receipts of mobile purchases.
Personal notes — to save all kinds of personal information that you want to
keep protected by the wallet PIN code. See "Personal notes" on page 73.
Settings — to modify wallet settings. See "Create a profile" on page 74.
Save card details
1. Select Menu > Organizer > Wallet, enter your wallet code, and select OK.
2. Select Cards and either Payment cards, Loyalty cards, Access cards, User
info cards, or Address cards.
3. If no card is added, select Add; otherwise, select Options > Add new and fill
in the card detail fields.
If supported by your service provider, you can also receive card information to
your phone as a configuration message. You are notified of the card category. For
Organizer
73
availability of receiving card information as configuration settings, contact the
card issuer or service provider.
Personal notes
You can save personal notes, such as account numbers, passwords, or codes.
1. Select Menu > Organizer > Wallet, enter your wallet code, and select OK >
Personal notes.
2. If no note is added, select Add; otherwise, select Options > Add new and
enter the note and a title.
3. Select Options to edit a selected note, sort notes by name or date, or delete
notes.
4. To view a note, scroll to it, and select View.
5. When viewing a note, select Edit to edit it or select Options and one of the
following options:
Send via text msg. — to copy the note as a text message.
Copy to calendar — to copy the note to the calendar as a memo.
Use detail — to extract numbers and e-mail and Web addresses from a note.
Delete — to delete the note.
Create a profile
When you have saved your personal card details, you can combine them together
into a wallet profile. You can use the profile to retrieve wallet data from different
cards while browsing.
1. Select Menu > Organizer > Wallet, enter your wallet code, and select OK >
Wallet profiles.
2. To create a new wallet profile if no profile is added, select Add; otherwise,
select Options > Add new.
3. Fill in the following fields. Some of the fields contain data that is selected
from the wallet. You must save this data before you can create a wallet
profile.
Select payment card next and select a card from the payment card list.
Select loyalty card next and select a card from the loyalty card list.
Organizer
74
Select access card next and select a card from the access card list.
Select user info card next and select a card from the user data card list.
Select billing address next and select an address from the address card list.
Select shipping address next and select an address from the address card list.
Select receipt delivery address next and select an address from the address
card list.
Select receipt delivery method next and select the means of delivery: To
phone number or To e-mail address.
Wallet profile name: enter a name for the profile.
4. Select Done.
Settings
1. Select Menu > Organizer > Wallet, enter your wallet code, and select OK >
Settings.
2. To change the wallet code, select Change code.
3. To set the radio frequency identification (RFID) code and type, select RFID >
RFID code and RFID type.
RIFD is a method of remotely storing and retrieving data using devices called
RFID tags. This technology offers a secure way to protect your commercial
transactions.
Purchases
To do your shopping, access a Web site that supports the wallet. The service must
support the Electronic Commerce Modeling Language specification. See
"Connect to a service" on page 81. Choose the product you want to buy and read
carefully all provided information before your purchase. The text may not fit
within a single screen. Therefore, make sure to scroll through and read all of the
text before your purchase.
To pay for the items you want to buy, you are asked whether you want to use the
wallet and your wallet PIN code.
1. Select the payment card you want to use from the Payment cards list.
Organizer
75
If the data form you receive from the service provider supports the Electronic
Commerce Modeling Language specification, the phone automatically fills in
the credit card information or the wallet profile from the wallet.
2. Approve the purchase, and the information is forwarded.
You may receive an acknowledgement or a digital receipt of the purchase.
3. To close the wallet, select Close wallet.
If you do not use the wallet for five minutes, it closes automatically.
4. If you have tried to access or have accessed confidential information
requiring passwords (for example, your bank account), empty the cache of
your phone after each use. See "Cache memory" on page 85 for more
information.
■Calculator
The calculator in your phone adds, subtracts, multiplies, divides, calculates the
square and the square root, and converts currency values.
Note: This calculator has limited accuracy and is designed for simple
calculations.
Basic calculations
1. Select Menu > Organizer > Calculator and enter the first number in the
calculation. If you need to enter a decimal point, press #.
2. Select Options > Add, Subtract, Multiply, Divide, Square, Square root, or
Change sign.
3. Enter the second number in your calculation, and select Equals.
4. To start a new calculation, select and hold Clear.
Currency conversion
1. Select Menu > Organizer > Calculator.
2. To save the exchange rate, select Options > Exchange rate.
3. Select the displayed options you want, enter the exchange rate, press # for a
decimal point, and select OK.
Organizer
76
The exchange rate remains in the memory until you replace it with another
one.
4. To perform the currency conversion, enter the amount to be converted, select
Options > To home or To foreign.
■Countdown timer
1. Select Menu > Organizer > Countdown timer, enter the alarm time in hours,
minutes, and seconds, and select OK.
You can write your own note text, which will display when the time expires.
2. To start the countdown timer, select Start.
3. To change the countdown time, select Change time.
4. To stop the timer, select Stop timer.
If the alarm time is reached when the phone is in the standby mode, the phone
sounds a tone and flashes the note text (if it is set) or Countdown completed.
Stop the alarm by pressing any key. If no key is pressed, the alarm automatically
stops within 30 seconds. To stop the alarm and to delete the note text, select
Exit. To restart the countdown timer, select Restart.
■Stopwatch
You can measure time, take intermediate times, or take lap times using the
stopwatch. During timing, the other functions of the phone can be used. To set
the stopwatch timing in the background, press the end key.
Using the stopwatch or allowing it to run in the background when using other
features increases the demand on battery power and reduces the battery life.
Select Menu > Organizer > Stopwatch and one of the following options:
•Split timing — to take intermediate times.
• To start the time observation, select Start.
• Select Split every time you want to take an intermediate time.
• To stop the time observation, select Stop.
• To save the measured time, select Save.
• To start the time observation again, select Options > Start. The new time
is added to the previous time.
Organizer
77
• To reset the time without saving it, select Reset.
• To set the stopwatch timing in the background, press the end key.
•Lap timing — to take lap times. To set the stopwatch timing in the
background, press the end key.
•Continue — to view the timing that you have set in the background.
•Show last time — to view the most recently measured time if the stopwatch
is not reset.
•View times or Delete times — to view or delete the saved times.
Applications
78
15. Applications
■Games
Your phone software includes some games.
Launch
Select Menu > Applications > Games, scroll to the game you want, and select
Open, or press the call key.
For options related to a game, see "Other application options" on page 78.
Downloads
Select Menu > Applications > Options > Downloads > Game downloads. The
list of available bookmarks is shown. Select More bookmarks to access the list of
bookmarks in the Web menu. See "Bookmarks" on page 83.
Note: Only install sources that offer adequate protection against
harmful software.
Settings
To set sounds, lights, and shakes for the game, select Menu > Applications >
Options > Application settings.
■Collection
Your phone software includes some Java applications specially designed for this
Nokia phone.
Launch an application
Select Menu > Applications > Collection, scroll to an application, and select
Open, or press the call key.
Other application options
Delete — to delete the application or application set from the phone.
Details — to give additional information about the application.
Applications
79
Update version — to check if a new version of the application is available for
download from the Web (network service).
Web page — to provide further information or additional data for the application
from an Internet page. This feature must be supported by the network. It is only
shown if an Internet address has been provided with the application.
Application access — to restrict the application from accessing the network.
Different categories are shown. Select in each category, if available, one of the
following permissions:
•Ask every time and the phone asks always for net access.
•Ask first time only and the phone asks on first attempt to net access.
•Always allowed to allow the net access.
•Not allowed to not allow the net access.
Download applications
Your phone supports J2ME Java applications. Make sure that the application is
compatible with your phone before downloading it.
You can download new Java applications in different ways:
Select Menu > Applications > Options > Downloads > App. downloads, and
the list of available bookmarks is shown. Select More bookmarks to access the
list of bookmarks in the Web menu. Select the appropriate bookmark to connect
to the page you want. For the availability of different services, pricing, and tariffs,
contact your service provider.
Select Menu > Web > Downloads. Download an appropriate application or
game. See "Downloads" on page 78.
Use the game download function. See "Downloads" on page 78.
Use the Nokia Application Installer from Nokia PC Suite to download the
applications to your phone.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
When downloading an application, it may be saved in the Games menu instead of
the Applications menu.
Web
80
16. Web
Your phone has a built-in browser you can use to connect to
selected services on the mobile Internet. Many wireless mobile
Internet access features are network-dependent, and some
features may not be available. Contact your service provider for
more information.
■Technology background
A technology called Wireless Application Protocol (WAP) is to mobile devices
what the World Wide Web (WWW) is to personal computers. The mobile
community began developing WAP several years ago to provide access to the
Internet for mobile users.
Most WAP sites are made up of text and hyperlinks. Some pages even contain
low-resolution graphics, or require data input. Your service provider and others
are free to design WAP sites as they choose, so the sites are as varied as the web
pages on the Internet.
Internet content on your personal computer is called a “web page.” Internet
content on your mobile phone is called a “page,” “WAP card,” or a “Deck of cards.”
You may not be able to view all the details of the mobile Internet pages, as page
appearance may vary due to screen size.
■Service provider
Because mobile Internet content is designed to be viewed from your phone, your
service provider is now your mobile Internet service provider as well. It is likely
that your service provider has created a home page and set up your WAP browser
to go to this page when you log on to the mobile Internet. Once at your service
provider’s home page, you may find links to a number of other sites.
■Access service
Set up service
You may receive the configuration settings required for browsing as a
configuration message from the network operator or service provider that offers
the service that you want to use. See "Configuration settings service" on page 9.
Web
81
You can also enter all the configuration settings manually. See "Configuration"
on page 57.
Activate the settings
Make sure that the Web settings of the service you want to use are activated.
1. Select Menu > Web > Settings > Configuration settings > Configuration.
Only the configurations that support the browsing service are shown
2. Select a service provider, Default, or Personal config. for browsing.
3. Select Account and a browsing service account contained in the active
configuration settings.
4. If you want to perform manual user authentication for intranet connections,
select Display terminal window > Yes.
Connect to a service
There are several ways to connect to a service.
• To open the service’s home page, select Menu > Web > Home; or in the
standby mode, press and hold 0.
• To select a bookmark, select Menu > Web > Bookmarks.
• To select the last viewed web site, select Menu > Web > Last web address.
• To enter the address of the service, select Menu > Web > Go to address,
enter the address of the service, and select OK.
■Browse
It should not be necessary to manually configure the browser on your phone.
Normally this is done by your service provider once you have subscribed to the
feature. Contact your service provider if you have problems using the browser.
After you make a connection to the service, you can start browsing its pages. The
function of the phone keys may vary in different services. Follow the text guides
on the phone display. For more information, contact your service provider.
If packet data is selected as the data bearer, is shown in the top left of the
display during browsing. If you receive a call or a text message, or make a call
during a packet data connection, is shown in the top right of the display to
Web
82
indicate that the packet data connection is suspended (on hold). After a call, the
phone tries to reconnect the packet data connection.
Phone keys
• Press the scroll key in any direction to browse through the page.
• To select a highlighted item, press the call key.
• To enter letters and numbers, press the keys, 0 to 9.
• To enter special characters, press *.
Options
The following options may be available: Use wallet info, Home, Shortcuts, Add
bookmark, Bookmarks, Page options, History, Downloads, Other options,
Reload, and Quit. Your service provider may also offer other options.
Direct calling
The browser supports functions that you can access while browsing. You can
make a phone call or save a name and a phone number from a page.
Appearance settings
While browsing, select Options > Other options > Appearance settings; or in
the standby mode, select Menu > Web > Settings > Appearance settings and
one of the following options:
Text wrapping > On — to set the text to continue on the next line on the display.
If you select Off, the text is abbreviated.
Font size > Extra small, Small, or Medium — to set the font size.
Show images > No — to hide pictures on the page. This can speed up the
browsing of pages that contain a lot of pictures.
Alerts > Alert for unsecure connection > Yes — to set the phone to alert when a
encrpyted connection changes to an unencrpyted one during browsing.
Alerts > Alert for unsecure items > Yes — to set the phone to alert when a
encrpyted page contains an unsecure item. These alerts do not guarantee a
secure connection. For more information, see "Browser security" on page 85.
Character encoding > Content encoding — to select the encoding for the
browser page content.
Web
83
Character encoding > Unicode (UTF-8) web addresses > On — to set the phone
to send a URL as a UTF-8 encoding. You may need this setting when you access a
Web page created in a foreign language.
Cookies
A cookie is data that a site saves in the cache memory of your phone. Cookies are
saved until you clear the cache memory. See "Cache memory" on page 85.
While browsing, select Options > Other options > Security > Cookie settings; or
in the standby mode, select Menu > Web > Settings > Security settings >
Cookies. To allow or prevent the phone receiving cookies, select Allow or Reject.
Scripts over secure connection
You can select whether to allow the running of scripts from a secure page. The
phone supports WML scripts.
1. While browsing, select Options > Other options > Security settings > Script
settings; or in the standby mode, select Menu > Web > Settings > Security
settings > Scripts over secure connection.
2. To allow the scripts, select Allow.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
1. While browsing, select Options > Bookmarks; or in the standby mode, select
Menu > Web > Bookmarks.
2. Scroll to a bookmark, and select it; or press the call key to make a connection
to the page associated with the bookmark.
3. Select Options to view, edit, delete, or send the bookmark; create a new
bookmark; or save the bookmark to a folder.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
Web
84
Receive
When you have received a bookmark that is sent as a bookmark, 1 bookmark
received is displayed. To save the bookmark, select Show > Save. To view or
delete the bookmark, select Options > View or Delete. To discard the bookmark
directly after you have received the bookmark, select Exit > OK.
■Downloads (network service)
To download more tones, images, games, or applications to your phone, select
Menu > Web > Downloads > Tone downloads, Graphic downloads, Game
downloads, Video downloads, Theme downloads, or App. downloads.
Only install and use applications and other software from sources that offer
adequate security and protection against harmful software.
To save all downloaded files automatically in Gallery, select Menu > Web >
Settings > Downloading settings > Automatic saving > On.
■Service inbox (network service)
The phone is able to receive service messages (pushed messages) sent by your
service provider. Service messages are notifications of news headlines, for
example, and they may contain a text message or an address of a service.
To access the Service inbox in the standby mode, when you have received a
service message, select Show. If you select Exit, the message is moved to the
Service inbox. To access the Service inbox later, select Menu > Web > Service
inbox.
To access the Service inbox while browsing, select Options > Other options >
Service inbox. Scroll to the message you want, and select Retrieve to activate the
browser and download the marked content. To display detailed information on
the service notification, or to delete the message, select Options > Details or
Delete.
Settings
Select Menu > Web > Settings > Service inbox settings.
To set whether you want to receive service message, select Service messages >
On or Off.
Web
85
To set the phone to receive service messages only from content authors approved
by the service provider, select Message filter > On. To view the list of the
approved content authors, select Trusted channels.
To set the phone to automatically activate the browser from the standby mode
when the phone has received a service message, select Automatic connection >
On. If you select Off, the phone activates the browser only after you select
Retrieve when the phone has received a service message.
■Cache memory
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
empty the cache after each use. The information or services you have accessed is
stored in the cache.
• To empty the cache, while browsing, select Options > Other options > Clear
the cache.
• To empty the cache, while in the standby mode, select Menu > Web > Clear
the cache.
■Browser security
Security features may be required for some services, such as online banking or
shopping. For such connections, you need security certificates and possibly a
security module, which may be available on your SIM card. For more information,
contact your service provider.
Security module
The security module improves security services for applications requiring a
browser connection, and allows you to use a digital signature. The security
module may contain certificates as well as private and public keys. The
certificates are saved in the security module by the service provider.
Select Menu > Web > Settings > Security settings > Security module settings
and one of the following options:
Security module details — to show the security module title, status,
manufacturer, and serial number.
Web
86
Module PIN request — to set the phone to ask for the module PIN when using
services provided by the security module. Enter the code, and select On. To
disable the module PIN request, select Off.
Change module PIN — to change the module PIN, if allowed by the security
module. Enter the current module PIN code, then enter the new code twice.
Change signing PIN — to change the signing PIN code for the digital signature.
Select the signing PIN you want to change. Enter the current PIN code, then enter
the new code twice.
See also "Access codes" on page 18.
Certificates
Important: Note that even if the use of certificates makes the risks
involved in remote connections and software installation considerably
smaller, they must be used correctly in order to benefit from increased
security. The existence of a certificate does not offer any protection by
itself; the certificate manager must contain correct, authentic, or
trusted certificates for increased security to be available. Certificates
have a restricted lifetime. If Expired certificate or Certificate not valid
yet is shown even if the certificate should be valid, check that the
current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you
really trust the owner of the certificate and that the certificate really
belongs to the listed owner.
There are three kinds of certificates: server certificates, authority certificates, and
user certificates. You may receive these certificates from your service provider.
Authority certificates and user certificates may also be saved in the security
module by the service provider.
To view the list of the authority or user certificates downloaded into your phone,
select Menu > Web > Settings > Security settings > Authority certificates or
User certificates.
The security indicator is displayed during a connection, if the data
transmission between the phone and the content server is encrypted.
The security icon does not indicate that the data transmission between the
gateway and the content server (or place where the requested resource is stored)
is secure. The service provider secures the data transmission between the
gateway and the content server.
Web
87
Digital signature
You can make digital signatures with your phone if your SIM card has a security
module. Using the digital signature can be the same as signing your name to a
paper bill, contract, or other document.
To make a digital signature, select a link on a page, such as the title of the book
you want to buy and its price. The text to sign, which may include the amount
and date, is shown.
Check that the header text is Read and that the digital signature icon is
shown.
If the digital signature icon does not appear, there is a security breach, and you
should not enter any personal data such as your signing PIN.
To sign the text, read all of the text first, and then select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll through
and read all of the text before signing.
Select the user certificate you want to use. Enter the signing PIN (see "Access
codes" on page 18), and select OK. The digital signature icon disappears, and the
service may display a confirmation of your purchase.
SIM services
88
17. SIM services
Your SIM card may provide additional services that you can access.
This menu is shown only if it is supported by your SIM card. The
name and contents of the menu depend on the SIM card.
For availability, rates, and information on using SIM services,
contact your service provider.
You can set the phone to show you the confirmation messages sent between your
phone and the network when you are using the SIM services by selecting the
option Yes within the menu Confirm SIM service actions, in Phone settings.
Note that accessing these services may involve sending messages or making a
phone call for which you may be charged.
Computer connectivity
89
18. Computer connectivity
■Nokia PC Suite
Nokia PC Suite software is available for the Nokia 8800 phone. Nokia PC Suite is
a collection of powerful tools that you can use to manage your phone features
and data. Each component is a separate program that includes online helps.
Nokia PC Suite software, installation instructions, and other documentation is
provided free of charge and can be downloaded from the software downloads of
the Nokia web site: www.nokiausa.com/pcsuite.
■Packet data, HSCSD, and CSD
With your phone you can use the packet data, HSCSD (high-speed circuit
switched data), and CSD (circuit switched data, GSM data) services.
For availability and subscription to data services, contact your service provider.
The use of HSCSD services consumes the phone battery faster than normal voice
or data calls. You may need to connect the phone to a charger for the duration of
data transfer.
See "Packet data (EGPRS) (network service)" on page 53.
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Making or answering phone calls during a computer connection is not
recommended, as it might disrupt the operation.
For better performance during data calls, place the phone on a stationary surface,
with the keypad facing downward. Do not move the phone by holding it in your
hand during a data call.
Enhancements
90
19. Enhancements
If you want to enhance phone functionality, a
range of enhancements is available for you. You
can select any of these items to help accommodate
your specific communication needs.
Check the model number of any charger before use
with this device. This device is intended for use
when supplied with power from the ACP-12
charger.
Warning: Use only batteries, chargers and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer.
Your device and its enhancements may contain small parts. Keep them out of
reach of small children.
A few practical rules about accessories and enhancements:
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp
and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and
are operating properly.
• Installation of any complex car enhancements must be made by qualified
personnel only.
Reference information
91
20. Reference information
■Battery information
Charging and discharging
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, replace the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers designated for this
device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave the battery connected to a charger. Overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its charge over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery and its
ability to charge. Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). A device with a hot or cold battery may not work temporarily, even
when the battery is fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
Reference information
92
Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting
an original Nokia battery, purchase it from an authorized Nokia dealer, look for
the Nokia Original Enhancements logo on the packaging, and inspect the
hologram label using the following steps:
Successful completion of the four steps is not a total assurance of the
authenticity of the battery. If you have any reason to believe that your battery is
not an authentic original Nokia battery, you should refrain from using it and take
it to the nearest authorized Nokia service point or dealer for assistance. Your
authorized Nokia service point or dealer will inspect the battery for authenticity.
If authenticity cannot be verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram label, you should see
the Nokia connecting hands symbol from one angle and
the Nokia Original Enhancements logo when looking
from another angle.
2. When you angle the hologram. to the left, right,
down, and up sides of the logo, you should see 1, 2, 3,
and 4 dots on each side respectively.
3. Scratch the side of the label to reveal a 20-digit code,
for example, 12345678919876543210. Turn the battery
so that the numbers are facing upwards. The 20-digit
code reads starting from the number at the top row
followed by the bottom row.
4. Confirm that the 20-digit code is valid by following
the instructions at www.nokia.com/batterycheck.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram label is an
authentic Nokia battery, please do not use the battery. Take it to the nearest
Reference information
93
authorized Nokia service point or dealer for assistance. The use of a battery that
is not approved by the manufacturer may be dangerous and may result in poor
performance and damage to your device and its enhancements. It may also
invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries visit www.nokia.com/battery.
■Additional safety information
Operating environment
Remember to follow any special regulations in force in any area and always
switch off your device when its use is prohibited or when it may cause
interference or danger. Use the device only in its normal operating positions. This
device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 5/8 inch (1.5 cm) away from the body.
When a carry case, belt clip, or holder is used for body-worn operation, it should
not contain metal and should position the device at least 5/8 inch (1.5 cm) away
from your body.In order to transmit data files or messages, this device requires a
quality connection to the network. In some cases, transmission of data files or
messages may be delayed until such a connection is available. Ensure the above
separation distance instructions are followed until the transmission is
completed.
Parts of the device are magnetic. Metallic materials may be attracted to the
device, and persons with a hearing aid should not hold the device to the ear with
the hearing aid. Always secure the device in its holder, because metallic materials
may be attracted by the earpiece. Do not place credit cards or other magnetic
storage media near the device, because information stored on them may be
erased.
Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your phone in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Reference information
94
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 6 in (15.3
cm) be maintained between a wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with
the independent research by and recommendations of Wireless Technology
Research. To minimize the potential for interference, persons with pacemakers
should
• Always keep the device more than 6 in (15.3 cm) from their pacemaker when
the device is switched on
• Not carry the device in a breast pocket
• Hold the device to the ear opposite the pacemaker
If you have any reason to suspect that interference is taking place, switch off
your device immediately.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.Only qualified personnel
should service the device, or install the device in a vehicle. Faulty installation or
service may be dangerous and may invalidate any warranty that may apply to the
device. Check regularly that all wireless device equipment in your vehicle is
mounted and operating properly. Do not store or carry flammable liquids, gases,
or explosive materials in the same compartment as the device, its parts, or
enhancements. For vehicles equipped with an air bag, remember that an air bags
inflate with great force. Do not place objects, including installed or portable
wireless equipment in the area over the air bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly installed and the air bag inflates,
serious injury could result.
Airplanes
Using your device while flying may be prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be
Reference information
95
dangerous to the operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refuelling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas, chemical plants or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust or metal powders.
■Emergency calls
Important: Wireless phones, including this phone, operate using radio
signals, wireless networks, landline networks, and user-programmed
functions. Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless phone for
essential communications like medical emergencies.
To make an emergency call:
1. If the phone is not on, switch it on. Check for adequate signal strength. Some
networks may require that a valid SIM card is properly inserted in the phone.
2. Press the end key as many times as needed to clear the display and ready the
phone for calls.
3. Enter the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. Consult this guide or your service provider.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless phone may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
Reference information
96
■Certification Information (SAR)
THE NOKIA 8800 DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO
RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is designed and
manufactured not to exceed the limits for exposure to radio frequency (RF)
energy recommended by international guidelines (ICNIRP). These limits establish
permitted levels of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards and
guidelines include a substantial safety margin designed to assure the safety of
the public, regardless of age and health and to account for any variations in
measurements.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit stated in the international
guidelines is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. Tests
for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
actual SAR level of an operating device can be well below the maximum value
because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how
close you are to a network base station. The highest SAR value when tested
according to international testing procedures for use at the ear for device type
RM-13 is 0.50 W/kg. Your phone’s device type is listed on the label located under
the battery.
SAR values may vary depending on national reporting and testing requirements
and the network band. Use of device accessories and enhancements may result in
different SAR values. Additional SAR information may be provided under product
information at www.nokia.com.
USA and Canada: The SAR limit of USA (FCC) and Canada (IC) is 1.6 W/kg
averaged over one gram of tissue. Device type RM-13 has also been tested
against this SAR limit. The highest SAR value reported under this standard during
product certification for use at the ear is 0.46 W/kg and when properly worn on
the body is 0.37 W/kg. Information about this device can be found on the FCC's
website at http://www.fcc.gov/oet/fccid by searching the equipment
authorization system using FCC ID: QTKRM-13.
Reference information
97
■Charging, talk and standby times
This section provides information about battery charging times with the Travel
Charger (ACP-12), talk-times, and standby times. Be aware that the information
in this section is subject to change. For more information, contact your service
provider.
Charging time
The following charging time is approximate with the BL-5X 600 mAh Li-Ion
internal fixed battery:
Travel Charger (ACP-12): up to 1 hour, 5 minutes
Talk and standby times
Operation times are estimates only and depend on signal strength, phone use,
network conditions, features used, battery age and condition (including charging
habits), temperatures to which the battery is exposed, and many other factors.
Talk time: up to 2 hours, 40 minutes
Standby time: up to 200 hours
■Technical information
Dimensions:
• Width: 45mm
• Height: 107 mm
• Thickness: 16.5 mm
Weight: 141 gm
Wireless networks: GSM 900, 1800 and 1900
Size (volume): 67 cu cm
Frequency range (Tx):
• GSM 900: 880–915 MHz
• GSM 1800: 1710–1785 MHz
• GSM 1900: 1850–1910 MHz
Frequency range (Rx):
• GSM 900: 925–960 MHz
Reference information
98
• GSM 1800: 1805–1880 MHz
• GSM 1900: 1930–1990 MHz
Transmitter output power:
• 2W (GSM 900 max)
• 1W (GSM 1800/GSM 1900 max)
Operating temperature: 14° F to + 131° F (-10° C to + 55° C)
■Patent information
Manufactured or sold under one or more of the following US patents:
4868846 4945633 5001372 5053928 5083240 5101175
5124672 5151946 5152004 5173927 5212834 5230091
5241583 5266782 5271056 5311151 5317283 5331638
5335362 5341149 5353328 5371481 5378935 5384782
5390223 5392460 5396657 5400949 5408504 5416435
5430740 5442521 5444816 5446364 5446422 5477422
5479476 5442521 5444816 5446364 5446422 5477422
5479476 5487084 5526366 5534878 5548616 5551067
5553125 5557639 5565821 5566201 5570369 5581244
5594797 5600708 5606548 5613235 5625274 5640395
5664053 5675611 5677620 5692032 5697074 5699482
5701392 5722074 5729541 5760568 5787341 5794142
5797102 5802465 5805301 5809413 5819165 5821891
5822366 5827082 5835858 5835889 5839101 5842141
Reference information
99
5844884 5845219 5850607 5857151 5859843 5862178
5870683 5884103 5884190 5889770 5898775 5898925
5903832 5903839 5907823 5912570 5914690 5914796
5917868 5920826 5926147 5926769 5929813 5930233
5946651 5953665 5956332 5956625 5956633 5960354
5960389 5963901 5966378 5977887 5983081 5987137
5987639 5991857 6005857 6006114 6009328 6011853
6011971 6014113 6014551 6014573 6025802 6026161
6028567 6031827 6035189 6035194 6038238 6043760
6047196 6049796 6050415 6054954 6054966 6055439
6060193 6069923 6072787 6073001 6079993 6081732
6084471 6084855 6084920 6084962 6088746 6094587
6097964 6105784 6112099 6115617 6118775 6119002
6119180 6121846 6122498 6128322 6128509 6130650
6133884 6137789 6138091 6140966 6144243 6144676
6148209 6151485 6151507 6163609 6164547 6167038
6167248 6167273 6170073 6171127 6178535 6182101
6184592 6185295 6185302 6185422 6188909 6195338
6199035 6201712 6201876 6202109 6219560 6223037
6223059 6223059 6240076 6249584 6259312 6262735
6266321 6266330 6269126 6271794 6272361 6282436
6285888 6292668 6295286 6307512 6308084 6311054
Reference information
100
6314166 6317083 6324389 6324412 6333716 6347218
6356759 6359865 6359904 6363259 6370362 6370389
6377803 6377820 6381468 6385254 6385451 6392605
6392660 6400958 6417817 6430163 6434133 6437711
6438370 6445932 6453179 6456237 6456826 6463278
6470470 6487397 6510148 6522670 6591116 6606508
D481,674
Care and maintenance
101
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage and enjoy your device for many years.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity
sensor, and light sensor lenses).
• Use chargers indoors.
• Always create a backup of data you want to keep (such as contacts and
calendar notes) before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Statements from other agencies
102
Statements from other agencies
■Message from the CTIA
(Cellular Telecommunications & Internet Association) to all users of mobile
phones
© 2001 Cellular Telecommunications & Internet Association. All Rights
Reserved.1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036.
Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful ability to
communicate by voice—almost anywhere, anytime—with the boss, with a client,
with the kids, with emergency personnel or even with the police. Each year,
Americans make billions of calls from their wireless phones, and the numbers are
rapidly growing.But an important responsibility accompanies those benefits, one
that every wireless phone user must uphold. When driving a car, driving is your
first responsibility. A wireless phone can be an invaluable tool, but good
judgment must be exercised at all times while driving a motor vehicle—whether
on the phone or not.The basic lessons are ones we all learned as teenagers.
Driving requires alertness, caution and courtesy. It requires a heavy dose of basic
common sense—keep your head up, keep your eyes on the road, check your
mirrors frequently and watch out for other drivers. It requires obeying all traffic
signs and signals and staying within the speed limit. It means using seatbelts and
requiring other passengers to do the same. But with wireless phone use, driving
safely means a little more. This brochure is a call to wireless phone users
everywhere to make safety their first priority when behind the wheel of a car.
Wireless telecommunications is keeping us in touch, simplifying our lives,
protecting us in emergencies and providing opportunities to help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless Phone "Safety Tips"
Below are safety tips to follow while driving and using a wireless phone which
should be easy to remember.
Statements from other agencies
103
1. Get to know your wireless phone and its features such as speed dial and
redial. Carefully read your instruction manual and learn to take advantage of
valuable features most phones offer, including automatic redial and memory.
Also, work to memorize the phone keypad so you can use the speed dial
function without taking your attention off the road.
2. When available, use a hands-free device. A number of hands-free wireless
phone accessories are readily available today. Whether you choose an
installed mounted device for your wireless phone or a speaker phone
accessory, take advantage of these devices if available to you.
3. Position your wireless phone within easy reach. Make sure you place your
wireless phone within easy reach and where you can grab it without
removing your eyes from the road. If you get an incoming call at an
inconvenient time, if possible, let your voice mail answer it for you.
4. Suspend conversations during hazardous driving conditions or situations. Let
the person you are speaking with know you are driving; if necessary, suspend
the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow
and ice can be hazardous, but so is heavy traffic. As a driver, your first
responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading
an address book or business card, or writing a "to do" list while driving a car,
you are not watching where you are going. It’s common sense. Don’t get
caught in a dangerous situation because you are reading or writing and not
paying attention to the road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not
moving or before pulling into traffic. Try to plan your calls before you begin
your trip or attempt to coincide your calls with times you may be stopped at a
stop sign, red light or otherwise stationary. But if you need to dial while
driving, follow this simple tip—dial only a few numbers, check the road and
your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not mix—
they are distracting and even dangerous when you are behind the wheel of a
car. Make people you are talking with aware you are driving and if necessary,
suspend conversations which have the potential to divert your attention from
the road.
8. Use your wireless phone to call for help. Your wireless phone is one of the
greatest tools you can own to protect yourself and your family in dangerous
situations—with your phone at your side, help is only three numbers away.
Dial 9-1-1 or other local emergency number in the case of fire, traffic
Statements from other agencies
104
accident, road hazard or medical emergency. Remember, it is a free call on
your wireless phone!
9. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a "Good Samaritan" in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
10. Call roadside assistance or a special wireless nonemergency assistance
number when necessary. Certain situations you encounter while driving may
require attention, but are not urgent enough to merit a call for emergency
services. But you still can use your wireless phone to lend a hand. If you see a
broken-down vehicle posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured or a vehicle you know to
be stolen, call roadside assistance or other special non-emergency wireless
number.
Careless, distracted individuals and people driving irresponsibly represent a
hazard to everyone on the road. Since 1984, the Cellular Telecommunications
Industry Association and the wireless industry have conducted educational
outreach to inform wireless phone users of their responsibilities as safe drivers
and good citizens. As we approach a new century, more and more of us will take
advantage of the benefits of wireless telephones. And, as we take to the roads,
we all have a responsibility to drive safely.The wireless industry reminds you to
use your phone safely when driving.For more information, please call 1-888-
901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
■Message from the FDA
The U.S. Food and Drug Administration (FDA) provides the following
consumer information about wireless phones.
See http://www.fda.gov/cellphones/ for updated information.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency
energy (RF) in the microwave range while being used. They also emit very low
levels of RF when in the stand-by mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not produce
heating effects causes no known adverse health effects. Many studies of low
Statements from other agencies
105
level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings have not
been confirmed by additional research. In some cases, other researchers have had
difficulty in reproducing those studies, or in determining the reasons for
inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has authority to take action if
wireless phones are shown to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA
has urged the wireless phone industry to take a number of steps, including the
following:
• Support needed research into possible biological effects of RF of the type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones.
Statements from other agencies
106
FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are
typically thousands of times lower than those they can get from wireless phones.
Base stations are thus not the primary subject of the safety questions discussed
in this document.
What is FDA doing to find out more about the possible health effects of wireless
phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF). FDA has been a leading participant in the World
Health Organization International Electromagnetic Fields (EMF) Project since its
inception in 1996. An influential result of this work has been the development of
a detailed agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped develop a series
of public information documents on EMF issues. FDA and the Cellular
Telecommunications & Internet Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to do research on wireless phone
safety. FDA provides the scientific oversight, obtaining input from experts in
government, industry, and academic organizations. CTIA-funded research is
conducted through contracts to independent investigators. The initial research
will include both laboratory studies and studies of wireless phone users. The
CRADA will also include a broad assessment of additional research needs in the
context of the latest research developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from my
wireless phone?
If there is a risk from these products--and at this point we do not know that there
is--it is probably very small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to minimize your exposure to
radiofrequency energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or use a wireless
phone connected to a remote antenna
Statements from other agencies
107
Again, the scientific data do not demonstrate that wireless phones are harmful.
But if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless
phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the time of wireless
phone use and increasing the distance between the user and the RF source will
reduce RF exposure. Some groups sponsored by other national governments have
advised that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health hazard
exists.
Do hands-free kits for wireless phones reduce risks from exposure to RF
emissions?
Since there are no known risks from exposure to RF emissions from wireless
phones, there is no reason to believe that hands-free kits reduce risks. Hands-free
kits can be used with wireless phones for convenience and comfort. These
systems reduce the absorption of RF energy in the head because the phone,
which is the source of the RF emissions, will not be placed against the head. On
the other hand, if the phone is mounted against the waist or other part of the
body during use, then that part of the body will absorb more RF energy. Wireless
phones marketed in the U.S. are required to meet safety requirements regardless
of whether they are used against the head or against the body. Either
configuration should result in compliance with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation
work?
Since there are no known risks from exposure to RF emissions from wireless
phones, there is no reason to believe that accessories that claim to shield the
head from those emissions reduce risks. Some products that claim to shield the
user from RF absorption use special phone cases, while others involve nothing
more than a metallic accessory attached to the phone. Studies have shown that
these products generally do not work as advertised. Unlike "hand-free" kits, these
so-called "shields" may interfere with proper operation of the phone. The phone
Statements from other agencies
108
may be forced to boost its power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission (FTC) charged two
companies that sold devices that claimed to protect wireless phone users from
radiation with making false and unsubstantiated claims. According to FTC, these
defendants lacked a reasonable basis to substantiate their claim.
How does FCC Audit Cell Phone RF?
After FCC grants permission for a particular cellular telephone to be marketed,
FCC will occasionally conduct “post-grant” testing to determine whether
production versions of the phone are being produced to conform with FCC
regulatory requirements. The manufacturer of a cell phone that does not meet
FCC’s regulatory requirements may be required to remove the cell phone from use
and to refund the purchase price or provide a replacement phone, and may be
subject to civil or criminal penalties. In addition, if the cell phone presents a risk
of injury to the user, FDA may also take regulatory action. The most important
post-grant test, from a consumer’s perspective, is testing of the RF emissions of
the phone. FCC measures the Specific Absorption Rate (SAR) of the phone,
following a very rigorous testing protocol. As is true for nearly any scientific
measurement, there is a possibility that the test measurement may be less than
or greater than the actual RF emitted by the phone. This difference between the
RF test measurement and actual RF emission is because test measurements are
limited by instrument accuracy, because test measurement and actual use
environments are different, and other variable factors. This inherent variability is
known as “measurement uncertainty.” When FCC conducts post-grant testing of
a cell phone, FCC takes into account any measurement uncertainty to determine
whether regulatory action is appropriate. This approach ensures that when FCC
takes regulatory action, it will have a sound, defensible scientific basis.
FDA scientific staff reviewed the methodology used by FCC to measure cell phone
RF, and agreed it is an acceptable approach, given our current understanding of
the risks presented by cellular phone RF emissions. RF emissions from cellular
phones have not been shown to present a risk of injury to the user when the
measured SAR is less than the safety limits set by FCC (an SAR of 1.6 w/kg). Even
in a case where the maximum measurement uncertainty permitted by current
measurement standards was added to the maximum permissible SAR, the
resulting SAR value would be well below any level known to produce an acute
effect. Consequently, FCC’s approach with measurement uncertainty will not
result in consumers being exposed to any known risk from the RF emitted by
cellular telephones.
FDA will continue to monitor studies and literature reports concerning acute
effects of cell phone RF, and concerning chronic effects of long-term exposure to
Statements from other agencies
109
cellular telephone RF (that is, the risks from using a cell phone for many years). If
new information leads FDA to believe that a change to FCC’s measurement policy
may be appropriate, FDA will contact FCC and both agencies will work together
to develop a mutually-acceptable approach.
Updated July 29, 2003
Index
110
Index
NUMERICS
1-touch dialing 20
A
access codes 18
alarm clock 69
antenna 13
B
battery
charge 12
strength indicator 16
bluetooth 52
bookmarks 83
browser 81
appearance settings 82
options 82
business cards 42
C
calendar 69
call
answer 20
counters 47
end 20
make 20
options 21
reject 20
timers 47
voice mail 36
waiting 20
camera 63
color schemes 50
contacts 40
add 40
copy 41
delete 41
edit 41
search 40
Index
111
E
emergency calls 95
enhancements 53, 90
K
keyguard 18
automatic 56
security 56
M
media player 63
menu
functions 22
views 22
message counter 39
messages 23
info 36
multimedia 26
text 23
voice 35
music player 64
my shortcuts 51
N
Network Services 6
Nokia PC Suite 89
notes
calendar 70
to-do 70
numbers
info 45
my 46
service 46
O
operator menu 60
P
phone
keys and parts 15
label 8
profiles 49
R
radio 65
Index
112
recent call lists 47
S
screen saver 16, 50
service commands 36
service inbox 84
settings
call 55
configuration 57
display 50
enhancement 57
message 36
modem 53
phone 56
restore factory 59
security 58
time and date 51
tones 50
shared memory 7
SIM card 11
standby mode 16
summary after call 56
synchronization 54
T
text entry 24
themes 49
to-do list 70
U
user guide updates 8
V
voice dialing 44
voice tags 51
W
wallpaper 50
warranty 8
