LEGAL INFORMATION
Part No. 9240895, Issue No. 3
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are trademarks or registered trademarks of Nokia
Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance
with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial
activity and (ii) for use in connection with MPEG-4 video provided by a licensed video
provider. No license is granted or shall be implied for any other use. Additional information,
including that related to promotional, internal, and commercial uses, may be obtained from
MPEG LA, LLC. See <http://www.mpegla.com>.
The information contained in this user guide was written for the Nokia 770 product. Nokia
operates a policy of ongoing development. Nokia reserves the right to make changes to any
of the products described in this document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY
APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR
CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR
WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This device may contain commodities, technology, or software subject to export laws and
regulations from the U.S. and other countries. Diversion contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a device in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your device if such interference cannot be eliminated. If you require assistance, contact your
local service facility. Any changes or modifications not expressly approved by Nokia could
void the user’s authority to operate this equipment.
770_ENv3_US_UG_9240895.fm Page 2 Tuesday, September 6, 2005 3:57 PM
Contents
3
Contents
For your safety......................... 5
1. Overview ............................ 7
Nokia support on the Web......... 7
2. Get started ......................... 8
Remove the protective cover..... 8
Insert the battery.......................... 8
Charge the battery ....................... 9
Insert the memory card............... 9
Switch the device on or off ..... 11
3. Your device ...................... 11
Front and top side ...................... 11
Base and right side..................... 12
Touch screen ................................ 13
Task navigator .......................... 13
Application title area ............. 14
Status indicator area.............. 14
Minimize and close buttons .. 15
Application area ...................... 15
Toolbar........................................ 16
Calibrate the touch screen ... 16
Home view.................................... 16
Device control.............................. 17
Stylus .......................................... 17
Hardware keys.......................... 17
Text input methods .................... 18
On-screen keyboard................ 19
Handwriting recognition....... 20
Volume control............................ 20
Device lock.................................... 20
Touch screen and key guard .. 21
Memory management ............... 21
Help................................................. 22
Search for information.............. 22
4. Access the Internet ......... 23
Create a new
WLAN connection....................... 23
Edit an existing
WLAN connection....................... 24
Create a new
cellular connection..................... 25
Bluetooth wireless
technology................................. 25
Pair a phone with
your device................................ 25
Set up a cellular connection.. 26
Connectivity settings................. 28
Disable connections................ 29
5. Web browser .................... 29
Browse the Web.......................... 29
Manage bookmarks.................... 30
6. E-mail............................... 31
Basic e-mail settings................. 31
Retrieve and read e-mail.......... 32
Create and send e-mail............. 33
E-mail scheduling....................... 33
Inbox folder.................................. 33
Outbox folder............................... 34
Sent folder .................................... 34
Drafts folder ................................. 34
Own folders.................................. 34
7. Media players and
viewers.............................. 35
Audio player ................................. 35
Internet radio............................... 35
Video player.................................. 36
Images............................................ 36
News reader ................................. 36
PDF reader..................................... 36
8. Control panel ................... 37
770_ENv3_US_UG_9240895.fm Page 3 Tuesday, September 6, 2005 3:57 PM
4
9. Tools, utilities, and
games............................... 38
File manager................................ 38
Connection manager................. 38
Calculator..................................... 38
Clock .............................................. 38
Notes.............................................. 39
Sketch............................................ 39
Games............................................ 39
10. Memory cards and PC
connectivity..................... 39
Memory cards.............................. 39
PC connectivity........................... 40
11. Battery information ........ 41
Charging and discharging........ 41
Nokia battery authentication
guidelines ..................................... 42
Care and maintenance........... 43
Additional safety information.. 44
Open source software notice ... 45
Limited warranty.................... 46
770_ENv3_US_UG_9240895.fm Page 4 Tuesday, September 6, 2005 3:57 PM
5

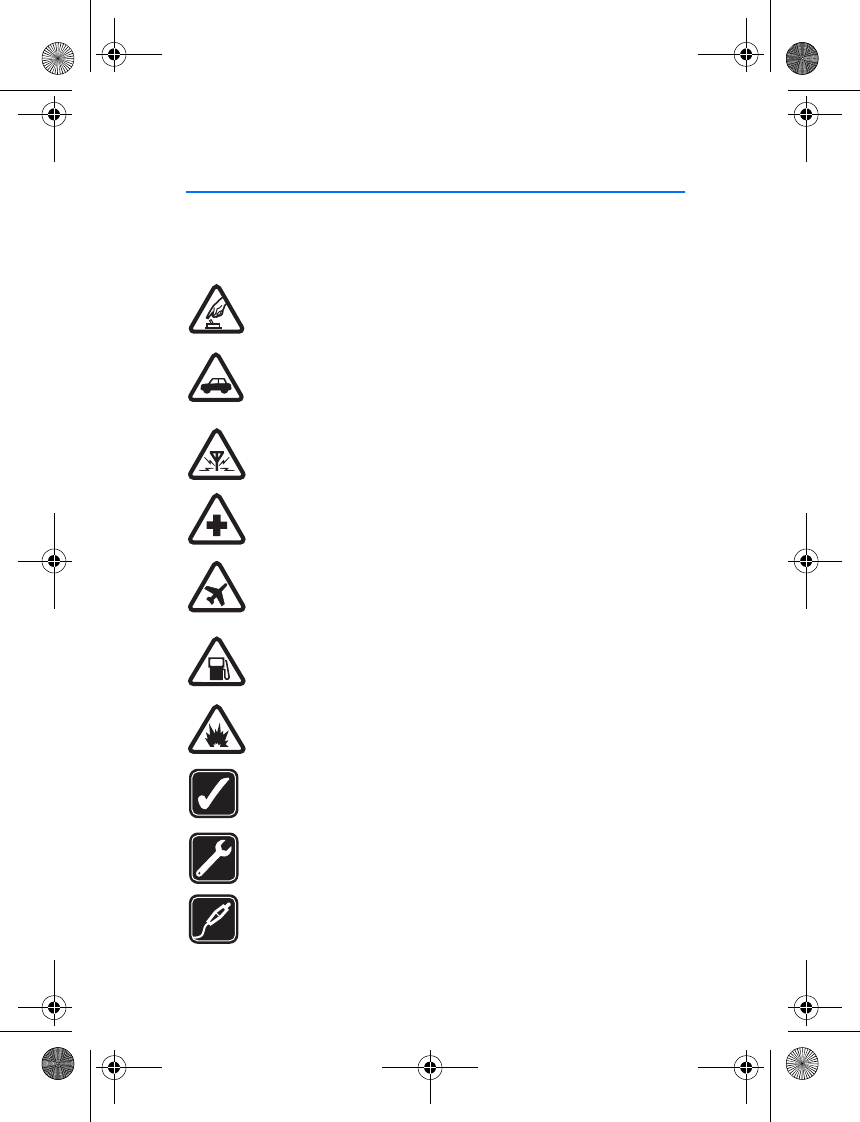

For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless device use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should
be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference
in aircraft.
SWITCH OFF WHEN REFUELLING
Do not use the device at a refueling point. Do not use near fuel
or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device where blasting is
in progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation.
QUALIFIED SERVICE
Only qualified personnel may repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
770_ENv3_US_UG_9240895.fm Page 5 Tuesday, September 6, 2005 3:57 PM
For your safety
6
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
■About your device
To access the Internet through a WLAN connection, the access point that your
device uses to send and receive data must be compliant with the IEEE 802.11b
or 802.11g standard.
There may be restrictions on using WLAN in some locations. Check with your
local authorities or service provider.
Features using WLAN, or allowing such features to run in the background while
using other features, increase the demand on battery power and reduce the
battery life
When using the features in this device, obey all laws and respect privacy and
legitimate rights of others.
Warning: To use any features in this device, the device must be switched
on. Do not switch the device on when wireless device use may cause
interference or danger.
■Network services
Contact your service provider for additional instructions for the use of network
services and information on what charges will apply. Some networks may have
limitations that affect how you can use network services.
Your service provider may have requested that certain features be disabled or not
activated in your device. Your device may also have been specially configured.
770_ENv3_US_UG_9240895.fm Page 6 Tuesday, September 6, 2005 3:57 PM
Overview
7
■Shared memory
The following features in this device may share memory: bookmarks; image, audio,
and video files; notes, sketch, and other files; contacts in e-mail address book; e-mail
messages; and applications. Use of one or more of these features may reduce the
memory available for the remaining features sharing memory. For example, saving
many images may use all of the available memory. Your device may display a
message that the memory is full when you try to use a shared memory feature. In
this case, delete some of the information or entries stored in the shared memory
features before continuing.
1. Overview
The Nokia 770 Internet Tablet allows you to navigate the Internet and
consume media through a wireless local area network (WLAN) connection
or a mobile phone that supports Bluetooth wireless technology. The device
also provides a variety of other applications, such as e-mail and an
audio player.
The Nokia 770 Internet Tablet is supplied with a stylus to control its user
interface and reduced-size MultiMediaCard (RS-MMC) for media storage.
Read this user guide carefully before using your device. Read also the
quick start guide that came with the device, and the user guide of your
compatible Nokia phone that provide important safety and
maintenance information.
This product runs on Linux-based Internet Tablet 2005 software edition.
■Nokia support on the Web
Check www.nokiausa.com/support or your local Nokia Web site for the
latest version of this guide, additional information, downloads, and
services related to your Nokia product.
770_ENv3_US_UG_9240895.fm Page 7 Tuesday, September 6, 2005 3:57 PM
Get started
8
2. Get started
■Remove the protective
cover

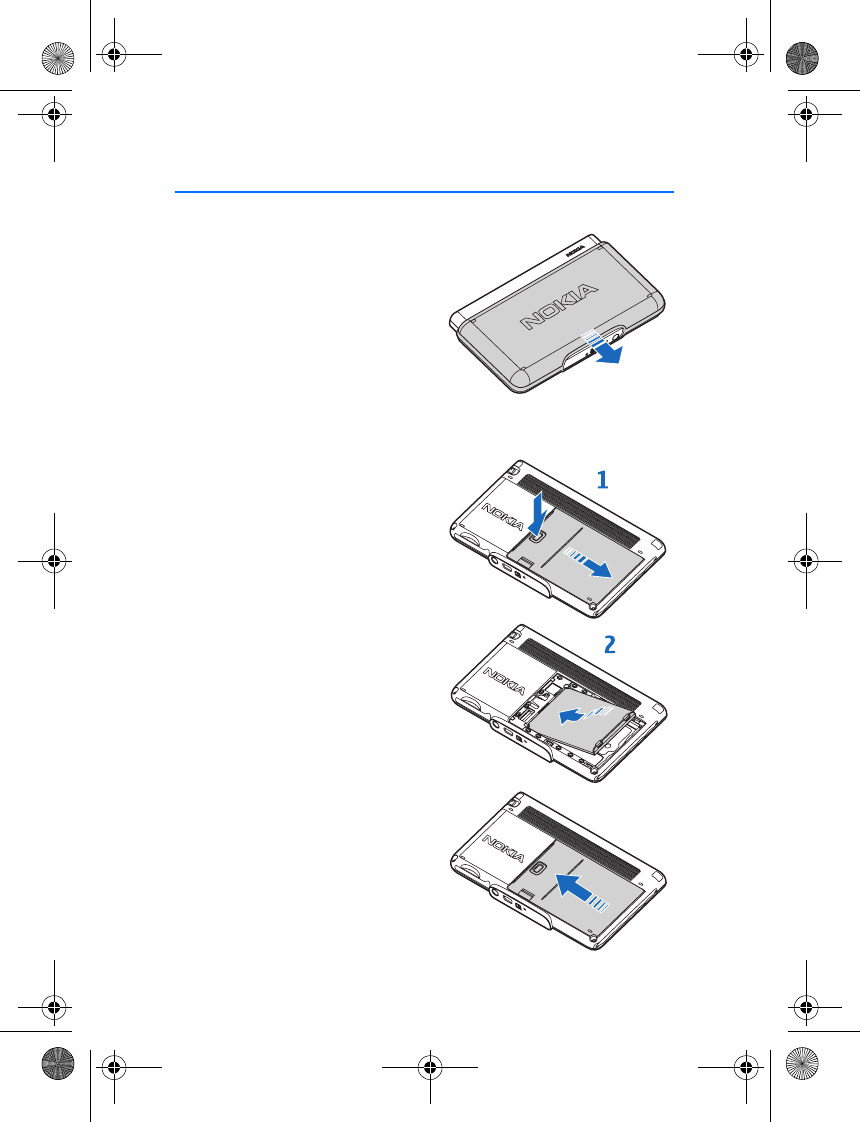

The device comes with a cover that
provides additional protection to the
touch screen.
To remove the cover from the device,
slide it in the direction of the arrow.
To reattach the cover, slide the
device inside the cover so that the
touch screen remains visible, and
the base of the device faces the
opening in the cover.
■Insert the battery
1. Press the button on the battery
cover, and slide the cover away
from the device (1).
2. Align the golden contacts of the
battery with the corresponding
connectors on the device, and
press the opposite end of the
battery into the device (2).
3. Slide the battery cover back
onto the device until it clicks
into place.
Always switch the device off, and
disconnect the charger before
removing the battery.
770_ENv3_US_UG_9240895.fm Page 8 Tuesday, September 6, 2005 3:57 PM
Get started
9
■Charge the battery
Check the model number of any charger before use with this device.
This device is intended for use when supplied with power from the
Nokia AC-4 and DC-4 chargers.
Warning: Use only batteries, chargers, and enhancements
approved by Nokia for use with this particular model. The use of
any other types may invalidate any approval or warranty, and
may be dangerous.
1. Connect the charger to a wall outlet.
2. Connect the power cord to the
charger connector at the base of
the device. Do not attempt to
connect the power cord to the
headset jack to the right of the
charging port. Once the power cord
is connected, the battery indicator
bar starts scrolling on the screen.
You can use the device while charging. When the battery is fully
charged, the bar stops scrolling.
For availability of approved enhancements, please check with your
dealer. When you disconnect the power cord of any enhancement,
grasp and pull the plug, not the cord.
For more information, see "Battery information," p. 41.
■Insert the memory card
An RS-MMC and an adapter are supplied with the device. The RS-MMC
is physically smaller than a full-size MMC. You can only use FAT 16/32
formatted memory cards with this device.
Use only compatible RS-MMCs with this device. Other memory cards,
such as secure digital (SD) cards, do not fit in the MMC card slot and are
not compatible with this device. Using an incompatible memory card
may damage the memory card as well as the device, and data stored on
the incompatible card may be corrupted.
770_ENv3_US_UG_9240895.fm Page 9 Tuesday, September 6, 2005 3:57 PM
Get started
10
To insert the memory card, do the following:

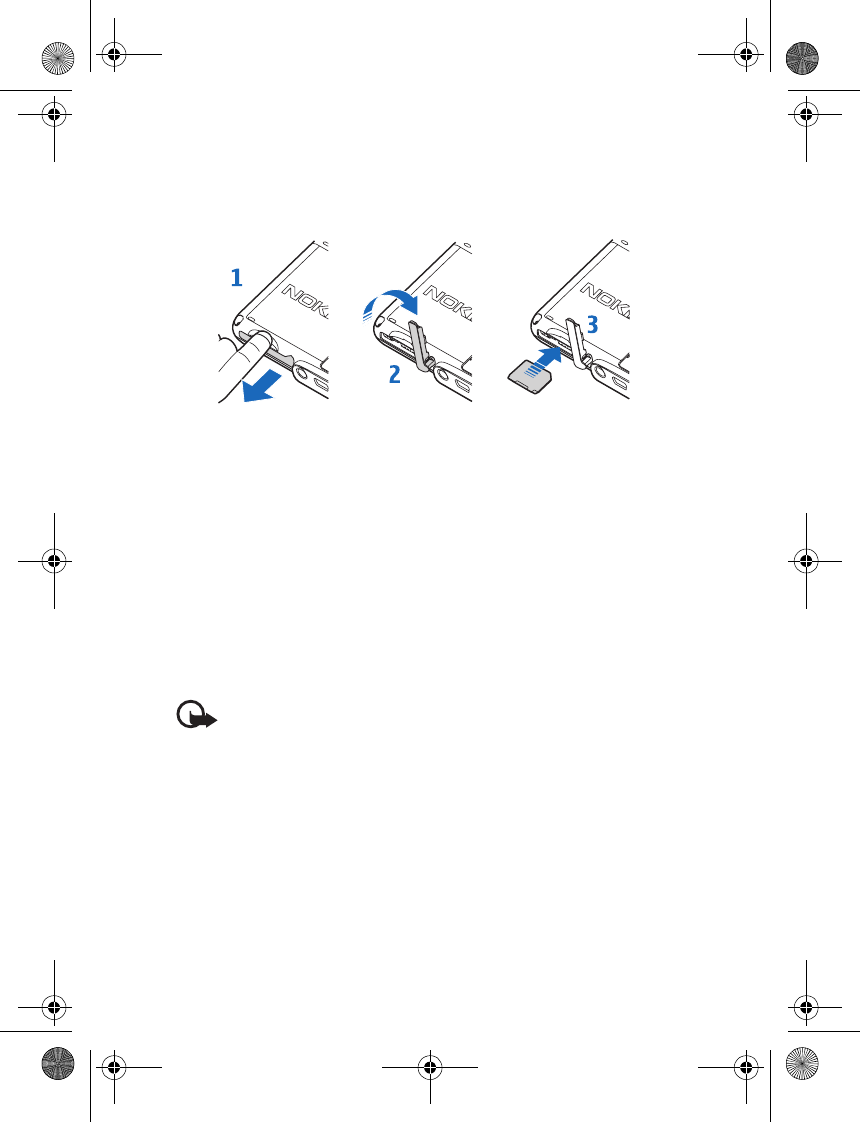

1. When the screen is facing down, pull the door of the memory card
slot with your fingertip (1), and rotate the door up (2).
2. Insert the memory card so that the beveled corner faces the
connectors and the golden contact area faces down.
3. Carefully slide the memory card into the slot until it locks into
place (3).
4. To close the door, rotate it back over the memory card slot, and push
it into the slot until it snaps into place. You cannot use the memory
card if the door is not closed properly.
To remove the memory card, open the door of the memory slot, and push
the card until it pops out from the slot. Close the door.
Your device allows hot swap, which means you can insert and remove a
memory card while the device is on without disturbing the system.
Important: Do not remove the MMC card in the middle of an
operation when the card is being accessed. Removing the card
in the middle of an operation may damage the memory card as
well as the device, and data stored on the card may be corrupted.
770_ENv3_US_UG_9240895.fm Page 10 Tuesday, September 6, 2005 3:57 PM
Your device
11
■Switch the device on or off
To switch the device on or off, press and
hold the power key.
If the device requests a lock code, Enter
lock code appears on the screen. Enter the
lock code (5–10 digits) with the on-screen
keyboard, and tap OK. To clear an incorrect
digit, tap . By default, the device lock
is disabled.
The default lock code is 12345. To change
the code, or activate the automatic device lock, see "Device lock," p. 20.
Note: If you lose the device lock code, you must take the device
to a Nokia authorized service facility. To unlock the device, the
software needs to be reloaded, and as a result all data you have
saved in the device may be lost.
3. Your device
■Front and top side

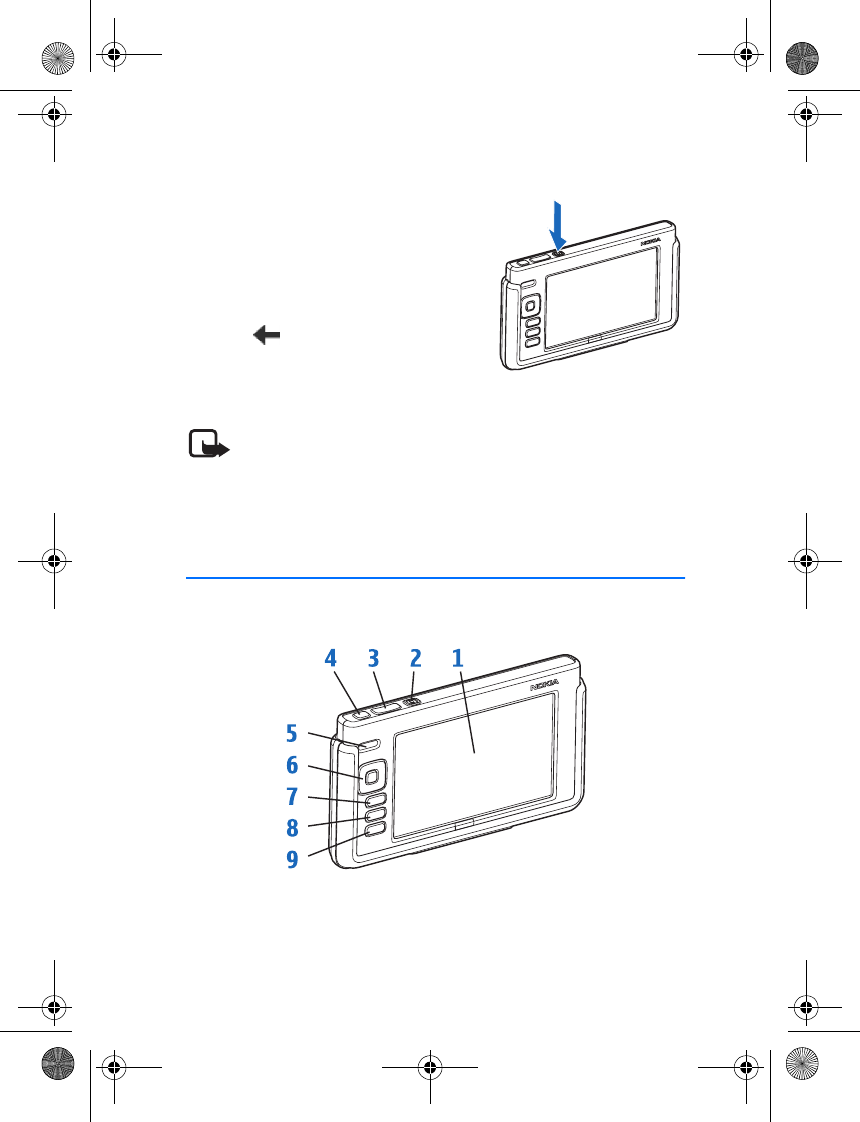

Your device contains the following keys and parts:
• Touch screen (1)
To use the device, tap the touch screen with the stylus.
770_ENv3_US_UG_9240895.fm Page 11 Tuesday, September 6, 2005 3:57 PM
Your device
12
Note: A small number of missing, discolored, or bright dots may
appear on the screen. This is a characteristic of this type of
display. Some displays may contain pixels or dots that remain on
or off. This is normal, not a fault.
• Power key (2)
• Zoom key (3)
• Full-screen key (4)
• Loudspeaker (5)
Warning: Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be
extremely loud.
• Scroll key (6)
•Escape key (7)
• Menu key (8)
• Home key (9). For more information, see "Hardware keys," p. 17.

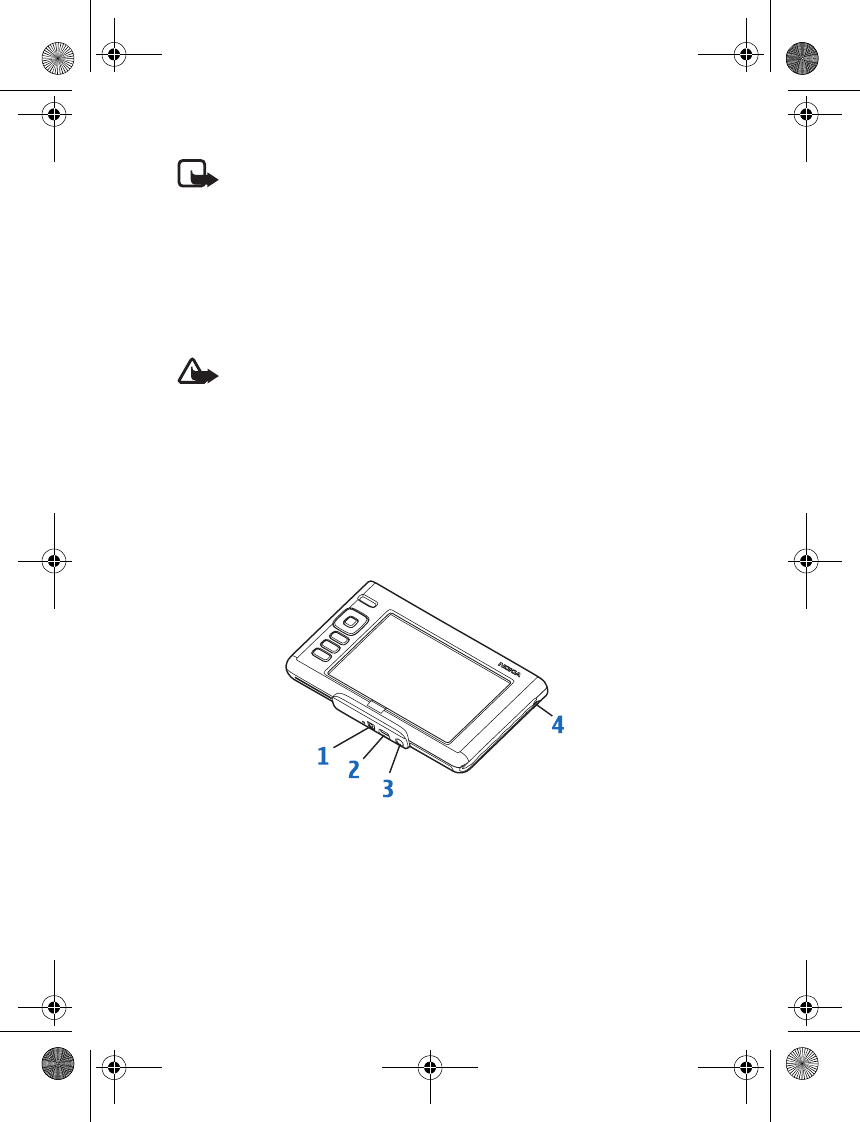

■Base and right side
• Charger connector (1) for the Nokia AC-4 or DC-4 charger.
• Mini USB port (2) for the Nokia connectivity cable DKE-2 supplied
with the device.
• Stereo audio-out connector (3) to plug in compatible headphones
with a 3.5-mm plug. The audio-out connector is compatible with
16-ohm or higher impedance headphones.
770_ENv3_US_UG_9240895.fm Page 12 Tuesday, September 6, 2005 3:57 PM
Your device
13
• Slide the stylus out of its holder (4), where it is stored when it is not
in use. Be sure to replace the stylus tip first.
Important: Use only a stylus approved by Nokia for use with
this device. Using any other stylus may invalidate any warranty
applying to the device and may damage the touch pad. Avoid
scratching the touch pad. Never use an actual pen or pencil or
other sharp objects to write on the touch pad.
■Touch screen

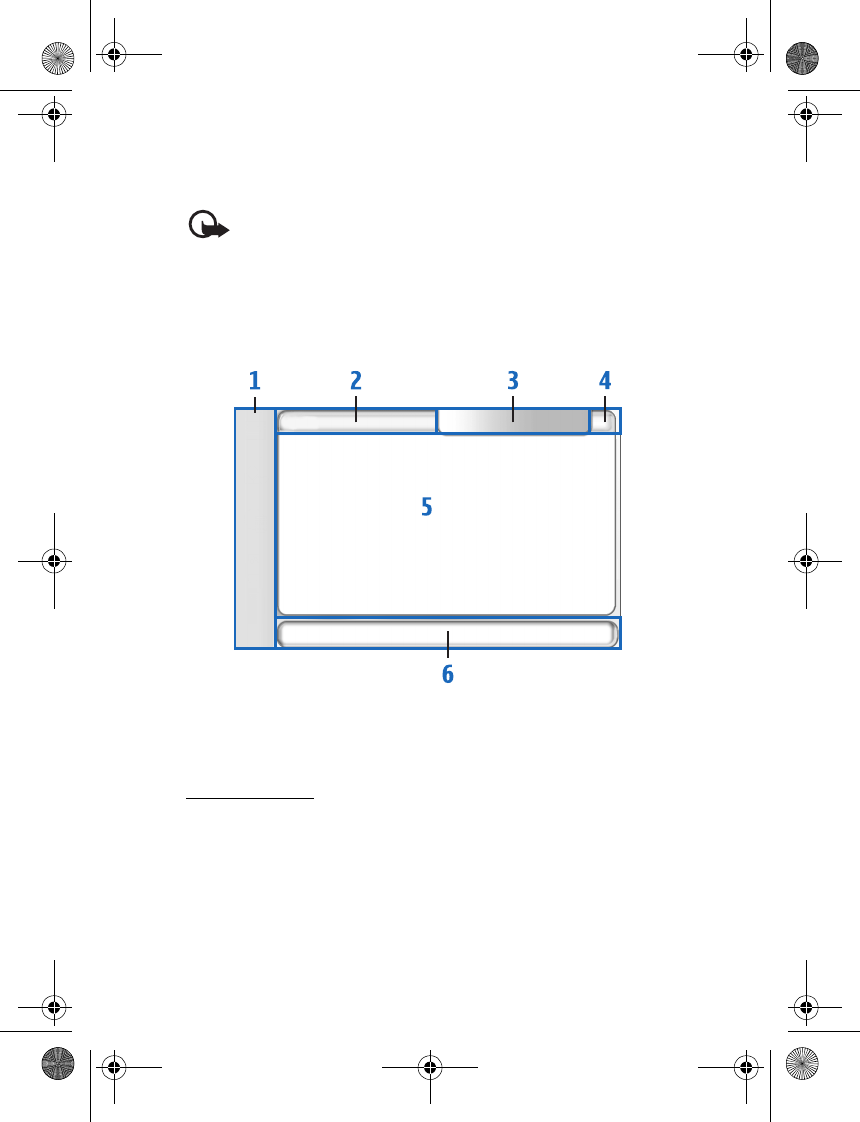

The touch screen consists of the task navigator (1), the application title
area (2), the status indicator area (3), the minimize and close buttons
(4), the application area (5), and the toolbar (6).
Task navigator
The task navigator (1) includes icons that you can tap to open different
applications, start new tasks, and access bookmarks.
To select an option, tap it with the stylus. Alternatively, scroll to the
desired option in a menu, and press the center of the scroll key to open it.
To close the menu, press the esc key, or tap another area of the screen.
770_ENv3_US_UG_9240895.fm Page 13 Tuesday, September 6, 2005 3:57 PM
Your device
14
The task navigator contains the following parts:
Web browser — Tap to open a menu that contains Internet functions,
such as open a new browser window, access bookmarks, or open the
bookmark manager. For more information, see “Web browser," p. 29.
E-mail — Tap to open a menu that contains e-mail functions, such
as create a new e-mail message, access contact information, and send
and receive e-mail. The appearance of the e-mail application menu
depends on the status of the e-mail connection. For more information,
see "E-mail," p. 31.
Other applications — Tap to open a menu that contains other
applications, such as media players and viewers, utilities, and games.
For more information, see the respective sections in this user guide,
and the help of the individual applications.
Application switcher — The task navigator also contains icons related
to the applications that are currently open. The icons of the top four
applications are shown on the task navigator, and the rest are listed in
a separate menu.
To restore one of the four applications, tap the icon of the application. If
you hold the stylus down on an icon for half of a second, a tool tip is shown.
To access the menu of all open applications, tap , or press and hold
the home key. To open an application, tap the name of it. To return to
the home view of the device, select Home.
Application title area
The application title area (2) displays the name of the active application
and the name of the currently open file. Tap the title, or press the menu
key to open the application menu.
Status indicator area

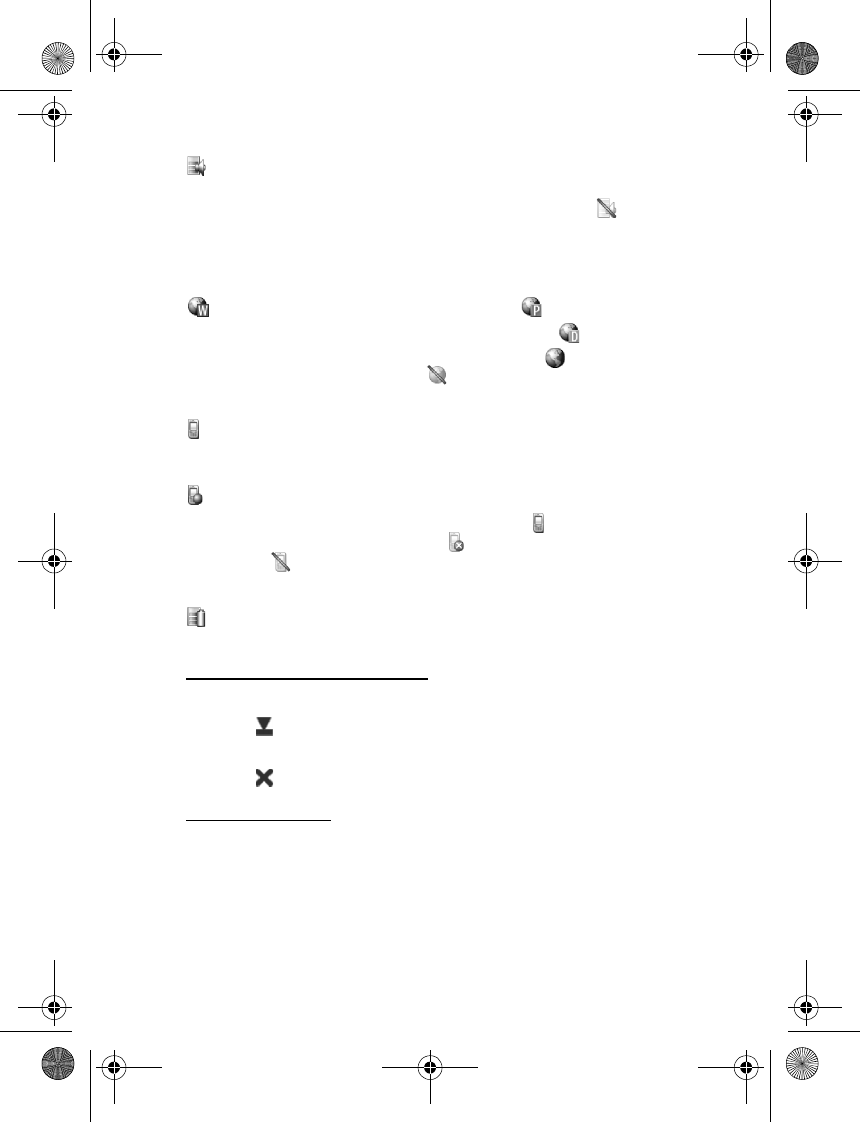

The status indicator area (3) can contain the following icons:
indicates that the device is connected to a PC through an USB cable.
indicates the current level of display brightness, and allows you to
adjust the display settings.
770_ENv3_US_UG_9240895.fm Page 14 Tuesday, September 6, 2005 3:57 PM
Your device
15
indicates the current volume level, and allows you to adjust the
volume and other sound settings. The more bars the icon contains, the
higher the volume. When the sounds are muted, the icon is .
The Internet connection icons show the status and type of the Internet
connection, provides access to the connection manager, and allows you
to open and close an Internet connection.
indicates that a WLAN connection is active, indicates that a
packet data connection (for example, GPRS) is active, indicates that
a data call connection (for example, GSM) is active, indicates that
there is no Internet connection, or indicates that the device is in
offline mode where no connections are allowed.
indicates whether the device is in a Bluetooth connection with a
phone. It also allows you to change the phone, or open the
connection manager.
indicates that the device is connected to a compatible mobile phone
and data is transferring between the two devices, indicates that the
device is not connected to the phone, indicates that the phone is not
selected, or indicates that the device is in offline mode where no
connections are allowed.
indicates how much charge is left in the battery. The more bars the
icon contains, the more charge is left.
Minimize and close buttons
The minimize and close buttons (4) let you do the following:
If you tap , the current application is hidden and the underlying
application is shown.
If you tap , the current application closes.
Application area
The application area (5) in the home view shows the functions you
selected in the Home menu. To add or remove functions from the
application area, tap Home, and mark or unmark the desired function.
If you open an application from the task navigator, the application is
displayed in the application area.
770_ENv3_US_UG_9240895.fm Page 15 Tuesday, September 6, 2005 3:57 PM
Your device
16
Toolbar
The toolbar (6) contains the command buttons of the currently
active application.
Calibrate the touch screen
If the touch screen of the device responds inaccurately, you may need
to calibrate it. Press the home key and the menu key, select Screen >
Screen calibration, and follow the instructions on the screen.
■Home view
When you switch on the device, the home view is displayed. The home
view contains various functions and shortcuts.
To show or hide a function, tap the Home title, and the function name.
Internet radio — Select an Internet radio channel from the playlist. The
contents of the playlist comes from your favorites playlist, which you
can edit in the audio player application. For more information, see
"Internet radio," p. 35.
Clock — Display the current time in digital or analog format. The date
format depends on the regional settings. To set the time and date, tap
the clock twice, and the application opens.
News — Show the number of unread news articles and list the latest
headlines when you subscribe to a news service. To view an article, tap
its headline. To refresh the article list from the Web, tap . To stop the
refresh, tap . For more information, see "News reader," p. 36.
Web shortcut — Select Home > Web shortcut details to set the Web
page that opens when you tap the shortcut image. Enter the address of
the Web page. To select an image, tap Browse. Functionality of this
feature may vary depending on the product package you purchased.
To set the background image for the home view, select Home > Screen >
Set background image.... Select an image from the list of default
background images, or tap Browse.
To personalize the look and feel of your device, select Home >
Screen >Personalization.
To calibrate the touch screen, select Home > Screen > Screen calibration.
770_ENv3_US_UG_9240895.fm Page 16 Tuesday, September 6, 2005 3:57 PM
Your device
17
■Device control
You can control the device in two ways: tap the screen with the stylus or
press the scroll key and other keys on the device.
Stylus
To open an application, tap an icon in the task navigator. Select the
desired function from the menu that appears beside the icon.
To close an application, tap in the top-right corner of the screen.
• Single tap — To activate controls and other interactive interface
components, tap them once with the stylus (stylus down and up on
the same object). A single tap may open a choice list, activate a
button in a dialog or a link on a Web page, select a check box, and
activate a text input method from a text field.
• Focus and activate — To focus an item, tap it once with the stylus.
To activate or open the item, tap it again. Use and activate operations
on files and other items in list and grid views, for example, to
copy documents.
• Continuous multiple selection — To select consecutive items, place
the stylus on a non-focused item, and drag the stylus over the items.
• Drag and drop — To drag an item, hold the stylus down on a focused
item, drag the item to its new location, and release the stylus. To drag
and drop multiple items, perform a continuous multiple selection,
and start the drag from the focused item.
• Context-sensitive menus — To activate a context-sensitive menu,
hold the stylus down on an item for one second.
Hardware keys
A key press refers to the press and release of a key. The primary action is
performed when you press the key down, and before you release the key.
Some actions depend on the length of the key press.
• Power key — A short key press opens the Device mode dialog. A long
key press turns the device on or off.
• Zoom key — A short key press changes the zoom level of the current
view, and adjusts the volume in audio applications.
770_ENv3_US_UG_9240895.fm Page 17 Tuesday, September 6, 2005 3:57 PM
Your device
18
• Full-screen key — A short key press switches between full screen and
normal screen modes.
• Scroll key — A short key press moves the focus from one item to
another in the respective direction. A long key press in the Web
browser scrolls the content of the active page or frame. Press the
center of the scroll key to activate the item that has active focus,
and to accept confirmation notes.
• Escape key — A short key press removes the cursor from text fields,
cancels menus and dialogs, and rejects confirmation notes. A long
key press closes the topmost dialog or application view. In the Web
browser this key acts as a back button.
• Menu key — A short key press opens and closes the application menu.
• Home key — A short key press opens the home view of the device.
A long key press activates the application switcher.
■Text input methods
You can enter letters, numbers, and special characters in two ways.
The on-screen keyboard allows you to tap characters. Handwriting
recognition allows you to write characters directly onto the screen
using the stylus.
To begin text input, tap any text field, or press the center of the scroll
key when the text field is focused. The text input area appears on the
bottom of the view, and displays the on-screen keyboard or handwriting
recognition area, depending on the previously used text input method.
To switch between text input methods, tap on the text input area,
and select Input method and the desired option. Start writing.
To define the text input settings, tap , and select Control panel >
Text input settings.
Your device can also complete words based on the selected language.
The device has a dictionary for each of the supported text input languages.
The device also learns new words from user input.
To turn word completion on, select Word completion. To turn word
completion off, clear the selection. When word completion is on, the
device displays word candidates that match the first characters of the
word that you enter with the on-screen keyboard.
770_ENv3_US_UG_9240895.fm Page 18 Tuesday, September 6, 2005 3:57 PM
Your device
19
On-screen keyboard

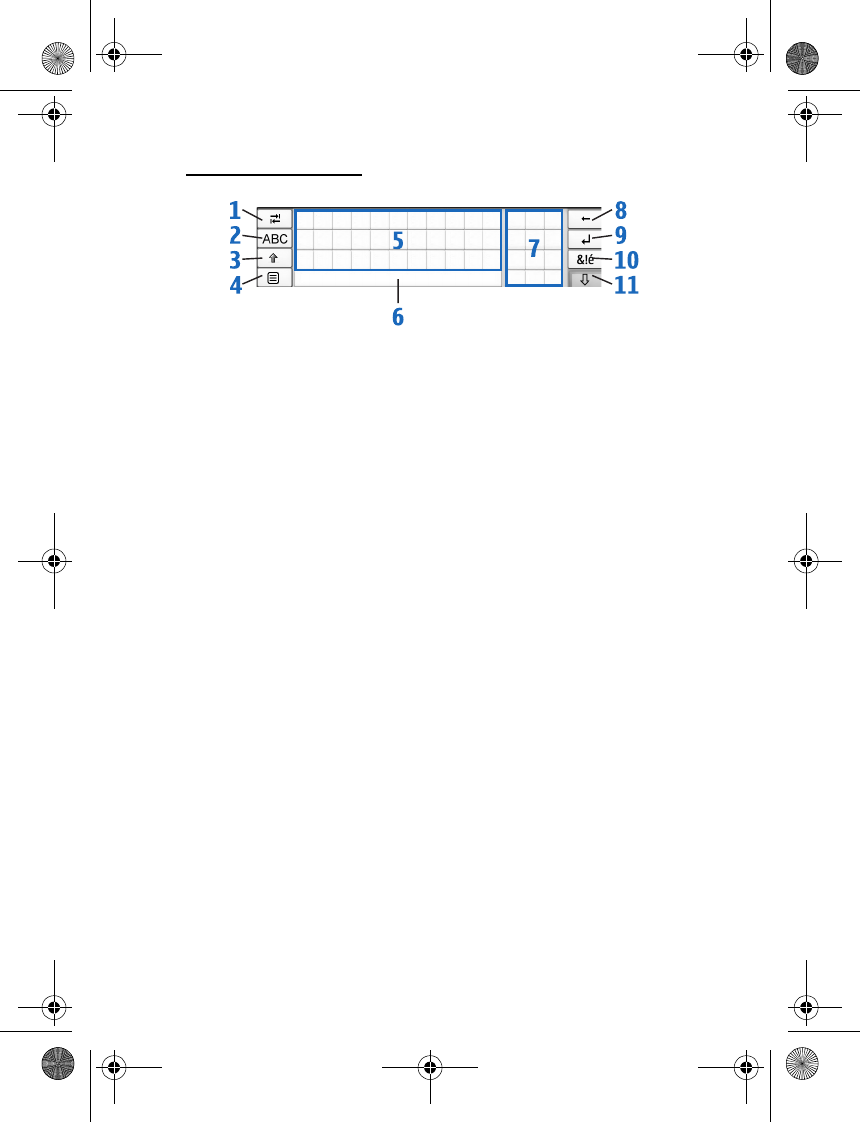

• Tabulator key (1) — Add a tabulator space, or move the cursor to the
next available text input field.
•[ABC] (2) — Lock down the uppercase characters of the keyboard. In
handwriting recognition, switches between the normal and special
character recognition modes.
• Shift key (3) — Enter an uppercase character in the on-screen
keyboard mode, when you write in lowercase. When you press this
key in the handwriting recognition mode, the last input lowercase
character switches to uppercase, and vice versa.
• Input menu key (4) — Open the text input menu.
• On-screen keyboard (5) — Input text.
• Space bar (6) — Insert a space.
• Numeric keyboard (7)
• Backspace key (8) — Delete the character to the left of the cursor.
• Enter key (9) — Move the cursor to the next row or text input field. It
has additional functions based on the current context (for example,
in the Web address field of the Web browser, it acts as a go button).
• Special character key (10) — Open the special characters view, where
you can select from commonly used special characters, symbols, and
language characters.
• Close (11) — Close the on-screen keyboard and handwriting
recognition input area, and save changes.
770_ENv3_US_UG_9240895.fm Page 19 Tuesday, September 6, 2005 3:57 PM
Your device
20
Handwriting recognition
You can use the stylus as a pen to write text. Write legible, upright
characters, and leave a small horizontal gap between each character.
Do not use cursive writing.
To write common characters and numbers (default mode), write words
as you normally write them.
To write special characters, tap [Abc1] in the left pane of the input area,
and write the characters as you normally write them.

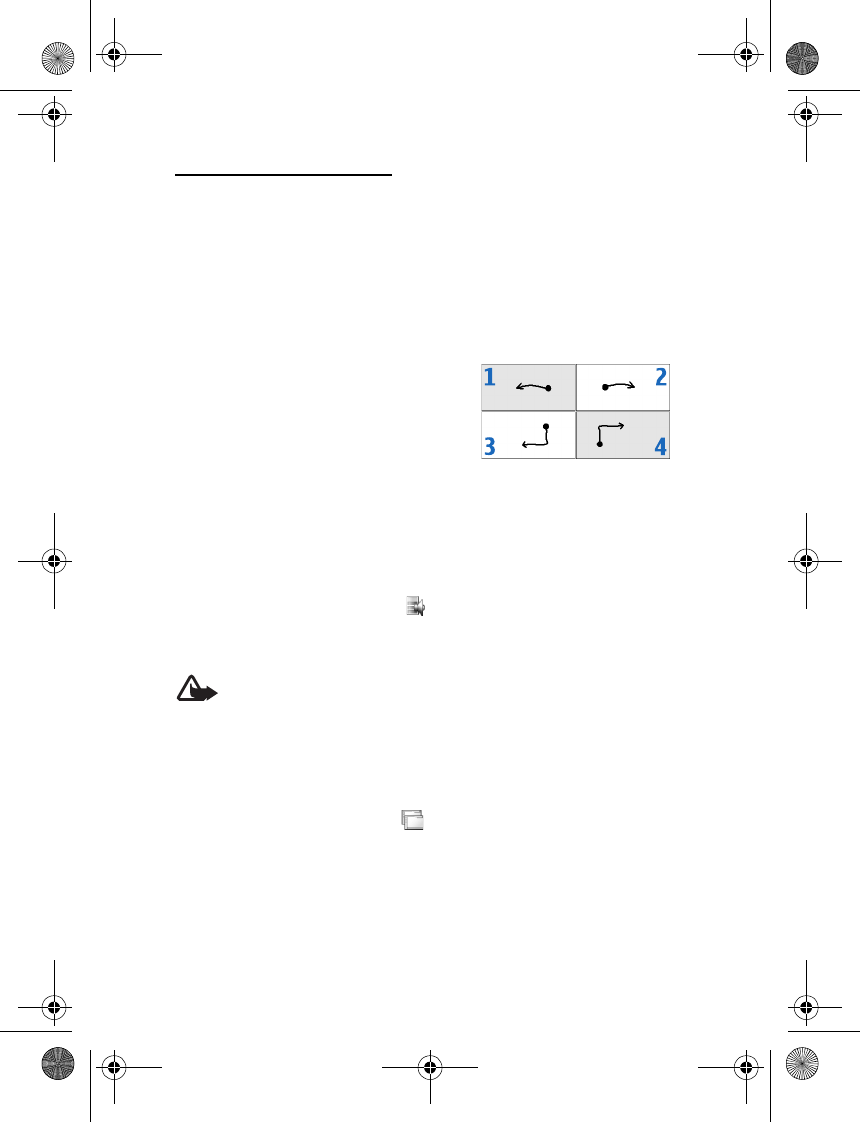

To use handwriting gestures, see the
figure. Draw gesture 1 for a backspace;
gesture 2 for a space; gesture 3 for a line
change; or gesture 4 for a tabulator.
To delete characters, draw the backspace
gesture from right to left over the chosen character.
To insert new characters in and after words, draw them in the
intended positions.
■Volume control
To adjust the master volume, tap to access the sound settings.
To decrease or increase the volume, drag the volume slider to the
desired position.
Warning: Listen to music at a moderate level. Continuous
exposure to high volume may damage your hearing.
■Device lock
To avoid unauthorized use of your device, change the lock code, and set
the device to automatically lock after a certain timeout period.
To edit the security settings, tap , and select Control panel > Device
lock. The Security dialog opens.
To turn the automatic device lock on, select Use device lock, enter the
lock code, and tap OK.
To set the timeout period, tap the Autolock period list, and select the
desired time.
770_ENv3_US_UG_9240895.fm Page 20 Tuesday, September 6, 2005 3:57 PM
Your device
21
To change the lock code do the following:
1. Tap Change lock code. Enter the current lock code (the default code
is 12345), and tap OK.
2. Enter the new code, and tap OK.
3. Enter the new code again, and tap OK.
To enhance security, there is a short delay before OK is available
between each step.
If you tap Cancel in any of these dialogs, the device lock code is
not changed.
Keep the new code secret and in a safe place separate from
your device.
To lock the device with a code, briefly press the power key. In the Device
mode dialog, select Lock device > OK. If you have not enabled the Use
device lock security settings in the control panel, the Enter lock code
dialog opens, and you must enter the code to lock the device.
To unlock the device, press the power key, enter the lock code, and
tap OK.
Note: If you lose the device lock code, you must take the device
to a Nokia authorized service facility. To unlock the device, the
software needs to be reloaded, and as a result all data you have
saved in the device may be lost.
Touch screen and key guard
To lock the touch screen and keys, briefly press the power key, and select
Lock touch screen and keys > OK. To unlock the touch screen and keys,
press the power key and the center of the scroll key.
The touch screen and key lock is automatically enabled when the
protective cover is inserted over the screen of the device, and disabled
when the cover is removed.
■Memory management
To view current memory consumption, tap , and select
Control panel > Memory.
770_ENv3_US_UG_9240895.fm Page 21 Tuesday, September 6, 2005 3:57 PM
Your device
22
To view the amount of free and used memory, and the memory
consumption of different items on your device or memory card,
select the Device or Memory card page.
To free memory, delete data in the file manager or other applications.
To find and delete files of a certain size, use the Search application.
The applications display error messages when you try to move, copy, or
save files, and when there is not enough memory on the device or the
memory card.
■Help
Your Nokia 770 Internet Tablet offers a device help which provides
additional information on the features, applications and dialogs of
the device.
To access help from the task navigator, tap , and select Help.
To access help from an application, tap the application title, and select
the help command from the menu (usually under the tools menu).
To browse help topics, do the following:
• Tap or to see other help topics if you have recently viewed
several help topics.
• Tap to see a list of recently viewed help topics.
• Tap to search for the text that you have entered in the search field.
To access help related to the contents of a dialog (context-sensitive
help), tap the ? button on the dialog.
■Search for information
To search for files you created or downloaded, do the following:
1. Tap , and select Search.
2. Enter a search word or multiple search words. The more search words
you use, the more accurate the search results.
3. If needed, limit the search to e-mail messages, contacts, or bookmarks;
or select all files on the device. To set additional search options,
tap Options.
770_ENv3_US_UG_9240895.fm Page 22 Tuesday, September 6, 2005 3:57 PM
Access the Internet
23
4. To start the search, tap OK. Results appear in the Search Results window.
5. To stop the search at any time, tap on the toolbar.
The search function in your device operates with Boolean AND logic.
The more search words and options you set, the more accurate the
search results. If you get too few results, limit the number of search
words and options. The search function is not case-sensitive.
4. Access the Internet
To access the Internet, you must define the settings of the Internet
connection and of the Internet access point through which the
connection takes place.
To access the Internet, tap on the task navigator, and select a bookmark.
The Select connection dialog opens, and the device searches for WLAN
networks and lists all available connections. Select a connection from
the list, and tap Connect.
To access and define the Internet connections manually, tap , and
select Control panel > Connectivity settings > Connections.
To create a new or edit an existing connection, tap New or Edit. If you
tapped New, the welcome page of the Internet setup wizard is displayed.
Tap Next to proceed to the Connection setup: Name and type dialog.
To delete a connection, tap Delete.
■Create a new WLAN connection
To set up the WLAN connection manually, do the following:
1. In the Connection setup: Name and type dialog, define the
following settings:
Connection name — Enter a descriptive name for the connection.
Connection type — Select WLAN.
Tap Next. The device asks whether you want to scan for available
WLAN networks. Tap Yes to start the scan, or No to skip it.
770_ENv3_US_UG_9240895.fm Page 23 Tuesday, September 6, 2005 3:57 PM
Access the Internet
24
After the scan, all available WLAN networks are shown with
information about each WLAN connection:
• Security level of WLAN connection:
— No security (for example, a public access point in an airport)
— Medium security (wired equivalent privacy (WEP)
authentication)
— High security (Wi-Fi protected access (WPA) authentication).
The security level of the network affects the settings that are
shown when you tap Next.
• Name of the WLAN network
• WLAN signal strength
• , if the WLAN network is already defined for an Internet
connection setup that you have saved in the device
2. Tap Finish to save the settings. To define advanced settings, tap
Advanced. For more information, see the help on Internet settings.
Tip: You may need to define advanced settings if, for example,
your Internet access requires the use of proxies.
■Edit an existing WLAN connection
The following settings are shown when you edit an existing WLAN
connection or when you skip the scan for WLAN networks:
Network name (SSID): — Shows an empty field or the name of the
previously defined connection.
Network mode — Select between Infrastructure and Ad hoc modes.
The Infrastructure mode is used with the Internet connections.
Security method: — Select None (no security), WEP (medium security),
WPA pre-shared key (high security), or WPA with EAP (high security).
Tip: The device supports wired equivalent privacy (WEP) with key
lengths of 40, 104 bits (equal to 64, 128 bits depending on the
WLAN access point manufacturer).
For example, in the access point, select 40 (64) bits and enter 5
characters. In the device, select correspondingly 40 bits and enter
the same 5 characters.
770_ENv3_US_UG_9240895.fm Page 24 Tuesday, September 6, 2005 3:57 PM
Access the Internet
25
■Create a new cellular connection
Before you can open an Internet connection over a cellular network,
you must pair a compatible mobile phone with your device. Your device
needs an external modem (phone), which is connected to your device
with Bluetooth wireless technology.
Bluetooth wireless technology
To access the Internet through a cellular network, you must connect
your compatible Nokia phone to the Nokia 770 Internet Tablet using
Bluetooth wireless technology.
This device is compliant with Bluetooth Specification 1.2 supporting the
following profiles: Dial-Up Networking, File Transfer/Object Exchange,
Generic Access, SIM Access, and Serial Port.
There may be restrictions on using Bluetooth technology in some locations.
Check with your local authorities or service provider.
Features that use Bluetooth technology or allow such features to run in
the background while using other features, increase the demand on
battery power and reduce the battery life.
A Bluetooth connection does not require that the compatible phone and
the Nokia 770 Internet Tablet be in line of sight, but both devices should
be within 10 meters (32 feet) of each other. Connections can be subject
to interference from obstructions, such as walls or other electronic devices.
Your device operates always in nondiscoverable and nonconnectable mode,
and is not visible to other devices through the Bluetooth connection, unless
you create such connection. Do not create connections to Bluetooth devices
you do not trust.
Pair a phone with your device
You must always initiate the pairing of devices from your Nokia 770
Internet Tablet. Although you can only use one phone at a time, you
can pair several phones with your device.
To pair a phone with your device, do the following:
770_ENv3_US_UG_9240895.fm Page 25 Tuesday, September 6, 2005 3:57 PM
Access the Internet
26
1. Tap in the status indicator area, and select Select phone....
The selection wizard opens, and your device begins to search for
compatible Bluetooth devices. If you have already paired a phone with
your device, the menu item is called Change phone.... In that case,
select Change phone..., and tap New.
2. Select the desired phone from the list of found devices, and tap Next.
Your device generates a passcode.
3. Use the generated passcode or replace it with a passcode of your
own. Tap Next, and enter the same passcode on your phone.
4. Tap Finish to save the settings.
Tip: Set your Nokia 770 Internet Tablet as a trusted device from
the Bluetooth menu of your phone. This way you allow your device
to access your phone, and you do not have to confirm the connection
every time you activate it. For more information, refer to the user
guide of your phone.
To change the paired phone, do the following:
1. Tap in the status indicator area, and select Change phone....
The Phone dialog opens, and all paired phones are shown in the
Selected phone: list.
2. Select the desired phone, and tap OK.
To view information about the currently selected phone, tap Details.
To delete the currently selected phone from the list, select Details > Delete.
Set up a cellular connection
Before you can connect to the Internet over a cellular network, you must
have the following:
• Subscription to the desired data service from your cellular
service provider
• Proper Internet settings from your cellular service provider
Tip: Your device includes a settings database with predefined
settings of some cellular operators. Select your operator from
the list, and the settings are installed on your device. To access
the database, tap , and select Control panel > Control panel >
Tools > Mobile operator setup wizard....
770_ENv3_US_UG_9240895.fm Page 26 Tuesday, September 6, 2005 3:57 PM
Access the Internet
27
Note: All cellular operators and settings are not listed, and some
settings may also be out of date.
To set up or edit a cellular connection manually, do the following:
1. In the Connection setup: Name and type dialog, define the
following settings:
Connection name — Enter a descriptive name for the connection.
Connection type — Select the type of network service over which you
want to access the Internet. To use a packet data service in a cellular
network, such as GPRS (network service), select Packet data. To use a
circuit-switched data service in a cellular network, such as high-speed
circuit-switched data (HSCSD; network service), select Data call.
2. In the Select cellular network type dialog, select the type of cellular
network over which the Internet connection takes place: GSM/UMTS
or CDMA. You must select the network manually, if you have not
paired any mobile phone with your device.
3. In the connection setup dialog, define the following settings:
Tip: It is common in GPRS packet data networks that the
access point name is Internet or it is left blank; the dial-up
number is usually *99#; and the user name and the password
may be left blank. For CDMA packet data network settings,
contact your service provider.
Access point name — Enter the name of the Internet access point.
Obtain the name from your Internet service provider. This setting is
shown if you selected packet data connection, and your phone uses a
GSM cellular network.
Dial-up number — Enter the modem telephone number of the
Internet access point.
User name — Enter a user name, if required. The user name is usually
provided by the Internet service provider.
Password — Enter a password, if required. The password is usually
provided by the Internet service provider.
Prompt password at every login: — Select this option if you wish to
write a new password every time you log onto an Internet server, or if
you do not want to save your password in the device.
770_ENv3_US_UG_9240895.fm Page 27 Tuesday, September 6, 2005 3:57 PM
Access the Internet
28
4. When you are finished, tap Advanced in the Connection setup:
Complete dialog to define advanced settings, if necessary. For more
information, see the help of the application.
■Connectivity settings
When you access an application that requires an Internet connection,
you are asked to select the connection (Internet access point) you want
to use.
In the Select connection dialog, select a connection from the list, and
tap Connect. Only available connections are shown. The connection that
you set as preferred appears at the top of the list. If you have not set the
preferred connection, the last used connection (if available) is shown first.
To define the connectivity settings, tap , and select Control panel >
Connectivity settings.
In the General page, define the following settings:
Preferred connection — To change the preferred connection, select a
connection from the list.
Use without asking — If you select this option, the Internet access point
that you selected in Preferred connection is used automatically when
you start an application requiring an Internet connection. In this case,
you do not need to confirm the connection.
On the Idle times page, select the time after which the Internet connection
ends automatically if the connection is not used. Use Packet data idle time
for packet-switched data connections (such as GPRS), Data call idle time
for circuit-switched data calls (such as GSM data), and WLAN idle time for
connections created through a wireless local area network (WLAN)
access point.
Note: Time-based charges may apply to the Internet
connections. Check with your service provider, and adjust
the idle times accordingly.
Note: The network may also have idle timers that may cause
the Internet connection to break, regardless of the idle timers
of the device.
770_ENv3_US_UG_9240895.fm Page 28 Tuesday, September 6, 2005 3:57 PM
Web browser
29
To use a connection automatically, select Control panel > Connectivity
settings > General. Set the desired connection as Preferred connection,
and select Use without asking.
Disable connections
To disable WLAN and Bluetooth connections, briefly press the power key,
select Offline mode, and tap OK. To enable connections, briefly press the
power key, select Normal mode, and tap OK.
The WLAN and Bluetooth connections are also disabled when you place
the protective cover over the device.
Note: In the offline mode, you cannot use features that require
network or Bluetooth connection. To use the features, you must
first set the device back to normal mode. If the device has been
locked, enter the lock code.
5. Web browser
To open the browser, tap , and select Open new browser window or
a bookmark.
Before you can connect to the Internet, you must define the proper
Internet connection settings. For detailed instructions, see "Access the
Internet," p. 23.
Important: Use only services that you trust and that offer
adequate security and protection against harmful software.
■Browse the Web
To open a Web page, tap the address field at the bottom of the screen,
and enter the address with the on-screen keyboard. You can also paste an
address that you have cut or copied from another application. Tap .
If you saved a bookmark of a Web page that you want to visit, tap ,
and select the desired bookmark.
770_ENv3_US_UG_9240895.fm Page 29 Tuesday, September 6, 2005 3:57 PM
Web browser
30
To browse and scroll a Web page, drag a page in the desired direction
with the stylus, use the scroll keys, or drag the scroll bars on the right
side and bottom of the screen.
To view a page in a larger or smaller size, tap the zoom key. To select a
predefined zoom level from the application menu, select Web > View >
Zoom, and the desired zoom level.
To view the Web page in full-screen size, press the full-screen key.
To return to normal view, press the full-screen key again.
To view the Web page in optimized size, select View > Optimized view.
The Web page is fit to the width of the screen; text and images are
zoomed and scaled differently is necessary.
To reload the current page, tap . To stop loading, tap .
To browse recently visited pages, tap or .
Note: A cache is a memory location that is used to store data
temporarily. If you have tried to access or have accessed
confidential information requiring passwords, empty the cache
after each use. The information or services you have accessed
are stored in the cache. To empty the cache memory, select
Web > Tools > Clear cache.... The cache is also cleared
automatically whenever you close the Web browser.
To change the Web browser settings, select Web > Tools > Settings....
For more information, see the help of the application.
■Manage bookmarks
To manage the bookmarks you saved in the device, tap , and select
Bookmarks. The bookmark folders are shown on the left, and the
bookmarks in the selected folder on the right.
Note: Your device may have some bookmarks loaded for sites
not affiliated with Nokia. Nokia does not warrant or endorse
these sites. If you choose to access them, you should take the
same precautions, for security and content, as you would with
any Internet site.
You may not be able to edit or manage the contents of the
loaded bookmarks.
770_ENv3_US_UG_9240895.fm Page 30 Tuesday, September 6, 2005 3:57 PM
E-mail
31
To open a folder and a bookmark contained in it, tap the folder, and tap
the bookmark twice.
To add a bookmark to the current Web page, select Bookmark... >
Web page > Add bookmark....
To save a link as a bookmark, hold the stylus down on the link for a
second, and select Add link to Bookmarks....
6. E-mail
To open the e-mail application, tap , and select the desired function
from the menu.
Important: Exercise caution when opening messages. E-mail
messages may contain malicious software or otherwise be
harmful to your device.
■Basic e-mail settings
To be able to receive and send e-mail, you must define the settings of
the e-mail services you want to use. For appropriate settings, contact
the service provider that offers the service.
To create a new mailbox, do the following:
1. Tap , and select Go to Inbox. The mailbox setup wizard opens.
If you already have saved settings for a remote mailbox, select
E-mail > Tools > New mailbox... to create a new mailbox.
2. Define the following settings:
Mailbox name — Enter a descriptive name for your mailbox.
Mailbox type — Select the e-mail protocol that your e-mail service
provider recommends. This setting can be selected only once and
cannot be changed after you save the mailbox settings or exit the
wizard. Tap Next.
Name — Enter a name. The name is shown in the sender field of the
messages that you send.
770_ENv3_US_UG_9240895.fm Page 31 Tuesday, September 6, 2005 3:57 PM
E-mail
32
User name — Enter your user name given to you by your service
provider. The user name is needed when you log into your mailbox.
Password — Enter your password. The password is needed when you
log into your mailbox. If you leave this field empty, you are prompted
for a password when you try to connect to your mailbox on the
e-mail server.
E-mail address — Enter the e-mail address given to you by your
service provider. The address must contain the @. Replies to your
messages are sent to this address. Tap Next.
Incoming server — Enter the host name or IP address of the POP3 or
IMAP4 server that receives your e-mail.
Outgoing server (SMTP) — Enter the host name or IP address of the
server through which your e-mail is sent. Tap Next.
Simple mail transfer protocol (SMTP) servers are used when sending
e-mail. To be able to send e-mail, you must define the SMTP host
name or IP address, which you obtain from the service provider of the
connection you use.
Tip: The SMTP host name or IP address may be different from
the host name or IP address of the incoming server (POP3 or
IMAP4). For example, once you access your Internet service
provider e-mail over a cellular network, you may need to
utilize the SMTP server of the cellular network. Thus, you may
need to configure as many mailboxes as you have Internet
access networks, each mailbox having different SMTP host
name or IP address.
3. Tap Finish to complete the mailbox setup or Advanced to define
optional e-mail settings. For more information on advanced e-mail
settings, see the help of the application.
■Retrieve and read e-mail
E-mail sent to you is not automatically received by your device, but by
your remote mailbox on the e-mail server. To read your e-mail, you
must first connect to the mailbox and retrieve the e-mail messages
to your device.
770_ENv3_US_UG_9240895.fm Page 32 Tuesday, September 6, 2005 3:57 PM
E-mail
33
To retrieve e-mail from a remote mailbox, select E-mail > E-mail >
Send and receive. Select to retrieve e-mail from all mailboxes or from a
selected mailbox. If you have e-mail in the outbox folder, these
messages are sent simultaneously.
To open a message, tap twice the header of the message you want to read.
■Create and send e-mail
1. Tap the e-mail icon in the task navigator.
2. Tap to create a new message.
3. Write the recipient’s e-mail address. Add a semicolon (;) to separate
multiple recipients. If the recipient is in your personal contacts list,
tap . Select the recipient from the list, and tap Add. After you
select all the recipients, tap OK.
4. Fill in the subject, and write the message. To send the message, tap .
■E-mail scheduling
When an Internet connection is active, you can send and receive e-mail
messages at scheduled intervals. To define e-mail scheduling settings,
do the following:
1. Select E-mail > E-mail > Scheduling....
2. Select the mailbox for which you want to enable scheduling, and
tap Edit.
3. To define the start time, end time, and interval of sending and receiving,
tap the desired field, and tap the arrows to change the time. If you
use the 12-hour clock format, tap the am/pm field. In the Days: field,
highlight the weekdays you want the connection to be made.
4. Tap OK to save the settings.
■Inbox folder
The Inbox folder contains received messages. The headers of unread
messages are shown in bold.
5. To send a new message, tap . To reply to a message, tap . To send
a reply to the sender of a message and to the recipients in the CC field,
tap . To forward a message, tap . To delete a message, tap . To
send all unsent messages and receive all new messages, tap .
To search for a message, select E-mail > Tools > Search.
770_ENv3_US_UG_9240895.fm Page 33 Tuesday, September 6, 2005 3:57 PM
E-mail
34
■Outbox folder
Messages waiting to be sent are saved temporarily in the Outbox folder.
The status of each message is shown next to the message header:
Waiting — The message will be sent the next time you connect to
your mailbox.
On request — The message is sent only if you tap the message and .
Suspended — The sending of the message was canceled using the Cancel
sending function.
Failed — The message could not be sent.
To send the selected message again, tap .To cancel the sending of the
selected message, tap .
■Sent folder
After a message is sent, it is moved to the Sent: folder.
To specify the settings of the Sent: folder, select E-mail > Folders >
Folder settings.... Define the following options:
Sent folder clean-up on: — Select this option to allow automatic
deletion of sent messages.
Remove messages older than: — Select how often the sent messages
are deleted.
Select time: — Select (days, weeks, or months) how the interval for
deletion is measured.
■Drafts folder
In the Drafts folder, you can save unfinished messages or messages that
you want to send later.
■Own folders
To create a new folder, select E-mail > Tools > Manage folders.... Tap New,
and give a name for the new folder.
To delete a folder, tap the folder, and select E-mail > Folders > Delete.
770_ENv3_US_UG_9240895.fm Page 34 Tuesday, September 6, 2005 3:57 PM
Media players and viewers
35
7. Media players and viewers
■Audio player
You can listen to music and other audio files stored on your device,
compatible mobile phone, or memory card, and listen to audio streams
from the Internet. You can also create and manage playlists. Tap ,
and select Audio player.
The audio player supports the following file formats: AAC, AMR, MP2,
MP3, and WAV. The player does not necessarily support all the variations
of a file format.
■Internet radio
With the Internet radio you can listen to Internet radio channels or any
other compatible audio streams.
To add a radio channel to the playlist, do the following:
1. In the Web browser, copy the link of the desired radio channel stream
to the clipboard of the device. Hold the stylus down on the link for a
second, and select Copy link location.
2. In the home view of the device, tap on the Internet radio dialog.
The audio player application opens.
3. Select Audio player > Play list > Add stream...
4. Tap the Web address field, and paste the link of the radio channel
stream. Tap OK.
5. Select Audio player > Play list > Save.
To listen to a radio channel, select the desired channel from the playlist
on the Internet radio dialog, and tap .
To stop listening, tap .
To adjust the volume, tap , and drag the slider with the stylus. To close
the volume control pop-up dialog, tap anywhere outside it.
770_ENv3_US_UG_9240895.fm Page 35 Tuesday, September 6, 2005 3:57 PM
Media players and viewers
36
■Video player
You can watch video clips stored on your device, compatible mobile
phone, or memory card. You can also watch streaming videos from the
Internet. Tap , and select Video player.
The video player supports the following file formats: AVI, H.263, MPEG-1,
MPEG-4, RV (RealVideo), and 3GP. The video player does not necessarily
support all the variations of a file format.
■Images
You can view images stored on your device, compatible mobile phone, or
memory card. Tap , and select Images.
The image viewer supports the following file formats: BMP, GIF, ICO,
JPEG, PNG, TIFF, and SVG Tiny. The image viewer does not necessarily
support all variations of a file format.
■News reader
You can receive and read RSS news feeds from service providers.
The service provider may be a news agency, entertainment site, or
an individual who writes an online diary or journal.
Tap , and select News reader. The news folders you have created are
shown on the left. There may also be predefined folders.
To subscribe to a news feed, tap on the application toolbar, and
enter or paste the address of the news feed to the Add feed dialog.
Obtain the address from the feed provider’s Web site. Search for a link
labeled XML or RSS, and copy the address of that link by using the
context-sensitive menu. Hold the stylus down on the link for a second,
and select Copy link location. Paste the link to the Add feed dialog.
The news reader supports the following file formats: Rich Site Summary,
RDF Site Summary, Really Simple Syndication (all are also known as
RSS), and Atom.
■PDF reader
You can view documents in portable document format (PDF). Tap ,
and select PDF reader.
For more information on how to use the media players and viewers in
your device, see the help of each application.
770_ENv3_US_UG_9240895.fm Page 36 Tuesday, September 6, 2005 3:57 PM
Control panel
37
8. Control panel
Control panel allows you to perform configuration and customization
tasks. Tap , and select Control panel. A list of available functions
and settings is displayed. For more information, see the help of each
function and setting.
Application installer — This feature is intended for software developers
only. It enables installing new applications, viewing installed packages,
and uninstalling currently selected packages.
Backup/Restore — Copy information to a memory card, and restore it to
your device.
Certificate manager — View and manage digital certificates on your device.
Connectivity settings — Define the preferred wireless connection, and set
idle times for all connection types. Create and edit Internet access points.
Date & time — Select the home city, date, time, and daylight savings time.
Device — Change the name of your device, and view information about
your device and end-user licenses.
Display — Change the brightness of the display, set the automatic touch
screen and keypad lock, and define how soon the display brightness goes
down to save power, and how soon the screen is turned off.
Language and regional settings - Select your region and device language.
Memory — View the memory status of the device and the inserted
memory card.
Personalization — Customize the look and feel of the device.
Screen calibration — Calibrate the touch screen.
Device lock — Turn on the automatic device lock, set the time-out
period, and change the device lock code.
Sounds — Set the master volume, or mute all device sounds. Select the
level of system alerts, keypad sounds, and touch screen sounds.
Text input settings — Teach the device your handwriting style, set
default and alternative text input languages, set character recognition
speed, and turn word completion on or off.
770_ENv3_US_UG_9240895.fm Page 37 Tuesday, September 6, 2005 3:57 PM
Tools, utilities, and games
38
To open a function or a setting, tap it once with the stylus.
To select the control panel view, select Control panel > View > Large
icons to display the application icons as a grid, or select Small icons to
display the icons as a list.
To restore original factory settings, select Control panel > Tools >
Restore original settings.... This function does not affect content you have
created, security codes, passwords, the device language, or game scores.
To install connection settings from cellular operator database, select
Control panel > Tools > Mobile operator setup wizard...
9. Tools, utilities, and games
■File manager
In File manager, you can move, copy, rename, and open files and folders
available in the device, compatible mobile phone, or memory cards
inserted in them.
Tap , and select File manager. The main folders are shown on the left
and the subfolders and files in them on the right.
■Connection manager
With Connection manager, you can monitor and manage connections
established with the device. Tap , and select Connection manager.
■Calculator
Note: This calculator has limited accuracy and is designed for
simple calculations.
To access the calculator, tap , and select Utilities > Calculator.
■Clock
You can set the date and time, select an analog or digital clock and access
language and regional settings. Tap , and select Utilities > Clock, or tap
the date and time shown on the right of the screen.
770_ENv3_US_UG_9240895.fm Page 38 Tuesday, September 6, 2005 3:57 PM
Memory cards and PC connectivity
39
■Notes
You can create and save text notes, and send them through e-mail.
Tap , and select Utilities > Notes.
The notes application supports the following file formats: ascii (plain text
with no formatting) and .note.html (formatted text). The application does
not support the full .html file format.
■Sketch
You can draw simple images and send them through e-mail. All the
sketches are saved in .png format. Tap , and select Utilities > Sketch.
■Games
Your device has three games: Chess, Mahjong, and Marbles.
To start a game, tap , and select Games and the desired game. In the
game start-up screen, tap Play.
For more information on how to use the tools, utilities and games in
your device, see the help of each individual application.
10. Memory cards and PC connectivity
■Memory cards
This device supports dual voltage (1.8/3 V) and single voltage (3 V)
reduced-size MultiMediaCards. Check the compatibility of an RS-MMC
with its manufacturer or provider.
You can use a memory card as extra storage space. You can back up
information to a memory card and restore it if necessary. Remember to
make back-up copies or keep a written record of all important information.
To install the memory card, see "Insert the memory card," p. 9.
To view and manage the contents of the memory card, tap , and
select File manager.
To rename a memory card, select File manager > Memory card > Rename....
770_ENv3_US_UG_9240895.fm Page 39 Tuesday, September 6, 2005 3:57 PM
Memory cards and PC connectivity
40
To format a memory card, select File manager > Memory card > Format....
All data is permanently deleted from the memory card. Tap Format.
To back up data, select File manager > Tools > Back up/Restore..., and
tap Backup. In the Backup selection dialog, change the name of the
back-up file; tap the name, and enter a new one. In the Data selection
dialog, select whether you want to back up all data or only the specified
file types. To protect the back-up file with a password, tap Password
protect, enter twice the password you want to use, and tap OK.
To restore information, select File manager > Tools > Back up/Restore...,
and tap Restore. In the Restore selection dialog, select the back-up file
on the memory card that you want to restore. Tap OK and Restore.
■PC connectivity
You can connect your device to a compatible PC with the supplied Nokia
connectivity cable DKE-2 (USB). Use the USB cable to transfer files to
the memory card.
When the USB cable is connected, your Nokia 770 Internet Tablet is
listed as a mass storage device on your PC, and is displayed on
your device.
When the USB cable is connected, you cannot access the information on
the memory card with your device. However, you can transfer files from
your PC to the memory card, and view the contents of the memory card
on your PC.
Important: Do not remove the USB cable in the middle of an
operation when the device is being accessed. Removing the
cable in the middle of an operation may damage the memory
card as well as the device, and data stored may be corrupted.
When you are finished with file transfer, do not just pull the
USB cable from the PC, but follow the proper procedures to
disconnect your device from the PC. For more information,
see the user guide of your PC.
770_ENv3_US_UG_9240895.fm Page 40 Tuesday, September 6, 2005 3:57 PM
Battery information
41
11. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The full performance
of a new battery is achieved only after two or three complete charge
and discharge cycles. The battery can be charged and discharged
hundreds of times, but it will eventually wear out. When operating and
standby times are noticeably shorter than normal, replace the battery.
Use only Nokia approved batteries, and recharge your battery only with
Nokia approved chargers designated for this device.
If a replacement battery is being used for the first time or if the battery
has not been used for a prolonged period, it may be necessary to connect
the charger then disconnect and reconnect it to begin charging the battery.
Unplug the charger from the electrical plug and the device when not in
use. Do not leave a fully charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused, a fully charged
battery will lose its charge over time.
If the battery is completely discharged, it may take a few minutes before the
charging indicator appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or
battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes direct connection
of the positive (+) and negative (-) terminals of the battery. (These look
like metal strips on the battery.) This might happen, for example, when
you carry a spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer
or winter conditions, will reduce the capacity and lifetime of the battery.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F).
A device with a hot or cold battery may not work temporarily, even
when the battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
770_ENv3_US_UG_9240895.fm Page 41 Tuesday, September 6, 2005 3:57 PM
Battery information
42
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as household waste.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you
are getting an original Nokia battery, purchase it from an authorized
Nokia dealer, look for the Nokia Original Enhancements logo on the
packaging, and inspect the hologram label using the following steps:

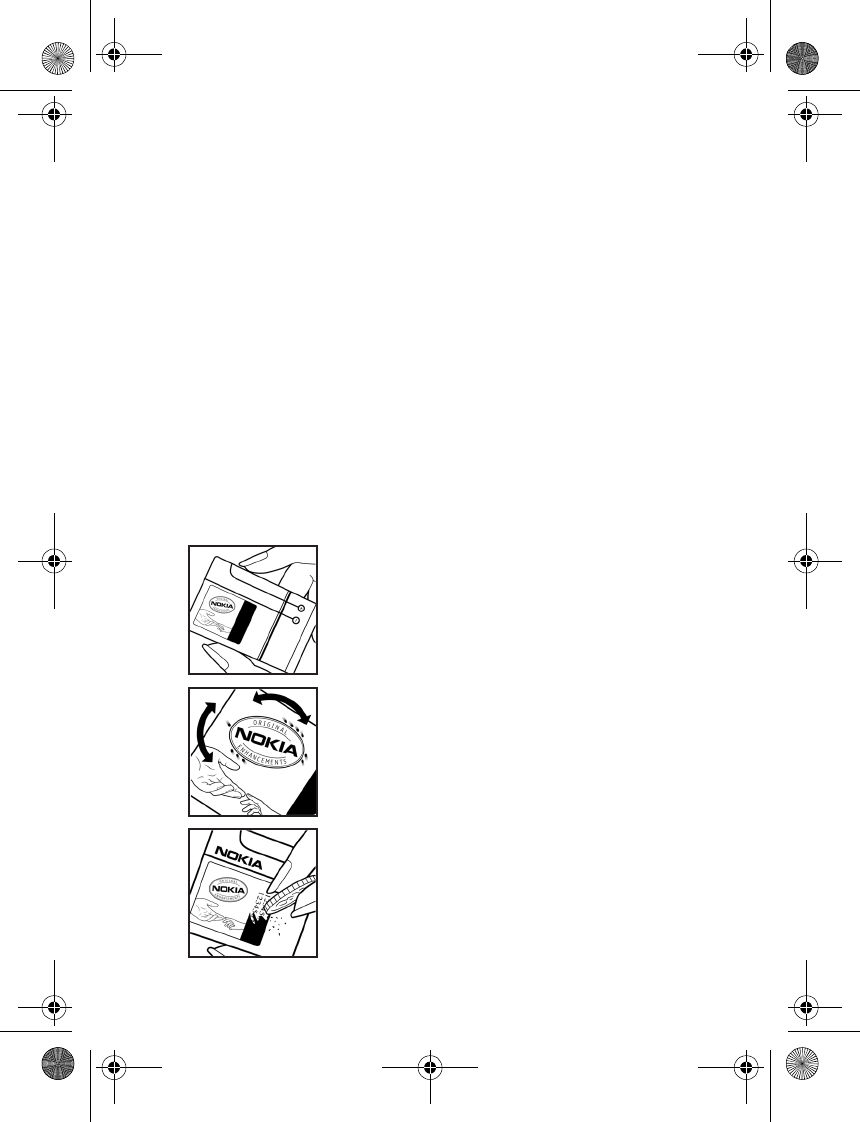

Successful completion of the four steps is not a total assurance of the
authenticity of the battery. If you have any reason to believe that your
battery is not an authentic original Nokia battery, you should refrain
from using it, and take it to the nearest authorized Nokia service point
or dealer for assistance. Your authorized Nokia service point or dealer
will inspect the battery for authenticity. If authenticity cannot be
verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram on the label,
you should see the Nokia connecting hands
symbol from one angle and the Nokia Original
Enhancements logo when looking from
another angle.
2. When you angle the hologram left, right,
down, and up, you should see 1, 2, 3, and 4
dots on each side respectively.
3. Scratch the side of the label to reveal a 20-digit
code, for example,12345678919876543210.
Turn the battery so that the numbers are
facing upwards. The 20-digit code reads
starting from the number at the top row
followed by the bottom row.
770_ENv3_US_UG_9240895.fm Page 42 Tuesday, September 6, 2005 3:57 PM
Care and maintenance
43
4. Confirm that the 20-digit code is valid
by following the instructions at
www.nokiausa.com/batterycheck.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the
label is an authentic Nokia battery, please do not use the battery. Take it
to the nearest authorized Nokia service point or dealer for assistance.
The use of a battery that is not approved by the manufacturer may be
dangerous and may result in poor performance and damage to your
device and its enhancements. It may also invalidate any approval or
warranty applying to the device.
To find out more about original Nokia batteries, visit
www.nokiausa.com/battery.
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated
with care. The suggestions below will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
770_ENv3_US_UG_9240895.fm Page 43 Tuesday, September 6, 2005 3:57 PM
Additional safety information
44
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent
proper operation.
• Use chargers indoors.
• Always create a backup of data you want to keep (such as contacts and
e-mail messages) before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the
reach of small children.
■Operating environment
Remember to follow any special regulations in force in any area, and always switch
off your device when its use is prohibited or when it may cause interference or danger.
Use the device only in its normal operating positions. This device meets RF exposure
guidelines when used either in the normal use position or when positioned at
least 1.0 centimeter (3/8 inch) away from the body. When a carry case, belt clip
or holder is used for body-worn operation, it should not contain metal and should
position the device the above-stated distance from your body.
In order to transmit data files or messages, this device requires a good quality
connection to the network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the
device, and persons with a hearing aid should not hold the device to the ear with
the hearing aid. Do not place credit cards or other magnetic storage media near
the device, because information stored on them may be erased.
770_ENv3_US_UG_9240895.fm Page 44 Tuesday, September 6, 2005 3:57 PM
Open source software notice
45
Open source software notice
This product includes certain open source software originating from third parties, which
is subject to different and/or additional copyright licenses, disclaimers, acknowledgements,
and notices. The source code of such open source software and the exact terms of said
licenses, disclaimers, acknowledgements, and notices are reproduced and are available
at www.nokia.com/support/770.
This product includes certain software originating from third parties that is subject to
1. the GNU Library/Lesser General Public License (LGPL), and 2. the GNU General
Public License (GPL). The LGPL, GPL and said certain other licenses are available at
www.nokia.com/support/770. You may obtain a complete corresponding machine-
readable copy of the source code of such software under the LGPL and the GPL at
www.nokia.com/support/770. Alternatively, Nokia offers to provide such source code
to you on CD-ROM for a charge covering the cost of performing such distribution, such
as the cost of media, shipping, and handling, upon written request to Nokia at:
Source Code Requests
Multimedia
Nokia Corporation
P.O.Box 407
FIN-00045 Nokia Group
This offer is valid for a period of three (3) years from the date of the distribution of this
product by Nokia. Please refer to the exact terms of the LGPL and the GPL regarding
your rights under said licenses.
This software is based in part on the work of the Independent JPEG Group.
The Graphics Interchange Format© is the Copyright property of CompuServe
Incorporated. GIF SM is a Service Mark property of CompuServe Incorporated.
This product includes software developed by:
• Computing Services at Carnegie Mellon University
(http://www.cmu.edu/computing/)
• Tommi Komulainen <Tommi.Komulainen@iki.fi>
The Australian National University
• The OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/)
• Gregory M. Christy
• Pedro Roque Marques
• Eric Rosenquist, Strata Software Limited
• The XFree86 Project, Inc (http://www.xfree86.org/) and its contributors
• The FreeType Team
770_ENv3_US_UG_9240895.fm Page 45 Tuesday, September 6, 2005 3:57 PM
Limited warranty
46
Limited warranty
For products purchased in the United States of America
Nokia Inc. ("Nokia") warrants that this mobile enhancement product or
accessory ("Product") is free from defects in material and workmanship that
result in Product failure during normal usage, according to the following terms
and conditions:
1. The limited warranty for the Product extends for ONE (1) year beginning on
the date of the sale of the Product to the original purchaser ("Consumer") of
the Product who purchases it in the United States. It is not assignable or
transferable to any subsequent purchaser or user.
2. During the limited warranty period, Nokia will repair, or replace, at Nokia's sole
option, defective parts, or parts that will not properly operate for their
intended use, with new or refurbished parts if needed because of product
malfunction or failure during normal usage. The limited warranty does not
cover defects in appearance, cosmetic, decorative or structural items including
framing and non-operative parts, and expenses related to removing or
reinstalling the Product. Nokia does not warrant uninterrupted or error-free
operation of the Product.
3. Consumer shall have no coverage or benefits under this limited warranty if
any of the following conditions are applicable:
a) The Product has been subjected to physical abuse, exposure to moisture
or dampness, abnormal use, abnormal conditions, improper storage,
unauthorized modifications, unauthorized connections, unauthorized
repair, misuse, neglect, improper installation, shipping damage or other
acts which are not the fault of Nokia.
b) The product has been damaged from external causes such as collision
with an object, or from fire, flooding, sand, dirt, windstorm, lightning,
earthquake or damage from exposure to weather conditions, an Act of
God, or battery leakage, theft, blown fuse, or improper use of any
electrical source, or damage caused by software viruses, bugs, worms,
Trojan Horses, or cancelbots or by connection to products not
recommended for interconnection by Nokia.
c) Nokia was not advised in writing by Consumer of the alleged defect or
malfunction of the Product within fourteen (14) days after the expiration
of the applicable limited warranty period.
d) The Product serial number plate or the accessory data code has been
removed, defaced or altered.
770_ENv3_US_UG_9240895.fm Page 46 Tuesday, September 6, 2005 3:57 PM
Limited warranty
47
4. If warranty repair is needed, the Consumer should return the Product to the
place of purchase for repair or replacement or contact Nokia for instructions
for returning the Product. Consumer shall bear the cost of returning the
Product to Nokia and shall provide a copy of an itemized receipt showing
the date of purchase. Nokia will repair or replace the Product (with the same
or similar model) within thirty (30) days after receipt. Nokia may, at its sole
option, refund the price paid by Consumer less a reasonable amount for
usage. Nokia is not responsible for any loss of data during repair.
5. The Product may contain used components, some of which have
been reprocessed.
6. ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE
FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE FOREGOING
LIMITED WARRANTY IS THE CONSUMER'S SOLE AND EXCLUSIVE REMEDY
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. NOKIA
SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF ANTICIPATED BENEFITS
OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF DATA, PUNITIVE
DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT,
COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES,
DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING CUSTOMERS,
AND INJURY TO PROPERTY, RESULTING FROM THE PURCHASE OR USE OF
THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE
THEORY, EVEN IF NOKIA KNEW OF THE LIKELIHOOD OF SUCH DAMAGES.
NOKIA SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER
THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE
PRODUCT IS BEING REPAIRED.
7. Under no circumstances shall Nokia's liability under this limited warranty
exceed the actual cash value of the Product at the time Consumer returns
the Product for repair, determined by the price paid by Consumer for the
Product less a reasonable amount for usage.
8. Some states do not allow limitation of how long an implied warranty lasts,
so the one-year warranty limitation may not apply to you (Consumer). Some
states do not allow the exclusion or limitation of incidental and consequential
damages, so certain of the above limitations or exclusions may not apply to
you (Consumer). This limited warranty gives Consumer specific legal rights,
and Consumer may also have other rights which vary from state to state.
770_ENv3_US_UG_9240895.fm Page 47 Tuesday, September 6, 2005 3:57 PM
Limited warranty
48
9. Nokia neither assumes nor authorizes any authorized service center or any
other person or entity to assume for it any other obligation or liability
beyond that which is expressly provided for in this limited warranty. This is
the entire warranty between Nokia and the Consumer, and supersedes all
prior and contemporaneous agreements or understandings, oral or written,
relating to the Product, and no representation, promise or condition not
contained herein shall modify these terms. This limited warranty allocates
the risk of failure of the Product between Consumer and Nokia. The allocation
is recognized by Consumer and is reflected in the purchase price.
10. Any claim or dispute relating in any way to this limited warranty, including
allegations of product defect, shall be submitted to final, binding arbitration
before the American Arbitration Association pursuant to its Wireless Industry
Arbitration Rules. Any action for breach of warranty must be commenced
within eighteen (18) months of purchase of the Product.
11. Any claim or dispute relating in any way to this limited warranty, including
allegations of product defect, shall be submitted to final, binding arbitration
before the American Arbitration Association pursuant to its Wireless Industry
Arbitration Rules. Any action for breach of warranty must be commenced
within eighteen (18) months of purchase of the Product.
12. Questions concerning this limited warranty may be directected to:
Nokia Inc.
Telephone: 1-888-NOKIA-2U (1-888-665-4228)
Facsimile: (813) 249-9619
TTY/TDD Users Only: 1-800-24-NOKIA (1-800-246-6542)
Website: www.nokiausa.com/support
770_ENv3_US_UG_9240895.fm Page 48 Tuesday, September 6, 2005 3:57 PM
