HDX-1100 User & Tech Ref Manual
HDX-1100
Aircraft/Terrestrial High
Power HD Video
Transmitter
User and Technical Manual
Manual Part No. 400613-1 Rev. 2 March 2010
Copyright © 2010
Part number 400613-1
Printed in U.S.A.
Authorized EU representative: Vislink PLC
Quality Certification Vislink is certified to ISO 9001:2008.
The Vislink trademark and other trademarks are registered trademarks in the United States and/or other countries.
Microsoft®, Windows®, and Internet Explorer® are registered trademarks of Microsoft Corporation in the United States
and/or other countries.
Proprietary Material The information and design contained within this manual was originated by and is the property
of Vislink. Vislink reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and
to any articles disclosed therein, except to the extent rights are expressly granted to others. The foregoing does not
apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this
manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice,
Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual
or for any decisions based on its use. This manual is supplied for information purposes only and should not be
construed as a commitment by Vislink. The information in this manual remains the property of Vislink and may not be
used, disclosed, or reproduced in any form whatsoever, without the prior written consent of Vislink. Vislink reserves the
right to make changes to equipment and specifications of the product described in this manual at any time without
notice and without obligation to notify any person of such changes.
General Safety Information The following safety requirements, as well as local site requirements and regulations,
must be observed by personnel operating and maintaining the equipment covered by this manual to ensure awareness
of potential hazards. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
About this Manual This manual is intended for use by qualified operators, installers, and service personnel. Users of
this manual should already be familiar with basic concepts of radio, video, and audio. For information about terms in
this manual, see Glossary of Terms and Abbreviations (Part No. 400576-1). Pay special attention to Notes, Cautions,
and Warnings.
Read Notes for important information to assist you in using and maintaining the equipment.
Follow CAUTIONS to prevent damage to the equipment.
Follow WARNINGS to prevent personal injury or death.

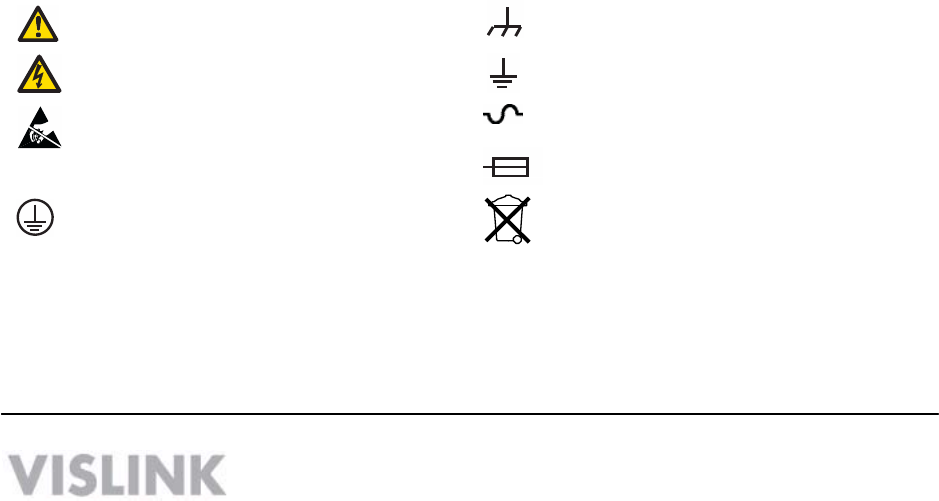

Symbols The following symbols may be on the equipment or in this manual:
WARNING: General Warning.
Risk of Danger. Frame or Chassis Ground: Identifies the frame
or chassis terminal.
WARNING: Risk of Electric Shock. Earth Ground: Identifies the earth ground
terminal.
CAUTION: Electrostatic Discharge.
Possible Damage to Equipment. Fuse (either icon):
Identifies fuses or their location.
Protective Earth Ground: Identifies any
terminal intended for connection to an
external conductor for protection against elec-
tric shock in case of a fault, or the
terminal on a protective earth electrode.
Waste Electrical and Electronic Equipment
(WEEE): The product must not be disposed of
with other waste. You must dispose of the
waste equipment by handing it over to a desig-
nated collection point for recycling.
101 Billerica Avenue - Bldg. 6
North Billerica, MA 01862-1256 USA
TEL: 800.490.5700 or +1.978.671.5700
1 About the HDX-1100

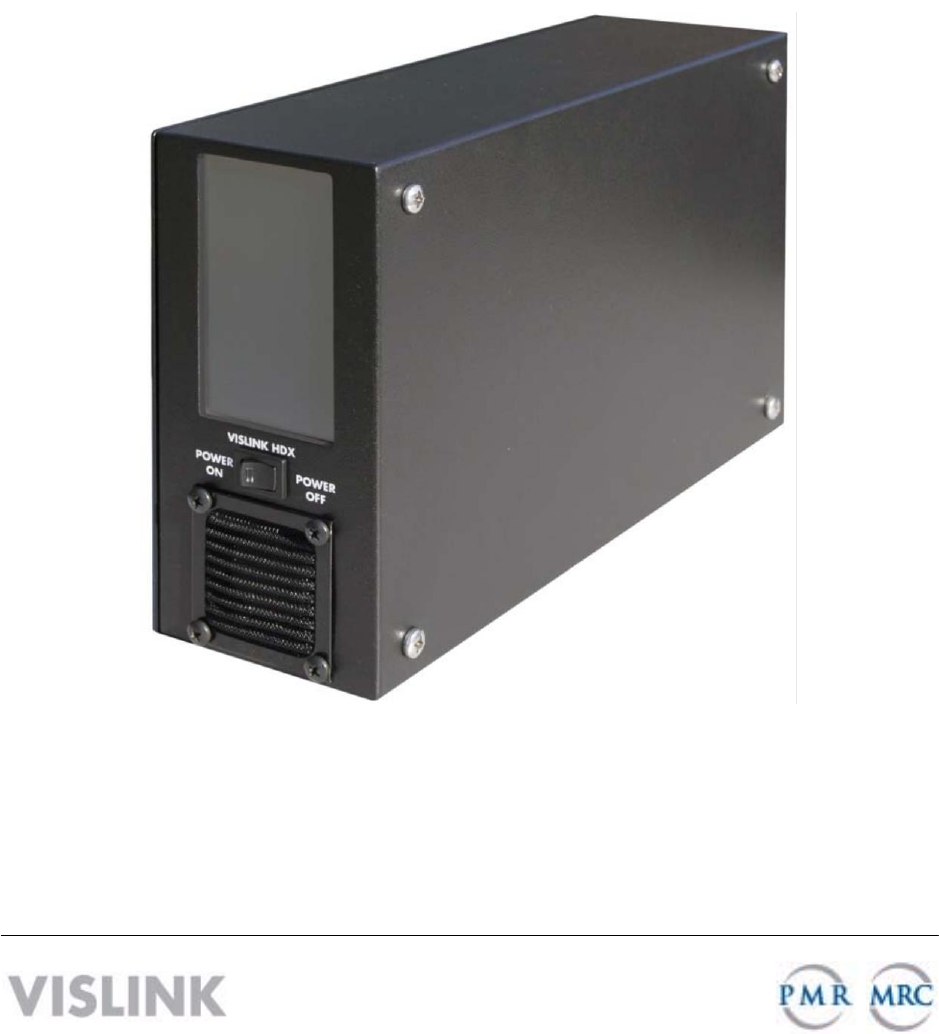

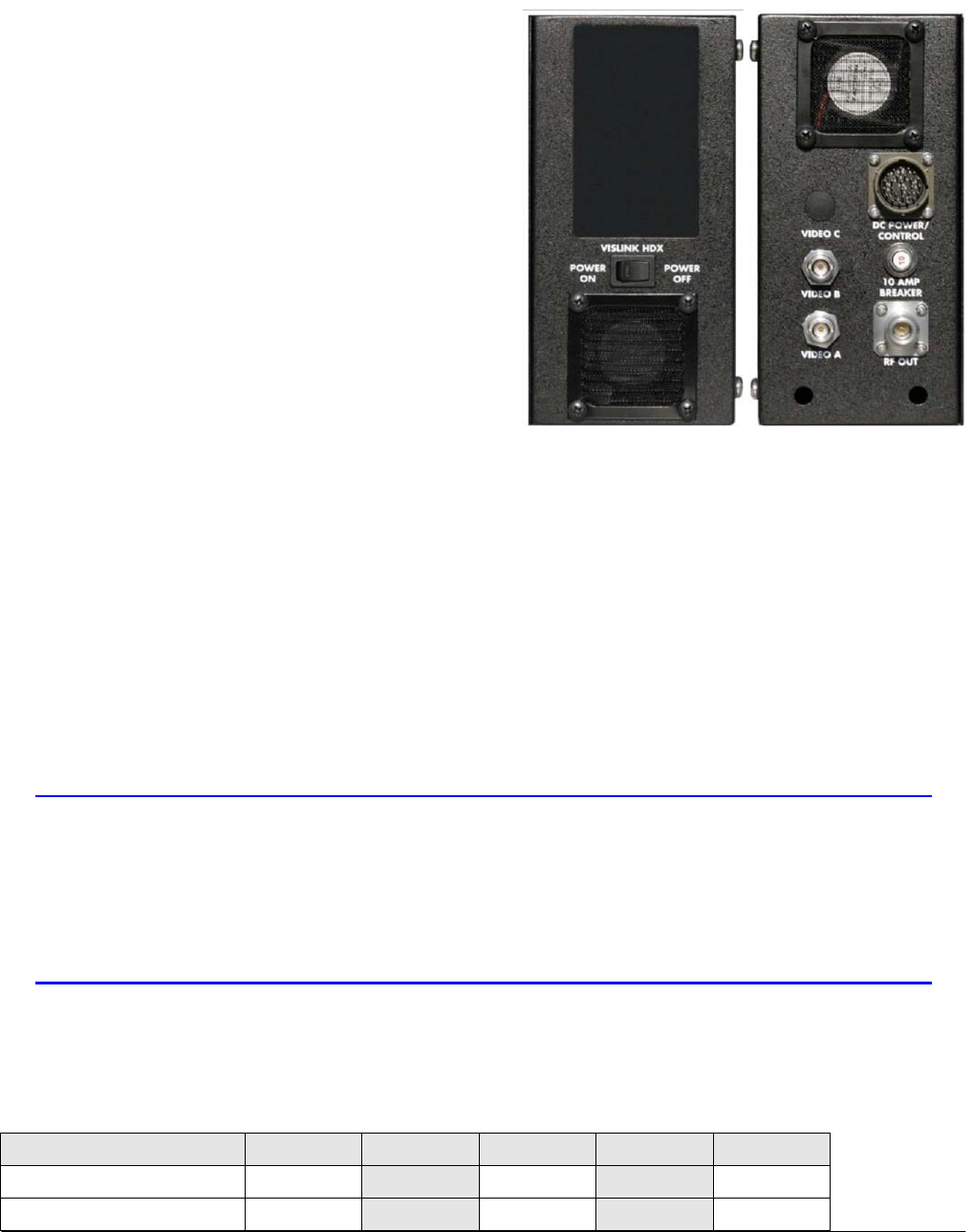

The HDX-1100 Aircraft/Terrestrial High Power HD
Video Transmitter (HDX-1100) (shown) is a
lightweight and rugged transmitter that is suited for
mobile and aircraft environments; able to withstand
constant vibration, shock, temperature swings, and
humidity. Common uses include law enforcement
surveillance and video collection.
The HDX-1100 supports H.264/MPEG-2 and
HD/SD. The HDX-1100 can transmit DVB-T
COFDM digital transmission (QPSK, 16QAM,
64QAM) consisting of a standard definition
(SD) NTSC or PAL video signals or high-
definition (HD) video signal (up to 1080i), plus
two audio signals and an RS-232 data
channel. The transmitter uses the MPEG-2
video compression format for high-quality
imagery.
The amplifier operates at 8W for all bands except 4940-4990 MHz which is limited to 1.0W
maximum. Low power mode is typically 3 to 6 dB below the maximum rating.
You can control the HDX-1100 with the touch screen user interface (see Section 3), or an
optional remote control unit (RCU) (see Section 4). You also can configure the HDX-1100 with a
PC using a web browser (see Section 5).
2 Operating in Safety
Guidelines for safe operation are derived from OET bulletin 65, August 1997, as recommended
by the Federal Communications Commission (FCC).
WARNING High levels of RF power are present in the unit. Exposure to RF or
microwave power can cause burns and may be harmful to health.
Remove power from the unit before disconnecting any RF cables and
before inspecting damaged cables and/or antennas. Avoid standing in
front of high gain antennas (such as a dish antenna) and never look into
the open end of a waveguide or cable where RF power may be present.
The HDX-1100, operated without an antenna, will not create RF energy exceeding 1.0 mW/cm2,
the FCC limit for exposure. Connecting an antenna to the unit greatly enhances the potential for
harmful exposure, and you must maintain a certain distance from the radiator. The following
table shows the Maximum Permissible Exposure (MPE) safe distances from the antenna.
Antenna Gain (dB1)
0
2
3
5
11
Safe Distance (cm)
4
6
6
8
15
Safe Distance (in)
1.57
2.36
2.36
3.15
5.9
HDX-1100 User and Technical Manual 1
Note Hazardous RF radiation limits and recommended distances may vary by
country. Observe all applicable state and federal regulations when using this
transmitter.
To perform calculations to understand the safe exposure margin (MPE), use the following
formula suggested by OET 65. The calculations provided are for common antennas often
utilized in the ENG environment.
Calculating MPE
EIRP = P * (10 ^ (G / 10)) = (antilog of G/10) * P
P = RF power delivered to the antenna in mW
G = Power gain of the antenna in the direction of interest relative to an isotropic radiator
R = distance to the center of radiation of the antenna in centimeters
S = MPE in mW/cm² (milliwatts per square centimeters)
Conversions
dBi to numeric gain = Antilog (dBi/10)
Feet to centimeters = Feet * 30.48
Centimeters to Feet = cm * .0328
4 π = 12.57
User Input
RF power delivered to the antenna = Watts
Antenna gain (referenced to isotropic antenna) = dBi
Distance from the center of radiation = Feet
Calculation steps:
1. [P] RF power input. Watts to milliwatts = Watts * 1000
2. [G] Antenna gain dBi. Numeric gain = Antilog (dBi/10)
3. [EIRP] Multiply P * G
4. [R] Centimeters to feet = Centimeters * .0328
5. Square R
6. Multiply R² * 4π
7. [S] Divide (R² * 4π) into EIRP
S = Power Density in milliwatts per square centimeters.
Note At frequencies above 1500 MHz, S must not be greater than 1.
Reference
FCC OET Bulletin 65, August 1997 - Evaluating Compliance with FCC Guidelines for Human
Exposure to Radio Frequency Electromagnetic Fields
2 HDX-1100 User and Technical Manual
Power Dens
i
ty (mW
/
cm^2)

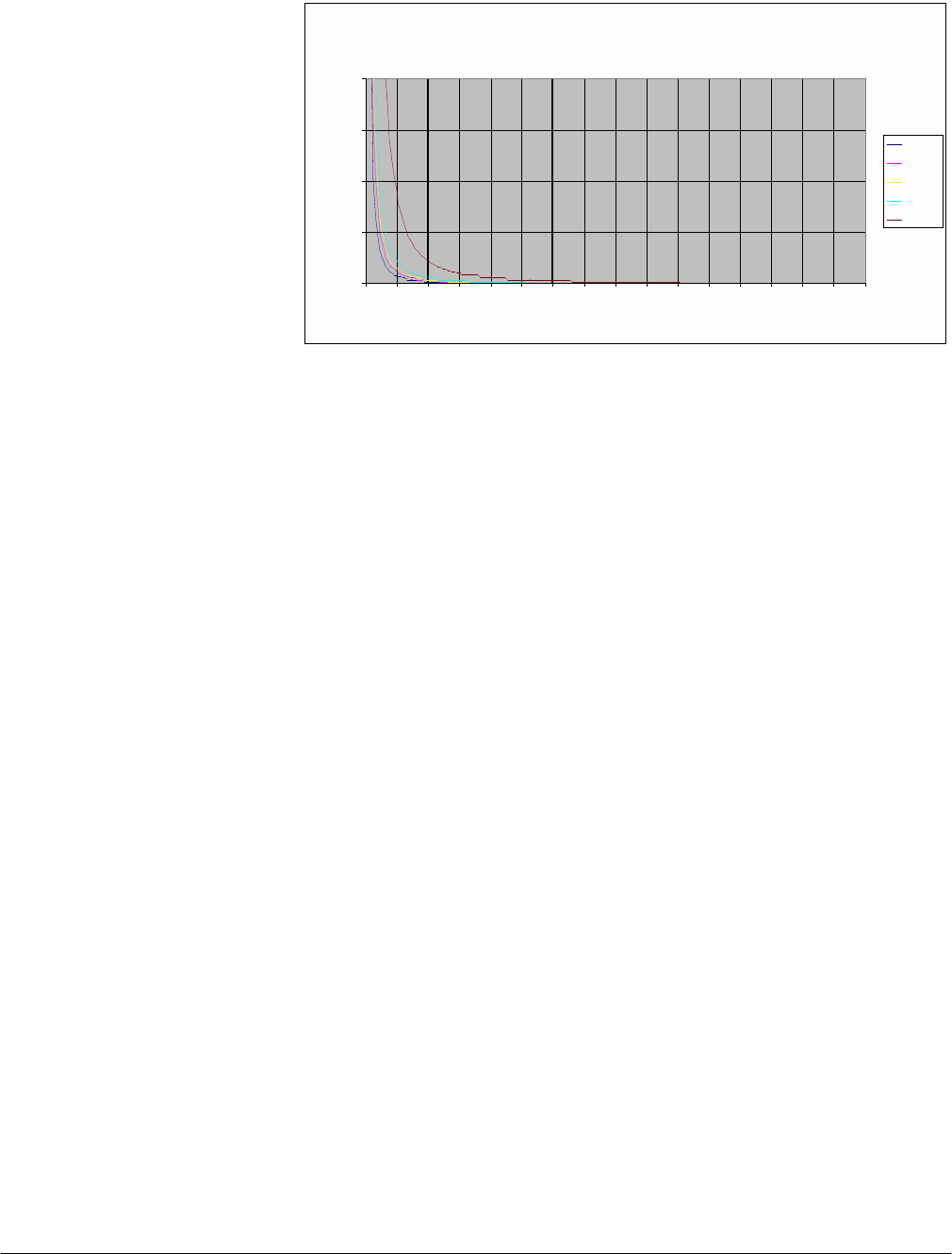

The figure to the right is a
typical graph for a Vislink
HDX-1100 Transmitter and
shows the permissible
exposure distance for
various antennas. Graphs
and data will vary, based on
the actual transmitter, output
power, frequency, and
antenna utilized. One plot
provides the permissible
output of the transmitter for
digital modulation, and the
other plot for analog
modulation.
2
1.5
1
0.5
0
Maximum Permissible Exposure
@ 200 milliWatts RF Power
0 0.5 1 1.5 2 2.5 3 3.5 4 4 .5 5 5
.
5 6 6.5 7 7.5
8
Distance in Feet
0dBi
2dBi
3dBi
5dBi
11dBi
Vislink, in accordance with the requirements set forth by the FCC, provides this information as a
guide to the user and assumes the users of this equipment are licensed and qualified to operate
the equipment per the guidelines and recommendations contained within the product user
guides and in accordance with any FCC rules that may apply.
3 Setting the HDX-1100 With the Touch Panel
The touch panel screen on the front of the unit lets you control the HDX-1100 directly as
described in the following sections.
3.1 Selecting a Preset
The HDX-1000 recalls the most recently saved preset when it is powered up. You can select
from up to 16 factory or custom preset configurations.To select a preset, do the following:
1. Press the PRESET key.
2. Press the up and down arrows to choose the new preset you want.
3. Press the SAVE key. If the SAVE key is not pressed within 5 seconds, the preset returns
to the most recently used value and the selection mode is canceled.
3.2 Selecting the Audio Input Level
The HDX-1100 recalls the most recently saved audio input level setting when it is powered up.
To select the input level for Audio 1 and Audio 2 between microphone or line level, do the
following:
1. Press the AUDIO 1 MIC/LINE or AUDIO 2 MIC/LINE key.
2. Press AUDIO 1 MIC/LINE or AUDIO 2 MIC/LINE key to toggle between MIC or LINE
level.
3. Press the SAVE key.If the SAVE key is not pressed within 5 seconds, the audio level
returns to the most recently used value and the selection mode is canceled.
HDX-1100 User and Technical Manual 3
3.3 Selecting the RF Output Level
The HDX-1100 recalls the most recently saved RF output power level when it is powered up. To
select between high or low power for the RF output level, do the following:
1. Press the RF HI/LOW key.
2. Press RF HI/LOW key to toggle between HI or LOW RF output level.
3. Press the SAVE key to select the new RF Power output setting. If the SAVE key is not
pressed within 5 seconds, the RF output level returns to the most recently used value
and the selection mode is canceled.
4 Setting the HDX-1100 with the RCU
You can install the remote control unit (RCU) up to 100 feet from the HDX-1100 using a 3-wire

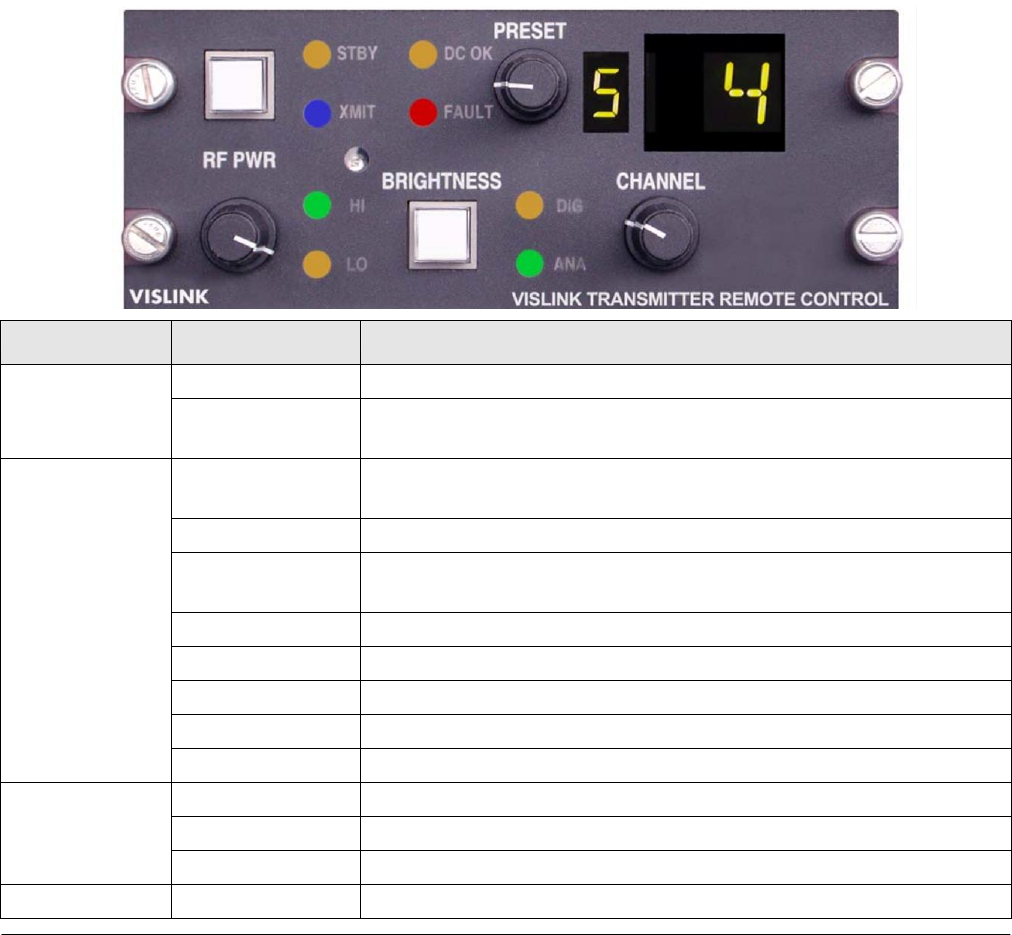

serial interconnection and a power source. The following figure shows the RCU.
Function
Name
Description
Push Buttons
RF PWR
Turns the unit on and off.
BRIGHTNESS
Sets the display brightness to high (H), low (L), or automatic
(A; light sensing).
LED Displays
STBY
Indicates the HDX-1100 is in standby mode
(not transmitting).
XMIT
Indicates the HDX-1100 is in transmit mode.
DC OK
Indicates DC Power is applied to the Remote Control Panel and
transmitting.
FAULT
Indicates an error condition in the HDX-1100 transmitter.
HI
Indicates the HDX-1100 is in high RF output power mode.
LO
Indicates the HDX-1100 is in low RF output power mode.
DIG
Indicates the HDX-1100 is transmitting a digital signal.
ANA
Indicates the HDX-1100 is transmitting a analog signal.
Rotary
Switches
RF PWR
Sets the HDX-1100 to HI or LO power mode.
PRESET
Select from 1 to 16 presets.
CHANNEL
LCD Display
PRESET
Displays the current preset number.
4 HDX-1100 User and Technical Manual
Use a 9-pin RS-232 null-modem cable to connect the communication path between the RCU
and the HDX-1100.
A receptacle at the rear of the controller supplies DC power to the RCU. Vislink provides the
2-pin Weidmuller connector (Part # 52104-2) to connect to the power receptacle at the rear of
the controller. The required power range is from +10—+50 Vdc (negative ground only).
If the RCU displays a C in the preset window, the HDX-1100 has lost power or a communication
error has occurred. If this happens, check the power and serial cable connections.
5 Setting the HDX-1100 with a PC
To set up your HDX-1100 with a PC, do the following:
1. Connect a LAN cable to the network connection of a router or switch and the ethernet
port on the HDX-1100.

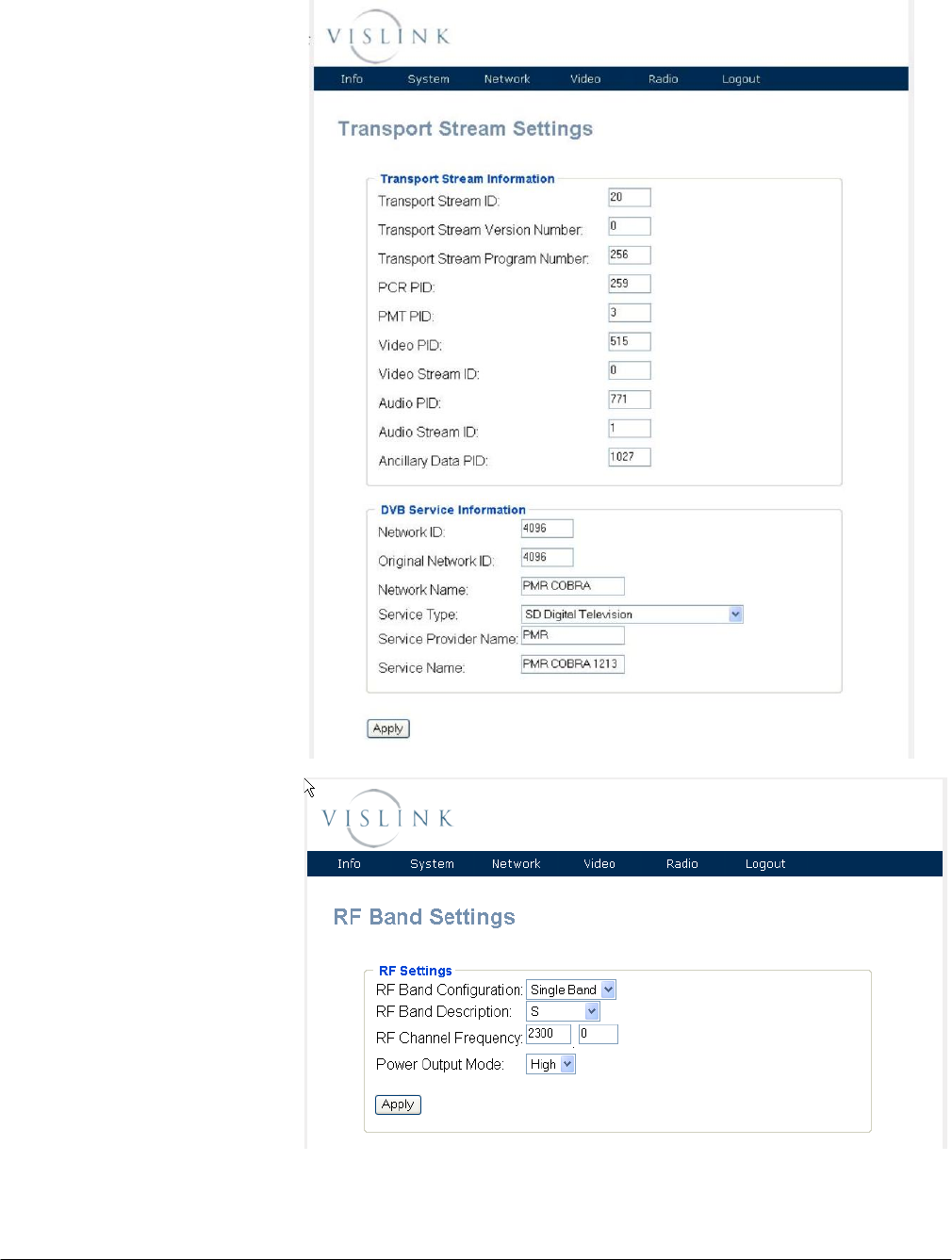

2. Open a web browser and type 192.168.4.150 into the URL address field and press
Enter.

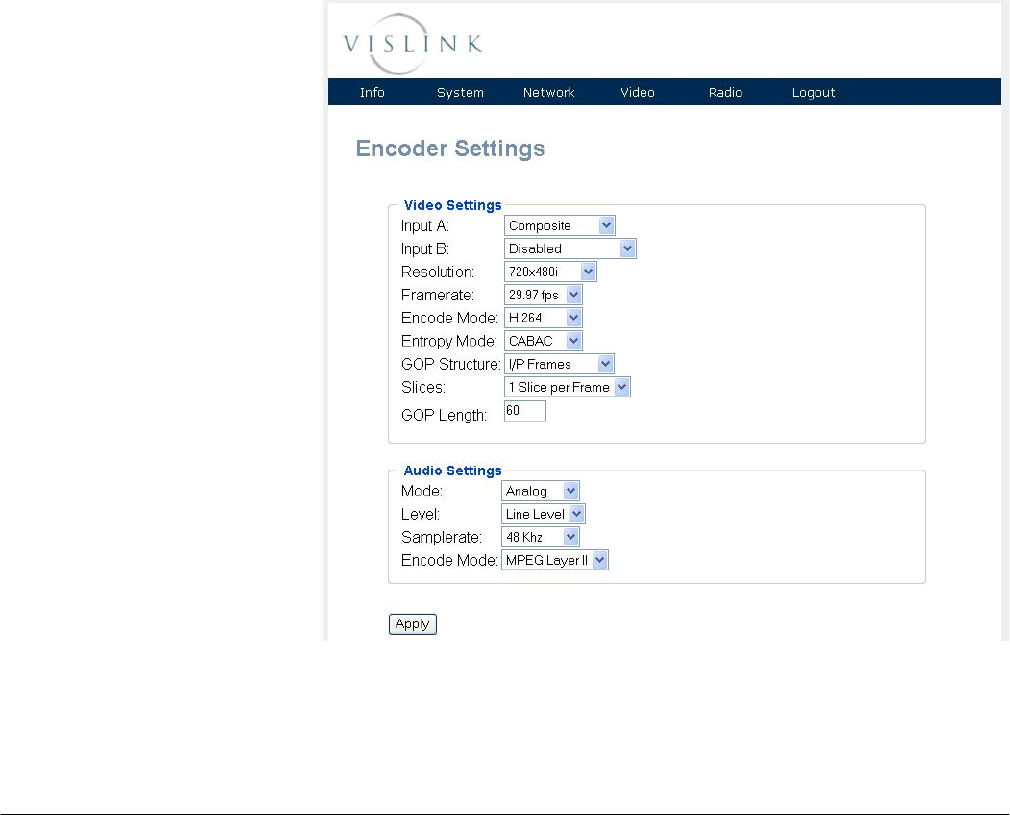

To configure the parameters for each preset do the following:
1. Select Video
Settings from the
Video drop down
menu. The Encoder
Settings screen
appears.
2. Configure the video
and audio parameters
as required for the
preset and click
Apply.
5 HDX-1100 User and Technical Manual
3. Select Video
Transport Stream
from the Video drop
down menu. The
Transport Stream
Settings screen
appears.
4. Configure the video
and audio parameters
as required for the
preset and click
Apply.
5. Select RF Settings
from the Radio drop
down menu. The RF
Band Settings screen
appears.
6. Configure the video
and audio parameters
as required for the
preset and click
Apply.
6 HDX-1100 User and Technical Manual

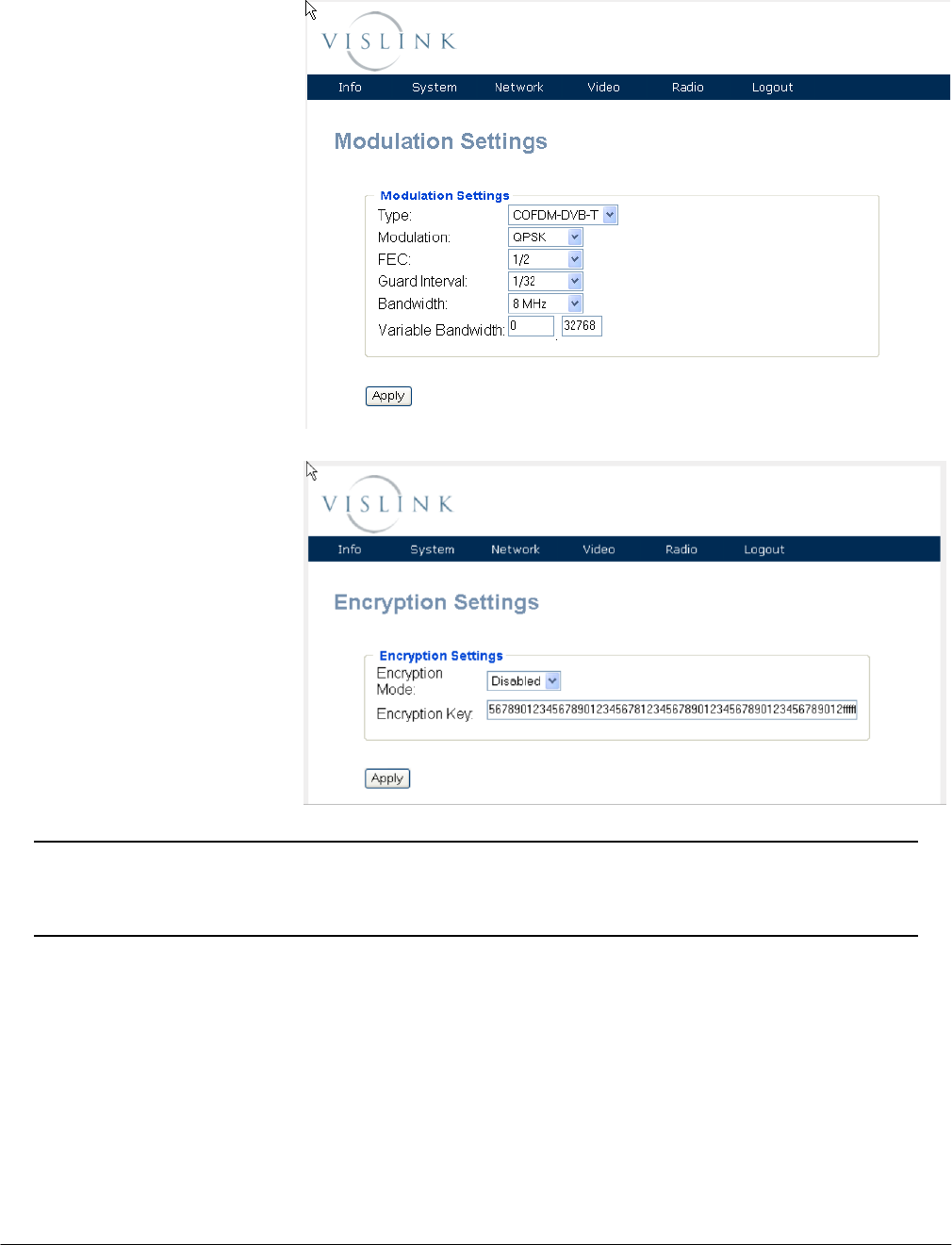

7. Select Modulation
Settings from the
Radio drop down
menu. The Modulation
Settings screen
appears.
8. Configure the video
and audio parameters
as required for the
preset and click
Apply.
9. Select Encryption
Settings from the
Radio drop down
menu. The Encryption
Settings screen
appears.
10. Configure the video
and audio parameters
as required for the
preset and click
Apply.
Note For 128-bit encryption, enter 32 hexadecimal characters.
For 256-bit encryption, enter 64 hexadecimal characters.
HDX-1100 User and Technical Manual 7

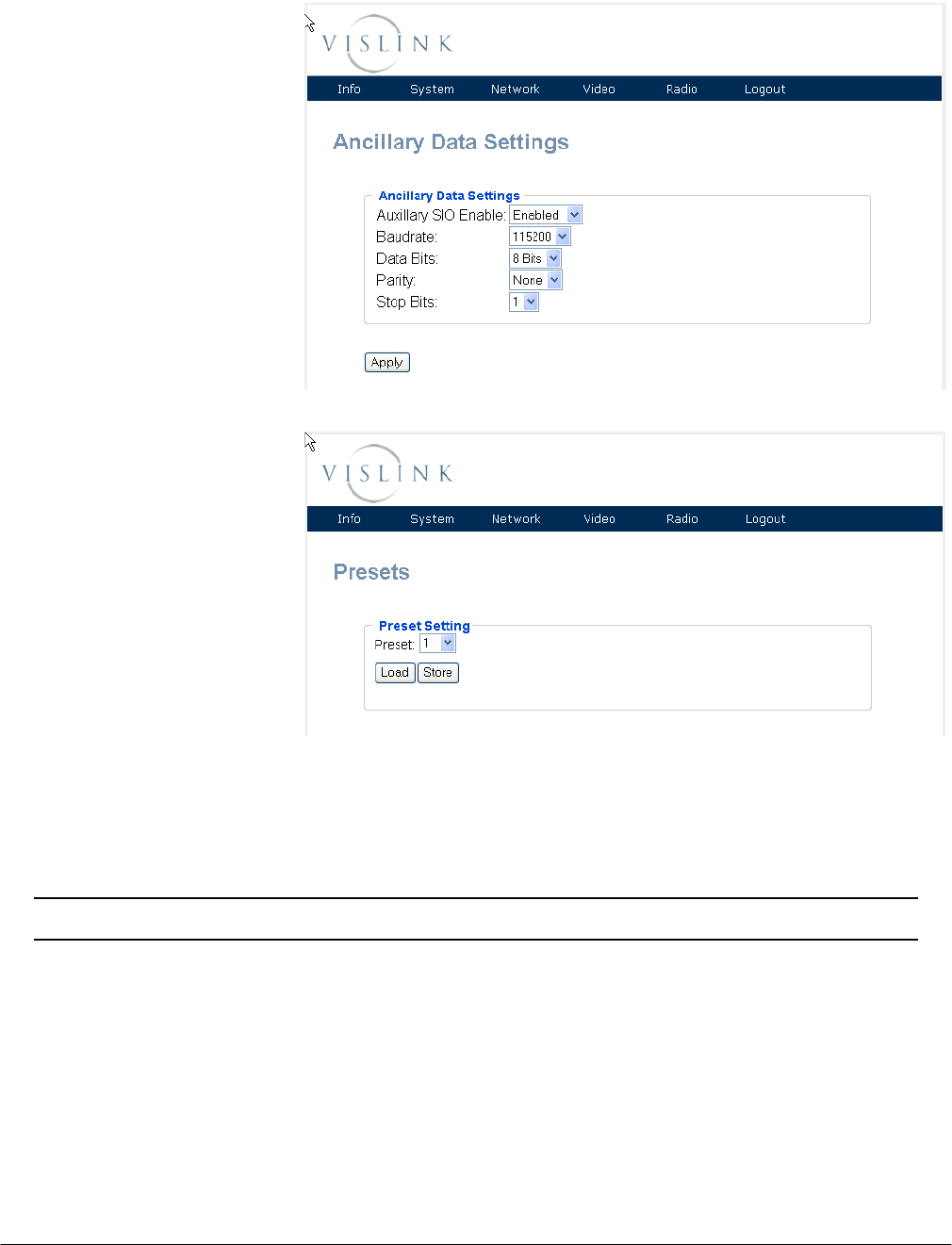

11. Select Ancillary Data
from the Radio drop
down menu. The
Ancillary Data
Settings screen
appears.
12. Configure the video
and audio parameters
as required for the
preset and click
Apply.
13. Select Preset
Settings from the
Radio drop down
menu. The Presets
screen appears.
14. Configure the video
and audio parameters
as required for the
preset and click
Store.
5.1 Recalling a Preset Configuration from a PC
1. Select Preset from the Radio drop down menu.
2. Select the preset number and click Load. The relevant parameters will be populated
under Video and Radio.
Note The Encryption code will not display.
Click Logout to finish setting up the HDX-1100.
8 HDX-1100 User and Technical Manual
6 HDX-1100 Specifications

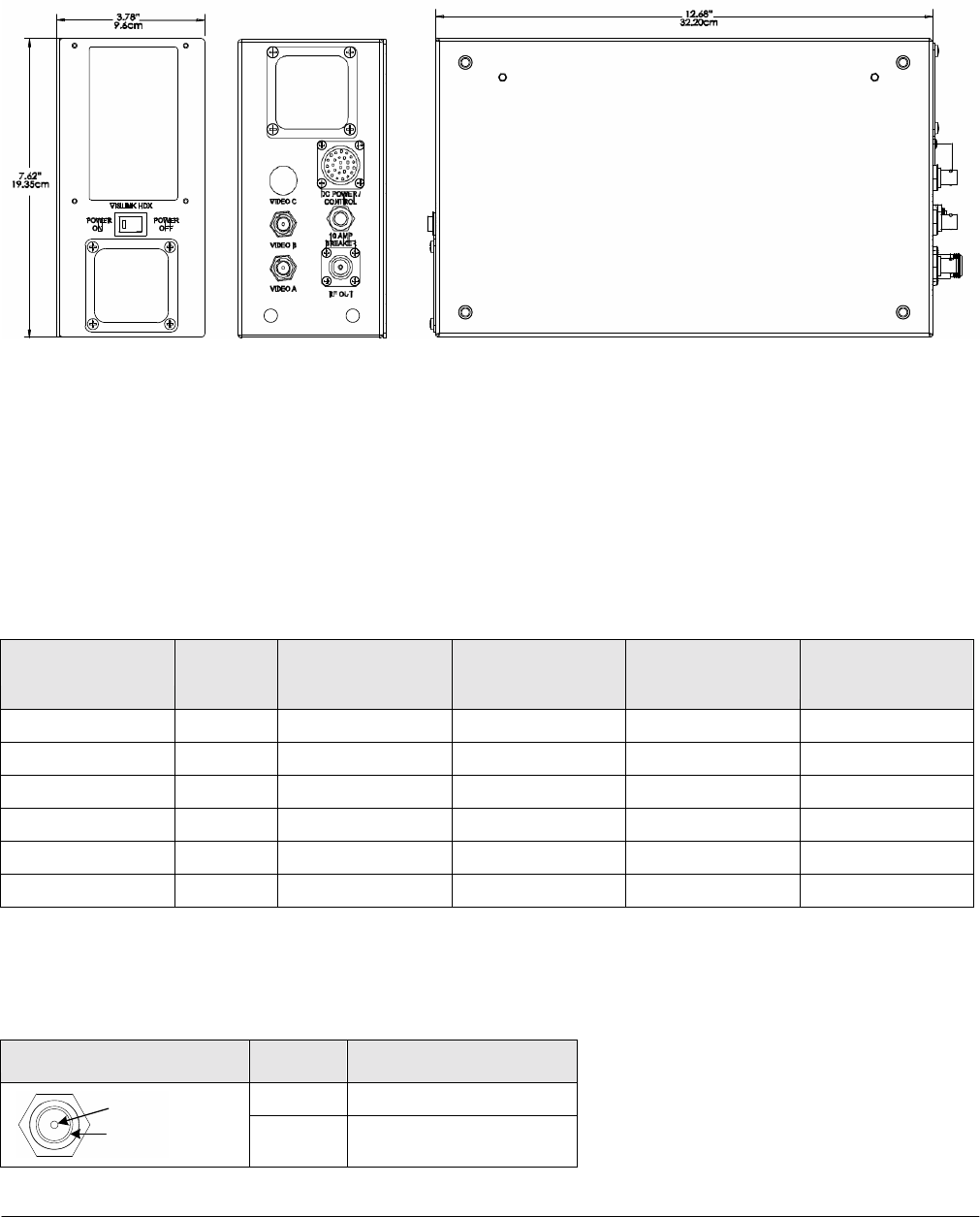

The following figure shows the front, back, top, and side views of the HDX-1100.
• Dimensions: 3.78 x 7.62 x 12.68 inches
• Weight: 7 pounds (3.2 kg)
• Operating temperature: –10 °C to +65 °C; storage temperature: –40 °C to +75 °C
• Humidity: up to 95% relative and non-condensing
• Altitude: up to 20,000 feet (6,000 m)
6.1 Band and Frequency Options
You can order the HDX-1100 for the following frequency bands.
Model
Band
Frequency
Power
Consumption
Frequency
Stability
Frequency
Step Size
HDX-1100LS
LS
1.7—2.5 GHz
44W
2.5 ppm
250 Khz
HDX-1100S
S
2.4—2.48 GHz
44W
2.5 ppm
250 Khz
HDX-1100C1
C1
3.1—3.5 GHz
46W
2.5 ppm
250 Khz
HDX-1100C2
C2
4.4—5.0 GHz
46W
2.5 ppm
250 Khz
HDX-1100C3
C3
6.4—7.2 GHz
46W
2.5 ppm
250 Khz
HDX-1100X
X
8.1—8.5 GHz
48W
2.5 ppm
250 Khz
6.2 Video Input Connectors
The BNC female connectors provide HD-SDI/SDI and analog composite video outputs
(SMPTE 170M).
Connector
Pin
Description
Signal
Ground
Pin
Signal
Ring
Ground
HDX-1100 User and Technical Manual 9

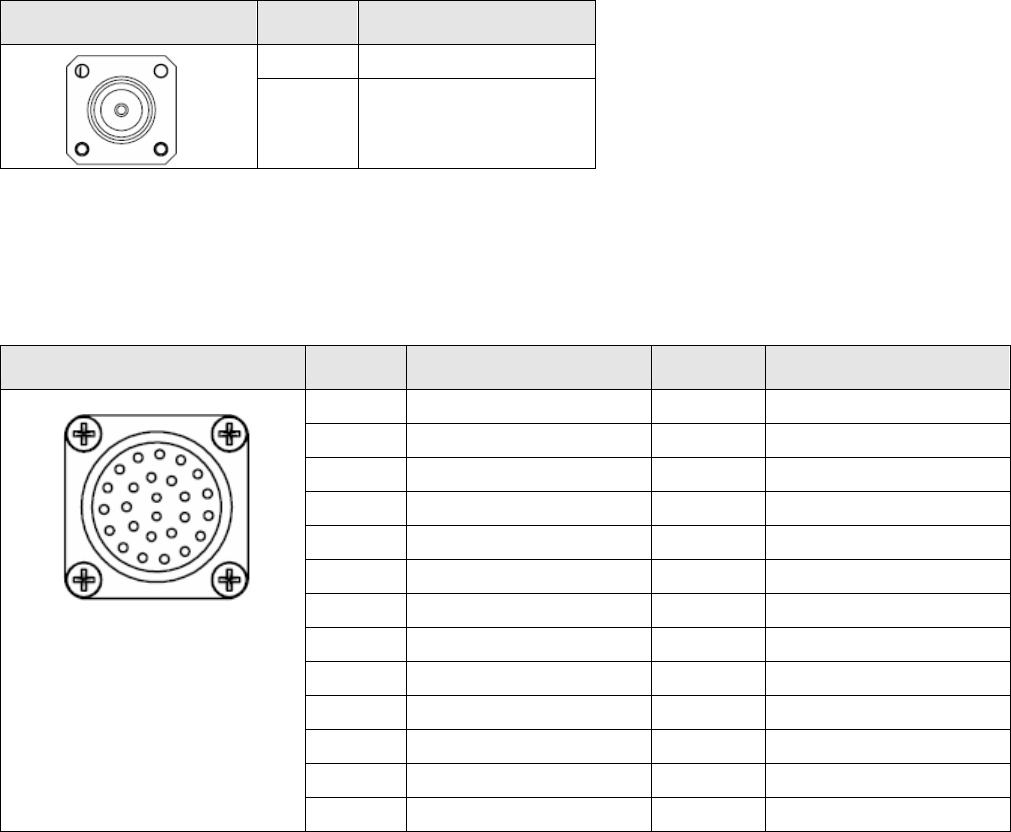

6.3 RF OUT Connector
The RF Type N female connector attaches the antenna to the unit.
Connector
Pin
Description
Pin
Signal
Ring
Ground
6.4 DC POWER and CONTROL Connector
DC voltage for the HDX-1100 is +10 Vdc to +32 Vdc with reverse voltage protection. Ensure
that the power being supplied matches the power required by the equipment.
I/O connector 26-Pin Male D connector pin-outs are shown in the following table:
Connector
Pin
Description
Pin
Description
A
+Vin
P
Serial CTRL Out
B
+Vin
R
N/C
C
N/C
S
N/C
D
Audio 1 In
T
Reserved
E
GND
U
Reserved
F
GND
V
Reserved
G
Audio 2 In
W
Reserved
H
N/C
X
Reserved
J
Data Channel In
Y
Reserved
K
GND
Z
Reserved
L
N/C
a
Reserved
M
Serial CTRL In
b
–Vin
N
Serial CTRL GND
c
–Vin
6.5 Modulation
• DVB-T
COFDM EN300-744
COFDM QPSK
COFDM 16QAM
COFDM 64QAM
10 HDX-1100 User and Technical Manual
6.6
Encryption
Only one encryption scheme is available in a single firmware build.
• AES 128-bit
• AES 256-bit
Note ASI input streams are not encrypted
6.7 RF Output Power
• High Power Mode: Enables PA and supplies output power of 10 W.
• Low Power Mode: Enables PA supplies output power of 1 W (or 10% of whatever the
high power mode is for the PA).
• Impedance: 50 Ohms (with VSWR <= 1.5:1)
• Protection: Transmitters shall not be damaged by an infinite VSWR at any phase angle
at the RF output ports for an indefinite time.
6.8
Audio
Characteristics
• Two audio inputs are to be supported which can be both line, both microphone, or one of
each.
6.9 Video Input Format
• ASI: 188 byte, EN50083-9
• HD-SDI: SMPTE 292M
- 1920x1080i@25fps
- 1920x1080i@30fps
- 1280x720@50 fps
- 1280x720@60fps
• Composite: 1 Vpp RS170
- 720x480 NTSC 525
- 720x576 PAL 625
• Wayside Data Rate: up to 115.2 kbps
• Video input impedance: 75 Ohm unbalanced
HDX-1100 User and Technical Manual 11
7 Getting Support for Your HDX-1100
You can contact the Vislink Technical Support staff as follows:
24-hour Worldwide Technical Support
E-mail: support@mrcbroadcast.com
Telephone: +1 978-671-5929 or
888-777-9221
Customer Service
E-mail: customerservice@mrcbroadcast.com
Telephone: +1 978-671-5700 Press 3
Monday-Friday, 8AM-5PM EST USA
When you contact Technical Support, include the following information:
• Model number and serial number of the unit (located on a label on the bottom of each
unit).
• Approximate purchase date.
There are no supported field repairs to the HDX-1100. Return the unit for factory repair.
CAUTION If you attempt field repair, you risk damaging your equipment. If
your equipment is under warranty, you may also affect your warranty
coverage. The HDX-1100 requires specialized test equipment and
software to calibrate operating characteristics after repair.
12 HDX-1100 User and Technical Manual
