Midea Kitchen Appliances EAC032CYY Microwave Oven User Manual User Manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Microwave Oven User Manual
User Manual
2
Table of Contents
Specifications…………………………………………………………………….2
Safety………………………………………………………………………………3 – 7
Precautions to avoid possible exposure to Microwave Energy……………………… 3
Grounding Installation……………………………………………………………………. 3
Important safety Instructions…………………………………………………………….. 4 - 5
Utensils ……………………………………………………………………………………..6
Materials you can use in a microwave oven…………………………………………….6
Materials to be avoided in a microwave oven…………………………………………...7
Setting up your oven……………………………………………………………………..7
Names of oven parts and accessories........................................................7
Turntable installation……………………………………………………………8
Countertop Installation………………………………………………………….8
Operation…………………………………………………………………………………...9 - 19

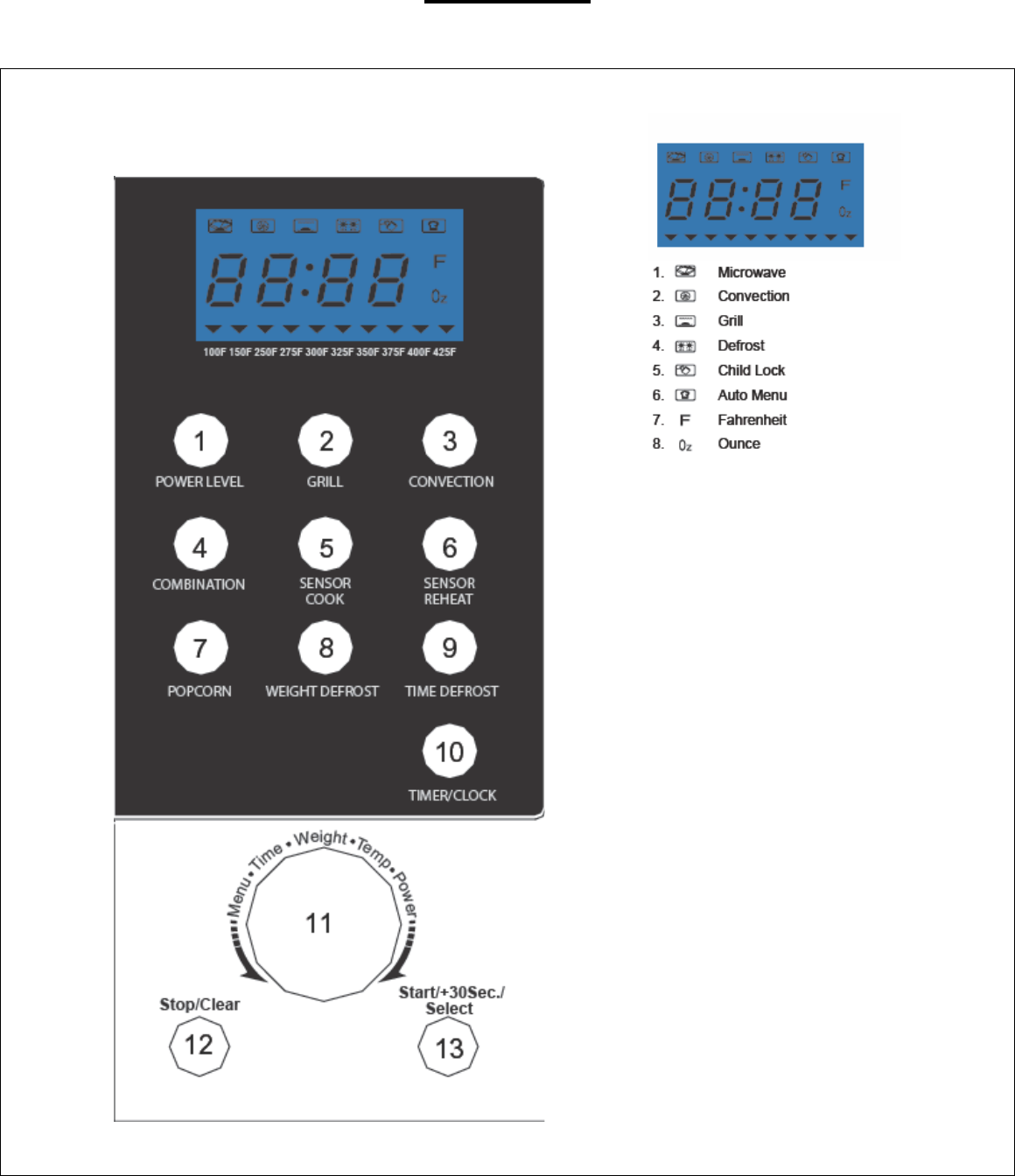

Control Panel and Features……………………………………………………………….9
Oven Features……………………………………………………………………………...10 - 19
Troubleshooting…………………………………………………………………………..20
Warranty Information……………………………………………………………………21
SPECIFICATIONS
Model: BM-7990-SS
Rated Voltage: 120V~ 60Hz
Rated Input Power (Microwave): 1500W
Rated Output Power (Microwave): 1000W
Oven Capacity: 0.9 Cu.ft.
Turntable Diameter: 12.4 inch
External Dimensions (LxWxH): 19.09” x 16.14” x 11.30”
Net Weight: Approx. 29.3 LBS
3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy.
It is important not to break or tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is
no damage to the
a) Door (bent).
b) Hinges and latches (broken or loosened)
c) Door seals and sealing surface
The oven should not be adjusted or repaired by anyone except properly qualified service personnel
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan
of the apparatus and lead to a dangerous situation.
GROUNDING INSTALLATION
• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current.
• This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
• Consult a Qualified electrician or serviceman if the grounding instructions are not completely understood or if
doubt exists as to whether the appliance is properly grounded.
• If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
• Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• We do not recommend using an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance.
• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over
a longer cord.
• If a long cord sets or extensions cord is used
A. The marked electrical rating of the cord set or extension marked electrical rating of the cord set or
extension cord should be at least as great as the electrical rating of the appliance.
B. The extension cord must be a grounding-type 3-wire cord.
C. The longer cord should be arranged so that it will not drape over the countertop or tabletop where
it can be pulled on by children or tripped over unintentionally.
DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious personal
injury or death. Do not disassemble this appliance.
Improper use of the grounding can result in electric shock.
Do not plug into an outlet until appliance is properly installed and grounded.
Three-
pronged
Wall Plug
4
Important Safety Instructions
Oven Safety
1. The oven must be on a level surface
2. The turntable and turntable roller must be in the
oven during cooking. Place the cookware gently
on the turntable and handle it carefully to avoid
possible breakage.
3. Incorrect use of browning dish may cause the
turntable to break.
4. The oven has several built-in safety switches to
ensure that the power remains off when the door
is open. Do not tamper with these switches.
5. Do not attempt to deep-fry in your microwave
oven.
6. Do not use this microwave oven for commercial
purpose. This microwave oven is made for
household use only.
7. Use caution when cooking food in the microwave
oven to avoid burning due to excessive cooking.
8. Do not allow children to use this appliance,
unless closely supervised by an adult.
9. Failure to maintain the oven in clean condition
could lead to deterioration that could adversely
affect the life of the appliance and possibly result
in a hazardous situation
10. Do not overcook food. Carefully attend the
appliance when paper, plastic, or other
combustible materials are placed inside the oven
to facilitate cooking.
11. Do not let power cord hang over edge of table
counter, or over any heated surface.
12. Do not mount the microwave oven over or near
any portion of a heating or cooking appliance
13. This oven must be properly grounded, see
“Grounding instructions.”
14. Do not cover or block any vents on the oven.
14. Do not use the oven cavity for storage
purposes. Do not store combustible items
such as bread, cookies, paper products, etc.
inside the oven.
16. Remove metal twist-ties or metal handles from
paper or plastic containers before placing
them in the microwave oven.
17. Install or locate the oven only in accordance
with the installation instructions
18. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This
microwave oven is specifically designed to
heat, dry or cook food, and is not intended for
laboratory or industrial use.
19. As with any appliance, Close supervision is
required when the oven is being used by
children.
20. Do not operate this oven if it has a damaged
cord or plug, if it is not working properly or if it
has been damaged or dropped.
21. This appliance should be serviced only by
qualified service technicians. Contact the
nearest authorized service facility for
examination, repair or adjustment
22. Do not store or use this appliance outdoors.
23. When cleaning door and oven surfaces use
only mild, nonabrasive soaps or detergents
applied with a sponge or soft cloth.
24. Do not use this oven near water, for example,
near a kitchen sink, in a wet basement, near a
swimming pool, or similar locations.
25. Do not immerse cord or plug in water.
5
Food Safety
2. Use only the specified bag size for direct
access popcorn.
3. Do not cook bacon directly on the turntable.
Excessive local heating of the turntable may
cause the turntable to break
4. Do not attempt home canning in the
microwave oven, as it is impossible to be
sure all contents of the jar have reached
boiling temperature.
5. To prevent delayed eruptive boiling of hot
liquids and beverages, or scalding yourself,
stir liquid before placing the container in the
oven and again halfway through cooking
time. Once finished cooking, let liquid stand
in oven for a short time and stir once more.
6. Some products Such as whole eggs and
sealed containers such as closed jars will
explode and should not be used in a
microwave oven.
7. Do not heat narrow-necked containers, such
as syrup bottles in your microwave oven,
pressure can build up and cause the
container to burst, possibly resulting in injury
8. Some products such as whole eggs, water
with oil or fat, sealed to explode and therefore
should not be heated in this oven.
9. Do not operate the microwave oven empty.
Operating the oven with no food or food that
is extremely low in moisture can cause fire,
charring or sparking.
10. Avoid heating baby food in glass jars, even
with the lid off. Make sure all infant food is
thoroughly cooked. Stir food to distribute the
heat evenly. Be careful to prevent scalding
when warming formula. The container may
feel cooler than the formula really is. Always
test the formula before feeding the baby.
.
1. Liquids, such as water, coffee, or tea are able
to be overheated beyond the boiling point
without appearing to be boiling. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. This could result in very hot
liquids suddenly boiling over when the
container is disturbed or a spoon or other
utensil is inserted into the liquid.
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway
through heating it.
iii) Do not use straight-sided containers with
narrow necks. After heating, allow the
container to stand in the microwave oven for
a short time before removing the container.
iv) Use extreme care when inserting a spoon or
other utensil into the container
WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave
oven energy when using your appliance, follow
basic precautions, including the following.
1. Read all instructions before using the
appliance.
2. Read and follow the specific: “Precautions
to avoid possible exposure to excessive
microwave energy.”
3. As with most cooking appliances, close
supervision is necessary to reduce the risk of
a fire in the oven cavity.
If materials in the oven ignite:
1. Keep the oven door closed.
2. Turn the oven off, and unplug the appliance
3. Disconnect the power cord, shut off power at
the fuse or circuit breaker panel.
6
UTENSILS
CAUTION - Personal injury hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be
pierced before cooking. See the instructions on “materials you can use in microwave oven or to be avoided
in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in
doubt, you can test the utensil in question following the procedure below.
MATERIALS YOU CAN USE IN MICROWAVE OVEN
Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test
cookware before using, follow these steps:
1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.
4. Do not exceed 1 minute cooking time.
Utensils Remarks
Aluminum Foil Shielding only. Small smooth pieces can be used to cover thin parts of meat
or poultry to prevent overcooking. Arcing can occur if foil is too close to oven
walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning Dish Follow manufacturer’s instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked
or chipped dishes.
Glass Jars Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do
not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not leave oven unattended while
cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled “Microwave Safe.” Some plastic containers soften, as the food inside
gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced
or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture, Do
not allow plastic wrap to touch food.
Paper Plates and Cups Use for short-term cooking/warming only. Do not leave oven unattended while
cooking.
Thermometers Microwave-Safe only (Meat and candy thermometers)
Wax Paper Use as a cover to prevent splattering and retain moisture.
7
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
SETTING UP YOUR OVEN
Names of oven parts and accessories
Throughout this manual, features and appearance may vary from your model.
Your oven comes with the following accessories.
Glass Turntable 1
Turntable ring assembly 1
Instruction Manual 1
Turntable Shaft 1
A) Touch Control Panel Display
B) Turntable shaft
C) Removable turntable support
D) Glass removable turntable
E) Observation window
F) Door assembly
G) Safety interlock system
Utensils Remarks
Aluminum Tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle May cause arcing. Transfer food into microwave-safe dish.
Metal or Metal-trimmed
utensils Metal shields the food from microwave energy. Metal trim may cause
arcing.
Metal twist ties May cause arcing, and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood Wood will dry out when used in the microwave oven and may split or
crack.
8
Turntable Installation
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. DO not remove the
light brown mica cover that is attached to the oven cavity to protect the magnetron.
installation
Hub (Underside)
Glass Turntable
Turntable Shaft
Removable Turntable Support
a) Never place the glass turntable upside
down. The glass turntable should never be
restricted
b) Both glass turntable and turntable support
must always be used during cooking
c) All food and containers of food are always
placed on the glass turntable for cooking.
d) If glass tray or turntable ring assembly
crack or breaks, replacement is required.
12 inch
(
30cm
)
O
p
en
3.0 inch
(
7.5cm
)
1. Select a Level surface
that provides enough open
space for the intake and/or
outlet vents.
A minimum clearance of
3.0 inches (7.5cm) is
required between the
oven and any adjacent
walls. One side must be
open.
A) Leave a minimum of 12
inches (30cm) above the
oven.
B) Do not remove the legs
from the bottom of the
oven.
C) Blocking the intake and/or outlet opening can damage the oven.
D) Place the oven as far away from radios and TV as possible. Operation of microwave oven may
cause interference to your radio or TV reception
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as
the voltage and the frequency on the rating label.
WARNING: Do not install oven over a Range cook top or other heat-producing appliance. If installed near
or over a heat source
,
the oven could be dama
g
ed and the warrant
y
would be void.
3.0 inch (7.5cm)
9
OPERATION
Control Panel Operations
1. Power Level Pg.10
2. Grill Pg.10
3. Convection Pg.10
4. Combination Pg.11
5. Sensor Cook Pg. 11
6. Sensor Reheat
7. Popcorn Pg. 12
8. Weight Defrost Pg. 12
9. Time Defrost Pg. 12
10. Timer/Clock Pg. 10/13
11. Dial
12. Stop/Clear Pg. 13
13. Start/+30sec/Select Pg. 13
10
1. Clock setting
When the microwave oven is plugged in, the oven will display “0.00” and hour will flash.
1) Turn the dial to set hour;
2) Press the “SELECT” button to enter, and the minutes will flash.
3) Turn the dial to set minutes.
4) Press the “START” to finish clock setting.
Note: If you want to revise clock setting, press “TIMER/CLOCK” two times, and follow above steps. If you do not want to
set clock when plugged in, press “STOP”.
2. Power Level
The power level may be entered or changed immediately after entering the time for “Time Cook” or “Time Defrost” The power level
may also be changed during the time countdown.
1) Press the “POWER LEVEL” button;
2) Turn the dial to select the power level;
3) Press the “SELECT” button to enter;
4) Turn the dial to set the time; (The time setting should be 0:05- 95:00.)
5) Press the “START” button to start cooking.
Quick setting:
Turn the dial, microwave icon will display and you can adjust the cooking time you desired, press “START”, it will
start cooking with 100% power level and your desired cooking time.
3. Grill
1) Press “GRILL” button.
2) Turn the dial to adjust the cooking time;
3) Press “START” to start cooking.
Note: If half the grill time passes, the oven should pause and sound twice, and this is
normal. In order to have a better effect of grilling food, you should turn the food over,
close the door, and then press "START " to continue cooking. If there is no
operation, the oven will work automatically and sound once.
4. Convection
Convection Time Cook with Preheat
1) Press the “CONVECTION “button, “100°F” will display ;
2) Turn the dial to select the convection temperature you need; and press "SELECT" button to input your selected
temperature.
Note: the temperature can be chosen from 100°F (38°C) to 425°F (218°C).
3) Press the " START "button to start preheating ,when the oven reaches the preheat temperature, the buzzer will sound
twice to remind you to put the food into the oven, and the preheated temperature will appear on the display and flash;
4) Open the oven door, place the food in the oven ,
Turn the dial to adjust the cooking time;
5) Press the “START” to start cooking.
Convection Time Cook without preheat
1) Press the “CONVECTION “button, “100°F” will display
2) Turn the dial to select the convection temperature you need;
Note: the temperature can be chosen from 100°F (38°C) to 425°F (218°C).
3) Press the “SELECT” to input your selected temperature.
4) Turn to dial to adjust the cooking time
10%20% 30% 40%50%60%70%80% 90% 100% Power
12 345678 9 10 Level
High level, microwave icon
ights up and will flash
while in operation
Low level, microwave icon
ights up and will flash
while in operation
11
5) Press the "START" key to start cooking.
5. Combination
1) Press the “COMBINATION” button separately to select "C-1" or "C-2", see below instruction chart.
2) Turn the dial to adjust the cooking time;
3) Press the "START" to start cooking.
Note: Combination instructions
6. Sensor Cook Menu
1) Press “SENSOR COOK MENU “button”.
2) Turn the dial to select the desired food type;
3) Press “START” button to start cooking.
See the SENSOR COOK CHART below for specific foods and instruction.
7. Sensor Reheat Feature
The sensor feature allows you to reheat food without setting the oven manually.
Sensor Cook Chart
Menu Weight Display Additional instructions
Frozen
Entrée
8~32 Oz
(225~900g)
SC-1 Follow manufacturer’s instructions on preparation. Be careful when
removing the film cover after cooking. Remove Facing away from
you to avoid steam burns. If additional time is needed, continue to
cook manually. Cover with lid or vented plastic wrap.
Fish Fillets 110 – 450 g
(4 – 16 oz.)
SC-5 Arrange in a single layer. Cover with lid or vented plastic wrap.
Potato 1~4 Unit
(6~8 Oz each)
SC-2 Pierce each potato with a fork 6 times around its surface. Place
potatoes around the edge of a paper-towel-lined turntable, at least
2.5cm (1”) apart. Do not cover.
Frozen
Vegetables
170 – 450 g
(6 – 16 oz.)
SC-6 Wash thoroughly, add 1 tbsp of water per ½ cup of vegetables,
and cover with a lid or vented plastic wrap. Do not salt/butter
vegetables until after cooking
Pasta 2~8 Oz
(56~225g)
SC-3 Place pasta with hot tap water in a microwave sage casserole dish.
Cover with lid or vented plastic wrap. Do not cover.
Fresh
Vegetables
110 – 450 g
(4 – 16 oz.)
SC-7 All pieces should be the same size. Wash thoroughly, add 1 tbsp
of water per ½ cup of vegetables, and cover with a lid or vented
plastic wrap. Do not salt/butter vegetables until after cooking
Frozen Pizza 6 – 12 Oz
(170 – 340 g)
SC-4 Follow manufacturer’s directions for preparation.
Ground Meat 8 – 24 oz.
(225 – 680 g)
SC-8 Break apart in glass bowl or colander. Cover with lid or vented
plastic wrap. Juices should be clear when done, Drain.
Instructions Display Microwave Grill Convection
Press once C-1
Press twice C-2
12
1) In waiting states, press "SENSOR REHEAT". And put the food into the microwave oven.
"SA-1" is displayed.
2) Press "START/+30SEC" to start sensor reheat function.
3) The buzzer will sound twice when the sensor induce the steam. The time will count down and
display the surplus cooking time will appear in the display window. When the cooking has
been finished, the buzzer will sound 5
beeps and the oven will turn back to the waiting states.
Note: 1) Food to be avoided in sensor reheating.
a. Bread and other dry food, such as biscuit cake.
b. Non-cooking food.
c. Beverages and frozen food.
2) The oven cannot cook automatically when the temperature of the oven cavity is high.
3) The reheated food can be covered with a lid. But the lid must have vent holes in order to
release steam. Sealed utensils are forbidden.
4) During sensor cooking process, please do not open the oven door or press
"STOP/CLEAR" key. Otherwise, the sensor will not function properly.
5) The sensor reheat has different requests for different food.
Note: Casseroles – Add 3 to 4 tablespoons of liquid, cover with lid or vented plastic wrap. Stir
when time appears in the display window.
Canned foods – Empty contents into casserole dish or serving bowl, cover dish with lid or
vented plastic wrap. After reheating, let stand for a few minutes.
Plate of Food – Arrange food on plate; top with butter, gravy, etc. Cover with lid or vented
plastic wrap. After reheating, let stand for a few minutes.
•
8. Popcorn
If the package is less than 1.75 oz (50 g), follow the package instructions, using 100% “POWER LEVEL” for microwave.
1) Press “Popcorn” once for a popcorn bag size of 1.75 oz. Then press “START.” (“1.75 oz.” will appear in display)
3) Press “Popcorn” twice for a popcorn bag size of 3.0 oz. Then press “START.” (“3.0 oz.” will appear in display)
4) Press “Popcorn” three times for a popcorn bag size of 3.5 oz. Then press “START.” (“3.5 oz.” will appear in display)
9. Weight Defrost
1) Press “WEIGHT DEFROST”, the oven will display “d-1”;
2) Turn the dial to select the weight of food, “OZ” will light;
3) Press "START" button to start defrosting.
10. Time Defrost
1) Press “TIME DEFROST”, the oven will display “d-2”;
2) Turn the dial to select the cooking time.
3) Press "START" button to start defrosting.
Times(Press "
POPCORN
")
Weight
Display
Once
1.75 Oz
1.75
Twice
3.0 Oz
3.0
Thrice
3.5 Oz
3.5
13
Defrosting Tips and Tricks
11. Multi-Stage Cooking
Two or three cooking stages can be set. If one stage is defrosting, it should be put in the first stage. It will beep once when one
stage finished and the next stage will begin.
Note: Sensor menu and weight defrost cannot be set as one of the multi-stage; if convection is used as one of the multi-stage, you can only
adjust the cooking time, temperature can Not be adjusted.
Two stages cooking setting example:
If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps
are as following:
1) Press "TIME DEFROST ", the screen will display "d-2";
2) Turn the dial to adjust the defrost time of 5 minutes;
3) Press "POWER LEVEL" and turn the dial to choose 80% microwave power, and "P80" displays.
4) Press “SELECT” to input your selected power level.
5) Turn the dial to adjust the cooking time of 7 minutes;
6) Press "START" to start cooking.
Three stages cooking setting example:
If you want to defrost the food for 5 minutes, and cook with 100% microwave power for 7 minutes, then cook with
Grill 3 minutes. The steps are as following:
1) Press "TIME DEFROST ", the screen will display "d-2";
2) Turn the dial to adjust the defrost time of 5 minutes;
After Defrosting
Food Manual Defrost
Time at P3
(min/kg) (min/lb) During Defrost Stand
Time Rinse
Fish and Seafood
(up to 1.4 kg [3lbs])
Crabmeat 12 6 Break apart/Rearrange
Fish Steaks 8 to 12 4 to 6 Turn Over
Fish Fillets 8 to 12 4 to 6 Turn Over/Rearrange/Shield Ends
Sea Scallops 8 to 12 4 to 6 Break apart/Remove defrosted Pieces
Whole Fish 8 to 12 4 to 6 Turn Over
5 min. YES
Meat
Ground Meat 8 to 10 4 to 5 Turn over/Remove defroster
portion/Shield Edges 10 min.
Roasts (1.1-1.8 kg [2½-4
lbs.]) 8 to 16 4 to 8 Turn over/ Shield ends and defrosted
Surface 30 min.
in fridge
Chops/Steak 12 to 16 6 to 8 Turn over/ Rearrange/ Shield ends and
defrosted surface
Ribs/T-bone 12 to16 6 to 8 Turn over/ Rearrange/ Shield ends and
defrosted surface
Stew Meat 8 to 16 4 to 8 Break apart/ Rearrange/ Remove
defrosted pieces
Liver (Thinly Sliced) 8 to 12 4 to 6 Drain liquid/ Turn over/ Separate pieces
5 min.
Bacon (Sliced) 8 4 Turn over ----
NO
Poultry
Chicken, Whole (up to 1.4 kg
[3 lbs]) 8 to 12 4 to 6 Turn over/ Shield 20 min/
in fridge
Cutlets 8 to 12 4 to 6 Break apart/ Turn over/ Remove
defrosted pieces 5 min.
Cornish hens 12 to 16 6 to 8 Turn over/ Shield 10 min.
Turkey Breast (2.3-2.7 kg [5-
6 lbs]) 12 6 Turn over/ Shield 20 min.
in fridge
YES
14
3) Press "POWER LEVEL", "P100" displays.
4) Press “SELECT” to input your selected power level.
5) Turn the dial to adjust the cooking time of 7 minutes;
6) Press “GRILL”
7) Turn the dial to adjust the cooking time of 3 minutes.
8) Press "START" to start cooking.
12. Timer
1) Press “TIMER/CLOCK” button once, LCD display will show “0:00”.
2) Turn the dial to input length of time for countdown, maximum 95 minutes.
3) Press “START” to begin, LCD counts down.
4) When countdown ends, it will beep five times.
13. Child Lock
1) Press “Stop/Clear” button and hold for 3 seconds. A long beep will sound. The microwave is now locked and cannot be
used. The LCD will display the current time or “0:00”. The “Child lock” icon should be on.
2) To unlock, press and hold “Stop/Clear” button for 3 seconds until a long beep sounds. The microwave is now unlocked.
14. Stop/Clear
1) To stop the microwave at any point during cooking, press “Stop/Clear”.
2) To clear the display window, press “Stop/Clear”.
15. Start / +30 SEC
The “+30 SEC” button can be used to set the time for cooking or for adding on time while food is already cooking. To set the
time for cooking, press “+30 SEC” button repeatedly to increase the time to your desired cooking time. Press “+30 SEC”
button during cooking can increase the cooking time by 30 seconds. The maximum amount of time that can be added is 95
minutes.
Cooking Guide Chart 1
Food Item Grill Combination-2 ( Microwave + Grill )
Sausage
Pork
Lamp
Rib
Brisket
Steak
Chicken, guinea fowl
Turkey
Fish
Veal
15
Cooking Guide Chart 2
Foods Microwave Combination-1
(Microwave+Convection) Convection
1 N/R N/R
Appetizers
Dips and Spreads
Pastry Snacks 2 1 2
Beverages 1 N/R N/R
Sauces and Toppings 1 N/R N/R
Soups and Stews 1 2 N/R
Meats
Defrosting 1 N/R N/R
Roasting 2 1 2
Poultry
Defrosting 1 N/R N/R
Roasting 2 1 2
Fish and Seafood
Defrosting 1 N/R N/R
Cooking 1 2 N/R
Casseroles 2 1 2
Eggs and Cheese
Scrambled, Omelets 1 N/R 2
Quiche, souffle 2 2 1
Vegetables, (fresh) 1 N/R N/R
Breads
Quick 2 1 2
Yeast N/R 2 1
Muffins, Coffee Cake 2 1 2
Desserts
Cakes, layer and bundt 2 1 2
Angel Food and Chiffon N/R N/R 1
Custard and Pudding 1 N/R N/R
Bar Cookies 2 1 2
Fruit 1 N/R N/R
Pies and Pastry N/R 2 1
2C1andy 1 N/R N/R
Blanching Vegetables 1 N/R N/R
Frozen Convenience Foods 1 2 2
16
TROUBLESHOOTING
Before you call for service…
You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating
problem in the list below and try the solutions listed for each problem.
Problem Possible Causes What to do
Circuit breaker or fuse is tripped or blown. • Replace fuse or reset circuit
breaker
Power surge. • Unplug the microwave oven, then
plug it back in.
Plug not fully inserted into wall outlet. • Make sure to 3-prong plug on the
oven is fully inserted into wall outlet.
Oven will not start
Door not securely closed • Open the door and close securely.
Door not securely closed • Open the door and close securely.
START pad not pressed after entering
cooking selection.
• Press START
Another selection entered already in oven
and CLEAR/OFF pad not pressed to cancel
it.
• Press STOP/CLEAR.
Cooking time not entered before pressing
START.
• Make sure you have entered
cooking time before pressing
START
CLEAR/OFF was pressed accidentally. • Reset cooking program and press
START
Control panel lighted,
yet oven will not start
Oven was paused accidentally • Press START to restart the cooking
program.
Materials to be avoided in microwave oven
were used
• Use microwave safe cookware only
(see Pg. 6)
Cooking time/power level is not suitable • Adjust Cooking time or Power Level
Improper Defrosting
Food is not turned or stirred • Turn or Stir food.
Materials to be avoided in microwave oven
were used
• Use microwave safe cookware only
(see Pg. 6)
Food is not defrosted completely • Completely Defrost food
Cooking time/power level is not suitable • Adjust Cooking time/Power level
Unevenly Cooked
Foods
Food is not turned or stirred • Turn or stir food
Materials to be avoided in microwave were
used
• Use microwave safe cookware only
(see Pg. 6)
The oven is operated when empty • Refrain from operating oven while
empty
Arcing or sparking
Spilled food remains in the cavity • Clean cavity with a wet towel.
Glass turntable
wobbles The turntable is not positioned properly
on the turntable support or there is food
under the turntable support.
• Take out glass turntable and
turntable support. Wipe with a
damp cloth and reset support
and turntable properly.
Things which are normal with your microwave oven
• Steam or vapor escaping from around the door
• Light reflection around door or outer case.
• Dimming oven light and change in the blower sound at power levels other than high
• Dull thumping sound while oven is operating
• TV / Radio interference might be noticed while using the microwave. Similar to the interference caused by
other small appliances, it does not indicate a problem with the microwave. Plug the microwave into a different
17
electrical circuit, Move the radio or TV as far away from the microwave as possible or check the position and
signal of the Radio or TV antenna LIMITED WARRANTY
This product is warranted by Hudson’s Bay Company, Zellers Inc. and Home Outfitters (together, “Hbc”) against defects
in materials or workmanship for one year from the date of original purchase at retail.
If you think this product is defective, return it to any Zellers or the Bay store, together with your original cash register
receipt from Zellers or the Bay as your proof of purchase. If Hbc finds the product to be defective, the product will (subject
to the terms of this warranty) be repaired or replaced (at Hbc’s sole option). If repaired, the product will remain under
warranty for the duration of this warranty. If replaced, the replacement will be the same or a comparable model (at Hbc’s
sole discretion).
This warranty:
a) Is conditional on the product being installed and used as directed in the instruction manual.
b) Does NOT cover damage, malfunction or failure which, in Hbc’s sole opinion, is the result of
o normal wear and tear, accident, misuse, abuse, neglect, negligence, abnormal environmental conditions,
improper maintenance, unauthorized service or incorrect line voltage
o handling, transportation, unpacking, set-up, installation
o modifications, adjustments or repairs by the customer or any unauthorized service provider
o fire, flood or any other natural disasters
o signal reception problems caused by external antennae, cable systems or interference
o sudden electrical surges
c) Does NOT apply to the appearance of the product
d) Does NOT apply to any accessory items (for example an antenna, cabinet, cabinet parts, knobs, batteries,
connecting cables)
e) Applies to the original owner or gift recipient only
f) Becomes void upon commercial or rental use, or if any serial numbers are altered, defaced or removed, or any
repair or alteration outside the terms of this warranty
Repair or replacement is your exclusive remedy. Hbc will not be liable for any special, incidental or consequential
damages for any reason whatsoever, including arising from the use of this product, or for any delay in the performance of
this warranty due to causes beyond our control.
We may change the product design after this product was purchased, and if we do we are not obligated to make any
modifications whatsoever to this product.
This warranty is in lieu of all other warranties express or implied. Hbc neither assumes nor authorizes any person or
entity to assume for it or on its behalf any other obligation or liability in connection with this product. The purchaser
may have other rights under existing provincial or federal laws, and where such laws prohibit or modify any terms of
this warranty, those terms are deemed modified or null and void as appropriate, but the remainder of the warranty
remains unchanged and in effect.
Technical Service: If you have any questions, concerns, or issues regarding your Microwave that are
not addressed in the “Troubleshooting” Section, you may contact the following technical service line for
assistance… Technical Service – 1-866-809-8210
18
