Midea Kitchen Appliances EMA34GYY-S Microwave Oven User Manual VG8EMA34GYY S

Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven VG8EMA34GYY S

Contents

VG8EMA34GYY-S_User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
Microwave Oven
Guangdong Midea Microwave and Electrical Appliances Manufacturing
Co.,Ltd. MD Microwave Oven Manufacturing
Yongan 6 Road, Beijiao, Shunde, Guandong， P.R.C
Model:EMA34GTQ-S
Model:
. 3 . kg
34L
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
External Dimensions:
Net Weight:
Approx2 2
Specifications
575 527 368mm
208/230V~60Hz
00W
1800W
EMA34GTQ-S
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
2
28
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
found on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
4.To reduce the risk of fire in the oven
cavity:
i). Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
ii).Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
iii). If materials inside the oven ignite,
keep the oven door closed. Turn the
oven off, and unplug the appliance.
Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
iv). Do not use the oven cavity for storage
purposes. Do not leave paper products,
cooking utensils, or food in the cavity
when not in use.
5. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found
on page 4.
6. Install or locate this oven only in
accordance with the installation
instructions provided.
7. Some products such as whole eggs
and sealed containers-for example,
closed glass jars-are able to explode
and should not be heated in the oven.
8. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
or dry food. It is not designed for
industrial or laboratory use.
9. As with any appliance, close
supervision is necessary when used
by children.
10. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
11. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
12. Do not cover or block any openings on
the oven.
13. Do not store or use this appliance
outdoors.
14. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
15. Do not immerse cord or plug in water.
16. Keep cord away from heated surfaces.
17. Do not let cord hang over edge of
table or counter.
18. When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
3
When using electrical appliances basic safety
precautions should be followed,including the following:
WARNING-To reduce the risk of burns,electric shock,
fire,injury to persons,or exposure to excessive microwave
energy
:
::
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
4
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Radio Interference
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if cared is exercised in
their use.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or extension marked electrical rating of the cord
set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by children or tripped over unintentionally.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
5
Materials you can use in microwave oven
Utensils
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 2.5cm away from oven
walls.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metalic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
the ceramic board. Incorrect usage may
cause the to break.
Browning dish
ceramic board
placed smoothly on
Materials to be avoided in microwave oven
Utensils
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Remarks
6
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Instruction Manual 1

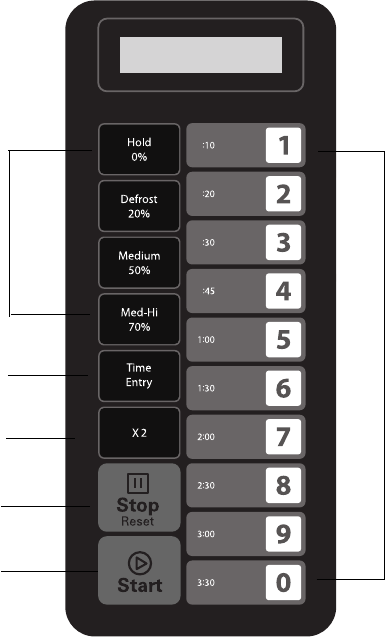

A) Control panel
B) Observation window
C) Door assembly
D) Safety interlock system
C
D
A
B
Note: 1) Don't press the ceramic board forcibly.
2) Take and put the gently during the operation
.
3) After using, don't touch the ceramic board by hand in order to avoid high temperature
utensils in order to avoid damage the
ceramic board
E
F
G
)
E) Ceramic board
F)
G
Back plate
Front plate
part and s
.
scald
to
7
Installation
side must be open.
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents .
A 10-cm spacing should be kept between
the appliance and right and back walls,
and a 30-cm spacing kept on the top.Never dismantle
the applicance's feet ,nor block the air intake and
exhaust opening.
can damage the oven.
) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
1) Blocking the intake and/or outlet openings
2
3 Plug your oven into a standard household
)
，
AB
C
Fig 1
Fig
2
( )Fig 1ure
30cm
OPEN
eft
The l
12
inch( )
4.0 inch(10cm) 4.0 inch(10cm)
2.The applicance can be installed
with
a
degree
of
overlap .
，

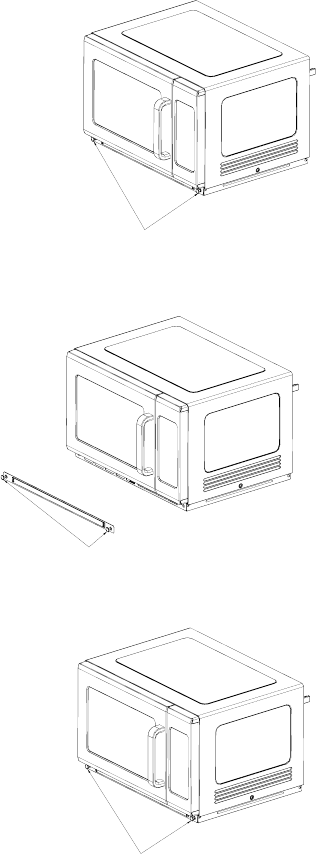

then replacing screw in its place tightly.
,Taking off installation board
) loosening screw
)taking off four screws as shown in the pictur
)putting
installation
board
to
the
following
location
then fixing screw just taking off tightly
C
( )Figure2
(A
(B
(
e.
The maximum overlap height is layers.two
4）Warning: T he plug socket,electric
appliances or the appliance which are
liable effected by heat and moisture should
be kept away from any vents on the oven.
8
Cleaning Instructions
Always keep the oven clean
1. Cleaning the glass viewing window, the inner door panel and oven front face.
For best performance and to maintain the high degree of safety, the inner door panel and
oven front face should be free of food or grease build-up. Wipe these parts with a mild
detergent, rinse and wipe dry. Never use abrasive powders or pads.
2. Cleaning the control panel and plastic parts.
Do not apply a detergent or an alkaline liquid spray to the control panel and plastic parts,
as this may cause damage to these parts.
Use a dry cloth (not a soaked cloth) to clean these parts.
3. Cleaning the oven interior
After use be sure to clean up spilled liquids, spattered oil and food debris as quickly as
possible. If the oven is used when dirty, efficiency drops and the dirt gets stuck on the oven
surface and may cause bad odours. Clean the interior with a cloth soaked in luke-warm
water with a mild detergent dissolved in it, then rinse the soap off with a damp cloth.
CAUTION: Do Not wipe plastic and painted sections of the oven with bleach, thinners or
other cleaning agents, as this may cause these parts to dissolve or change sharp.
4. Cleaning the oil blockage regularly,keep the oil blockage clear .Otherwise,the stain
will drop on the food.on the oil blockage
5. Cleaning the filter regularly, keep it clear .The appliance will over heat when the filter
is blocked.
6.When the appliance is operated,oil blockage and filter location must correct vioding to
damage other parts . ,a
( )the installation in page 18 and 19
Radio Interference
1. Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
9
Control Panel and Features
OPERATION
(1) Power Buttons
(2) Time Entry Button
(6) Number Keyboard
(1)
(2)
(3)
(4)
(5)
(6)
(4) Stop/Reset Button
(5) Start Button
(3) Double Quantity Button
10
OPERATION INSTRUCTION
Option Setting Discription
1
EOC Tone
2
Beeper
Volume
3
Beeper
On/Off
5
On the Fly
6 Door Reset
8 Manual
Programming
9
Double Digit
OP:10
OP:11
OP:12
OP:20
OP:21
OP:22
OP:23
OP:30
OP:31
OP:40
OP:41
OP:42
OP:43
OP:50
OP:51
OP:60
OP:61
OP:70
OP:71
OP:80
OP:81
OP:90
OP:91
4
Keyboard
Window
7 Max time
3 seconds beep
Continuous beep
5 quick beeps,Repeating
Beeper Off
Low
Medium
High
Keybeep Off
Keybeep On
15 seconds
30 seconds
60 seconds
120 seconds
On-the-Fly Disable
On-the-Fly Enable
Door reset Disable
Door Reset Enable
60 Minute Maximum Cook Time
10 Minute Maximum Cook Time
Manual Programming Disable
Manual Programming Enable
Single Digit Mode-10 programs
Doule Digit Mode-100 programs
Items bolded below are the default values.
Appendix. A User Options
11
The oven shall ship with the following Preset Cook Times unless otherwise noted in the
product Specification.
Button Display (Time) Power
1
2
3
4
5
6
7
8
9
0
0:10
0:20
0:30
0:45
1:00
1:30
2:00
: 0
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
Cook Factors
80%
80%
80%
80%
80%
80%
80%
80%
80%
80%
Appendix. B Default Cook Times
2:30
3:00
3 3
12
" " displays when the oven is electrified for the first time. If " " button
pressed, the oven will change to idle mode.
Note: Under idle mode, no button can be pressed.
1) Entry.The oven shall enter idle mode after a set of seconds have expired in Ready Mode
without a keyboard press or a door open and close. The number of seconds is determined
by the keyboard Timeout Window, set by User Option 4.
2) During idle mode, is blank.And there shall be no oven activity.
3) Opening and then closing the oven door, the oven will exit the idle mode and into
ready mode.
1) In this mode, the oven is ready to either begin a manual or preset cook cycle.
2) Opening and closing the door while the oven is in Idle Mode will put the oven
into Ready Mode.
2) During Ready Mode, "READY" displays.
3) From the Ready Mode, the oven can go to almost all of the other modes.
1) While the door of the oven is open, the oven shall be in Door Open Mode.
2) During this mode, is blank. And the fan and oven lamp work.
3) When the door is closed, if User Option OP:60 is selected and the oven was
running a manual or preset cook cycle, the oven shall enter Pause Mode.
In all other cases, the oven shall return to Mode with User Option OP:61
set,opening and closing the door will clear out any information about a Manual or
Preset Program which was running.
2. Idle Mode
3. Ready Mode
4. Door Open Mode
1. Power Up
_ _ _ _ _ _ _
the screen
the screen
For some model:
" " displays
230V TOUCH 1 208V TOUCH 2 when the oven is electrified for the first time.
Press number buttons "1" or "2" to choose,the screen will alternate display
"230V" or "208V", rolling display "TOUCH START",press " " button,
the oven will change to idle mode.
Door open
13
1) This mode allow the users to temporarily stop the cooking cycle to inspect or
stir the food item.
2) While in Manual Cook Mode, or Preset Program Cook Mode, if the door is open
or closed, or if the " " pad is pressed, the oven will enter Pause Mode.
3) While paused, will display the remaining cooking time.
4) Pause Mode will expire back to Idle Mode in the exact fashion as Ready Mode,
dependent on User Option 4. Additionally,if the " " button is pressed, the
oven shall immediately enter Ready Mode.OR if press " " button,
the oven will go into working mode.
3) During this mode, "00:00" displays
4) If you press "Hold 0% "," Defrost 20%","Medium 50%" or "Med-Hi 70%" button to select
power level, the screen will display the related power. If the same button pressed twice,
the power
will change to PL10. If no power chosen, "PL 0" is default.
5) During setting process, press " " to enter Manual Cook Mode.
Press " " to enter Ready Mode.
1) This mode allows cooking of the food items.While in Manual Cook Entry Mode, pressing
the " " pad will cause to the oven to begin Manual Cook Mode.
2) During this mode, remaning cooking time displays. The fan and oven lamp will light.
3) When cooking program finish, the oven will enter End of Cook Cycle Mode.
If you press " " button under this mode,the oven will enter Pause Mode.
1) The user may manuallly enter a cook time and power level while in this mode.
2) While the oven is in the Ready Mode,pressing the "Time Entry" pad on the keyboard will
put the oven into Manual Cook Entry Mode.
5. Pause Mode
6. Manual Cook Entry Mode
7. Manual Cook Mode
1
,input the time you need.
the screen
14
1) After the time has expired in a Manual Cook Mode, or a Preset Program Cook
Mode, the oven shall go into The End of Cook Cycle Mode.
2) During this mode, "DONE" displays.
3) If either User Option OP:11 or "OP:12" is selected, the oven shall continue to sound until
the user acknowledges this by either opening and closing the door or pressing the " "
pad. If User Option OP:10 is selected, after the 3 second beep, the oven shall go into
Ready Mode.
1) This mode allows cooking of food items through a one pad touch operation.
While in Ready Mode,pressing one of t digit keys on the keyboard will cause
the oven to run the Preset Program associated with that key.
2) During this mode, displays the remaining cooking time. If it is multi-stage cooking,
the total remaning cooking time displays not a particular stage cooking time.
) When cooking program finish, the oven will enter End of Cook Cycle Mode.
If you press " " button under this mode,the oven will enter Pause Mode.
buttons, the preset cooking program will start automatically.
8. End of Cook Cycle Mode
9. Preset Program Cook Mode
10. On the Fly Cooking
en
3
the screen
1) While the oven is cooking, if User Option OP:51 is selected,press number
2) The screen displays the remaining cooking time.
3) When cooking program finish, the oven will enter End of Cook Cycle Mode.
15
11. Programming Mode
This mode allows the user to assign cook times and power levels to the once touche button.
1) Open the door and press "1" pad for 5 seconds,the buzzer will sound once and enter to
Programming Mode.
2) "PROGRAM" displays. you can input the time
you need.
Hold 0% "," Defrost 20%","Medium 50%" or "Med-Hi 70%" to input the power level.
will display the related power. If the same button pressed twice, the power
will change to PL10. If no power chosen, "PL 0" is default.
80%. "CF: " displays. If you need to change the cooking , just press one of
the number buttons to set.
When the program saved, "PROGRAM" display
" " to save the program, the buzzer will sound three times briefly
tell you the time is no use. And then turn back to display "PROGRAM".
The time set before will be no change.
) Close the door, the oven will turn back to Ready Mode.
If press " " button during setting process, the oven turn to Door Open Mode.
The program that not saved will be lost. If there is program saved as memory procedure,
press the related number button, the saved program will start. If no saved program,
the buzzer will alarm when pressing number button and it will not work.
For example: set the program as memory cooking. Power level PL7 and cooking
time is 1 minute and 25 seconds.
Step1: Open the door, press number button "1" for 5 seconds,"PROGRAM" displays.
Step 2: Press number button "3", the screen will display "P:03",After two seconds,
Step 3: Press number buttons "1", "2" and "5" to input the cooking time.
Step 4: Press "Med-Hi/70% " button," " displays. Setting finished.
Step : Press " " to save. When use the program next time, just press "3",
the related program will start.
Note:
1. If the electricity is cut off, the saved program will not lost.
2. If the program need to reset , just repeat the aboved steps.
3. If press " " at the last step, it will turn back to Ready Mode. The setting will be no use.
1
5) After setting the time and power, press " ", the cooking program will be saved.
6) If all the cooking time exceeds the MAX.time User Option 7, when press
7
to
70
) To change the cooking fators: If press "X2", will display "CF:XX". The default
factor is
the screen
the screen
the screen
5
Note: et the timeS first,then choose the power.
1:25
the screen will display the time " :30".related
3) Press "
4
08 factor
s.
16
1) Through the use of the X2 pad, the user can easily set the time two of a particalar
food item.
2) If the "X2" button is pressed in ready mode, followed by the starting of a Preset Program,
or if the "X2" button is pressed in 5 secondes of starting a Preset Program, the oven will
start cooking with the quantity preset cooking time.
3) Press "X2", "DOUBLE" displays. When press number buttons, the screen will display the
quantity
preset time.
For example, number button "5" and its preset time is 1 minute. Then press "X2", then time
will change to 1:00*(1+0.8)=1:48(1 minute and 48 seconds)
4) When cooking program finish, the oven will enter End of Cook Cycle Mode.
Note: This function can be used under mode.
13. Stage Cooking Programming
This allows the user to cook food items at
1) Three stages can be set at most under cooking mode or programming mode.
Aftet setting the power and time for the first stage, press "Time Entry " to set the second stage.
And the same step to set the third stage.
2) When setting the second, third stage, press " Time Entry", "STAGE 2","STAGE 3"
displays.
3) Press " " button to start cooking.
Example: In programming mode, set t stages cooking.
The
first
stage is
PL7
and
time
is
1
minute 25 seconds. The second stage is PL5 and
5 minutes and 40 seconds. The steps are follow.
70" displays.
The first stage is finished.
Press " Time Entry", "STAGE 2" displays.
Medium 50% ", " " displays.
The second stage is finished.
Press " " button to start cooking.
12. Double Quantity cooking
wo
50
manual cook mode and program ing m de.m
.The total time cout s down.
1:25
5:40
o
- -
press number buttons " "3 to
-
ress number button "1" for 5 seconds,"PROGRAM" displays.
the
screen
will
display
the
time
"
:30".related
,pa.
b. Press number button "3", the screen will display "P:03",After two seconds,
c.Press "1","2","5" to input the cooking time. "1:25" displays.
d. Press "Med-Hi 70% ", "
e.
f. Press "5", "4","0" button, "5:40" displays.
g.Press "
h.
i
Open the door
n
programmpreset e
17
14. Use Option Mode
This allows the user choose between various ways for the oven to operate.
1) Open the oven door and press "2" pad for 5 seconds. The buzzer sounds once and enter
this mode.
2) displays "OP: - -".
3) Press any number button to enter related mode setting.
For example: to set the voice of the buzzer to medium. Press " 2 ", "OP:22" displays.
If you want to change, keep pressing "2", displays "OP:20", "OP:21","OP:22","OP:23",
"OP:20" .....in cycle.
4) Press " " to save the current setting. After saved, "OP: - -" display again.
5) During setting process, press " " to enter Door Open Mode. Close the door will enter
Ready Mode.
6) If " " button not pressed at the last step, the program cannot be saved but stay at previous
way.
15. Service Mode
1) Open the oven door and press "3" pad for 5 seconds to enter service mode.
2) displays "SE ".
3) To check the times of closing or opening the door, just press number button "3",
will display the times.
4) If press " 1 " pad for Tube Hours.
If press " 2 " pad for Tube Cycles.
If press " 3 " pad for Door Cycles..
If press " 4 " pad to Clear service information.
Only for some medels:
If press " 5 " pad to run Top Mag. Oven displays amps.
If press " 6 " pad to run Bottom Mag. Oven displays amps.
5) Press " " to enter Door Open Mode. Close the door will enter Ready Mode.
16. Factory-default setting
1) Press " " and " 0 ", the buzzer sounds once,and the screen wil l display "CHECK". I f i t is in the
factory-default setting, will display " 11 ",after three seconds, turn to the ready
mode
In the Ready Mode,pressing " " an " 0 " to factory-default setting.
d
the oven
.Press" " If not in to cancel the display ang back to ready back in the process of display.
the factory-default setting, will display " 00 ", press" " to the factory-default setting,
will display " CLEAR ".
2) If do not press " " when the display " 00 ",the setting will cancel.
the screen
The screen
the screen
the screen
The screen
the screen
the screen
screen
RVICE
Note: actort-default setting operation restore all configure to f . Be careful in the as it will
the buzzer sounds once,after self-testing,the screen will
display " "11 or " "00 .
18
Pull up the
Take off the fil er
.
To restall,align the base plate mounting holes,
How to remove and install the filter
plastic nail cap
insert the plastic nails,press the plastic nail cap
t
.
19
thumb pressed here
the
arrow shown,pushed back slamly, then
pulling down.
1 hands with oil blockage ,pressed on
2.status of remove
3.taking oil from the appliance. blockage
1.Hands to take the oil ,after alignment
three cylinder of the oil , inserting
the
three
blockage
blockage
2.The left hand grasp the microwave, right thumb to
press the arrow directions and forced to push back.
And
the
left thumb hard pressed
upword at the
same time. put the right of oil blockage
buckle .
3.From right to left, make the oil the oil
buckle completely go.
blockage loaded.
W
hen finish, check to
ensure that blockage
thumb pressed here
How to remove and install the blockage
into
the of the front plate
holes of the back plate.
oil
Warning:Before remove and install the oil blockage,
avoid high temperature scald.
be sure to unplug the
appliance from the power supply,and
20

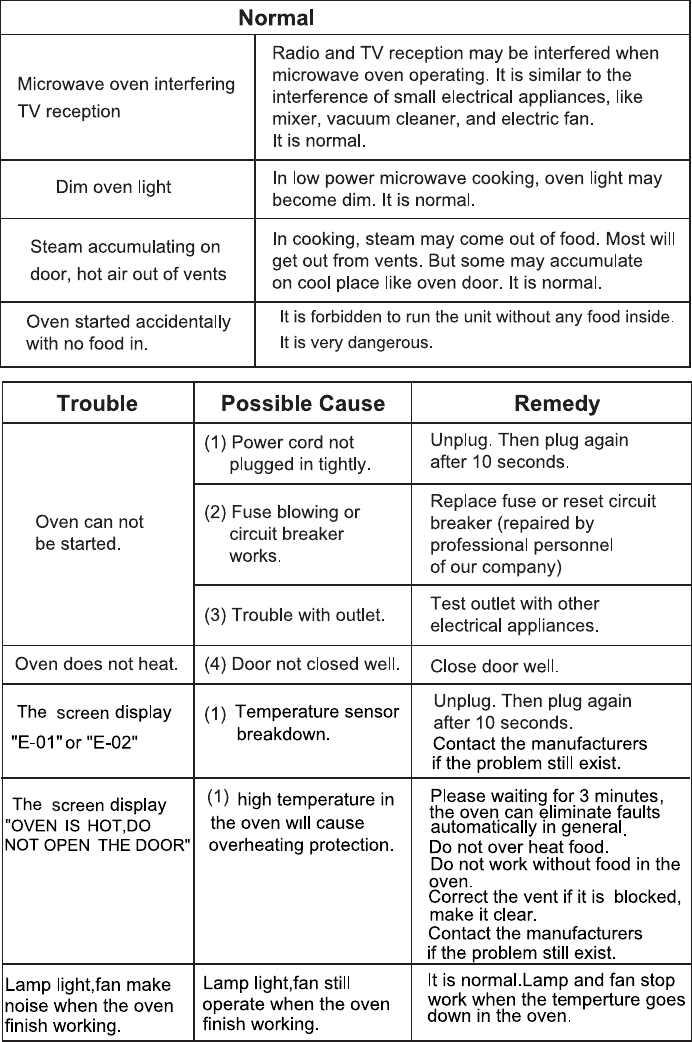

Trouble shooting
21

Navigation menu
