VG8XM044KYY_User Manual_part 01
![](/img.php?id=2500093&img=bg1.png)
TABLE OF CONTENTS
All about the
Use & Care
of your Microwave Oven
WELCOME & CONGRATULATION ............................2
IMPORTANT SAFETY INSTRUCTIONS ......................2
PART NAMES ........................................................8
BEFORE OPERATING ...........................................10
COOKING .............................................1
OR7_NEW Model_EN-4.indd 1 09.4.28 11:46:16 AM
MANUAL COOKING .............................................. 11
AUTO
CLEANING AND CARE ..........................................21
SERVICE CALL CHECK
SPECIFICATIONS.................................................
25
WARRANTY .........................................................
COOKINGCHARTS .............................................. 19
....
.................................... . . . . 24
24
7
316902416 (February 2010)
EM044KID
MODEL:
![](/img.php?id=2500093&img=bg2.png)
2
WELCOME & CONGRATULATIONS
Before you call for service, there are a few things you can do to help us serve you better.
Read this manual.
It contains instructions to help you use and maintain your microwave oven properly.
If you received a damaged Microwave Oven... immediately contact the dealer (or builder)
that sold you the Microwave Oven.
Save time and money.
Check the section titled “Service Call Check”. This section helps you solve common problems
that might occur. If you do need service, you can relax knowing help is only a phone call away.
A list of toll-free customer service numbers is included in the back of this manual.
NEED HELP?
Congratulations on your purchase of a new microwave oven!
we are very proud of our product and are completely committed to providing you with the best
service possible. Your satisfaction is our number one priority.
We know you’ll enjoy your new microwave oven and Thank You for choosing our product. We
hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specifi c operating instructions for your model. Use your
microwave oven only as instructed in this manual. These instructions are not meant to cover
every possible condition and situation that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any appliance.
Please record your model and serial numbers below for future reference.
Model Number:
______________________________________________________________________________
Serial Number:
______________________________________________________________________________
Purchase Date:
______________________________________________________________________________
Questions?
Please attach sales receipt
here for future reference.
IMPORTANT SAFETY INSTRUCTIONS
For your safety the information in this manual must be followed to minimize the risk
of fi re or explosion or to prevent property damage, personal injury or loss of life.
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that
there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and
sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualifi ed service personnel.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
OR7_NEW Model_EN-4.indd 2 09.4.28 11:46:18 AM
![](/img.php?id=2500093&img=bg3.png)
3
IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions before using the appliance.
• Read and follow the specifi c “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 2.
• This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” on page 4.
• Install or locate this appliance only in accordance with
the provided installation instructions.
• Some products such as whole eggs and sealed containers
—for example, closed glass jars—are able to explode
and should not be heated in this microwave oven.
• Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or
vapors in this appliance. This type of microwave oven is
specifi cally designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary
when used by children.
• Do not operate this appliance if it has a damaged cord
or plug, if it is not working properly or if it has been
damaged or dropped.
• This appliance should be serviced only by qualifi ed
service personnel. Contact nearest Authorized
Servicer for examination, repair or adjustment.
• Do not cover or block any openings on the appliance.
• Do not store or use this appliance outdoors. Do not use
this product near water—for example, near a kitchen
sink, in a wet basement or near a swimming pool, or
similar locations.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• See door surface cleaning instructions on page 23.
• To reduce the risk of fi re in the microwave oven cavity:
- Do not overcook food. Carefully attend
appliance when paper, plastic or other
combustible materials are placed inside the
microwave oven to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags
before placing bag in microwave oven.
- If materials inside the microwave oven ignite,
keep microwave oven door closed, turn
microwave oven off and disconnect the power
cord or shut off power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils or food in the
cavity when not in use.
•
Liquids, such as water, coffee or tea are able to be
overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
-
Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container.
- After heating, allow the container to stand in the
microwave oven at least for 20 seconds before
removing the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
•
Clean ventilation openings and grease fi lters frequently.
Grease should not be allowed to accumulate on
ventilation openings, louver or grease fi lters.
•
Use care when cleaning the louver and the grease fi lters.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the louver and the grease fi lters.
• When fl aming food under the hood, turn the fan on.
• This appliance is suitable for use above both gas and
electric cooking equipment 36” wide or less.
READ ALL INFORMATION BEFORE USING
SAVE THESE INSTRUCTIONS.
WARNING
To reduce the risk of fi re, burns, electric shock, injury
to persons, or exposure to excessive microwave energy
when using your appliance, follow basic precautions,
including the following sections.
WARNING
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
Defi nitions
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
OR7_NEW Model_EN-4.indd 3 09.4.28 11:46:18 AM
![](/img.php?id=2500093&img=bg4.png)
4
IMPORTANT SAFETY INSTRUCTIONS
Electrical Requirements
Check Installation Instructions for proper location for the
power supply.
The electrical requirements are a 120 volt 60 Hz, AC
only, 15 amp. or more protected electrical supply. It is
recommended that a separate circuit serving only the
microwave oven be provided.
The microwave oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded. DO NOT
UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE
GROUNDING PIN FROM THE PLUG.
DO NOT USE AN EXTENSION CORD.
If the power supply cord is too short, have a qualifi ed
electrician or serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to
a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch
circuit, single grounded receptacle. The receptacle
should be located inside the cabinet directly above the
Microwave Oven mounting location as shown in Figure 1.

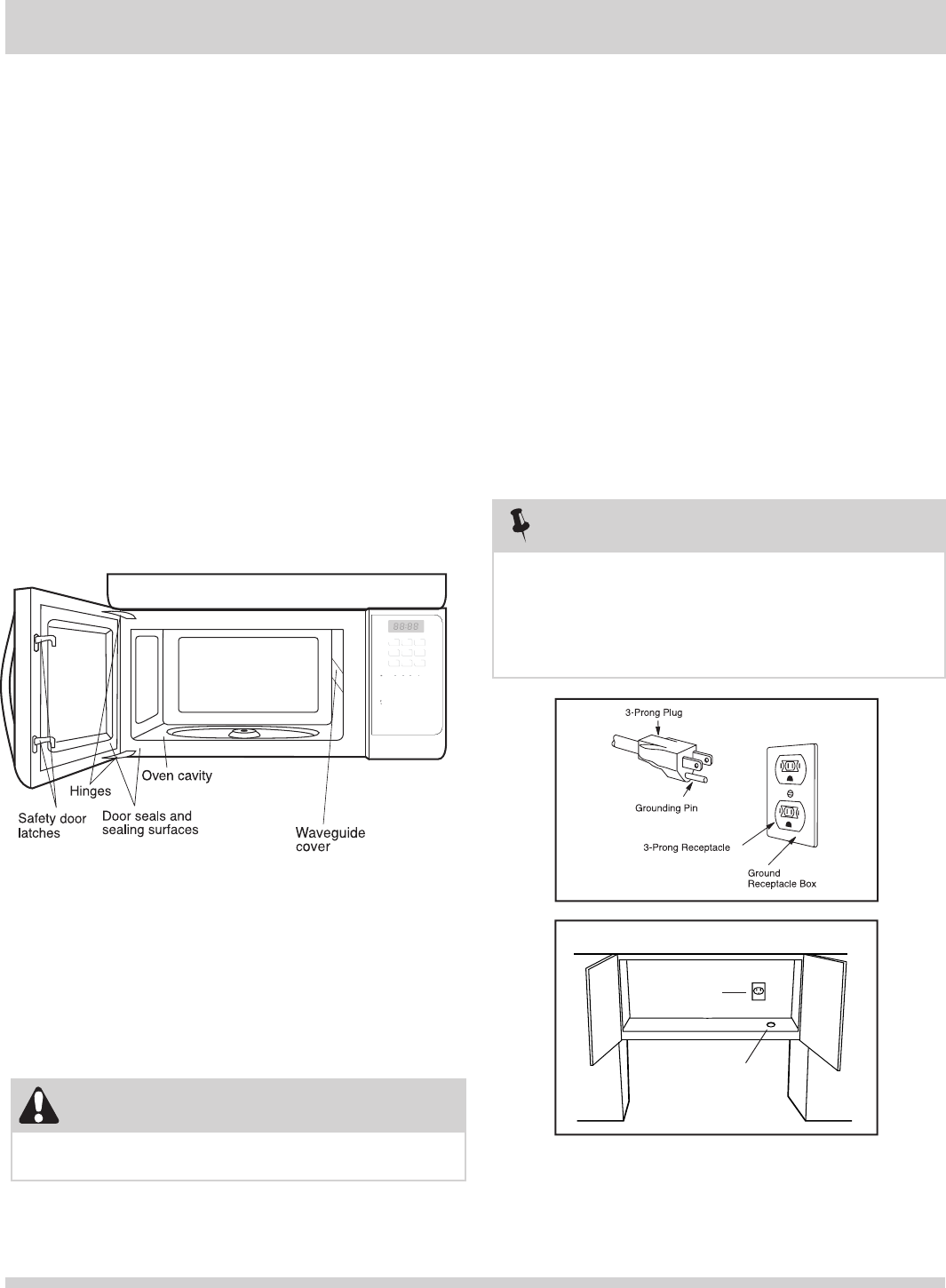

Figure 1
Ground
Receptacle
Opening for
Power Cord
WARNING
Improper use of the grounding plug can result in a risk
of electric shock.
NOTES
1.
If you have any questions about the grounding or electrical
instructions, consult a qualifi ed electrician or service person.
2. Neither nor the dealer can accept any
liability for damage to the microwave oven or
personal injury resulting from failure to observe the
correct electrical connection procedures.
GROUNDING INSTRUCTIONS
This appliance must be grounded. This microwave oven
is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded in accordance
with the National Electrical Code and local codes and
ordinances. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an
escape wire for the electric current.
UNPACKING AND EXAMINING YOUR
MICROWAVE OVEN
Open the bottom of the carton, bend the carton fl aps
back and tilt the microwave oven over to rest on plastic
foam pad. Lift carton off microwave oven and remove
all packing materials, Installation Instructions, Wall
Template, Top Template, Charcoal Filter, Turntable and
Turntable Support. SAVE THE CARTON AS IT MAY MAKE
INSTALLATION EASIER.
• Remove the feature sticker from the outside of the
door, if there is one.
•
DO NOT REMOVE THE WAVEGUIDE COVER.
Check to see that there are Installation Instructions,
Wall Template, Top Template and Charcoal Filter, which
is used when recirculating is chosen. Read enclosures
and SAVE the Use and Care Manual.
Check the microwave oven for any damage, such as
misaligned or bent door, damaged door seals and sealing
surfaces, broken or loose door hinges and latches and
dents inside the cavity or on the door. If there is any
damage, do not operate the microwave oven and contact
your dealer or SERVICER. See Installation
Instructions for more details.
OR7_NEW Model_EN-4.indd 4 09.4.28 11:46:19 AM
startstop
cancel
exhaust
hi·lo·off
light
on·off
clock
popcorn potato beverage
reheat defrost
wt/time
power
level
+ 30 sec
timercook
time
ready set
0
13
2
98
7
6
5
4
we
![](/img.php?id=2500093&img=bg5.png)
5
IMPORTANT SAFETY INSTRUCTIONS
Federal Communications Commission Radio Frequency Interference Statement
(U.S.A. Only)
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance
with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested
and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following:
• Reorient the receiving antenna of the radio or television.
•
Relocate the microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
•
Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch
circuits.
The manufacturer is not responsible for any radio or television interference caused by unauthorized modifi cation
to this microwave oven. It is the responsibility of the user to correct such interference.
OR7_NEW Model_EN-4.indd 5 09.4.28 11:46:19 AM
![](/img.php?id=2500093&img=bg6.png)
6
IMPORTANT SAFETY INSTRUCTIONS
ABOUT YOUR MICROWAVE OVEN
This Use and Care Manual is valuable: read it carefully and
always save it for reference.
A good microwave cookbook is a valuable asset. Check it for
microwave cooking principles, techniques, hints and recipes.
NEVER use the microwave oven without the turntable and
support nor turn the turntable over so that a large dish could
be placed in the microwave oven. The turntable will turn both
clockwise and counterclockwise. See page 23 for complete
instructions.
ALWAYS have food in the microwave oven when it is on to
absorb the microwave energy.
When using the microwave oven at power levels below 100%,
you may hear the magnetron cycling on and off. It is normal
for the exterior of the microwave oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking. Room
humidity and the moisture in food will infl uence the amount
of moisture that condenses in the microwave oven. Generally,
covered foods will not cause as much condensation as
uncovered ones. Ventilation openings must not be blocked.
The microwave oven is for food preparation only. It should not
be used to dry clothes or newspapers.
Your microwave oven is rated 1000 watts by using the IEC
Test Procedure. In using recipes or package directions, check
food a minute or two before the minimum time and add time
accordingly.
ABOUT MICROWAVE COOKING
•
Arrange food carefully. Place thickest areas towards outside of dish.
• Watch cooking time. Cook for the shortest amount of
time indicated and add more as needed. Food severely
overcooked can smoke or ignite.
•
Cover foods while cooking. Check recipe or cookbook for
suggestions: paper towels, wax paper, microwave plastic wrap or
a lid. Covers prevent spattering and help foods to cook evenly.
• Shield with small fl at pieces of aluminum foil any thin areas
of meat or poultry to prevent overcooking before dense, thick
areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice during
cooking, if possible.
• Turn foods over once during microwaving to speed cooking
of such foods as chicken and hamburgers. Large items like
roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking
both from top to bottom and from the center of the dish to
the outside.
• Add standing time. Remove food from microwave oven and
stir, if possible. Cover for standing time which allows the food
to fi nish cooking without overcooking.
• Check for doneness. Look for signs indicating that cooking
temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and fl akes easily with a fork.
ABOUT FOOD
• Cook eggs in shells.
• Reheat whole eggs.
• Dry nuts or seeds in shells.
• Pop popcorn in regular brown bags or glass bowls.
• Exceed maximum time on popcorn package.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
• Heat or cook in closed glass jars or air tight
containers.
• Can in the microwave as harmful bacteria may not
be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet papers.
Eggs,
sausages,
nuts, seeds,
fruits &
vegetables
Popcorn
Baby food
General
FOOD DO DON’T
• Puncture egg yolks before cooking to prevent
“explosion”.
• Pierce skins of potatoes, apples, squash, hot dogs
and sausages so that steam escapes.
•
Use specially bagged popcorn for microwave cooking.
• Listen while popping corn for the popping to slow
to 1 or 2 seconds or use special popcorn pad.
• Transfer baby food to small dish and heat carefully,
stirring often. Check temperature before serving.
• Put nipples on bottles after heating and shake
thoroughly. “Wrist” test before feeding.
• Cut baked goods with fi
lling after heating to release
steam and avoid burns.
• Stir liquids briskly before and after heating to avoid
“eruption”.
• Use deep bowl, when cooking liquids or cereals, to
prevent boilovers.
OR7_NEW Model_EN-4.indd 6 09.4.28 11:46:20 AM
![](/img.php?id=2500093&img=bg7.png)
7
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave oven with
a supervising person very near to them. Between the ages of 7
and 12, the supervising person should be in the same room.
As with any appliance, close supervision by an adult is
necessary when used by children.
At no time should anyone be allowed to lean or swing on the
microwave oven door.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special attention to
packages that crisp food because they may be extra hot.
Don’t assume that because a child has mastered one cooking
skill he/she can cook everything.
Children need to learn that the microwave oven is not a toy. See
page 20 for Child Lock feature.
ABOUT SAFETY
• Check foods to see that they are cooked to the United States
Department of Agriculture’s recommended temperatures.
TEMP FOOD
145°F
(63°C) - For beef, lamb or veal cut into steaks, chops or
roasts, fi sh
160°F
(71°C) - For fresh pork, ground meat, seafood, egg dishes,
frozen prepared food and beef, lamb or veal cut into
steaks, chops or roasts
165°F
(74°C) - For leftover, ready-to-reheat refrigerated, deli and
carry out “fresh” food, whole chicken or turkey,
chicken or turkey breasts and ground poultry used
in chicken or turkey burgers
To test for doneness, insert a meat thermometer in a thick
or dense area away from fat or bone. NEVER leave the
thermometer in the food during cooking, unless it is approved
for microwave oven use.
• ALWAYS use potholders to prevent burns when handling
utensils that are in contact with hot food. Enough heat from
the food can transfer through utensils to cause skin burns.
• Avoid steam burns by directing steam away from the face and
hands. Slowly lift the farthest edge of a dish’s covering and carefully
open popcorn and oven cooking bags away from the face.
• Stay near the microwave oven while it’s in use and check
cooking progress frequently so that there is no chance of
overcooking food.
• NEVER use the cavity for storing cookbooks or other items.
• Select, store and handle food carefully to preserve its high
quality and minimize the spread of foodborne bacteria.
• Keep waveguide cover clean. Food residue can cause arcing
and/or fi res.
• Use care when removing items from the microwave oven so
that the utensil, your clothes or accessories do not touch the
safety door latches.
• Keep aluminum foil used for shielding at least 1 inch away
from walls, ceiling and door.
IMPORTANT SAFETY INSTRUCTIONS
ABOUT UTENSILS AND COVERINGS
It is not necessary to buy all new cookware. Many pieces already in your
kitchen can be used successfully in your new microwave oven. Make
sure the utensil does not touch the interior walls during cooking.
Use these utensils for safe microwave
cooking and reheating:
• glass ceramic (Pyroceram®), such as Corningware®.
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• paper plates
• microwave-safe pottery, stoneware and porcelain
• browning dish (Do not exceed recommended preheating time.
Follow manufacturer’s directions.)
These items can be used for short time reheating
of foods that have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for microwaving, place
the empty dish in the microwave oven and microwave on HIGH for
30 seconds. A dish which becomes very hot should not be used.
The following coverings are ideal:
• Paper towels are good for covering foods for reheating and
absorbing fat while cooking bacon.
• Wax paper can be used for cooking and reheating.
• Plastic wrap that is specially marked for microwave use can
be used for cooking and reheating. DO NOT allow plastic
wrap to touch food. Vent so steam can escape.
• Lids that are microwave-safe are a good choice because heat
is kept near the food to hasten cooking.
• Microwave oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal twist ties.
Remember to slit bag so steam can escape.
How to use aluminum foil in your
microwave oven:
•
Small fl at pieces of aluminum foil placed smoothly on the food can be
used to shield areas that are either defrosting or cooking too quickly.
• Foil should not come closer than one inch to any surface of
the microwave oven.
Should you have questions about utensils or coverings, check a
good microwave cookbook or follow recipe suggestions.
ACCESSORIES There are many microwave accessories available
for purchase. Evaluate carefully before you purchase so that they
meet your needs. A microwave-safe thermometer will assist you
in determining correct doneness and assure you that foods have
been cooked to safe temperatures.
for any damage to the microwave oven when accessories are used.
NOTE
Do not cook whole, stuffed poultry. Cook stuffi ng
separately to 165°F.
OR7_NEW Model_EN-4.indd 7 09.4.28 11:46:20 AM
we are not responsible
![](/img.php?id=2500093&img=bg8.png)
8
PART NAMES
1
2
4
5
6
7
9
10
OR7_NEW Model_EN-4.indd 8 09.4.28 11:46:20 AM
3

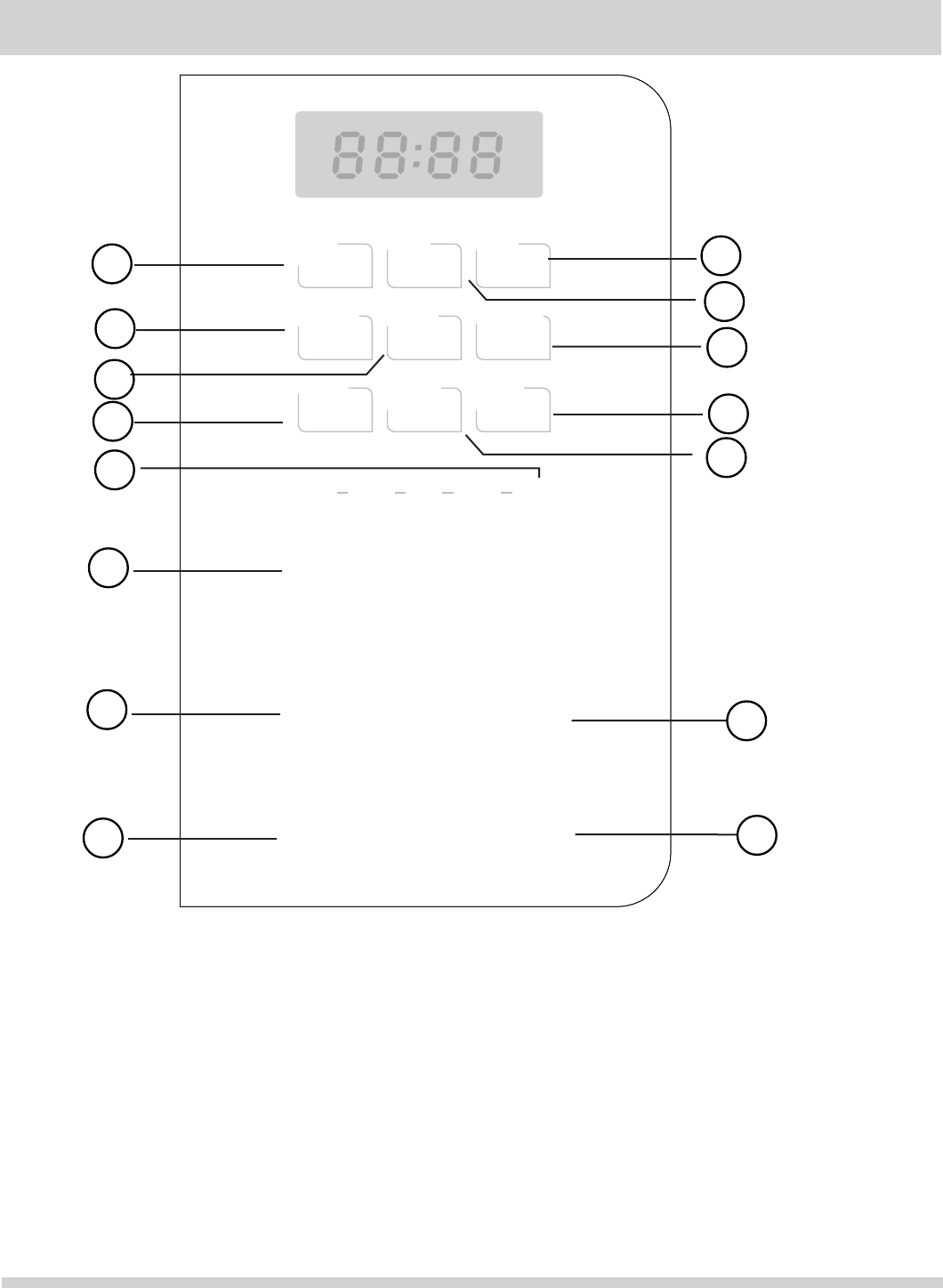

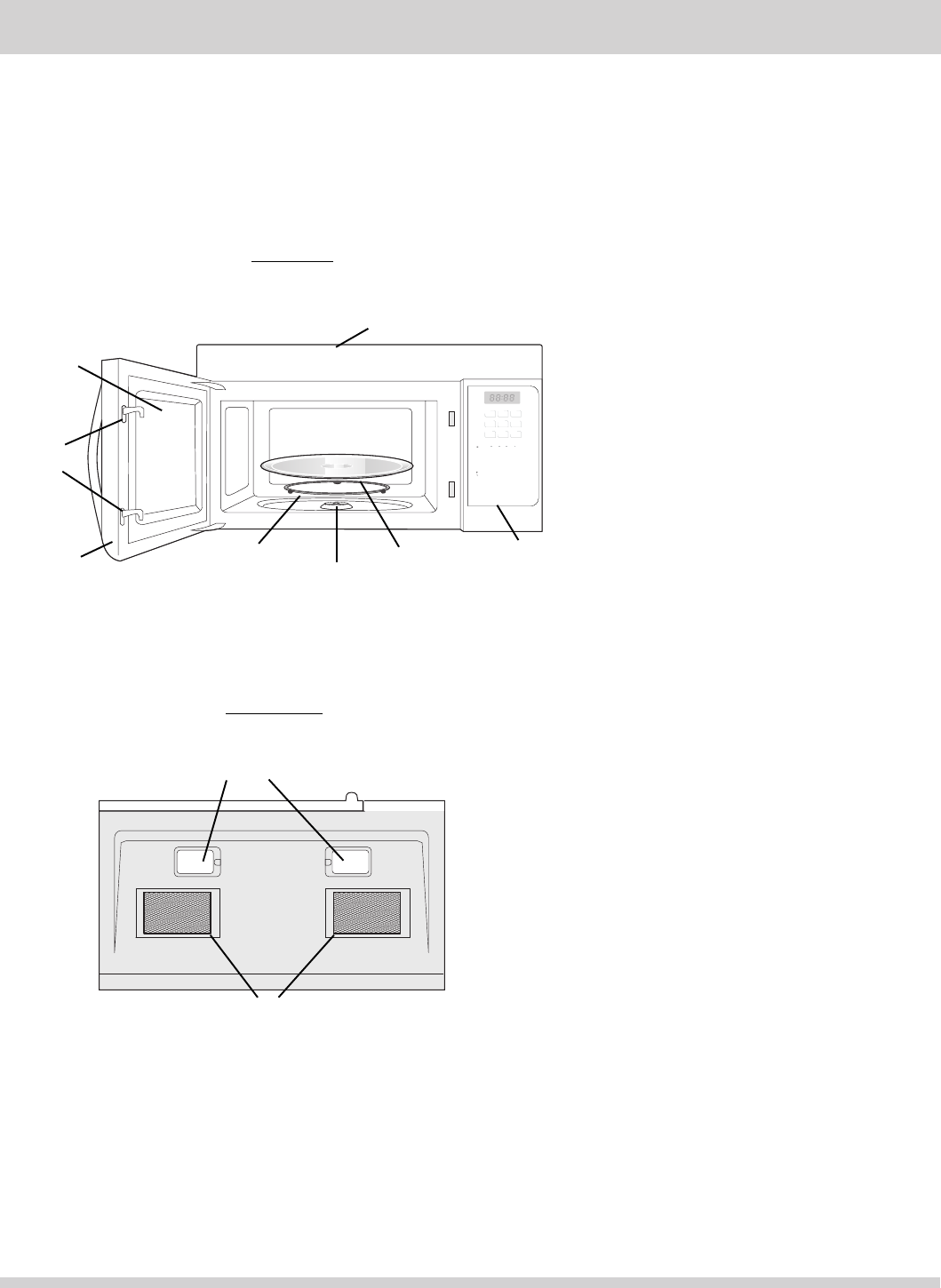

Microwave features
Turntable Shaft
Turntable ring assembly
Turntable glass tray
Control panel
Door assembly
Window
Interlock system
Front View
Bottom View
Front
Rear
Surface lights
Ventilation filters
Ventilation openings (on top)
8
1
2
34 56 7
8
9
10
startstop
cancel
exhaust
hi·lo·off
light
on·off
clock
popcorn potato beverage
reheat defrost
wt/time
power
level
+ 30 sec
timercook
time
ready set
0
13
2
98
7
6
5
4
![](/img.php?id=2500093&img=bg9.png)
9
CONTROL PANEL
OR7_NEW Model_EN-4.indd 9 09.4.28 11:46:21 AM
11
12
5
4
6
9
7
10
12
14 15
8
13
(11) Power Level (10 power levels available)
(12) +30 sec
(13)
(14)
Stop/Cancel
(15) Surface Light ~ Press this pad to turn the
surface lights on or off.
(1) Popcorn
(2) Beverage
(3) Potato (1-3 potatoes)
(4) Reheat (3 different settings)
(5) Defrost (by time or weight)
(6) EasySet (3 instant key settings)
(7)
(8) Clock
(9) Timer
(10) Cook Time
startstop
cancel
exhaust
hi·lo·off
light
on·off
clock
popcorn potato beverage
reheat defrost
wt/time
power
level
+ 30 sec
timercook
time
ready set
0
13
2
98
7
6
5
4
3
START/
Exhaust (High/Low/Off) ~ Use to turn the
Numeric pads (0 thru 9)
exhaust fan on, off, or to adjust fan speed.
