USER GUIDE
1.6 Cu. Ft.
Microwave Oven
NS-MW16SS8
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 1 Tuesday, June 13, 2017 6:40 PM
v1
R2
www.insigniaproducts.com
2
Contents
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Cookware and cooking materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Materials you can use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Materials to be avoided. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Package contents: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

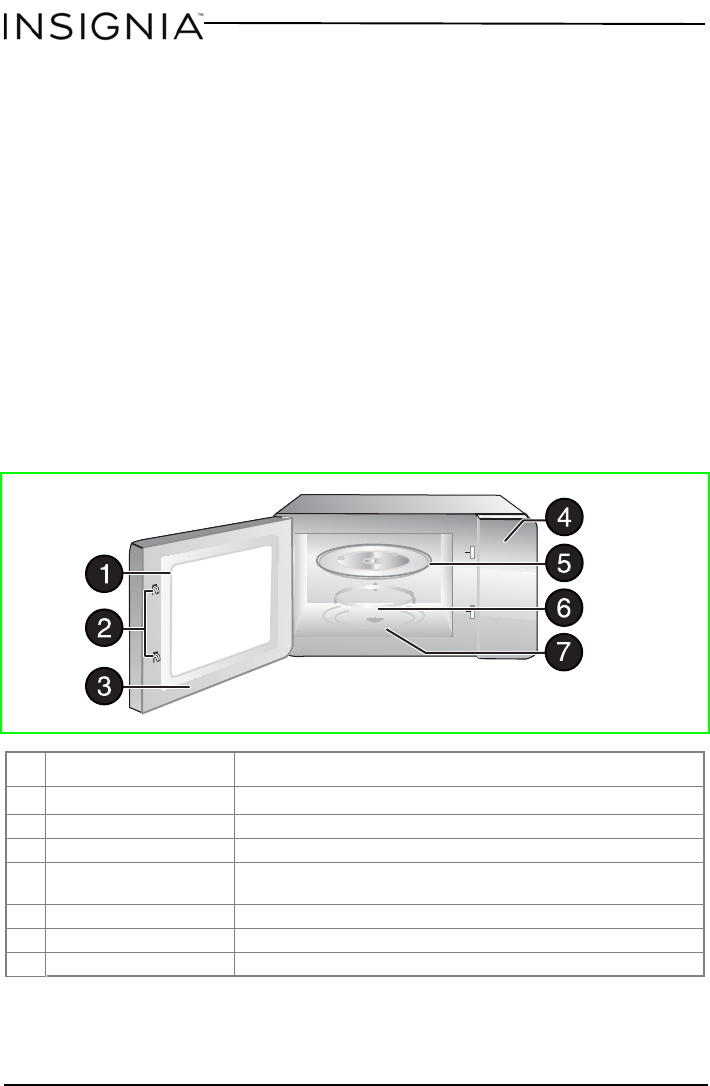

Microwave oven (Please verify the accuracy of this graphic). . . . . 8

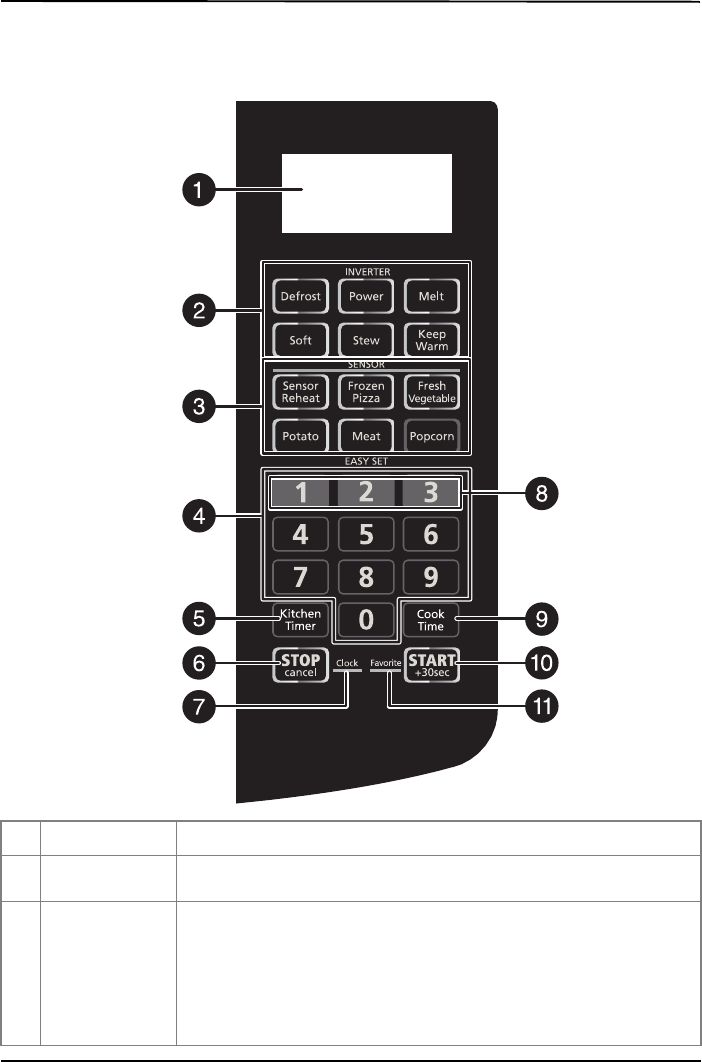

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Setting up your microwave oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing the turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using your microwave oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Understanding and setting the power level . . . . . . . . . . . . . . . . . . .12
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the kitchen timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cooking in your microwave oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cooking quickly with Easy Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Defrosting in your microwave oven . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cooking popcorn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using Melt, Soft, Stew, and Keep Warm. . . . . . . . . . . . . . . . . . . . . . . .14
Using Sensor cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Reheating food with the Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Using the memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using multi-stage cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Checking the time and power level while cooking . . . . . . . . . . . . .19
Using the child-lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Maintaining your microwave oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
SAFETY INFORMATION
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 2 Tuesday, June 13, 2017 6:40 PM
3
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY:
1Do not attempt to operate this oven with the door open because this
can result in harmful exposure to microwave energy. It is important
not to defeat or tamper with the safety interlocks.
2Do not place any object between the oven front face and the door or
allow soil or cleaner residue to accumulate on sealing surfaces.
3Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
(a) door (bent)
(b) hinges and latches (broken or loosened)
(c) door seals and sealing surfaces
4The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
IMPORTANT SAFETY INSTRUCTIONS
1Read all instructions before using the oven.
2Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY:” found on page 3.
3As with any cooking appliance, close supervision is necessary to
reduce the risk of a fire in the oven cavity and especially when the
oven is used by children.
4To reduce the risk of fire in the oven cavity:
• Do not overcook food. Carefully attend the oven when paper,
plastic, or other combustible materials are placed inside the
oven to facilitate cooking.
• Remove wire twist-ties and metal handles from paper or plastic
containers/bags before placing them in the oven.
• If materials inside the oven ignite, keep the oven door closed.
Turn the oven off and unplug the oven or shut off power at the
fuse or circuit breaker panel.
Warning
To reduce the risk of burns, electric shock, fire,
injury to persons, or exposure to excessive
microwave oven energy when using your oven,
follow these basic safety precautions.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 3 Tuesday, June 13, 2017 6:40 PM
4
NS-MW16SS8
www.insigniaproducts.com
• Do not use the oven cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
5This oven must be grounded. Connect only to a properly grounded
outlet. See “GROUNDING INSTRUCTIONS” found on page 5.
6Install or locate this appliance only in accordance with the provided
installation instructions.
7Some products, such as whole eggs and sealed containers (for
example closed glass jars), are able to explode and should not be
heated in this oven.
8Use this oven only for its intended purpose, as described in this
manual. Do not use corrosive chemicals or vapors in this oven. This
oven is specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
9Do not operate this oven if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped.
10 This oven should be serviced only by qualified service technicians.
Contact the nearest authorized service facility for examination, repair,
or adjustment.
11 Do not cover or block any openings on the oven.
12 Do not store or use this oven outdoors.
13 Do not use this oven near water (for example, near a kitchen sink, in a
wet basement, near a swimming pool, or similar locations).
14 Do not immerse the cord or plug in water.
15 Keep the cord away from heated surfaces.
16 Do not let the cord hang over the edge of a table or counter.
17 When cleaning the surfaces of the door and the oven that come
together on closing the door, use only mild, nonabrasive soaps or
detergents applied with a sponge or soft cloth.
18 Liquids, such as water, coffee, or tea can be overheated beyond the
boiling point without appearing to be boiling. Visible bubbling or
boiling when the container is removed from the microwave oven is
not always present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A
SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into
the container.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 4 Tuesday, June 13, 2017 6:40 PM
5
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This oven must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire
for the electric current. This oven is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions
are not completely understood or if doubt exists as to whether the oven is
properly grounded. If it is necessary to use an extension cord, use only a
3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the oven. The marked rating of the
extension cord shall be equal to or greater than the electrical rating of the
oven.
• A short power-supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords are available and may be used
if care is exercised in their use.
• If a long cord set or extension cord is used:
• The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the oven.
• The extension cord must be a grounding-type 3-wire cord.
• The longer cord should be arranged so that it will not drape
over the countertop or tabletop where it can be pulled on by
children or tripped over unintentionally.
WARNING
Handling the power cord on this oven, or cords
associated with accessories sold with this oven,
will expose you to lead, a chemical known to the
state of California to cause cancer and birth
defects or other reproductive harm.
Wash your hands after handling.
WARNING
Electric Shock Hazard
Touching some of the internal components can
cause serious personal injury or death. Do not
disassemble this oven.
Improper grounding can result in electric shock.
Do not plug into an outlet until the oven is
properly installed and grounded.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 5 Tuesday, June 13, 2017 6:40 PM
6
NS-MW16SS8
www.insigniaproducts.com
RADIO INTERFERENCE
1Operation of the microwave oven may cause interference to your
radio, TV, or similar equipment.
2When there is interference, it may be reduced or eliminated by taking
the following measures:
• Clean the door and the sealing surface of the oven.
• Reorient the receiving antenna of the radio or television.
• Relocate the oven with respect to the receiver.
• Move the oven away from the receiver.
• Plug the oven into a different outlet so that the oven and
receiver are on different branch circuits.
Cookware and cooking materials
Cookware and other materials must fit on the turntable. Always use oven
mitts or pot holders because cookware may become hot.
Refer to the Materials you can use and Materials to be avoided tables
as a guide, then test before using.
Cookware and Materials Test:
1Fill a microwave-safe container with 1 cup (250 ml) of cold water, along
with the cookware or materials in question.
2Cook on maximum power for one minute. Do not exceed one minute
cooking time.
3Carefully feel the cookware or material. If the empty cookware or
material is warm, do not use it for microwave cooking.
Materials you can use
Warning
Personal Injury Hazard
Tightly-closed containers could explode. Closed
containers should be opened and plastic
pouches should be pierced before cooking.
MATERIAL REMARKS
Aluminum foil
Use as shielding only. Small, smooth pieces can be used to cover thin
parts of meat or poultry to prevent overcooking. Arcing can occur if the
foil is too close to oven walls. The foil should be at least 1 inch (2.5 cm)
away from oven walls.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 6 Tuesday, June 13, 2017 6:40 PM
7
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Materials to be avoided
Browning dish
Follow the manufacturer’s instructions. The bottom of the browning dish
must be at least 3/16-in. (5mm) above the turntable. Incorrect usage may
cause the turntable to break.
Dinnerware Use microwave-safe only. Follow the manufacturer's instructions. Do not
use cracked or chipped dishes.
Glass jars Always remove the lid. Use only to heat food until just warm. Most glass
jars are not heat resistant and may break.
Glassware Use heat-resistant oven glassware only. Make sure that there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking
bags
Follow the manufacturer’s instructions. Do not close with a metal tie.
Make slits to allow steam to escape.
Paper plates and
cups
Use for short–term cooking/warming only. Do not leave the oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision
for short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Use only if labeled “Microwave Safe.” Follow the manufacturer’s
instructions. Some plastic containers soften as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced, or
vented, as indicated on the package.
Plastic wrap Use microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Use microwave-safe only (such as meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
MATERIAL REMARKS
Aluminum tray May cause arcing. Use a microwave-safe dish instead.
Food carton with
metal handle May cause arcing. Use a microwave-safe dish instead.
Metal or metal
trimmed utensils
Metal shields the food from microwave energy. The metal trim may cause
arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood Wood will dry out when used in the microwave oven and may split or
crack.
MATERIAL REMARKS
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 7 Tuesday, June 13, 2017 6:40 PM
8
NS-MW16SS8
www.insigniaproducts.com
Features
•1250 Watts of power
•Sensor cooking
•LED display
•Easy to clean
•Child lock
Package contents:
• 1.6 Cu. Ft. compact microwave oven
• Glass tray (13.6 in. [345 mm])
• Turntable ring
•User Guide
Microwave oven (Please verify the accuracy of this
graphic)
#ITEM DESCRIPTION
1 Observation window Use to view the item being cooked.
2 Safety interlock system Prevents the oven from operating when the door is open.
3 Door assembly Protects you from exposure to excessive microwave energy.
4 Control panel Use to set cooking times and enter other information as
needed.
5 Glass turntable Allows food to cook evenly.
6 Turntable ring assembly Allows the turntable to rotate to cook food evenly.
7 Turntable shaft Rotates the turntable assembly.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 8 Tuesday, June 13, 2017 6:40 PM
9
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Control panel
#ITEM DESCRIPTION
1Display In standby mode, displays the time. In cooking mode, displays
cooking time, weight, and other information.
2Function
buttons
Press the button for the function you want.
Defrost - See “Defrosting in your microwave oven” on page 14.
Power - Press this button, then a number (1-10) on the number pad
to select the power level you want. See “Understanding and setting
the power level” on page 12.
Melt, Soft, Stew, Keep Warm - See “Using Melt, Soft, Stew, and Keep
Warm” on page 14.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 9 Tuesday, June 13, 2017 6:40 PM
10
NS-MW16SS8
www.insigniaproducts.com
Setting up your microwave oven
1Remove the oven and all materials from the carton and oven cavity.
2Examine the oven for any damage, such as dents or a broken door. Do
not install or use the oven if any damage is found.
3Remove any protective film from the microwave oven cabinet surface,
the door, and the control panel.
4Place the oven on a level surface that provides enough open space for
the intake and outlet vents.
3 Sensor buttons Press the button for the type of food you want to cook with the
sensor. See “Using Sensor cooking” on page 15.
4Number buttons
Press to enter cook time, defrost time, clock time, and other
information.
5Kitchen Timer Press this button, then enter the time you want to count down.
6
(
Stop/
Cancel)
Press to stop the cooking process. Press again to cancel the cooking
operation.
7Clock Press to set the clock, then press the number buttons to enter the
current time.
8Easy Set buttons
Press button 1, 2, or 3 to begin cooking immediately for one to three
minutes, respectively
.
See “Cooking quickly with Easy Set” on page
13.
9Cook Time Press to set the cooking time, then press the number buttons to enter
the time.
10 (Start/+30
sec)
In standby mode, press this button to begin cooking.
While cooking, press this button to add 30 seconds to the cooking
time.
11 Favorite Press this button to set up to three memorized procedures.
Note
Do not remove the light brown mica cover in the
oven cavity. This cover protects the magnetron.
Notes
• A minimum clearance of 3.0 inches (7.5 cm) is
required between the oven and any adjacent
walls. One side must be open.
• Leave a minimum clearance of 12 in. (30 cm)
above the oven.
• Do not remove the legs from the bottom of the
oven.
• Blocking the intake and/or outlet openings can
damage the oven.
• Place the oven as far away from radios and TVs as
possible. Operation of the microwave oven may
cause interference to your radio or TV reception.
#ITEM DESCRIPTION
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 10 Tuesday, June 13, 2017 6:40 PM
11
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
5Plug your oven into a standard household outlet. Be sure the voltage
and the frequency is the same as the voltage and the frequency on the
rating label.

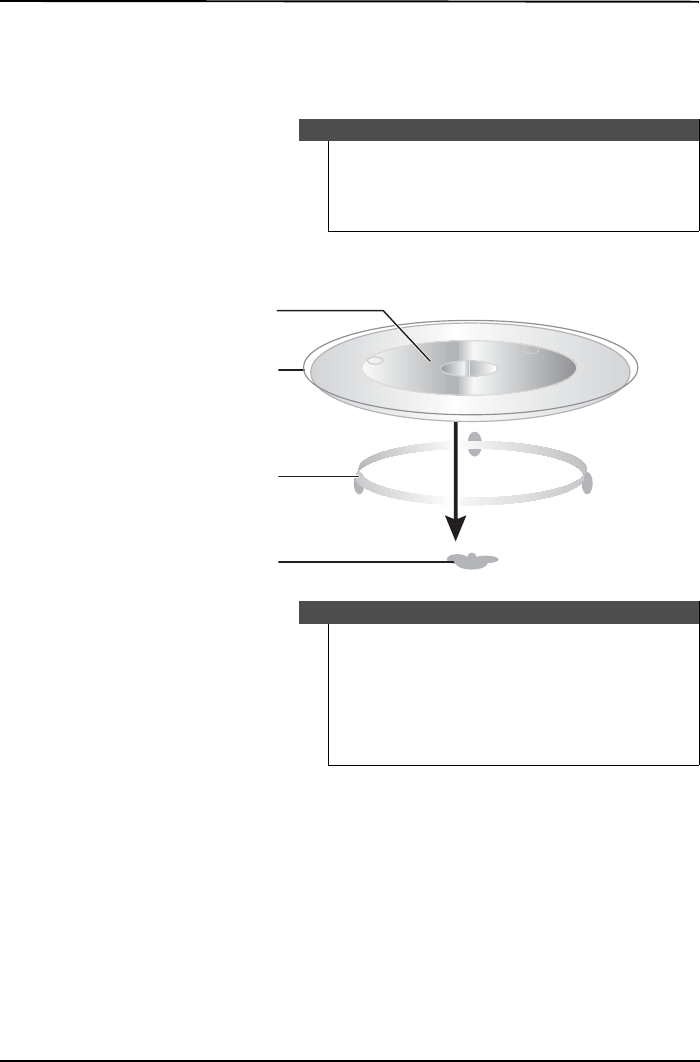

Installing the turntable
1Place the turntable ring in the round depression in the bottom of the
microwave oven so that it turns freely.
2Place the glass turntable (flat side up) on the turntable ring so that the
hub engages the turntable shaft in the bottom of the oven. The glass
turntable should not turn freely when it is correctly installed.
Caution
• Do not mount your oven under a cabinet.
• Do not install your oven over a range cooktop or
other heat-producing appliance. If installed near
or over a heat source, the oven could be
damaged and the warranty would be voided.
Notes
• Never place the glass tray upside down. The glass
tray should never be restricted.
• Both the glass tray and turntable ring must
always be used during cooking.
• Always place all food and containers of food on
the glass tray for cooking.
• If the glass tray or turntable ring cracks or breaks,
contact your nearest authorized service center.
Hub (underside)
Glass turntable
Turntable ring
Turntable shaft
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 11 Tuesday, June 13, 2017 6:40 PM
12
NS-MW16SS8
www.insigniaproducts.com
Using your microwave oven
Understanding and setting the power level
The following table shows the 11 power levels available.
1Press Power once. The display shows “PL10” (the default power is
100%).
2Press the number keys to adjust the power level. For example, press 5
to set the power level to 50%.
Setting the clock
1Press Clock.
2Press the number keys to enter the current time.
3Press Clock to confirm the setting.
Using the kitchen timer
1Press Kitchen Timer. The display shows “00:00”.
2Press the number keys and enter the time you want (the maximum
time is 99 minutes and 99 seconds).
3Press to confirm the setting. The timer begins the countdown.
When the time reaches 0, the oven beeps five times and the display
shows the current time.
LEVEL109876543210
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Display PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0
Note
• If the numbers input are not within the range of
1:00--12:59, the setting is invalid until valid
numbers are input.
• While setting the clock, if is pressed, or if
there is no operation within one minute, the
display automatically returns to the previous
clock setting.
Notes
• While the kitchen timer is running the oven
cannot be programmed and no cooking can be
started.
• The time cannot be increased by pressing
.
• Press to cancel the timer.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 12 Tuesday, June 13, 2017 6:40 PM
13
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Cooking in your microwave oven
1Press Cook Time once. The display shows “00:00”.
2Press the number keys to enter the cooking time you want (the
maximum cooking time is 99 minutes and 99 seconds). For example,
press 1, 5, 0, 0 to cook for 15 minutes.
3Press Power once. The display shows “PL10” (the default power is
100%).
4Press the number keys to adjust the power level. For example, press 5
to set the power level to 50%.
5Press to start cooking.
Cooking quickly with Easy Set
From standby mode you can instantly cook something at 100% power by
selecting a cooking time from one to three minutes, using the Easy Set
feature.
1Press any number from 1 to 3 (the Easy Set buttons). Cooking begins
immediately.
2Press to increase cooking time in 30 second increments. The
maximum cooking time is 99 minutes and 99 seconds.
-OR-
1Press to cook the item at 100% power level for 30 seconds.
2Press again to increase cooking time in 30 second increments. The
maximum cooking time is 99 minutes and 99 seconds.
Notes
• When setting the microwave, if the button
is pressed or if there is no operation within one
minute, the oven goes back to the former setting
automatically.
• If “PL0” is selected, the oven fan turns on with 0%
power. You can use this to remove an odor from
the oven.
• When setting the microwave, press POWER at
any time to change the power setting. The
current power setting flashes for three seconds
and you can enter the number of the power
setting you want. The oven cooks at the new
power setting for the remainder of the cook time.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 13 Tuesday, June 13, 2017 6:40 PM
14
NS-MW16SS8
www.insigniaproducts.com
Defrosting in your microwave oven
Defrosting by weight
1Press Defrost once. “WEIGHT MEAT” appears on the display.
Press Defrost twice. “WEIGHT POULTRY” appears on the display.
Press Defrost three times. “WEIGHT FISH” appears on the display.
2Press the number buttons to input the weight of the item to be
defrosted (in pounds). Input weight must be between 0.1 and 6.0
pounds.
Inputs outside of these limits are invalid and cause a beep to sound.
The unit will not work until valid numbers are input.
3Press to start defrosting. The remaining time is displayed.
Defrosting by time
1Press Defrost four times. “TIME” appears on the display.
2Press the number buttons to input the defrosting time you want. The
time range must be between 00:01 and 99:99.
3The default microwave power for time defrost is power level 3.
4Press to start defrosting. The remaining time is displayed.
Cooking popcorn
1Press Popcorn repeatedly until the weight of popcorn you want shows
on the display. The display cycles through “1.75”>”3.0”>”3.5” (oz.).
2Press . When the popcorn is done popping, the buzzer sounds five
times and the oven returns to standby mode.
Using Melt, Soft, Stew, and Keep Warm
1Press a function button (Melt, Soft, Stew, or Keep Warm) repeatedly.
The display cycles through the types of food to cook using the
function selected.
2Press to confirm your choice.
3Press the function button (Melt, Soft, Stew, or Keep Warm) again,
then enter the weight of the item.
4Press to begin cooking. The remaining time appears on the
display. The oven beeps five times when finished.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 14 Tuesday, June 13, 2017 6:40 PM
15
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Using Sensor cooking
(Please review this section carefully. It was not very well explained in the
source material.)
1Put the food in the oven.
2Press one of the sensor options: Sensor Reheat, Frozen Pizza, Fresh
Vegetable, Potato, or Meat. The and icons appear on the
display.
3Press to begin cooking (no need to set the cooking time). The
and icons blink.
If the oven can sense the food’s moisture content, the buzzer sounds
twice and the remaining cook time appears on the display, along with
the sensor setting selected.
After 35 seconds the buzzer beeps once and the oven begins checking
the food. If the sensor is not working, the oven will go back to standby
after 40 seconds.
4When finished, the oven beeps five times and returns to standby
mode. Allow the food to “rest” before removing it from the oven.
Notes
When cooking or reheating food using the sensor, for
the best results do the following:
• The room temperature should not be over 95° F
(35° C).
• The food should weigh more than 4 oz. (110 g).
• The oven interior, glass tray, and utensils must be
dry before putting the food in.
• The food can be covered with a lid, but the lid
must have vent holes in order to vent steam
during cooking. Do not use sealed containers.
• If the oven interior is too hot, the sensor will not
work.
Notes
During the cooking process:
• If the remaining time is not displayed or the
buzzer does not sound, leave the door closed.
• When the remaining time is displayed and the
buzzer sounds twice, you can open the door to
stir or turn the food over.
• If the cooking time does not count down, do not
open the oven door or press . This causes a
sensor error.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 15 Tuesday, June 13, 2017 6:40 PM
16
NS-MW16SS8
www.insigniaproducts.com
Reheating food with the Sensor
1Put the food in the oven.
2Press the Sensor Reheat key on the control panel.
3Press to begin cooking (no need to set the cooking time). If the
oven can sense the food’s moisture content, the oven beeps twice and
the remaining cook time appears on the display, along with the sensor
setting selected.
4When finished, the oven beeps five times and returns to standby
mode. Allow the food to “rest” before removing it from the oven.
Cooking frozen pizza with the Sensor
1Put the frozen pizza in the oven. It should weigh between 6 and 12 oz.
(170 - 340 g). If the pizza weighs more than 12 oz., set additional
cooking time manually.
2Press the Frozen Pizza key on the control panel.
3Press to begin cooking (no need to set the cooking time). If the
oven can sense the food’s moisture content, the oven beeps twice and
the remaining cook time appears on the display, along with the sensor
setting selected.
4When finished, the oven beeps five times and returns to standby
mode. Allow the pizza to “rest” before removing it from the oven.
Notes
• Avoid reheating breads, biscuits, and other dry
foods, raw and uncooked foods, beverages, and
frozen foods.
• If the oven interior is too hot, the sensor will not
work.
• If you cover the food with a lid, it must allow the
steam to escape from the food. Do not use
sealed containers.
• Do not open the oven door or press . This
causes a sensor error.
• Casseroles - Add three to four tablespoons of
water, then cover with a vented lid or vented
plastic wrap. Stir when time appears on the
display.
• Canned foods - Empty contents into a casserole
dish or bowl and cover with a vented lid or
plastic wrap.
• A plate of food - Arrange food on the plate and
put butter or gravy on top. Cover with a vented
lid or plastic wrap.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 16 Tuesday, June 13, 2017 6:40 PM
17
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Cooking fresh vegetables with the Sensor
1Put the fresh vegetables in the oven. They should weigh between 4
and 16 oz. (110 - 450 g).
2Press the Fresh Vegetables key on the control panel.
3Press to begin cooking (no need to set the cooking time). If the
oven can sense the food’s moisture content, the oven beeps twice and
the remaining cook time appears on the display, along with the sensor
setting selected.
4As the cooking time counts down, press to pause and open the
oven door. Stir the vegetables, then continue to cook.
5When finished, the oven beeps five times and returns to standby
mode. Allow the food to “rest” before removing it from the oven.
Cooking potatoes with the Sensor
You can cook one to four potatoes (6 to 8 oz. each)
1Pierce each potato with a fork six times around it’s surface. Place the
potatoes around the edge of a paper-towel-lined turntable. Do not
cover.
2Press the Potato key on the control panel.
3Press to begin cooking (no need to set the cooking time). If the
oven can sense the food’s moisture content, the oven beeps twice and
the remaining cook time appears on the display, along with the sensor
setting selected.
4If additional time is needed, continue to cook manually. Please let
stand for five minutes in the oven after finishing to avoid burning.
Cooking meat with the Sensor
1Break apart the meat in a glass bowl or colander, then cover with a lid
or vented plastic wrap and place in the oven.
2Press the Meat key on the control panel.
3Press to begin cooking (no need to set the cooking time). If the
oven can sense the food’s moisture content, the oven beeps twice and
the remaining cook time appears on the display, along with the sensor
setting selected.
4As cooking time counts down, press to pause. Open the oven
door to mix, then continue to cook. Juices should be clear when done.
Notes
• All pieces should be the same size.
• Wash thoroughly, add 1 tbsp. (15 ml) water per
4 oz. (125 g) of vegetables, and cover with a lid or
vented plastic wrap.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 17 Tuesday, June 13, 2017 6:40 PM
18
NS-MW16SS8
www.insigniaproducts.com
Using the memory function
You can set up to three memory settings (favorites) for frequently used
cook times and power levels.
To memorize a procedure:
The following procedure represents an example of how to set memory #2
to cook something for 3 minutes and 20 seconds at 80% power.
1Press Favorite twice, until the display shows “2” (for favorite #2).
2Press Time Cook once, then press 3, 2, and 0 (for 3:20).
3Press Power once. When “PL10” appears on the display, press 8. The
display shows “PL8” (for 80% power).
4Press to save the setting in memory. The oven beeps once, then
returns to standby mode. If you press again, the procedure will be
saved as favorite #2 and cooking begins.
The procedure remains in memory. The procedure needs to be reset if
the oven loses power.
To use a memorized procedure:
1Put the item to be cooked into the oven and close the door.
2Press Favorite repeatedly to cycle through memory 1, 2, or 3. The
display shows “1”, “2,” or “3.” Stop when you get to the memorized
procedure you want to use.
3Press to use the procedure and begin cooking.
Using multi-stage cooking
Up to two stages can be used to cook your food. For example, you can
defrost a meal, then cook it. If defrost is used, it will automatically be the
first stage.
In this example, the food will be cooked with 80% power for five minutes,
then 60% power for 10 minutes, and saved as favorite #3.
1Put the food to be cooked into the oven.
2Press Favorite three times, until the display shows “3” (for favorite #3).
3Press Time Cook, then press 5, 0, and 0 to set the cooking time to five
minutes.
Note
Auto cooking cannot be used with the memory
function.
Note
Auto cooking cannot be used with multi-stage
cooking.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 18 Tuesday, June 13, 2017 6:40 PM
19
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
4Press Power once, then press 8 to set the power level for 80% power.
5Press Time Cook again, then press 1, 0, 0, and 0 to set the second
cooking time to10 minutes.
6Press Power again, then press 6 to set the second power level to 60%
power.
7Press to begin cooking.
To cook food using favorite #3
1Put the food to be cooked into the oven.
2Press Favorite three times. The screen displays “3”.
3Press to begin cooking.
Checking the time and power level while cooking
• To check the time while cooking a meal, press CLOCK. The display
shows the current time for three seconds, then returns to the
cooking time remaining.
• To check the power level while cooking a meal, press POWER. The
display shows the power level being used for three seconds, then
returns to the cooking time remaining.
Using the child-lock
• To lock the oven — Press and hold for three seconds. The oven
sounds a long beep and the display shows “LOCKED”, i n d i c a t i n g
that the lock is active. Thereafter, the display will show “L” along
with the current time.
• To unlock the oven — When the oven is locked, press and hold
for three seconds. The oven sounds a long beep, indicating that the
lock is released.
Note
If you don’t want to save a particular multi-stage
program as a favorite procedure, don’t press
Favorite as the first step.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 19 Tuesday, June 13, 2017 6:40 PM
20
NS-MW16SS8
www.insigniaproducts.com
Troubleshooting
If you have a problem with your oven, review the following chart for a
possible solution. If the oven still does not work properly, contact the
nearest authorized service center.
Maintaining your microwave oven
Keep your microwave oven clean, especially the interior of the oven.
• Clean the exterior with a damp cloth or sponge. Do not allow water
or cleaning solution to drip into the ventilation ports.
• Clean the interior with a damp cloth or sponge.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Oven will not
start
The electrical cord is not plugged in. Plug in the electrical cord.
The door is open. Close the door and try again.
The wrong operation is set. Check the instructions and try again.
Arching or
sparking in
the oven
You are attempting to use incorrect
materials in the oven. Use only microwave-safe materials.
You are attempting to use the oven
when it’s empty.
Do not operate the oven when it’s
empty.
Spilled food remains in the oven. Clean the oven with a wet towel.
Unevenly
cooked foods
You are attempting to use incorrect
materials in the oven. Use only microwave-safe materials.
The food is not defrosted completely. Defrost the food completely before
attempting to cook it.
The cooking time or power level is
not adequate to cook the food.
Use the correct cooking time and
power level.
The food is not turned or stirred. Turn or stir the food.
Overcooked
foods
The cooking time or power level is
not adequate to cook the food.
Use the correct cooking time and
power level.
Undercooked
foods
You are attempting to use incorrect
materials in the oven. Use only microwave-safe materials.
The food is not defrosted completely. Defrost the food completely before
attempting to cook it.
The cooking time or power level is
not adequate to cook the food.
Use the correct cooking time and
power level.
The oven ventilation ports are
blocked or restricted.
Make sure that the ventilation ports
are not blocked or restricted.
Improper
defrosting
You are attempting to use incorrect
materials in the oven. Use only microwave-safe materials.
The cooking time or power level is
not adequate to cook the food.
Use the correct cooking time and
power level.
The food is not turned or stirred. Turn or stir the food.
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 20 Tuesday, June 13, 2017 6:40 PM
21
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
Obtaining replacement parts
Call Insignia Customer Service at 1-877-467-4289.
Specifications
Legal notices
Copyright
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries. Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
Model NS-MW16SS8
Rated voltage 120 V~60 Hz
Rated input power (microwave) 1350 W
Rated output power (microwave) 1250 W
Oven capacity 1.6 Cu. ft.
Turntable diameter 13.6 in. (345 mm)
External dimensions (WxDxH) 21.8 x 17.8 x 12.8 in. (554 x 453 x 325 mm)
Internal dimensions (WxDxH) 15.51 x 17.05 x 10.24 in. (394 x 433 x 260 mm)
Certifications UL approved
Power cord length 39.37 in (1 m)
Net weight 28.8 lbs. (13.1 kg)
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 21 Tuesday, June 13, 2017 6:40 PM
22
NS-MW16SS8
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your
purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a
Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca, and is packaged
with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your
purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts
replaced under this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you must pay all labor
and parts charges. This warranty lasts as long as you own your Insignia Product during the
Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location, please take your original receipt
and the Product to any Best Buy store. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of protection as the original packaging.
If you purchased the Product from a Best Buy online web site (www.bestbuy.com or
www.bestbuy.ca), mail your original receipt and the Product to the address listed on the web site.
Make sure that you put the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY or in Canada call
1-866-BESTBUY. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or
websites to the original purchaser of the product in the county where the original purchase was
made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
•Installation
•Set up adjustments
•Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
•Accidental damage
•Misuse
•Abuse
•Negligence
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 22 Tuesday, June 13, 2017 6:40 PM
23
1.6 Cu. Ft. Microwave Oven
www.insigniaproducts.com
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or otherwise
used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods
(burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to
five (5) pixel failures throughout the display. (Pixel based displays may contain a limited
number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or
pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR
BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST
BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES
WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR
PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
NS-MW16SS8_17-0351_MAN_V1_ENG.fm Page 23 Tuesday, June 13, 2017 6:40 PM
FCC Caution.
This product has been tested and found to comply with the limits for Microwave
Oven, pursuant to Part 18 of the FCC Rules.
This product can radiate radio frequency energy, which could cause interference to
such products as radio, TV, baby monitor, cordless phone, Bluetooth, wireless router,
etc., which can be confirmed by turning this product off and on. If present, the user is
encouraged to try to correct by taking one or more of the following
countermeasures:
(1) Increase the spacing distance between the microwave oven and other product
receiving the interference.
(2) If possible, use a properly installed receiver antenna and/or reorient the receiving
antenna of the other product receiving the interference.
(3) Plug the microwave oven into a different outlet from the other product receiving
the interference.
(4) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your
Microwave Oven)
