Midland Radio ALHP425 Handheld UHF Transceiver User Manual
Midland Radio Corporation Handheld UHF Transceiver Users Manual
Contents
- 1. Users Manual
- 2. Revised User Instructrions
Users Manual
HP125 User manual
Page. 1
HP125
VHF Handheld PMR Transceiver
User’s Manual
Copyright 1998 by CTE International Italy; all rights reserved.
HP125 User manual
Page. 2
In this book…
User’s Manual..............................................................................................................................................1
IN THIS BOOK…................................................................................................................................................... 2
INTRODUCTION ...................................................................................................................................................... 4
WARNING NOTES ................................................................................................................................................... 4
SAFETY .................................................................................................................................................................. 4
CONVENTIONS AND SYMBOLS IN THIS BOOK......................................................................................................... 6
PART NAMES AND THEIR FUNCTIONS.......................................................................................................... 7
TOP........................................................................................................................................................................ 7
FRONT ................................................................................................................................................................... 7
SIDE (LEFT AND RIGHT)........................................................................................................................................... 8
DISPLAY................................................................................................................................................................. 8
SETUP.................................................................................................................................................................... 10
UNPACKING......................................................................................................................................................... 10
FITTING/REMOVING THE ANTENNA ....................................................................................................................... 11

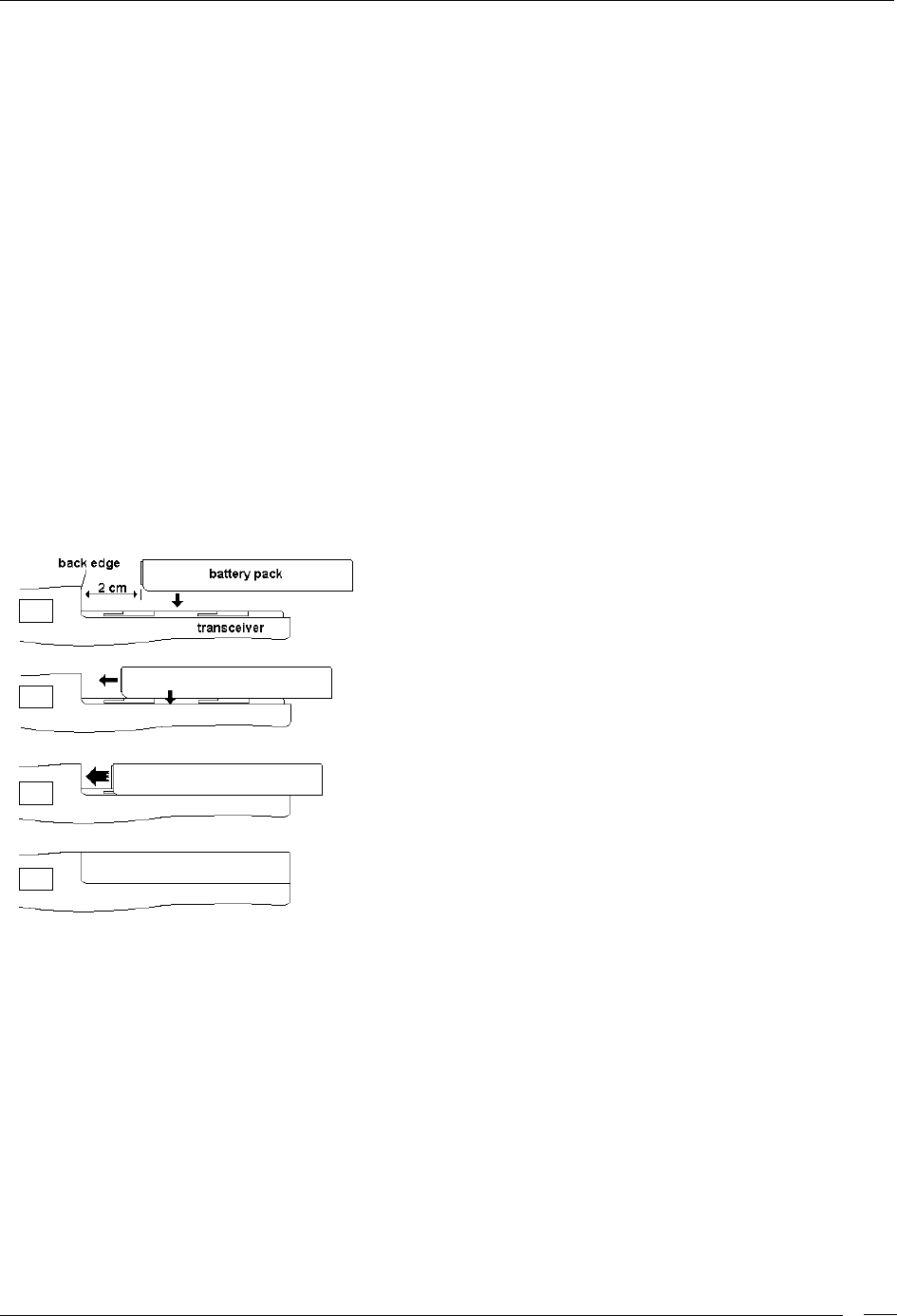

INSTALLING/REMOVING THE BATTERY PACK ......................................................................................................... 11
INSTALLING/REMOVING THE BELT CLIP ................................................................................................................. 11

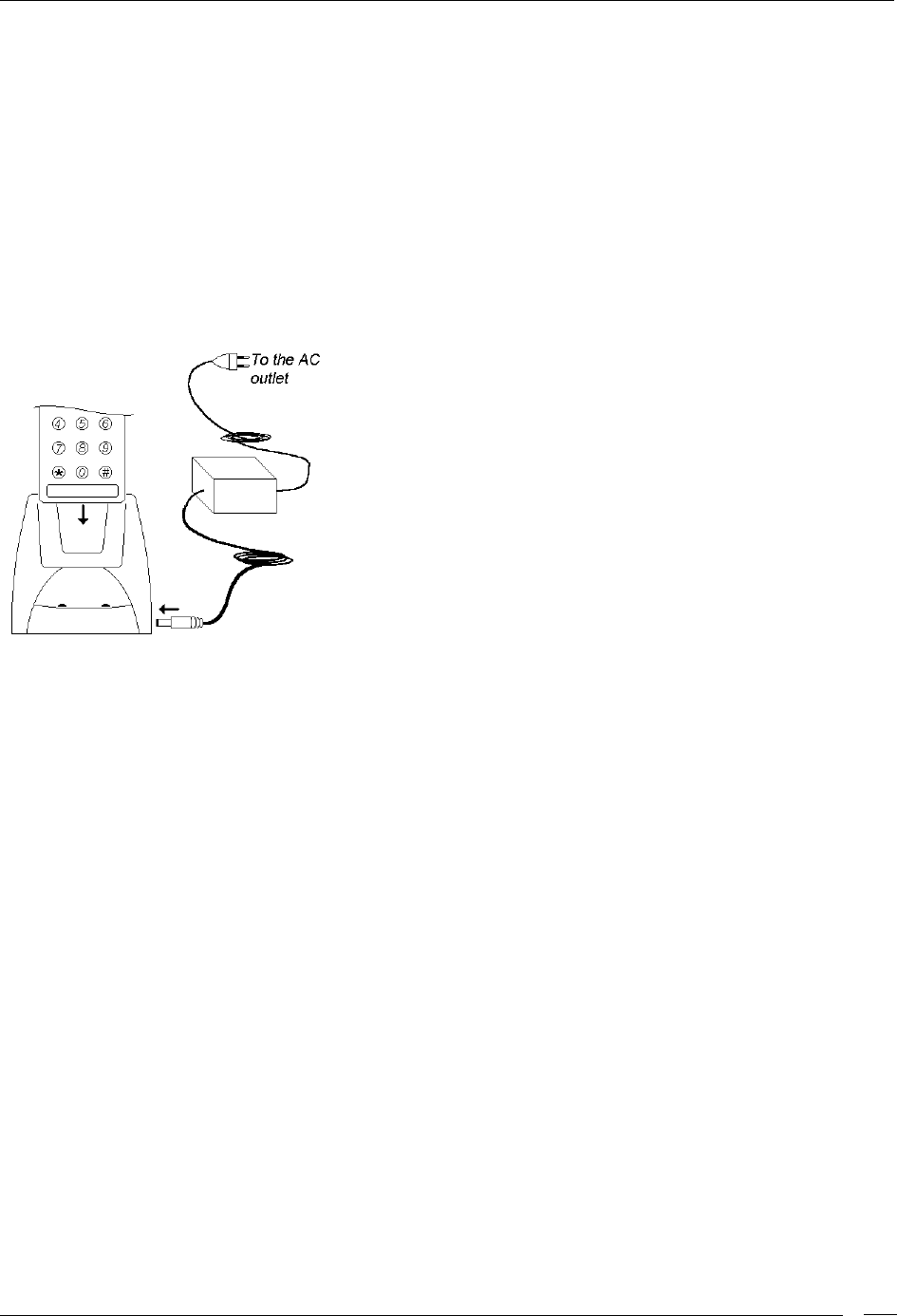

CHARGING THE BATTERY...................................................................................................................................... 12
BASIC OPERATIONS ......................................................................................................................................... 13

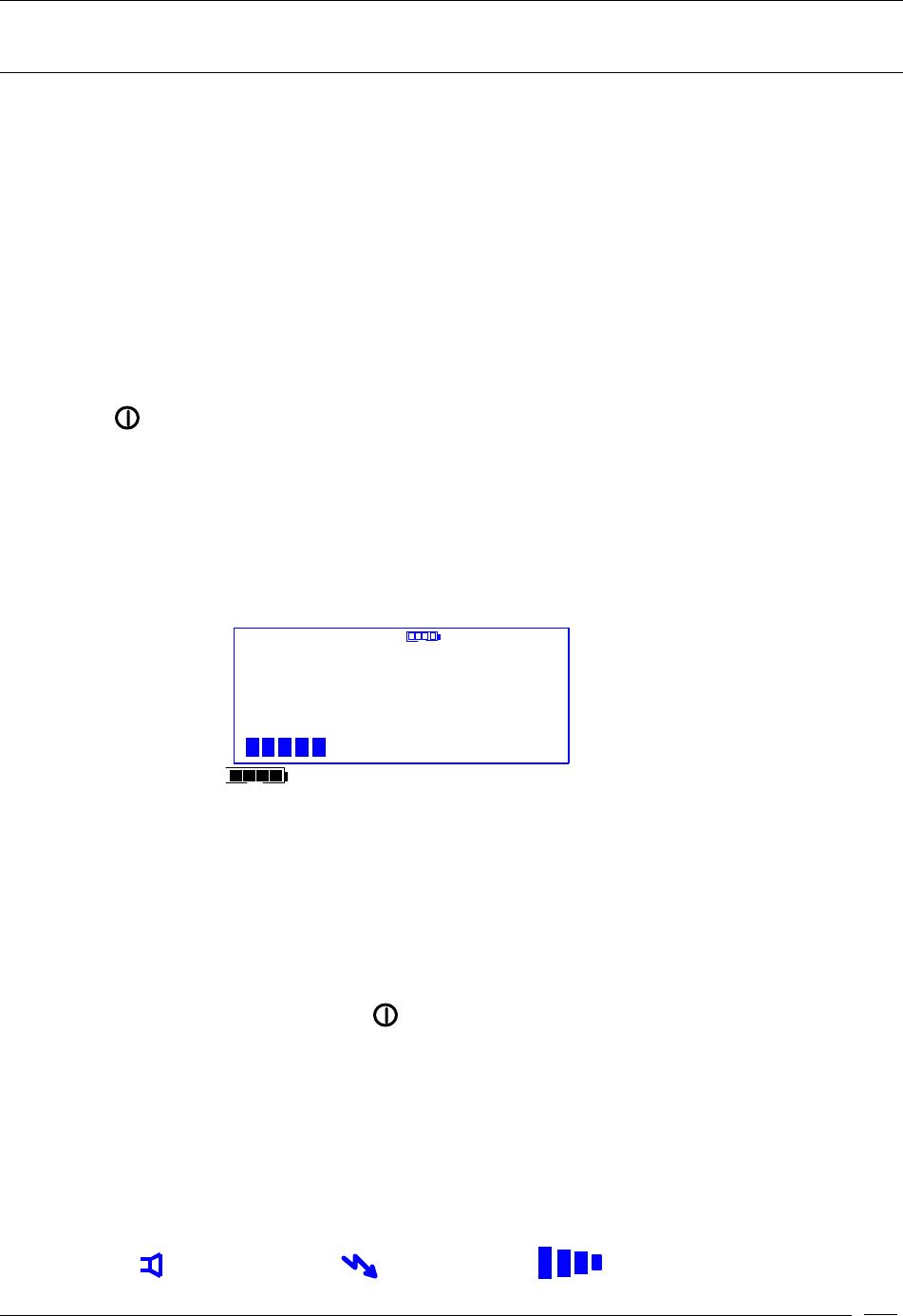

SWITCHING THE RADIO ON/OFF ..........................................................................................................................13
RECEPTION .......................................................................................................................................................... 13
ADJUSTING VOLUME............................................................................................................................................. 14
CHANNEL SELECTION ........................................................................................................................................... 14
ADJUSTING SQUELCH ........................................................................................................................................... 14
TRANSMISSION .................................................................................................................................................... 15
ADJUSTING TRANSMIT POWER............................................................................................................................. 16
SCANNING CHANNELS.......................................................................................................................................... 16
RADIO LOCK ........................................................................................................................................................ 17
SELCALL AND CTCSS/DCS OPERATION..................................................................................................... 18
RECEPTION .......................................................................................................................................................... 18
TRANSMISSION .................................................................................................................................................... 18
Sending a Selcall............................................................................................................................................ 18
Stored call (Address book)...............................................................................................................................18
Who-has-called (Call Queue) ...........................................................................................................................19
MANUAL CALL ..................................................................................................................................................... 20
One touch call ................................................................................................................................................20
ADVANCED OPERATIONS............................................................................................................................... 21
SENDING STATUS MESSAGES................................................................................................................................. 21
SENDING FFSK FREE MESSAGES (SDM)............................................................................................................... 21
CHECKING FFSK FREE MESSAGES (SDM)............................................................................................................ 22
SENDING DTMF PATTERNS.................................................................................................................................. 22
HANDSFREE TRANSMISSION (VOX) ..................................................................................................................... 22
CARE AND MAINTENANCE............................................................................................................................. 24
BATTERY PACKS .................................................................................................................................................. 24
Information on rechargeable batteries.......................................................................................................... 24
Proper charging of battery packs .................................................................................................................. 24
Memory effect................................................................................................................................................. 24
Erasing memory effect.................................................................................................................................... 25
HP125 User manual
Page. 3
Warnings for battery and charger use........................................................................................................... 25
RADIO MAINTENANCE.......................................................................................................................................... 26
Cleaning battery packs................................................................................................................................... 26
Cleaning the radio.......................................................................................................................................... 26
Connectors...................................................................................................................................................... 26
OPTIONAL ACCESSORIES............................................................................................................................... 27
Microphone connector ................................................................................................................................... 27
QUICK REFERENCE .......................................................................................................................................... 28
OPERATION SUMMARY ......................................................................................................................................... 28
LCD MEMO REFERENCE GUIDE............................................................................................................................. 28
MAIN SPECIFICATIONS.................................................................................................................................... 30
GENERAL ............................................................................................................................................................. 30
TRANSMITTER ...................................................................................................................................................... 30
RECEIVER............................................................................................................................................................. 30
AF & SIGNALING ................................................................................................................................................. 31
MECHANICAL SPECS ............................................................................................................................................ 31
INDEX.................................................................................................................................................................... 32
HP125 User manual
Page. 4
Introduction
Congratulations. HP125 is an advanced PMR (Professional Mobile Radio). Its rugged design allows it to be
your reliable partner even during hard working days. Its large LCD as well as user friendly controls make
the HP125 easy to use.
HP125 is a real system radio, supporting CTCSS/DCS, 5 tone signaling systems (encoder/decoder up to
28 + 28 tones), FFSK, DTMF and trunking system property. Selcall mode supports also many facilities,
such as an alphanumeric address book, a call queue function as well as a status message table. You can
also use FFSK to send/receive short text messages which you can enter via the alphanumeric keypad. The
way your radio operates may be upgraded and may differ from what is described here.
To extend the flexibility, the radio is provided with VOX function, which allows you to switch on the
transmitter just by talking using an optional headset for full hands free operation.
Since standard operation can be changed by programming, the functions of the radio and the buttons used
to activate them can be modified to meet your needs. Please contact your radio network administrator or
dealer for further details.
Transceiver’s specifications provided in HP125 are compliant with ETS 300 086 and ETS 300 113,
moreover its top level design and resistance are compliant with IEC529 level IP54 and MIL STD 810
C,D,E.
CTE International is committed to continuous quality, for this reason specifications may vary without prior
notice.
Warning notes
Every effort has been made to ensure that the information in this document is complete, accurate, and up-
to-date. CTE International assumes no responsibility for the results of errors beyond its control. The
manufacturer of this equipment also cannot guarantee that changes in the equipment made by non
authorized people will not affect the applicability of the information in it.
This user’s guide is subject to change without notification. This booklet is referred to equipment software
version 1.0. If you own a later one please contact CTE International for the most recent updates.
Safety
Your HP125 handheld transceiver has been carefully designed to give you years of safe, reliable
performance. As with all electrical equipment, however, there are a few basic precautions you should take
to avoid hurting yourself or damaging the radio:
• Read the instructions in this handbook carefully. Be sure to save it for future reference.
• Read and follow all warning and instruction labels on the radio itself.
• Do not carry the transceiver by the antenna. This may damage the antenna or antenna terminal.
Grasp it by its base (not the tip!) when you need to replace or remove the antenna.
• Do not transmit the radio with the antenna very close to or touching exposed parts of the body. The
radio will perform best if the microphone is 5-10 cm away from the mouth and the radio is vertical.
• Be sure the PTT key is not pressed when you don’t need to transmit.
• Do not operate the radio near unshielded electrical blasting caps or in an explosive atmosphere.
• Do not transmit without the antenna fitted on the radio. Although the HP125 is provided with a
HP125 User manual
Page. 5
protection circuit, damage to the TX final stage could result.
• Respect the environment conditions. The radio is designed to be used in heavy environments,
however avoid exposure to extremely hot or cold temperatures (out of the range between –30 to
+60°C). Don’t expose the transceiver to excessive vibrations as well as dusty or rainy places.
• Never try to disassemble or service the radio yourself (aside from the routine maintenance
described in this handbook). It will immediately void the warranty and you may cause damage requiring
extensive repair work. Always contact your local dealer for assistance.
• Use only authorized accessories. Non original accessories could seriously damage your handheld
transceiver.
• Do not spill liquid of any kind on this radio. If your transceiver gets wet immediately dry it with a
soft cloth.
• Switch the radio off before you clean it. Strictly follow the directions in the paragraph “Care and
maintenance”.
• Handle the battery properly. Strictly follow the directions in “Care and maintenance”.
• Be certain that your power source matches the rating listed for the supplied battery charger (AC
adapter). If you are not sure, check with your dealer.
• To avoid damaging the power cable of the battery charger, do not put anything on it or place it
where it will be walked on.
This product complies with the requirements of the Council Directives 89/336/EEC and 73/23/EEC on the
approximation of the laws of the member states relating to electromagnetic compatibility and low voltage.
HP125 User manual
Page. 6
Conventions and Symbols in this Book
! This symbol marks a ‘note’. Notes are hints or tips which offer additional information to help you.
" This symbol marks a ‘caution’. Cautions are special notices which you should read and
follow carefully to avoid possible damage to your equipment and to avoid potential danger
to yourself or other people.
Key names will be highlighted in bold.
Important sentences and words are highlighted in Italic.
LCD messages which may appear on the transceiver’s display are highlighted in Courier New
HP125 User manual
Page. 7
7
13
8
9
10
11
12
14
6

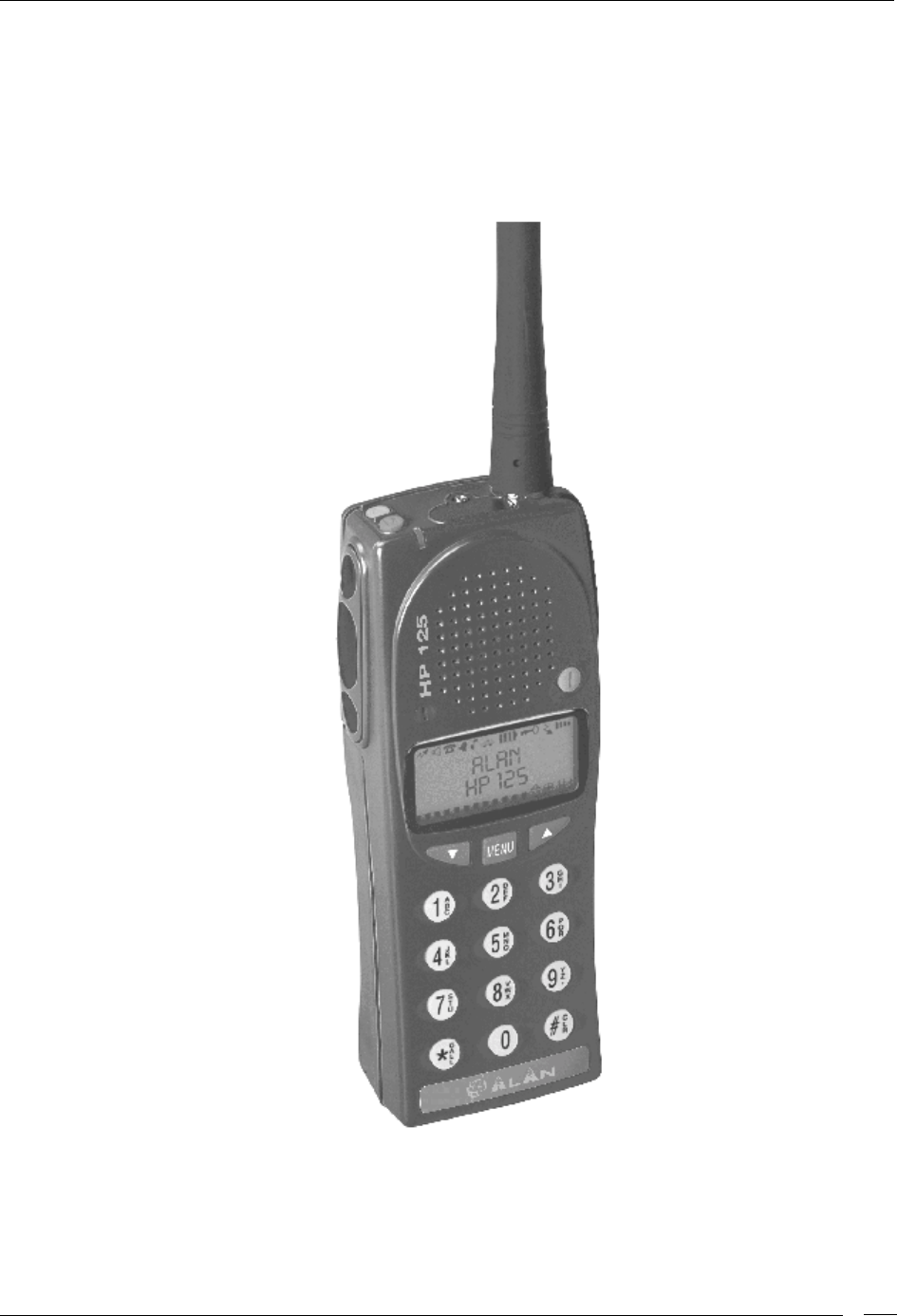

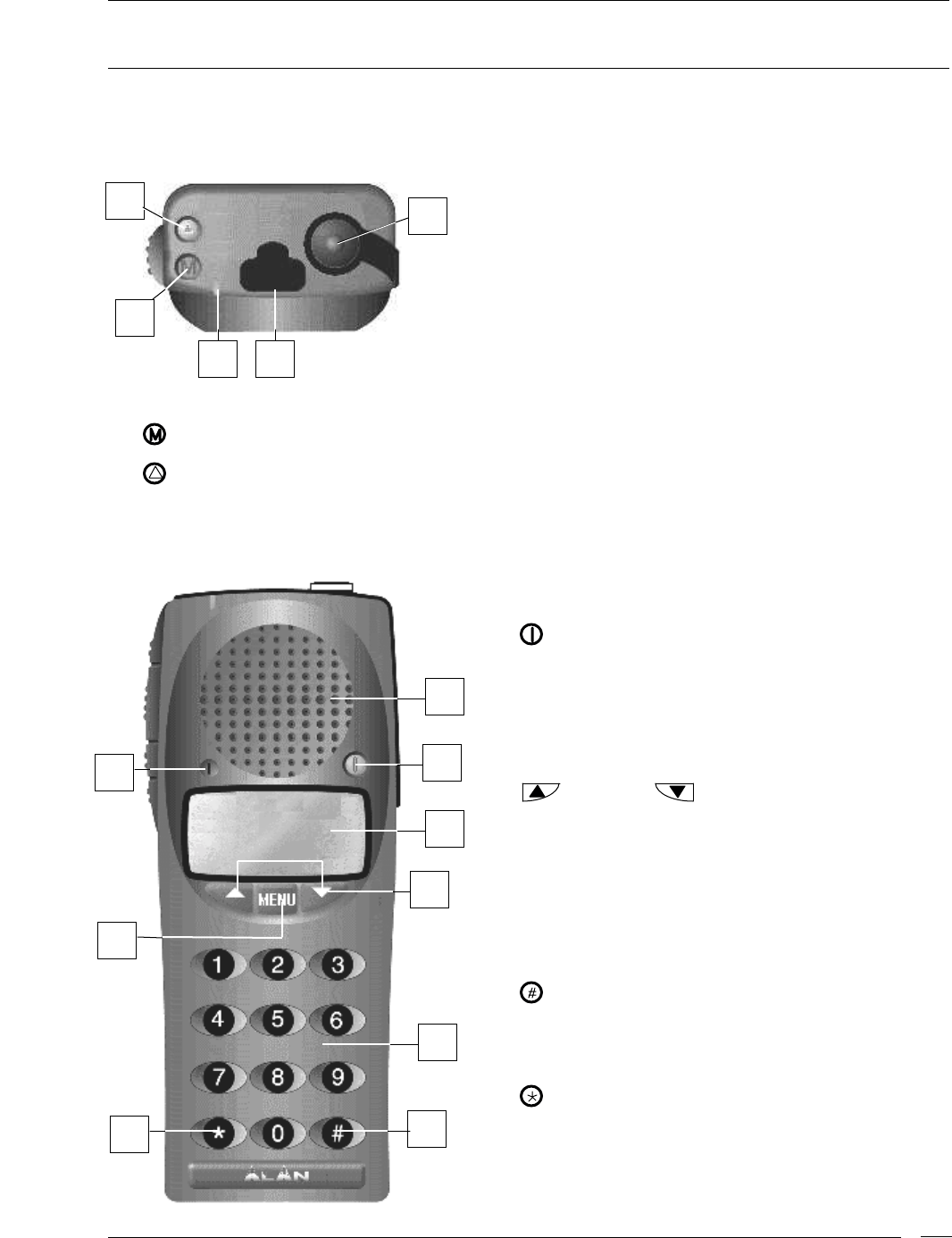

Part Names and their functions
Please have a look to the following parts description in order to familiarize with the transceiver’s main parts
and controls. Numbers in brackets refer to the illustration.
Top
[1] Antenna connector. Fit the antenna to this connector
(MX thread type).
[2] Programming connector (under the protection cap - for
authorized dealers/service facilities only). Allows to
program the radio (channels data) via a suitable
programmer. It must be protected with the supplied
rubber cap when not in use
[3] Status LED. Glows in different colors to show the current radio’s status.
[4] Monitor button. Enables the speaker for monitoring of the tuned channel.
[5] Emergency button. Sends an emergency selective call. (if enabled)
Front
[6] Speaker. The reception sound is emitted by the built
in speaker located at this point.
[7] Power button. Press this key to turn the
transceiver on and off.
[8] LCD display. Shows the radio’s parameters (channel
number etc.). Icon and symbols are further explained
in the text “Display”. Whenever any key is pressed the
display is automatically backlit for a few seconds.
[9] UP and Down buttons. For scrolling
forward and backward through function list and for
changing channels, volume and function values.
[10]
Keypad. For entering digits of selective call (if
enabled) and letters for the related operations (e.g.
SDM messages or Address Book). Whenever any key
is pressed the display is automatically backlit for a few
seconds.
[11] Clear button. If pressed for two seconds in
command mode, radio reverts back to standby mode.
In Selcall mode, deletes incorrectly entered digits (if
Selcall is enabled).
[12] Call button. To send a valid call when using
selective call features. (Selcall - if enabled)
[13]
MENU button. Allows accessing the main menu.
[14]
Microphone. The microphone located in this place
detects your voice.
1
4
5
3 2
HP125 User manual
Page. 8

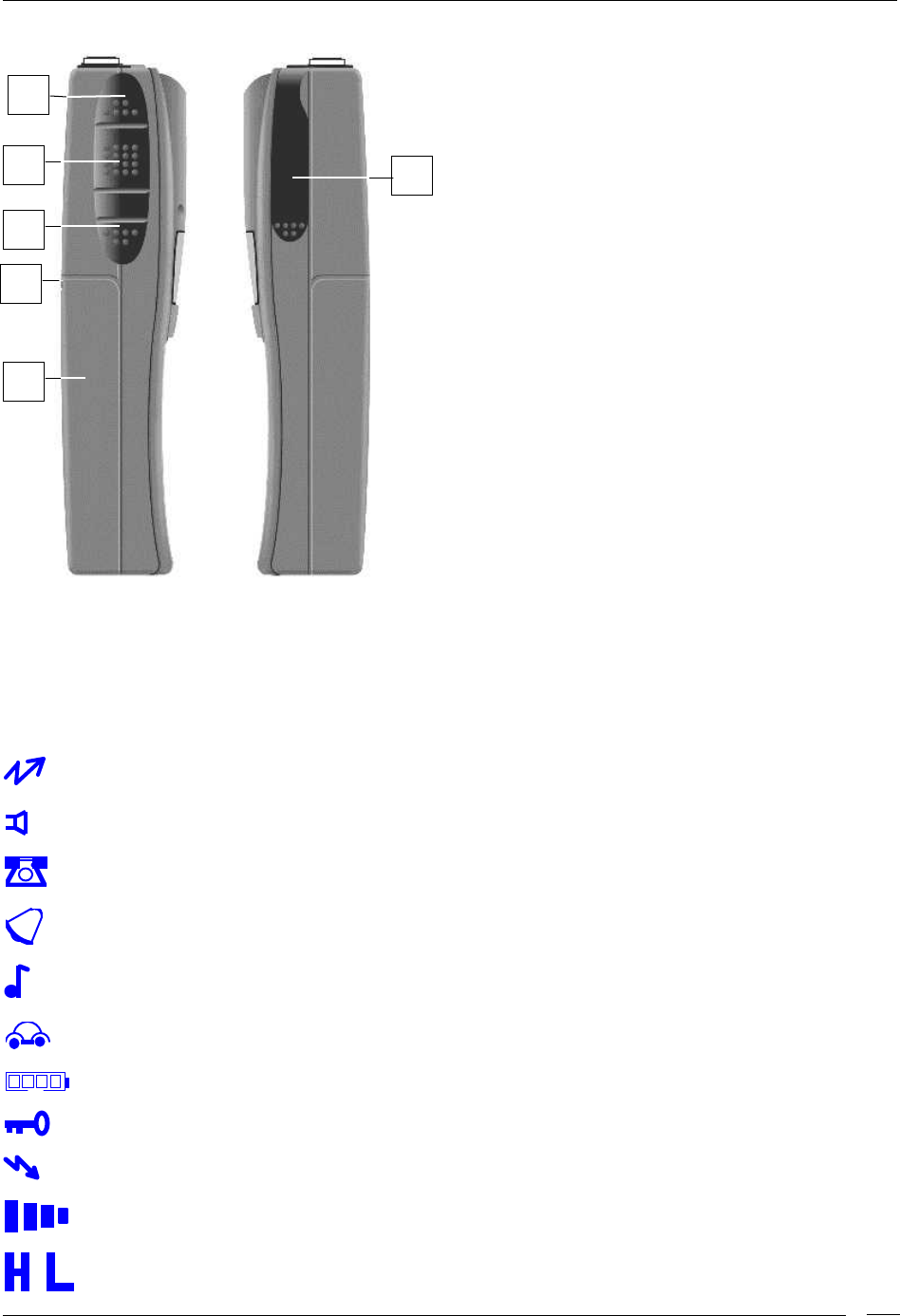

Side (left and right)
[15]

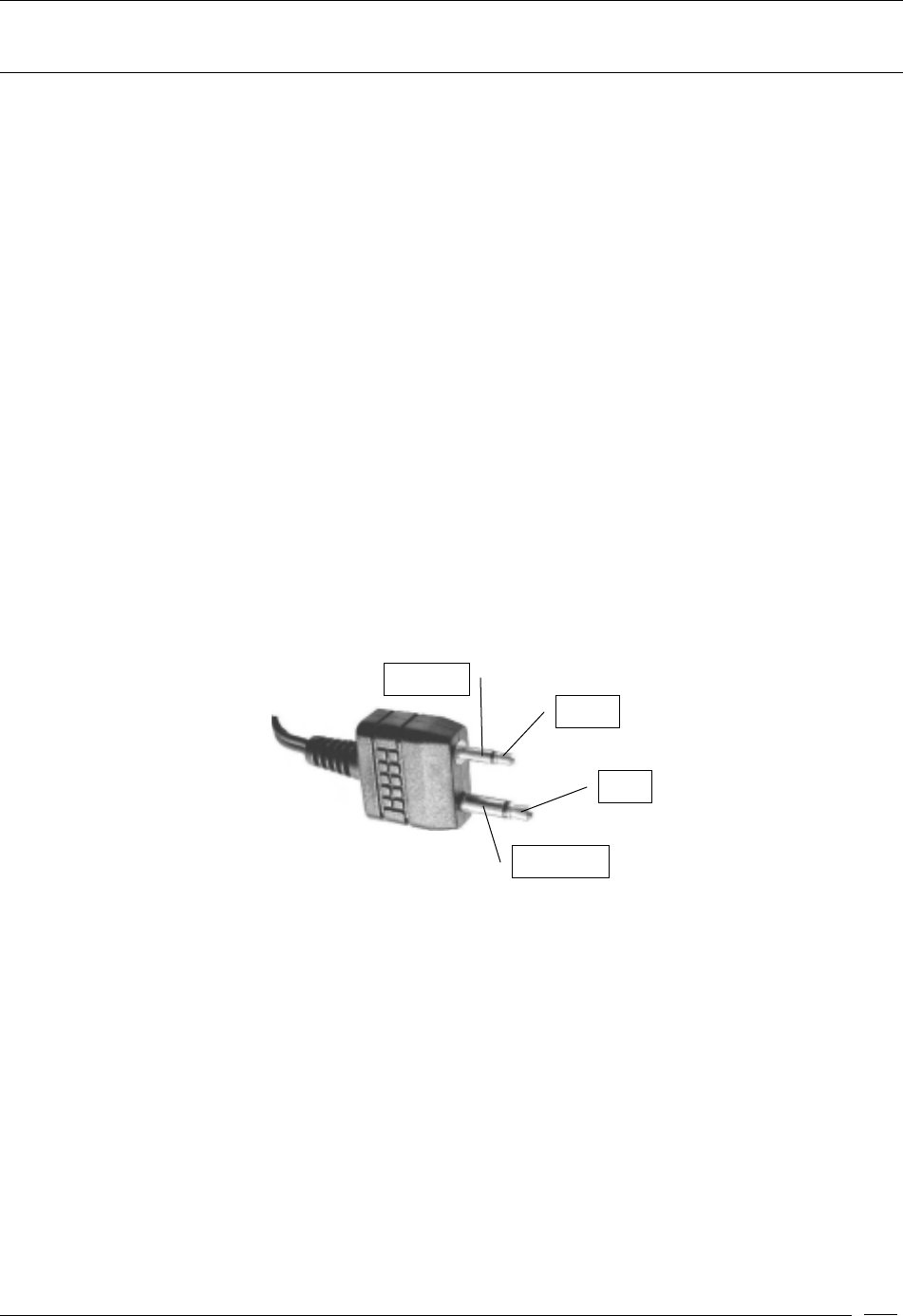

Microphone connector. For remote
speaker/microphone, headsets for VOX use and
other accessories. It must be protected with the
supplied rubber cap when not in use. For the
related pin connections please see to
“Microphone connection”.
[16]
Battery pack. This NiMH battery pack supplies
energy to your radio.
[17]
Release button (located on the battery’s body).
Allows for removal of the battery pack.
[18]
CALL 1 button. Sends the selective call NO.1.
(if enabled)
[19]
PTT (Push To Talk) button. Switches the
transceiver from receive to transmit when
pressed.
[20]
CALL 2 button. Sends the selective call NO. 2.
(if enabled)
Display
This section explains the meaning of the various indicators which may appear on the LCD of your HP125
handheld transceiver:
Radio is transmitting (status LED will glow red at the same time)
Speaker is enabled (you will hear audio communications and/or noise)
DTMF is enabled
CTCSS/DCS tone detected
Selective call detected
Scrambler enabled
Battery Level indicator (the number of bars will vary with level of charge)
Keypad lock enabled
Receive mode (squelch is open)
Reception field strength level (the number of bars will vary with receive strength)
Transmit output power currently selected, respectively high (H) or Low (L)
15
17
18
16
20
19
HP125 User manual
Page. 9
Mail notification
Customizable operation
Volume level (the number of bars will vary with volume level)
HP125 User manual
Page. 10
Setup
Unpacking
The following items are in the package:
(a) Transceiver’s main body
(b) Flexible antenna
(c) Battery pack NiMH 1,200 mA/h
(d) Standard battery charger composed by two parts:
• Cradle
• AC adapter
(e) Belt clip
(f) User’s guide (this book!)
If something is missing please promptly advise your supplier.
HP125 User manual
Page. 11
Fitting/removing the antenna
To fit the antenna:
1) Locate the antenna terminal (thread MX connector) on transceiver’s top.
2) Hold the transceiver with one hand and the base (the thicker part) of the antenna with the other one.
3) Attach the included flexible antenna to the antenna terminal by turning the antenna clockwise until it is
firmly locked. Don’t overtighten the antenna!
To remove the antenna reverse the previous step.
" Leave the antenna attached on the radio. You can not communicate without it. Moreover,
transmitting without the antenna may damage the TX final stage. For the same reason use only the
supplied antenna.
! The supplied antenna is broadband type and covers the whole spectrum. The antenna does not
need any alignment.
Installing/removing the battery pack
To install the battery pack (please see the figure):
1) Hold the transceiver’s body with one hand and the battery
pack with the other. Put the battery pack onto the metallic
back of the transceiver as shown at approximately 2 cm
from the bottom edge of the thick part of the transceiver.
2) Gently slide the battery pack toward the transceiver’s
bottom edge keeping it slightly pressed onto the metallic
back surface.
3) At approx. 1.5 cm you will feel the battery’s guides fitting
with the transceiver’s guides (the battery pack will be
closer to the transceiver). Keep sliding the battery pack
toward the back edge.
4) At the end you will hear two clicks: the battery pack will
snap into place and should be firmly locked.
To remove the battery pack:
1) Press the battery release button located in the back of the battery pack.
2) Keep the button pressed and gently pull the battery pack away from the transceiver bottom edge
(the opposite operation of the previous step 2): it will stop at 1.5 cm approximately and will be free.
3) Remove the battery pack by separating it from the transceiver’s body.
Installing/removing the belt clip
The supplied belt clip allows you to hang the transceiver on your belt or jacket when you are not using the
radio.
To fit the belt clip onto the transceiver’s body:
1) Remove the battery pack as explained in “Installing/removing the battery pack”.
2) Just gently slide the clip into the appropriate guides located in the transceiver’s back until it firmly
1
2
3
4
HP125 User manual
Page. 12
locks.
To remove the belt clip:
1) Remove the battery pack as explained in “Installing/removing the battery pack”.
2) Reverse step 2.
" Do not forget to remove the battery pack before fitting/removing the belt clip, otherwise the
operation will be harder to perform.
Charging the Battery
To charge the supplied battery pack you have to setup the supplied standard charger and connect the
radio as follows (please see the picture):
1) Connect the jack coming from the AC adapter to the cradle’s
socket located in its right side.
2) Connect the AC plug of the AC adapter’s power cable into an
AC power outlet: the built-in green LED of the cradle will glow.
3) Ensure that the radio is switched off. Insert the radio into the
cradle with the keypad toward you (the three metallic contacts of
the battery pack must touch with the three contacts inside the
cradle): the built-in red LED of the cradle will glow.
4) Wait 8-9 hours and remove the radio after that time.
! Do not remove the radio before 8 hours, otherwise the
battery’s duty could be temporarily reduced.
" Do not forget to remove the radio after 9 hours.
" The battery charger is for indoor use only.
" For maximum battery life please see the chapter “Care and Maintenance”.
HP125 User manual
Page. 13
Basic Operations
This section describes how the standard operations work. Programming can change standard operation.
Functions of the radio can be modified via an IBM compatible PC. For this reason the way your radio
operates may be upgraded and may slightly differ from what is described here.
! IMPORTANT: Due to the full programmability of the radio, certain menu commands could be
unavailable. E.g. if your radio has not been programmed for selective call operations, the related
menu commands won’t be recalled. In case of doubts please contact your dealer/radio network
administrator for further details.
Switching the radio ON/OFF
To switch the radio on:
1) Hold the (power) button until the radio is switched on: the LCD will start an autotest showing in
sequence:
• A welcome message (if previously programmed – it is usually your company name or your personal
station identification). At the same time all the LCD icons will be shown for one second as LCD test.
• The firmware release number (FW Rev.).
2) After the autotest has been carried out the LCD will steadily show the following data:
• The battery level . (number of bars indicate level of charge)
• The channel name/number on the first line (a specific twelve alphanumeric characters
identification name), it could be the last recalled channel or a previously programmed specific
channel.
• The current volume level with an LCD bar indication.
• The currently selected TX output power: L (low) or H (high) in the lower right corner of the LCD.
To switch the radio off Press and hold the key until the transceiver switches off.
Reception
Your radio could be previously programmed to work, channel by channel, in “Open traffic”, “CTCSS/DCS” or
“Selcall” mode. Please have a look at each description and ask your radio network manager or dealer which
mode your radio channels work.
• OPEN TRAFFIC: in this case you will hear any communication which will be transmitted on the
selected channel. When any signal is received your squelch will unmute and you will see in the LCD
the icon (speaker enabled), (squelch is open), (reception field strength level – the
number of bars will vary according to the received signal strength). Moreover you will see the status
CHANNEL 1
H
HP125 User manual
Page. 14
LED glowing green and you will hear the message.
• CTCSS/DCS (Continuous Tone Code Squelch System - Digital Coded Squelch): are systems which
use particular TX signaling (a continuous sub-audible tone for CTCSS or a digital code for DCS) as
an access “key” to work a repeater (encoder) or to unlock the party’s signaling sensitive squelch.
This last condition allows sharing more radio networks in the same frequency. In this case you will
receive only messages coming from parties sending a proper TX signaling. Please see the chapter
“Selcall Operation” for further details.
• SELCALL (Selective call): is a system which uses a signaling sequence (e.g. audio tones for “5
tones” and DTMF Selcall or a frequency shift signaling for FFSK) to call a particular station or
group(s). In this case you will receive only calls provided with your identification selective call code
(a number) or calls sent to the group you desire. For further details please see the chapter “Selcall
operation”.
! CTCSS/DCS and Selcall can be combined together.
" CTCSS/DCS and Selcall allow to share more than one radio network in the same frequency,
however they are just useful to avoid disturbing stations not owning of the same network
with messages not related to them. In any case, if more than one station is transmitting at the
same time, this will cause interference. Do not transmit if the status LED is glowing or the
icon is on the LCD. Wait until channel is clear before transmitting.
Adjusting volume
When no keys are pressed for 5 seconds, the radio is in its normal stand by condition and the (up)
and (down) keys are used to adjust the RX volume. To adjust the volume repeatedly press the
(up) key to increase or the (down) key to reduce the volume. The bar meter
is provided in the bottom of the LCD to continuously show the volume
level. The number of bars will vary depending on volume level.
Channel selection
If your radio has been programmed with more than one channel, you can easily change it. As previously
explained, each channel can be identified by alphanumeric names which are previously defined by your
network manager or supplier.
To select a channel:
1) Press the
MENU key in order to access the command menu and see on the display the message
Channel. Press the key to increase the channel (number) or the key to decrease it
2) . Press the (clear) key for two seconds to escape the command mode
! After 5 seconds, if you have not pressed any keys, the radio automatically reverts back to standby
mode.
Adjusting squelch
Squelch is provided to silence your radio when you are working in open traffic mode (please see
Channel H
HP125 User manual
Page. 15
“Reception”) and no signals are received. It’s very important to adjust the squelch to a level in order to
assure you a stable silence in stand-by condition. If the squelch level is too high, you might lose weak
signals. A good squelch adjustment assures also proper scanning operation.
To adjust the squelch:
1) Ensure that no communications are carried out in the tuned channel (the icon should not be present
in the top right part of the LCD).
2) Press the
MENU key in order to access the command menu and see on the display the message
“Squelch”. You will also see a number, which is the squelch adjustment level.
3) Press the key repeatedly to decrease the squelch level: after the level 1 you will see OFF squelch
is disabled and you will also see the icon .
4) Press the key repeatedly in order to select the minimum squelch level in which the . icon
disappears ( level 2 normally).
5) Press the (clear) key for two seconds to escape the command mode.
! After 5 seconds, if you have not pressed any keys, the command menu is automatically escaped
! In case of either CTCSS or Selcall system programmed, squelch does not affect the speaker status,
because the radio is closed awaiting the correct tones. In case of advanced signaling systems,
please, pay attention to the programming of the monitor key function (further described). Depending
on this, you may or may not be able to press the button to mute/unmute the loudspeaker and to
adjust the squelch level. The set squelch level will be stored and recovered at every switch on
operation.
Transmission
When you need to transmit please get used to following all these steps:
1) Ensure that the channel is not busy. (Otherwise you will create an interference. Please wait for that
condition).
2) Press the
PTT key: the status LED will glow red.
3) Start talking at a normal voice level at approximately 10 cm from the microphone (keep the PTT key
pressed).
4) When your message is over, release the PTT.
! Do not shout! It will not increase the distance you are able to communicate. Shouting into the
microphone will only make your transmission sound distorted!
! Don’t release the PTT before your message is over or start talking before pressing it, otherwise
your message will be “chopped”.
! A PMR handheld radio doesn’t normally allow you to talk and receive simultaneously, for this
reason make your messages short.
! The radio might be programmed with a timeout timer which will automatically switch your radio to
receive mode if you talk too much (after a preset time). In this case release the PTT and wait for a
few seconds: the radio TX features will be automatically reset. Ask the network administrator or
your dealer for further details.
S
q
uelch H
3
HP125 User manual
Page. 16
Adjusting Transmit Power
Your HP125 can transmit with two power levels according to the distance of your party’s station(s). Low
and High levels can be defined by default during programming. We recommend, when possible, to use the
Low power: it will increase the battery life and will reduce the risk of interference with stations not in your
radio network which may be sharing the same channel with you.
1) Press the MENU key to access the command menu and see on the display Power. You will also see a
cursor on either L or H.
2) Change the power as follows:
• If the
LOW power is currently selected, press the key to set to high power; the cursor will
move to H.
• If the
HIGH power is currently selected, press the key to set to low power; the cursor will
move to L.
3) Press the (clear) key for about 2 seconds to escape the command menu and restore the radio to
normal standby operation.
! After 5 seconds, if you have not pressed any keys, the command menu is automatically escaped.
Adjusting display contrast
You can adjust the LCD contrast in order to obtain the best readability. It will vary depending on your use as
well as the environment illumination.
1) Repeatedly press the MENU key in order to access the command menu and see on the display the
message Contrast.
2) Press the key repeatedly to increase the contrast or the key to decrease it.
3) Press the (clear) for 2 seconds key to escape the command menu mode.
! After 5 seconds, if you have not pressed any keys the command menu is automatically escaped.
Scanning channels
If you have more than one channel programmed, your HP125 can scan them. The advanced scan functions
of the radio allows you to optionally preset two groups (g1 and g2).
1) Repeatedly press the MENU key in order to access the command menu and see on the display g2
Scan g1.
2) Activate the scan as follows:
H Power L
Contrast H
g
2Scan
g
1
H
HP125 User manual
Page. 17
• If you have only one group available press the key.
• If you have two groups programmed, press to scan the g2 group or to scan g1.
• If you simultaneously want to scan the 2 groups, press and hold g1 or g2.
In both cases you will see Scanning and the channel names cycling continuously on the display. The
scanning starts from the lowest address number toward the highest. If one or more priority channels
have been programmed, it will start from the first priority address number.
3) To stop channel scan Press the MENU key, or the PTT.
! If you are working in Open traffic (please see the paragraph “Reception”) ensure that the squelch is
properly set, otherwise the scanning may not work properly. See the paragraph “Adjusting squelch”
for more details.
! If CTCSS/DCS or Selcall have been previously programmed, the scanning will stop only if the
received signal has the appropriate signaling.
! If you press the PTT during channel scan, scanning will stop and transmit in the priority channel or
in the first available vacant channel, depending on programming.
! Channel scan can be programmed by your radio network administrator or dealer in a variety of
different parameters depending on your needs. For example he can assign one or more priority
channels, adjust the scan speed (switching time), the resume time (the time the radio waits before
scanning resumes after receiving a signal), set busy or vacant channel stop etc. Please contact
your administrator/dealer for further details.
Radio lock
Your HP125 has been provided with a security function which protects it against unauthorized or accidental
activation of commands. You can lock the radio in two ways:
• Full lock: every command is locked.
• Partial lock: only the keypad is locked.
Every time you unlock the radio you will have to enter a 4 digits security code called PIN (personal
identification number).
To lock the radio:
1) Repeatedly press the MENU key to access the command menu and see on the display the message F
Lock P.
2) Press the key to activate the Full lock or the key to activate the Partial lock.
To unlock the radio:
1) If the radio is in Partial lock press the MENU key: the display will read PIN ....
2) Enter the PIN (four digits), the radio will be unlocked.
! If you entered the correct pin then the radio will return to normal operation mode. If you entered the
wrong pin radio remains locked.
FLock P
H
HP125 User manual
Page. 18

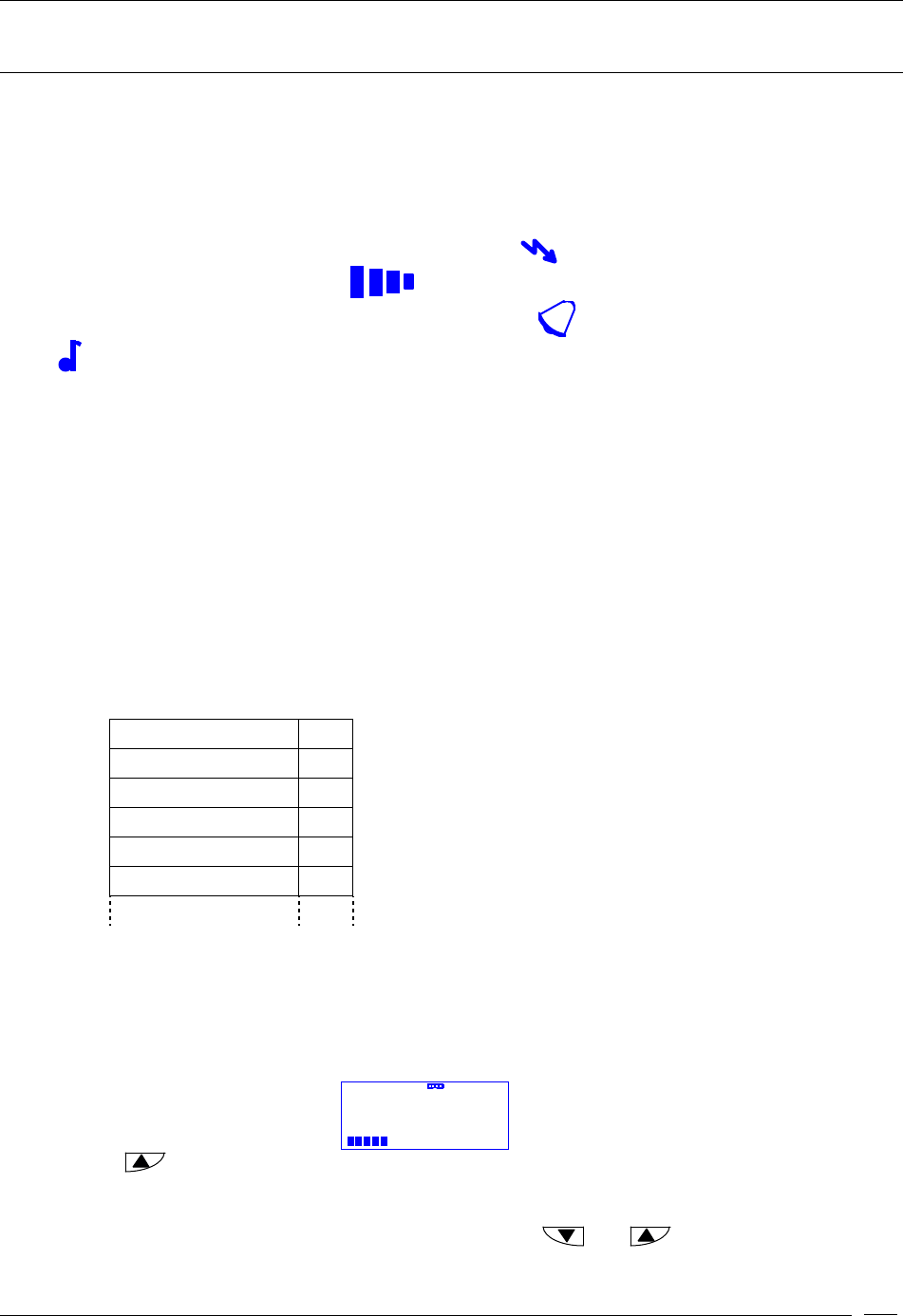

Selcall and CTCSS/DCS Operation
Reception
During CTCSS/DCS and Selcall operation the radio may be set-up so that the appropriate CTCSS/DCS and
Selcall decoder enables the speaker. Speaker will remain muted until the correct CTCSS tone, the correct
DCS code and/or the appropriate selective call is received. In case of unmuted speaker, the message will
be heard, the status LED will glow green and the receive icon will be displayed. Moreover the strength
level of the received signal is displayed (the number of bars will vary according to the received
signal strength). The CTCSS/DCS reception is indicated by the icon; the Selcall reception is indicated
by the icon.
Transmission
Sending a Selcall
You can send a selective call in many different ways which makes it easy and quick to send your calls
depending on your needs: Stored call, (who-has called), Manual call and One touch call.
Stored call (Address book)
This mode allows you to originate a call by using a convenient alphanumeric address book which has been
programmed by your radio network administrator or dealer with the most used ID associated to an
alphanumeric label, for example:
Headoffice 15
John 01
Mary 07
Mike 08
Robert 05
..... XX
..... XX
! Starting from now, as “address” we mean an ID associated with an alphanumeric label.
To call an address using the address book:
1) Repeatedly press the MENU key to access the command menu and see on the display the message
AddrBook Ok.
2) Press the key to access the address book.
3) Select the required address to call (name with associated ID); you have two choices:
• Scrolling trough the various addresses by means of the and keys.
• Recalling the initial letter of the addresses. Press the key which states the initial letter (e.g. to call
AddrBook Ok
H
HP125 User manual
Page. 19
Mary press 5, to call John press 4 etc.). The unit will display the first name of the address book
starting with the selected character (or the next address if no names beginning with the selected
character is in the list). If the initial letter is the 2nd of the 3rd one printed on a key, press respectively
that key two or three times (e.g. to recall the Headoffice press 3 twice). If you have more than one
address beginning with the same initial letter use the key to scroll down names till you will
reach the proper address.
4) Press the (call) button for 2 seconds to call the selected address.
! If you made a mistake in recalling an address you can abort the call operation at step 4 by pressing
the (clear) button. Note: the selected address became the default TX address.
! Address book is also useful in reception. When you receive a Selcall ID which is stored in the
address book, your radio will automatically look for that ID in the address book. If it is stored, you
will see the alphanumeric label on the display as well. For example, if you receive 15 as caller ID,
and it is stored in your address book as “Headoffice”, you will see “Headoffice” in your LCD instead
of “15”.
Who-has-called (Call Queue)
This is a convenient facility which is useful to check who has called you and eventually call back him/her.
First of all please note that your HP125 has a memory which holds the last 10 received calls:
1st (most recent received call) John
2nd Robert
3rd Mary
4th Headoffice
5th Lyndsay
6th Mike
7th Branch
8 th William
9 th Ann
10th (oldest received call) Peter
This buffer memory is displayed similarly to the address book and is a FIFO (First In First Out) type. This
means that the 10th stored address (the oldest received call) is the first which will be deleted after the 11th
received call in order to make room for it.
In the example the 1st received call came from Peter, so it will be deleted from the call queue as soon as a
new call is received. All the other addresses (Names with associated IDs) will be shifted one position down
in order to make room for the new address at the 1st position.
HP125 User manual
Page. 20

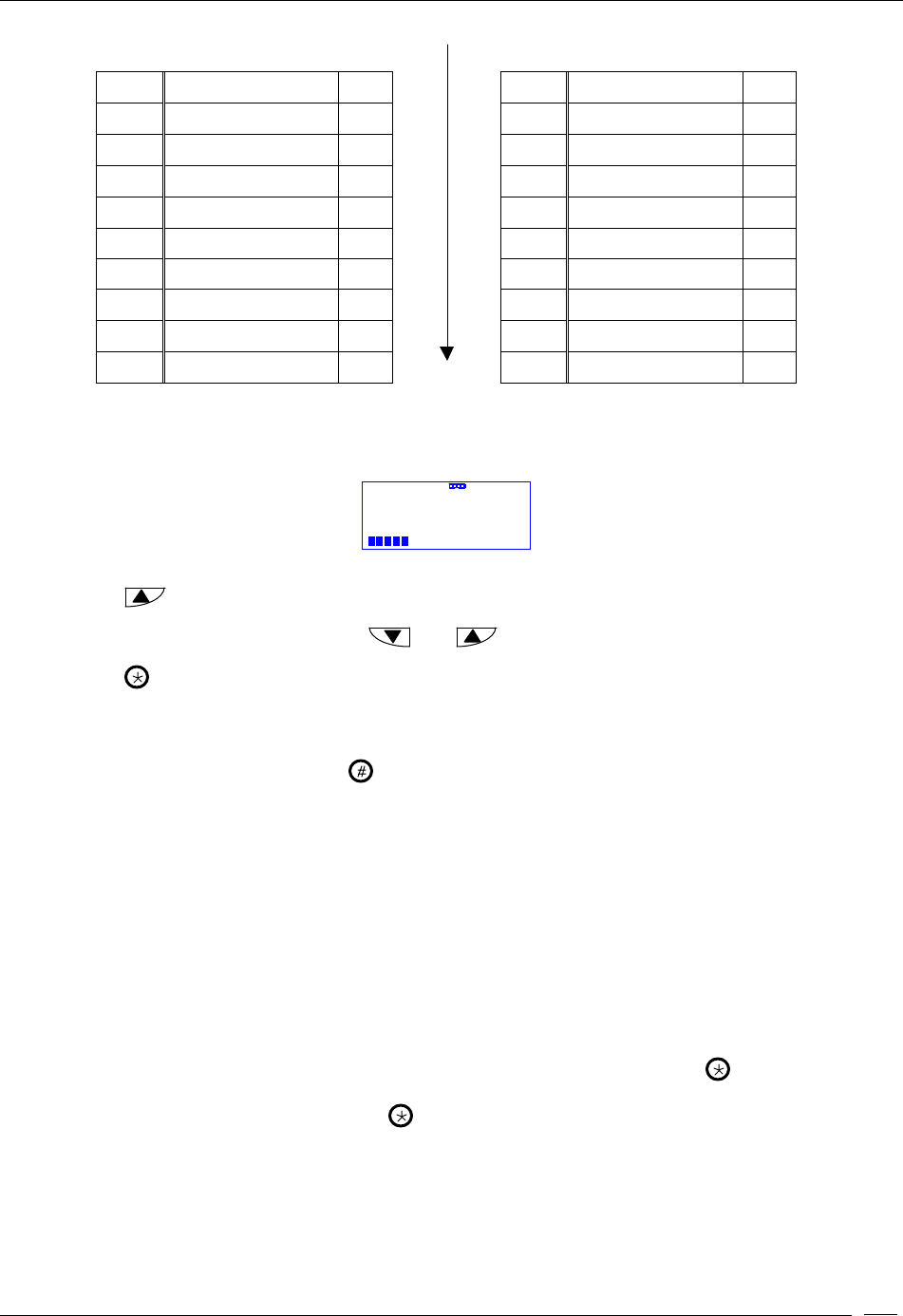

Before a received call After the call received from Fred (ID 23)
1st John 01 1st Fred 23
2nd Robert 05 2nd John 01
3rd Mary 07 3rd Robert 05
4th Headoffice 15 4th Mary 07
5th Lyndsay 21 5th Headoffice 15
6th Mike 08 6th Lyndsay 21
7th Branch 33 7th Mike 08
8 th William 55 8 th Branch 33
9 th Ann 16 9 th William 55
10th Peter 19 10th Ann 16
To call an address using the call queue:
1) Repeatedly press the MENU key to access the command menu and see on the display the message
CallQueue Ok.
2) Press the key to access the call queue. This access is only allowed if the CallQueue is not empty.
3) Scroll through the address by using the and keys and select the address you want to call.
4) Press the (call) button to call the selected address: it will be called and automatically deleted from
the call queue.
! If you need to delete an address stored in the call queue without calling it perform the previous
procedure. At the step 4 press the (clear) button: the selected address will be deleted.
! The call queue is provided with a “space save” function: if more than one call has been received
from the same caller “space save” will overwrite it.
Manual call
If the radio network administrator or your dealer has enabled in your unit the manual definition of variable
address digits:
1) Just dial the variable address digits using the keypad before sending the call. Any digit can be corrected
by overwriting.
2) When you see the correct address on the display, make the call by pressing the (call) button.
! To repeat the last call, just press the button twice. (The group tone (‘A’) can be obtained by
pressing and holding the 0 key).
One touch call
To activate the “One Touch call, press either the CALL1 or CALL2 button. If they have been programmed
the preset addresses will be automatically called.
Call
Q
ueue Ok
H
HP125 User manual
Page. 21
Advanced Operations
In this section we’ll describe some advanced operation which you can do with your handheld transceiver:

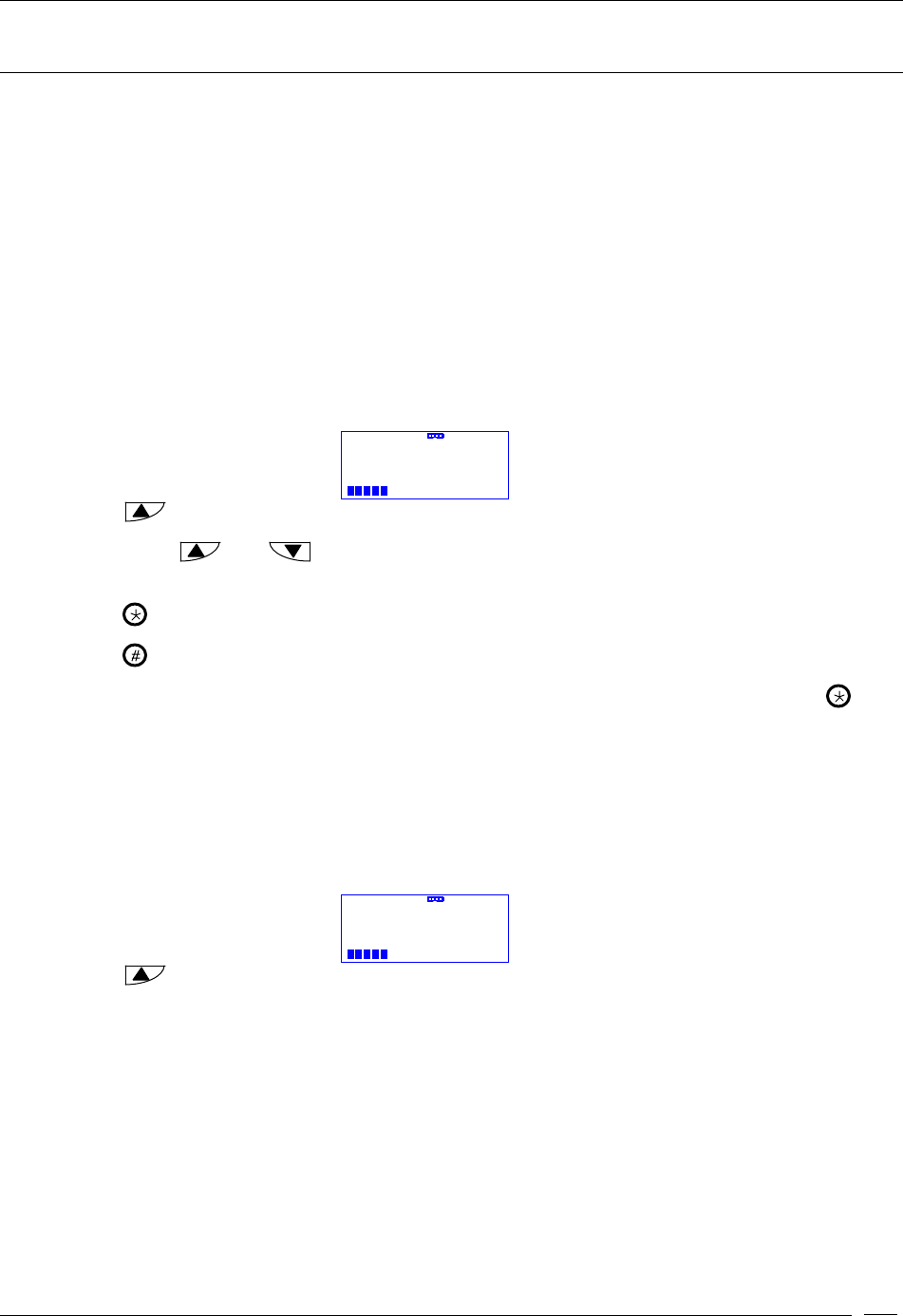

Sending status messages
Status digits allow you to transmit some previously programmed conditions in which you could momentarily
be: BUSY, FREE, EMERGENCY etc. Your transceiver can automatically associate the said digits with the
related alphanumeric message in order to make it easier to send and recognizing them exactly as you do
with the address book.
To send a status message:
1) Repeatedly press the MENU key in order to access the command menu and see on the display the
message StatusDig Ok.
2) Press the key to access the status digit command.
3) Press either the and keys to scroll through the various programmed messages and select
the one you wish to transmit.
4) Press the (call) button to select the status digit.
5) Press the (clear) button for 2 seconds to escape command menu mode.
6) Refer to “Sending a Selcall” to address the call. Select the required address to call, press the (call)
button, the status digit/digits will be automatically sent to the selected address.
Sending FFSK free messages (SDM)
1) Repeatedly press the MENU key to access the command menu and see on the display the message
Send SDM Ok.
2) Press the key to edit the SDM.
3) Edit the text of SDM by using the keypad as follows.
• Press the key which states each required letter/number (e.g. use 5 to select M, N, O or 5). If the
letter is the 2nd, the 3rd or the 4th one printed on a key, press respectively that key two, three or four
times (e.g. to recall the H press the key 3 twice). After one second the cursor will automatically
move to the next position.
• To select a dot press the key 9 three times.
• To select
!, ? or a space, repeatedly press the key 0 until the required character appears on the
LCD.
• If you have made a mistake in editing the message, you can delete characters by briefly pressing
Send SDM Ok
H
StatusDi
g
Ok
H
HP125 User manual
Page. 22
the (clear) button.
4) Press and hold the (call) button for 2 seconds to send the SDM.
5) Press and hold the (clear) button for 2 seconds to escape the command menu mode.
Checking FFSK free messages (SDM)
When you receive an SDM (FFSK message) you will see it on the LCD. Any key will delete it; You can see
the last 5 received messages at any time. SDM messages are queued in a FIFO call queue similar to the
one dedicated for the selective calls (please make reference to “Who-has-called call” in the chapter “Selcall
and CTCSS/DCS Operation”). To recall it:
1) Repeatedly press the MENU key to access the command menu and see on the display the message
MSGQueue Ok.
2) Press the key to access the message queue. This access is only allowed if the MSGQueue is
not empty.
3) Scroll through the messages by using the and keys and select the one you want to see.
4) Press the (clear) button for 2 seconds to exit the command menu mode.
Sending DTMF patterns
DTMF (Dual Tone Multifunction Frequency) is a standard signaling system used to dial telephone numbers
over a normal PSTN landline. In radio communications it can be also used to do the same if your radio
channel is connected to a landline via a suitable device (phone patch). DTMF is used to send/receive radio
commands or provide signaling similarly to selective calls. For further details please contact your network
administrator.
To store or dial a DTMF pattern:
1) Repeatedly press the MENU key to access the command menu and see on the display the message
DTMF Send Ok.
2) Press the key to edit the DTMF pattern to send.
3) Edit the DTMF pattern to send by using the keyboard. Pressing or buttons, you can digit * or #.
Any digit can be corrected by overwriting.
4) Press and hold (call) button for 2 seconds to send the DTMF pattern.
5) Press and hold the (clear) button for 2 seconds to escape the command mode.
Handsfree transmission (VOX)
VOX (Voice Operated Transmit) is an automatic system which allows you to automatically switch the
transmission in hands free mode just by speaking in the built-in microphone of a headset (not provided with
MSG
Q
ueue Ok
H
DTMF Send Ok
H
HP125 User manual
Page. 23
the unit). Please ensure that the handset is suitable for your transceiver as reported in the paragraph
“Microphone connection”.
To adjust the VOX sensitivity:
1) Connect the optional headset with built-in microphone to the microphone connector located on the
transceiver’s side.
2) Repeatedly press the MENU key to access the command menu and see on the display the message
VOX. You will see OFF (disabled) or digit which indicates the microphone sensitivity value.(OFF-9)
3) Ensure that the headset’s built-in microphone is located close to the side of your mouth.
4) Press either the and keys to adjust the VOX sensitivity in order to ensure a stable
transmission when speaking with a normal voice level.
5) Press and hold the (clear) button for 2 seconds to escape the command mode.
" We recommend setting the VOX to lowest sensitivity possible; too high a value could cause
accidental transmissions, especially in hi-noise environments.
Vox H
OFF
HP125 User manual
Page. 24
Care and Maintenance
Battery Packs
Information on rechargeable batteries
• When the battery pack is new it does not provide 100% of its efficiency. To reach the full battery
life you must “run-in” the battery with at least 3-4 deep charging/discharging cycles, after that it will
reach its maximum capacity. Please see “Proper charging of battery packs” for further details.
• Should you properly use the battery pack, you will obtain at least 400 charge/discharge cycles (300
with the optional rapid charger).
• Nickel-Metal-Hydride rechargeable battery packs lose their charge with time if left unused (self-
discharge), this is normal. A NiMH (Nickel-Metal-Hydride) battery can reduce 10 to 20% of its
stored energy in few days.
Proper charging of battery packs
1) Ensure that the radio is switched off; otherwise switch it off by holding the (power) key pressed
(release it after the radio is switched off).
2) Insert the radio into the cradle as explained in the paragraph “Charging the battery pack”
3) Wait the necessary time to provide a full charge. If the pack isn’t completely discharged you will need
less than 8 hours. Evaluate the time by using the battery level indicator and common sense.
" Do not overcharge the battery: always remember to remove the radio after the necessary
time.
" The battery charger is for indoor use only.
! When possible, charge the battery when it is fully discharged. The battery’s duty could be
temporarily reduced. Please see the paragraph “Memory effect”.
! Don’t remove the radio before the necessary time, otherwise the battery’s duty could be temporarily
reduced. Please see the paragraph “Memory effect”.
Memory effect
The supplied NiMH (Nickel Metal Hydride) battery pack is made with a more advanced technology than
normal NiCd (Nickel Cadmium) battery. For this reason it is virtually free of what is called “memory effect”,
which affects NiCd batteries. Memory effect is a temporary capacity reduction which reduces the battery
duty. Memory effect may occur just if you regularly charge the battery when you haven’t discharged it at
least at 50-70%. Memory effect can be easily avoided by following these simple rules:
• When possible charge battery packs only when they are completely discharged, i.e. when the
battery icon has no bars inside.
• Don’t remove the battery from the charger before the necessary time to provide a full charge.
• Provide at least two deep charge/discharge cycles per month.
• The best way to avoid memory effect is to use two battery packs and alternate their use with the
HP125 User manual
Page. 25
radio. This will allow you to keep on your transceiver’s operation by replacing the battery pack just
when it’s fully discharged and use the spare (charged) one. At the end of your working day you will
charge the discharged pack for 8 hours.
Erasing memory effect
Memory effect can be easily erased just by applying 3-4 deeper charge/discharge cycles:
1) Use the battery fitted in the radio and wait until the radio switches off. Do not stop when the last battery
bar disappears from the icon; wait until the LCD completely disappears.
2) Wait at least one hour and then try to turn the radio on by pressing the button: you will note that
some energy has restored in the battery, because the radio can be switched on.
3) Leave the radio in RX until the radio switches off again.(usually after a few minutes)
4) Repeat steps 2 and 3 three times.
5) Fully charge the battery for 9 hours and check the battery duty. If some memory effect still exists go
back to step 1.
! If the battery duty doesn’t improve after three cycles, your battery pack is faulty or has reached the
end of life (please see “Information on rechargeable batteries”).
Warnings for battery and charger use
Please use these cautions to avoid damaging battery packs or the transceiver:
" Before using the battery charger carefully read any related warning or caution.
" Don’t short battery terminals: this may cause fire, burns or explosions.
" Never dispose of batteries into fire they may explode causing, burns or explosions. Strictly
follow any disposal regulation of your country.
" Use only authorized batteries and chargers. The use of non-authorized accessories may cause
burns, fire or explosions; causing serious damages to the radio/battery or serious injuries to
yourself.
" Battery chargers are for indoor use only.
" Be certain that your power source matches the rating listed for the supplied battery charger
(AC Adapter). If you are not sure, check with your dealer.
" To avoid damaging the power cable of the battery charger, do not put anything on it or place
it where it will be walked on. Insert the plug in socket provided with grounded connection.
" . Do not use the charger if it has fallen down or it appears damaged; immediately contact an
authorized service station.
" Never try to disassemble or service the charger by yourself. Always contact your local dealer
for assistance.
" To reduce the risk of electric shocks disconnect the plug before any cleaning or maintenance.
Grasp the plug (not the cable) to remove the plug from the socket.
" Do not expose batteries directly to temperatures below -20°C (-4°F) or greater than 35°C
(95°F) during their use and do not charge them outside the range of +5 to +55°C (41-131°F).
HP125 User manual
Page. 26
Radio maintenance
Cleaning battery packs
Wipe the battery contacts with a clean and lint free cloth to remove dirt, grease or any other material which
may prevent a good electrical contact. If contacts are very dirty you can also wipe them using a soft pencil
eraser (not hard erasers for ink!). If you feel that battery contacts are not working properly, please contact
your authorized dealer.
" Do not use liquid, alcohol or aerosol cleaners.
Cleaning the radio
• Wipe the radio with a clean and lint free cloth to remove dust. If it is very dirty, you can use a damp
(slightly moistened with water) cloth.
" Do not use liquid, alcohol or aerosol cleaners.
! If you normally use your radio in dusty or hard environments, we do recommend using the optional
carrying case. Please see “Optional accessories”.
Connectors
When the connectors are not being used, they should be fitted with the supplied cover caps.
" Only authorized accessories should be connected to the related connectors.
HP125 User manual
Page. 27
Optional accessories
These optional accessories can be used to improve the transceiver’s performances:
• Spare battery pack.
• Rapid charger.... Recharges the battery pack in 1 hour and provides trickle charge when the battery
pack reached a full charge.
• Carrying case.
Microphone connector
The microphone connector is designed for the connection of two basic accessories (not supplied as
standard):
• An external speaker/microphone, which allows using the radio firmly secured to your belt by means
of the supplied belt clip.
• A headset with built-in microphone, which additionally will add the “VOX” facility. For further details
please see “Hands free transmission (VOX)”.
Any kind of accessory for the above stated purposes can be connected to the microphone connector,
provided that they meet the following requirements:
• Jack connectors for Speaker (SPK) and Microphone (MIC) must be respectively standard type 3.5 mm
and 2.5 mm. and connected as follows:
• The suggested speaker input impedance is 8 Ohms
• The microphone should be condenser low-impedance type.
• Any accessory should be of high quality suitable for professional use.
" Please don’t connect any accessory which you are not sure meet the above stated
requirements. You could cause serious damages to your radio. In case of doubt please
contact your authorized dealer.
SPK
Spk GND
MIC
MicGND
HP125 User manual
Page. 28
Quick reference
Operation summary
You should now be familiar with your transceiver. Now you know how very easy it is to use one of its menu
commands. Follow this quick reference.
1) Press repeatedly the MENU key until the required setting appears on the LCD.
2) Perform one of the following actions:
• If the related message is followed by Ok, press the key to enter the setting.
• If two arrows are present in each side of the LCD, press either or respectively to
decrease or increase the setting.
• If two parameters appears in each side of the LCD, press either or respectively to
activate the left or right parameter.
3) If necessary do what is described for that particular setting press and hold (call) button in case of
DTMF sending).
4) To exit from the menu command press and hold the (clear) key for 2 seconds.
LCD Memo reference guide
As soon as you have read the entire manual, the following table references the meaning of each LCD
message to help you quickly locate each function / setting. This is just a memo, for further details please
see the related paragraph.
HP125 User manual
Page. 29
LCD Message Description For full details please see…
Channel Operating channel selection (if more than one previously
programmed). Use and to select the needed channel.
Channel selection
Squelch Squelch (audio mute in open traffic mode) adjustment. Use
and to select the level.
Adjusting squelch
Power Allows adjusting the transmission output power. Use and
to select L (Low) or H (High).
Adjusting transmission power
Contrast Display contrast adjustment. Use and to select it. Adjusting display contrast
g2 Scan g1 Channel scanning. If you have only one programmed group use
to activate the scanning. If you have two groups, press to
scan group 1 or to scan group 2. Press and hold g1 or g2 to
scan both.
Scanning channels
F Lock P Radio lock against misuse. Press to lock the keypad only or
to lock the entire radio.
Radio lock
AddrBook Ok (Selcall) Display the preprogrammed Address book. Press to
access the book, then use and or the keypad to select
the address to call Press and hold the key to call the address.
Stored call
CallQueue Ok (Selcall) Display the addresses of the last 10 received addresses
(to recall the callers). Press to access the call queue, then use
and to select an address. Press and hold the key to
call, or Press and hold the key to delete it.
Who-has-called call
StatusDig Ok (Selcall) Sends the previously programmed status messages. Press
to access the status list, then use and to select the
needed status. Press and hold the key to confirm the selected
status.
Sending status messages
Send SDM Ok Allows editing an FFSK text message (SDM). Press to start
editing the message (use the keypad to edit). Press and hold the
key to send the message.
Sending FFSK free messages
MSGQueue Ok Display the last 5 received FFSK messages. Press to access
the message queue, then use and to scroll through the
messages.
Checking FFSK free messages
DTMF Send Ok To edit and send a DTMF pattern. Press to start editing the
pattern (use the keyboard to edit). Press and hold the to send.
Sending DTMF patterns
VOX Allows selecting the VOX sensitivity for handsfree operation
(through an external headset). Use and to select the
level. Press and hold key to escape command mode.
Hands free transmission
HP125 User manual
Page. 30
Main Specifications
General
Frequency Bands VHF (HP125): 136÷174 MHz (136÷162 / 146÷174 MHz)
Number of Channels more than 100
Frequency Control synthesizer
Modulation System F3E / G3E
Channel spacing 12.5 / 25KHz
Temperature Range -30 / +60 °C operative, -40 / +80 °C storage
Humidity 90% not condensing @ 40°C
Power Supply NiMH battery 1,200mA/h
RF Impedance 50Ω
Antenna socket MX thread type
Frequency Stability better than ± 2.5ppm
Transmitter
Output Power 5 W , High / low level programmable channel dependent
Modulation System FM (F3E) / PM (G3E)
Maximum Deviation ±2.5 KHz@12.5KHz, ±5 KHz@25KHz
Adjacent Channel Power < -60dBc
Spurious Emissions Switching < 0.25µW 9KHz÷1GHz, <1µW 1÷4GHz
Bandwidth full band
Receiver
Circuit Type Double Conversion
Intermediate Frequencies I: 45 MHz, II: 455 kHz
Sensitivity < 0.25µV @ 12 dB SINAD
Intermodulation Rejection > 65dB
Spurious Response Rejection > 70dB
Adjacent Channel Selectivity > 60dB 12.5KHz, 70dB 25KHz
Switching Bandwidth full band
Squelch threshold 0.18µV
HP125 User manual
Page. 31
Squelch hysterisis < 3dB
AF & signaling
Audio power > 500mW @ 10% distortion
CTCSS sensitivity < 6dB Sinad
CTCSS selectivity accept tones +/-0,5%
Selcall sensibility > 99% @ 12 dB Sinad
> 95% @ 10 dB Sinad
Selcall selectivity accept tones +/-1,5%
reject tones +/-3%
Mechanical Specs
Size (mm) 148 x 36 x 60
Weight 385 g.
Display backlit LCD 2 x 12 char alphanumeric
Keyboard 12 + 3 function keys + UP/DOWN/MENU
keys + Emergency key
Battery back slide battery
Radio and key paint grease resistant
Shock resistant follow MIL STD 810
Water & dust IEC529 IP54
Environmental: IEC529 IP54 and MIL STD 810 C,D,E
HP125 User manual
Page. 32
Index
A
Address book 18
Adjusting
Display Contrast 16
Squelch 14
Transmission Power 16
Volume 14
Antenna
fitting/removing 11
B
Battery charger
rapid (optional) 27
standard 12
Battery pack
Charging 12
Battery packs
cleaning 26
Erasing memory effect 25
Information on rechargeable batteries 24
Memory effect 24
Proper changing 24
Warnings for battery and chargers use 25
Belt clip 11
C
Call Queue 19
Care and Maintenance 24
Carrying case 27
Channel selection 14
Cleaning the radio 26
Connectors 26
Contrast
LCD adjusting 16
Conventions and Symbols 6
D
Display 8
Adjusting contrast 16
DTMF
Sending patterns 22
F
FFSK
Checking free messages 22
Sending free messages (SDM) 21
H
Handsfree transmission (VOX) 22
L
LCD
Adjusting contrast 16
HP125 User manual
Page. 33
M
Memory effect 24
Microphone connector 27
O
Optional accessories 27
Carrying case 27
Rapid charger 27
Spare battery pack 27
Output power
Adjusting 16
P
Part Names and their functions 7
Power
button 13
ON/OFF 13
TX output adjustment 16
Q
Quick reference 28
LCD memo reference guide 28
Operation summary 28
R
Radio lock 17
Radio maintenance 26
Rapid charger 27
Reception 13
S
Safety 4
Scanning channels 16
SDM See FFSK, Sending free messages (SDM)
Selcall
Address book 18
Call Queue 19
Manual call 20
One touch call 20
Reception 18
Sending a Selcall 18
Sending status messages 21
Transmission 18
Sending
a Selcall 18
DTMF patterns 22
Setup
Battery pack 11
Belt clip 11
Charging the battery pack 12
Fitting antenna 11
Package contents 10
Unpacking 10
Specifications 30
AF & signaling 31
General 30
Mechanical specs 31
Receiver 30
Transmitter 30
HP125 User manual
Page. 34
Squelch adjusting 14
Stored call (Address book) 18
Switching the radio ON/OFF 13
T
Transmission 15
Transmission Power 16
V
VOX 22
W
Warning notes 4
Warnings for battery and chargers use 25
