users manual
LXT320/420 Series
GMRS/FRS Radio
X-TRA TALK
®
OWNER'S MANUAL
www.midlandradio.com
®
Model LXT320/420 Series
Page 2 www.midlandradio.com
TABLE OF CONTENTS 2
Introduction 3
Important Notice, FCC Licensing 4
LCD Display 5
Controls 5
Battery Installation 6
Installing the Belt Clip 6
Charging the Optional Battery Pack 7
Low Battery Level Indicator 7
Operating Your Radio 8 - 13
External Speaker/Microphone Jack 13
Troubleshooting Guide 14
Use and Care 14
Specifications and Frequency Charts 15-16
Warranty Information 17

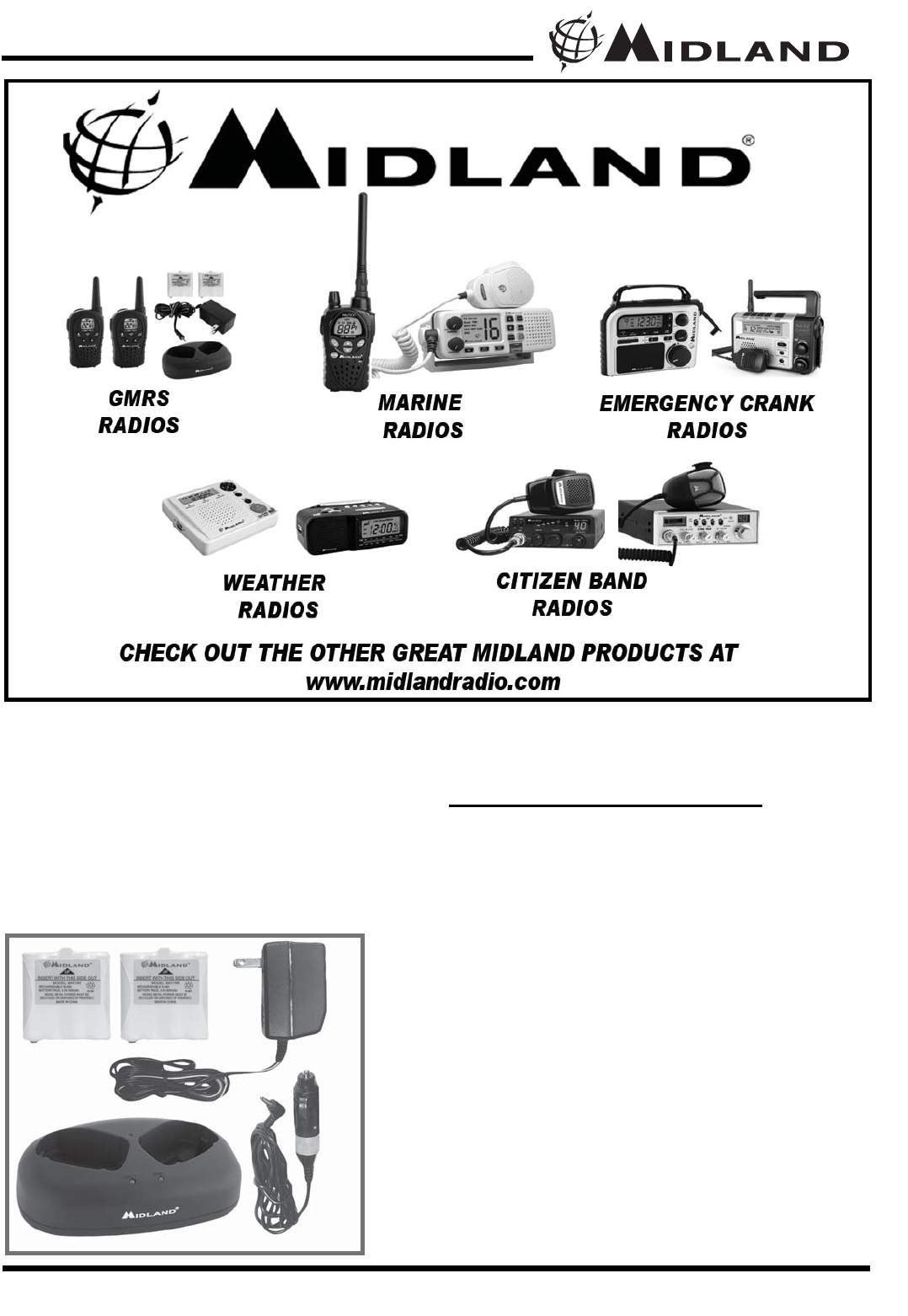

MIDLAND Family Products 18
Accessories 18
Accessories Order Form 19
®
Page 3 www.midlandradio.com
Welcome to the world of Midland electronics
Congratulations on your purchase of a high quality MIDLAND product.
Your 2-way radio represents the state-of-the-art in high-tech
engineering. Designed for GMRS (General Mobile Radio Service)
operation, this compact package is big in performance. It is a quality
piece of electronic equipment, skillfully constructed with the finest
components. The circuitry is all solid-state and mounted on a rugged
printed circuit board. Your two-way radio is designed for reliable and
trouble-free performance for years to come.
Features
- 22 GMRS/FRS Channel
- 121 Privacy Codes (38 CTCSS / 83 DCS)
- eVOX
- Selectable CALL Tone
- Weather (WX) Band Receiver
- Weather (WX) Alert
- VIBRATE ALERT (LXT420 Series only)
- SCAN Function
- MONITOR Function
- Roger Beep Tone
- Silent Operation
- Key Pad Lock
- Power High / Mid / Low Settings
- Speaker / Microphone Jacks
- Battery Meter / Battery Low Indicator
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device does not cause harmful interference, and
(2) this radio must accept any interference that may cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for body-worn
operation, this radio has been tested and meets the FCC RF exposure guidelines
when used with Midland Radio Corp. accessories supplied or designated for this
product. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. (Tested with Headset Model: AVP-1)
Model LXT320/420 Series
®
Page 4 www.midlandradio.com
IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION
The LXT320/420 Series operates on GMRS (General Mobile Radio Service) fre-
quencies which require an FCC (Federal Communications Commission) license.
You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which com-
prise the GMRS channels of the LXT320/420 Series. Serious penalties could
result for unlicensed use of GMRS channels, in violation of FCC rules, as stipu-
lated in the Communications Act's Sections 501 and 502 (amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on GMRS channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other GMRS users, and being prudent with the length of their
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-888-CALL FCC or go to the FCC's website:
www.fcc.gov/services/personal/generalmobile/licensing.html
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human being to radio
frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the time.
The radio generates measurable RF energy exposure only when transmitting.
Model LXT320/420 Series
IMPORTANT: Changes or modifications to this unit not expressly approved by
MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set
up to transmit a regulated signal on an assigned frequency. It is against the law to
alter or adjust the settings inside the COMMUNICATOR to exceed those
limitations. Any adjustment to your radio must be made by qualified technicians.
®
Page 5 www.midlandradio.com
-TRA ALK
XT
MENU
CONTROLS
LCD DISPLAY 1. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
2. eVOX – Indicates when eVOX mode is
active.
3. WX BAND ICON – Indicates when the
radio is in Weather Band mode.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on
WX band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38/oF~83).
6. BATTERY METER – Indicates the
battery level.
7. VIBRATE-ALERT ICON – Indicates
when the Vibrate-Alert (LXT420 Series
only) feature is on.
8. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
9. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
10. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/L)
11. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
11. PTT Button – Press and hold to transmit
voice communication.
12. CALL/LOCK Button – Press to send a
CALL tone signal. Press and hold to turn
KEY LOCK on/off.
13. MIC – Built-in microphone.
14. SPEAKER – Built-in speaker.
15. ANTENNA.
16. EXTERNAL SPEAKER/MIC/CHG. JACK
17. POWER / MENU Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
18. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode
19. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
19
18
17
16
15
Model LXT320/420 Series
11
®
Page 6 www.midlandradio.com
BATTERY INSTALLATION
Your LXT320/420 Series radio operates with either 4 AAA alkaline
batteries or an optional NiMH battery pack. The belt clip should be
removed (see below) to ease installation or removal of the batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover
by pressing down on the top center and sliding it down from the
radio.
2. Insert 4 AAA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the unit from operating or
may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the
belt clip, making sure it locks into place.
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
COVER
Press here and
push down to open
Model LXT320/420 Series
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into the slot on the back
of the radio until the BELT CLIP LATCH clicks. To remove the BELT
CLIP, press the LOCK TAB down , then gently pull the belt clip up
toward the top of the radio.
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
®
Page 7 www.midlandradio.com
CHARGING THE OPTIONAL BATTERY PACK
Your LXT320/420 Series is equipped for using an optional recharge-
able NiMH battery pack which can be recharged by inserting the AC
adapter into the radio charge jack, or with optional desktop charger
(as described below). Initial charge time is 24 hours. Charge time is
about 12 hours thereafter. For maximum battery life, we recommend
charging the battery pack when the low battery icon comes on.
Remove the radios from the charger when the charge time expires.
To charge using a Desktop Charger:
1. Place the rechargeable battery packs in the radios.
2. Connect the AC adapter into an AC wall outlet.
3. Insert the AC adapter plug (or DC Cigarette Lighter adapter if
charging in vehicle) into the desktop charger jack.
4. Place the units into the desktop charger slot and note that the LED
indicator with RED color will light up, indicating charging function.
In order to ensure that the battery pack is fully charged, it is
recommended that the battery pack be charged for at least 12
hours.
1. Only use our NiMH battery pack.
2. Do not attempt to charge alkaline batteries or any batteries
or battery packs other than the one indicated in the manual.
This may cause leakage and damage to the radio.
3. For long term storage of the radio, turn the radio OFF and
remove the batteries from the radio.
BATTERY LEVEL INDICATOR
Your LXT320/420 Series has a BATTERY LEVEL METER
that shows the battery power level. The greater the number of bars
visible, the stronger the battery level. When the battery level is low,
the last bar and “Lo bt” will flash in the display indicating your
batteries should be replaced or recharged if using a rechargeable
battery pack.
Model LXT320/420 Series
!
POWER ON/OFF AND VOLUME
Press the POWER/MENU button for at least 3 seconds to turn the
radio on/off. During Power On, the radio will beep 3 times with
different tones, the LCD will display a “self-test” message for 1
second and the LCD display will indicate the last channel selected.
To increase/decrease the volume level, press the button during
RX or STANDBY mode.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same
channel and Privacy Code.
1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.
2. Press and hold the PTT button and speak in a normal voice
into the microphone. The TX icon will appear continuously
on the LCD Display while transmitting.
3. To receive a call, release the PTT button. The RX icon will
appear on the display when your radio is receiving a transmission.
ABOUT RANGE
Your LXT Series radios are designed to give you maximum range
under optimum conditions.
Optimum Conditions are:
lOver water
lOpen rural areas without obstructions
lFlat areas where you can see the other person
To ensure you get maximum range:
lBe sure to use fresh or fully charged batteries - low batteries will
cause low power conditions
lBe sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power
lBe sure to set your radio to use Hi power.
®
Page 8 www.midlandradio.com
OPERATING YOUR RADIO
Model LXT320/420 Series
/
®
Page 9 www.midlandradio.com
LXT320/420 SERIES QUICK REFERENCE CHART
MONITOR
Pressing and holding the MONITOR button for 1 second will let you
hear noise so you can adjust the volume level of the radio when not
receiving a signal. This should be used to check activity on your
current channel before transmitting.
Press and hold the MONITOR button for 1 second again to get out
of MONITOR mode.
SCAN
Your LX320/420 Series can scan all 22 channels for activity. To enter,
quickly press the SCAN button. Repeat the same procedure to exit.
Your radio will rapidly scan each of the 22 channels and stop on any
active channel for 5 seconds before resuming scan.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel. To
resume scanning, quickly press the SCAN button.
CALL TONE
Your LXT320/420 Series can transmit a call tone for a fixed length of
time. To send a call tone, press the CALL button. The TX icon will
appear while transmitting a call tone and a tone can be heard on the
speaker for confirmation.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the LOCK
button for 4 seconds. The KEY LOCK icon will appear on the display.
PTT and CALL will still be active. Repeat the same procedure to
unlock the keypad.
Model LXT320/420 Series
MENU Channel eVOX
1~22
Privacy
Roger Beep
On/Off
Power
H/M/L
Call Tone
1~5
Vibrate
On/Off
WX Channel
1~10
Press Menu
button when
WX Band is
ON
Silent Operation
On/Off
oF/1/2/3
Off
CTCSS
DCS
1~38
1~83
WX Alert
On/Off
WX Band
On/Off
LXT420
Series only
®
Page 10 www.midlandradio.com
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the buttons to select one
of the 22 GMRS/FRS channels. To confirm the selection, press the
PTT button or press the MENU button again to move to the next
feature setting.
SETTING PRIVACY CODES
Your LXT320/420 Series has 121 Privacy Codes available. The
selected Privacy Code may be different for each channel. To select a
Privacy Code for the current channel press the MENU button twice,
and then the buttons to select between “Off/CTCSS/DCS”.
Press again the MENU button and the button to select one of
the 38 CTCSS Codes or one of the 83 DCS Codes. The Privacy
Code icon on the display will indicate whether you set your Privacy
Code in CTCSS or DCS mode. To confirm the selection, press the
PTT button or press MENU button again to move to the next feature
setting.
Note : Selecting a Privacy Code of "oF" will disable the Privacy
feature. To communicate between two LXT320/420 Series radios,
all radios in your group must be set to the same channel
and Privacy Code selections.
TRANSMIT (TX) POWER LEVEL SELECTION
Your LXT320/420 has 2 power level settings. To select the power level
on channels 1~7 and 15~22, press the MENU button four times, a “Pr”
icon will appear blinking on the display. Then press the buttons
to select TRANSMIT POWER LEVEL icon (H: Hi/L: Lo). To confirm,
press the PTT button or press MENU button again to move to the next
feature setting. When the PTT button is pressed during Low
Battery Level condition, the TX Power will automatically switch
from Hi(H) to Lo(L) level.
Note : You cannot adjust the power setting on the FRS
channels (8~14). They are set to Low power per FCC
regulations.
/
Model LXT320/420 Series
/
!
/
!
/
®
Page 11 www.midlandradio.com
eVOX
Your LXT320/420 Series has 2 eVOX level settings: (oF/1/2).
To set eVOX, press the MENU button five times. The display shows
“VOX” blinking while on the right of the CHANNEL NUMBER display,
an “oF” icon appears. Select “1” or “2” by pressing the buttons
and push the PTT key, or press MENU button again to move to the
next feature setting.
eVOX will be more sensitive on the “2”setting than on the “1”setting.
To turn eVOX off, press the MENU button four times. The display
shows “VOX” blinking while on the right of the CHANNEL NUMBER
display, a “1” or “2” icon appears. Select “oF” by pressing the
buttons and push the PTT key, or press MENU button again to
move to the next feature setting.
VIBRATE ALERT (LXT420 Series only)
To turn the VIBRATE ALERT on, press the MENU button six times so
the display will show the VIBRATE-ALERT icon blinking, while on the
right of the CHANNEL NUMBER, an “oF” icon appears. Select “on”
by pressing the buttons and push the PTT button, or press MENU
button again to move to the next feature setting. The VIBRATE
ALERT icon will remain on the display.
To turn the VIBRATE ALERT off, press the MENU button five times,
so the display will show the VIBRATE ALERT icon blinking, while on
the right of the CHANNEL NUMBER, an “on” icon appears. Select
“oF” by pressing the buttons and push the PTT button, or press
MENU button to move to the next feature setting. The VIBRATE
ALERT icon will go off.
ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to
other users that your transmission has finished.
To turn the ROGER BEEP tone on, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
“oF” icon appears. Select “on” by pressing the buttons and push
the PTT key, or press MENU button to move to the next feature
setting.
To turn the ROGER BEEP tone off, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
“on” icon appears. Select “oF” by pressing the buttons and push
the PTT key, or press MENU button to move to the next feature
setting.
Model LXT320/420 Series
/
/
/
/
/
/
®
Page 12 www.midlandradio.com
CALL TONE SELECTION
Your LXT320/420 Series has 5 selectable CALL TONES.
To select, press the MENU button until a “CA” icon appears and to the
right of the “CA” icon the current CALL TONE setting is displayed.
Then press the buttons to make the CALL TONE selections - the
radio will emit a corresponding tone for each selection. To confirm,
press the PTT button or press MENU button to move to the next fea-
ture setting.
SILENT OPERATION
Your LXT320/420 Series has a SILENT OPERATION mode. In this
mode, all “beeps” and “tones” are disabled.
To turn the SILENT OPERATION mode on, press the MENU button
until the display shows an “bP” icon while on the right of the “bP”
display, an “on” icon appears. Select “of” by pressing the buttons
and push the PTT key or MENU button.
To turn the SILENT OPERATION mode off, press the MENU button
until the display shows an “bP” icon while on the right of the “bP”
display, an “oF” icon appears. Select “on” by pressing the buttons
and push the PTT key or MENU button.
WEATHER (WX) BAND RECEIVER
Your LXT320/420 Series has a WEATHER (WX) BAND RECEIVER
function, to enable user to receive weather reports from designated
NOAA stations.
To turn the WEATHER (WX) RECEIVER on, press the MENU button
until the WX Band icon appear while in the right an “oF” icon
appears. Select “on” by pressing the buttons and push the MENU
button to confirm. The display will show the current WX Band channel
setting. While on WX Band mode press the MENU button once, and
then the buttons to select one of the 10 WEATHER (WX) BAND
channels.
To turn the WEATHER (WX) RECEIVER off, press the PTT button.
Model LXT320/420 Series
/
/
/
/
/
®
Page 13 www.midlandradio.com
WEATHER (WX) ALERT
Your LXT320/420 has a WEATHER (WX) ALERT function, to enable
you to automatically receive weather alert from designated NOAA
stations.
To turn the WEATHER (WX) ALERT on, press the MENU button twice
while in WX Band. The display shows "AL", while on the right an
"oF" icon appears blinking. Select "on" by pressing the buttons.
To confirm, press the PTT button or press MENU. The radio will return
to WX BAND and the WX BAND icon will continue blinking. If the
radio receives a WX ALERT signal from a designated NOAA station
while on GMRS/FRS Radio mode, the radio will beep for 10 seconds
while an "AL" and "In" icon appear on the display, after which will
automatically go to WX BAND.
If any button is pressed during beeping while on GMRS/FRS Radio
mode, the radio will automatically go to WX BAND.
EXTERNAL SPEAKER/MICROPHONE JACK :
Your LXT320/420 Series can be used with an optional external
speaker/microphone or headset, freeing your hands for other tasks. To
use an optional speaker / microphone or headset:
lInsert the plug(s) into the SPK/MIC jacks
lPlace the earbud into your ear, and adjust the
mic into your desired position.
Model LXT320/420 Series
/
®
Page 14 www.midlandradio.com
PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries
Cannot Receive
Messages - Confirm the radios have the same channel
and Privacy Code settings.
- Make sure that you are within range of the other
transceivers.
- Buildings and other structures may interfere with
your communication.
(See ABOUT RANGE on Page 8)
Radio is not responding
to button presses - Make sure key lock is not on. See "Keypad Lock"
(Page 9).
- Radio might need to be reset. Turn radio off then
on.
- Ensure accessory microphone is set properly
Display is dim - Recharge or replace batteries.
Charger not functioning - Contacts on the back of the radio may require
cleaning.
- Ensure the outlet where the charger is plugged
into is functioning properly.
- Check that the battery pack is installed in the
radio properly.
USE AND CARE :
1. Use a soft damp cloth to clean the radio
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term
storage.
If you have a problem which you believe requires service, please
call first and speak with a service technician. Many problems can
be remedied over the phone without returning the unit for
service.
Model LXT320/420 Series
TROUBLESHOOTING GUIDE
®
Page 15 www.midlandradio.com
SPECIFICATIONS
Channels 22 GMRS/FRS Channels +121 Privacy Codes
10 Weather (WX) Band Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz
Power Source 4 AAA Alkaline or 4.8V Rechargeable Ni-MH battery pack
GMRS/FRS FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1 462.5625 9 467.5875 17 462.6000
2 462.5875 10 467.6125 18 462.6250
3 462.6125 11 467.6375 19 462.6500
4 462.6375 12 467.6625 20 462.6750
5 462.6625 13 467.6875 21 462.7000
6 462.6875 14 467.7125 22 462.7250
7 462.7125 15 462.5500
8 467.5625 16 462.5750
(LXT310/350/410/435 Series) WEATHER (WX) RECEIVER FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq.
1 162.550 6 162.500
2 162.400 7 162.525
3 162.475 8 161.650
4 162.425 9 161.775
5 162.450 10 163.275
PRIVACY CODES FREQUENCY CHART (Hz)
Code Freq. Code Freq. Code Freq. Code Freq. Code Freq.
1 67.0 9 91.5 17 118.8 25 156.7 33 210.7
2 71.9 10 94.8 18 123.0 26 162.2 34 218.1
3 74.4 11 97.4 19 127.3 27 167.9 35 225.7
4 77.0 12 100.0 20 131.8 28 173.8 36 233.6
5 79.7 13 103.5 21 136.5 29 179.9 37 241.8
6 82.5 14 107.2 22 141.3 30 186.2 38 250.3
7 85.4 15 110.9 23 146.2 31 192.8
8 88.5 16 114.8 24 151.4 32 203.5
* Channel 8,9 and 10 are designated Canadian Marine Frequencies
* Channels 8~14 are low-power FRS license free channels
Note: Privacy codes can be programmed for use on any channel
Model LXT320/420 Series
®
Page 16 www.midlandradio.com
Model LXT320/420 Series
DCS PRIVACY CODE CHART
No. CODE No. CODE No. CODE
1 023 29 174 57 445
2 025 30 205 58 464
3 026 31 223 59 465
4 031 32 226 60 466
5 032 33 243 61 503
6 043 34 244 62 506
7 047 35 245 63 516
8 051 36 251 64 532
9 054 37 261 65 546
10 065 38 263 66 565
11 071 39 265 67 606
12 072 40 271 68 612
13 073 41 306 69 624
14 074 42 311 70 627
15 114 43 315 71 631
16 115 44 331 72 632
17 116 45 343 73 654
18 125 46 346 74 662
19 131 47 351 75 664
20 132 48 364 76 703
21 134 49 365 77 712
22 143 50 371 78 723
23 152 51 411 79 731
24 155 52 412 80 732
25 156 53 413 81 734
26 162 54 423 82 743
27 165 55 431 83 754
28 172 56 432 - -
Note: Privacy codes can be programmed for use on any channel
®
Page 17 www.midlandradio.com
LIMITED WARRANTY
Midland Radio Corporation will repair or replace, at its option without
charge, any Midland FRS/GMRS transceiver which fails due to a
defect in material or workmanship within Three Years following the
initial consumer purchase. This warranty does not apply to water
damage, battery leak or abuse.
This warranty does not include any carrying cases, earphones, or
antennas, which may be a part of or included with the warranted
product, or the cost of labor for removal or re-installation of the
product in a vehicle or other mounting.
Performance of any obligation under this warranty may be obtained by
returning the warranted product, freight prepaid, along with proof of
purchase to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
Note : The above warranty applies only to merchandise purchased in
the United States of America or any of the territories or possessions
thereof, or from a U.S. Military exchange.
Midland Radio Corporation
5900 Parretta Drive
Kansas City, MO 64120
Tel: (816) 241-8500
E-mail: mail@midlandradio.com
URL: www.midlandradio.com
Model LXT320/420 Series
®
Page 18 www.midlandradio.com
Model LXT320/420 Series
ACCESSORIES
Accessories can be purchased at www.midlandradio.com or fill in
the form on the following page and mail it to our address.
AVP-1
AVP-6
- 2 Over the Ear Mic.
Headsets w/ PTT
- $19.95
- 1 Dual Desk Charger
- 2 Rechargeable battery packs
- 1 AC Adapter
- 1 DC Cigarette lighter adapter
- $39.95
®
Model LXT320/420 Series
Page 19 www.midlandradio.com
Please send Money Order or fill in Visa/MasterCard information and
mail to the address below. Please DO NOT send cash or checks.
Make Money Order to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State _____Zip Code _____________
Tel: ______________________ email: ___________________________
CC# _____________________ Type: __________ Exp. ____________
ACCESSORIES ORDER FORM
Qty Item Price Total
AVP-1 $19.95
AVP-6 $39.95
Mail To:
Midland Radio Corporation
Consumer. Dept.
5900 Parretta Drive
Kansas City, MO 64120
----------------
Or Call 816.241.8500.
----------------
To order online go to
www.midlandradio.com
Sub-Total ___________
Tax (MO, CO, IL, FL only) ___________
S & H (U.S. only) _____ $14.95
Total $___________
MMIIDDLLAANNDD RRAADDIIOO CCOORRPPOORRAATTIIOONN
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
visit us at http://www.midlandradio.com
Note: Features & Specifications are subject to change without notice.
MIDLAND is not responsible for unintentional errors or omissions on its
packaging.
Safety Information For GMRS UNIT
Your wireless handheld portable transceiver contains a low power
transmitter.
When the Push-to Talk(PTT) button is pushed it sends out radio
frequency (RF) signals. This device is authorized to operate at a duty
factor not to exceed 50%.
In August 1996, the Federal Communications Commission (FCC) adopted
RF exposure guidelines with safety levels for hand-held wireless devices.
Important Note: To maintain compliance with the FCC’s RF
exposure guidelines, hold the transmitter and antenna at least 1 inch (2.5
centimeters) from your face and speak in a normal voice, with the antenna
pointed up and away from the face.
If you wear the handset on your body while using the headset accessory,
use only the manufacturers supplied belt clip for this product and ensure
that the antenna is at least 1 inch(2.5 centimeters) from your body when
transmitting.
Use only the supplied antenna. Unauthorized antennas, modifications, or
attachments could damage the transmitter and may violate FCC
regulations.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
