Model T50 Series
Page 2 midlandusa.com
Welcome to the world of Midland electronics
Congratulations on the purchase of your high quality MIDLAND
product. Your two-way radio represents state-of-the-art high-tech
engineering and is designed for GMRS (General Mobile Radio
Service) operation. It is a quality piece of electronic equipment,
skillfully constructed with the finest components. The circuitry is all
solid-state and mounted on a rugged printed circuit board. Your two-
way radio is designed for reliable and trouble-free performance for
years to come.
Features
- 22 GMRS/FRS Channels
- 38 Privacy Codes (CTCSS)
- VOX
- Call Alert
- NOAA Weather Radio
- NOAA Weather Alert
- Scan Function
- Monitor Function
- Roger Beep Tone
- Silent Operation
- Key Pad Lock
- Speaker / Microphone Jacks
- Battery Meter / Battery Low Indicator
- USB Jack Charging
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device does not cause harmful
interference, and (2) this radio must accept any interference that may
cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for body-worn
operation, this radio has been tested and meets the FCC RF exposure
guidelines when used with Midland Radio Corp. accessories supplied or
designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
Model T50 Series
Page 3 midlandusa.com
IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION
(Only Applicable for GMRS Radio Use in the United States)
The radios operate on GMRS (General Mobile Radio Service) frequencies which
require an FCC (Federal Communications Commission) license. You must be
licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the
GMRS channels of the radios. Serious penalties could result from unlicensed
use of GMRS channels, in violation of FCC rules, as stipulated in the
Communications Acts Sections 501 and 502 (amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on GMRS channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other GMRS users, and being prudent with the length of your
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-888-CALL FCC or go to the FCC's website:
http://www.fcc.gov and request form 605.
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human beings to
radio frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the
time. The radio generates measurable RF energy exposure only when
transmitting.
IMPORTANT: Changes or modifications to this unit not expressly
approved by MIDLAND RADIO CORP. could void your right to operate
this unit. Your radio is set up to transmit a regulated signal on an assigned
frequency. It is against the law to alter or adjust the settings inside the
COMMUNICATOR to exceed those limitations. Any adjustment to your
radio must be made by qualified technicians.
Model T50 Series
Page 4 midlandusa.com

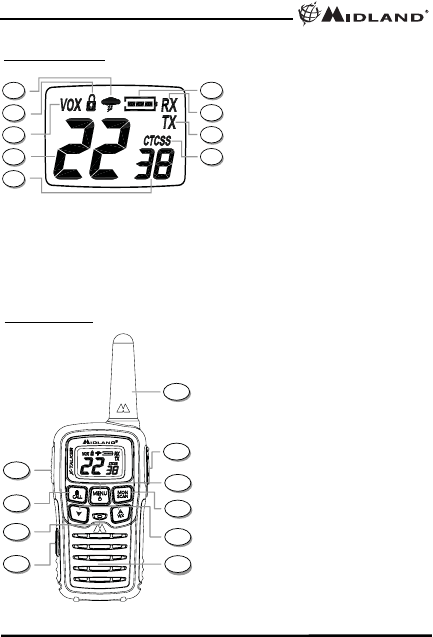

LCD DISPLAY
1. NOAA WEATHER (WX) BAND ICON –
Indicates when the radio is in Weather
Band mode.
2. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
3. VOX ICON – Indicates when VOX mode
is active.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on WX
band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38).
6. BATTERY METER – Indicates the battery
level.
7. RECEIVE (RX) ICON – Indicates radio is
receiving a transmission.
8. TRANSMIT (TX) ICON – Indicates radio
is transmitting a signal.
9. PRIVACY CODE ICON – Indicates
Privacy Code is on.
1
CONTROLS
10. PTT Button – Press and hold to
transmit voice communication.
11. CALL/LOCK Button – Press to send a
CALL ALERT signal. Press and hold to
turn KEY LOCK on/off.
12. MIC – Built-in microphone.
13. USB CHARGING JACK
14. ANTENNA
15. EXTERNAL SPEAKER/MIC JACK
16. MENU Button – Press momentarily to
access Menu mode.
17. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode.
18. UP/WX sand DOWN tButtons –
Make adjustments in MENU mode.
Press and hold the UP button for 3
seconds to activate the NOAA Weather
Radio function.
19. SPEAKER – Built-in speaker.
16
15
14
12
11
10
7
6
3
2
13
17
4
5
8
9
18
19
Model T50 Series
Page 5 midlandusa.com

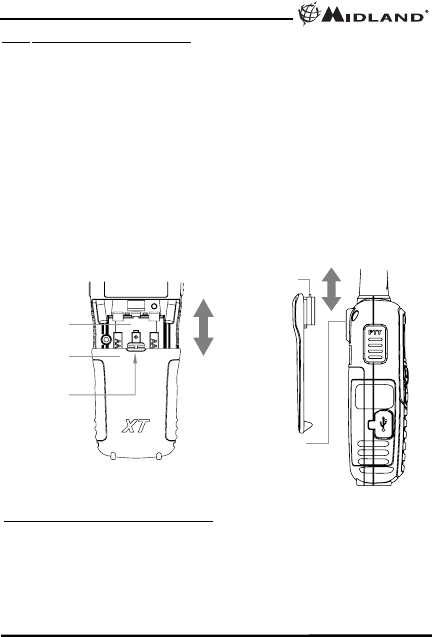

BATTERY INSTALLATION
Your radio operates with either a NiMH battery pack or optional 3 AAA
alkaline batteries. The belt clip should be removed (see below) to
ease installation or removal of the batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover by
pressing down on the top center and sliding it down from the radio.
2. Insert NiMH battery pack or 3 AAA batteries observing the polarity
as shown. Installing the batteries incorrectly will prevent the unit
from operating or may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the
belt clip, making sure it locks into place.
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
COVER
Press here and
push down to open
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into the slot on the back
of the radio until the BELT CLIP LATCH clicks. To remove the BELT
CLIP, pull the LOCK TAB away from the radio, then gently pull the
belt clip up toward the top of the radio.
Model T50 Series
Page 6 midlandusa.com
Your radios are equipped for using a rechargeable NiMH battery pack
(BATT3R) which can be recharged by inserting one end of the USB
Cable into a USB power source, and the other end into the radio USB
charging jack, or with the optional desktop charger (as described
below). While charging, the Battery Meter will flash from 1 to 3 bars.
The LCD display will show FULL when charging is complete. For
maximum battery life, Midland recommends charging the battery
pack when the low battery icon comes on. Remove the radios from
the charger when the charging is finished.
To charge using the Desktop Charger:
1. Place the BATT3R rechargeable battery packs in the radios.
2. Connect one end of the USB Cable into a USB power source.
3. Insert the other end of the USB Cable into the desktop charger
USB jack.
4. Place the radios into the desktop charger slot. While charging, the
Battery Meter will flash from 1 to 3 bars, and stop when charging
is finished. The LCD display will show FULL.
In order to ensure that the battery pack is fully charged, it is
recommended that the battery pack be charged with the radio
turned OFF.
1. Only use the Midland NiMH battery pack.
2. Do not attempt to charge alkaline batteries or any batteries
or battery packs other than the one indicated in the
manual. This may cause leakage and damage to the radio.
3. For long term storage of the radio, turn the radio OFF and
remove the batteries from the radio.
BATTERY LEVEL INDICATOR
Your radio has a BATTERY LEVEL METER that shows the
battery power level. The greater the number of bars visible, the
stronger the battery level. When the battery level is low, the Battery
Shell icon and “bt Lo” will flash in the display indicating your
batteries should be replaced or recharged if using a rechargeable
battery pack.
CHARGING THE BATTERIES
!
Model T50 Series
Page 7 midlandusa.com
POWER ON/OFF AND VOLUME
Press the POWER/MENU button for at least 3 seconds to turn the
radio on/off. During Power On, the radio will beep 2 times with
different tones, the LCD will display several icons for 1 second and
then the LCD display will indicate the last channel selected.
To increase/decrease the volume level, press the s\tbuttons
during RX or STANDBY mode
RESTORING YOUR RADIO TO THE ORIGINAL SETTING
To reset your radio to the original (default) setting, turn on the radio
while pressing and holding the sbutton. The LCD display will reset
to standby mode on channel 1 with no Privacy Code.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same
channel and/or Privacy Code.
1. For maximum clarity, hold the radio 2 to 3 inches from your
mouth.
2. Press and hold the PTT button and speak in a normal voice into
the microphone. The TX icon will appear continuously on the
LCD display while transmitting.
3. To receive a call, release the PTT button. The RX icon will appear
on the display when your radio is receiving a transmission.

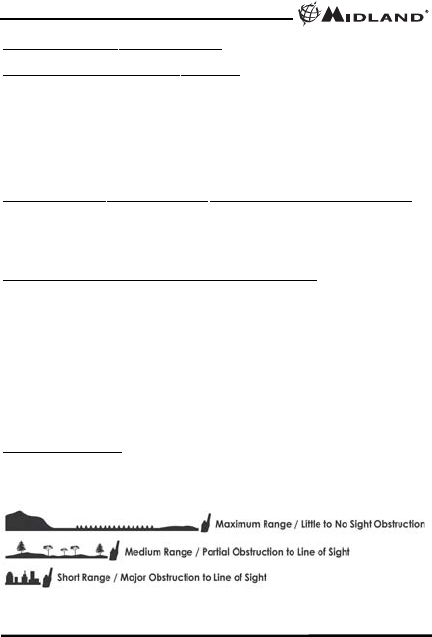

ABOUT RANGE
Your radios are designed to give you maximum range under optimum
conditions.
OPERATING YOUR RADIO
Model T50 Series
Page 8 midlandusa.com
Optimum Conditions are:
lOver water
lOpen rural areas without obstructions
lFlat areas where you can see the other person
To ensure you get maximum range:
lBe sure to use fresh or fully charged batteries - low batteries will
cause low power conditions.
lBe sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power.
lBe sure to set your radio to use Hi power.
T50 SERIES QUICK REFERENCE CHART
MONITOR
Pressing and holding the MONITOR button for 3 seconds will let you
hear noise so you can adjust the volume level of the radio when not
receiving a signal. This could also be used to check any activity on
your current channel before transmitting.
Press and hold the MONITOR button for 3 seconds again to get out
of MONITOR mode.
SCAN
Your radio can scan all 22 channels for activity. To enter, quickly press
the SCAN button. Repeat the same procedure to exit. Your radio will
rapidly scan each of the 22 channels and stop on any active channel
for 6 seconds before resuming scan.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel. To
resume scanning, quickly press the SCAN button.
MENU Channel VOX
1~22
CTCSS Roger Beep
On/Off
Silent Operation
On/Off
oF/1/2/3
WX Channel
1~10
WX Alert
On/Off
Press and hold UP/WX
button for 5 seconds
oF~38
Model T50 Series
Page 9 midlandusa.com
CALL ALERT
Your radio can transmit a call alert. To send a call alert, press the
CALL button. The TX icon will appear while transmitting a call alert
and a tone can be heard on the speaker for confirmation.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the LOCK
button for 3 seconds. The icon will appear on the display. PTT and
CALL will still be active. Repeat the same procedure to unlock the
keypad.
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the s\tbuttons to select
one of the 22 GMRS/FRS channels. To confirm the selection, press
the PTT button or press the MENU button again to move to the next
feature setting.
SETTING PRIVACY CODES
Your radio has 38 Privacy Codes available. The selected Privacy
Code may be different for each channel. To select a Privacy Code
for the current channel press the MENU button twice, and then the
s\t buttons to select one of the 38 CTCSS Codes. The Privacy
Code icon on the display will indicate CTCSS mode. To confirm the
selection, press the PTT button or press the MENU button again to
move to the next feature setting.
Note : Selecting a Privacy Code of "oF"will disable the Privacy
feature. To communicate between two radios, all radios in your
group must be set to the same channel and/or Privacy Code
selections.
!
Model T50 Series
Page 10 midlandusa.com
VOX
Your radio has 3 VOX level settings: (oF/1~3).
To set VOX, press the MENU button until the display shows “VOX”.
On the right of the CHANNEL NUMBER display, an “oF” icon
appears. Select “1” ~ “3” by pressing the s\tbuttons and push the
PTT key, or press the MENU button again to move to the next feature
setting. VOX will be more sensitive on the lower setting than on the
higher setting.
To turn VOX off, press the MENU button until the display shows
“VOX”. On the right of the CHANNEL NUMBER display, a “1” ~ “3”
icon appears. Select “oF” by pressing the s\tbuttons and push the
PTT key, or press the MENU button again to move to the next feature
setting.
ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to
other users that your transmission has finished.
To set the ROGER BEEP tone, press the MENU button until the
display shows an “rb” icon. Select “on” or “oF” by pressing the s\t
buttons and push the PTT key, or press the MENU button to move to
the next feature setting.
SILENT OPERATION
Your radio has a SILENT OPERATION mode. In this mode, all
“beeps” and “tones” are disabled.
To set SILENT OPERATION, press the MENU button until the display
shows a “bP” icon. Select “on” or "oF"by pressing the s\tbuttons
and push the PTT key or MENU button.
NOAA WEATHER RADIO
Your radio has a NOAA WEATHER RADIO function to enable the
user to receive weather reports from designated NOAA stations.
To turn the NOAA WEATHER RADIO on, press and hold the WX/s
button for 5 seconds while in GMRS mode. The radio will go to WX
Band mode.
Model T50 Series
Page 11 midlandusa.com
To set the channel on the WX Band, press the MENU button and the
display will show the current WX Band channel setting. While on WX
Band mode press the s\tbuttons to select one of the 10 NOAA
WEATHER (WX) BAND channels.
To confirm, press the PTT button or press the MENU button to move
to the next feature setting.
To turn the NOAA WEATHER RADIO off, press the PTT button. The
current GMRS/FRS radio setting will be displayed and the icon will
go off.
NOAA WEATHER ALERT
Your radio has a NOAA WEATHER ALERT function, to enable you
to automatically receive weather alerts from designated NOAA
stations.
To turn the NOAA WEATHER (WX) ALERT on during normal NOAA
WEATHER RADIO mode, press the MENU button twice while in
NOAA WEATHER RADIO mode. The display shows "AL,"while on
the right an "oF" icon appears. Select "on" by pressing the s\t
buttons. To confirm, press the PTT button or press MENU. The radio
will return to WX BAND and the icon will continue blinking. If the
radio receives a WX ALERT signal from a designated NOAA station
while on GMRS/FRS Radio mode, the radio will beep for 20 seconds
while the display will automatically go to WX BAND.
To turn the NOAA WEATHER (WX) ALERT off, press the MENU
button twice while in WX Band. The display shows "AL,"while on the
right an "on" icon appears. Select "oF" by pressing the s\t
buttons. To confirm, press the PTT button or press MENU.

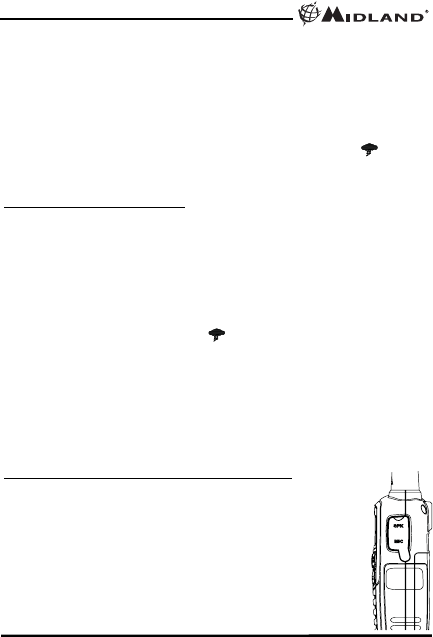

EXTERNAL SPEAKER/MICROPHONE JACK
Your radio can be used with an optional external speaker/
microphone or headset, freeing your hands for other tasks.
To use an optional speaker/microphone or headset:
lInsert the plug(s) into the SPK/MIC jacks.
lPlace the earbud into your ear, and adjust the mic
into your desired position.
Model T50 Series
Page 12 midlandusa.com
Check out these and other great products at
midlandusa.com
CB Radios
Emergency Crank Radios
Marine Radios
HD Wearable Video Cameras
Bluetooth Headsets
Weather Radios
2-Way Radios
IMPORTANT: This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
IMPORTANT: Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Model T50 Series
Page 13 midlandusa.com
PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries.
Cannot Receive
Messages - Confirm the radios have the same channel
settings.
- Make sure that you are within range of the other
transceivers.
- Buildings and other structures may interfere with
your communication.
Radio is not responding
to button presses - Make sure key lock is not on (See Keypad Lock,
Page 9).
- Radio might need to be reset. Turn radio off then
on.
Display is dim - Recharge or replace batteries.
Charger not functioning - Contacts on the bottom of the radio may require
cleaning.
- Ensure the outlet where the charger is plugged
in is functioning properly.
- Check that the battery pack is installed in the radio
properly.
USE AND CARE
1. Use a soft damp cloth to clean the radio.
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with a dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term
storage.
If you have a problem which you believe requires
service, please call first and speak with a service
technician at 816-241-8500. Many problems can be
remedied over the phone without returning the unit for
service.
TROUBLESHOOTING GUIDE
Model T50 Series
Page 14 midlandusa.com
SPECIFICATIONS
Channels 22 GMRS/FRS Channels +38 Privacy Codes
10 NOAA Weather (WX) Band Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz
Power Source 3 AAA Alkaline or 3.6V Rechargeable NiMH
battery pack
GMRS/FRS FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1462.5625
2462.5875
3462.6125
11 467.6375
4462.6375
12 467.6625
5462.6625
13 467.6875
21 462.7000
6462.6875
14 467.7125
22 462.7250
7462.7125
15 462.5500
8467.5625
16 462.5750
9467.5875
10 467.6125
17 462.6000
18 462.6250
23
24
25
26
27
28
19 462.6500
20 462.6750
29
30
31
32
33
34
35
36
NOAA WEATHER (WX) RADIO FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq.
1 162.550 6 162.500
2 162.400 7 162.525
3 162.475 8 161.650
4 162.425 9 161.775
5 162.450 10 163.275
PRIVACY CODES FREQUENCY CHART (Hz)
Code Freq. Code Freq. Code Freq. Code Freq. Code Freq.
1 67.0 9 91.5 17 118.8 25 156.7 33 210.7
2 71.9 10 94.8 18 123.0 26 162.2 34 218.1
3 74.4 11 97.4 19 127.3 27 167.9 35 225.7
4 77.0 12 100.0 20 131.8 28 173.8 36 233.6
5 79.7 13 103.5 21 136.5 29 179.9 37 241.8
6 82.5 14 107.2 22 141.3 30 186.2 38 250.3
7 85.4 15 110.9 23 146.2 31 192.8
8 88.5 16 114.8 24 151.4 32 203.5
* Channels 8, 9 and 10 are designated Canadian Marine Frequencies
* Channels 8~14 are low-power FRS license free channels
Note: Privacy codes can be programmed for use on Channels 1~22 only
Model T50 Series
Page 15 midlandusa.com
LIMITED WARRANTY (United States and Canada)
Subject to the exclusions set forth below, Midland Radio Corporation will repair or
replace, at its option without charge, any Midland FRS/GMRS transceiver which fails
due to a defect in material or workmanship within Three Years following the initial
consumer purchase.
This warranty does not apply to water damage, battery leak, abuse or misuse of
unauthorized accessories, unauthorized service or modification or altered products.
Accessories have a 90 day warranty from date of purchase, including any chargers,
microphones, and cables.
This warranty does not include the cost of labor for removal or re-installation of the
product in a vehicle or other mounting.
ANY IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED AS SET FORTH HEREIN AND TO THE DURATION
OF THE LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MIDLAND BE
LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING BUT NOT LIMITED TO
NEGLIGENCE, GROSS NEGLIGENCE, BODILY INJURY, PROPERTY DAMAGE
AND DEATH) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
For Product Purchased in the USA:
Performance of any obligation under this warranty may be obtained by returning the
warranted product, prepaid freight, along with proof of purchase to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Note: The above warranty applies only to merchandise purchased in the United
States of America or any of the territories or possessions thereof, or from a U.S.
Military exchange.
For Product Purchased in Canada:
Performance of any obligation under this warranty may be obtained by returning the
warranted product, along with proof of purchase, to your place of purchase in
Canada.
This warranty gives you specified legal rights. Additional warranty rights may be
provided by law in some areas within Canada.
Page 16 midlandusa.com
Model T50 Series

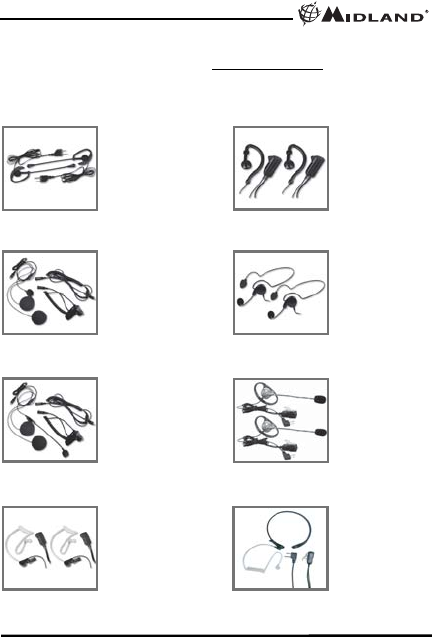

AVP-11AVP-HH4
AVP-HH1 AVP-HH5
AVP-HH2 AVP-HH7
AVP-HH3 AVP-HH88
- 1 Open Face
Helmet
Microphone Kit
- $49.99
- 1 Closed Face
Helmet
Microphone Kit
- $49.99
- 2 Over the Ear
Mic. Headsets
w/ PTT
- $19.99
ACCESSORIES
Accessories can be purchased at midlandusa.com or by filling in the
form on the following page and mailing it to the address on the form.
- 2 Surveillance
Headsets
- $39.99
- 2 Behind the
Head Headsets
- $39.99
- 2 Ear Wrap
Headsets
- $39.99
- 2 Mossy Oak
Around the Ear
Headsets with
Boom Mic
- $39.99
- 1 Action Throat
Mic with
Acoustic Ear
Tube
- $39.99
Model T50 Series
Page 17 midlandusa.com
Please send Money Order or fill in Visa/MasterCard information and
mail to the address below. Please DO NOT send cash or checks.
Make Money Order payable to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State: _____Zip Code: ____________
Tel: ______________________ Email: ___________________________
CC#: _____________________ Type: __________ Exp.: ____________
ACCESSORIES ORDER FORM
Mail To:
Midland Radio Corporation
Consumer Dept.
5900 Parretta Drive
Kansas City, MO 64120
----------------
Or Call 816.241.8500.
----------------
To order online go to
midlandusa.com
Sub-Total ___________
Tax (MO, FL, WA only) ___________
S & H _____ $14.95
(Applies to Domestic U.S. only.
For Hawaii, Alaska, and Puerto
Rico S&H will be $36.25 for 1lb
and $64.25 for 2lbs or more).
Total $___________
Qty Item Price Total
AVP-1 $19.99
AVP-H1 $49.99
AVP-H2 $49.99
AVP-H3 $39.99
AVP-H4 $39.99
AVP-H5 $39.99
AVP-H7 $39.99
AVP-H8 $39.99
THIS PAGE IS
INTENTIONALLY
LEFT BLANK
MMIIDDLLAANNDD RRAADDIIOO CCOORRPPOORRAATTIIOONN
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
We’d love to hear from you! Let us know what you
think of your new Midland product at
or by visiting us at
midlandusa.com
Note: Features & Specifications are subject to change without
notice. MIDLAND is not responsible for unintentional errors or
omissions on its packaging.
Rev A
