Miele & Cie. KG wireless network interface Miele EHS Device Specification

User Manual

Miele@home
Manual for
EI8800-A and EI7800
USA/CDN Market
Version 1.2
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 2 of 8
Revision History
Date
Version
Author
Department
09.09.2014
1.0 Draft
F. Laube
GTE/SKT
23.09.2014
1.1
F. Laube
GTE/SKT
29.09.2014
1.2
F. Laube
GTE/SKT
Reviewed By
Date
Version
Name
Department
09.09.2014
1.0 Draft
G. Borgelt
GTE/TL
23.09.2014
1.1
G. Borgelt
GTE/TL
29.09.2014
1.2
G. Borgelt
GTE/TL
Approvals
Date
Version
Name
Department
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 3 of 8
Contents
1. General 4
2. Technical data 4
3. Norms / Standards 5
3.1 FCC / IC 5
3.2 Safety 5
3.3 RF-Standard 5
3.4 Photos and Labels 5
4. Regulatory Notice 7
4.1 United States (FCC Notice) 7
4.2 Canada (IC Notice) 8
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 4 of 8

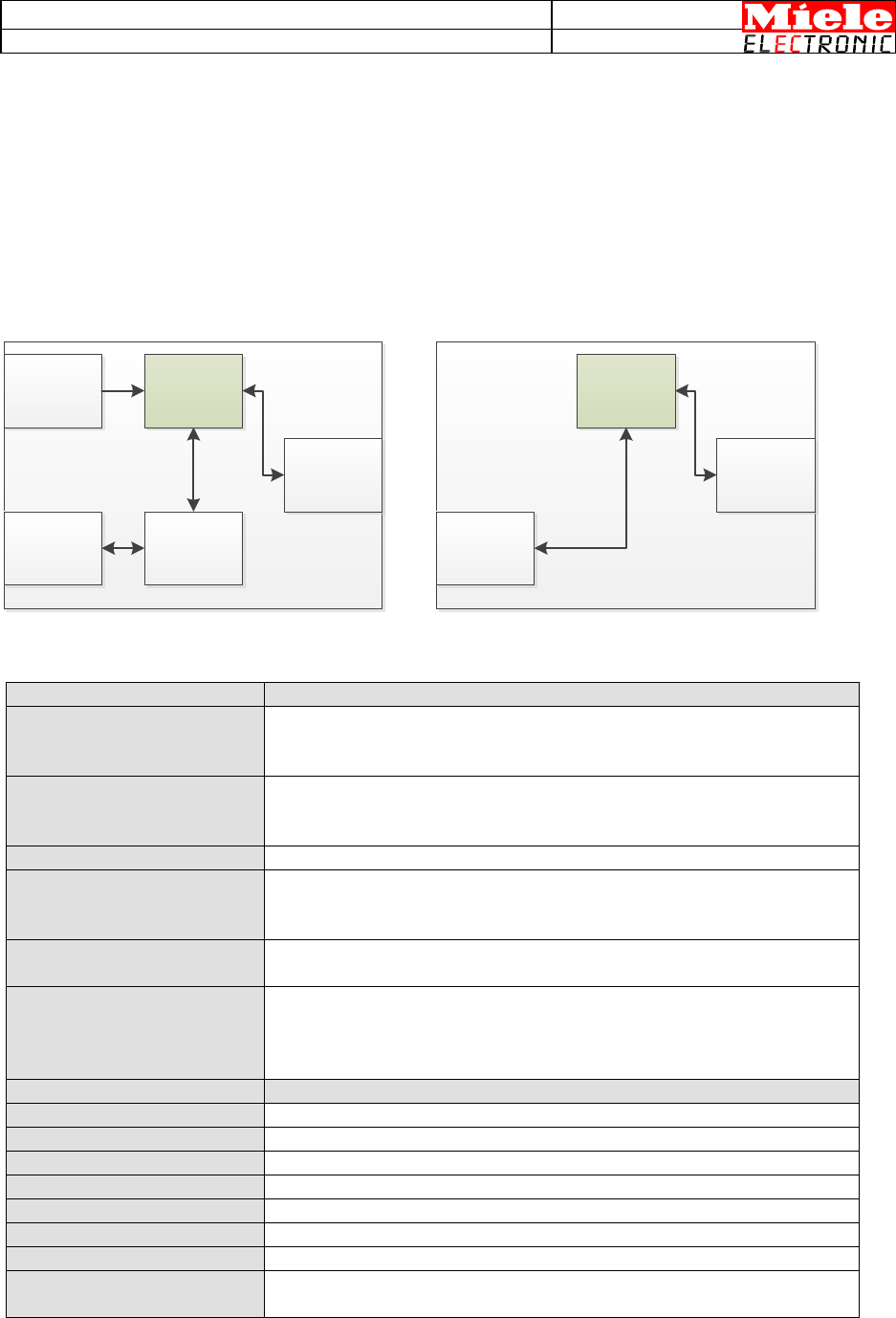

1. General
The EI7800 and EI8800-A are wireless network interface modules for Miele home appliances like
hoods, hobs, cooling devices or washing machines. The modules are supporting the IEEE 802.15.4
ZigBee protocol. The EI8800-A is a module for build in appliances during manufacturing. The EI7800
is a wireless stick which is connected to the appliance by the customer or customer service.
Both modules depend on the same wireless design with a single chip transceiver. The EI7800 has
additional components for power supply and UART driver.
5V to 3,3V
Voltage
Regulator
5V to 3,3V
Uart Driver
SingleChip
ZigBee-
Transceiver
PCB-Antenna
with antenna-
Network
Home appliance
Interface
EI 7800
SingleChip
ZigBee-
Transceiver
PCB-Antenna
with antenna-
Network
Home appliance
Interface
3,3V VCC
EI 8800
2. Technical data
VCC in V
EI8800-A
EI7800
3,3
5,0
Max. Current in mA
EI8800-A
EI7800
50
Current in A
0.06
ambient temperature in°C
EI8800-A
EI7800
0 – 85
0 - 50
Humidity max
93%
non condensation
Dimensions in mm
EI8800-A
EI7800
Wire (EI8800)
30/27
82,5/40,0/23,5
325
wireless
MCU/RF IC
CC2530
Antenna type
PCB inverted F
Crystal Input Clock in MHz
32
Frequency
2.4 GHz
Channels
11 - 26
Channel Frequencys
2,405 GHz – 2,480 GHz (5MHz distance)
Bandwidth
2,83 MHz
Transmission Power
in mW
<8
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 5 of 8
3. Norms / Standards
3.1 FCC / IC
FCC Regulation Part 15.109, Part 15.209 and Part 15.247
IC regulations RSS-Gen Issue 3 and RSS-210 Issue 8
3.2 Safety
UL 60730-1A, CAN/CSA E60730-1:02+A1:2007
CSA Certificate 70009686
3.3 RF-Standard
The modules use the RF standard IEEE 802.15.4.

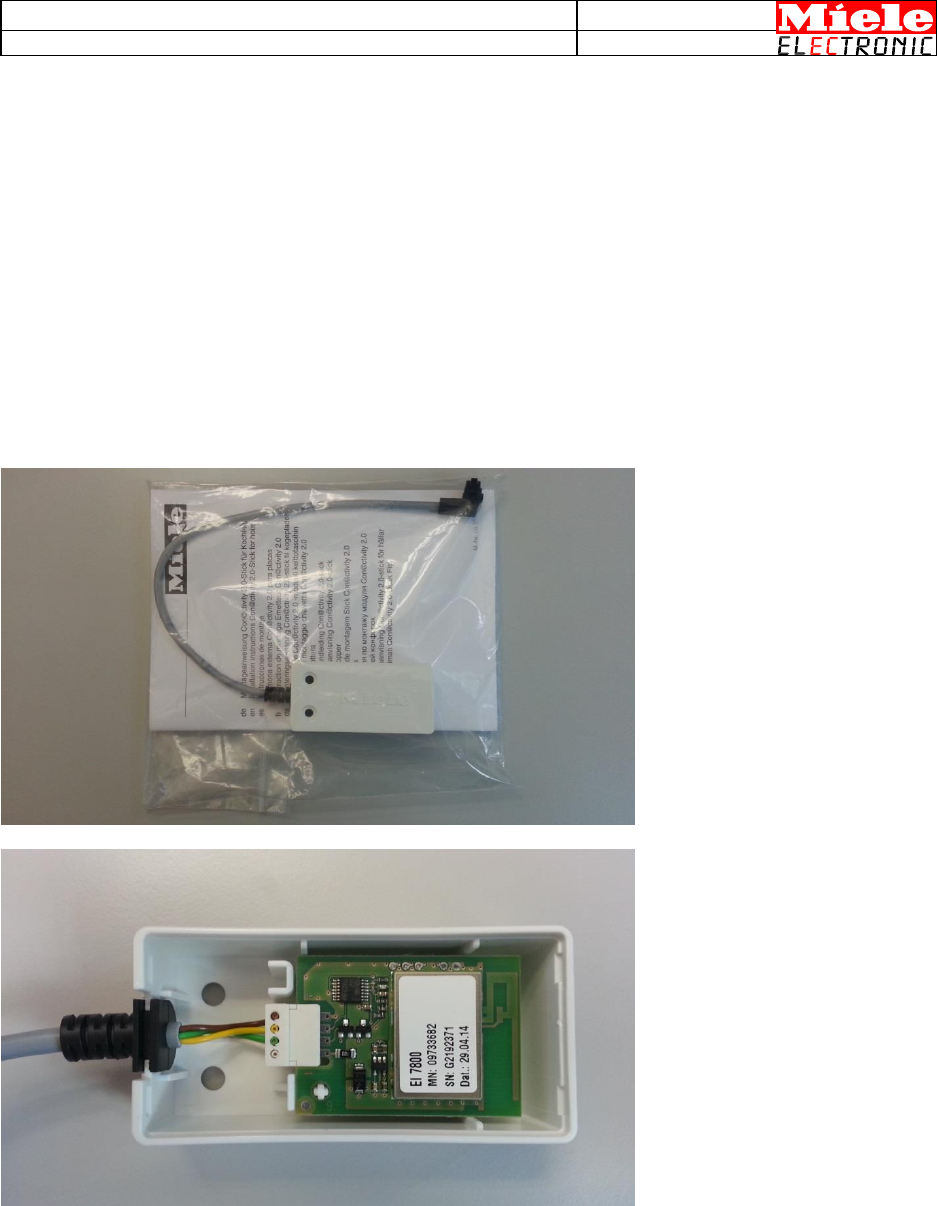

3.4 Photos and Labels
EI7800 product
EI7800 Internal
EI7800 Label side view
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 6 of 8

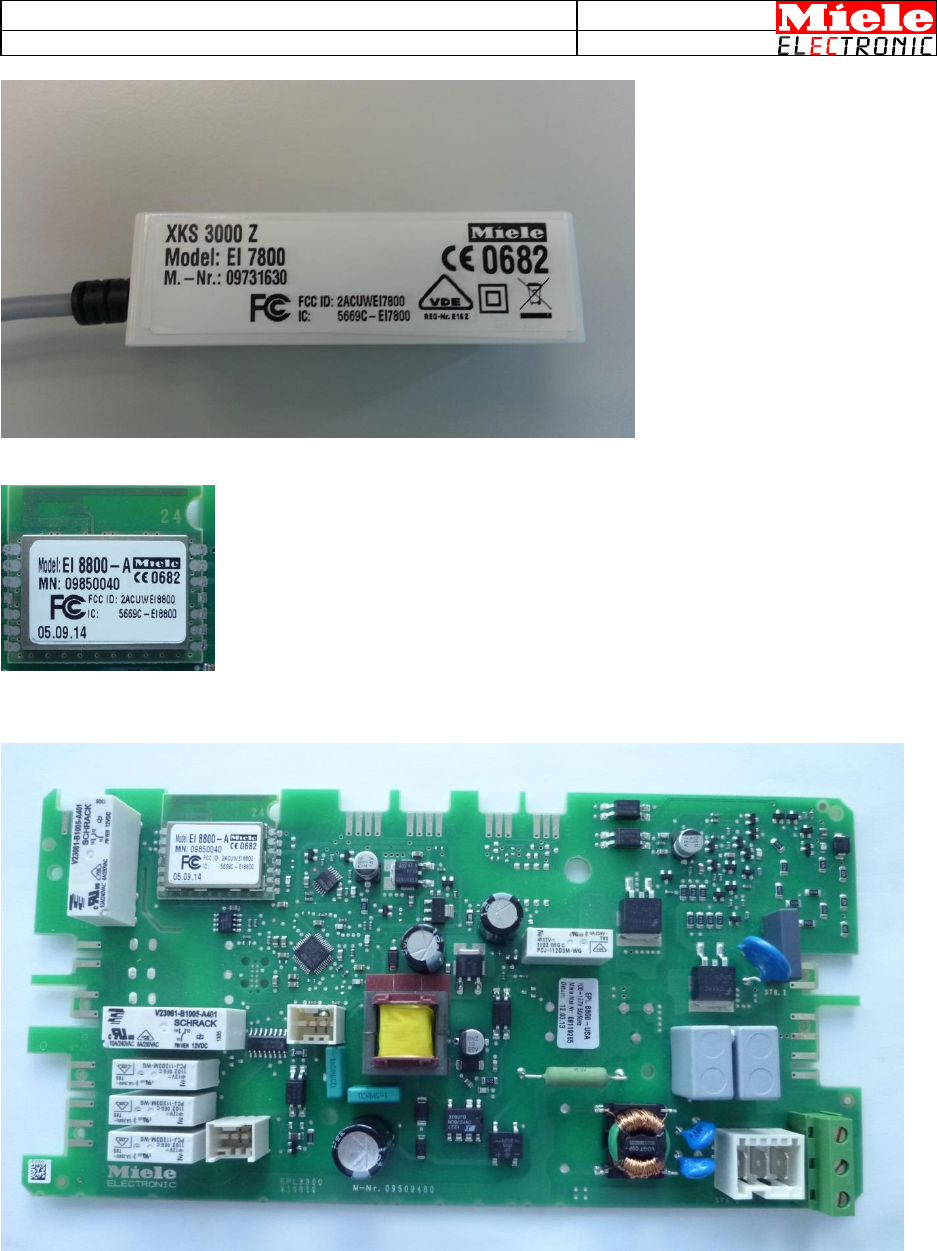

EI8800-A Top View
EI8800-A integrated in home appliance steering device
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 7 of 8
4. Regulatory Notice
4.1 United States (FCC Notice)
FCC ID: 2ACUWEI7800
FCC ID: 2ACUWEI8800
In accordance with FCC Part 15, the 2ACUWEI8800 is listed as a Modular Transmitter Device.
FCC CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired
operation.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a different circuit from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
USERS MANUAL OF THE END PRODUCT:
The end user has to be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be
available in the user’s manual: This device complies with Part 15 of FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT (only for EI8800-A):
The final end product must be labeled in a visible area with the following " Contains FCC ID:
2ACUWEI8800 ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Manual for EI 7800/EI8800-A USA/CDN
Version: 1.2
EI8800-A EI7800
Date: 29/09/2014
Manual_EI7800_EI8800-
A_USA_CDN_1.2.docx
2014 Miele&Cie. KG
Page 8 of 8
4.2 Canada (IC Notice)
IC: 5669C-EI7800
IC: 5669C-EI8800
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
LABEL OF THE END PRODUCT (only EI8800-A):
The final end product must be labeled in a visible area with the following " Contains IC : 5669C-
EI8800".
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
