User Manual

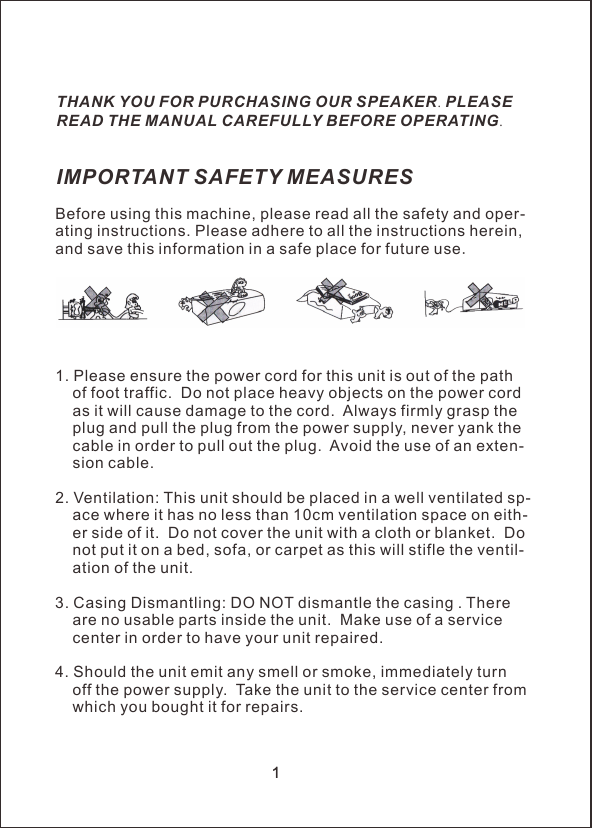

厂ΙBefore using this machine, please read all the safety and oper-ating instructions. Please adhere to all the instructions herein, and save this information in a safe place for future use.1. Please ensure the power cord for this unit is out of the path of foot traffic. Do not place heavy objects on the power cord as it will cause damage to the cord. Always firmly grasp the plug and pull the plug from the power supply, never yank the cable in order to pull out the plug. Avoid the use of an exten- sion cable.2. Ventilation: This unit should be placed in a well ventilated sp- ace where it has no less than 10cm ventilation space on eith- er side of it. Do not cover the unit with a cloth or blanket. Do not put it on a bed, sofa, or carpet as this will stifle the ventil- ation of the unit.3. Casing Dismantling: DO NOT dismantle the casing . There are no usable parts inside the unit. Make use of a service center in order to have your unit repaired.4. Should the unit emit any smell or smoke, immediately turn off the power supply. Take the unit to the service center from which you bought it for repairs.IMPORTANT SAFETY MEASURESTHANK YOU FOR PURCHASING OUR SPEAKER. PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING.1厂Ι1

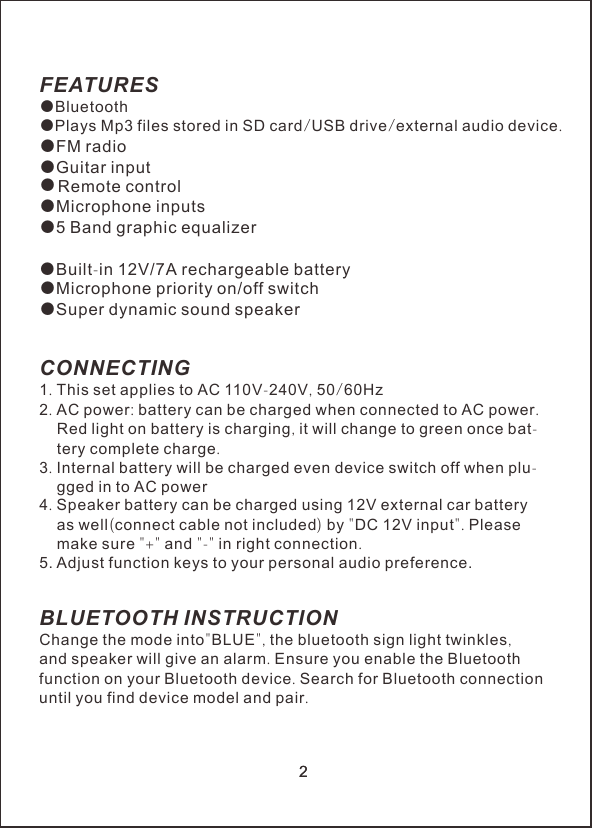

FEATURES●Bluetooth● / / .●FM radio●Guitar input ●Microphone inputs●5 Band graphic equalizerBuilt-in 12V/7A rechargeable battery●Super dynamic sound speakerCONNECTING1. This set applies to AC 110V-240V, 50/60Hz2. AC power: battery can be charged when connected to AC power. Red light on battery is charging, it will change to green once bat- tery complete charge.3. Internal battery will be charged even device switch off when plu- gged in to AC power4. Speaker battery can be charged using 12V external car battery as well(connect cable not included) by "DC 12V input". Please make sure "+" and "-" in right connection.5BLUETOOTH INSTRUCTIONChange the mode into"BLUE", the bluetooth sign light twinkles,and speaker will give an alarm. Ensure you enable the Bluetoothfunction on your Bluetooth device. Search for Bluetooth connectionuntil you find device model and pair. Plays Mp3 files stored in SD card USB drive external audio deviceRemote control ●. Adjust function keys to your personal audio preference.22●Microphone priority on/off switch●

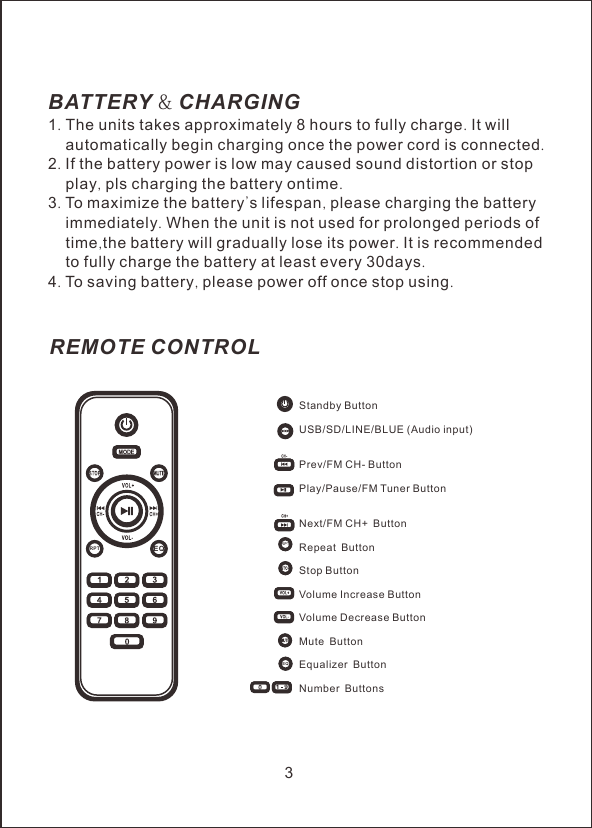

REMOTE CONTROL3BATTERY & CHARGING1. The units takes approximately 8 hours to fully charge. It will automatically begin charging once the power cord is connected.2. If the battery power is low may caused sound distortion or stop play, pls charging the battery ontime.3. To maximize the battery's lifespan, please charging the battery immediately. When the unit is not used for prolonged periods of time,the battery will gradually lose its power. It is recommended to fully charge the battery at least every 30days.4. To saving battery, please power off once stop using. RPT EQStandby ButtonPlay/Pau e/FM Tuner ButtonVolume Increase ButtonVolume Decrease ButtonUSB/SD/LINE/BLUE (Audio input)Prev/FM CH- ButtonsNext/FM CH+ ButtonRepeat ButtonStop ButtonMute ButtonEqualizer ButtonNumber ButtonsRPTEQ

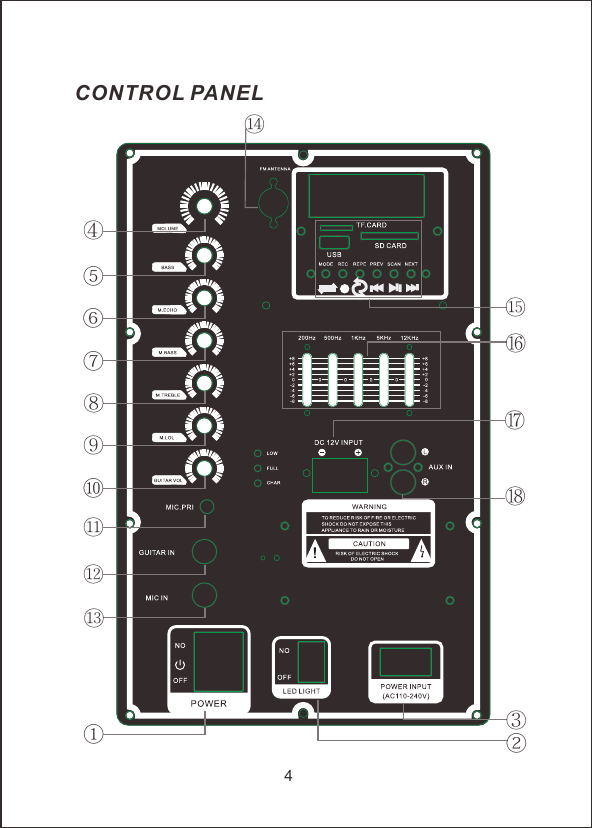

CONTROL PANEL4①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬⑭⑮⑯⑰⑱

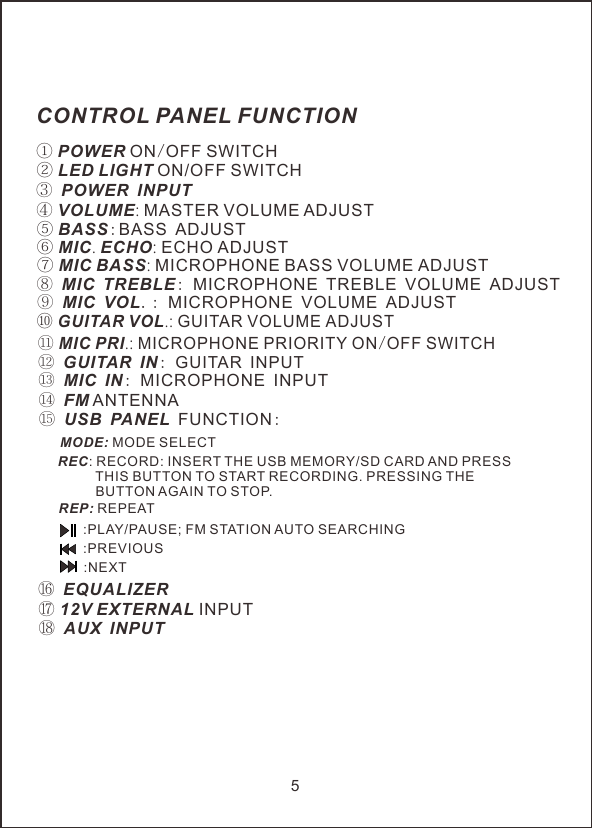

5 :PLAY/PAUSE; FM STATION AUTO SEARCHING:PREVIOUS:NEXTMODE: MODE SELECTREP: REPEATREC: RECORD: INSERT THE USB MEMORY/SD CARD AND PRESS THIS BUTTON TO START RECORDING. PRESSING THE BUTTON AGAIN TO STOP.⑯ EQUALIZER⑫ GUITAR IN: GUITAR INPUT⑪ MIC PRI.: MICROPHONE PRIORITY ON/OFF SWITCHCONTROL PANEL FUNCTION① ON/OFF POWER SWITCH② LED LIGHT ON/OFF SWITCH③ POWER INPUT④ VOLUME: MASTER VOLUME ADJUST⑤ BASS:BASS ADJUST⑥ MIC. ECHO: ECHO ADJUST⑦ MIC BASS: MICROPHONE BASS VOLUME ADJUST⑧ MIC TREBLE: MICROPHONE TREBLE VOLUME ADJUST⑨ MIC VOL. : MICROPHONE VOLUME ADJUST⑩ GUITAR VOL.: GUITAR VOLUME ADJUST⑬ MIC IN: MICROPHONE INPUT ⑭ FM ANTENNA ⑮ USB PANEL FUNCTION: ⑰ 12V EXTERNAL INPUT⑱ AUX INPUT

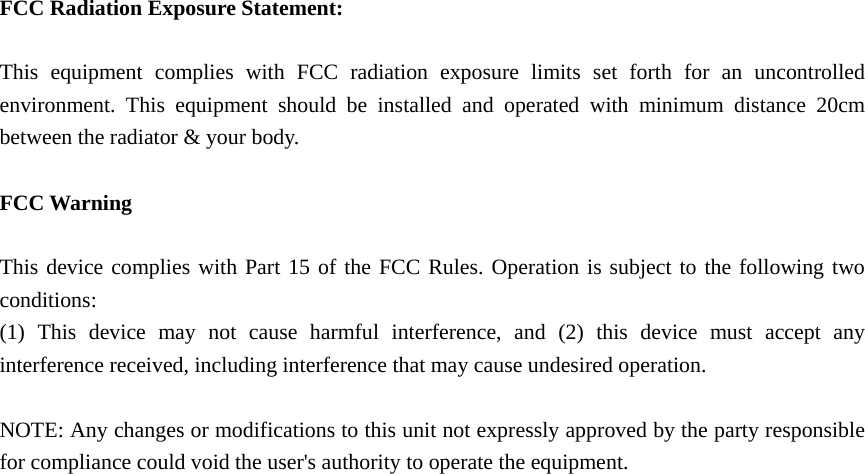

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
