MilDef Crete Inc. Tablet Computer Users Manual
Users Manual
TABLET COMPUTER
DS11
USER’S GUIDE
(Preliminary Version)
I
Notice
Copyright© 2014, MilDef Crete Inc. All rights reserved.
No part of this publication may be reproduced and modified without the written permission of
MilDef Crete Inc.
MilDef Crete Inc. reserves the right to make changes in the products or the product
specifications without any prior notice. Customers are advised to contact MilDef Crete Inc.
for updated product information.
MilDef Crete Inc. makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties for the correctness
of this book, nor any license grant of MilDef Crete Inc.'s patents or intellectual properties.
MilDef Crete Inc. assumes no liability for customer's loss or damage caused by using this
document.
Trademarks
Trademark Acknowledgments
Intel® is a registered trademark of Intel Corp.
All product and company names are trademarks or registered trademarks of their respective
holders.
II
Revision History:
Revision Date Changes Author
III
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Regulatory Information/Disclaimers
Installation and use of this computer must be in strict accordance with the instructions
included in the user documentation provided with the product. Any changes or modifications
(including the antennas) made to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution of the connecting cables and
equipment other than manufacturer specified. It is the responsibility of the user to correct
any interference caused by such unauthorized modification, substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for any
damage or violation of government regulations arising from failing to comply with these
guidelines.
IV
FCC (Federal Communications Commission) Statement
This equipment has been tested and found to comply with the limits for a Class-B digital
device pursuant part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and radiates radio frequency energy. If not being installed
and used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution:
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral
devices).
V
CE
Products with the CE Marking comply with both the EMC Directive (2004/108/EC) and the
Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms:
EN55022 CISPR 22 Radio Frequency Interference
EN55024 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,
EN61000-4-8, EN61000-4-11, EN61000-3-2, EN61000-3-3, Generic Immunity
Standard
LV D EN 60950-1:2006+A11:2009+A1:2010+A12 :2011+A2:2013
R&TTE (CE) Manual Regulatory Requirement
WLAN - IEEE 802.11a/b/g/n
802.11a/b/g/n Restrictions:
European standards dictate maximum radiated transmit power of 100mW EIRP
and frequency range 2.400-2.4835 GHz.
VI
CE Declaration of Conformity
It is confirmed to comply with the requirements set out in the Council Directive on the
approximation of the laws of the member states relating to Electromagnetic Compatibility
(2004/108/EC), Low-voltage Directive (2006/95/EC), the Amendment Directive
(93/68/EEC), and the procedures given in European Council Directive (99/5/EC and
2004/108/EC ).
The equipment was passed, and the equipment test was performed according to the
following European standards:
EN 300 328 V1.8.1 (2012)
EN 301 893 V1.7.1 (2012)
EN 301 489-1 V1.9.2 (2011)
EN 301 489–3 V1.6.1 (2013)
EN 301 489-17 V2.2.1 (2012)
EN300440-1 V1.6.1 2010
EN300440-2 V1.4.1 2010
UL, TÜV
AC Adapter (TÜV includes LVD EN60950)
VII
Power Conservation
This tablet computer consumes less power compared to conventional consumer computers.
The power consumption may be further reduced by properly configuring the Power
Management Setup.
It is recommended that the power saving features be enabled even when not running on
battery power. Power Management features can conserve power without degrading system
performance.
Power Safety
There are specific power requirements for your tablet computer:
Only use an approved AC adapter designed for this tablet computer.
There is a 3-prong grounded plug for the AC adapter. The 3rd prong is an important
mechanism for ensuring product safety. Please do not neglect the importance of this
mechanism. If you are unable to access a compatible outlet, please hire a qualified
electrician to install a compatible outlet for you.
When unplugging the AC power cord, please make sure to disconnect the cord by
pulling from the plug head instead of pulling from the wire to prevent wire damage.
Make sure the power outlet and any other extension cord(s) you use can support the
total current load of all the connected devices.
Before cleaning the tablet computer, please make sure it is disconnected from any
external power source.
Warning
Before any upgrade procedures, make sure the power is turned off, and all the
cables are disconnected (including telephone lines). Also, it is advisable to
remove your battery to prevent your tablet computer from accidentally turning on.
VIII
Battery Precautions
Only use batteries designed for this tablet computer. Using incompatible battery types
may cause explosion, leakage or damage to the computer.
Do not remove the battery from the computer while the computer is powered on.
Do not continuously use a battery that has been dropped, or that appears damaged (e.g.
bent or twisted) in any way. Even if the computer is able to continuously work with a
damaged battery, the circuit damage may occur and possibly cause fire.
Always use the charger designed for this computer to recharge the battery. Incorrect
recharging may cause the battery to explode.
Do not try to service a battery by yourself. For battery service or replacement, please
contact your service representatives.
Please dispose of damaged battery promptly and carefully. Explosion or leakage may
occur, if the battery is exposed to fire, improperly handled or discarded.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable
battery. The battery is recyclable. At the end of its service life,
under various state and local laws, it may be illegal to dispose of
this battery into the municipal waste stream. Check with your local
solid waste officials for details in your area for recycling options or
proper disposal. Danger of explosion may possibly occur, if the
battery is incorrectly replaced. Replace only with the same or the
equivalent battery recommended by the manufacturer. Discard the
used battery according to the manufacturer’s instructions.
IX
Environmental Information, Material Safety & Recycling
All materials used in the manufacturing of this equipment are recyclable or environmentally
friendly. Please recycle the packing materials in accordance with local regulations at the end
of the product's service life.
Notice:
The equipment may contain insignificant amount of hazardous substances for health
and environment below control level.
To avoid spreading such substances into the eco system and to minimize the pressure
on the natural environment, you are encouraged to reuse or recycle most of the
materials in a safe way after the product’s service life.
For more information on collection, reuse and recycle of materials, please consult local
or regional waste administrations for more information. You can also contact your
dealer for more information on the environmental details of the equipment.
The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in municipal waste.
Please check local regulations for disposal of electronic products.
TABLE OF CONTENTS
CHAPTER 1 - GETTING STARTED............................................................... 1
UNPACKING ..................................................................................................................1

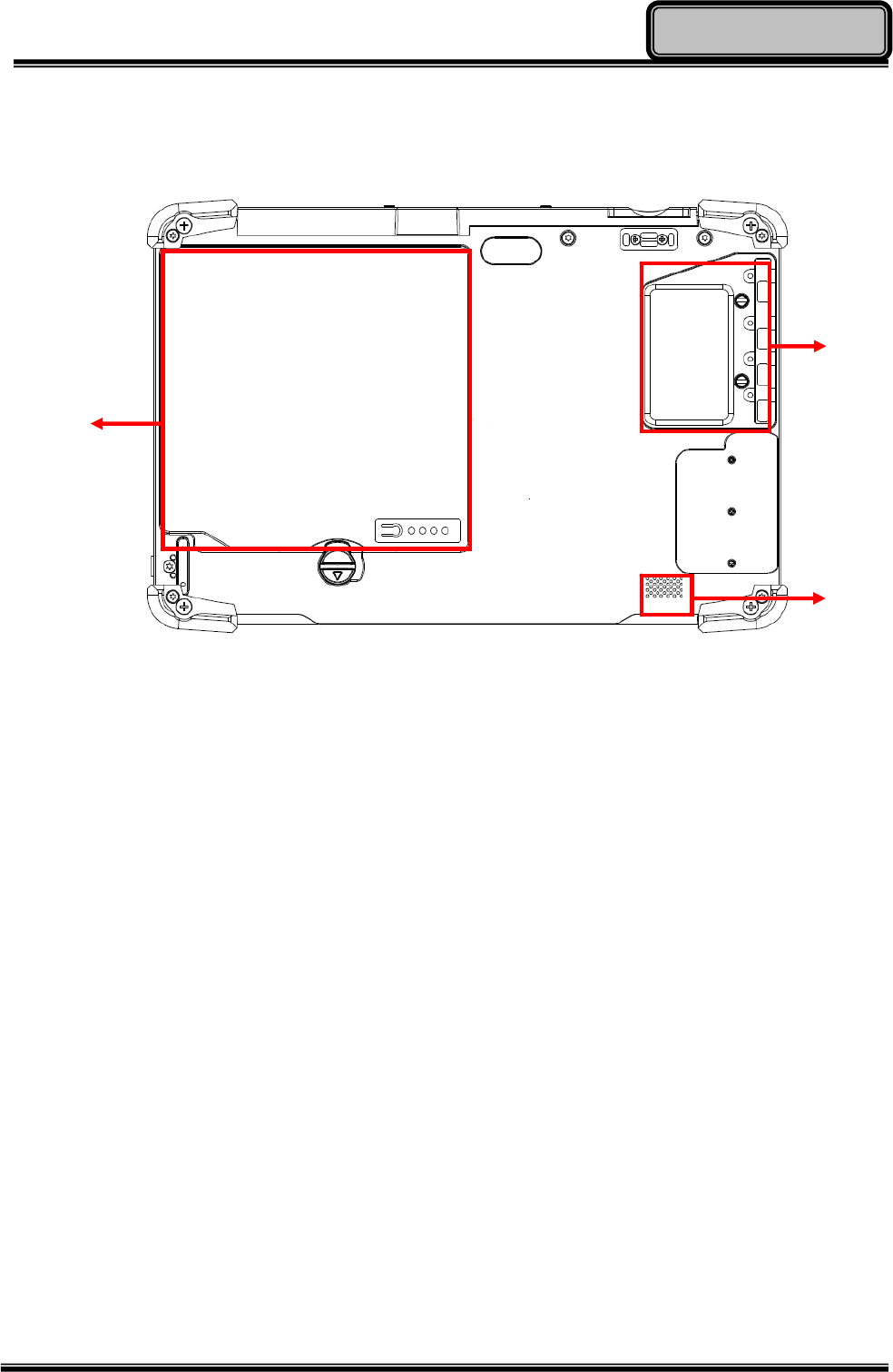

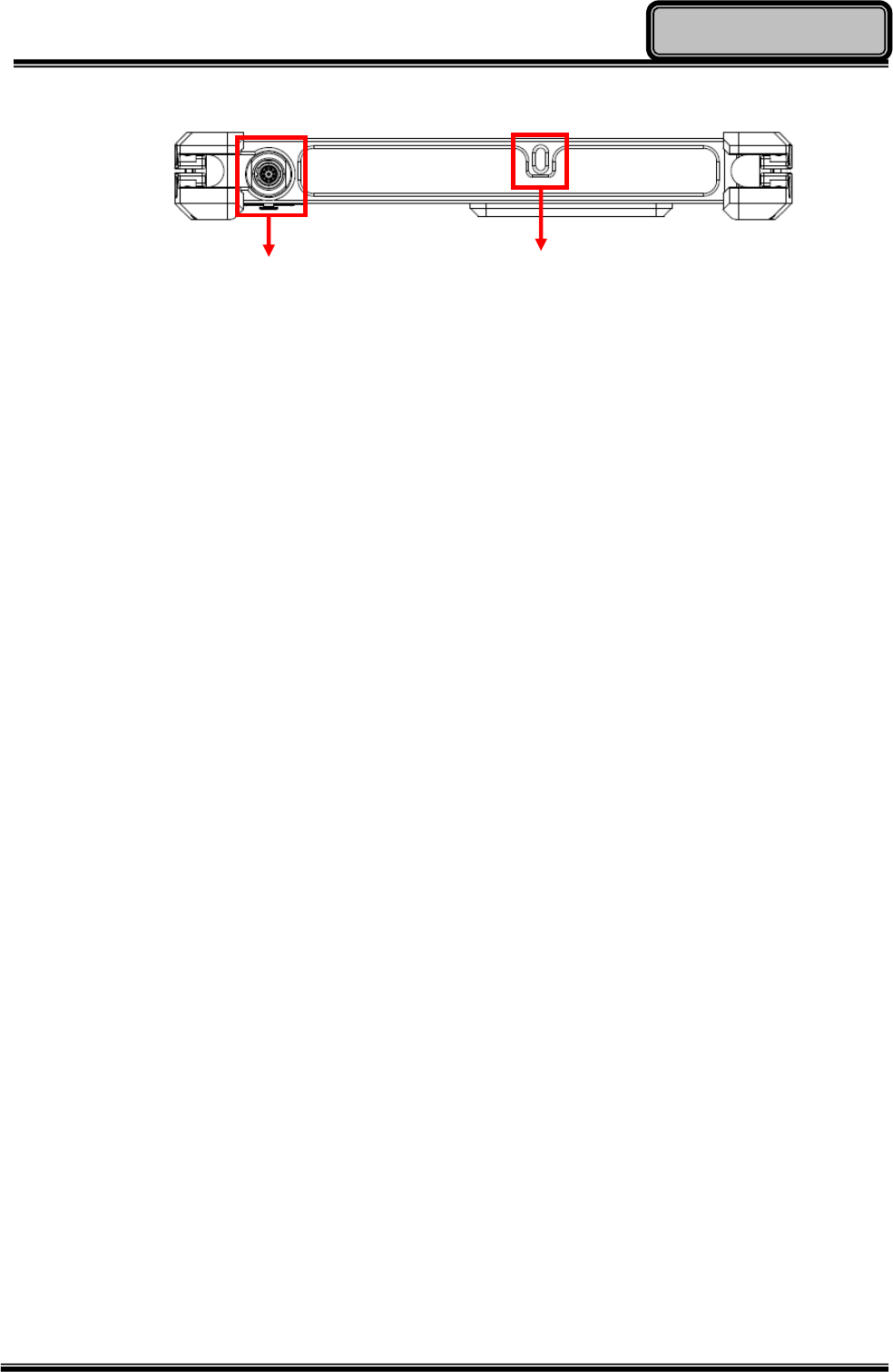

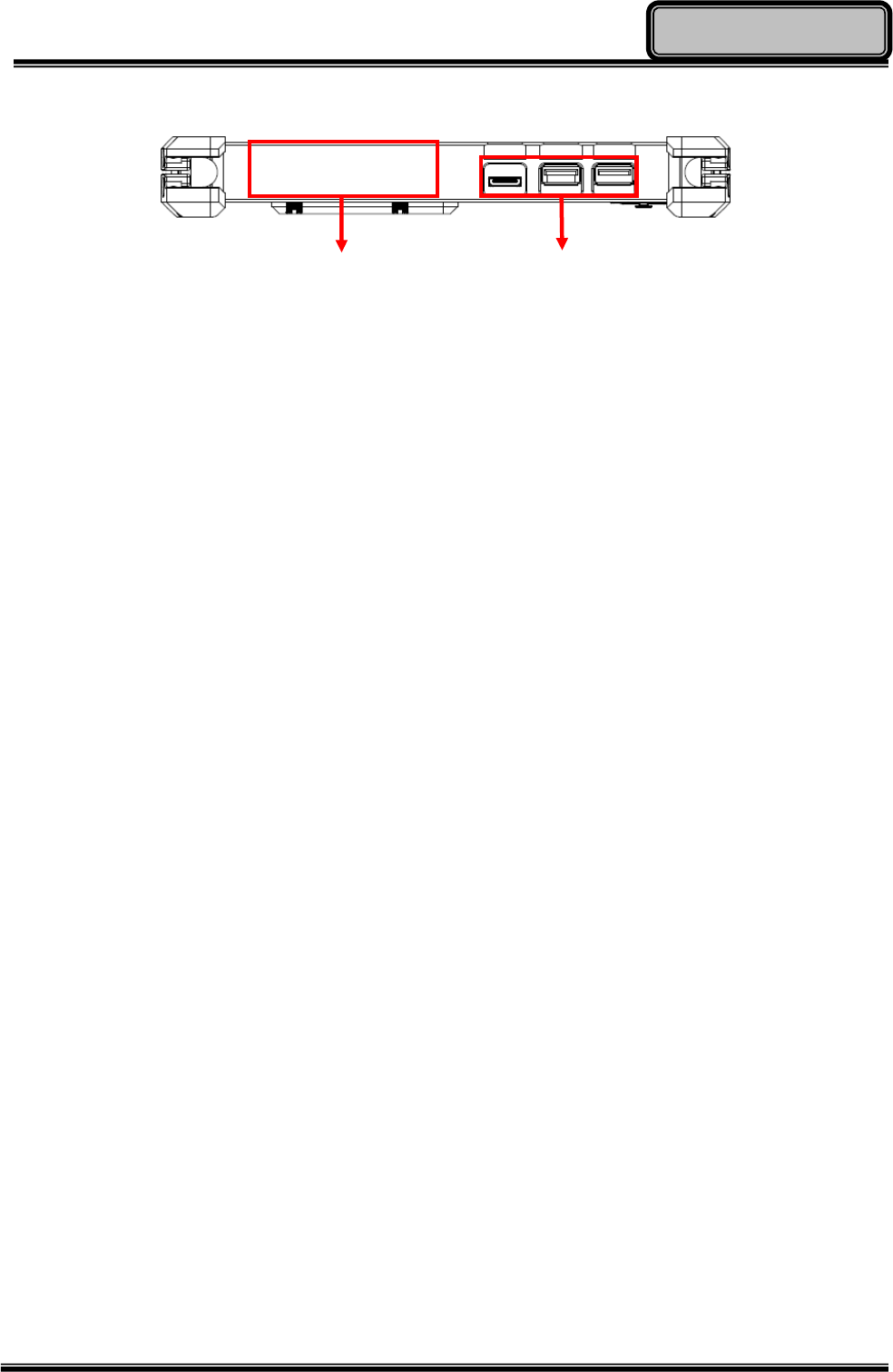

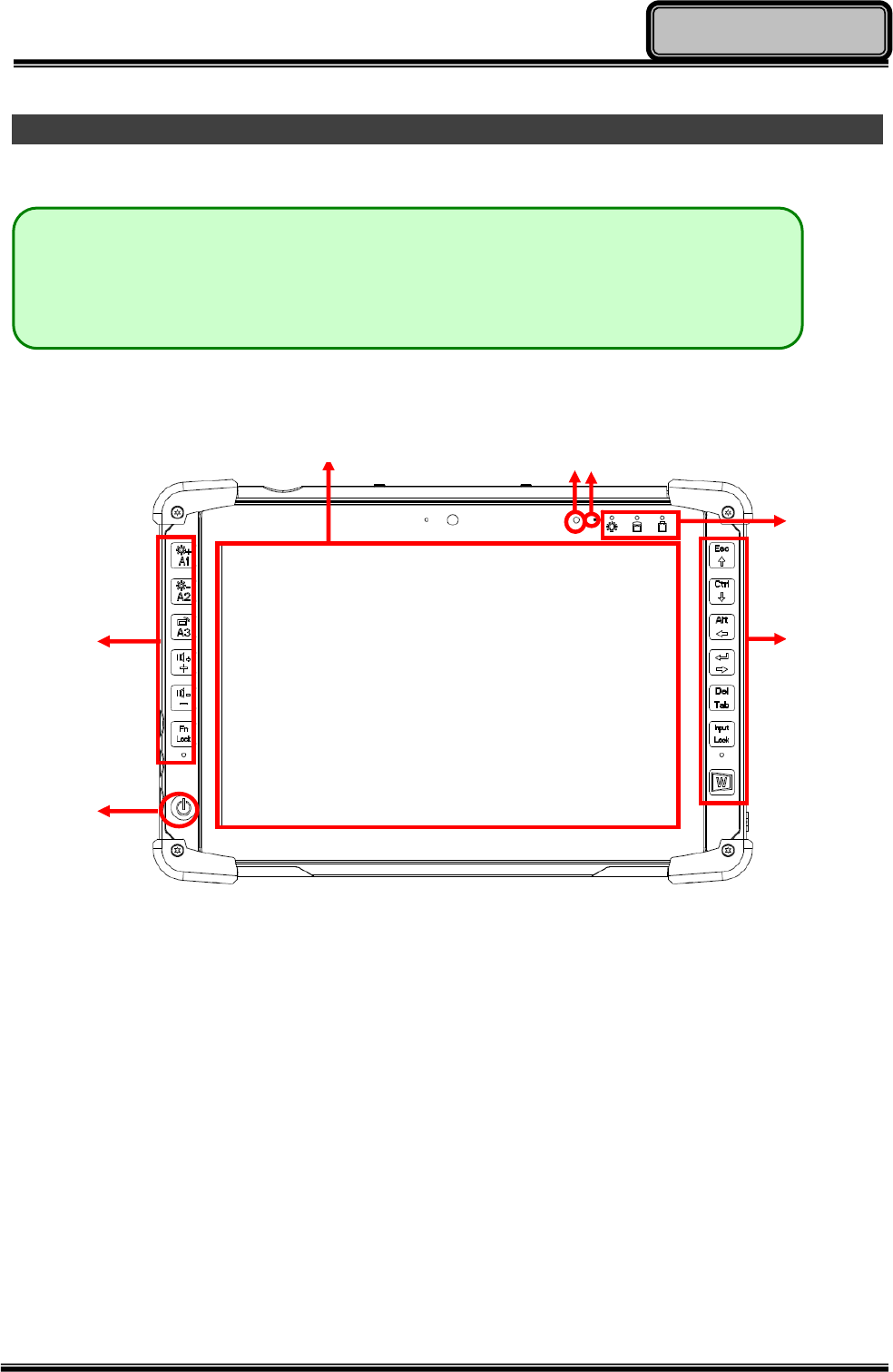

APPEARANCE OVERVIEW ...............................................................................................2

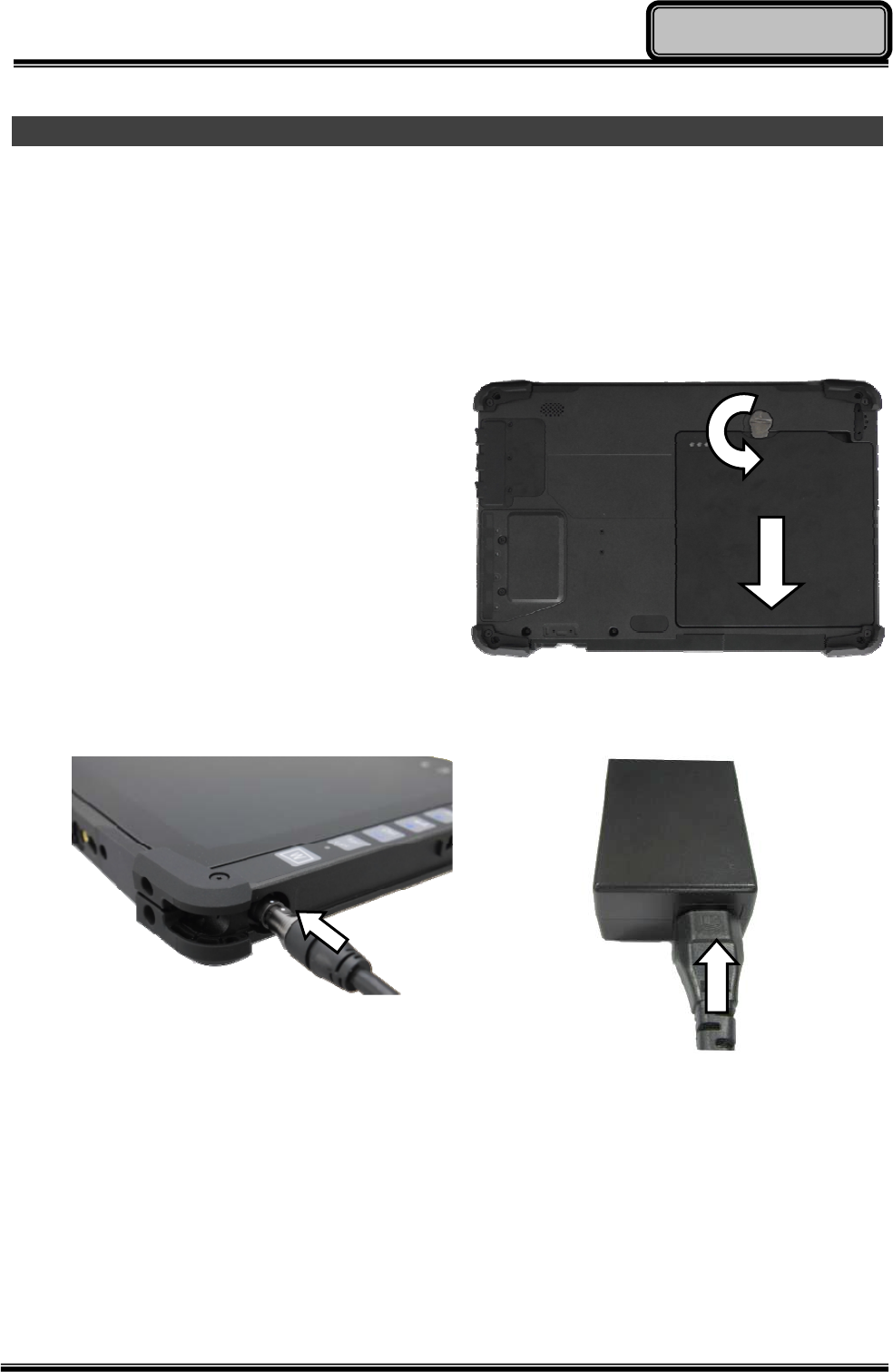

READY FOR USE............................................................................................................7
CHAPTER2 - OPERATING INFORMATION.................................................. 9
START USING YOUR TABLET COMPUTER.........................................................................9
STOP USING YOUR TABLET COMPUTER ........................................................................10
WORKING WITH POWER BUTTON (HEATER KIT) .............................................................11
INSTALLING OPERATING SYSTEM ..................................................................................12
USING BUTTONS AND INDICATORS ................................................................................12

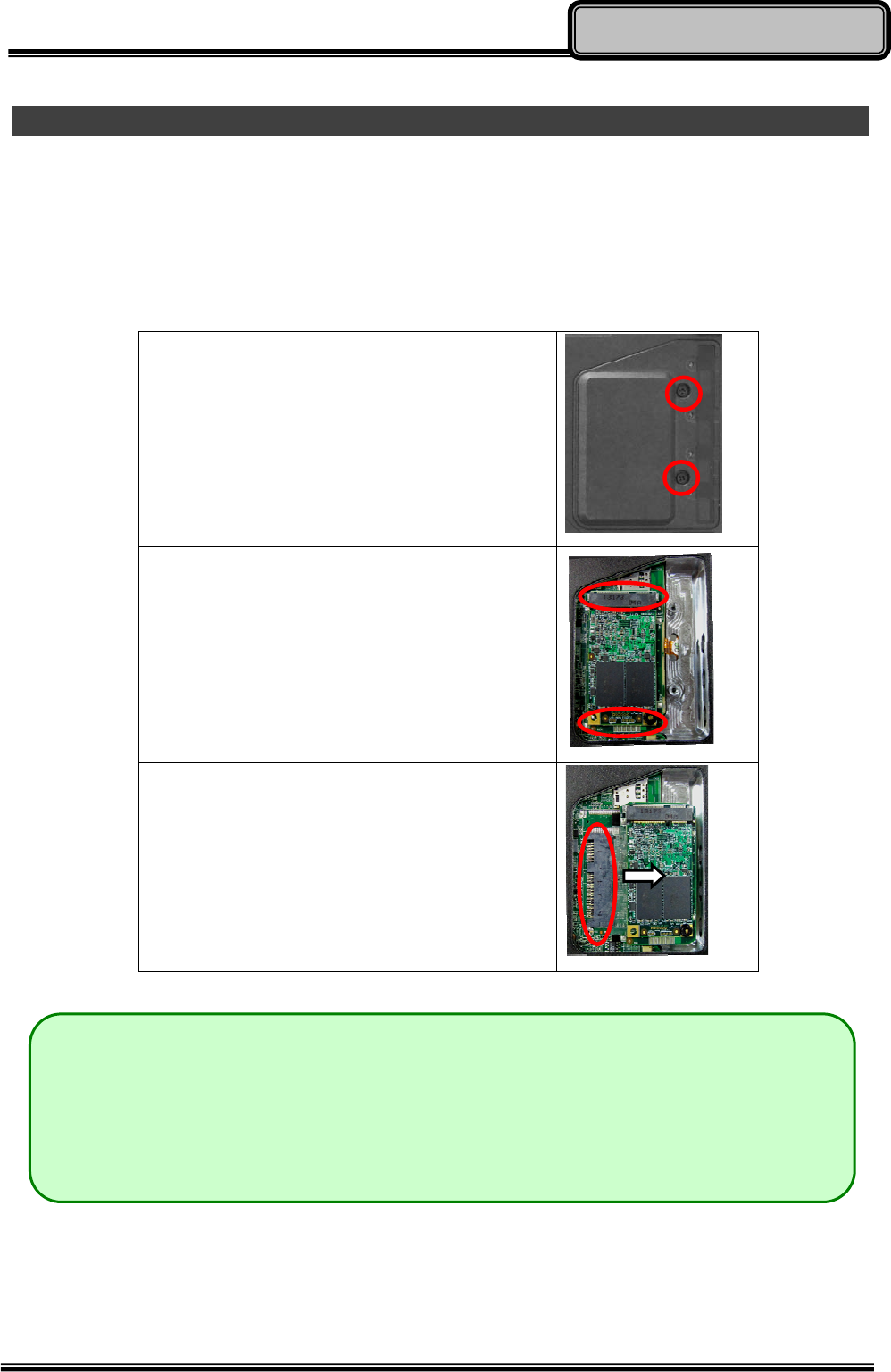

USING MSATA SSD....................................................................................................16

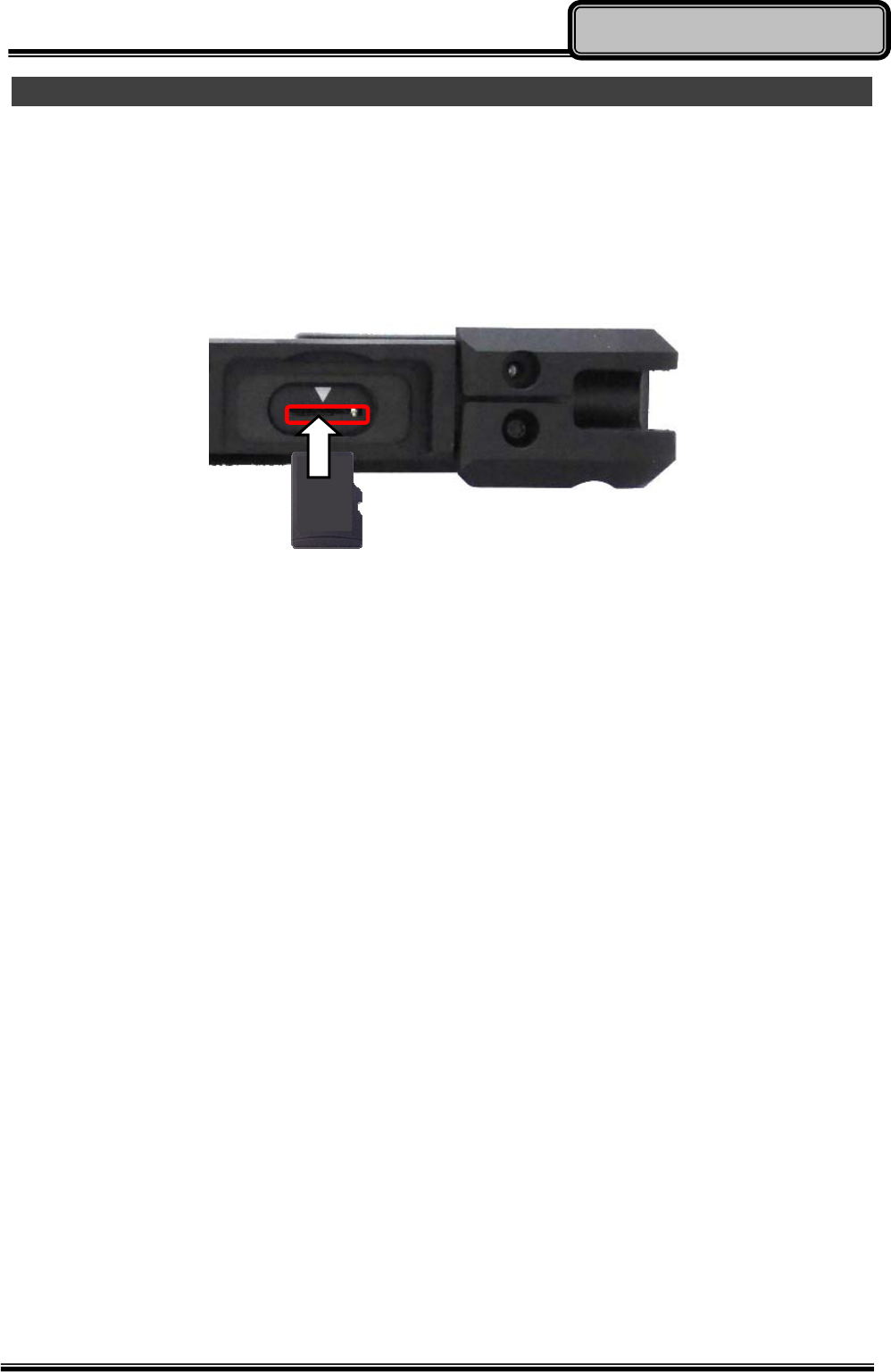

USING MICRO SD CARDS .............................................................................................17
INTEL® RAPID START TECHNOLOGY ..............................................................................18
OPERATING WIRELESS DEVICES...................................................................................19
CHAPTER3- MANAGING POWER.............................................................. 24
AC ADAPTER ..............................................................................................................24

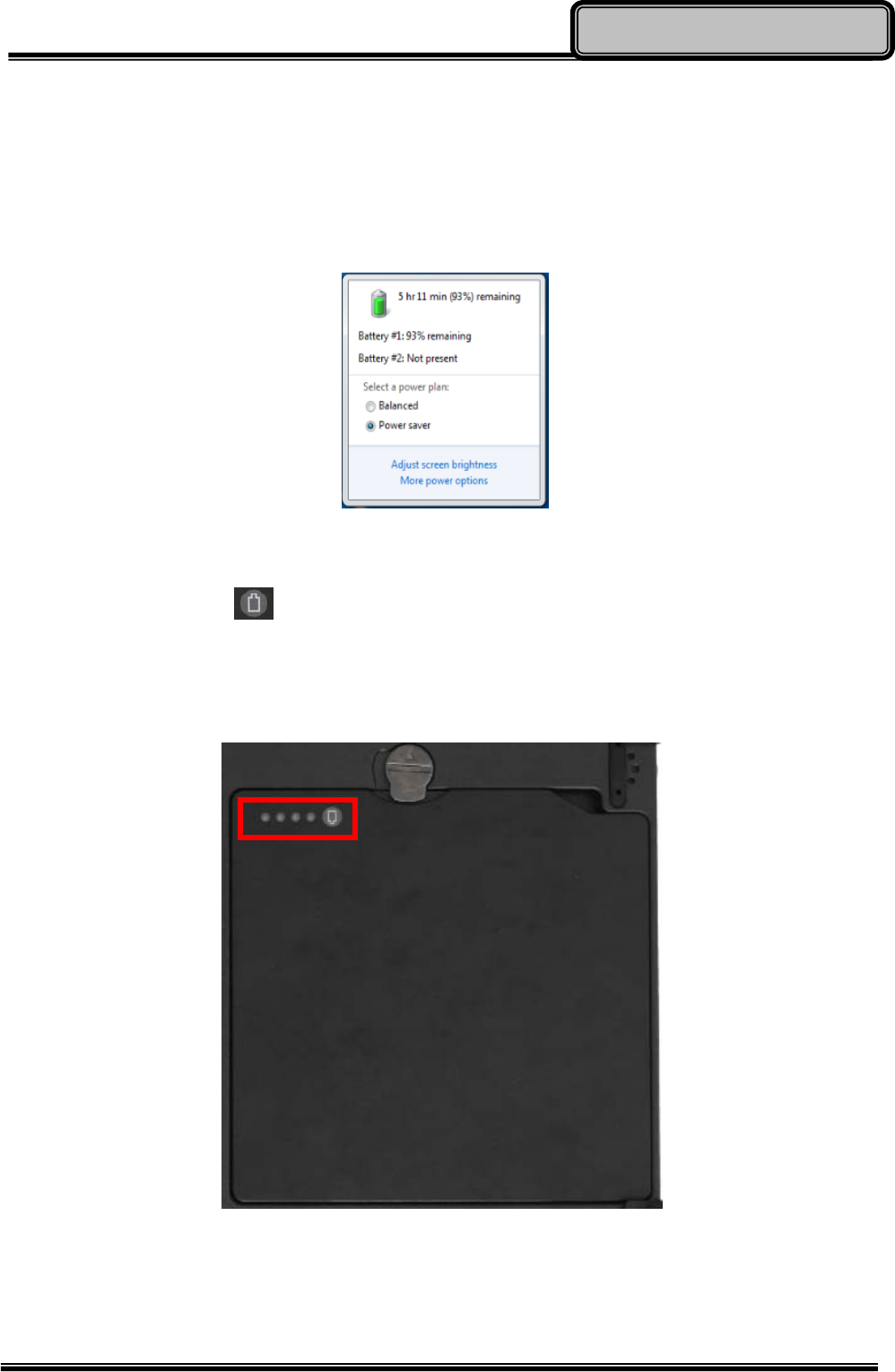

BATTERY ....................................................................................................................25
ACPI SUPPORT ..........................................................................................................28
USB FAST CHARGING .................................................................................................29
CHAPTER 4 - BIOS SETUP......................................................................... 30
MAIN MENU ................................................................................................................30
ADVANCED MENU........................................................................................................31
TRUSTED COMPUTING SUB-MENU ................................................................................33
SATA CONFIGURATION SUB-MENU ..............................................................................34
SATA CONFIGURATION SUB-MENU SELECTIONS ...........................................................34
INTEL (R) RAPID START TECHNOLOGY SUB-MENU .........................................................35
USB CONFIGURATION SUB-MENU ................................................................................36
USB CONFIGURATION SUB-MENU SELECTIONS .............................................................36
RF DEVICE CONTROL CONFIGURATION SUB-MENU........................................................37
EC THERMAL CONTROL SUB-MENU..............................................................................38
CHIPSET MENU ...........................................................................................................39
CHIPSET MENU SELECTIONS ........................................................................................39
PCH-IO CONFIGURATION SUB-MENU ...........................................................................39
BOOT MENU ...............................................................................................................41
BOOT MENU SELECTIONS ............................................................................................41
SECURITY MENU .........................................................................................................42
SAVE & EXIT MENU .....................................................................................................43
CHAPTER 5 – DRIVERS AND APPLICATIONS ......................................... 44
CHIPSET .....................................................................................................................44
VGA ..........................................................................................................................45
AUDIO ........................................................................................................................46
INTEL ME ...................................................................................................................47
INTEL RAPID STORAGE TECHNOLOGY ...........................................................................48
WIRELESS POWER MANAGER.......................................................................................49
TOUCH PAD ................................................................................................................50
TURBO BOOST MONITOR .............................................................................................51
GIGABIT LAN (OPTION) ...............................................................................................52
2ND GIGABIT LAN (OPTION) ........................................................................................53
WIFI (OPTION) ............................................................................................................54
BLUETOOTH (OPTION) .................................................................................................55
GPS (OPTION)............................................................................................................56
TPM (OPTION)............................................................................................................57
USB3.0 (FOR WINDOWS 7) .........................................................................................58
CHAPTER 6 – SPECIFICATIONS................................................................ 59
PLATFORM..................................................................................................................59
CPU ..........................................................................................................................59
PCH ..........................................................................................................................59
MEMORY ....................................................................................................................59
TOUCH SCREEN ..........................................................................................................59
STORAGE ...................................................................................................................59
BUTTONS/FUNCTION KEYS...........................................................................................59
AUDIO ........................................................................................................................60
I/O PORTS ..................................................................................................................60
DIMENSIONS AND WEIGHT............................................................................................61
POWER.......................................................................................................................61
ENVIRONMENTAL, SAFETY & EMC................................................................................61
OPERATING & STORAGE TEMPERATURE........................................................................62
MATERIALS AND RECYCLING ........................................................................................62
CHAPTER 7 – OPTIONAL DEVICES .......................................................... 63
COMMUNICATION.........................................................................................................63
MEMORY CARD ...........................................................................................................63
SECURITY ...................................................................................................................63
MIL. FISCHER CONNECTOR ..........................................................................................63
EXTERNAL USB KEYBOARD .........................................................................................64

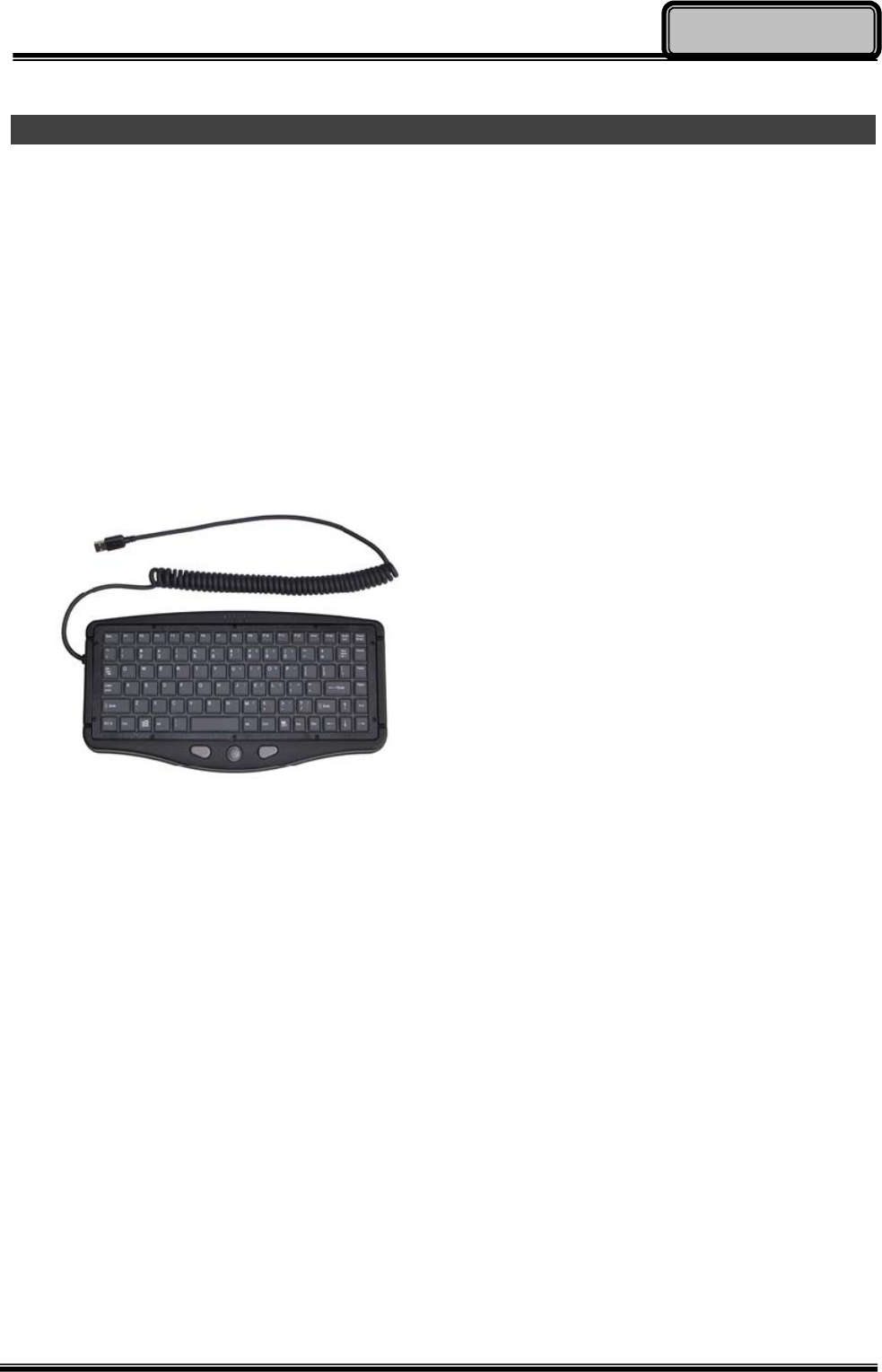

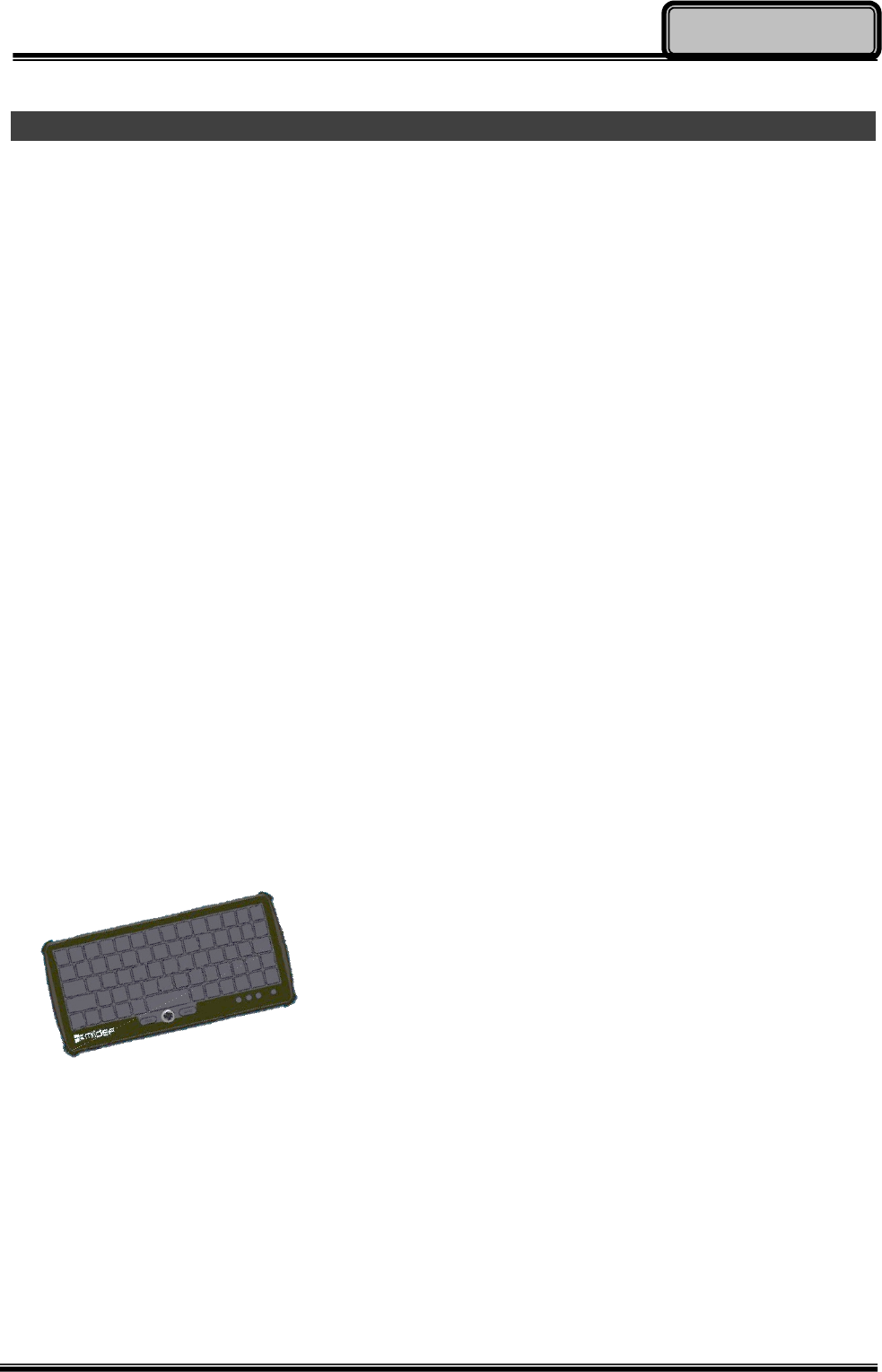

MINI KEYBOARD KBD ..................................................................................................65
CHAPTER 8 – MAINTENANCE AND SERVICE.......................................... 66
CLEANING...................................................................................................................66
TROUBLESHOOTING.....................................................................................................66
RMA SERVICE ............................................................................................................67
Chapter One - 1
GettingStarte
d
Chapter 1 - Getting Started
Unpacking
The following components come with your computer. If anything is missing or damaged,
please notify the dealer immediately.
Computer unit
AC Adapter
AC Power Cord
Utility DVD
Quick Guide
Carrying Bag
Chapter One - 2
GettingStarte
d
3
Appearance Overview
Front
1. Power Button
2. Function keys & Input Lock Key (Please refer to “Using Indicators and Keyboard” for
more details)
3. LED Indicators
4. Touch Screen
5. Light sensor
6. Embedded digital Mic
Note:
The following illustrations show the tablet mounted on optional devices,
which may not appear on your devices.
1
2
6
4 5
2
Chapter One - 3
GettingStarte
d
Rear
1. Removable battery pack
2. Removable mSATA SSD
3. HD Audio & mono Speaker
1
2
3
Chapter One - 4
GettingStarte
d
Left
1. Optional Fischer I/O
2. Standard: Mini HDMI x 1/USB3.0 x 2
Optional:
- GLAN x 1/Mini DisplayPort x 1/USB3.0 x 1
- GLAN x 1/Mini HDMI x 1/USB3.0 x 1
2
1
Chapter One - 5
GettingStarte
d
Right
1. DC-In 12~32V with BVA
- Default: Fischer 3-pin connector
2. Kensington cable lock slot
2
1
Chapter One - 6
GettingStarte
d
Top
1. Micro SD Card Slot
2. Optional Built-in Wi-Fi Antenna
3. Optional Built-in GPS Antenna
Bottom
1. Docklight connector
2. Optional Built-in Wi-Fi/BT Antenna
1
1 2 3
2
Chapter One - 7
GettingStarte
d
Ready for Use
After taking a quick look at your tablet computer, the following illustrations will get you ready
for using it.
1. Mounting the Battery
A. Mount the battery into the battery bay.
B. Turn the battery lock counter-clockwise
and lock firmly with a flat-head
screwdriver or a coin.
2. Connecting the AC Adapter
A. Insert the DC Jack firmly.
B. Plug the AC cord into the AC adapter.
C. Plug the AC power plug into an
electrical outlet.
A
B
Chapter One - 8
GettingStarte
d

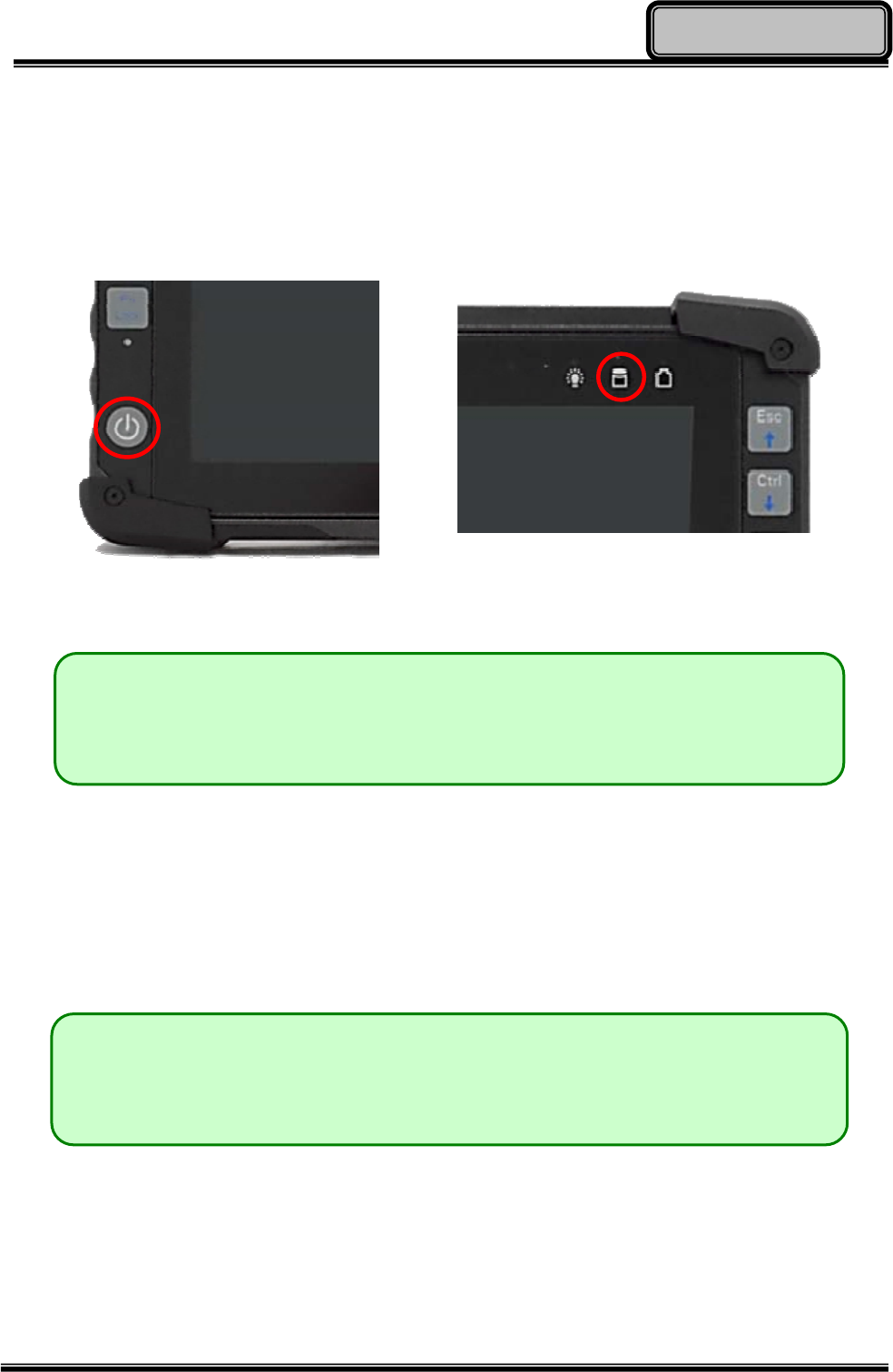

3. Turning ON the Power
A. Make sure the battery is securely mounted. Connect all power cords properly.
B. Turn on the power of your tablet computer by pressing and holding the Power Button
(approx. 2 seconds) until the SSD/ Heater Indicator lights on.
4. Turning Off the Power
Directly tap “Shut down” from your OS to turn OFF the power of your tablet computer. If your
tablet computer stops responding, press and hold the power button for 4~5 seconds to
“Force Shut down” your tablet computer.
Note:
Directly turning off the power of your tablet computer by “Force Shut
down” will cause all unsaved data to be lost and is not recommended.
Note:
The power is able to turn ON without any battery mounted once all the
power cords are connected.
Chapter Two - 9
OperatingInformation
Chapter2 - Operating Information
Start Using Your Tablet Computer
Always turn on your tablet computer by using the power button. This is the standard
operating procedure to start using your tablet computer. After turning on the power of your
tablet computer, it will start with the Operating System (OS) installed.
Boot Up
When you turn on the power, your computer will start to load the OS into the system memory.
This start-up procedure is called “boot up”.
Power On Self-Test (POST)
Each time your computer is turned on, the BIOS will automatically perform a self-test of CPU,
memory, hardware devices, and so on.
Chapter Two - 10
OperatingInformation
Stop Using Your Tablet Computer
Each time when you finish working with your tablet computer, there are several ways to stop
your tablet computer from operating.
Shut down
Directly click “Shut down” from your OS to turn OFF the power of your computer. Before
shutting down, please do remember to save unfinished works and close your applications to
prevent your SSD from suffering possible data loss or damage. “Shut down” will turn OFF
power of your computer. If you want to start your computer again, you need to turn it ON
again by pressing the power button.
Sleep
Under “Sleep” mode, the system will temporarily save your work into the computer’s RAM. If
you want to start your computer again, please press the power button to resume. Under
Windows 8, you can enter this mode by directly clicking:
Move your mouse to the upper-right or lower-right corner of the screen, and then
click “Settings” => Click “Power” => Click “Sleep”.
Hibernate
Under “Hibernate” mode, the system will save your work into SSD. If you want to start your
computer again, you need to press and hold the power button (approx. 2 sec.) until the
SSD/Heater indicator lights on. Under Windows 8, you can enter “Hibernate” mode by
directly clicking:
Move your mouse to the upper-right or lower-right corner of the screen, and then
click “Settings” => Click “Power” => Click “Hibernate”.
Force Shut Down
In the event that your tablet computer hangs or stops responding, you can perform a force
shut down by pressing and holding the power button for 4~5 seconds. Please note that any
unsaved work or data will be lost this way.
Chapter Two - 11
OperatingInformation
Working with Power Button (Heater Kit)
Your tablet computer is equipped with a heater kit to enable work under low temperature.
The heater will heat up the HDD to the temperature set by the user before booting the
system. Also, the heater will constantly monitor HDD temperature. Once the temperature
becomes lower, the heater will heat up again to maintain the temperature set by user.
Note:
When ambient temperature is under +5 °C (the default setting for your tablet computer),
the system may not boot up immediately. System will beep with HDD LED light flashing
orange to indicate that the heater is in operation. The LED will blink faster as the HDD
temperature approaches operational temperature. After 5~15 minutes, the system will
boot up automatically.
In emergency situations, you can skip the heating process by pressing and holding the
power button for 9~11 seconds then release. The speaker will beep with a special
sound to signify that the heating process has been skipped (Please note that not all
devices are guaranteed to work properly in this case).
Press the power button again during the heating process will shut down the computer.
The following is a list of functions associated with your tablet computer’s power button:
1. Press and hold for 12 seconds, then release:
USB port is enabled and you can set a new value in Heater AP.
2. Press and hold for 9 ~ 11 seconds:
The system will skip heating process and force boot up.
3. Press and hold for 5 ~ 8 seconds:
Enable/Disable the sound of Heater.
4. Press and hold the power button for 4 seconds under OS:
Shut down the system.
5. Press the power button:
a. Power on the system.
b. Force Shut Down (If pressed while the heating process is underway).
c. Sleep/Hibernate (Dependent on OS settings).
Chapter Two - 12
OperatingInformation
Installing Operating System
Your computer is designed to operate with Microsoft Windows 7 or Windows 8 32 / 64-bit
Operating System. Please connect your computer with an external USB-interface drive to
start the OS installation.
Using Buttons and Indicators
Your tablet computer is designed with backlight buttons for easy and quick operations. Also,
each LED indicator shows different meanings. The description of each LED indicator and
button functions are provided for your operational reference.
LED Indicators
LED Indicator Description
Power/ S3 Indicator:
Green/ Flashing Green
mSATA SSD/ Heater Indicator:
Green/ Orange
Charger/ Battery Low Indicator:
Orange/ Flashing Orange
Note:
A USB hub may be required during installation to connect with an external
USB-interface ODD, as the System USB port may not supply enough power.
Please connect your USB hub with extra power supply to complete the
installation.
Chapter Two - 13
OperatingInformation

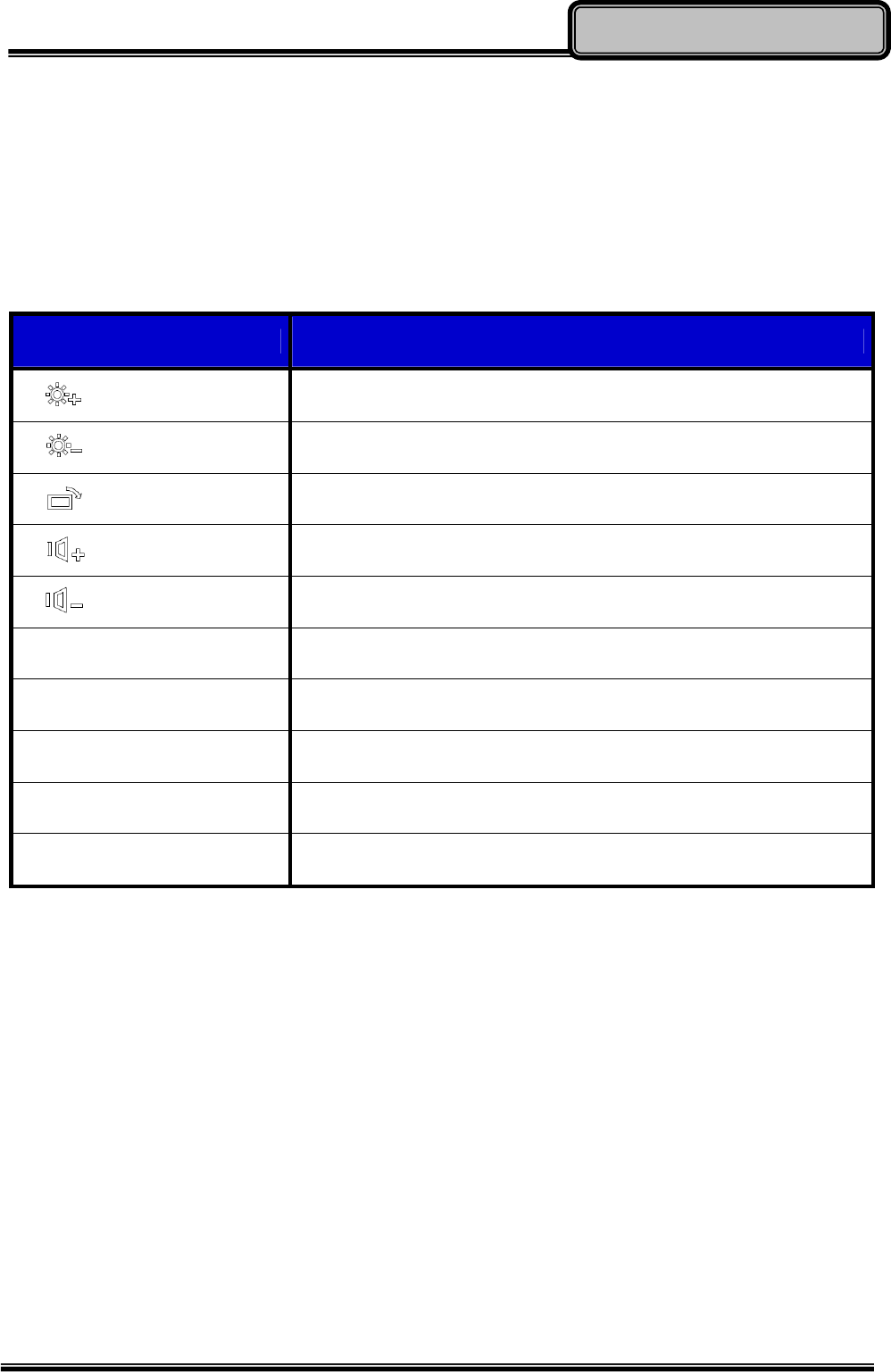

1st Layer buttons
Before using the functions of 1st layer buttons, please make sure that the [Fn Lock]
indicator is OFF.
A list of functions of 1st layer buttons is provided below for operational reference:
Button Description
Increase brightness
Decrease brightness
Turn the screen clockwise
Increase volume
Decrease volume
Esc For functions such as cancel or interrupt running programs,
or for BIOS Selection
Ctrl Press and hold Ctrl with other keys for combination key
functions
Alt Press and hold Alt with other keys for combination key
functions
Enter Command for operation
Del The function of deletion
Chapter Two - 14
OperatingInformation
2nd Layer Buttons
To perform 2nd layer buttons (functions printed in blue on buttons), press the [Fn Lock]
button first, and the Fn Lock indicator will be on, and then press the buttons you would like
to perform.
A list of functions on 2nd layer button is provided below for operational reference:
Button Description
[A1]:
Windows 8.1:
Default: Simulate right click the mouse on the start button
Windows 7:
Default: Windows Mobility Center
[A2]: Default: Open the Ease of Access Center
[A3]: Default: Enter into Lock Screen
Plus (+) Sign For BIOS value change or other "plus" functions
Minus (-) Sign For BIOS value change or other "minus" functions
Up Arrow (↑) Key For BIOS Select or other "move up" options
Down Arrow (↓) Key For BIOS Select or other "move down" options
Left Arrow (←) Key For BIOS Select or other "move left" options
Right Arrow (→) Key For BIOS Select or other "move right" options
Tab Tabulation
Note:
When press Fn Lock key, you can only perform the functions printed in blue
Chapter Two - 15
OperatingInformation
Input Lock key
To prevent from unexpected input by buttons and touch screen, you can press Input Lock
key. When Input Lock function is on, the input from devices including buttons and touch
screen will be locked. To cancel the input lock function, just press the Input Lock key again
and the indicator will be turned off.
1. Press the Input Lock key (as the rectangle
one)
2. Input Lock Indicator will light on (as the circled
one)
3. Press the Input Lock key again to cancel the
function.
Chapter Two - 16
OperatingInformation
Using mSATA SSD
Your tablet is equipped with removable mSATA SSD for data storage. The mSATA SSD is
user removable for convenience. It can ONLY be removed while power is OFF. To remove
the mSATA SSD module, please follow the steps below:
1. Loosen the screws on Back Door
Cover, and then remove the cover.
2. Hold the two ends of the mSATA SSD
module.
3. Remove the mSATA SSD module from
the connector.
Note:
Do not expose mSATA SSD directly to high temperature, high humidity, and
other hazardous environment. NEVER try to disassemble the module. Static
discharge may destroy your device and data.
Chapter Two - 17
OperatingInformation
Using micro SD Cards
Your tablet computer is equipped with a micro SD card slot. The slot supports SDHC, SDXC,
UHS-1 type micro SD crds. To avoid damages caused by misinsertion, please insert your
micro SD card into the card slot properly with the connectors facing down, as shown below.
Chapter Two - 18
OperatingInformation
Intel® Rapid Start Technology
Your tablet computer can operate Intel® Rapid Start Technology when SSD is installed. This
technology enables your system resume time not only to be as fast as wake-up time from
S3 (Sleep) mode, but also to be more energy saving.
Before using Intel Rapid Storage Technology, please check the following system
requirements:
System Requirement:
Intel QM77 Express Chipset-based desktop board
Intel Ivy Bridge i7-3667U
Solid State Drive (SSD)
Operating system
- Microsoft Windows 7 or 8 (32- or 64-bit edition) in Legacy mode
- Microsoft Windows 7 or 8 (64-bit edition) in UEFI mode
Note:
Intel® Rapid Storage Technology Driver should be installed and can
be found in Utility DVD.
Please refer to the User Guide from Intel official website for setting
up the function. There are two kinds of User Guide, “Intel® Rapid
Start Technology User Guide for UEFI Mode” and “Intel® Rapid
Start Technology User Guide.” The former is for UEFI mode, while
the latter is for legacy mode.
Please remember to enable Rapid Start Technology from BIOS
Advanced Menu.
To cancel the Rapid Start Technology, please disable the function
from BIOS Advanced Menu.
Chapter Two - 19
OperatingInformation
Operating Wireless Devices
For your ease of operations, you can turn on/off your wireless devices through the
proprietary software application - “Device Power Manager”.
Bluetooth (Option)
The Bluetooth module provides your tablet computer with a short-range wireless
communication protocol to connect with other compatible devices via the pre-installed
embedded antenna. To activate your Bluetooth functions, please follow the instructions
below.
1. Driver & Application Installation
a. Install the Bluetooth driver first. Read from the Utility DVD and find the directory
listed in the readme file to finish installation.
b. Install the Device Power Manager application. Read from the Utility DVD and find
the directory listed in the readme file to finish installation.
Note:
Depending on the configuration of your tablet computer, your Device Power
Manager menu may appear differently from the screenshots provided in this
section.
When you adjust User Account Control (UAC), a security feature in Windows,
the setting value of Device Power Manager will be affected. So, once there is
any adjustment on UAC, please uninstall Device Power Manager and reinstall
it again.
Chapter Two - 20
OperatingInformation
2. Launch the Device Power Manager
After launching the utility, please tap “Bluetooth” to enable the Bluetooth function (tap
again to disable). Once the Bluetooth function starts up, the wireless LED indicator
(color blue) will turn on and the Bluetooth icon will show up in the operating system
accordingly.
Once the Bluetooth function starts up, the wireless device LED indicator will turn on (color
blue) and the Bluetooth icon will appear in the OS accordingly.
Chapter Two - 21
OperatingInformation
Wireless LAN (Option)
Wireless LAN is an optional wireless communication module for your tablet computer. An
embedded antenna will be pre-installed in your tablet computer to access the internet
wirelessly. To activate your Wireless LAN function, please follow the illustrations below:
1. Driver & Application Installation
a. Install the Chipset Driver first. Read from the Utility DVD and find the directory
listed in the readme file to finish installation.
b. Then, install the Device Power Manager application. Read from the Utility DVD and
find the directory listed in the readme file to finish installation.
2. Launch the Device Power Manager
After launching the utility, please tap “Wireless LAN” for enabling the Wireless LAN
function (tap again to disable).
Once the Wireless LAN function starts up, the wireless device LED indicator will turn on
(color blue) and the Wireless LAN icon will appear in the OS accordingly.
Chapter Two - 22
OperatingInformation
GPS (Option)
GPS is an optional module for your tablet computer. This GPS module supports both GPS
and GLONASS systems. An embedded antenna is pre-installed in your tablet computer to
support the functions of your GPS and GLONASS.
1. Driver & Application Installation
a. Install the Device Power Manager application:
Read from the Utility DVD and find the directory listed in the readme file to finish
installation.
b. Install the GPS driver:
GPS (Driver): Read from the Utility DVD and find the directory listed in the readme
file to finish installation.
2. Navigation & Mapping Software Installation
Please install your 3rd party navigation and mapping software after installing your GPS
driver. Refer to your navigation and mapping software manual for installation and
procedures on application setup and access. Once the GPS function starts up, the
wireless device LED indicator will turn on (color blue).
Chapter Two - 23
OperatingInformation
Chapter Three - 24
ManagingPower
Chapter3- Managing Power
AC Adapter
The AC adapter performs two functions:
- It powers the computer from an external AC source.
- It charges the computer battery.
The adapter automatically detects the AC line voltage (110V or 220V) and adjusts
accordingly.
The following are recommended when using the AC adapter:
- Use a properly grounded AC outlet.
- Use one AC outlet exclusively for the computer. Having other appliances on the same
line may cause interference.
- Use a power strip with built-in surge protection.
Connect the AC adapter:
- Plug the AC cord to the adapter.
- Plug the other end of the AC cord into the wall outlet. Make sure the green LED on the
adapter turns on.
- Attach the DC plug into the power jack of the computer; turn the lock ring clockwise to
secure it.
AC Adapter Indicator
The green LED indicates that AC power is ready.
Chapter Three - 25
ManagingPower
Battery
The computer will automatically switch to battery when the external power source (AC
adapter or optional vehicle adapter) is disconnected.
Battery Power Saving Tips
The computer comes with an intelligent power-saving feature. You may extend the battery
life by:
- Setup power saving functions in Operating System Power Management options (e.g.
Windows Power Options).
- Lower the intensity of the display by brightness control.
- Turn the computer into standby (by Sleep or Power button) when it is temporarily not in
use.
- Shut down the computer when it will not be in use for longer period of time.
Battery Low
When the battery is nearly exhausted, the computer gives the following “Battery Low”
warnings:
- Windows battery low warning.
- The power LED flashes.
Once the “Battery Low” warning occurs, please:
- Save and close the files you are currently working on then shut down the computer.
- Plug in AC or vehicle adapter to recharge the battery.
Chapter Three - 26
ManagingPower
Battery Level
You may check battery status from Operating System. In Windows, you can click the
power/battery icon to reveal the battery gauge window. The following is the illustration of
Battery Gauge in Windows OS.
An alternative way to check the battery level is by viewing the battery gauge on the battery
pack. By pressing the button, indicators will be on. The more indicators are on, the
more power remains in the battery. In other words, if the capacity of the battery pack is full,
all indicators will be on, and if the capacity is nearly drained, all indicators will be off.
Chapter Three - 27
ManagingPower
Note:
Battery characteristic varies depending on factors such as ambient
temperature, charging method, load current, aging, etc. For example, the
chemicals of the battery are more inactive at low temperature, thus decreases
the output power.
The battery gauge should only be used as a reference. Please do not expect it
to show the exact amount of the power remaining. There is no memory effect
on Lithium Ion battery cells. However, discharge the battery to nearly empty
every month will help calibrating the internal gauge.
Chapter Three - 28
ManagingPower
ACPI Support
Your computer supports ACPI (Advanced Configuration and Power Interface) for power
management. With ACPI and an ACPI-compliant operating system (such as Microsoft
Windows), this feature will allow you to reduce the power consumption and conserve
energy. By supporting ACPI, the AC adapter LED and the Power indicator LED will show in
different ways. The followings are detailed descriptions of LED indicators and their
meanings:
Sleep:
AC adapter LED is ON (while connecting with power)
Power LED indicator is flashing; other LED indicators are OFF
Hibernate:
AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; other LED indicators are OFF
Shut down:
AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; other LED indicators are OFF
Chapter Three - 29
ManagingPower
USB Fast Charging
Your tablet supports USB fast charging feature, enabling to quickly charge your
fast-charging compatible devices. But note, fast charging is not supported in every power
mode. The following table shows details for USB Charging information:
Mode USB 3.0 Charging Features
AC Fast charging supports
Power off Battery No charging
AC Normal charging
Power on Battery Normal charging
AC Fast charging supports
S3 Battery Fast charging supports
Optional Devices
Chapter Four - 30
BIOSSetup
Chapter 4 - BIOS Setup
Press [F2] + [Delete] at boot up to enter BIOS setup. Use arrow keys to select options and
[+/-] to modify them. When finished, move to “Exit” and press [Enter] then confirm save by
pressing [Y].
Main Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Choose the system
default language
BIOS Information
BIOS Vendor
Core Version
Compliancy
Project Version
Build Date and Time
EC Version
System Language [English]
System Date [Wed 06/19/2013]
System Time [16:19:20]
Access Level Administrator
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Main Menu Selections
You can make the following selections on the Main Menu. Use the sub-menus for other
selections.
Feature Options Description
System Date MM/DD/YYYY Set the system date Month, Day,
Year.
System Time HH:MM:SS Set the system time Hour, Minute,
Second.
Note:
The contents may vary depending on computer configurations.
Incorrect settings may cause system malfunction. To correct it, restore the
Optimized Defaults with F3.
Optional Devices
Chapter Four - 31
BIOSSetup
Advanced Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Trusted Computing
Setting
► Trusted Computing
► CPU Configuration
► SATA Configuration
► Thermal Configuration
► Intel (R) Rapid Start Technology
► USB Configuration
► Super IO Configuration
► RF Device Configuration
► EC Thermal Control
► AC IN BOOT Control
► USB CHARGE Control
► Intel (R) Smart Connect Technology
► Network Stack Configuration
► CPU PPM Configuration
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Optional Devices
Chapter Four - 32
BIOSSetup
Advanced Menu Selections
You can make the following selections on the Advanced Menu.
Feature Options Description
Trusted
Computing
Disabled
Enabled
TPM Support
SATA
Configuration
SATA Mode Selection
Serial ATA Port 0
Software Preserve
SATA Mode Selection: IDE, AHCI,
RAID
Intel (R) Rapid
Start Technology
Disabled
Enabled
Enable or disable Intel (R) Rapid Start
Technology.
USB
Configuration
Disabled
Enabled
Legacy USB Support
USB3.0 Support
XHCI Hand-off
EHCI Hand-off
Super IO
Configuration
Serial Port 0~3
Configuration
RF Device
Control
Disabled
Enabled
GPS, BLUETOOTH, WLAN
EC Thermal
Control
Thermal cooling trip point
AC IN BOOT
Control
Disabled
Enabled
AC IN Boot setting
USB Charge
Control
Disabled
Enabled
Intel Smart
Connect
Technology
Disabled
Enabled
Enable/Disable ISCT Configuration
Network Stack
Configuration
Disabled
Enabled
Enable/Disable UEFI Network Stack
CPU PPM
Configuration
Disabled
Enabled
Enable/Disable Intel SpeedStep
Optional Devices
Chapter Four - 33
BIOSSetup
Trusted Computing Sub-Menu
Aptio Setup Utility
Advanced
Enables or Disables
BIOS support for
security device. O.S.
will not show Security
Device. TCG EFI
protocol and INT1A
interface will not be
available.
Configuration
Security Device Support [Disable]
Current Status Information
SUPPORT TURNED OFF
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Optional Devices
Chapter Four - 34
BIOSSetup
SATA Configuration Sub-Menu
Aptio Setup Utility
Advanced
Determine how SATA
controller(s) operate.
SATA Mode Selection [AHCI]
SATA Test Mode [Disabled]
Aggressive LPM Support [Enabled]
SATA Controller Speed [Gen3]
Serial ATA Port 0 Empty
Software Preserve Unknown
Serial ATA Port 1 Empty
Software Preserve Unknown
Serial ATA Port 2 SATA SSD (120.0
Software Preserve SUPPORTED
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
SATA Configuration Sub-Menu Selections
You can make the following selections on the SATA configuration sub-menu.
Feature Options Description
SATA Mode
Selection
IDE
AHCI
RAID
Determine how SATA
controller(s) operate
SATA Test Mode Disabled
Enabled
Enable or disable Test Mode
Aggressive LPM
Support
Disabled
Enabled
Enable PCH to aggressively enter
link power state
SATA Controller
Speed
Gen1
Gen2
Gen3
Indicates the maximum speed the
SATA controller can support
Port 0 Disabled
Enabled
Enable or Disable SATA Port
Hot Plug Disabled
Enabled
Designates this port as Hot
Pluggable
Optional Devices
Chapter Four - 35
BIOSSetup
Intel (R) Rapid Start Technology Sub-Menu
Aptio Setup Utility
Advanced
Enables or disable Intel
(R) Rapid Start
Technology
Intel (R) Rapid Start Technology [Disabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Optional Devices
Chapter Four - 36
BIOSSetup
USB Configuration Sub-Menu
Aptio Setup Utility
Advanced
Enables Legacy USB
support.
AUTO option disables
legacy support if no USB
devices are connected.
Disable option will keep
USB devices available
only for EFI applications
USB Configuration
USB Devices:
1 point
Legacy USB Support [Enabled]
USB3.0 Support [Enabled]
XHCI Hand-off [Enabled]
EHCI Hand-off [Disabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
USB Configuration Sub-Menu Selections
You can make the following selections on the USB configuration sub-menu.
Feature Options Description
Legacy USB
enabled
Disabled
Enabled
Enables Legacy USB support.
AUTO option disables legacy
support if no USB devices are
connected. DISABLE option will
keep USB devices available only
for EFI applications.
Usn3.0
Support
Disabled
Enabled
Enable/Disable USB3.0 (XHCI)
Controller support.
XHCI Hand-off Disabled
Enabled
This is a workaround for OSes
without XHCI hand-off support.
This XHCI ownership change
should be claimed by XHCI driver.
EHCI Hand-off Disabled
Enabled
This is a workaround for OSes
without EHCI hand-off support.
This EHCI ownership change
should be claimed by EHCI driver.
Optional Devices
Chapter Four - 37
BIOSSetup
RF Device Control Configuration Sub-Menu
Aptio Setup Utility
Advanced
RF Device Control Setting
RF Device Control
GPS STATUS Present
GPS [Enabled]
BT STATUS Present
BLUETOOTH [Enabled]
WLAN STATUS Present
WLAN [Enabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
RF Device Control Configuration Sub-Menu Selections
You can make the following selections on the RF Security Control sub-menu.
Feature Options Description
Wireless LAN Disabled
Enabled
Wireless Lan Control
Enabled Wireless function
GPS Disabled
Enabled
GPS Control
Enabled GPS function
BlueTooth Disabled
Enabled
BlueTooth Control
Enabled Blue Tooth function
Optional Devices
Chapter Four - 38
BIOSSetup
EC Thermal Control Sub-Menu
Aptio Setup Utility
Advanced
EC Thermal Control
Setting
EC Thermal Control
User mode [Normal mode - 87 C]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
EC Thermal Control Sub-Menu Selections
You can make the following selections on the EC Thermal Control sub-menu.
Feature Options Description
User mode Tablet mode – 79 C
Normal mode – 87 C
High Performance mode – 95 C
Optional Devices
Chapter Four - 39
BIOSSetup
Chipset Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
PCH Parameters
► PCH-IO Configuration
► System Agent (SA) Configuration
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Chipset Menu Selections
You can make the following selections on the Chipset sub-menu.
Feature Options Description
PCH-IO Configuration PCH Parameter
System Agent (SA)
Configuration
System Agent (SA)
Parameters
PCH-IO Configuration Sub-Menu
Aptio Setup Utility
Chipset
PCI Express
Configuration settings
Intel PCH RC Version 1.6.0.0
Intel PCH SKU Name QM77
Intel PCH Rev ID 04/C1
► PCI Express Configuration
► USB Configuration
► PCH Azaliz Configuration
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Optional Devices
Chapter Four - 40
BIOSSetup
PCH-IO Configuration Sub-Menu Selections
You can make the following selections on the PCH-IO Configuration sub-menu.
Feature Options Description
PCI Express
Configuration
Disabled
Enabled
PCI Express Configuration settings
USB
Configuration
Disabled
Enabled
USB Configuration settings
PCH Azaliz
Configuration
Disabled
Enabled
PCH Azaliz Configuration settings
Optional Devices
Chapter Four - 41
BIOSSetup
Boot Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Set boot mode
LEGACY/UEFI
Boot mode select [Legacy]
Boot Option Priorities
Boot Option #1 [Hard Disk: SATA SSD...]
Boot Option #2 [CD/DVD]
Boot Option #3 [USB Hard Disk]
Boot Option #4 [USB CD/DVD]
Boot Option #5 [USB Key]
Boot Option #6 [USB Floppy]
Boot Option #7 [Network]
► CSM parameters
► Hard Disk Drive BBS Priorities
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
The system will try to boot from device on top then the 2nd and so on. If there is more than
one device in each category, only the device on top of sub-menu can boot up.
Boot Menu Selections
You can make the following selections on the Boot menu.
Feature Options Description
Boot mode
select
LEGACY
UEFI
Select boot mode LEGACY/UEFI
Boot Option #1 Sets the system boot order
Boot Option #2 Sets the system boot order
CSM
parameters
OpROM execution, boot options
filter, etc.
Hard Drive BBS
Priorities
Set the Boot Device Priority
sequence from available Hard
Disk Drives
Optional Devices
Chapter Four - 42
BIOSSetup
Security Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Set Administrator
Password
Password Description
If ONLY the Administrator’s password is set, then this
only limits access to Setup and is only asked for when
entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot or
enter Setup. In Setup the User will have Administrator
rights.
The password length must be in the following range;
Minimum length 3
Maximum length 20
Administrator Password
User Password
HDD Security Configuration:
PO: SATA SSD
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Security Menu Selections
You can make the following selections on the Security Menu.
Feature Options Description
Administrator
Password
Enter New
Password
Confirm New
Password
Controls detection of
Processor Serial No. System
must be reset or restarted from
power-on for settings to take
effect.
User password Enter New
Password
Confirm New
Password
Supervisor Password controls
access to the setup utility.
HDD 0: SATA
SSD
Enter New
Password
Confirm New
Password
User Password controls
access to the system at boot.
Optional Devices
Chapter Four - 43
BIOSSetup
Save & Exit Menu
Aptio Setup Utility
Main Advanced Chipset Boot Security Save & Exit
Exit system setup after
saving the changes
Save Changes and Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
PO: MRMAJAA128GTSM2IDO
→←: Select Screen
↑↓: Select Item
Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Optional Devices
Chapter Five - 44
DriversandApplications
Chapter 5 – Drivers and Applications
The Utility DVD includes all the drivers for the installed devices in your tablet computer.
Please consult the dealer if there is any driver missing. Also, through Device Manager in
Windows, you are able to perform “Driver Update” or check if there are still drivers for the
devices needed to be installed. Please check the readme file on Utility DVD to get the latest
information before installing device drivers.
Chipset
Windows 8.1/Ultimate 64-bit:
Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8_1", and then follow
the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8_1", and then follow
the instructions to install.
Windows 8/Ultimate 64-bit:
Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8", and then follow the
instructions to install.
Windows 8/Ultimate 32-bit:
Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8", and then follow the
instructions to install.
Windows7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Chipset\Windows 7", and then follow the
instructions to install.
Windows7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Chipset\Windows 7", and then follow the
instructions to install.
Note:
Please install the chipset driver first.
The installation directory in this section is for reference only. Please check
the readme file on Utility DVD to get the latest directory information.
If the system requests for reboot after installing drivers, please reboot your
tablet computer first before installing other drivers.
Optional Devices
Chapter Five - 45
DriversandApplications
VGA
Windows 8.1/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8_1
(64-bit)\win64_153322", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8_1
(32-bit)\win64_153322", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8
(64-bit)\Win64_15313", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8
(32-bit)\Win32_15313", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 7
(64-bit)\Win64_15319", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 7
(32-bit)\Win32_15319", and then follow the instructions to install.
Optional Devices
Chapter Five - 46
DriversandApplications
Audio
Windows 8.1/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8_8.1\Win7_Win8_Win81_R273", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8_8.1\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.
Optional Devices
Chapter Five - 47
DriversandApplications
Intel ME
Windows 8.1/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8_8.1", and then
follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8_8.1", and then
follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.
Windows 8/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.
Optional Devices
Chapter Five - 48
DriversandApplications
Intel Rapid Storage Technology
Windows 8.1/Ultimate 64-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8_.81\12.9", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8_.81\12.9", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.
Optional Devices
Chapter Five - 49
DriversandApplications
Wireless Power Manager
Windows 8.1/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Windows 8.1/Ultimate 32-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Windows 8/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Windows 8/Ultimate 32-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Windows 7/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Windows 7/Ultimate 32-bit:
Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.
Optional Devices
Chapter Five - 50
DriversandApplications
Touch Pad
Windows 8.1/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8_8.1\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8_8.1\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.
Optional Devices
Chapter Five - 51
DriversandApplications
Turbo Boost Monitor
Windows 8.1/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8_8.1", and
then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8_8.1", and
then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.
Optional Devices
Chapter Five - 52
DriversandApplications
Gigabit LAN (Option)
Windows 8.1/Ultimate 64-bit:
Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8_1 (64-bit)",
and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "PROWinx32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8_1 (32-bit)",
and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8 (64-bit)", and
then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "PROWinx32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8 (32-bit)", and
then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 7 (64-bit)", and
then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "PROWin32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 7 (32-bit)", and
then follow the instructions to install.
Optional Devices
Chapter Five - 53
DriversandApplications
2nd Gigabit LAN (Option)
Windows 8.1/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8_8.1\Install_Win7_7046_07202011", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8_8.1\Install_Win7_7046_07202011", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.
Optional Devices
Chapter Five - 54
DriversandApplications
WiFi (Option)
Windows 8.1/Ultimate 64-bit:
Run "Wireless_15.6_De64.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8_1 (64-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Windows 8.1/Ultimate 32-bit:
Run "Wireless_15.6_De32.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8_1 (32-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Windows 8/Ultimate 64-bit:
Run "Wireless_15.6_De64.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8 (64-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Windows 8/Ultimate 32-bit:
Run "Wireless_15.6_De32.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8 (32-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Windows 7/Ultimate 64-bit:
Run "Wireless_15.3.1_Ds64.exe" in the directory of "\Drivers\Mini PCI-E WiFi
6235\Windows 7 (64-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Windows 7/Ultimate 32-bit:
Run "Wireless_15.3.1_Ds32.exe" in the directory of "\Drivers\Mini PCI-E WiFi
6235\Windows 7 (32-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.
Optional Devices
Chapter Five - 55
DriversandApplications
Bluetooth (Option)
Windows 8.1/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e64.exe" in the directory of "\Drivers\Bluetooth\Windows 8_1 (64-bit)",
and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e32.exe" in the directory of "\Drivers\Bluetooth\Windows 8_1 (32-bit)",
and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e64.exe" in the directory of "\Drivers\Bluetooth\Windows 8 (64-bit)", and
then follow the instructions to install.
Windows 8/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e32.exe" in the directory of "\Drivers\Bluetooth\Windows 8 (32-bit)", and
then follow the instructions to install.
Windows 7/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.2_s64.exe" in the directory of "\Drivers\Bluetooth\Windows 7 (64-bit)", and then
follow the instructions to install.
Windows 7/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.2_s32.exe" in the directory of "\Drivers\Bluetooth\Windows 7 (32-bit)", and then
follow the instructions to install.
Optional Devices
Chapter Five - 56
DriversandApplications
GPS (Option)
Windows 8.1/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8_8.1", and then follow the instructions to install.
Windows 8.1/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8_8.1", and then follow the instructions to install.
Windows 8/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.
Windows 8/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.
Windows 7/Ultimate 64-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.
Windows 7/Ultimate 32-bit:
*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.
Optional Devices
Chapter Five - 57
DriversandApplications
TPM (Option)
Windows 8.1/Ultimate 64-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8_8.1", and then follow the
instructions to install.
Windows 8.1/Ultimate 32-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8_8.1", and then follow the
instructions to install.
Windows 8/Ultimate 64-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.
Windows 8/Ultimate 32-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.
Windows 7/Ultimate 64-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.
Windows 7/Ultimate 32-bit:
*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.
Optional Devices
Chapter Five - 58
DriversandApplications
USB3.0 (For Windows 7)
Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\USB3.0\Windows 7\Intel(R) USB 3.0
eXtensible Host Controller Driver PV(HF7) 1.0.7.248", and then follow the instructions to
install.
Windows 7/Ultimate 32-bit:
Run "Setup.exe" in the directory of "\Drivers\USB3.0\Windows 7\Intel(R) USB 3.0
eXtensible Host Controller Driver PV(HF7) 1.0.7.248", and then follow the instructions to
install.
Note:
USB3.0 driver is required when DS11 installs Windows 7.
Chapter Six - 59
Specifications
Chapter 6 – Specifications
Platform
Intel® Chief River Platform
CPU
Intel® Ivy Bridge i7-3537U
- 4 MB Intel Smart Cache Memory
PCH
Intel® Panther Point QM77
Memory
4/8GB System Memory
- Industrial grade
- DDR3 SO-DIMM x 1, 1600MHz
Touch Screen
Type: 10.1” WXGA (16:10)
Resolution: 1280 x 800 pixels
Brightness (min.~ typ.): 1000 nits
Capacitive Multi-Touch Screen
Optional Invisible mode on/off
Storage
• Removable mSATA SSD
• 128GB/256GB/512GB
• Industrial Grade
Buttons/Function Keys
• Power button (front side)
• Membrane Function Keys with LED Backlight
Chapter Six - 60
Specifications
Audio
• HD Audio and mono Speakers
• Embedded Digital Mic
I/O Ports
Std. Mini HDMI x 1/USB3.0 x 2 ((the rightmost USB port, with a lightening mark on the
cap, supports fast charging function)
Optional:
- GLAN x 1/ Mini DisplayPort x 1/USB3.0 x 1
- GLAN x 1/Mini HDMI x 1/USB3.0 x 1
Optional Fischer I/O:
Choose 1~4 out of 7 as below:
- USB 2.0 x 1
- VGA x 1
- COM (RS232/RS422) x 2
- GLAN x 1
- Audio X 1
- Sealed Headset (Headphone out/Mic-in Combo) x 1
Docklite Connector: 32-pin POGO (Hot Swappable)
Standard Micro SD card slot
DC power jack
Chapter Six - 61
Specifications
Dimensions and Weight
Width: 280mm (11”)
Depth: 186mm (7.3”)
Height: 20mm (0.79”)
Weight: Kg ( lb)*
*Without battery, mSATA module, and all RF modules. Battery weight: approx. 300g.
Power
Easily-removable Battery Pack:
Type: 6 x 18650 cells Lithium Ion
Capacity: 11.1V/ 4400mAh (3S2P)
Dimensions: 138 mm (W) x 136 mm (D) x 9.7 mm (H)
Weight: Approx. 300 gram (0.66 lb.)
AC Adapter
Input Voltage: AC 100 - 240V
Frequency: 50/60 Hz
Output Voltage: DC 19V
Maximum Power: 90 Watts
Dimensions: 133 mm (W) x 58mm (D) x 30mm (H)
Weight: Approx. 400 g (0.88 lb.)
DC-In:
12~32V with BVA
- Fischer 3 pin Connector
Environmental, Safety & EMC
CE, FCC, WEEE, REACH, IP65, MIL-STD-810G, MIL-STD-461F
Note:
Weight varies depending on system configurations.
Chapter Six - 62
Specifications
Operating & Storage Temperature
Operating Temp.:
- Std: I: 0 °C ~ +40 °C
M: -20 °C ~ +55 °C*
- Optional: -30 °C ~ +55 °C*
*LCD with Heater
Storage Temp.: -40 °C ~ +70 °C
Materials and Recycling
Materials of the computer are as follows:
Magnesium case: AL6061T6
PCB: FR-4, UL 94V0
Battery: Rechargeable Lithium Ion cells
Packing: Carton: Unbleached paper
Cushion: Recyclable PE
Carrying bag: Recyclable PE Fiber
Quick Guide: Paper
Please recycle the parts according to local regulations.
Chapter Seven - 63
OptionalDevices
Chapter 7 – Optional Devices
Communication
WiFi/Bluetooth:
- Intel® Centrino® Advanced-N 6235, Dual Band
- Board Form Factor: PCIe Half Mini Card
- Wi-Fi Certified: 802.11 a/b/g/n
- Bluetooth: Supports BT 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
- Interface: PCIe (WiFi)/USB (BT)
GPS: u-blox Neo-M8 (USB interface)
2nd Gigabit LAN: 1Gbps (internal Mini PCIe Card)
Memory Card
The memory card will expand main memory to facilitate better system performance. The
cards are available as following: 4/8GB DDR3 DRAM 1600MHz (Max. total memory 8 GB).
Security
TPM (Trusted Platform Module) version 1.2
Mil. Fischer Connector
Optional Fischer connectors provide solutions for users to operate the device in harsh
environment. Signals designed for usage include USB2.0, VGA, RS232 or RS422, GLAN,
and Audio.
Chapter Seven - 64
OptionalDevices
External USB Keyboard
An optional 89-key external USB keyboard with LED backlight and IP rating of IP54 is
available for your tablet computer. The detailed specification is provided below:
89-key layout emulates 101/102-key KB
Life: >1 million times, water/dust protection up to IP54
Back-light illumination (backlight device: green LED)
PS/2 compatible Trackpoint and mouse buttons
Dimensions: 323.4 mm (W) x 172 mm (D) x 25 mm (H)
Weight: 1.1 kg
Track point
The track point is functionally equivalent to a mouse. Pushing the track point may move the
cursor on the screen. The 2 buttons act same as mouse buttons.
Backlight
Press [I-O] key for approximately 1 second turns keyboard backlight ON or OFF.
Chapter Seven - 65
OptionalDevices
Mini Keyboard KBD
Mini Keyboard KBD is designed for all models. KBD also brings convenience of use through
multi-language keyboard versions and USB interface. The detailed specification is provided
below:
USB interface with 30 cm USB cable
66-Key design with function keys to simulate standard keyboards.
StickPointer to simulate mouse and keypad
Currently support versions:
English (UI), English (UK), German (DE), Swedish (SV) and Russian (RU) 5 versions.
LED Backlight
Caps Lock, Number Lock, Scroll Lock, and Smart Card Reader LED Indicators
Magnesium Alloy Case (Black)
Operating Temperature: -20 ~ 50ºC (-4 ~ 122ºF)
Storage Temperature: -40 ~ 70ºC (-40 ~ 158ºF)
Optional Built-in Smart Card Reader
Dimensions: 190 mm (W) x 90 mm (D) x 12 mm (H)
Weight: 170 g
Chapter Eight - 66
Maintenanceand
S
ervice
Chapter 8 – Maintenance and Service
Cleaning
ALWAYS turn OFF the power, unplug the power cord and remove the battery before
cleaning.
The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth.
If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to
the cloth and wipe.
An air gun is recommended for cleaning water and dust. For salty water please clean with
fresh water then blow-dry with an air gun.
Troubleshooting
Should the tablet computer fail to function properly, the troubleshooting steps below may
be followed.
Power Problems:
When I turn on the Tablet computer, it does not respond.
- If you are using battery power, check if the battery is charged
- If you are using AC power, ensure that the connection of AC adapter is correct.
I cannot return from Hibernation while on battery power
- The battery might be drained. Please plug the tablet into AC power.
- Hard reset the device by pressing the power button for 4 seconds
Unexpected or improper shutdown causes BIOS to reset to Optimized Default
- This could be a power problem. Please connect the AC power adapter to fix the
abnormal shutdown problem.
Minimize the configuration, i.e. remove extra peripherals and devices.
Remove the modules one by one (HDD, Battery, etc.).
Remove the software suspected.
Set BIOS fail-safe default.
Re-install operating system and application software.
Chapter Eight - 67
Maintenanceand
S
ervice
RMA Service
If troubleshooting solutions are unsuccessful, consult your dealer for RMA.
Shipping instructions:
1. Remove any personal add-on devices or other media.
2. Use the original shipping container and packing materials, if possible.
3. If the original packing materials are not available, wrap the equipment with soft
material (e.g. PU/PE form) then put the wrapped equipment into a hard cardboard
shipping box.
4. Include a sheet with the following information: (Note: Please keep a copy of this sheet
for your records.)
- Name
- Address
- Unit serial number
- Place and date of purchase or the original invoice number
- Date of failure
- A DETAILED description of the problems you have encountered including: The
operating system, the add-on device installed (if any), the application software, the
failure phenomenon, etc.
- A list of the hardware/software configuration, if applicable.
5. Clearly mark the outside of the shipping box with the RMA #. If an RMA # is not
present on the shipping box, receiving will be unable to identify it and it might be
returned.
6. Unless prior arrangements have been made, the customer is responsible for all
shipping costs. Unauthorized use of the company’s shipping accounts is not
permitted.
