Laser Distance Meter
User Manual
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause u
ndesired operation.”
FCC ID2AEOGMC160002
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However there is no guaran
tee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment of
f and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is conn
ected
• Consult the dealer or an experienced radio/TV technician for help.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this
device could void the user’s authority to operate the device.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two con
ditions: (1) this device may not cause harmful interference, and (2) this device must accept any int
erference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could v
oid the user’s authority to operate the equipment.
English
Congratulations on the purchase of your products.
Carefully read the Safety Instructions and the User Manual before using this
product.
The person responsible for the instrument must ensure that all users understand these
directions and adhere to them.
Contents
Safety Instructions ..................................................................................................... 1
Appearance diagram ......................................................................................................6
Warning ....................................................................................................................6
Specification................................................................................................................6
Operation on touch panel ............................................................................................. 7
Operating procedures ................................................................................................... 8

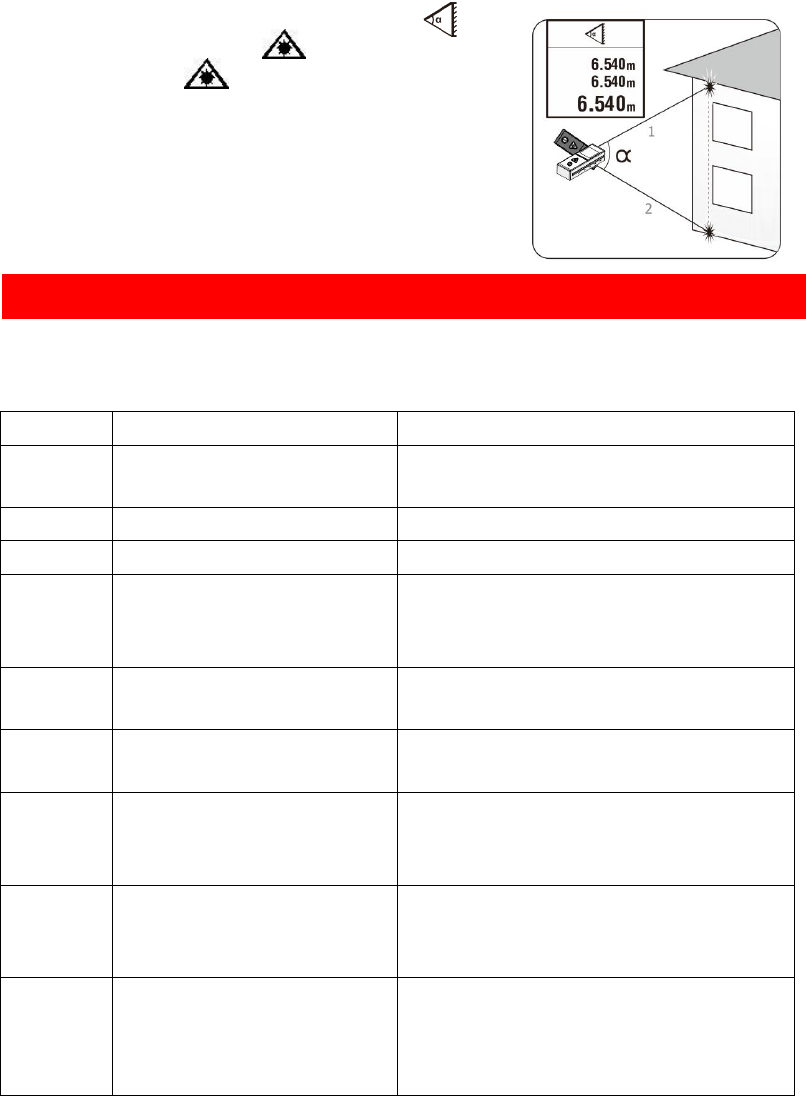

Error code.......................................................................................................................9

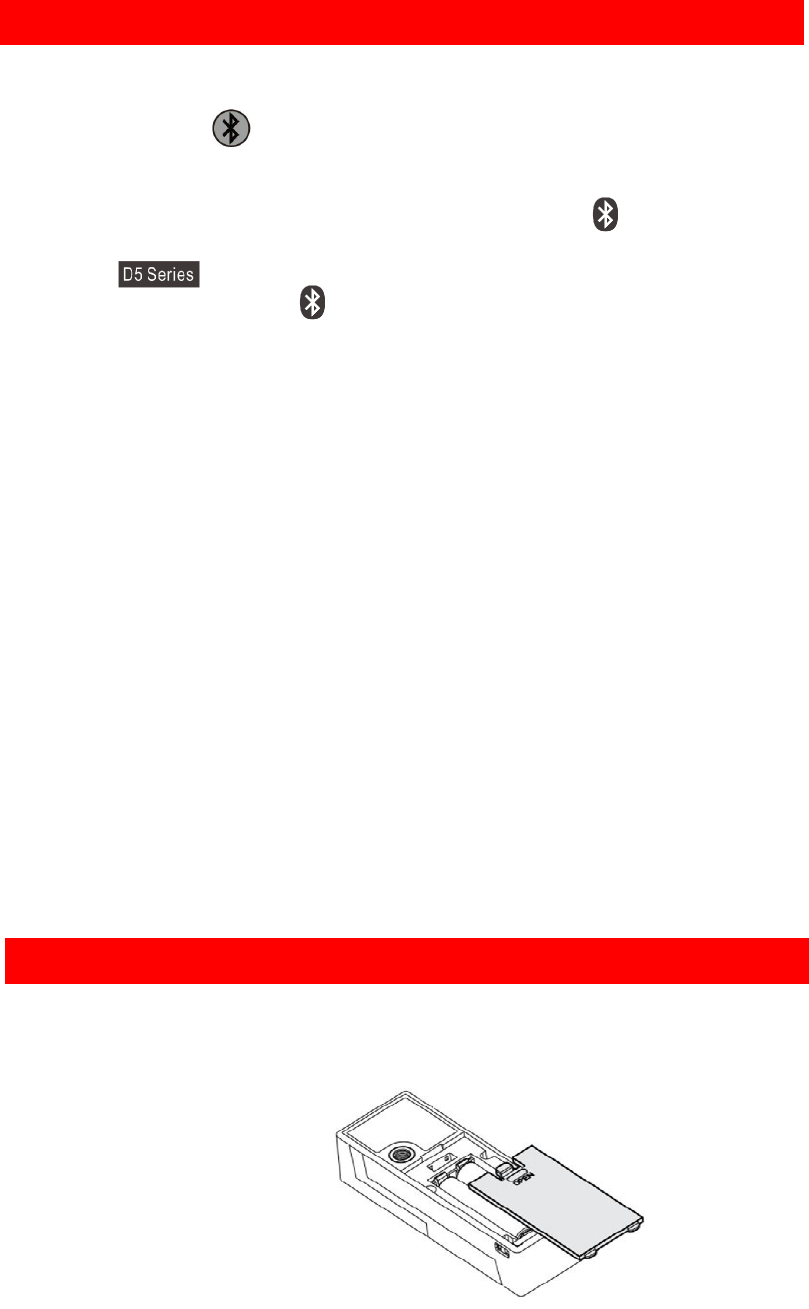

Bluetooth wireless data transfer.................................................................................. 10
Battery installation.......................................................................................................10
Contact us.....................................................................................................................11
Copyrights....................................................................................................................11
1
Safety Instructions
Symbols used
The following displays are used to distinguish precautions by the degree
of injury or damage
that may result in the precaution is ignored.
WARNING:
Indicate a potentially hazardous situation or an unintended use which, if not
avoided, will result in death or serious injury.
CAUTION:
Indicate a potentially hazardous situation or an unintended use which, if not
avoided, may result in minor injury and / or in appreciable material, financial
and environmental damage.
Important paragraphs which must be adhered to in practice as they enable
the product to be used in a technically correct and efficient manner.
Use of the instrument
a). Slide down the button to switch on the device. The laser beam emits from the front.
b). Press to measure the distance. The result will show on the screen.
If there is no laser beam or no data displayed on the screen, ntact the local dealer for advice or
solution.
Possible danger when use the device:
-The laser beam will harm eyes when aim to eyes directly
-The device may produces a spark and light dust or gas
-When clean battery electrolyte, heman fingers may be affected
-The device may cause an hazardous radiation explosion
-Laser exposure radiation damage
Caution:
-Do not look straight at the laser beam
-Do not use the device in inflammable and explosive environment
-Remove the batteries to avoid the electrolyte leakage when not use the device.
-Do not try other functions that the device does not have itself
-Do not attempt to convert the performance of the device in any way
- After repaired, this equipment shall be re-evaluated to comply with the safety requirement
according to standard EN 61010-1: 2010.
- If the equipment is used in a manner not specified by the manufacture, the protection
provided by the equipment may be impaired.
- This equipment contains no operator serviceable parts, serviced by the qualified person
2
only.
- Must be consulted this manual in all cases where symbol is marked.
Care
Wipe off dirt with a damp, soft cloth. If the water does not clean the dirt, use a clean cloth
moistened with alcohol to wipe the dirt. Be careful with the optical components (such as optical
lens): wipe with a clean soft cloth or cotton swab moistened with distilled water (as cleaning
glass or camera lens).Do not use aggressive cleaning agents or solutions.
Permitted use
Measuring distances
Computing functions, e.g. area and indirect measurement.
Prohibited use
Using the instrument without instruction.
Using outside the stated limits.
Deactivation of safety systems and removal of explanatory and hazard labels.
Opening of the equipment by using tools (screw drivers, etc.), as far as not
specifically permitted for certain cases.
Carrying out modification or conversion of the product.
Use of accessories from other manufacturers without the express approval of our
company.
Deliberately or irresponsible behavior on scaffolding, when using ladders, when
measuring near machines which are running, or near parts of machines or
installations which are unprotected.
Aiming directly into the sun.
Deliberately dazzling of third parties; also in the dark.
Inadequate safeguards at the surveying site (e.g. when measuring on roads,
construction sites, etc.)
Limits of use
See section “Technical Date” .
The product is designed for use in areas permanently habitable by humans, do not use
the product in explosion hazardous areas or in aggressive environments.
Areas of responsibility
3
As the original producer responsiblity:
Responsible for providing security products include manual and origin of the parts.
Responsibilities of the manufacturer of non-original accessories:
The manufacturers of non-original accessories for the products are responsible for
developing, implementing and communicating safety concepts for their products.
They are also responsible for the effectiveness of these safety concepts in combination
with the products equipment.
Responsibilities of the person in charge of the instrument:
WARNING:
The person responsible for the instrument must ensure that the equipment is
used in person is also accountable for the deployment of personnel and for their
accordance with the instructions. This training and for the safety of the equipment
when in use. The person in charge of the instrument has the following duties:
To understand the safety instructions on the product and the instructions in the
User Manual.
To be familiar with local safety regulations relating to accident prevention.
To inform local dealser immediately if the equipment becomes unsafe.
Hazards in use
CAUTION:
Watch out for erroneous distance measurements if the instrument is defective or if it
has been dropped or has been misused or modified.
Precautions:
Carry out periodic test measurements. Particularly after the instrument has been
subject to abnormal use, and before, during and after important measurements.
Make sure the optics is kept clean and that there is no mechanical damage to the
bumpers.
CAUTION:
In using the instrument for distance measurements or for positioning moving objects
(e.g. cranes, building equipment, platforms, etc.)
Unforseen events may cause erroneous measurements.
Precautions:
Only use this product as a measuring sensor, not as a control device. Your system
4
must be configured and operated in such a way, that in case of an erroneous
measurement, malfunction of the device or power failure due to installed safety
measures (e.g. safety limit switch), it is assured that no damage will occur.
WARNING:
Flat batteries must not be disposed of with household waste. Care for the environment.
Always prevent access to the product by unauthorized personnel.
And take them to the collection points provided in accordance with national
or local regulations. The product must not be disposed of with household waste.
Dispose of the product appropriately in accordance with the national regulations in
force in your country.
Electromagnetic Compatibility (EMC)
The term “electromagnetic compatibility” is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radiation and
electrostatic discharges are present, and without causing electromagnetic interference
to other equipment.
WARNING:
The products conform to the most stringent requirements of the relevant standards and
regulations. Yet, the possibility of it causing interference in other devices cannot be
totally excluded.
CAUTION:
Never attempt to repair the product yourself. In case of damage, contact the local
dealership.
5

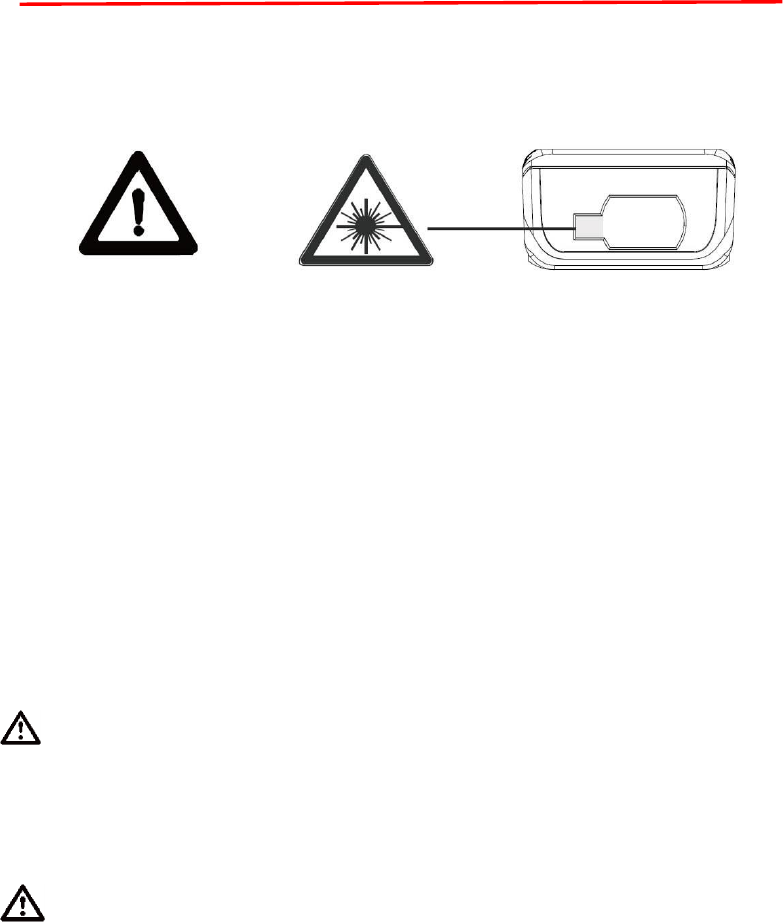

Laser classification
Integrated distance meter
- That produces a visible laser beam which emerges from the front of the instrument.
It is a Class 2 laser product in accordance with:
IEC60825-1: 2007 “Radiation safety of laser products”
- Do not stare into the laser beam or direct it towards other people unnecessarily.
- Eye protection is normally afforded by aversion responses including the blink reflex.
- The radiation pattern emitted from this equipment during the performance of
operation and maintenance procedure:
Wavelength: 630-670nm
Beam divergence: 0.16 x 0.6 mrad
Pulse duration: 0.25s (continuous)
Maximum power or energy output: <1mW
- Caution – Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
WARNING:
Looking directly into the beam with optical aids ( e.g. binoculars, telescopes) can be
hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous to the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser is aimed above or below eye
level. (particularly with fixed installations, in machines, etc.)
6

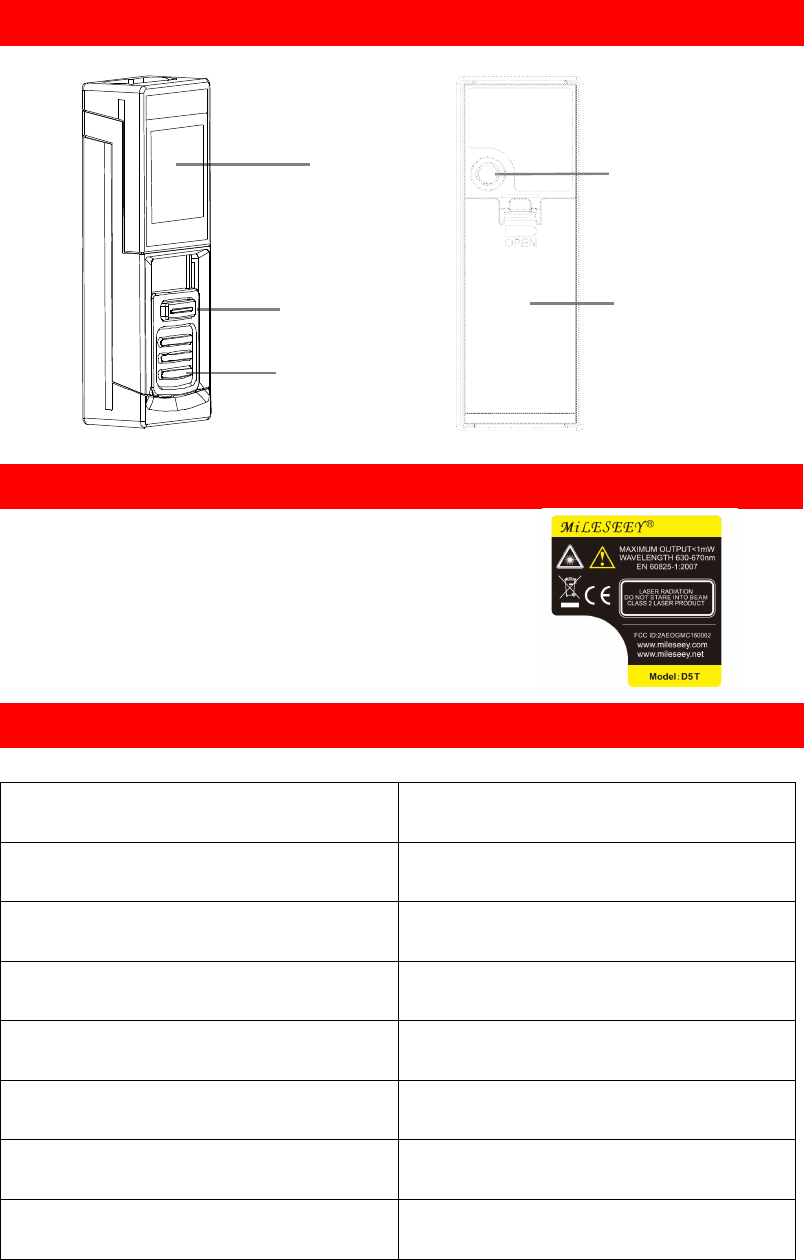

Appearance diagram
Warning
Laser Class 2 products;Do not look directly into
the bean with optical aids or direct it towards other
people unnecessarily.
Specification
Specification dTape 5T
Measuring range0.2~60m
Measuring accuracy+/-2mm
Continuous measurement
Area measurement
Pythagorean measurement
Auto level
Auto height
Display
Measuring
button
Slide down
to power on
Slide up to
power off
Tripod screw holes
Battery
compartment
7
Touch screen
Tilt measurement
Bluetooth Bluetooth 4.0
Reference Front/middle/rear
Measuring unit m/ft/in/ft+in
Laser class Class 2
Laser type 630-670nm,1mW
Battery type AAA 2X1.5V
Remark:
The maximum measuring range is determined by the version of laser distance
meter. Exact measuring range is shown on the gift box.
In unfavorable conditions, such as intense sunshine, poorly reflecting target
surface (black surface) or high temperature variations, the deviation over 10m of
distance may increase.
*During daylight or if the target has poor reflection properties, please use target plate.
Operation on touch panel
Slide left or right
Slide left or right to exchange functions
between: Continuous measurement,
Pythagoras indirect measurement, Area
measurement, Volume measurement
Auto level,Auto height.
Slide up or down
Slide down to enter into setting menu, and
click on icons to change relevant setting.
Slide up to exit setting menu.
8

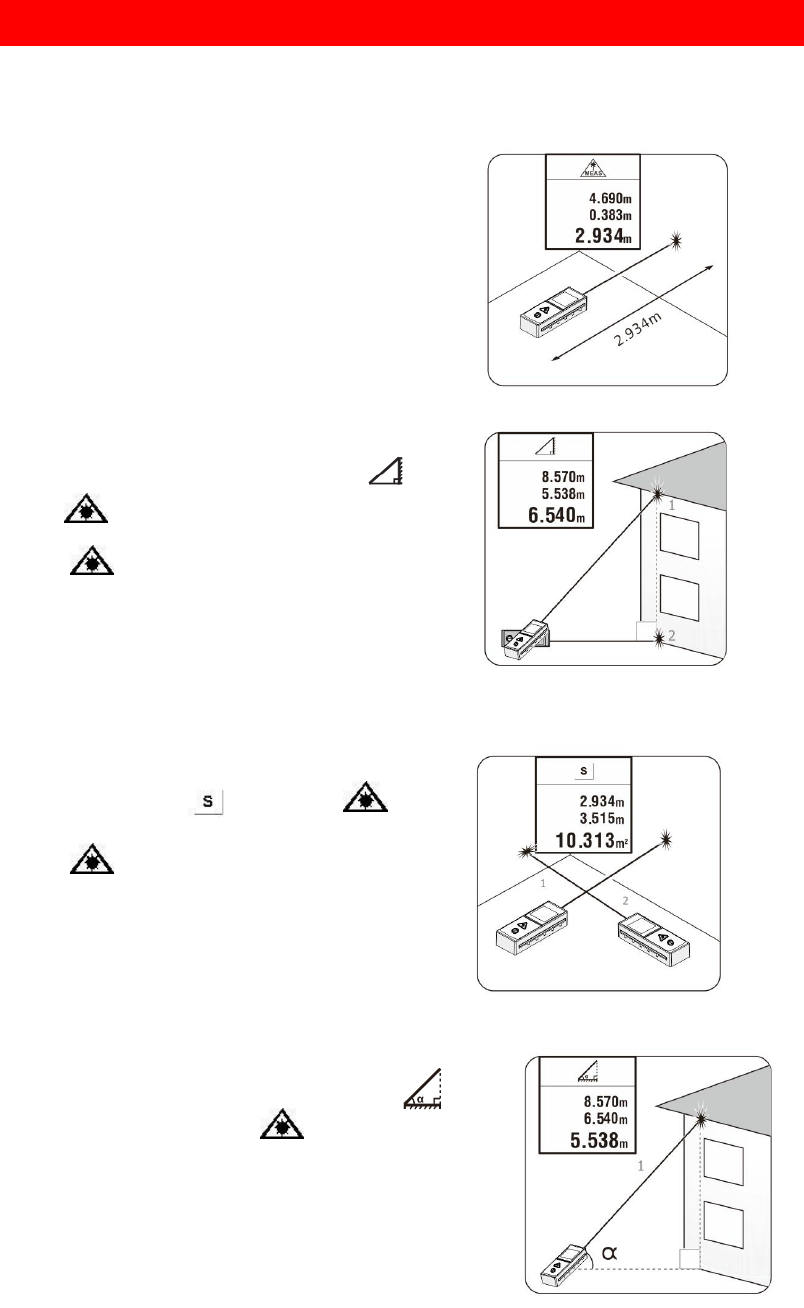

Operating procedures
Slide on the screen left or right to exchange measuring mode.
The red side on the icon is to be measured.
Continuous measurement
The device goes to continuous measurement
directly when it’s powered on, click on the
screen or press the measuring button to hold
the measurement, press the measuring button
to measure again.
*This function will be stopped automatically
after 5 minutes of inactivity.
Pythagorean Method-Two points
Slide on the screen left or right to locate the
Pythagorean Method-Two points icon ,
press to take the first distance measure-
ment .
press to take the second distance(keep
the instrument horizontal).
The results of first length, second length and
the height will be orderly displayed on the
screen.
Area measurement
Slide on the screen to locate the area
measurement icon , and press button
to take the first distance measurement(e.g. Length).
Press again to take the second distance
measurement (e.g. width).
The results of length, width, and area will be
displayed in the display orderly.
Auto level
Slide on the screen to locate auto level icon ,
and press measuring button to measure the
length of Hypotenuse, then Hypotenuse, Vertical
and horizontal distance will be displayed on the
screen.
9
Auto height
Slide on the screen to locate auto height icon ,
and press measuring button to measure the
first distance. Press again, take the second
distance.
The results of first length, second length and
the height will be orderly displayed on the
screen.
Error code
All errors or failures will be shown as codes. The following table explains the
meaning ofcodes and solutions.
Code Cause Corrective Measure
204 Calculation error Refer to user manual,repeat the
procedures.
208 Excessive current Please contact yourdistributer
220 Battery low Replace new batteries
252 Temperaturetoo high Let device cool down tooperating
temperatureat 0°C-40°C.
253 Temperaturetoo low Warm up the device tooperating
temperature.
255 Received signaltoo weak
ormeasurementtime too long
Use target plate orchange a
goodreflective surface
256 Received signaltoo strong Target too reflective,use target plate or
donot aim at strong lightobjective.
261 Outside of therange
ofmeasurement
Select the measurementdistance within
the rangeof measurement.
500 Hardware error Switch on/off thedevice several times.If
the symbol stillappears, please
contactyour dealer forassistance.
10
Bluetooth wireless data transfer
Operation on the device
Click Bluetooth icon on the setting menu, when the icon lights up, it means
Bluetooth is activated, and it flashes waiting for connection.
Operation on App
Open APP to enter scene measuring, press the Bluetooth button on up-right,
then the Bluetooth will be turned on. Search for Bluetooth name of the
instrument: , click and connect it. After connection, Bluetooth icon turns
green, and the Bluetooth icon on the device stops flashing, users can remotely
control the device.
*As D520T do not have the function of data recording, the Import Records function in
the APP can not be used.
Bluetooth function can only work with the APP, Please download and install
Mileseey APP in advance. APP name: “Mileseey iMeter”. Android users can
download in the Android market or official website of Mileseey. Apple users can
download and install directly in App Store.
APP Operating environment requirements:
Android platform: Android 4.3 and above version. The Bluetooth module need to be
version 4.3 and above.
iOS platform: applicable to the iPhone 4S and above, iPad 3 and above.
APP name: “Mileseey iMeter”.
APP Operating environment requirements:
1, Android platform: Android 4.3 and above version. The Bluetooth
module need to be version 4.3 and above, lowpower Bluetooth.
2, iOS platform: Applicable to the iPhone 4s and above, iPad 3 and above.
Battery installation
Open the battery cover, put two batteries into the compartment correctly according to
the sign of positive and negative pole. Close the cover after installation for safe use.
11
Contact us
MileSeey Technology Co., LTD
Tel: +86 755 86329055
Fax: +86 755 86701592
Website: www.mileseey.net
Email: info@mileseey.net
Address: F/6, Building 9, Zhongguan Honghualing Industrial South Park II, 1213 Liuxian Ave,
Taoyuan Street, Nanshan District, Shenzhen, 518055, The Maximum P.R. China.
Copyrights
Product design, specifications may change without prior notice. MileSeey trademark, images,
specifications are properties of MileSeey Technology Co., LTD. All rights reserved.
