Miltel Communications GLXPT2 Wireless Data Collection Transmitter User Manual Pit2 UserMan 1

Miltel Communications Ltd Wireless Data Collection Transmitter Pit2 UserMan 1

Users Manual Revised

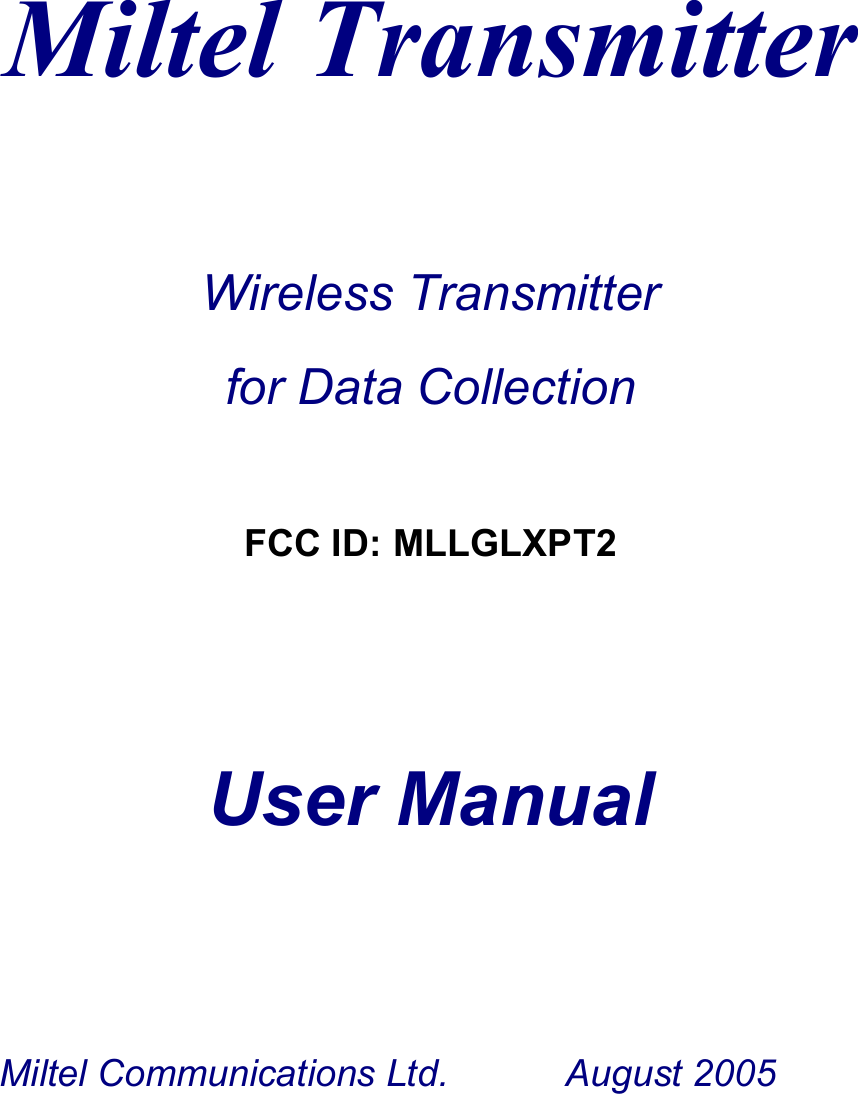

   Miltel Transmitter  Wireless Transmitter for Data Collection  FCC ID: MLLGLXPT2     User Manual  Miltel Communications Ltd.     August 2005

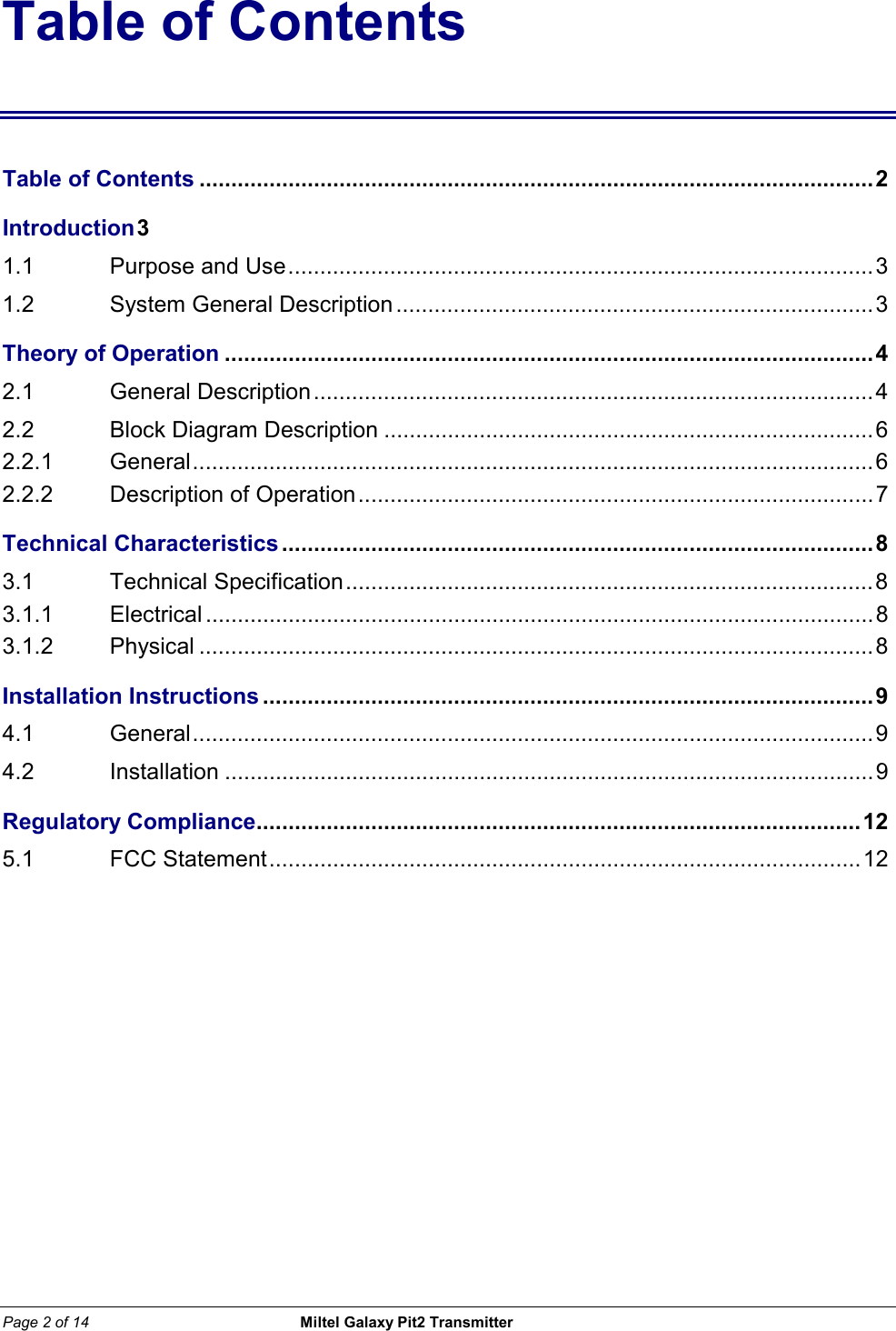

Page 2 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       Table of Contents Table of Contents ..........................................................................................................2 Introduction 3  1.1   Purpose and Use............................................................................................3 1.2   System General Description...........................................................................3 Theory of Operation ......................................................................................................4 2.1   General Description........................................................................................4 2.2   Block Diagram Description .............................................................................6 2.2.1    General...........................................................................................................6 2.2.2 Description of Operation.................................................................................7 Technical Characteristics.............................................................................................8 3.1 Technical Specification...................................................................................8 3.1.1   Electrical .........................................................................................................8 3.1.2  Physical ..........................................................................................................8 Installation Instructions ................................................................................................9 4.1   General...........................................................................................................9 4.2   Installation ......................................................................................................9 Regulatory Compliance...............................................................................................12 5.1   FCC Statement.............................................................................................12
Page 3 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       Chapter 1 Introduction 1.1    Purpose and Use The Miltel Galaxy Pit 2 Transmitter (FCC ID: MLLGLXPT2) is a data link transmitter that is used for data acquisition in Miltel’s telemetric data collection system. This device is installed on-site by a professional field technician, thus it includes technical terms. The equipment is not to be installed by a non-professional individual that has not been trained and authorized.   1.2    System General Description The Miltel data collection system is a computerized fully system incorporating one-way transmitters that automatically collect data from utility meters and/or other sensors.  The system requires no human intervention after initial installation.  The system enables remote, continuous and accurate reading of water or gas consumption.  The  Miltel Galaxy Pit2 transmits the data acquired from various sensors such as water meters, electric meters, to a receiver connected to a regional data concentrator.  The concentrator transfers the data to the central computer for data collection and for further analysis and reporting.

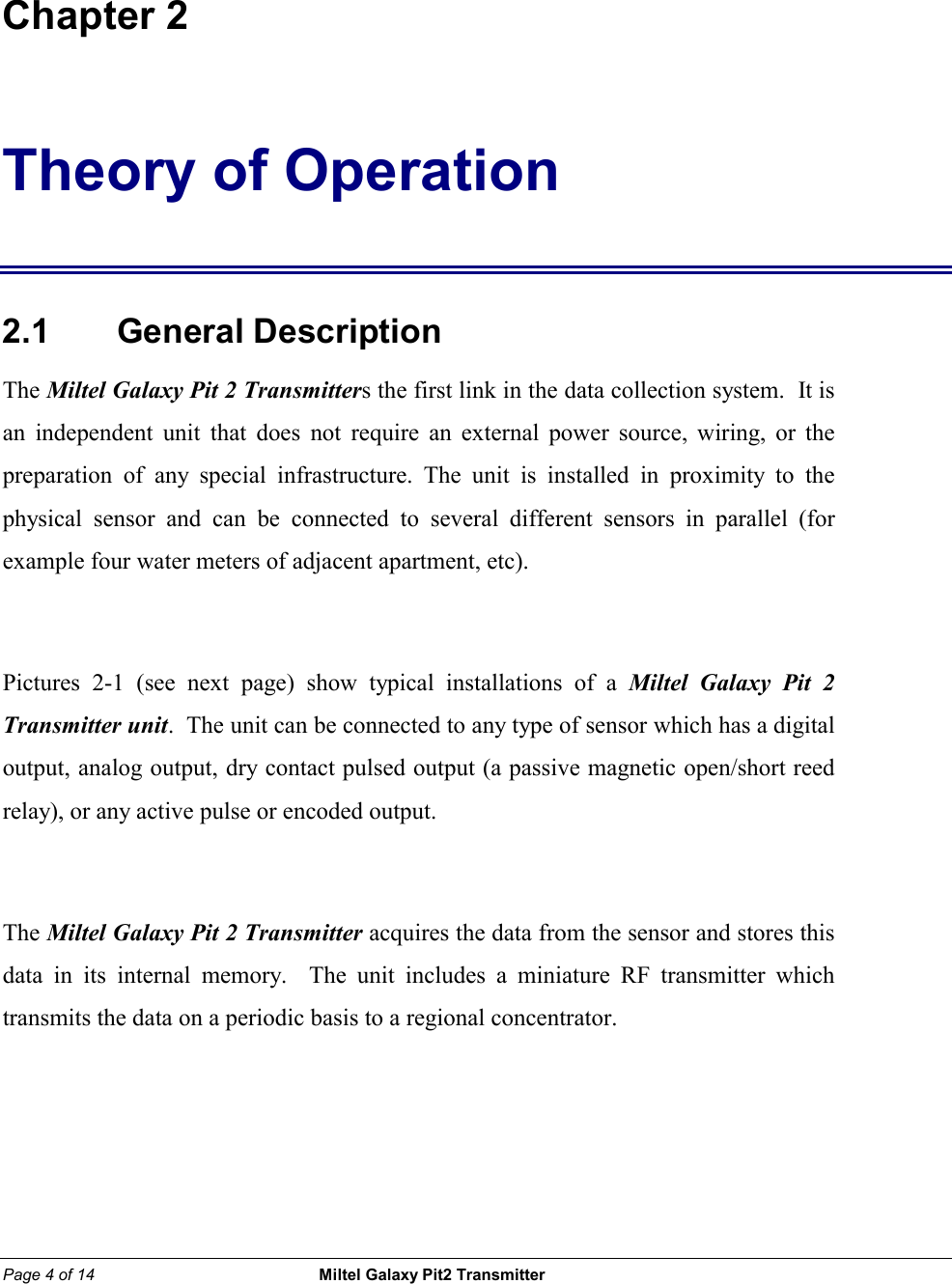

Page 4 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                        Chapter 2 Theory of Operation 2.1    General Description The Miltel Galaxy Pit 2 Transmitters the first link in the data collection system.  It is an independent unit that does not require an external power source, wiring, or the preparation of any special infrastructure. The unit is installed in proximity to the physical sensor and can be connected to several different sensors in parallel (for example four water meters of adjacent apartment, etc).  Pictures 2-1 (see next page) show typical installations of a Miltel Galaxy Pit 2 Transmitter unit.  The unit can be connected to any type of sensor which has a digital output, analog output, dry contact pulsed output (a passive magnetic open/short reed relay), or any active pulse or encoded output.  The Miltel Galaxy Pit 2 Transmitter acquires the data from the sensor and stores this data in its internal memory.  The unit includes a miniature RF transmitter which transmits the data on a periodic basis to a regional concentrator.

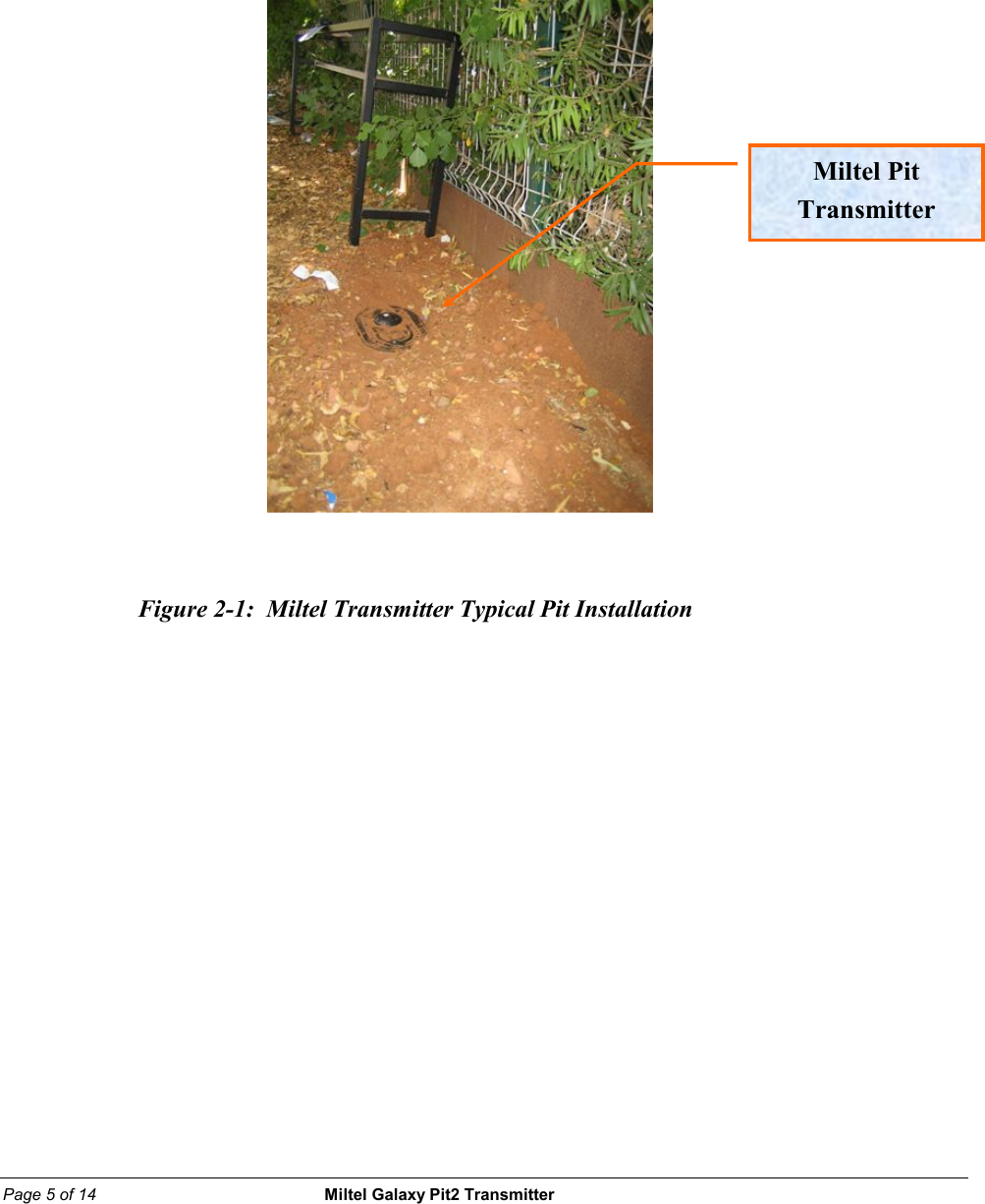

Page 5 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                                                                                                              Figure 2-1:  Miltel Transmitter Typical Pit Installation       Miltel Pit Transmitter

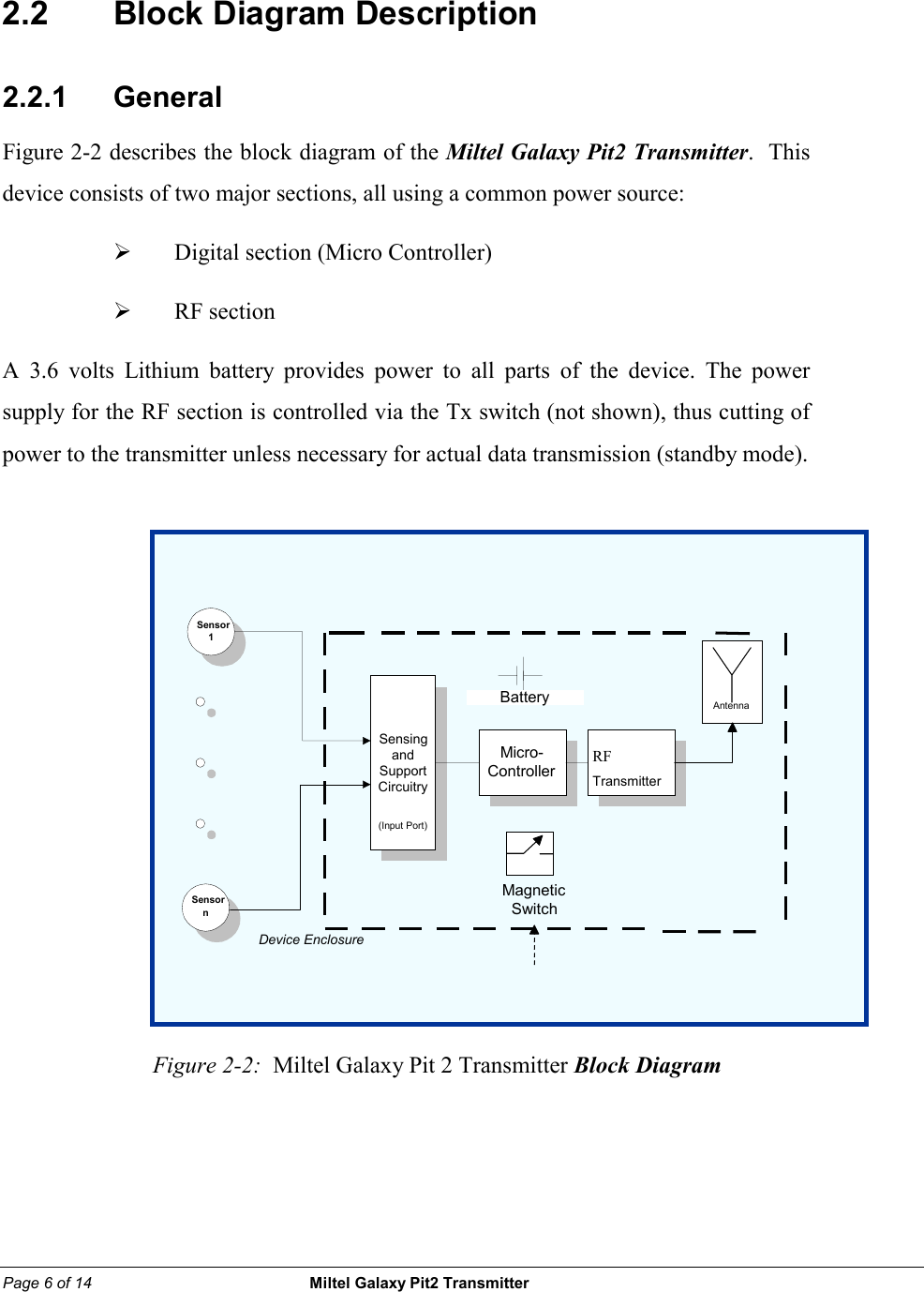

Page 6 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                        2.2    Block Diagram Description 2.2.1     General Figure 2-2 describes the block diagram of the Miltel Galaxy Pit2 Transmitter.  This device consists of two major sections, all using a common power source:   ¾  Digital section (Micro Controller)  ¾  RF section   A 3.6 volts Lithium battery provides power to all parts of the device. The power supply for the RF section is controlled via the Tx switch (not shown), thus cutting of power to the transmitter unless necessary for actual data transmission (standby mode).             Figure 2-2:  Miltel Galaxy Pit 2 Transmitter Block Diagram Sensor 1 Sensor n SensingandSupportCircuitry(Input Port) Micro-ControllerRFTransmitterAntenna BatteryDevice EnclosureMagneticSwitch

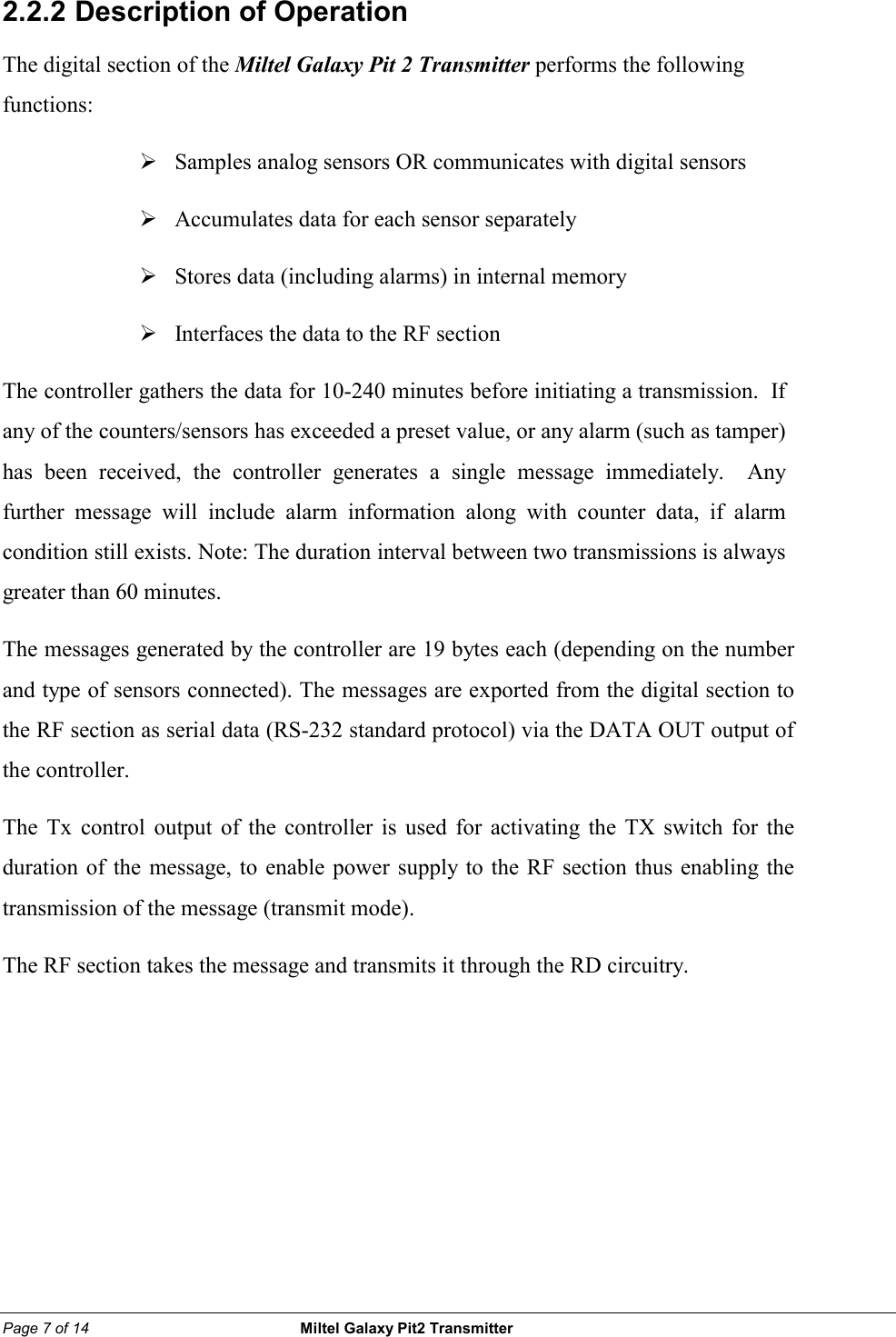

Page 7 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       2.2.2  Description of Operation The digital section of the Miltel Galaxy Pit 2 Transmitter performs the following functions: ¾  Samples analog sensors OR communicates with digital sensors ¾  Accumulates data for each sensor separately   ¾  Stores data (including alarms) in internal memory ¾  Interfaces the data to the RF section The controller gathers the data for 10-240 minutes before initiating a transmission.  If any of the counters/sensors has exceeded a preset value, or any alarm (such as tamper) has been received, the controller generates a single message immediately.  Any further message will include alarm information along with counter data, if alarm condition still exists. Note: The duration interval between two transmissions is always greater than 60 minutes.  The messages generated by the controller are 19 bytes each (depending on the number and type of sensors connected). The messages are exported from the digital section to the RF section as serial data (RS-232 standard protocol) via the DATA OUT output of the controller. The Tx control output of the controller is used for activating the TX switch for the duration of the message, to enable power supply to the RF section thus enabling the transmission of the message (transmit mode). The RF section takes the message and transmits it through the RD circuitry.

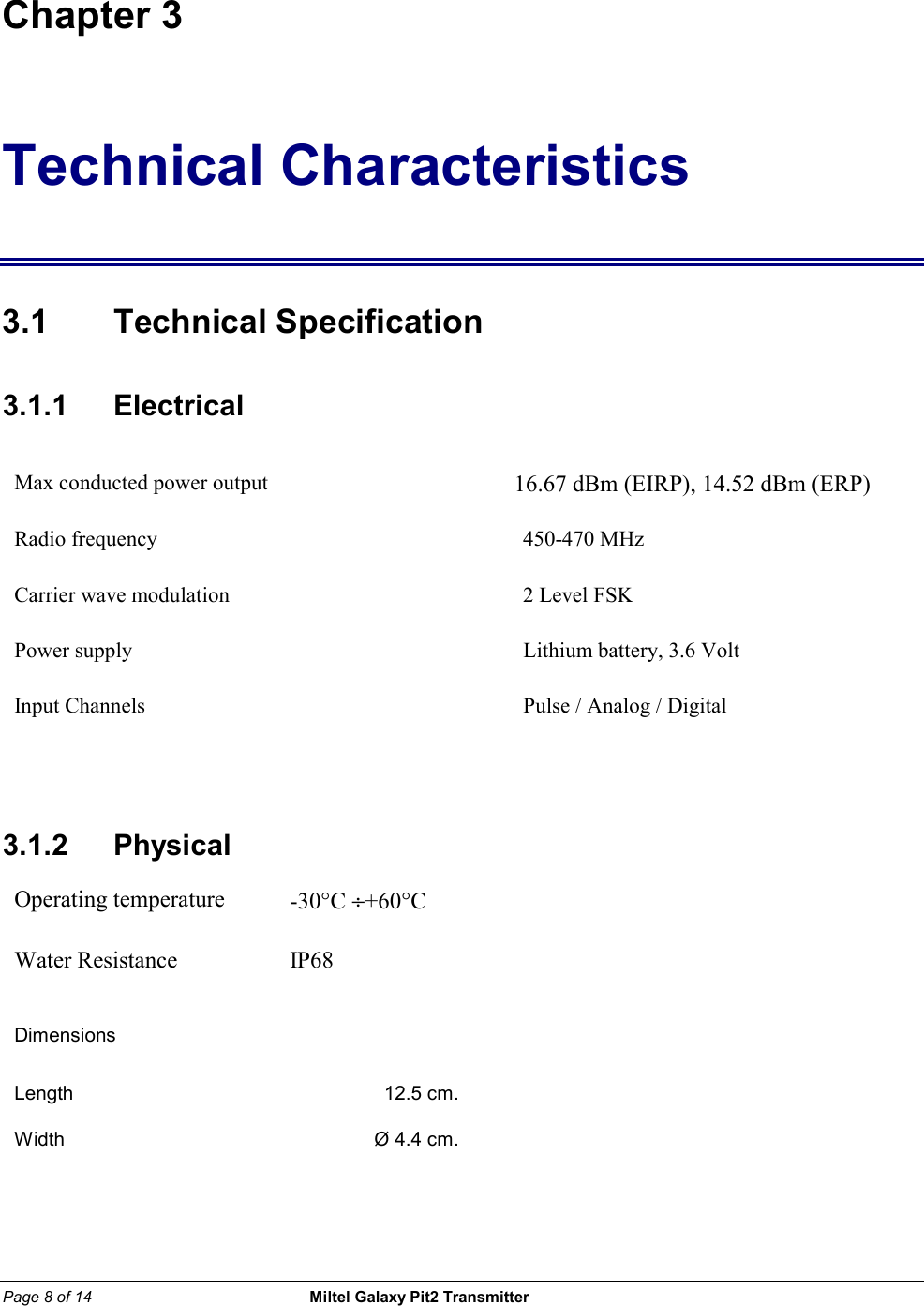

Page 8 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       Chapter 3 Technical Characteristics 3.1 Technical Specification 3.1.1    Electrical Max conducted power output         16.67 dBm (EIRP), 14.52 dBm (ERP)                Radio frequency  450-470 MHz Carrier wave modulation  2 Level FSK Power supply   Lithium battery, 3.6 Volt Input Channels  Pulse / Analog / Digital    3.1.2   Physical Operating temperature  -30°C ÷+60°C  Water Resistance  IP68  Dimensions     Length  12.5 cm.   Width  Ø 4.4 cm.

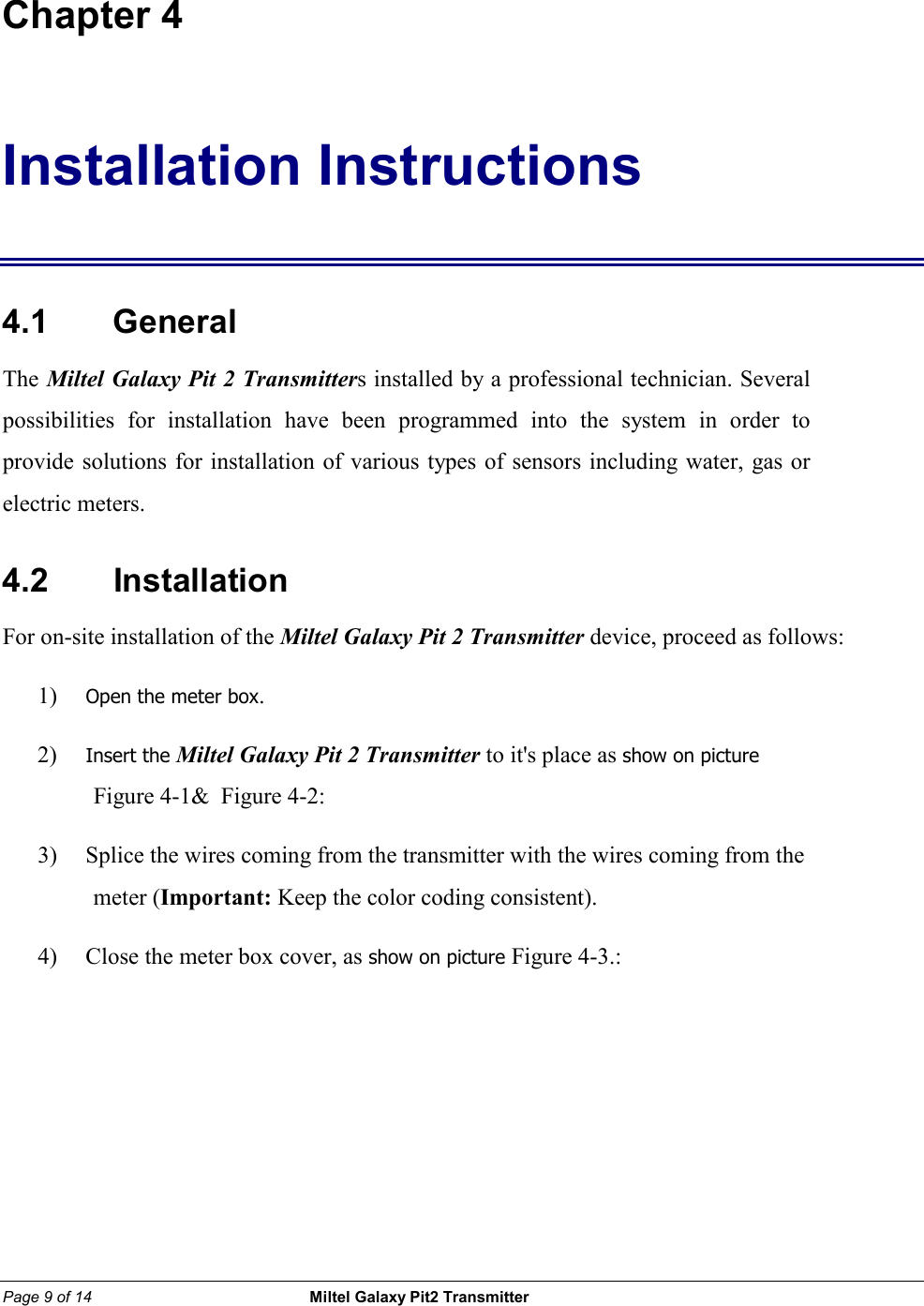

Page 9 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       Chapter 4 Installation Instructions 4.1    General The Miltel Galaxy Pit 2 Transmitters installed by a professional technician. Several possibilities for installation have been programmed into the system in order to provide solutions for installation of various types of sensors including water, gas or electric meters.   4.2    Installation For on-site installation of the Miltel Galaxy Pit 2 Transmitter device, proceed as follows: 1) Open the meter box. 2) Insert the Miltel Galaxy Pit 2 Transmitter to it's place as show on picture Figure 4-1&  Figure 4-2:    3) Splice the wires coming from the transmitter with the wires coming from the meter (Important: Keep the color coding consistent). 4) Close the meter box cover, as show on picture Figure 4-3.:

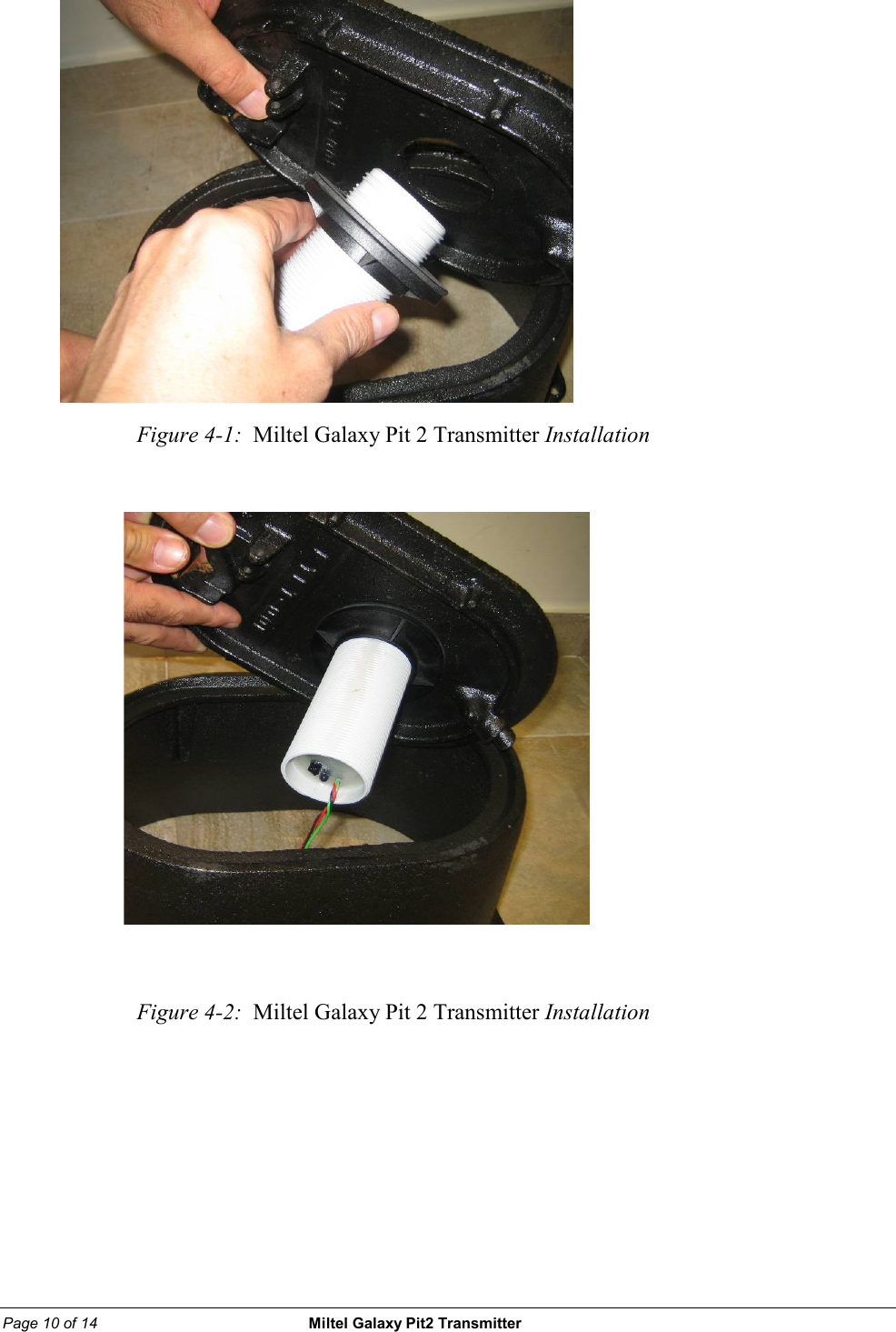

Page 10 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                             Figure 4-1:  Miltel Galaxy Pit 2 Transmitter Installation        Figure 4-2:  Miltel Galaxy Pit 2 Transmitter Installation

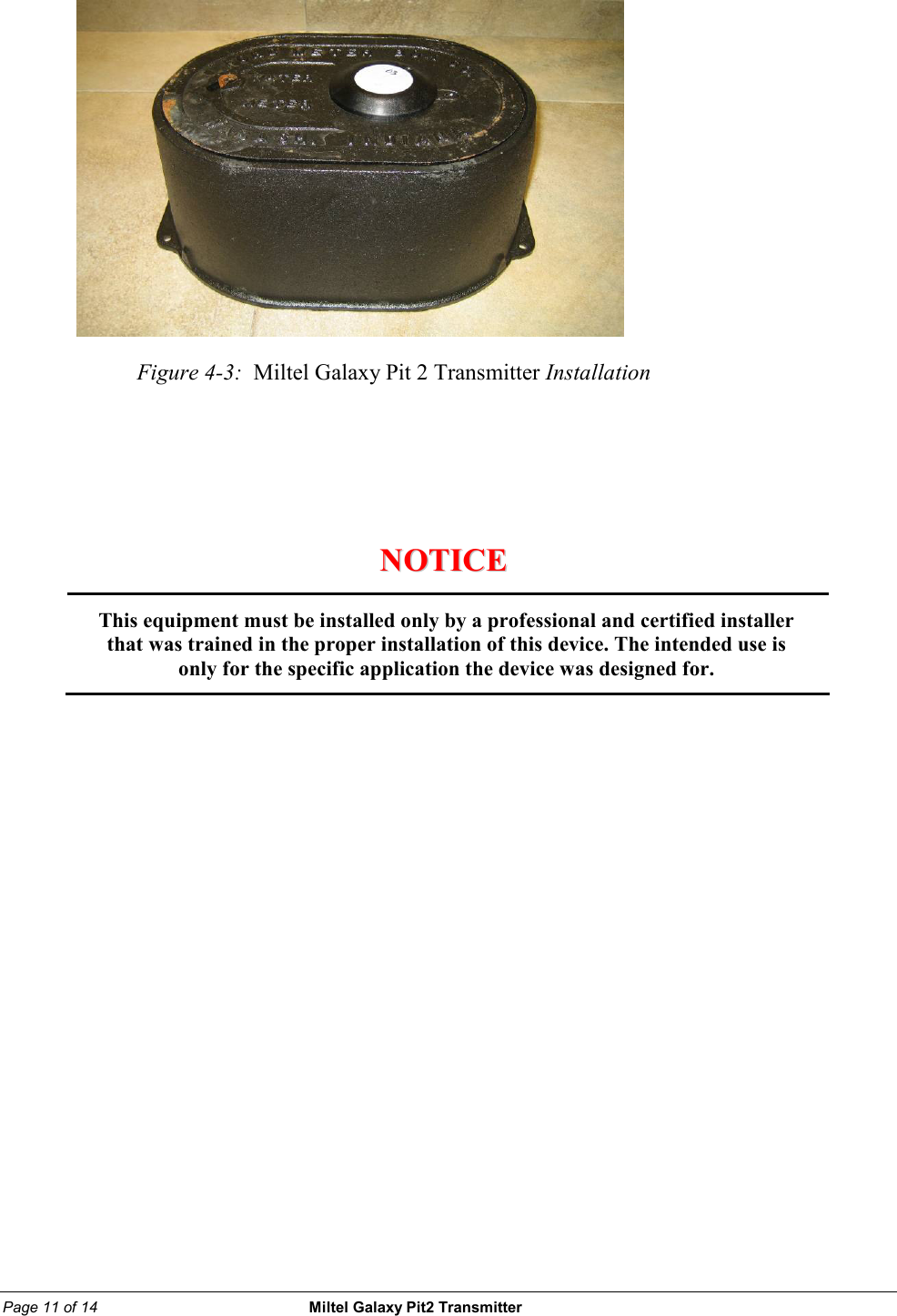

Page 11 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                               Figure 4-3:  Miltel Galaxy Pit 2 Transmitter Installation                             NNOOTTIICCEE                      This equipment must be installed only by a professional and certified installer that was trained in the proper installation of this device. The intended use is only for the specific application the device was designed for.

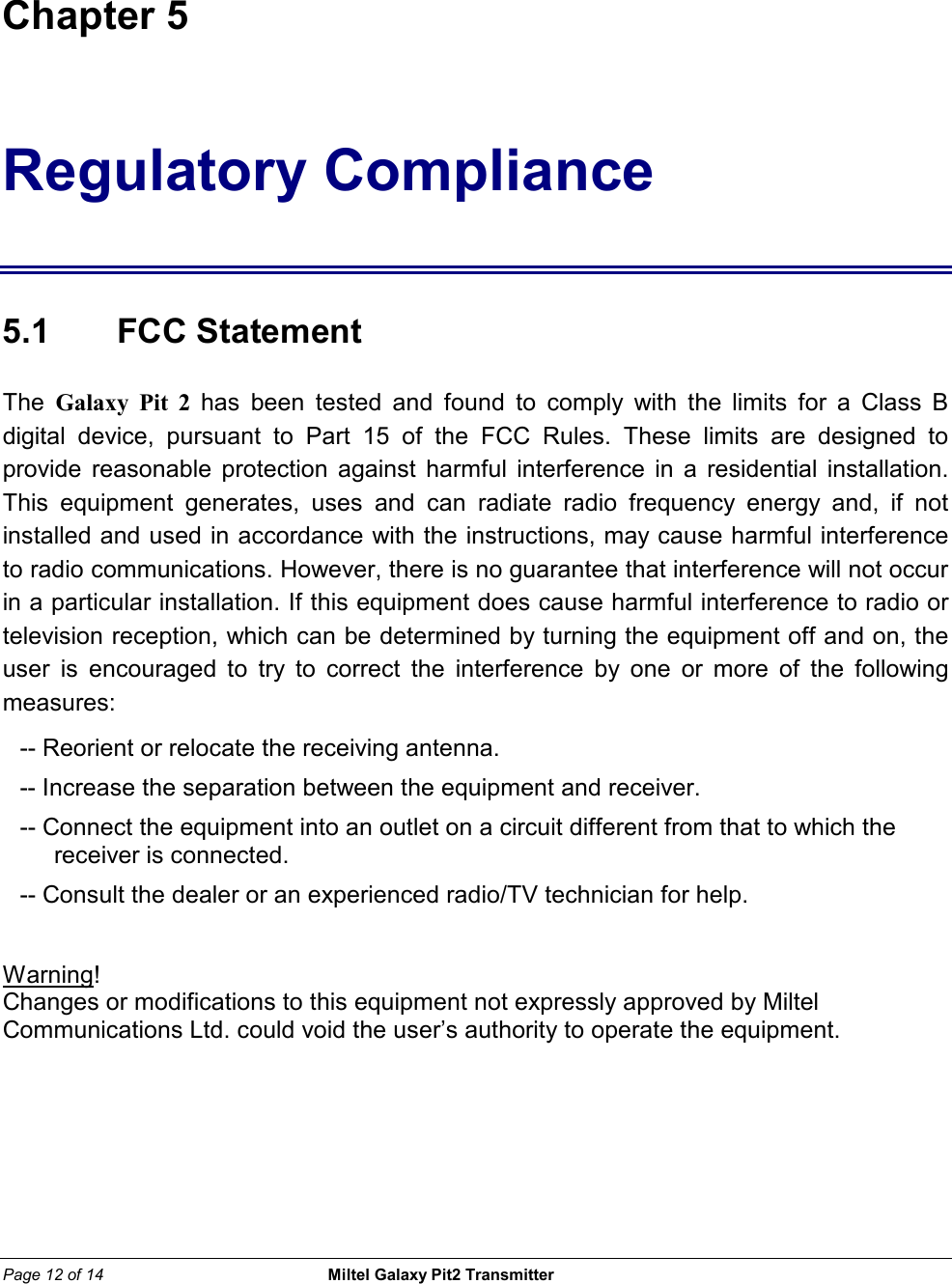

Page 12 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                        Chapter 5 Regulatory Compliance  5.1    FCC Statement  The  Galaxy Pit 2 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.  Warning! Changes or modifications to this equipment not expressly approved by Miltel Communications Ltd. could void the user’s authority to operate the equipment.

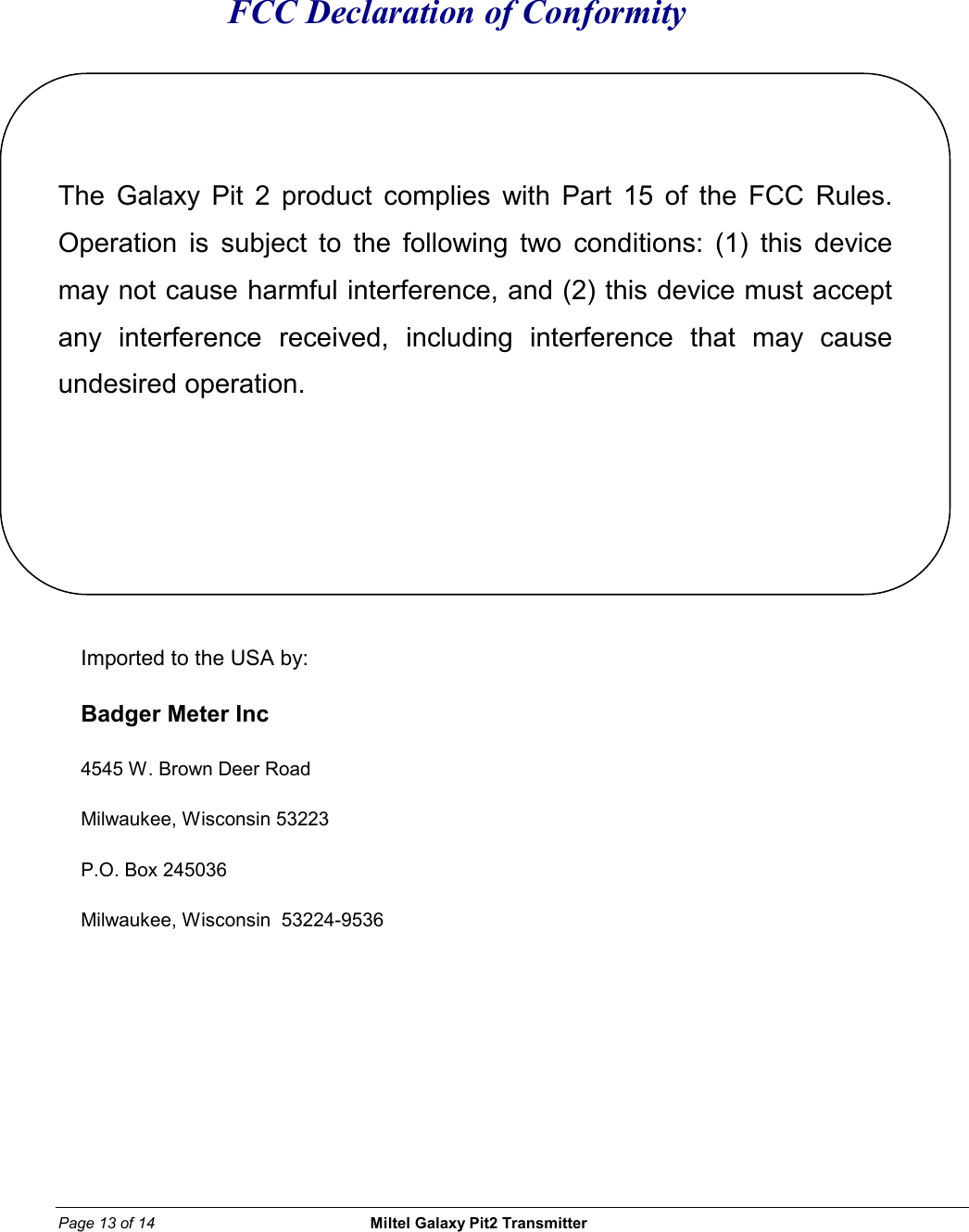

Page 13 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                       FCC Declaration of Conformity   The Galaxy Pit 2 product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.     Imported to the USA by: Badger Meter Inc 4545 W. Brown Deer Road Milwaukee, Wisconsin 53223 P.O. Box 245036 Milwaukee, Wisconsin  53224-9536

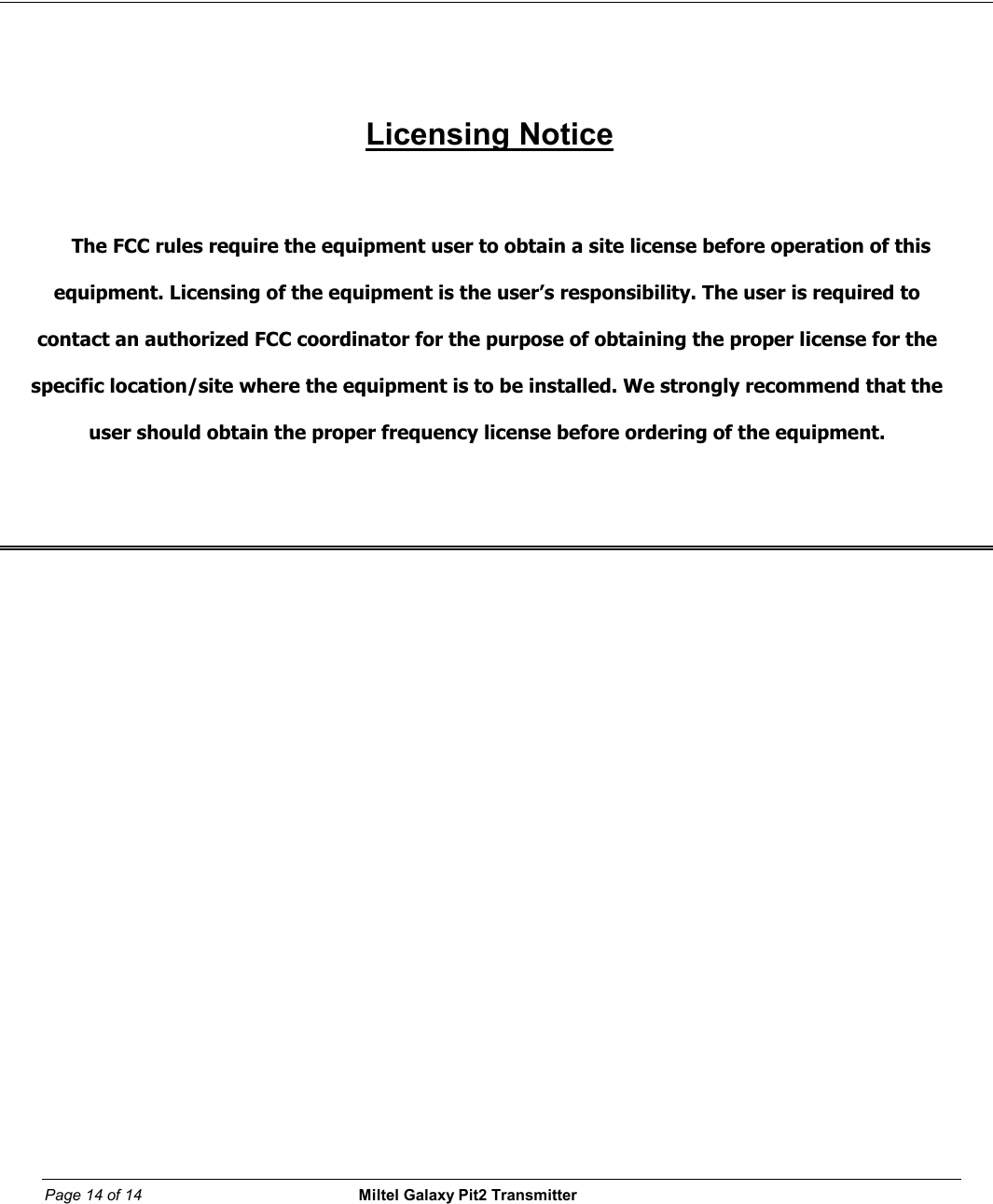

Page 14 of 14                                                 Miltel Galaxy Pit2 Transmitter                                                             Licensing Notice  The FCC rules require the equipment user to obtain a site license before operation of this equipment. Licensing of the equipment is the user’s responsibility. The user is required to contact an authorized FCC coordinator for the purpose of obtaining the proper license for the specific location/site where the equipment is to be installed. We strongly recommend that the user should obtain the proper frequency license before ordering of the equipment.
