Miltel Communications GLXPT2 Wireless Data Collection Transmitter User Manual Pit2 UserMan 1
Miltel Communications Ltd Wireless Data Collection Transmitter Pit2 UserMan 1
Users Manual Revised
Miltel Transmitter
Wireless Transmitter
for Data Collection
FCC ID: MLLGLXPT2
User Manual
Miltel Communications Ltd. August 2005
Page 2 of 14 Miltel Galaxy Pit2 Transmitter
Table of Contents
Table of Contents ..........................................................................................................2
Introduction 3
1.1 Purpose and Use............................................................................................3
1.2 System General Description...........................................................................3
Theory of Operation ......................................................................................................4
2.1 General Description........................................................................................4
2.2 Block Diagram Description .............................................................................6
2.2.1 General...........................................................................................................6
2.2.2 Description of Operation.................................................................................7
Technical Characteristics.............................................................................................8
3.1 Technical Specification...................................................................................8
3.1.1 Electrical .........................................................................................................8
3.1.2 Physical ..........................................................................................................8
Installation Instructions ................................................................................................9
4.1 General...........................................................................................................9
4.2 Installation ......................................................................................................9
Regulatory Compliance...............................................................................................12
5.1 FCC Statement.............................................................................................12
Page 3 of 14 Miltel Galaxy Pit2 Transmitter
Chapter 1
Introduction
1.1 Purpose and Use
The Miltel Galaxy Pit 2 Transmitter (
FCC ID: MLLGLXPT2
) is a data link transmitter
that is used for data acquisition in Miltel’s telemetric data collection system. This
device is installed on-site by a professional field technician, thus it includes technical
terms. The equipment is not to be installed by a non-professional individual that has
not been trained and authorized.
1.2 System General Description
The Miltel data collection system is a computerized fully system incorporating one-
way transmitters that automatically collect data from utility meters and/or other
sensors. The system requires no human intervention after initial installation. The
system enables remote, continuous and accurate reading of water or gas consumption.
The Miltel Galaxy Pit2 transmits the data acquired from various sensors such as
water meters, electric meters, to a receiver connected to a regional data concentrator.
The concentrator transfers the data to the central computer for data collection and for
further analysis and reporting.
Page 4 of 14 Miltel Galaxy Pit2 Transmitter
Chapter 2
Theory of Operation
2.1 General Description
The Miltel Galaxy Pit 2 Transmitters the first link in the data collection system. It is
an independent unit that does not require an external power source, wiring, or the
preparation of any special infrastructure. The unit is installed in proximity to the
physical sensor and can be connected to several different sensors in parallel (for
example four water meters of adjacent apartment, etc).
Pictures 2-1 (see next page) show typical installations of a Miltel Galaxy Pit 2
Transmitter unit. The unit can be connected to any type of sensor which has a digital
output, analog output, dry contact pulsed output (a passive magnetic open/short reed
relay), or any active pulse or encoded output.
The Miltel Galaxy Pit 2 Transmitter acquires the data from the sensor and stores this
data in its internal memory. The unit includes a miniature RF transmitter which
transmits the data on a periodic basis to a regional concentrator.
Page 5 of 14 Miltel Galaxy Pit2 Transmitter

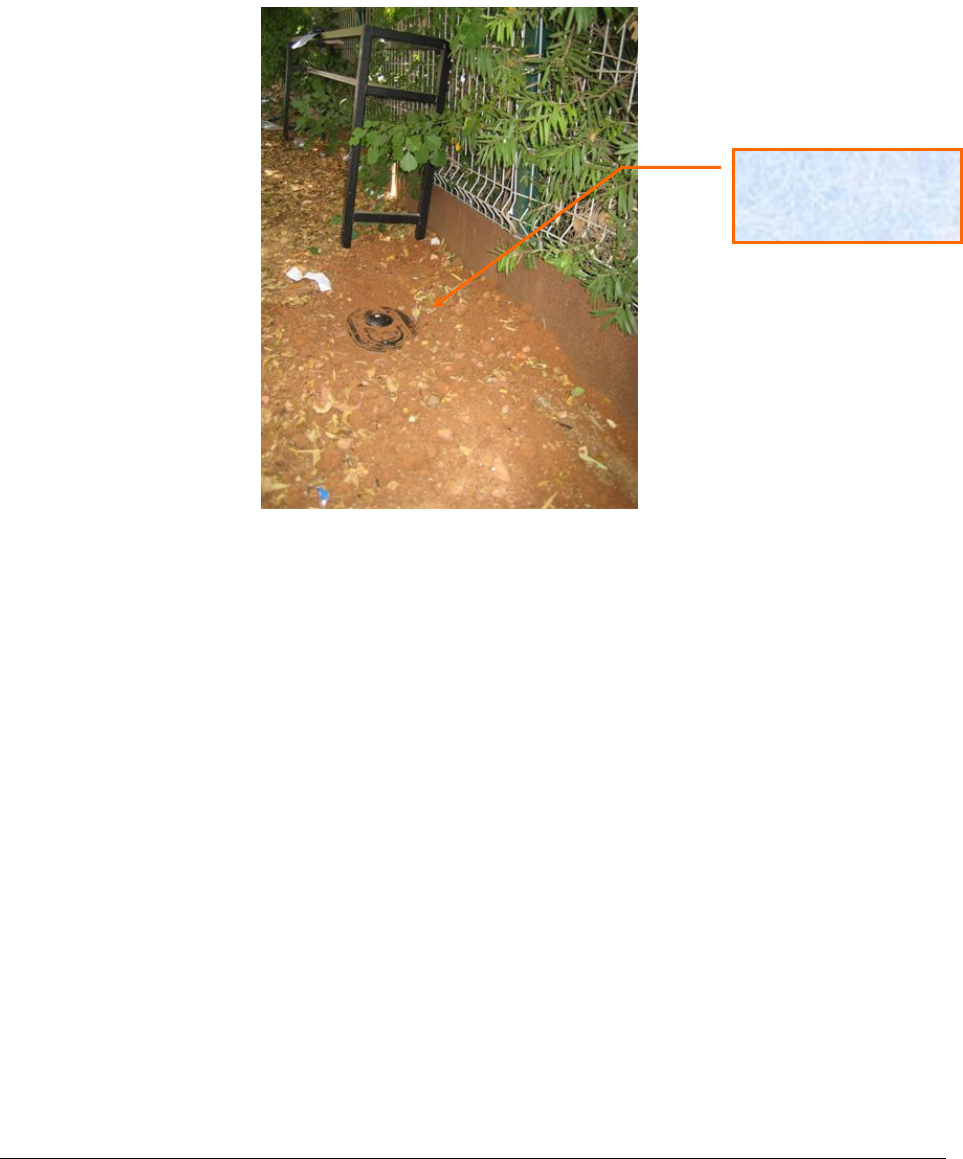

Figure 2-1: Miltel Transmitter Typical Pit Installation
Miltel Pit
Transmitter
Page 6 of 14 Miltel Galaxy Pit2 Transmitter
2.2 Block Diagram Description
2.2.1 General
Figure 2-2 describes the block diagram of the Miltel Galaxy Pit2 Transmitter. This
device consists of two major sections, all using a common power source:
¾ Digital section (Micro Controller)
¾ RF section
A 3.6 volts Lithium battery provides power to all parts of the device. The power
supply for the RF section is controlled via the Tx switch (not shown), thus cutting of
power to the transmitter unless necessary for actual data transmission (standby mode).

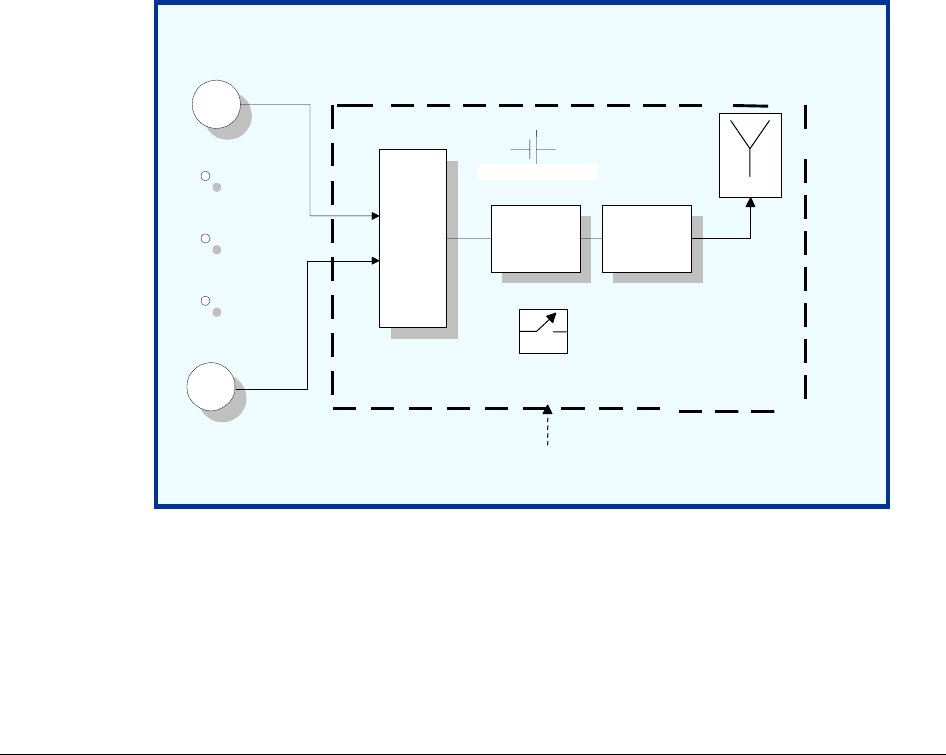

Figure 2-2: Miltel Galaxy Pit 2 Transmitter Block Diagram
Sensor
1
Sensor
n
Sensing
and
Support
Circuitry
(Input Port)
Micro-
Controller
RF
Transmitter
Antenna
Battery
Device Enclosure
Magnetic
Switch
Page 7 of 14 Miltel Galaxy Pit2 Transmitter
2.2.2 Description of Operation
The digital section of the Miltel Galaxy Pit 2 Transmitter performs the following
functions:
¾ Samples analog sensors OR communicates with digital sensors
¾ Accumulates data for each sensor separately
¾ Stores data (including alarms) in internal memory
¾ Interfaces the data to the RF section
The controller gathers the data for 10-240 minutes before initiating a transmission. If
any of the counters/sensors has exceeded a preset value, or any alarm (such as tamper)
has been received, the controller generates a single message immediately. Any
further message will include alarm information along with counter data, if alarm
condition still exists. Note: The duration interval between two transmissions is always
greater than 60 minutes.
The messages generated by the controller are 19 bytes each (depending on the number
and type of sensors connected). The messages are exported from the digital section to
the RF section as serial data (RS-232 standard protocol) via the DATA OUT output of
the controller.
The Tx control output of the controller is used for activating the TX switch for the
duration of the message, to enable power supply to the RF section thus enabling the
transmission of the message (transmit mode).
The RF section takes the message and transmits it through the RD circuitry.
Page 8 of 14 Miltel Galaxy Pit2 Transmitter
Chapter 3
Technical Characteristics
3.1 Technical Specification
3.1.1 Electrical
Max conducted power output 16.67 dBm (EIRP), 14.52 dBm (ERP)
Radio frequency 450-470 MHz
Carrier wave modulation 2 Level FSK
Power supply Lithium battery, 3.6 Volt
Input Channels Pulse / Analog / Digital
3.1.2 Physical
Operating temperature -30°C ÷+60°C
Water Resistance IP68
Dimensions
Length 12.5 cm.
Width Ø 4.4 cm.
Page 9 of 14 Miltel Galaxy Pit2 Transmitter
Chapter 4
Installation Instructions
4.1 General
The Miltel Galaxy Pit 2 Transmitters installed by a professional technician. Several
possibilities for installation have been programmed into the system in order to
provide solutions for installation of various types of sensors including water, gas or
electric meters.
4.2 Installation
For on-site installation of the Miltel Galaxy Pit 2 Transmitter device, proceed as follows:
1)
Open the meter box
.
2)
Insert the
Miltel Galaxy Pit 2 Transmitter to it's place as
show on picture
Figure 4-1& Figure 4-2:
3) Splice the wires coming from the transmitter with the wires coming from the
meter (Important: Keep the color coding consistent).
4) Close the meter box cover, as
show on picture
Figure 4-3.:
Page 10 of 14 Miltel Galaxy Pit2 Transmitter

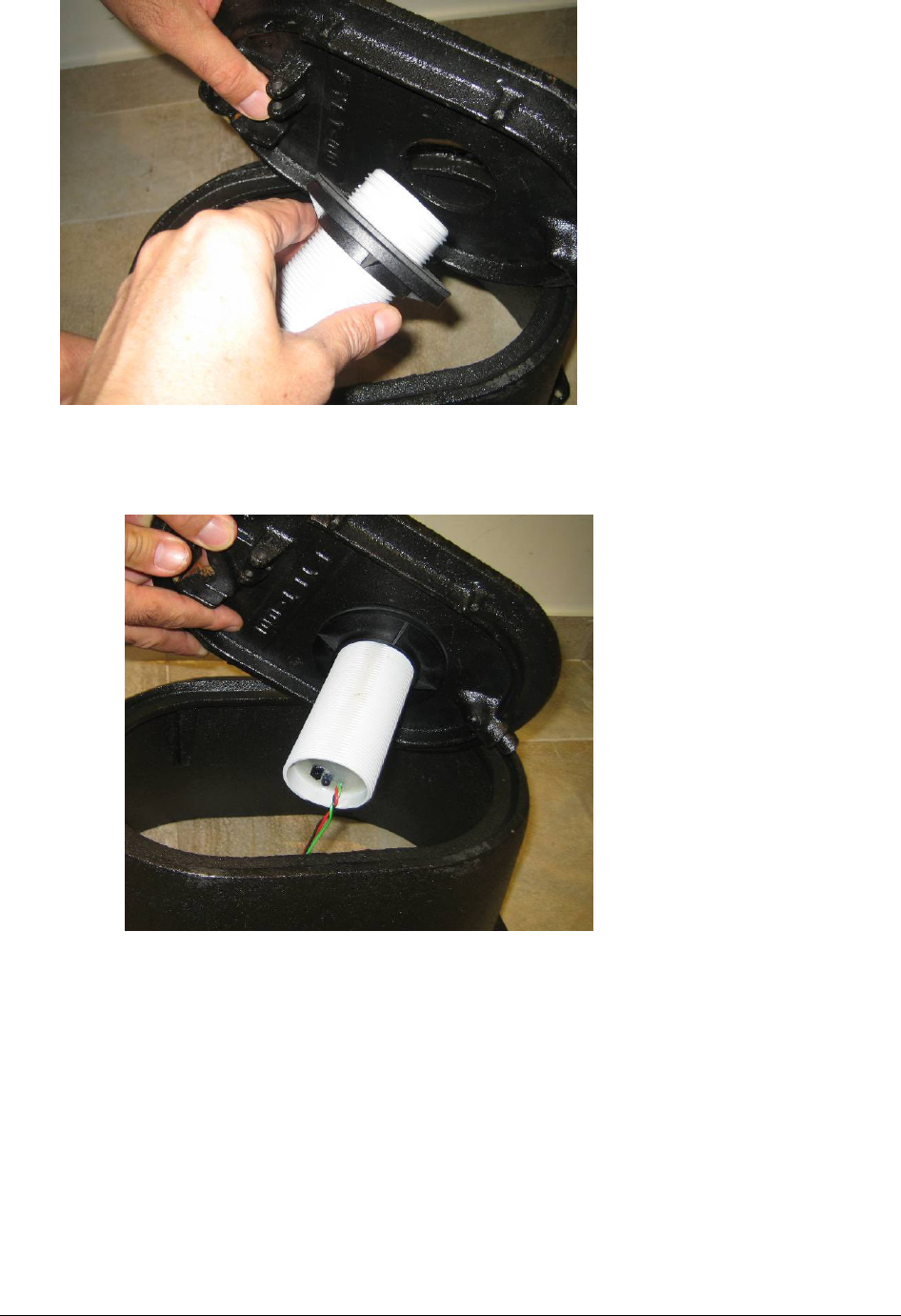

Figure 4-1: Miltel Galaxy Pit 2 Transmitter Installation
Figure 4-2: Miltel Galaxy Pit 2 Transmitter Installation
Page 11 of 14 Miltel Galaxy Pit2 Transmitter

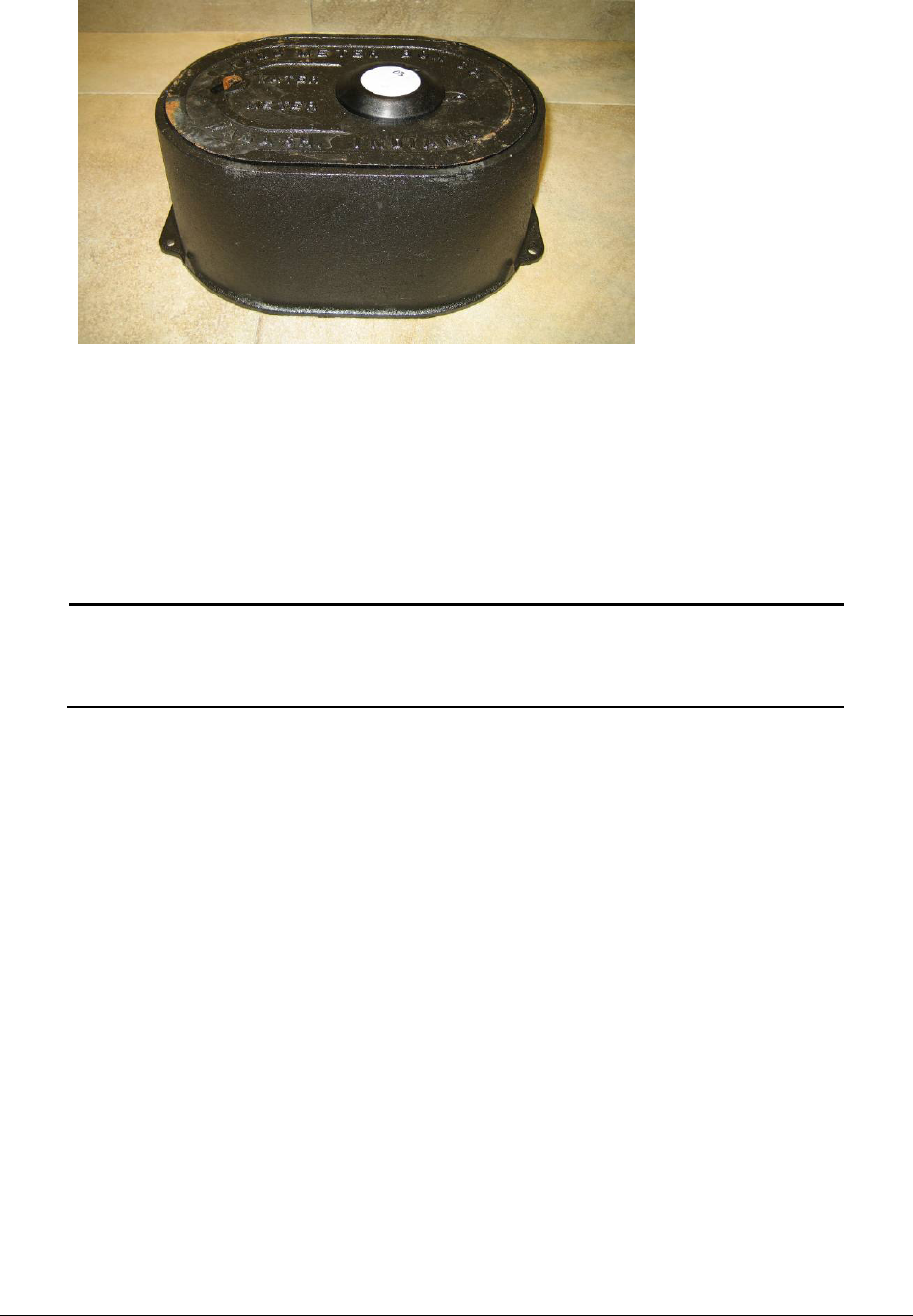

Figure 4-3: Miltel Galaxy Pit 2 Transmitter Installation
N
NO
OT
TI
IC
CE
E
This equipment must be installed only by a professional and certified installer
that was trained in the proper installation of this device. The intended use is
only for the specific application the device was designed for.
Page 12 of 14 Miltel Galaxy Pit2 Transmitter
Chapter 5
Regulatory Compliance
5.1 FCC Statement
The Galaxy Pit 2 has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications to this equipment not expressly approved by Miltel
Communications Ltd. could void the user’s authority to operate the equipment.
Page 13 of 14 Miltel Galaxy Pit2 Transmitter
FCC Declaration of Conformity
The Galaxy Pit 2 product complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Imported to the USA by:
Badger Meter Inc
4545 W. Brown Deer Road
Milwaukee, Wisconsin 53223
P.O. Box 245036
Milwaukee, Wisconsin 53224-9536
Page 14 of 14 Miltel Galaxy Pit2 Transmitter
Licensing Notice
The FCC rules require the equipment user to obtain a site license before operation of this
equipment. Licensing of the equipment is the user’s responsibility. The user is required to
contact an authorized FCC coordinator for the purpose of obtaining the proper license for the
specific location/site where the equipment is to be installed. We strongly recommend that the
user should obtain the proper frequency license before ordering of the equipment.
