Miltel Communications Ltd Licenced Non-Broadcast Transmitter Chapter Number
users manual
Speed HPRx450
Wireless Data Link
for Data Transfer
FCC ID: MLLSPEEDHPRX450
User Manual
Miltel Communications Ltd. December 2002
2
Table of Contents
Chapter 1 Introduction.................................................................................................3
1.1 Purpose and Use............................................................................................3
1.2 System General Description ...........................................................................3
1.3 Theory of Operation........................................................................................4
Chapter 2 Technical Characteristics................................................................................5
2.1 Technical Specification ...................................................................................5
2.1.1 Electrical .........................................................................................................5
2.1.2 Physical...........................................................................................................6
2.2 Label Contents................................................................................................6
Chapter 3 Installation Instructions...................................................................................7
3.1 General...........................................................................................................7
3.2 Installation.......................................................................................................7
3
Chapter 1
Introduction
1.1 Purpose and Use
The Speed HPRx450 (FCC ID: MLLSPEEDHPRX450) is a data link transceiver that is
used for data transfer in Miltel’s utility consumption readings collection system. This
device is installed on-site by a professional field technician, thus it includes technical
terms. The equipment is not to be installed by a non-professional individual that has
not been trained and authorized.
1.2 System General Description
The Speed HPRx450 system is a computerized fully automatic radio device. It
requires no human intervention after initial installation. The device acts as a store-
and-forward radio relay. The Speed HPRx450 captures any transmission from a
Speed HPTx transmitter and, after validating the message, transmits the message
again. The Speed HPRx450 relays information from meter reading transmitters to
regional concentrators (which are equipped with a radio receiver). The concentrator
transfers the data to the central computer for data collection and for further analysis
and reporting.
4
1.3 Theory of Operation
The Speed HPRx450 is the intermediate link in the meter readings data collection
system. It is an independent unit that operates as a repeater (radio relay).
Figure 2-1 (see below) shows a typical installation of a Speed HPRx450 unit. The
device is powered by a 12 volt power supply or by a solar powered battery.
The Speed HPRx450 operates its radio receiver on a continuous basis until it receives
a message from a nearby transmitter. After capturing the transmitted data message, it
sends out an identical message which is forwarded to the regional concentrator.

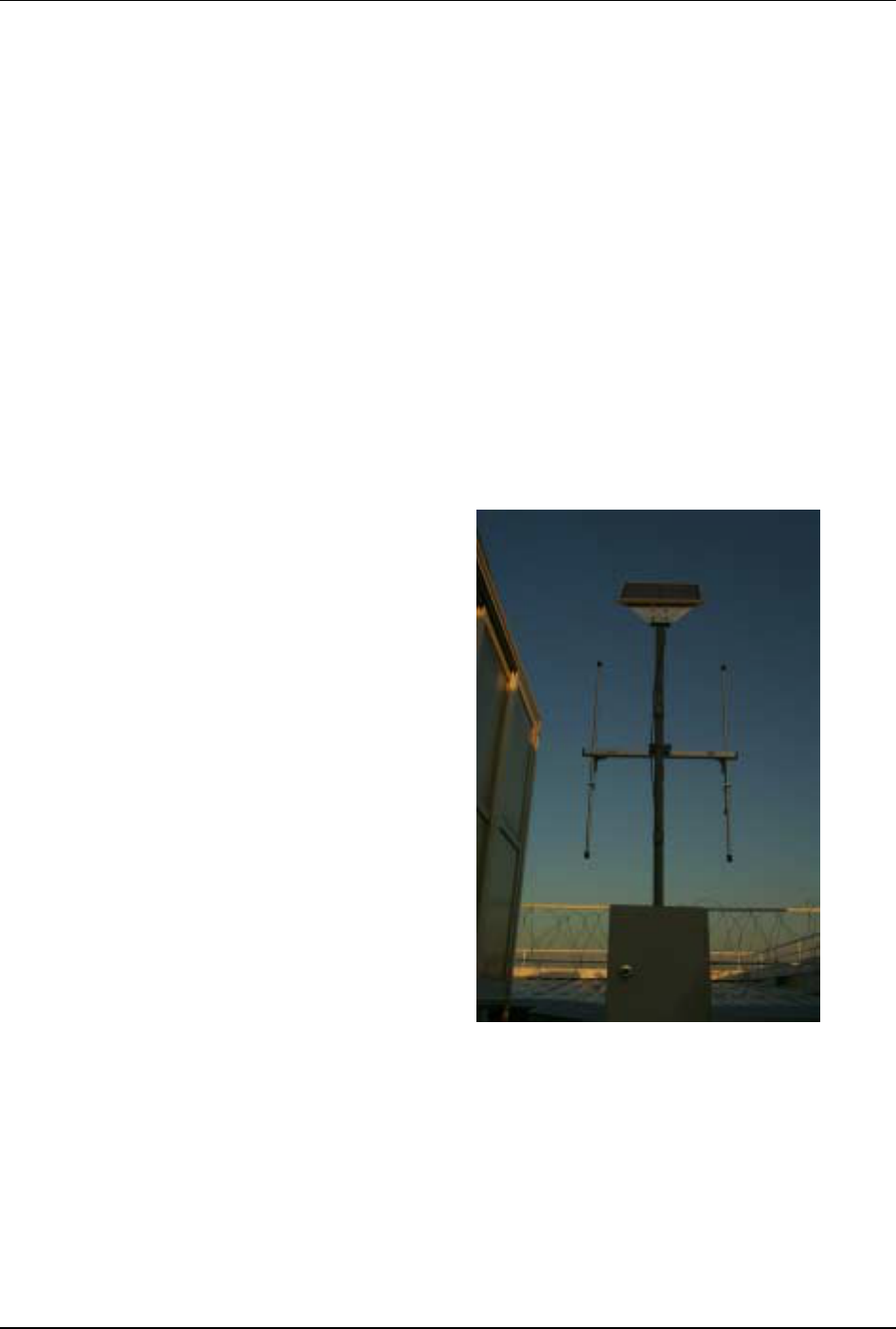

Figure 1-1: Speed HPRx450 Typical Installation
(shown here with optional solar panels)
5
Chapter 2
Technical Characteristics
2.1 Technical Specification
2.1.1 Electrical
Max Effective Radiated Power (ERP) 43 mW
(Complies with FCC 90.205(g) )
Output frequency 450-470 MHz
Carrier wave modulation 2 Level FSK
Power supply Lithium battery, 3.6 Volt
Receiver Sensitivity -117 dbm
6
2.1.2 Physical
Operating temperature -30°C ÷+50°C
Water Resistance Splash resistance (IP-64)
Length 16 cm.
Width 12 cm.
Depth 7.5 cm.
Weight (excluding clamp) 650 gr.
Weight (including clamp) 900 gr.
Clamp material Stainless steel
2.2 Label Contents (see file: Speed HPRx450 ID Label)
FCC ID: MLLSPEEDHPRX450
Model : Speed
HPRx450
S/N: YY-nnnnnn
Miltel Communications Ltd. Made in Israel
Figure 2-1: Label Design
7
Chapter 3
Installation Instructions
3.1 General
The Speed HPRx450 is installed by a professional technician.
3.2 Installation
For on-site installation of the Speed HPRx450 device, proceed as follows:
1) Loosen the four screws fastening the unit's box and open the box
cover.
2) Connect the 12 volt DC power supply (use only U/L approved power supply)
3) Install screws and mount to wall or to mast
4) Close case
5) Install antenna on a mast using the clamp provided
Please Note: FCC RF exposure: Antenna Installation: The antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20cm from all
persons and must not exceed an antenna gain of 3 dBi. The antenna(s) used for this
transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
6) Connect the Coax cable at both ends – to the repeater and to the
antenna
7) Perform functional radio test by using a Speed HPTx transmitter. Verify that the
message is relayed by the repeater to the concentrator.
8
Whenever possible, the repeater should be installed indoors. If outdoor installation is
required, the repeater should be installed within a weatherized enclosure.
