ULTERRA™ WITH i-PILOT®

BOW-MOUNT TROLLING MOTOR

OWNER'S MANUAL

NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service

by: calling Minn Kota at (800) 227-6433; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any

Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of

purchase, serial number and purchase date for warranty service with any of the above options.

Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only

permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.

ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from

the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are

not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation

of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect

motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through

control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not

be covered by warranty.

CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The

motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for fl oating objects.

Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use

this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The

overall vibration level does not exceed 2,5m/sec2.

THAnK YOU

Thank you for choosing Minn Kota. We believe that you should spend more time fi shing and less time positioning your boat.

That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor

is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the

Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are

never done helping you catch more fi sh.

REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR.

A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.

CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS)

Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264

Model: _________________________________________________________________________________________________________________________

Serial Number: _______________________________________________________________________________________________________________

Purchase Date: _______________________________________________________________________________________________________________

Store Where Purchased: ____________________________________________________________________________________________________

Thank you for purchasing the Minn Kota Ulterra electric steer trolling motor. This motor provides the ultimate hands-free operation

by giving the user automatic stow and deploy and power trim as well as all the other Minn Kota electric steer motor features that

users have grown to love. The simplicity of use maximizes your time on the water and ensures you spend your time fishing. By

following the instructions provided in this manual, you will learn how to properly install and operate your new Ulterrra for years of

trouble-free use. We encourage you to read this manual thoroughly in order to maximize your product experience.

2 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

LOCATING YOUR SERIAL NUMBER

Your Minn Kota 11-character serial number is very important. It helps to determine the specifi c model and year of manufacture. When contacting

Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number

down in the space provided below so that you have it available for future reference.

Made by Minn Kota

Johnson Outdoors

Marine Electronics, Inc.

121 Power Drive

Mankato, MN 56001 USA

Trolling Motors

Produced in 2012

Ulterra 80/US2 - 45” w/i-Pilot

MODEL 1358902

SER NO P365 MK12345

The serial number on your Ulterra is located

inside the mount near the motor rests.

EXAMPLE

You are responsible for the safe and prudent operation of your vessel. We have designed Ulterra to be an accurate and reliable tool that will enhance boat

operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid

hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain

manual control of your boat. Learn to operate your Ulterra in an area free from hazards and obstacles.

minnkotamotors.com | 3

©2014 Johnson Outdoors Marine Electronics, Inc.

TAbLE Of COnTEnTs

Introduction 2

Two-Year Limited Warranty 4-5

Warranty on Minn Kota i-Pilot® and i-Pilot® Link™ Wireless GPS Trolling System 4

Warranty on Minn Kota Freshwater Trolling Motors 5

Features 6-7

Motor Features 6

Control Panel Features 7

i-Pilot Remote Features 7

Foot Pedal Features 7

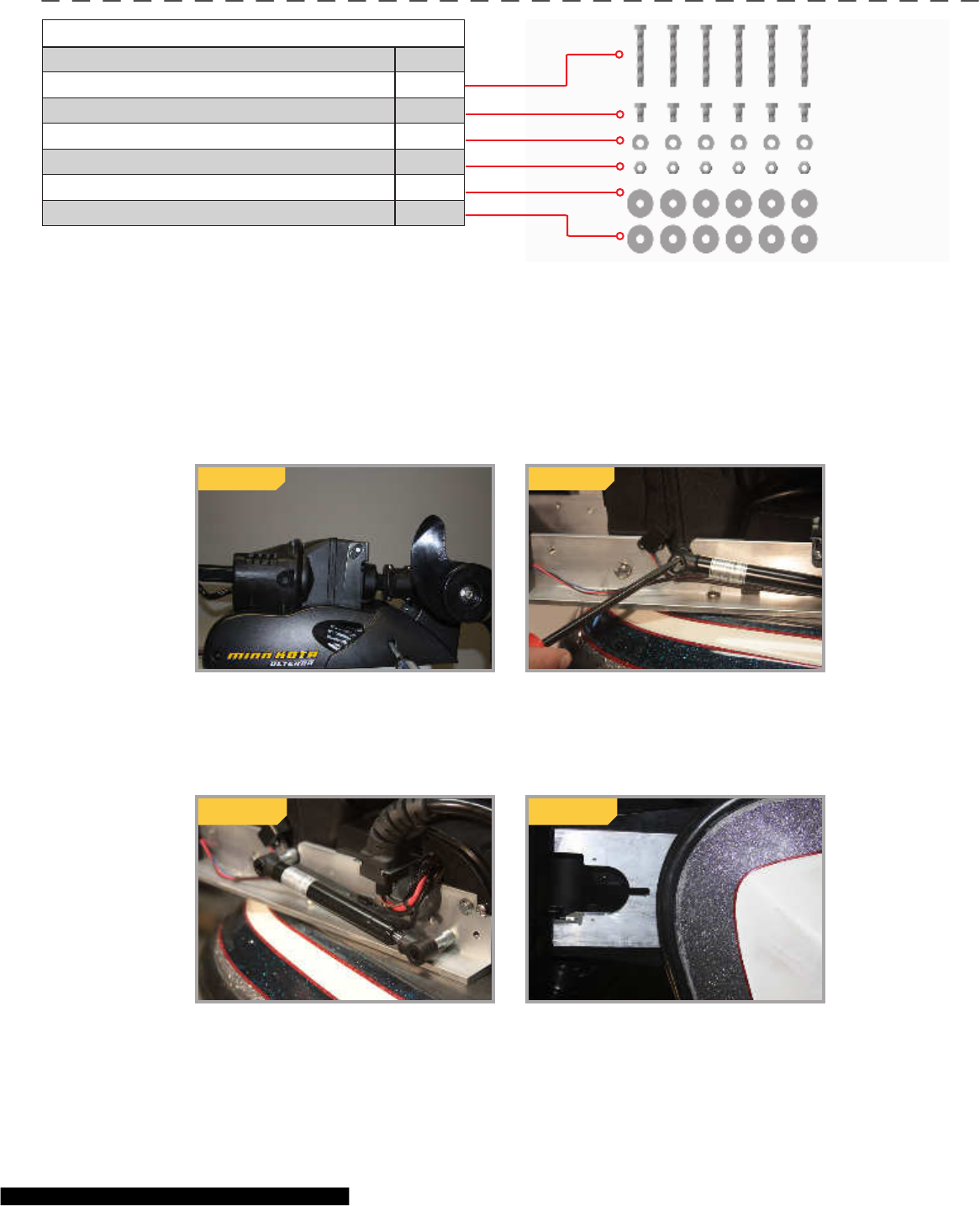

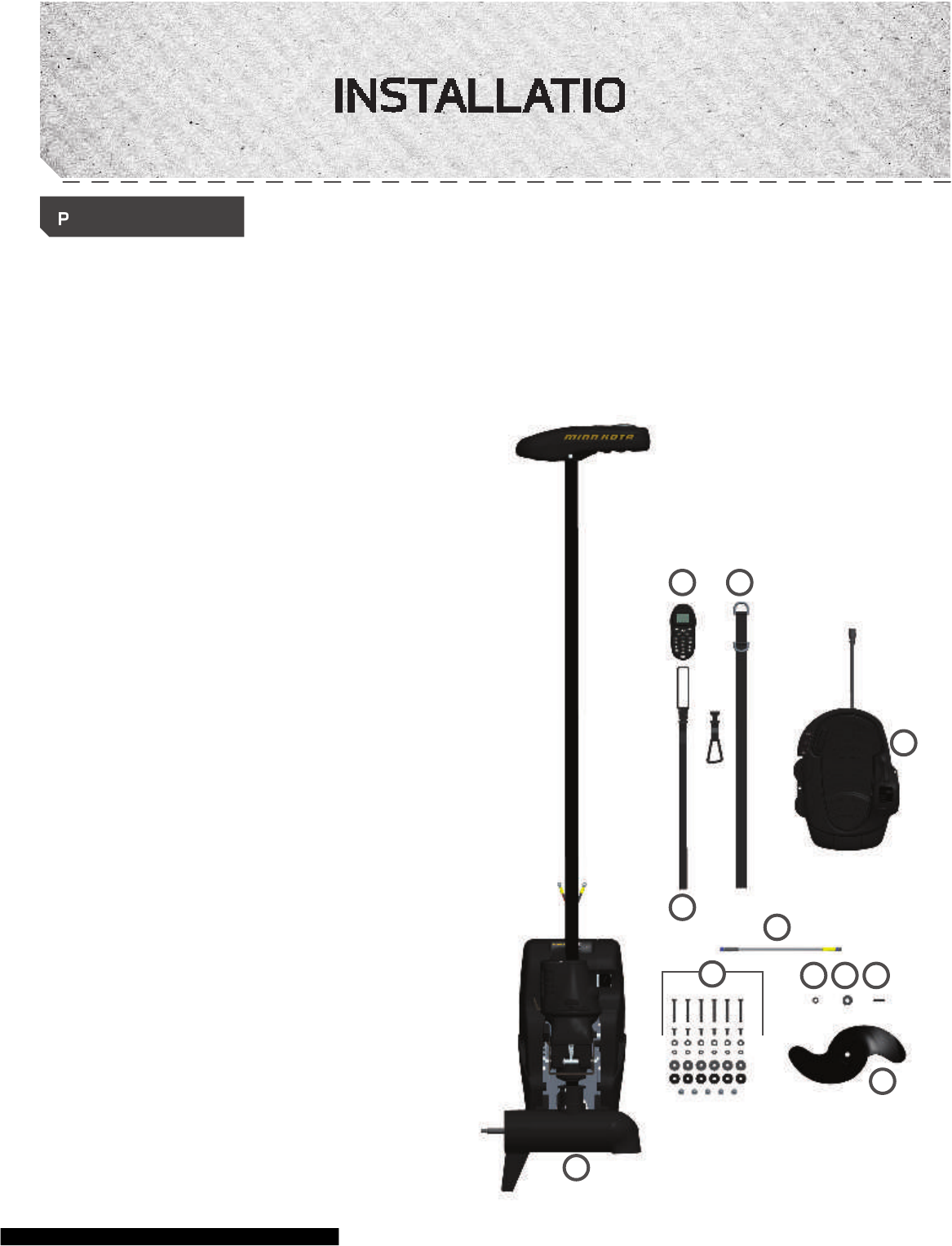

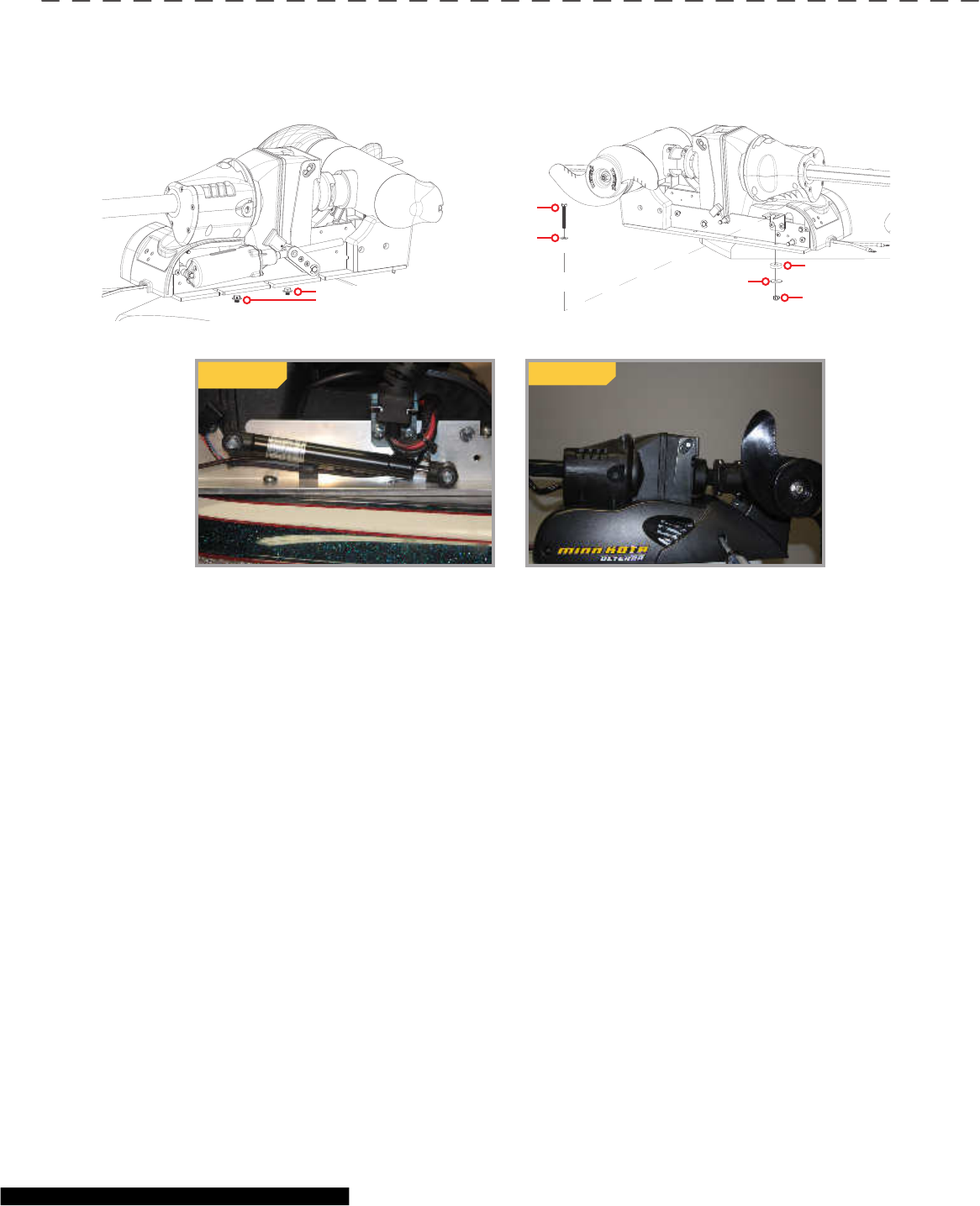

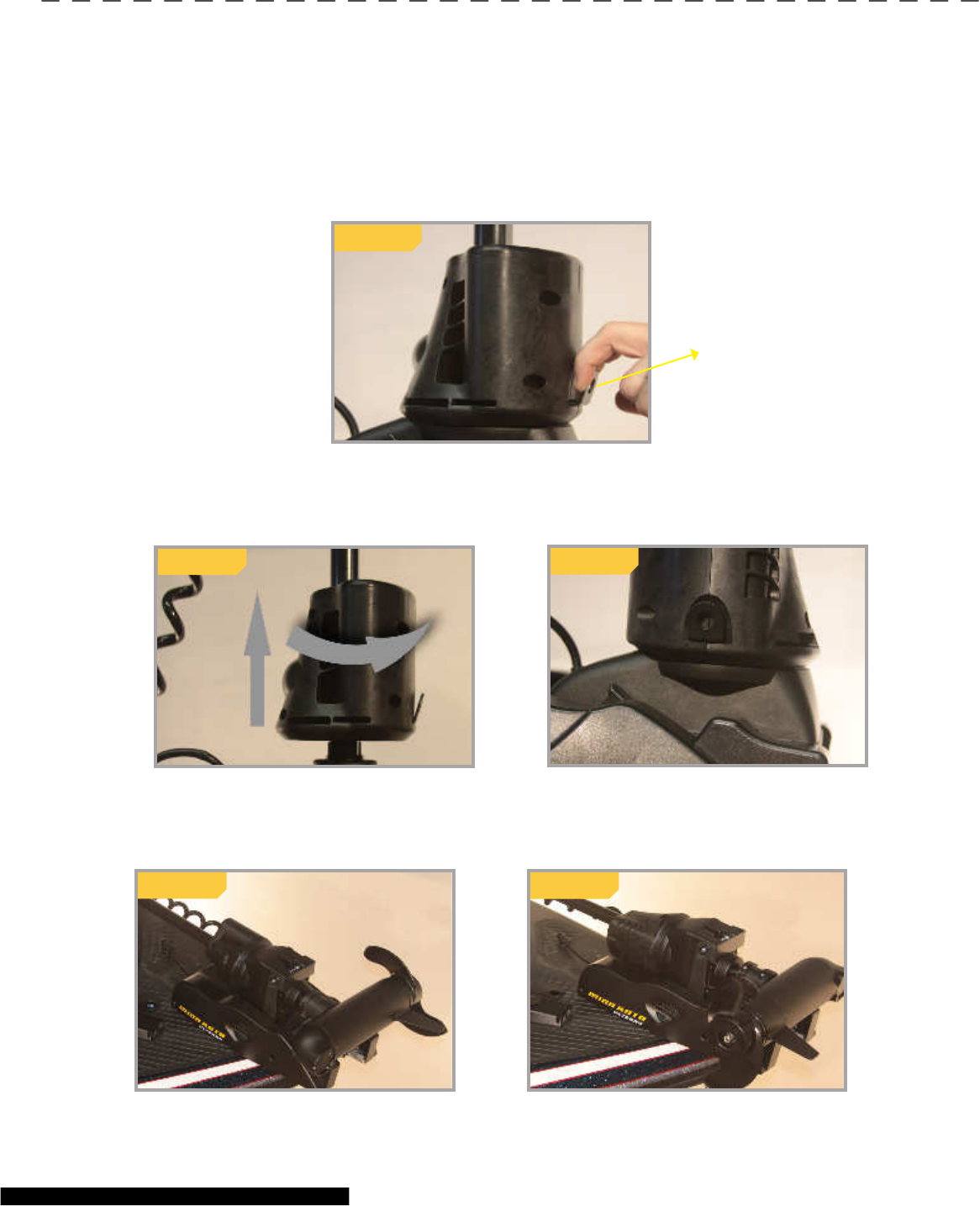

Mount Installation 8-11

Battery & Wiring Installation 12-13

Boat Rigging & Product Installation 12

Conductor Gauge and Circuit Breaker Sizing Table 12

Selecting the Correct Batteries 13

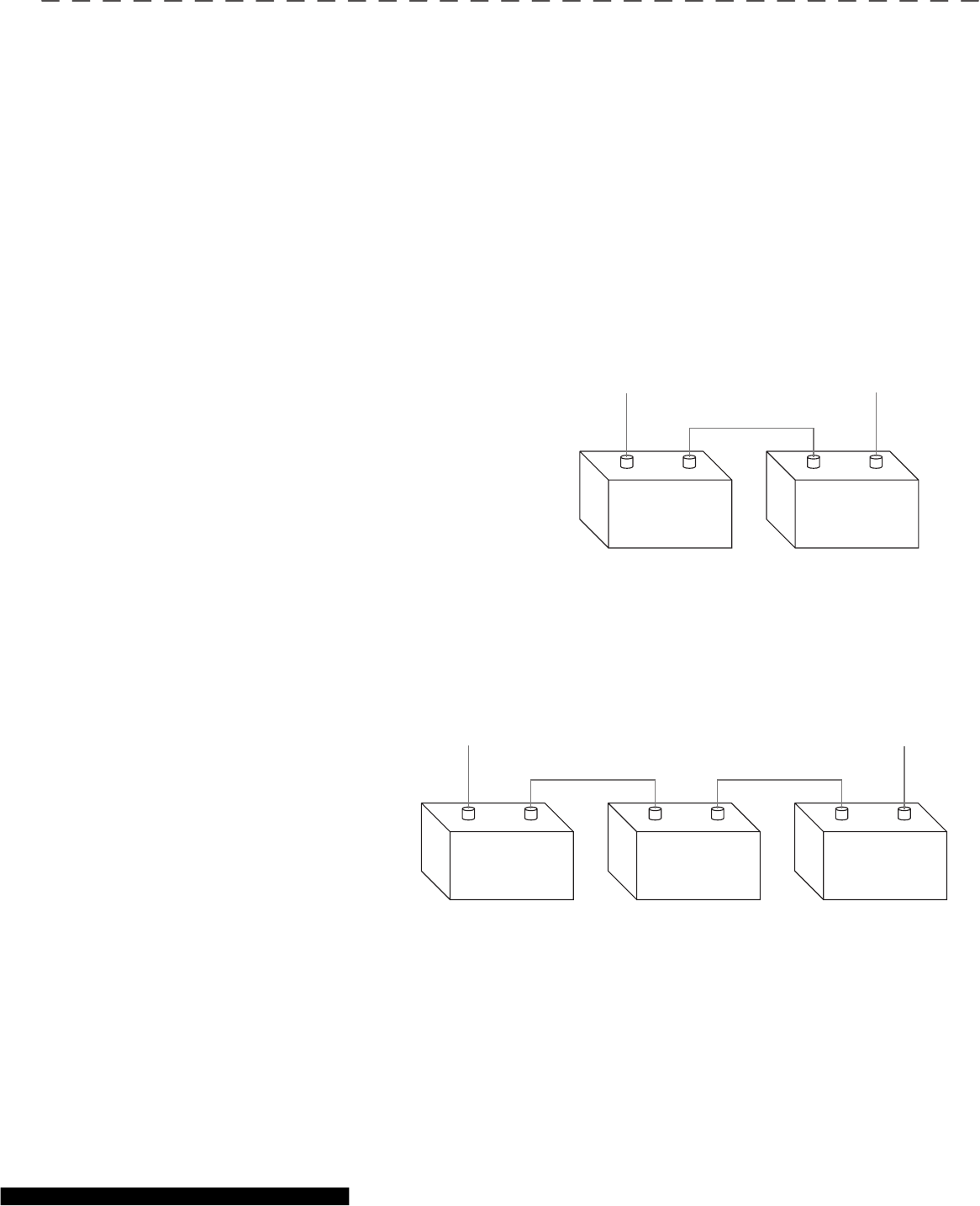

How to Connect Batteries 13

Motor Wiring Diagram 14

Getting Started 15-19

Knowing Your Remote 15-17

Knowing Your i-Pilot Controller 17-19

System Startup 19

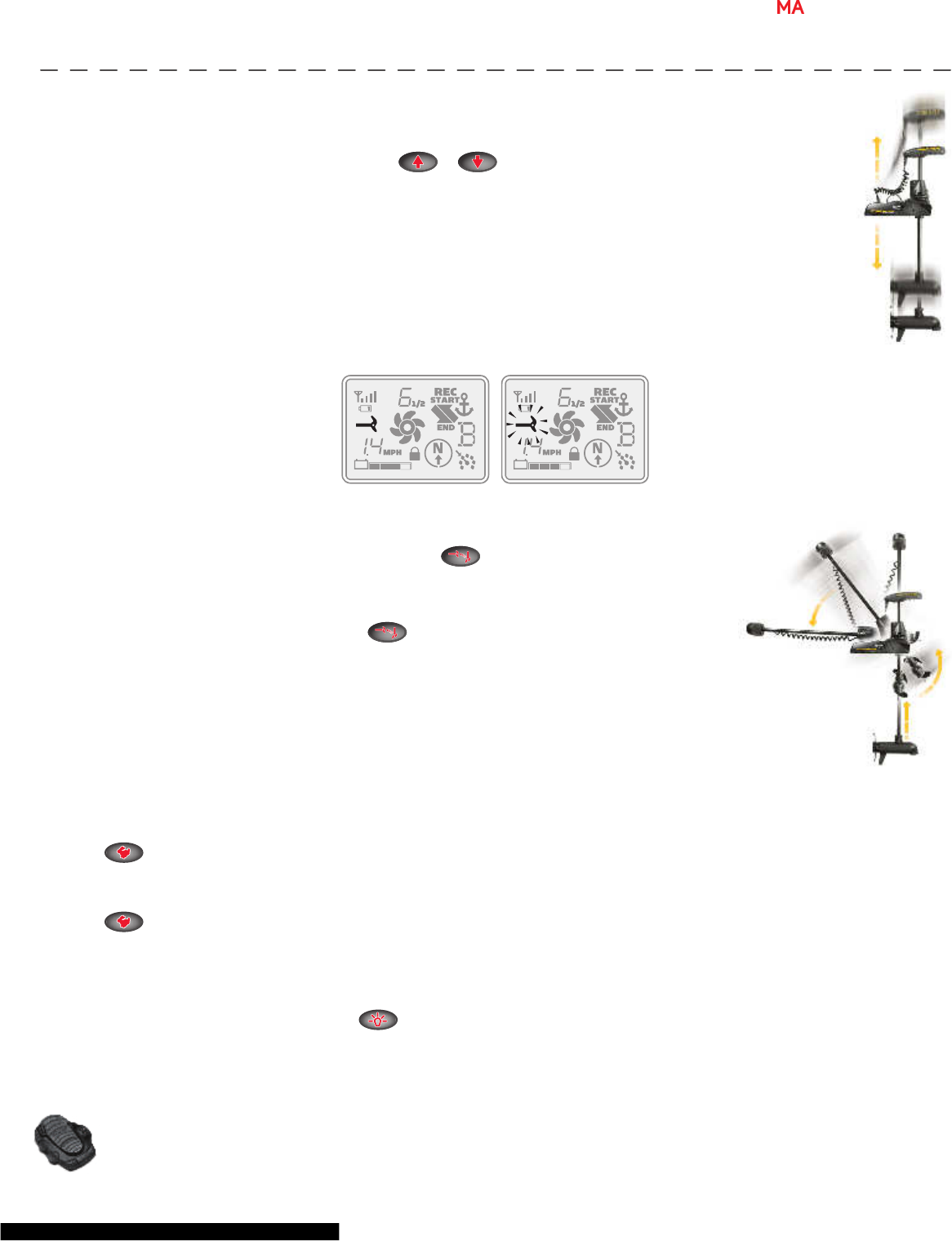

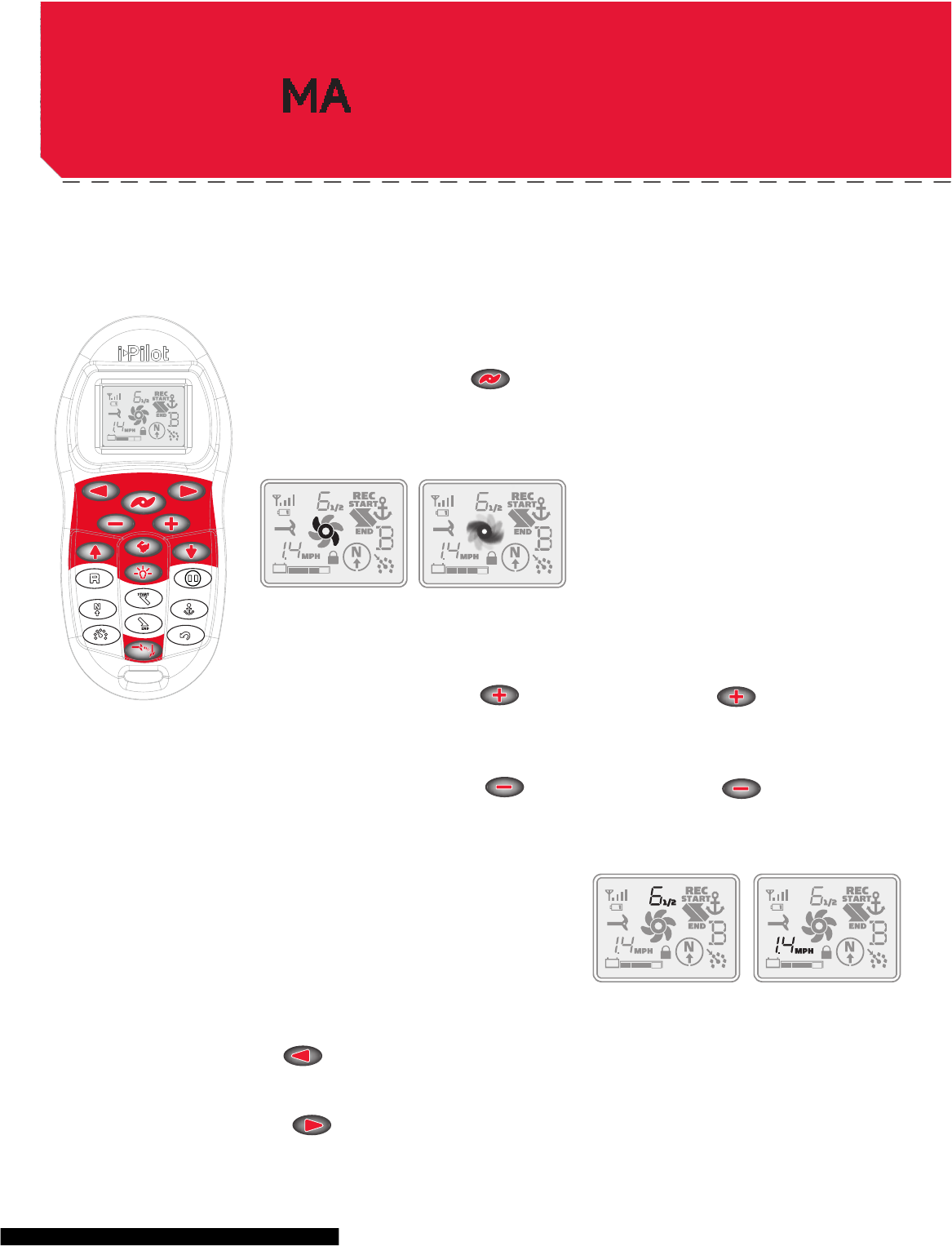

Manual Control 20-21

GPS Motor Control 22-30

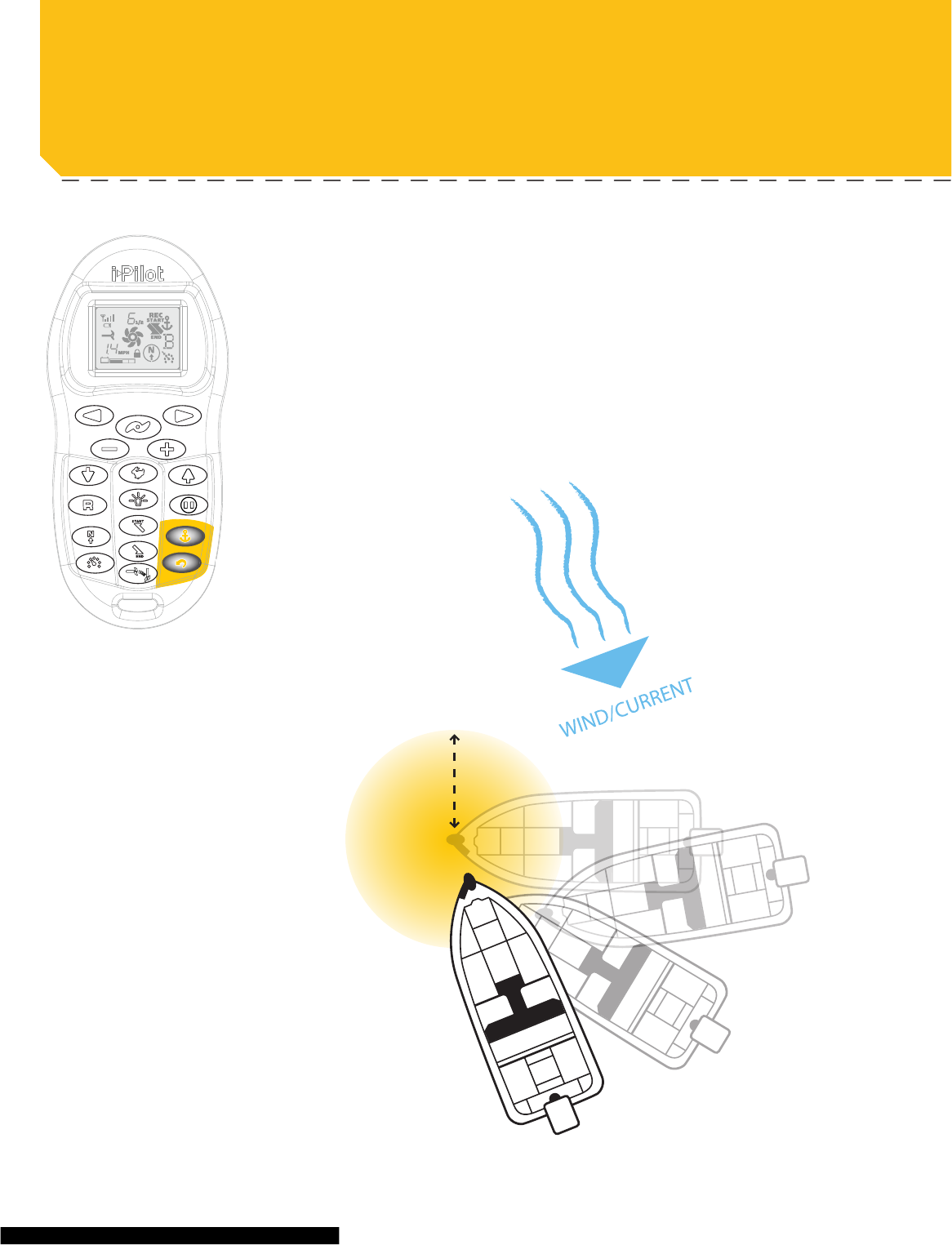

Spot-Lock 23-24

Cruise Control 25

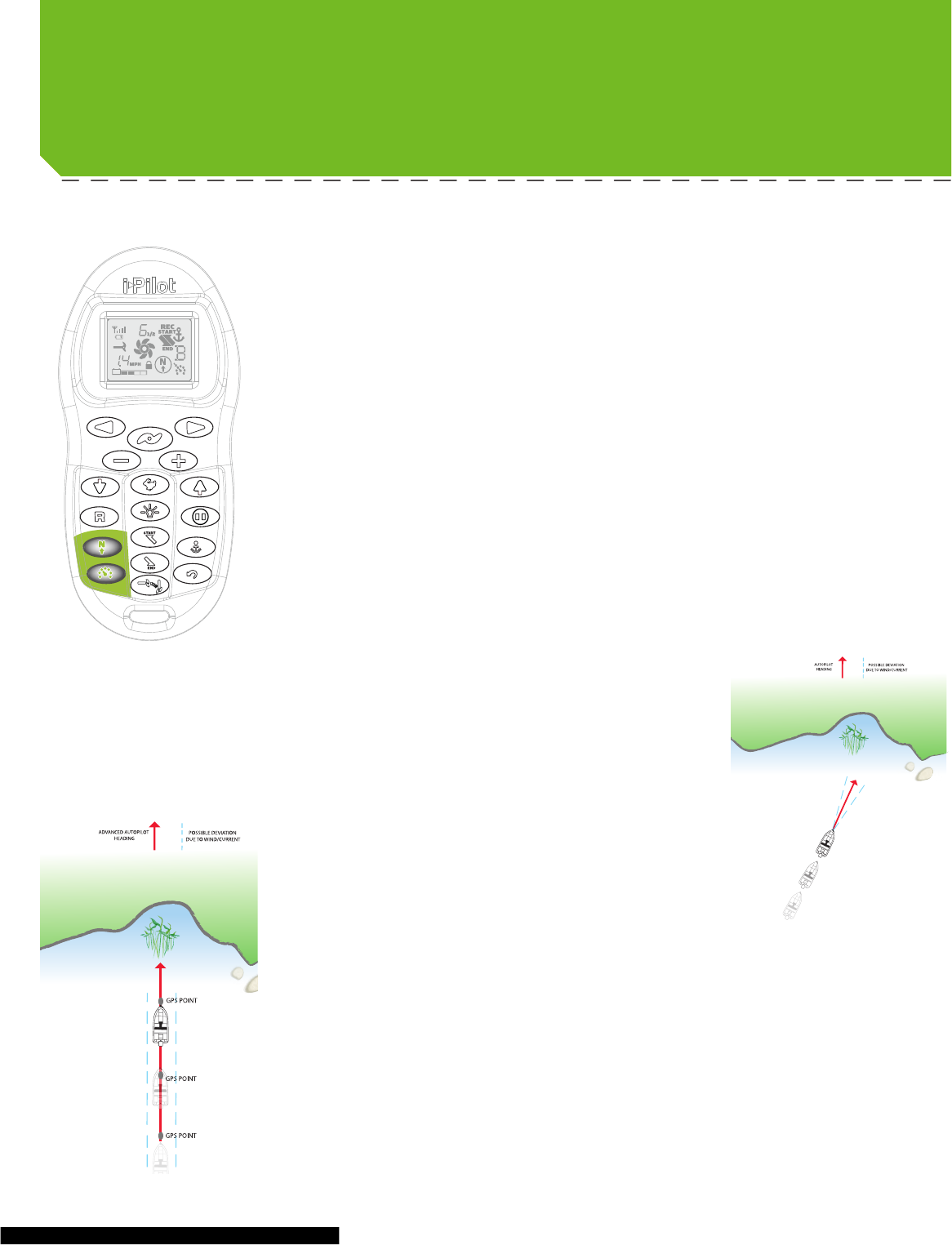

AutoPilot/Advanced AutoPilot 26-27

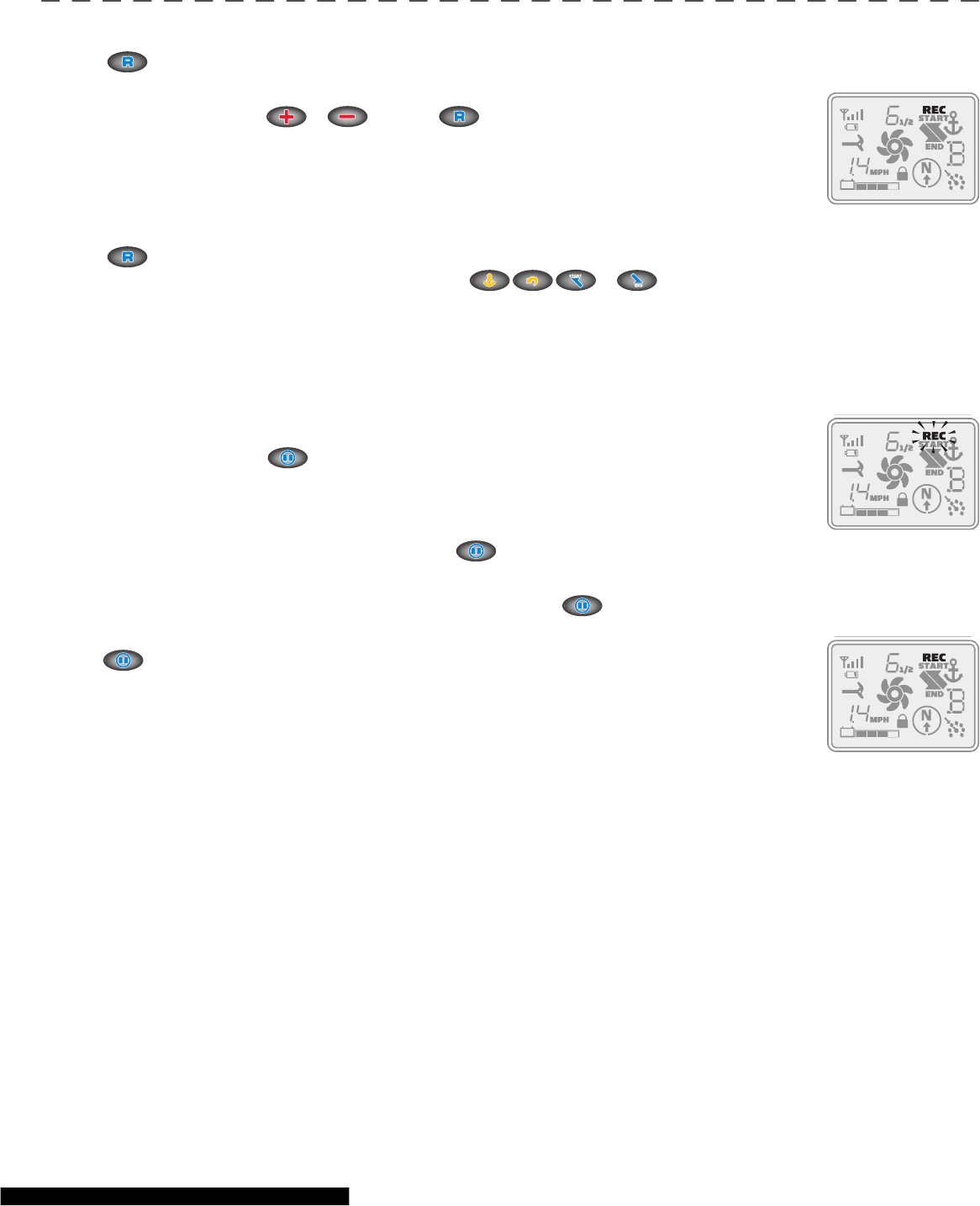

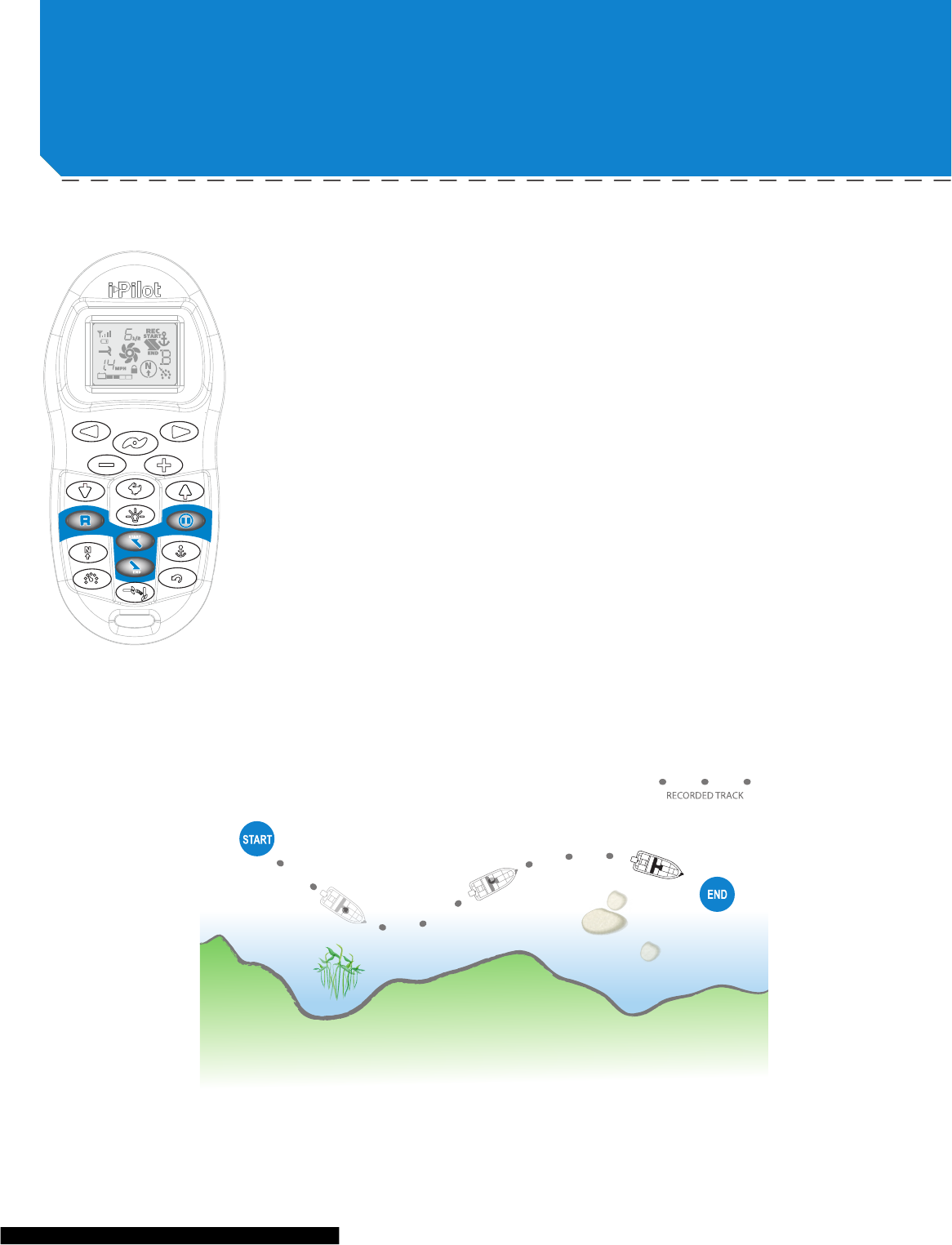

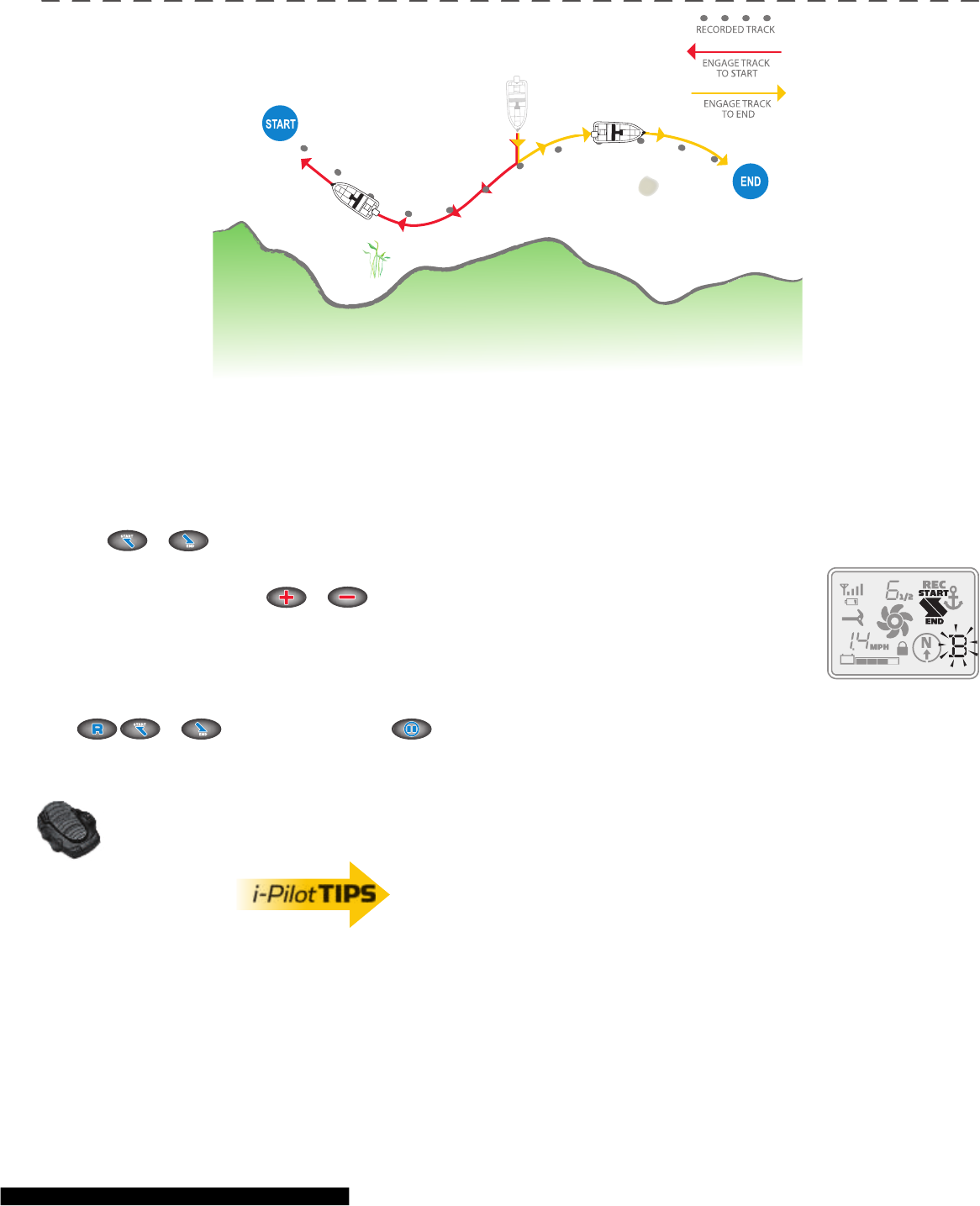

Track Recording/Playback 28-30

Using Your Foot Pedal 31-33

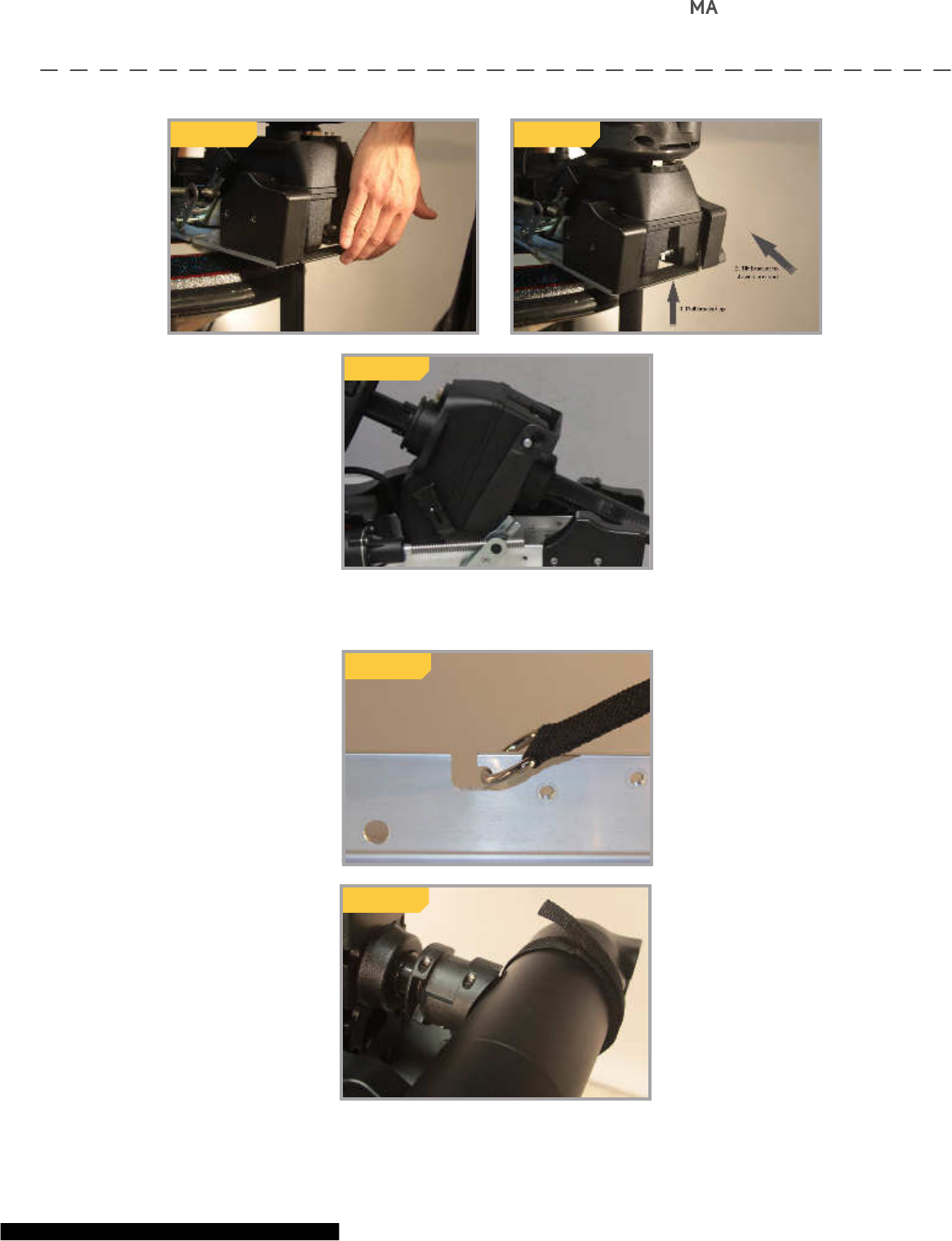

Emergency Stow Procedure 34-35

Adjustments 36

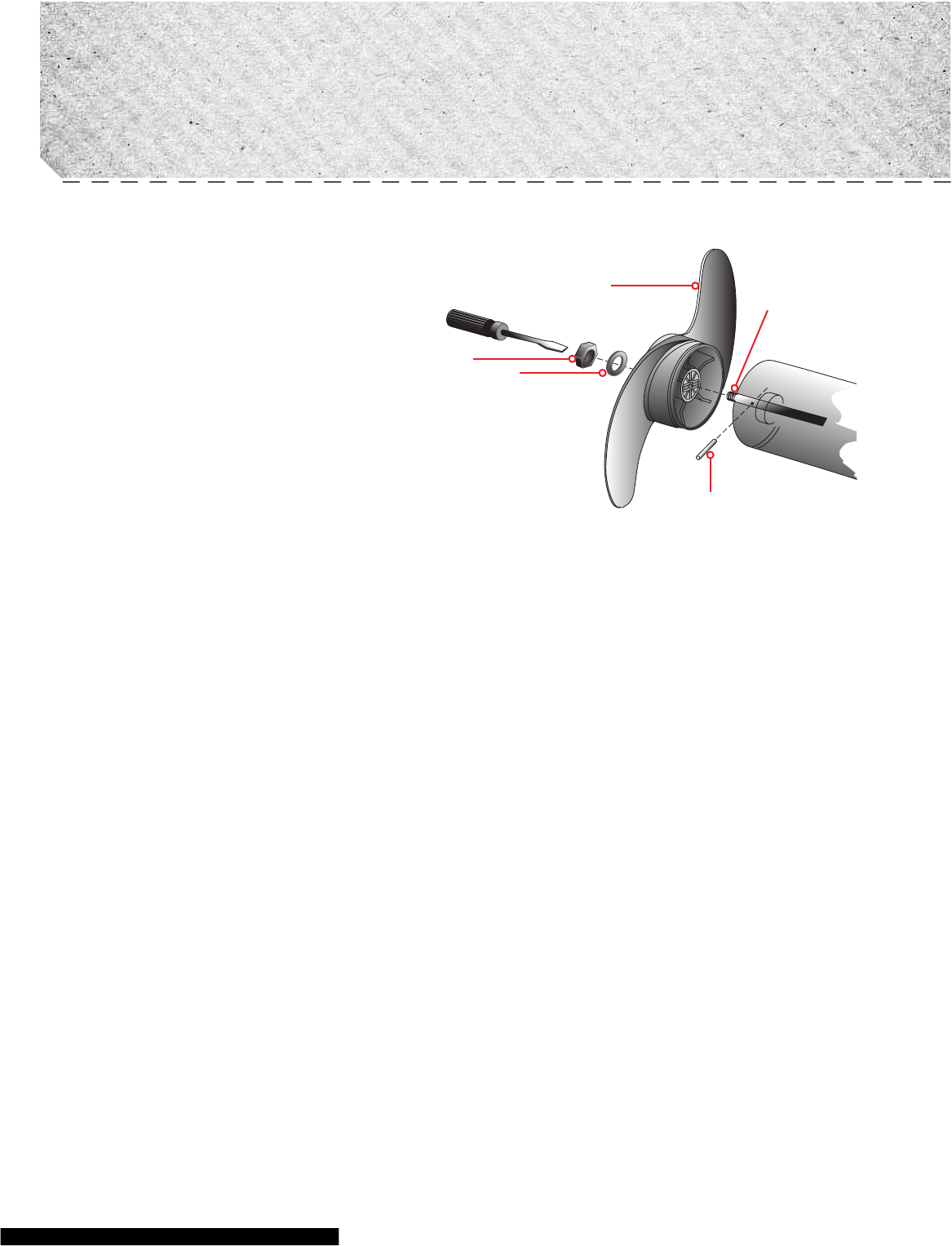

Service & Maintenance 37

Troubleshooting 38-40

Frequently Asked Questions 41-42

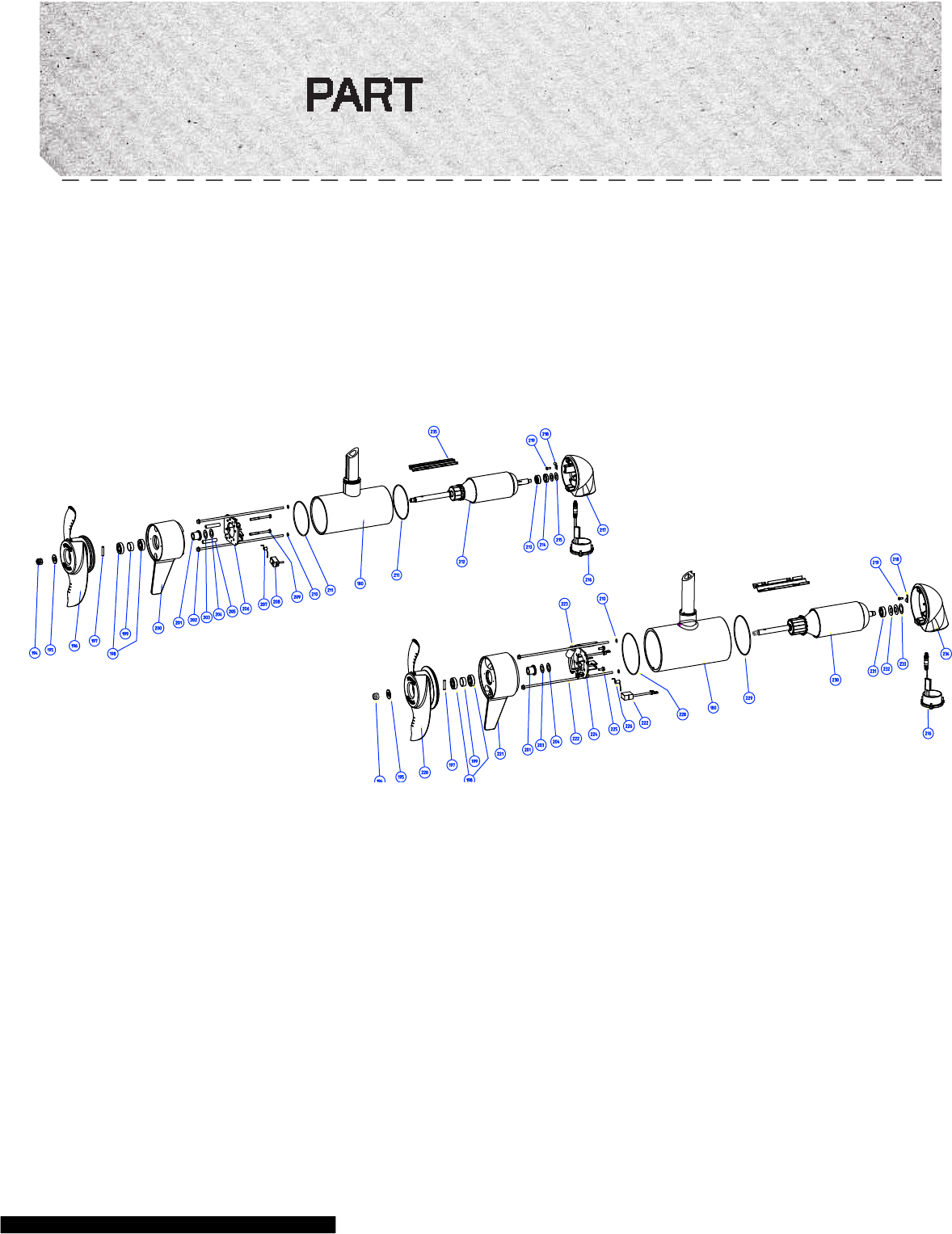

Parts Diagram 43-44

Parts List 45-47

Compliance Statements 48-49

WARRAnTY On mInn KOTA i-PILOT® And i-PILOT® LInK™ WIRELEss gPs

TROLLIng sYsTEm ACCEssORY

Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not

transferable.

mInn KOTA LImITEd TWO-YEAR WARRAnTY On THE EnTIRE PROdUCT

JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota i-Pilot® or i-Pilot® Link™ Wireless GPS Trolling System Accessory will

be materially free from defects in materials and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair

or replace, free of charge, any parts found by JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive

liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty.

EXCLUsIOns And LImITATIOns

This limited warranty does not apply to products that have been used commercially or for rental purposes. This limited warranty does not cover normal wear

and tear, blemishes that do not aff ect the operation of the product, or damage caused by accidents, abuse, alteration, modifi cation, shipping damages, acts

of God, negligence of the user or misuse, improper or insuffi cient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT

PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY.

The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using

products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME

provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations

or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser

in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE

LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE

PRICE PAID FOR SUCH PRODUCT.

HOW TO ObTAIn WARRAnTY sERVICE

To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented

to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the factory, labor to

haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser.

Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized

Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting the factory at 1-800-227-6433 or email service@

minnkotamotors.com. Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days

from the date of repair or replacement, whichever is longer]. For any product that is returned for warranty service that JOME fi nds to be

not covered by or not in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and

for a minimum of at least one hour.

NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED

WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND

BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,

INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for

loss of use of product, loss of time, inconvenience or other damage.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above

limitations and/or exclusions may not apply to you. This warranty gives you specifi c legal rights and you may also have other legal rights which vary from state

to state.

4 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

TWO-YEAR LImITEd WARRAnTY

WARRAnTY On mInn KOTA fREsHWATER TROLLIng mOTORs

Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not

transferable.

mInn KOTA LImITEd TWO-YEAR WARRAnTY On THE EnTIRE PROdUCT

JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota freshwater trolling motor will be materially free from defects in materials

and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by

JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive

remedy of the purchaser for breach of this warranty.

mInn KOTA LImITEd LIfETImE WARRAnTY On COmPOsITE sHAfT

JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in

materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite

shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the

sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to

install, any new composite shaft provided by JOME.

EXCLUsIOns & LImITATIOns

This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty

does not cover normal wear and tear, blemishes that do not aff ect the operation of the product, or damage caused by accidents, abuse, alteration, modifi cation,

shipping damages, acts of God, negligence of the user or misuse, improper or insuffi cient care or maintenance. DAMAGE CAUSED BY THE USE OF

OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY

THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility

of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and

liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute

a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses

incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission.

JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S

ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.

mInn KOTA sERVICE InfORmATIOn

To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented

to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or

shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service,

or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with

proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service

can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email service@minnkotamotors.com.

Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair

or replacement, whichever is longer]. For any product that is returned for warranty service that JOME fi nds to be not covered by or not

in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at

least one hour.

NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED

WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND

BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,

INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for

loss of use of product, loss of time, inconvenience or other damage.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above

limitations and/or exclusions may not apply to you. This warranty gives you specifi c legal rights and you may also have other legal rights which vary from state

to state.

minnkotamotors.com | 5

©2014 Johnson Outdoors Marine Electronics, Inc.

TWO-YEAR LImITEd WARRAnTY

6 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

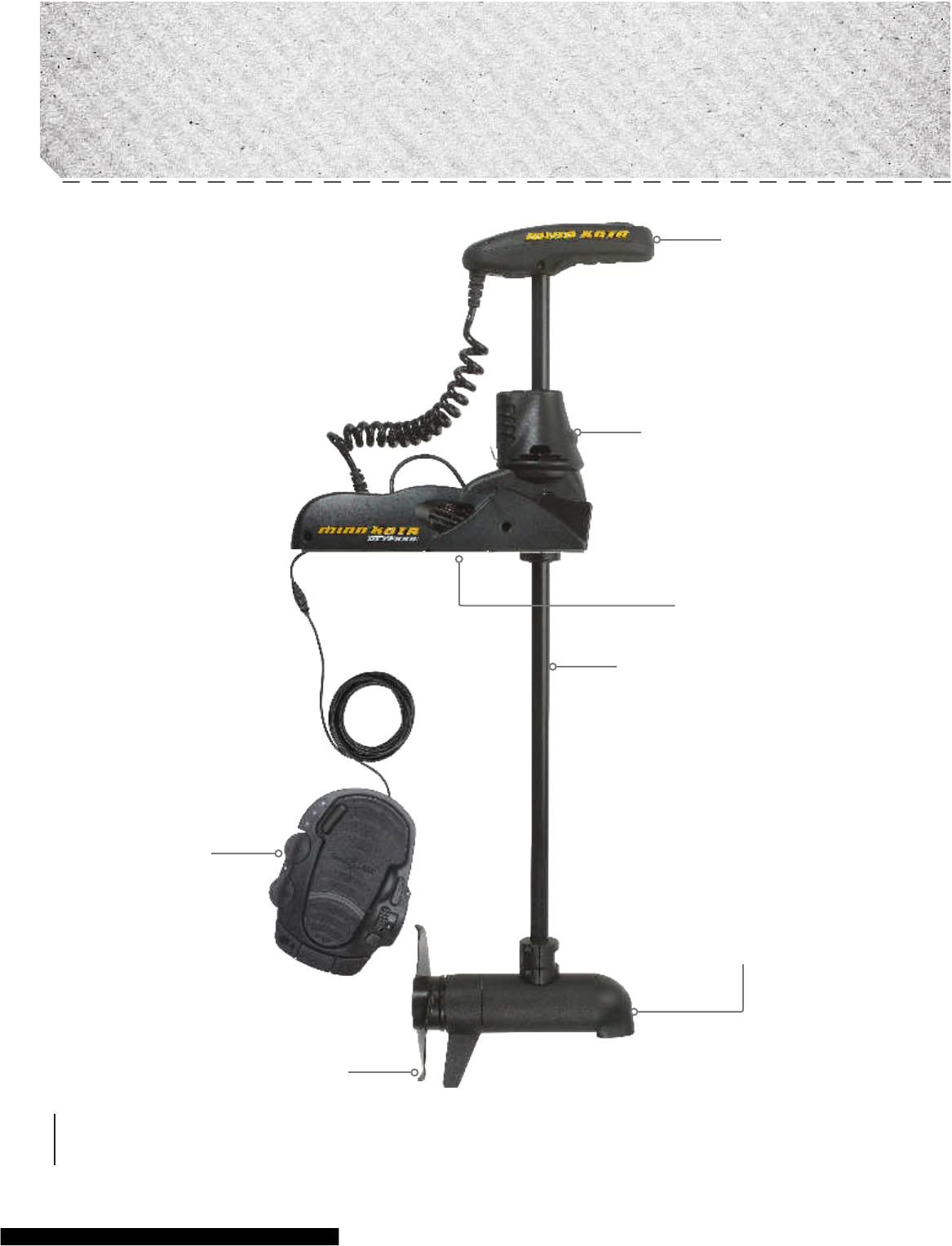

fEATUREs

Specifications subject to change without notice.

*This diagram is for reference only and may differ from your actual motor.

Weedless Wedge 2 Propeller

Cool Quiet

Power Motor

Lifetime Warranty

Flexible Composite Shaft

Power Trim

Integrated i-Pilot

Control Head

mOTOR fEATUREs

Power Stow/Deploy

Multi-Function

Footpedal

minnkotamotors.com | 7

©2014 Johnson Outdoors Marine Electronics, Inc.

fEATUREs

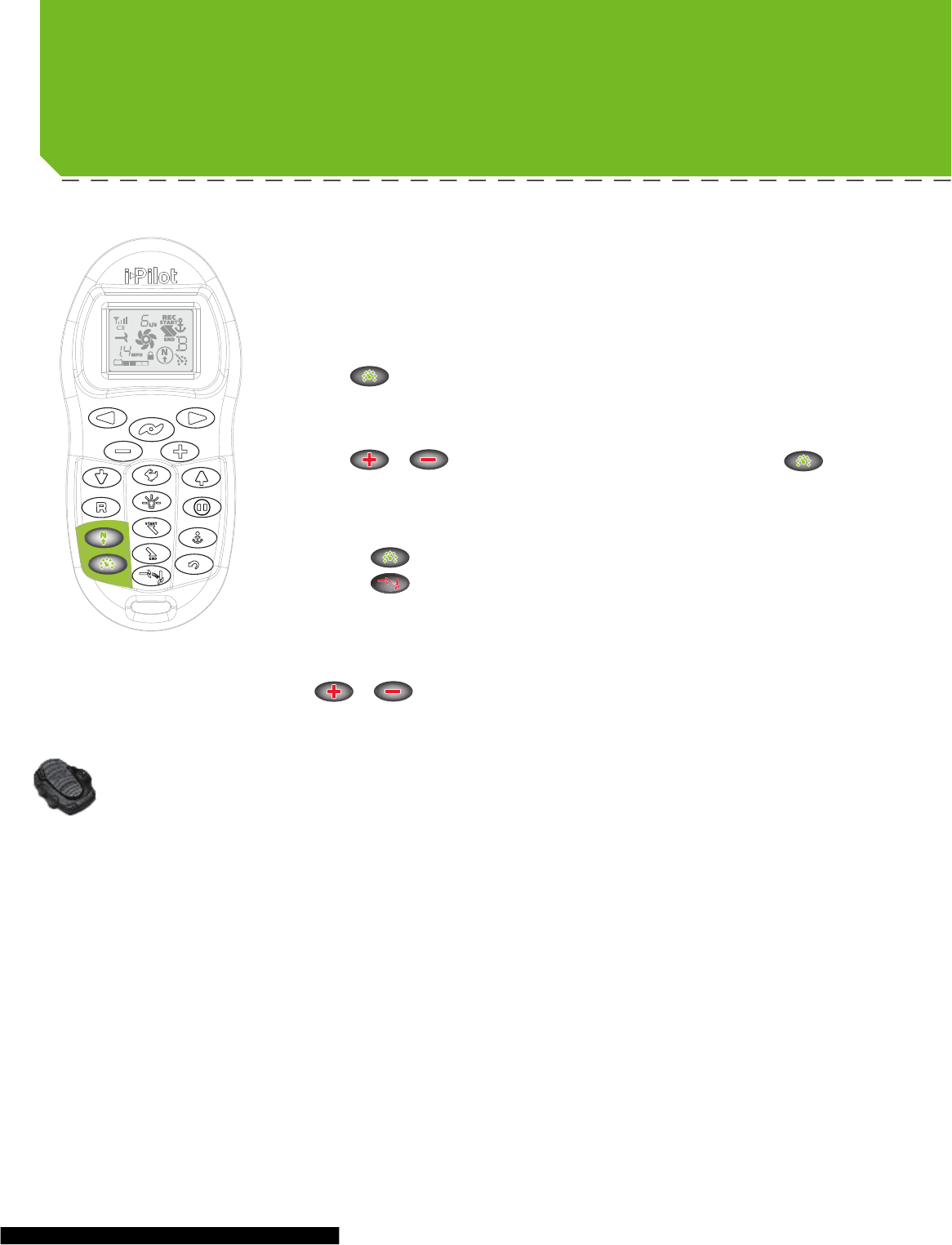

i-PILOT REmOTE

For complete details on this remote, see page 16 of this manual.

Momentary/Constant

AutoPilot "ON"/"OFF"

Momentary On

"ON"/"OFF"

Heel/Toe Steering

Mode

Speed Control

Spot-Lock

Right Steer/Trim Down

Stow/Deploy/Prop “ON”/”OFF”

Left Steer / Trim Up

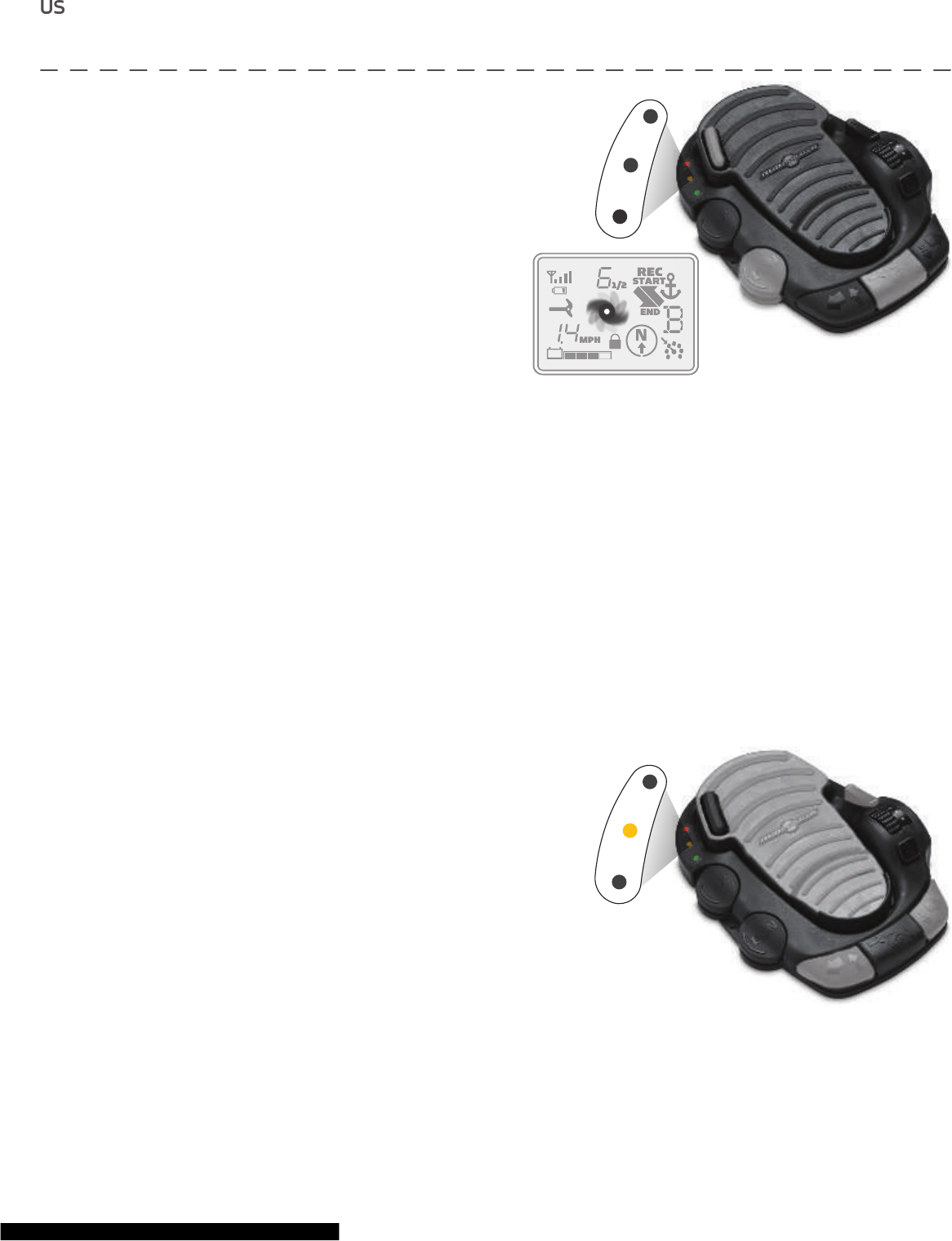

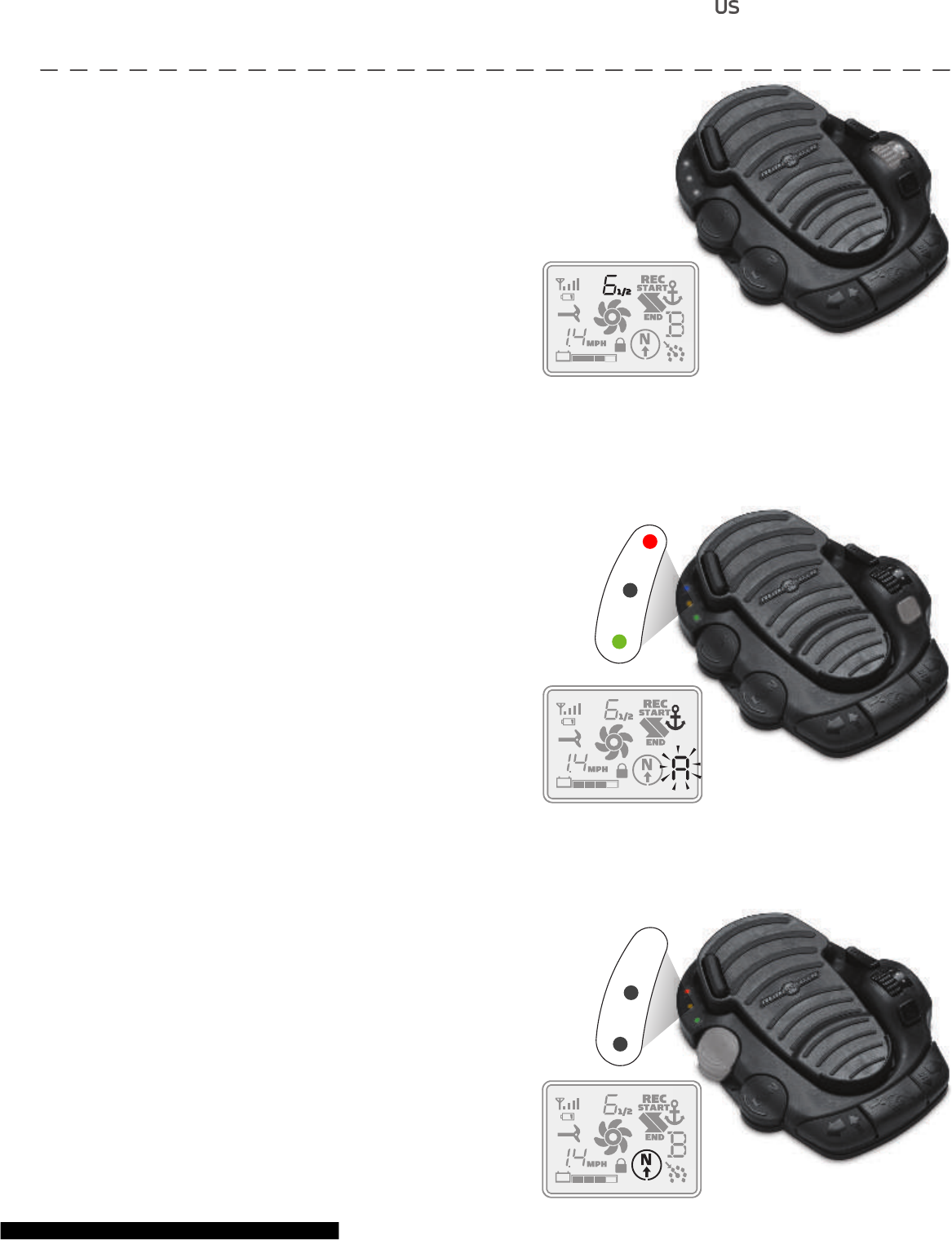

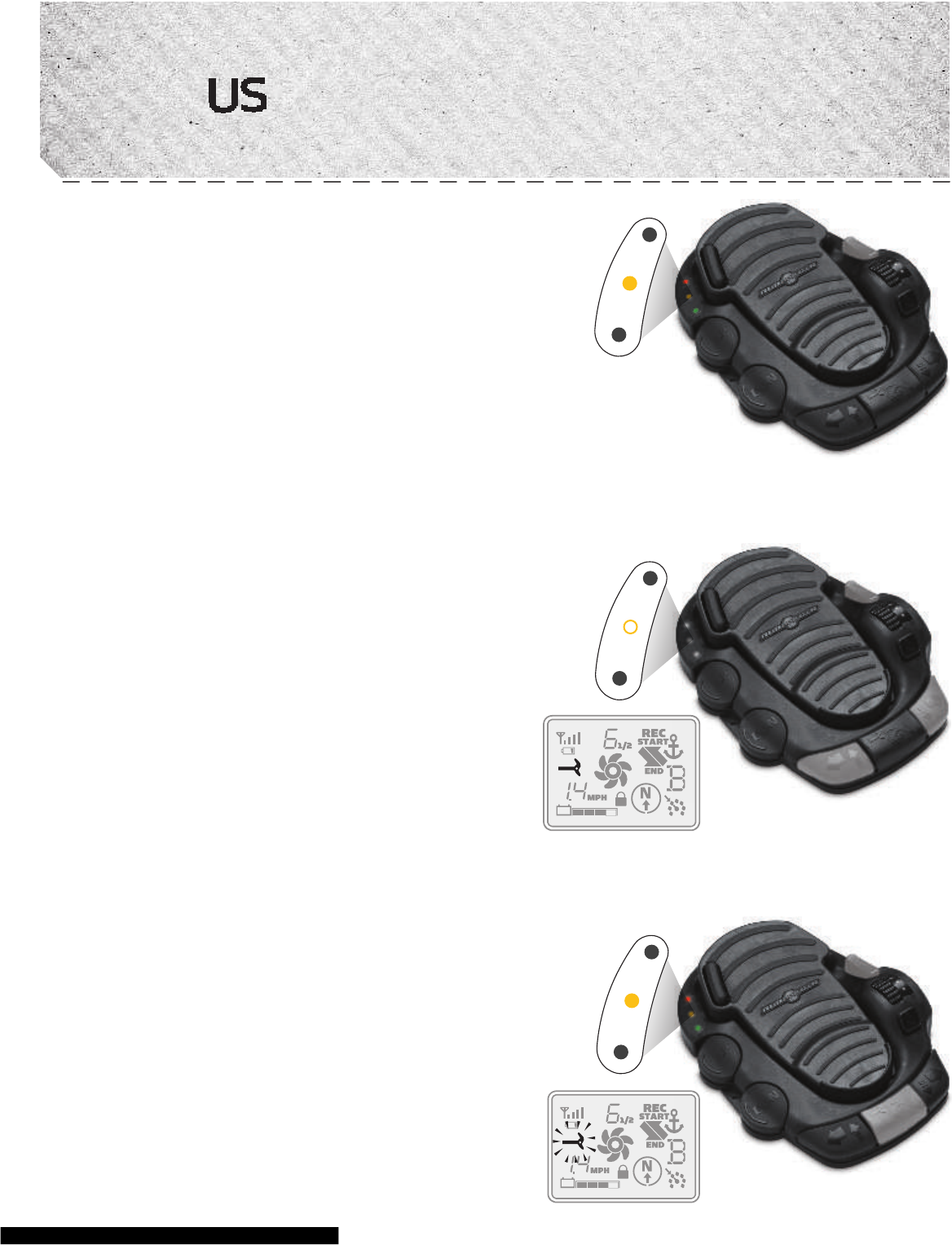

fOOT PEdAL fEATUREs

STEM READY

POWER

STATUS

Power Button: Press the power button to turn the motor on

or off . Once power button is pressed, power will remain on for

1.5 hours in the absence of any button presses, when motor is

stowed. Press and hold for two seconds to turn motor off .

Status (red LED): The motor is equipped with a status

indicator. The indicator will fl ash when the motor is stowing or

deploying and will be lit continuously when fully stowed and

off when deployed while the power is on.

System Ready (green LED): The motor is equipped with

a system ready indicator. The indicator light will be illuminated

when the motor is connected to power and switched on.

COnTROL PAnEL

8 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

n

ARTs InCLUdEd

A

BC

D

H

G

E

F

J

I

K

Your new Ulterra comes out of the box with everything you’ll need for direct to boat mounting. This

motor can be direct mounted to the boat or coupled with a Minn Kota quick release bracket for ease

of mounting and removal. For compatible quick release mounting brackets and to locate your nearest

dealer, visit minnkotamotors.com. Please review the parts list and tools needed for installation prior to

getting started.

PARTs LIsT

A. (1) Ulterra Trolling Motor

B. (1) Washer, Prop

C. (1) ⅜"–24 Locknut, Prop

D. (1) Lower Unit Emergency Strap

E. (1) Universal Sonar Extension Cable (Pre-Installed)

F. (1) 3/16" x 1.00" Pin, Prop

G. Weedless Wedge 2 Prop

H. (1) i-Pilot Remote Lanyard

(includes lanyard rope with (1) loop clip and (1) carabiner clip)

I. (1) i-Pilot Remote

J. (1) Foot Pedal

K. Mounting Hardware Bag

L. Manual CD (not pictured)

M. Installation Guide (not pictured)

Installation Instructions:

1. Remove the four sideplate screws. Remove sideplates to access the mounting holes. (Figure 1)

2. Remove the two 5/16” e-clips retaining the extension damper. Remove the extension damper to expose the front left

mounting hole. (Figure 2)

3. Place the motor on the bow of the boat. It is recommended that the motor be mounted as close to the centerline of the boat

as possible. Make sure the slot on the underside of the mounting base is aligned with the rubrail of the boat. This will ensure

that the shaft has a minimum clearance of 1-1/2” when it is deployed. (Figure 3 & 4)

4. Once the motor is positioned, mark at minimum, four of the six holes that are located farthest apart (at least two on each

side). Make sure the area under the mounting location is clear to drill holes and install nuts and washers. Drill through the

marked holes using a 5/16” drill bit.

Parts Included:

Description Qty.

Screw, 1/4-20 x 2” HH SS 6

Screw, 1/4-20 x 0.5 HH SS 6

Washer-Clipped, 1/4”, 1” OD 6

Nut, 1/4-20 Nylock SS 6

Washer, 1/4” Flat 18-8 SS 6

Washer-Mounting, Rubber 6

Tools and Resources Required:

• Drill

• 5/16” Drill Bit

• 7/16” Wrench

• 9/16” Wrench (for prop)

• Wire Ties (for cable routing)

• Phillips Screwdriver

• Flat Blade Screwdriver

Figure 1 Figure 2

Figure 3 Figure 4

5/16” e-clip Extension Damper

Align Slot with Rubrail

Side Plate

Side Plate Screws

Figure 4

Figure 1

Figure 3

Figure 2

minnkotamotors.com | 9

©2014 Johnson Outdoors Marine Electronics, Inc.

InsTALLATIOn

6.

Reinstall the extension damper with the shaft facing toward the interior of the boat. Reinstall the e-clips. (Figure 7)

7.

Replace the sideplates and sideplate screws by hand using a Phillips screwdriver. (Figure 8) Note: Do not use a power tool

to install these screws.

8.

Connect the motor to power and sonar cable to depth fi nder using the appropriate adapter cable (sold separately).

Figure 5 Figure 6

Figure 8Figure 7

1/4” Clipped

Washer

(fl at side facing

mounting base) 1/4” Flat Washer

Rubber Mounting Washer

1/4-20 x 2”

Screw

1/4-20 Nylock Nut

Shaft Side of Damper

1/4-20 x 2” Screw with

1/4” Clipped Washer

(fl at side facing mounting base)

5. Mount the motor to the boat using the provided hardware. Install the hex head bolts and clipped washers on the right side of

the motor as viewed from the boat interior. (Figure 5) Motor can then be slid into place utilizing the slots on the motor base

plate. Clipped washer should be oriented with the fl at portion against the mounting base. (Figure 6)

minnkotamotors.com

Figure 7 Figure 8

10 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

InsTALLATIOn

mOUnTIng OPTIOns

The user has the option of stowing with the prop orented in or out to accommodate diff erent boat cover confi gurations. Follow the

procedure below to change prop orientation.

1. Turn power on and deploy motor using the stow/deploy button on footpedal or remote (see the Manual Control section or Ulterra

Functions for deploying instructions). CAUTION: When deploying, ensure the motor doesn’t contact boat or trailer.

2. Turn the motor off .

3. Pull out manual trim release handle located on the side of trim housing. (Figure 9)

4. While holding trim release handle, lift up shaft/trim housing and rotate 180 degrees. (Figure 10)

5. Lower shaft and trim housing onto the steering housing. Seat trim housing by holding out manual trim release handle and orienting

trim housing onto steering housing. (Figure 11)

6. Turn on power at the motor power button.

7. Stow the motor using the stow/deploy button on footpedal or remote. The lower unit will stow with the prop in the desired

orientation. (Figure 12 & Figure 13)

WARNING: When raising/lowering motor or operating the tilt mechanism, keep fi ngers clear of all

hinge and pivot points and all moving parts.

Figure 10 Figure 11

Figure 9

Figure 12 PROP OUT Figure 13 PROP In

Trim Handle

minnkotamotors.com | 11

©2014 Johnson Outdoors Marine Electronics, Inc.

InsTALLATIOn

T RIggIng & PROdUCT InsTALLATIOn

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when

rigging your boat. Altering boat wiring should be completed by a qualifi ed marine technician. The following specifi cations are for

general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional

electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are

using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire

extension length is more than 25 feet, we recommend that you contact a qualifi ed marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that

each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type

(voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives

recommended guidelines for circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats

COndUCTOR gAUgE And CIRCUIT bREAKER sIZIng TAbLE

Motor Thrust /

Model Max Amp Draw Circuit Breaker Wire Extension Length *

5 feet 10 feet 15 feet 20 feet 25 feet

30 lb. 30 50 Amp @ 12 VDC 10 AWG 10 AWG 8 AWG 6 AWG 4 AWG

40 lb., 45 lb. 42 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG

50 lb., 55 lb. 50 60 Amp @ 12 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG

70 lb. 42 50 Amp @ 24 VDC 10 AWG 10 AWG 8 AWG 8 AWG 6 AWG

80 lb. 56 60 Amp @ 24 VDC 8 AWG 8 AWG 8 AWG 6 AWG 6 AWG

101 lb. 46 50 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG

Engine Mount 101 50 60 Amp @ 36 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG

112 lb. 52 60 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG

Engine Mount 160 116 (2) x 60 Amp @ 24 VDC 2 AWG 2 AWG 2 AWG 2 AWG 2 AWG

E-Drive 40 50 Amp @ 48 VDC 10 AWG 10 AWG 10 AWG 10 AWG 10 AWG

This conductor and circuit breaker sizing table is only valid for the following assumptions:

1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.

2. Each conductor has 105° C temp rated insulation.

3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.

12 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

bATTERY WIRIng & InsTALLATIOn

sELECTIng THE CORRECT bATTERIEs

The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine

battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power

when you need it, and will signifi cantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the

leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We off er a wide selection of chargers

to fi t your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate

deep cycle marine battery/batteries for your Minn Kota trolling motor.

Advice Regarding Batteries:

•

Never connect the (+) and the (–) terminals of the battery together. Take care that no metal object can fall onto the battery and

short the terminals. This would immediately lead to a short and extreme fi re danger.

•

It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit

Breaker Sizing Table” in the previous section to fi nd the appropriate circuit breaker or fuse for your motor. For motors requiring

a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.

COnnECTIng THE bATTERIEs In sERIEs (If REQUIREd fOR YOUR mOTOR)

24 VOLT sYsTEms:

1. Make sure that the motor is switched off (speed selector on “0”).

2. Two 12 volt batteries are required.

3. The batteries must be wired in series, only as directed in wiring

diagram, to provide 24 volts.

a. Connect a connector cable to the positive ( + ) terminal of

battery 1 and to the negative ( – ) terminal of battery 2.

b. Connect positive ( + ) red motor lead to

positive ( + ) terminal on battery 2.

c. Connect negative ( – ) black motor lead to

negative ( – ) terminal of battery 1.

4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper

polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.

CAUTION

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while

the battery/batteries are being charged.

To trolling motor negative

24 Volt Connection

Battery #1 (Low Side)

Neg - Neg -Pos + Pos +

Battery #2 (High Side)

+24 Volts to trolling motor

positive (or circuit breaker)

24 Volt Series Connection

36 VOLT sYsTEms:

1. Make sure that the motor is switched off

(speed selector on “0”).

2. Three 12 volt batteries are required.

3. The batteries must be wired in series, only as

directed in wiring diagram, to provide 36 volts.

a. Connect a connector cable to the positive

( + ) terminal of battery 1 and to the

negative ( – ) terminal of battery 2 and

another connector cable from the positive

( + ) terminal of battery 2 to the negative

( – ) terminal of battery of battery 3.

b. Connect positive ( + ) red motor lead to positive ( + ) terminal on battery 3.

c. Connect negative ( – ) black motor lead to negative ( – ) terminal of battery 1.

4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper

polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.

CAUTION

• Improper wiring of 24/36 volt systems could cause battery explosion!

• Keep leadwire wing nut connection tight and solid to battery terminals.

• Locate battery in a ventilated compartment.

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while

the battery/batteries are being charged.

To trolling motor negative

24 Volt Connection 36 Volt Connection

Battery #1 (Low Side)

Neg - Neg - Neg -Pos + Pos + Pos +

Battery #2 (Middle) Battery #3 (High Side)

+36 Volts to trolling motor

positive (or circuit breaker)

36 Volt Series Connection

minnkotamotors.com | 13

©2014 Johnson Outdoors Marine Electronics, Inc.

bATTERY WIRIng & InsTALLATIOn

14 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

WIRIng dIAgRAm

Steering Count Sensor

Steering Power

Slip Ring Red +

Slip Ring Black -

Foot Pedal

Trim Module

Black Motor -

Red Motor +

Bonding/Grounding

Universal Sonar 2 Extension Cable

Control Head

Motor

Black Motor -

Red Motor +

Bonding/Grounding

Accessory

Accessory

Coil Cord

Tilt Motor

Steering Module

Mode Sensor

Spot-Lock

Sensor

Speed Adjustment

AutoPilot (Red)

Spot-Lock (Blue)

Ulterra Mode (Amber)

Constant (Green)

Plunger Sensor

Tilt Sensor

Cam Sensor

Power (Green)

Status (Red)

Power On Button

Gear Sensor

Black Trim Motor -

Red Trim Motor +

Black Slip Ring -

Red Slip Ring +

Red Battery +

Black Battery -

Battery 1

- +

Battery 1

- +

Battery 1

- +

Battery 2

- +

- +- +

Battery 1

- +

Battery 1

- +

Battery 1

- +

Battery 2

- +

- +- +

Battery 3

- +

- +- +

24 Volt

36 Volt

Ethernet Cable *i-Pilot Link Models Only

NOTE: This is a universal, multi-voltage diagram. Double-check your motor's voltage for proper connections.

Over-Current Protection Devices not shown in this illustration.

minnkotamotors.com | 15

©2014 Johnson Outdoors Marine Electronics, Inc.

gETTIng sTARTEd

KnOWIng YOUR REmOTE

LAYOUT

The i-Pilot remote is divided into four sections: Manual Control, Tracks, Spot-Lock, and Cruise Control/AutoPilot. Buttons in

the Manual Control section of the remote do not require a GPS signal to operate and give you full, immediate control over steering,

speed and prop functions similar to a CoPilot. All other buttons require a minimum GPS signal strength of one bar in order to operate.

Buttons located in the Tracks section are used for track recording and playback. Spot-Lock buttons are located in the Spot-Lock

section. Cruise Control/AutoPilot are located in the Cruise Control/AutoPilot section.

COnsTRUCTIOn

The remote is waterproof and fl oats.

RAngE

The range of the remote will be greatly reduced if it is used near or mounted to any metal object including aluminum or steel. It is also

recommended that the front end of the remote not be obstructed during use.

bATTERY LIfE

Remote battery life is subject to frequency of use and is especially impacted by how often the LCD backlight is used.

When the remote battery is low, will appear on the remote LCD. The Backlight button will be disabled when is displayed to

conserve battery power.

POWER

When a button is pressed on the remote it will automatically turn on. To turn the remote off press and hold for three seconds. The

remote will automatically turn itself off thirty minutes after the last button press if a learned i-Pilot controller is powered up and within

transmitting range. The remote will turn off after three seconds if the i-Pilot controller is powered down or out of transmitting range.

KEYPAd LOCK

The user can lock the keypad during use to help avoid accidental key activations. To lock or unlock the keypad, press and hold for

3 seconds. When the keypad is locked, will appear on the remote LCD. Note that the keypad is always unlocked when the remote is

fi rst turned on.

mOTOR bATTERY sTATUs

The motor battery status graphic on the remote ( ) will display trolling motor battery voltage. When the prop is on, the

battery voltage will not display. The battery voltage meter will reappear once prop is off. This is to ensure that accurate battery charge

information is communicated.

16 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

gETTIng sTARTEd

mAnUAL

COnTROL

Steer Left

Steer Right

Prop On/Off

Speed Down

Speed Up

Trim Up

Trim Down

High Speed Bypass

Toggles the motor speed

between its current setting

and speed 10.

Backlight

Turns the remote LCD

backlighting on for six

seconds.

Keypad Lock/Unlock

To lock or unlock the keypad,

press and hold the backlight

button for 3 seconds.

Stow/Deploy Motor

Advanced AutoPilot and

AutoPilot

Turns Advanced AutoPilot on

and off when pressed once. Turns

AutoPilot on when held for two

seconds.

Cruise Control

Turns cruise control on and off using the

current GPS speed as the target speed.

Spot-Lock

Turns Spot-Lock on and

records it to a memory location.

Spot-Lock Recall

Recalls a Spot-Lock from

memory and turns spot lock on.

Track to End

Navigates to the nearest location

on a previously recorded track

and follows it to its end.

Track to Start

Navigates to the nearest location

on a previously recorded track

and follows it to its start.

Track Record

Starts and ends the recording

of a track to a selected memory

location.

Record Pause/Escape

Pauses the recording of a track

and then resumes the recording

when pressed again.

TRACKs

sPOT-LOCK

CRUIsE COnTROL/

AUTOPILOT

GPS Signal strength

Remote Battery Low

Stow/Deploy

Prop On/Off

GPS Speed

Motor Battery Status

Keypad Lock

Track Record On

Track to Start On

Spot-Lock On

Track to End On

Memory Location

Cruise Control On

AutoPilot/Advanced AutoPilot On

Motor Speed

minnkotamotors.com | 17

©2014 Johnson Outdoors Marine Electronics, Inc.

gETTIng sTARTEd

KnOWIng YOUR i-PILOT COnTROLLER

COnsTRUCTIOn

The i-Pilot controller contains a very sensitive digital compass and is where all GPS satellite and

i-Pilot remote signals are received. It is very important that the controller have a clear view of

the sky in all directions and has a clear line of sight to the remote for optimum performance. All

electronics within the controller enclosure are completely sealed.

REmOTE LEARnIng

The i-Pilot remote is prelearned to the controller from the factory. The top of the controller

has a single learn button to allow additional remotes to be added to the system. To learn

additional remotes:

1. Power up the trolling motor.

2. Press and hold the learn button down. A steady audio tone will be heard while holding this button.

3. While pressing and holding the learn button, push any button on the remote being programmed. Three beeps will be heard when the

remote is successfully learned.

A remote can only be learned to one controller at a time. A controller can have an unlimited number of remotes learned to it. During

the learn process, the remote must start out in the OFF condition. If necessary, the remote can be turned off by pressing and

holding the Pause button for three seconds.

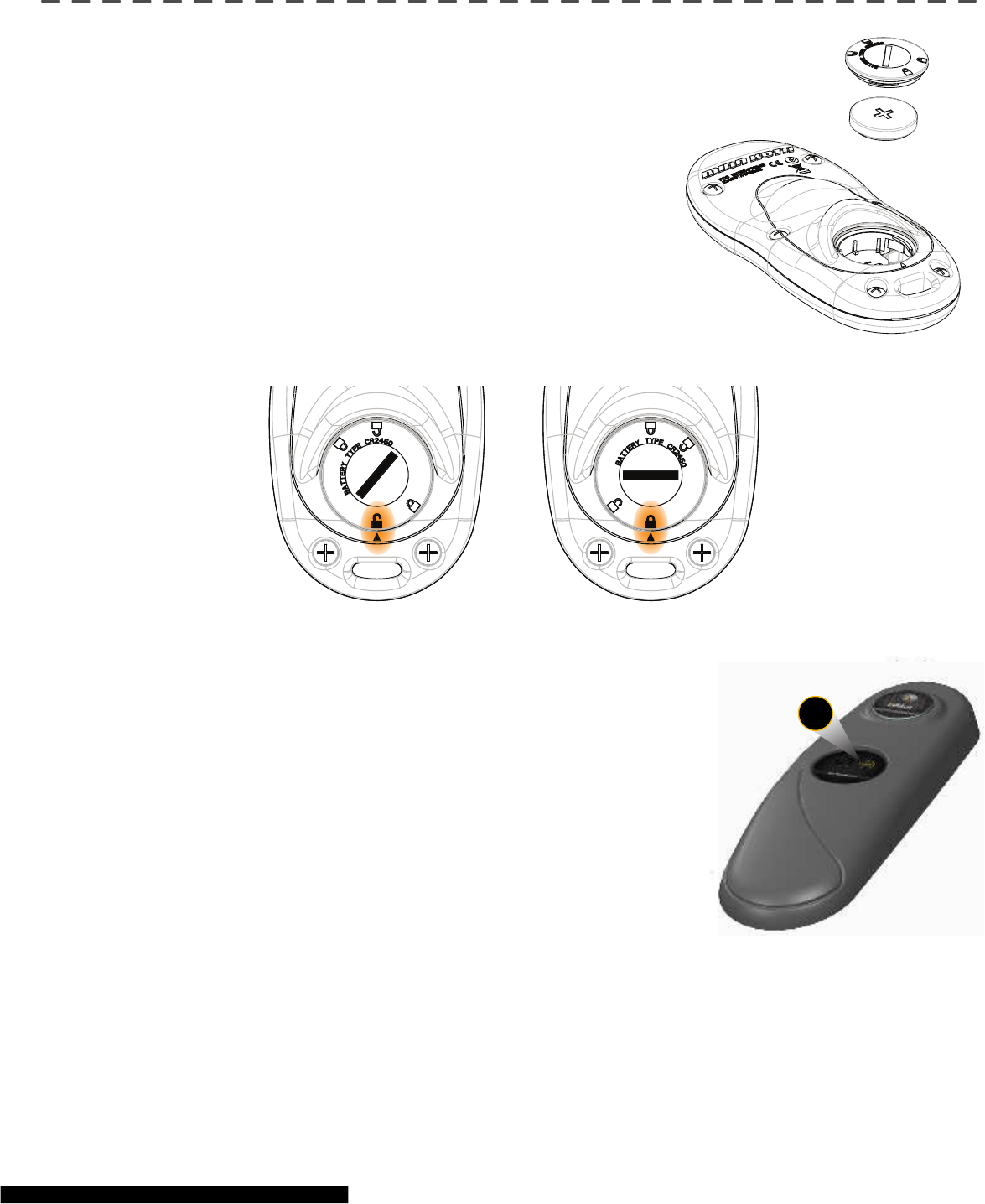

REmOTE bATTERY REPLACEmEnT

1. Make sure hands are clean, dry and static free. Discharge any static electricity by

touching a metal object that is grounded.

NOTE: Static electricity can damage the circuit board.

2. With the remote upside down, use a large coin to rotate the battery door

counterclockwise until either of the Unlock icons align with the arrow

(see Figure B).

3. Remove battery cover and old battery and replace with new CR2450 coin cell battery.

Note the proper polarity of the battery (see Figure A).

4. Ensure the two rubber o-rings are properly seated in the underside of the battery cover.

5. Replace battery cover by aligning either of the Unlock icons with the arrow, pressing the

cover down and rotating clockwise until the Lock icon aligns with the arrow

(see Figure C).

FIGURE A

FIGURE B FIGURE C

LEARN

18 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

gETTIng sTARTEd

AUdIO mOdEs

The i-Pilot Controller also contains an internal speaker which can be programmed to work in two diff erent audio modes. The speaker is

programmed to operate in audio mode one from the factory. To enable diff erent audio modes hold and down at the same

time for three seconds. For an explanation of each audio mode and their sounds see the table below.

WHAT COndITIOn CAUsEs IT AUdIO mOdE AUdIO PATTERn

Startup Modes 1 and 2 4 Short beeps

Manual prop on Mode 2 Single beep

Manual prop off Mode 2 Double beep

Speed + (when less than max speed) Mode 2 Single beep

Speed - (when greater than speed 0) Mode 2 Single beep

High Speed Bypass enable Mode 2 Single beep

High Speed Bypass disable Mode 2 Double beep

Button press for any of these (enable or

disable): REC, Pause, Track to Start, Track

to End, AutoPilot, Cruise Control,

Spot-Lock, Spot-Lock Recall

Mode 2 Single beep

Moving more than a quarter mile from

the last track point while in Record Pause

mode

Mode 2 Error

When GPS Signal Strength goes to no

bars while in a GPS-based mode Mode 2 Error

Attempting to enable a GPS feature when

no signal strength bars are shown Mode 2 Error

Attempting to replay a Track or recall

a Spot-Lock location when the boat is

beyond the minimum distance

Mode 2 Error

MOM button on the footpedal is pressed

and a remote button press attempts to

override it

Mode 2 Error

End of track attained during track playback

(in conjunction with cancelling mode and

turning the prop off )

Mode 2

High-Low,

High-Low,

High-Low

Switch to Audio Mode 1 Modes 1 and 2 Single beep

Switch to Audio Mode 2 Modes 1 and 2 Double beep

Learn button is pressed Modes 1 and 2 Steady tone

Learn successfully completed Modes 1 and 2 3 longer beeps

Initiating a command that is not allowed in

the prop lockout region Mode 2 Error

Deploy Mode 2 Double beep

Stow Mode 2 Single beep

Initiating a command that is not allowed in

the stow/deploy process Mode 2 Error

Current Limit Mode 2 High-Low

minnkotamotors.com | 19

©2014 Johnson Outdoors Marine Electronics, Inc.

gETTIng sTARTEd

ACCURACY

The accuracy and responsiveness with which i-Pilot controls your boat is highly dependent upon many variables. Just a few of

these variables and their general eff ects on responsiveness and accuracy are given below so that the behavior of the system can be

understood.

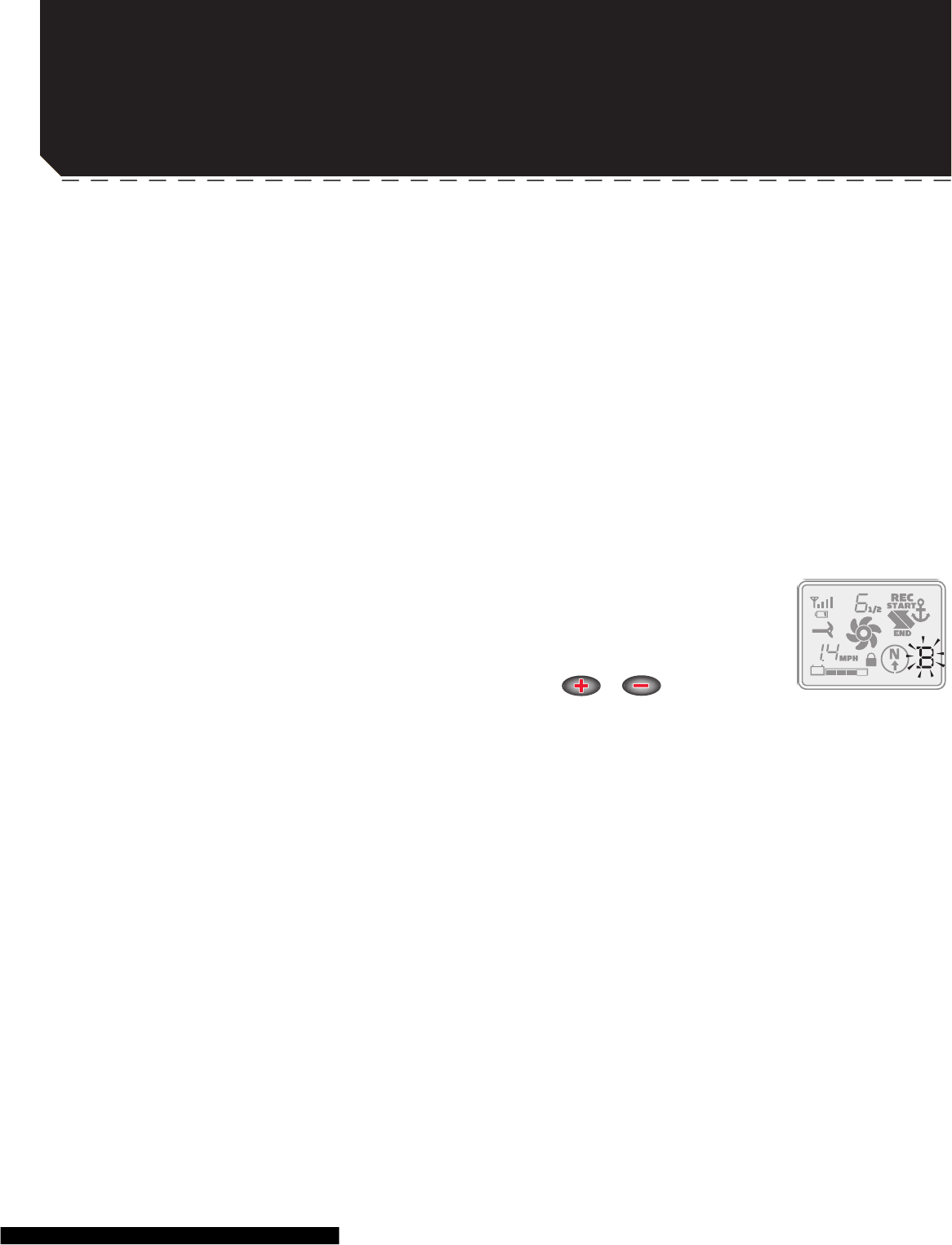

sYsTEm sTARTUP

Once you have verifi ed i-Pilot’s installation it’s time to start using it on the water. Follow these simple steps each time you power up

your trolling motor for successful operation:

1. Connect trolling motor to power.

2. Deploy trolling motor into water.

3. Push any button on your remote. The remote LCD will show prop speed and GPS signal strength.

4. You are now able to use all manual functions:

and .

5. After i-Pilot has obtained a minimum GPS signal strength of one bar, all remaining functions will become available.

VARIAbLE EffECT

Ratio of motor thrust to

boat weight

Excessive thrust on a smaller boat can cause i-Pilot to overcorrect.

Not enough thrust on a large boat can cause i-Pilot to respond slowly.

Wind Excessive wind and/or current can reduce i-Pilot’s positioning accuracy.

GPS signal strength The greater number of GPS signal bars the greater the accuracy.

Trolling motor

battery power level A fully charged battery will give the best performance.

POWER

The i-Pilot controller will turn on whenever the trolling motor has power connected and has been turned on. This is when the green

system ready light is on.

and

20 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

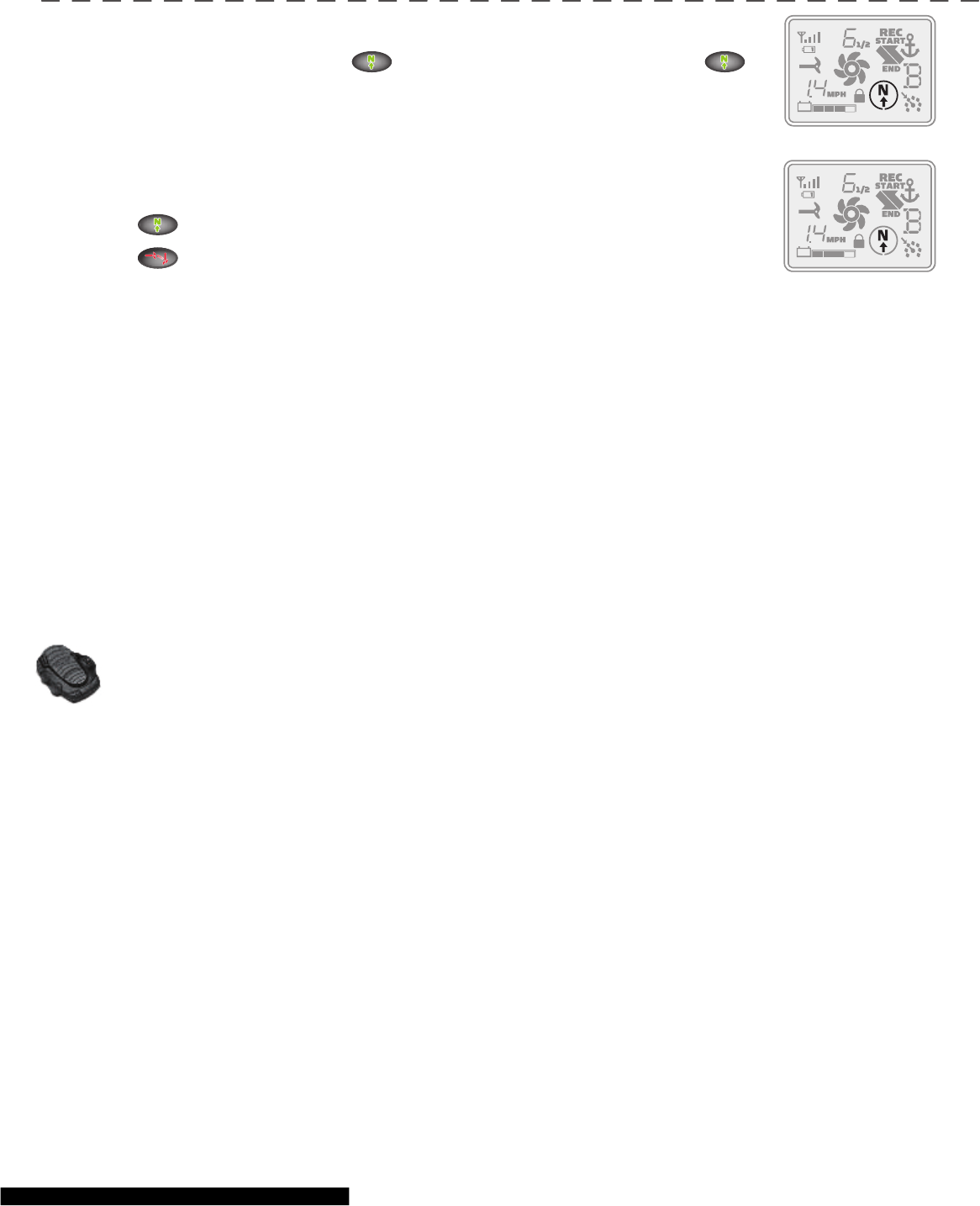

nUAL COnTROL

mAnUAL COnTROL fUnCTIOnALITY

This section describes all Manual Control functions of i-Pilot. A manual function is one in which the operator takes full control of

the function such as manually steering the motor in a desired direction or manually adjusting the prop speed to the desired setting,

trimming, stowing and deploying, or manually adjusting the prop speed. Any of these functions do not require a GPS signal.

mOTOR On/Off

To turn the motor on or off press .

The prop icon on the LCD will be on if the prop is enabled and off if the prop is disabled. With the prop

enabled, the icon will be stationary if the motor speed is zero and the icon will rotate if the motor speed

is greater than zero.

mOTOR sPEEd COnTROL

Increase Motor Speed

To increase the motor speed push on the remote. Each push of will increment the motor

speed by ½ to a maximum of 10.

dECREAsE mOTOR sPEEd

To decrease the motor speed push on the remote. Each push of will decrement the motor

speed by ½ to a minimum of 0.

The remote LCD will display the current motor speed setting. This is not to be confused with the GPS

speed which is also displayed on the remote LCD.

mOTOR sTEERIng COnTROL

Steer Left

To steer the motor to the left press .

Steer Right

To steer the motor to the right press .

If a steering button is held down for more than six to eight seconds, the steering will stop to prevent the coil cord from wrapping on

the motor.

Motor Speed GPS Speed

Prop Enabled Motor Speed Greater

Than Zero

minnkotamotors.com | 21

©2014 Johnson Outdoors Marine Electronics, Inc.

nUAL COnTROL

TRImmIng UP And dOWn

There will be times when you will need to move your motor up or down depending on how your boat is responding. You

can trim up to avoid hitting underwater objects and you can trim down if your prop is coming out of the water. Trim the

motor up or down with the i-Pilot remote by pressing or .

NOTE: The prop will temporarily stop while trimming the motor and resume once trimming is stopped.

NOTE: Trim limits are in place to avoid damage to the unit. An upper trim limit is set 12” from the bottom of the motor

mount to the center of the motor. A lower trim limit is set approximately 1.5" from the bottom of the control head to the

trim housing.

NOTE: A prop lockout region, defined as 17” from bottom of motor mount to center of motor, is used to eliminate the

possibility of the motor contacting the boat hull. All functions with the exception of manual steer and track record are

canceled upon trimming into this region.

sTOWIng & dEPLOYIng

To deploy the motor with the i-Pilot remote, double press .

Pressing the button while deploying will stop the sequence. A second button press will reverse the deploy

sequence. Upon deploy the motor will return to its last trim length.

To stow the motor with the i-Pilot remote, press .

Pressing the button while stowing will pause the sequence. If the motor shaft is still vertical a second

button press will continue the stow cycle. If the motor shaft is not vertical a second button press will redeploy the motor

and return it to its last known trim position.

NOTE: The deploy sequence can be stopped at any time pressing the stow/deploy button. The stow sequence can be

stopped at any time by pressing either trim button or the stow/deploy button.

HIgH sPEEd bYPAss OPERATIOn

Engage

Pressing will set the motor speed to maximum immediately.

Disengage

Pressing again will set the motor speed to the value it was at previously.

NOTE: High Speed Bypass does not enable or disable the prop.

LCd bACKLIgHT bUTTOn

To turn on LCD backlighting press and release .

The backlight will turn off eight seconds after the last button press to conserve battery power.

fOOT PEdAL OPERATIOn

• Pressing either MOM or CON buttons on the foot pedal will adjust the motor speed setting to the foot pedal speed setting.

• While either MOM button is pressed on the foot pedal, all speed and prop changes from the i-Pilot are ignored.

Trim Up/Down Stow/Deploy

UndERsTAndIng HOW THE i-PILOT sYsTEm WORKs

nAVIgATIOn

i-Pilot uses GPS satellite signals as well as digital compass data to know where it is, where it is heading and the direction the motor

is pointing. Since i-Pilot depends on GPS satellite signals for navigation, a minimum GPS signal level of one bar is required in order

for GPS navigation controls to be enabled. Best results are achieved when a GPS signal level of four bars can be obtained.

In simple terms, i-Pilot remembers and creates points to navigate your boat automatically. i-Pilot also uses a method of GPS

navigation called arrival circles. These imaginary circles allow i-Pilot to understand when it has drifted away from a point and when

it has arrived at a point. The size of the arrival circles vary depending on GPS signal strength, thus the greater the signal strength

the smaller the arrival circles.

TRACKs

Tracks are made of many points that i-Pilot records when recording a track. The distance between these points varies based on GPS

signal strength and the speed at which you record the track. When a track is played back, i-Pilot uses the track points and arrival

circles to navigate the track.

mEmORY

i-Pilot has the capability of storing up to six individual tracks (each two miles in length) and six individual

Spot-Lock locations. These locations are stored in memory even when power is removed from the system.

Spot-Lock and Track memory locations are separate from each other and they cannot over write each

other. Memory locations are identifi ed on the remote LCD with an icon shown as A, B, C, D, E or F. When

the memory icon is fl ashing, a diff erent location can be selected by pressing or .

sECTIOn TITLEgPs mOTOR COnTROL

22 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

sECTIOn TITLE

HOW sPOT-LOCK WORKs

sPOT-LOCK

Spot-Lock uses a single point as a reference for the spot you want to stay on. This point is

recorded and stored into one of the six memory locations when the Spot-Lock button is pushed.

Around the Spot-Lock location i-Pilot uses an arrival circle to determine prop speed and

direction. If i-Pilot sees it is within the circle, it will adjust the motor speed to zero. If i-Pilot sees it

is outside of the circle, it will control motor speed in an attempt to get the boat back into the circle.

sPOT-LOCK

minnkotamotors.com | 23

©2014 Johnson Outdoors Marine Electronics, Inc.

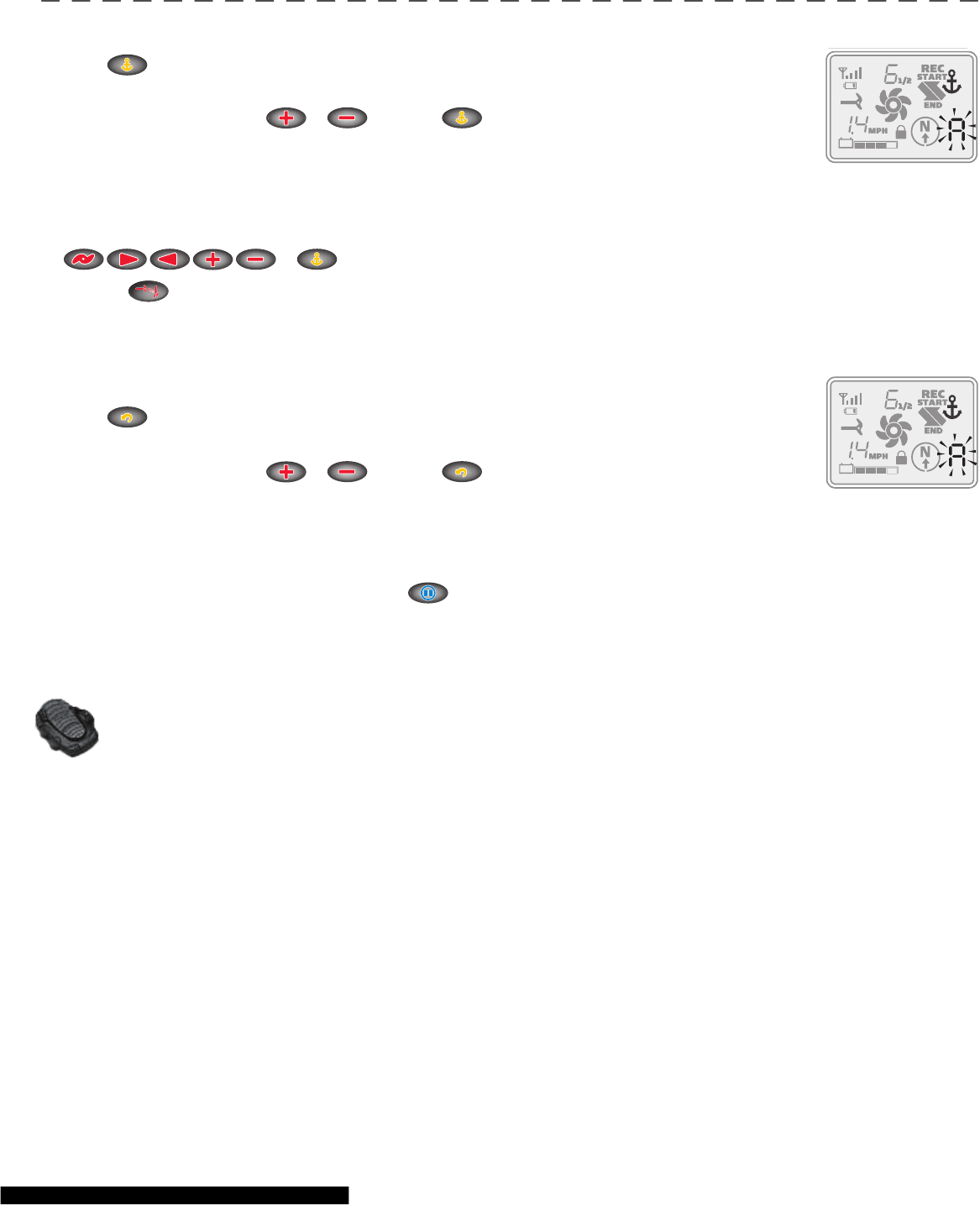

EngAgIng sPOT-LOCK

1. Press on the remote.

2. The Memory Location icon will fl ash on the remote LCD for three seconds, allowing you to choose a

memory location by pressing or . Pressing again or waiting for three seconds accepts the

memory location.

dIsEngAgIng sPOT-LOCK

1. To disengage Spot-Lock press any of these buttons:

or .

RE-EngAgE A sAVEd sPOT-LOCK LOCATIOn

1. Manually navigate the boat to within a quarter mile of the saved Spot-Lock location.

2. Press on the remote.

3. The Memory Location icon will fl ash on the remote LCD for three seconds allowing you to choose a

memory location by pressing or . Pressing again or waiting for three seconds accepts the

memory location.

sPOT-LOCK EsCAPE

1. If the Spot-Lock button is accidentally hit, press or any manual navigation button within three seconds to cancel the

command.

fOOT PEdAL OPERATIOn

• Any speed or steering commands from the foot pedal will disengage Spot-Lock.

• The momentary button on the foot pedal will not function when Spot-Lock or Spot-Lock Recall is engaged.

UsIng sPOT-LOCK WITH OTHER i-PILOT fUnCTIOns

Since Spot-Lock takes over full control of the motor, it cannot be used in combination with other i-Pilot functions.

2. Pressing will disengage Spot-Lock and stow the motor, saving Spot-Lock to the designated

alpha location.

24 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

sPOT-LOCK

sECTIOn TITLE

HOW CRUIsE COnTROL WORKs

CRUIsE COnTROL

i-Pilot automatically controls the motor speed to maintain a constant GPS speed.

EngAgIng CRUIsE COnTROL

1. Press on the remote.

2. The current GPS speed will fl ash, displaying your current speed as the target GPS speed on the

remote LCD for three seconds.

3. Press or to increase or decrease the target speed or press again to engage

Cruise Control immediately.

dIsEngAgE CRUIsE COnTROL

1. Pressing will disengage Cruise Control.

AdJUsTIng TARgET sPEEd WITH CRUIsE COnTROL EngAgEd

1. With Cruise Control engaged press or to adjust the target speed by 0.1 MPH increments.

fOOT PEdAL OPERATIOn

• Adjusting the motor speed or pressing the CON button from the foot pedal will disengage Cruise Control.

UsIng CRUIsE COnTROL WITH OTHER i-PILOT fUnCTIOns

Cruise Control can be used in combination with Advanced AutoPilot, AutoPilot, Track Recording, and Track Playback.

CRUIsE COnTROL

2. Pressing will disengage Cruise Control and stow the motor..

minnkotamotors.com | 25

©2014 Johnson Outdoors Marine Electronics, Inc.

sECTIOn TITLEAUTOPILOT

HOW AUTOPILOT WORKs

Two diff erent versions of AutoPilot are available: AutoPilot and Advanced AutoPilot. There

are distinct diff erences between the two AutoPilots and how they control your boat.

AUTOPILOT

AutoPilot uses an internal compass to provide heading lock. When AutoPilot is on, it keeps the

motor pointed in the same compass direction. If a manual steering correction is made, AutoPilot

locks onto the new compass heading to which the boat was steered. This method of heading tracking

does not take into account external forces such as a side wind or currents, which can allow side drift.

AdVAnCEd AUTOPILOT

Advanced AutoPilot not only uses compass heading but

also GPS signal data to correct for cross winds, current and

other external forces to keep the boat on a straight line. When

Advanced AutoPilot is turned on, it generates a set of GPS

points in a straight track line in the heading direction. i-Pilot now

navigates to each individual point on this track line. When the

user steers to a new heading, a new track line of GPS points are

laid down in the new heading direction.

26 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

AUTOPILOT

EngAgIng AdVAnCEd AUTOPILOT And AUTOPILOT

1. To engage Advanced AutoPilot, press once. To engage AutoPilot, press and hold

for two seconds.

2. The Advanced AutoPilot or AutoPilot icon will be displayed on the remote LCD.

3. To adjust desired heading, manually steer motor to new heading. i-Pilot will lock onto new heading.

WHICH AUTOPILOT dO I UsE And WHEn?

With all the external variables, this question can be diffi cult to answer. Both AutoPilots have their benefi ts based on the type of fi shing

and bait presentation desired.

Advanced AutoPilot will keep the boat on a true straight path in most conditions. When very extreme conditions exists such as very

strong winds or current, the trolling motor may not have enough power to control the boat smoothly. In these extreme cases it may be

best to use AutoPilot and let the boat move with the wind or current if the motor is not powerful enough to overcome it.

AutoPilot helps you maintain a constant heading but does not compensate for wind or currents.

Both Advanced AutoPilot and AutoPilot are valuable tools the fi sherman can use for accurate and precise bait presentation.

We highly recommend getting on the water and trying both Advanced AutoPilot and AutoPilot in various fi shing situations and

applications. With experimentation and time you will fi nd which AutoPilot works best for you in a given situation.

fOOT PEdAL OPERATIOn

• Advanced AutoPilot can be turned on by pressing the AP button on the foot pedal.

• AutoPilot

cannot

be turned on by using the AP button on the pedal.

UsIng AdVAnCEd AUTOPILOT And AUTOPILOT WITH OTHER i-PILOT fUnCTIOns

Advanced AutoPilot and AutoPilot can be used in combination with Cruise Control and while recording a track.

Advanced AutoPilot

AutoPilot

dIsEngAgIng AdVAnCEd AUTOPILOT And AUTOPILOT

1. Pressing will disengage AutoPilot.

2. Pressing will also disengage AutoPilot and stow the motor.

minnkotamotors.com | 27

©2014 Johnson Outdoors Marine Electronics, Inc.

sECTIOn TITLE

HOW TRACK RECORdIng And PLAYbACK WORK

TRACK RECORdIng And PLAYbACK

When the Track Record button is pressed, i-Pilot starts to record GPS position data in the form of track

points. The distance between these points varies based on the speed of the boat and the GPS signal

strength. The very fi rst track point recorded is called the start. The last point recorded is called the end.

i-Pilot sees a recorded track as a series of these track points. When a Track to Start or Track to End

button is pushed, i-Pilot will navigate to the nearest track point. Once this nearest track point is reached,

it will then follow the track points in sequence back to either the start or end based on which button was

pressed. Once the end or start track point is reached, i-Pilot automatically exits from the Track to Start

or Track to End function. During track playback, i-Pilot takes control over all steering functions; speed

can be manually controlled or the Cruise Control function can also be used. The motor speed must be

set high enough in order to stay on the track given wind, current and other external forces.

i-Pilot can also pause the recording of a track. When the recording is paused, i-Pilot temporarily stops

recording any new track points. When track recording is resumed, i-Pilot records new track points. Due

to the nature of pausing a recording, there may be a large separation distance between two track points

or two track points lying on top of one another where the pause occurred. This can cause erratic motor

steering therefore it is very important to know where the pause button was pressed and to resume the

recording just ahead of that location. If while paused, the separation distance exceeds a quarter mile, the

recording will automatically stop.

Recording of a track can be done at any motor state (stowed, deployed, or in the

stowing/deploying sequence).

TRACK RECORdIng / PLAYbACK

28 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

TRACK RECORdIng / PLAYbACK

RECORdIng A TRACK

1. Press on the remote.

2. The Memory Location icon will fl ash on the remote LCD for three seconds, allowing you to choose a

memory location by pressing or . Pressing again or waiting for three seconds accepts

the memory location.

3. The REC icon will be displayed on the remote LCD. Remember this will be the start point on the track.

4. Navigate the boat along the desired path or course. AutoPilot and/or Cruise Control can be used while

recording a track.

5. Press on the remote again to stop the recording. The recording will end automatically if the two-mile distance limit is reached

for the track or if one of the following buttons are pressed: or .

PAUsE And REsUmE A RECORdIng

1. While recording a track press .

2. The record icon will fl ash on the remote LCD.

3. i-Pilot has now paused the recording of the track.

4. If the boat moves farther than a quarter mile from where was pressed, the recorded track will be ended and saved to the

memory location previously selected.

5. When ready to resume recording, navigate the boat just ahead of where was pushed. Failure to do this may cause erratic play

back of a track.

6. Push .

7. The record icon will stop fl ashing on the remote LCD.

8. i-Pilot is now recording again and adding to the track that was paused.

6. Recording will continue throughout use of the motor, including stowing, until you hit the record button on the remote or you turn the

motor off.

minnkotamotors.com | 29

©2014 Johnson Outdoors Marine Electronics, Inc.

TRACK RECORdIng / PLAYbACK

REPLAYIng A TRACK

(TRACK TO sTART / TRACK TO End)

1. Manually navigate the boat to within a quarter mile of the saved track. Due to safety reasons, i-Pilot will not re-engage a saved track

greater than a quarter mile away.

2. Press or on the remote.

3. The Memory Location icon will fl ash on the remote LCD for three seconds, allowing you to choose a

memory location by pressing or . Pressing the button pressed in step 2 again or waiting for

three seconds accepts the memory location.

4. Adjust motor speed to desired setting to engage and navigate track automatically.

RECORd, TRACK TO End And TRACK TO sTART EsCAPE

1. If or is accidentally hit, press within three seconds on the remote to cancel the command.

fOOT PEdAL OPERATIOn

• Steering left or right or turning Advanced AutoPilot on with the foot pedal will disengage Track to Start or

Track to End.

You can switch directly between Track to Start and

Track to End. This allows you to concentrate on

productive sections of a track.

i-Pilot

TIPS

30 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

minnkotamotors.com | 31

©2014 Johnson Outdoors Marine Electronics, Inc.

Ing YOUR fOOTPEdAL

ULTERRA fUnCTIOns

Pressing the MODE button allows the use of the Ulterra specific

functions. You can steer (heel/toe), trim or stow/deploy the motor

while in Ulterra mode.

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

TRIm UP/dOWn

To trim up/down: Push the mode button until the center yellow

LED is lit. Pressing the right button trims the motor down.

Pressing the left button trims the motor up. You can trim your

motor while in Ulterra mode only.

COnsTAnT

AUTOPILOT

sPOT-LOCK

mOdE

sTOW/dEPLOY

To stow/deploy the motor: Push the mode button until the center

yellow LED is lit. Pressing the centerProp button twice will deploy

the motor. Pressing the center Prop button once will stow the

motor. You can use the stow and deploy commands only while in

Ulterra mode.

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

32 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

Ing YOUR fOOTPEdAL

sTEERIng

LEfT/RIgHT TOE bUTTOns

To steer: With the mode button off, left and right steering control

can be done with the Left/Right steering buttons. Holding the

left or right steering button down steers left or right. Small

steering changes of less than one degree can be made by quickly

tapping the left and right steering buttons.

HEEL/TOE PEdAL

When the mode button on, place your foot in the center of the

heel/toe pedal, rocking forward steers right. Rocking back steers

left. The yellow MODE light will be illuminated.

NOTE: The steering system is designed to turn your motor 360

degrees. Be careful to avoid over-wrapping the coil cord around

the trolling motor shaft.

Only illuminated in

Ulterra Mode

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

PROP On

All Prop On functions can be used in Standard and Ulterra Mode.

NOTE: Prop button switches to Stow/Deploy in Ulterra Mode.

mOmEnTARY bUTTOn

To operate the motor in momentary mode: Pressing either of the

two momentary buttons turns the propeller on at the footpedal

speed setting. Let up and the propeller stops. Prop button will

not work with the MODE button engaged.

COnsTAnT bUTTOn

To operate the motor in continuous mode: Pressing the

Mom/Con button toggles the motor between momentary and

constant. When the motor is in constant the propeller will run

continuously at the footpedal speed setting without keeping your

foot on the pedal. Even while in constant mode, however, the toe

button on the heel/toe pedal is momentary. Prop button will

not work with the MODE button engaged.

minnkotamotors.com | 33

©2014 Johnson Outdoors Marine Electronics, Inc.

Ing YOUR fOOTPEdAL

AUTOPILOT

Pressing the AP button toggles the AutoPilot On and Off. The

red AutoPilot indicator light will be illuminated on the foot pedal.

By default advanced AutoPilot is selected when AutoPilot

is initiated from the foot pedal. AutoPilot can be used in both

Standard and Ulterra mode.

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

sPOT-LOCK

To initiate Spot-Lock: Pressing the Spot-Lock button initiates

Spot-Lock and illuminates the blue indicator light on the

footpedal. By default Spot-Lock initiated from the footpedal

resides in location "A". Spot-Lock can be engaged in Standard

and Ulterra mode.

AUTOPILOT

sPOT-LOCK

mOdE

COnsTAnT

sPEEd AdJUsT

To adjust motor speed: Rotate the speed knob on the right side of

the pedal to the desired speed setting. You can adjust the speed

in Standard and Ulterra mode.

34 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

gEnCY sTOW PROCEdURE

In the event of a power loss the following procedure shall be used to stow the motor for transport to a service center.

1. Remove right hand sideplate using a Phillips screwdriver. (Figure 13)

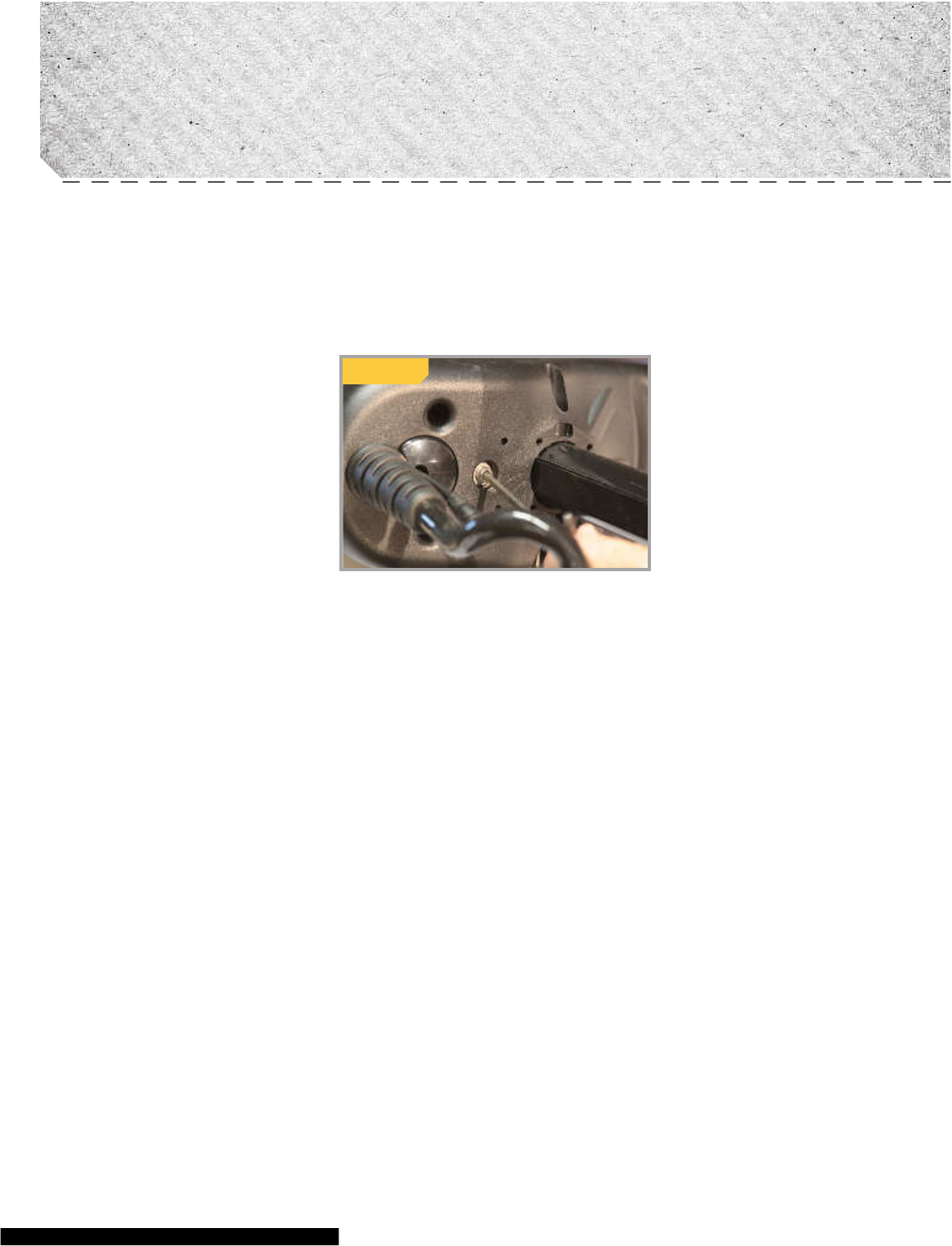

2. Using a Phillips screwdriver, loosen the screw on the manual tilt knob and then pry up with a fl at blade screwdriver until it releases from

the metal plates. (Figure 14 and Figure 15)

3. Pull manual trim handle out while lifting up on the trim housing until shaft and trim module can be pulled up by hand. (Figure 16)

Figure 13

Figure 16

Trim Handle

Trim Housing

Manual Tilt Knob

Figure 14 Figure 15

minnkotamotors.com | 35

©2014 Johnson Outdoors Marine Electronics, Inc.

nUAL sTOW PROCEdURE

4. While pulling up on the bracket to release the latch pin, rotate (Figure 17) and pull the lower unit onto the ramps. (Figure 18 & Figure 19)

5. Secure lower unit onto the ramps using the provided emergency strap. The d-ring on the emergency strap can be hooked into the

base as shown (Figure 20). This feature is located on the left side of the motor as viewed from the boat interior. (Figure 21)

Figure 18

Figure 20

Figure 21

Figure 17

Figure 19

Figure 22

36 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

AdJUsTmEnTs

AdJUsTIng THE LIfT bELT

Periodically slack may appear in the main lift belt, and it may occasionally require small adjustments to maintain belt tension. Using a

1/8” allen wrench turn the socket head cap screw, located on the bottom of the control head, clockwise (see Figure 15) until belt is finger

tight and you can force finger under belt.

Propeller

Slot End

Drive Pin

Prop Nut

Washer

PROPELLER REPLACEmEnT

TOOLS AND RESOURCES REQUIRED:

• Box End Wrench

- 1/2” for motors with 70 lbs thrust or lower.

- 9/16” for motors with 80 lbs thrust or higher.

• Screwdriver (optional)

CAUTION:

Disconnect the motor from the battery

before beginning any prop work or

maintenance.

NOTE: The propeller on your motor may diff er from

the one pictured.

1. Disconnect the motor from all sources of power prior to changing the propeller.

2. Hold the propeller and loosen the prop nut with pliers or a wrench.

3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade

screwdriver pressed into the slot on the end of the shaft.

4. Turn the old prop to horizontal (as illustrated) and pull it straight off . If drive pin falls out, push it back in.

5. Align the new propeller with the drive pin.

6. Install the prop washer and prop nut.

7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.

gEnERAL mAInTEnAnCE

1. After use, the entire motor should be rinsed with freshwater, then wiped down with a cloth dampened with an aqueous based

silicone spray. This series of motors is not equipped for saltwater exposure.

2. The propeller must be inspected and cleaned from weeds and fi shing line after every use.

Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.

3. Verify the prop nut is secure each time the motor is used.

4. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water.

For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.

5. For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore

battery to full charge prior to use.

6. Keep battery terminals clean with fi ne sandpaper or emery cloth.

7. The propeller is designed to provide weed free operation with very high effi ciency. To maintain this top performance, the

leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fi ne

sandpaper.

minnkotamotors.com | 37

©2014 Johnson Outdoors Marine Electronics, Inc.

sERVICE & mAInTEnAnCE

1. Motor fails to run or lacks power:

• Check battery connections for proper polarity.

• Are batteries charged?

• Make sure terminals and wires are clean and corrosion free. Use fi ne sandpaper or emery cloth to clean terminals.

• Check circuit protection devices.

• Check battery water level. Add water if needed.

2. Motor loses power after a short running time:

• Check battery charge. If low, restore to full charge, or replace.

3. You experience prop vibration during normal operation:

• Remove and rotate the prop 180°. See removal instructions in the Propeller Replacement Section. Replace prop if worn.

4. Experiencing interference with your fi shfi nder:

• You may, in some applications, experience interference in your depth fi nder display. We recommend that you use a seperate deep

cycle marine battery for your trolling motor and that you power the depth fi nder from the starting/cranking battery.

5. Motor contacts an object while trimming causing a current limit (red status LED fl ashing):

• Reverse the direction of trimming to clear motor from obstruction.

6. Motor contacts an object while stowing causing current limit (red status LED fl ashing):

• Reverse the current cycle by pressing the stow/deploy button to clear from obstruction.

7. Motor fails to trim:

• Check main lift belt tension per the Adjustments section.

8. Motor fails to stow or deploy:

• Check for obstructions preventing the motor from deploying or stowing.

• Ensure that manual tilt knob is engaged. See the Emergency Stow Procedure section for details.

• Check charge state of trolling motor batteries. If trolling motor battery icon on remote is fl ashing, battery charge is too

low for operation.

9. Prop will not turn on:

• Ensure batteries are suffi ciently charged.

• For safety reasons there is a prop lock out region (approx. 15” from mounting base to lower unit centerline). Ensure that the

lower unit is not in this region.

NOTE: If these problems persist or for all other inquiries, call our customer service number at (800) 227-6433. For motor repair, a

listing of Authorized Service Centers in your area can be found at minnkotamotors.com.

38 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

bLEsHOOTIng

minnkotamotors.com | 39

©2014 Johnson Outdoors Marine Electronics, Inc.

bLEsHOOTIng

i-PILOT gEnERAL TROUbLEsHOOTIng

Problem: The motor is making erratic steering corrections while in AutoPilot, Spot-Lock or Track to Start/End.

Solution: Be sure to keep all ferrous metallic objects away from the i-Pilot controller as they will have an impact on the built-in

compass. Such objects include: anchors, metal framework, etc.

Problem: When a button on the remote is pressed the motor doesn’t always respond.

Solutions: Check if the low battery indicator is on. If so, replace the remote’s battery. Check for large obstructions between the

remote and the motor.

Problem: I press a button on the remote and nothing happens.

Solution: Could be a dead battery in the remote. If the battery was just replaced, open the remote case and verify that all the

internal components were properly reinstalled.

Solution: If

is displayed, the keypad is locked. Press and hold for 3 seconds to unlock the keypad.

Problem: I press a button on the remote and all the icons come on for a few seconds then it shuts off .

Solutions: Verify that the motor is powered up. Go through the learn process for the remote (see page 17 for the procedure).

Problem: i-Pilot won’t let me turn on certain features like: Advanced AutoPilot, Record, Track to Start/End or

Spot-Lock.

Solution: Verify that the GPS Signal Strength icon on the LCD shows at least one bar. If there are no bars, i-Pilot will not allow

these GPS-based features to be enabled.

Problem: The remote LCD backlighting will not come on.

Solution: Check if the low battery indicator icon is on. Backlighting is disabled when a low battery level is detected. Replace the

battery.

Solution: The Backlight will not come on if the remote is not currently communicating with the i-Pilot Controller.

sPOT-LOCK

Problem: The boat doesn’t seem to keep close enough to the recorded Spot-Lock location.

Solution: Verify the trolling motor batteries are suffi ciently charged.

Solution: Check for weeds on the prop.

Solution: In more extreme wind and current conditions, the boat will tend to stabilize a little ways down wind from the intended

location. Relock the location the same distance upwind and expect that the boat will drift some in the downwind

direction.

CRUIsE COnTROL

Problem: The GPS speed displayed on the remote is diff erent than what my other GPS system shows.

Solution: If you are using Cruise Control with Advanced AutoPilot or Track to Start/End, i-Pilot calculates the actual

speed in the intended direction of travel which may diff er from your GPS reported speed.

Problem: Cruise Control isn’t holding the target speed close enough.

Solution: Verify the trolling motor batteries are suffi ciently charged.

fOR fURTHER TROUbLEsHOOTIng And REPAIR

We off er several options to help you troubleshoot and/or repair your product. Please read through the options listed below.

fREQUEnTLY AsKEd QUEsTIOns

We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on

“Frequently Asked Questions” to fi nd an answer to your question.

CALL Us (fOR U.s. And CAnAdA)

Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.

If you are calling to order parts, please have the 11-character serial number from your product, specifi c part numbers, and credit

card information available. This will help expedite your call and allow us to provide you with the best consumer service possible.

You can reference the parts list located in your manual to identify the specifi c part numbers.

EmAIL Us

You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit

minnkotamotors.com and click on “Support”.

AUTHORIZEd sERVICE CEnTERs

Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your

products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.

40 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

TROUbLEsHOOTIng

AUTOPILOT

Problem: When in Advanced AutoPilot in strong winds, there is quite a bit of back and forth movement in the

boat.

Solution: While Advanced AutoPilot will keep your boat on a true heading, it may be at the expense of the boat having

to continuously move to get back on the correct course. In these extreme conditions you may be better off using

AutoPilot and correcting for the wind manually.

Problem: I press and release the Advanced AutoPilot button and the system goes into AutoPilot instead of

Advanced AutoPilot.

Solution: If the GPS Signal Strength indicator shows no bars, then pressing and releasing the AutoPilot button will enable

AutoPilot automatically instead of requiring that the button be held for two to three seconds like when GPS is present.

TRACK RECORd And PLAYbACK

Problem: While in Track to Start/End the propeller suddenly stopped.

Solution: Verify you did not accidentally enable another automatic feature such as AutoPilot or Spot-Lock.

Solution: When the end (or start) of the track is achieved during playback, i-Pilot will automatically turn off the motor along with

canceling Track to Start/End.

Problem: While in Record mode, the recording suddenly stopped.

Solution: You may have reached the two mile limit for recording a track.

minnkotamotors.com | 41

©2014 Johnson Outdoors Marine Electronics, Inc.

f Q

Q: Is there a trolling motor battery meter on Ulterra?

A: Yes. The motor battery meter is displayed on the i-Pilot or i-Pilot Link remote control LCD screen. Battery meter is displayed when

prop is off .

Q: Which quick release brackets are compatible with Ulterra

A: The following quick release brackets can be used with UIterra: MKA-32, MKA-16-02, RTA 17 and RTA 21.

Q: Is there a manual Stow and Deploy procedure?

A: Yes. There is a manual method for stowing Ulterra. See the Emergency Stow Procedure section for instructions.

Q: When Ulterra is deployed, at what depth does the deploy stop?

A: Ulterra will always deploy to the most recent depth that was used.

Q: Are the Ulterra and Terrova foot pedals interchangeable?

A: No. The foot pedals are not interchangeable.

Q: If I engage Spot-Lock on the foot pedal, which Spot-Lock position on the remote is used?

A: i-Pilot: When Spot-Lock is activated from the foot pedal it will always utilize position “A” on the remote.

A: i-Pilot Link: When Spot-Lock is enabled from the foot pedal, the user has the option of saving or discarding the Spot-Lock

loction. If saved, the next available Spot-Lock number will be utilized.

Q: What is the “Mode” button on the foot pedal?

A: The Ulterra foot pedal is dual function. When it is in “Ulterra” mode, the yellow LED light will be illuminated. In this state the foot

pedal toe buttons can be used to auto stow and deploy the motor and control trim. When it is in “steering” mode, the yellow LED

will be off . In this state the foot pedal toe buttons can be used to control steering and prop on/off . In either state, the heel/toe pad

can be used to control steering.

Q: Is there a way to clean weeds from the lower unit?

A: Yes. During the process of stowing, the stow cycle can be stopped by pressing the stow/deploy button as the motor begins to tilt

back. The lower unit is easily accessible at this point to clear weeds. A second button press of the stow/deploy cycle will re-deploy

the motor to its previous position.

Q: Can I stow the motor with the prop in or out?

A: Yes, the motor can be confi gured to stow with either the prop in or out. Follow the procedure outlined in the Installation Mounting

Options section.

42 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

fAQ

i-PILOT

Q: Does i-Pilot record the speed I am traveling when recording a track?

A: No. i-Pilot only records its location during track record. It is up to the user to set the desired speed manually or with Cruise Control.

Q: Why doesn’t my GPS Signal Strength icon always show all four bars?

A: GPS signal strength is impacted by many infl uences including:

• i-Pilot controller having a clear view of the sky (especially to the southern sky),

• boat being located alongside a high bank

• your geographic location.

Q: Is i-Pilot compatible with CoPilot?

A: No. None of the components between the two systems are compatible with each other.

Q: Does the remote fl oat?

A: Yes.

Q: How long of a track can I record?

A: Each individual track location (A, B, C, D, E or F) can be up to two miles in length.

Q: Can I use multiple remotes with my i-Pilot?

A: Yes, you can use an unlimited number of remotes simultaneously. Remember to learn each new remote to the i-Pilot controller.

Q: Why does the LCD screen of the remote have dark blotches on it when I wear my sunglasses?

A: Polarized sunglasses can dramatically aff ect the way an LCD looks to the human eye.

Q: Can I control how fast i-Pilot takes me back to a Spot-Lock location when using Spot-Lock Recall?

A: No, Spot-Lock and Spot-Lock Recall are fully automatic functions that take full control of motor steering and speed.

Q: Where can I purchase additional remotes?

A: Your local Minn Kota retailer should carry additional remotes.

Q: If I turn off the remote, will i-Pilot continue to operate?

A: Yes. The i-Pilot Controller will continue in its current state of operation until the user makes a change either with the remote or

foot pedal (Terrova only).

Q: Where are the six tracks and Spot-Lock locations stored?

A: In the i-Pilot Controller.

Q: Does i-Pilot help to keep the coil cord from wrapping around the motor shaft?

A: Yes and no. When in Spot-Lock, i-Pilot keeps track of how far it has rotated in either direction. If a new correction will cause the

coil cord to wrap, it will rotate in the opposite direction in order to prevent the wrapping. In all other modes, it is up to the user to

monitor the coil cord and to rotate the motor accordingly to avoid wrapping.

minnkotamotors.com | 43

©2014 Johnson Outdoors Marine Electronics, Inc.

s dIAgRAmPARTs dIAgRAm

44 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

s dIAgRAm

24 Volt Motor

36 Volt Motor

minnkotamotors.com | 45

©2014 Johnson Outdoors Marine Electronics, Inc.

ITEm QTY PART nUmbER dEsCRIPTIOn

1 1 2777016 24 V MOTOR 45" FW

12777015 24V MOTOR 60" FW

12777086 36V MOTOR 45" FW

12777085 36V MOTOR 60" FW

2 1 2990206 HEAD  SY, FW, IPILOT 1.5

12990208 HEAD  SY, FW, IPILOT LINK

3 2 2205511 DE L,CONTROL BOX SIDE

4 1 2202635 PIN-DOWEL, 1/4" OD SS

5 3 2202335 PULLEY, BELT, TOP

6 2 2333101 NUT-HEX #10-24

7 1 2202800 BLOCK, BELT

8 1 2332102 SCREW-#10-24 X 1-3/4

9 1 2201721 W HER, #10 SAE, SS

10 12203411 SCREW-#10-24, SH , SS

11 62372100 SCREW, #8-18 X 5/8 THD

12 12202506 CONTROL BOX BOTTOM

13 22203406 SCREW, #6-32 X 0.75 PPH, SS

14 12202820 BLOCK-BRUSH, SLIPRING

15 22208207 BRUSH SHUNT  SEMBLY

16 42202712 SPRING COMPRESSION, BRUSH

17 12202815 INSU TOR, BLOCK-BRUSH

18 62332103 SCREW-#6-20 X 3/8 THD, SS

19 12205905 RIGHT  EERING ADAPTER

20 12205900 LE  EERING ADAPTER

21 12302615 SHA -GEAR, INTERMED. CLU ER

22 12302620 SHA -GEAR, THIRD CLU ER

23 12302250 GEAR & PINION, DR. HSG,  AGE 3

24 22321704 W HER-THRU ,  EERING

25 12201510 COL R-DRIVE, OUTPUT TUBE

26 22324608 O-RING, 224, PD PRO  EERING HOUSING

27 22321720 SHIM, O-RING

28 22327308 BEARING-BALL, SEALED, 6809-2RS

29 12201920 BRACK -SENSOR,  EERING HSG

30 22303412 SCREW-#6-20 X 5/8 SELF TAP

31 12322200 GEAR-OUTPUT

32 12321510 COL R-DRIVE, BOTTOM

33 12206501 B CK  EERING HSG COVER

34 12302610 SHA -GEAR, FIR CLU ER

35 12302255 GEAR & PINION,  AGE 4

36 12302245 GEAR & PINION,  AGE 2

37 12302240 GEAR & PINION,  AGE 1

38 12300265  P-MOTOR, P TIC

39 12327025 MOTOR- EERING PD/AP 36V

12327020 MOTOR- EERING PD/AP 24V

40 12300260  P-SPACER, P TIC

41 12328610 CRADLE-MOTOR

42 12322030 TUBE-OUTPUT, MACHINED

43 12324604 O-RING,  E SEAL

44 12308601 BREATHER FILTER, DR. HSG

45 12326506  EERING HSG, BTTM, BLK

46 72323408 SCREW-#8-32 X 2.0 SH SS

47 42302605 PIN-ROLL 5/16" X 1/2"

48 22322702 SPRING,  TCH PIN SS

49 12202625 PIN- TCH

50 52263011 E-RING 3/8 DIA. SHA

51 32321702 W HER-F T .375 NYLON

52 12323410 SCREW-#8-32 X .75 SH SS

53 12200100 KNOB, TILT RELE E

54 12383463 SCREW-#6-32 X .625" S SS

55 12201911 BRACK , TILT, ZP

56 22207305 BUSHING,  TCH PIN

57 22207310 BUSHING,  RG HSG PIVOT

58 22201730 W HER-F T, .56 ID NYLON

59 12202601 PIN-PIVOT, DRIVE HOUSING, SS

60 12778601 HOLDER-MAGN

61 12200600 LEADWIRE,  EERING MTR, 8 COND.

62 22202902  ANDOFF, OIL DAMPENER

63 42263006 E-CLIP, 5/16

64 12202332 PULLEY, TRIM JACKSHA

65 12772310 WORM SHA  SY W/ PULLEY

ITEm QTY PART nUmbER dEsCRIPTIOn

66 12200000 BEARING-THRU , NEEDLE

67 12207300 BUSHING, TRIM, TOP

68 12206525 HOUSING-TRIM, GEAR SIDE

69 12207301 BUSHING, TRIM, BOTTOM

70 12201710 W HER-THRU , 3/8"

71 12206410 COVER, TRIM HOUSING

72 12204601 O-RING, TRIM HOUSING

73 12204600 O-RING, TRIM HSG COVER

74 22202610 PIN, BELT PULLEY

75 12202621 PIN, 2"X1/4"

76 12202701 SPRING, 5/16" OD, SS

77 12200901 HANDLE, TRIM HSG RE , ZP

78 32053422 SCREW-M3-.5 X 10 PPH, ZP

79 32051710 LOCKW HER-SPLIT, 3MM, ZP

80 12206400 P TE, MOTOR

81 12202825 BLOCK, TUBE DRIVE

82 22202636 PIN-DOWEL, 1/8"

83 12208620  RRIER, SLIPRING CONTA S

84 12203011 CONTA , SLIPRING SMALL

85 12203010 CONTA , SLIPRING  RGE

86 12053420 SCREW-S -#8-32 X 1/4" SS

87 12201722 W HER-#6, .625 OD

88 12200810 BELT-TRIM

89 12202336 PULLEY, LI MOTOR, MACHINED

90 12058411 TENSIONER-BELT

91 22053424 SCREW-M4 X 10 PFH, ZP

92 12051915 P TE-ADAPTER, LI MOTOR

93 12207800 MOTOR, TRIM

94 12204003 BOARD  SY, WIREL S TRIM

95 12206520 HOUSING-TRIM, MOTOR SIDE

96 11 3393481 SCREW, #10X.75 HI-LO, SS, PPH

97 12203905 SIDEP TE, LE

98 12208800 DAMPER, HYBRID, 80#

12208802 DAMPER, HYBRID, 112#

99 12991272 COIL CORD  SY 54/60" U. SONAR

100 12205600 DE L, B. M ER/CON/PWR FW, BLK

101 12206510 HOUSING-CONTROL, B CK

102 12202910  RAIN RLF, HEYCO SR 6N3-4

103 12774080 MAIN CONTROL BOARD, 24V, 60", N AMERI

2774081 MAIN CONTROL BOARD, 24V, 45", N AMERI

2774082 MAIN CONTROL BOARD, 36V, 60", N AMERI

2774083 MAIN CONTROL BOARD, 36V, 45", N AMERI

2774084 MAIN CONTROL BOARD, 24V, 60", EUROPE

2774085 MAIN CONTROL BOARD, 24V, 45", EUROPE

2774086 MAIN CONTROL BOARD, 36V, 60", EUROPE

2774087 MAIN CONTROL BOARD, 36V, 45", EUROPE

104 22323406 SCREW-#10-24 X .50 CRPH SS

105 72323404 SCREW-1/4-20 X 1/2" T-L ZP

106 12200821 CLIP-CORD, ZP

107 12321310  RAIN RELIEF

108 12090651 LEADWIRE, 10 GA

109 22383447 SCREW-#10-32 X 3/8" PPH SS

110 12202606 PIN, A UATOR, ZP

111 12201901 B E, MACHINED, FW

112 42203410 SCREW #10-32 X .5"

113 12204201 ARM-LI , INNER, ZP

114 22202901  ANDOFF, LI ARM

115 12203100 NUT, TILT MOTOR

116 12204206 ARM-LI , OUTER, ZP

117 12203916 RAMP-MOTOR, LE 80#

12203915 RAMP-MOTOR, LE 112#

118 10 2373440 SCREW-#4-24 X 1/4 PHCR SS TY B

119 12773700 PLUNGER, RAMP

120 22203420 SCREW #10-24 X 5/16 PFH

121 22205105 PAD,  OP

122 12262632 PIN-SPRING 1/4" X 5/8" SS

123 12207900  M, PIN SENSOR

124 12201702 SPACER, PIN SENSOR

125 12042711 SPRING-TORSION, SS

126 19280710 HDW SCR 1/4 - 20 X 7/8 TRUSS PHIL

PARTs LIsT

46 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

ITEm QTY PART nUmbER dEsCRIPTIOn

127 12203911 RAMP-MOTOR, RIGHT, 80#

2203910 RAMP-MOTOR, RIGHT, 112#

128 12206550 HOUSING, CONNE OR WPJ

129 12200601 LEADWIRE, TILT MOTOR

130 12206421 COVER, TILT A UATOR

131 12204610 O-RING, TILT,  RGE

132 12207810 MOTOR,  OW/DEPLOY

133 12201930 MOUNTING P TE, TILT MOTOR

134 12204611 O-RING, TILT, SMALL

135 42203400 SCREW-M4 X 8, SS

136 12200830 COUPLER,  W/DPLY A UATOR

137 12202631 SPRING PIN, 5MM X 20MM

138 12204620 SEAL, TILT MOTOR

139 22201713 W HER-THRU , TILT MOTOR

140 12200005 BEARING-THRU , TILT MOTOR

141 12201704 SPACER, SHA

142 12202315 SHA ,  OW/DEPLOY, SS

143 12206425 COVER-NOSE, TILT A UATOR

144 42373483 SCREW-#8-18 X 5/8" PPH

145 22205510 DE L, SIDEP TE, FW

146 12203900 SIDEP TE, RIGHT

147 12200818 BELT-LI 5MM HTD

148 12324400 PEDAL, HEEL/TOE FOOT PEDAL

149 12326710 PLUG, FOOT PEDAL

150 12323710 BUTTON, MOM LE ,  PEDAL

151 22321300 C MP-LE ,  PEDAL

152 42223430 SCREW-#8 X 3/4 PPH

153 12328600 FLEX FINGER, FOOT PEDAL

154 12205605 DE L, 3 INDI TORS

155 12200200 COVER, HEEL TOE FOOT PEDAL

156 12322900  RAIN RELIEF, FOOT PEDAL

157 12204008 PCB  SY, FOOT PEDAL

158 12323725 BUTTON, AP,  PEDAL

159 12323715 BUTTON, MOM/CON,  PEDAL

160 12204500 B E P TE

161 22323420 SCREW, #8-18 3/8 PFH SS

162 22322706 SPRING-BARREL SS

163 11 2301310 SCREW, #8-18 X 1/2" SS

164 12203710 BUTTON, L  R W/ TRIM UP ARROW

165 12203715 BUTTON, MOMENTARY/ OW-DEPLOY

166 72322704 SPRING,  RGE SHORT SS

167 12203711 BUTTON, RGT  R W/ TRIM UP ARROW

168 12203720 BUTTON, SPOT LOCK

169 12203725 BUTTON, MODE

170 12320100 KNOB-SPEED, FOOT PEDAL

171 12322714 SPRING, MOM  SI SS

172 43393480 SCREW-#10 X 1.0" PPH HI-LO SS

173 12201505 COL R, BELT C MP

174 12200800 BELT-RACK, LOWER

175 12201500 COL R, C MP

176 12994740 FOOTPEDAL  SEMBLY

177 12224700 PLUG INSERT (IPILOT)

2224701 PLUG INSERT (IPILOT LINK)

178 12997813 TILT MOTOR  SY

179 12996502  EERING HOUSING  SY

180 12777098  R HSG  SY, CB, 80#, FW, W/TUBE, 45"

12777099  R HSG  SY, CB, 80#, FW, W/TUBE, 60"

12777248  R HSG  SY, CB, 112#, FW, W/TUBE, 45"

12777249  R HSG  SY, CB, 112#, FW, W/TUBE, 60"

181 1640-118 LEADWIRE, RED, 80#, 45"

1640-132 LEADWIRE, RED, 112#, 45"

1640-126 LEADWIRE, RED, 80#, 60"

1640-135 LEADWIRE, RED, 112#, 60"

182 1640-027 LEADWIRE, B CK, 80#, 45"

1640-017 LEADWIRE, B CK, 112#, 45"

1640-022 LEADWIRE, B CK, 80#, 60"

1640-045 LEADWIRE, B CK, 112#, 60"

183 1640-315 GROUNDWIRE, BROWN, US2.0, 45"

1640-316 GROUNDWIRE, BROWN, US2.0, 60"

184 12203800  RAP, EMERGENCY

ITEm QTY PART nUmbER dEsCRIPTIOn

185 12994171 REMOTE  SY, IPILOT 1.5

186 12994180 REMOTE  SY, IPILOT LINK *LINK ONLY*

187 12370817  NYARD, REMOTE W/  RABEENER

188 12375901 ADAPTER, USB DC POWER *LINK ONLY*

189 12211415  BLE-EXTENSION, PD/AP 110"

190 12373241  BLE, USB REMOTE CHARGER *LINK ONLY*

191 1490389  BLE,  HERN , 30' * LINK ONLY*

192 92378448 .187 X .125 MAGN

194 12093101 NUT-PROP, NYLOCK, SS

195 12091701 W HER-PROP

196 12331160 PROP-WW2, 80#

197 12262658 PIN-DRIVE 1" X 3/16" SS

198 2880-025 SEAL

199 1725-095 PAPER TUBE, SEAL

200 1421-070 BRUSH END HSG, 80#

201 1144-017 BEARING, F NGE

202 2830-095 THRU BOLT 12-24

203 1990-052 W HER, NY TRON

204 1990-051 W HER- EEL THRU

205 2973-025 SPACER, BRUSHP TE

206 19-738-015 BRUSH P TE  SY, 4"

207 2975-041 SPRING-TORSION

208 2186-094 BRUSH 4"

209 2830-027 SCREW-BRUSH P TE 10-32

210 2701-009 O-RING, THRU BOLTS

211 2701-043 O-RING, END HOUSINGS

212 12-100-214 ARMATURE  SEMBLY

213 1140-010 BEARING - BALL

214 1990-045 SPACER, THRU

215 2992-010 W HER, SPRING BELLEVILLE

216 1987-113 TRANSDUCER  SY US 2.5, 80#, 45"

987-114 TRANSDUCER  SY US 2.5, 112#, 45"

987-116 TRANSDUCER  SY US 2.5, 80# &112#, 60"

217 1421-285 P IN END HOUSING MACHINED, SONAR

218 1230038  BLE C MP,  EEL

219 12302104 SCREW-#6 X 3/8

220 12341160 PROP-WW2, 112#

221 1421-150 BRUSH END HSG, 112#

222 2830-094 THRU BOLT 12-24

223 12307312 BEAD-FERRITE

224 19-738-011 BRUSH P TE  SY, 4.5"

225 22053410 SCREW-BRUSH P TE, 10-32

226 2975-045 SPRING-TORSION

227 2188-095 BRUSH, 4.5" LU

228 1701-107 O-RING, BRUSH END

229 1701-098 O-RING, P IN END

230 12-100-245 ARMATURE  SY.

231 1140-014 BEARING - BALL

232 2992-011 W HER, SPRING BELLEVILLE

233 1990-011 W HER, SHIM

234 1421-245 P IN END HOUSING,  SY

235 1582-013 CLIP, R AINING SHORT

236 1582-016 CLIP-R AINING, SONAR

237 12218200 FUSE HOLDER  SY

238 12307313 FERRITE BEAD

239 22065400 WIRE INSU TOR-LGE 1-3/4,BLUE

240 22375400 SHRINK TUBE-1/4 OD X 1-3/4

241 12203407 SCREW, #6-32 X .5

242 63391732 SEALING W HER

243 63394602 F T W HER #8

PARTs LIsT

minnkotamotors.com | 47

©2014 Johnson Outdoors Marine Electronics, Inc.

dEsCRIPTIOn PART nO. ITEm nUmbER InCLUdEd / QUAnTITY

TRIM MOTOR  SY 2777810 87 (1), 89 (1), 90 (1), 91 (2), 92(1), 93 (1)

TILT BRACK  SY 2774201 50 (1), 51 (1), 112 (4), 113 (1), 114 (2), 115 (1), 116 (1)

OUTPUT GEAR W/ MAGN S 2772200 31 (1), 192 (4)

 M W/ MAGN AND SPRING PIN 2777900 122 (1), 123 (1), 192 (1)

PLUNGER W/ MAGN 2773700 119 (1), 192 (1)

WORM GEAR W/ MAGN 2772206 192 (1), 193 (2)

WORM SHA  SY W/ PULLEY 2772310 64 (1), 65 (1)

MAGN HOLDER W/ MAGN 2778601 60 (1), 192 (1)

RELE E KNOB W/ SCREW 2770100 53 (1), 54 (1)

SENSOR WIRE W/ BUTT CONNE ORS 2880350

SLIP RING AND  RRIER KIT 2883010 83 (1), 84 (1), 85 (1)

MOUNTING BAG 2994917

sERVICE KITs

PARTs LIsT

EnVIROnmEnTAL COmPLIAnCE sTATEmEnT:

It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable

environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE dIRECTIVE:

EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers,

and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer

electronics to take responsibility for the management of waste from their products to achieve environmentally responsible

disposal during the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required

for EEE designed and intended as fi xed or temporary installation in transportation vehicles such as

automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered

outside of the scope of the Directive, and EEE for those applications can be considered excluded from the

WEEE Directive requirement.

This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other

household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson

Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply

in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do

vary within European Union member states. For more information about where you should dispose of your waste equipment for

recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from

which your product was purchased.

dIsPOsAL:

Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE

directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local

town council.

Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and

dispose of them at the proper place of collection of your local town council.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects

or other reproductive harm.

48 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

COmPLIAnCE sTATEmEnTs

minnkotamotors.com | 49

©2014 Johnson Outdoors Marine Electronics, Inc.

COmPLIAnCE sTATEmEnTs

fCC COmPLIAnCE

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be received, including interference that may cause undesired operation.

Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to

operate this equipment.

This product meets the applicable Industry Canada technical specifi cations. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

TRAnsmITTER mOdEL: 2990206

• IC: 4397A-ULTERRAIP15

• FCC ID: T62-ULTERRAIP15

TRAnsmITTER mOdEL: 2990208

• IC: 4397A-ULTERRA20

• FCC ID: T62-ULTERRA20

Minn Kota Consumer & Technical Service

Johnson Outdoors Marine Electronics, Inc.

PO Box 8129

Mankato, MN 56001

121 Power Drive

Mankato, MN 56001

Phone (800) 227-6433

Fax (800) 527-4464

minnkotamotors.com

©2014 Johnson Outdoors Marine Electronics, Inc.

All rights reserved.

For a complete listing of Minn Kota accessories, visit minnkotamotors.com

• 60-Amp Circuit Breaker

• Mounting Brackets

• Stabilizer Kits

• Extension Handles

• Battery Connectors

• Battery Boxes

• Quick Connect Plugs

RECOmmEndEd ACCEssORIEs

On-bOARd & PORTAbLE bATTERY CHARgERs

Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery

over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the

fastest charge that protect and extend battery life.

TALOn sHALLOW WATER AnCHOR

Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12’ and bold color

options, it boasts an arsenal of features and innovations that no other anchor can touch:

mInn KOTA ACCEssORIEs

We offer a wide variety of trolling motor accessories, including:

mK210dmK345PC mK110P

Follow us:

• Vertical, multi-stage deployment

• User-Selectable Anchoring Modes

• 2x Anchoring Force

• Fast Deploy

• Auto Up/Down

• Triple Debris shields*

• Built-In Wave Absorption

• Noise Dissipation

• Versatile Adjustments

*available on 10’ and 12’ models only

Part #2207101 Rev A 10/14

ECN 36174
