INSTRUCTION MANUAL
E
BASIC
OPERATION
ADDITIONAL
FEATURES
APPENDIX
SUBJECT
PROGRAM
SELECTION
QUICK
OPERATION
This mark certifies that this product meets the requirements of the EU
(European Union) concerning interference causing equipment regulations.
CE stands for Conformité Européenne (European Conformity).
1
FOR PROPER AND SAFE USE
Thank you for purchasing a Minolta camera. This manual has been
designed to help you understand the operation of your Minolta
camera more quickly. After familiarizing yourself with the camera,
start with Basic Operation and learn to operate the camera in Full-
Auto mode. Move on to Subject Program selection when you are
comfortable with the camera and want to have more control. Here
you decide the type of image you want to photograph and leave the
exposure details to the camera.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus conplies with Canadian ICES-003.
The information in this manual is relevant for products introduced before
June, 1999. Contact the nearest authorized Minolta Service facility to obtain
compatibility information for products released after this date.
WARNING
Batteries may become hot or explode due to improper use.
• Use only the batteries specified in this instruction manual.
• Do not install the batteries with the polarity (+/-) reversed.
• Do not subject batteries to fire or high temperatures.
• Do not attempt to recharge, short, or disassemble.
• Do not mix batteries of different types, brands, or ages.
• Tape over lithium battery contacts before disposal.
• Follow local regulations for battery disposal.
Keep batteries and other things that could be swallowed away
from young children. Contact a doctor immediately if an object is
swallowed.
Immediately remove the batteries and discontinue use if…
• the camera is dropped or subjected to an impact in which the interior
is exposed.
• the camera emits a strange smell, heat, or smoke.
Do not disassemble. Electric shock may occur if a high voltage
circuit inside the camera is touched. Take your camera to a
Minolta Service Facility when repairs are required.
Do not look directly at the sun through the viewfinder.
Read and understand all warnings and cautions before
using this product.
Do not allow a camera lens to point directly at the sun. Fire may
occur if sunlight comes to focus on a flammable surface. Replace
the lens cap when the product is not being used.
CAUTION
32
TABLE OF CONTENTS
Manual Focus ......................................................................45
AF Illuminator........................................................................46
Wireless/Remote Flash ........................................................48
Portrait Mode ..............................................................................32
Landscape Mode ........................................................................33
Close-up Mode......................................................................34
Sports Mode..........................................................................35
Night Portrait Mode ...............................................................36
Photographing Night Scenes ................................................37
Self-timer...............................................................................38
Continuous Advance .............................................................39
For Owners of the date model. .............................................40
Exposing the Date/Time ..................................................41
Setting the Date/Time ......................................................42
Replacing the Battery ......................................................43
Attaching the Strap................................................................11
Batteries ................................................................................12
Lens.......................................................................................14
Loading Film..........................................................................16
Handling the Camera ............................................................18
Taking Pictures in Full-Auto ..................................................19
Focus
Focus signals..................................................................20
Special focus situations ..................................................21
Focus hold ......................................................................22
Using the Built-in Flash
Flash signals...................................................................23
Flash range.....................................................................23
Changing the flash mode................................................24
Auto flash........................................................................24
Auto flash with red-eye reduction ...................................25
Fill flash...........................................................................25
Fill flash with red-eye reduction......................................26
Flash cancel....................................................................26
Lens shadowing..............................................................27
Rewinding the Film
Automatic........................................................................28
Manual ............................................................................29
NAMES OF PARTS ..............................................................4
QUICK OPERATION ............................................................8 SUBJECT PROGRAM SELECTION
BASIC OPERATION
Accessory Information...........................................................53
Trouble Shooting...................................................................56
Care and Storage..................................................................58
Specifications ........................................................................60
ADDITIONAL FEATURES
APPENDIX
54
NAMES OF PARTS
For information on specific parts, refer to the page numbers shown
in parenthesis.

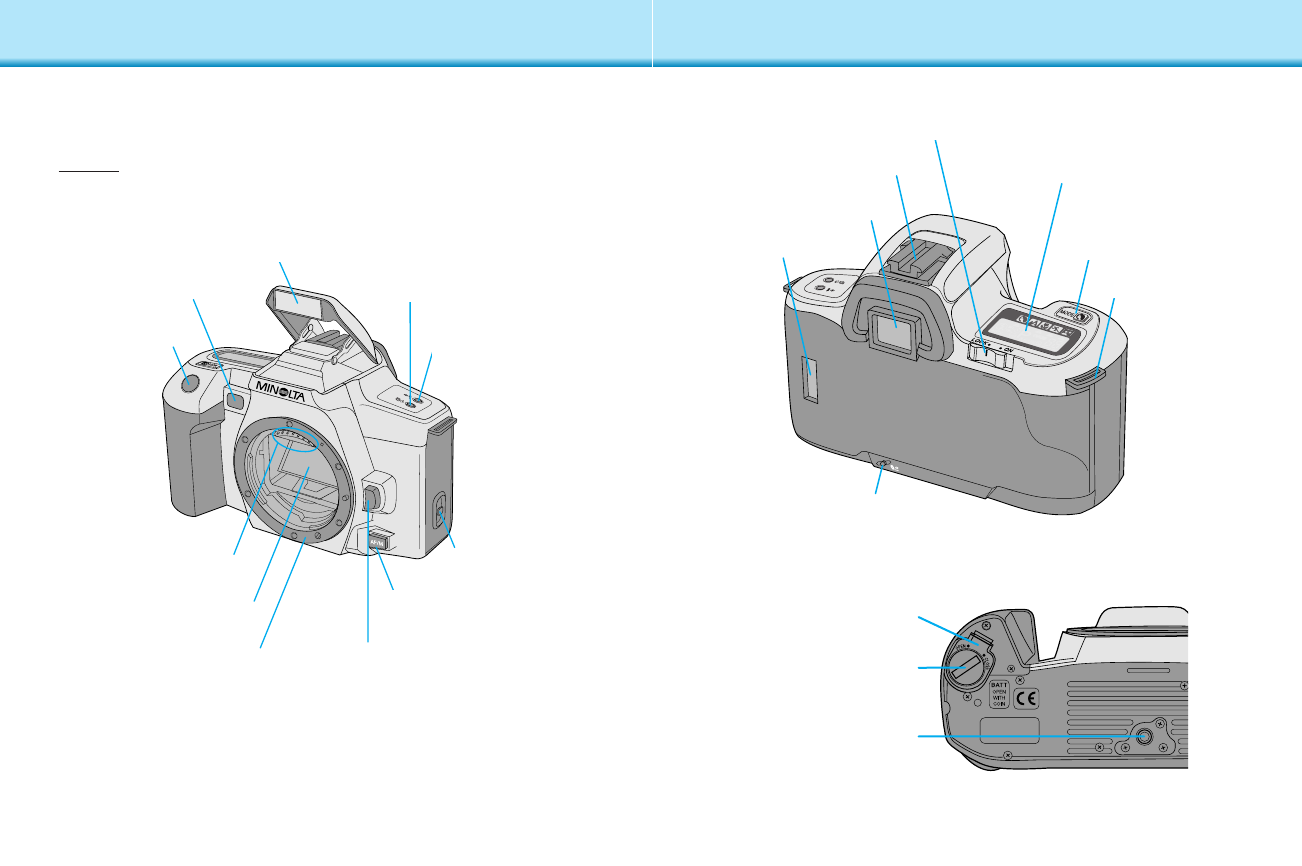

Body
Built-in flash (23 ~ 27)
Back-cover
release (16 ~ 28)
Lens release (15)
Shutter-release
button (9)
Self-timer lamp (38) Self-timer / Drive-mode button
(38 ~ 39)
Flash-mode button (24)
Focus-mode button (45)
Lens contacts *
Mirror *
Lens mount (14)
Tripod socket
Battery-chamber lock (12)
Battery-chamber door (12)
Manual-rewind
button (29)
Main switch (19)
Data panel (6)
Subject program
button (31)
Strap eyelet (11)
Accessory shoe
Viewfinder (7) *
Film window (16)
* Do not touch.

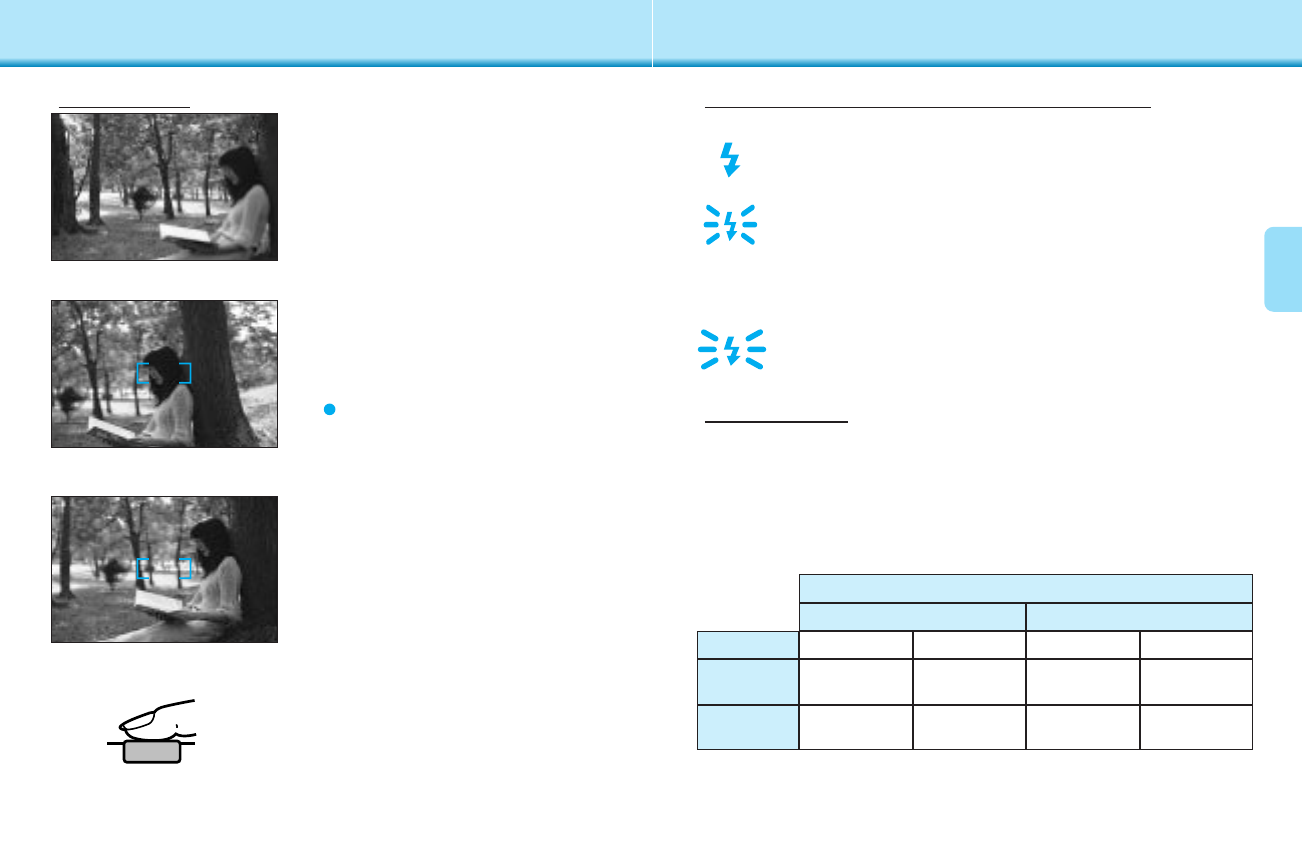

Focus cannot be confirmed
Focus is confirmed
Continous focus is confirmed
Focus signals
Flash is charged
(Blinks fast)- Flash is charging and the shutter cannot be released
(Blinks slowly - after picture is taken) -
Previous exposure was correct
76
NAMES OF PARTS

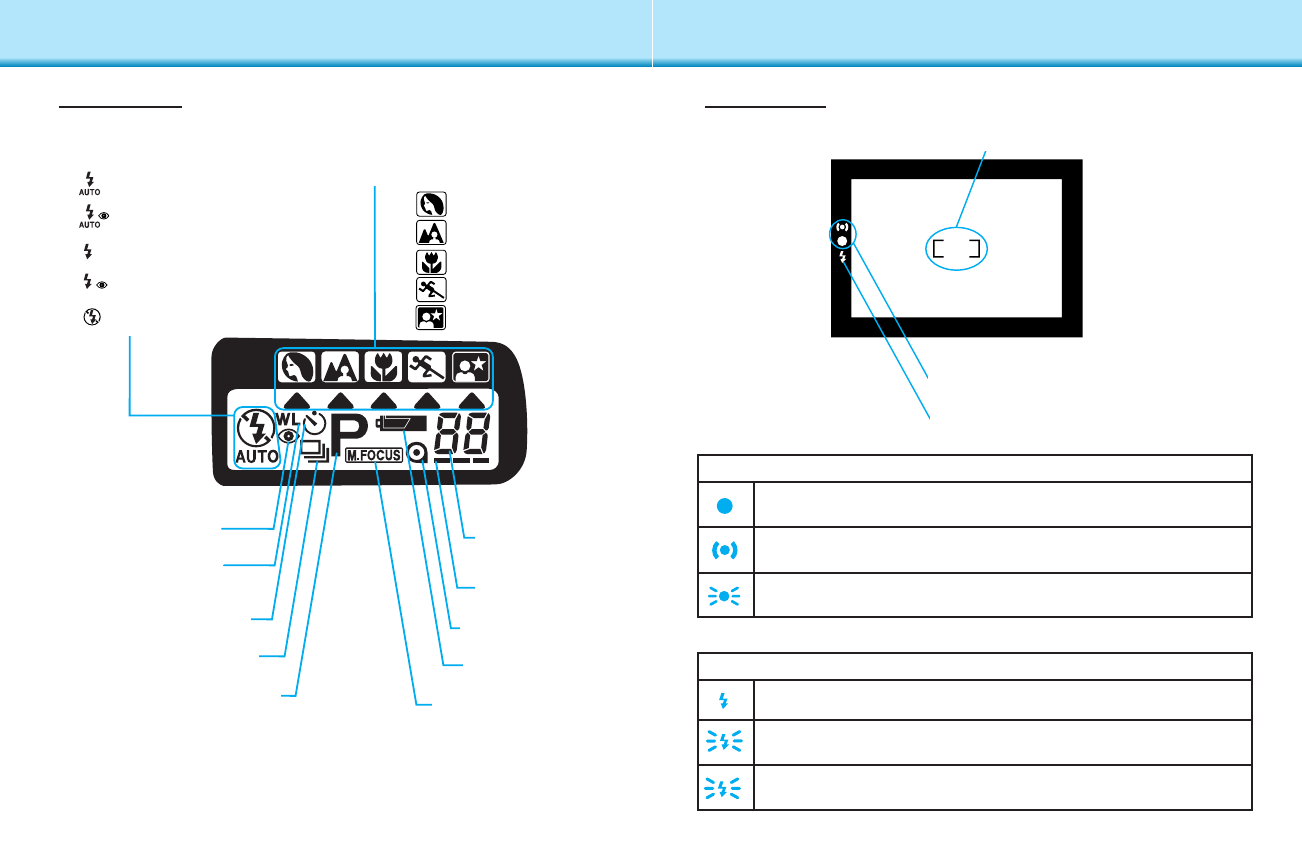

Data Panel Viewfinder
Subject-program indicators (31)
Wireless/Remote
flash indicator (48)
Red-eye reduction
indicator (25)
Flash-mode indicators (24)
Film-transport
signals (17)
Frame counter
(17)
Drive-mode indicaor (39) Battery-condition
indicator (13)
Cartridge mark (17)
- Auto flash
- Auto flash with red-eye reduction
- Fill flash
-Fill flash with red-eye reduction
-Flash cancel
Flash signal (23)
Focus frame (19)
Self-timer indicator (38)
Program-mode indicator (31) Manual-focus indicator
(45)
Landscape Mode
Close-up Mode
Sports Mode
Night Portrait Mode
Focus signals (20)
Portrait Mode
Flash signals
98
QUICK OPERATION

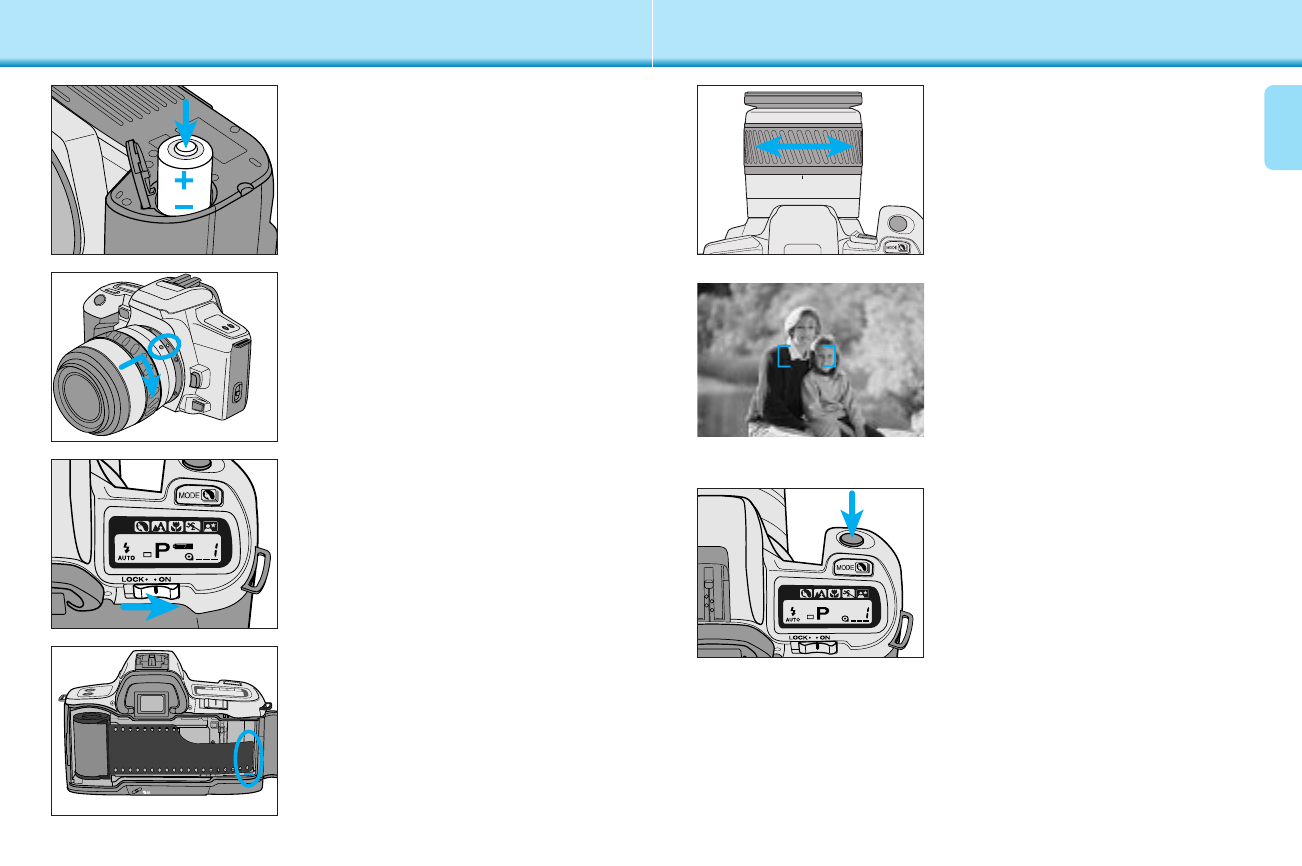

1. Insert batteries.
• This camera uses two CR2 lithium
batteries.
2. Attach lens.
• Align the red mounting dot on the lens
with the one on the camera. Gently
insert the lens into the mount and turn it
clockwise until it clicks into the locked
position.
3. Turn on power.
• Slide the main switch to ON.
4. Load film.
• Align the film tip with the red mark, then
close the back cover.
5 If using a zoom lens, rotate
the zooming ring to frame
your subject as desired.
6 Center your subject in the
focus frame, then press the
shutter release button
partway down.
• The camera will focus and set
exposure automatically.
7 Take the picture.
• Gently press the shutter-release button
all the way down to take the picture.
1110
ATTACHING THE STRAP
BASIC OPERATION
This section provides the information necessary to operate your
camera in most photographic situations.
This section covers:
• Battery Installation
• Attaching and Removing the Lens
• Loading the Film
• Camera Handling
• Fully Automatic Camera Operation
• Special Focus Situations
• Basic Flash Operation
• Rewinding the Film
Once you fully understand the instructions in this section, proceed to
Subject Program Selection and Additional Features to obtain more

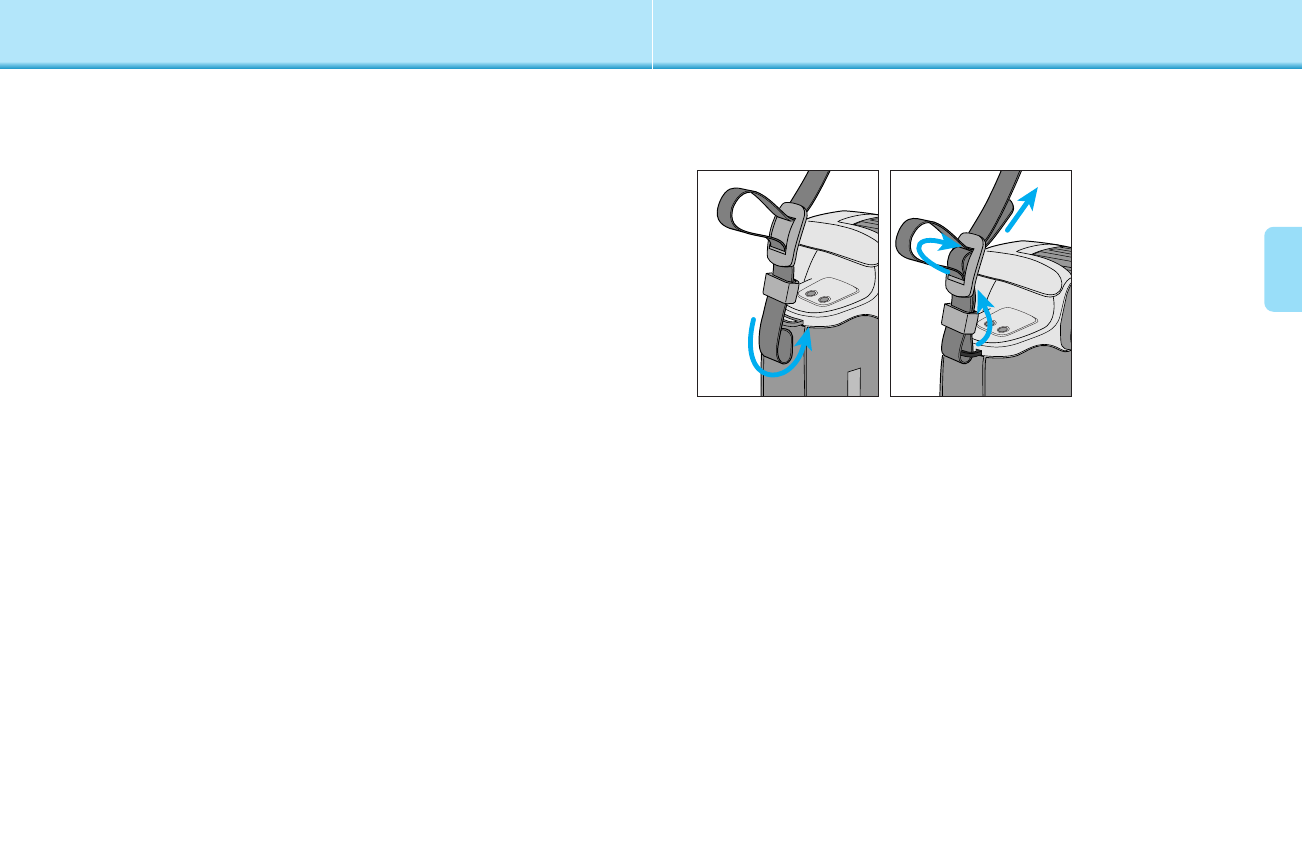

enjoyment from your camera. Attach the strap through the strap eyelets as shown. Pull
firmly on the strap to make sure it is secure.
Repeat for the other side.
1312
BATTERIES
Each time the main switch is set to ON, a battery symbol appears in
the data panel indicating the power status of the batteries.
Checking Battery Power
Full-battery symbol
Power is sufficient for all camera
operations.
• will only appear for five
seconds.
Blinking low-battery symbol
Power is extremely low. All functions
are operational, but the batteries will
need to be replaced soon. Flash
recycling time may be slow.
Blinking low-battery symbol
appears alone and the shutter
locks.
Power is insufficient for camera
operation. Replace the batteries.
No display
Power is too low for the camera to
operate. Replace the batteries or
make sure they have been inserted
correctly.

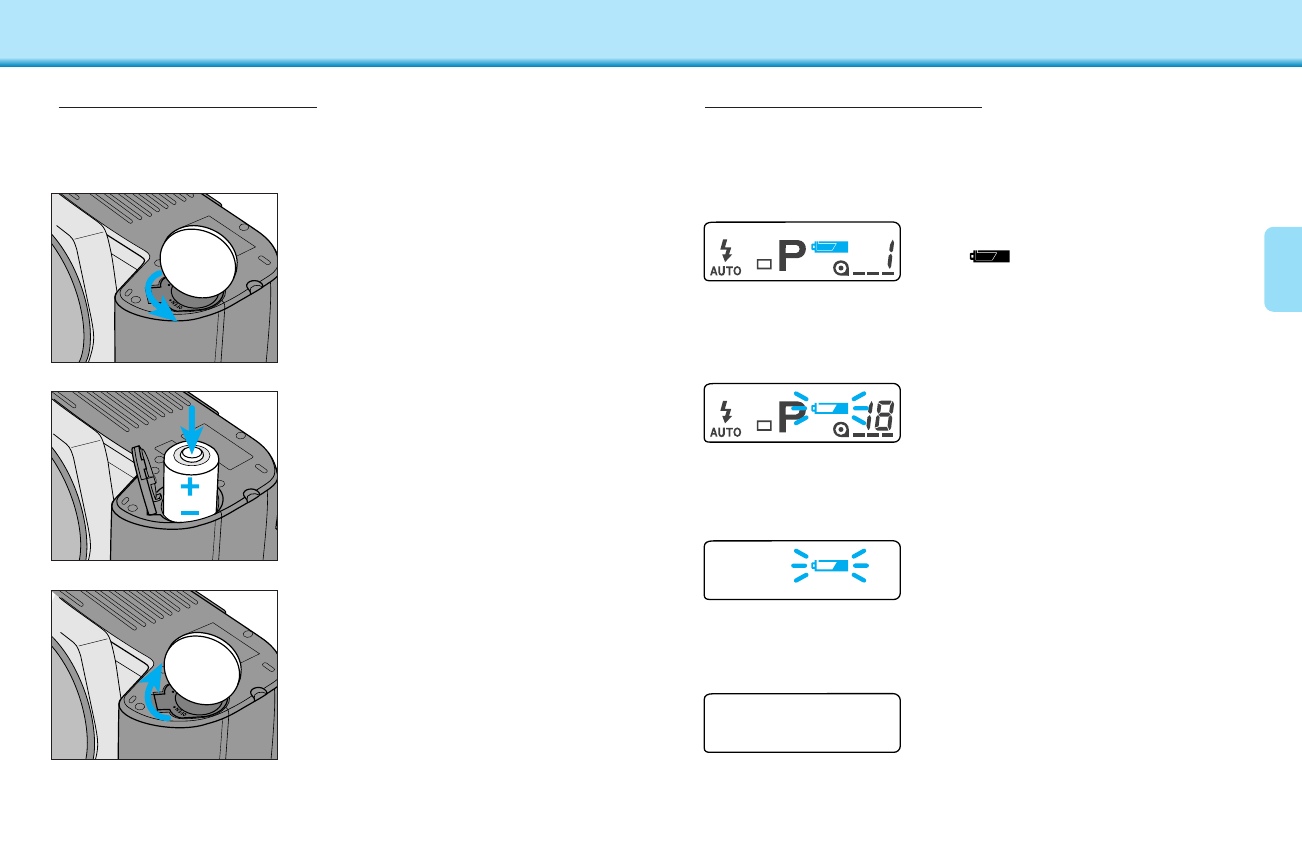

1. Using a coin or similar
object, turn the battery-
chamber lock to OPEN, then
open the battery-chamber
door.
2. Insert the batteries as
indicated by the + and –
marks.
3. Close the battery-chamber
door, then turn the battery-
chamber lock to CLOSE.
• Setting the camera down with the
battery-chamber door open may
damage the camera.
Your camera uses two 3V CR2 lithium batteries to supply power for
all camera operations.
Installing the Batteries
15
LENS
14

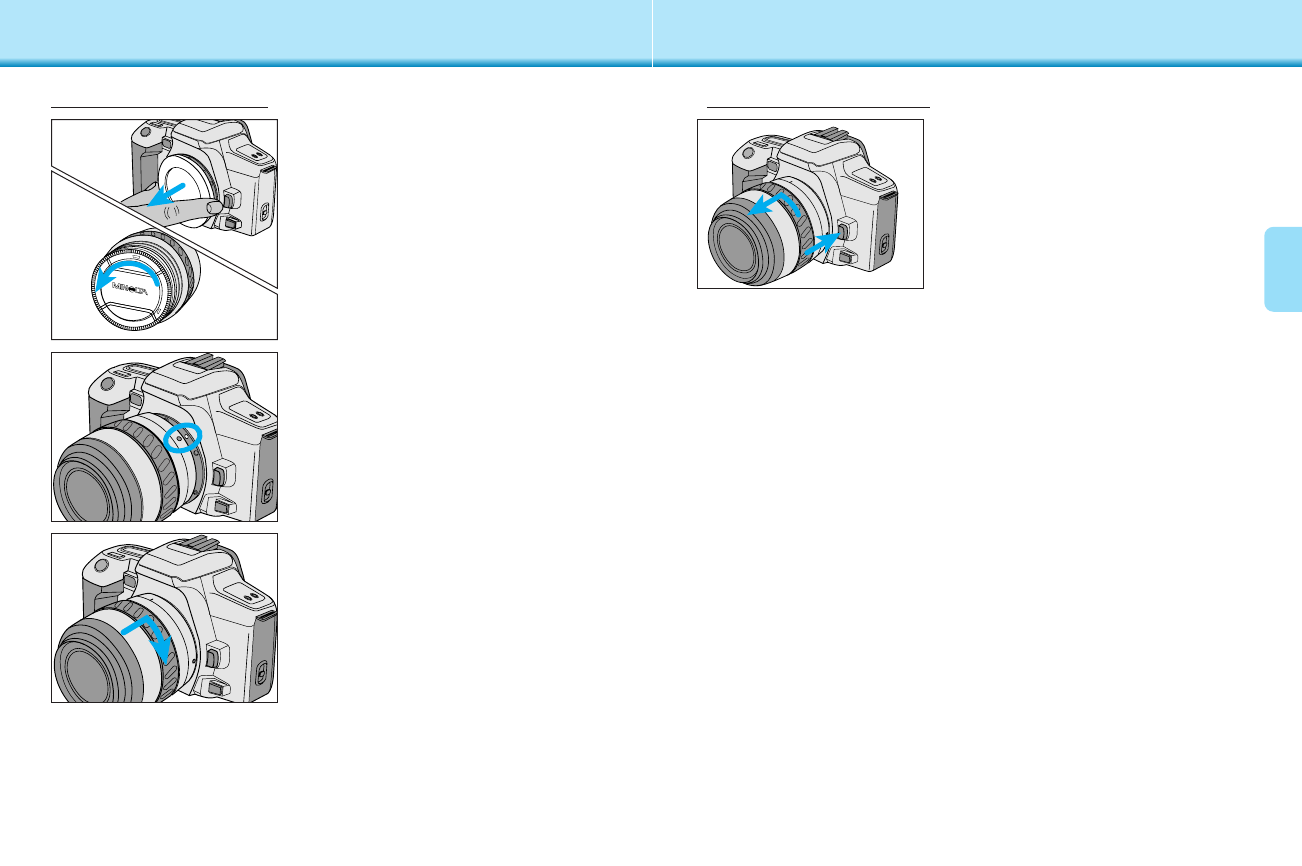

1. Remove the body and rear
lens caps.
2. Align the red mounting dots
on the lens and camera body.
3. Gently insert the lens into the
mount, then turn it clockwise
until it clicks into the locked
position.
• Do not insert the lens at an angle.
• Do not press the lens release when
attaching the lens.
Attaching the Lens
Caution
• Do not force the lens if it does not turn smoothly.
• Do not touch the inside of the camera, especially the lens contacts and
mirror.
1. Press the lens release and
turn the lens counter-
clockwise until it stops.
2. Gently remove the lens and
replace caps, or attach
another lens.
Removing the Lens
17
16

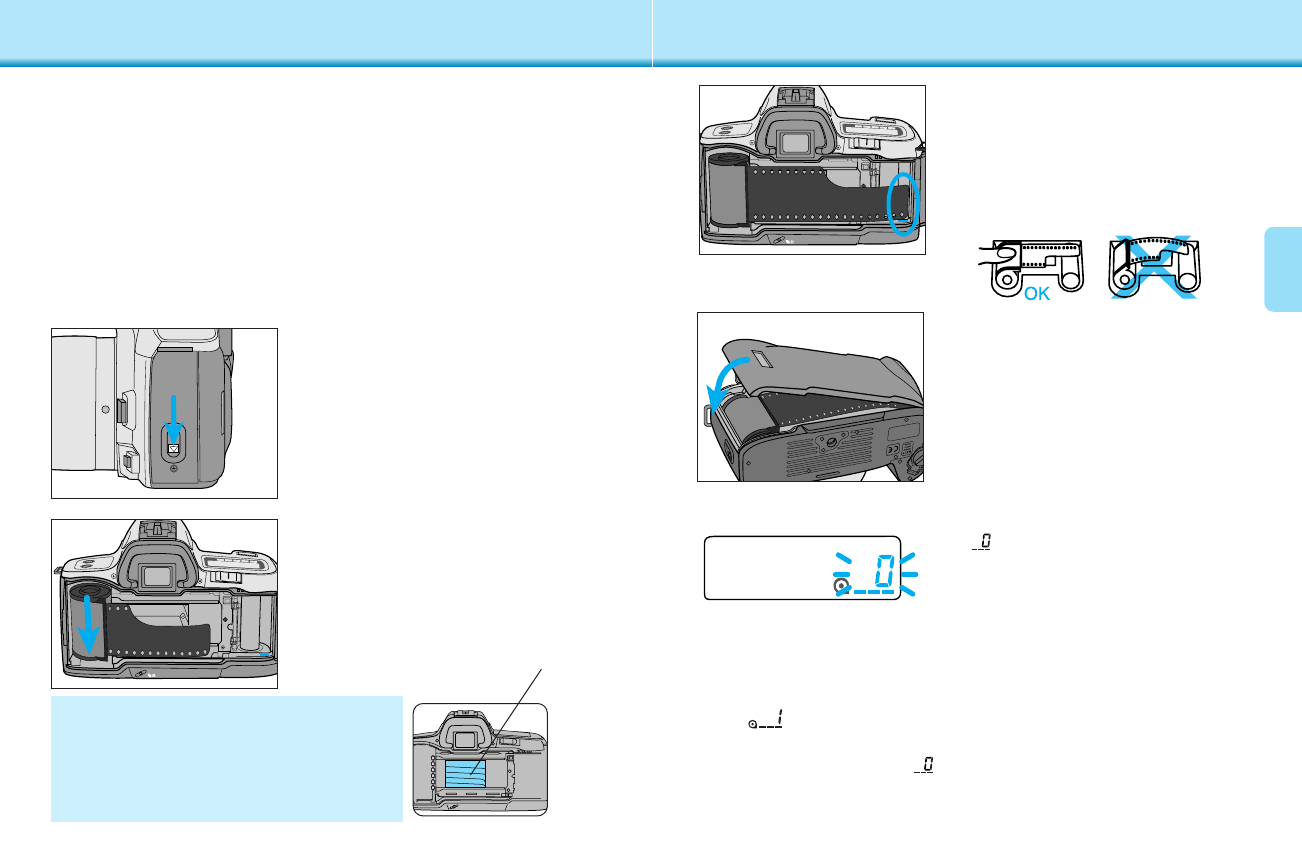

LOADING FILM
shutter curtain
1. Slide the back-cover release
down to open the back cover.
2. Insert a film cartridge into the
film chamber.
Check the film window before loading film. If film is loaded, do not
open the back cover. Refer to Manual Rewind on page 29 for
instructions on removing a partially exposed roll.
• Load film in the shade to reduce the chances of fogging the film.
• Do not use Polaroid Instant 35mm film. Winding problems may occur.
• If DX-coded film is used, the camera automatically sets the correct ISO
(film speed).
• If non DX-coded film is used, the camera will use the previous roll’s ISO
setting.
• Do not use infrared film in this camera. The camera’s frame counter
sensor will fog infrared film.
3. Extend the leader between
the guide rails to the index
mark.
• If the film tip extends beyond the index
mark, push the excess film back into
the cartridge.
• blinks in the frame counter and the
shutter locks when the film is loaded
incorrectly. Open the back cover and
repeat steps 2 – 4.
If film is loaded with the power off
An appear in the data panel for approx. five seconds to
indicate successful loading, then the camera shuts down.
• If the film did not load, will blink in the data panel before the
camera shuts down. Reload the film.
4. Close the back cover.
• The camera automatically advances the
film to the first frame. 1 will appear in
the frame counter.
The shutter curtain’s precision design
makes it extremely sensitive to
pressure. Never touch it with your
fingers or the film tip.
1918
HANDLING THE CAMERA TAKING PICTURES IN FULL AUTO

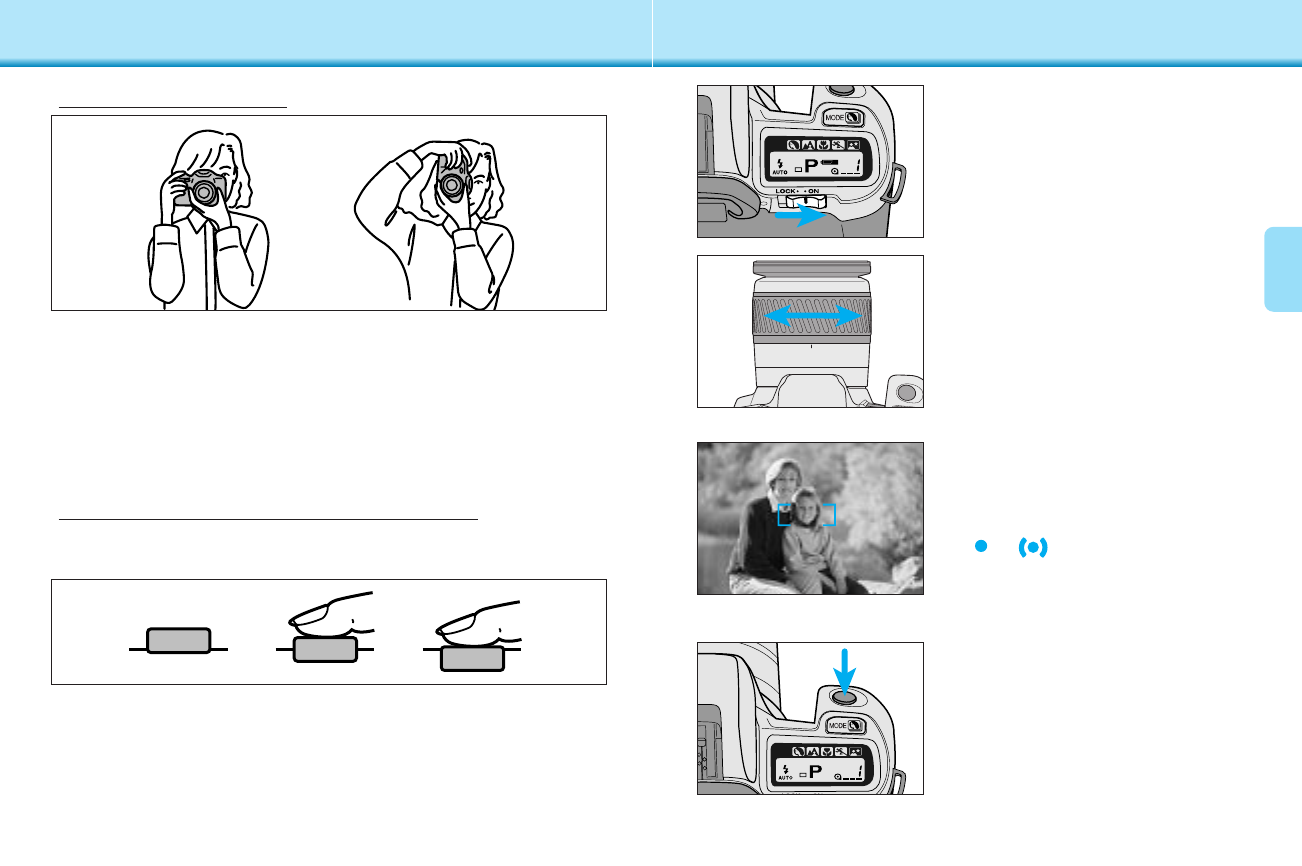

Press the shutter-release button partway down to activate the
camera’s autofocus and auto-exposure systems.
Gently press the shutter-release button all the way down to take the
picture.
1. Slide the main switch to ON.
2 If using a zoom lens, rotate
the lens’ zooming ring to
frame the subject as desired.
3. Center your subject in the
focus frame [ ], then press
the shutter-release button
partway down to activate
autofocus.
• or will appear in the
viewfinder when focus is confirmed.
• The built-in flash will pop-up and fire
when necessary.
4. Press the shutter-release
button all the way down to
take the picture.
• In low-light conditions, the AF
illuminator (flash) will fire to determine
focus distance.
• Use focus hold (p22) if your subject is
outside the focus frame.
Holding the Camera
Grip the camera firmly with your right hand, while supporting the
lens with your left. Keep your elbows at your side and your feet
shoulder-width apart to hold the camera steady. Keep the camera
strap around your neck or wrist in the event you accidentally drop
the camera.
• Do not touch the end of the lens barrel while taking a picture.
• Use a tripod when using slow shutter speeds or a telephoto lens.
Pressing the Shutter-Release Button
2120
FOCUS
Focus is confirmed
Continuous autofocus – Focus is confirmed
Focus cannot be confirmed – Shutter is locked.
Subject is too close or is one of the special focus
situations described on page 21.

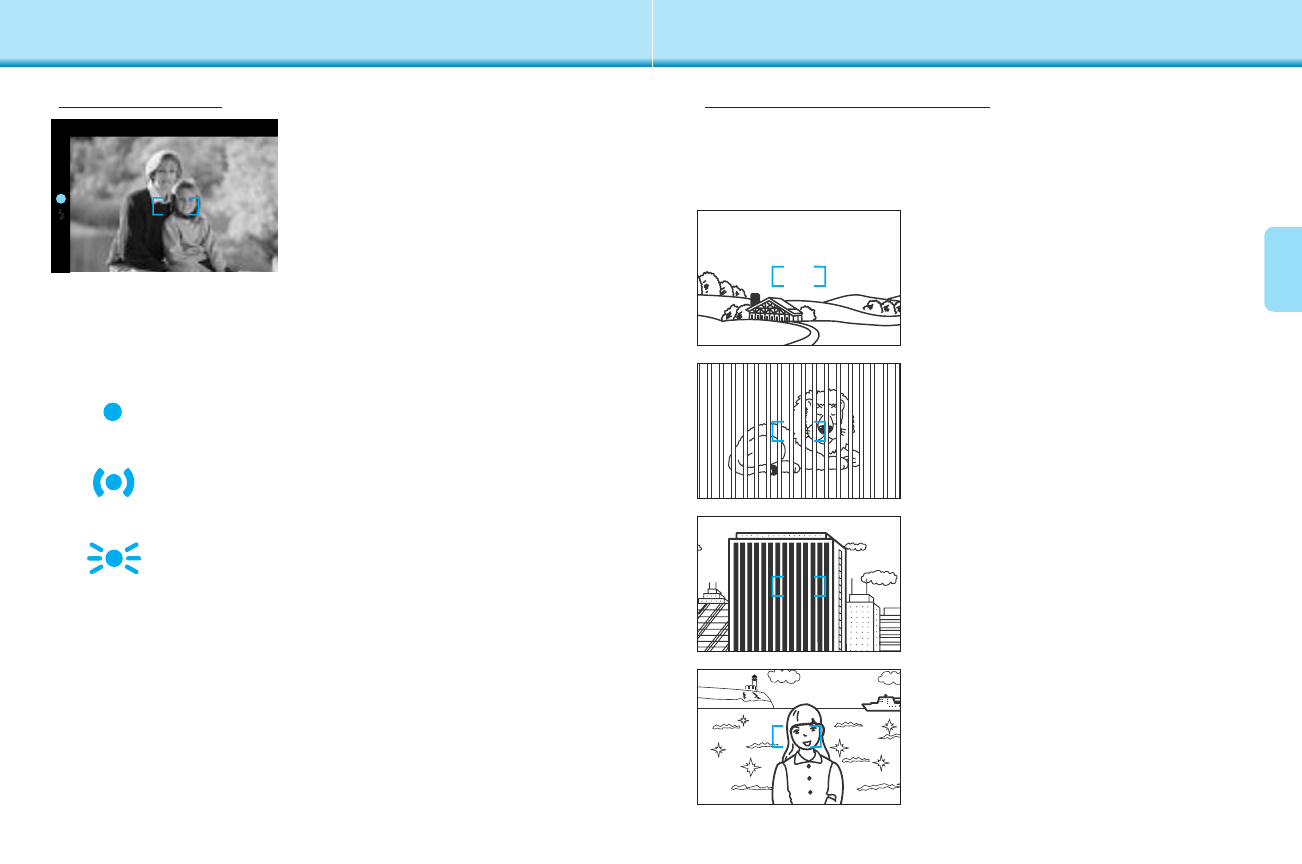

Focus Signals
The following signals appear in the
viewfinder to indicate the focus status
when the shutter release button is
pressed partway down.
If the subject within the focus frame is
very bright, or low in contrast.
If two subjects at different distances
overlap in the focus frame.
If a subject composed of alternating
light and dark lines completely fills the
focus frame.
If your subject is near a very bright
object or area.
The camera may not be able to focus in situations like those
described below. When the focus signal blinks, use focus hold (p22)
or manual focus (p45). See page 20 for an explanation of the focus
signals.
Special Focus Situations
2322
FOCUS USING THE BUILT-IN FLASH
1. Center your subject in the
focus frame, then press the
shutter-release button
partway down.
• appears in the viewfinder when the
focus is confirmed.
• Focus hold also locks the exposure
settings.
2. Continue to hold the shutter-
release button partway down
while you compose your
picture.
3. Press the shutter-release
button the rest of the way
down to take the picture.
• Remove your finger from the shutter-
release button to cancel focus hold.
Use focus hold when your subject is
outside the focus frame or when
autofocus is difficult to confirm.
Focus hold cannot be used for moving subjects.
Focus Hold Flash Signals - (seen in the viewfinder)
Flash is charged.
(Blinks fast)
Flash is charging and the shutter can not be released.
(Blinks slowly)
Previous exposure was correct.
After the picture has been taken.

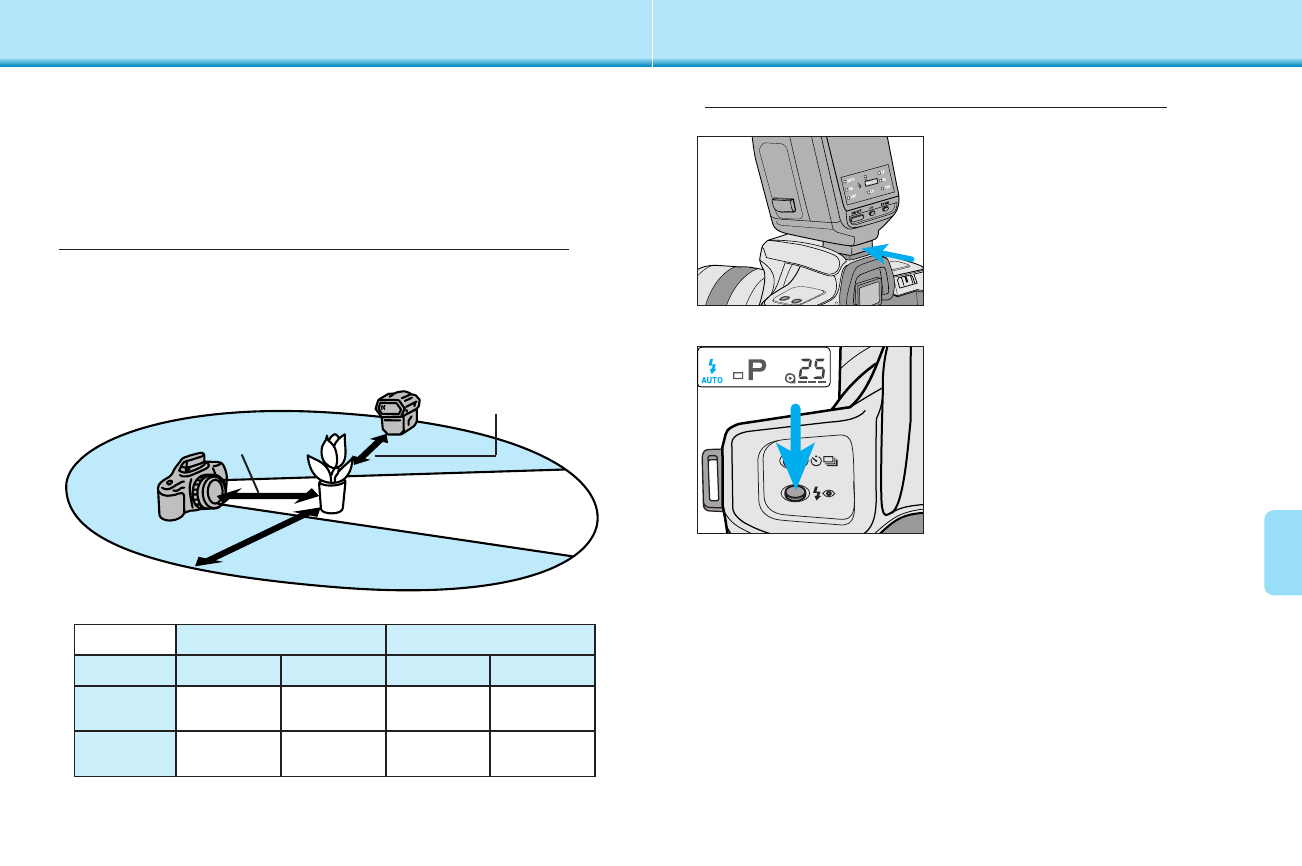

Flash Range
The range of the built-in flash depends on the speed of the film.
Make sure your subject is within the flash range specified in the
table below.
28-80mm F3.5-5.6 II
LENS IN USE
35-80mm F4-5.6 II
Wide angle Wide angle Telephoto
1.0 ~ 3.4 m
(3.3 ~ 11.2 ft.)
1.0 ~ 6.8 m
(3.3 ~ 22.3 ft.) 1.0 ~ 4.2 m
(3.3 ~13.8 ft.)
1.0 ~ 2.1 m
(3.3 ~ 6.9 ft) 1.0 ~ 3.0 m
(3.3 ~ 9.8 ft.) 1.0 ~ 2.1 m
(3.3 ~ 6.9 ft.)
1.0 ~ 4.2 m
(3.3 ~13.8 ft.)
1.0 ~ 6.0 m
(3.3 ~19.7 ft.)
TelephotoFilm Speed
ISO 100
ISO 400
Make sure you are at least 1m (3.3 ft.) from your
subject when using the built-in flash.
2524
USING THE BUILT-IN FLASH
Press the flash mode button
until appears in the data
panel.
• Warn your subject that the flash will fire
a few short flash bursts just before the
picture is taken.
Light reflecting from your subject’s eyes may produce the effect
known as red-eye. Use the built-in flash’s red-eye-reduction mode to
produce more natural looking photographs by reducing the red-eye
effect.

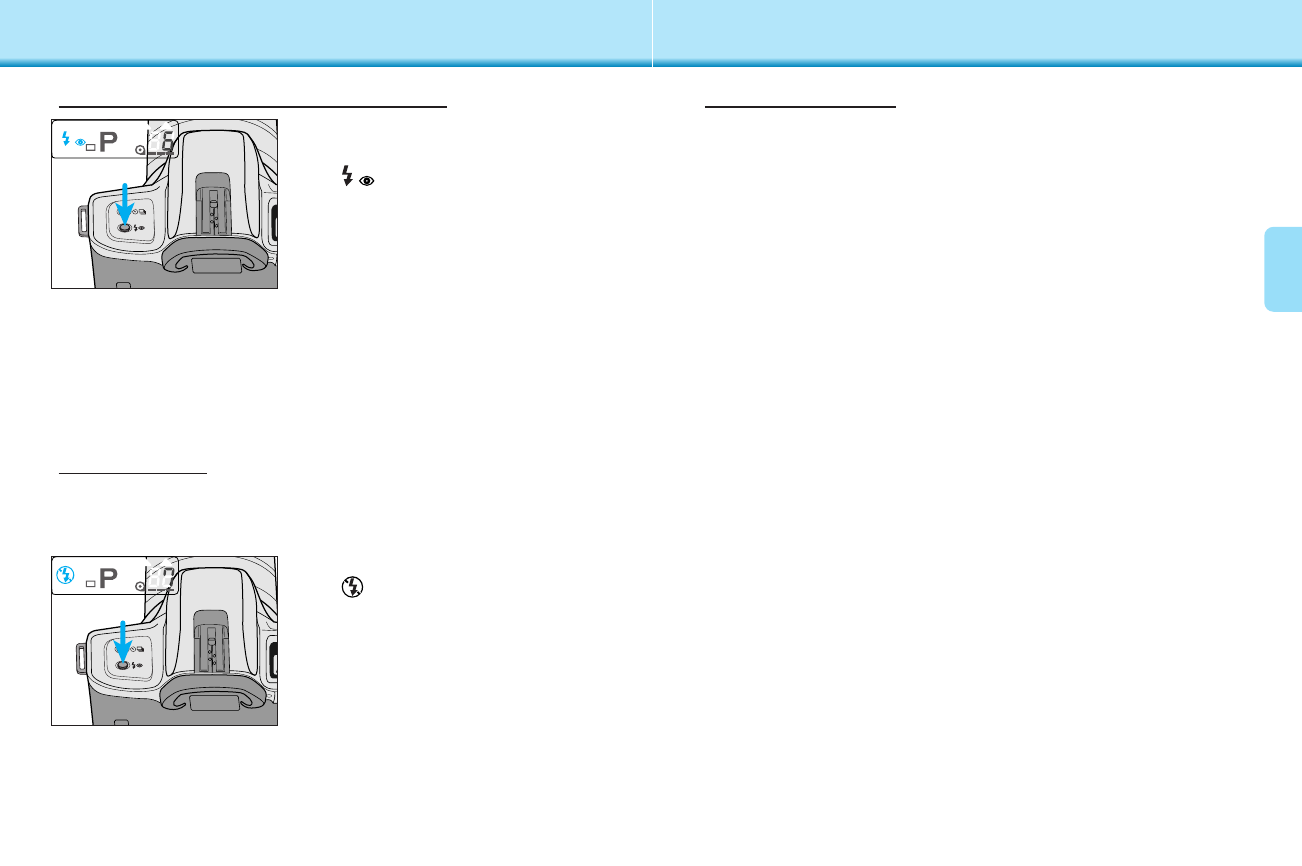

Auto Flash with Red-Eye Reduction

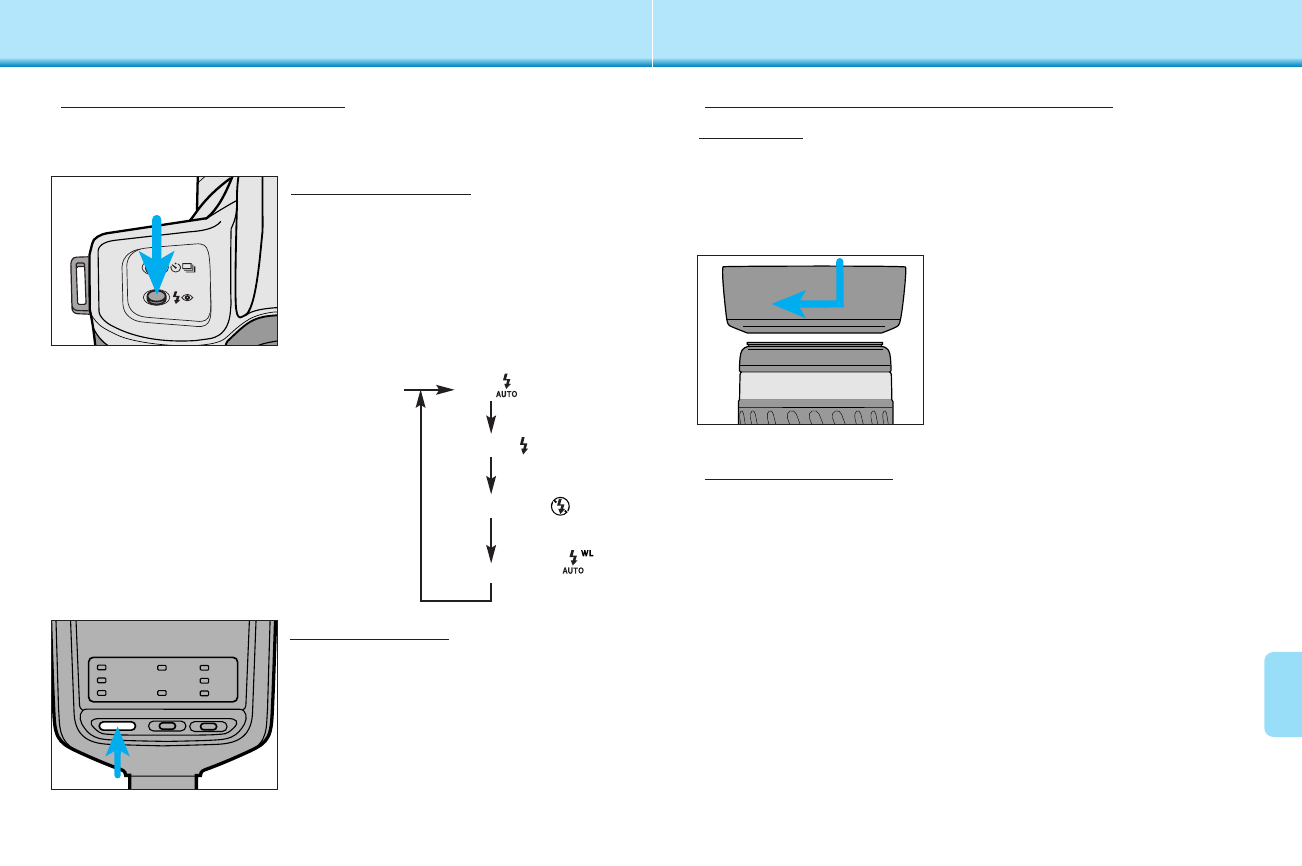

When the flash mode button is pressed, the flash mode changes in
the following sequence:
Auto Flash
In auto-flash, the built-in flash pops-up automatically when the shutter
release button is pressed partway down in low light situations. Once the
flash is up, it will fire when necessary.
Fill Flash
Use fill flash when taking pictures under fluorescent lighting or to
eliminate harsh shadows. When set, the flash will fire every time a
picture is taken. The TTL automatic flash metering system will
ensure correct exposure.
Press the flash-mode button
until appears in the data
panel.
Auto flash
Auto flash with red-eye reduction
Fill flash
Fill flash with red-eye reduction
Flash cancel
• The shutter will not release until the flash is charged.
• Select flash cancel when you don’t want the flash to fire.
• When you turn the main switch to ON, auto flash or auto flash with red-
eye reduction will be set according to the setting used for the last picture
taken.
• Make sure your subject is within the flash range specified in the table on
page 23.
Press the flash mode button
until appears in the data
panel.
Changing the flash mode
2726
USING THE BUILT-IN FLASH
Lens shadowing occurs when the lens or lens hood blocks part of
the output from the built-in flash. Lens shadowing appears as semi-
circular shaded area at the bottom (horizontal) or side (vertical) of
your image.
• Remove the lens hood before using the built-in flash.
• Lens shadowing may occur with the following lenses at shorter focal
lengths.
AF Zoom 28-70mm f/2.8G
AF Zoom 17-35mm f/3.5G
AF Zoom 20-35mm f/3.5-4.5
AF Zoom 28-135mm f/4-4.5
AF Zoom 28-85mm f/3.5-4.5
AF Zoom 35-80mm f/4-5.6 II
• The built-in flash can not be used with the following lenses:
AF 300mm f/2.8 (APO tele)
AF 600mm f/4 (APO tele)
Lens Shadowing
Press the flash-mode button
until appears in the data
panel.
Flash Cancel
Use flash cancel when photographing twilight scenes or to capture
the ambiance of existing light, or when flash is not permitted.
The shutter speed may be slow.
Use of a tripod is recommended.
Press the flash-mode button
until appears in the data
panel.
•Warn your subject that the flash will fire
a few short flash bursts just before the
picture is taken.
• Flash always fires with red-eye
reduction.
Fill Flash with Red-Eye Reduction
Do not use the built-in flash with focal lengths shorter than 28mm.
The built-in flash cannot cover focal lengths wider than 28mm.
2928

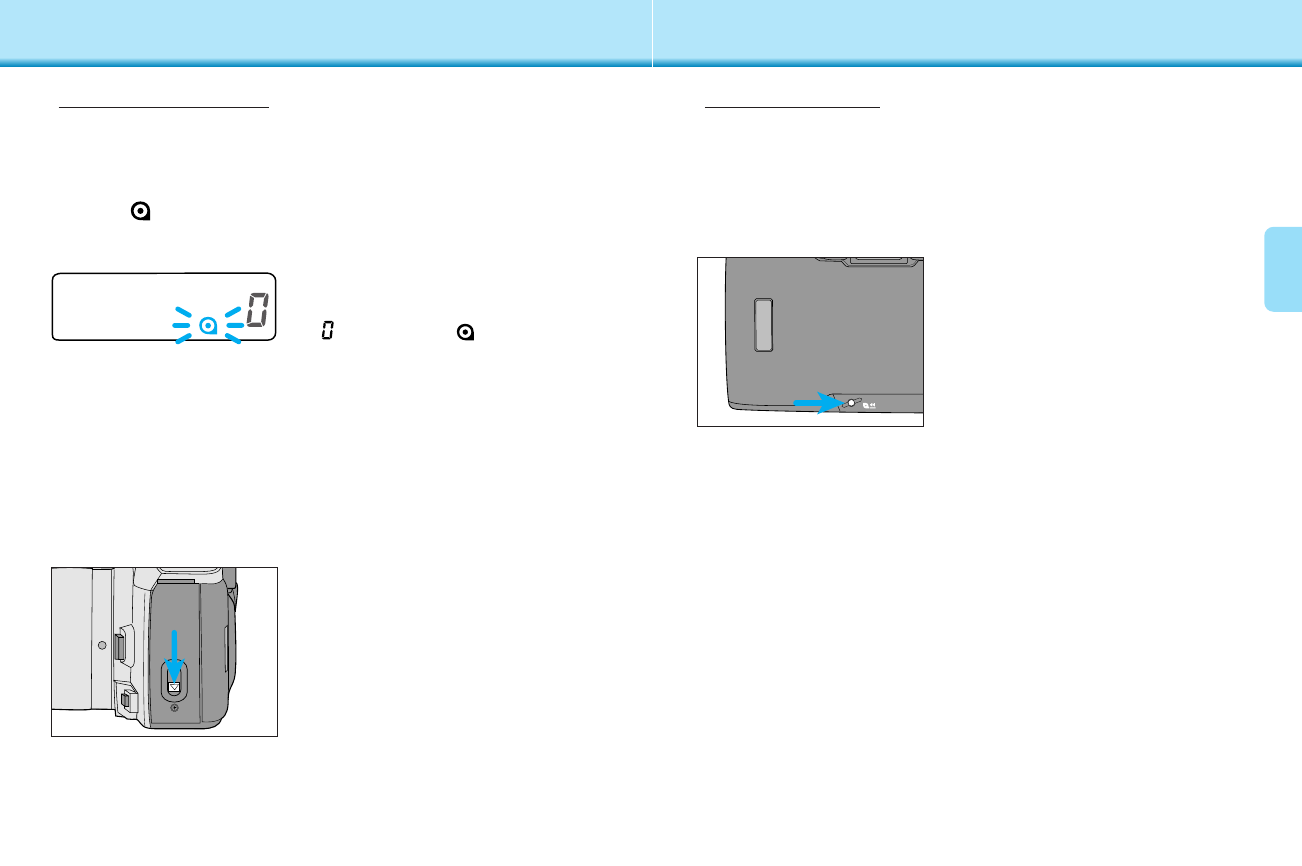

REWINDING THE FILM
1. Wait until the film is
completely rewound.
• will appear and will blink in the
data panel.
2. Slide the back-cover release
down to open the back cover.
3. Remove the film, then close
the back cover.
1. Press the manual-rewind button.
2. Follow steps 1-3 from Automatic Rewind.
Automatic Rewind
After you have exposed the last frame, the camera will automatically
rewind the film. When the film is completely rewound, the motor will
stop and will blink in the data panel indicating it is safe to open
the back of the camera.
Manual Rewind
Use manual rewind to rewind the film before the current roll is
finished.
31
30
SUBJECT PROGRAM
SELECTION
Now that you are comfortable with the operation of the camera, take
more control of the creative process by telling the camera what kind
of picture you want to take.
The subject program modes let you take more control without
leaving the automatic mode. In each of the subject program modes,
the camera will automatically set the best possible shutter speed
and aperture for the type of picture you are taking.
This section also lets you explore the use of the Self-timer and
Continuous Advance modes.
Subject Program Selection Page

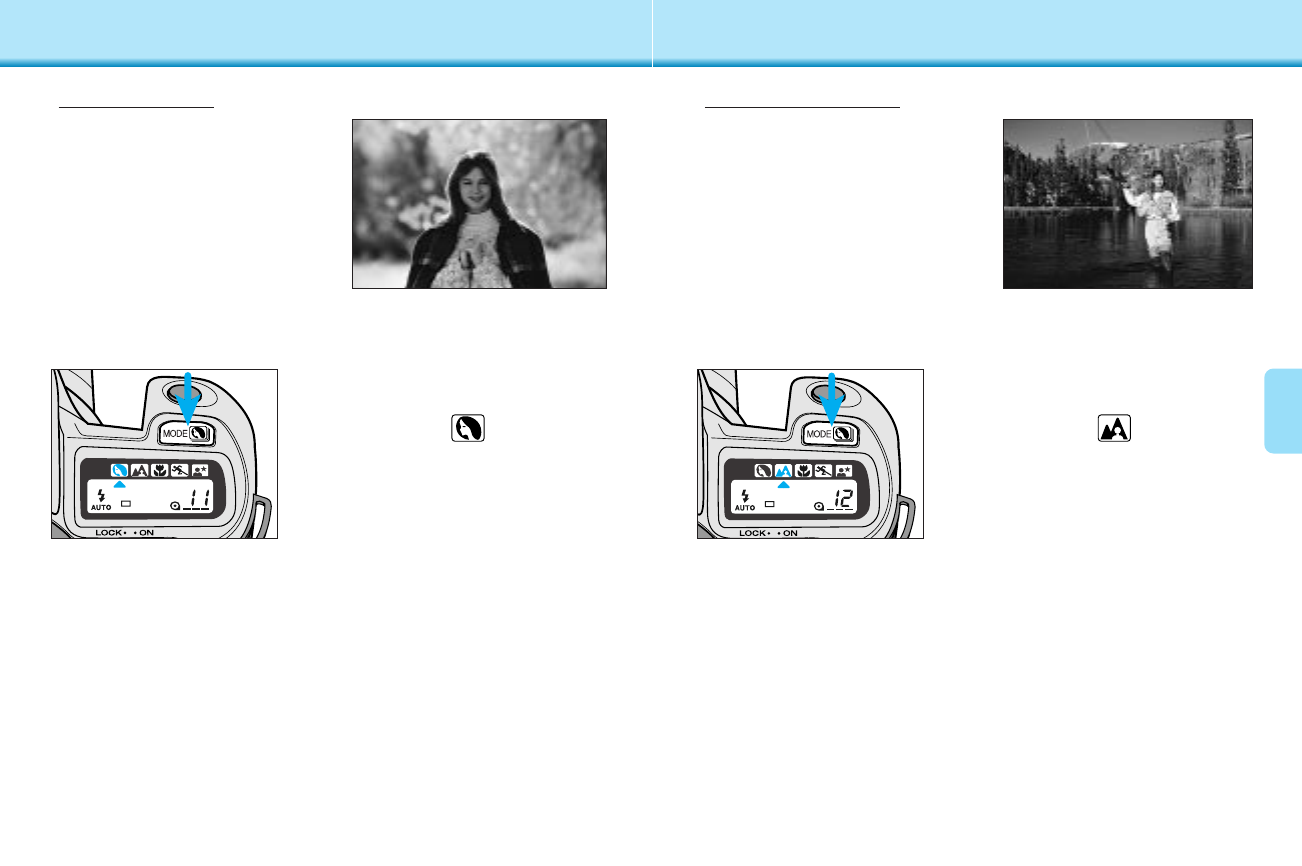

Portrait Mode 32
Landscape Mode 33

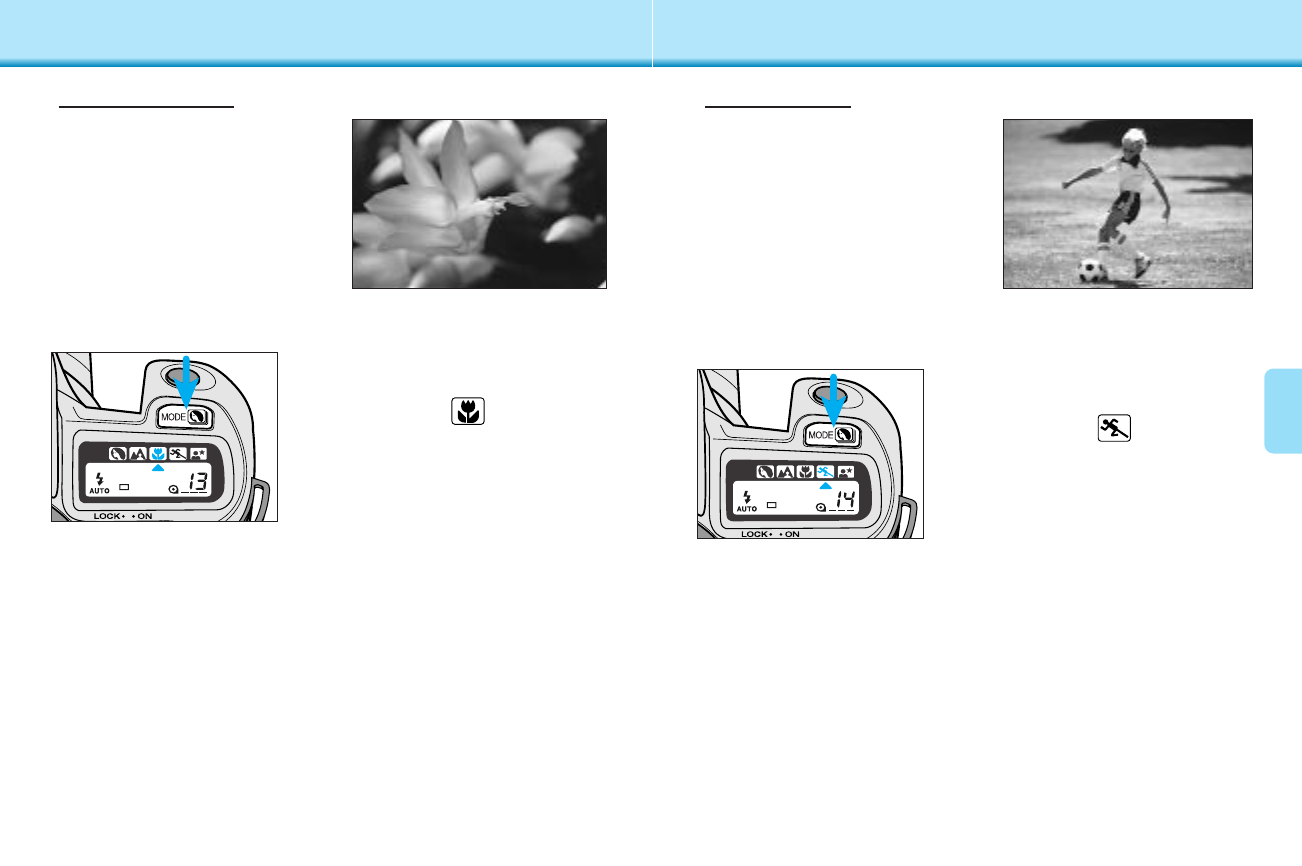

Close-Up Mode 34
Sports Mode 35
Night Portrait Mode 36
Photographing Night Scenes 37
Drive Mode Page
Self Timer 38
Continuous Advance 39
Each of these functions can be explored independently after basic
operation has been mastered.
Portrait Mode - for portrait photography
Landscape Mode - for scenic and travel photography
Close-up Mode - for small subjects at close distances
Sports Mode - for sports and action photography
Night Portrait Mode - for night portrait and night scene
photography
Press the subject program button to
select any one of the following subject
program modes. These program
modes tell the camera what type of
picture your will be taking so that it
may customize the settings for that
type of picture.
• Every time you turn the main switch to ON, the P (Program) mode is set
and P appears in the data panel.
3332
SUBJECT PROGRAM SELECTION
Press the subject-program
button until the subject-program
pointer is under .
Landscape mode is suited for
photographing landscape, scenic or
travel photographs. Landscape
photography generally requires a
large depth of field to make sure
everything is in focus. In Landscape
mode the camera is automatically set
to the smallest aperture possible
while maintaining a shutter speed
fast enough to prevent blur due to
camera shake.
Tips
• For best results zoom to a wide view or use a wide angle lens and
include a foreground subject or detail to create a feeling of depth in the
picture.
• Use flash when a subject in the foreground is backlit or has strong
shadows across the face. If there is no subject in the foreground, do not
use flash.
• Use a tripod, especially at slower shutter speeds.
Landscape Mode
Press the subject-program
button until the subject-program
pointer is under .
Portrait Mode
Portraits have the greatest impact
when a shallow depth-of-field* is
used to separate the subject from
the background. In Portrait mode,
the necessary settings are made
automatically, leaving you free to
capture the perfect expression.
* Depth-of-field is the area in front of
and behind the point you focused on
that appears sharp.
Tips
• For best results use a mid-telephoto lens with a large aperture.
• Use flash when your subject is backlit or there are strong shadows
across the face.
• Lock focus on your subject’s eyes and be ready to capture the perfect
expression.
3534
SUBJECT PROGRAM SELECTION
Press the subject-program
button until the subject-program
pointer is under .
Close-Up Mode
Choose the Close-Up mode
when photographing small
objects like flowers or jewelry. In
Close-Up mode, the camera
automatically sets the best
possible aperture and shutter
speed for the picture you are
taking.
Tips
• For best results use a macro lens or a macro capable zoom lens.
• Do not use the built-in flash if your subject is closer than 1.0m (3.3 ft.).
The lens may block the flash, creating a shadow at the bottom of your
image (lens shadowing, p27).
• Use a tripod to reduce camera shake.
Press the subject-program
button until the subject-program
pointer is under .
Sports Mode
Fast shutter speeds are needed to
stop action. In Sports mode, the
camera will set the fastest
possible shutter speed and
continually adjust the focus to
track fast-moving subjects.
Tips
• The built-in flash is only effective when your subject is within the flash
range.
• Use fast film and keep the focus frame on your subject.
• Mount the camera on a tripod when using telephoto lenses.
3736
SUBJECT PROGRAM SELECTION
Press the subject-program
button until the subject-program
pointer is under .

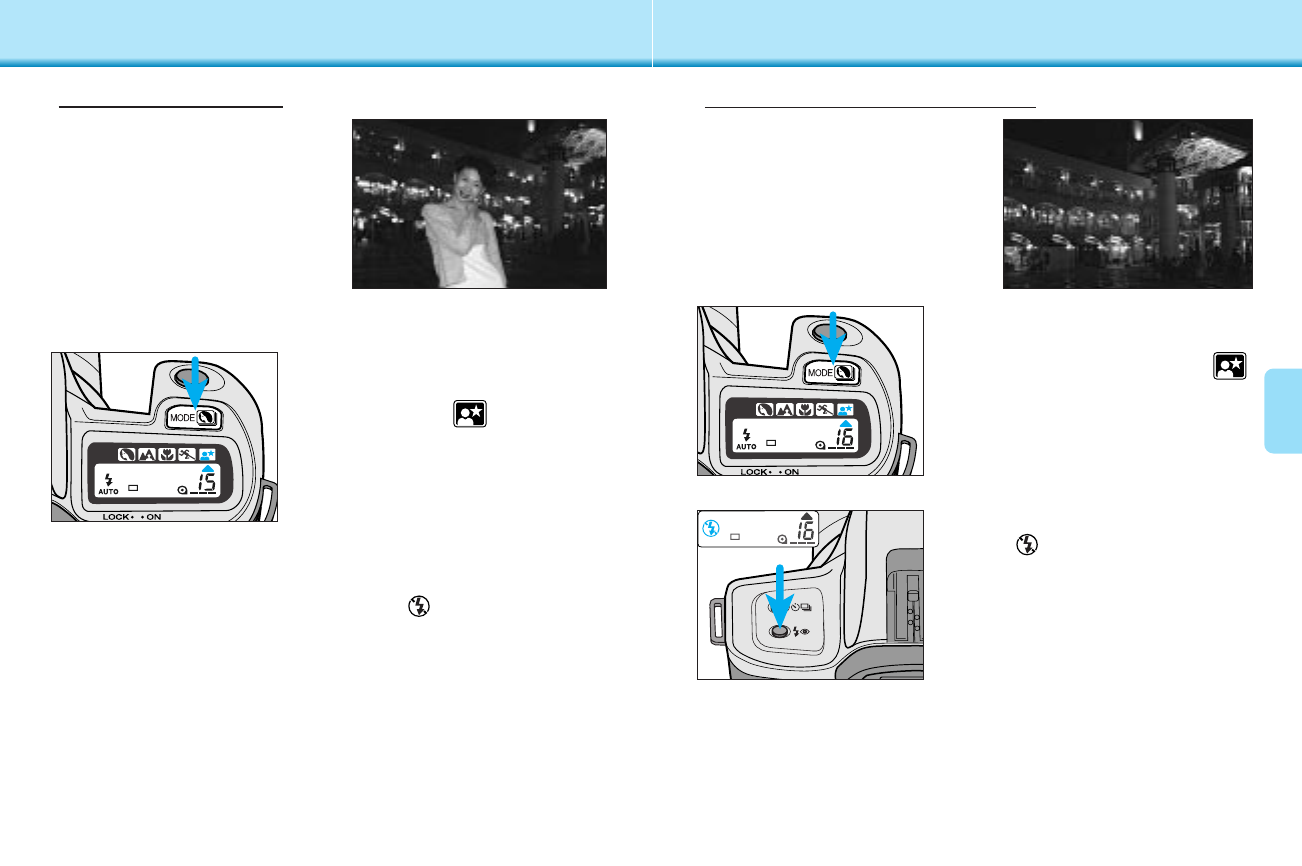

Night Portrait Mode
Tips
• Be sure the camera is not set to flash cancel when using Night
Portrait mode.
• Use faster film and a tripod.
• Focus on the main part of your subject.
• Warn your subject not to move while the picture is taken.
Photographing Night Scenes
Tips
• Use faster film and a tripod.
• If you are photographing a dark night scene, it may be difficult for the
camera to focus, use focus hold (p22) or manual focus (p45).
2. Press the flash-mode button
until appears in the data
panel.
1. Press the subject-program
button until the subject-
program pointer is under .
Cancel the flash in Night Portrait
mode to photograph night scenes.
The longer shutter speeds set in
Night Portrait mode let you capture
beautiful photographs of twilight
scenes and night skylines.
Night portraits require the
camera’s flash exposure to be
balanced with the background
exposure. In Night Portrait mode,
the camera sets the largest
possible aperture with a longer
shutter speed, allowing the
background to appear in the
photograph.
3938
SELF-TIMER CONTINUOUS-ADVANCE MODE
1. Place the camera on a tripod,
then press the self-timer
button until appears in
the data panel.
2. Center your subject in the
focus frame and focus
subject.
• Attach the eyepiece cap if there is a
bright light source behind the camera.
The eyepiece cap prevents light from
entering through the viewfinder and
affecting the metered exposure.
3. Press the shutter-release
button all the way down to
start the timer.
• The self-timer indicator on the front of
the camera will blink, then glow just
before the shutter releases.
• Do not press the shutter-release button
while standing in front of the camera.
• Self-timer mode is cancelled after the
shutter is released.
The self-timer delays the release of the shutter for approximately 10
seconds after the shutter-release button is pressed.
Press the self-timer button or slide the main switch to
lock to cancel the self-timer before the shutter releases.
1. Press the drive-mode button
until appears in the data
panel.
2. Press the shutter-release button down and hold.
• When taking flash pictures, the shutter will release after the flash is
charged.
• When the subject is moving, the shutter will release after the camera
focuses on the subject.
• To return to single frame mode, press the drive mode button until
appears in the data panel.
In this mode, the camera continues to release the shutter and
advance the film as long as the shutter-release button is held down.
• AF Zoom xi and Power zoom lenses cannot be zoomed when
continuous-advance mode is selected.
4140
FOR OWNERS OF THE QUARTZ DATE MODEL

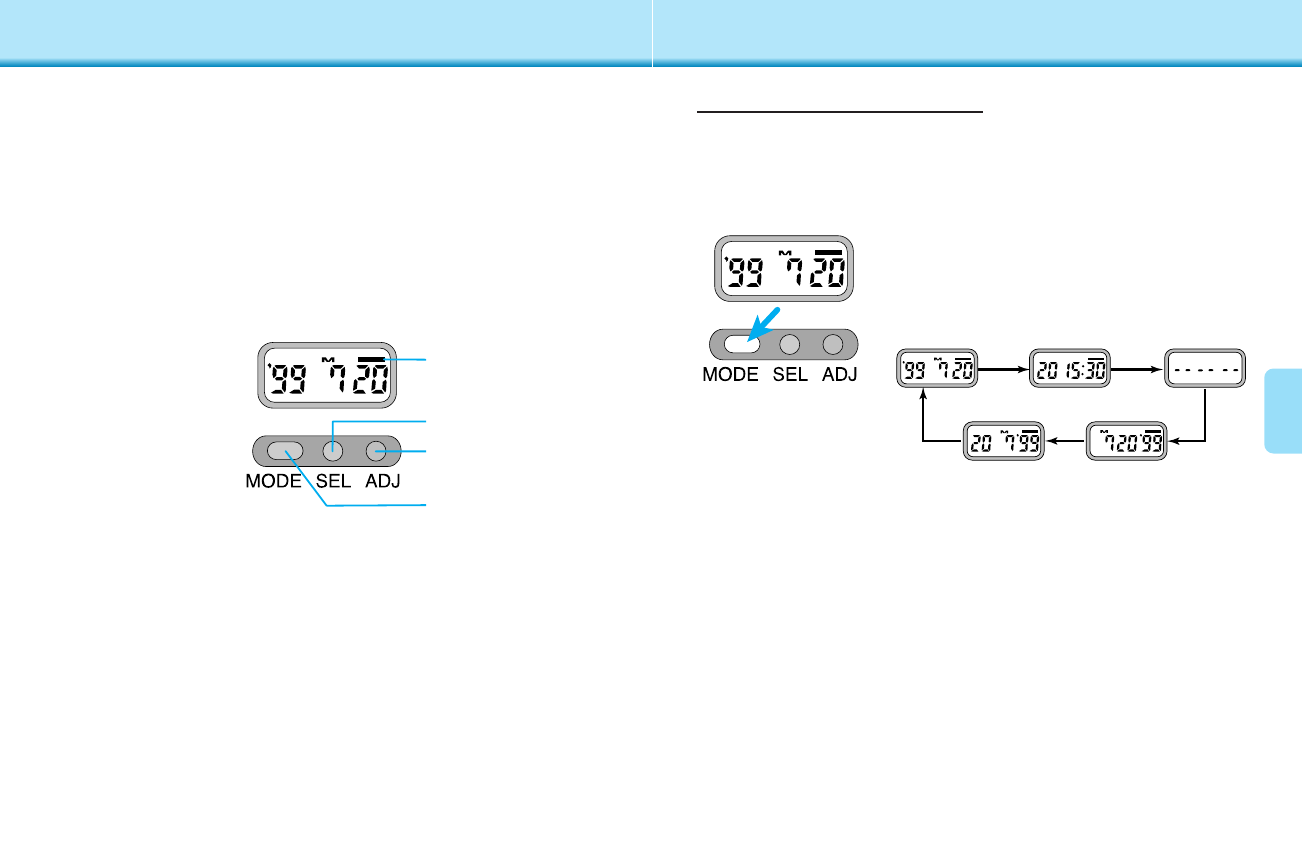

1. Press the mode button to choose
the data imprinting format.
• The display changes as follows:
2. Take the picture.
• If the print indicator blinks after the shutter is released, the data was
exposed.
The Quartz-data function lets you record the date or time onto the
lower-right corner of the photograph. The quartz data back has an
automatic calendar through the year 2019.
• Imprinted data may be difficult to read if the lower-right corner of the
photograph is bright or non-uniform.
• Imprinting size and position may differ according to printing conditions.
• Data imprinting may not be possible if temperatures exceed the normal
operating range of 0 to 50 °C (32 to 122 °F).
Exposing the Date/Time
Before taking the picture…
Mode button
Select button
Adjust button
Print indicator
year, month, day 24 hour format no imprinting
day, month, year month, day, year
4342

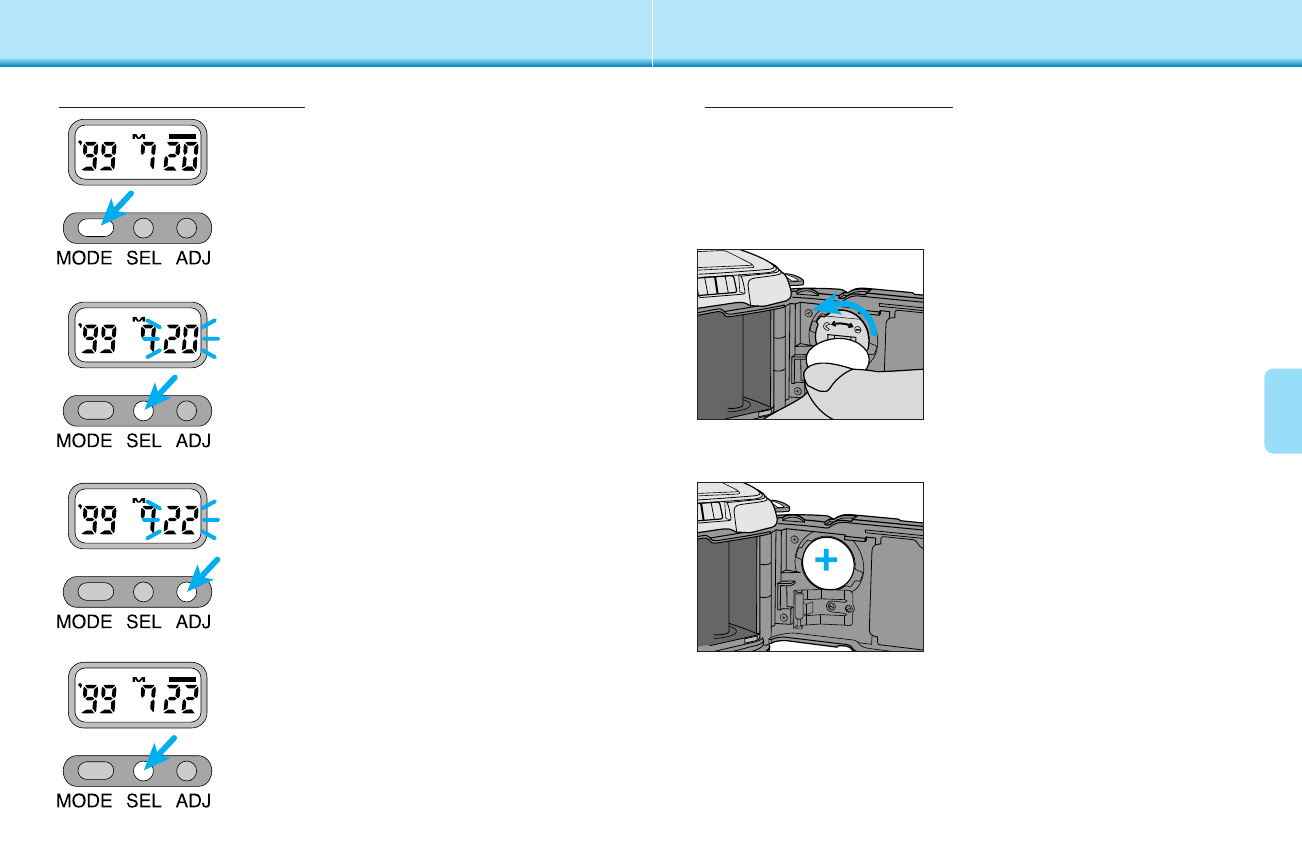

FOR OWNERS OF THE QUARTZ DATE MODEL
1. Open the back cover.
3. Remove the old battery and
replace it with a new one.
• The + side should face up.
2. Using a coin or similar
object, turn the battery cover
counter-clockwise, then
remove it.
4. Replace the battery cover,
then reset the date and time.
Replacing the Battery
The quartz data back uses a CR2025 lithium battery, located on the
inside of the back cover. Replace the battery if the display or
imprinted data becomes dim.
1. Press the mode button to choose
the data imprinting format.
• M will appear above the month.
2. Use the select button (SEL) to
move between different parts of
the displayed data.
• The selected part will blink, indicating that it
is the data to be changed.
3. Press the adjust button (ADJ) to
change the data to the correct
value.
• Data continues changing as long as the
button is held down.
• In time mode, pressing the ADJUST button
while :is blinking resets the seconds counter
to zero (not shown).
Setting the Date/Time
4. When all data is correct, press
the select button (SEL) until the
data stops blinking.
4544
MANUAL FOCUS

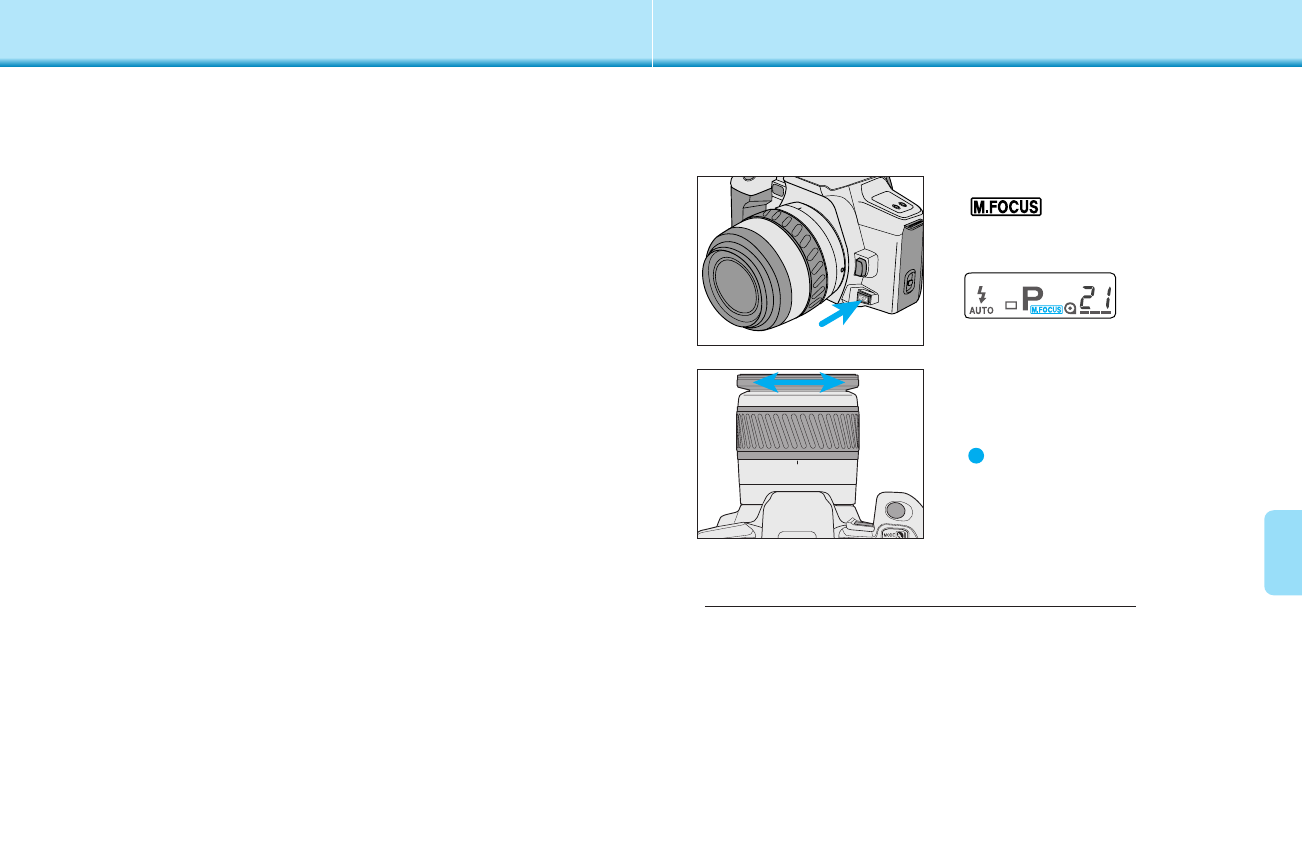

1. Press the focus-mode button.
will appear in the
data panel.
2. Turn the focusing ring until
your subject appears sharp
and focused.
• appears in the viewfinder when the
subject in the focus frame is in focus.
• Press the focus-mode button again to
return to the autofocus mode.
Pull and turn the control ring until your subject appears
sharp.
Focus the lens manually when autofocus is not suitable and focus
hold is not possible. The autofocus system will monitor focus and
indicate when a subject in the focus frame is in focus.
AF Power Zoom and xi-Series Lenses
ADDITIONAL
FEATURES
4746

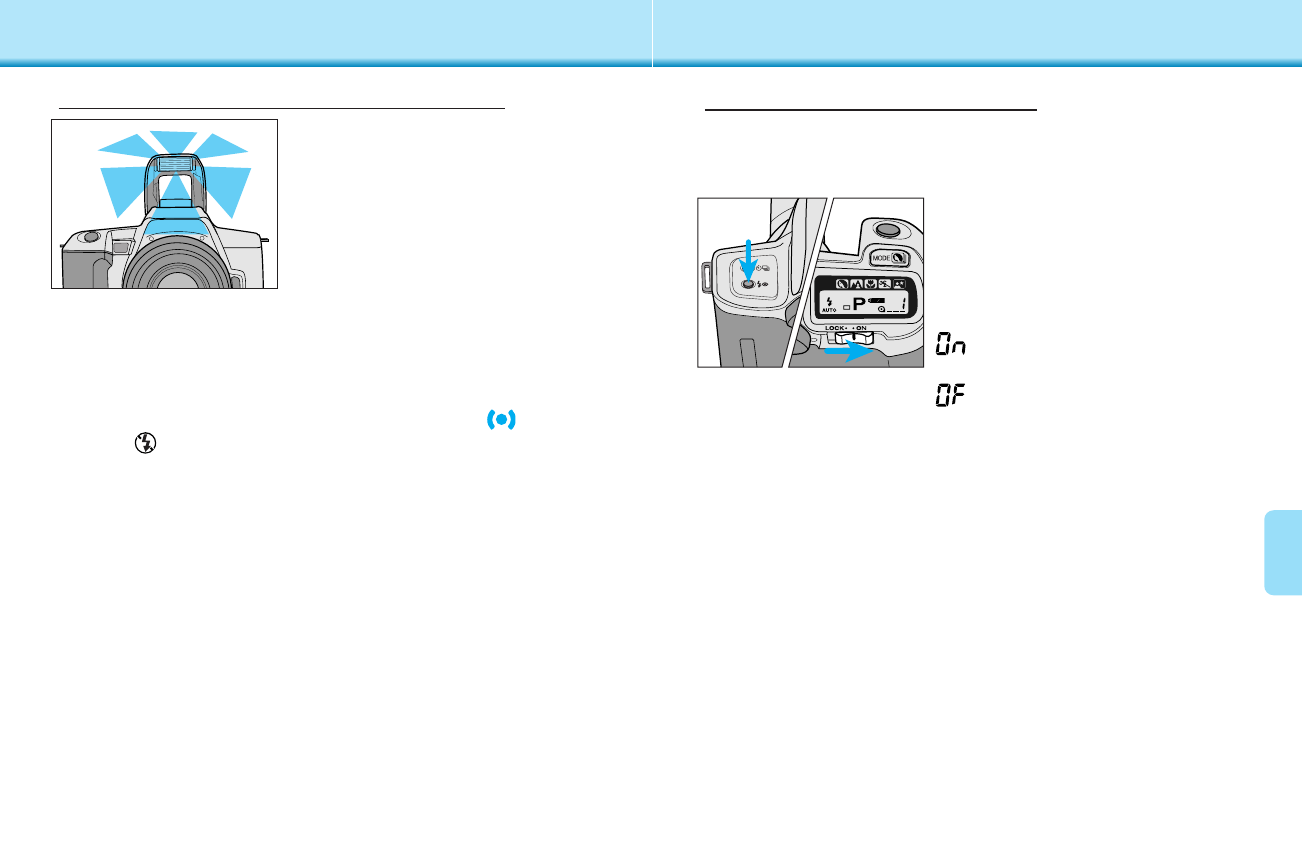

AF ILLUMINATOR
The AF Illuminator is a secondary
function of the built-in flash. When the
scene is too dark for the camera to
focus accurately, the built-in flash fires
a few short bursts when the shutter-
release button is pressed partway
down to provide the illumination
necessary for the camera to focus on
your subject.
• The range of the AF Illuminator flash is approximately one to five meters.
(3.3 ~16.4ft.)
• The AF illuminator will not fire in continuous focus mode or if flash
cancel is selected.
• The AF illuminator will not operate with 300mm or longer single focal
length lenses.
• The AF illuminator will not operate with 3x-1x Macro Zoom.
• When an accessory flash is attached, its AF illuminator will be active in
place of the camera’s AF illuminator.
AF Illuminator (Built-in Flash) Function
You can cancel the built in flash’s AF illuminator if it will interfere
with your subject or is inappropriate.
Cancelling the AF Illuminator
When the AF Illuminator is cancelled;
• The built-in flash’s AF illuminator will not fire, but an attached accessory
flash’s AF illuminator will not be cancelled.
• Other flash functions will operate normally.
- AF illuminator on
- AF illuminator off
To turn the AF illuminator on or off,
slide the Main switch to LOCK,
then to ON while pressing the
flash-mode button.
• The status of the AF illuminator is
displayed in the data panel.
4948
WIRELESS/REMOTE FLASH
2. Press the flash mode button
until WL appears in the
camera’s data panel.
3. Detach the accessory flash,
then press the camera’s flash
mode button to raise the
built-in flash.
• See page 50 for positioning the
camera, subject, and flash.
Wireless/Remote Flash is available
with the Minolta 5400HS, 5400xi, and
3500xi accessory flashes.
Wireless/Remote flash lets you
experience the creative control
available with an accessory flash.
In Wireless/Remote flash mode, the
off-camera flash is triggered by a
coded signal from the camera’s built-in
flash when you press the shutter-
release button. When proper exposure
has been received, another signal cuts
the accessory flash off.
Normal Flash
Wireless/Remote Flash 4 Wait until both flash units are
fully charged.
• appears in the viewfinder when the
built-in flash is charged.
• When the off-camera flash is charged,
its AF illuminator will blink.
5. With the built-in flash up and
WL showing in the data
panel, press the subject
program button to test fire
the wireless/remote flash.
Taking Pictures in Wireless/Remote Flash Mode

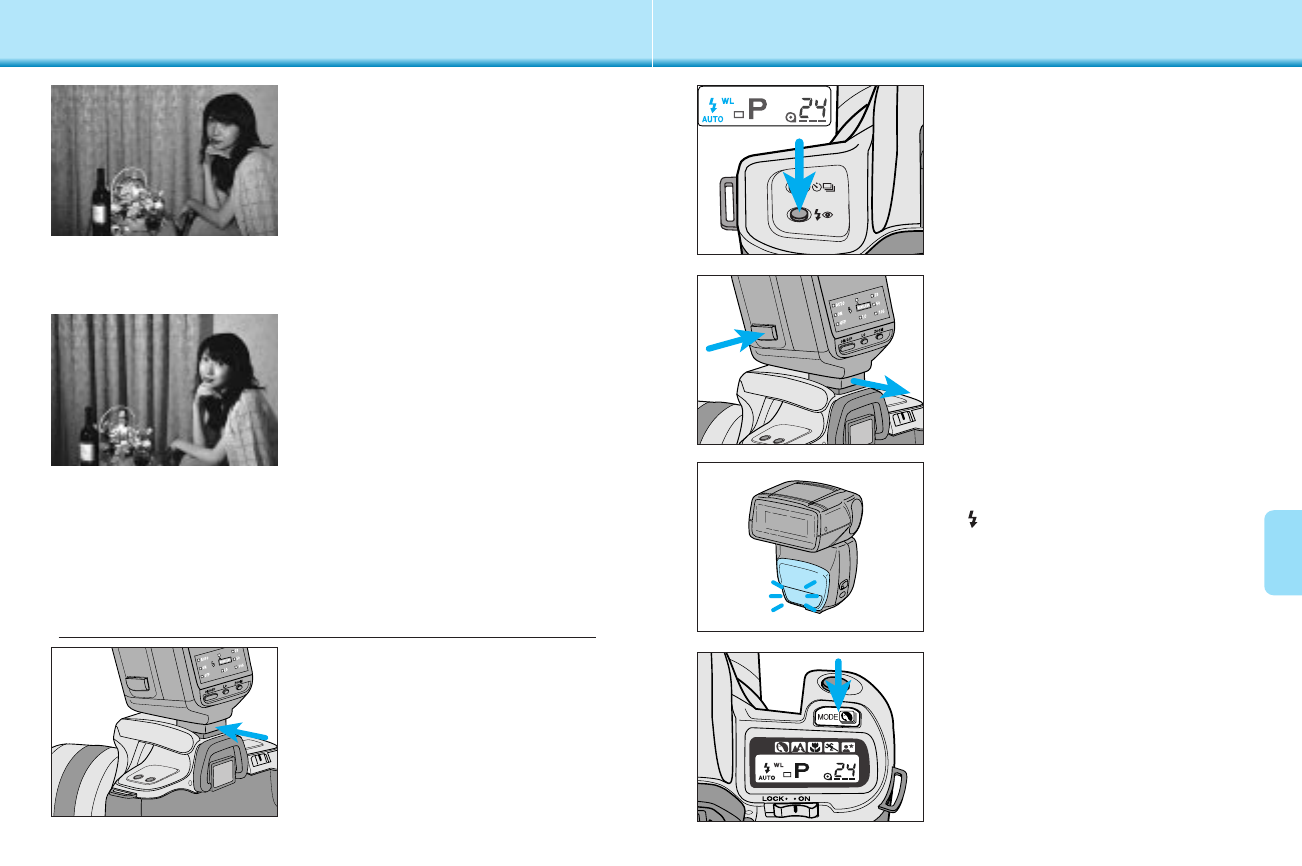

1. Attach the accessory flash to
the camera, then turn the
camera on.
5150
WIRELESS/REMOTE FLASH
Telephoto
Positioning for Wireless/Remote Flash Mode
Position your camera and 3500xi flash unit using the
information on this page.
• If you are not using the 3500xi flash, refer to your flash instruction
manual for the correct camera to subject and flash to subject distances.
ISO 100
ISO 400
1.0 ~ 5.0m
(3.3 ~16.4ft.)
2.0 ~ 5.0m
(6.6 ~16.4ft.)
1.0 ~ 5.0m
(3.3 ~ 16.4ft.) 0.7 ~ 4.5m
(2.3 ~14.8ft)
1.0 ~ 5.0m
(3.3 ~ 16.4ft.)
1.4 ~ 5.0m
(4.6 ~16.4ft.)
0.5 ~ 3.2m
(1.6 ~ 10.5ft)
1.4 ~ 5.0m
(4.6 ~ 16.4ft.)
Wide Angle TelephotoWide angle
Camera - Subject Distance 3500xi - Subject Distance
Film speed
• Chart data obtained using a 35-80mm f/4-5.6 AF lens.
1. Attach the accessory flash to
the camera.
Cancelling Wireless/Remote Flash Mode
The off-camera flash may not
detect the control signals if it is
placed behind the subject
3500xi-Subject Distance
Camera-Subject
Distance
The maximum flash -subject distance
for the 3500xi is 5.0m (16.4ft).
6. Press the shutter-release button all the way down to
take the picture.
2. Press the flash mode button
until WL no longer appears in
the data panel.
• You can also cancel the wireless/remote flash by turning the main switch
to ON with the accessory flash attached.
53
52
ACCESSORY INFORMATION
This camera is designed to work specifically with lenses and
accessories manufactured and distributed by Minolta. Using
incompatible accessories with this camera may result in
unsatisfactory performance or damage the camera and accessories.
Lenses
• All Minolta AF lenses can be used with this camera.
• MD and MC series lenses (manual focus) cannot be used with this
camera.
Compatibility of Accessories
Flashes
• All Minolta i, si, and HS series flash units, and the Vectis SF-1 flash, are
compatible with this camera. (High-speed syncro mode on HS flash
cannot be used with this camera.)
• The Flash Shoe Adapter FS-1100 is required to mount AF series flash
units (4000AF, 2800AF, 1800AF, and Macro flash 1200AF).
• When the FS-1100 is used…
-The flash will fire every time the shutter is released.
-The AF illuminator will not activate.
-The built-in flash is set to fill flash when the accessory flash
is removed.
• X, PX-series flashes and flashes sold by other manufacturers cannot be
used with this camera.
Others
• The following accessories are not compatible with this camera:
Control Grip CG-1000 Data Receiver DR-1000
Creative Expansion Cards Anglefinder
Magnifier Wireless Controller IR-1N
APPENDIX
5554
ACCESSORY INFORMATION
Auto
Fill flash
Flash cancel
Flash wireless
Fit the lens hood into the mount
at the end of the lens barrel,
then turn the hood clockwise
until it stops.
• To store the hood, reverse it, attach it to
the lens, then replace the lens cap.
Flare is non-image forming light that degrades image quality. A lens
hood improves image quality by reducing flare.
• Remove a lens hood before using the camera’s built-in flash.
Lens Hood
For owners of the optional lens kits
When using an accessory flash, the desired flash mode can be
controlled using either the camera or the flash.
Accessory Flash Control
From the FLASH
Press the flash’s ON/OFF button
to select the desired flash mode.
• Data is not transferred from the flash
until the shutter-release button is
pressed partway down.
• Accessory fill flash cannot be selected.
From the CAMERA
Press the flash-mode button to
select the desired flash mode.
• The camera transfers data to the
accessory flash immediately.
• Red-eye reduction cannot be selected
when using an accessory flash.
• When an accessory flash is attached,
pressing the flash mode button causes the
flash modes to change in the following
sequence.
Lens Specifications AF Zoom
35 - 80mm f/4-5.6 II
Construction: 8 elements, 8 groups
Angle of View: 63° - 30°
Min. Focus Distance: 0.38m (1.25 ft.)
Mas. Magnification: 0.25X
Min. Aperture: f/22-32
Filter Diameter: 49mm
Dimensions: 63 x 66mm
Weight: 150g (5.31 oz)
• Specifications are based on the latest information available at the time of
printing and are subject to change without notice.
Focus cannot be confirmed.
5756
TROUBLE SHOOTING
SOLUTION
If the camera battery is exhausted, install a new battery.
Remove and reinstall the batteries.
Use focus hold or manual focus.
Contact a Minolta service facility for information.
Contact your nearest Minolta Service Facility if the following
information does not cover the problem which you are experiencing
or the condition continues.
PROBLEM CAUSE
Batteries are loaded incorrectly.
Batteries are exhausted.
Situation is unsuitable for autofocus.
Camera is set to manual focus
mode.
Use focus hold or manual focus.
Press the focus mode button to return the camera to
autofocus mode.
Subject is too close. Check the minimum focus distance for your lens.
22/45
Shutter cannot be released. Camera is attached to a microscope
or telescope.
Flash fires when the
shutter-release button is
pressed partway down. The AF illuminator is on. This is a normal camera operation.
(The AF illuminator can also be cancelled.) 46
Flash picture is too dark. Subject is beyond flash range. Make sure the subject is within the flash range. 23
Lower part of flash picture
is dark. Lens hood attached. Remove lens hood. 27
PAGE
12
12
45
-
22/45
-
No display appears when
the camera is switched on.
Err appears in the data
panel. Camera Malfuction.
Remove and reinstall the batteries. If normal camera
operation does not resume or the camera malfunctions
repeatedly, contact an authorized Minolta Service
Facility.
12
Autofocus does not work
when shutter-release button
is pressed partway down.
5958
CARE AND STORAGE
Operating Temperature and Conditions
• This camera is designed for use from -20 to 50 °C (4 to 122 °F).
• Never leave your camera where it may be subjected to extreme
temperatures such as the glove compartment of a car.
• Data panel response time will be slow at colder temperatures. The
display will temporarily darken at higher temperatures, but will restore
when the temperature normalizes.
• Never subject the camera to extreme humidity.
• To prevent condensation from forming, place the camera in a sealed
plastic bag when bringing it from cold environment to a warm
environment. Allow it to come to room temperature before removing it
from the bag.
• The low-battery symbol may appear even with fresh batteries depending
on the storage conditions. To restore camera power, repeat turning the
camera on and off.
• Battery capacity decreases at colder temperatures. Keep your camera
and spare batteries in a warm inside pocket when shooting in cold
weather. Batteries will regain some of their capacity when warmed to
normal operating temperature.
Storage
When storing your camera for extended periods,
• Always attach the protective caps.
• Store in a cool, dry, and well-ventilated area away from dust and
chemicals such as moth balls. For long periods, place the camera in an
airtight container with a silica gel drying agent.
• Periodically release the camera’s shutter to keep it operating properly.
• Before using after prolonged storage, check the camera’s operation to
make sure it is functioning properly.
Questions and Service
• If you have questions about your camera, contact your local camera
dealer or write to the Minolta distributor in your area.
• Before shipping your camera for repair, please contact an authorized
Minolta Service Facility for details.
Cleaning
• If the camera or lens barrel is dirty, wipe it gently with a soft, clean, dry
cloth.
If the camera or lens comes in contact with sand, gently blow away loose
particles - wiping may scratch the surface.
• To clean the lens surface, first brush away any dust or sand then, if
necessary, moisten a lens tissue with lens cleaning fluid and gently wipe
the lens in a circular motion, starting from the center.
• Never place lens fluid directly on the lens.
• Never touch the interior of the camera, especially the shutter and mirror,
doing so may impair their alignment and movement.
• Dust on the mirror will not affect the exposure but may affect the focus.
Use a blower brush to remove dust from or around the mirror.
• Never use compressed air to clean the camera’s interior, it may cause
damage to sensitive interior parts.
• Never use organic solvents to clean the camera.
• Never touch the lens surface with your fingers.
Before Important Events
• Check the camera’s operation carefully, or take test photographs.
• Minolta is not responsible for any loss that may occur due to an
equipment malfunction.
SPECIFICATIONS
Drive Modes: Single frame, continuous advance
(1 frame/sec.), self-timer.
Rewind: Auto rewind, manual start (Count-down
display)
Frame counter: Forward (shows number of exposures
taken)
Built-in Flash
GN: 12 (ISO 100 in meters)
Coverage: 28mm angle of view
Recycling Time: Approx. 3 sec. (according to Minolta test
methods)
Additional
Power: Two CR2 lithium batteries
Battery Performance:
• 24 Exposure rolls
Condition A:Lens (35-80 f/4-5.6) focused from infinity to 2m three
times and the shutter-release button held partway down
for ten seconds before each exposure.
Condition B:Lens (35-80 f/4-5.6) focused from infinity to 2m and the
shutter-release button held partway down for five seconds
before each exposure.
• Battery performance will vary with usage conditions.
• Exposures taken at a rate of 2 rolls/month.
Dimensions : 135.0 x 90.0 x 58.5mm (WxHxD)
QD model: 135.0 x 90.0 x 61.0mm (WxHxD)
Weight : 340g (w/o camera battery)
QD model: 355g (w/o camera battery)
Flash use (%)
0
50
100
20°C
40 rolls
17 rolls
11 rolls
30 rolls
13 rolls
8 rolls
23 rolls
14 rolls
-10°C 20°C
65 rolls 50 rolls
18 rolls
10 rolls
6160
Camera Type: 35mm SLR with built-in flash, autoexposure (AE),
and action predictive autofocus (AF)
Lens Mount: Minolta A-type bayonet mount
Viewfinder: SLR roof mirror type, 90% field of view
Magnification: 0.75X
Shutter
Type: Electronically-controlled, vertical-traverse, focal-
plane type
Speeds: 30 sec. - 1/2000 sec.
Flash sync speed: 1/90 or slower
1/45 with wireless flash
Focus
Type: TTL phase-detection system, with one CCD
sensor. Autofocus and manual focus modes.
AF Sensitivity Range: EV -1 to18 (ISO 100)
AF Illuminator: Built-in with range of 1.0 - 5.0m. Automatically
activated in low-light/ low-contrast situations.
AF Control: Single-shot, continuous, automatic AF-mode
selection.
Exposure
Modes: P and 5 Subject Program modes (Portrait,
Landscape, Close-up, Sports, Night Portrait)
Type: TTL metering; direct TTL metering for flash
Metering Cell: 2-segment SPC for ambient light and flash-
metering SPC for flash.
Metering Range: EV 4 - 20
(ISO 100, f/1.4 lens)
Film-speed Setting: Automatic: ISO 25 to 5000 for DX-coded film.
Flash: ISO 25 - 1000.
Film Transport
Loading: Auto load
Specifications and accessories are based on the latest information available
at the time of printing and are subject to change without notice.
Condition A Condition B
-10°C
Minolta Co., Ltd. 3-13, 2-Chome, Azuchi-Machi, Chuo-Ku, Osaka 541-8556, Japan
Minolta GmbH Kurt-Fischer-Strasse 50, D-22923 Ahrensburg, Germany
Minolta France S.A. 365 Route de Saint-Germain, F-78420 Carrieres-Sur-Seine, France
Minolta (UK) Limited 7 Tanners Drive, Blakelands, Milton Keynes, MK14 5BU, England
Minolta Austria Ges. m.b.H. Amalienstrasse 59-61, A-1131 Wien, Austria
Minolta Camera Benelux B.V. Zonnebaan 39, P.O. Box 6000, NL-3600 HA Maarssen, The Netherlands
Belgium Branch Prins Boundewijnlaan 1, B-2550 Kontich, Belgium
Minolta (Schweiz) AG Riedstrasse 6, CH-8953 Dietikon, Switzerland
Minolta Svenska AB Albygatan 114, S-171 54 Solna, Sweden
Finland Branch Niittykatu 6 PL 37, SF-02201 Espoo, Finland
Minolta Portugal Limitada Av. do Brasil 33-A, P-1700 Lisboa, Portugal
Minolta Corporation
Head Office 101 Williams Drive, Ramsey, New Jersey 07446, U.S.A.
Los Angeles Branch 11150 Hope Street Cypress, CA 90630, U.S.A.
Minolta Canada Inc.
Head Office 369 Britannia Road East, Mississauga, Ontario L4Z 2H5, Canada
Vancouver Branch 230-3771 Jacombs Road, Richmond, B.C. V6V 2L9, Canada
Minolta Hong Kong Limited Room 208, 2/F, Eastern Center, 1065 King’s Road, Quarry Bay, Hong
Kong
Minolta Singapore (Pte) Ltd. 10, Teban Gardens Crescent, Singapore 608923
Shanghai Minolta Optical
Products Co., Ltd. 368 Minolta Road, Songjiang, Shanghai, China
© 1999 Minolta Co., Ltd. under the Berne
Convention and Universal Copyright Convention
Printed in Malaysia 9222-2156-11 MM-B909
