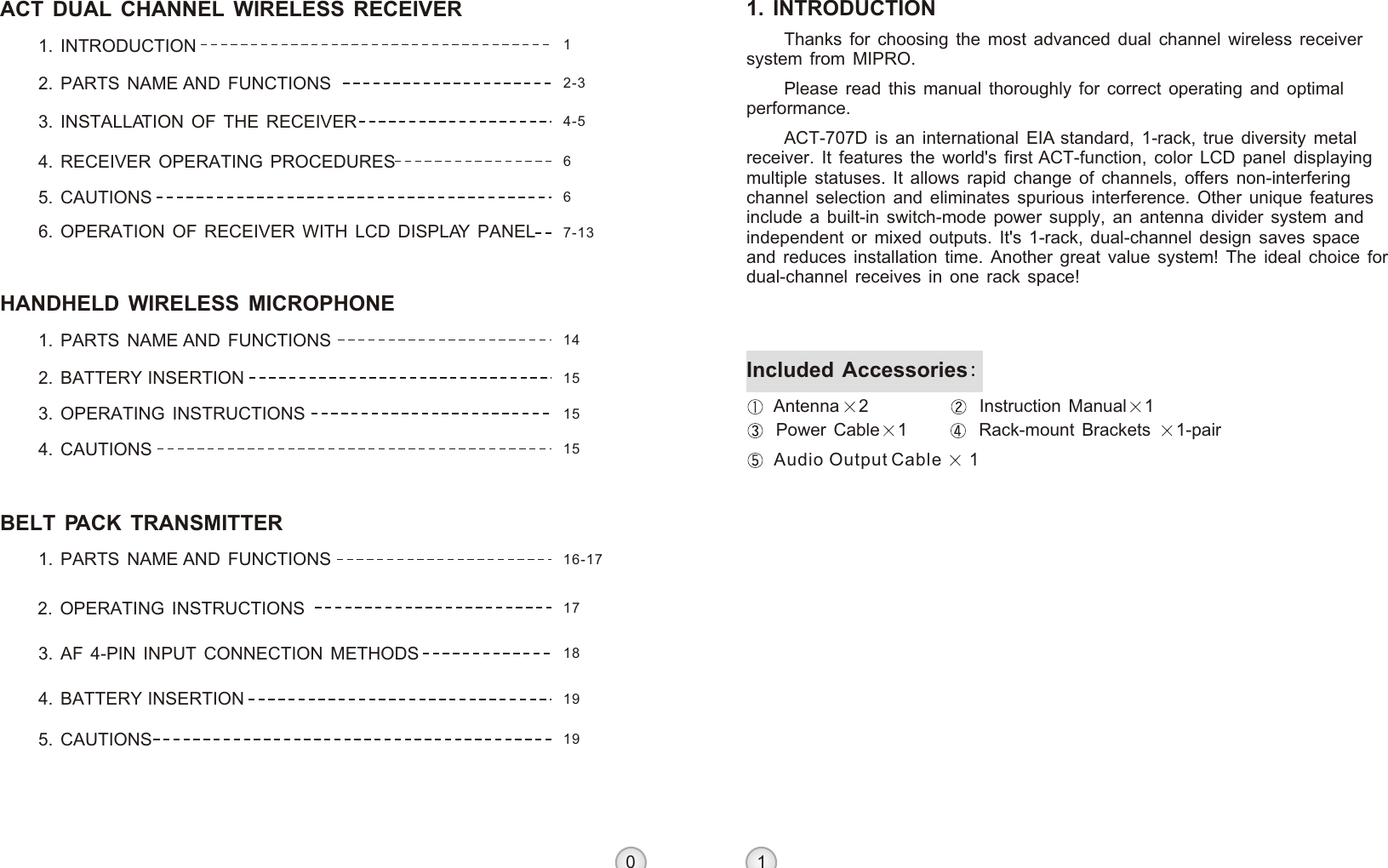

1. INTRODUCTION
Thanks for choosing the most advanced dual channel wireless receiver
system from MIPRO.
Please read this manual thoroughly for correct operating and optimal
performance.
ACT-707D is an international EIA standard, 1-rack, true diversity metal
receiver. It features the world's first ACT-function, color LCD panel displaying
multiple statuses. It allows rapid change of channels, offers non-interfering
channel selection and eliminates spurious interference. Other unique features
include a built-in switch-mode power supply, an antenna divider system and
independent or mixed outputs. It's 1-rack, dual-channel design saves space
and reduces installation time. Another great value system! The ideal choice for
dual-channel receives in one rack space!
Antenna 2 Instruction Manual 1
Power Cable 1 Rack-mount Brackets 1-pair
Audio Output Cable 1
Included Accessories
CONTENTS ACT DUAL CHANNEL WIRELESS RECEIVER
ACT DUAL CHANNEL WIRELESS RECEIVER
1. INTRODUCTION
2. PARTS NAME AND FUNCTIONS
3. INSTALLATION OF THE RECEIVER
5. CAUTIONS
HANDHELD WIRELESS MICROPHONE
BELT PACK TRANSMITTER
1. PARTS NAME AND FUNCTIONS
1. PARTS NAME AND FUNCTIONS
2. BATTERY INSERTION
4. BATTERY INSERTION
3. OPERATING INSTRUCTIONS
3. AF 4-PIN INPUT CONNECTION METHODS
4. CAUTIONS
5. CAUTIONS
2. OPERATING INSTRUCTIONS
6. OPERATION OF RECEIVER WITH LCD DISPLAY PANEL
19
4. RECEIVER OPERATING PROCEDURES
23
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER

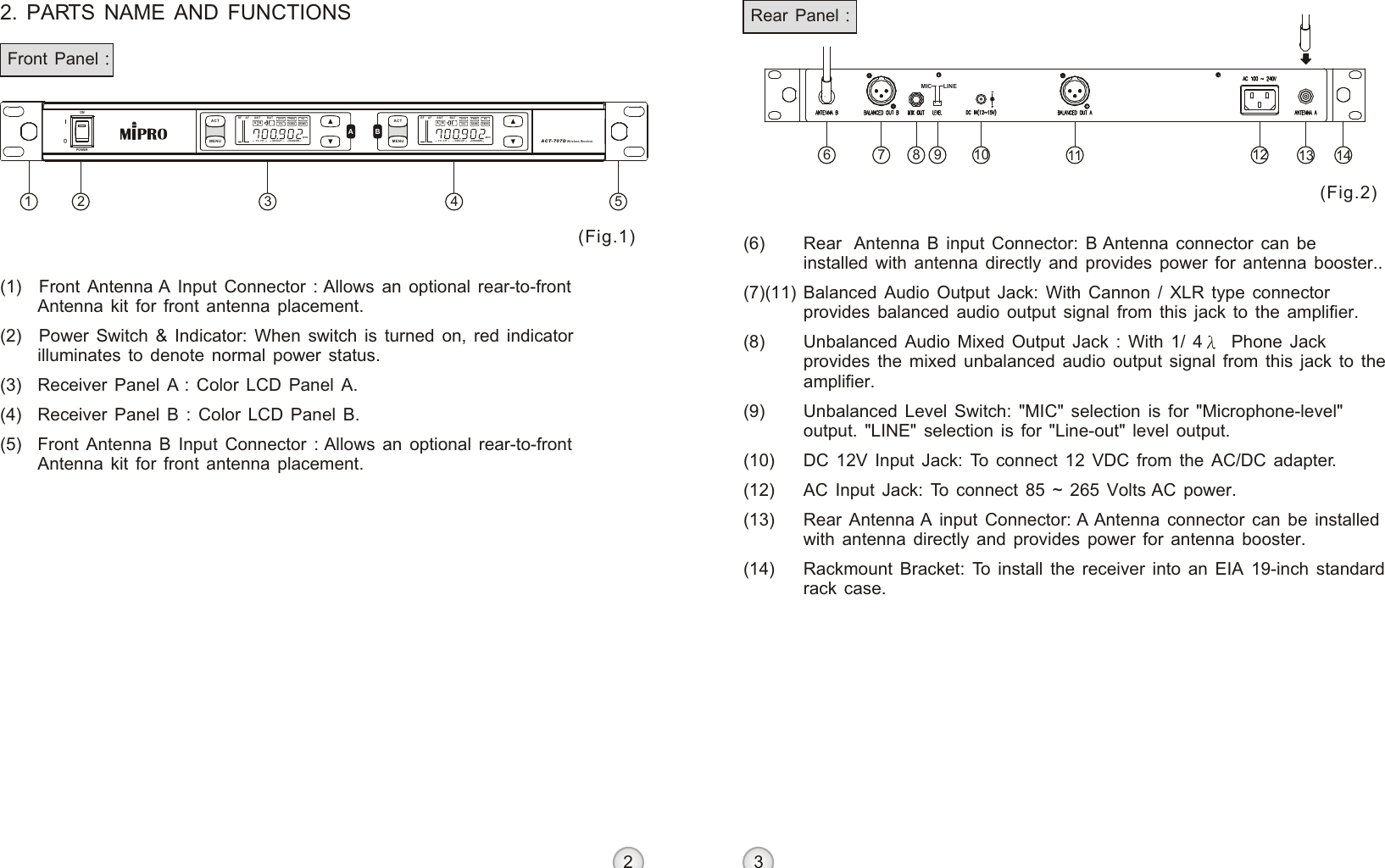

2. PARTS NAME AND FUNCTIONS

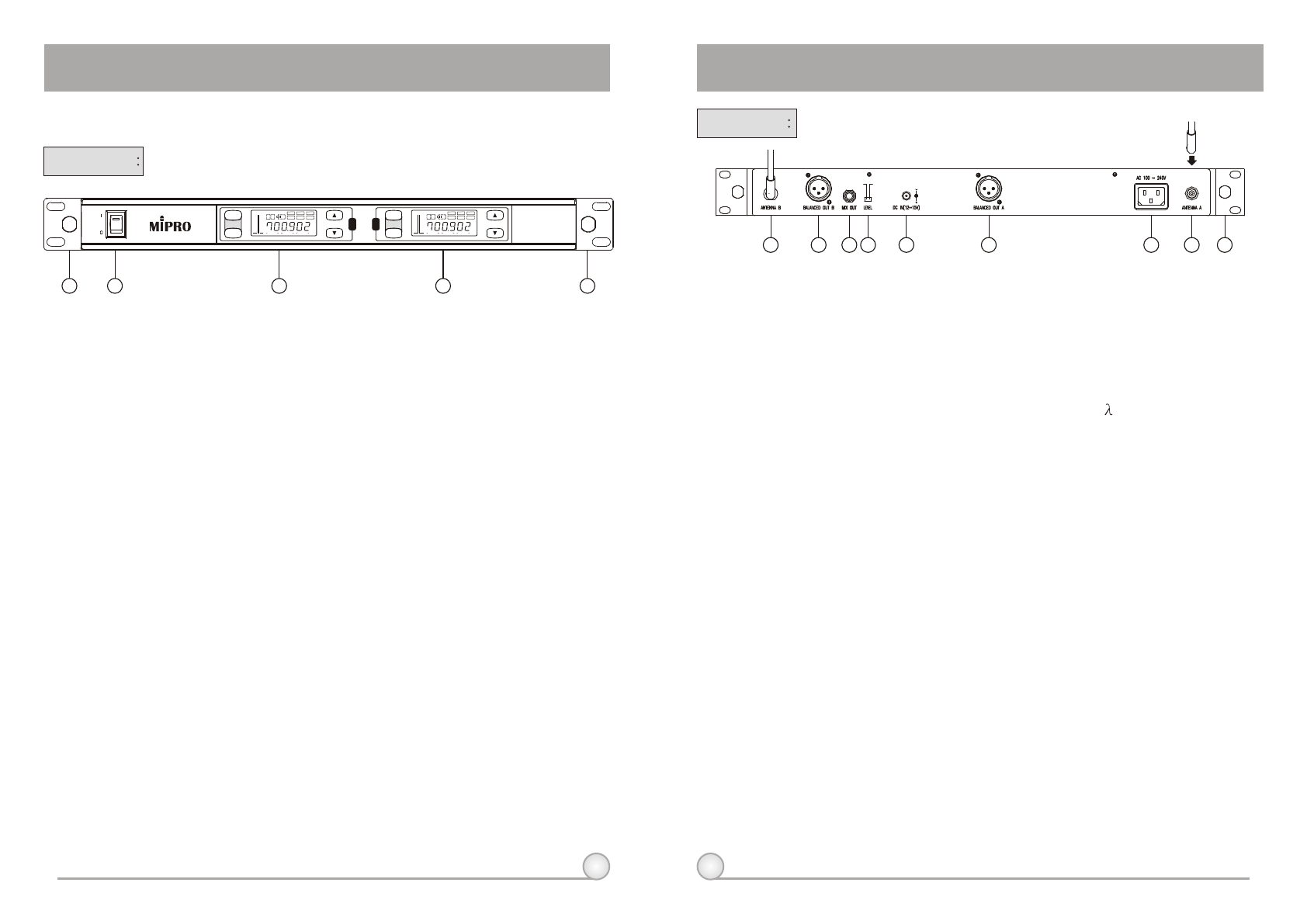

Front Panel
Rear Panel
(Fig.1)
(Fig.2)
(1) Front Antenna A Input Connector : Allows an optional rear-to-front
Antenna kit for front antenna placement.
(2) Power Switch & Indicator: When switch is turned on, red indicator
illuminates to denote normal power status.
(3) Receiver Panel A : Color LCD Panel A.
(4) Receiver Panel B : Color LCD Panel B.
(5) Front Antenna B Input Connector : Allows an optional rear-to-front
Antenna kit for front antenna placement.
(6) Rear Antenna B input Connector: B Antenna connector can be
installed with antenna directly and provides power for antenna booster..
(7)(11) Balanced Audio Output Jack: With Cannon / XLR type connector
provides balanced audio output signal from this jack to the amplifier.
(8) Unbalanced Audio Mixed Output Jack : With 1/ 4 Phone Jack
provides the mixed unbalanced audio output signal from this jack to the
amplifier.
(9) Unbalanced Level Switch: "MIC" selection is for "Microphone-level"
output. "LINE" selection is for "Line-out" level output.
(10) DC 12V Input Jack: To connect 12 VDC from the AC/DC adapter.
(12) AC Input Jack: To connect 85 ~ 265 Volts AC power.
(13) Rear Antenna A input Connector: A Antenna connector can be installed
with antenna directly and provides power for antenna booster.
(14) Rackmount Bracket: To install the receiver into an EIA 19-inch standard
rack case.
78 9 10 12 13
11
614
MIC LINE
2 3 4
ACT
MENU
RF AF
GROUP CHANNEL
MHz
TV CH
G/CH
VOL
FREQ SQ
REMO
NAME
BAT
ANT
B
AACT
MENU
RF AF
GROUP CHANNEL
MHz
TV CH
G/CH
VOL
FREQ SQ
REMO
NAME
BAT
ANT
B
A
ACT-707D Wireless Receiver
ON
POWER
A B
1 5
45
(Fig.3)
(Fig.4)

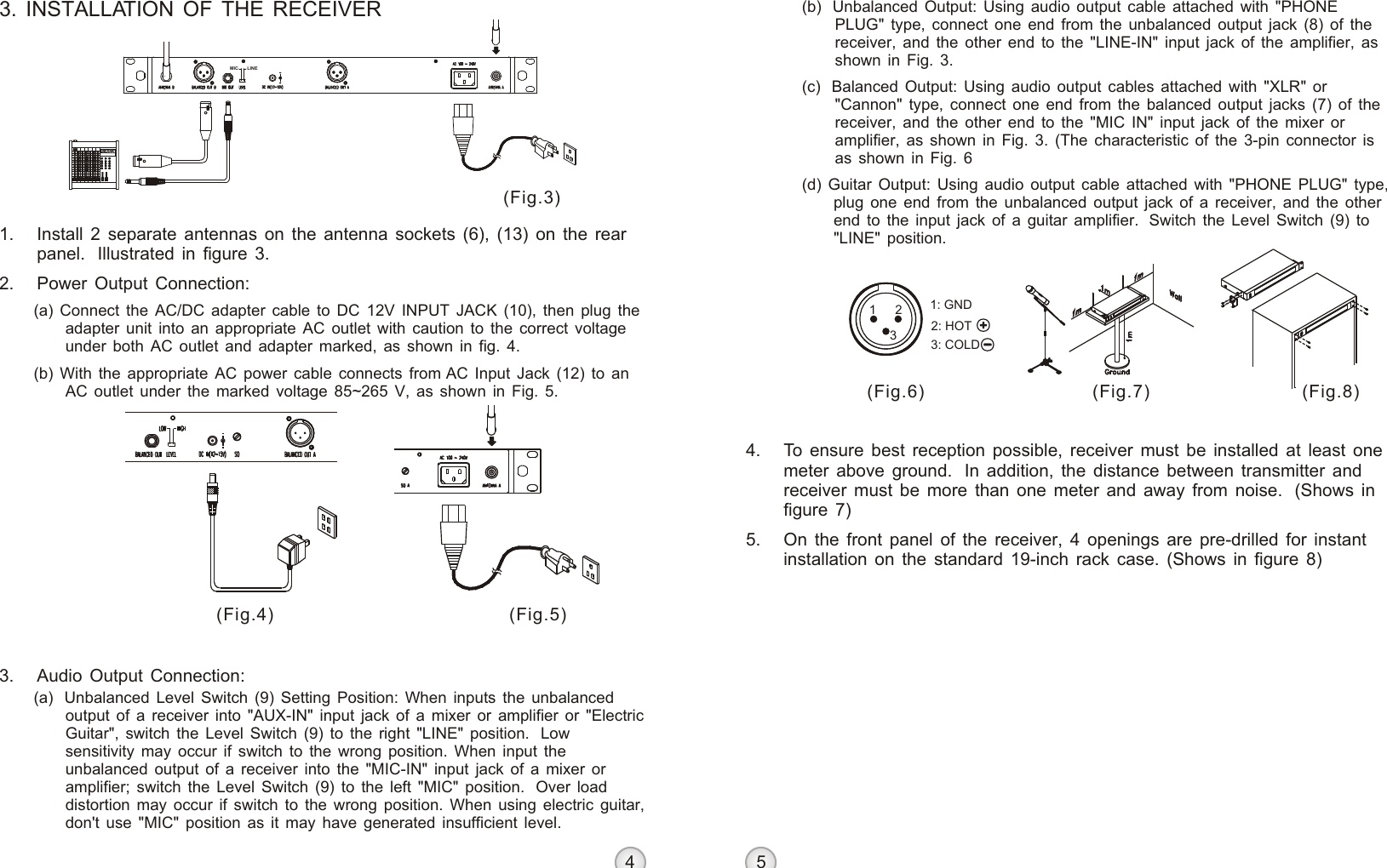

3. INSTALLATION OF THE RECEIVER
1. Install 2 separate antennas on the antenna sockets (6), (13) on the rear
panel. Illustrated in figure 3.
2. Power Output Connection:
(a) Unbalanced Level Switch (9) Setting Position: When inputs the unbalanced
output of a receiver into "AUX-IN" input jack of a mixer or amplifier or "Electric
Guitar", switch the Level Switch (9) to the right "LINE" position. Low
sensitivity may occur if switch to the wrong position. When input the
unbalanced output of a receiver into the "MIC-IN" input jack of a mixer or
amplifier; switch the Level Switch (9) to the left "MIC" position. Over load
distortion may occur if switch to the wrong position. When using electric guitar,
don't use "MIC" position as it may have generated insufficient level.
(b) Unbalanced Output: Using audio output cable attached with "PHONE
PLUG" type, connect one end from the unbalanced output jack (8) of the
receiver, and the other end to the "LINE-IN" input jack of the amplifier, as
shown in Fig. 3.
(c) Balanced Output: Using audio output cables attached with "XLR" or
"Cannon" type, connect one end from the balanced output jacks (7) of the
receiver, and the other end to the "MIC IN" input jack of the mixer or
amplifier, as shown in Fig. 3. (The characteristic of the 3-pin connector is
as shown in Fig. 6
(d) Guitar Output: Using audio output cable attached with "PHONE PLUG" type,
plug one end from the unbalanced output jack of a receiver, and the other
end to the input jack of a guitar amplifier. Switch the Level Switch (9) to
"LINE" position.
(Fig.6)
3. Audio Output Connection:
(a) Connect the AC/DC adapter cable to DC 12V INPUT JACK (10), then plug the
adapter unit into an appropriate AC outlet with caution to the correct voltage
under both AC outlet and adapter marked, as shown in fig. 4.
(b) With the appropriate AC power cable connects from AC Input Jack (12) to an
AC outlet under the marked voltage 85~265 V, as shown in Fig. 5.
(Fig.5)
3: COLD
- -
+ +
1: GND
2: HOT
3
21
(Fig.8)(Fig.7)
4. To ensure best reception possible, receiver must be installed at least one
meter above ground. In addition, the distance between transmitter and
receiver must be more than one meter and away from noise. (Shows in
figure 7)
5. On the front panel of the receiver, 4 openings are pre-drilled for instant
installation on the standard 19-inch rack case. (Shows in figure 8)
MIC LINE
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER
67

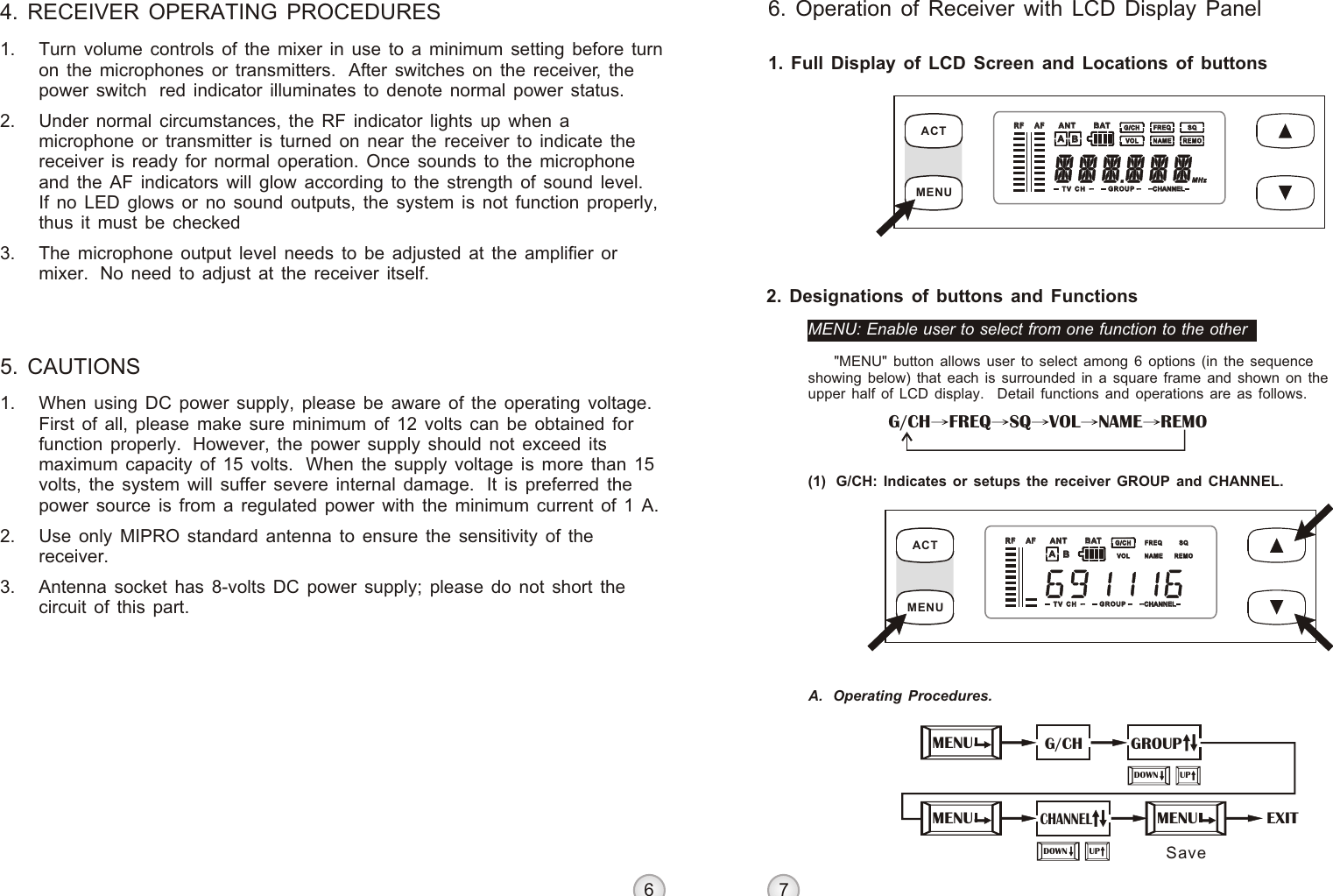

5. CAUTIONS
1. When using DC power supply, please be aware of the operating voltage.
First of all, please make sure minimum of 12 volts can be obtained for
function properly. However, the power supply should not exceed its
maximum capacity of 15 volts. When the supply voltage is more than 15
volts, the system will suffer severe internal damage. It is preferred the
power source is from a regulated power with the minimum current of 1 A.
2. Use only MIPRO standard antenna to ensure the sensitivity of the
receiver.
3. Antenna socket has 8-volts DC power supply; please do not short the
circuit of this part.
4. RECEIVER OPERATING PROCEDURES
1. Turn volume controls of the mixer in use to a minimum setting before turn
on the microphones or transmitters. After switches on the receiver, the
power switch red indicator illuminates to denote normal power status.
2. Under normal circumstances, the RF indicator lights up when a
microphone or transmitter is turned on near the receiver to indicate the
receiver is ready for normal operation. Once sounds to the microphone
and the AF indicators will glow according to the strength of sound level.
If no LED glows or no sound outputs, the system is not function properly,
thus it must be checked
3. The microphone output level needs to be adjusted at the amplifier or
mixer. No need to adjust at the receiver itself.
G/CH FREQ SQ VOL NAME REMO
ACT
MENU
RFRF AFAF
GROUPGROUP CHANNELCHANNEL
MHzMHz
TV CHTV CH
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
ACT
MENU
RFRF AFAF
GROUPGROUP CHANNELCHANNEL
TV CHTV CH
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
2. Designations of buttons and Functions
MENU: Enable user to select from one function to the other
"MENU" button allows user to select among 6 options (in the sequence
showing below) that each is surrounded in a square frame and shown on the
upper half of LCD display. Detail functions and operations are as follows.
(1) G/CH: Indicates or setups the receiver GROUP and CHANNEL.
A. Operating Procedures.
EXIT
G/CH
MENU GROUP
DOWN UP
MENU
CHANNEL
DOWN UP
MENU
Save
6. Operation of Receiver with LCD Display Panel
1. Full Display of LCD Screen and Locations of buttons
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER
8 9
FREQ
MENU
ACT
MENU
RFRF AFAF
MHzMHz
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
ACT
MENU
RFRF AFAF
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
B. How to Operate?
a. In the lower row of LCD display, TV CHANNEL, GROUP, and CHANNEL are
separately shown in dual-digit numbers (from left to right).
b. Push "UP" or "DOWN" button once and the number above "GROUP" will start
blinking. Push "UP" or "DOWN" button now will permit user to change to another
pre-programmed group. Push "MENU" button to confirm the modification and group
number will stop blinking.

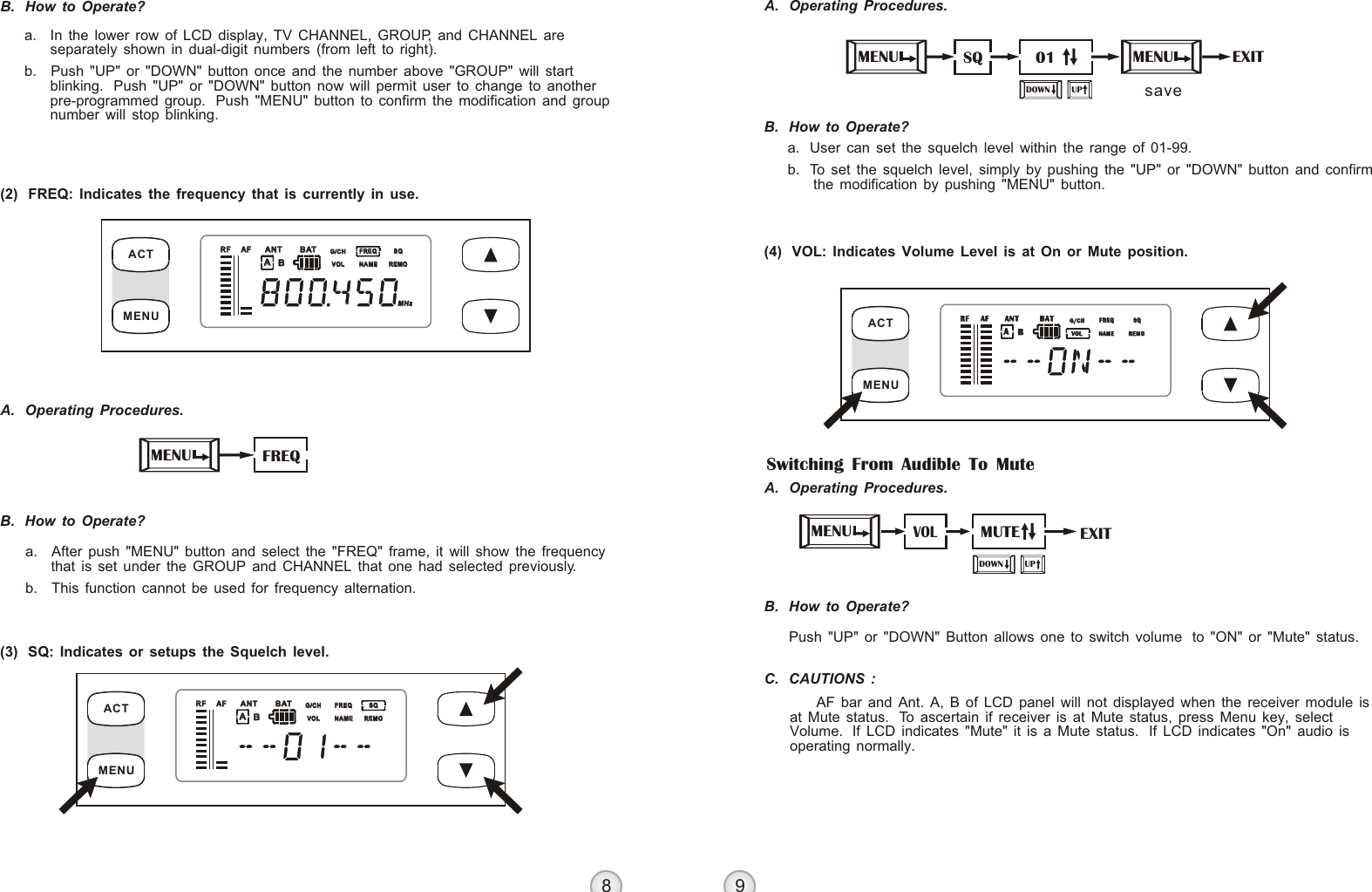

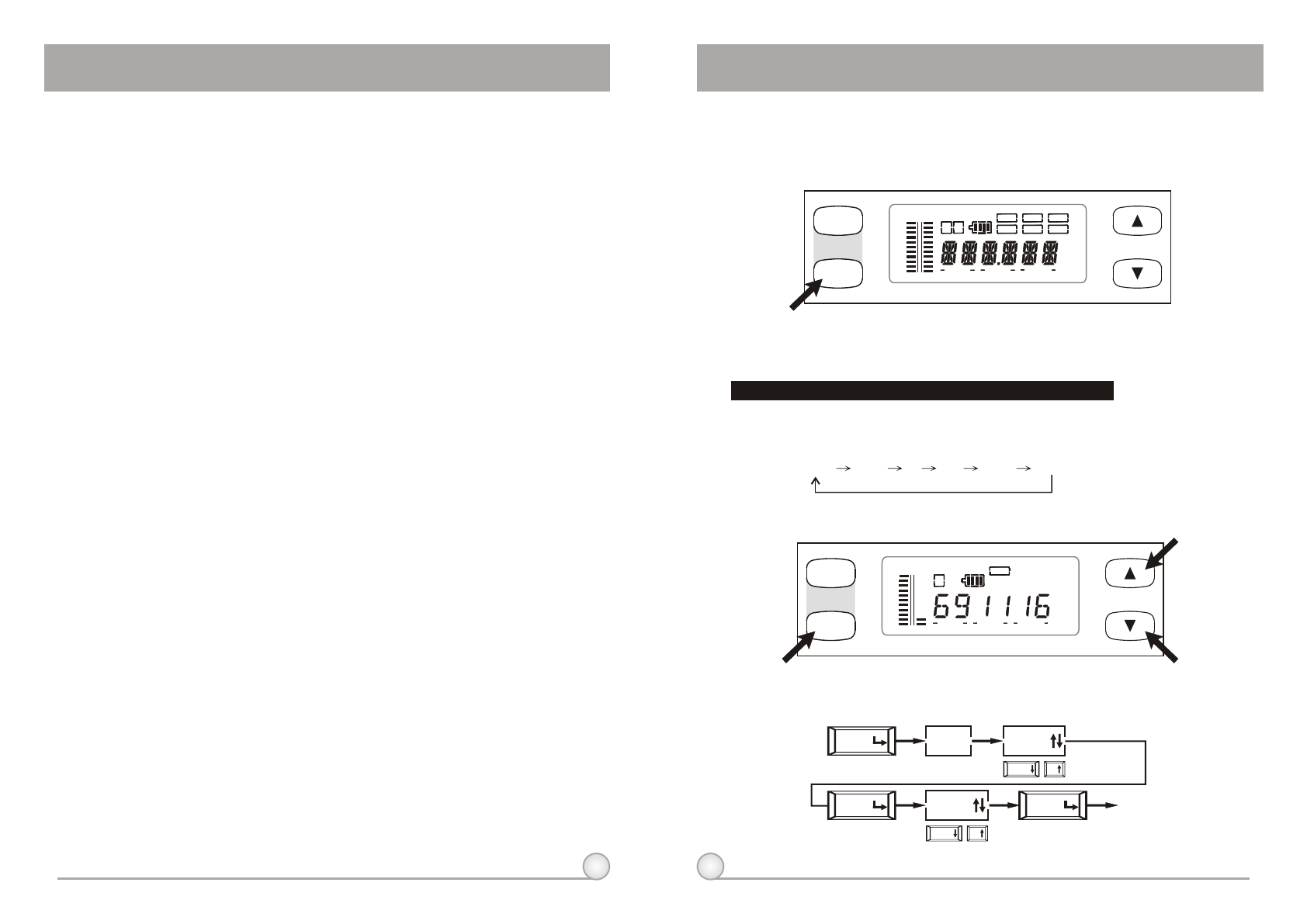

(2) FREQ: Indicates the frequency that is currently in use.
A. Operating Procedures.
B. How to Operate?
a. After push "MENU" button and select the "FREQ" frame, it will show the frequency
that is set under the GROUP and CHANNEL that one had selected previously.
b. This function cannot be used for frequency alternation.
(3) SQ: Indicates or setups the Squelch level.
RFRF AFAF
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
ACT
MENU
VOL
MENU MUTE
DOWN UP
EXIT
a. User can set the squelch level within the range of 01-99.
b. To set the squelch level, simply by pushing the "UP" or "DOWN" button and confirm
the modification by pushing "MENU" button.

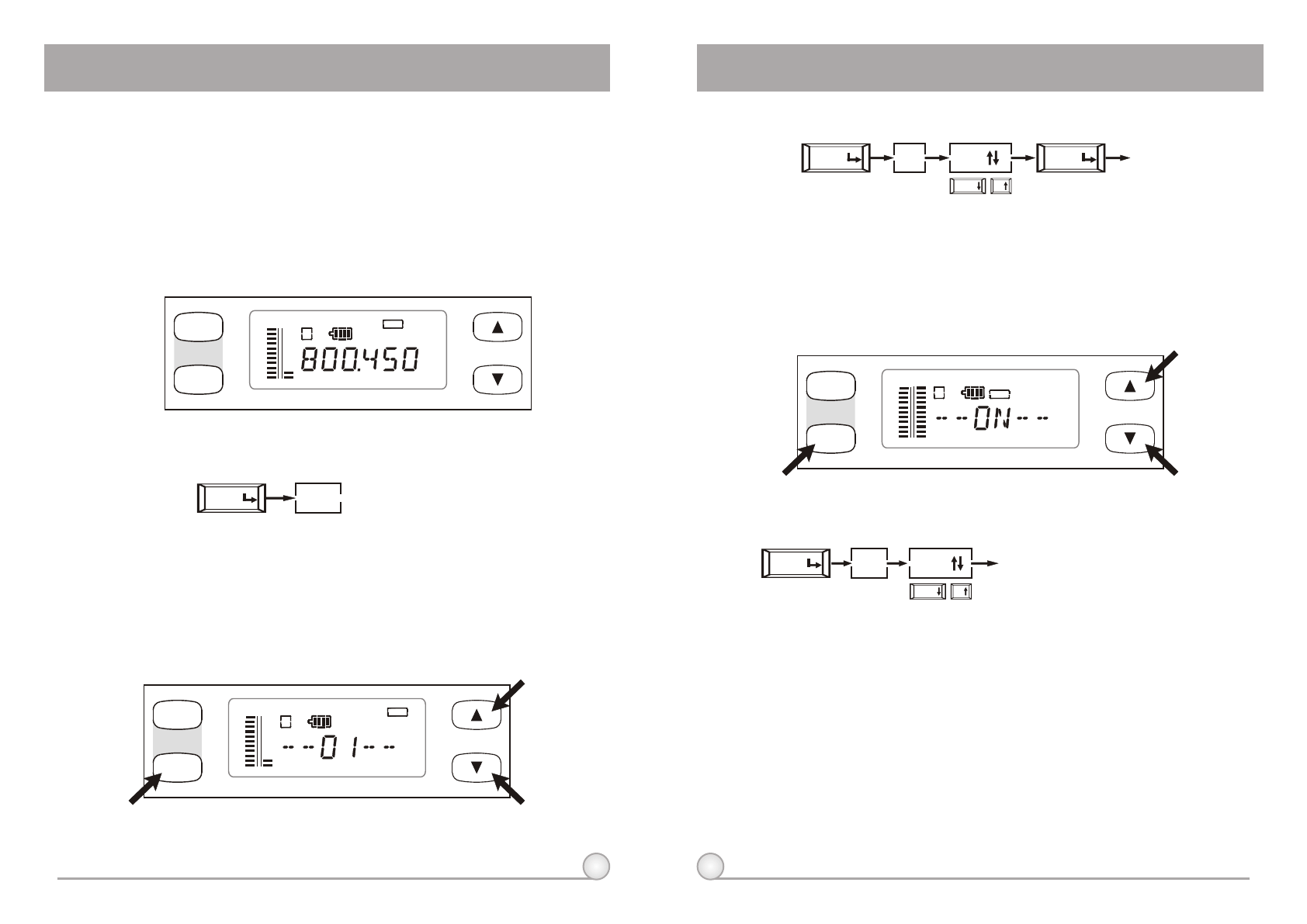

(4) VOL: Indicates Volume Level is at On or Mute position.
SQ
MENU 01
DOWN UP
EXIT
MENU
save
A. Operating Procedures.
B. How to Operate?
Switching From Audible To Mute
Push "UP" or "DOWN" Button allows one to switch volume to "ON" or "Mute" status.
A. Operating Procedures.
B. How to Operate?
AF bar and Ant. A, B of LCD panel will not displayed when the receiver module is
at Mute status. To ascertain if receiver is at Mute status, press Menu key, select
Volume. If LCD indicates "Mute" it is a Mute status. If LCD indicates "On" audio is
operating normally.
C. CAUTIONS :
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER
10 11
NAME
MENU A
DOWN UP
MENU
NEXT
EXIT
A
DOWN UP
MENU
RFRF AFAF
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBATANTANT
BB
AA
ACT
MENU

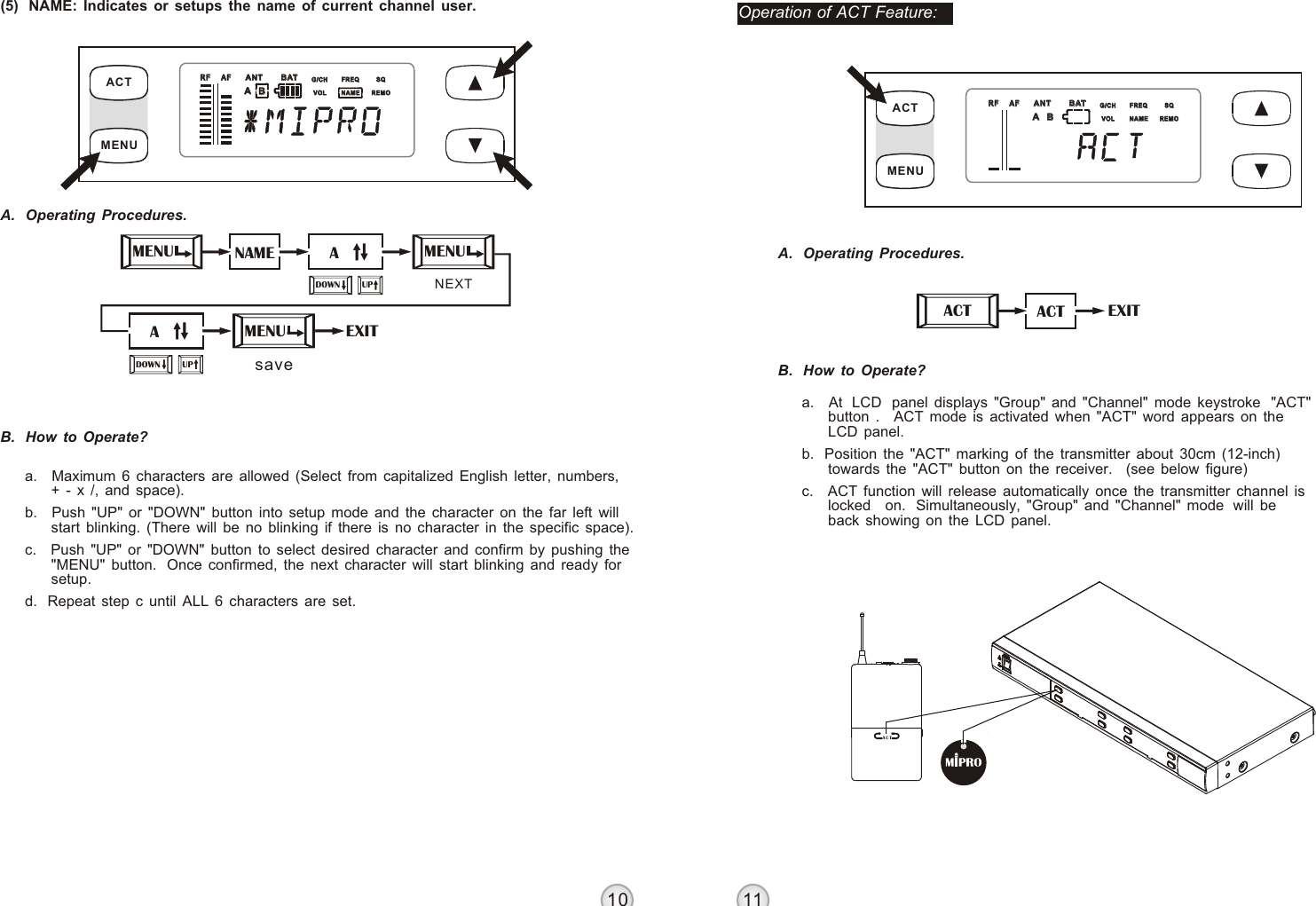

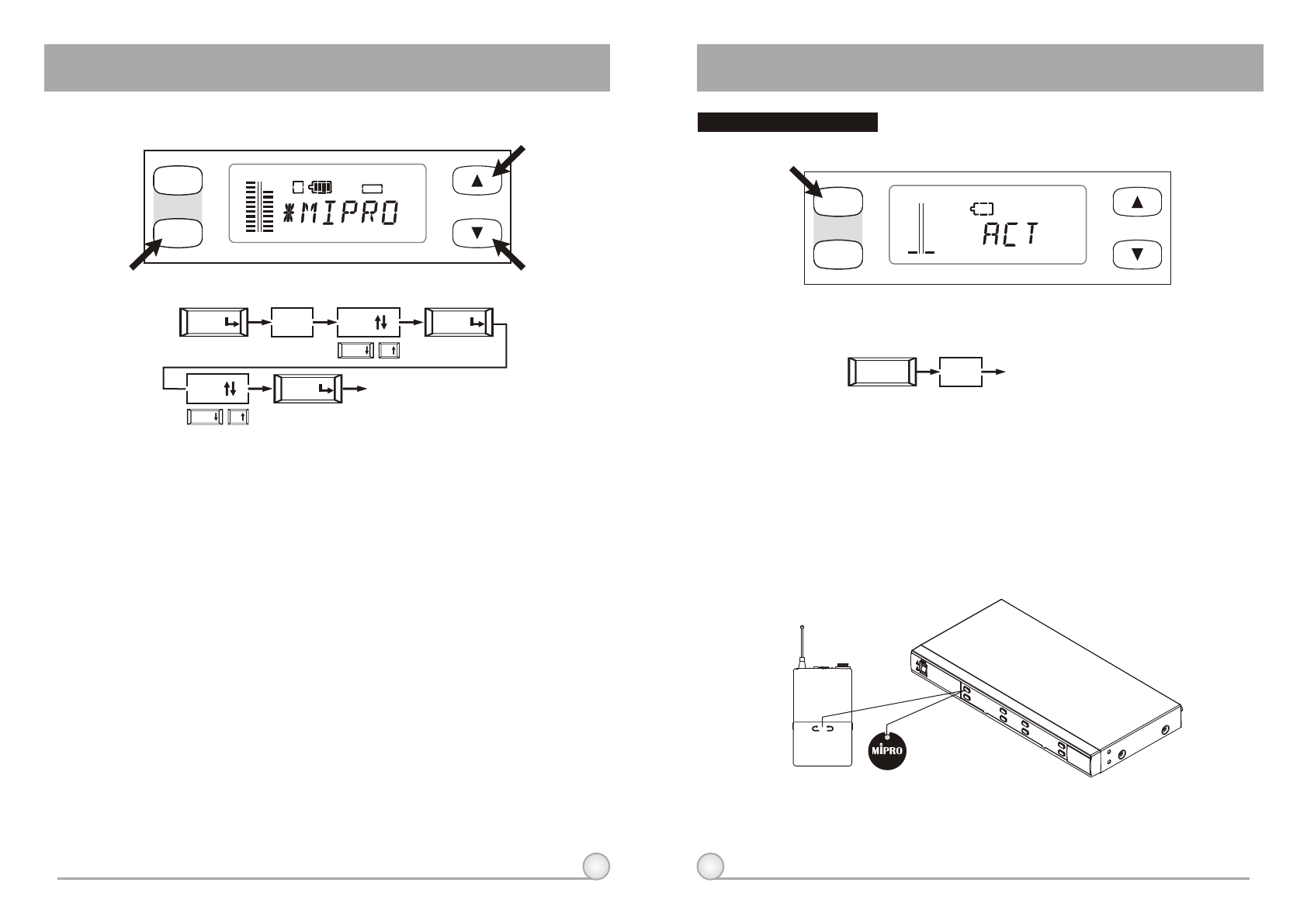

(5) NAME: Indicates or setups the name of current channel user.
save
A. Operating Procedures.
B. How to Operate?
a. Maximum 6 characters are allowed (Select from capitalized English letter, numbers,
+ - x /, and space).
b. Push "UP" or "DOWN" button into setup mode and the character on the far left will
start blinking. (There will be no blinking if there is no character in the specific space).
c. Push "UP" or "DOWN" button to select desired character and confirm by pushing the
"MENU" button. Once confirmed, the next character will start blinking and ready for
setup.
d. Repeat step c until ALL 6 characters are set.
ACT
MENU
RFRF AFAF
G/CHG/CH
VOLVOL
FREQFREQ SQSQ
REMOREMO
NAMENAME
BATBAT
ANTANT
BB
AA
ACT
ACT EXIT
Operation of ACT Feature:
A. Operating Procedures.
B. How to Operate?
a. At LCD panel displays "Group" and "Channel" mode keystroke "ACT"
button . ACT mode is activated when "ACT" word appears on the
LCD panel.
b. Position the "ACT" marking of the transmitter about 30cm (12-inch)
towards the "ACT" button on the receiver. (see below figure)
c. ACT function will release automatically once the transmitter channel is
locked on. Simultaneously, "Group" and "Channel" mode will be
back showing on the LCD panel.
ACT
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER
12 13
NOTE NOTE
ACT DUAL CHANNEL WIRELESS RECEIVER ACT DUAL CHANNEL WIRELESS RECEIVER

Navigation menu
