Mitel Networks 69134000 Aastra Access Point RFP34 US User Manual ommsip installation 1
Mitel Networks Aastra Access Point RFP34 US ommsip installation 1
users manual
Product Document
Aastra DeTeWe Doc-ID: pm-0504 30.11.2006 Page: 1 (52)
OpenMobility SIP Installation,
Administration and Maintenance
Document ID:
pm
-
0504
Aastra
DeTeWe Zeughofstr. 1
10997 Berlin, Germany
2006 -
All Rights
Reserved
No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying,
recording, or information storage and retrieval system, for any purpose without the express written permission of Winfinity.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 2 (52)
History
Version Reason / Version Date Author
1 / 0 Initial release. 30.11.2006 H. Zander
1 / 2 Draft removed 30.11.2006 Tielmann
Additional Information:
Tool: Microsoft Office 2000 SP3
Print Date: 30.11.2006
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 3 (52)
Table of contents
1
OVERVIEW ....................................................................................................................................................... 5
1.1
P
URPOSE
.................................................................................................................................................... 5
1.2
A
BBREVIATIONS AND DEFINITIONS
............................................................................................................ 5
1.2.1
Abbreviations .............................................................................................................................. 5
1.2.2
Definitions................................................................................................................................... 5
1.3
R
EFERENCES
.............................................................................................................................................. 7
2
INTRODUCTION .............................................................................................................................................. 8
2.1
A
BOUT THE
IP DECT
WIRELESS SOLUTION
................................................................................................ 8
2.2
A
BOUT THE
RFP
S
....................................................................................................................................... 9
2.3
O
PEN
M
OBILITY
M
ANAGER
...................................................................................................................... 11
2.4
IP
SIGNALLING AND MEDIA STREAM
........................................................................................................ 11
2.5
RFP S
YNCHRONIZATION
.......................................................................................................................... 14
2.6
RFP
CHANNEL CAPACITY
......................................................................................................................... 15
2.7
A
BOUT THE
P
ORTABLE
P
ARTS
................................................................................................................. 16
2.8
A
BOUT LICENSING
.................................................................................................................................... 16
2.9
S
YSTEM CAPACITIES
................................................................................................................................. 18
3
INSTALLATION AND CONFIGURATION ................................................................................................ 19
3.1
O
PEN
M
OBILITY START UP
........................................................................................................................ 19
3.1.1
Start up of the RFPs .................................................................................................................. 19
3.1.1.1
Booting overview....................................................................................................................19
3.1.2
Start up of the OpenMobility Manager ..................................................................................... 20
3.1.3
Booter........................................................................................................................................ 20
3.1.3.1
DHCP client............................................................................................................................20
3.1.3.1.1
DHCP request.........................................................................................................................20
3.1.3.1.2
DHCP offer.............................................................................................................................21
3.1.3.1.3
Retries.....................................................................................................................................21
3.1.3.2
TFTP client..............................................................................................................................21
3.1.4
Application................................................................................................................................ 21
3.1.4.1
Booter update ..........................................................................................................................22
3.1.4.1.1
Automatic booter update.........................................................................................................22
3.1.4.1.2
Automatic booter update for major release changes ...............................................................22
3.1.4.2
Selecting the right DHCP server .............................................................................................23
3.1.5

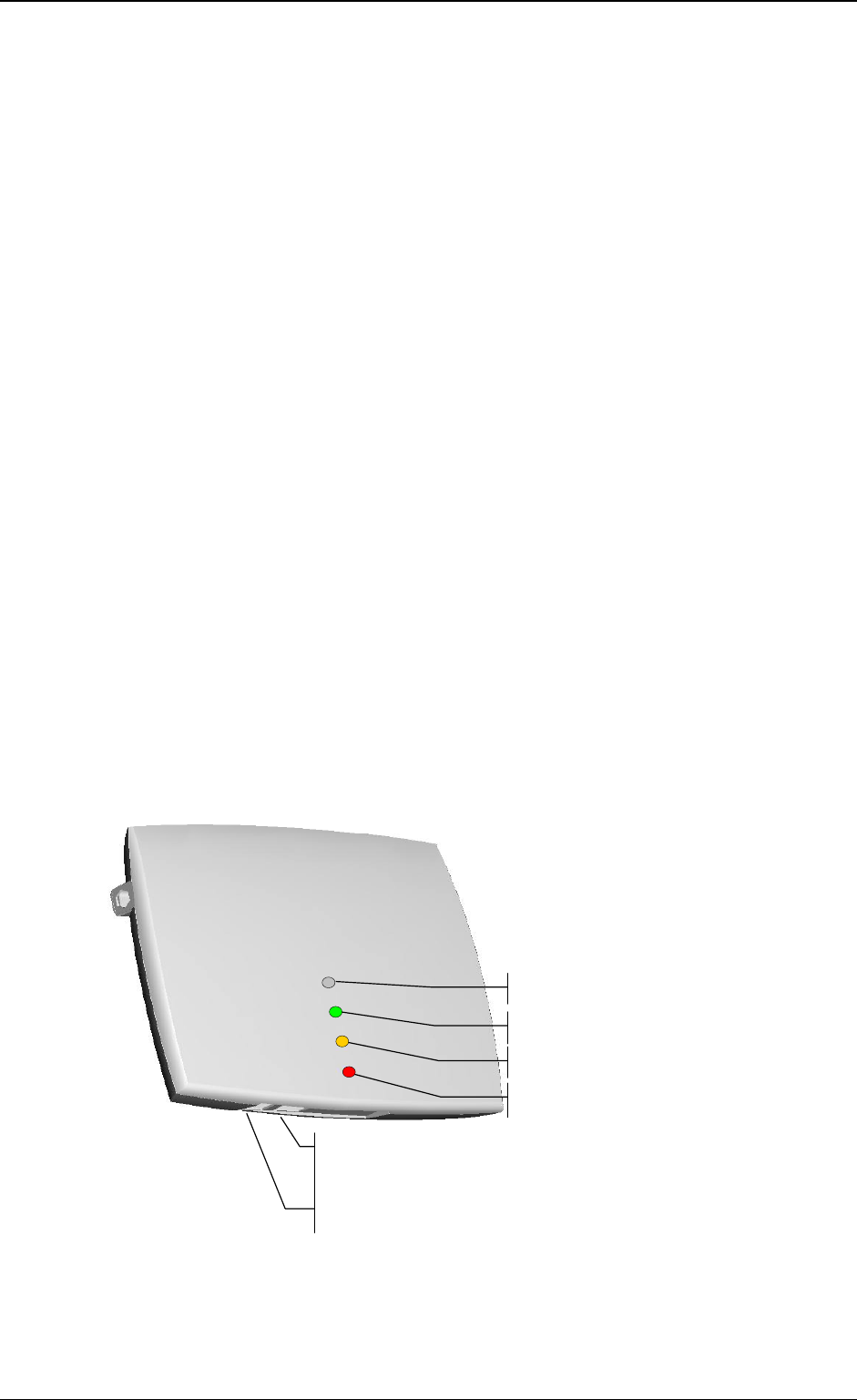

RFP LED status......................................................................................................................... 23
3.1.6

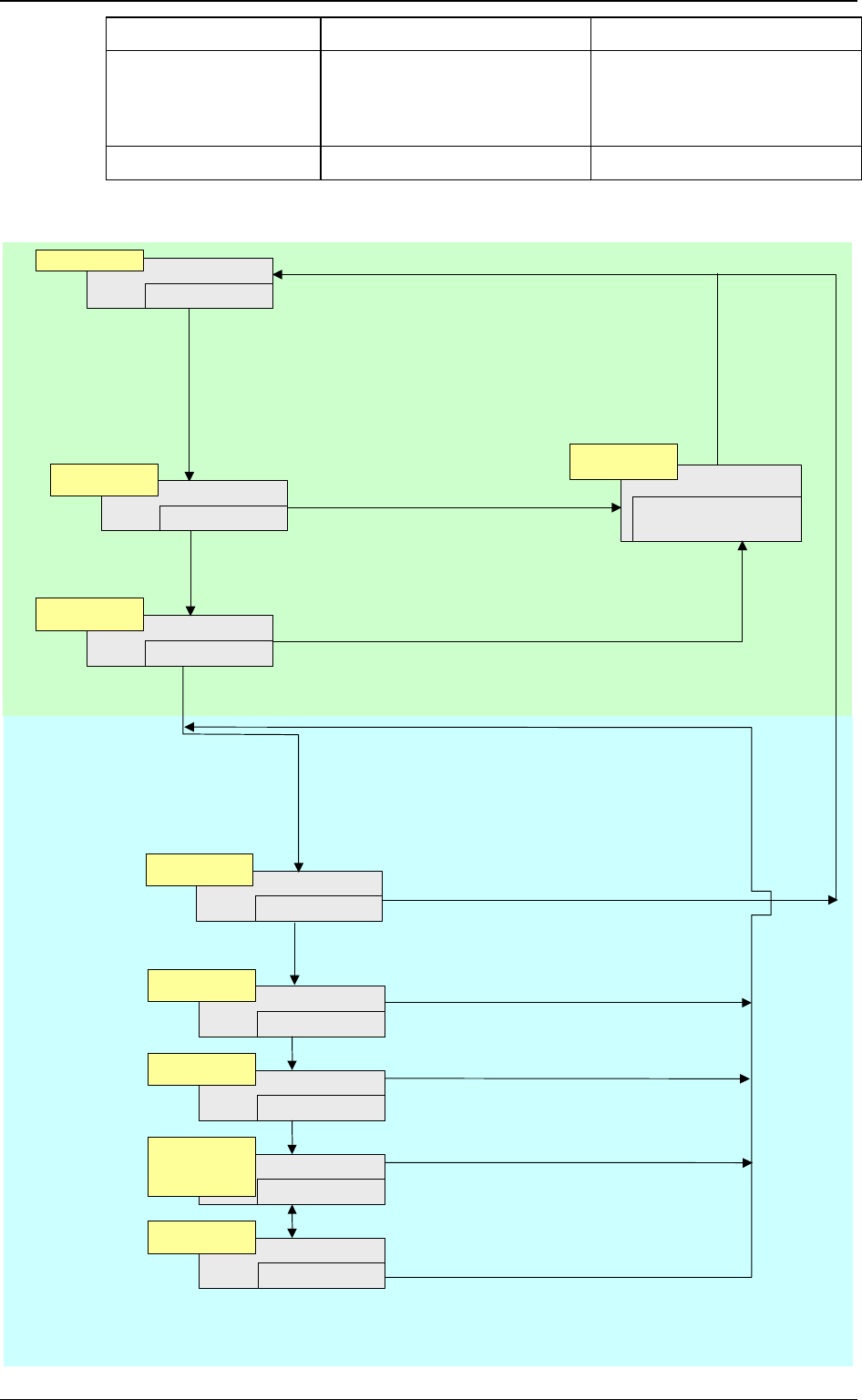

State graph of the start up phases .............................................................................................. 24
3.2
S
TATIC LOCAL CONFIGURATION OF THE
IP DECT
B
ASE
S
TATION
........................................................... 25
3.3
C
ONFIGURING THE
O
PEN
M
OBILITY
M
ANAGER
........................................................................................ 26

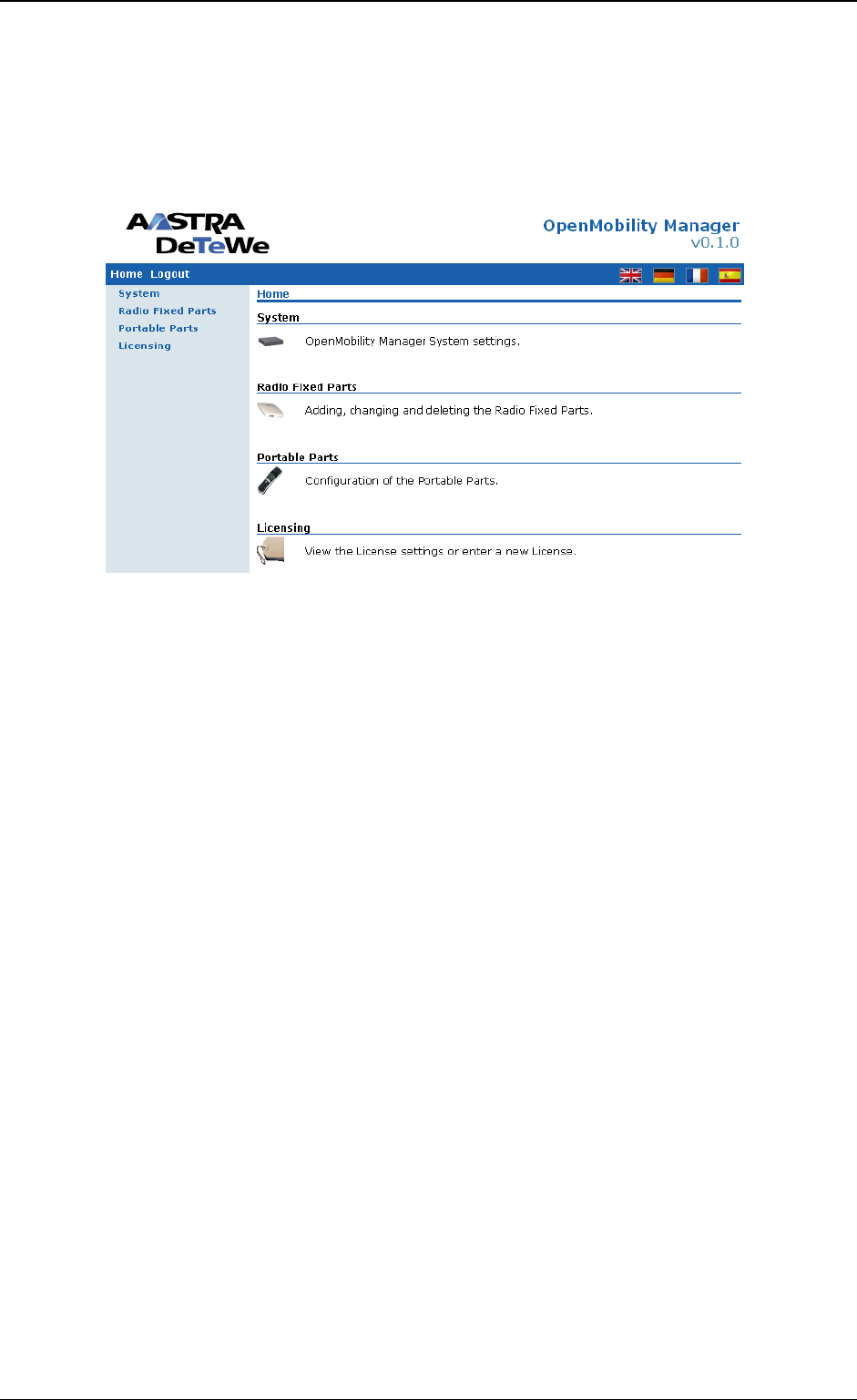

3.3.1
Service Login procedure ........................................................................................................... 26
3.3.2
Licensing................................................................................................................................... 28
3.3.2.1
Definition of the License RFPs'...............................................................................................28
3.3.2.2

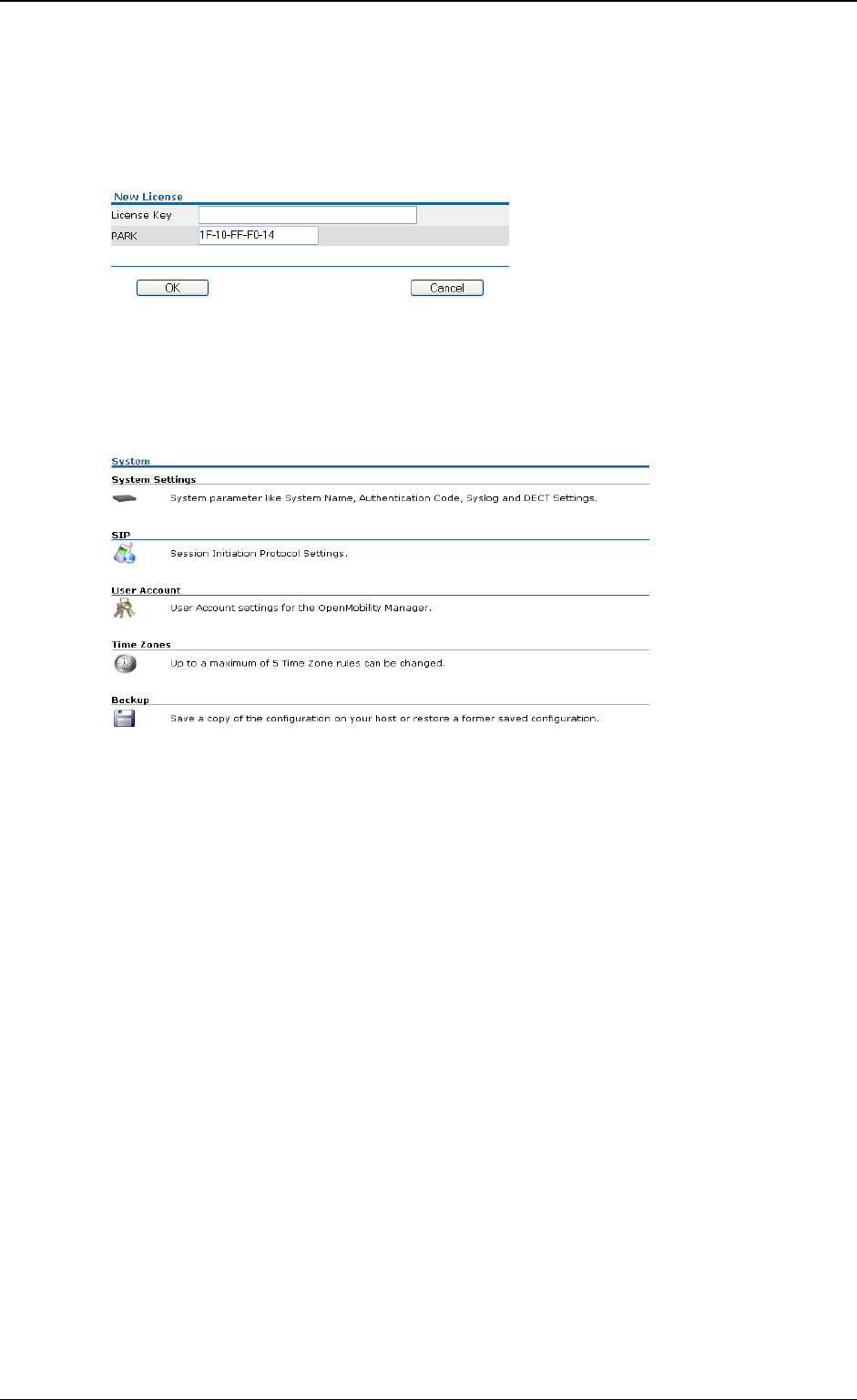

Get and add the licence key and PARK number......................................................................29
3.3.3
System....................................................................................................................................... 29
3.3.3.1

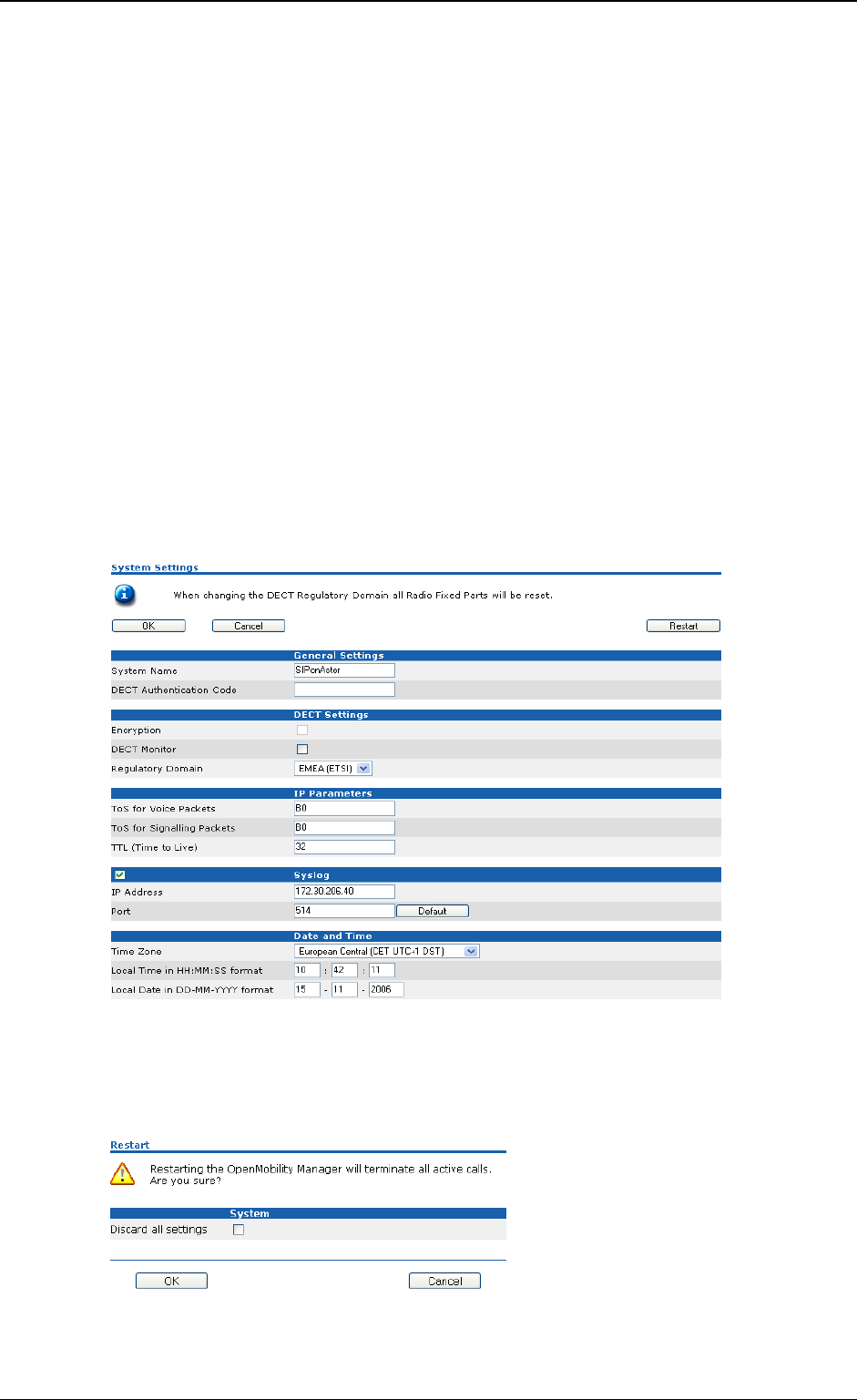

System settings........................................................................................................................29
3.3.3.1.1

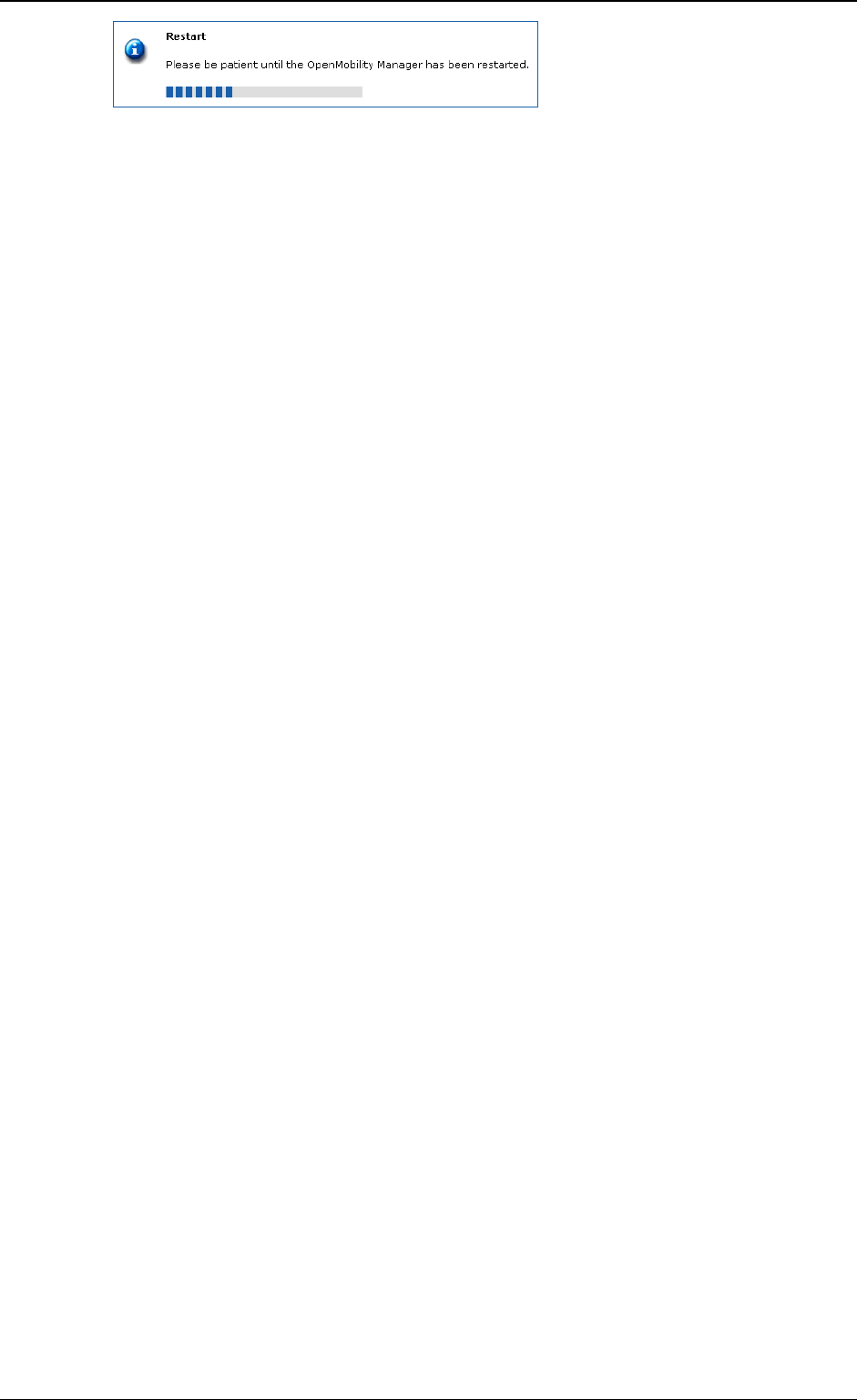

Restarting the OMM...............................................................................................................30
3.3.3.1.2
Encryption...............................................................................................................................31
3.3.3.1.3
Regulatory domain..................................................................................................................31
3.3.3.2

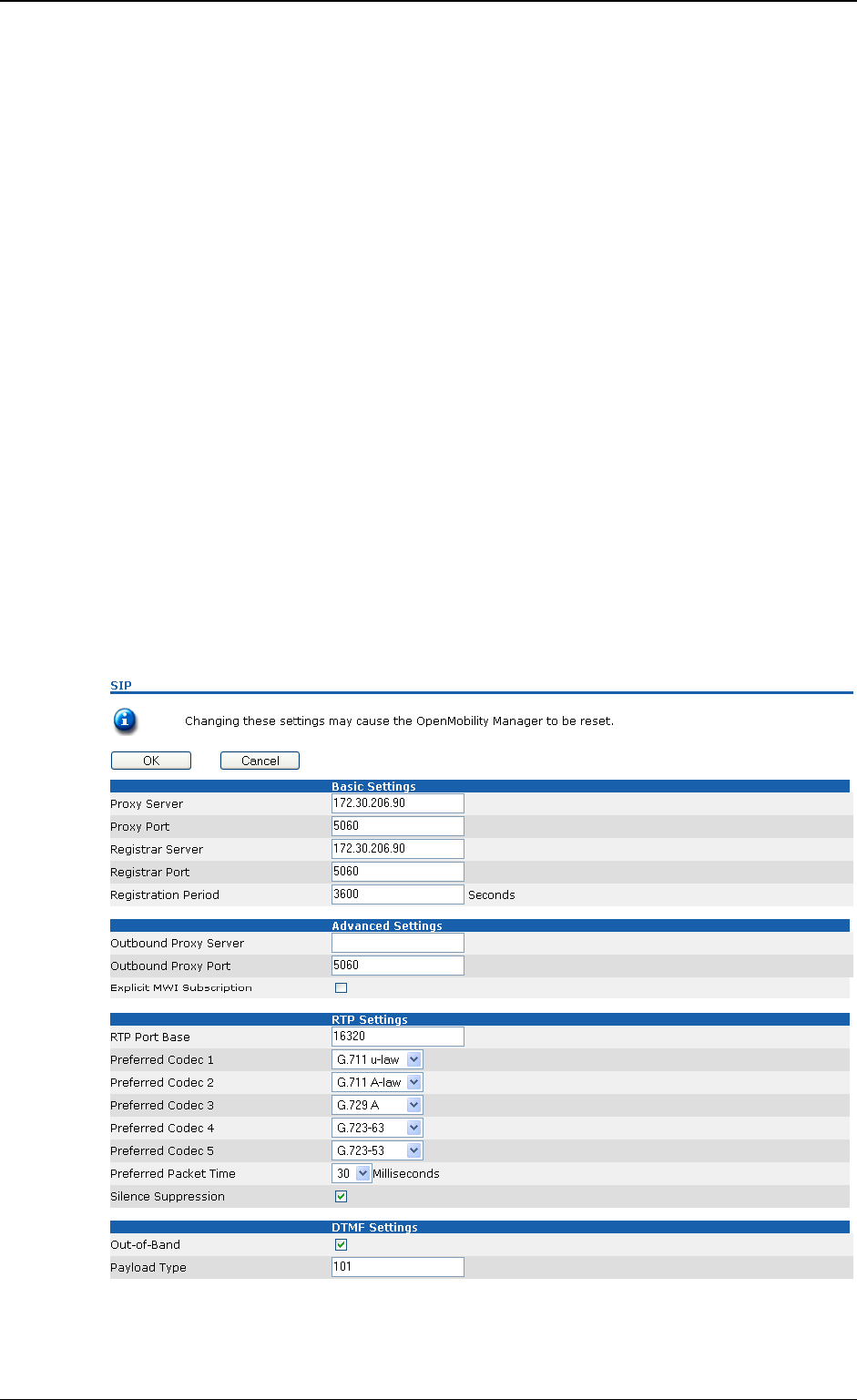

SIP...........................................................................................................................................31
3.3.3.3
User account............................................................................................................................33
3.3.3.4

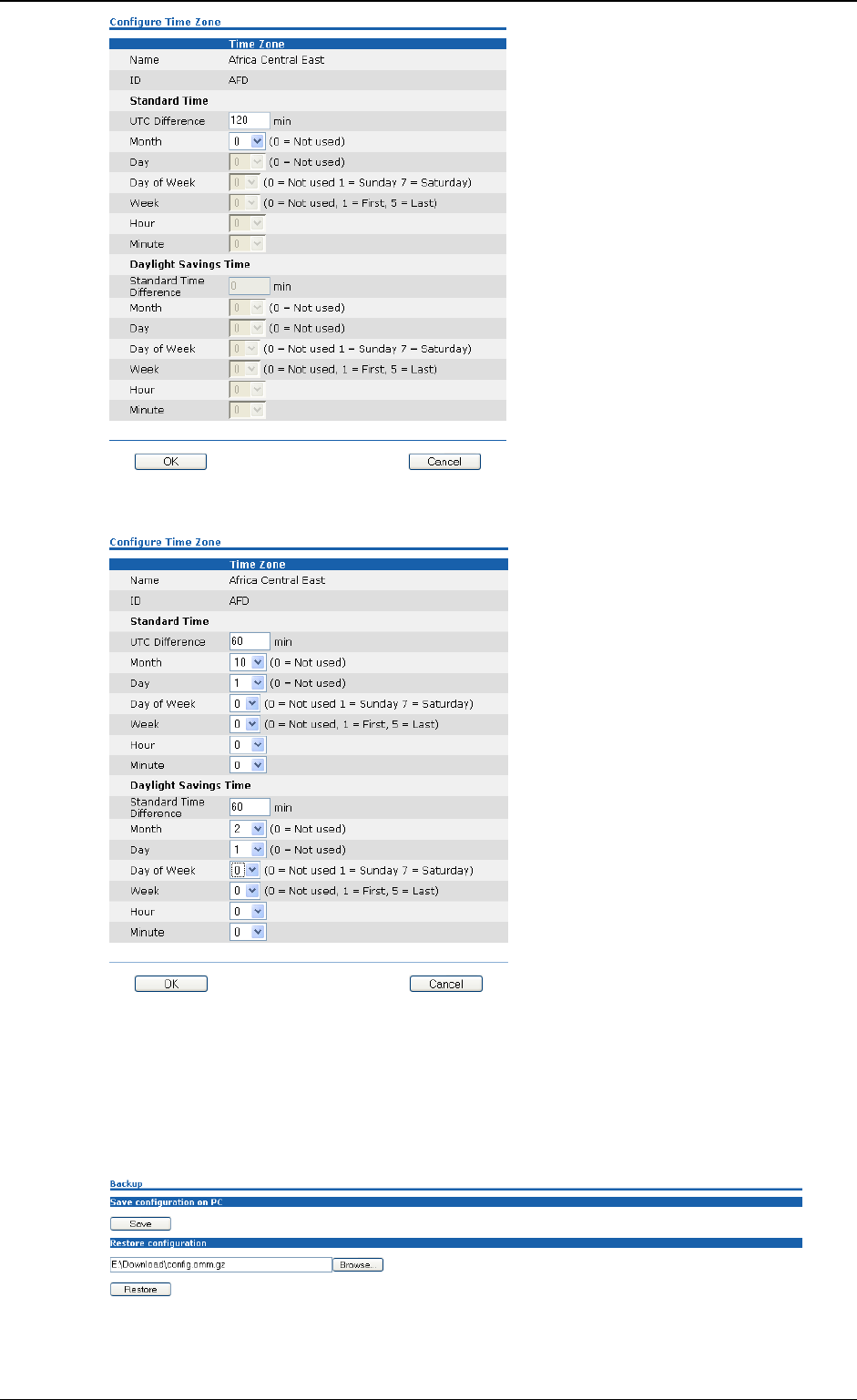

Time zones ..............................................................................................................................33
3.3.3.5
Backup ....................................................................................................................................34
3.3.4

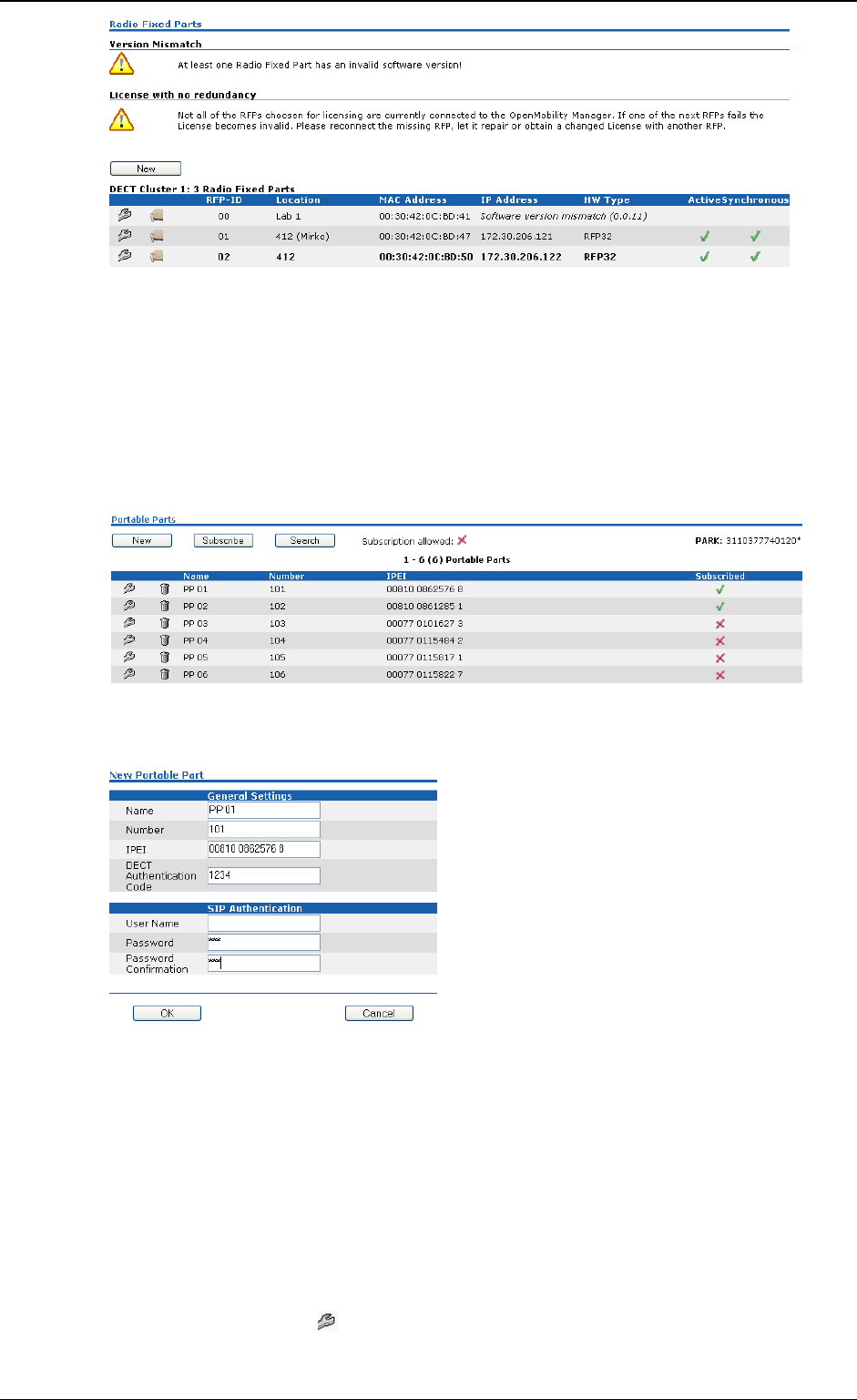

RFP configuration ..................................................................................................................... 35
3.3.4.1
DECT configuration................................................................................................................36
3.3.4.2

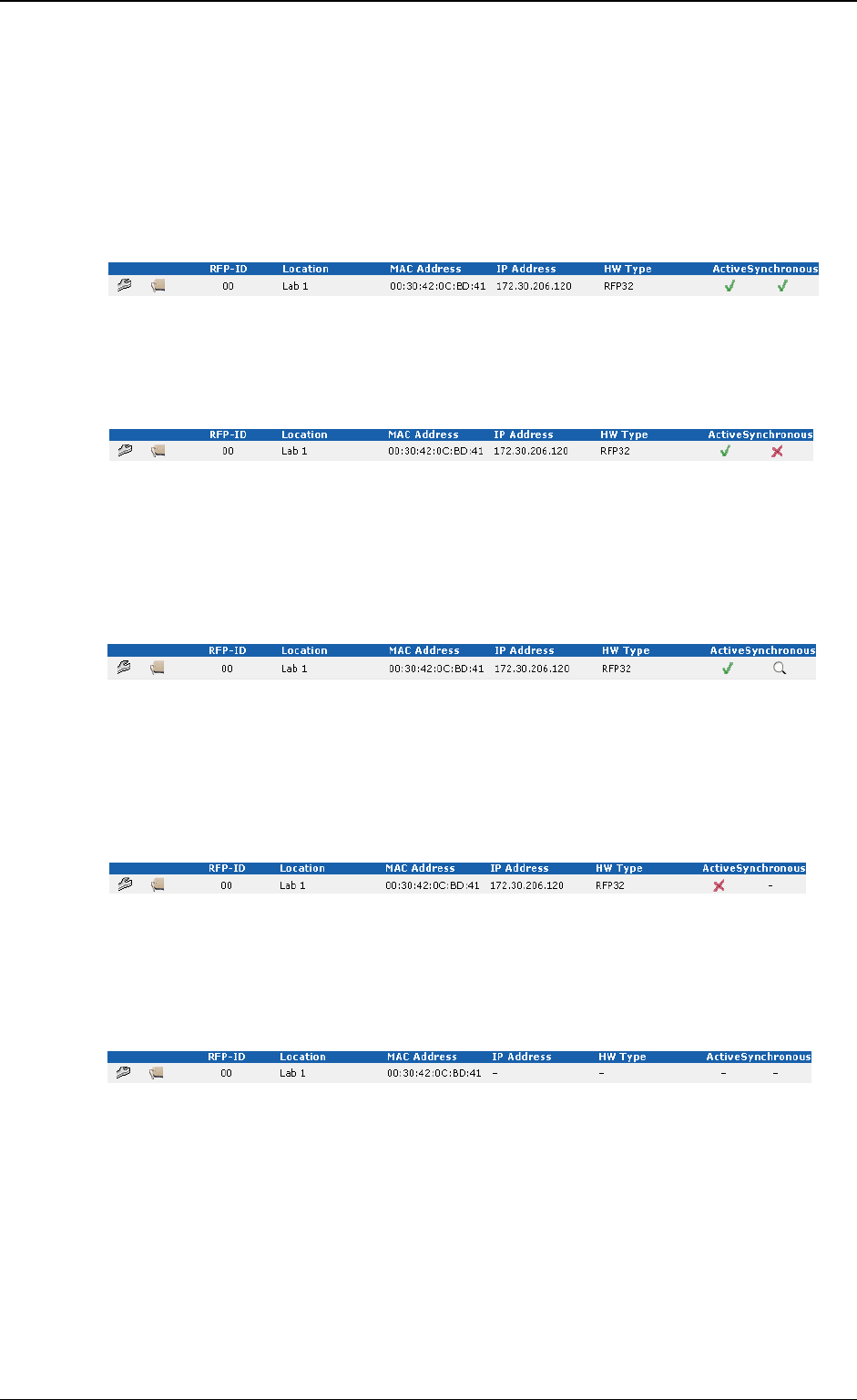

States of a RFP........................................................................................................................36
3.3.4.3
OMM / RFP SW version check...............................................................................................36
3.3.5

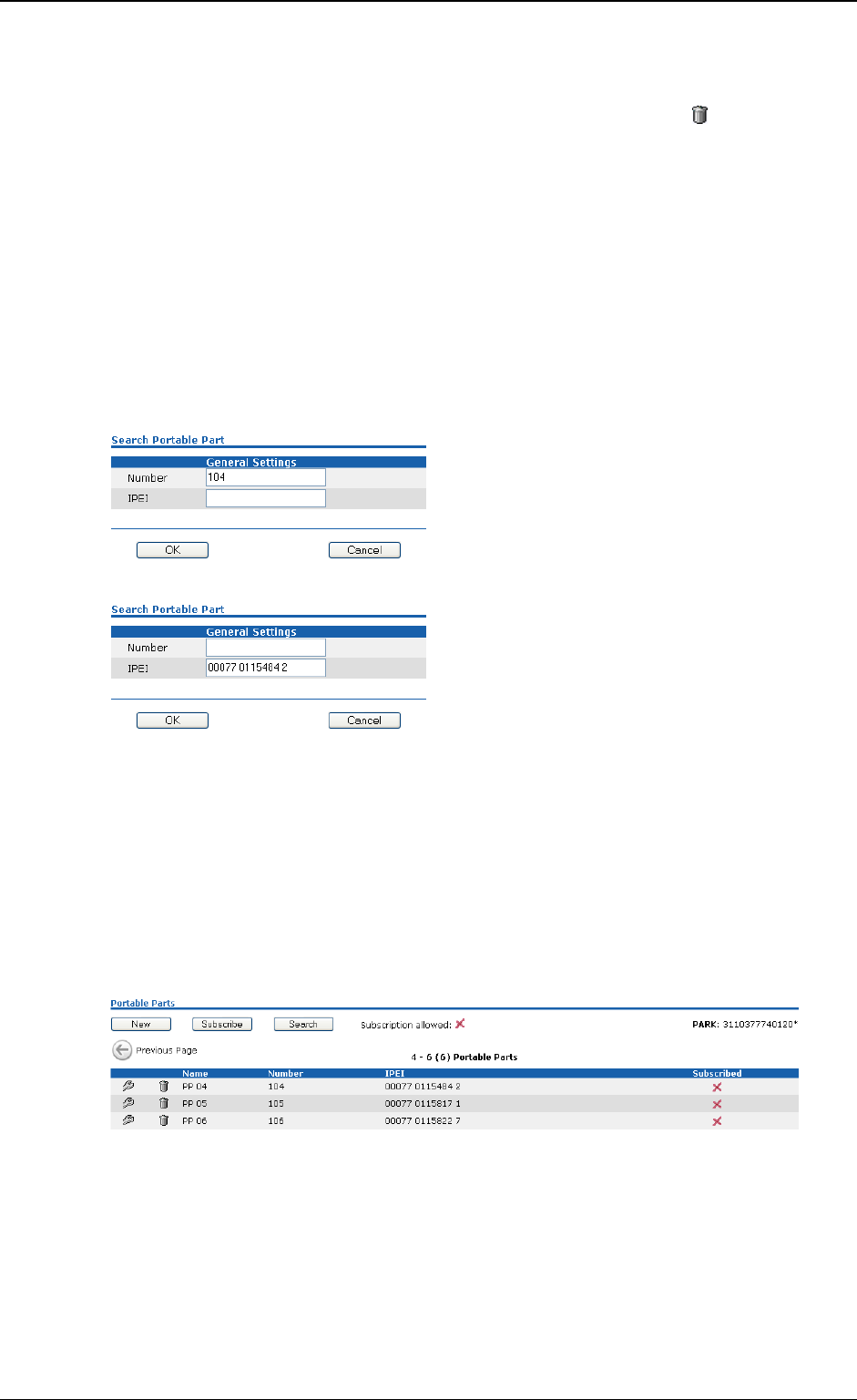

Configuration of Portable Parts................................................................................................. 37
4
MAINTENANCE.............................................................................................................................................. 39
4.1
B
OOTER
................................................................................................................................................... 39
4.1.1
Checking the RFP booter version.............................................................................................. 39
4.1.2
Manual update of the RFP booter.............................................................................................. 39
4.2
S
ITE SURVEY MEASUREMENT EQUIPMENT
................................................................................................ 39
4.3
C
HECKING THE
A
ASTRA
P
HONE
142
FIRMWARE VERSION
........................................................................ 40
4.4
D
IAGNOSTIC
............................................................................................................................................. 40
4.4.1
Aastra Phone 142 site survey mode........................................................................................... 40
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 4 (52)
4.4.2
Aastra Phone 142 auto call test mode........................................................................................ 41
4.4.3
Aastra Phone 142 auto answer test mode.................................................................................. 41
4.4.4
Syslog........................................................................................................................................ 41
4.4.5
Telnet user shell ........................................................................................................................ 43
4.4.5.1
Login.......................................................................................................................................43
4.4.5.2
Command overview ................................................................................................................43
4.4.5.3
RFP console commands ..........................................................................................................44
4.4.5.4
OMM console commands .......................................................................................................44
4.4.6

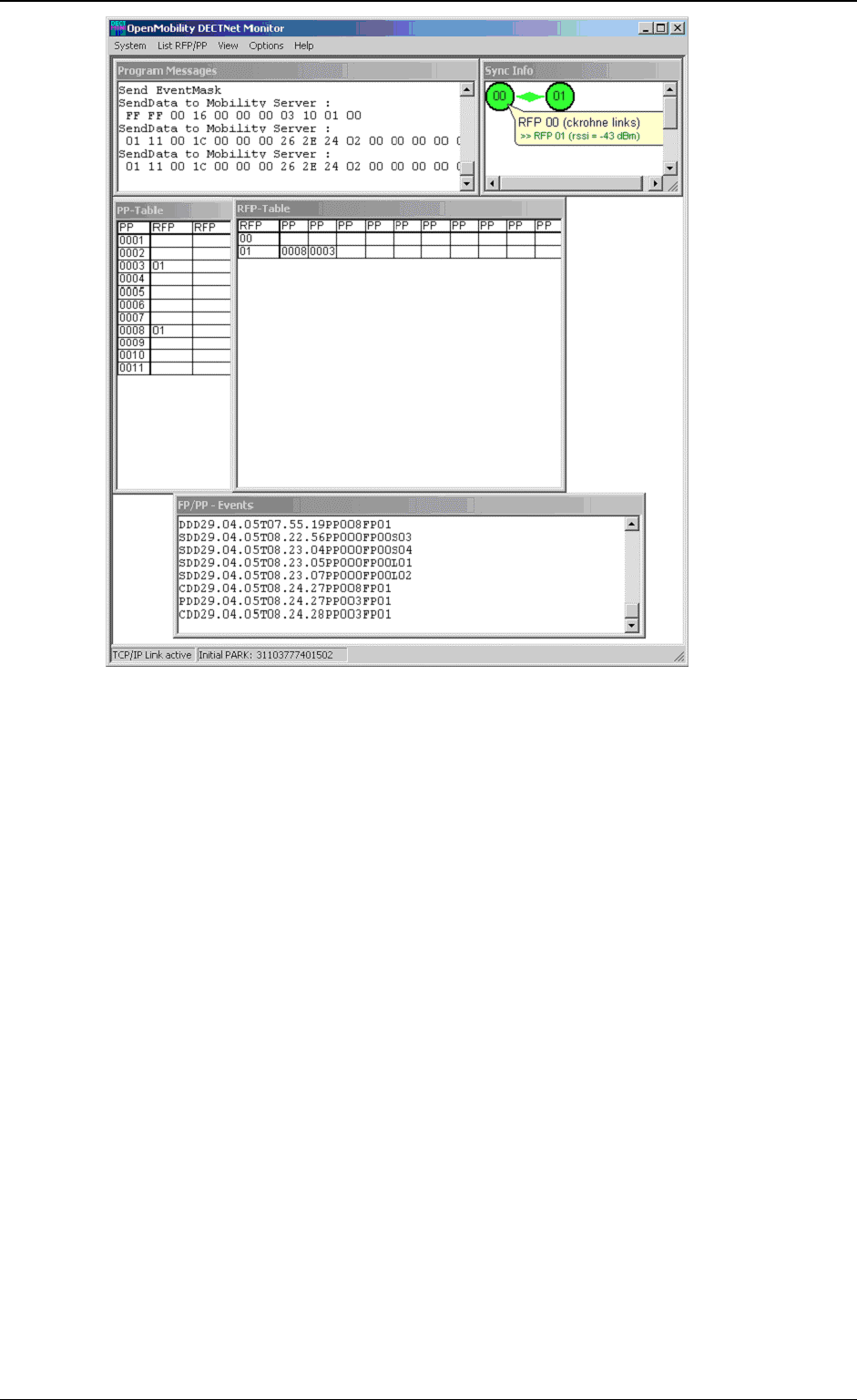

DECT monitor of the OpenMobility system............................................................................. 45
5
APPENDIX ....................................................................................................................................................... 49
5.1
C
OMMUNICATIONS
R
EGULATION
I
NFORMATION FOR
A
ASTRA
P
HONE
142 US ....................................... 49
5.2
C
OMMUNICATIONS
R
EGULATION
I
NFORMATION FOR
RFP 32 US
OR
RFP 34 US (NA).......................... 50
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 5 (52)
1 Overview
1.1 Purpose
This document describes the service interfaces of the OpenMobility Manager.
In this version only the DECT relevant service issues are described.
1.2 Abbreviations and definitions
1.2.1 Abbreviations
AC Authentication Code
ADPCM Adaptive Differential Pulse Code
Modulation
DECT Digital Enhanced Cordless
Telecommunication
DHCP Dynamic Host Configuration Protocol
DSP Digital Signal Processor
FCC Federal Communications Commission
GAP Generic Access Profile
IPEI International Portable Equipment Identity
HTTP Hyper Text Transfer Protocol
OMM OpenMobility Manager
PARK Portable Access Rights Key
PP Portable Part (DECT handset)
SNMP Simple Network Management Protocol
TFTP Trivial File Transfer Protocol
RFP Radio Fixed Part
RTCP Real Time Control Protocol
RTP Real Time Protocol
TFTP Trivial File Transfer Protocol
1.2.2 Definitions
Asterisk Asterisk
Asterisk is a complete Open Source PBX in software. It
runs on Linux, BSD and MacOSX and provides many
features. Asterisk supports voice over IP in many
protocols, and can interoperate with almost all standards-
based telephony equipment.
DECT Digital Enhanced Cordless Telecommunication
•
The standard (ETS 300 175) essentially specifies the
air interface, known as the radio interface. Voice and
data can both be transmitted via this interface.
•
Its technical key characteristics are:
•
Frequency range: approx. 1,880 – 1,900 GHz
(approximately 20 MHz bandwidth)
•
10 carrier frequencies (1,728 MHz spacing) with 12
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 6 (52)
time slots each)
•
Doubling the number of time slots (to 24) using the
TDMA process
•
Net data rate per channel of 32 kbps
(for voice transmission using ADPCM)
•
Voice coding using the ADPCM method
•
Maximum transmission power of 10 mW
GAP Generic Access Profile
•
GAP is the abbreviation for Generic Access Profile
•
The GAP standard (ETS 300 444) is based on the
same technology as DECT, but is limited to the most
important basic features. This standard was created in
order to allow telephones of different vendors to be
used on any type of DECT system. It thus represents
the smallest common denominator of all manufacturer-
specific variants of the DECT standard.
•
An important limitation in the GAP standard is that
external handover is not possible. For this reason
connection handover is used, which is supported by
GAP terminals.
•
The operation of GAP-capable telephones is
comparable to that of analogue terminals. For
example, features can be called up via ‘*’ and ‘#’
procedures.

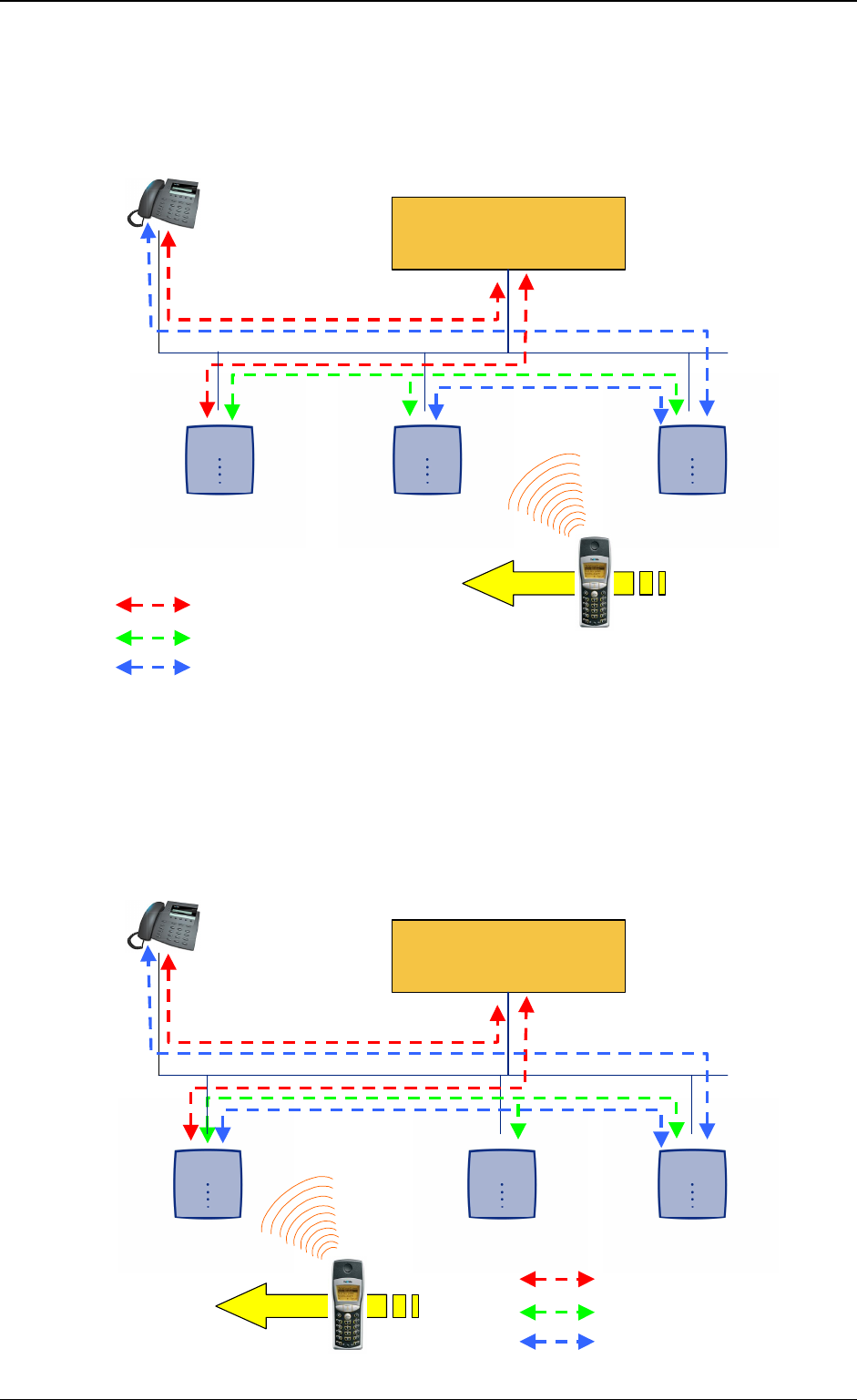

Handover Handover
A handover is similar to roaming, but occurs during an
ongoing call. A handover normally takes place “in the
background”, without disrupting the call (seamless
handover).
IPEI International Portable Equipment Identity
• 13-digit identification code for PPs
• Example: 00019 0592015 3
(the final digit is the checksum).
• The code is represented in decimal form.
• This code is globally unique.
PARK Portable Access Rights Key
Access code for the Portable Part. This code determines
whether a PP can access a particular DECT system. Used
for unique selection of the system at enrolment.

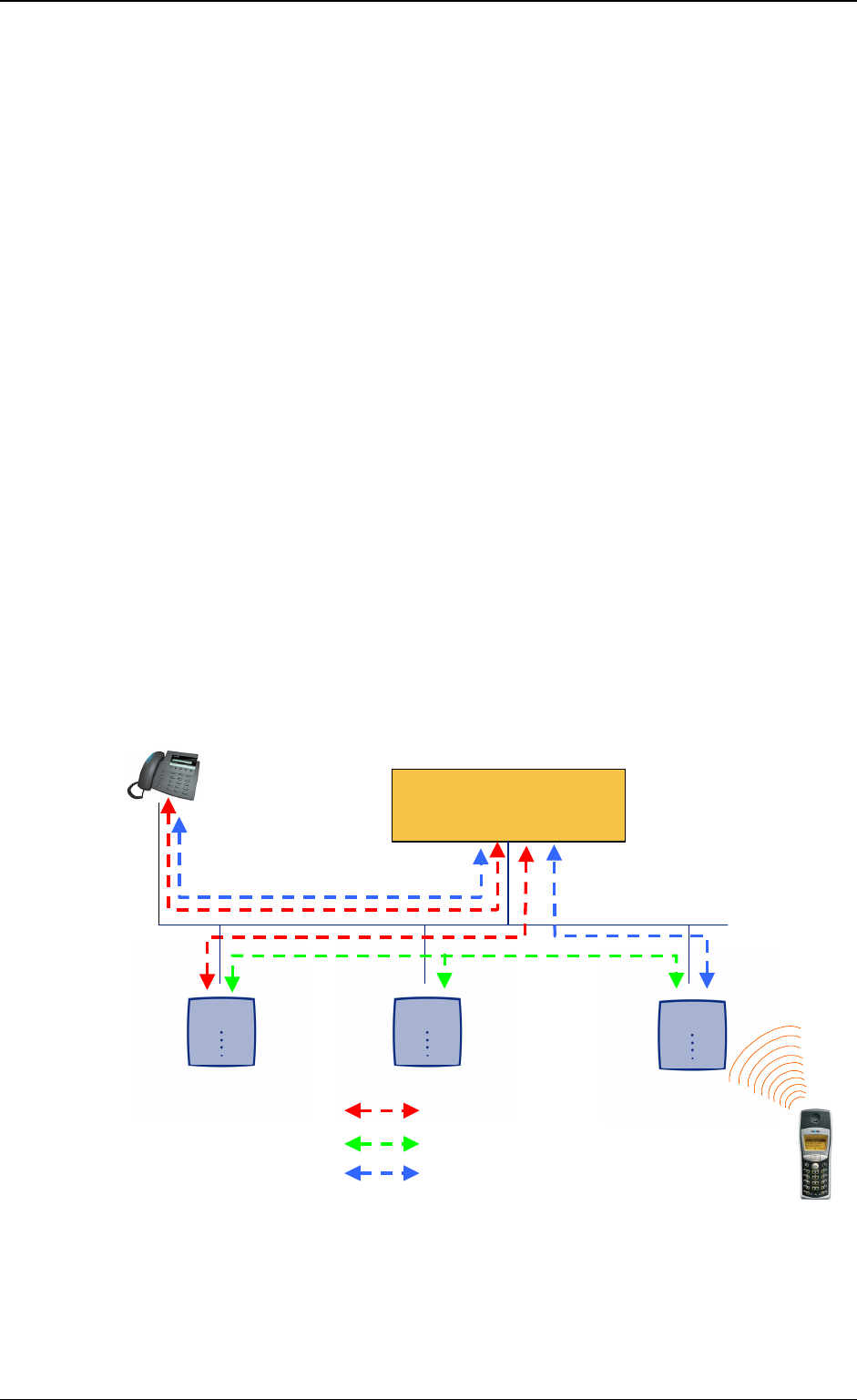

Roaming Roaming
While in motion, the PP performs ongoing measurements
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 7 (52)
to determine which RFP is best received. The one that
can be best received is defined as the active RFP. To
prevent the PP from rapidly switching back and forth
between two RFPs that can be almost equally well
received, certain threshold values are in effect.
(similar to a Schmitt trigger circuit)
1.3 References
/1/ RFC 1350, The TFTP Protocol, Revision 2, July 1992
/2/ RFC 1889, RTP: A Transport Protocol for Real-Time Applications,
January 1996
/3/ RFC 2030, Simple Network Time Protocol (SNTP) Version 4 for IPv4,
IPv6 and OSI, October 1996
/4/ RFC 2131, Dynamic Host Configuration Protocol, March 1997
/5/ RFC 2327, SDP: Session Description Protocol, April 1998
/6/ RFC 2474, Definition of the Differentiated Service Field (DS Field) in the
IPv4 and IPv6 Headers, December 1998
/7/ RFC 2617, HTTP Authentication: Basic and Digest Access
Authentication, June 1999
/8/ RFC 3164, The BSD Sys Log Protocol, August 2001
/9/ RFC 2833, RTP Payload for DTMF Digits, Telephony Tones and
Telephony Signals, May 2000
/10/ RFC 3261, Session Initiation Protocol (SIP), June 2002
/11/ RFC 3264, An Offer/Answer Model with Session Description Protocol
(SDP), June 2002
/12/ RFC 3420, Internet Media Type message/sipfrag, November 2002
/13/ RFC 3515, The Session Initiation Protocol (SIP) Refer method, April
2003
/14/ RFC 3665, The Session Initiation Protocol (SIP) Basic Call Flow
Examples, December 2003
/15/ RFC 3842, A Message Summary and Message Waiting Indication
Event Package for the Session Initiation Protocol (SIP), August 2004
/16/ RFC 3891, The Session Initiation Protocol (SIP) “Replaces” Header,
September 2004
/17/ RFC 3892, The Session Initiation Protocol (SIP) Referred-By
Mechanism, September 2004
/18/ OpenMobility Diagnostic Tools
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 8 (52)
2 Introduction
2.1 About the IP DECT wireless solution
The DECT over IP system comprises the following components:
• DECT Radio Fixed Parts (RFP) being distributed over an IP network and
offering DECT as a wireless interface.
• Media server / media gateway as telephony system platforms (e.g.
Asterisk).
• Portable Parts (PP): Aastra Phone 142.
• OpenMobility Manager (OMM): Management interface for IP DECT
wireless solution, which runs on one of the Radio Fixed Parts.

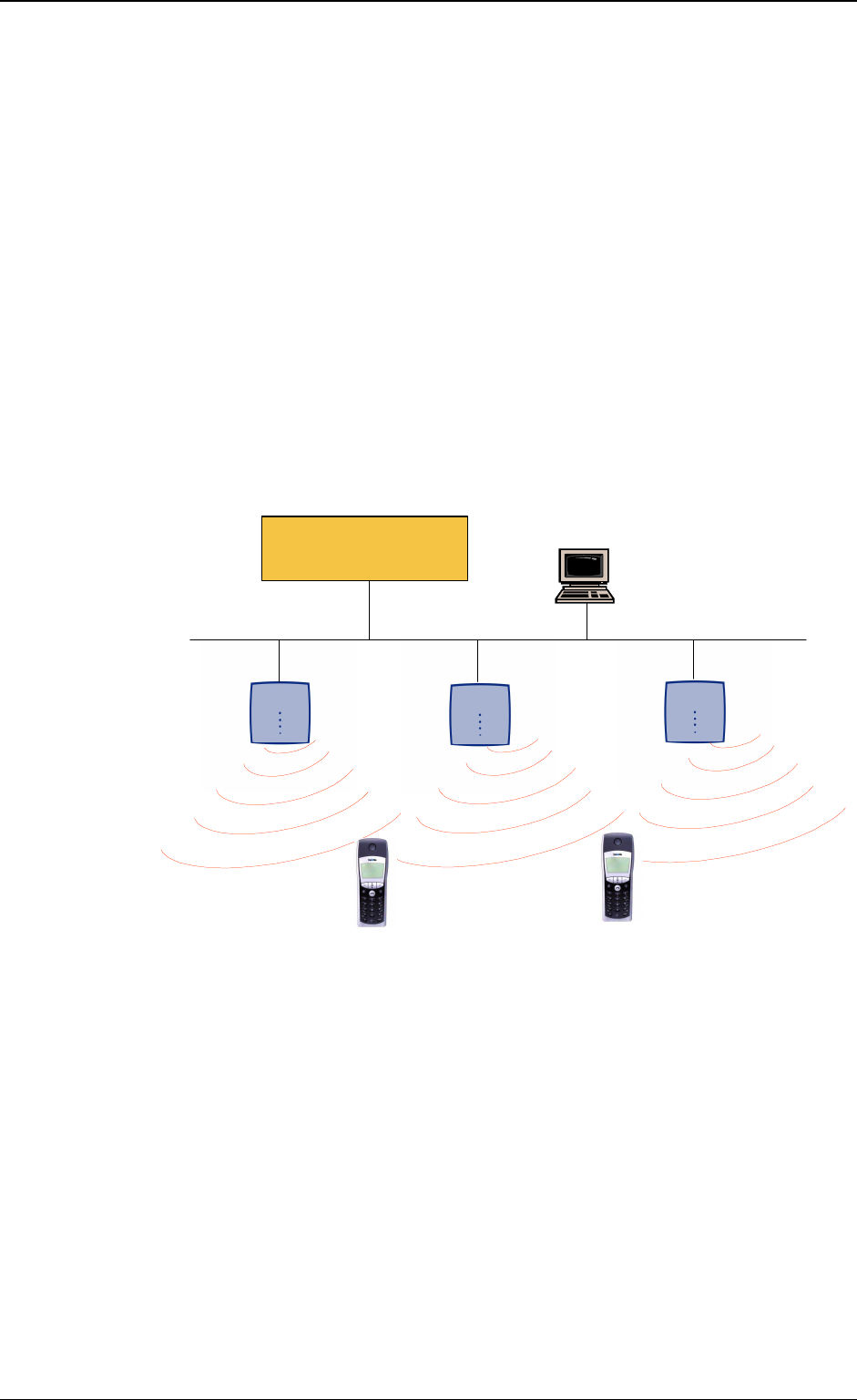

The following pictures give a graphical overview of the architecture of the IP
DECT wireless solution:
Radio Fixed Parts
255 max.
Web browser for
administration purposes
Media Server
Media Gateway
The media server, media gateway, OMM and the RFPs communicate
through the IP infrastructure. The RFPs and the Portable Parts communicate
over air, where the DECT GAP protocol is used or DECT GAP with
proprietary enhancements.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 9 (52)
2.2 About the RFPs
In general all RFPs have the same hardware and software capabilities.
But please mind the differences in regulatory domains which exist for North
America and all other areas of the world . These domains lead to different
RFP variants which use specific frequency bands and field strengths:
• RFP 32 IP or RFP 34 IP (EMEA)
- Frequency Band 1.880 to 1.900 Mhz
- 10 carrier frequencies
- Transmit Power 24 dBm
• RFP 32 US or RFP 34 US (NA)
- Frequency Band 1.920 to 1.930 Mhz
- 5 carrier frequencies
- Transmit Power 20 dBm
One of the RFPs within an IP DECT installation must be chosen to operate
not in the RFP mode, only, but also in the OpenMobility Manager (OMM)
mode. During installation you must set one of the RFPs to OMM mode. The
others are set to RFP only mode.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 10 (52)
RFP only mode
Within this mode the RFP converts IP protocol to DECT protocol and then
transmits the traffic to and from the handsets over a DECT time slot. On air
the RFP has 12 available time slots, 8 can have associated DSP resources
for media streams, the remaining 4 time slots are used for e.g. control
signalling between RFPs and the PPs.
Groups of RFPs have to be built which are named clusters. Within a cluster
RFPs are synchronized to enable a seamless handover, when a user
crosses from one RFP’s zone of coverage to another. For synchronization it
is not necessary for an RFP to communicate directly with all other RFPs in
the system. Each RFP only needs to be able to communicate with the next
RFP in the chain. But it is preferable for a RFP to see more than one RFP to
guarantee synchronization in the event that one of the RFPs fails.
The 4 control signalling channels are also used to carry bearer signals that
signal the handset to start the handover process. If the radio signal of
another RFP is stronger than that of the current RFP, then the handset starts
the handover process to the RFP that has the stronger signal as the user
moves around the site.
OpenMobility Manager mode
In this mode a RFP functions as a regular RFP. Additionally it is responsible
for SIP signalling between the IP DECT system and the telephony or media
server. Further on it takes over the management part of the IP DECT
solution. You designate a RFP as the OMM by assigning an IP address to
the RFP within the DHCP scope (see 3). After a RFP is designated as the
OMM, it starts the extra services on board (for example, the web service that
supports the management interface).
Note: It is possible to deactivate the DECT part of a RFP. If the DECT
interface is deactivated then the resources (CPU and memory) are available
for the OMM.

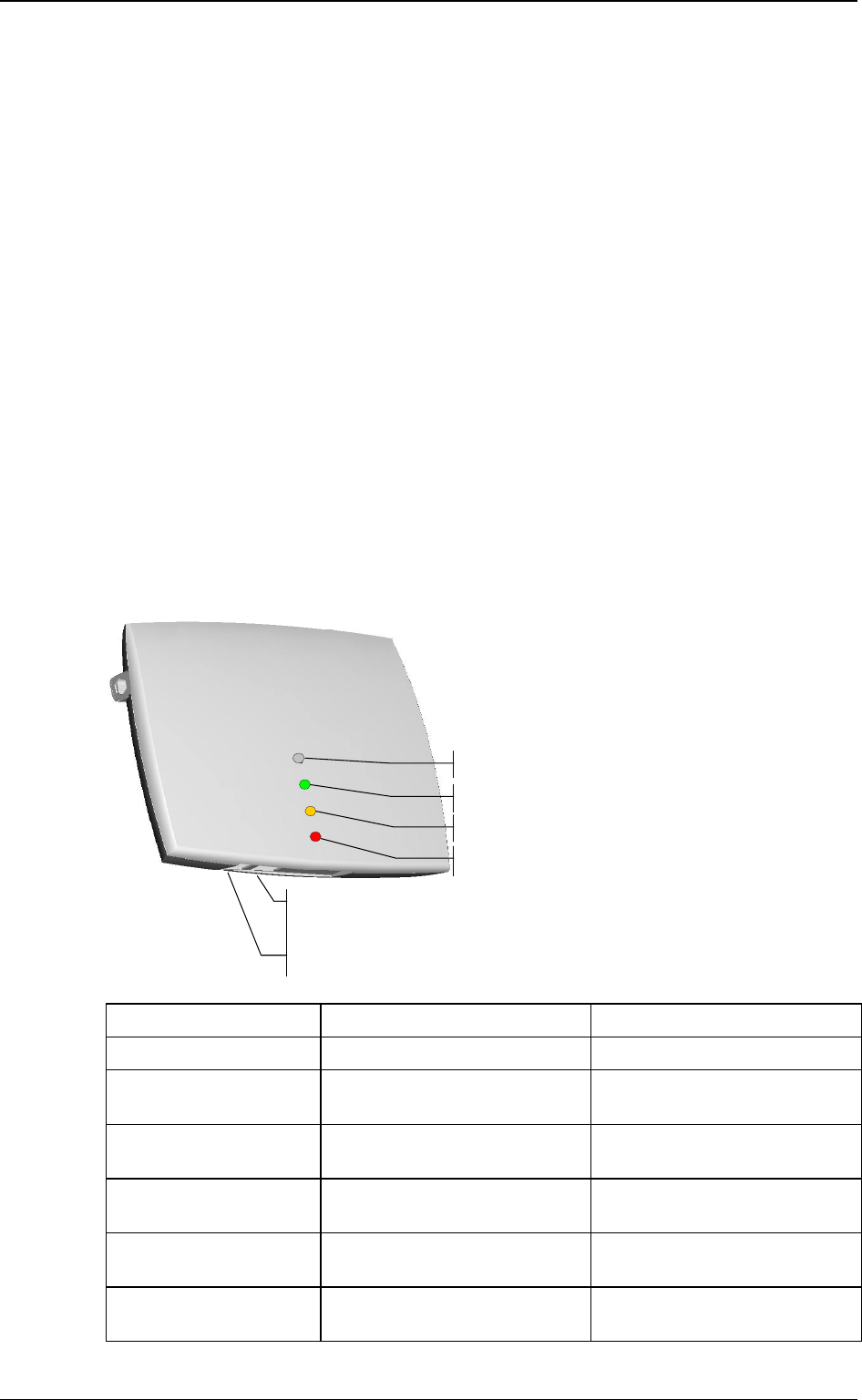

Power jack (120 V/230 V AC adapter)
Ethernet jack
Power supply in line with Power over LAN™
standard IEEE 802.3af
LED red (Booter)
IP RFP32 /
IP RFP32 US
LED orange (Application)
LED green (Application)
Unused
LED
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 11 (52)
2.3 OpenMobility Manager
The OpenMobility Manager (OMM) performs the following tasks:
• Signalling gateway (SIP <-> DECT).
• Media stream management.
• Managing sync-over-air functions between RFPs.
• Facilitating system configuration modifications.
The OpenMobility Manager (OMM) may run on one of the RFPs or on a
dedicated Linux server.
2.4 IP signalling and media stream
To establish a call between an IP Phone and a PP, the following IP streams
must be established:
• A signalling channel to and from the SIP phone.
• A signalling channel to and from the OMM.
• A control interface between the OMM and the RFP that has a connection
to the PP (known as the primary RFP).
• A Real Time Protocol (RTP) / Real Time Control Protocol (RTCP)
connection between the SIP phone and the media gateway and then a
RTP/RTCP connection between the media gateway and the RFP.
The following figure illustrates this scenario.
Media Server
Media Gateway
Signalling
RFP Control Interface
RTP/RTCP
SIP
-
Phone
OMM
(RFP in OMM mode)
Primary RFP
To establish a call between two PPs the same IP streams must be
established like in the scenario before, except the IP phone is not involved.
The following figure illustrates this scenario.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 12 (52)
Media Server
Media Gateway
Signalling
RFP Control Interface
RTP/RTCP
OMM
(RFP in OMM mode)
A call from one PP to another that resides on the same RFP will loop back
within the RFP, if no media gateway is involved. So the call will not pass
through to the Local Area Network (LAN). Although the voice packets will not
impact LAN traffic, signal packets will.
It is also be possible to direct the media stream to connect directly the IP
phone and the RFP, as shown in the following figures.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 13 (52)

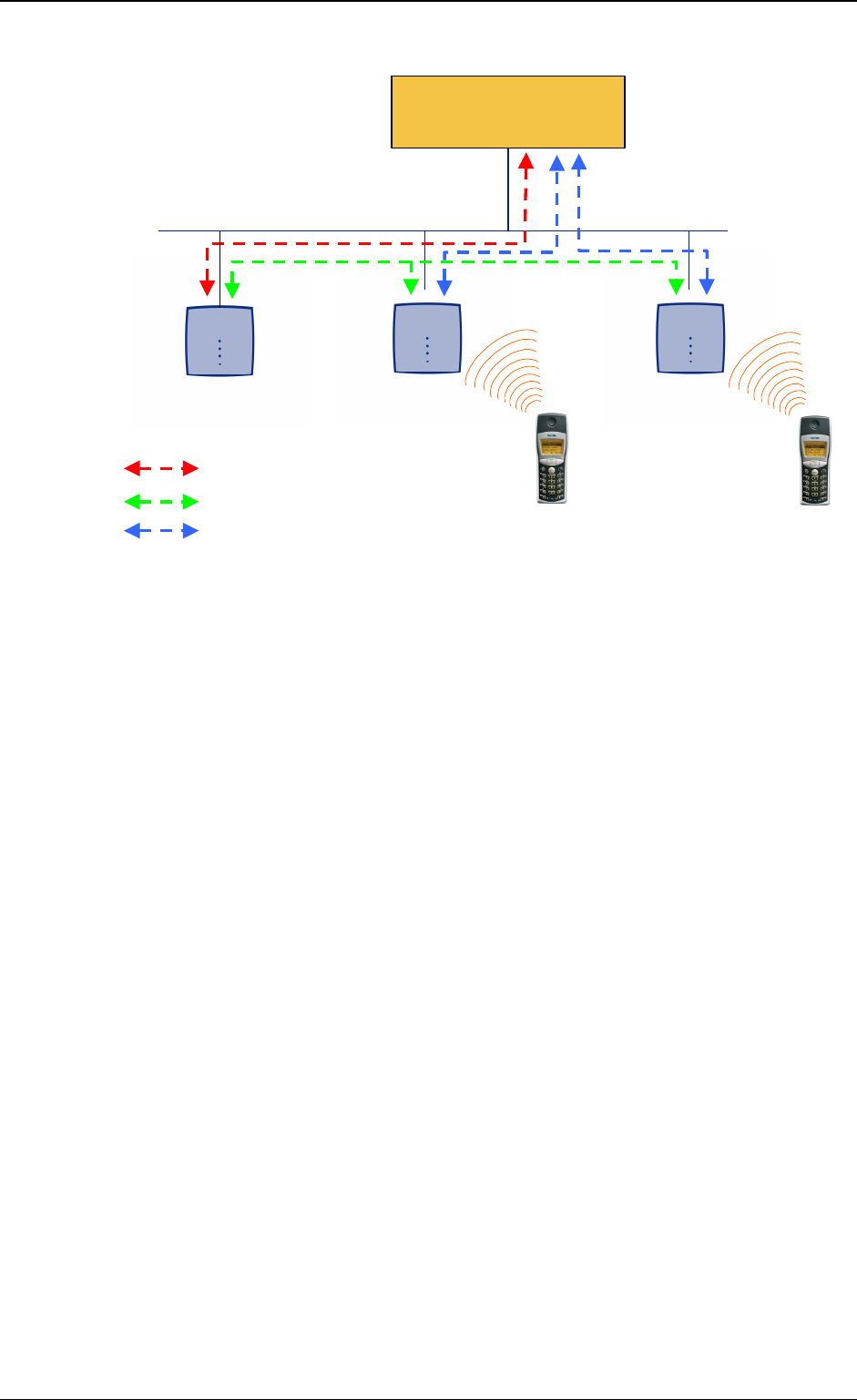

If the PP user is moving, the PP detects that another RFP has a better signal
strength and, therefore, it starts the handover process. The media stream
from the IP phone cannot move to the secondary RFP, so the primary RFP
uses the LAN to direct the voice to the secondary RFP, as shown in the
following figure.
Media Server
Media Gateway
Signalling
RFP Control Interface
RTP/RTCP
SIP
-
Phone
OMM
(RFP in OMM mode)
Primary RFP
Secondary RFP
As the PP user moves into the next RFP zone of coverage, the PP detects
that the RFP has a better signal strength. Again the media stream from the
SIP phone cannot move to the secondary RFP, so the primary RFP uses the
LAN to direct the voice to the new secondary RFP.
Media Server
Media Gateway
Signalling
RFP Control Interface
RTP/RTCP
SIP
-
Phone
OMM
(RFP in OMM mode)
Primary RFP
New secondary RFP
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 14 (52)
2.5 RFP Synchronization
To guarantee a seamless handover if a caller moves from one RFP zone of
coverage to another RFP zone of coverage, an accurate synchronization of
the RFPs is necessary.
The RFPs are synchronized over the air interface. During start up one RFP
will be the first, which transmits a signal on the air. The other RFPs only
receive the signal until their are synchronous. If a RFP gets in sync then it will
transmit a signal on the air and will be the sync source for the next RFPs.
Only RFPs which can receive each other will be synchronized.
For the RFP to sync to another RFP the signal strength cannot drop below
–70 dBm. You must consider this requirement during the site survey.
The first active RFP will be chosen by the ADMM.

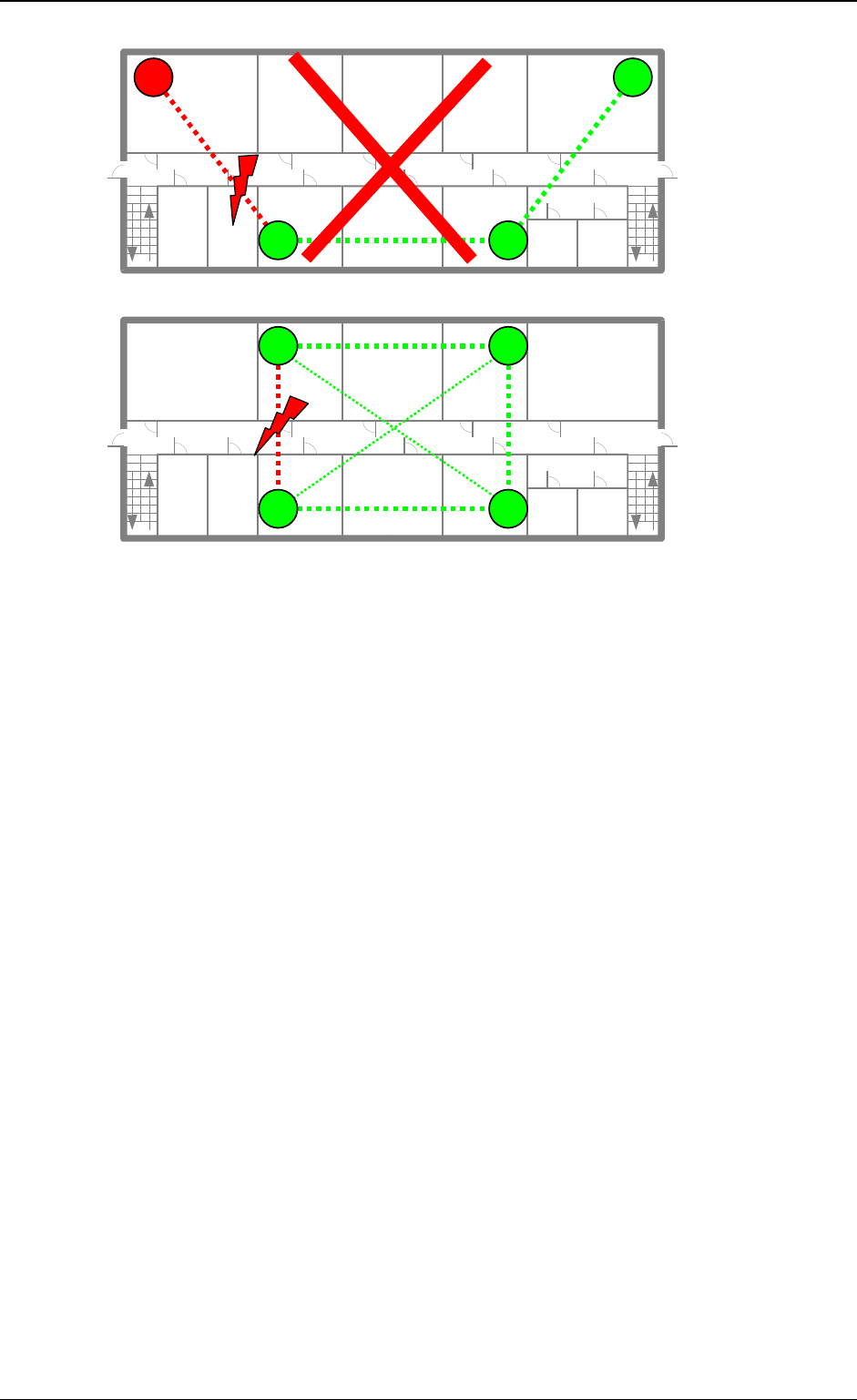

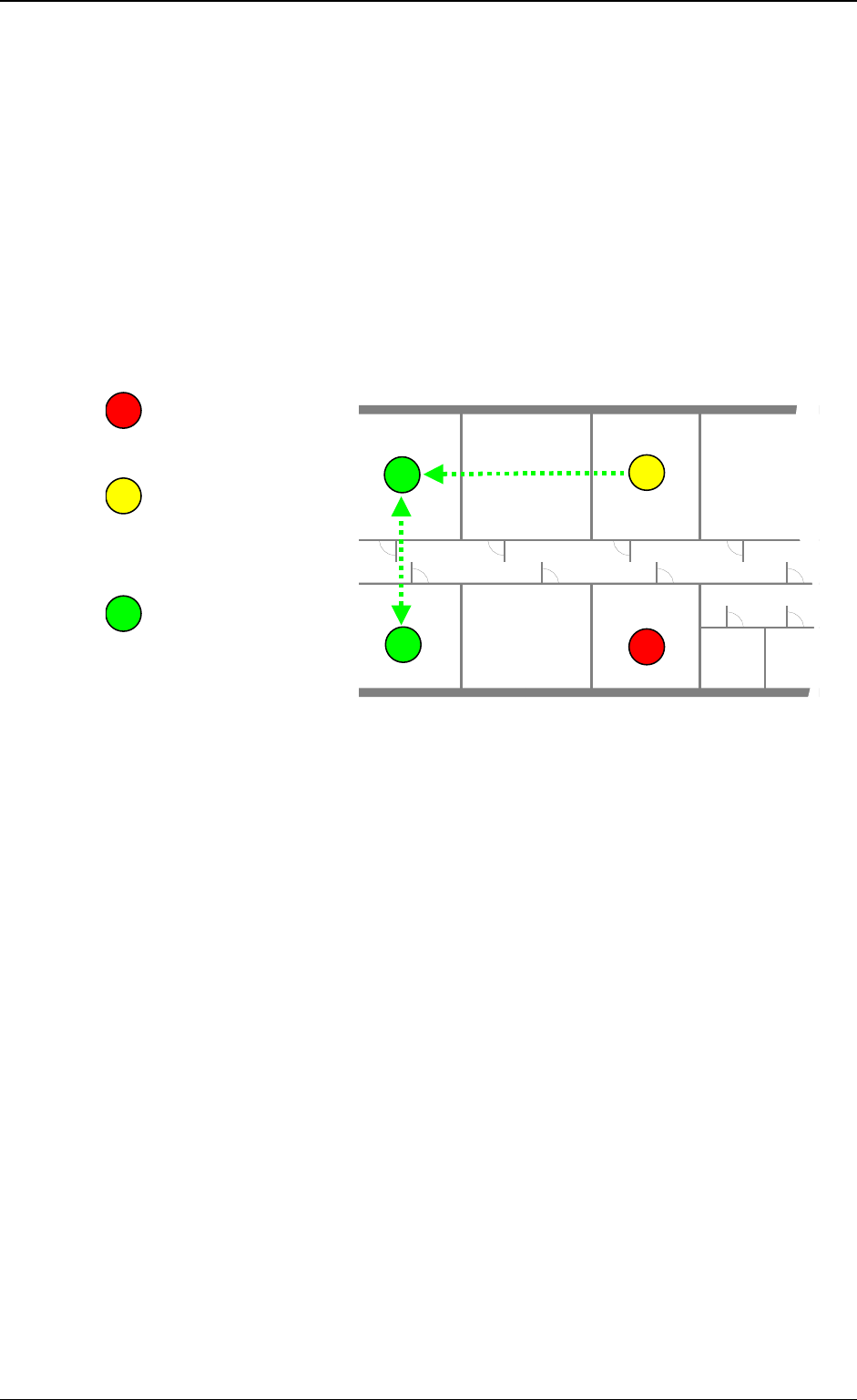

R 111 R 110 R 109 R 108 R 106
R 101 R 102 R 103 R 104 R 105
R 107
Unsynchronized RFP,
which does not receive a
signal from another RFP
Unsynchronized RFP,
which receives a signal
from another RFP and
tries to get synchronized
Synchronized RFP,
which receives and
transmits a signal on the
air interface
As long as a RFP is not in sync, no calls can be established using this RFP.
If a RFP loses the synchronization the RFP does not accept new calls (“busy
bit”). There is a delay of maximum 3 minutes until the active calls on this RFP
are finished. Then it tries to get synchronized again.
An IP DECT installation is more reliable if a RFP can receive the signal from
more than only one RFP, because the other signals are also used for
synchronization.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 15 (52)
R 111 R 110 R 109 R 108 R 106
R 101 R 102 R 103 R 104 R 105
R 107
Unreliable Installation
R 111 R 110 R 109 R 108 R 106
R 101 R 102 R 103 R 104 R 105
R 107
Reliable Installation
Don‘t
The sync-over-air solution is very reliable, because all existing redundant
paths are used for synchronization. Thus, hardware tolerances have only
very little influence. No RFP has a key position.
Only unfavourable setups without redundant synchronization paths can
cause problems.
Sometimes RFPs do not need to be synchronized, e.g. if they are in different
buildings. These RFPs can be put into different clusters. RFPs in different
clusters will not be synchronized with each other. Different clusters startup at
the same time independently.
2.6 RFP channel capacity
The RFP has 12 available air time slots:
• 8 slots can have associated DSP resources for media streams.
• The remaining 4 slots are used for e.g. control signalling between RFPs
and PPs.
If all 8 media stream channels are used IP DECT announces a “busy bit”. In
that case the PPs determine whether another RFP has an appropriate signal
strength. If so, the PP will handover to that RFP. Once the handover has
been completed, the RFP will then lower its “busy bit”.
Whenever the busy state is announced a log entry is made to the system
logs. If the announcement of busy raises in a specific area, a further RFP
should be installed to double the number of media streams available for calls.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 16 (52)
2.7 About the Portable Parts
Please mind the differences in regulatory domains which exist for North
America and all other areas of the world . These domains lead to different PP
variants which use specific frequency bands and field strengths:
• Aastra Phone 142 (EMEA)
- Frequency Band 1.880 to 1.900 Mhz
- 120 duplex channels
- 10 mW (average output per active channel)
• Aastra Phone 142 US (NA)
- Frequency Band 1.920 to 1.930 Mhz
- 60 duplex channels
- 5 mW (average output per active channel)
In addition to the Aastra Phone 142 also standard 3rd party DECT GAP
phones function on the IP DECT solution. But the functionality may be limited
by the characteristics of the 3rd party DECT phone.
2.8 About licensing

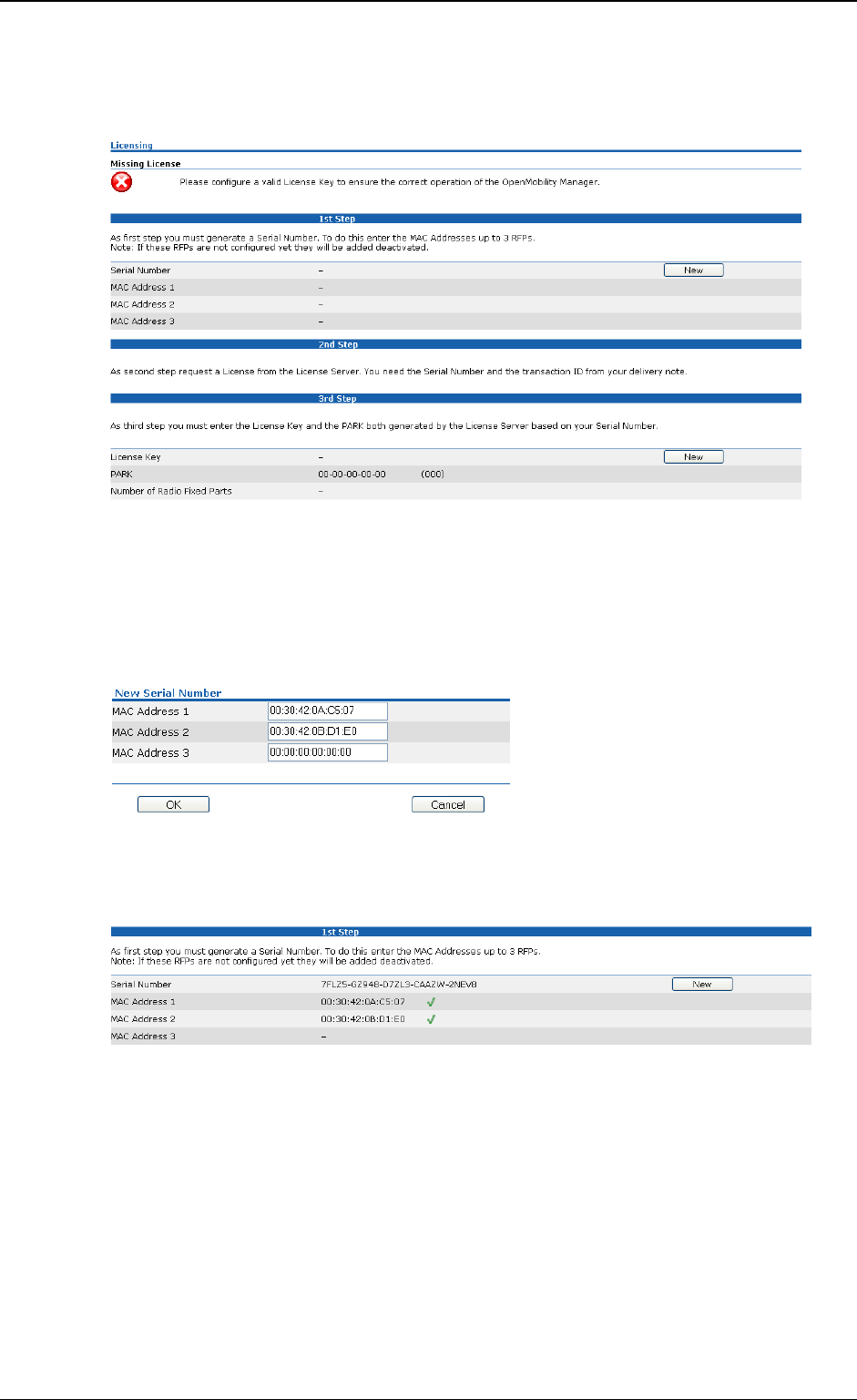

The OMM needs to be enabled with a license key, which depends on the
MAC address of some RFPs in the DECT system. The license key needs to
be entered / administered via the OMM web interface.
There are a sets of licenses with additional upgrade licenses:
• License for 1 to 2 RFPs
• License for more than 2 RFPs
As mentioned above the license key depends on the MAC addresses of
some RFPs of the DECT system (License RFPs). Each RFP can be a
License RFP independent from where the RFP is located. The number of
RFP MAC addresses encoded in the license depends on the size of the
DECT installation.
System size
(# of RFPs) Number of RFP MAC addresses
encoded in the license (License RFPs)
1 1
2 2 (1, if a second RFP has been added to a single RFP
system)
More than 2 3
Additional to the MAC addresses the PARK (Portable Access Rights Key),
which identifies the DECT installation, is also part of the license. Because a
DECT system can only be operated with a valid PARK, a DECT installation
without a license will be inactive on the DECT side.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 17 (52)
An IP DECT system is operational, if it is set up with a license and the RFPs,
which are encoded in the license are part of the system so that the OMM can
communicate with these License RFPs.
Depending on the size of the IP DECT system, it will still work if some
License RFPs are out of service.
System size
(# of RFPs) Number of License-
RFPs Number of License
RFPs available at
minimum
1 1 1
2 2 1
More than 2 3 2
If the minimum number of License RFPs cannot be reached by the OMM or
more RFPs are administered than licensed the DECT system will block the
voice streams.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 18 (52)
2.9 System capacities
There is only one OpenMobility Manager (OMM) in the system. The OMM
capacities are:
• Up to 256 RFPs can be controlled.
• Up to 512 PPs are handled.
It is possible to deactivate the DECT part of a RFP. If the DECT interface is
deactivated then the resources (CPU and memory) are available for the
OMM only.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 19 (52)
3 Installation and configuration
To establish and maintain an IP DECT installation, a network infrastructure is
assumed, which comprises at least the following components:
• RFPs
• PPs
• media server (e.g. Asterisk)
The following services should be provided:
• TFTP
• DHCP
• Syslog daemon
3.1 OpenMobility start up
3.1.1 Start up of the RFPs
For booting a RFP there must at least a TFTP server on the attached
network to load the application software.
The essential network settings can be alternatively
• given by a DHCP server at startup time.

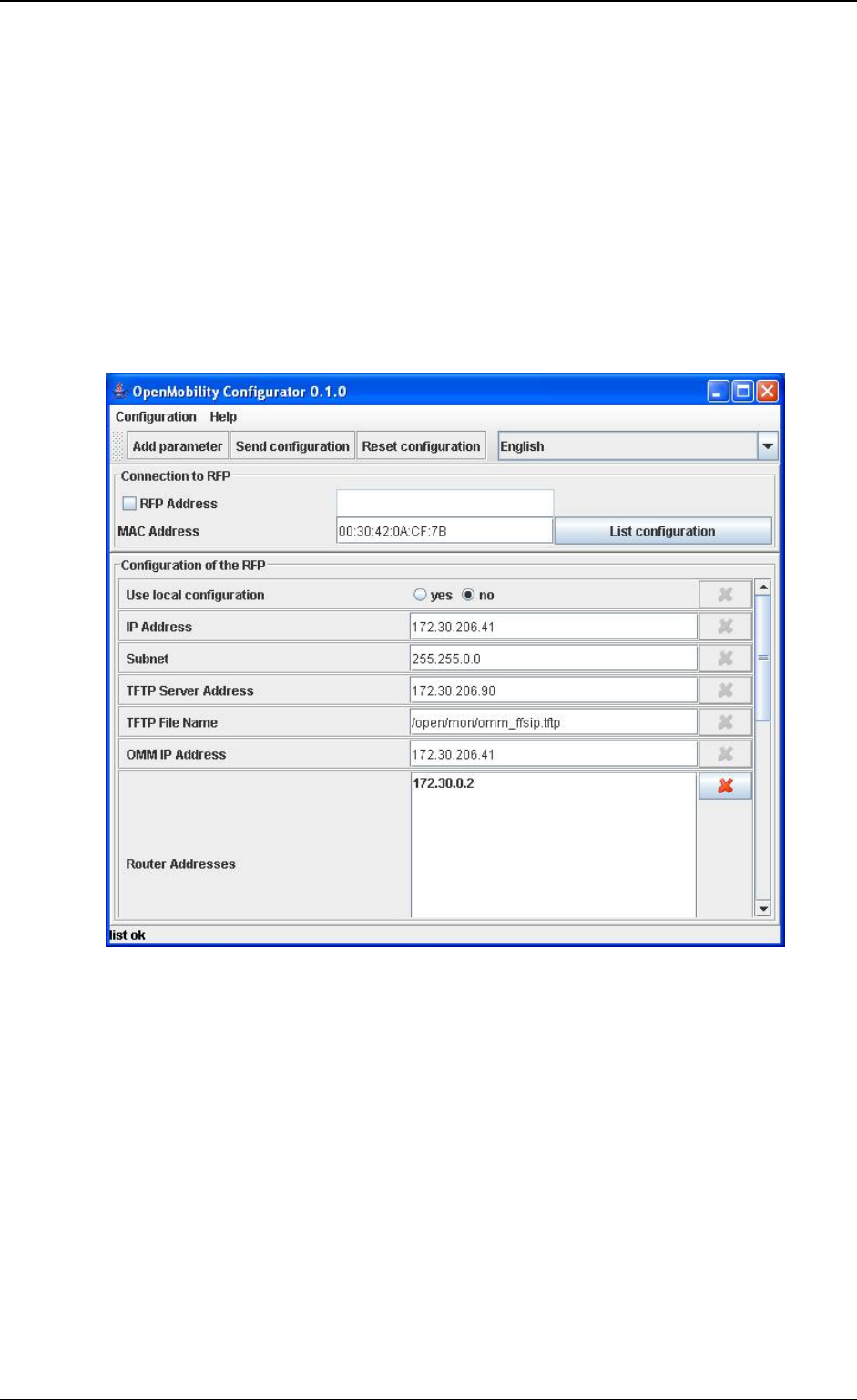

• configured on the RFP with the tool OM Configurator. The settings made
by the OM Configurator will be saved permanently in the internal flash
memory.
The RFP gets the boot image file from a TFTP server. The used TFTP server
needs to support /1/. A used DHCP server needs to support /4/.
The TFTP and DHCP server need not to reside on the same host.
3.1.1.1 Booting overview
Booting is performed in two steps:
1. Starting the boot process.
2. Starting the application.
Booter
The RFP has only a little standalone application built into the flash. This
software realizes the so called net boot process.
On startup each IP DECT Base Station tries to determine its own IP address
and other settings of the IP interface from the configuration settings in the
internal flash memory. If no settings are available or these settings are
disabled, the IP DECT Base Station tries to determine these settings via
DHCP.
The RFP gets the application image file from the TFTP server.
Application
After starting the application image the IP DECT Base Station checks the
local network settings in its internal flash memory once again. If no settings
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 20 (52)
are available or if they are disabled it starts a DHCP client to determine the
IP address of the ADMM and other startup settings.
3.1.2 Start up of the OpenMobility Manager
There is no difference in booting that RFP, which is chosen to be running in
OMM mode from those which are in the RFP only mode.
The decision is driven by the OMM IP address, which is read
• within the local network settings, if active.
• via DHCP request.
The IP DECT Base Station which has the same IP address as the dedicated
OMM IP address, is running as the OMM.
3.1.3 Booter
3.1.3.1 DHCP client
Within the initial boot process the DHCP client supports the following
parameters:
• IP address mandatory
• Netmask mandatory
• Gateway mandatory
• Boot file name mandatory
• TFTP server mandatory
• Public option 224: “OpenMobility” mandatory
3.1.3.1.1 DHCP request
3.1.3.1.1.1 Vendor class identifier (code 60)
The DHCP client sends the vendor class identifier “OpenMobility”.
3.1.3.1.1.2 Parameter request list (code 55)
The DHCP client in the booter requests the following options in the
parameter request list:
• Subnet mask option (code 1)
• Router option (code 3)
• Public option 224 (code 224)
• Public option 225 (code 225)
• Public option 226 (code 226)
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 21 (52)
3.1.3.1.2 DHCP offer
The DHCP client selects the DHCP server according to the following rules:
• the public options (code 224) has a value equal to the string
“OpenMobility”.
or
• the file field in the DHCP message has a sub string equal to “ip_rfp.cnt”.
If none of the two rules above match the DHCP offer is ignored.
Information retrieved from the DHCP offer:
• The IP address to use is taken from the yiaddr field in the DHCP
message.
• The IP netmask is taken from the subnet mask option (code 1).
• The default gateway is taken from the router option (code 3).
• The TFTP server IP address is taken from the siaddr filed in the DHCP
message.
• The boot image filename is taken from the file field in the DHCP message,
if this field is empty the default filename “iprfp.bin” is used.
3.1.3.1.3 Retries
If the DHCP client does not get an appropriate DHCP offer a new DHCP
request is send after 1 second. After 3 DHCP requests are sent the DHCP
client will sleep for 60 seconds.
During this time the booter will accept a local configuration with the
OpenMobility Configurator (OMC).
3.1.3.2 TFTP client
The TFTP client will download the application image from the TFTP server.
Both TFTP server and the name of the application image are supplied via the
DHCP client. The application image is checksum protected.
3.1.4 Application
After successfully downloading and starting the application the RFP will
determine the IP address of the OMM from DHCP.
The DHCP client is capable of receiving broadcast and unicast DHCP
replies. Therefore the flags field is 0x0000.
The DHCP request contains the well-known magic cookie (0x63825363)
and the end option (0xFF).
The following parameters will be supported within this step:
Option / Field Meaning Mandatory
yiaddr IP-Address of the IP-RFP yes
siaddr IP-Address of the TFTP server yes
file Path and name of the application image yes
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 22 (52)
code 1 Subnet mask yes
code 3 Default Gateway yes
code 6 Domain Name Server no
code 15 Domain Name no
code 42 IP-Address of a NTP server no
code 43 Vendor Specific Options yes
public option 224 Must set to "OpenMobility". yes
The Vendor Specific Options consist of:
Vendor Specific
Option Meaning Mandatory
option 10 ommip: Used to select the IP-RFP who should
reside the Open Mobility Manager (OMM) yes
option 14 syslogip: IP-Address of a Syslog Daemon no
option 15 syslogport: Port of a Syslog Daemon no
option 17 country: Used to select the country in which the
OMM reside. This enables country specific tones
(busy tone, dial tone, ...)
no
option 18 ntpservname: Name of a NTP Server no
Tones for the following countries are supported:
country
code country
1 Germany
2 Great Britain
3 Suisse
4 Spain
6 Italy
7 Russia
8 Belgium
9 Netherlands
10 Czechia
14 Finland
16 Poland
25 Taiwan
100 USA
101 France
3.1.4.1 Booter update
3.1.4.1.1 Automatic booter update
Each application SW comes with the latest released booter SW. The
application SW will update the booter automatically as long as the major
release number of the booter SW has not changed, e.g booter SW 2.1.2 will
not be automatically updated by the booter SW 3.x.y, but the booter SW
3.0.0 will be automatically updated by the booter SW 3.1.0.
Details on how to check the booter SW version, see 4.1.
Details on how to update the booter manually, see 4.1.2.
3.1.4.1.2 Automatic booter update for major release changes
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 23 (52)
The update of booters with a major release number change will be performed
automatically when the DHCP client in the application receives an DHCP
offer with the public option 254 with a value “UPDATE”.
3.1.4.2 Selecting the right DHCP server
The DHCP client requests its own IP address using code 50. The DHCP
client will select the DHCP server that offers the currently used IP address.
Additionally the mandatory options must be offered otherwise the DHCP offer
is ignored by the DHCP client.
If no matching reply was received the DHCP client resends the request for 2
times after 1 second. Then the DHCP client will wait for 1 minute before
resending 3 requests again.
If the DHCP client cannot accept an DHCP offer within 3 minutes the RFP is
rebooted.
3.1.5 RFP LED status
The following diagram shows the LED status of a RFP according to the
different states during start up.
The RFP32 IP has three separate LEDs for red, orange and green to show
the different states during start up.
Power jack (120 V/230 V AC adapter)
Ethernet jack
Power supply in line with Power over LAN™
standard IEEE 802.3af
LED red (Booter)
IP RFP32 /
IP RFP32 US
LED orange (Application)
LED green (Application)
Unused
LED
State LED state Remarks
Booter (Start up) Red on Waiting for link up
Booter DHCP Red flashing 0.5 Hz Launching a DHCP request and
waiting for an DHCP offer
Booter (TFTP) Red flashing 2.5 Hz Downloading the application
Application (DHCP) Orange on Launching DHCP request and
waiting for DHCP reply
Application (init) Green flashing 0.5 Hz RFP is initializing its internal
components
Application (init) Green flashing 1 Hz RFP tries to connect to the
OMM
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 24 (52)
State LED state Remarks
Application (init) Green flashing (2 sec on, 0.5
sec off) The DECT part of the RFP
does not work (either not
configured or not synchronized
with other RFP’s)
Application (init) Green RFP is up and running
3.1.6 State graph of the start up phases
Start-up
wait for link up
LED RED ON
retry
Wait for 60 seconds
LED red
flashing 0,25 Hz
Application
Init
Application
Connect to OMM
Application
Synchronize DECT
Application
Up & running
LED green
flashing 2 seconds
on / 50ms off
LED green
LED green
flashing 1 Hz
LED green
flashing (0,5 Hz)
TFTP
File download
LED red
flashing 2,5 Hz
DHCP no answer / offer not o.k.
TFTP failed
Connection attempt to OMM failed
Failure, i.e. connection to OMM lost
Failure, i.e. connection to OMM lost
DHCP
wait for reply
LED orange
DHCP no answer; offer not o.k.
(try 3 minutes)
Init failed
BOOTER
Kernel
DHCP
wait for reply
LED red
flashing 0,5 Hz
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 25 (52)
3.2 Static local configuration of the IP DECT Base Station
For a static local configuration you must use the java configuration tool
OpenMobility Configurator (requires Java Runtime Environment version 1.4
or higher).
The settings, which are configured on the IP DECT Base Station with the tool
OM Configurator, will be saved permanently in the internal flash memory of
an IP DECT Base Station.
The parameters configurable via the OM Configurator comply with the DHCP
option, please see section 3.1 for details.
If a local static configuration has been done, DHCP is not used anymore.
The following figure shows the OM Configurator.
To configure an IP DECT Base Station, at least the MAC address and all
mandatory options (see table below) have to be set. If the IP DECT Base
Station has an IP address enter this address in the IP address field. In this
case you can reach the IP DECT Base Station from outside the local LAN
segment.
To set additional parameters, press the “Add parameter” button and choose
the desired parameter.
Press the “Send configuration” button to transmit the parameters to an IP
DECT Base Station.
The configuration can only be set after powering up or at the retry phase
(LED flashing 0,25 Hz) or in kernel mode, please see section 3.1.6 for
details. The configurator tool waits 2 seconds and retries transmitting the
data 3 times.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 26 (52)
If you want to read the configuration parameters from an IP DECT Base
Station set the MAC address and the IP address additionally and press the
“List configuration” button. All parameters will be listed in the OM
Configurator tool.
Press the “Reset configuration" button to clean all input fields and additional
parameters.
3.3 Configuring the OpenMobility Manager
The OMM can be configured via HTTP. The OMM acts as a HTTP server
which binds to port 80 by default. If executed in host mode the port can be
configured via the command line interface.
The configuration data will be either read from the internal flash memory or
from a local file. A local file is only used if specified on the command line on a
PC host.
The configuration file is a human readable ASCII file. Changing the
configuration file outside the OMM is not permitted.
The configuration file can be downloaded and uploaded via the web
interface.
The service access is restricted to one active session at a time and is
password protected.
The browser used for service access has to be at least Microsoft Internet
Explorer 6.0 or Mozilla Firefox 1.0 and must have frame support, JavaScript
and cookies enabled.
3.3.1 Service Login procedure
The OMM allows only one user at a time to configure the system. A user
must authenticate with an user name and a password. Both strings are
checked case sensitive.
Default login and password is “
omm
”.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 27 (52)
After login there are the following options available:
Configuration of general IP DECT system parameters.
Administration of the attached RFPs.
Administration of the PPs.
Administration of the licence options.
If no user action takes place the OMM logs out the user after 5 minutes.
To logout from the system click at “Logout”.
Note: If the browser is closed without logging out first the service access will
be blocked for other clients for 5 minutes.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 28 (52)
3.3.2 Licensing
Within the initial configuration of the IP DECT system, the license is missing
and a warning occurs.
3.3.2.1 Definition of the License RFPs'
The License RFPs' have to be defined in that manner as described in chapter
2.8. Press the “New” button and add the MAC addresses of the License
RFPs':
If that has been done please wait for the green tick(s) as shown in the next
image.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 29 (52)
3.3.2.2 Get and add the licence key and PARK number
The second step is to go to the Aastra - DeTeWe License web site and enter
the serial number generated by the first step along with a TAN from your
documentation. This will generate a license key that has to be entered in the
3rd step.
If the license is valid, the warning “Missing License” disappears and the OMM
restarts.
3.3.3 System
3.3.3.1 System settings
The system settings cover global settings for the OpenMobility Manager like
the system name or a system wide authentication code. The authentication
code is used during initial PP subscription as a security option (see chapter
3.3.5).
Encryption and regulatory domain are described in the chapters 3.3.3.1.2 and
3.3.3.1.3.
For monitoring the DECT system behaviour of the OpenMobility Manager a
separate application will be delivered. This tool needs an access to the
OpenMobility Manager which is disabled by default and can be enabled on
the system page.
To allow the prioritisation of Voice Packets and/or Signalling Packets (SIP)
inside the used network the IP parameter ToS (Type of Service) could be
configured here.

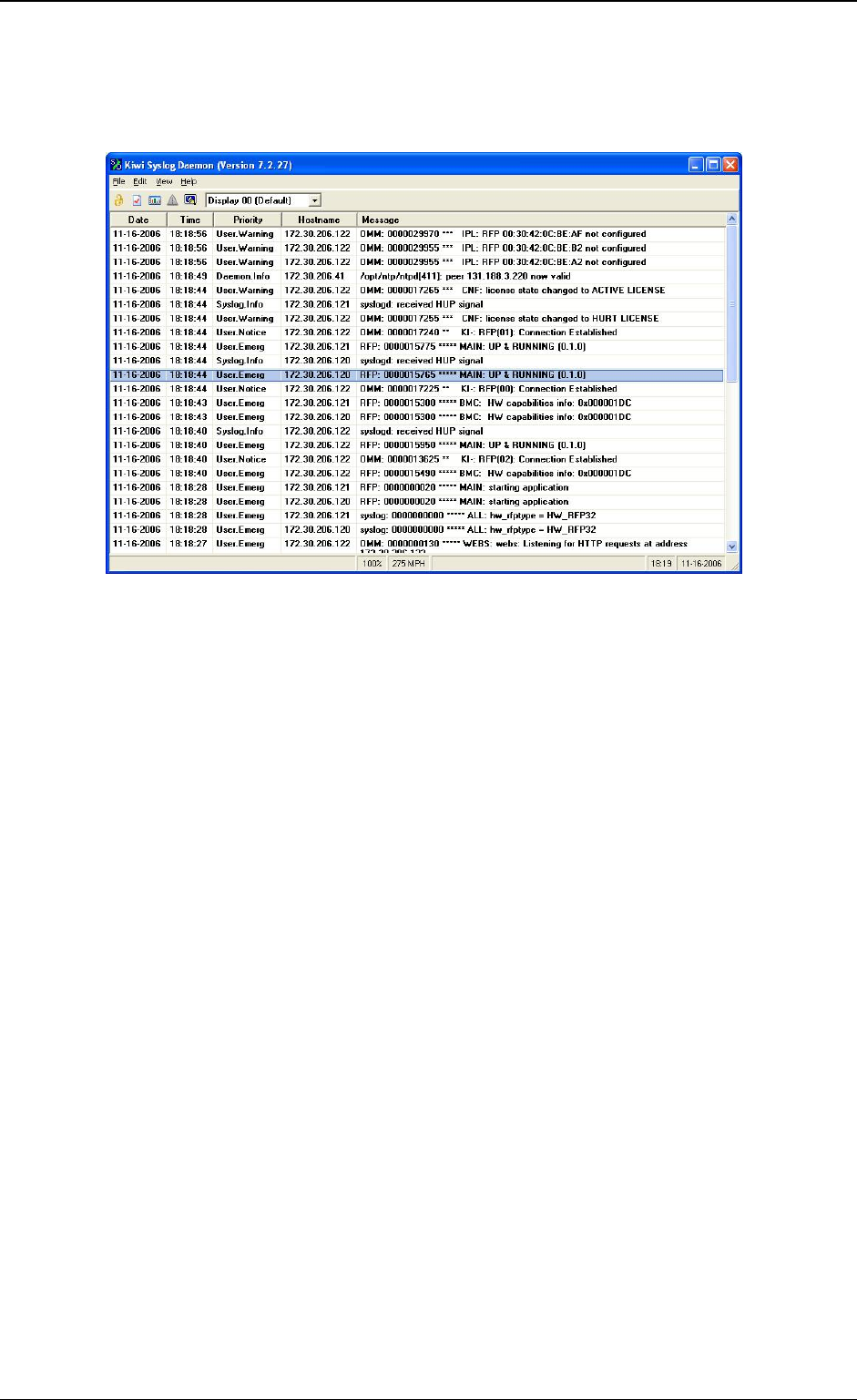

The OpenMobility Manager and the RFPs are capable of propagating syslog
messages conforming to /8/. This feature together with the IP address of a
host collecting these messages can be configured.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 30 (52)
If SNTP is not used, date and time can be configured at the OMM. This has
to be done to provide date and time to the Aastra Phone 142.

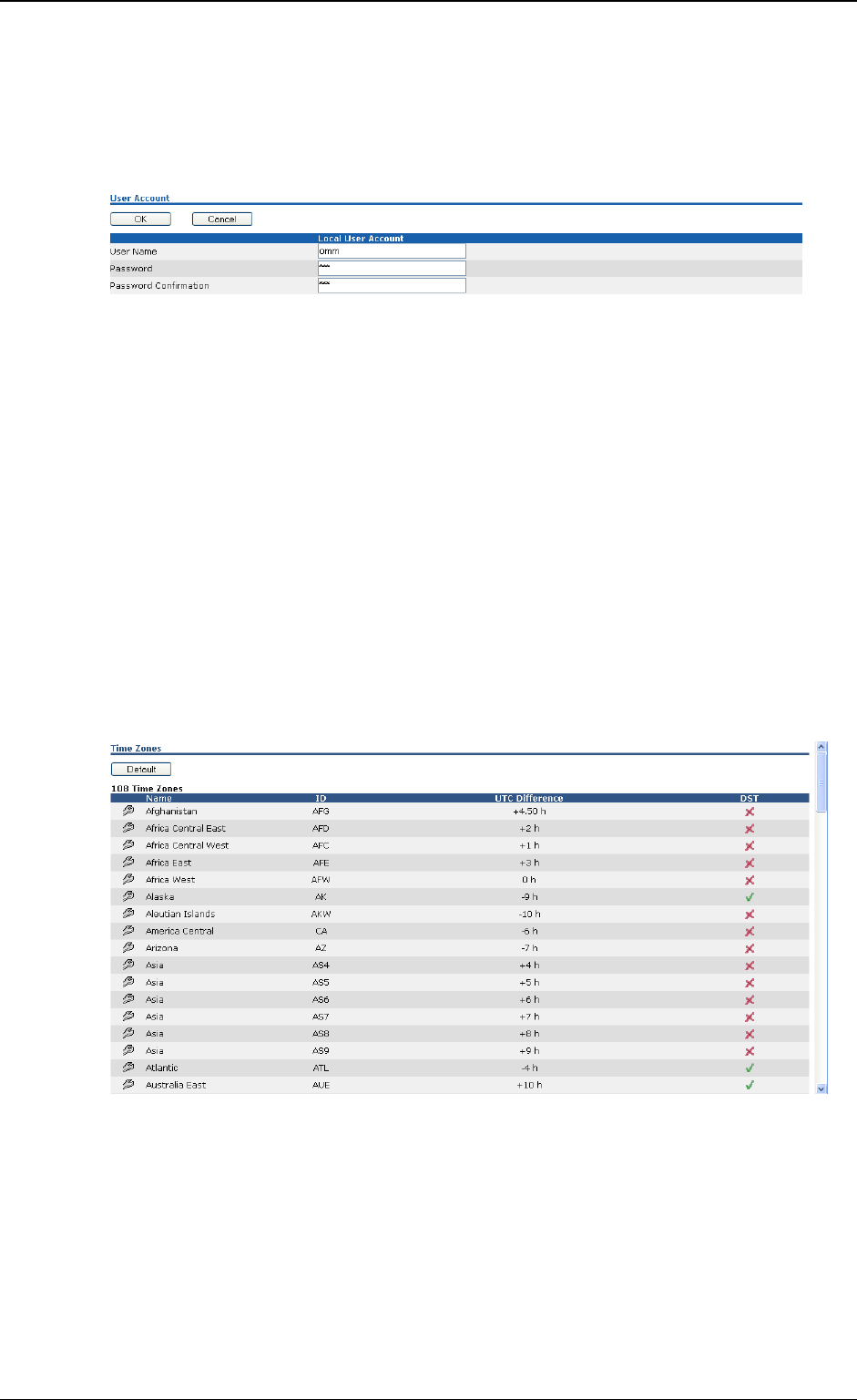

The time zone, which is shown on this web page, has been configured at the
IP region section of the web service.
Please note, that in the case that SNTP is not used, the date and time has to
be configured after every restart of the IP DECT Base Station, where the
OpenMobility Manager is running.
The date and time will be provided by the OpenMobility Manager to the
Aastra Phone 142 if the Aastra Phone 142 initiates a DECT location
registration. This will be done in the following cases:
• Subscribing at the OMM
• Entering the network again after the DECT signal was lost
• Power on
• Silent charging feature is active at the phone and the phone is taken out
of the charger
• After a specific time to update date and time
3.3.3.1.1 Restarting the OMM
To restart the OMM select “System Settings” from the navigation tree and
then select ‘Restart’. There is also the option to reset the configuration data.
A reset web page is loaded then displaying a progress bar and the login web
page is loaded automatically if the OMM is reachable again.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 31 (52)
3.3.3.1.2 Encryption
Encryption is only available if RFP32/34 IP (not RFP 31/33 IP) are used.
Therefore it can only be enabled on the “System Settings” web page if no
RFP31/33 IP has been connected to the OMM.
If encryption is enabled and an RFP31/33 IP connects to the OMM, its DECT
air interface will not be activated. The user always has the possibility to
disable encryption. In this case all connected RFP31/33 IP are restarted.
Note: The PPs have to support DECT encryption which is not a mandatory
feature.
3.3.3.1.3 Regulatory domain
To define where the IP DECT is used the parameter regulatory domain has
to be configured. Existing installations are updated to the default value
“EMEA (ETSI)”. To setup an FCC compliant installation the value has to be
set to “US (FCC/CI)”.
ETSI compliant RFPs are inactive and can not be activated if the regulatory
domain is set to “US (FCC/CI)” and vice versa.
3.3.3.2 SIP
The SIP settings cover all global settings matching the SIP signalling and the
RTP voice streams.
• Proxy Server
IP address or name of the SIP proxy server.
• Proxy Port
SIP proxy server’s port number. Default is 5060.
• Registrar Server
IP address or name of the SIP registrar. Enables the PPs to be registered
with a Registrar.
• Registrar Port
SIP Registrar’s port number. Default is 5060.
• Registration Period
The requested registration period, in seconds from the registrar.
• Outbound Proxy
Address of the outbound proxy server. All SIP messages originating from
the OMM are sent to this server. For example, if you have a Session
Border Controller in your network, then you would normally set its address
here.
• Outbound Proxy Port
The proxy port on the proxy server to which the OMM sends all SIP
messages.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 32 (52)
• Explicit MWI Subscription
Some Media Server such as the Asterisk support Message Waiting
Indication (MWI) based on /15/. A MWI icon will be presented on a Aastra
Phone 142 if the user has received a voice message on his voice box
which is supported by the Media Server. If Explicit MWI Subscription is
enabled the OMM sends explicit for each PP a MWI Subscription
message to the Proxy or Outbound Proxy Server.
• RTP Port Base
Each RFP needs a continuous port area of 68 UDP ports for RTP voice
streaming. The RTP Port Base is the start port number of that area.
Default is 16320.
• Preferred Codec 1 – 5
Specifies a customized codec preference list which allows you to use the
preferred Codecs. The Codec 1 has the highest and Codec 5 the lowest
priority.
• Silence Suppression
Allows to configure whether Silence Suppression is preferred or not.
• DTMF Out-of-Band
The OMM supports DTMF based on /9/.
• DTMF Payload Type
If Out-of-Band is enabled the Payload Type specify the payload type
which is used for sending DTMF events based on /9/.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 33 (52)
3.3.3.3 User account
After initial installation or after removing the configuration file the
OpenMobility service is accessible via a build-in user account with user “
omm
”
and password “
omm
”. These settings which are case sensitive can be
changed on the “User Account” web page.
3.3.3.4 Time zones
A time and date resynchronization of the Aastra Phone 142 devices is
described in chapter 3.3.3.1.
In the time zone section the OpenMobility Manager provides all available
time zones. They are set with their known daylight savings time rules
adjusted to the Universal Coordinated Time (UTC) per default. The difference
to the UTC time is shown in the “UTC Difference” column. In case of a
configured daylight savings time rule this is also marked for each time zone.
There is a possibility to change the time zone rules for maximal five time
zones. Changed rules are marked with a bold time zone name in the table.
The changes are saved in the configuration file and are restored after each
OpenMobility Manager startup. The “Default” button sets all time zones back
to the default values and deletes the changed time zone rules in the
configuration file.
With the “Configure Time Zone” dialog the standard time and the daylight
savings time (DST) of a time zone can be changed. If the time zone has no
DST only the UTC difference can be configured. For the DST both points of
time (begin of standard time and begin of daylight savings time) have to be
specified exactly. Therefore a certain day in the month or a certain week day
in a month can be used. See the following screen shots as an example:
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 34 (52)
3.3.3.5 Backup
The web service interface allows to save a copy of the current configuration
on the local host (host where the browser application is executed) as well as
to restore an older configuration.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 35 (52)
Restoring a previously saved configuration will lead to a reset of the OMM to
take effect.
3.3.4 RFP configuration

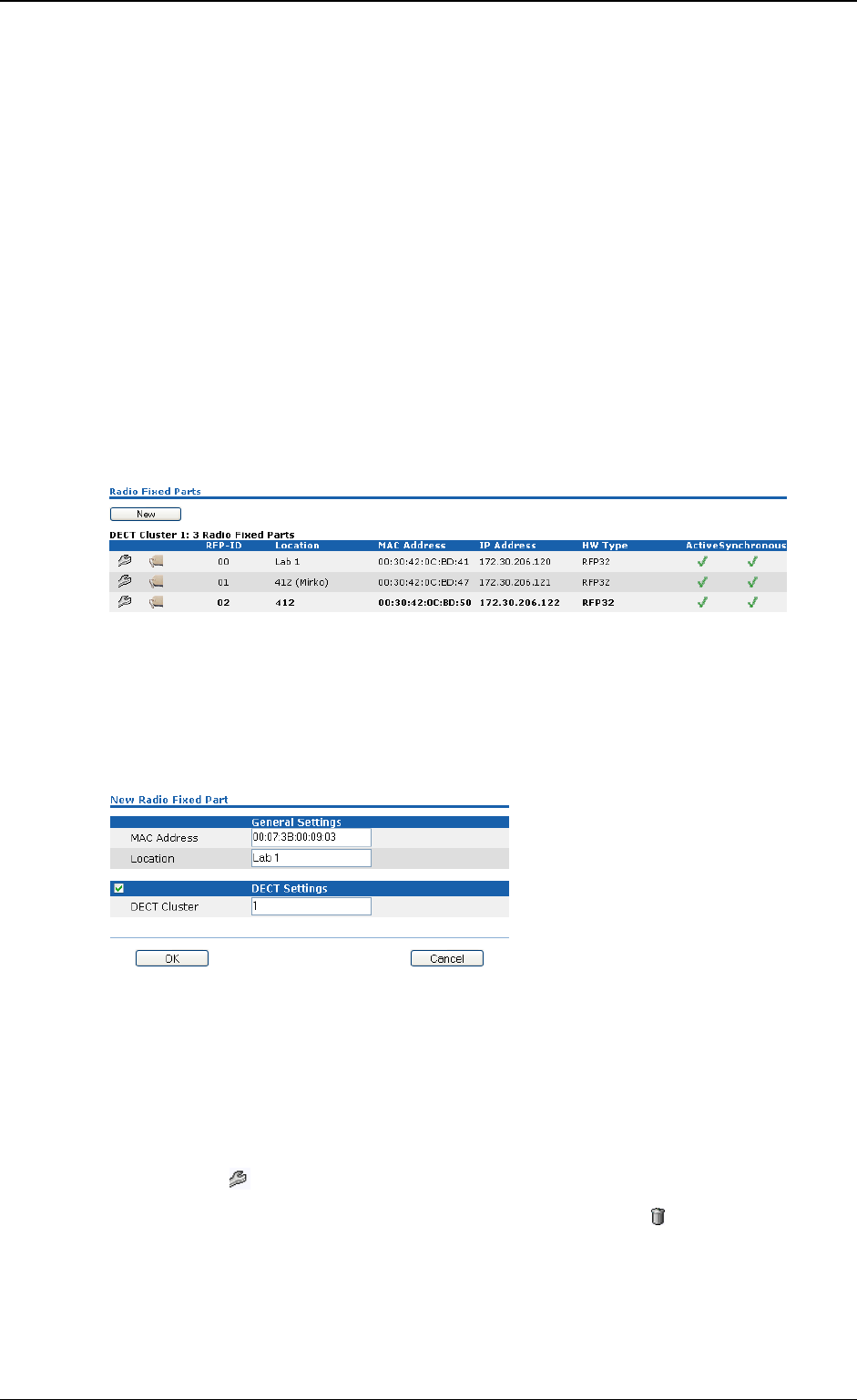

All configured RFPs are listed in tables grouped to clusters by its topographic
relations. The RFPs are sorted by their Ethernet addresses.
To ensure correct handover of a PP during a call, all involved RFPs must
deliver the same clock signal to the PP. This is achieved by placing the RFPs
so close to each other, that every RFP recognizes at least one other RFP
through its radio interface.
There are conditions where this is not possible, for instance with RFPs at
remote locations. In this case the RFPs shall be grouped to different clusters.
The OpenMobility Manager will not try to synchronize RFPs over cluster
borders.
All used clusters are displayed in the navigation bar on the left side and the
OMM RFP is marked with a bold font.
When the RFPs are connecting the OMM they submit their HW type. This
type is displayed on the RFP list web page.
New RFPs can be added to the system by pressing the “New” button. A
popup window appears providing the configuration of a new RFP.
Each RFP is identified by its MAC address (6 bytes hex format, colon
separated). The Ethernet address is unique and can be found on the back of
the chassis.
For easier administration each RFP can be associated with a location string.
The location string can hold up to 20 characters.
The same popup window could be opened for an existing RFP by pressing
the tool icon of the appropriate RFP.
An RFP could be deleted by pressing the trash can icon . A similar popup
window asks for confirmation showing the current configuration of this RFP.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 36 (52)
3.3.4.1 DECT configuration
The DECT functionality for each RFP can be switched on/off. If DECT is
active the RFP can be added to a cluster.
3.3.4.2 States of a RFP
For each RFP the state of the DECT subsystem is displayed. The states are:
Synchronous
The RFP is up and running. The RFP recognizes and is recognized by other
RFPs in its cluster through its air interface and delivers a synchronous clock
signal to the PPs.
Asynchronous but active
The RFP has not been able to synchronize to its neighbours yet. No DECT
communication is possible. But nevertheless the RFP has already been able
to connect to the OMM. This phase should usually last only for a few seconds
after starting up the RFP or the OMM. If this state lasts longer this is an
indication for a hardware or network failure.
Searching
The RFP has lost synchronization to its neighbours. No DECT
communication is possible. This phase should usually last only for a few
seconds after starting up the RFP or the OMM. If this state lasts longer or is
re-entered after being in a synchronous state this is an indication for a bad
location of the RFP.
Inactive
The RFP has connected to the OMM but the air interface has not been
switched on yet. For any RFP with activated DECT functionality this phase
should last only for a few seconds after starting up the RFP. If this state lasts
longer this may indicate an hardware failure.
Not connected
The RFP was configured but has not connected to the OMM yet. Therefore
the IP address column is empty.
3.3.4.3 OMM / RFP SW version check
When the RFPs are connecting the OMM they submit their SW version. If this
version differs from the OMM SW version the RFP connection attempt is
rejected. This could happen when using several DHCP servers with different
OpenMobility SW versions. In this case the RFP is marked with an error
message. Moreover a global error message is displayed on the RFP list web
page if at least one version mismatch has been found.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 37 (52)
3.3.5 Configuration of Portable Parts
At the Portable Parts web page all configured DECT handsets are sorted by
their number. To keep the list concise, the complete list is split up into sub
lists containing up to 100 handsets. The user can move back and forth in
steps of 100 handsets. Because the browser function can not be used to
search for a certain handset in all sub lists, a search function is available,
which allows to find a handset by a given number or IPEI.
A new PP can be added to the system by pressing the “New” button. The
following popup window appears allowing the configuration of a new PP.
The name and authentication code fields are optional settings. The number
represents the SIP user ID and the name represents the SIP display name.
The DECT authentication code is used during initial DECT subscription as a
security option and can be set here for each PP separately. If it is not
configured the global authentication code on the “System Settings” web page
is used (see chapter 3.3.3.1).
The SIP Authentication User Name is optional. It represents the name which
will be used during SIP authentications. If no name is given the number will
be used instead. The password will be used during SIP authentications.
A similar popup window appears when configuring an existing PP by
pressing the tool icon . The only difference is the delete subscription
checkbox. If this option is selected, the PP will be unsubscribed.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 38 (52)
Note: The authentication code can only be changed if the PP is not
subscribed. The PP name can be changed, but this will not take effect until
the PP is subscribed again.
Deleting of a PP can be done by pressing the trash can icon . A popup
window appears and asks for confirmation.
After adding a PP to the OMM the PP must be subscribed. This is done by
pressing the “Subscribe” button. The OMM will allow a subscription of
configured but not subscribed PPs during the next hour.
During the subscription process the system wide PARK and the
authentication code either configured for the PP or system wide must be
entered in the PP form fields. The PARK is displayed at the PP configuration
page in the top right corner.
If the user wants to find a certain handset then the search function can be
used. A click on the “Search” button provides the following pop-up window.
The user can enter the handsets’ number or IPEI. At least one parameter has
to be set. The entered number or IPEI has to match exactly with a handset’s
number or IPEI. If number and IPEI are given then a handset has to exist in
the OMM’s database whose number and IPEI match both otherwise the
search fails.
If a handset with the specified number and/or IPEI was found then a list is
displayed which has this handset as the first entry. The search function can
also be used to get to the right sub list in one step.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 39 (52)
4 Maintenance
4.1 Booter
The booter may be handled via the DHCP option 254 “UPDATE” (see
chapter 3.1.4.1) automatically. In any case you may have direct control to the
booter SW, if you use a telnet user session. A complete description of the
usage of the user shell, you can find in /18/.
4.1.1 Checking the RFP booter version
You can display the version information of the RFP booter using the telnet
interface of an RFP. Check the booter version to determine whether an
update is required to overcome any user issues or to enhance the
functionality.
1. Start a telnet session using the IP address of the RFP.
2. Enter login “
iprfp
” and password “
ommsip/987
”
.
3. Enter
flash
.
The display will show the software and the hardware level of the RFP.
> flash
version of initial booter : 2.0.12
Version of booter 1 : 3.2.2
Version of booter 2 : 3.2.2
Hardware Revision : 51
MAC address : 00:30:42:08:31:A4
>
4.1.2 Manual update of the RFP booter
You can update the RFP booter manually if there is no opportunity to have an
autonomic update. Please check the booter version to determine whether an
update is required to overcome any user issues or to enhance the
functionality.
1. Start a telnet session using the IP address of the RFP.
2. Enter login “
iprfp
” and password “
ommsip/987
”.
3. Enter
flash_update
.
4. Enter
flash_update
a second time because of the two booter images.
4.2 Site survey measurement equipment
If an IP DECT installation has to be planned, a sufficient distribution of the
RFPs is necessary, which fulfills the requirements for reliable synchronization
and connectivity to the Portable Parts. The site survey kit may help you. It
comprises:
• Scaled layout diagram of the building/premises.
• One measuring RFP with its own power supply.
• A tripod and a battery for the RFP.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 40 (52)
• Two reference PPs with chargers.
• Battery chargers.
• A measuring handset, which can monitor other makers DECT radio
sources.
4.3 Checking the Aastra Phone 142 firmware version
You can display the version information of the Aastra Phone 142 with a few
keystrokes. Check the firmware version to determine whether an update is
required to overcome any user issues.
1. Press the “Menu” soft key
2. Select “System” (only to highlight)
3. Press “OK”.
4. Select “Version Number”
5. Press “OK”.
The display will show the software and the hardware version of the Aastra
Phone 142.
4.4 Diagnostic
4.4.1 Aastra Phone 142 site survey mode
You can set the Aastra Phone 142 in “site survey mode” with a few
keystrokes. In this mode the phone will display the RFPs and the actual field
strength of the receiving signal in dBM.
1) Press the “Menu” soft key
2) Enter the following key sequence “R***76#”
3) Select “Site Survey”
4) Press “OK”.
To leave the site survey mode switch the phone off and on again.
The following display is shown on the Aastra Phone 142:
Menu Phonebook
RFPI 10FFF21 02
FE PP: FP:
-dBm 50 57 50
RPN 02 01 00
PARK: 1F-10-FF-F0-21
RFP ID: 02*
RFP ID: 02*
*The ID of RFP to which the PP is currently associated to.
Frame error
Field strength
RFP ID
In this example the PP is currently connected to the RFP with the number 02.
The RFP 01 and 00 are also visible. The number “10FFF221 02” on the
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 41 (52)
upper right side refers to the PARK 1F-10-F2-21 of the IP DECT system and
to the RFP to which the phone is currently connected to.
4.4.2 Aastra Phone 142 auto call test mode
You can set the Aastra Phone 142 to “auto call test mode” with a few
keystrokes. In this mode the phone will call a specified number cyclically. You
can use this feature to generate traffic for test purposes. This mode is also
active if the phone is an the charger.
1) Press the “Menu” soft key
2) Enter the following key sequence “R***76#”
3) Select “Auto Call Test”
4) Press “OK”.
5) Enter the phone number to call.
6) Press “OK”.
7) Enter a number of seconds between two calls.
8) Press “OK”.
9) Enter a number of seconds a call shall be active.
10) Press “OK”. The test will be started automatically.
To stop the test, switch the phone off and on again.
4.4.3 Aastra Phone 142 auto answer test mode
You can set the Aastra Phone 142 to “auto answer test mode” with a few
keystrokes. In this mode the phone will answer incoming calls automatically.
You can use this feature together this phones in the “auto call test mode” for
test purposes. This mode is also active if the phone is an the charger.
1) Press the “Menu” soft key
2) Enter the following key sequence “R***76#”
3) Select “Auto Answer”
4) Press “OK”.
5) Enter a number of seconds the phone shall ring before it will answer the
call.
6) Press “OK”.
7) Enter a number of seconds a call shall be active.
8) Press “OK”. The test will be started automatically.
To stop the test switch the phone off and on again.
4.4.4 Syslog
The OpenMobility Manager and the RFPs are capable of propagating syslog
messages conforming to /8/. This feature together with the IP address of a
host collecting these messages can be configured.
Syslog has to be enabled by
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 42 (52)
• DHCP using the public options 227 and 228.
• Setting the syslog daemon server and port via the web interface.
To set up the syslog via DHCP or OM Configurator has the advantage, that
syslogs are available in earlier states of the RFP start up.
The level of syslog messages in the default state allows the user, to have
control over the general system state and major failures. If it is wished to
increase the level for diagnostic reasons, this can be done via the telnet user
shell by increasing the spy level of each subsystem (see chapter 4.4.5).
You can also read syslogs if you type the command
logread
within the telnet
user shell.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 43 (52)
4.4.5 Telnet user shell
Each RFP (OMM included) offers a lot of commands within the telnet shell.
Most of them are useful for diagnostics and may help experts to resolve
failures.
Note: Some commands can harm the systems operation.
4.4.5.1 Login
The procedure is:
• Open a telnet session to the RFP.
• Enter user “
iprfp”
and password “
ommsip/987”
.
Welcome to IP RFP OpenMobility SIP Version x.y.z
Mon Nov 13 12:34:06 CEST 2006
Release
(BUILD 0)
172.30.106.41 login: iprfp
Password:
Welcome to the system usershell!
172.030.206.41 > help
4.4.5.2 Command overview
Type
help
to get a command overview:
arp - show arp table
console_off - disable console on local terminal
console_on - enable console on local terminal
dmesg - print the kernel ring buffer
flash - show flash info
flash_update - update the booter
interface show interface configuration
ip_rfpconsole - console to the rfp application
link - show link state
logread - show message log
mem show memory usage
ommconsole - console to the omm application
ps - show process table
ping - ping <ipaddress>
reboot - restarts the system
route - show routing table
uptime - show system uptime
exit exit shell
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 44 (52)
4.4.5.3 RFP console commands
If you type
ip_rfpconsole
you are able to use the following commands on
each RFP:
IP RFP console commands:
heap - shows heap buffer statistics
help - Displays Command Help Table
lec - adjust linear echo canceler parameters
media - display state of media channels
mutex - lists all created MXP mutexes
queues - lists all created MXP queues
reset - resets the IPRFP application
rsx - allows RSX connection to BMC via TCP
sem - lists all created MXP semaphores
spy - set/display spy levels: [ <key #> <level #> ]
tasks - lists all running MXP tasks
voice - displays the state of voice handling
exit - leave the RFP console
Note: The
spy
command enables you to increase the level of syslog
messages. These should be used only by trained support personnel,
because the
spy
command can harm the systems operation.
4.4.5.4 OMM console commands
If you type
ommconsole
and you have opened the session on the OMM RFP
you are able to use the following OMM related commands:

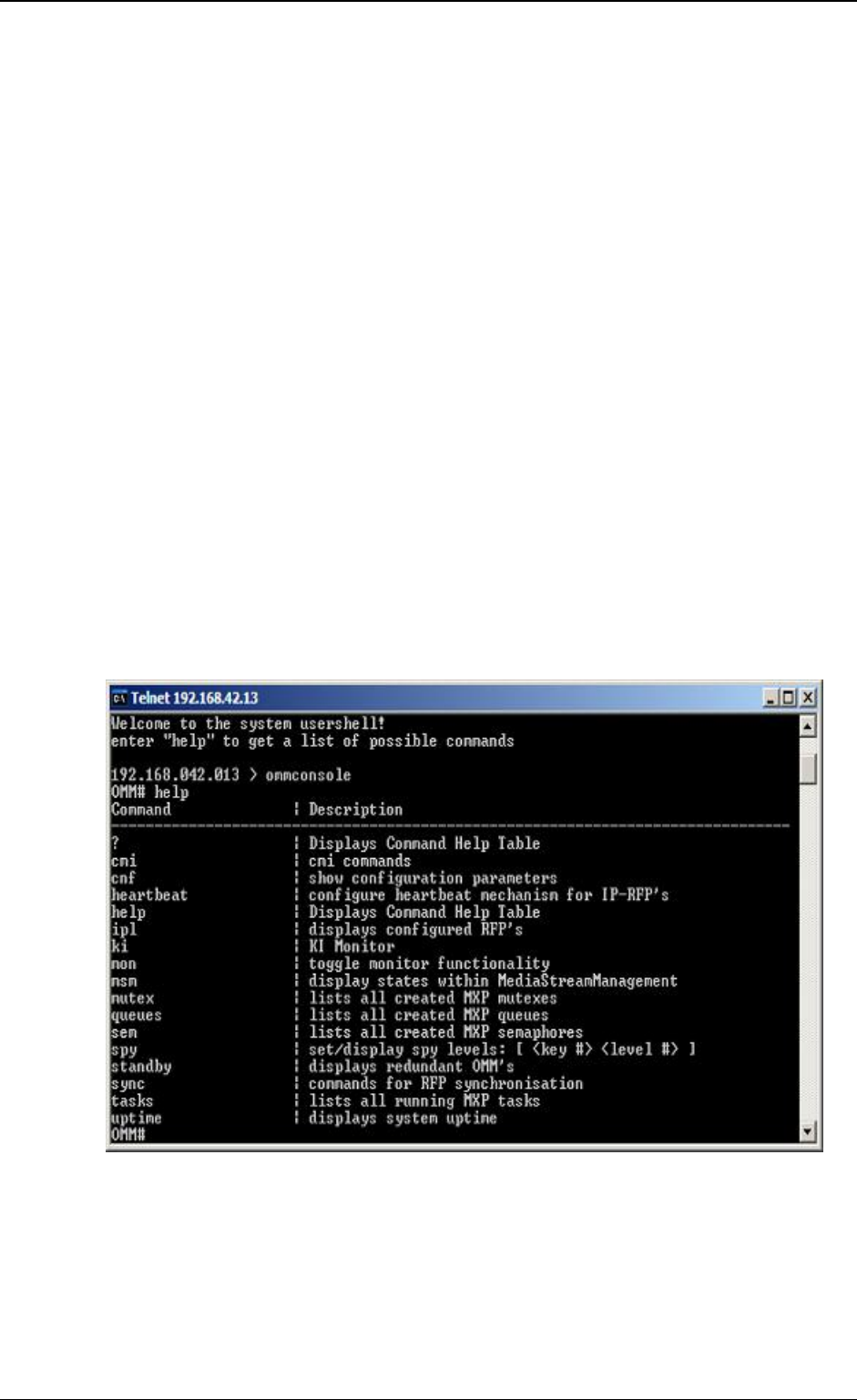

Note: The
spy
command enables you to increase the level of syslog
messages especially for subsystems of the OMM. These should be used only
by trained support personnel, because the
spy
command can harm the
systems operation.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 45 (52)
4.4.6 DECT monitor of the OpenMobility system
For a better error detection in the OpenMobility system the DECT monitor
can be used. The DECT monitor is an MS Windows based standalone
application. It provides the possibility to give a real time overview of the
current RFP and PP states in the DECT OpenMobility system.
The following features are provided by the DECT monitor:
• Reading out of the DECT configuration of a OpenMobility system.
• Configuration can be stored in an ASCII file.
• Display of DECT transactions RFP-PP in clear tabular form, with
highlighting of handover situations. Real-time display.
• Display of further events concerning the status or actions of RFPs
and PPs of the OpenMobility system.
• All events can also be recorded in a log file.
• Display of the synchronization relations between the RFPs.
• Monitoring of systems with up to 255 RFPs and 1023 PPs.
• Reading out and display of RFP statistics data, either for a single RFP or
for all RFPs.
• Display of DECT central data of the OpenMobility system.
The DECT Monitor application can only be used if the DECT Monitor flag in
the OMM web service on the system settings configuration page is enabled.
The DECT monitor application is used together with the OpenMobility
system.
When the application is started, the user is requested to enter the IP address
of the RFP or server running the OpenMobility Manager (OMM) software.
This address is different from the IP address of the PABX the OMM is
connected to!
There can be several reasons for an unsuccessful link establishment:
• Operation of DECT Monitor is not enabled inside the OMM. Use the web
service to enable the DECT Monitor operation.
• IP address is not correct. It has to be the address of the RFP or server the
OMM is running on, not the address of the PABX!
• A link routed through the PABX is not supported. In case of a remote
service on a PABX via dial-in the OMM can not be accessed from the
DECT Monitor.
The application displays the IP address which has been used last time.
When the application is started a link to the OpenMobility system is
automatically established and the application window shows all user
configured child windows and tables.
When all links have been established, the DECT data of the system is
automatically read out and entered in the tables “RFP-Table” and “PP-Table”.
This procedure is called “Config Request”.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 46 (52)
Next, the defined trace options (event mask) are sent to the OMM. The
options which are sent to the OMM are always those which were active the
last time the application was exited.
If the trace option “Transaction establish/release” is activated, the OMM will
deliver all existing transactions.
Following this, the OMM system delivers the desired trace data. The user can
either communicate with the application interactively (see below) or he can
simply activate a log file in which to record the data.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 47 (52)
Following this initialization, the user can carry out the following modifications:
• The trace settings can be modified using the menu item “Options-Event
Mask”. Transmissions to the OMM take place after confirming the settings
with “OK’”.
• A “Config Request” can be sent again to the OMM.
• A log file can be activated.
• By means of various dialogues, the configuration data of the PPs, RFPs
and control modules can be displayed and stored in ASCII files.
The following information is displayed in the tables dynamically:
• Transactions between PP and PABX system. These are displayed in both
tables. Simple transactions are displayed in black on a white background;
during handover, both transactions involved are displayed in white on a
red background.
• The location registration and detach events are displayed in the tables for
approximately 1 – 2 sec after their occurrence (light green background), if
possible. There is no display in the RFP table if there is no column free for
display. If the event has already been displayed, it can be overwritten at
any time. The events are not displayed if they occur during an on-going
transaction. Irrelevant of whether the events are displayed in the tables,
they are always entered in the ‘FP/PP-Events' window and in the log file
(provided that this is open).
The following colour scheme is used for the RFP table display:
RFP grey-blue RFP is not active (not connected or disturbance)
RFP black RFP is active
The data of a RFP are displayed in a dialogue box after clicking on the
respective RFP field in the RFP table. The statistics data of the RFP can be
called up from this dialogue box.
The following colour scheme is used for the PP table display:
PP black: PP is enrolled. It is assumed that the PP can be
reached.
PP blue: PP can presumably not be reached. Detach was
received or when an attempt was made to reach
a PP, the PP did not answer.
PP grey/blue: PP not enrolled.
The PP data is displayed in a dialogue box after clicking on the
corresponding PP field in the RFP table.
The “Sync Info” child window contains all RFPs and shows their
synchronization and relation states to each other. Selecting the RFPs with
the right mouse button the user can change visibility views and can even
force a resynchronization of a RFP.
There are several optional sub windows selectable. They are all listed below
and give some more information about the OpenMobility systems. Mostly
they are statistics and for internal use only.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 48 (52)
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 49 (52)
5 Appendix
5.1 Communications Regulation Information for
Aastra Phone 142 US
FCC Notices (U.S. Only)
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
Health and Safety Information
Exposure to Radio Frequency (RF) Signals:
The wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission
(FCC) of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on the safety standards previously set
by both U.S. and international standards bodies. These standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 50 (52)
This EUT has been shown to be capable of compliance for localized specific
absorption rate (SAR) for uncontrolled environment/general population
exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested
in accordance with the measurement procedures specified in FCC/OET
Bulletin 65 Supplement C (2001) and IEEE 1528-2003.
Industry Canada (Canada only)
Operation of this device is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
the device.
Privacy of communications may not be ensured when using this telephone.
Exposure to Radio Frequency (RF) Signals:
The wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limit for exposure to radio
frequency (RF) energy set by the Ministry of Health (Canada), Safety Code 6.
These limits are part of comprehensive guidelines and established permitted
levels of RF energy for the general population. These guidelines are based
on the safety standards previously set by international standard bodies.
These standards include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device has been shown to be capable of compliance for localized
specific absorption rate (SAR) for uncontrolled environment / general public
exposure limits specific in ANSI/IEEE C95.1-1992 and had been tested in
accordance with the measurement procedures specified in IEEE 1528-2003.
5.2 Communications Regulation Information for RFP 32 US or
RFP 34 US (NA)
FCC Notices (U.S. Only)
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifications not expressly approved by this company could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 51 (52)
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
Exposure to Radio Frequency (RF) Signals:
The wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission
(FCC) of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on the safety standards previously set
by both U.S. and international standards bodies. These standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
The radiating element of the base station should be installed during operating
at a separation distance greater than 20 cm between user and device. The
device comply with the requirements for routine evaluation limits ”
Industry Canada (Canada only)
Operation of this device is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
the device.
Privacy of communications may not be ensured when using this telephone.
Exposure to Radio Frequency (RF) Signals:
The wireless phone is a radio transmitter and receiver. It is designed and
manfactured not to exceed the emission limit for exposure to radio frequency
(RF) energy set by the Ministry of Health (Canada), Safety Code 6. These
limits are part of comprehensive guidelines and established permitted levels
of RF energy for the general population. These guidelines are based on the
OpenMobility SIP Installation, Administration and Maintenance
Aastra DeTeWe Doc-ID: pm-0504 28.11.2006 Page: 52 (52)
safety standards previously set by international standard bodies. These
standards include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
The radiating element of the base station should be installed during operating
at a separation distance greater than 20 cm between user and device. The
device comply with the requirements for routine evaluation limits.
