Mitsubishi Electric Corporation Inazawa Works Card Reader Users manual
Users manual
YXN10-117*
1
Sep. 2010
Mitsubishi Access Control System
MELSAFETY-P series
Card reader
Plane type UCR-8202A-P
1 Defend for safety. ································································································· 2
2 When using it
2-1 Attention in use ············································································ 3
2-2 What is the card reader?··························································· 6
2-3 Names and functions of each parts.····································· 8
3. Basic operation·····································································································12
● Asking maters ●
Please read this manual, and use it ahead
o
f the use correctly and safely.
Please keep it in the place where the
p
erson who uses it is always seen with
e
nclosed "Guide of the Mitsubishi Electric
C
orporation repair window and the chat
c
hannel" after it reads.
In general, the name of the company, the
b
rand name, and the logo mark described in
his manual are the trademarks or, registered
rademarks of each company.
■Caution
・ Part or all of the content of this book will
be refused and we refuse to reprint or to
reproduce any shape hard without in our
company the refusal.
・ It makes an effort as followed to the
revision of software and hardware, and
when it cannot synchronize unavoidably,
the content of the description of this book
is caused.
Users manual
YXN10-117*
2
1 Defend for safety.
●It divides by the following display and it explains danger and the extent caused when wrong handling is done.
警告
The one with possibility of
relating to death and serious
illness, etc. when wrong
handling is done
注意 誤った取扱いをしたときに傷害
または家屋・家財などの損害に
結びつくもの
Prohibition
Don't resolve or remodel it.
It causes a fire, the electric shock, and
the breakdown by the short and
generation of heat.
Prohibition
Don't set up in a dusty place.
It causes a fire, the electric shock, and
the breakdown.
Prohibition
Don’t insert metallic things in
the main body.
It causes a fire, the electric shock, and
the breakdown by the short and
generation of heat. Please contact the
nearest service office, if something
enters the inside.
Prohibition
Don't set up in a humid place.
It causes a fire, the electric shock, and
the breakdown.
Prohibition
Don't wet it with water.
It causes a fire, the electric shock, and
the breakdown by the short and
generation of heat. Please wipe off with
the cloth when the drop of water
attaches outside of the main body.
Please contact the nearest service office
when the drop of water enters the inside.
Prohibition
Don't set up in an unstable
place or the place where a lot
of vibrations exist.
Prohibition
Don’t damage the codes.
It causes a fire, the electric shock, and
the breakdown by the short and
generation of heat. Please do not
torture, and do not pull the code. Please
contact the nearest service office when
the code hurts by any chance.
Prohibition
Don't set up in the place
where direct sunshine strikes.
It causes fading when setting up in the
place where direct sunshine strikes
Prohibition
Don’t allow something to hit.
The hard one and an umbo are thrown,
and it causes the breakdown of the
equipment, and it causes a fire, the
electric shock, and the breakdown by the
short and generation of heat.
Prohibition
Don’t set up in outdoor.
When setting it up in outdoor, dust or
the drop, etc. enter the attestation
device or in the electric lock control
board, and it causes a fire, the electric
shock, and the breakdown.
Prohibition
Especially, the installation in
the place that becomes a high
temperature is avoided.
It is recommended to use it at 35℃ or
less to operate it comfortably.
Groud it.
Ground the equipment to prevent the
breakdown beforehand.
(the third kind earth is rcommended)
YXN10-117*
3
2 When using it
2-1 Attention in use
2-1-1 Attention concerning use of device
1) Please read "Manual” of each equipment correctly and use it.
2) It is not the one to prevent the crime such as the thefts though this device controls an insertion leaving a room
and an electric lock. Please acknowledge being not able to assume the responsibility at all even when an emergency
accident and damage are caused.
3) Please intercept the breaker that supplies the power supply to a pertinent equipment when it smells abnormal from
the equipment by any chance or it overheats and is smoking.
4) It doesn't assume the responsibility about the collateral damage due to the instrument fault.
5) It becomes impossible for it to become difficult to read for surroundings to include a metal, an electric equipment,
and the power cable, etc. because the noncontact card reader is an equipment that used the electric wave, and to
read. It is not greatly influenced for the electric wave (radio television inverters), and do not set up these things in
the surrounding, please.
6) There is something that uses same frequency (13.56MHz) in medical equipment. It causes the malfunction when is
to be near such medical equipment.
7) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
thisdevice may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
8) FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’
sauthority to operate the equipment.
9) Properly shielded and grounded cables and ferritic cores must be used for connection to controllers in order to
meet FCC emission limits.
10) Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
YXN10-117*
4
2-1-2 Attention concerning use of cards.
The cards used with this system are contactless IC cards that contain electric parts (integrated circuit chip) in them.
When the cards are bent or pressure is applied, the stress might hang in built-in electric parts and it cause the
breakdown. Moreover, the resin material (vinyl chloride or PET) used for the surface of the card might be
transformed by heat. Please note the following points to prevent the card being damaged.
(1)Don’t bend or apply pressure. It might break off the cards.
(2)Keep cards in the card cases (hard case) when you carry.
(3)Avoid keeping cards in a purses or soft card cases. (they are easy to bend.)
(4)Avoid keeping cards in the pocket.
(5)Don’t drop card while using it (And, be keeping it).
(6)Don’ t leave the card in the place (dashboard etc. of the car) that becomes a high temperature.
(7)Use card one by one. Don’t use it with other cards.
(8)Please do not carry the card to the following shop floors where the electromagnetical field is given to the card.
Welding shop floor.
Hallmark shop floor where it static electricity examines, and noise is examined
Additionally, surrounding of power line, transformation installation, and mass motor that generates strong
electromagnetical field etc.
(9)Please inform the manager or the service office promptly when you lose the card.
A
ntenna
T
he antenna of the card is almost mounted o
n
outer. The antenna might be disconnected b
y
damaging and the hole opening about the card.
IC chip mounting part
T
he encapsulant might do the crack by a partia
bend and the impact though it is fixed with th
e
encapsulant.
Internal image of card
YXN10-117*
5

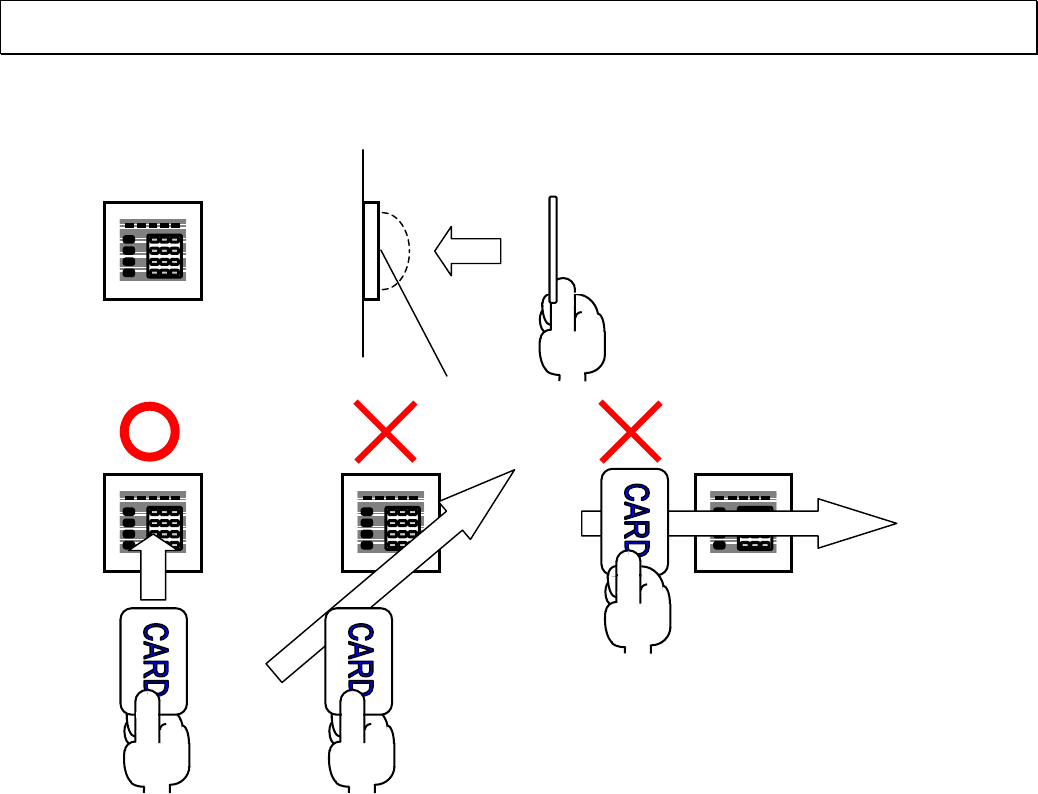

2-1-3 How to use
The card is held up in parallel in the card reading part referring to the figure below.
Please hold card one by one to enter (or exit) a room.
card
Card reader
(
side
)
Reading anntena
Move it close from the front to
the center of the card reade
r
until it beeps.
Card reader
(
front
)
Move the card too fast or too slow, it may fails to read the
card, and it beeps long, and the OK/NG lamp lights red.
Please hold the card again. It might read completely.
YXN10-117*
6
2-2 What is the card reader?
The card reader read the card data, and it compare them with the registered card data. And it controls the lock of the
door.
2-2-1 Basic operation
Item Explanation Reference
Enter of exit a room
with card
Hold the card in front of the card reader to unlock the
door.
Note
To use the card, it is necessary set them from management WEB.
The registered card can be used with all doors connected with the same controler.
YXN10-117*
7
2-3 Names and functions of each parts
2-3-1 Card reader (Plane type)
Name Function
The collation result of the card is displayed.
Succeed Green.
ＬＥＤ（ＯＫ） Fail or
Prohibited to use
Red.
Show state of lock
Locked Green.
Unlocked Red.
ＬＥＤ（lock）
Emergency unlock Flashing red.
Read anntena Hold the card to be read
Read anntena
Lock
ＯＫ
ＬＥＤ(OK)
ＬＥＤ(Lock)
