Mitsubishi Electric CP-D90DW Digital Color Printer User Manual 4

Mitsubishi Electric Corp Digital Color Printer 4

User Manual-4

21
PREPARATION TROUBLE-
SHOOTING
FEATURESPRECAUTIONS OTHERS CONTENTS

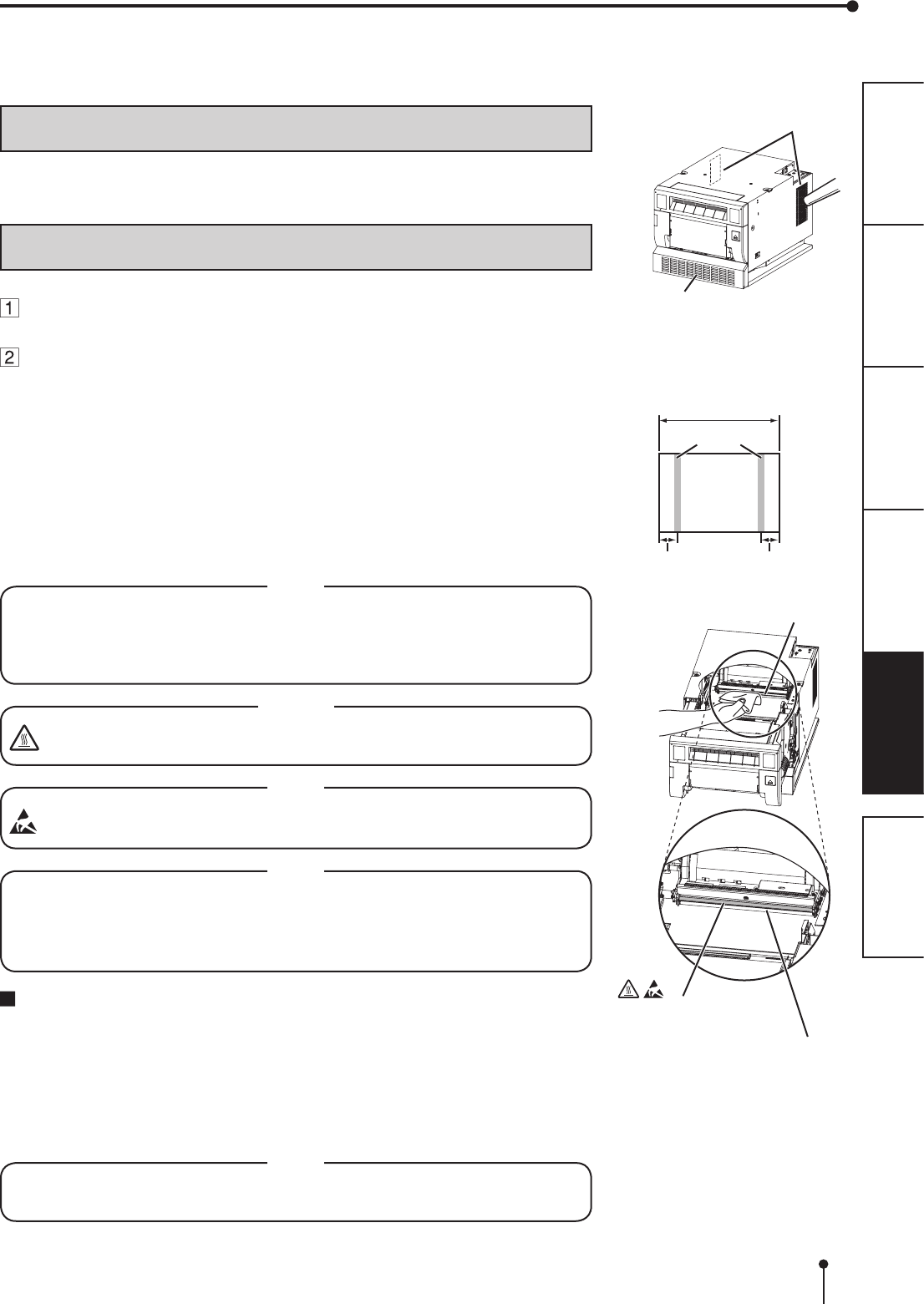

VENTILATION INLET CLEANING
Clean the ventilation inlets on the front and both sides of the printer with a vacuum as
shown right.
THERMAL HEAD CLEANING
Press the OPEN button to open the printing unit.
Take the ink cassette out of the printer.
Preparations
Alcohol (ethyl alcohol, etc.)
Soft and clean cloth
Other : Cleaning ribbon (option)*
* Please ask the dealer about options.
When lines appear on the printed images, clean the thermal head.
Wipe the head cleaning part (as shown right) carefully with cloth dampened with a
small amount of alcohol.
• Do not damage the thermal head.
• When the poor print quality is not corrected even if the head has been
cleaned, replacement of the thermal head may be required. Contact your
dealer.
NOTE
Thermal head is hot right after printing. Wait until the head cools before
cleaning the thermal head.
CAUTION
The thermal head may be damaged if you touch it while static electricity builds
up on your body.
NOTE
• When you clean the thermal head, make sure not to apply excessive force
to the peeling roller on the bottom of the thermal head. When the excessive
force is applied to the roller, the roller may be deformed, resulting in
deterioration of the printing quality.
NOTE
WHEN USING THE CLEANING RIBBON (CR-D70)
When you use print paper of 152 mm (6”) width after using that of 127 mm (5”),
thermal head cleaning with a cleaning ribbon may be required.
If one or two lines appear on the printing surface as shown in the illustration when
printing on the print paper of 152 mm (6”) width, clean the thermal head using the
optional cleaning ribbon.
Print paper of 127 mm(5”) width : 9x13 (3.5x5”), 13x18 (5x7”)
Print paper of 152 mm (6”) width : 10x15 (4x6”), 15x20 (6x8”), 15x23 (6x9”)
• When the symptom of poor print quality is not corrected even after the head is
cleaned, replace the thermal head. Contact your dealer.
NOTE
Ventilation inlets
Ventilation inlet
Cleaning part of
thermal head
Thermal head
Peeling roller
Printing
surface
About 12 mm About 12 mm
Lines
152 mm
Cleaning as indicated below will help maintain stable printer operation and extend the printer’s life.
Wearing gloves at cleaning is recommended to prevent injury.
Make sure to turn off the power before cleaning.
CLEANING
22
PREPARATION TROUBLE-
SHOOTING
FEATURESPRECAUTIONS OTHERS CONTENTS
CLEANING

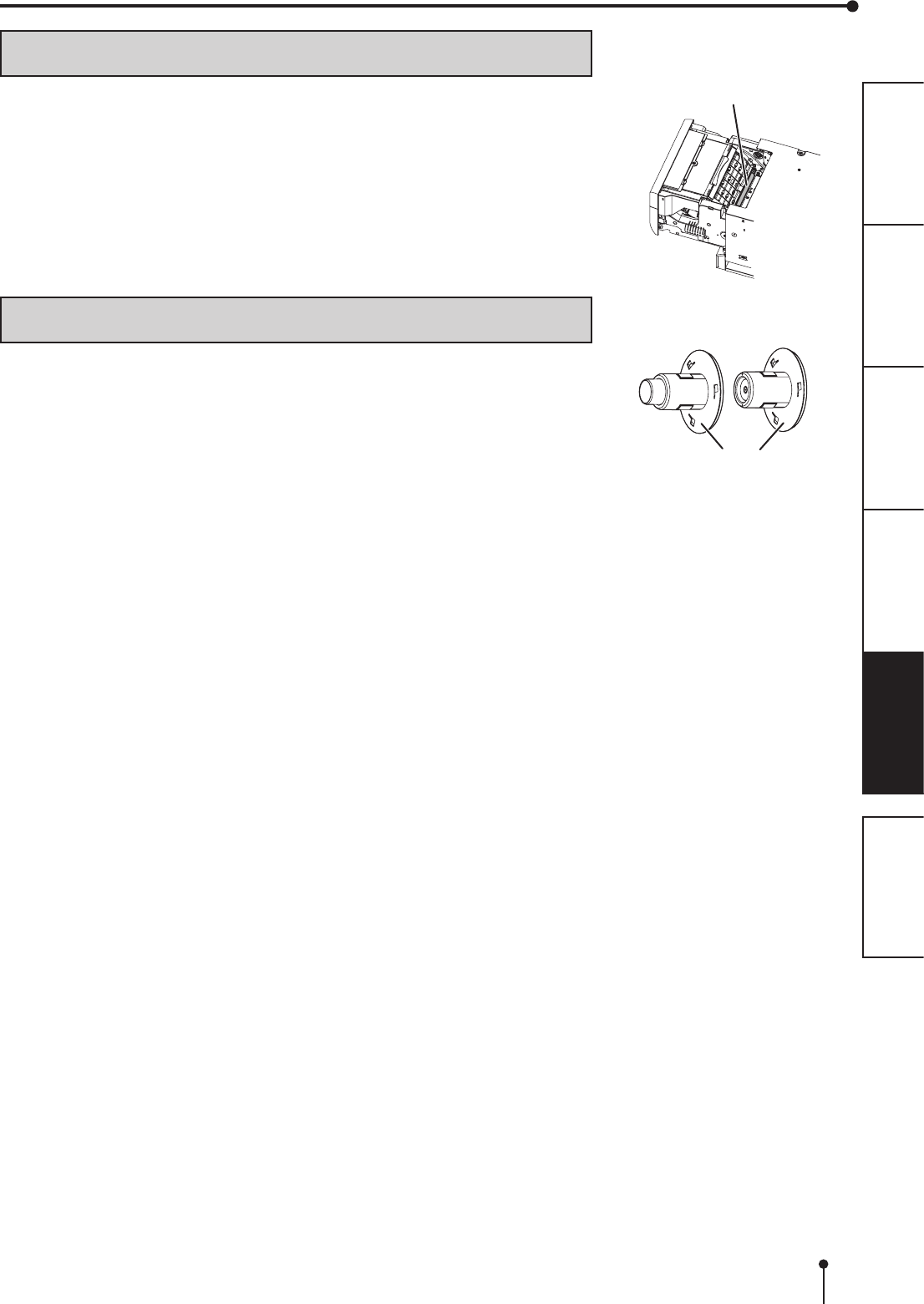

PLATEN ROLLER CLEANING
Preparations
Alcohol (ethyl alcohol, etc.)
Soft and clean cloth
Clean the black part of the roller.
Wipe the black part carefully with cloth dampened with a small amount of alcohol.
Wipe the whole roller by turning it.
PAPER FLANGE CLEANING
Clean the parts that contact the print paper sides as shown right.
Wipe the parts carefully with cloth dampened with a small amount of alcohol.
Platen roller
Cleaning part
23
PREPARATION TROUBLE-
SHOOTING
FEATURESPRECAUTIONS OTHERS CONTENTS
SPECIFICATIONS
Class Digital Color Printer
Model CP-D90DW
Printing method Sublimation Dye Thermal Transfer line print
3-color faces progressive printing (yellow, magenta, and cyan) and surface lamination
Print’s resolution 300 x 300 dpi (dpi : dots per inch)
Print size 9x13 (3.5x5”)
10x15 (4x6”)
13x18 (5x7”)
15x20 (6x8”)
15x23 (6x9”)
89 x 127mm (without frame)
102 x 152mm (without frame)
127 x 178mm (without frame)
152 x 203mm (without frame)
152 x 229mm (without frame)
Gradations 256 (8 bits) for each color
Supply method Automatic
Interface Hi-Speed USB (Ver.2.0)
DC output terminals 12 V / 2.0 A max. (high priority)
5 V / 2.0 A max. (low priority)
Power supply 100 - 240 V AC 50/60 Hz
Power consumption 5.5 A
Operating conditions Temperature : 5°C - 40°C
Humidity : 30% - 80% RH (no dewing)
Installation conditions Operating attitude : Horizontal ±5°
Outside dimensions 276 (W) x 367 (D) x 238 (H) mm
Weight Approx. 14 kg (excluding accessories)
Standard accessories Power cords (for 120 V and 230 V), Ink cassette (1), CD-ROM (1), Paper ange (1 set),
Spacers (2), Quick setup guide (1), Paper strip bin (1), Paper tray (1), Cable tie (2),
Securing band (1), Screw for securing band (2), Washer (1)
Print size and outside dimensions show typical value.
Design and specications are subject to change without notice.
Contents of CD-ROM
• Operation manual
MITSUBISHI ELECTRIC EUROPE B.V.
UK Branch
Travellers Lane, Hateld, Herts. AL10 8XB, England, U.K.
Phone +44 (0) 1707 276100 FAX +44 (0) 1707 278755
German Branch
Gothaer Strasse 8, 40880 Ratingen ; Postfach 1548, 40835 Ratingen ; Germany
Phone +49 (2102) 486-9250 FAX +49 (2102) 486-7320
French Branch
25, Boulevard des Bouvets - 92741 NANTERRE cedex, France
Phone +33 (1) 55 68 55 00 FAX +33 (1) 55 68 57 31
Benelux Branch
Nijverheidsweg 23a,
3641 RP Mijdrecht, The Netherlands
Phone +31 (0) 297-282461 FAX +31 (0) 297-283936
Spanish Branch (Barcelona)
Ctra. de Rubí, 76-80 - Apdo. 420
08190-Sant Cugat del Vallés - (Barcelona) Spain
Phone +34 93 565 3154 FAX +34 93 589 4388
Manufactured by Mitsubishi Electric (Malaysia) Sdn. Bhd.
PLO 32, Kawasan Perindustrian Senai II, 81400 Senai, Johor Darul Takzim, Malaysia
Please contact the nearest Mitsubishi sales branch to get DOC (Declaration of Conformity) of the EC Directive
1999/5/EC.
WE919C194A2
MITSUBISHI ELECTRIC US. INC.
Visual and Imaging Systems
5900-A Katella Ave.
Cypress, CA 90630-5019, U.S.A.
Phone 888-307-0309
