Mitsubishi Electric MT239XG01A User Manual Part 2

Mitsubishi Electric Corp Users Manual Part 2

Contents

Users Manual Part 2

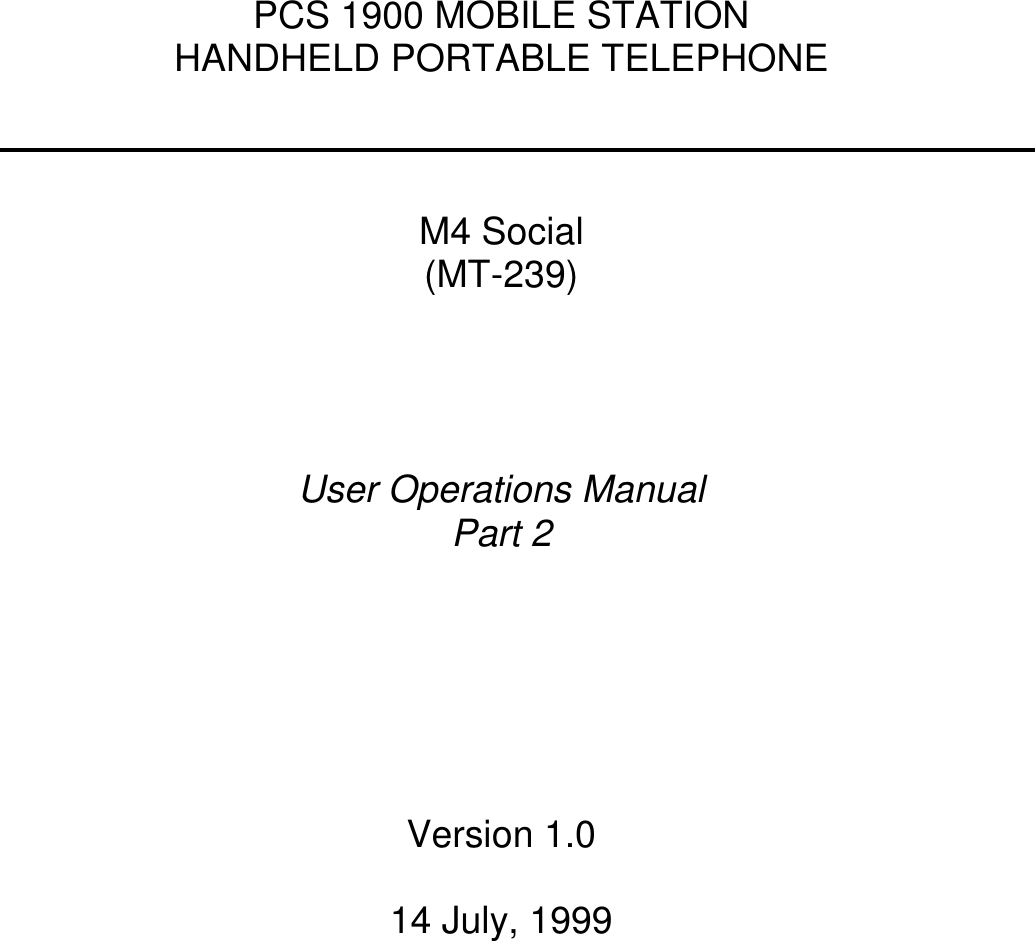

PCS 1900 MOBILE STATIONHANDHELD PORTABLE TELEPHONEM4 Social(MT-239)User Operations ManualPart 2Version 1.014 July, 1999
CONFIDENTIAL Mitsubishi ElectricPage 2/129Table of Contents8. USING THE PHONE BOOKS..................................................................................................................... 58.1 GENERAL ACCESS TO PHONE BOOKS ........................................................................................................ 58.2 READING PHONE BOOKS ........................................................................................................................... 58.2.1 Access .............................................................................................................................................. 58.2.2 Reading phone books....................................................................................................................... 78.3 WRITING IN PHONE BOOKS ..................................................................................................................... 128.3.1 Access ............................................................................................................................................ 128.3.2 Operations ..................................................................................................................................... 128.4 MEMORIES CAPACITY CONTROL ............................................................................................................. 158.5 OWN NUMBERS DISPLAY......................................................................................................................... 168.5.1 Presentation................................................................................................................................... 168.5.2 Example......................................................................................................................................... 168.6 USING FIXED DIALLING .......................................................................................................................... 188.6.1 Presentation................................................................................................................................... 188.6.2 Reading the FDN file..................................................................................................................... 188.6.3 Entering data in the FDN file........................................................................................................ 198.6.4 Setting On/Off the fixed dialling mode .......................................................................................... 209. USING THE MESSAGING SYSTEM FACILITIES .............................................................................. 219.1 MESSAGES PRESENTATION..................................................................................................................... 219.2 RECEIVING MESSAGES............................................................................................................................. 219.2.1 Setting the message alert mode...................................................................................................... 229.2.2 Messages inbox management ........................................................................................................ 239.3 PREPARING MESSAGE SENDING............................................................................................................... 349.3.1 Message templates......................................................................................................................... 349.4 COMPOSING MESSAGES .......................................................................................................................... 439.4.1 Creating and sending new messages (several templates).............................................................. 439.4.2 Creating and sending new messages (no template)....................................................................... 459.4.3 Outbox consultation....................................................................................................................... 469.5 RECEIVING STATUS REPORTS FOR SENT MESSAGES................................................................................. 519.5.1 General.......................................................................................................................................... 519.5.2 Status Report Message display ...................................................................................................... 519.5.3 User actions................................................................................................................................... 519.5.4 Status reports examples................................................................................................................. 5110. USING THE GSM SERVICES.............................................................................................................. 5310.1 NETWORK SERVICES DEFINITION AND CATEGORIES............................................................................ 5310.2 USING THE CALL DIVERTING SERVICE................................................................................................ 5410.2.1 Call diverting available options ................................................................................................ 5410.2.2 Call diverting always (CFU) management................................................................................ 5510.2.3 "Forwarded-to" number entry................................................................................................... 5510.2.4 Call diverting screen sequences ................................................................................................ 5510.3 USING THE CALL WAITING SERVICE ................................................................................................... 5910.4 USING THE CALL IDENTIFICATION SERVICE........................................................................................ 6010.4.1 user identitiy presentation ......................................................................................................... 6010.4.2 My identity management............................................................................................................ 6110.4.3 Network identity presentation capability................................................................................... 6310.5 USING THE NETWORK SELECTION SERVICE ........................................................................................ 6410.5.1 Presentation............................................................................................................................... 6410.5.2 Behaviour .................................................................................................................................. 6410.5.3 Examples.................................................................................................................................... 6410.6 USING THE CALL BARRING SERVICE................................................................................................... 7210.6.1 Presentation............................................................................................................................... 7210.6.2 Example ..................................................................................................................................... 7211. USING THE BROADCAST SERVICE ................................................................................................ 7411.1 PRESENTATION................................................................................................................................... 74
CONFIDENTIAL Mitsubishi ElectricPage 3/12911.1.1 Service description ........................................................................................................................ 7411.1.2 Language selection........................................................................................................................ 7411.2 BROADCAST SERVICE PARAMETERS ................................................................................................... 7411.2.1 Predefined and available message types ....................................................................................... 7511.2.2 Screen sequences........................................................................................................................... 7611.2.3 Setting the CB Message Alert tone ................................................................................................ 7911.2.4 Activating the broadcast service.................................................................................................... 8011.3 RECEIVING BROADCAST MESSAGES................................................................................................... 8111.3.1 General on CB messages............................................................................................................... 8111.3.2 CB-Idle message reception............................................................................................................ 8111.3.3 Other CB messages reception........................................................................................................ 8212. SELECTING THE PHONE SETTINGS .............................................................................................. 8512.1 KEYPAD LOCK .................................................................................................................................... 8512.1.1 Locking the keypad from the idle screen.................................................................................... 8512.1.2 Locking the keypad from the settings menu............................................................................... 8512.1.3 Mobile behaviour with keypad locked .......................................................................................8612.1.4 Unlocking the keypad ................................................................................................................ 8712.2 SELECTING THE LANGUAGE................................................................................................................ 8812.3 TONES RELATED SETTINGS ................................................................................................................. 8912.3.1 Selecting the alert tones............................................................................................................. 8912.3.2 Selecting the ring tones.............................................................................................................. 9112.3.3 Tuning the audio volumes.......................................................................................................... 9212.4 SELECTING THE DISPLAY PARAMETERS .............................................................................................. 9412.4.1 Backlight.................................................................................................................................... 9412.4.2 Contrast ..................................................................................................................................... 9512.5 KEYS RELATED SETTINGS ................................................................................................................... 9612.5.1 Any key Answer.......................................................................................................................... 9612.5.2 Speed dialling ............................................................................................................................ 9712.5.3 Hotkey programming................................................................................................................. 9912.6 AUTO FEATURES SETTINGS............................................................................................................... 10212.6.1 Auto Answer............................................................................................................................. 10212.6.2 Selecting the autoretry feature................................................................................................. 10312.7 MANAGING THE SECURITY PARAMETERS.......................................................................................... 10412.7.1 PIN Management..................................................................................................................... 10412.7.2 PIN2 Change ........................................................................................................................... 10612.7.3 Phone lock ............................................................................................................................... 10612.8 SETTING THE DEFAULT VALUES........................................................................................................ 10913. USING THE OFFICE TOOLS ............................................................................................................ 11013.1 USING THE SCRATCHPAD.................................................................................................................. 11013.1.1 Reading the scratchpad ........................................................................................................... 11013.1.2 Scratchpad read "Actions" menu............................................................................................. 11113.1.3 Writing into the scratchpad ..................................................................................................... 11213.2 USING THE CURRENCY CONVERTER.................................................................................................. 11413.2.1 Setting the converter parameters............................................................................................. 11413.2.2 Using the Currency converter.................................................................................................. 11614. ANNEX A: MENU STRUCTURE....................................................................................................... 11714.1 VOICE MAIL MENU............................................................................................................................ 11714.2 PHONE BOOK MENU .......................................................................................................................... 11714.3 MESSAGES MENU.............................................................................................................................. 11814.3.1 Case 1: no template available (phone).................................................................................... 11814.3.2 Case 2: Several templates available (SIM).............................................................................. 11814.4 CALLS AND TIMES MENU .................................................................................................................. 11914.5 GSM SERVICES MENU...................................................................................................................... 12014.6 BROADCAST MENU........................................................................................................................... 12214.7 SETTINGS MENU ............................................................................................................................... 12314.8 OFFICE TOOLS MENU........................................................................................................................ 12415. ANNEX B: PASSWORD PROCEDURES.......................................................................................... 125
CONFIDENTIAL Mitsubishi ElectricPage 4/12915.1 PIN ENTRY PROCESSING.................................................................................................................... 12516. ANNEX C: EMERGENCY CALLS .................................................................................................... 12717. ANNEX D: MULTITAP KEY SEQUENCES..................................................................................... 12817.1 ENGLISH........................................................................................................................................... 12817.2 FRENCH............................................................................................................................................ 12817.3 SPANISH ........................................................................................................................................... 129

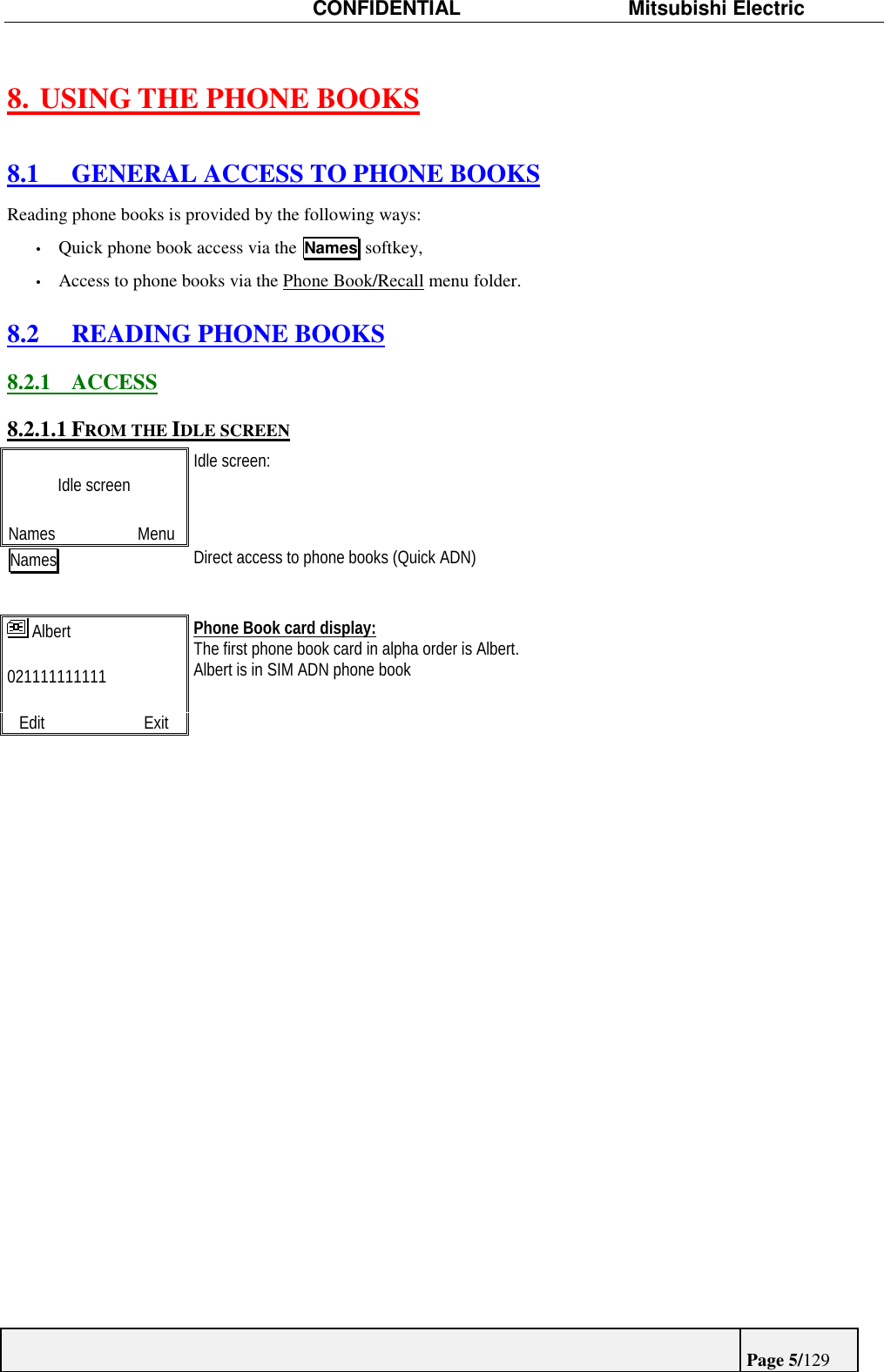

CONFIDENTIAL Mitsubishi ElectricPage 5/1298. USING THE PHONE BOOKS8.1 GENERAL ACCESS TO PHONE BOOKSReading phone books is provided by the following ways:• Quick phone book access via the Names softkey,• Access to phone books via the Phone Book/Recall menu folder.8.2 READING PHONE BOOKS8.2.1 ACCESS8.2.1.1 FROM THE IDLE SCREENIdle screenNames MenuIdle screen:Names Direct access to phone books (Quick ADN) Albert021111111111Edit ExitPhone Book card display:The first phone book card in alpha order is Albert.Albert is in SIM ADN phone book
CONFIDENTIAL Mitsubishi ElectricPage 6/1298.2.1.2 FROM THE MENUVoice MailPhone BookMessagesCall & TimesSelect ExitMain Menu:Select Choosing Phone Book itemRecallStoreRemainingOwn NumbersSelect ExitPhone Book MenuSelect Choosing Recall itemInitials:|Ok ExitInitial card selectionIn this case, you are requested to enter an initial name for displayPress Ok to validate, or enter a 3 character string: the display will start at the first card withname starting by these characters or the following card that has the closest name initials"BE" If you validate with no entry, the display starts by the first card in alphabetical orderBE is the first name to found or a name beginning by BE.Initials:BE|Ok ClearInitial card selectionOk Entry validationColette02123423423Edit ExitPhone Book card display:Display starts by Colette, which is the nearest name equals or starts after BE in phone books.An "Actions" menu allows various operations on the current displayed card.SEND allows calling the number directly. Edit allows entry editionthat needs using a phone number.Actions key gives access to the actions menu with items (Edit, Delete, Copy and Move, Calland Melody items)

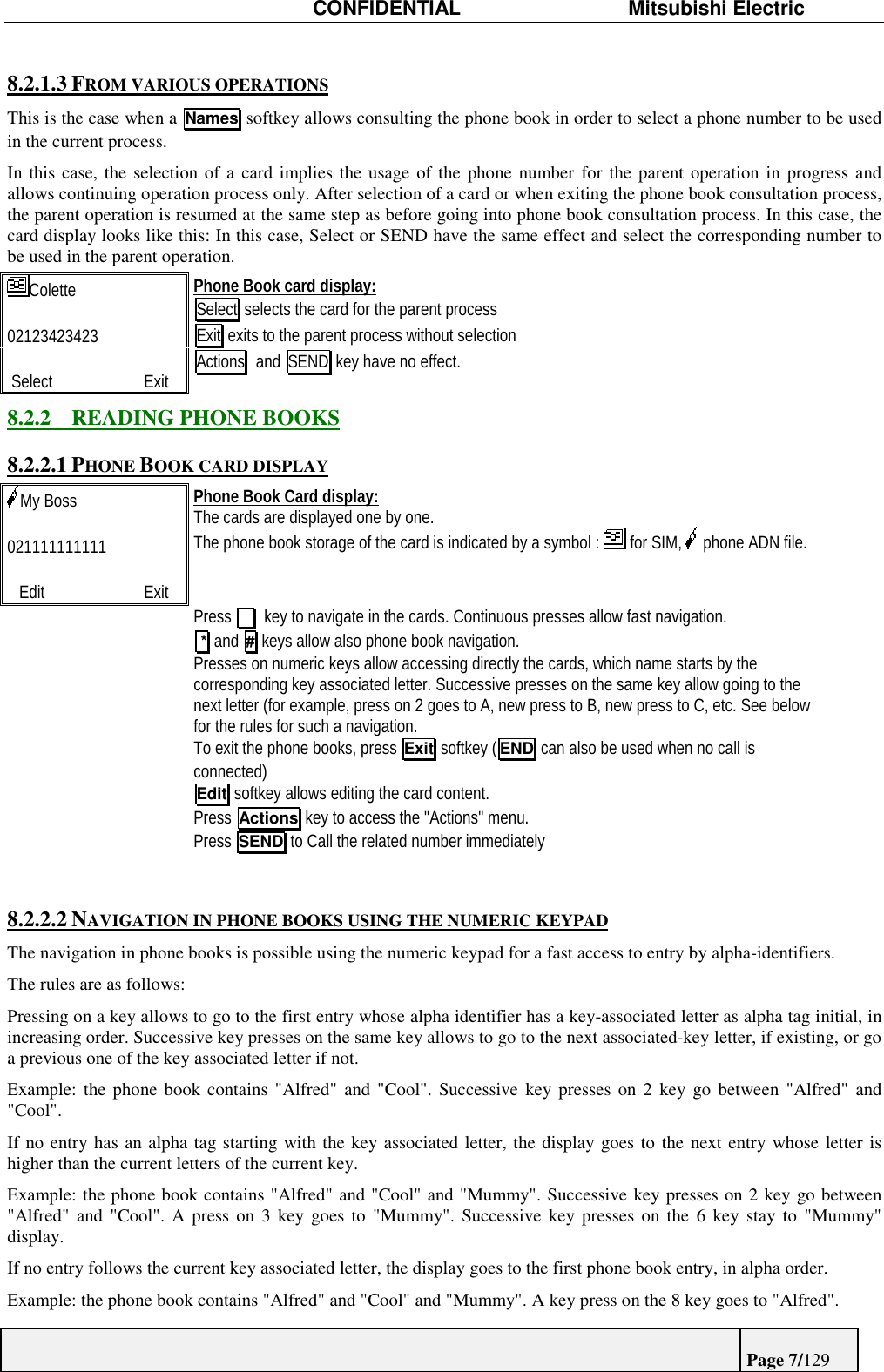

CONFIDENTIAL Mitsubishi ElectricPage 7/1298.2.1.3 FROM VARIOUS OPERATIONSThis is the case when a Names softkey allows consulting the phone book in order to select a phone number to be usedin the current process.In this case, the selection of a card implies the usage of the phone number for the parent operation in progress andallows continuing operation process only. After selection of a card or when exiting the phone book consultation process,the parent operation is resumed at the same step as before going into phone book consultation process. In this case, thecard display looks like this: In this case, Select or SEND have the same effect and select the corresponding number tobe used in the parent operation.Colette02123423423Select ExitPhone Book card display:Select selects the card for the parent processExit exits to the parent process without selectionActions and SEND key have no effect.8.2.2 READING PHONE BOOKS8.2.2.1 PHONE BOOK CARD DISPLAYMy Boss021111111111Edit ExitPhone Book Card display:The cards are displayed one by one.The phone book storage of the card is indicated by a symbol : for SIM, phone ADN file.Press key to navigate in the cards. Continuous presses allow fast navigation. * and # keys allow also phone book navigation.Presses on numeric keys allow accessing directly the cards, which name starts by thecorresponding key associated letter. Successive presses on the same key allow going to thenext letter (for example, press on 2 goes to A, new press to B, new press to C, etc. See belowfor the rules for such a navigation.To exit the phone books, press Exit softkey (END can also be used when no call isconnected)Edit softkey allows editing the card content.Press Actions key to access the "Actions" menu.Press SEND to Call the related number immediately8.2.2.2 NAVIGATION IN PHONE BOOKS USING THE NUMERIC KEYPADThe navigation in phone books is possible using the numeric keypad for a fast access to entry by alpha-identifiers.The rules are as follows:Pressing on a key allows to go to the first entry whose alpha identifier has a key-associated letter as alpha tag initial, inincreasing order. Successive key presses on the same key allows to go to the next associated-key letter, if existing, or goa previous one of the key associated letter if not.Example: the phone book contains "Alfred" and "Cool". Successive key presses on 2 key go between "Alfred" and"Cool".If no entry has an alpha tag starting with the key associated letter, the display goes to the next entry whose letter ishigher than the current letters of the current key.Example: the phone book contains "Alfred" and "Cool" and "Mummy". Successive key presses on 2 key go between"Alfred" and "Cool". A press on 3 key goes to "Mummy". Successive key presses on the 6 key stay to "Mummy"display.If no entry follows the current key associated letter, the display goes to the first phone book entry, in alpha order.Example: the phone book contains "Alfred" and "Cool" and "Mummy". A key press on the 8 key goes to "Alfred".

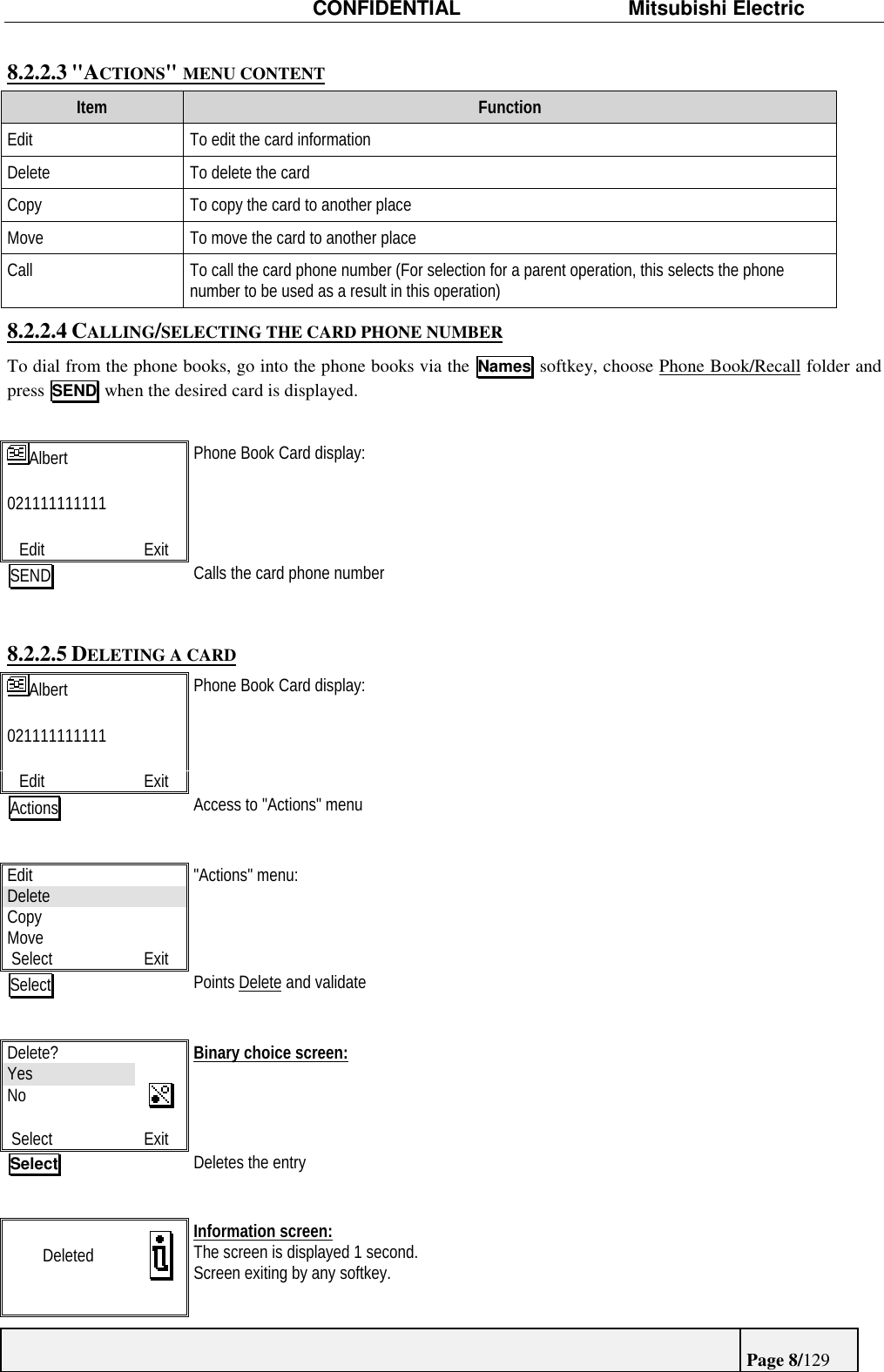

CONFIDENTIAL Mitsubishi ElectricPage 8/1298.2.2.3 "ACTIONS" MENU CONTENTItem FunctionEdit To edit the card informationDelete To delete the cardCopy To copy the card to another placeMove To move the card to another placeCall To call the card phone number (For selection for a parent operation, this selects the phonenumber to be used as a result in this operation)8.2.2.4 CALLING/SELECTING THE CARD PHONE NUMBERTo dial from the phone books, go into the phone books via the Names softkey, choose Phone Book/Recall folder andpress SEND when the desired card is displayed.Albert021111111111Edit ExitPhone Book Card display:SEND Calls the card phone number8.2.2.5 DELETING A CARDAlbert021111111111Edit ExitPhone Book Card display:Actions Access to "Actions" menuEditDeleteCopyMoveSelect Exit"Actions" menu:Select Points Delete and validateDelete?YesNoSelect ExitBinary choice screen:Select Deletes the entryDeleted Information screen:The screen is displayed 1 second.Screen exiting by any softkey.

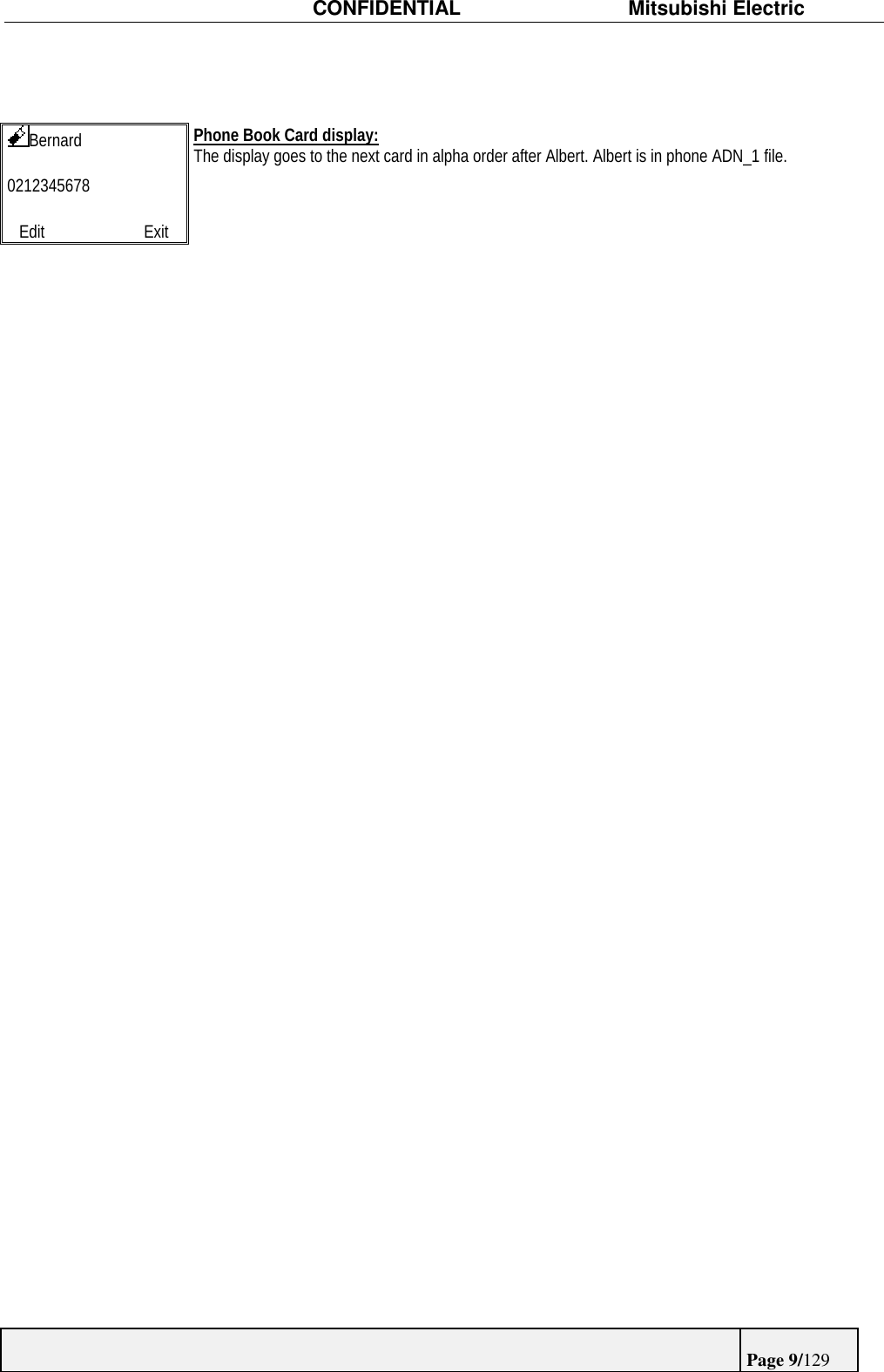

CONFIDENTIAL Mitsubishi ElectricPage 9/129Bernard0212345678Edit ExitPhone Book Card display:The display goes to the next card in alpha order after Albert. Albert is in phone ADN_1 file.

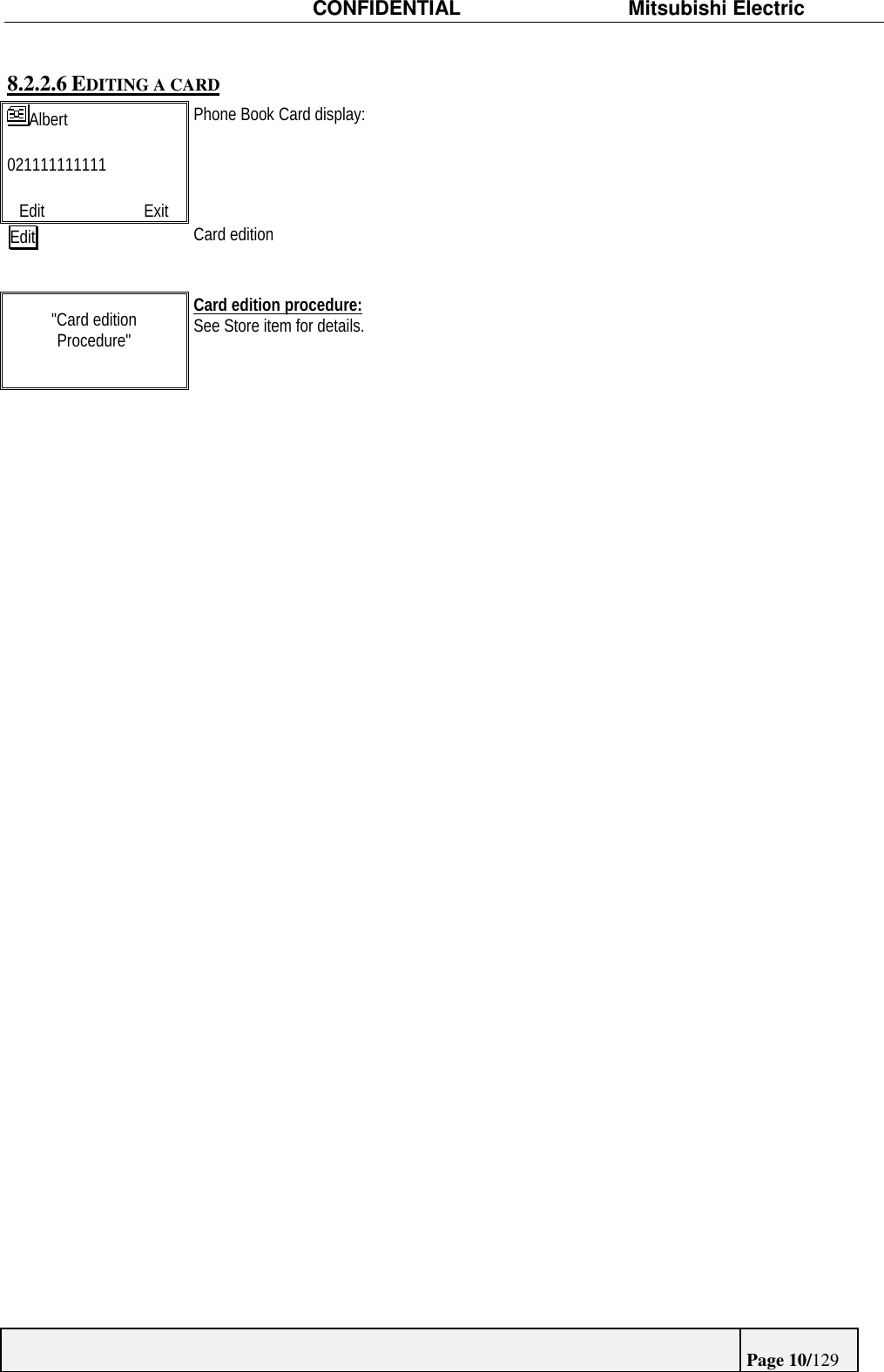

CONFIDENTIAL Mitsubishi ElectricPage 10/1298.2.2.6 EDITING A CARDAlbert021111111111Edit ExitPhone Book Card display:Edit Card edition"Card editionProcedure"Card edition procedure:See Store item for details.

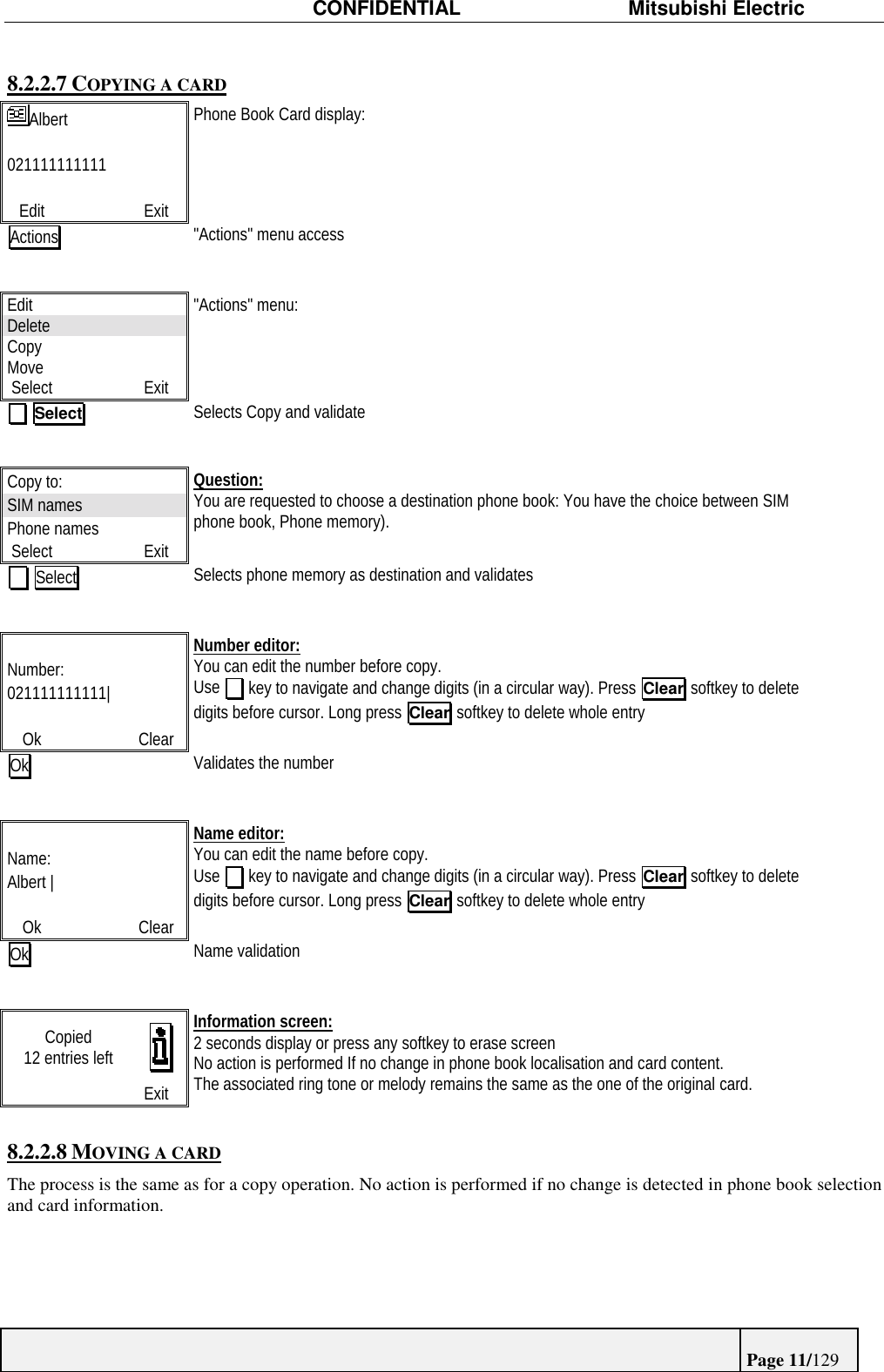

CONFIDENTIAL Mitsubishi ElectricPage 11/1298.2.2.7 COPYING A CARDAlbert021111111111Edit ExitPhone Book Card display:Actions "Actions" menu accessEditDeleteCopyMoveSelect Exit"Actions" menu: Select Selects Copy and validateCopy to:SIM namesPhone namesSelect ExitQuestion:You are requested to choose a destination phone book: You have the choice between SIMphone book, Phone memory). Select Selects phone memory as destination and validatesNumber:021111111111|Ok ClearNumber editor:You can edit the number before copy.Use key to navigate and change digits (in a circular way). Press Clear softkey to deletedigits before cursor. Long press Clear softkey to delete whole entryOk Validates the numberName:Albert |Ok ClearName editor:You can edit the name before copy.Use key to navigate and change digits (in a circular way). Press Clear softkey to deletedigits before cursor. Long press Clear softkey to delete whole entryOk Name validationCopied12 entries leftExitInformation screen:2 seconds display or press any softkey to erase screenNo action is performed If no change in phone book localisation and card content.The associated ring tone or melody remains the same as the one of the original card.8.2.2.8 MOVING A CARDThe process is the same as for a copy operation. No action is performed if no change is detected in phone book selectionand card information.

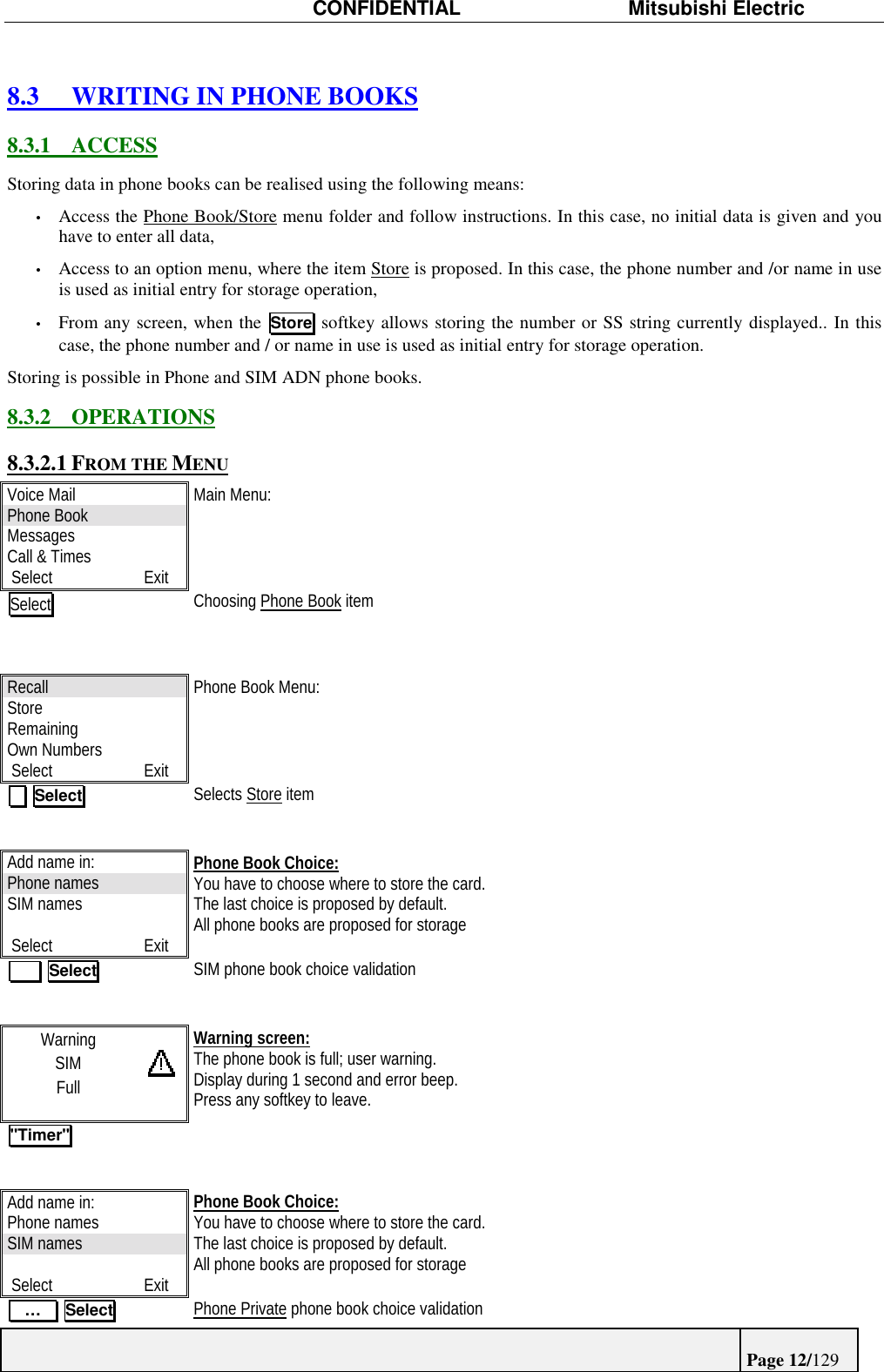

CONFIDENTIAL Mitsubishi ElectricPage 12/1298.3 WRITING IN PHONE BOOKS8.3.1 ACCESSStoring data in phone books can be realised using the following means:• Access the Phone Book/Store menu folder and follow instructions. In this case, no initial data is given and youhave to enter all data,• Access to an option menu, where the item Store is proposed. In this case, the phone number and /or name in useis used as initial entry for storage operation,• From any screen, when the Store softkey allows storing the number or SS string currently displayed.. In thiscase, the phone number and / or name in use is used as initial entry for storage operation.Storing is possible in Phone and SIM ADN phone books.8.3.2 OPERATIONS8.3.2.1 FROM THE MENUVoice MailPhone BookMessagesCall & TimesSelect ExitMain Menu:Select Choosing Phone Book itemRecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu: Select Selects Store itemAdd name in:Phone namesSIM namesSelect ExitPhone Book Choice:You have to choose where to store the card.The last choice is proposed by default.All phone books are proposed for storage Select SIM phone book choice validationWarningSIMFullWarning screen:The phone book is full; user warning.Display during 1 second and error beep.Press any softkey to leave."Timer"Add name in:Phone namesSIM namesSelect ExitPhone Book Choice:You have to choose where to store the card.The last choice is proposed by default.All phone books are proposed for storage… Select Phone Private phone book choice validation

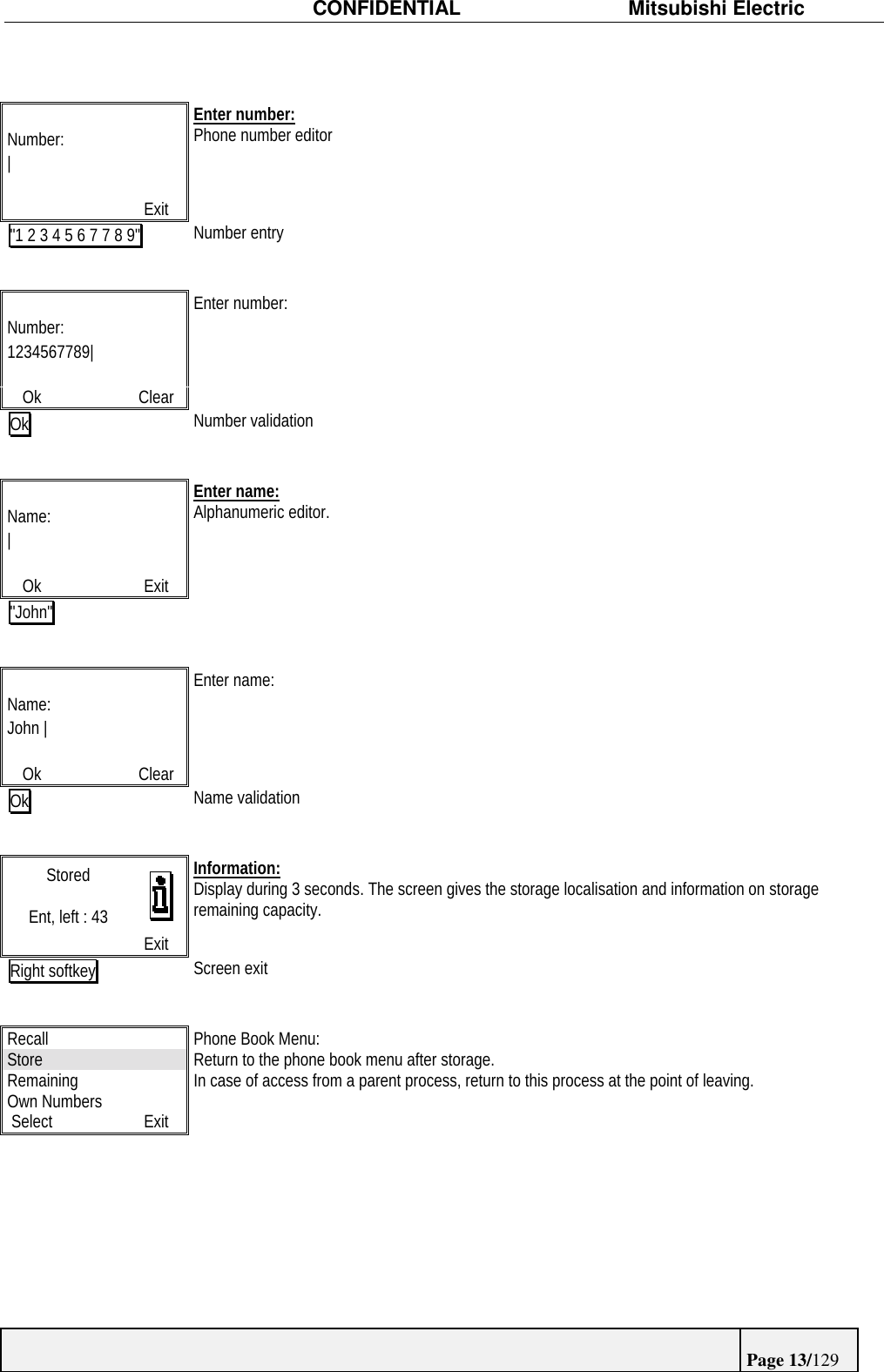

CONFIDENTIAL Mitsubishi ElectricPage 13/129Number:|ExitEnter number:Phone number editor"1 2 3 4 5 6 7 7 8 9" Number entryNumber:1234567789|Ok ClearEnter number:Ok Number validationName:|Ok ExitEnter name:Alphanumeric editor."John"Name:John |Ok ClearEnter name:Ok Name validationStoredEnt, left : 43 ExitInformation:Display during 3 seconds. The screen gives the storage localisation and information on storageremaining capacity.Right softkey Screen exitRecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu:Return to the phone book menu after storage.In case of access from a parent process, return to this process at the point of leaving.

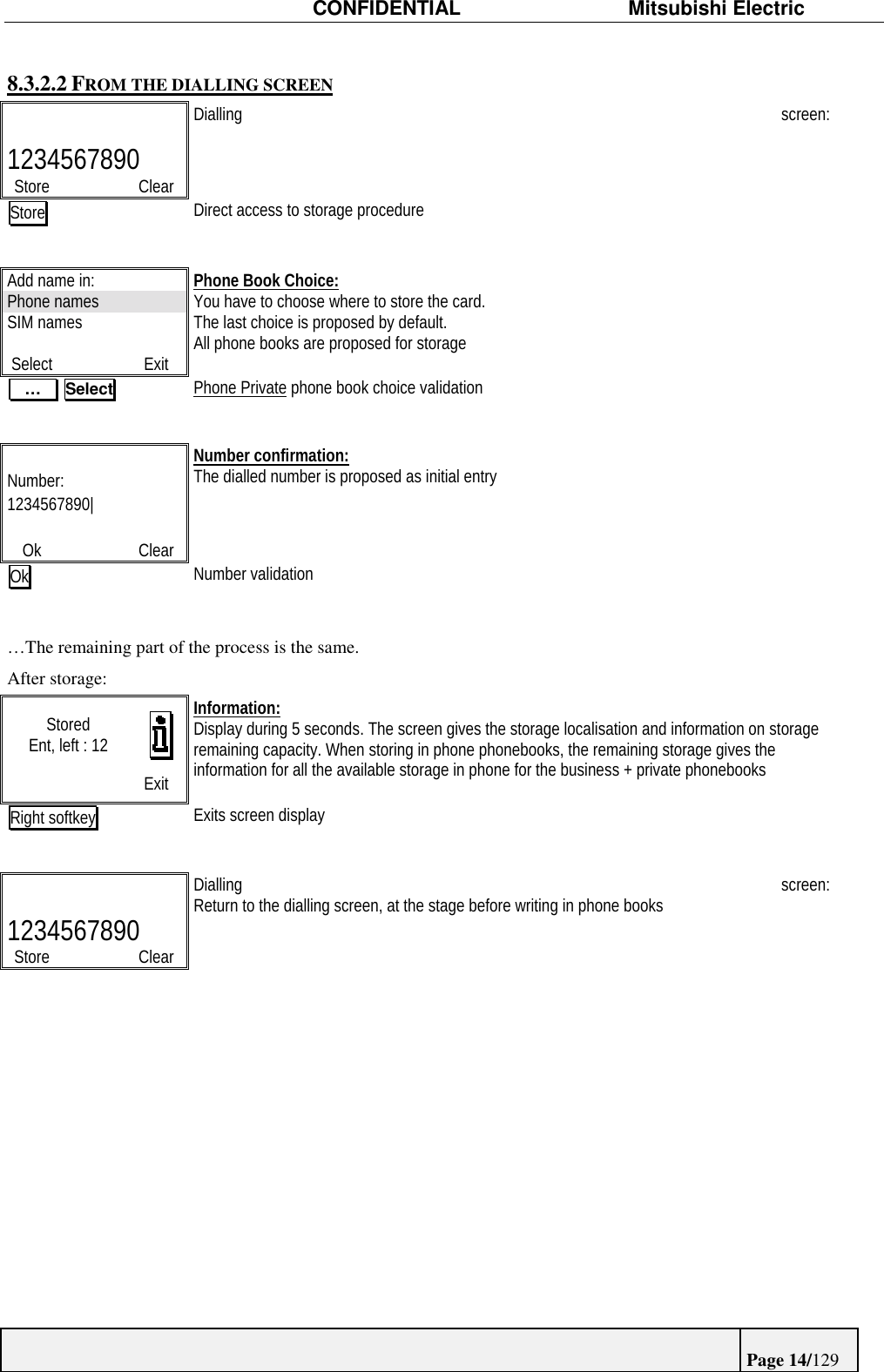

CONFIDENTIAL Mitsubishi ElectricPage 14/1298.3.2.2 FROM THE DIALLING SCREEN1234567890Store ClearDialling screen:Store Direct access to storage procedureAdd name in:Phone namesSIM namesSelect ExitPhone Book Choice:You have to choose where to store the card.The last choice is proposed by default.All phone books are proposed for storage… Select Phone Private phone book choice validationNumber:1234567890|Ok ClearNumber confirmation:The dialled number is proposed as initial entryOk Number validation…The remaining part of the process is the same.After storage:StoredEnt, left : 12ExitInformation:Display during 5 seconds. The screen gives the storage localisation and information on storageremaining capacity. When storing in phone phonebooks, the remaining storage gives theinformation for all the available storage in phone for the business + private phonebooksRight softkey Exits screen display1234567890Store ClearDialling screen:Return to the dialling screen, at the stage before writing in phone books

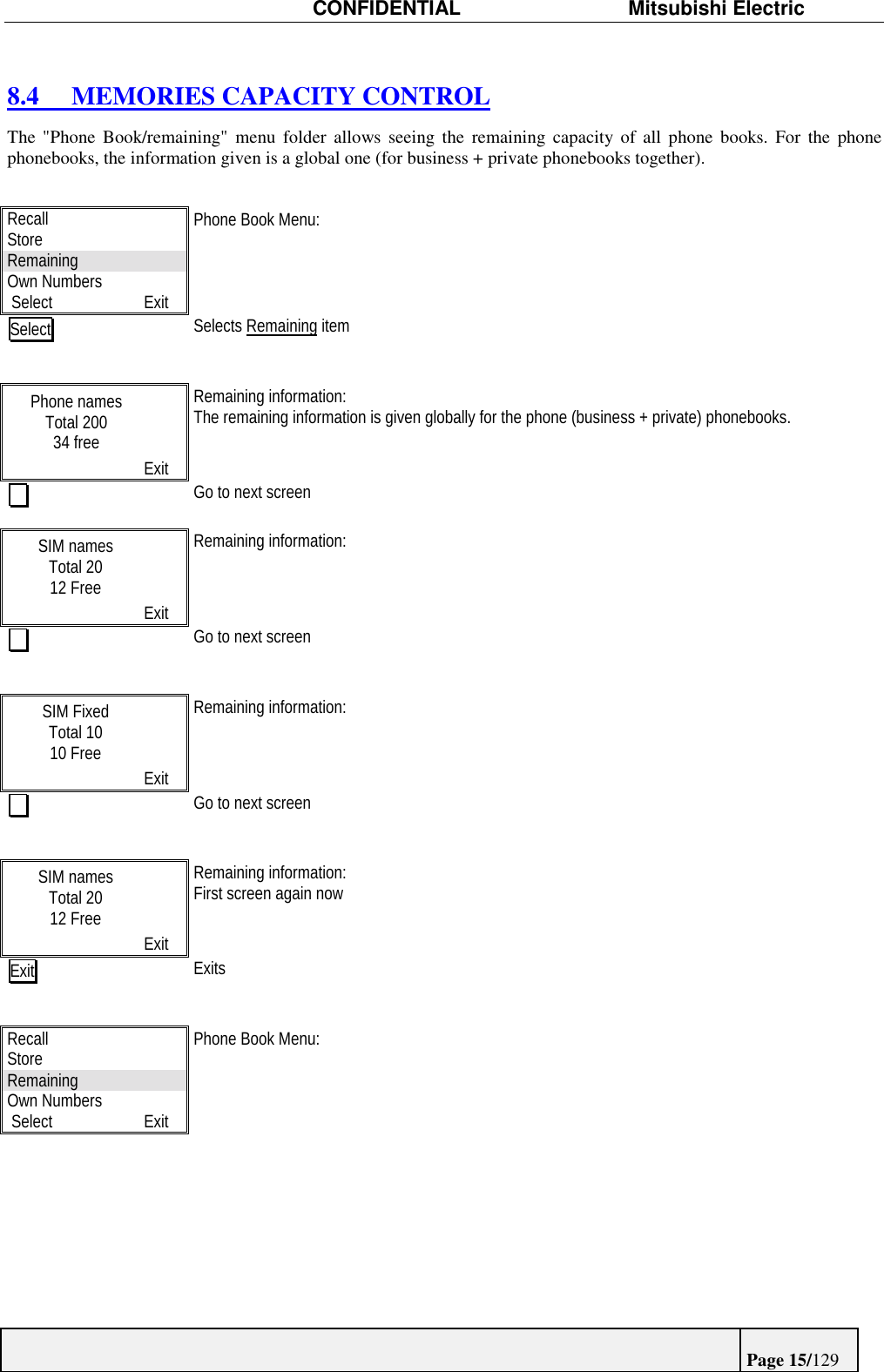

CONFIDENTIAL Mitsubishi ElectricPage 15/1298.4 MEMORIES CAPACITY CONTROLThe "Phone Book/remaining" menu folder allows seeing the remaining capacity of all phone books. For the phonephonebooks, the information given is a global one (for business + private phonebooks together).RecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu:Select Selects Remaining itemPhone namesTotal 20034 free ExitRemaining information:The remaining information is given globally for the phone (business + private) phonebooks.Go to next screenSIM namesTotal 2012 Free ExitRemaining information:Go to next screenSIM FixedTotal 1010 Free ExitRemaining information:Go to next screenSIM namesTotal 2012 Free ExitRemaining information:First screen again nowExit ExitsRecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu:

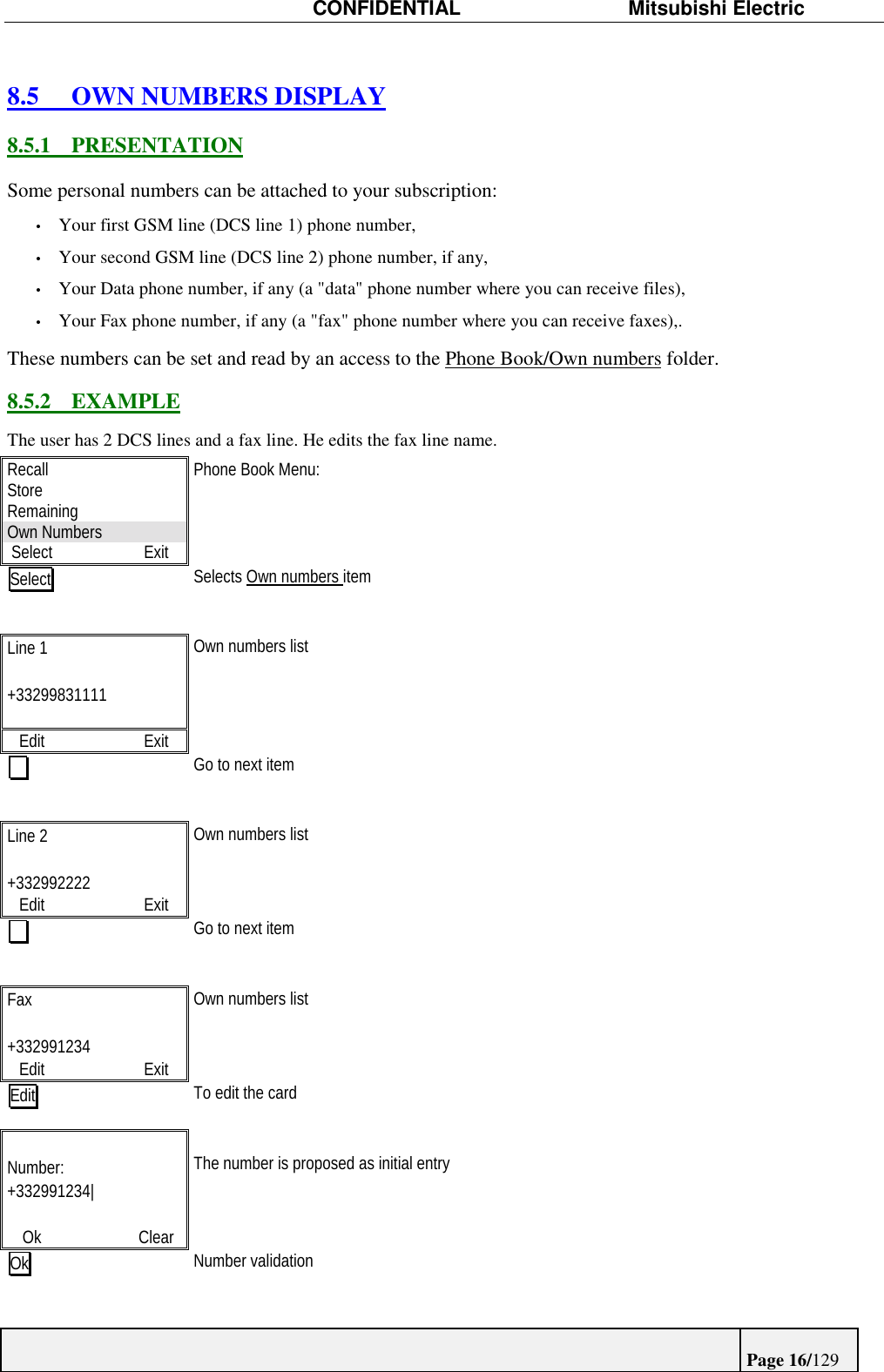

CONFIDENTIAL Mitsubishi ElectricPage 16/1298.5 OWN NUMBERS DISPLAY8.5.1 PRESENTATIONSome personal numbers can be attached to your subscription:• Your first GSM line (DCS line 1) phone number,• Your second GSM line (DCS line 2) phone number, if any,• Your Data phone number, if any (a "data" phone number where you can receive files),• Your Fax phone number, if any (a "fax" phone number where you can receive faxes),.These numbers can be set and read by an access to the Phone Book/Own numbers folder.8.5.2 EXAMPLEThe user has 2 DCS lines and a fax line. He edits the fax line name.RecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu:Select Selects Own numbers itemLine 1+33299831111Edit ExitOwn numbers listGo to next itemLine 2+332992222Edit ExitOwn numbers listGo to next itemFax+332991234Edit ExitOwn numbers listEdit To edit the cardNumber:+332991234|Ok ClearThe number is proposed as initial entryOk Number validation
CONFIDENTIAL Mitsubishi ElectricPage 17/129Name:Fax |Ok ClearOwn numbers listThe entry name size is limited to SIM card name size and language dependent."Clear long press""MyFax"To edit the cardName:My Fax |Ok ClearOwn number edit name:The entry name size is limited to SIM card name size and language dependent.OK Validates the nameMy Fax+332991234Edit ExitOwn numbers listExit Exits of the listRecallStoreRemainingOwn NumbersSelect ExitPhone Book Menu:

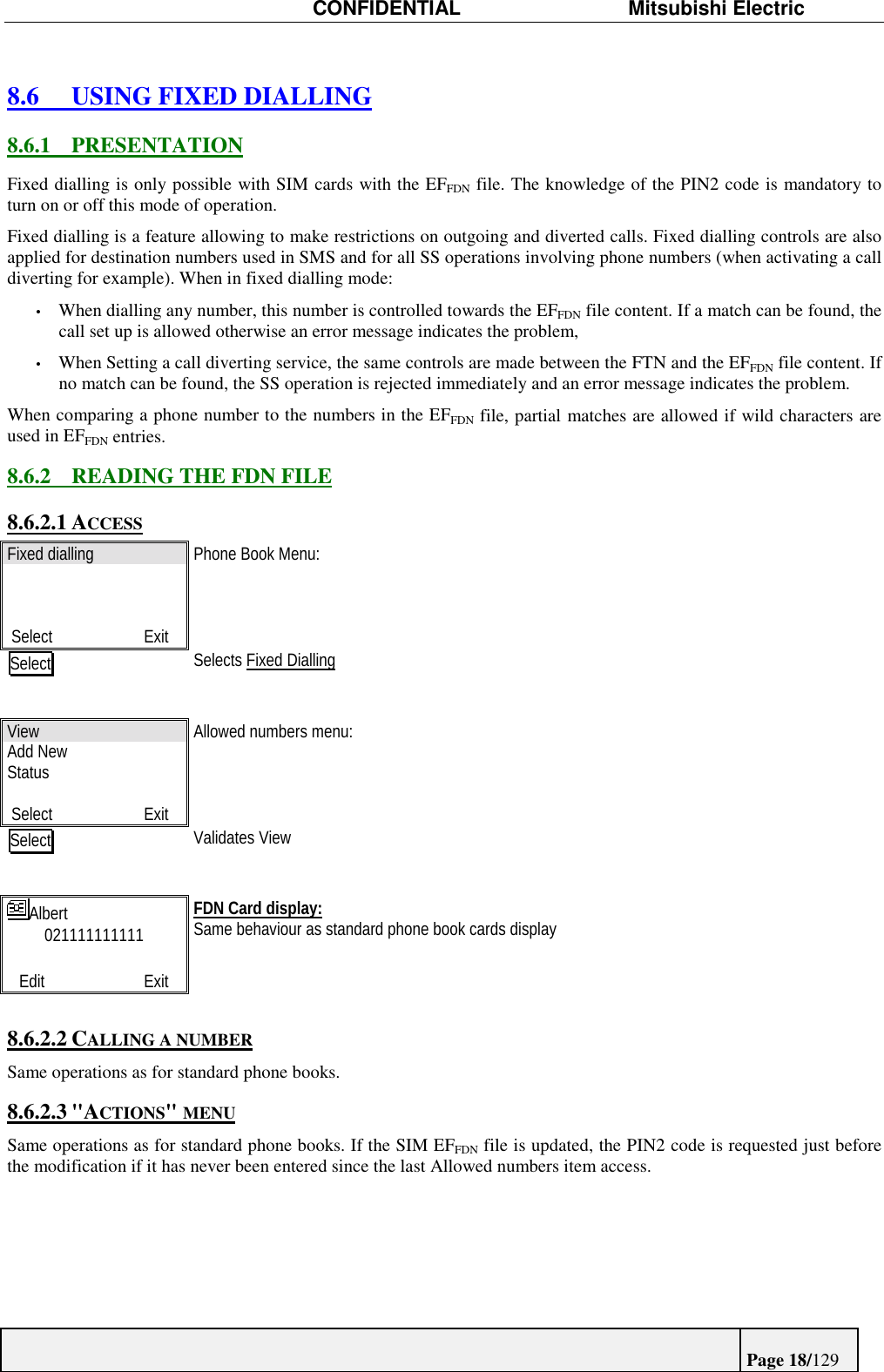

CONFIDENTIAL Mitsubishi ElectricPage 18/1298.6 USING FIXED DIALLING8.6.1 PRESENTATIONFixed dialling is only possible with SIM cards with the EFFDN file. The knowledge of the PIN2 code is mandatory toturn on or off this mode of operation.Fixed dialling is a feature allowing to make restrictions on outgoing and diverted calls. Fixed dialling controls are alsoapplied for destination numbers used in SMS and for all SS operations involving phone numbers (when activating a calldiverting for example). When in fixed dialling mode:• When dialling any number, this number is controlled towards the EFFDN file content. If a match can be found, thecall set up is allowed otherwise an error message indicates the problem,• When Setting a call diverting service, the same controls are made between the FTN and the EFFDN file content. Ifno match can be found, the SS operation is rejected immediately and an error message indicates the problem.When comparing a phone number to the numbers in the EFFDN file, partial matches are allowed if wild characters areused in EFFDN entries.8.6.2 READING THE FDN FILE8.6.2.1 ACCESSFixed diallingSelect ExitPhone Book Menu:Select Selects Fixed DiallingViewAdd NewStatusSelect ExitAllowed numbers menu:Select Validates ViewAlbert021111111111Edit ExitFDN Card display:Same behaviour as standard phone book cards display8.6.2.2 CALLING A NUMBERSame operations as for standard phone books.8.6.2.3 "ACTIONS" MENUSame operations as for standard phone books. If the SIM EFFDN file is updated, the PIN2 code is requested just beforethe modification if it has never been entered since the last Allowed numbers item access.

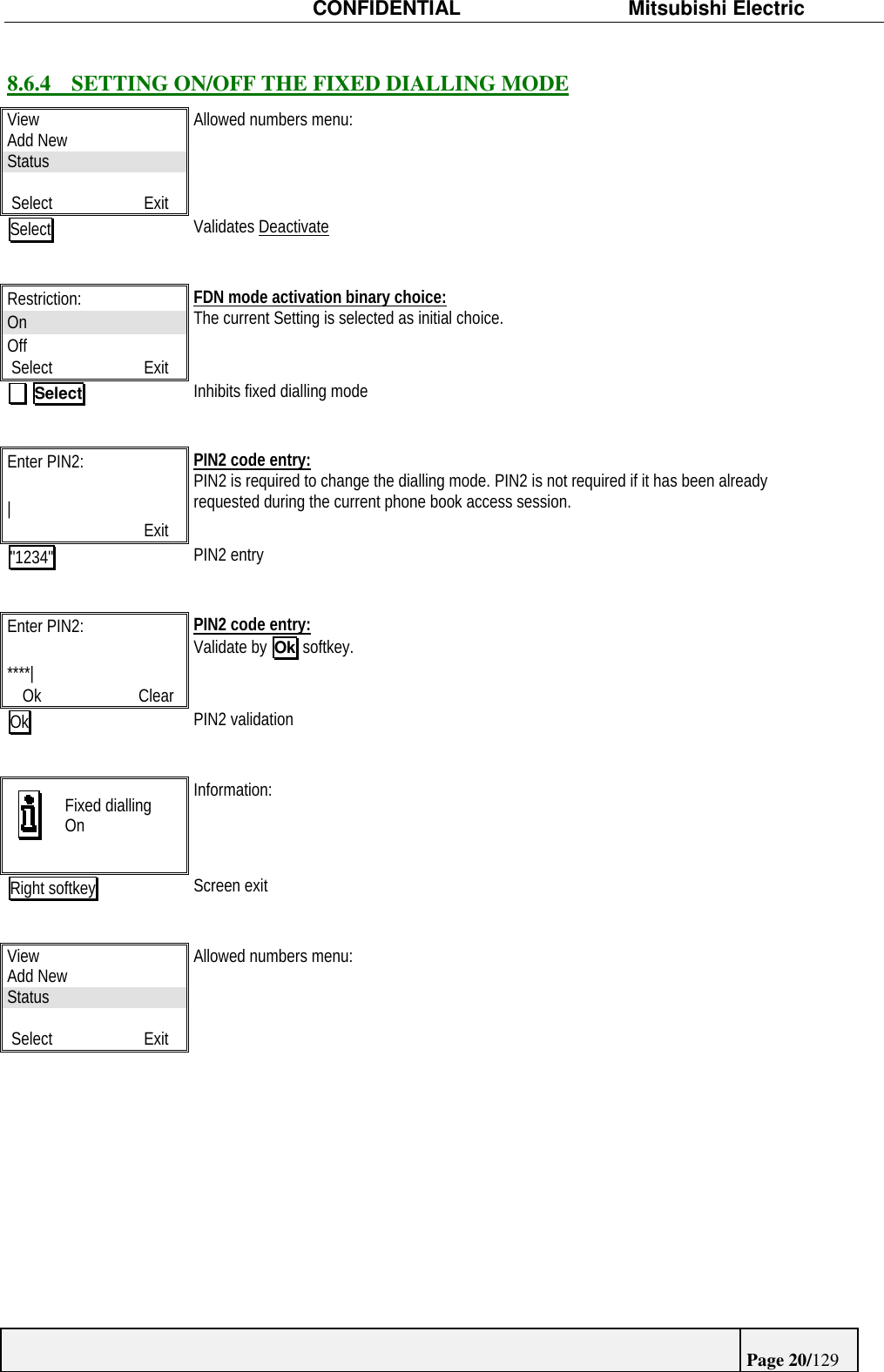

CONFIDENTIAL Mitsubishi ElectricPage 19/1298.6.2.4 DELETING A FDN CARDAlbert021111111111Edit ExitPhone Book Card display:Actions Actions key to access the "Actions" menuEditDeleteCopyMoveSelect Exit"Actions" menu:Select Selects DeleteEnter PIN2:|ExitPIN2 code entry:If required, depending on the card localisation, the PIN2 code is requested before editionprocedure."1234" PIN2 entryEnter PIN2:****|Ok ClearPIN2 code entry:Ok PIN2 validationDeleted Information:1 second displayExit the screen by any softkey.Right softkey Screen exitBernard0212345678Edit ExitPhone Book Card display:The display goes to the next card in alpha order after Albert.8.6.3 ENTERING DATA IN THE FDN FILEThe same operations are realised as for a store operation. The PIN2 code is requested before storage if no PIN2 codehas been entered since the EFFDN file access beginning.
CONFIDENTIAL Mitsubishi ElectricPage 20/1298.6.4 SETTING ON/OFF THE FIXED DIALLING MODEViewAdd NewStatusSelect ExitAllowed numbers menu:Select Validates DeactivateRestriction:OnOffSelect ExitFDN mode activation binary choice:The current Setting is selected as initial choice. Select Inhibits fixed dialling modeEnter PIN2:|ExitPIN2 code entry:PIN2 is required to change the dialling mode. PIN2 is not required if it has been alreadyrequested during the current phone book access session."1234" PIN2 entryEnter PIN2:****|Ok ClearPIN2 code entry:Validate by Ok softkey.Ok PIN2 validationFixed diallingOnInformation:Right softkey Screen exitViewAdd NewStatusSelect ExitAllowed numbers menu:

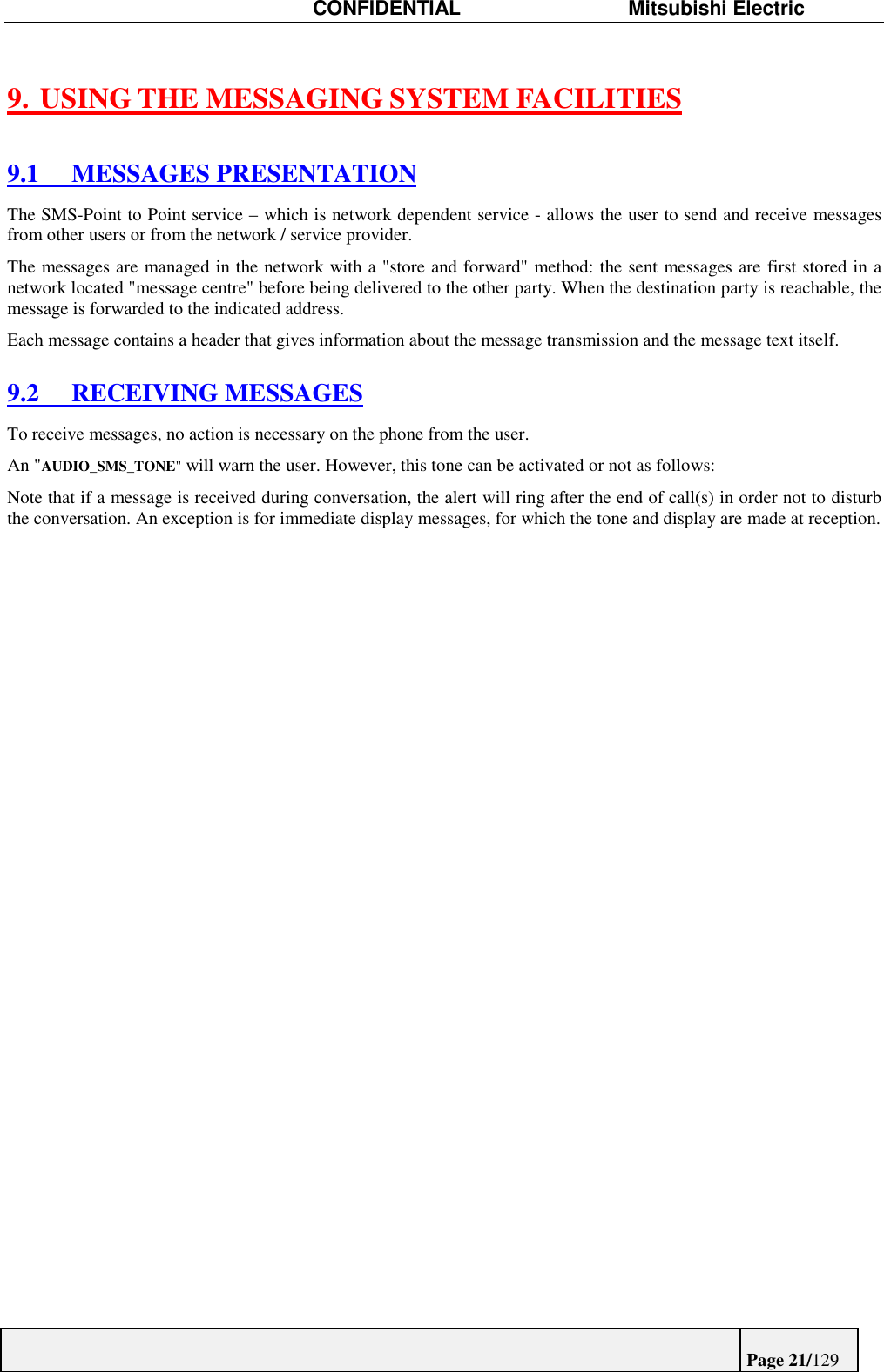

CONFIDENTIAL Mitsubishi ElectricPage 21/1299. USING THE MESSAGING SYSTEM FACILITIES9.1 MESSAGES PRESENTATIONThe SMS-Point to Point service – which is network dependent service - allows the user to send and receive messagesfrom other users or from the network / service provider.The messages are managed in the network with a "store and forward" method: the sent messages are first stored in anetwork located "message centre" before being delivered to the other party. When the destination party is reachable, themessage is forwarded to the indicated address.Each message contains a header that gives information about the message transmission and the message text itself.9.2 RECEIVING MESSAGESTo receive messages, no action is necessary on the phone from the user.An "AUDIO_SMS_TONE" will warn the user. However, this tone can be activated or not as follows:Note that if a message is received during conversation, the alert will ring after the end of call(s) in order not to disturbthe conversation. An exception is for immediate display messages, for which the tone and display are made at reception.
CONFIDENTIAL Mitsubishi ElectricPage 22/1299.2.1 SETTING THE MESSAGE ALERT MODEVoice MailPhone BookMessagesCalls & TimersSelect ExitMain Menu:Select Validates Messages tiemInboxOutboxWrite NewSettingsSelect ExitMessages menu:Go to next screenAlertSelect ExitMessages menu:Select Validates AlertMessage AlertOnOffSelect ExitMessage Alert Setting:The current Setting is displayed as initial entrySelect No change selectedAlertSelect ExitMessages menu:The Alert Setting is used each time a message is received

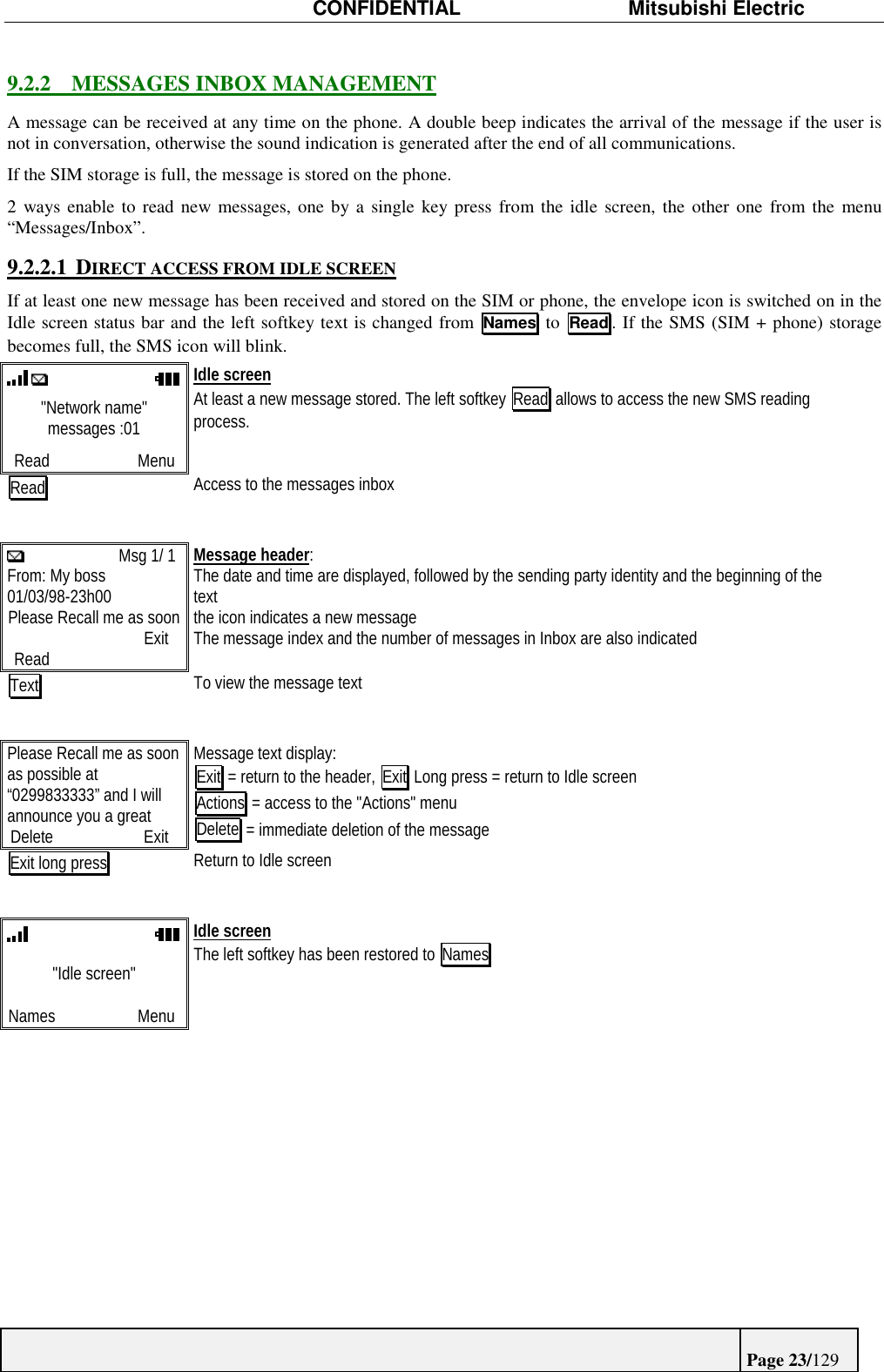

CONFIDENTIAL Mitsubishi ElectricPage 23/1299.2.2 MESSAGES INBOX MANAGEMENTA message can be received at any time on the phone. A double beep indicates the arrival of the message if the user isnot in conversation, otherwise the sound indication is generated after the end of all communications.If the SIM storage is full, the message is stored on the phone.2 ways enable to read new messages, one by a single key press from the idle screen, the other one from the menu“Messages/Inbox”.9.2.2.1 DIRECT ACCESS FROM IDLE SCREENIf at least one new message has been received and stored on the SIM or phone, the envelope icon is switched on in theIdle screen status bar and the left softkey text is changed from Names to Read . If the SMS (SIM + phone) storagebecomes full, the SMS icon will blink. "Network name"messages :01Read MenuIdle screenAt least a new message stored. The left softkey Read allows to access the new SMS readingprocess.Read Access to the messages inbox Msg 1/ 1From: My boss01/03/98-23h00Please Recall me as soonRead ExitMessage header:The date and time are displayed, followed by the sending party identity and the beginning of thetextthe icon indicates a new messageThe message index and the number of messages in Inbox are also indicatedText To view the message textPlease Recall me as soonas possible at“0299833333” and I willannounce you a greatDelete ExitMessage text display:Exit = return to the header, Exit Long press = return to Idle screenActions = access to the "Actions" menuDelete = immediate deletion of the messageExit long press Return to Idle screen "Idle screen"Names MenuIdle screenThe left softkey has been restored to Names

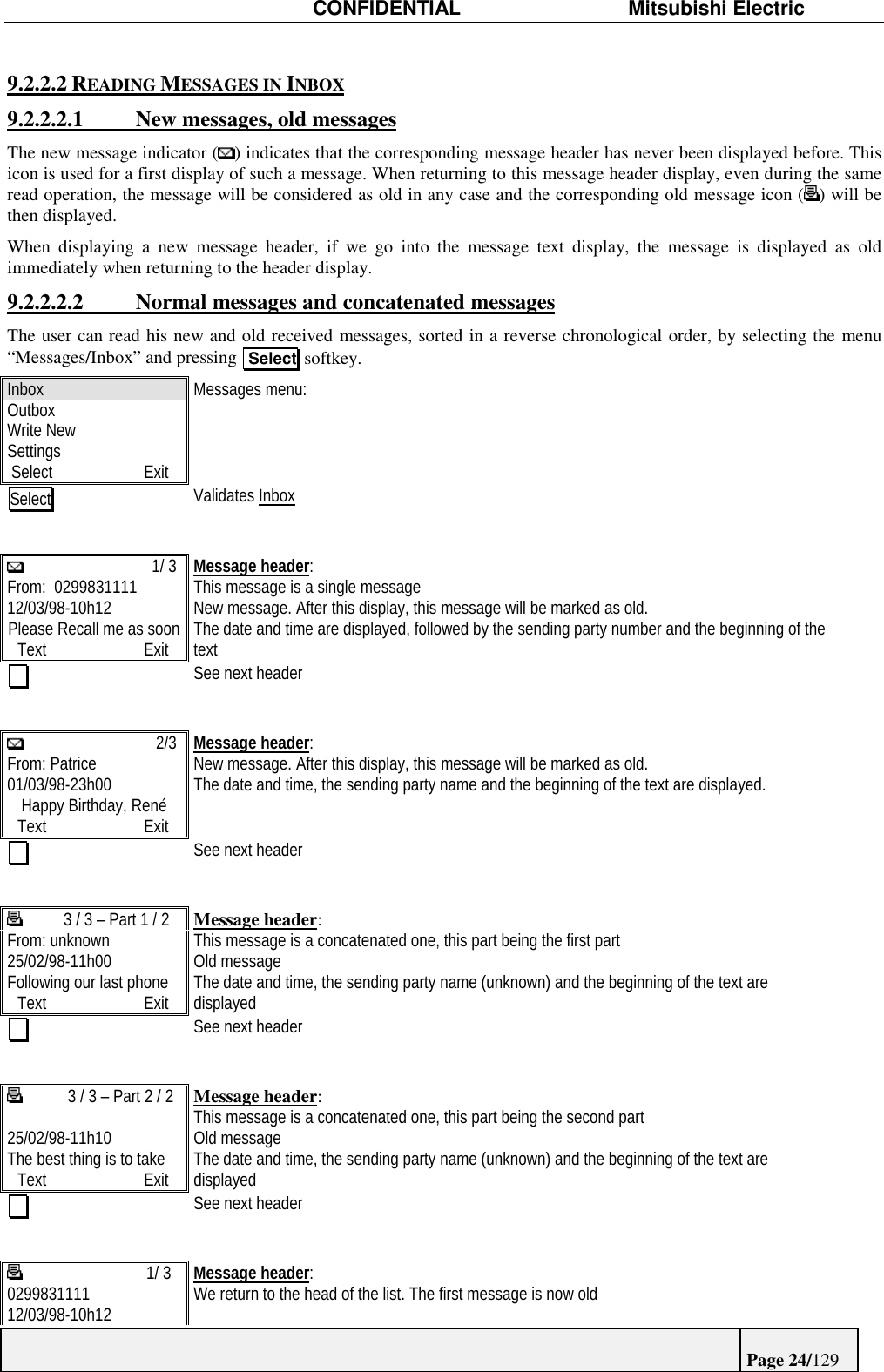

CONFIDENTIAL Mitsubishi ElectricPage 24/1299.2.2.2 READING MESSAGES IN INBOX9.2.2.2.1 New messages, old messagesThe new message indicator ( ) indicates that the corresponding message header has never been displayed before. Thisicon is used for a first display of such a message. When returning to this message header display, even during the sameread operation, the message will be considered as old in any case and the corresponding old message icon ( ) will bethen displayed.When displaying a new message header, if we go into the message text display, the message is displayed as oldimmediately when returning to the header display.9.2.2.2.2 Normal messages and concatenated messagesThe user can read his new and old received messages, sorted in a reverse chronological order, by selecting the menu“Messages/Inbox” and pressing Select softkey.InboxOutboxWrite NewSettingsSelect ExitMessages menu:Select Validates Inbox 1/ 3From: 029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:This message is a single messageNew message. After this display, this message will be marked as old.The date and time are displayed, followed by the sending party number and the beginning of thetextSee next header 2/3From: Patrice01/03/98-23h00Happy Birthday, RenéText ExitMessage header:New message. After this display, this message will be marked as old.The date and time, the sending party name and the beginning of the text are displayed.See next header 3 / 3 – Part 1 / 2From: unknown25/02/98-11h00Following our last phoneText ExitMessage header:This message is a concatenated one, this part being the first partOld messageThe date and time, the sending party name (unknown) and the beginning of the text aredisplayedSee next header 3 / 3 – Part 2 / 225/02/98-11h10The best thing is to takeText ExitMessage header:This message is a concatenated one, this part being the second partOld messageThe date and time, the sending party name (unknown) and the beginning of the text aredisplayedSee next header 1/ 3029983111112/03/98-10h12Message header:We return to the head of the list. The first message is now old

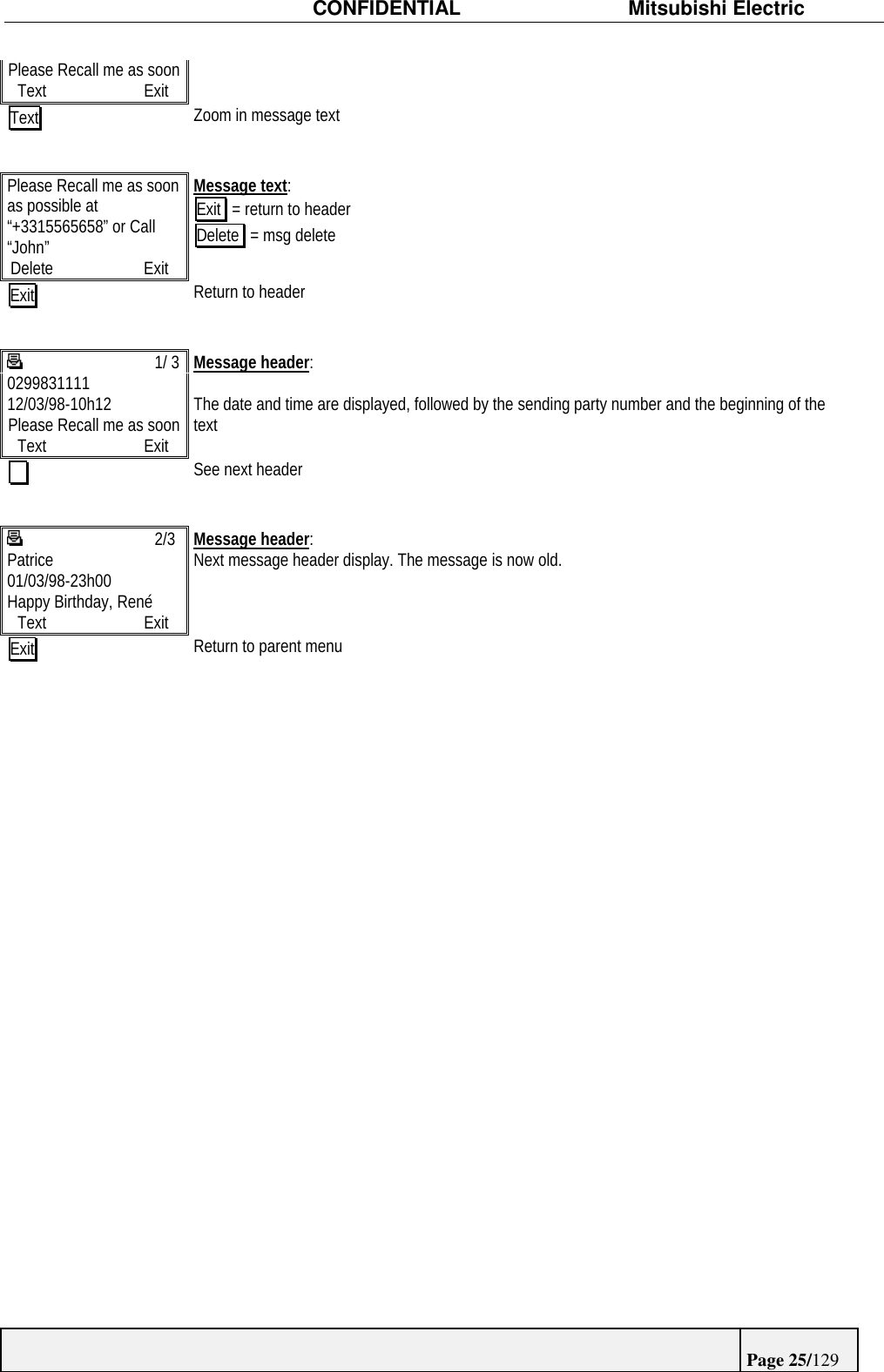

CONFIDENTIAL Mitsubishi ElectricPage 25/129Please Recall me as soonText ExitText Zoom in message textPlease Recall me as soonas possible at“+3315565658” or Call“John”Delete ExitMessage text:Exit = return to headerDelete = msg deleteExit Return to header 1/ 3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:The date and time are displayed, followed by the sending party number and the beginning of thetextSee next header 2/3Patrice01/03/98-23h00Happy Birthday, RenéText ExitMessage header:Next message header display. The message is now old.Exit Return to parent menu
CONFIDENTIAL Mitsubishi ElectricPage 26/129InboxOutboxWrite NewSettingsSelect ExitMessages menu:Select Validates Inbox 1/ 3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:Old messageThe most recent message is displayed first, new or old.See next header 2/3Patrice01/03/98-23h00Happy Birthday, RenéText ExitMessage header:Next message header display (Old message also)The "Actions" menu content is the same as described above.

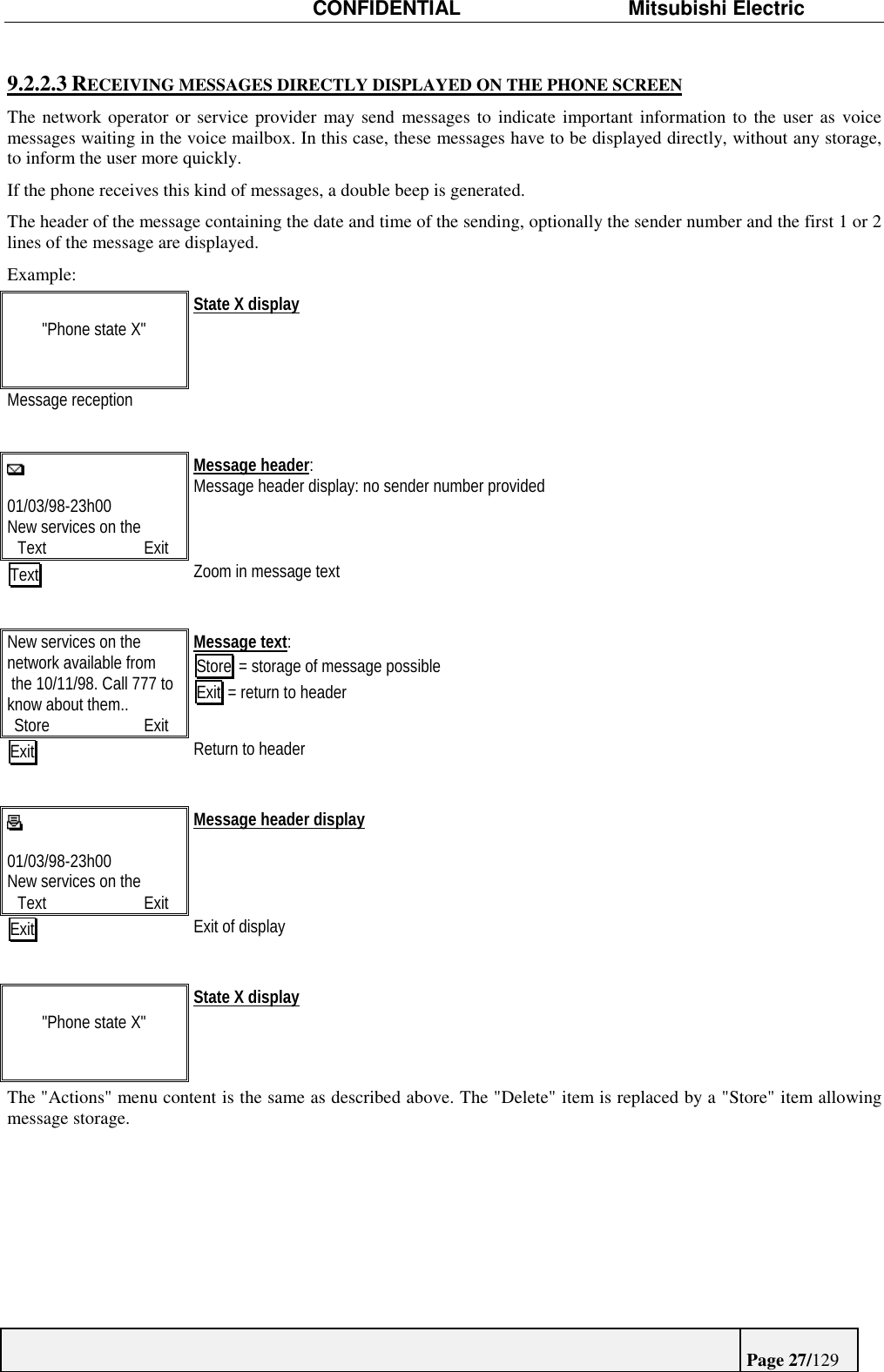

CONFIDENTIAL Mitsubishi ElectricPage 27/1299.2.2.3 RECEIVING MESSAGES DIRECTLY DISPLAYED ON THE PHONE SCREENThe network operator or service provider may send messages to indicate important information to the user as voicemessages waiting in the voice mailbox. In this case, these messages have to be displayed directly, without any storage,to inform the user more quickly.If the phone receives this kind of messages, a double beep is generated.The header of the message containing the date and time of the sending, optionally the sender number and the first 1 or 2lines of the message are displayed.Example:"Phone state X" State X displayMessage reception01/03/98-23h00New services on theText ExitMessage header:Message header display: no sender number providedText Zoom in message textNew services on thenetwork available from the 10/11/98. Call 777 toknow about them..Store ExitMessage text:Store = storage of message possibleExit = return to headerExit Return to header01/03/98-23h00New services on theText ExitMessage header displayExit Exit of display"Phone state X" State X displayThe "Actions" menu content is the same as described above. The "Delete" item is replaced by a "Store" item allowingmessage storage.

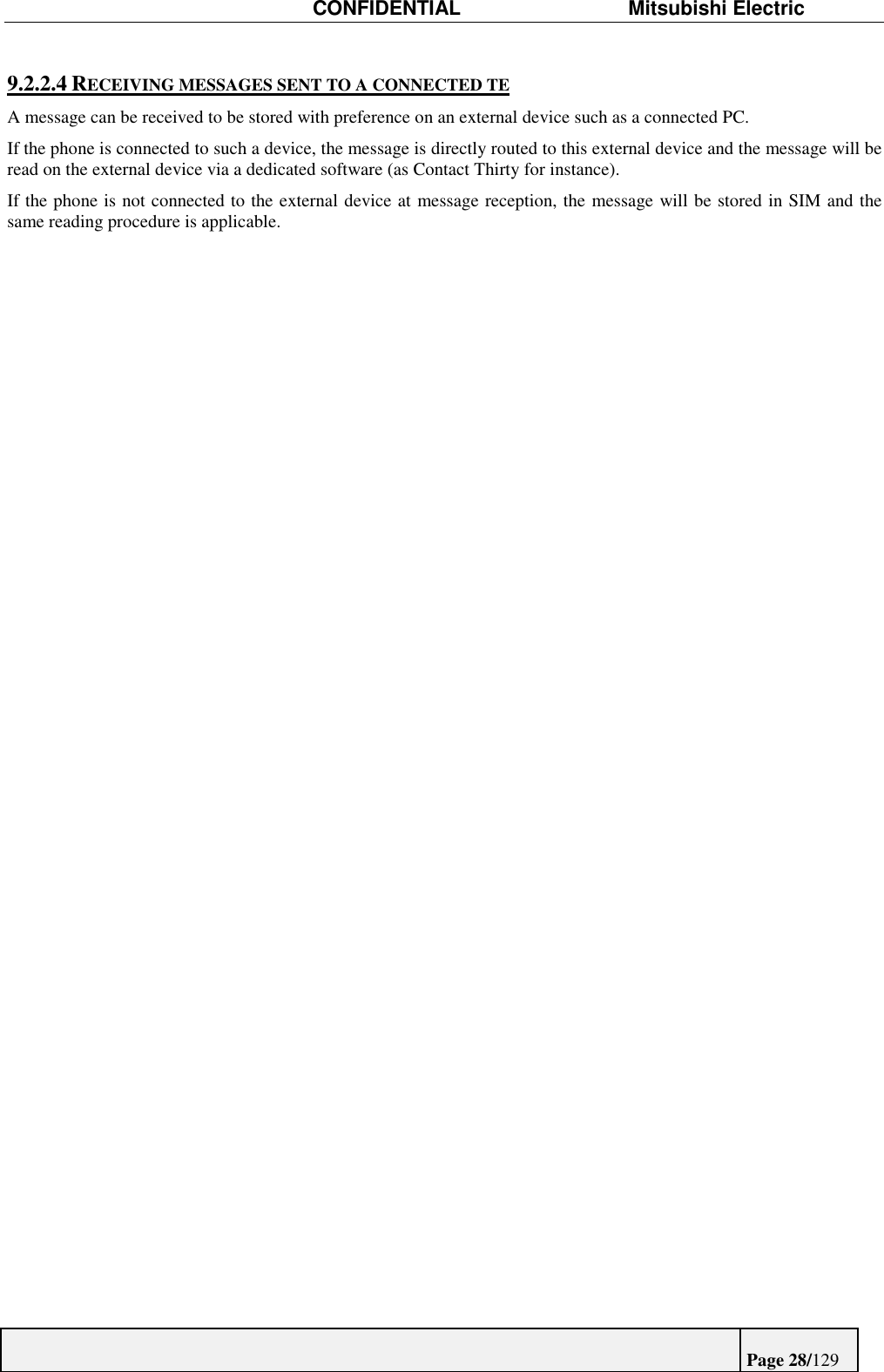

CONFIDENTIAL Mitsubishi ElectricPage 28/1299.2.2.4 RECEIVING MESSAGES SENT TO A CONNECTED TEA message can be received to be stored with preference on an external device such as a connected PC.If the phone is connected to such a device, the message is directly routed to this external device and the message will beread on the external device via a dedicated software (as Contact Thirty for instance).If the phone is not connected to the external device at message reception, the message will be stored in SIM and thesame reading procedure is applicable.
CONFIDENTIAL Mitsubishi ElectricPage 29/1299.2.2.5 AVAILABLE OPERATIONS DURING MESSAGES READINGThis chapter will describe the screen sequences display for options available when reading SMS headers or contents.9.2.2.5.1 ""Actions" menu" content when in header displayWhen reading the message header or the message content, the Actions key allows access to message relatedoperations. This softkey gives access to a contextual menu with the following items:Item FunctionRead text To view the message text (item displayed only if the header is displayed).[Delete | Store] Delete is to delete the message(No information requested to perform the operation).Store is displayed in case of non stored message displayYou are requested to choose via a binary screen if you want to store or not themessage in the inbox.Reply To reply to the sender of the message:If the identity of the sender is known, the reply will be directly sent to him.The message centre used is the one of the sender (if reply path is set in themessage), otherwise the one of the user is used.You are requested to enter the message text, the message centre number if no isdefined or to choose the message template to use for the answer.Forward To forward the message: The message is forwarded to another user.You are requested to enter the destination number, the message centre number if nois defined or to choose the message template to use for the answer.Numbers To call or store the sender of the message or numbers from the message:Displays a list of all numbers found in the message text (embedded by "") and also, ifknown, the sender phone number. Press Exit softkey to exit the function, Long press Exitsoftkey to return to Idle directly, Press Store softkey to store the current pointed numberin phone books, Press SEND to call the current pointed phone number. When making acall, the menu context is lost.Nothing special requested.9.2.2.5.2 ""Actions" menu" content when in text displayItem FunctionEdit To edit the message text. After edition, you can Send or store the message. When storing,the old message text is replaced by the new one.ReplyForwardNumbers[Delete | Store]Same as above

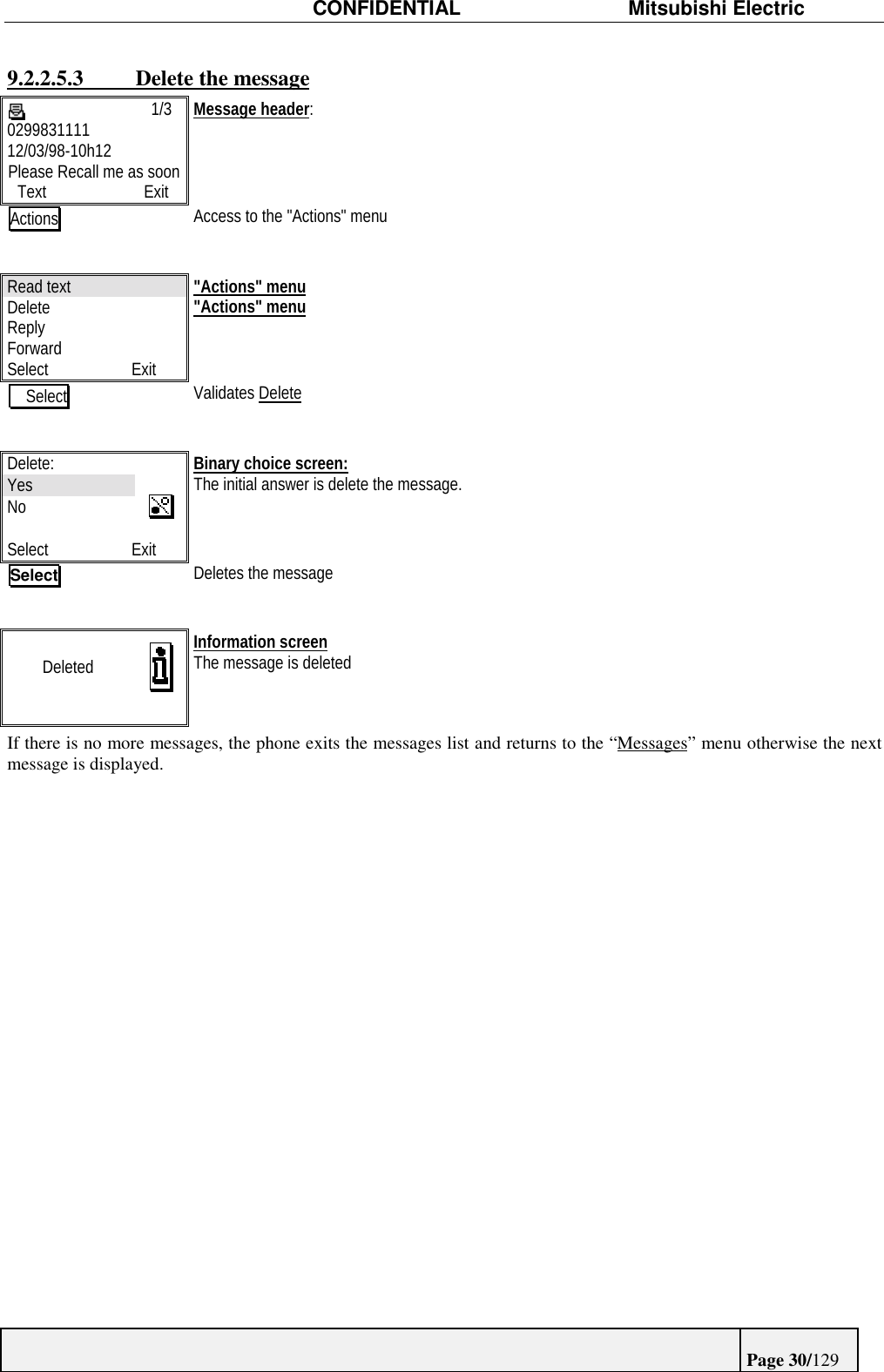

CONFIDENTIAL Mitsubishi ElectricPage 30/1299.2.2.5.3 Delete the message1/3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:Actions Access to the "Actions" menuRead text "Actions" menuDeleteReplyForwardSelect Exit"Actions" menuSelect Validates DeleteDelete:YesNoSelect ExitBinary choice screen:The initial answer is delete the message.Select Deletes the messageDeleted Information screenThe message is deletedIf there is no more messages, the phone exits the messages list and returns to the “Messages” menu otherwise the nextmessage is displayed.
CONFIDENTIAL Mitsubishi ElectricPage 31/1299.2.2.5.4 Reply to the messageThe message is sent back to the sender through either his message centre (if the reply path option is set in the message),or your message centre otherwise.If the identity of the sender is not contained in the message, the destination number is requested.In case of message templates usage, you are required to choose a message template for sending. If no message templateis valid and no message centre is defined, you are requested to enter such a number before sending the message.1/3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:Old messageActions Access to the "Actions" menuRead text "Actions" menuDeleteReplyForwardSelect Exit"Actions" menuSelect Validates Reply"Text entry procedure"Ok ExitText entry procedureThe user is asked to enter a textOk Text validation"Msg transmission" Msg TransmissionThe destination number is requested if missing.The message template or message centre number is requested if missingThe reply itself can be stored after sending.After transmission, the display returns to the initial message header

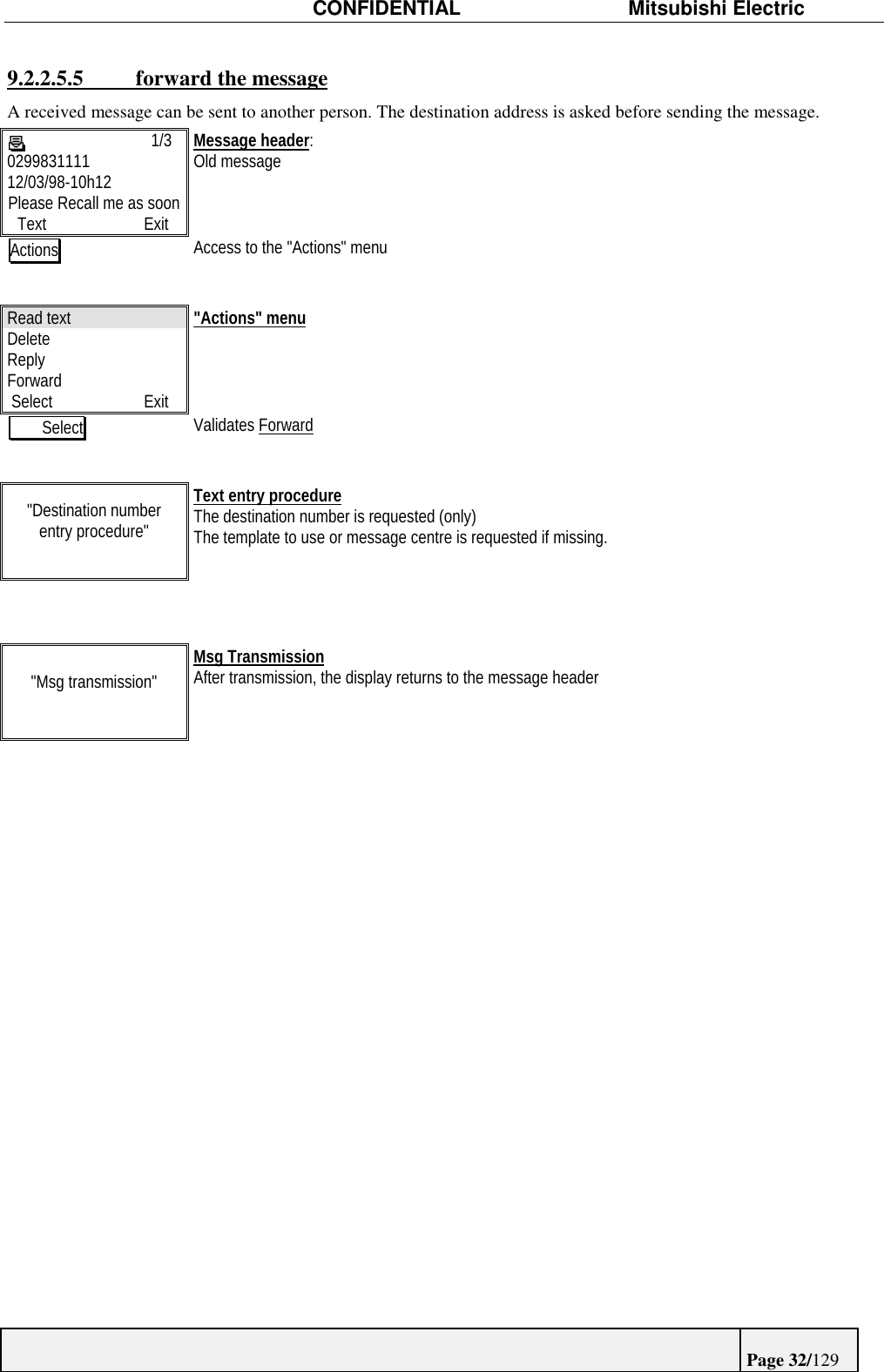

CONFIDENTIAL Mitsubishi ElectricPage 32/1299.2.2.5.5 forward the messageA received message can be sent to another person. The destination address is asked before sending the message.1/3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:Old messageActions Access to the "Actions" menuRead text "Actions" menuDeleteReplyForwardSelect ExitSelect Validates Forward"Destination numberentry procedure"Text entry procedureThe destination number is requested (only)The template to use or message centre is requested if missing."Msg transmission" Msg TransmissionAfter transmission, the display returns to the message header

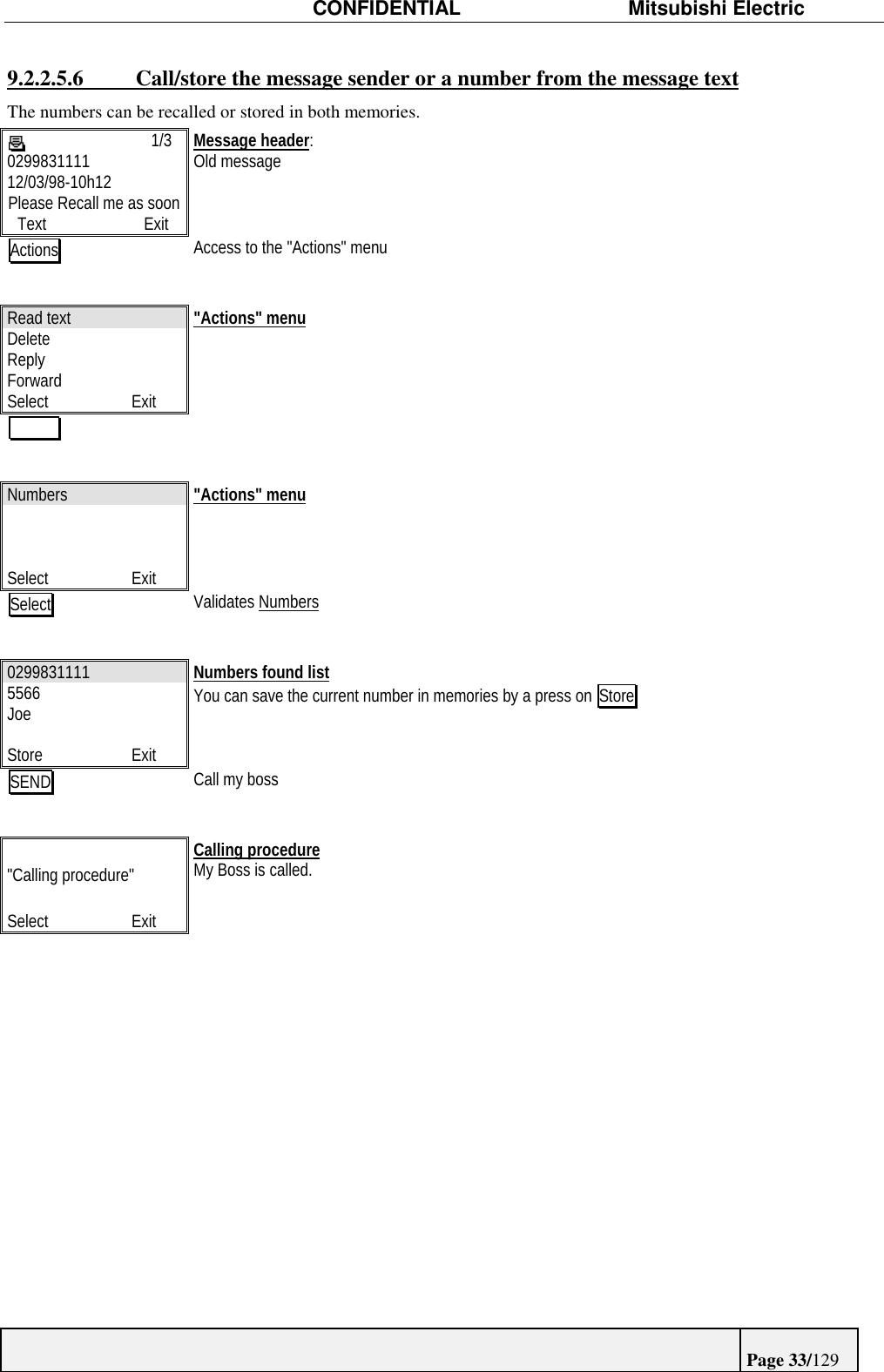

CONFIDENTIAL Mitsubishi ElectricPage 33/1299.2.2.5.6 Call/store the message sender or a number from the message textThe numbers can be recalled or stored in both memories.1/3029983111112/03/98-10h12Please Recall me as soonText ExitMessage header:Old messageActions Access to the "Actions" menuRead text "Actions" menuDeleteReplyForwardSelect ExitNumbers "Actions" menuSelect ExitSelect Validates Numbers02998311115566JoeStore ExitNumbers found listYou can save the current number in memories by a press on StoreSEND Call my boss"Calling procedure"Select ExitCalling procedureMy Boss is called.

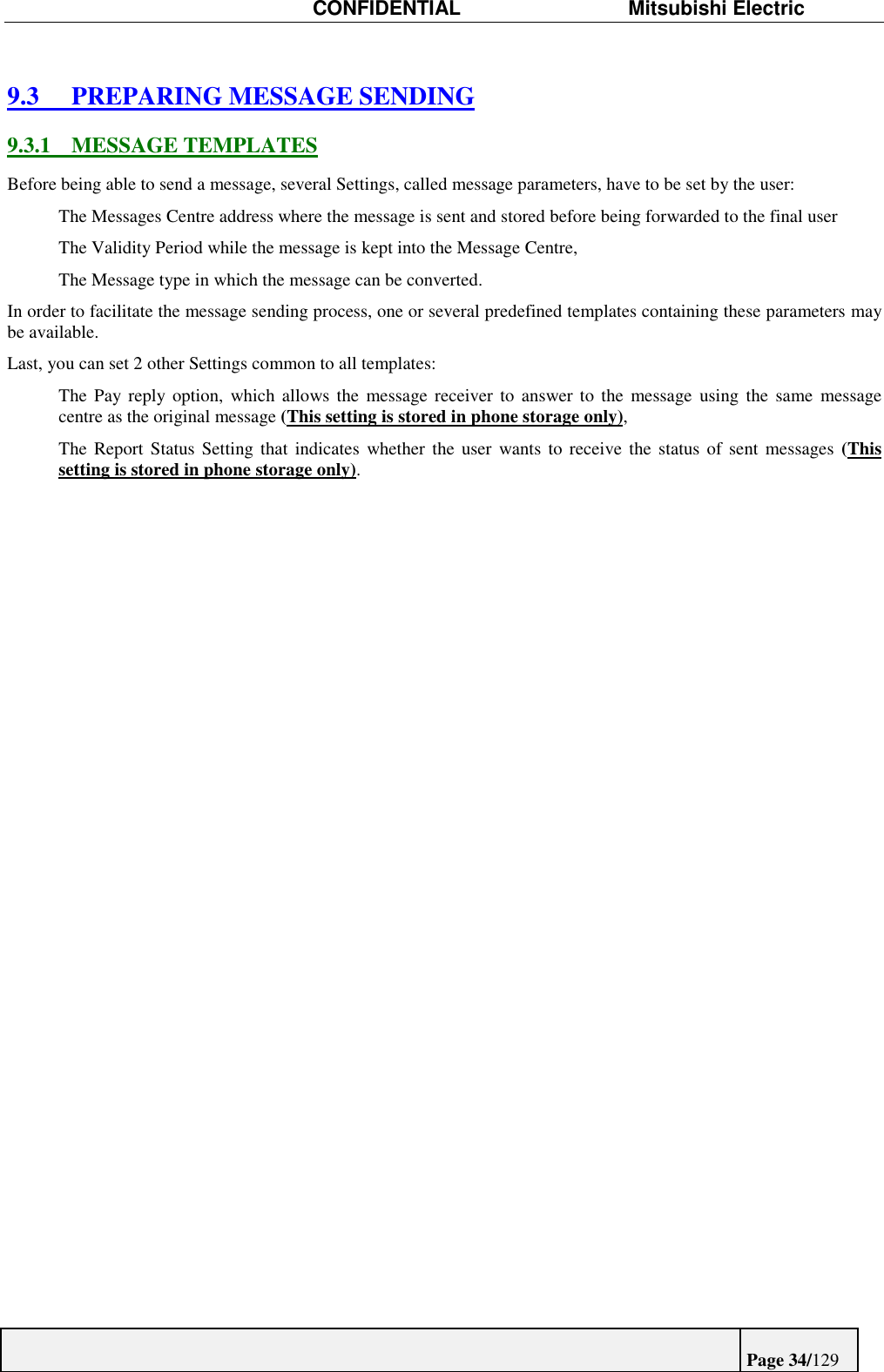

CONFIDENTIAL Mitsubishi ElectricPage 34/1299.3 PREPARING MESSAGE SENDING9.3.1 MESSAGE TEMPLATESBefore being able to send a message, several Settings, called message parameters, have to be set by the user: The Messages Centre address where the message is sent and stored before being forwarded to the final user The Validity Period while the message is kept into the Message Centre, The Message type in which the message can be converted.In order to facilitate the message sending process, one or several predefined templates containing these parameters maybe available.Last, you can set 2 other Settings common to all templates: The Pay reply option, which allows the message receiver to answer to the message using the same messagecentre as the original message (This setting is stored in phone storage only), The Report Status Setting that indicates whether the user wants to receive the status of sent messages (Thissetting is stored in phone storage only).
CONFIDENTIAL Mitsubishi ElectricPage 35/1299.3.1.1 ONLY ONE TEMPLATE AVAILABLEIf the SIM contains no template file (SIM EFSMSP), the template storage is the one of the phone, otherwise the SIM fileis used only. In this case, the menu structure shows directly all the template parameters.To set the different parameters, select “Settings” from the “Messages ” menu and press Select softkey. The followingmenu is displayed:Message CentreValidityFormatReply requestedSelect ExitMessages Settings menuThe only message template is displayed in details.Delivery reportSelect ExitMessages Settings menu9.3.1.1.1 Set Message CentreThe message centre can be preset by the operator/service provider in the SIM or has to be entered once by the user. Thisinformation is mandatory to send messages.The stored value is used each time a message is sent. In case of empty value, the information is requested during thesending process and stored in the parameter automatically.No factory default value defined.Message CentreValidityFormatReply requestedSelect ExitMessages Settings menuSelect Validates Message centreMessage Centre|Names ExitMessages centre entryPhone number editorNo address already setThe phone books can be accessed to choose a number via the Names softkey+3312345678 Message centre address entryMessage Centre+3312345678|Ok ClearMessages centre entryPhone number editorOk Entry validationMessage CentreValidityFormatReply requestedSelect ExitMessages Settings menu
CONFIDENTIAL Mitsubishi ElectricPage 36/1299.3.1.1.2 Set Validity PeriodA sent message is first stored in a message centre and then forwarded to the destination address. If the message cannotbe delivered at the first attempt, it is retained in the message centre during a delay called the "validity period".The validity period can be preset by the operator/service provider in the SIM or has to be entered once by the user if thedefault value “Maximum” is not suitable for her.Predefined values are proposed: 12 hours, 1 day, 2 days and maximum. This validity period will be used by default eachtime a message will be sent.The factory default value is Maximum.Message CentreValidityFormatReply requestedSelect ExitMessages Settings menuSelect Validates ValidityValidity period:12 h1 day2 daysSelect ExitValidity period menu Select 2 days Validity period is selectedMessage CentreValidityFormatReply requestedSelect ExitMessages Settings menu
CONFIDENTIAL Mitsubishi ElectricPage 37/1299.3.1.1.3 Set Message typeA message is usually sent in a text format to another mobile but he can be sent to other kind of device in another formatas follows.The format can be preset by the operator/service provider in the SIM or has to be entered once by the user. Predefinedvalues are proposed: Text, Voice, e: mail, Fax and Paging. This format will be used by default each time a message willbe sent. The factory default value is "Text".Message CentreValidityFormatReply requestedSelect ExitMessages Settings menuSelect Validates Message typeFormat:TextVoiceFAXSelect ExitMessage format menuSelect Validates FAX formatMessage CentreValidityMessage typeGateway addressSelect ExitMessages Settings menu
CONFIDENTIAL Mitsubishi ElectricPage 38/1299.3.1.1.4 Relpy requestThis Setting, when activated, sets a corresponding information in each sent message. The receiver of such a messagecan then use the same messages centre as the sender to reply to the message. This could be useful to receive replieswhen you do not know whether the addressee knows a message centre or not. Another consequence is that, generally,the reply is charged to the original message sender. This setting is stored in phone non-volatile memory and is used eachtime a message is sent.The factory default value is "Off".Reply requestedDelivery reportSelect ExitMessages Settings menuSelect Validates Pay replyRep. requested?OnOffSelect ExitReply path question:The current Setting is shownSelect Validates On choiceReply requestedDelivery reportSelect ExitMessages Settings menu
CONFIDENTIAL Mitsubishi ElectricPage 39/1299.3.1.1.5 Set Delivery reportThis Setting, when activated, asks the network to send one or several status reports for each sent message. This settingis stored in phone non-volatile memory and is used by default each time a message is sent.The factory default value is "Off".Reply requestedDelivery reportSelect ExitMessages Settings menuSelect Validates Delivery reportDelivery report:OnOffSelect ExitStatus report question:The current Setting is shownSelect Validates On choiceReply requestedDelivery reportSelect ExitMessages Settings menu

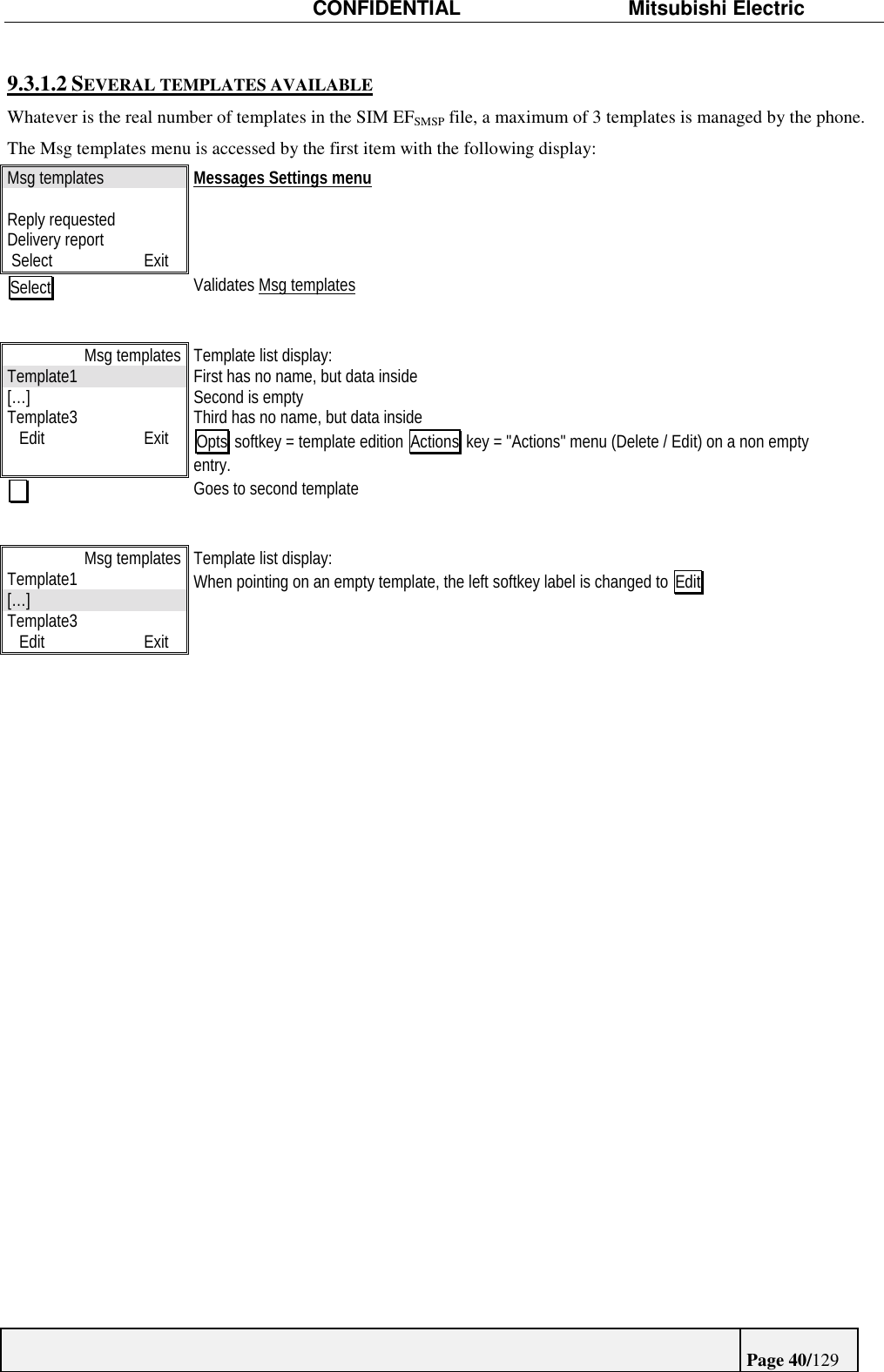

CONFIDENTIAL Mitsubishi ElectricPage 40/1299.3.1.2 SEVERAL TEMPLATES AVAILABLEWhatever is the real number of templates in the SIM EFSMSP file, a maximum of 3 templates is managed by the phone.The Msg templates menu is accessed by the first item with the following display:Msg templatesReply requestedDelivery reportSelect ExitMessages Settings menuSelect Validates Msg templatesMsg templatesTemplate1[…]Template3Edit ExitTemplate list display:First has no name, but data insideSecond is emptyThird has no name, but data insideOpts softkey = template edition Actions key = "Actions" menu (Delete / Edit) on a non emptyentry.Goes to second templateMsg templatesTemplate1[…]Template3Edit ExitTemplate list display:When pointing on an empty template, the left softkey label is changed to Edit

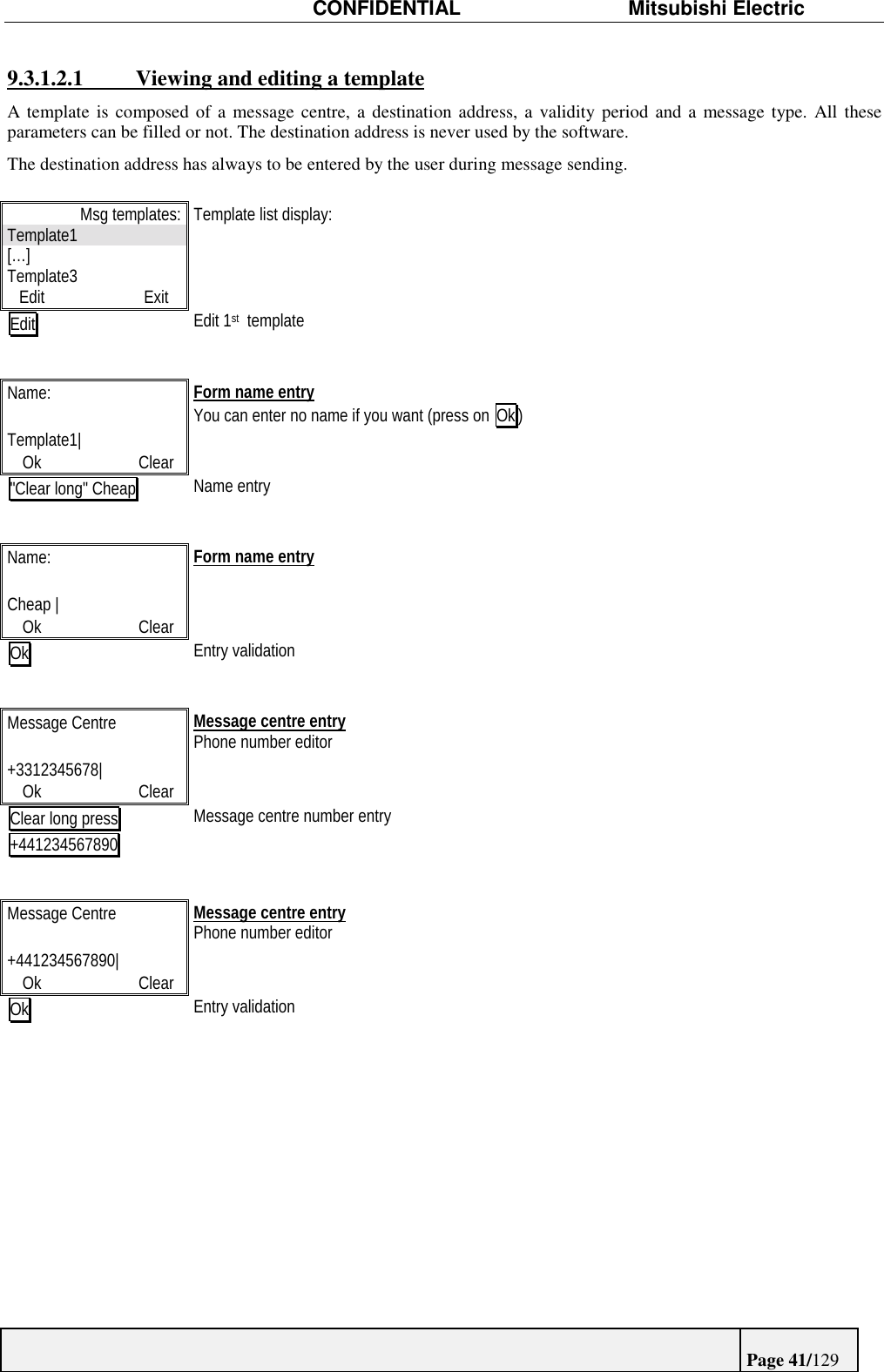

CONFIDENTIAL Mitsubishi ElectricPage 41/1299.3.1.2.1 Viewing and editing a templateA template is composed of a message centre, a destination address, a validity period and a message type. All theseparameters can be filled or not. The destination address is never used by the software.The destination address has always to be entered by the user during message sending.Msg templates:Template1[…]Template3Edit ExitTemplate list display:Edit Edit 1st templateName:Template1|Ok ClearForm name entryYou can enter no name if you want (press on Ok)"Clear long" Cheap Name entryName:Cheap |Ok ClearForm name entryOk Entry validationMessage Centre+3312345678|Ok ClearMessage centre entryPhone number editorClear long press+441234567890Message centre number entryMessage Centre+441234567890|Ok ClearMessage centre entryPhone number editorOk Entry validation
CONFIDENTIAL Mitsubishi ElectricPage 42/129Validity period:12 h1 day2 daysSelect ExitValidity period menuSelect Select 12 hours validity periodMessage type:TextVoiceE: mailSelect ExitMessage format menuYou can choose the message type in (Text, Voice, e: mail, fax and paging)When choosing e: mail, the gateway address will be requested after this screenSelect Select e: mail formatGateway address+33112233445566Ok ClearGateway address entry (Screen shown only when an e: mail template is beingcreated/modified.)This field requested only because we enter an e: mail templatePhone number editorClear long press+44112233445566Gateway address entryGateway address+44112233445566|Ok ClearGateway address entryPhone number editorOk Entry validationStoredExitInformation2 second displayRight softkey Exits from the screenMsg templates:Cheap[…]Template3Edit ExitMessages Settings menuThe Cheap template appears now.9.3.1.2.2 Creating a new templateThe behaviour is the same, but all initial entries are empty.

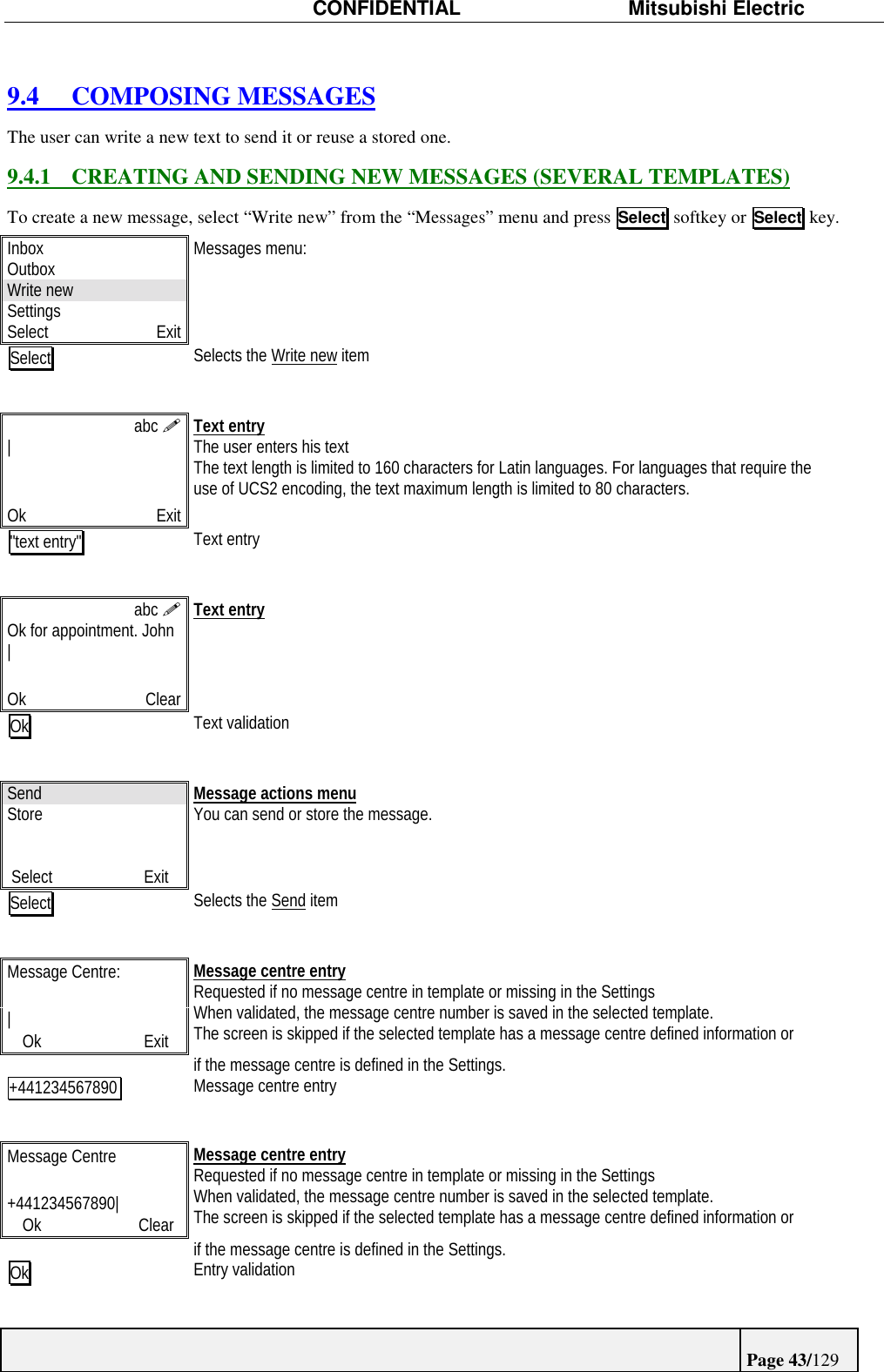

CONFIDENTIAL Mitsubishi ElectricPage 43/1299.4 COMPOSING MESSAGESThe user can write a new text to send it or reuse a stored one.9.4.1 CREATING AND SENDING NEW MESSAGES (SEVERAL TEMPLATES)To create a new message, select “Write new” from the “Messages” menu and press Select softkey or Select key.InboxOutboxWrite newSettingsSelect ExitMessages menu:Select Selects the Write new itemabc |Ok ExitText entryThe user enters his textThe text length is limited to 160 characters for Latin languages. For languages that require theuse of UCS2 encoding, the text maximum length is limited to 80 characters."text entry" Text entryabc Ok for appointment. John|Ok ClearText entryOk Text validationSendStoreSelect ExitMessage actions menuYou can send or store the message.Select Selects the Send itemMessage Centre:|Ok ExitMessage centre entryRequested if no message centre in template or missing in the SettingsWhen validated, the message centre number is saved in the selected template.The screen is skipped if the selected template has a message centre defined information orif the message centre is defined in the Settings.+441234567890 Message centre entryMessage Centre+441234567890|Ok ClearMessage centre entryRequested if no message centre in template or missing in the SettingsWhen validated, the message centre number is saved in the selected template.The screen is skipped if the selected template has a message centre defined information orif the message centre is defined in the Settings.Ok Entry validation

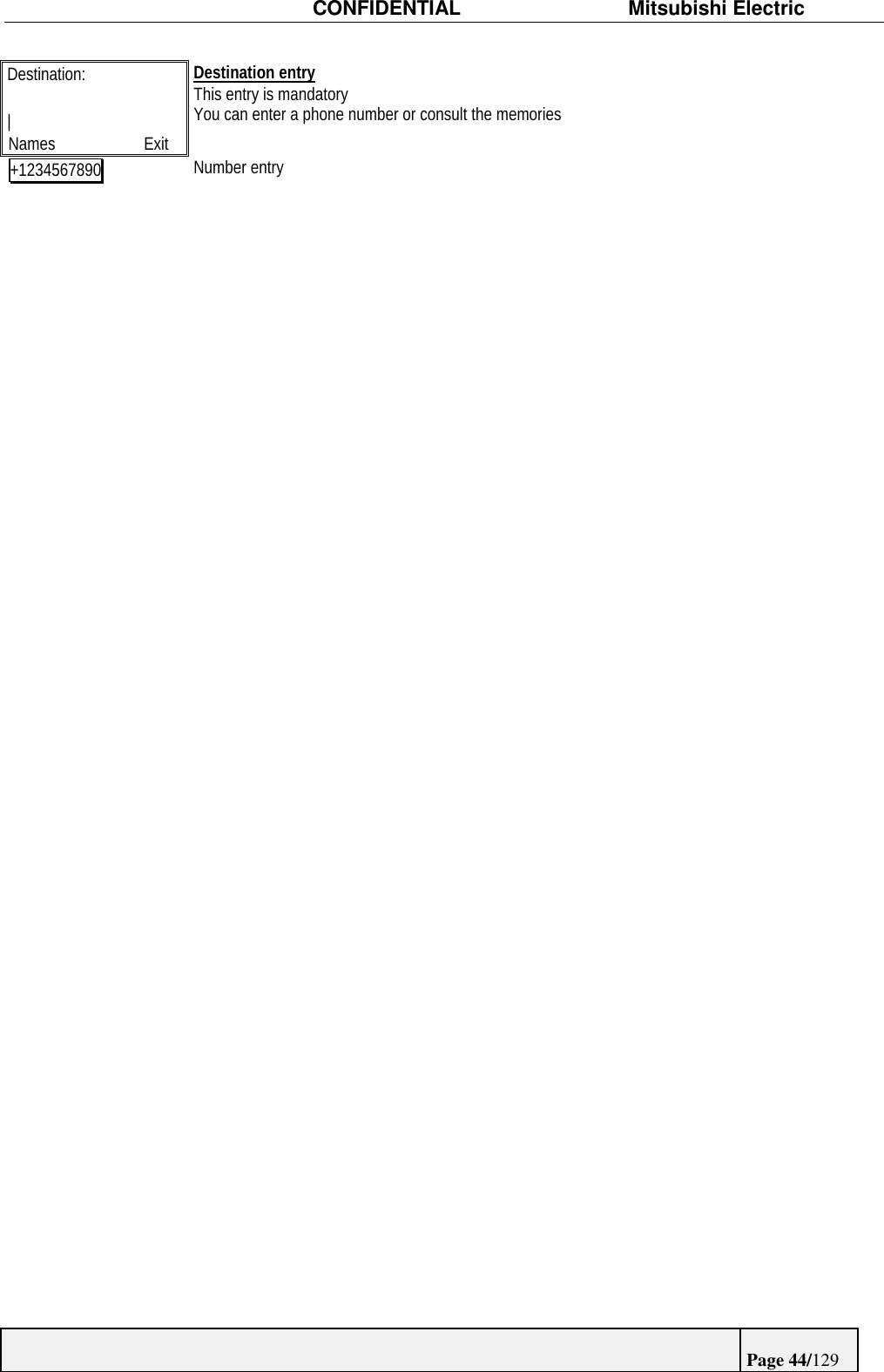

CONFIDENTIAL Mitsubishi ElectricPage 44/129Destination:|Names ExitDestination entryThis entry is mandatoryYou can enter a phone number or consult the memories+1234567890 Number entry

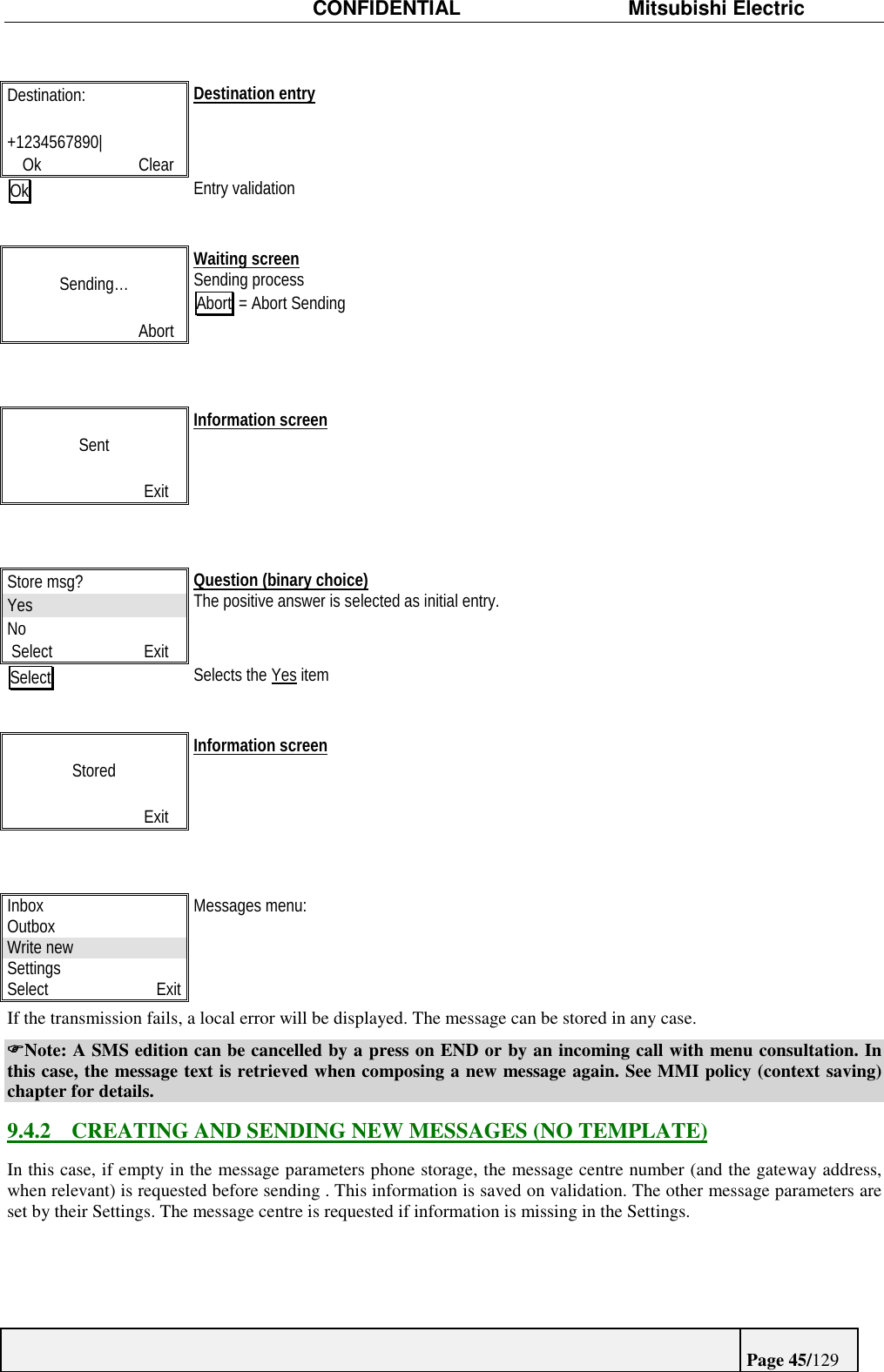

CONFIDENTIAL Mitsubishi ElectricPage 45/129Destination:+1234567890|Ok ClearDestination entryOk Entry validationSending…AbortWaiting screenSending processAbort = Abort SendingSentExitInformation screenStore msg?YesNoSelect ExitQuestion (binary choice)The positive answer is selected as initial entry.Select Selects the Yes itemStoredExitInformation screenInboxOutboxWrite newSettingsSelect ExitMessages menu:If the transmission fails, a local error will be displayed. The message can be stored in any case.Note: A SMS edition can be cancelled by a press on END or by an incoming call with menu consultation. Inthis case, the message text is retrieved when composing a new message again. See MMI policy (context saving)chapter for details.9.4.2 CREATING AND SENDING NEW MESSAGES (NO TEMPLATE)In this case, if empty in the message parameters phone storage, the message centre number (and the gateway address,when relevant) is requested before sending . This information is saved on validation. The other message parameters areset by their Settings. The message centre is requested if information is missing in the Settings.

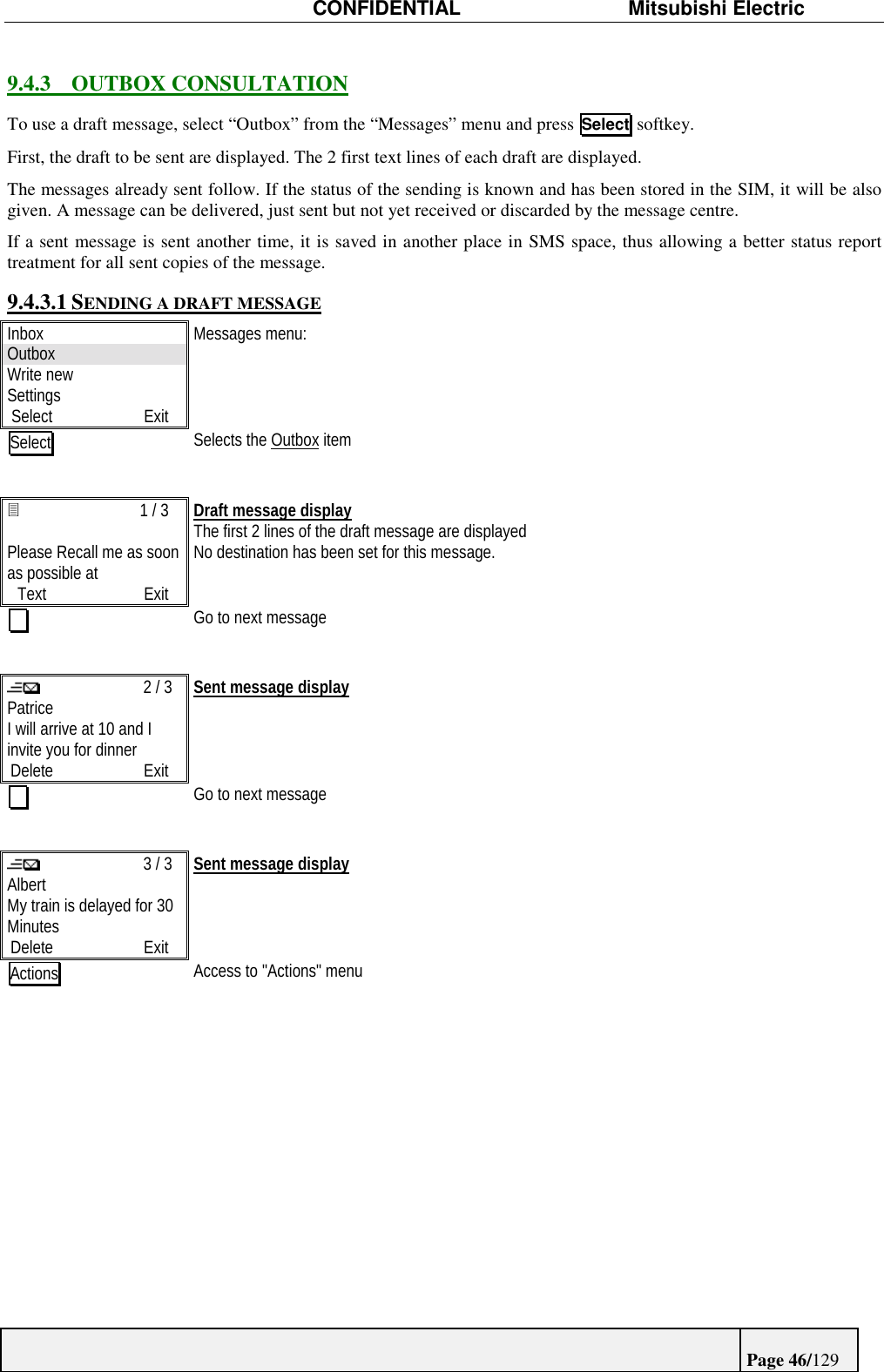

CONFIDENTIAL Mitsubishi ElectricPage 46/1299.4.3 OUTBOX CONSULTATIONTo use a draft message, select “Outbox” from the “Messages” menu and press Select softkey.First, the draft to be sent are displayed. The 2 first text lines of each draft are displayed.The messages already sent follow. If the status of the sending is known and has been stored in the SIM, it will be alsogiven. A message can be delivered, just sent but not yet received or discarded by the message centre.If a sent message is sent another time, it is saved in another place in SMS space, thus allowing a better status reporttreatment for all sent copies of the message.9.4.3.1 SENDING A DRAFT MESSAGEInboxOutboxWrite newSettingsSelect ExitMessages menu:Select Selects the Outbox item3 1 / 3Please Recall me as soonas possible atText ExitDraft message displayThe first 2 lines of the draft message are displayedNo destination has been set for this message.Go to next message 2 / 3PatriceI will arrive at 10 and Iinvite you for dinnerDelete ExitSent message displayGo to next message 3 / 3AlbertMy train is delayed for 30MinutesDelete ExitSent message displayActions Access to "Actions" menu

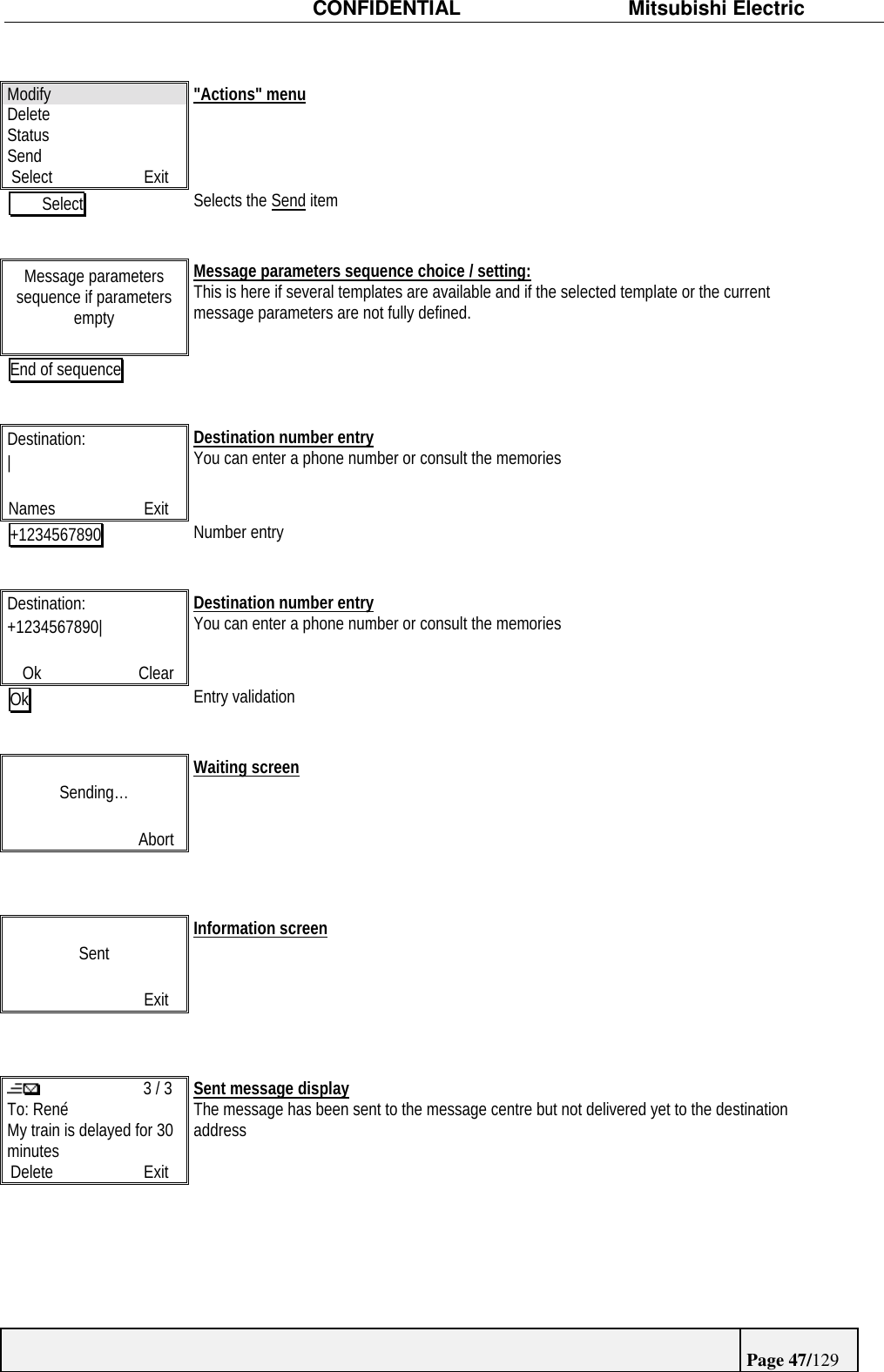

CONFIDENTIAL Mitsubishi ElectricPage 47/129ModifyDeleteStatusSendSelect Exit"Actions" menuSelect Selects the Send itemMessage parameterssequence if parametersemptyMessage parameters sequence choice / setting:This is here if several templates are available and if the selected template or the currentmessage parameters are not fully defined.End of sequenceDestination:|Names ExitDestination number entryYou can enter a phone number or consult the memories+1234567890 Number entryDestination:+1234567890|Ok ClearDestination number entryYou can enter a phone number or consult the memoriesOk Entry validationSending…AbortWaiting screenSentExitInformation screen 3 / 3To: RenéMy train is delayed for 30minutesDelete ExitSent message displayThe message has been sent to the message centre but not delivered yet to the destinationaddress

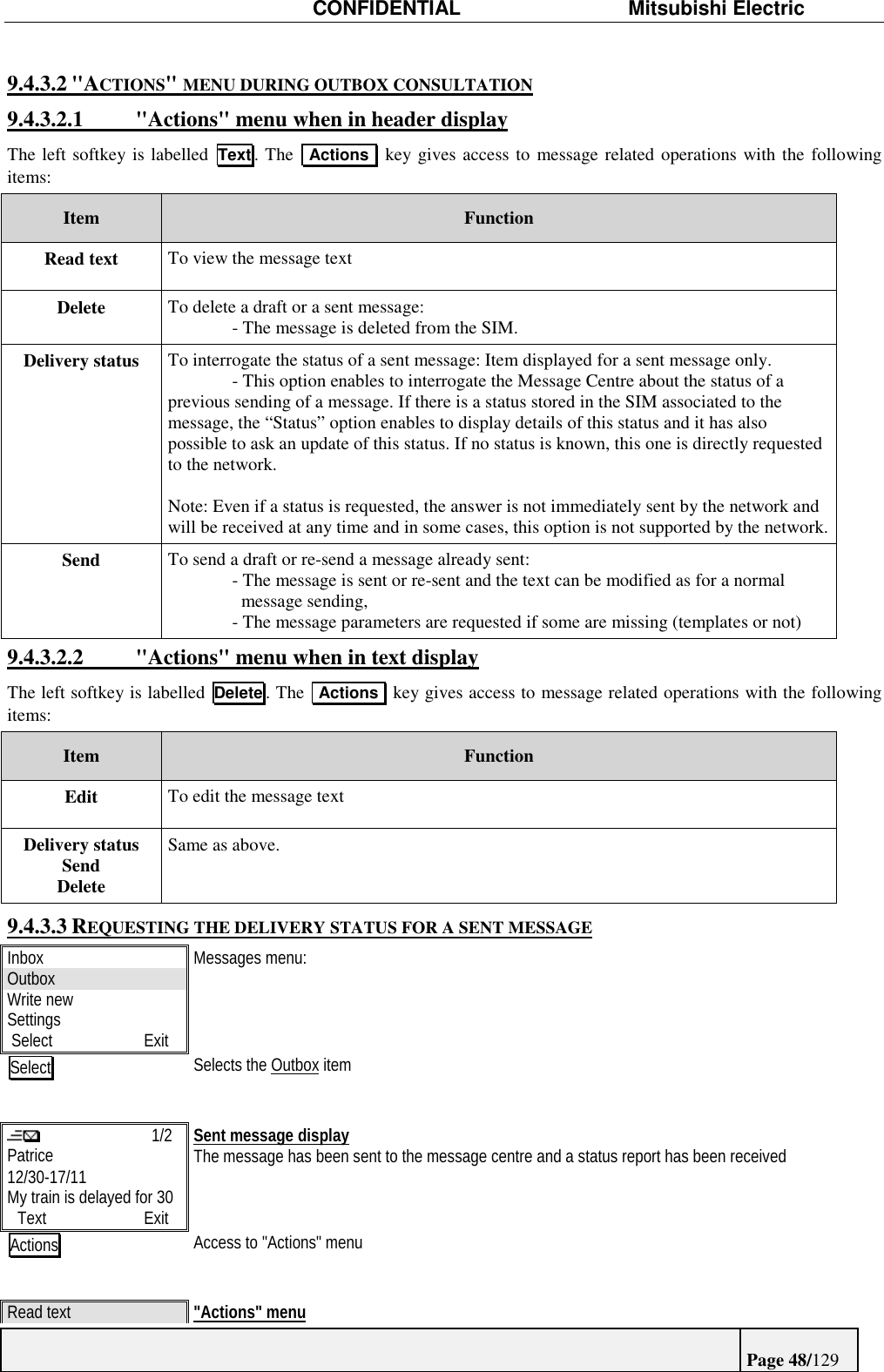

CONFIDENTIAL Mitsubishi ElectricPage 48/1299.4.3.2 "ACTIONS" MENU DURING OUTBOX CONSULTATION9.4.3.2.1 "Actions" menu when in header displayThe left softkey is labelled Text . The Actions key gives access to message related operations with the followingitems:Item FunctionRead text To view the message textDelete To delete a draft or a sent message:- The message is deleted from the SIM.Delivery status To interrogate the status of a sent message: Item displayed for a sent message only.- This option enables to interrogate the Message Centre about the status of aprevious sending of a message. If there is a status stored in the SIM associated to themessage, the “Status” option enables to display details of this status and it has alsopossible to ask an update of this status. If no status is known, this one is directly requestedto the network.Note: Even if a status is requested, the answer is not immediately sent by the network andwill be received at any time and in some cases, this option is not supported by the network.Send To send a draft or re-send a message already sent:- The message is sent or re-sent and the text can be modified as for a normal message sending,- The message parameters are requested if some are missing (templates or not)9.4.3.2.2 "Actions" menu when in text displayThe left softkey is labelled Delete . The Actions key gives access to message related operations with the followingitems:Item FunctionEdit To edit the message textDelivery statusSendDeleteSame as above.9.4.3.3 REQUESTING THE DELIVERY STATUS FOR A SENT MESSAGEInboxOutboxWrite newSettingsSelect ExitMessages menu:Select Selects the Outbox item 1/2Patrice12/30-17/11My train is delayed for 30Text ExitSent message displayThe message has been sent to the message centre and a status report has been receivedActions Access to "Actions" menuRead text "Actions" menu

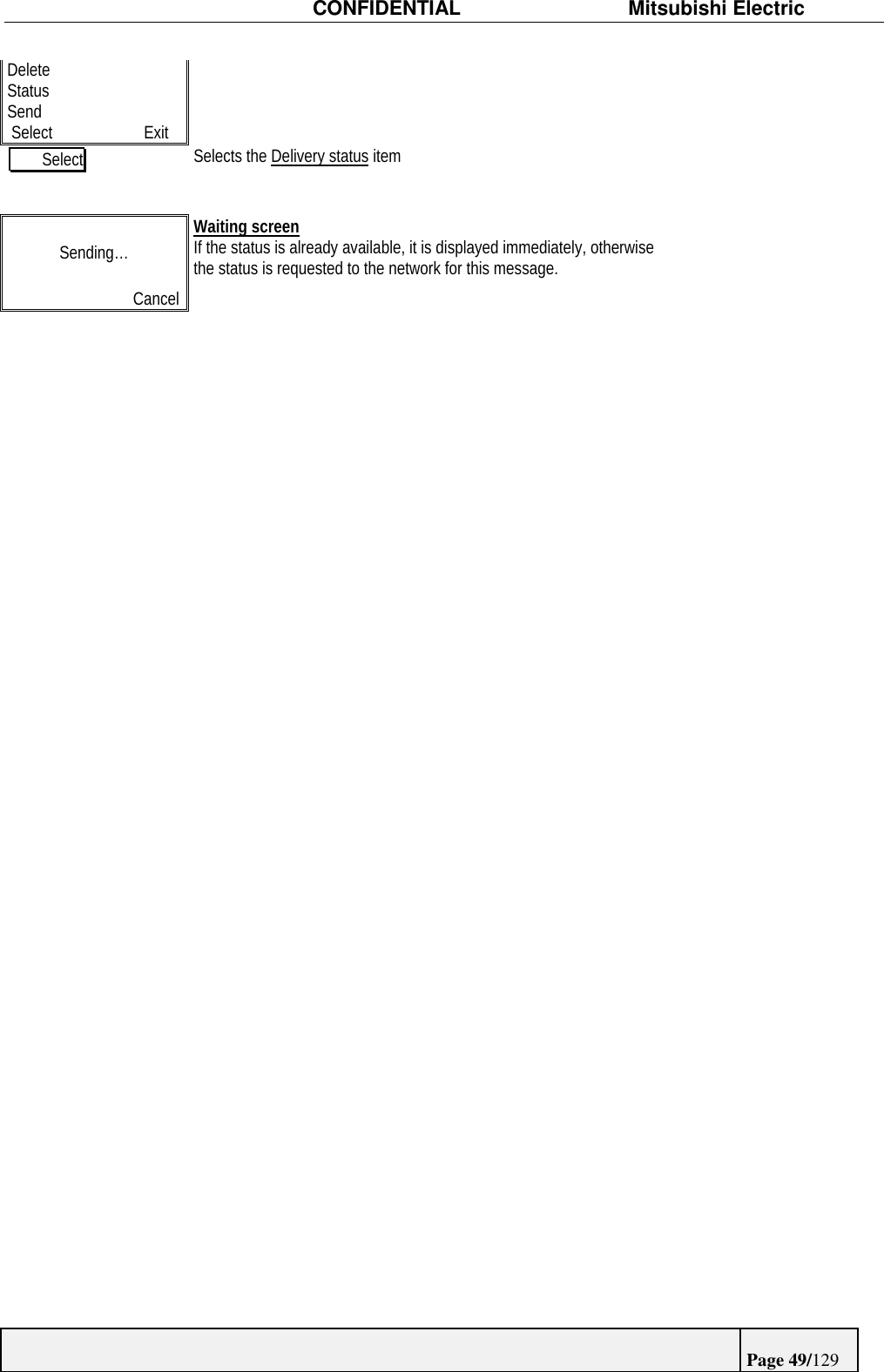

CONFIDENTIAL Mitsubishi ElectricPage 49/129DeleteStatusSendSelect ExitSelect Selects the Delivery status itemSending…CancelWaiting screenIf the status is already available, it is displayed immediately, otherwisethe status is requested to the network for this message.

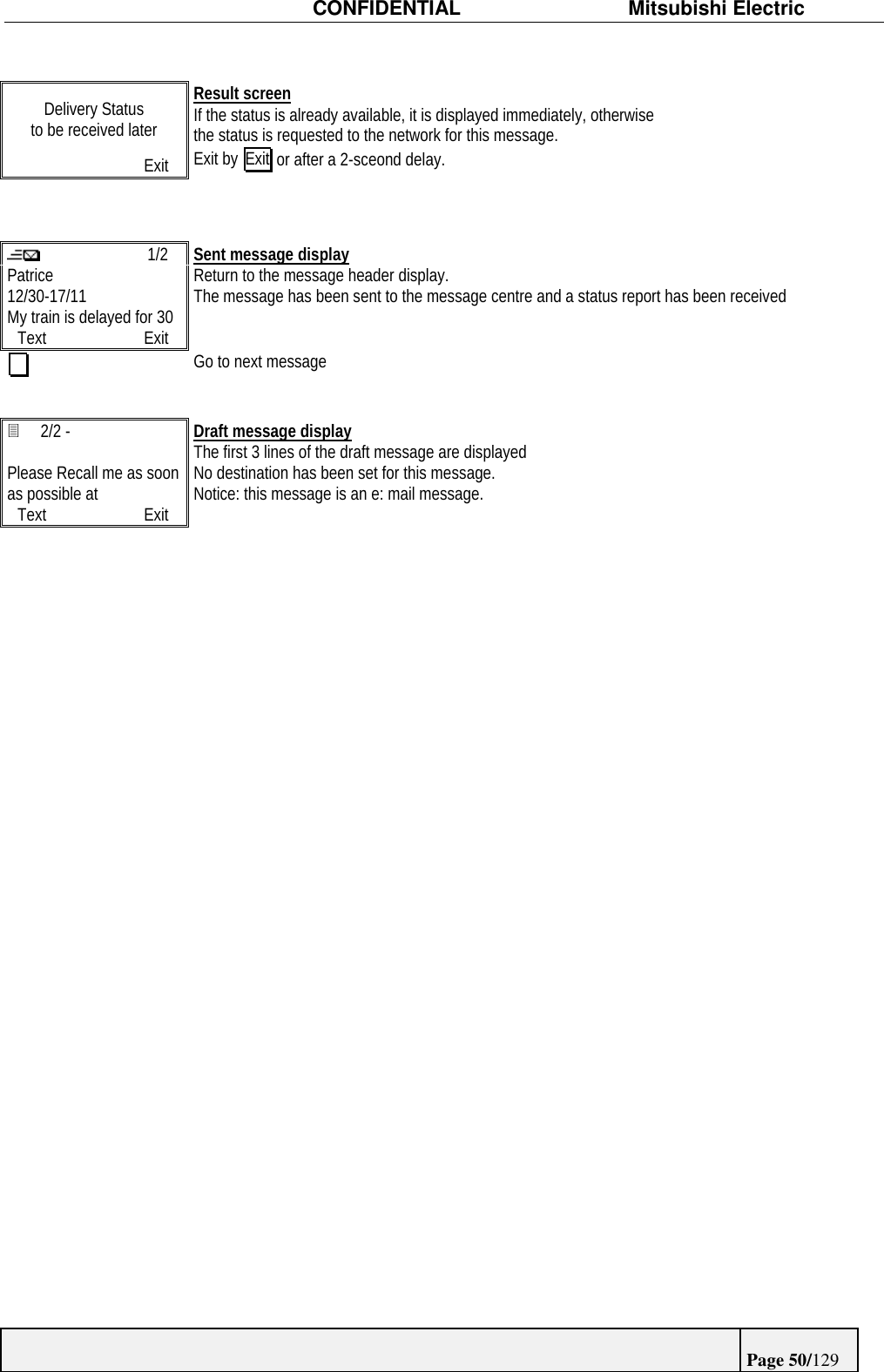

CONFIDENTIAL Mitsubishi ElectricPage 50/129Delivery Statusto be received laterExitResult screenIf the status is already available, it is displayed immediately, otherwisethe status is requested to the network for this message.Exit by Exit or after a 2-sceond delay. 1/2Patrice12/30-17/11My train is delayed for 30Text ExitSent message displayReturn to the message header display.The message has been sent to the message centre and a status report has been receivedGo to next message3 2/2 -Please Recall me as soonas possible atText ExitDraft message displayThe first 3 lines of the draft message are displayedNo destination has been set for this message.Notice: this message is an e: mail message.
CONFIDENTIAL Mitsubishi ElectricPage 51/1299.5 RECEIVING STATUS REPORTS FOR SENT MESSAGES9.5.1 GENERALWhen a message has been sent, and if a report has been requested at the time of sending, the delivery status is sent backby the network later.A delivery status report can be requested:• at message sending, using the corresponding Setting,• by a separate request, when consulting sent messages.In response, the network sends back later a Delivery status report (DSR), in an asynchronous way.9.5.2 STATUS REPORT MESSAGE DISPLAYThe SR content is displayed as soon as the phone returns in Idle state. A " AUDIO_SMS_TONE " is played at the time ofdisplay. Using the SR essential information, a summary information is displayed to the user. The whole information isdisplayed in one screen.9.5.3 USER ACTIONSThe SR is acknowledged using the Exit softkey. The Delete softkey allows to directly acknowledge the SR, delete thecorresponding sent message and the status reportIf the corresponding sent message is stored in the SMS storage, the Actions key allows to perform the followingactions:Item Condition for display ActionView msg The corresponding sent message is in SMSstorage To see the related Sent SMS messageDelete None To acknowledge the status reportthe action has to be confirmed by the user.the message and the status report are deletedfrom the SMS storage.9.5.4 STATUS REPORTS EXAMPLES9.5.4.1 THE SENT MESSAGE IS STORED IN THE SMS STORAGEIdle screenMelody LockIdle screen display"Status report reception" A status report is receivedPMessage toPatriceDelivered the13/01/99 – 14:00Delete ExitStatus report displayThe "AUDIO_SMS_TONE" tone is played at the same time as displayThe report indicates that a message has been delivered to Patrice at 14:00 the 13/01/99.Exit = leave the display. The sent message and SR remain stored.The Delete softkey acknowledges the SR (deletion of the status report and sent message fromthe SMS storage (a confirmation is asked to perform the action). Actions allows to see thecorresponding sent message and also to acknowledge the SR.

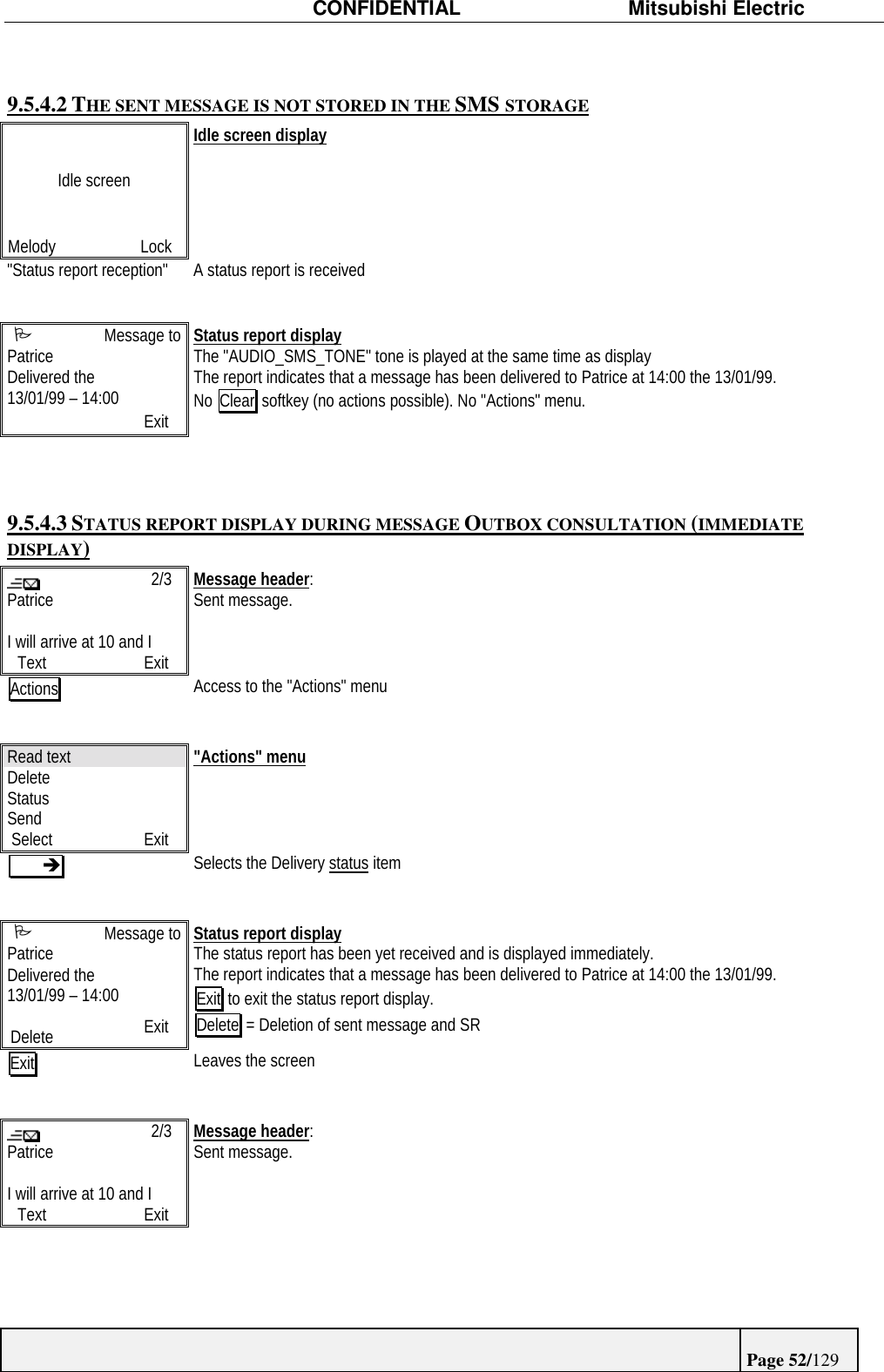

CONFIDENTIAL Mitsubishi ElectricPage 52/1299.5.4.2 THE SENT MESSAGE IS NOT STORED IN THE SMS STORAGEIdle screenIdle screen displayMelody Lock"Status report reception" A status report is receivedPMessage toPatriceDelivered the13/01/99 – 14:00 ExitStatus report displayThe "AUDIO_SMS_TONE" tone is played at the same time as displayThe report indicates that a message has been delivered to Patrice at 14:00 the 13/01/99.No Clear softkey (no actions possible). No "Actions" menu.9.5.4.3 STATUS REPORT DISPLAY DURING MESSAGE OUTBOX CONSULTATION (IMMEDIATEDISPLAY)2/3PatriceI will arrive at 10 and IText ExitMessage header:Sent message.Actions Access to the "Actions" menuRead text "Actions" menuDeleteStatusSendSelect ExitèSelects the Delivery status itemPMessage toPatriceDelivered the13/01/99 – 14:00Delete ExitStatus report displayThe status report has been yet received and is displayed immediately.The report indicates that a message has been delivered to Patrice at 14:00 the 13/01/99.Exit to exit the status report display.Delete = Deletion of sent message and SRExit Leaves the screen2/3PatriceI will arrive at 10 and IText ExitMessage header:Sent message.

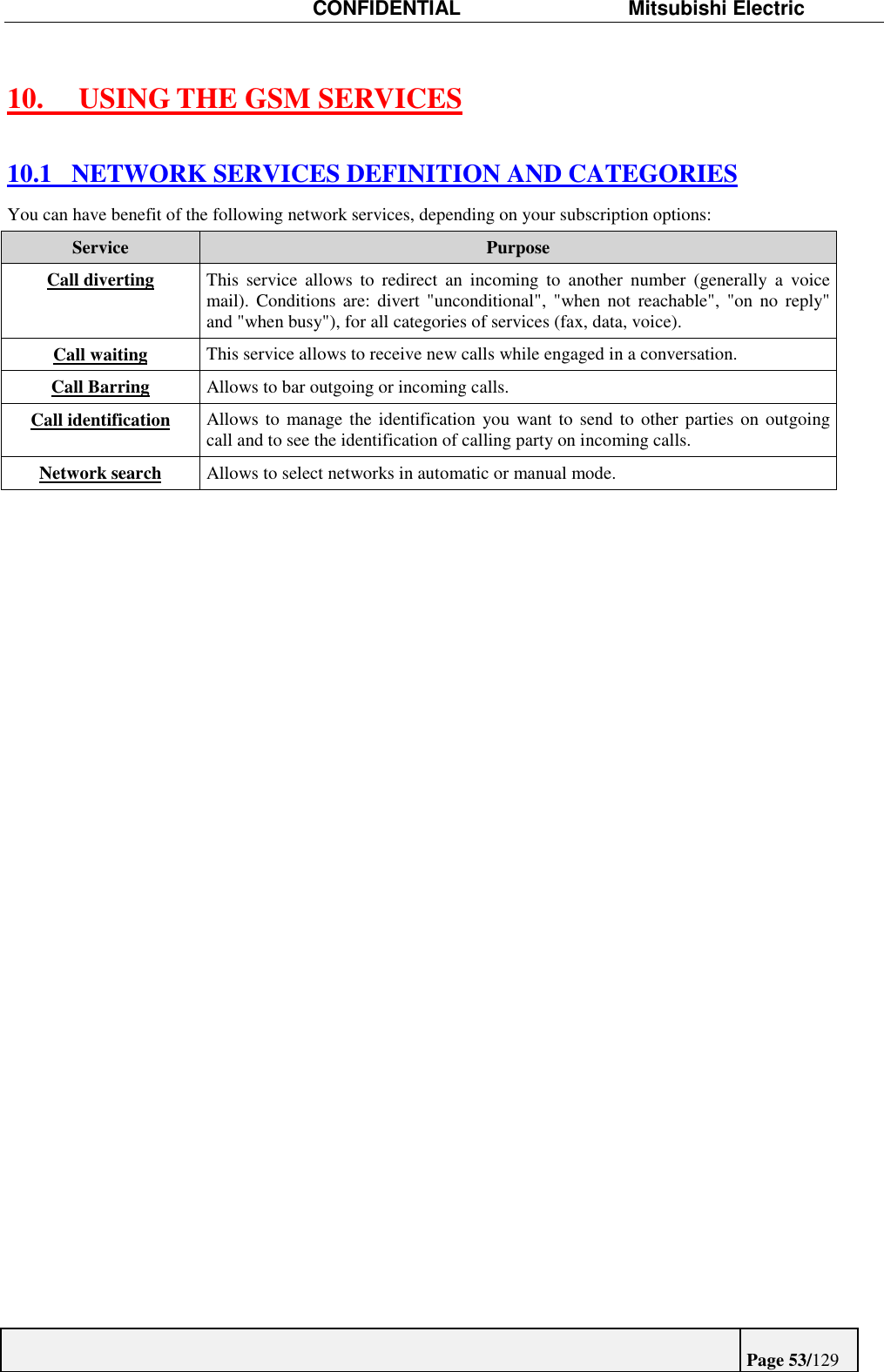

CONFIDENTIAL Mitsubishi ElectricPage 53/12910. USING THE GSM SERVICES10.1 NETWORK SERVICES DEFINITION AND CATEGORIESYou can have benefit of the following network services, depending on your subscription options:Service PurposeCall diverting This service allows to redirect an incoming to another number (generally a voicemail). Conditions are: divert "unconditional", "when not reachable", "on no reply"and "when busy"), for all categories of services (fax, data, voice).Call waiting This service allows to receive new calls while engaged in a conversation.Call Barring Allows to bar outgoing or incoming calls.Call identification Allows to manage the identification you want to send to other parties on outgoingcall and to see the identification of calling party on incoming calls.Network search Allows to select networks in automatic or manual mode.

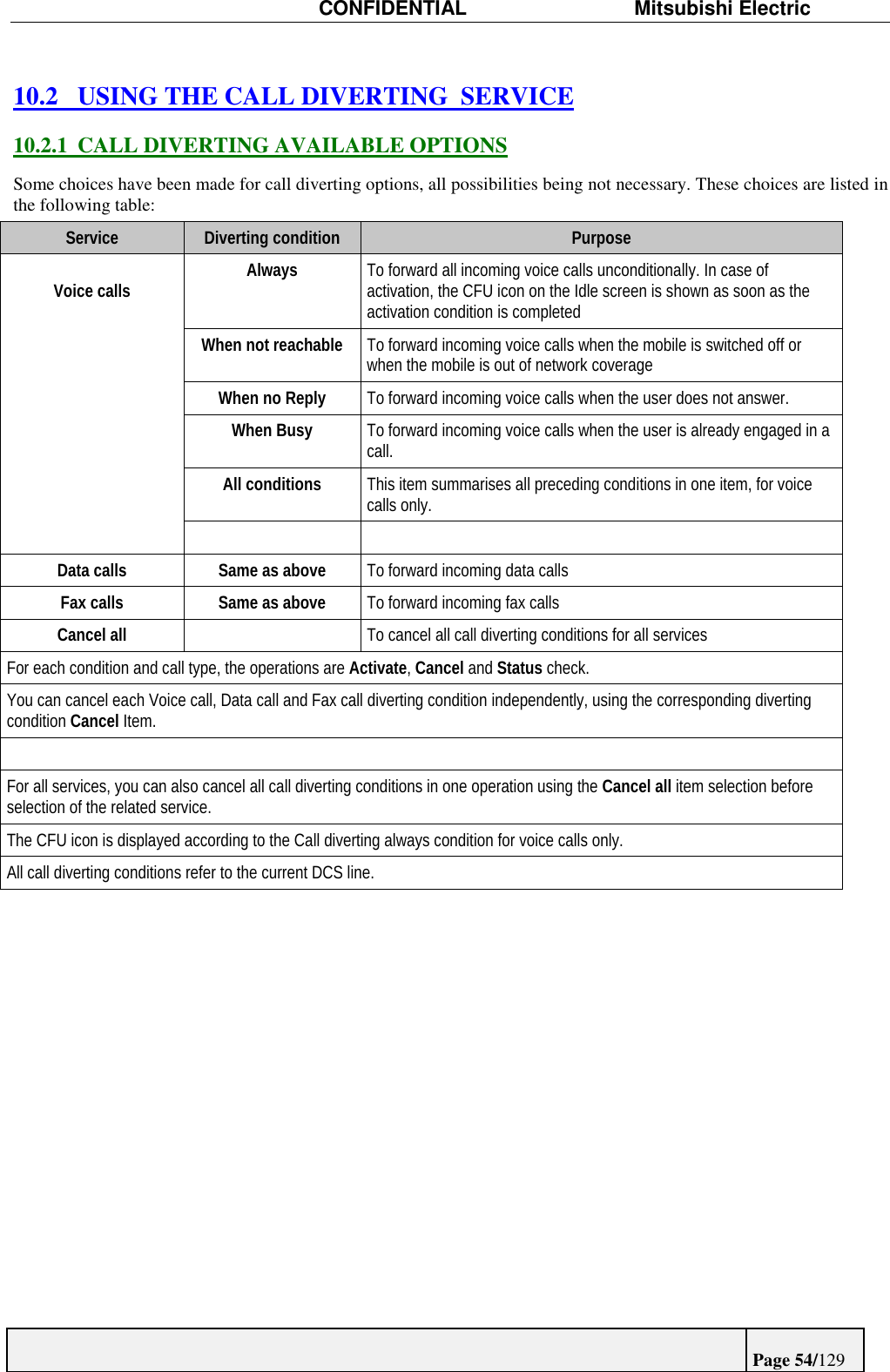

CONFIDENTIAL Mitsubishi ElectricPage 54/12910.2 USING THE CALL DIVERTING SERVICE10.2.1 CALL DIVERTING AVAILABLE OPTIONSSome choices have been made for call diverting options, all possibilities being not necessary. These choices are listed inthe following table:Service Diverting condition PurposeVoice calls Always To forward all incoming voice calls unconditionally. In case ofactivation, the CFU icon on the Idle screen is shown as soon as theactivation condition is completedWhen not reachable To forward incoming voice calls when the mobile is switched off orwhen the mobile is out of network coverageWhen no Reply To forward incoming voice calls when the user does not answer.When Busy To forward incoming voice calls when the user is already engaged in acall.All conditions This item summarises all preceding conditions in one item, for voicecalls only.Data calls Same as above To forward incoming data callsFax calls Same as above To forward incoming fax callsCancel all To cancel all call diverting conditions for all servicesFor each condition and call type, the operations are Activate, Cancel and Status check.You can cancel each Voice call, Data call and Fax call diverting condition independently, using the corresponding divertingcondition Cancel Item.For all services, you can also cancel all call diverting conditions in one operation using the Cancel all item selection beforeselection of the related service.The CFU icon is displayed according to the Call diverting always condition for voice calls only.All call diverting conditions refer to the current DCS line.

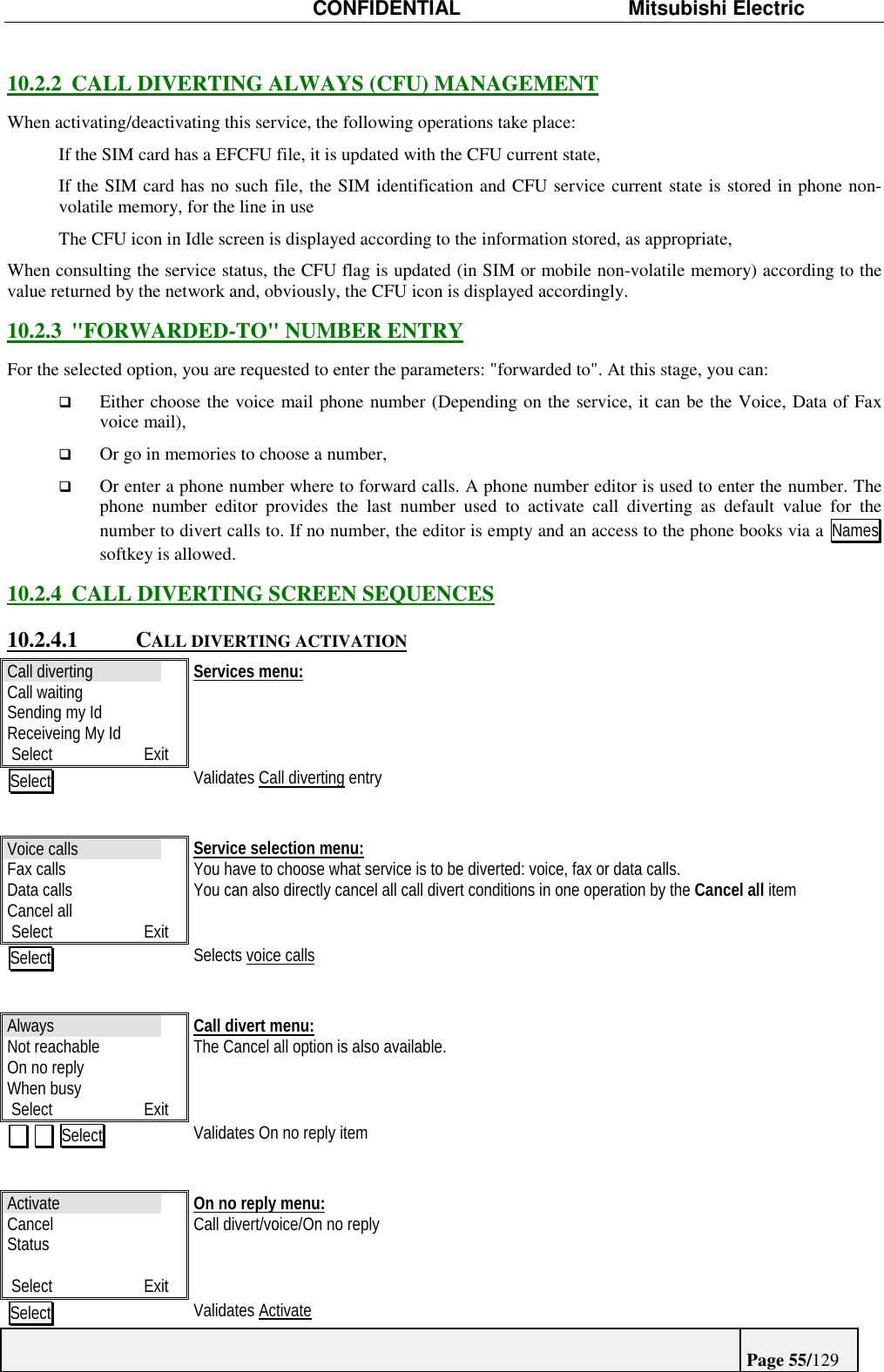

CONFIDENTIAL Mitsubishi ElectricPage 55/12910.2.2 CALL DIVERTING ALWAYS (CFU) MANAGEMENTWhen activating/deactivating this service, the following operations take place: If the SIM card has a EFCFU file, it is updated with the CFU current state, If the SIM card has no such file, the SIM identification and CFU service current state is stored in phone non-volatile memory, for the line in use The CFU icon in Idle screen is displayed according to the information stored, as appropriate,When consulting the service status, the CFU flag is updated (in SIM or mobile non-volatile memory) according to thevalue returned by the network and, obviously, the CFU icon is displayed accordingly.10.2.3 "FORWARDED-TO" NUMBER ENTRYFor the selected option, you are requested to enter the parameters: "forwarded to". At this stage, you can: Either choose the voice mail phone number (Depending on the service, it can be the Voice, Data of Faxvoice mail), Or go in memories to choose a number, Or enter a phone number where to forward calls. A phone number editor is used to enter the number. Thephone number editor provides the last number used to activate call diverting as default value for thenumber to divert calls to. If no number, the editor is empty and an access to the phone books via a Namessoftkey is allowed.10.2.4 CALL DIVERTING SCREEN SEQUENCES10.2.4.1 CALL DIVERTING ACTIVATIONCall divertingCall waitingSending my IdReceiveing My IdSelect ExitServices menu:Select Validates Call diverting entryVoice callsFax callsData callsCancel allSelect ExitService selection menu:You have to choose what service is to be diverted: voice, fax or data calls.You can also directly cancel all call divert conditions in one operation by the Cancel all itemSelect Selects voice callsAlwaysNot reachableOn no replyWhen busySelect ExitCall divert menu:The Cancel all option is also available. Select Validates On no reply itemActivateCancelStatusSelect ExitOn no reply menu:Call divert/voice/On no replySelect Validates Activate
CONFIDENTIAL Mitsubishi ElectricPage 56/129

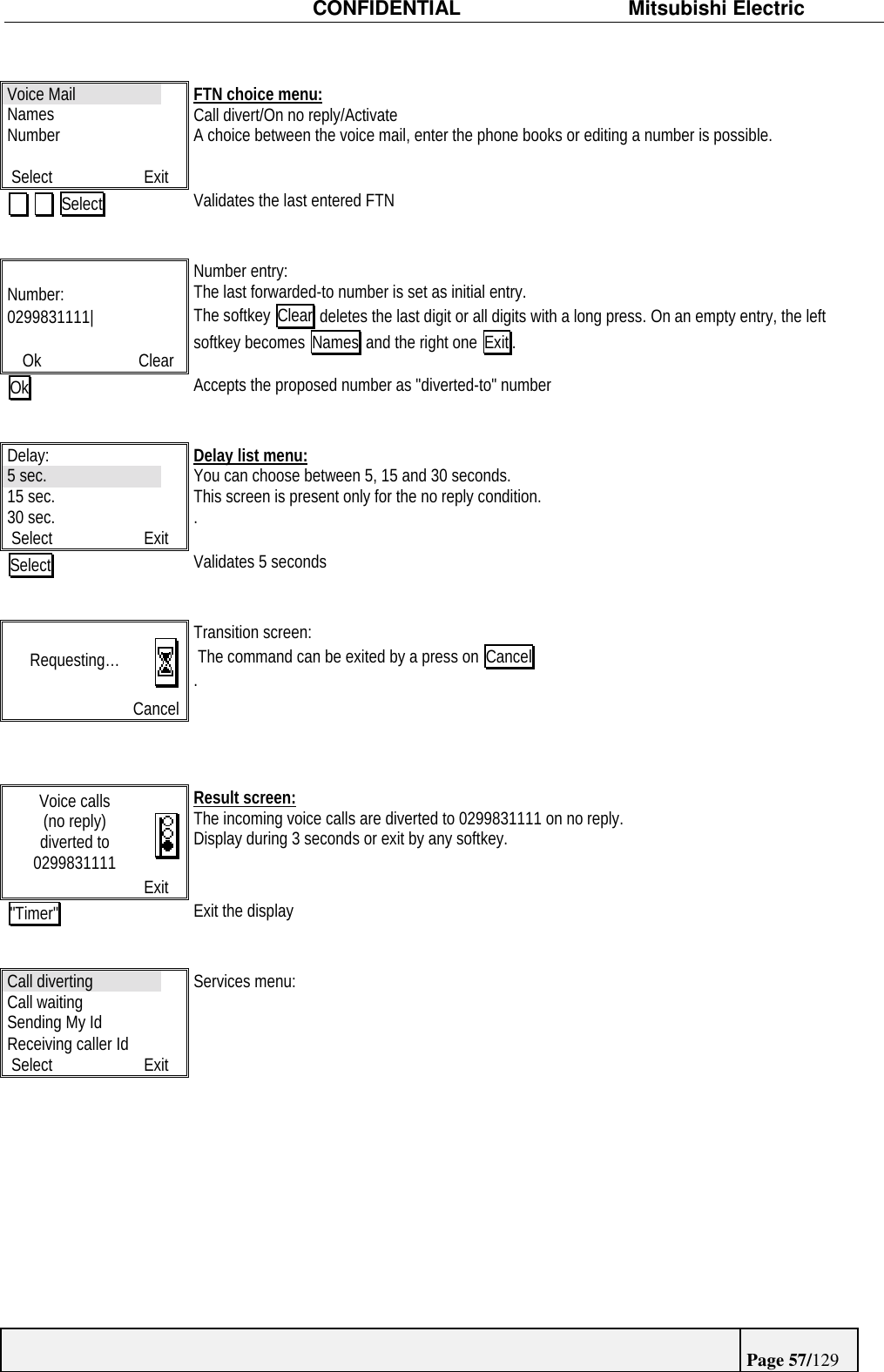

CONFIDENTIAL Mitsubishi ElectricPage 57/129Voice MailNamesNumberSelect ExitFTN choice menu:Call divert/On no reply/ActivateA choice between the voice mail, enter the phone books or editing a number is possible. Select Validates the last entered FTNNumber:0299831111|Ok ClearNumber entry:The last forwarded-to number is set as initial entry.The softkey Clear deletes the last digit or all digits with a long press. On an empty entry, the leftsoftkey becomes Names and the right one Exit.Ok Accepts the proposed number as "diverted-to" numberDelay:5 sec.15 sec.30 sec.Select ExitDelay list menu:You can choose between 5, 15 and 30 seconds.This screen is present only for the no reply condition..Select Validates 5 secondsRequesting…CancelTransition screen: The command can be exited by a press on Cancel.Voice calls(no reply)diverted to0299831111 ExitResult screen:The incoming voice calls are diverted to 0299831111 on no reply.Display during 3 seconds or exit by any softkey."Timer" Exit the displayCall divertingCall waitingSending My IdReceiving caller IdSelect ExitServices menu:

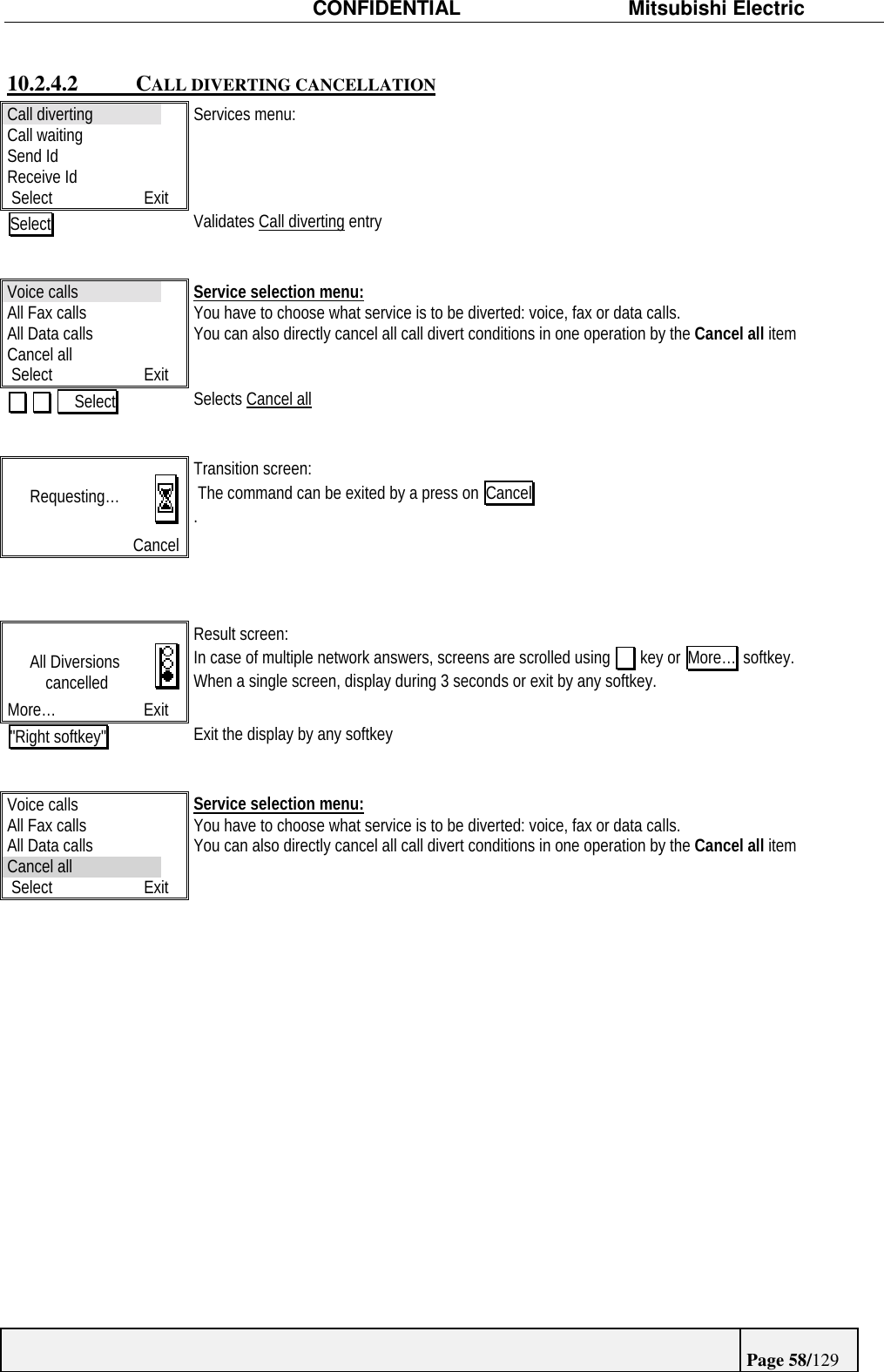

CONFIDENTIAL Mitsubishi ElectricPage 58/12910.2.4.2 CALL DIVERTING CANCELLATIONCall divertingCall waitingSend IdReceive IdSelect ExitServices menu:Select Validates Call diverting entryVoice callsAll Fax callsAll Data callsCancel allSelect ExitService selection menu:You have to choose what service is to be diverted: voice, fax or data calls.You can also directly cancel all call divert conditions in one operation by the Cancel all item Select Selects Cancel allRequesting…CancelTransition screen: The command can be exited by a press on Cancel.All Diversions cancelledMore… ExitResult screen:In case of multiple network answers, screens are scrolled using key or More… softkey.When a single screen, display during 3 seconds or exit by any softkey."Right softkey" Exit the display by any softkeyVoice callsAll Fax callsAll Data callsCancel allSelect ExitService selection menu:You have to choose what service is to be diverted: voice, fax or data calls.You can also directly cancel all call divert conditions in one operation by the Cancel all item
CONFIDENTIAL Mitsubishi ElectricPage 59/12910.3 USING THE CALL WAITING SERVICEThe service is available for voice calls only. You can activate, cancel and check the service status.Call divertingCall waitingSending My IdReceiving caller IdSelect ExitServices menu:Select Validates Call waiting entryActivateCancelStatusSelect ExitCall waiting menu:Call waitingSelect Validates activateRequesting…CancelTransition screen:The command can be exited by a press on Cancel.Call waitingactivatedExitResult screen:.Exit Exit the display by any softkeyCall divertingCall waitingSending My IdReceiving caller IdSelect ExitServices menu:Select Validates Call waiting entry

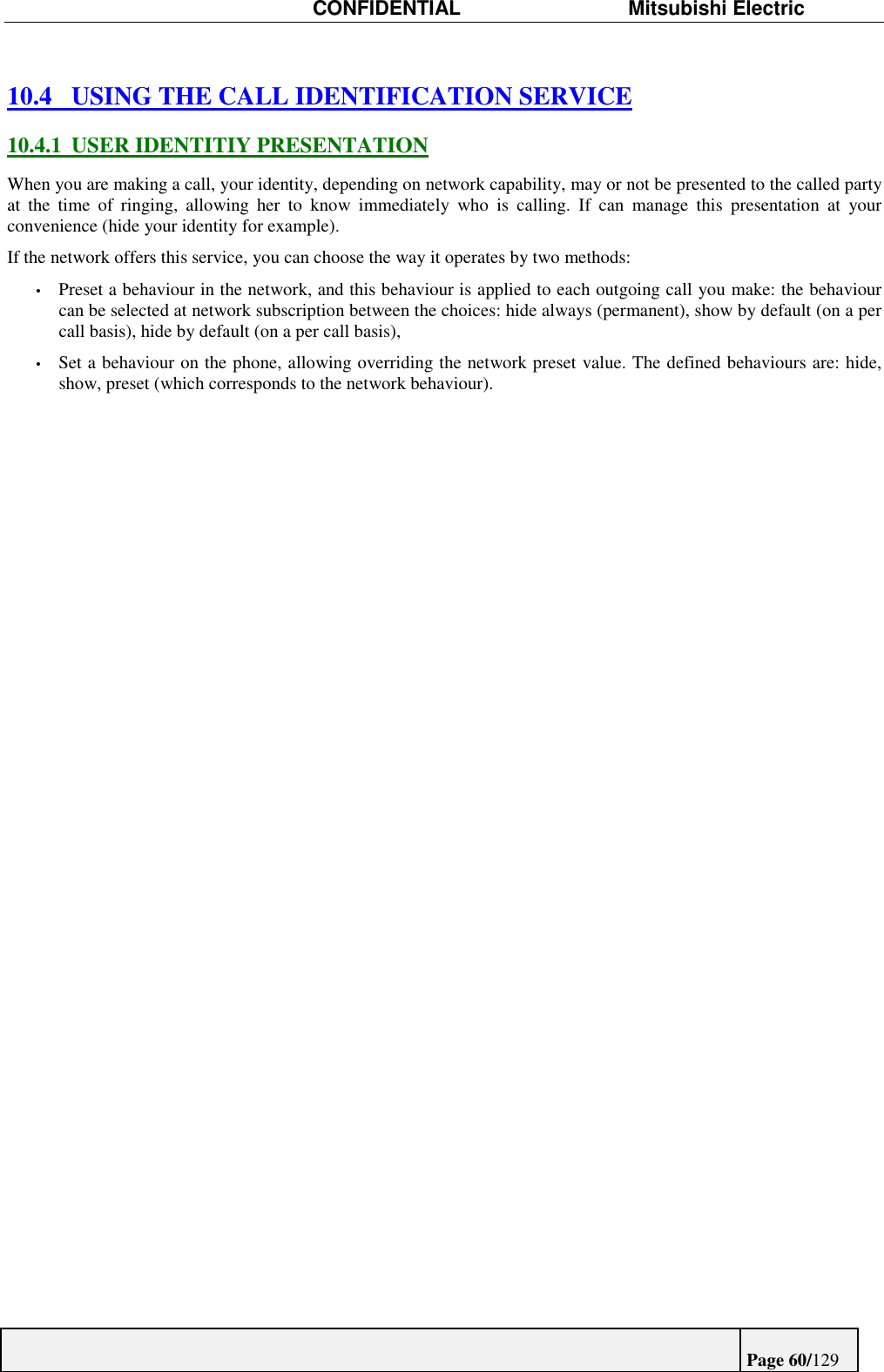

CONFIDENTIAL Mitsubishi ElectricPage 60/12910.4 USING THE CALL IDENTIFICATION SERVICE10.4.1 USER IDENTITIY PRESENTATIONWhen you are making a call, your identity, depending on network capability, may or not be presented to the called partyat the time of ringing, allowing her to know immediately who is calling. If can manage this presentation at yourconvenience (hide your identity for example).If the network offers this service, you can choose the way it operates by two methods:• Preset a behaviour in the network, and this behaviour is applied to each outgoing call you make: the behaviourcan be selected at network subscription between the choices: hide always (permanent), show by default (on a percall basis), hide by default (on a per call basis),• Set a behaviour on the phone, allowing overriding the network preset value. The defined behaviours are: hide,show, preset (which corresponds to the network behaviour).

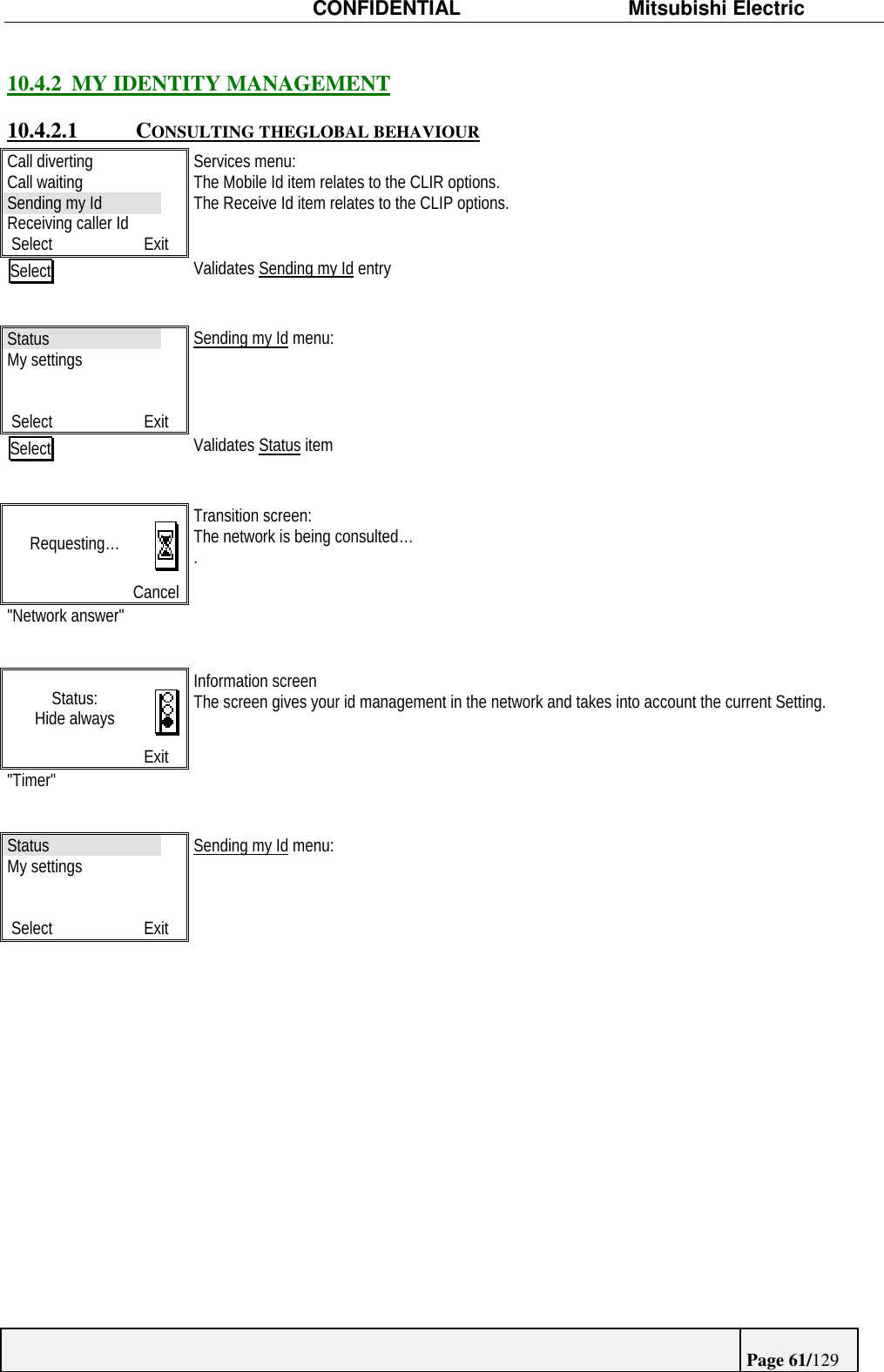

CONFIDENTIAL Mitsubishi ElectricPage 61/12910.4.2 MY IDENTITY MANAGEMENT10.4.2.1 CONSULTING THEGLOBAL BEHAVIOURCall divertingCall waitingSending my IdReceiving caller IdSelect ExitServices menu:The Mobile Id item relates to the CLIR options.The Receive Id item relates to the CLIP options.Select Validates Sending my Id entryStatusMy settingsSelect ExitSending my Id menu:Select Validates Status itemRequesting…CancelTransition screen:The network is being consulted…."Network answer"Status:Hide alwaysExitInformation screenThe screen gives your id management in the network and takes into account the current Setting."Timer"StatusMy settingsSelect ExitSending my Id menu:

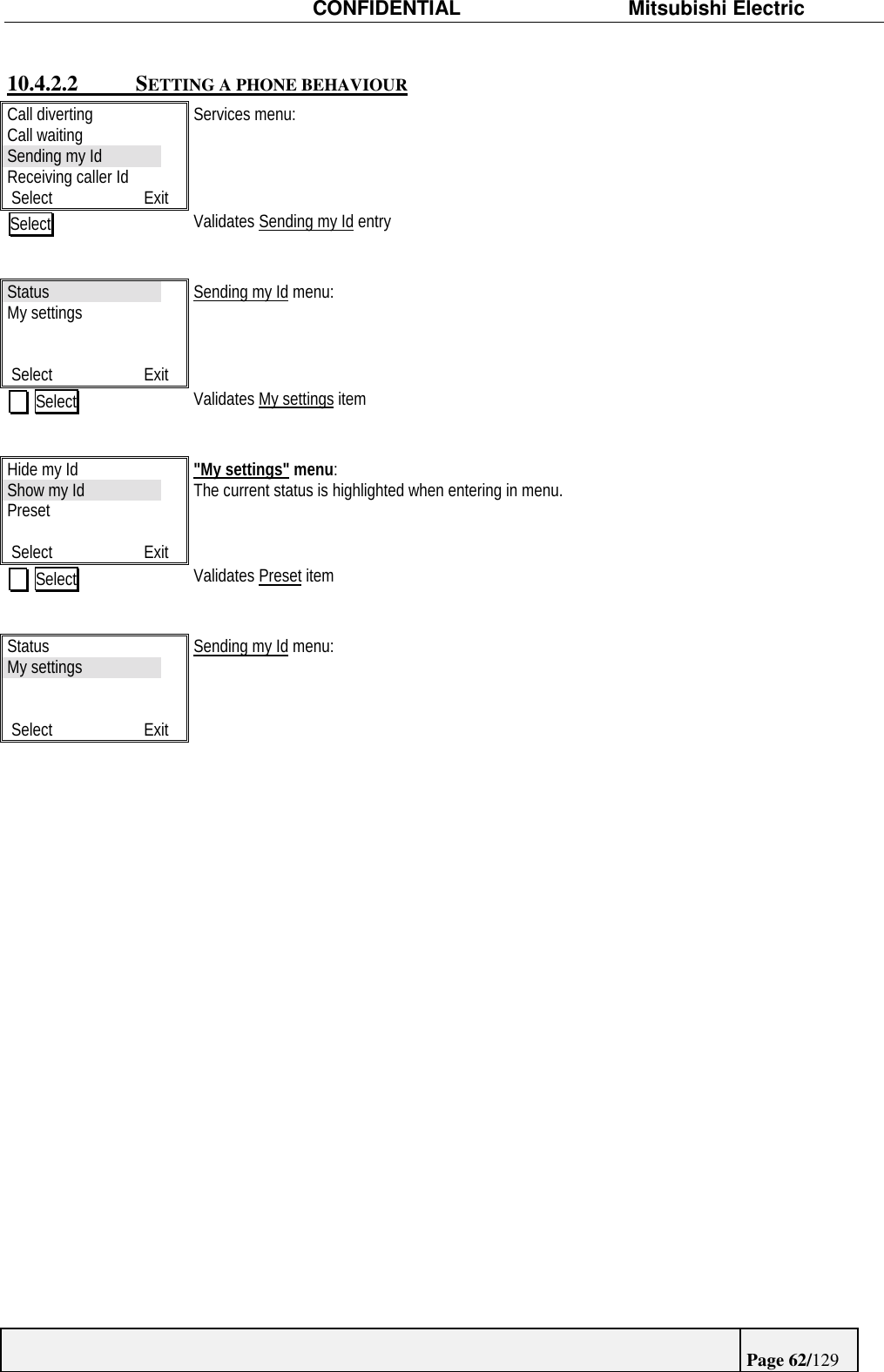

CONFIDENTIAL Mitsubishi ElectricPage 62/12910.4.2.2 SETTING A PHONE BEHAVIOURCall divertingCall waitingSending my IdReceiving caller IdSelect ExitServices menu:Select Validates Sending my Id entryStatusMy settingsSelect ExitSending my Id menu: Select Validates My settings itemHide my IdShow my IdPresetSelect Exit"My settings" menu:The current status is highlighted when entering in menu. Select Validates Preset itemStatusMy settingsSelect ExitSending my Id menu:

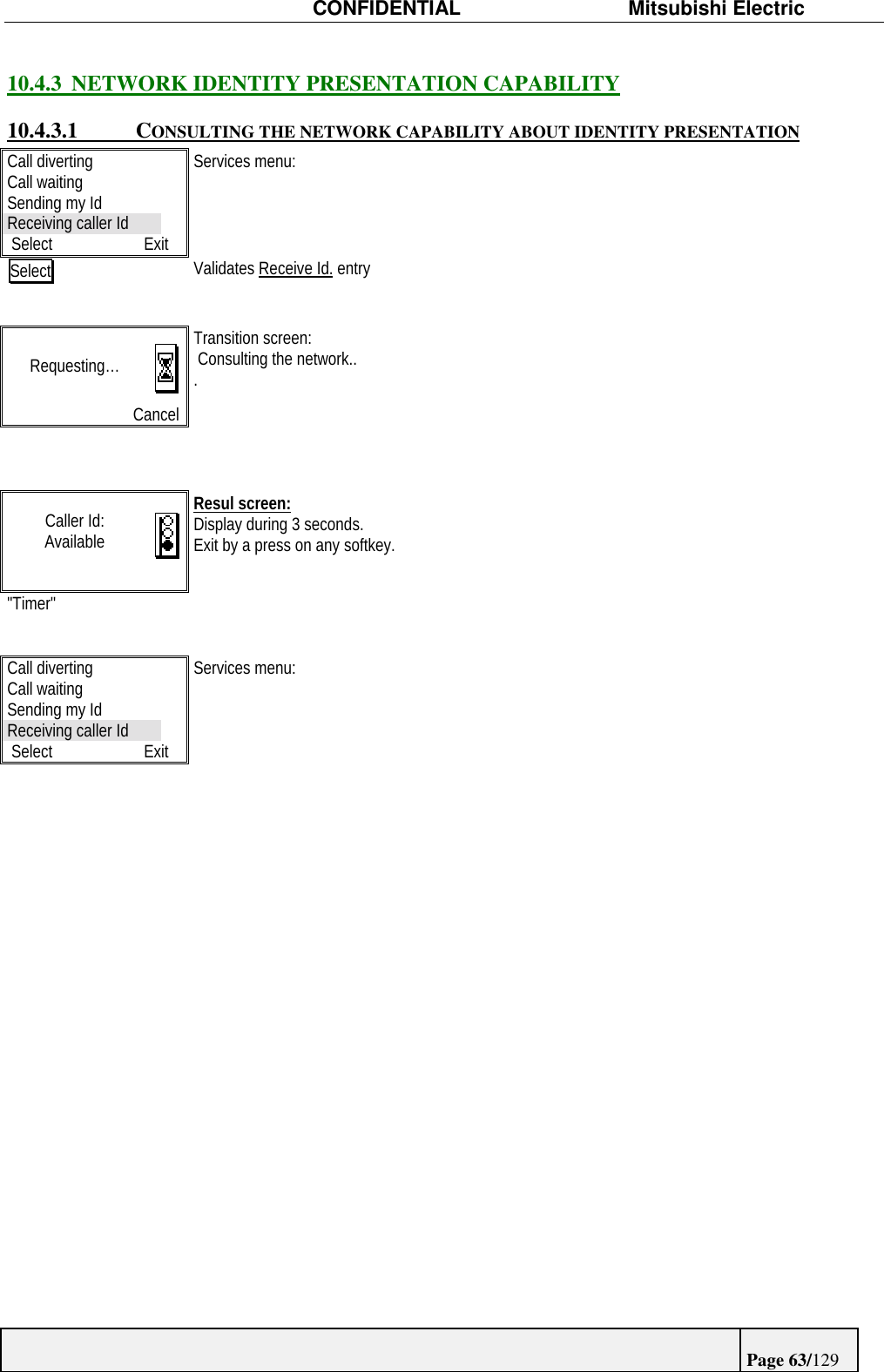

CONFIDENTIAL Mitsubishi ElectricPage 63/12910.4.3 NETWORK IDENTITY PRESENTATION CAPABILITY10.4.3.1 CONSULTING THE NETWORK CAPABILITY ABOUT IDENTITY PRESENTATIONCall divertingCall waitingSending my IdReceiving caller IdSelect ExitServices menu:Select Validates Receive Id. entryRequesting…CancelTransition screen: Consulting the network...Caller Id:AvailableResul screen:Display during 3 seconds.Exit by a press on any softkey."Timer"Call divertingCall waitingSending my IdReceiving caller IdSelect ExitServices menu:

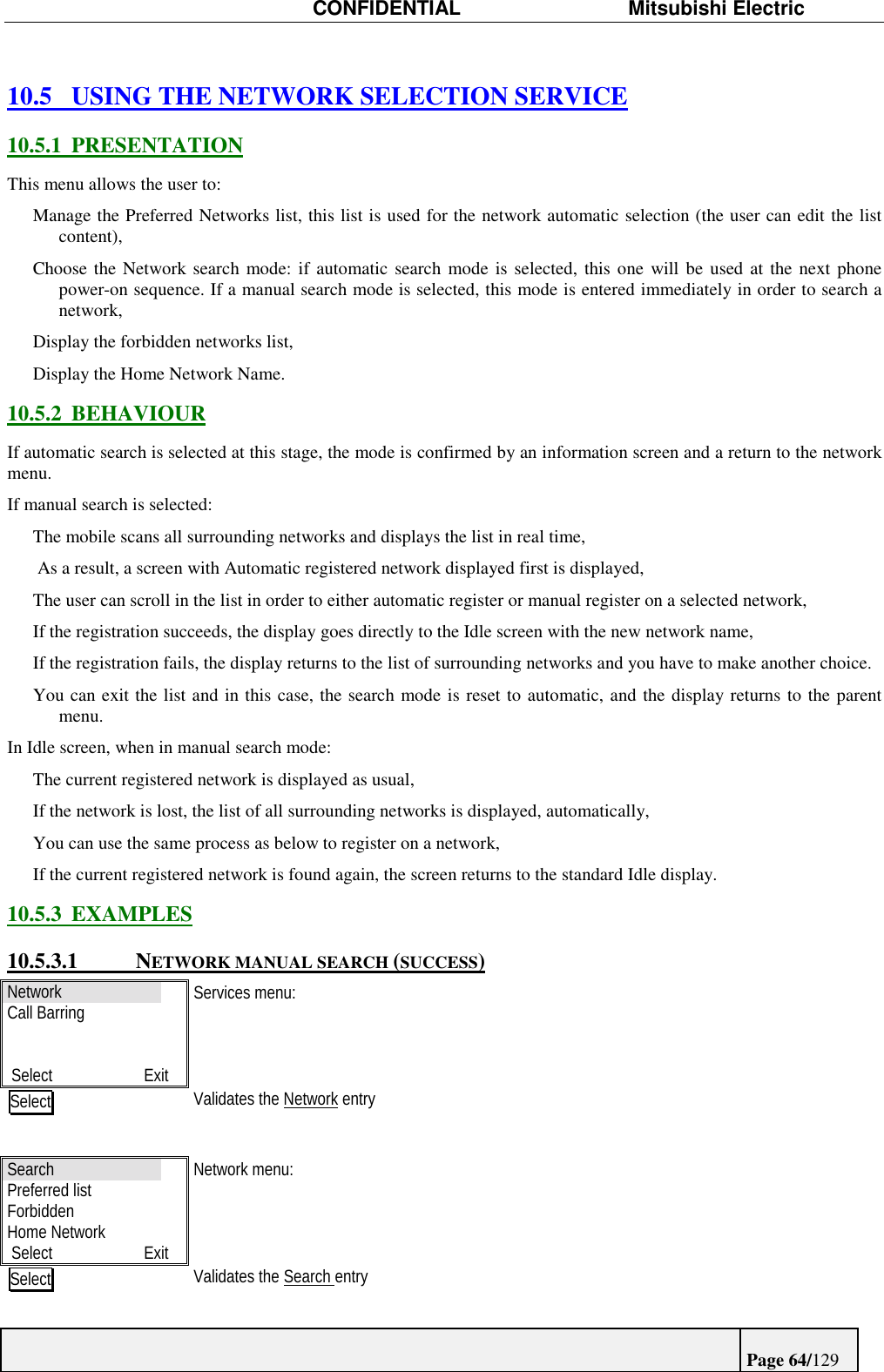

CONFIDENTIAL Mitsubishi ElectricPage 64/12910.5 USING THE NETWORK SELECTION SERVICE10.5.1 PRESENTATIONThis menu allows the user to:Manage the Preferred Networks list, this list is used for the network automatic selection (the user can edit the listcontent),Choose the Network search mode: if automatic search mode is selected, this one will be used at the next phonepower-on sequence. If a manual search mode is selected, this mode is entered immediately in order to search anetwork,Display the forbidden networks list,Display the Home Network Name.10.5.2 BEHAVIOURIf automatic search is selected at this stage, the mode is confirmed by an information screen and a return to the networkmenu.If manual search is selected:The mobile scans all surrounding networks and displays the list in real time, As a result, a screen with Automatic registered network displayed first is displayed,The user can scroll in the list in order to either automatic register or manual register on a selected network,If the registration succeeds, the display goes directly to the Idle screen with the new network name,If the registration fails, the display returns to the list of surrounding networks and you have to make another choice.You can exit the list and in this case, the search mode is reset to automatic, and the display returns to the parentmenu.In Idle screen, when in manual search mode:The current registered network is displayed as usual,If the network is lost, the list of all surrounding networks is displayed, automatically,You can use the same process as below to register on a network,If the current registered network is found again, the screen returns to the standard Idle display.10.5.3 EXAMPLES10.5.3.1 NETWORK MANUAL SEARCH (SUCCESS)NetworkCall BarringSelect ExitServices menu:Select Validates the Network entrySearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:Select Validates the Search entry
CONFIDENTIAL Mitsubishi ElectricPage 65/129AutomaticManualSelect ExitSearch menu: Select Validates the Manual entry
CONFIDENTIAL Mitsubishi ElectricPage 66/129Manual networksearchinformation screen:Exit after a 3 second delayTimerScanning forNetworksCancelTransition screen:The mobile founds all available networks.The list display is shown progressively when networks are found."End or scanning" End of scan operationAutomaticF-SFRF-ItinerisF-BouygtelSelect ExitDisplay of network list:The " AUDIO_MANUAL_PLMN_TONE" is played when the PLMN list is received.The first item is automatic selectionAll available networks are displayed Select Choice for SFRRequesting…CancelTransition screen:The mobile tries to camp on the network."End or scanning" End of scan operationIdle screen SFRMelody LockIdle screen:The mobile is now registered on SFR.
CONFIDENTIAL Mitsubishi ElectricPage 67/12910.5.3.2 NETWORK MANUAL SEARCH (FAILED)NetworkCall BarringSelect ExitServices menu:Select Validates the Network entrySearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:Select Validates the Search entryAutomaticManualSelect ExitSearch menu: Select Validates the Manual entry

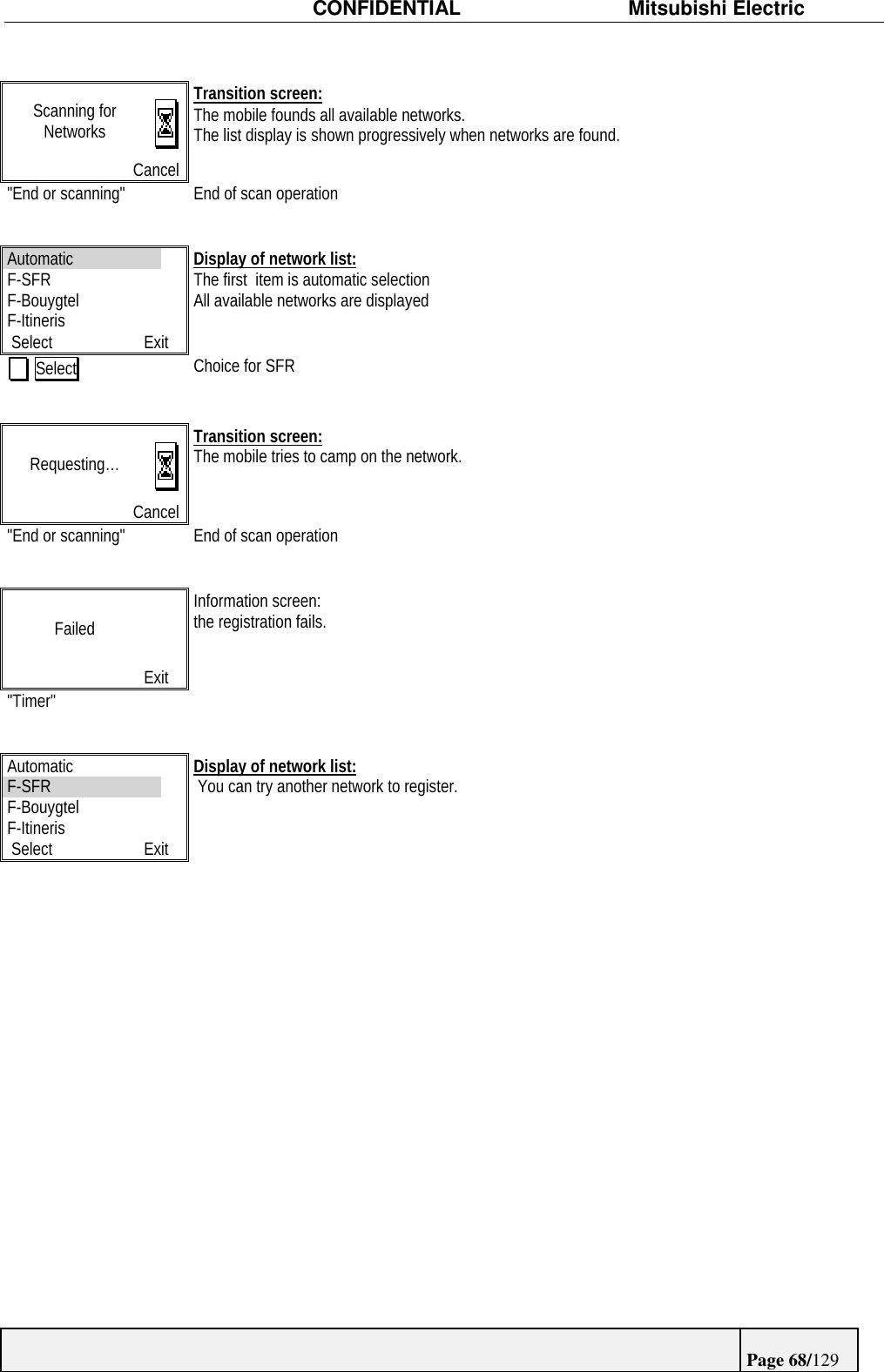

CONFIDENTIAL Mitsubishi ElectricPage 68/129Scanning forNetworksCancelTransition screen:The mobile founds all available networks.The list display is shown progressively when networks are found."End or scanning" End of scan operationAutomaticF-SFRF-BouygtelF-ItinerisSelect ExitDisplay of network list:The first item is automatic selectionAll available networks are displayed Select Choice for SFRRequesting…CancelTransition screen:The mobile tries to camp on the network."End or scanning" End of scan operationFailedExitInformation screen:the registration fails."Timer"AutomaticF-SFRF-BouygtelF-ItinerisSelect ExitDisplay of network list: You can try another network to register.

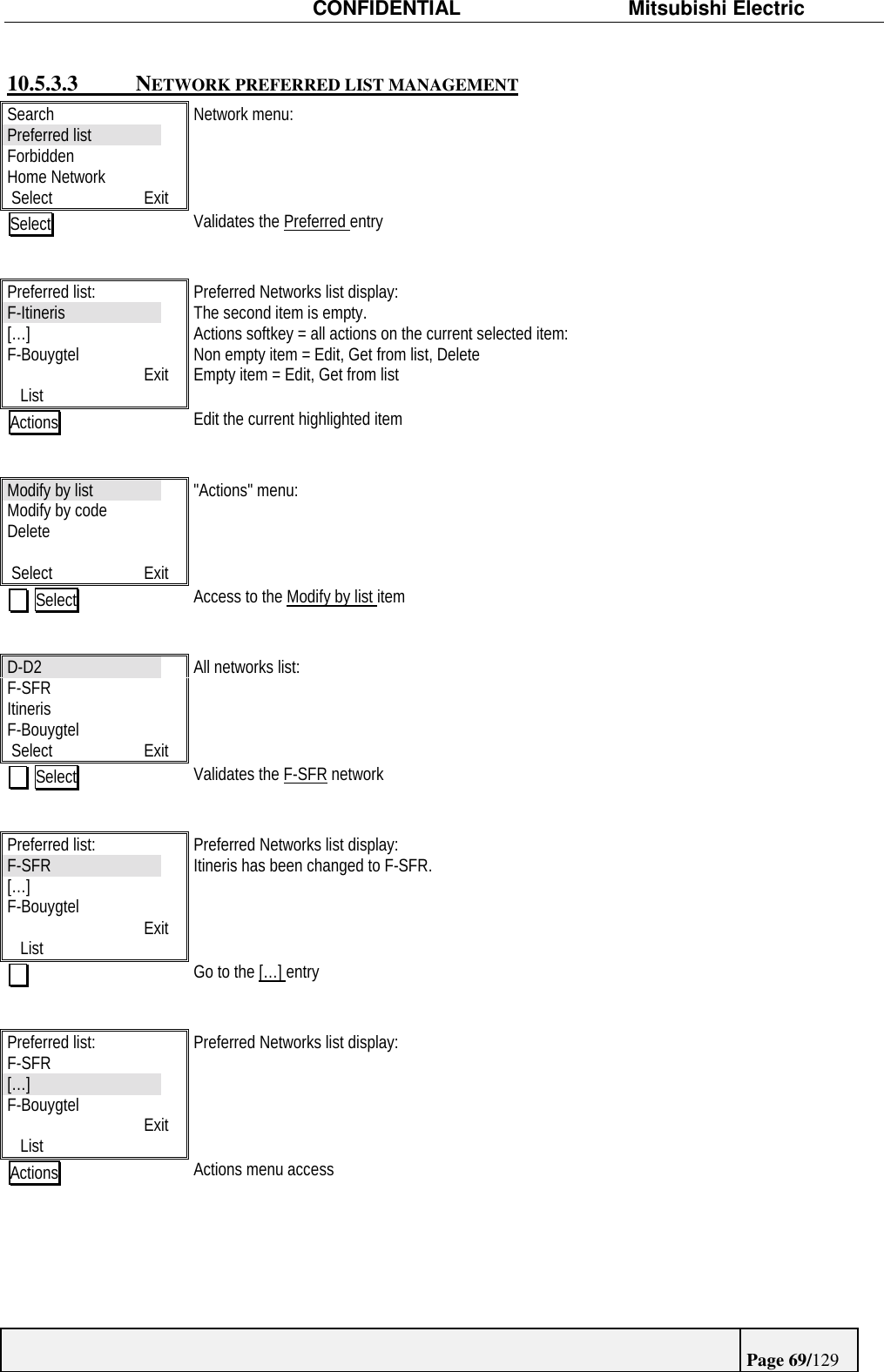

CONFIDENTIAL Mitsubishi ElectricPage 69/12910.5.3.3 NETWORK PREFERRED LIST MANAGEMENTSearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:Select Validates the Preferred entryPreferred list:F-Itineris[…]F-BouygtelList ExitPreferred Networks list display:The second item is empty.Actions softkey = all actions on the current selected item:Non empty item = Edit, Get from list, DeleteEmpty item = Edit, Get from listActions Edit the current highlighted itemModify by listModify by codeDeleteSelect Exit"Actions" menu: Select Access to the Modify by list itemD-D2F-SFRItinerisF-BouygtelSelect ExitAll networks list: Select Validates the F-SFR networkPreferred list:F-SFR[…]F-BouygtelList ExitPreferred Networks list display:Itineris has been changed to F-SFR.Go to the […] entryPreferred list:F-SFR[…]F-BouygtelList ExitPreferred Networks list display:Actions Actions menu access

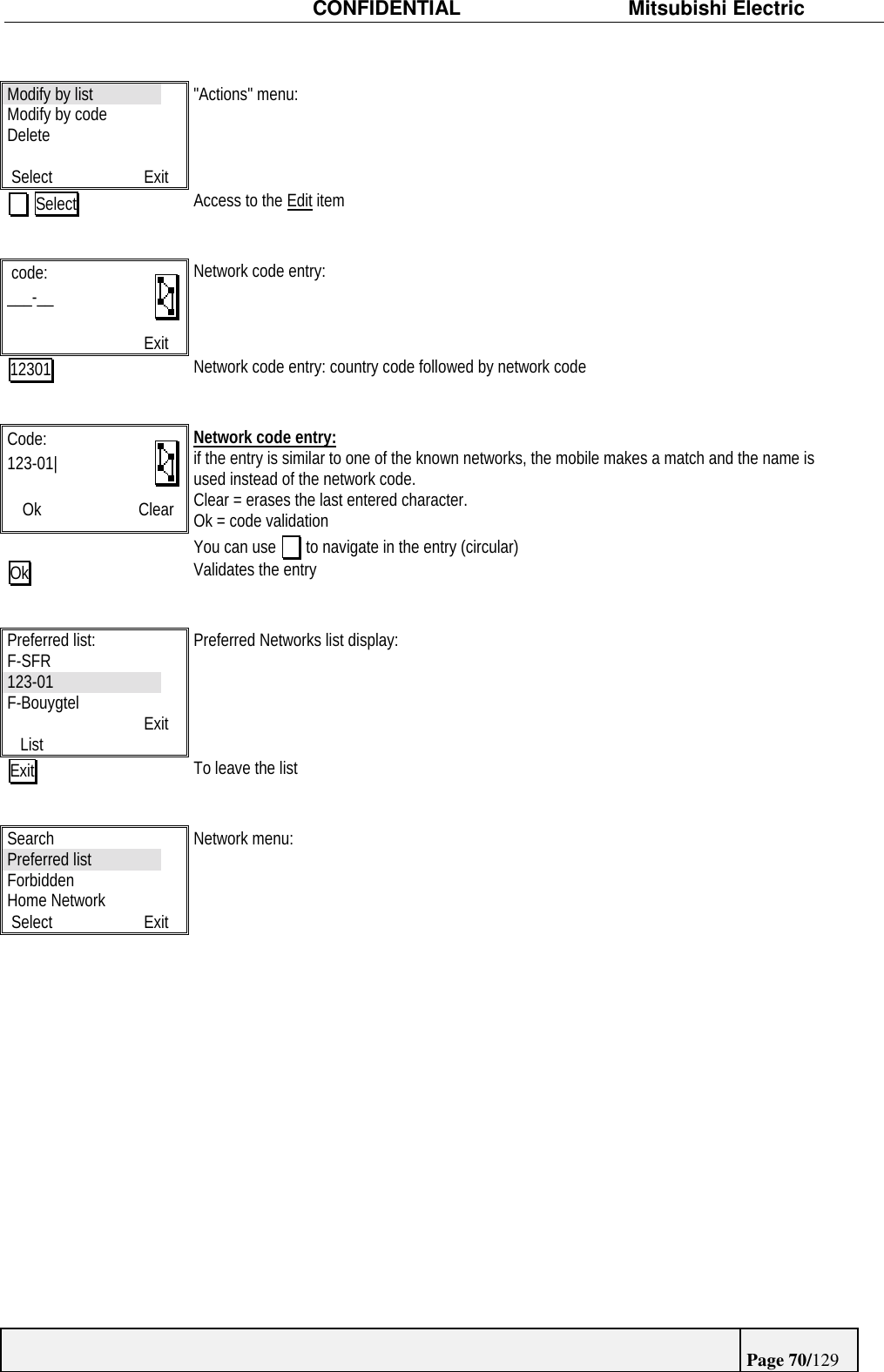

CONFIDENTIAL Mitsubishi ElectricPage 70/129Modify by listModify by codeDeleteSelect Exit"Actions" menu: Select Access to the Edit item code:___-__ExitNetwork code entry:12301 Network code entry: country code followed by network codeCode:123-01|Ok ClearNetwork code entry:if the entry is similar to one of the known networks, the mobile makes a match and the name isused instead of the network code.Clear = erases the last entered character.Ok = code validationYou can use to navigate in the entry (circular)Ok Validates the entryPreferred list:F-SFR123-01F-BouygtelList ExitPreferred Networks list display:Exit To leave the listSearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:

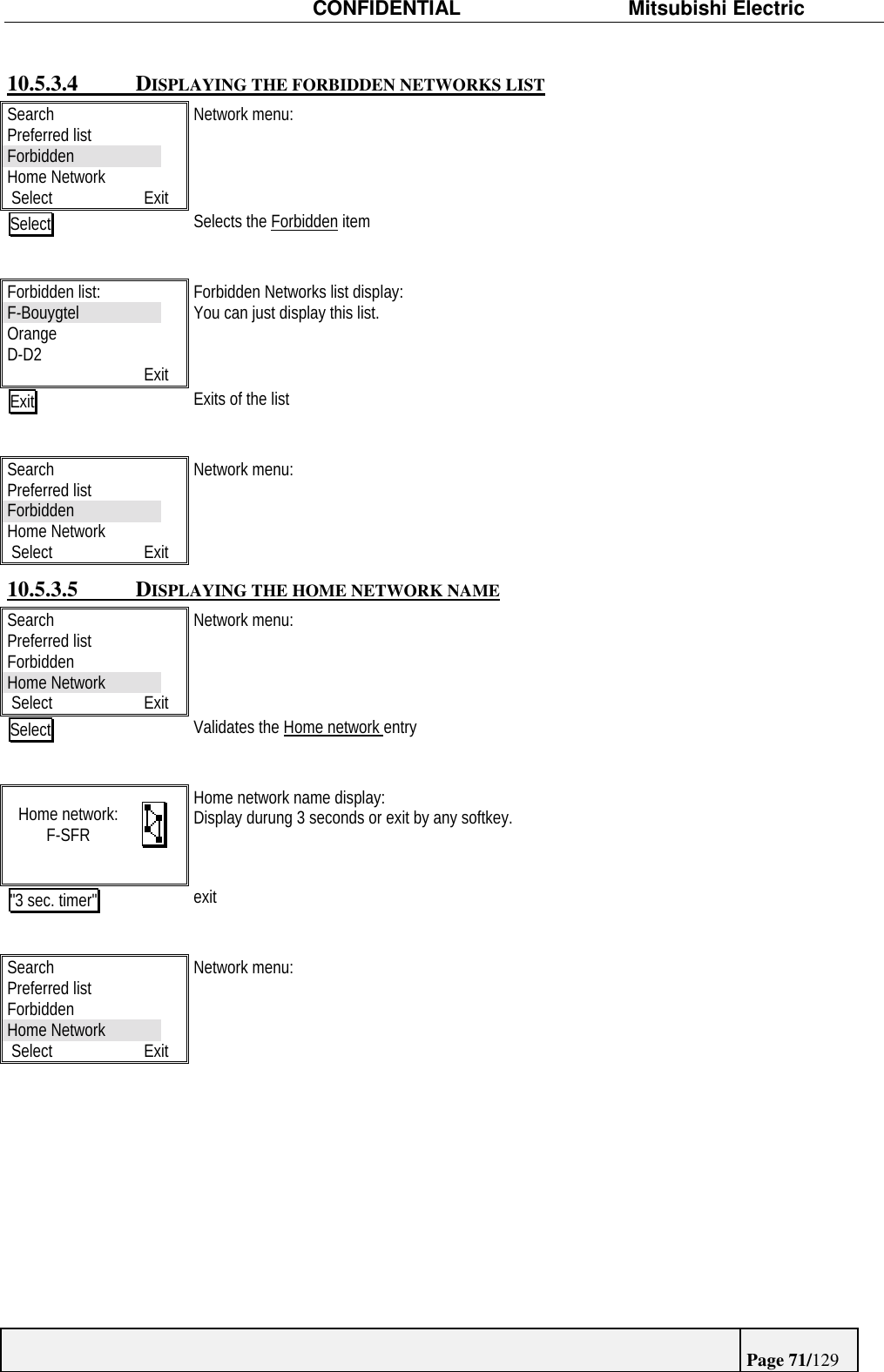

CONFIDENTIAL Mitsubishi ElectricPage 71/12910.5.3.4 DISPLAYING THE FORBIDDEN NETWORKS LISTSearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:Select Selects the Forbidden itemForbidden list:F-BouygtelOrangeD-D2 ExitForbidden Networks list display:You can just display this list.Exit Exits of the listSearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:10.5.3.5 DISPLAYING THE HOME NETWORK NAMESearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:Select Validates the Home network entryHome network:F-SFRHome network name display:Display durung 3 seconds or exit by any softkey."3 sec. timer" exitSearchPreferred listForbiddenHome NetworkSelect ExitNetwork menu:
CONFIDENTIAL Mitsubishi ElectricPage 72/12910.6 USING THE CALL BARRING SERVICE10.6.1 PRESENTATIONYou can bar the calls as follows:• Outgoing calls• All outgoing calls: in this case No normal outgoing call is possible,• All outgoing international calls: in this case, any call with an international prefix will be barred by the network,• Outgoing international calls excluding Home: this allows the user to make international calls only to othersubscribers on the home network,• Incoming calls:• All incoming calls: in this case, the user cannot be joined in any case,• Incoming Calls when roaming: in this case, the user cannot be joined if he is camped on a different network fromhis home network.You can cancel all barring conditions as a whole. You can consult the current call barring status.A 4-digit password is requested when activating and deactivating the service.10.6.2 EXAMPLENetworkCall BarringSelect ExitServices menu:Select Validates the Call Barring entryOutgoingIncomingCancel AllChange passwordSelect ExitCall Barring menu:Select Validates the "outgoing" entry

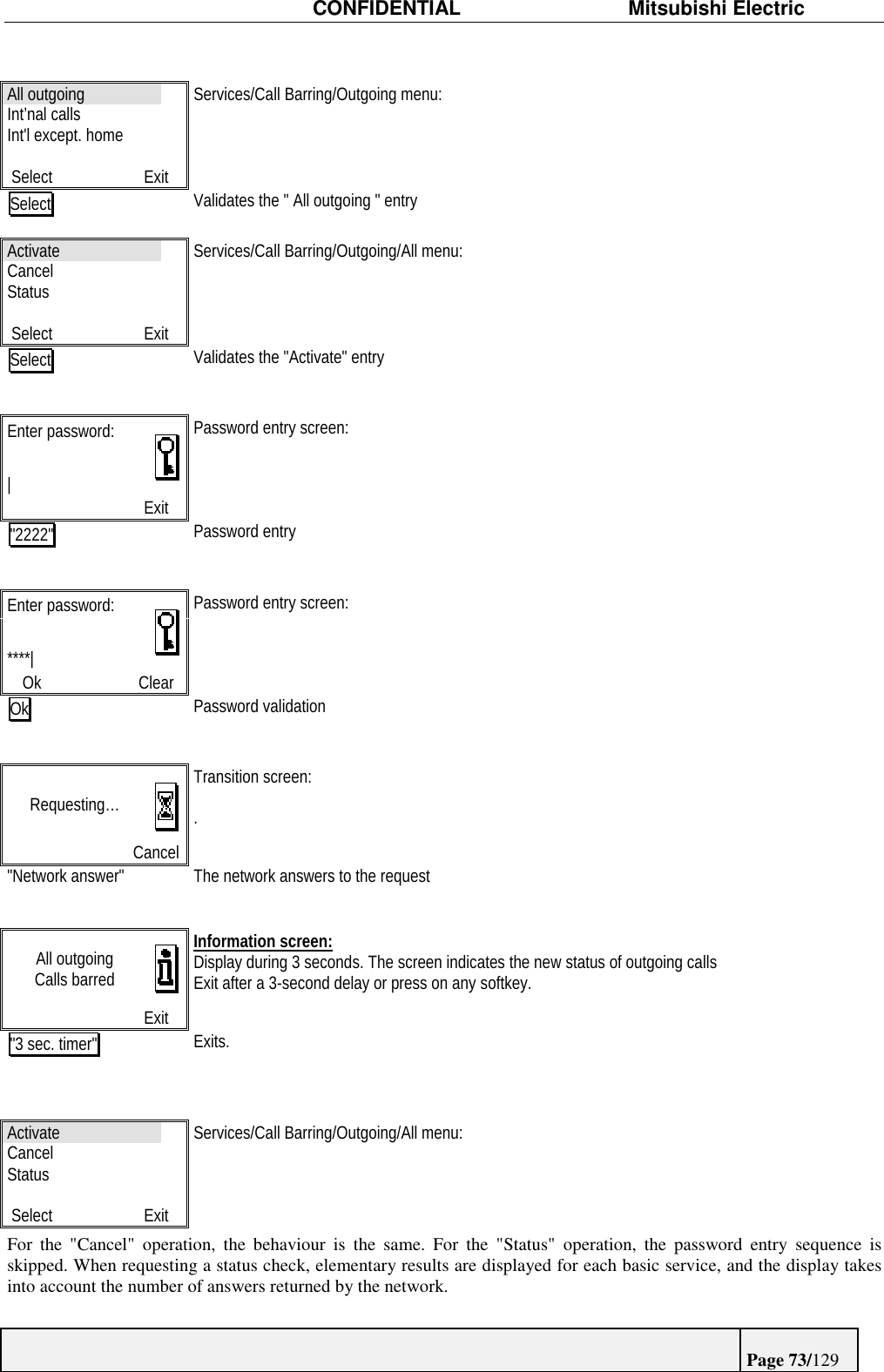

CONFIDENTIAL Mitsubishi ElectricPage 73/129All outgoingInt’nal callsInt'l except. homeSelect ExitServices/Call Barring/Outgoing menu:Select Validates the " All outgoing " entryActivateCancelStatusSelect ExitServices/Call Barring/Outgoing/All menu:Select Validates the "Activate" entryEnter password:|ExitPassword entry screen:"2222" Password entryEnter password:****|Ok ClearPassword entry screen:Ok Password validationRequesting…CancelTransition screen:."Network answer" The network answers to the requestAll outgoingCalls barredExitInformation screen:Display during 3 seconds. The screen indicates the new status of outgoing callsExit after a 3-second delay or press on any softkey."3 sec. timer" Exits.ActivateCancelStatusSelect ExitServices/Call Barring/Outgoing/All menu:For the "Cancel" operation, the behaviour is the same. For the "Status" operation, the password entry sequence isskipped. When requesting a status check, elementary results are displayed for each basic service, and the display takesinto account the number of answers returned by the network.

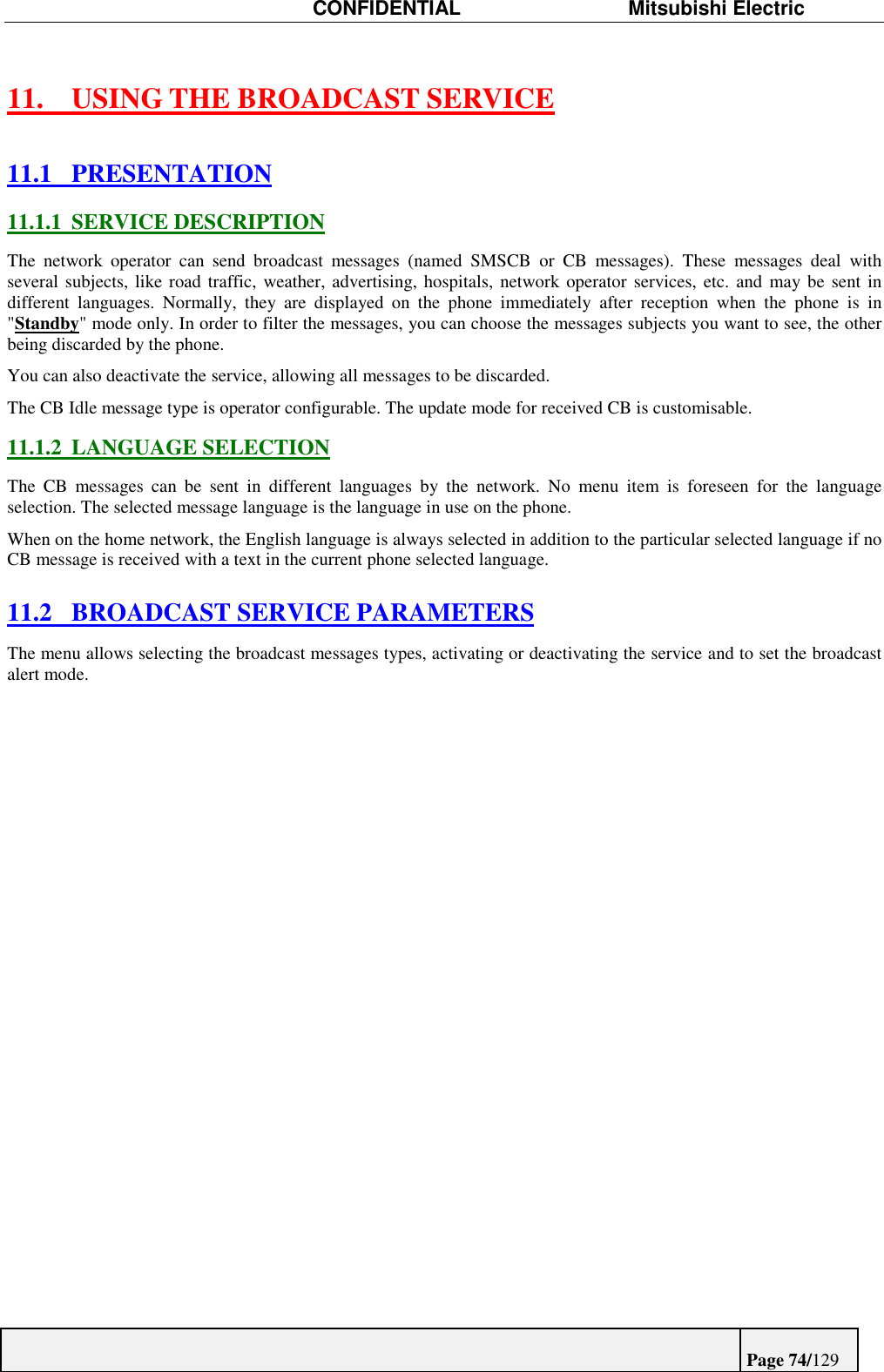

CONFIDENTIAL Mitsubishi ElectricPage 74/12911. USING THE BROADCAST SERVICE11.1 PRESENTATION11.1.1 SERVICE DESCRIPTIONThe network operator can send broadcast messages (named SMSCB or CB messages). These messages deal withseveral subjects, like road traffic, weather, advertising, hospitals, network operator services, etc. and may be sent indifferent languages. Normally, they are displayed on the phone immediately after reception when the phone is in"Standby" mode only. In order to filter the messages, you can choose the messages subjects you want to see, the otherbeing discarded by the phone.You can also deactivate the service, allowing all messages to be discarded.The CB Idle message type is operator configurable. The update mode for received CB is customisable.11.1.2 LANGUAGE SELECTIONThe CB messages can be sent in different languages by the network. No menu item is foreseen for the languageselection. The selected message language is the language in use on the phone.When on the home network, the English language is always selected in addition to the particular selected language if noCB message is received with a text in the current phone selected language.11.2 BROADCAST SERVICE PARAMETERSThe menu allows selecting the broadcast messages types, activating or deactivating the service and to set the broadcastalert mode.

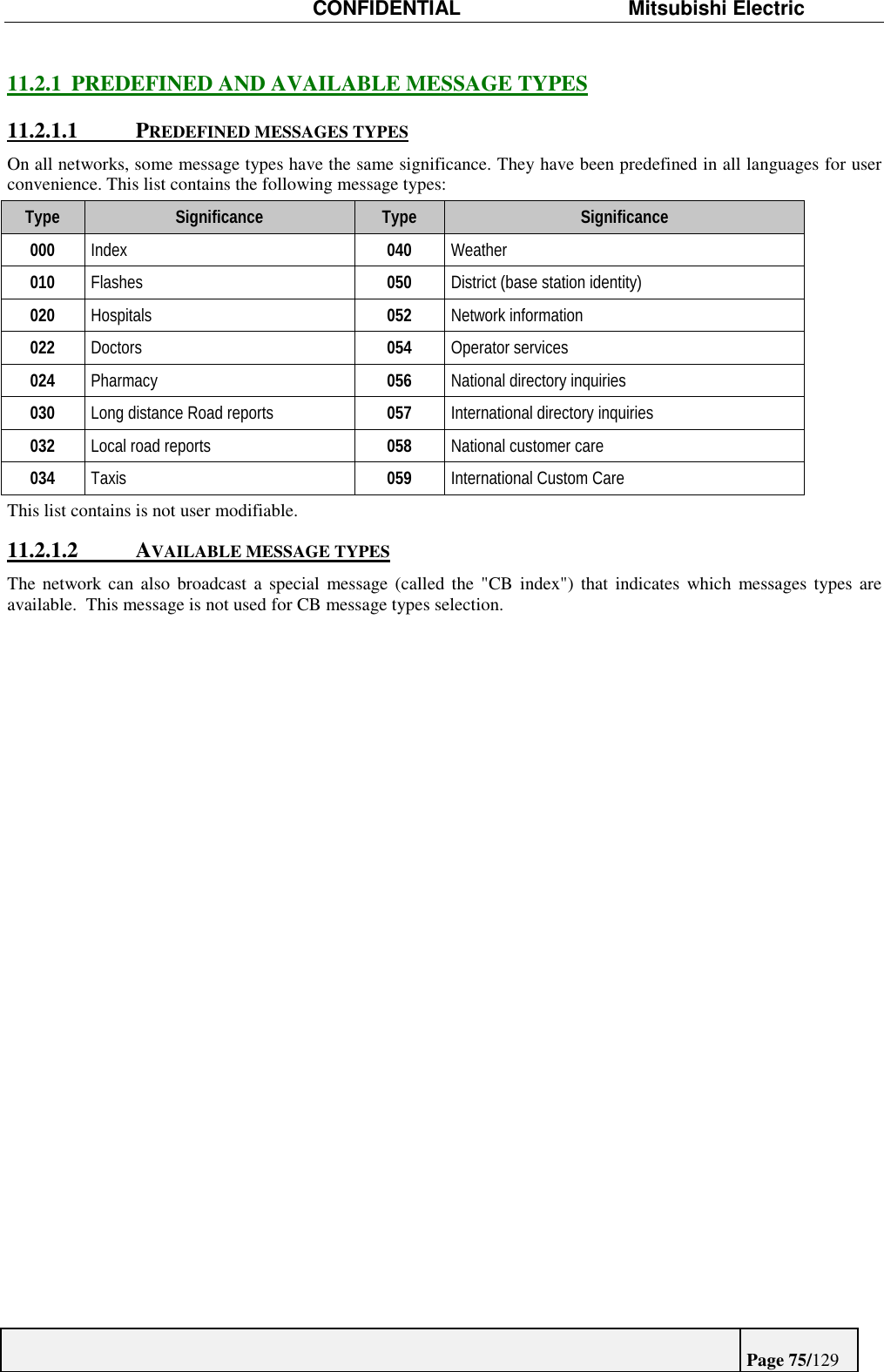

CONFIDENTIAL Mitsubishi ElectricPage 75/12911.2.1 PREDEFINED AND AVAILABLE MESSAGE TYPES11.2.1.1 PREDEFINED MESSAGES TYPESOn all networks, some message types have the same significance. They have been predefined in all languages for userconvenience. This list contains the following message types:Type Significance Type Significance000 Index 040 Weather010 Flashes 050 District (base station identity)020 Hospitals 052 Network information022 Doctors 054 Operator services024 Pharmacy 056 National directory inquiries030 Long distance Road reports 057 International directory inquiries032 Local road reports 058 National customer care034 Taxis 059 International Custom CareThis list contains is not user modifiable.11.2.1.2 AVAILABLE MESSAGE TYPESThe network can also broadcast a special message (called the "CB index") that indicates which messages types areavailable. This message is not used for CB message types selection.

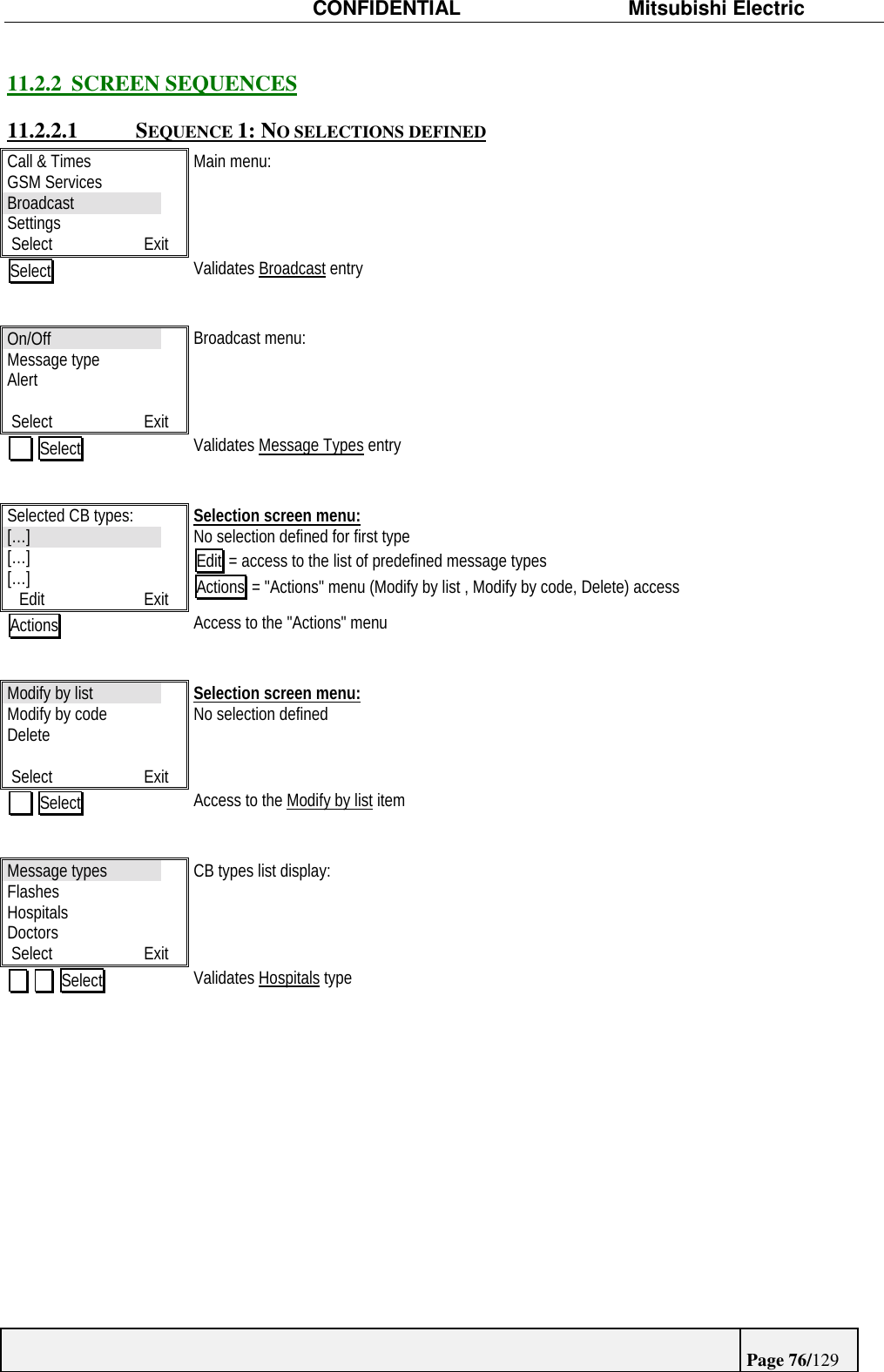

CONFIDENTIAL Mitsubishi ElectricPage 76/12911.2.2 SCREEN SEQUENCES11.2.2.1 SEQUENCE 1: NO SELECTIONS DEFINEDCall & TimesGSM ServicesBroadcastSettingsSelect ExitMain menu:Select Validates Broadcast entryOn/OffMessage typeAlertSelect ExitBroadcast menu: Select Validates Message Types entrySelected CB types:[…][…][…]Edit ExitSelection screen menu:No selection defined for first typeEdit = access to the list of predefined message typesActions = "Actions" menu (Modify by list , Modify by code, Delete) accessActions Access to the "Actions" menuModify by listModify by codeDeleteSelect ExitSelection screen menu:No selection defined Select Access to the Modify by list itemMessage typesFlashesHospitalsDoctorsSelect ExitCB types list display: Select Validates Hospitals type
CONFIDENTIAL Mitsubishi ElectricPage 77/129Selected types:Hospitals[…][…]Edit ExitSelection screen menu:First selection is HospitalsEdit = access to the list of predefined message types.Actions = "Actions" menu (Modify by list, Modify by code , Delete) accessGo to next itemSelected CB types:Hospitals[…][…]Edit ExitSelection screen menu:No selection definedEdit = access to the list of predefined message types.Actions = "Actions" menu (Modify by list, Modify by code) accessActions Access to the "Actions" menuModify by listModify by codeOk Clear"Actions" menu:Select Access to the Modify by code itemCode:___ExitType code entry:A numeric editor is enteredAt first number entry, the Exit softkey is changed to Clear"022" Ok You enter the code of CB you want to seeSelected CB types:HospitalsDoctors[…]Edit ExitSelection screen menu:Second selection is CB type 022, which has been changed to doctors as found in the listExit Exit of operationOn/OffMessage typesAlertSelect ExitBroadcast menu:

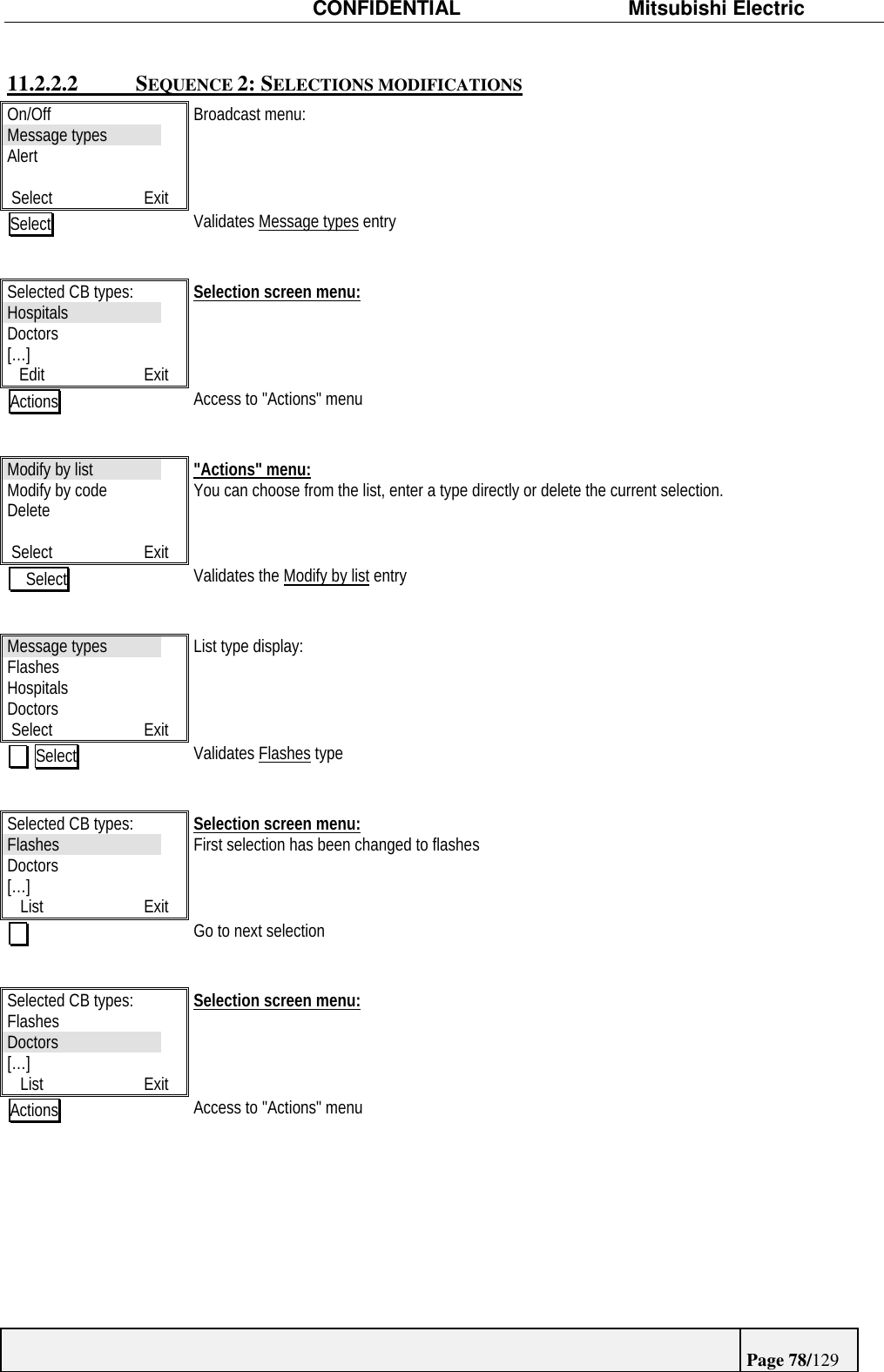

CONFIDENTIAL Mitsubishi ElectricPage 78/12911.2.2.2 SEQUENCE 2: SELECTIONS MODIFICATIONSOn/OffMessage typesAlertSelect ExitBroadcast menu:Select Validates Message types entrySelected CB types:HospitalsDoctors[…]Edit ExitSelection screen menu:Actions Access to "Actions" menuModify by listModify by codeDeleteSelect Exit"Actions" menu:You can choose from the list, enter a type directly or delete the current selection.Select Validates the Modify by list entryMessage typesFlashesHospitalsDoctorsSelect ExitList type display: Select Validates Flashes typeSelected CB types:FlashesDoctors[…]List ExitSelection screen menu:First selection has been changed to flashesGo to next selectionSelected CB types:FlashesDoctors[…]List ExitSelection screen menu:Actions Access to "Actions" menu

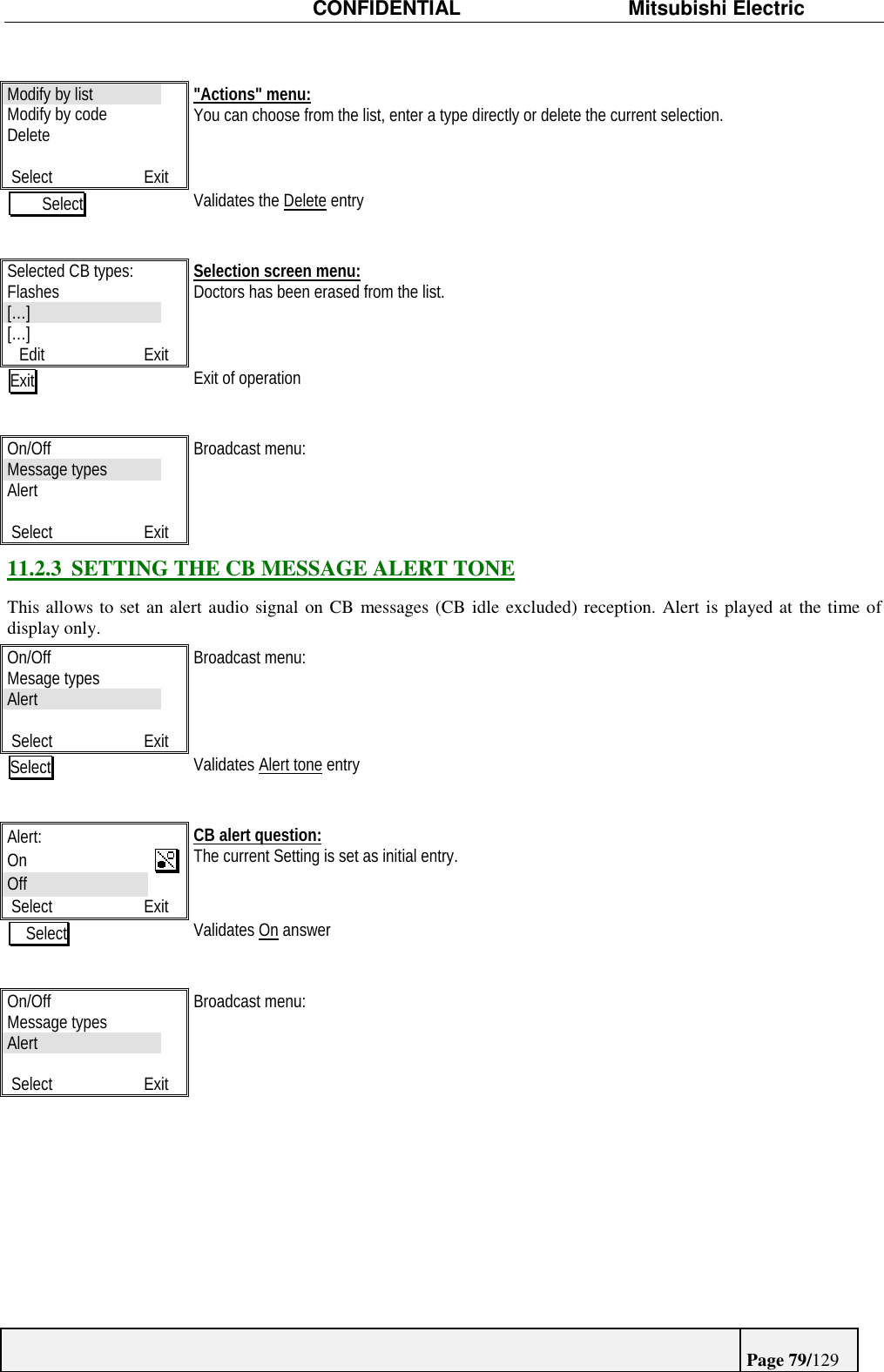

CONFIDENTIAL Mitsubishi ElectricPage 79/129Modify by listModify by codeDeleteSelect Exit"Actions" menu:You can choose from the list, enter a type directly or delete the current selection.Select Validates the Delete entrySelected CB types:Flashes[…][…]Edit ExitSelection screen menu:Doctors has been erased from the list.Exit Exit of operationOn/OffMessage typesAlertSelect ExitBroadcast menu:11.2.3 SETTING THE CB MESSAGE ALERT TONEThis allows to set an alert audio signal on CB messages (CB idle excluded) reception. Alert is played at the time ofdisplay only.On/OffMesage typesAlertSelect ExitBroadcast menu:Select Validates Alert tone entryAlert:OnOffSelect ExitCB alert question:The current Setting is set as initial entry.Select Validates On answerOn/OffMessage typesAlertSelect ExitBroadcast menu:

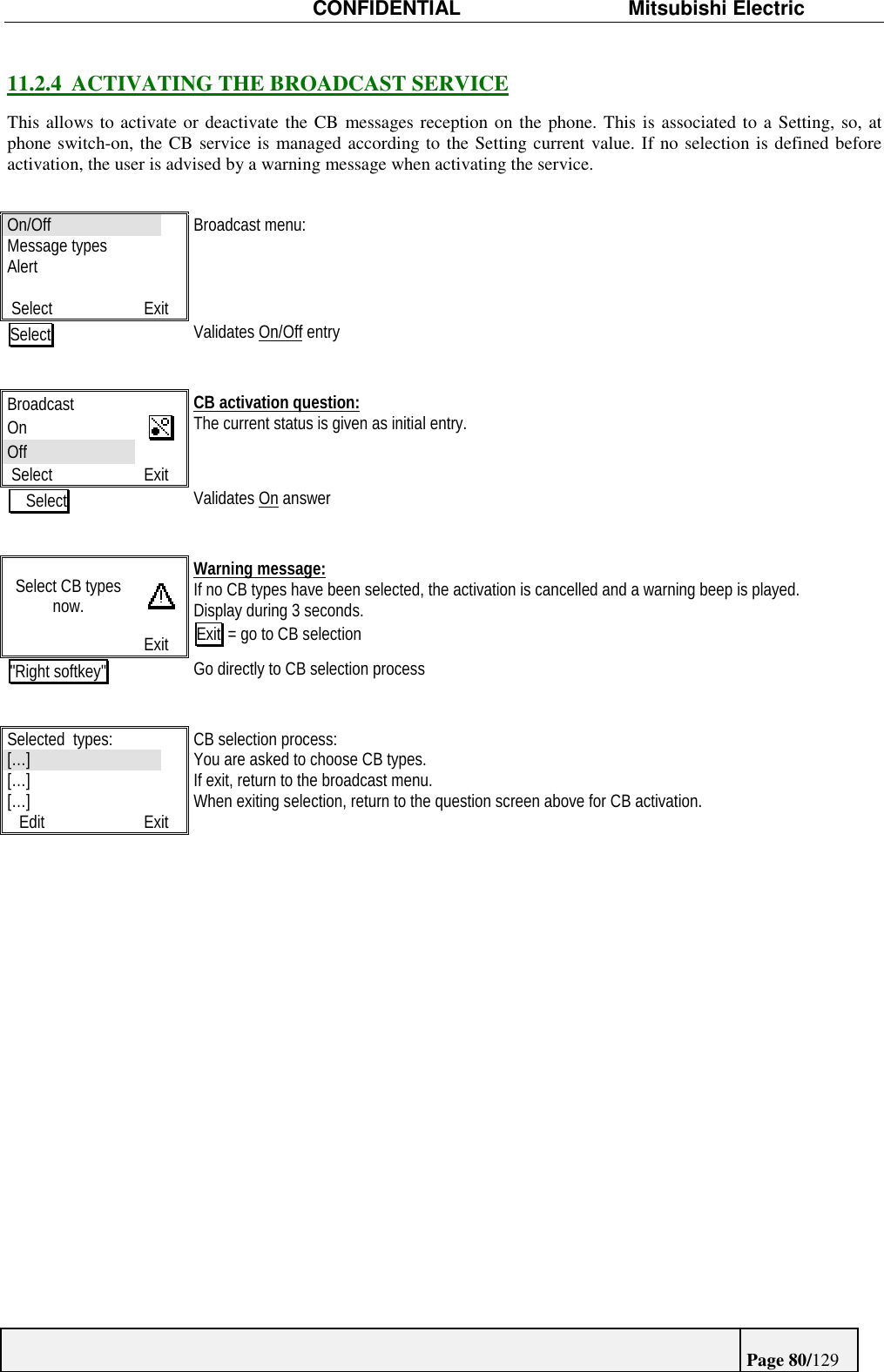

CONFIDENTIAL Mitsubishi ElectricPage 80/12911.2.4 ACTIVATING THE BROADCAST SERVICEThis allows to activate or deactivate the CB messages reception on the phone. This is associated to a Setting, so, atphone switch-on, the CB service is managed according to the Setting current value. If no selection is defined beforeactivation, the user is advised by a warning message when activating the service.On/OffMessage typesAlertSelect ExitBroadcast menu:Select Validates On/Off entryBroadcastOnOffSelect ExitCB activation question:The current status is given as initial entry.Select Validates On answerSelect CB typesnow.ExitWarning message:If no CB types have been selected, the activation is cancelled and a warning beep is played.Display during 3 seconds.Exit = go to CB selection"Right softkey" Go directly to CB selection processSelected types:[…][…][…]Edit ExitCB selection process:You are asked to choose CB types.If exit, return to the broadcast menu.When exiting selection, return to the question screen above for CB activation.

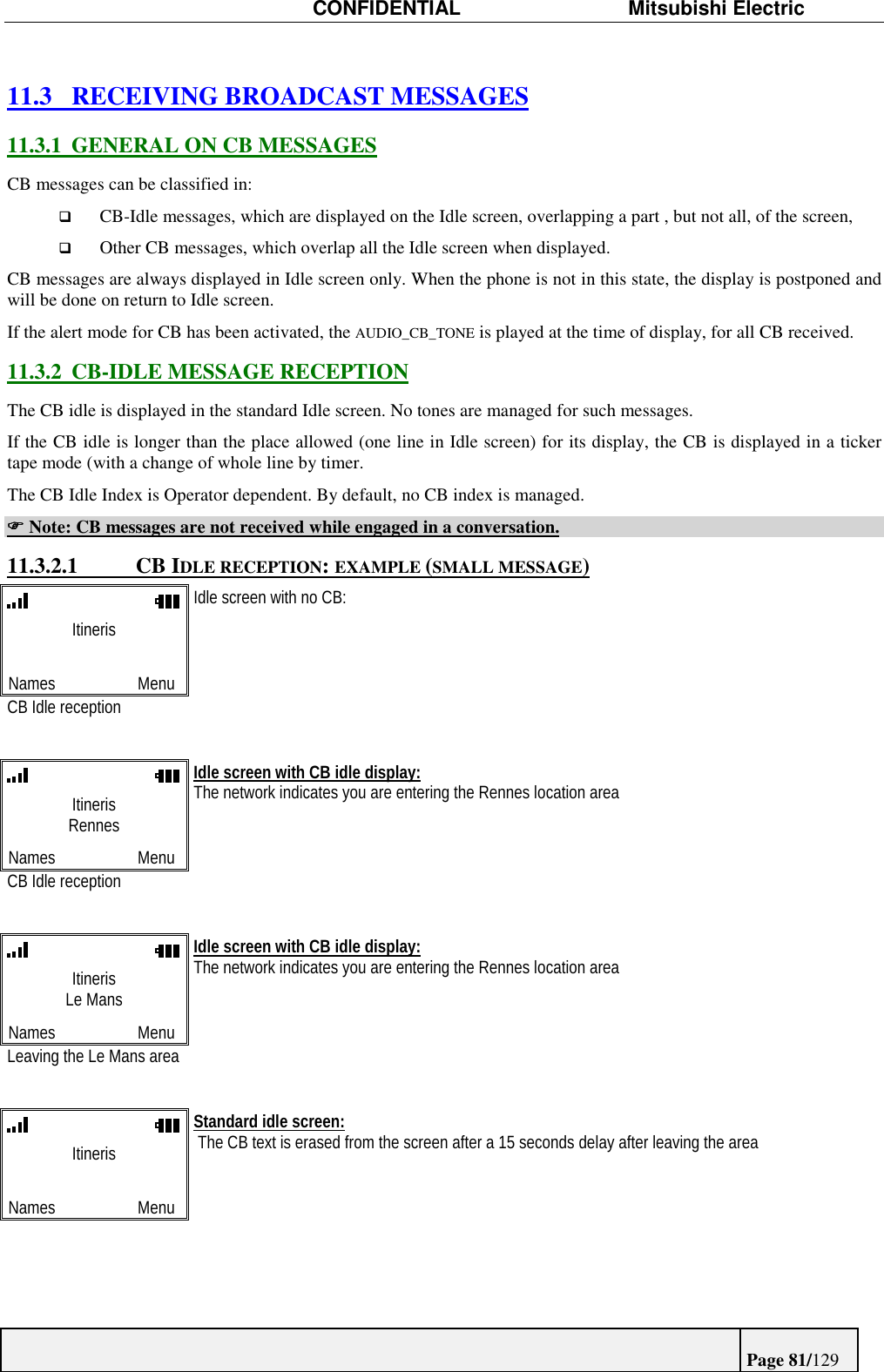

CONFIDENTIAL Mitsubishi ElectricPage 81/12911.3 RECEIVING BROADCAST MESSAGES11.3.1 GENERAL ON CB MESSAGESCB messages can be classified in: CB-Idle messages, which are displayed on the Idle screen, overlapping a part , but not all, of the screen, Other CB messages, which overlap all the Idle screen when displayed.CB messages are always displayed in Idle screen only. When the phone is not in this state, the display is postponed andwill be done on return to Idle screen.If the alert mode for CB has been activated, the AUDIO_CB_TONE is played at the time of display, for all CB received.11.3.2 CB-IDLE MESSAGE RECEPTIONThe CB idle is displayed in the standard Idle screen. No tones are managed for such messages.If the CB idle is longer than the place allowed (one line in Idle screen) for its display, the CB is displayed in a tickertape mode (with a change of whole line by timer.The CB Idle Index is Operator dependent. By default, no CB index is managed. Note: CB messages are not received while engaged in a conversation.11.3.2.1 CB IDLE RECEPTION: EXAMPLE (SMALL MESSAGE) ItinerisNames MenuIdle screen with no CB:CB Idle reception ItinerisRennesNames MenuIdle screen with CB idle display:The network indicates you are entering the Rennes location areaCB Idle reception ItinerisLe MansNames MenuIdle screen with CB idle display:The network indicates you are entering the Rennes location areaLeaving the Le Mans area ItinerisNames MenuStandard idle screen: The CB text is erased from the screen after a 15 seconds delay after leaving the area

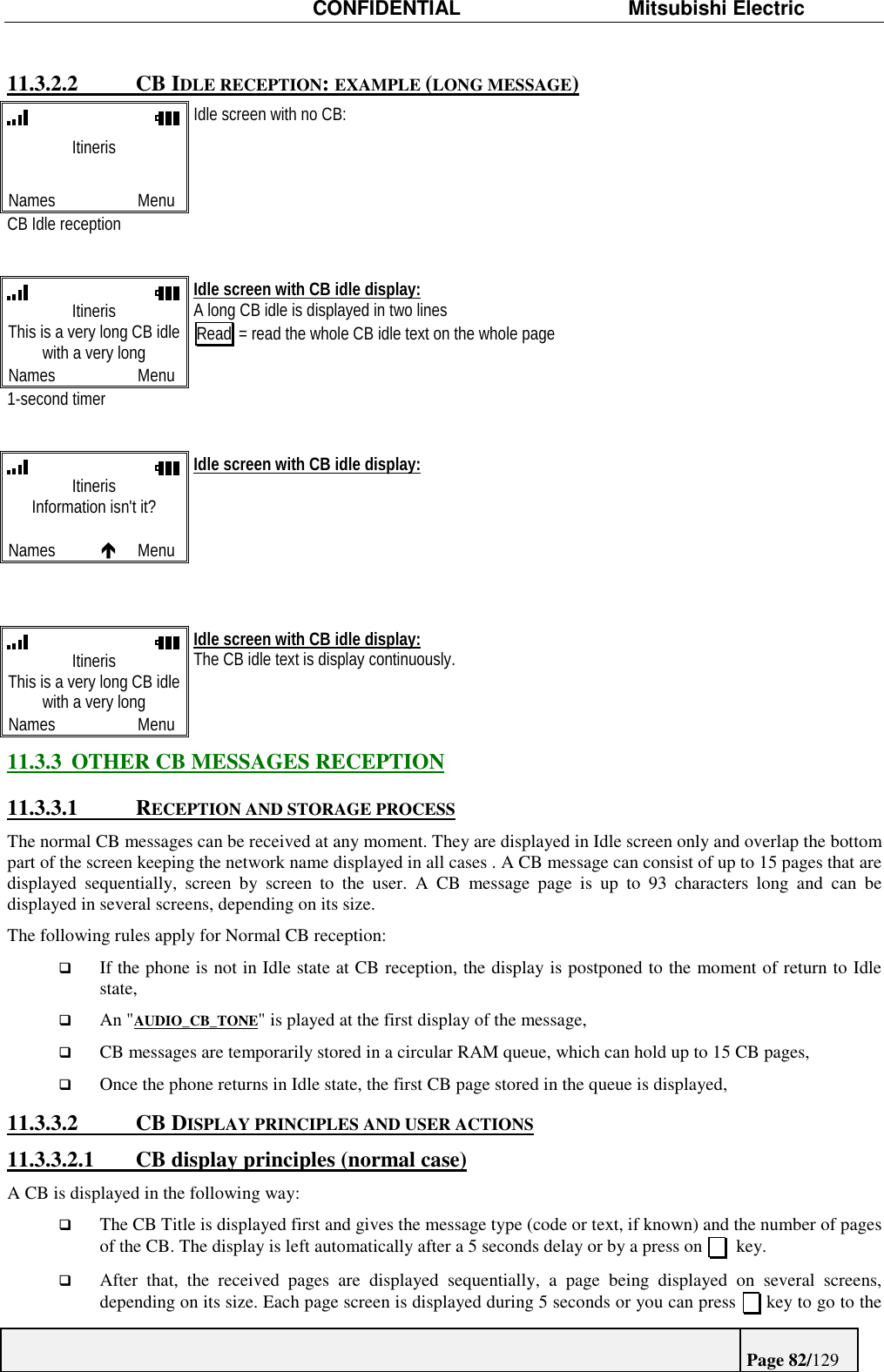

CONFIDENTIAL Mitsubishi ElectricPage 82/12911.3.2.2 CB IDLE RECEPTION: EXAMPLE (LONG MESSAGE) ItinerisNames MenuIdle screen with no CB:CB Idle reception ItinerisThis is a very long CB idlewith a very longNames MenuIdle screen with CB idle display:A long CB idle is displayed in two linesRead = read the whole CB idle text on the whole page1-second timer ItinerisInformation isn't it?Names éMenuIdle screen with CB idle display: ItinerisThis is a very long CB idlewith a very longNames MenuIdle screen with CB idle display:The CB idle text is display continuously.11.3.3 OTHER CB MESSAGES RECEPTION11.3.3.1 RECEPTION AND STORAGE PROCESSThe normal CB messages can be received at any moment. They are displayed in Idle screen only and overlap the bottompart of the screen keeping the network name displayed in all cases . A CB message can consist of up to 15 pages that aredisplayed sequentially, screen by screen to the user. A CB message page is up to 93 characters long and can bedisplayed in several screens, depending on its size.The following rules apply for Normal CB reception: If the phone is not in Idle state at CB reception, the display is postponed to the moment of return to Idlestate, An "AUDIO_CB_TONE" is played at the first display of the message, CB messages are temporarily stored in a circular RAM queue, which can hold up to 15 CB pages, Once the phone returns in Idle state, the first CB page stored in the queue is displayed,11.3.3.2 CB DISPLAY PRINCIPLES AND USER ACTIONS11.3.3.2.1 CB display principles (normal case)A CB is displayed in the following way: The CB Title is displayed first and gives the message type (code or text, if known) and the number of pagesof the CB. The display is left automatically after a 5 seconds delay or by a press on key. After that, the received pages are displayed sequentially, a page being displayed on several screens,depending on its size. Each page screen is displayed during 5 seconds or you can press key to go to the

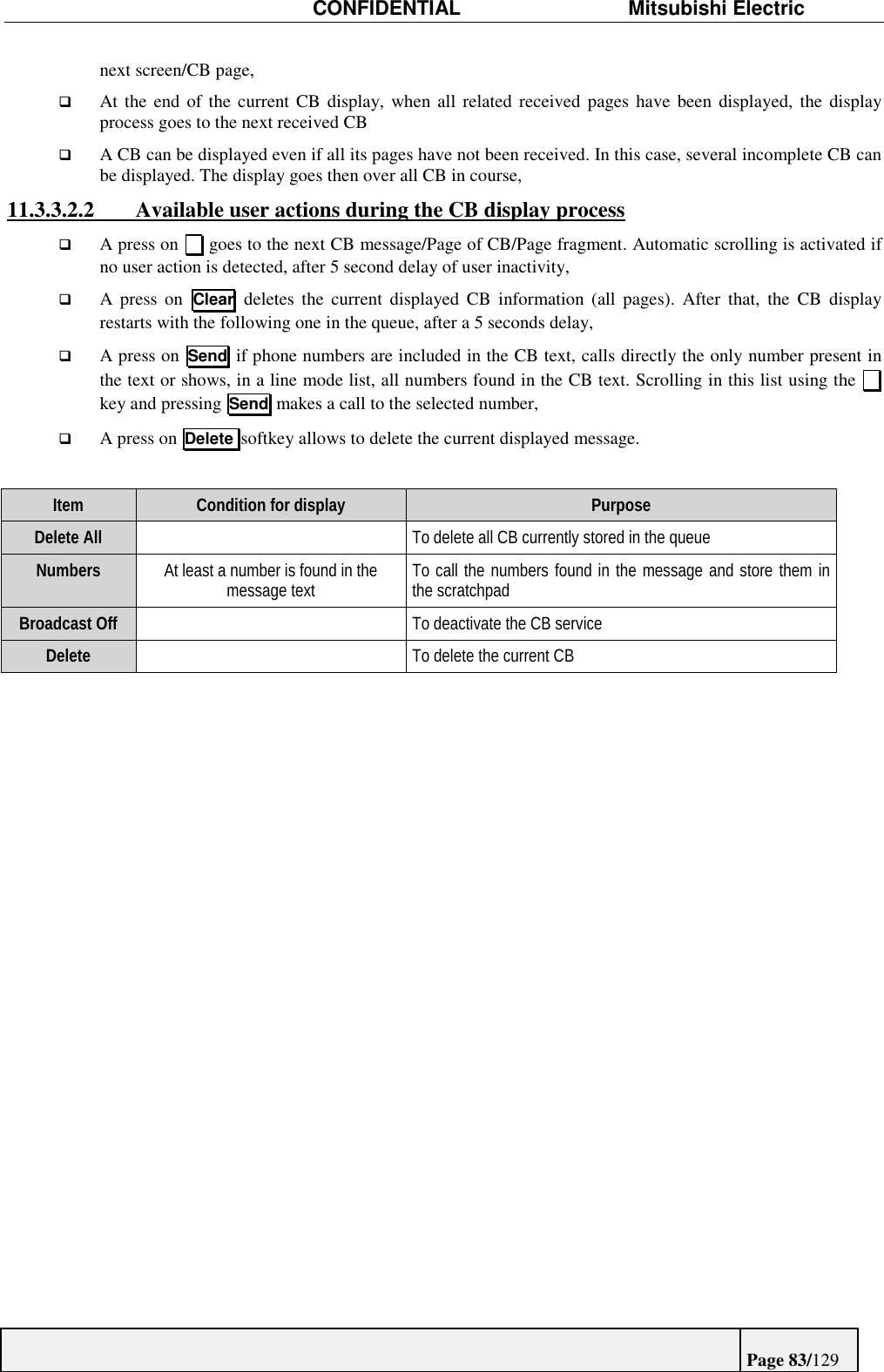

CONFIDENTIAL Mitsubishi ElectricPage 83/129next screen/CB page, At the end of the current CB display, when all related received pages have been displayed, the displayprocess goes to the next received CB A CB can be displayed even if all its pages have not been received. In this case, several incomplete CB canbe displayed. The display goes then over all CB in course,11.3.3.2.2 Available user actions during the CB display process A press on goes to the next CB message/Page of CB/Page fragment. Automatic scrolling is activated ifno user action is detected, after 5 second delay of user inactivity, A press on Clear deletes the current displayed CB information (all pages). After that, the CB displayrestarts with the following one in the queue, after a 5 seconds delay, A press on Send if phone numbers are included in the CB text, calls directly the only number present inthe text or shows, in a line mode list, all numbers found in the CB text. Scrolling in this list using the key and pressing Send makes a call to the selected number, A press on Delete softkey allows to delete the current displayed message.Item Condition for display PurposeDelete All To delete all CB currently stored in the queueNumbers At least a number is found in themessage text To call the numbers found in the message and store them inthe scratchpadBroadcast Off To deactivate the CB serviceDelete To delete the current CB

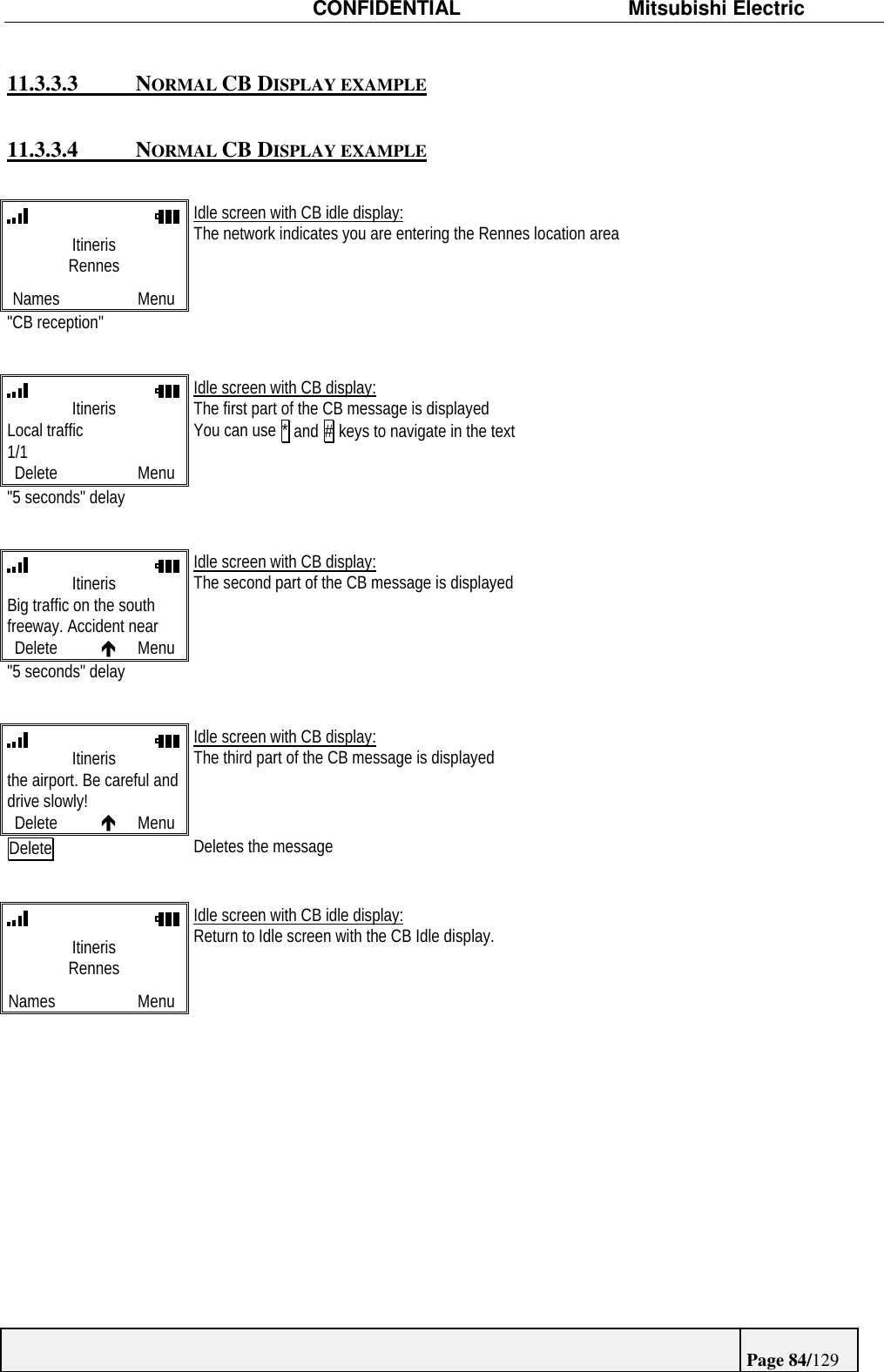

CONFIDENTIAL Mitsubishi ElectricPage 84/12911.3.3.3 NORMAL CB DISPLAY EXAMPLE11.3.3.4 NORMAL CB DISPLAY EXAMPLE ItinerisRennesNames MenuIdle screen with CB idle display:The network indicates you are entering the Rennes location area"CB reception" ItinerisLocal traffic1/1Delete MenuIdle screen with CB display:The first part of the CB message is displayedYou can use * and # keys to navigate in the text"5 seconds" delay ItinerisBig traffic on the southfreeway. Accident nearDelete éMenuIdle screen with CB display:The second part of the CB message is displayed"5 seconds" delay Itineristhe airport. Be careful anddrive slowly!Delete éMenuIdle screen with CB display:The third part of the CB message is displayedDelete Deletes the message ItinerisRennesNames MenuIdle screen with CB idle display:Return to Idle screen with the CB Idle display.

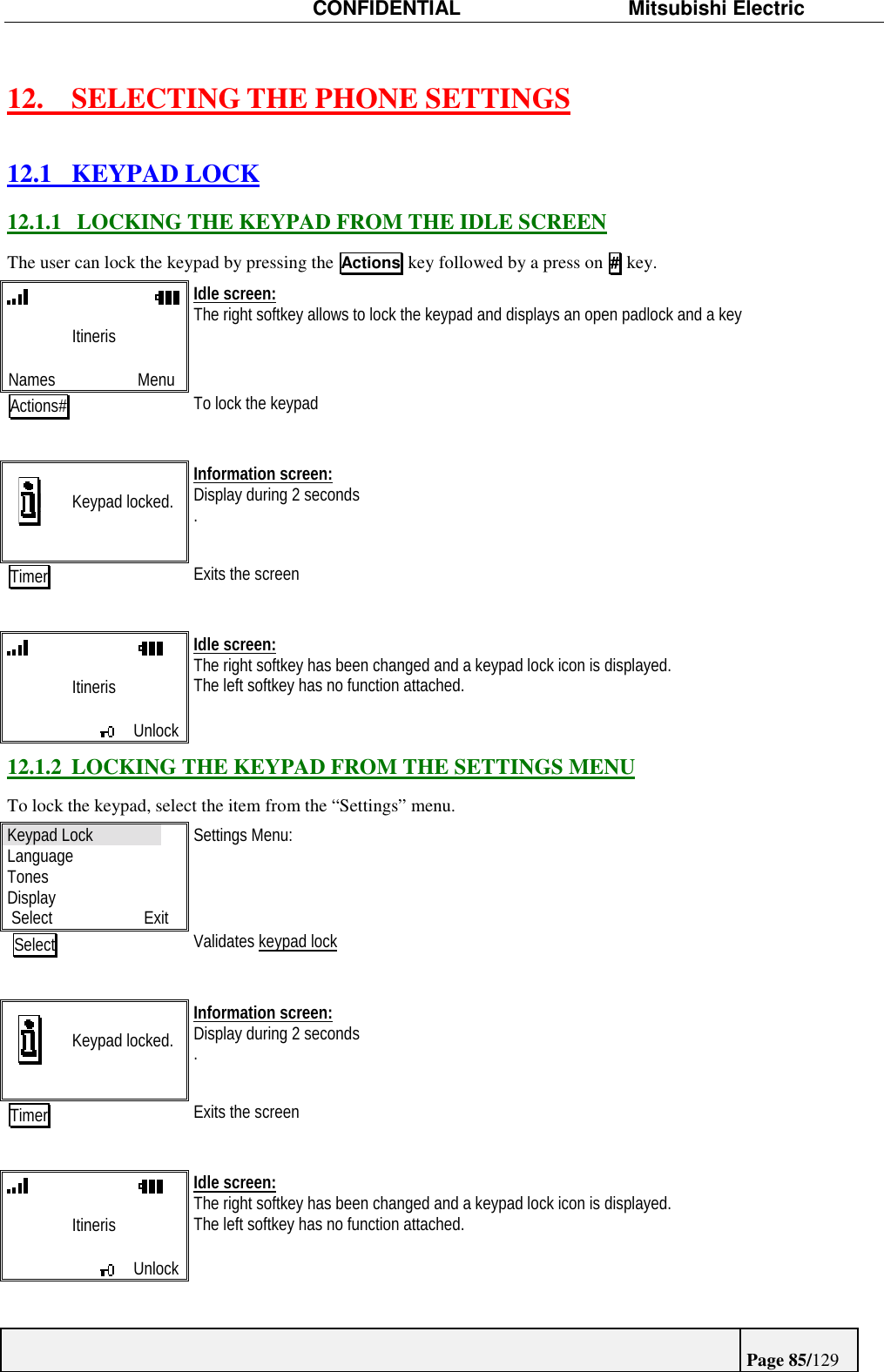

CONFIDENTIAL Mitsubishi ElectricPage 85/12912. SELECTING THE PHONE SETTINGS12.1 KEYPAD LOCK12.1.1 LOCKING THE KEYPAD FROM THE IDLE SCREENThe user can lock the keypad by pressing the Actions key followed by a press on # key. ItinerisNames MenuIdle screen:The right softkey allows to lock the keypad and displays an open padlock and a keyActions# To lock the keypad1.1Keypad locked. Information screen:Display during 2 seconds.Timer Exits the screen ItinerisUnlockIdle screen:The right softkey has been changed and a keypad lock icon is displayed.The left softkey has no function attached.12.1.2 LOCKING THE KEYPAD FROM THE SETTINGS MENUTo lock the keypad, select the item from the “Settings” menu.Keypad LockLanguageTonesDisplaySelect ExitSettings Menu: Select Validates keypad lockKeypad locked. Information screen:Display during 2 seconds.Timer Exits the screen ItinerisUnlockIdle screen:The right softkey has been changed and a keypad lock icon is displayed.The left softkey has no function attached.

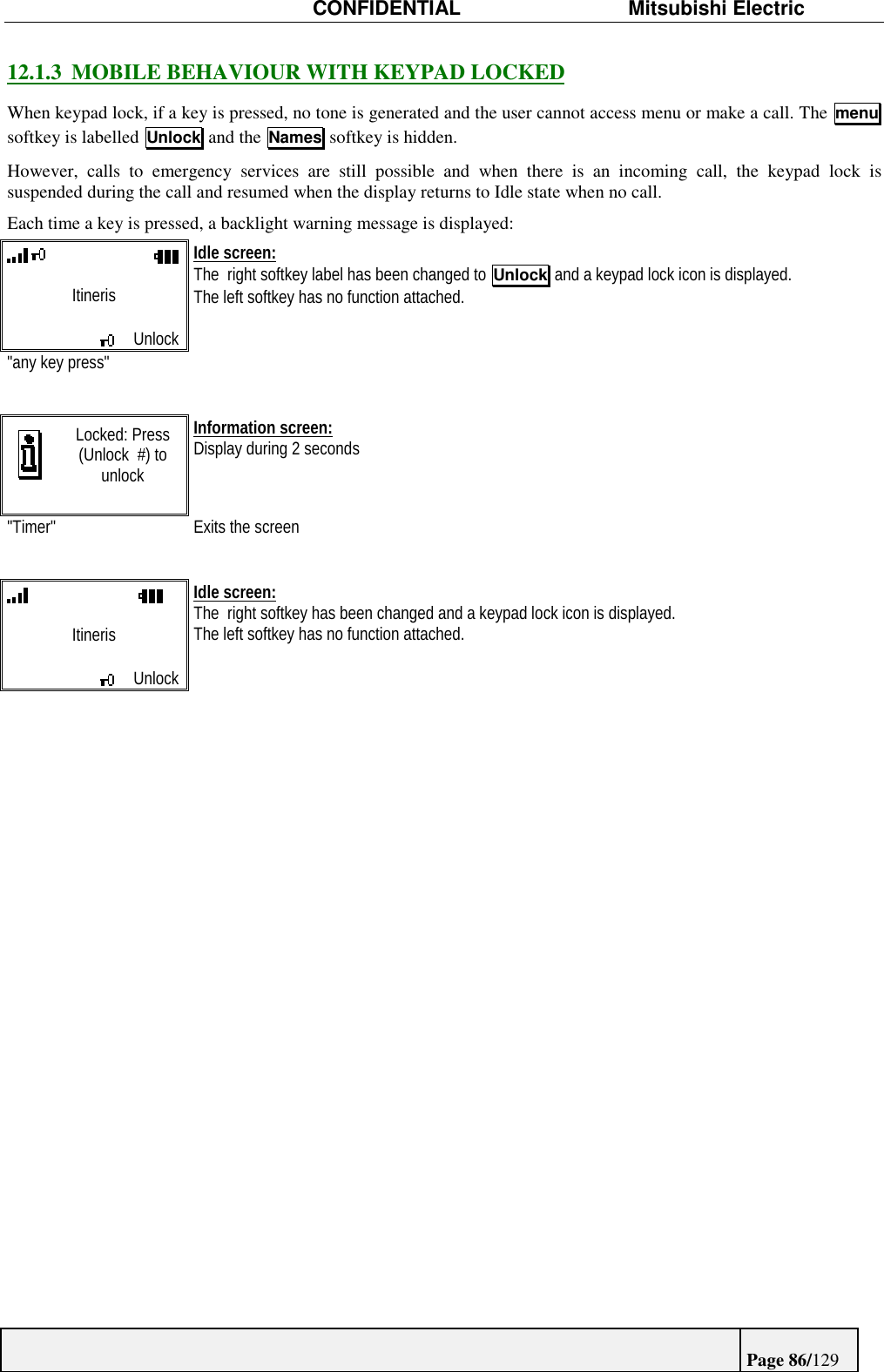

CONFIDENTIAL Mitsubishi ElectricPage 86/12912.1.3 MOBILE BEHAVIOUR WITH KEYPAD LOCKEDWhen keypad lock, if a key is pressed, no tone is generated and the user cannot access menu or make a call. The menusoftkey is labelled Unlock and the Names softkey is hidden.However, calls to emergency services are still possible and when there is an incoming call, the keypad lock issuspended during the call and resumed when the display returns to Idle state when no call.Each time a key is pressed, a backlight warning message is displayed: ItinerisUnlockIdle screen:The right softkey label has been changed to Unlock and a keypad lock icon is displayed.The left softkey has no function attached."any key press"Locked: Press(Unlock #) tounlockInformation screen:Display during 2 seconds"Timer" Exits the screen ItinerisUnlockIdle screen:The right softkey has been changed and a keypad lock icon is displayed.The left softkey has no function attached.

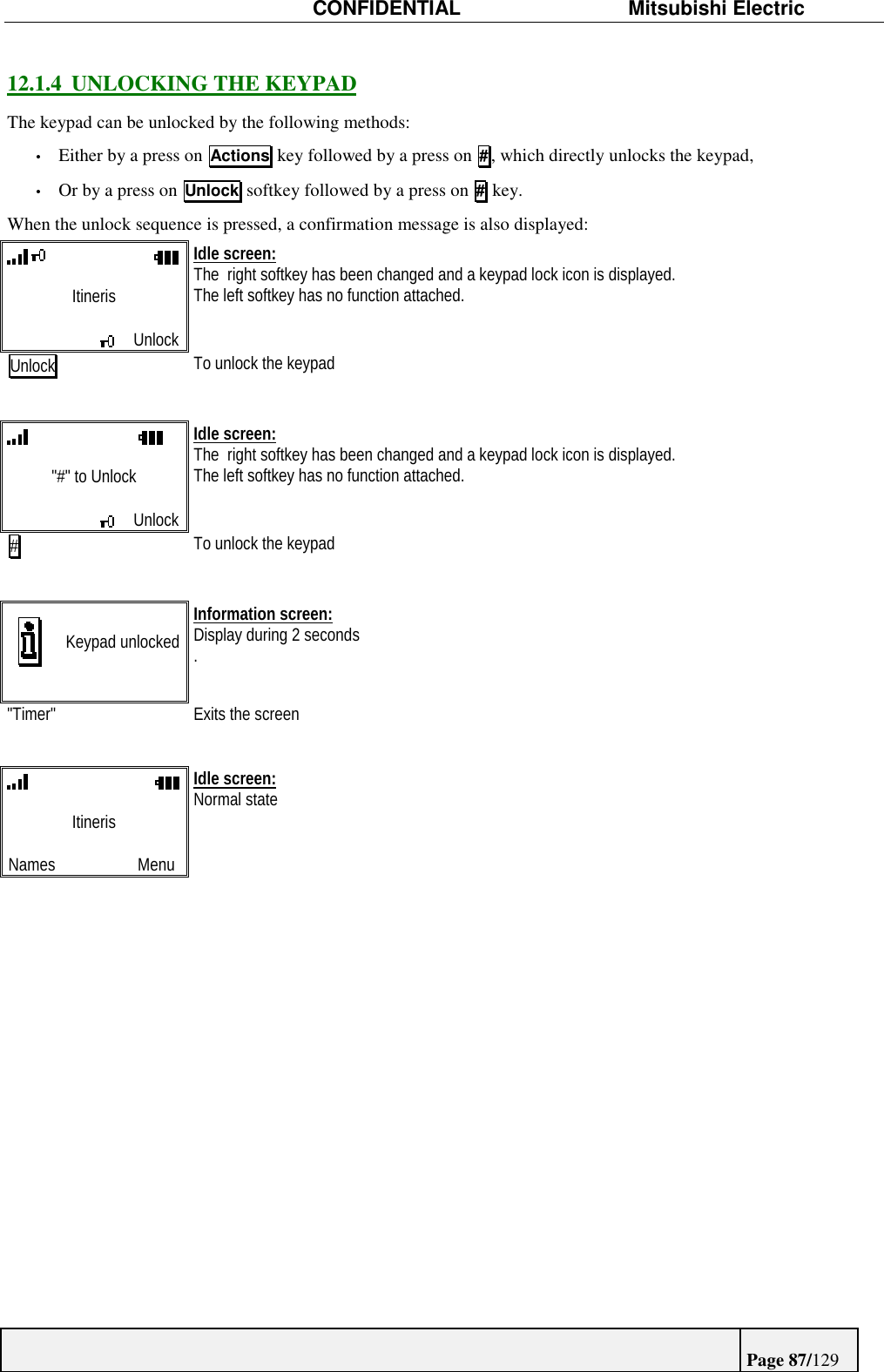

CONFIDENTIAL Mitsubishi ElectricPage 87/12912.1.4 UNLOCKING THE KEYPADThe keypad can be unlocked by the following methods:• Either by a press on Actions key followed by a press on #, which directly unlocks the keypad,• Or by a press on Unlock softkey followed by a press on # key.When the unlock sequence is pressed, a confirmation message is also displayed: ItinerisUnlockIdle screen:The right softkey has been changed and a keypad lock icon is displayed.The left softkey has no function attached.Unlock To unlock the keypad "#" to UnlockUnlockIdle screen:The right softkey has been changed and a keypad lock icon is displayed.The left softkey has no function attached.#To unlock the keypadKeypad unlocked Information screen:Display during 2 seconds."Timer" Exits the screen ItinerisNames MenuIdle screen:Normal state
CONFIDENTIAL Mitsubishi ElectricPage 88/12912.2 SELECTING THE LANGUAGEThe phone available languages depend on the phone geographical area localisation and are a factory Setting. Group oflanguages have been defined. the following languages are supported: English, French, SpanishTo set the language, select the “Language” item from the “Settings” menu by pressing Select softkey. Note: The default factory value for language is " English ". Note: While in Idle screen, the language can be selected using the following methods: Entering *#0000# select the home network language, Entering *#0xxx# selects the language for the country whose "xxx" is the phone international prefix(for example *#0033# selects French). If such a language is not available on the phone, the Englishlanguage is selected by default.Keypad LockLanguageTonesDisplaySelect ExitSettings Menu: Select Selects LanguageEnglishFrenchEspanolSelect ExitLanguage Menu:The current language is pointed when entering in the menu Select Change to French and validationVerrouillage clavierLangueSonsAffichageSelect ExitSettings Menu:Display is in French now.

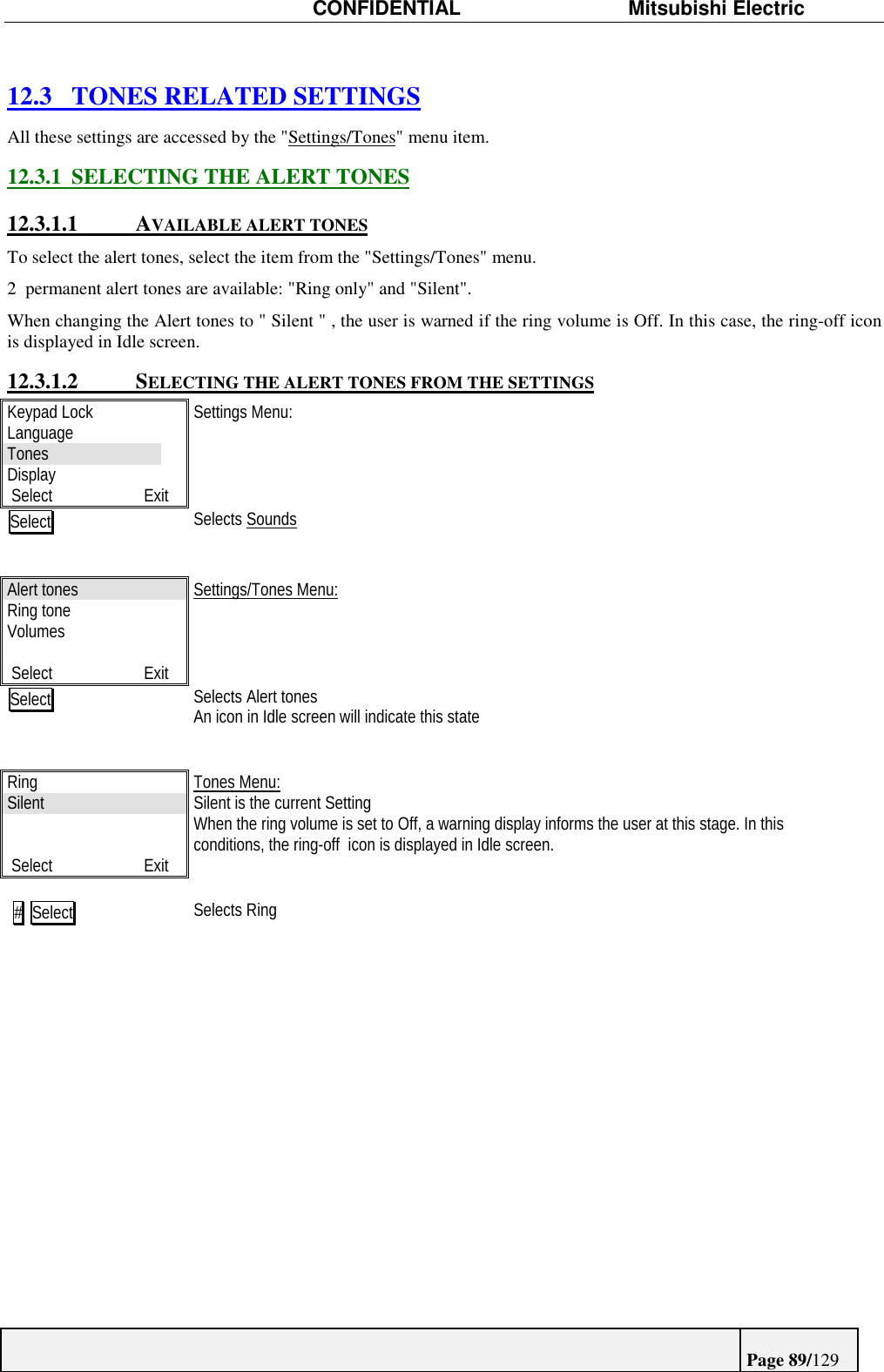

CONFIDENTIAL Mitsubishi ElectricPage 89/12912.3 TONES RELATED SETTINGSAll these settings are accessed by the "Settings/Tones" menu item.12.3.1 SELECTING THE ALERT TONES12.3.1.1 AVAILABLE ALERT TONESTo select the alert tones, select the item from the "Settings/Tones" menu.2 permanent alert tones are available: "Ring only" and "Silent".When changing the Alert tones to " Silent " , the user is warned if the ring volume is Off. In this case, the ring-off iconis displayed in Idle screen.12.3.1.2 SELECTING THE ALERT TONES FROM THE SETTINGSKeypad LockLanguageTonesDisplaySelect ExitSettings Menu:Select Selects SoundsAlert tonesRing toneVolumesSelect ExitSettings/Tones Menu:Select Selects Alert tonesAn icon in Idle screen will indicate this stateRingSilentSelect ExitTones Menu:Silent is the current SettingWhen the ring volume is set to Off, a warning display informs the user at this stage. In thisconditions, the ring-off icon is displayed in Idle screen. # Select Selects Ring

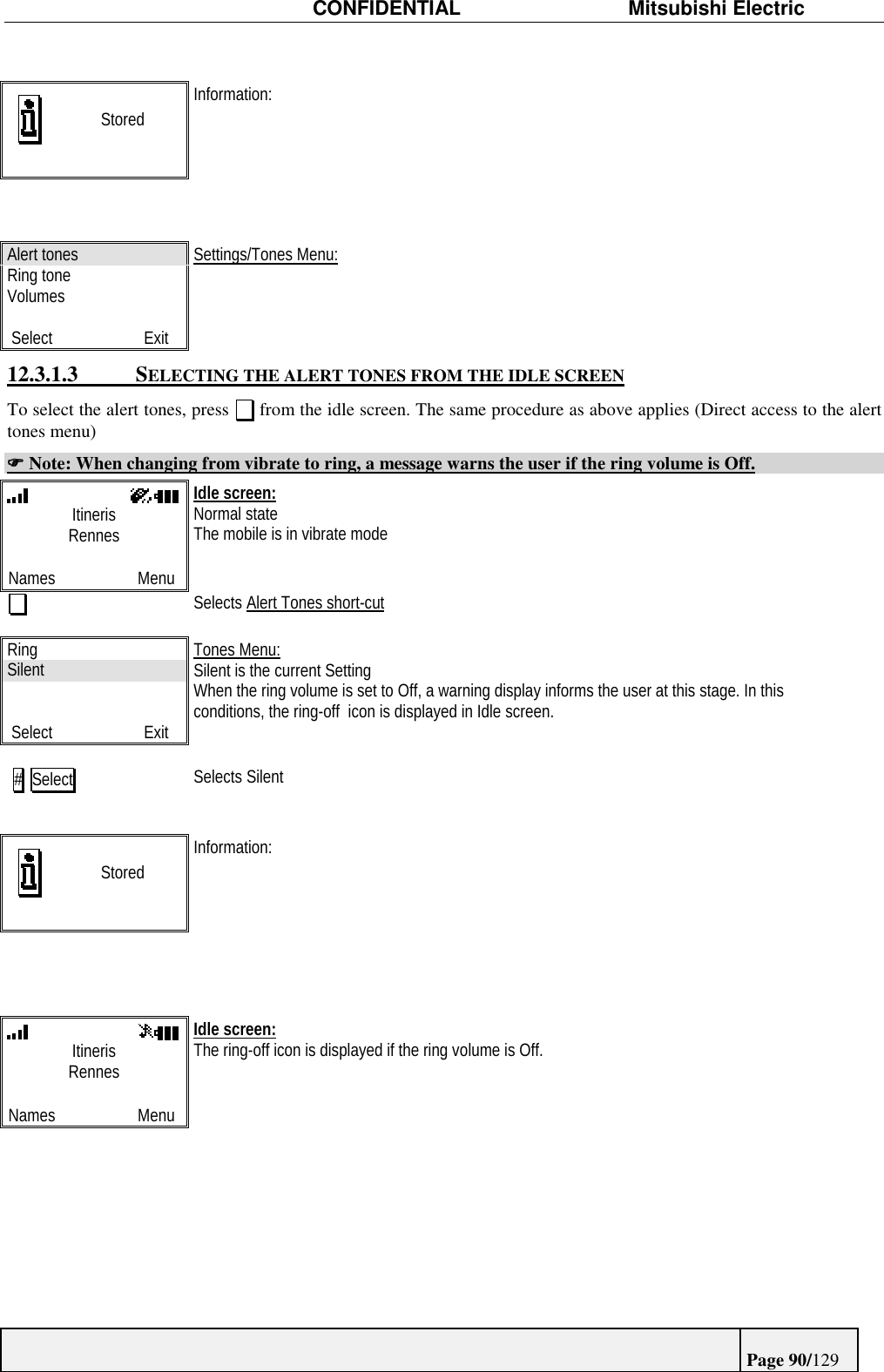

CONFIDENTIAL Mitsubishi ElectricPage 90/129Stored Information:Alert tonesRing toneVolumesSelect ExitSettings/Tones Menu:12.3.1.3 SELECTING THE ALERT TONES FROM THE IDLE SCREENTo select the alert tones, press from the idle screen. The same procedure as above applies (Direct access to the alerttones menu) Note: When changing from vibrate to ring, a message warns the user if the ring volume is Off. ItinerisRennesNames MenuIdle screen:Normal stateThe mobile is in vibrate modeSelects Alert Tones short-cutRingSilentSelect ExitTones Menu:Silent is the current SettingWhen the ring volume is set to Off, a warning display informs the user at this stage. In thisconditions, the ring-off icon is displayed in Idle screen. # Select Selects SilentStored Information: ItinerisRennesNames MenuIdle screen:The ring-off icon is displayed if the ring volume is Off.

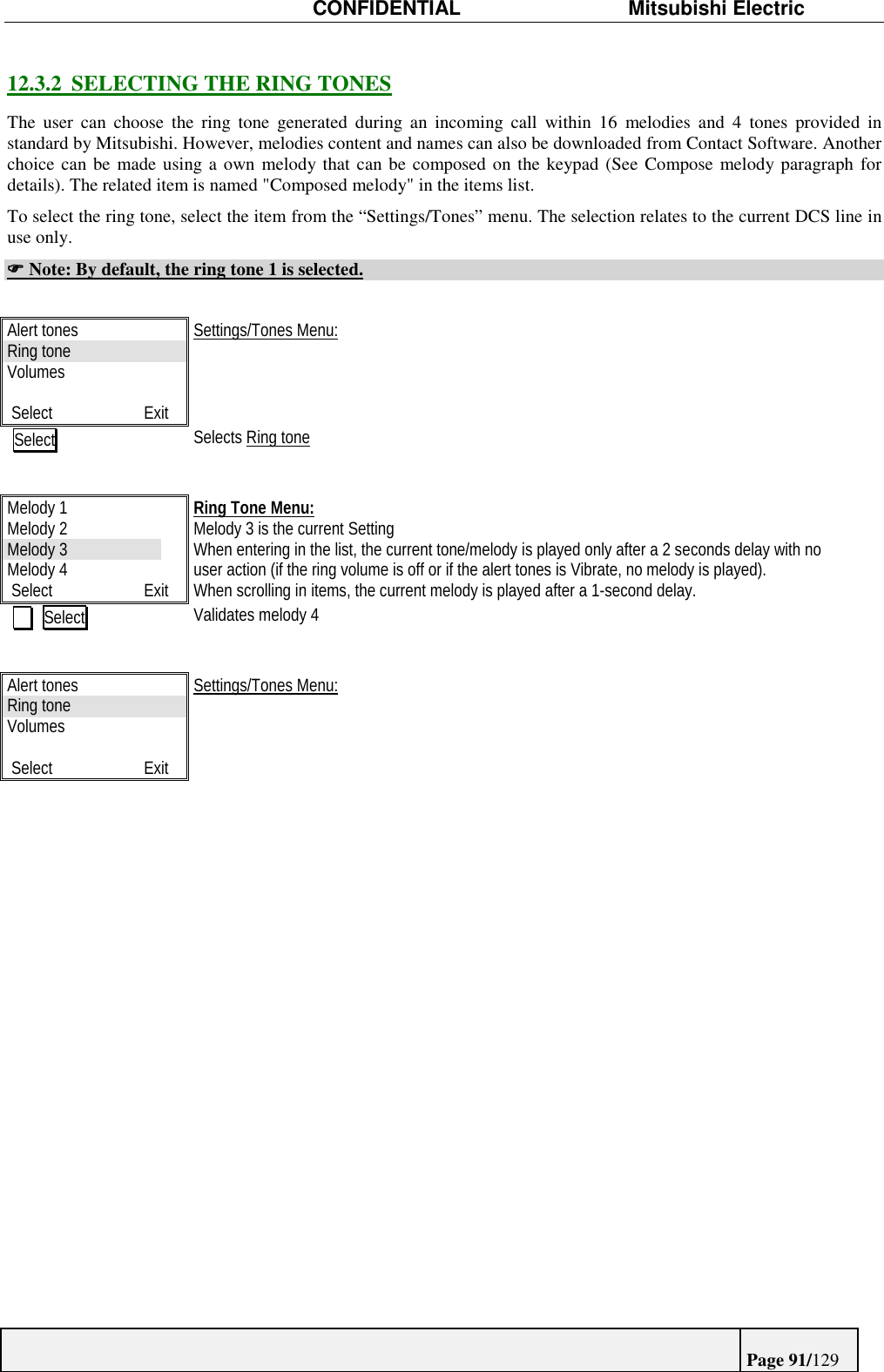

CONFIDENTIAL Mitsubishi ElectricPage 91/12912.3.2 SELECTING THE RING TONESThe user can choose the ring tone generated during an incoming call within 16 melodies and 4 tones provided instandard by Mitsubishi. However, melodies content and names can also be downloaded from Contact Software. Anotherchoice can be made using a own melody that can be composed on the keypad (See Compose melody paragraph fordetails). The related item is named "Composed melody" in the items list.To select the ring tone, select the item from the “Settings/Tones” menu. The selection relates to the current DCS line inuse only. Note: By default, the ring tone 1 is selected.Alert tonesRing toneVolumesSelect ExitSettings/Tones Menu: Select Selects Ring toneMelody 1Melody 2Melody 3Melody 4Select ExitRing Tone Menu:Melody 3 is the current SettingWhen entering in the list, the current tone/melody is played only after a 2 seconds delay with nouser action (if the ring volume is off or if the alert tones is Vibrate, no melody is played).When scrolling in items, the current melody is played after a 1-second delay. Select Validates melody 4Alert tonesRing toneVolumesSelect ExitSettings/Tones Menu:

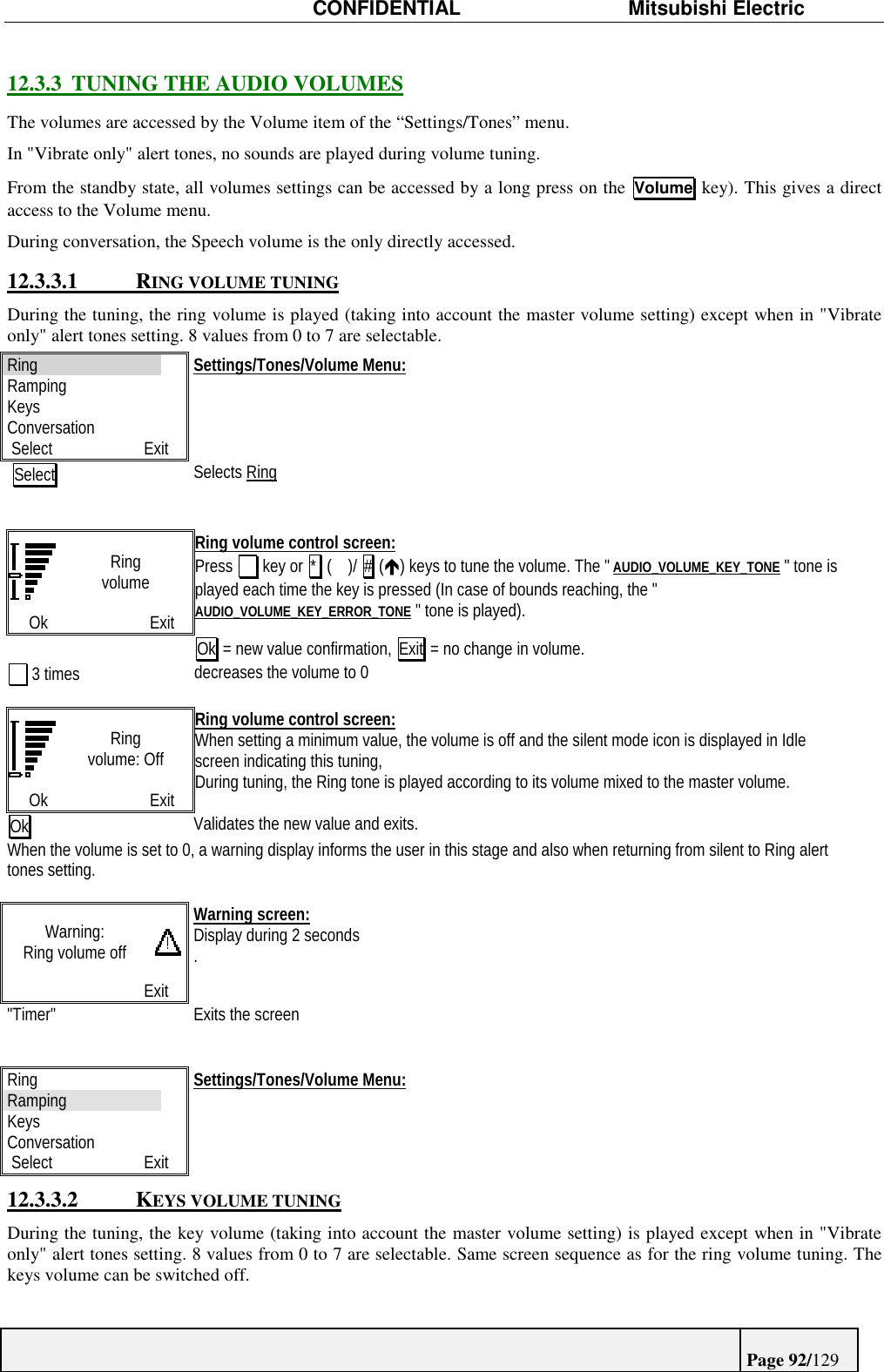

CONFIDENTIAL Mitsubishi ElectricPage 92/12912.3.3 TUNING THE AUDIO VOLUMESThe volumes are accessed by the Volume item of the “Settings/Tones” menu.In "Vibrate only" alert tones, no sounds are played during volume tuning.From the standby state, all volumes settings can be accessed by a long press on the Volume key). This gives a directaccess to the Volume menu.During conversation, the Speech volume is the only directly accessed.12.3.3.1 RING VOLUME TUNINGDuring the tuning, the ring volume is played (taking into account the master volume setting) except when in "Vibrateonly" alert tones setting. 8 values from 0 to 7 are selectable.RingRampingKeysConversationSelect ExitSettings/Tones/Volume Menu: Select Selects RingRingvolumeOk ExitRing volume control screen:Press key or * ( )/ # (é) keys to tune the volume. The " AUDIO_VOLUME_KEY_TONE " tone isplayed each time the key is pressed (In case of bounds reaching, the "AUDIO_VOLUME_KEY_ERROR_TONE " tone is played).Ok = new value confirmation, Exit = no change in volume. 3 times decreases the volume to 0Ringvolume: OffOk ExitRing volume control screen:When setting a minimum value, the volume is off and the silent mode icon is displayed in Idlescreen indicating this tuning,During tuning, the Ring tone is played according to its volume mixed to the master volume.Ok Validates the new value and exits.When the volume is set to 0, a warning display informs the user in this stage and also when returning from silent to Ring alerttones setting.Warning:Ring volume offExitWarning screen:Display during 2 seconds."Timer" Exits the screenRingRampingKeysConversationSelect ExitSettings/Tones/Volume Menu:12.3.3.2 KEYS VOLUME TUNINGDuring the tuning, the key volume (taking into account the master volume setting) is played except when in "Vibrateonly" alert tones setting. 8 values from 0 to 7 are selectable. Same screen sequence as for the ring volume tuning. Thekeys volume can be switched off.

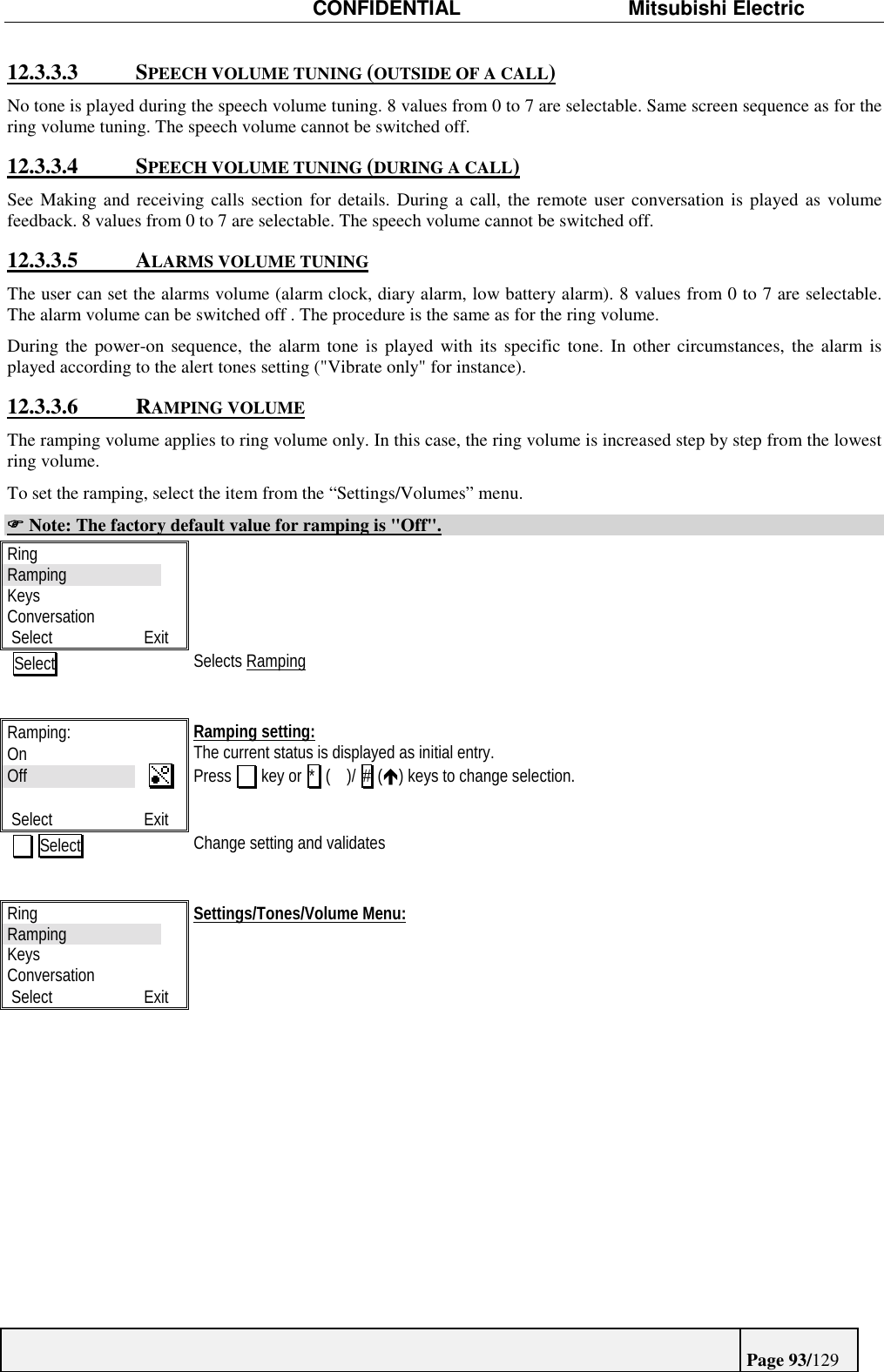

CONFIDENTIAL Mitsubishi ElectricPage 93/12912.3.3.3 SPEECH VOLUME TUNING (OUTSIDE OF A CALL)No tone is played during the speech volume tuning. 8 values from 0 to 7 are selectable. Same screen sequence as for thering volume tuning. The speech volume cannot be switched off.12.3.3.4 SPEECH VOLUME TUNING (DURING A CALL)See Making and receiving calls section for details. During a call, the remote user conversation is played as volumefeedback. 8 values from 0 to 7 are selectable. The speech volume cannot be switched off.12.3.3.5 ALARMS VOLUME TUNINGThe user can set the alarms volume (alarm clock, diary alarm, low battery alarm). 8 values from 0 to 7 are selectable.The alarm volume can be switched off . The procedure is the same as for the ring volume.During the power-on sequence, the alarm tone is played with its specific tone. In other circumstances, the alarm isplayed according to the alert tones setting ("Vibrate only" for instance).12.3.3.6 RAMPING VOLUMEThe ramping volume applies to ring volume only. In this case, the ring volume is increased step by step from the lowestring volume.To set the ramping, select the item from the “Settings/Volumes” menu. Note: The factory default value for ramping is "Off".RingRampingKeysConversationSelect Exit Select Selects RampingRamping:OnOffSelect ExitRamping setting:The current status is displayed as initial entry.Press key or * ( )/ # (é) keys to change selection. Select Change setting and validatesRingRamping Settings/Tones/Volume Menu:KeysConversationSelect Exit

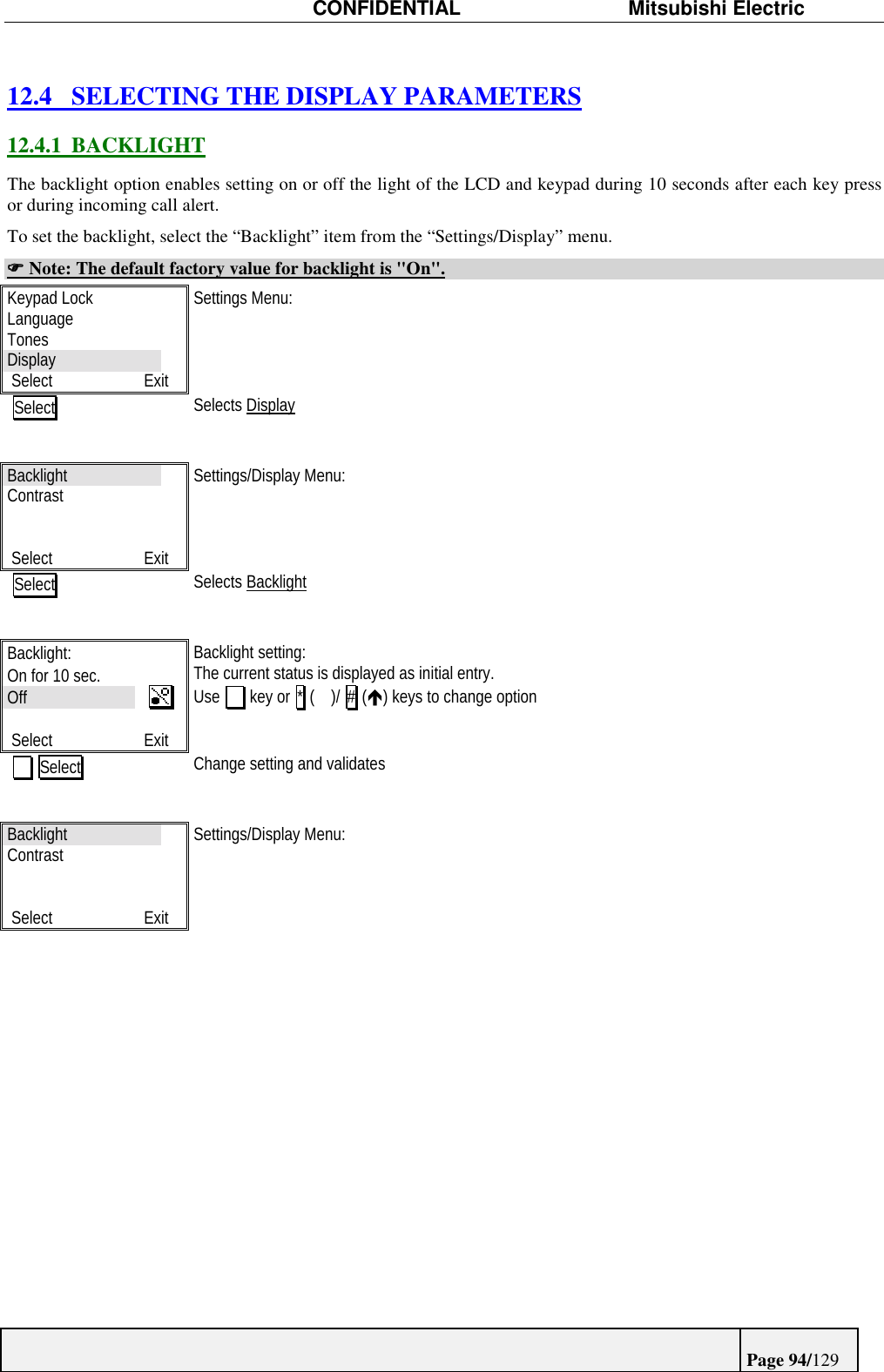

CONFIDENTIAL Mitsubishi ElectricPage 94/12912.4 SELECTING THE DISPLAY PARAMETERS12.4.1 BACKLIGHTThe backlight option enables setting on or off the light of the LCD and keypad during 10 seconds after each key pressor during incoming call alert.To set the backlight, select the “Backlight” item from the “Settings/Display” menu. Note: The default factory value for backlight is "On".Keypad LockLanguageTonesDisplaySelect ExitSettings Menu: Select Selects DisplayBacklightContrastSelect ExitSettings/Display Menu: Select Selects BacklightBacklight:On for 10 sec.OffSelect ExitBacklight setting:The current status is displayed as initial entry.Use key or * ( )/ # (é) keys to change option Select Change setting and validatesBacklightContrastSelect ExitSettings/Display Menu:

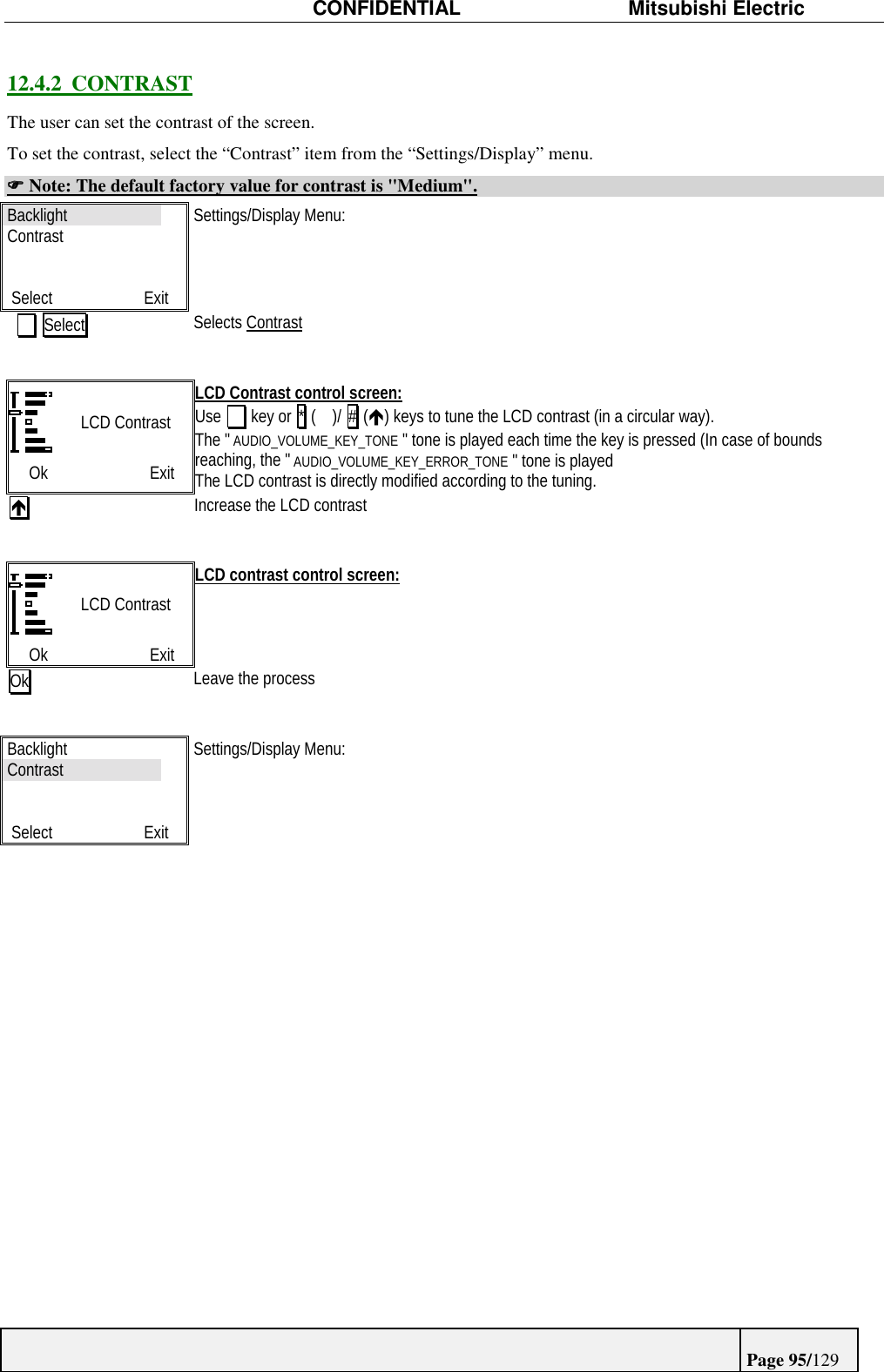

CONFIDENTIAL Mitsubishi ElectricPage 95/12912.4.2 CONTRASTThe user can set the contrast of the screen.To set the contrast, select the “Contrast” item from the “Settings/Display” menu. Note: The default factory value for contrast is "Medium".BacklightContrastSelect ExitSettings/Display Menu: Select Selects ContrastLCD ContrastOk ExitLCD Contrast control screen:Use key or * ( )/ # (é) keys to tune the LCD contrast (in a circular way).The " AUDIO_VOLUME_KEY_TONE " tone is played each time the key is pressed (In case of boundsreaching, the " AUDIO_VOLUME_KEY_ERROR_TONE " tone is playedThe LCD contrast is directly modified according to the tuning.éIncrease the LCD contrastLCD ContrastOk ExitLCD contrast control screen:Ok Leave the processBacklightContrastSelect ExitSettings/Display Menu:

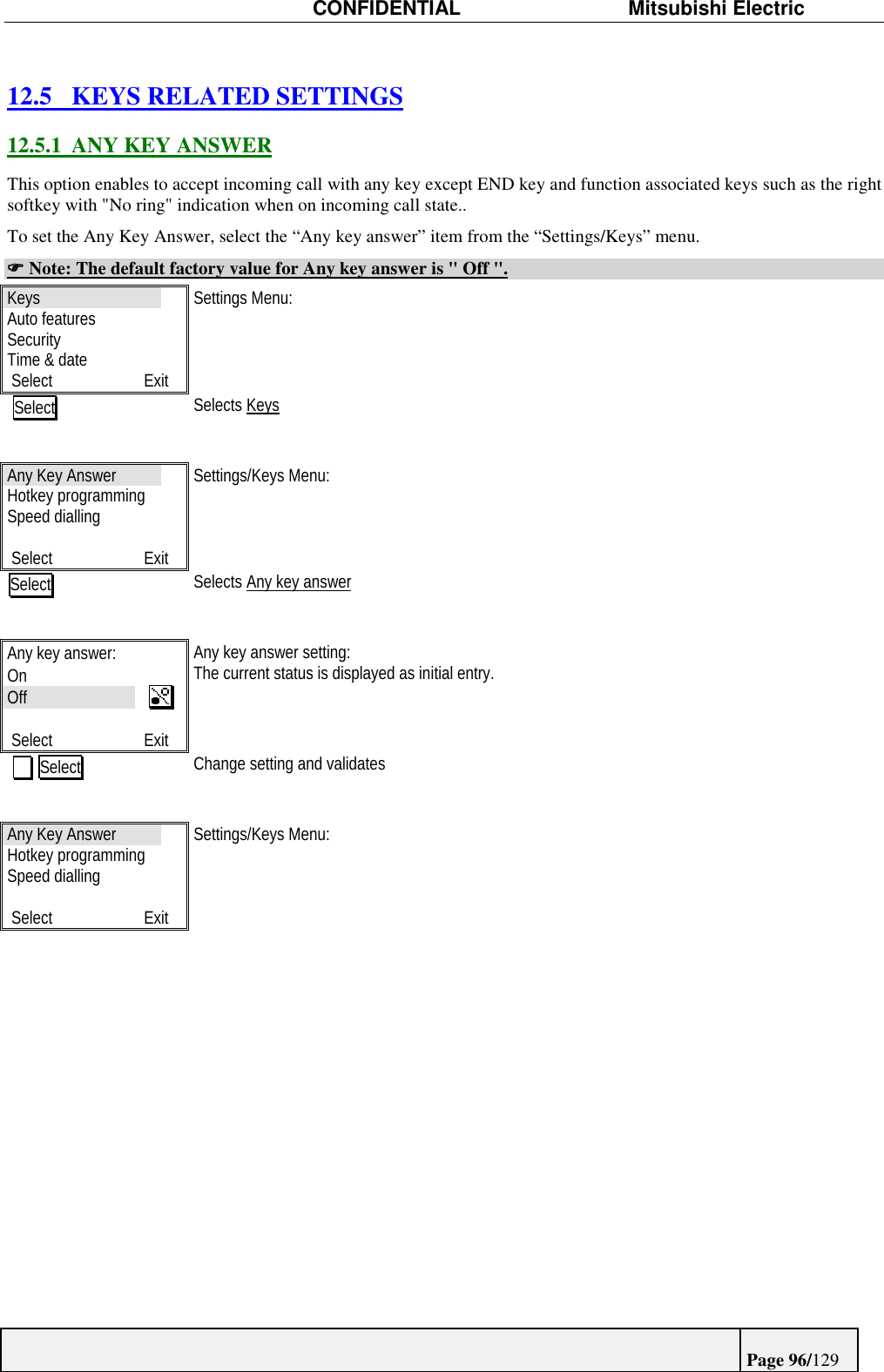

CONFIDENTIAL Mitsubishi ElectricPage 96/12912.5 KEYS RELATED SETTINGS12.5.1 ANY KEY ANSWERThis option enables to accept incoming call with any key except END key and function associated keys such as the rightsoftkey with "No ring" indication when on incoming call state..To set the Any Key Answer, select the “Any key answer” item from the “Settings/Keys” menu. Note: The default factory value for Any key answer is " Off ".KeysAuto featuresSecurityTime & dateSelect ExitSettings Menu: Select Selects KeysAny Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:Select Selects Any key answerAny key answer:OnOffSelect ExitAny key answer setting:The current status is displayed as initial entry. Select Change setting and validatesAny Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:

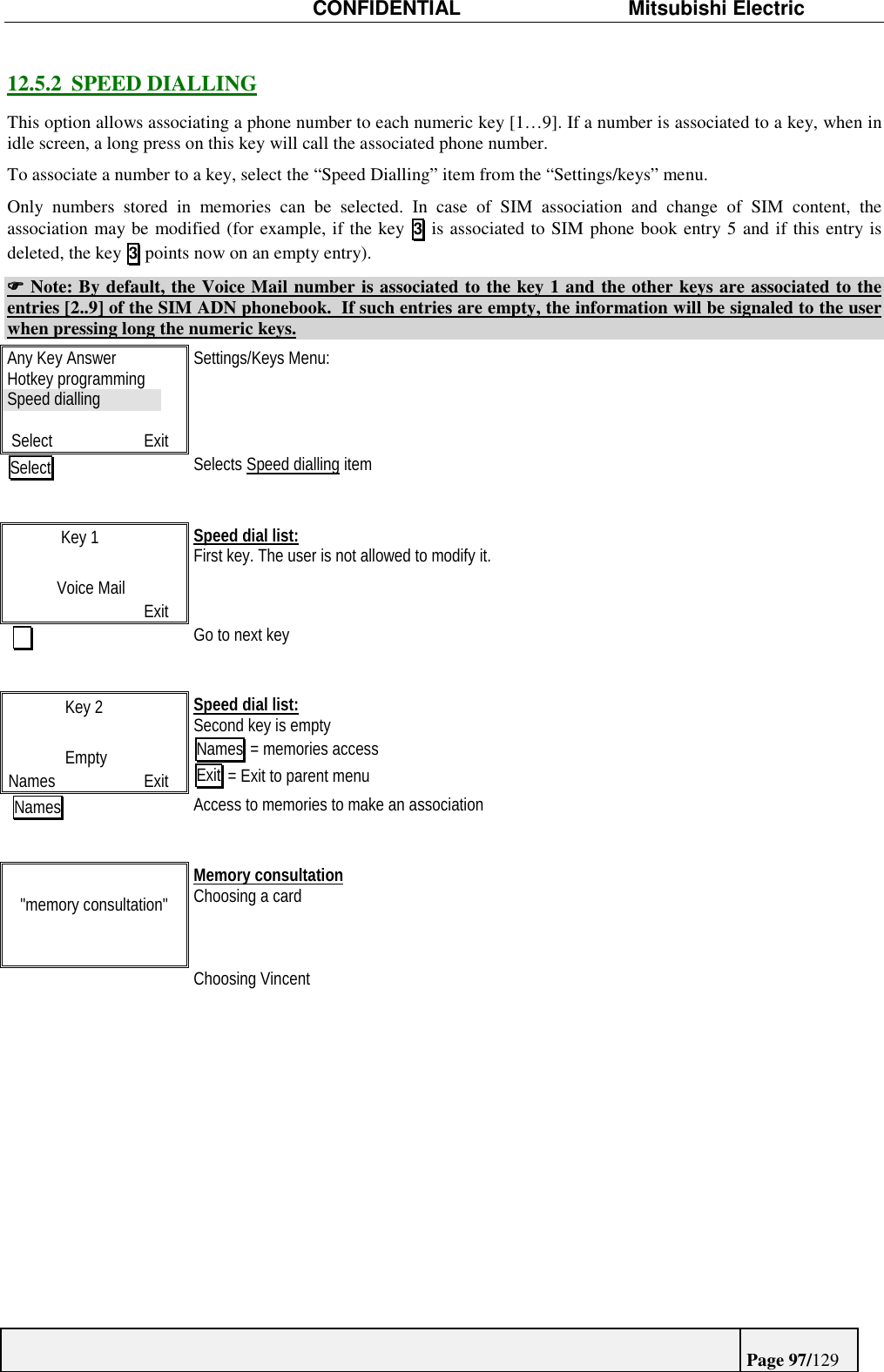

CONFIDENTIAL Mitsubishi ElectricPage 97/12912.5.2 SPEED DIALLINGThis option allows associating a phone number to each numeric key [1…9]. If a number is associated to a key, when inidle screen, a long press on this key will call the associated phone number.To associate a number to a key, select the “Speed Dialling” item from the “Settings/keys” menu.Only numbers stored in memories can be selected. In case of SIM association and change of SIM content, theassociation may be modified (for example, if the key 3 is associated to SIM phone book entry 5 and if this entry isdeleted, the key 3 points now on an empty entry). Note: By default, the Voice Mail number is associated to the key 1 and the other keys are associated to theentries [2..9] of the SIM ADN phonebook. If such entries are empty, the information will be signaled to the userwhen pressing long the numeric keys.Any Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:Select Selects Speed dialling item Key 1 Voice Mail ExitSpeed dial list:First key. The user is not allowed to modify it. Go to next key Key 2 EmptyNames ExitSpeed dial list:Second key is emptyNames = memories accessExit = Exit to parent menu Names Access to memories to make an association"memory consultation"Memory consultationChoosing a cardChoosing Vincent

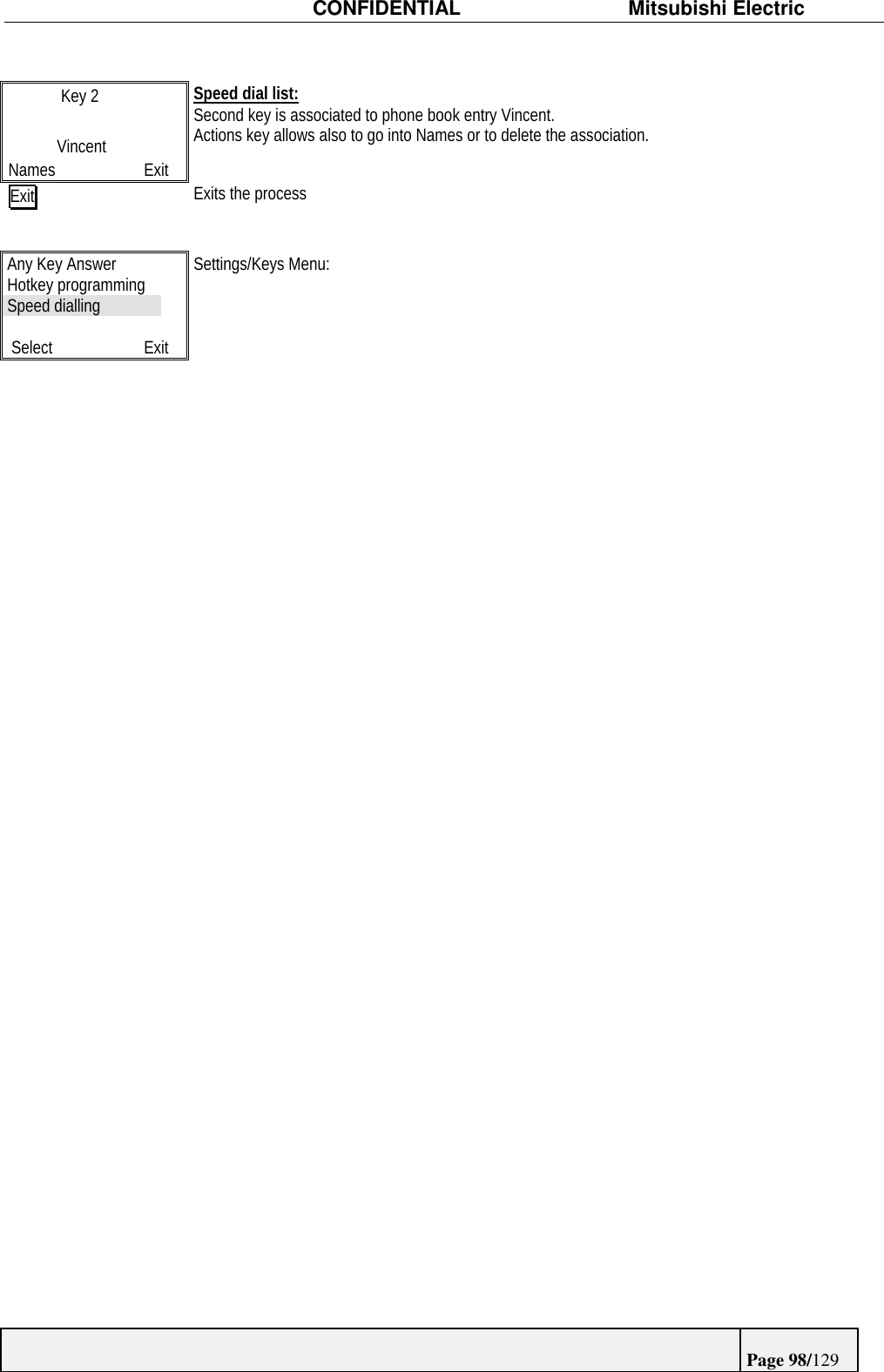

CONFIDENTIAL Mitsubishi ElectricPage 98/129 Key 2 VincentNames ExitSpeed dial list:Second key is associated to phone book entry Vincent.Actions key allows also to go into Names or to delete the association.Exit Exits the processAny Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:
CONFIDENTIAL Mitsubishi ElectricPage 99/12912.5.3 HOTKEY PROGRAMMINGAny Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:Select Selects HotkeyAlert tonesCall DivertingRing toneMenuSelect ExitHotkey functions Menu:The current associated function is highlighted on menu entry.Exit = exit with no change.Select = exit with current item selectedUse key or * ( )/ # (é) keys to change option Goes to next menu partCurrency ConverterNamesKeypad lockMy ID managementSelect ExitSoftkeys functions Menu: Select Selects Currency ConverterAny Key AnswerHotkey programmingSpeed diallingSelect ExitSettings/Keys Menu:

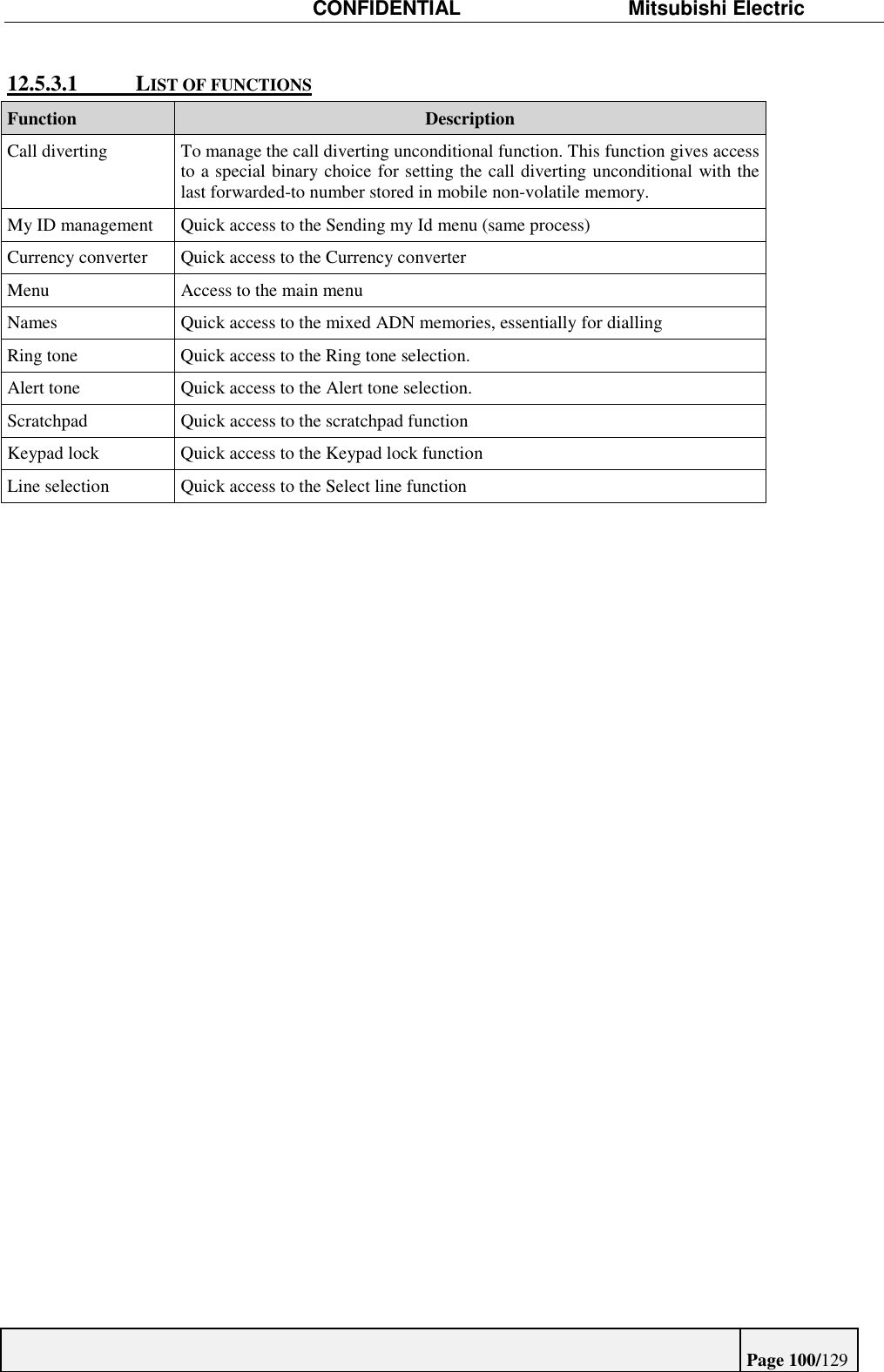

CONFIDENTIAL Mitsubishi ElectricPage 100/12912.5.3.1 LIST OF FUNCTIONSFunction DescriptionCall diverting To manage the call diverting unconditional function. This function gives accessto a special binary choice for setting the call diverting unconditional with thelast forwarded-to number stored in mobile non-volatile memory.My ID management Quick access to the Sending my Id menu (same process)Currency converter Quick access to the Currency converterMenu Access to the main menuNames Quick access to the mixed ADN memories, essentially for diallingRing tone Quick access to the Ring tone selection.Alert tone Quick access to the Alert tone selection.Scratchpad Quick access to the scratchpad functionKeypad lock Quick access to the Keypad lock functionLine selection Quick access to the Select line function

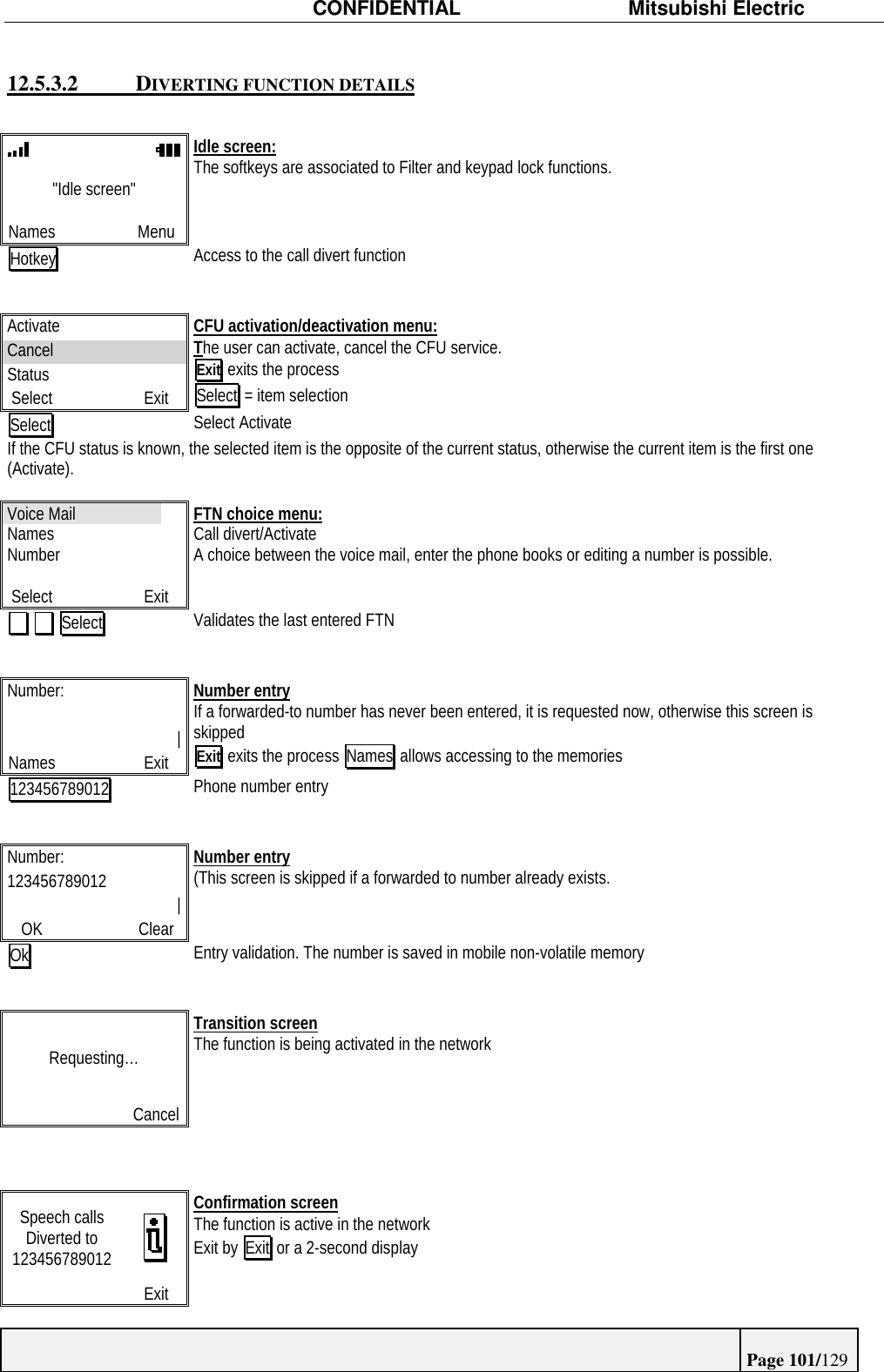

CONFIDENTIAL Mitsubishi ElectricPage 101/12912.5.3.2 DIVERTING FUNCTION DETAILS "Idle screen"Names MenuIdle screen:The softkeys are associated to Filter and keypad lock functions.Hotkey Access to the call divert functionActivateCancelStatusSelect ExitCFU activation/deactivation menu:The user can activate, cancel the CFU service.Exit exits the processSelect = item selectionSelect Select ActivateIf the CFU status is known, the selected item is the opposite of the current status, otherwise the current item is the first one(Activate).Voice MailNamesNumberSelect ExitFTN choice menu:Call divert/ActivateA choice between the voice mail, enter the phone books or editing a number is possible. Select Validates the last entered FTNNumber:|Names ExitNumber entryIf a forwarded-to number has never been entered, it is requested now, otherwise this screen isskippedExit exits the process Names allows accessing to the memories123456789012 Phone number entryNumber:123456789012 |OK ClearNumber entry(This screen is skipped if a forwarded to number already exists.Ok Entry validation. The number is saved in mobile non-volatile memoryRequesting…CancelTransition screenThe function is being activated in the networkSpeech callsDiverted to123456789012ExitConfirmation screenThe function is active in the networkExit by Exit or a 2-second display

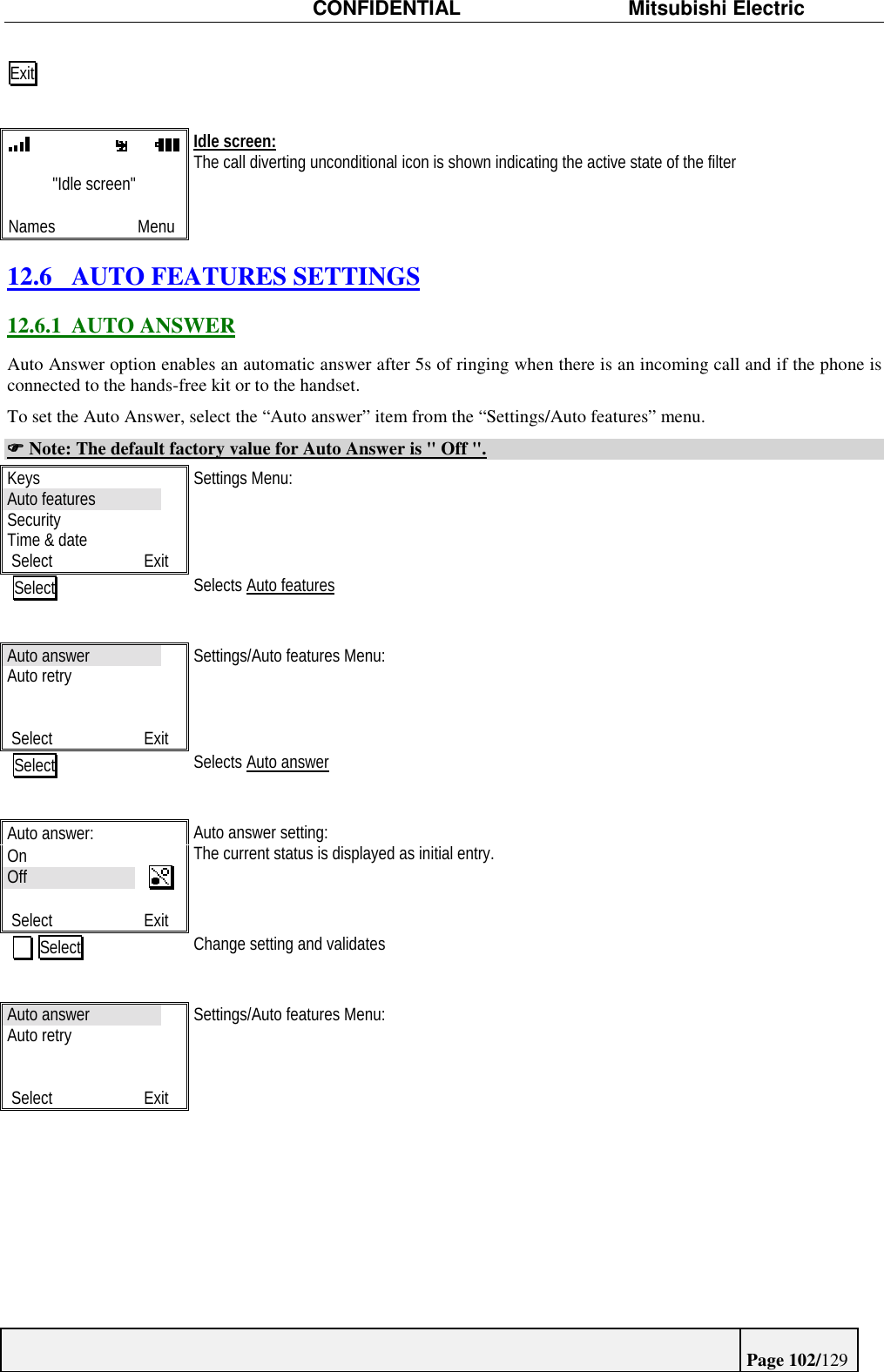

CONFIDENTIAL Mitsubishi ElectricPage 102/129Exit "Idle screen"Names MenuIdle screen:The call diverting unconditional icon is shown indicating the active state of the filter12.6 AUTO FEATURES SETTINGS12.6.1 AUTO ANSWERAuto Answer option enables an automatic answer after 5s of ringing when there is an incoming call and if the phone isconnected to the hands-free kit or to the handset.To set the Auto Answer, select the “Auto answer” item from the “Settings/Auto features” menu. Note: The default factory value for Auto Answer is " Off ".KeysAuto featuresSecurityTime & dateSelect ExitSettings Menu: Select Selects Auto featuresAuto answerAuto retrySelect ExitSettings/Auto features Menu: Select Selects Auto answerAuto answer:OnOffSelect ExitAuto answer setting:The current status is displayed as initial entry. Select Change setting and validatesAuto answerAuto retrySelect ExitSettings/Auto features Menu:

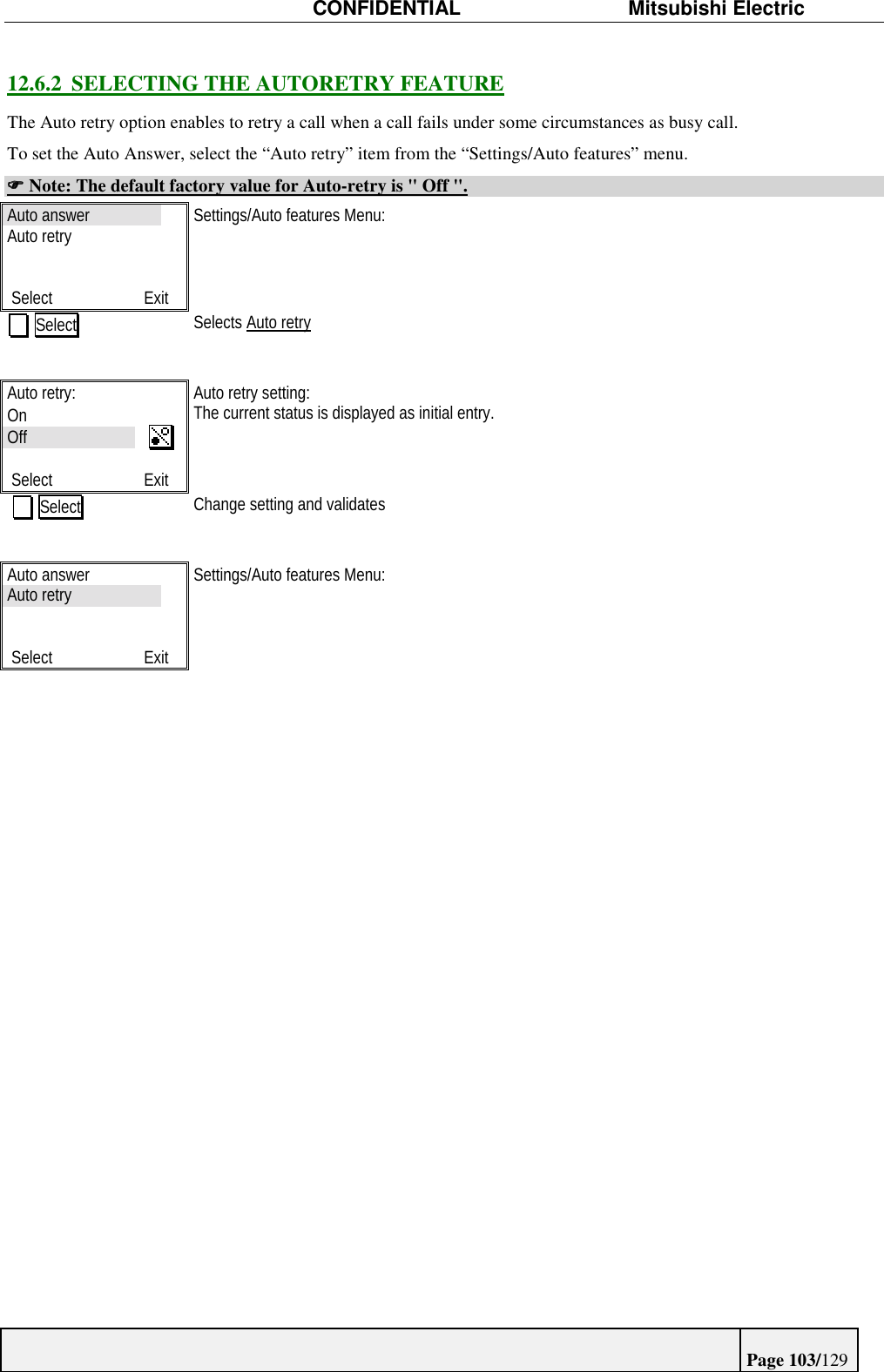

CONFIDENTIAL Mitsubishi ElectricPage 103/12912.6.2 SELECTING THE AUTORETRY FEATUREThe Auto retry option enables to retry a call when a call fails under some circumstances as busy call.To set the Auto Answer, select the “Auto retry” item from the “Settings/Auto features” menu. Note: The default factory value for Auto-retry is " Off ".Auto answerAuto retrySelect ExitSettings/Auto features Menu: Select Selects Auto retryAuto retry:OnOffSelect ExitAuto retry setting:The current status is displayed as initial entry. Select Change setting and validatesAuto answerAuto retrySelect ExitSettings/Auto features Menu:

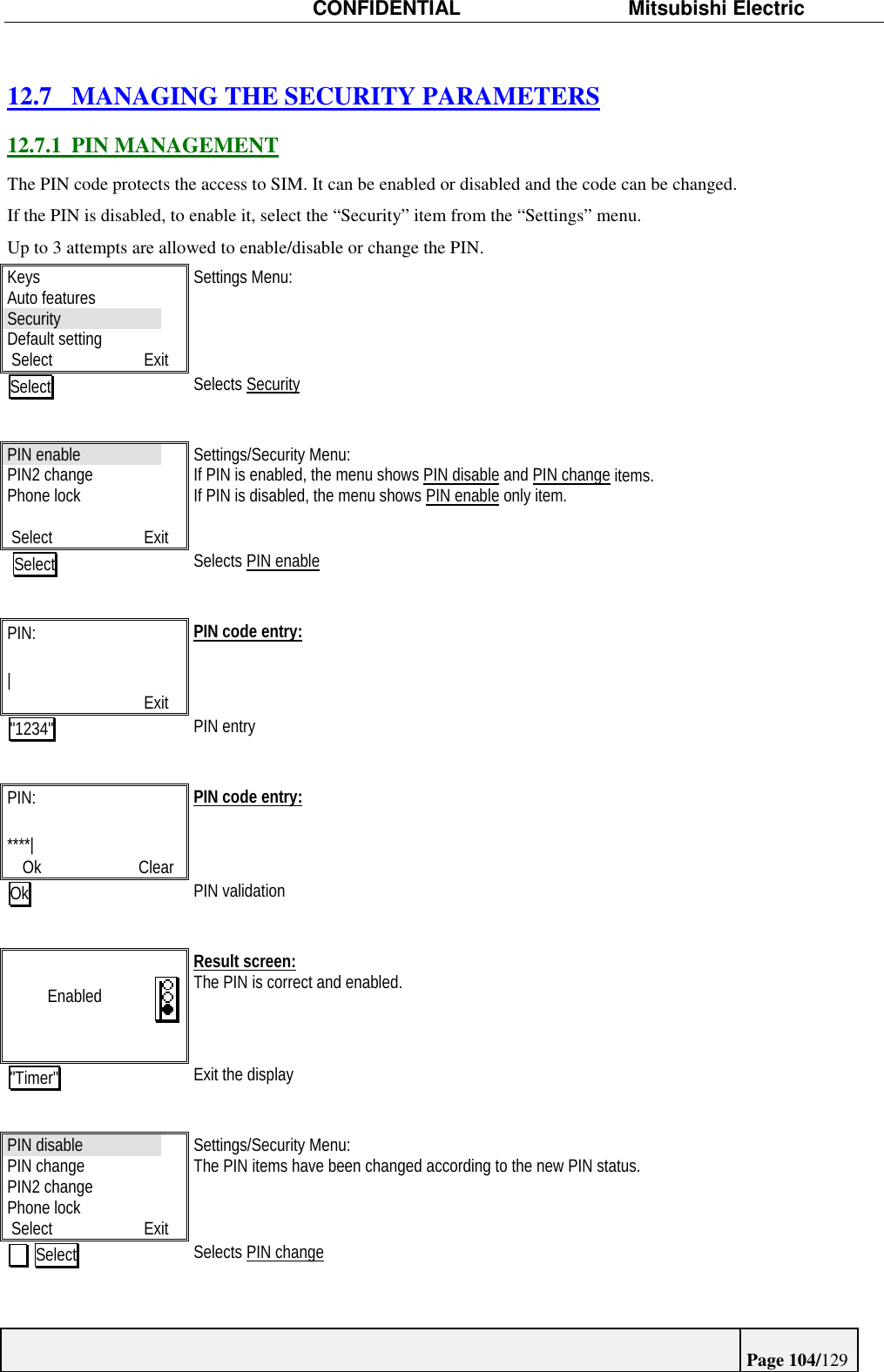

CONFIDENTIAL Mitsubishi ElectricPage 104/12912.7 MANAGING THE SECURITY PARAMETERS12.7.1 PIN MANAGEMENTThe PIN code protects the access to SIM. It can be enabled or disabled and the code can be changed.If the PIN is disabled, to enable it, select the “Security” item from the “Settings” menu.Up to 3 attempts are allowed to enable/disable or change the PIN.KeysAuto featuresSecurityDefault settingSelect ExitSettings Menu:Select Selects SecurityPIN enablePIN2 changePhone lockSelect ExitSettings/Security Menu:If PIN is enabled, the menu shows PIN disable and PIN change items.If PIN is disabled, the menu shows PIN enable only item. Select Selects PIN enablePIN:|ExitPIN code entry:"1234" PIN entryPIN:****|Ok ClearPIN code entry:Ok PIN validationEnabledResult screen:The PIN is correct and enabled."Timer" Exit the displayPIN disablePIN changePIN2 changePhone lockSelect ExitSettings/Security Menu:The PIN items have been changed according to the new PIN status. Select Selects PIN change
CONFIDENTIAL Mitsubishi ElectricPage 105/129Old PIN:|ExitPIN code entry:1234 Old PIN entryOld PIN:****|Ok ClearPIN code entry:Ok Old PIN entryNew PIN:|ExitPIN code entry:1111 New PIN entryNew PIN:****|Ok ClearPIN code entry:Ok New PIN entryNew PIN again:|ExitPIN code entry:1111 New PIN entryNew PIN again:****|Ok ClearPIN code entry:Ok New PIN entry

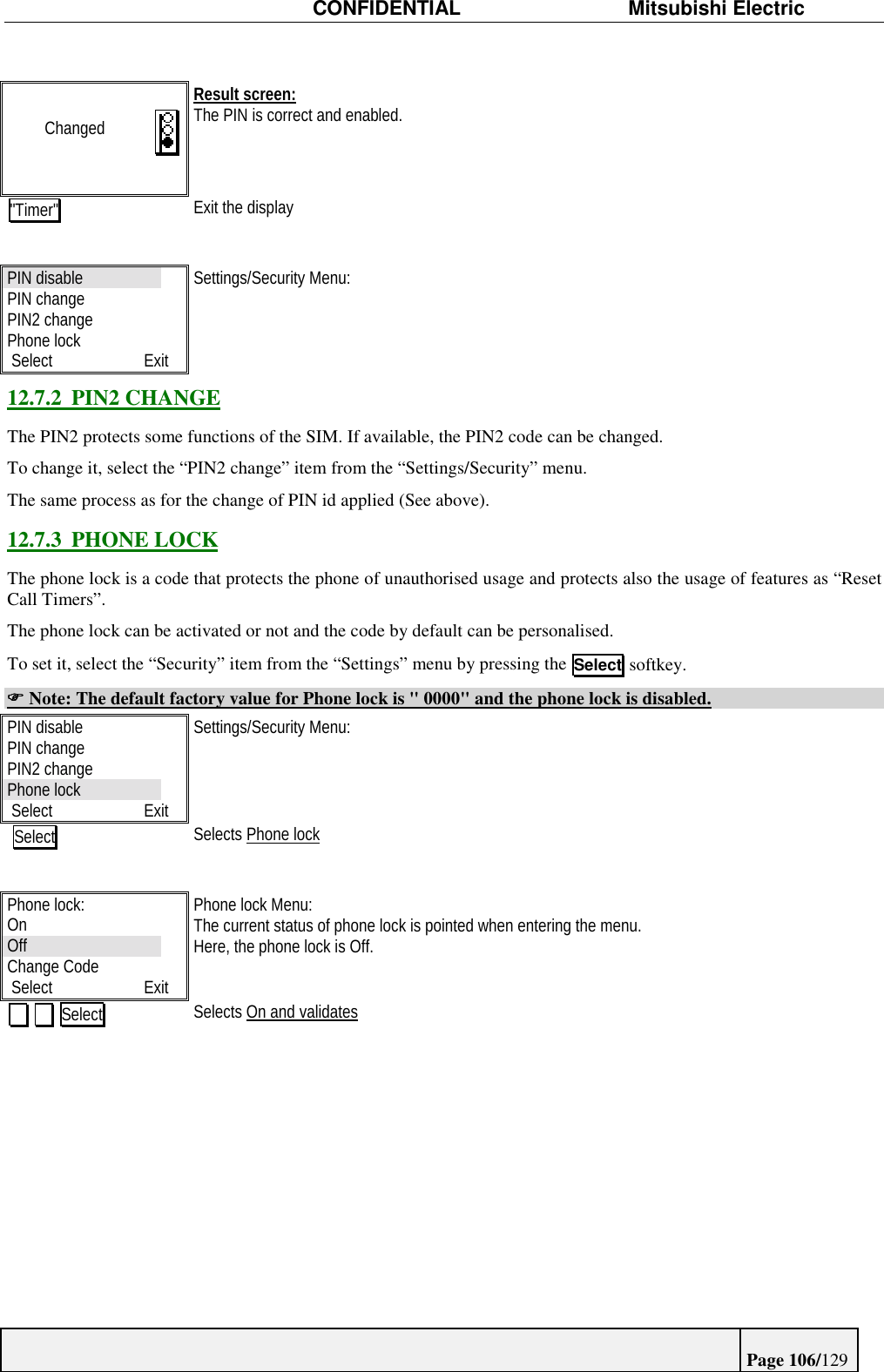

CONFIDENTIAL Mitsubishi ElectricPage 106/129ChangedResult screen:The PIN is correct and enabled."Timer" Exit the displayPIN disablePIN changePIN2 changePhone lockSelect ExitSettings/Security Menu:12.7.2 PIN2 CHANGEThe PIN2 protects some functions of the SIM. If available, the PIN2 code can be changed.To change it, select the “PIN2 change” item from the “Settings/Security” menu.The same process as for the change of PIN id applied (See above).12.7.3 PHONE LOCKThe phone lock is a code that protects the phone of unauthorised usage and protects also the usage of features as “ResetCall Timers”.The phone lock can be activated or not and the code by default can be personalised.To set it, select the “Security” item from the “Settings” menu by pressing the Select softkey. Note: The default factory value for Phone lock is " 0000" and the phone lock is disabled.PIN disablePIN changePIN2 changePhone lockSelect ExitSettings/Security Menu: Select Selects Phone lockPhone lock:OnOffChange CodeSelect ExitPhone lock Menu:The current status of phone lock is pointed when entering the menu.Here, the phone lock is Off. Select Selects On and validates

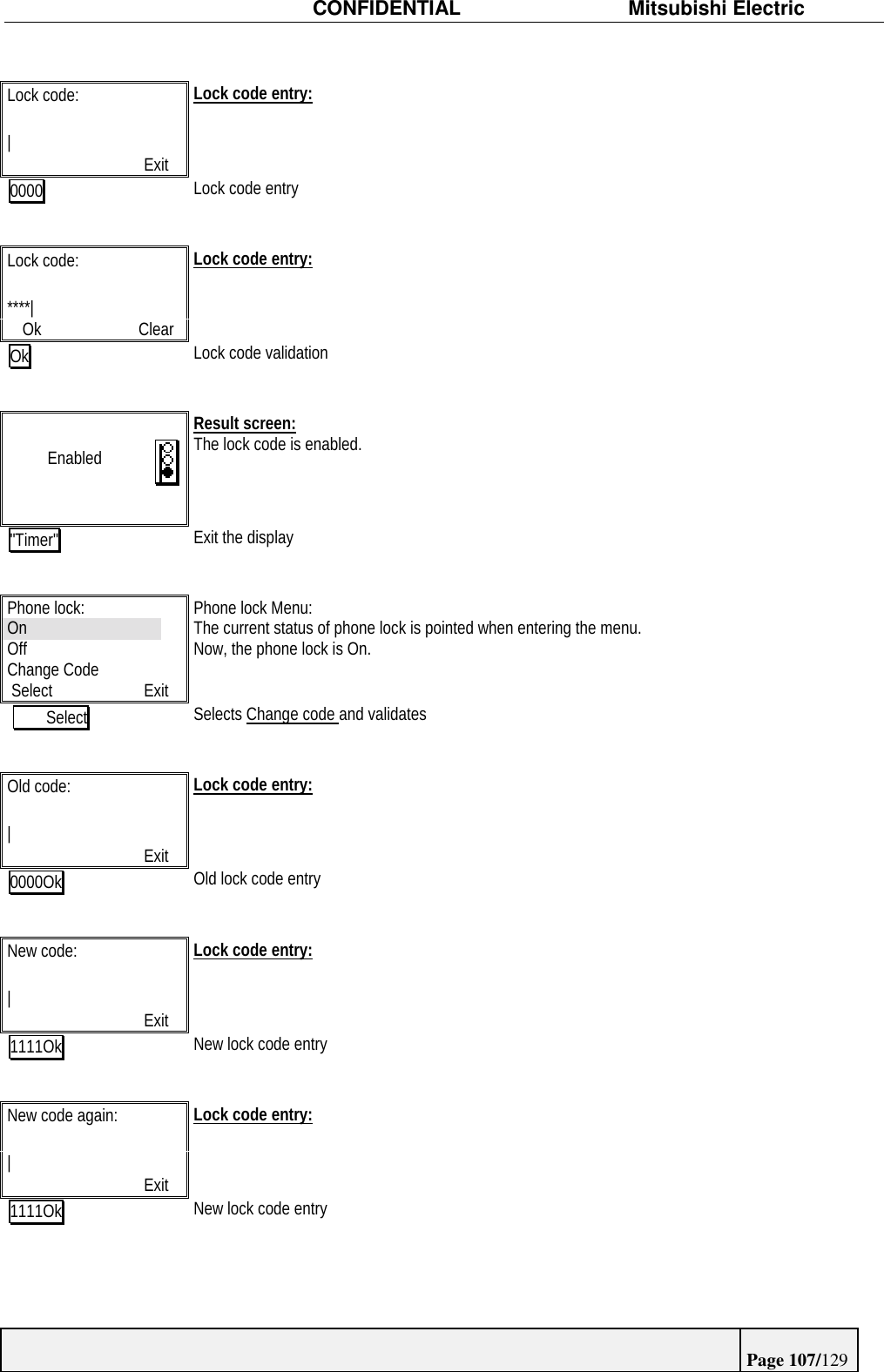

CONFIDENTIAL Mitsubishi ElectricPage 107/129Lock code:|ExitLock code entry:0000 Lock code entryLock code:****|Ok ClearLock code entry:Ok Lock code validationEnabledResult screen:The lock code is enabled."Timer" Exit the displayPhone lock:OnOffChange CodeSelect ExitPhone lock Menu:The current status of phone lock is pointed when entering the menu.Now, the phone lock is On. Select Selects Change code and validatesOld code:|ExitLock code entry:0000Ok Old lock code entryNew code:|ExitLock code entry:1111Ok New lock code entryNew code again:|ExitLock code entry:1111Ok New lock code entry

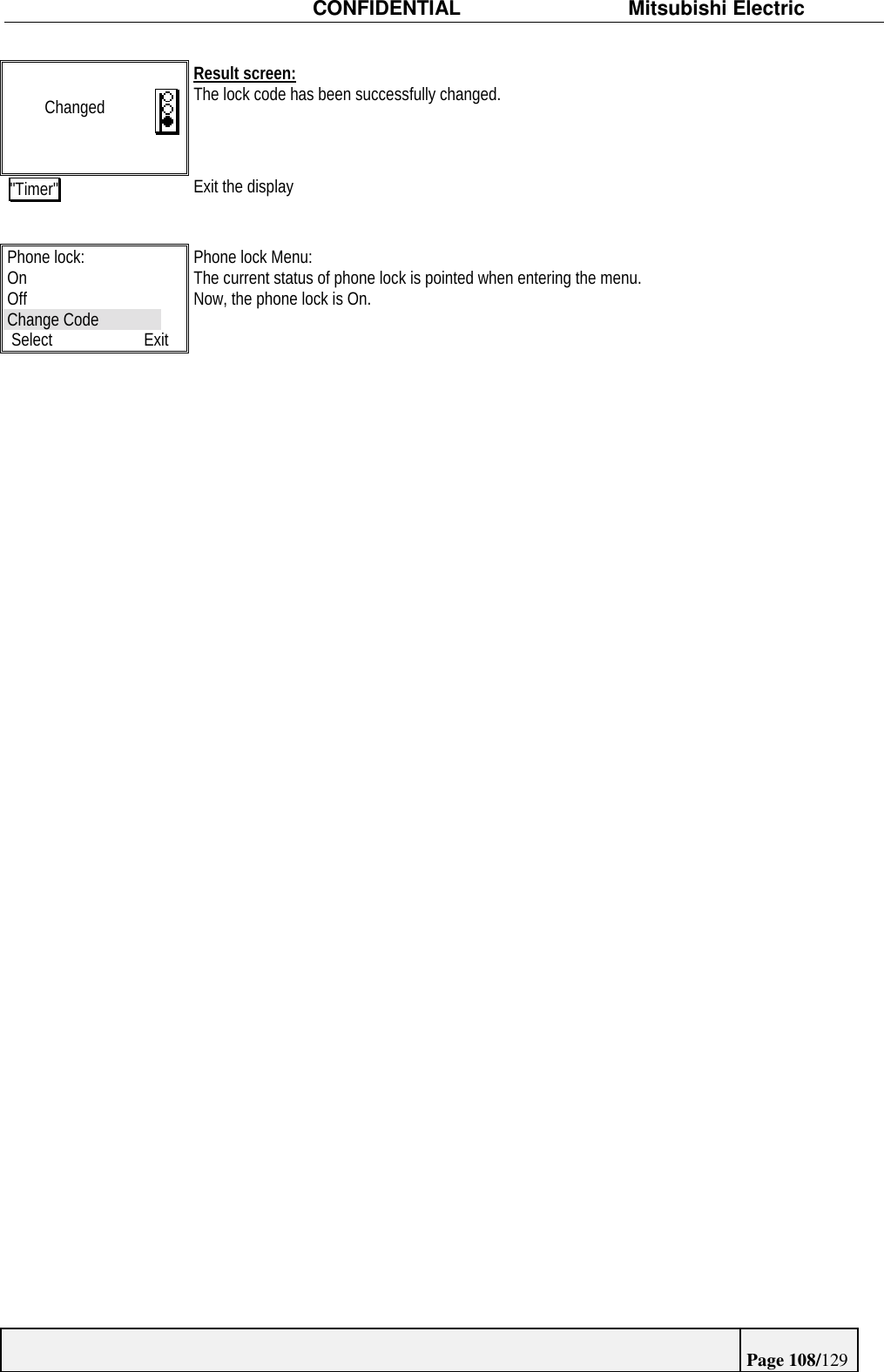

CONFIDENTIAL Mitsubishi ElectricPage 108/129ChangedResult screen:The lock code has been successfully changed."Timer" Exit the displayPhone lock:OnOffChange CodeSelect ExitPhone lock Menu:The current status of phone lock is pointed when entering the menu.Now, the phone lock is On.

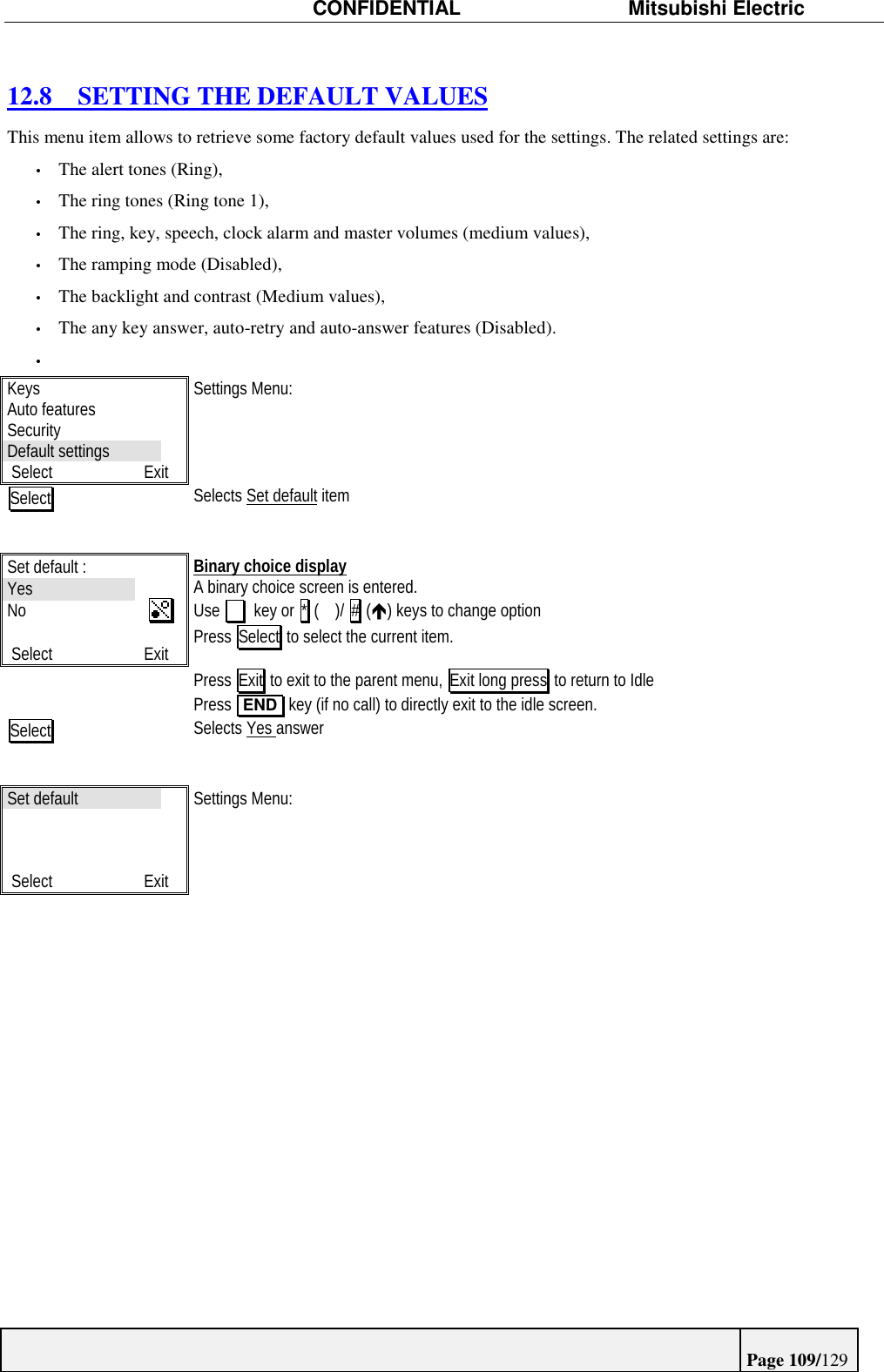

CONFIDENTIAL Mitsubishi ElectricPage 109/12912.8 SETTING THE DEFAULT VALUESThis menu item allows to retrieve some factory default values used for the settings. The related settings are:• The alert tones (Ring),• The ring tones (Ring tone 1),• The ring, key, speech, clock alarm and master volumes (medium values),• The ramping mode (Disabled),• The backlight and contrast (Medium values),• The any key answer, auto-retry and auto-answer features (Disabled).• KeysAuto featuresSecurityDefault settingsSelect ExitSettings Menu:Select Selects Set default itemSet default :YesNoSelect ExitBinary choice displayA binary choice screen is entered.Use key or * ( )/ # (é) keys to change optionPress Select to select the current item.Press Exit to exit to the parent menu, Exit long press to return to IdlePress END key (if no call) to directly exit to the idle screen.Select Selects Yes answerSet defaultSelect ExitSettings Menu:

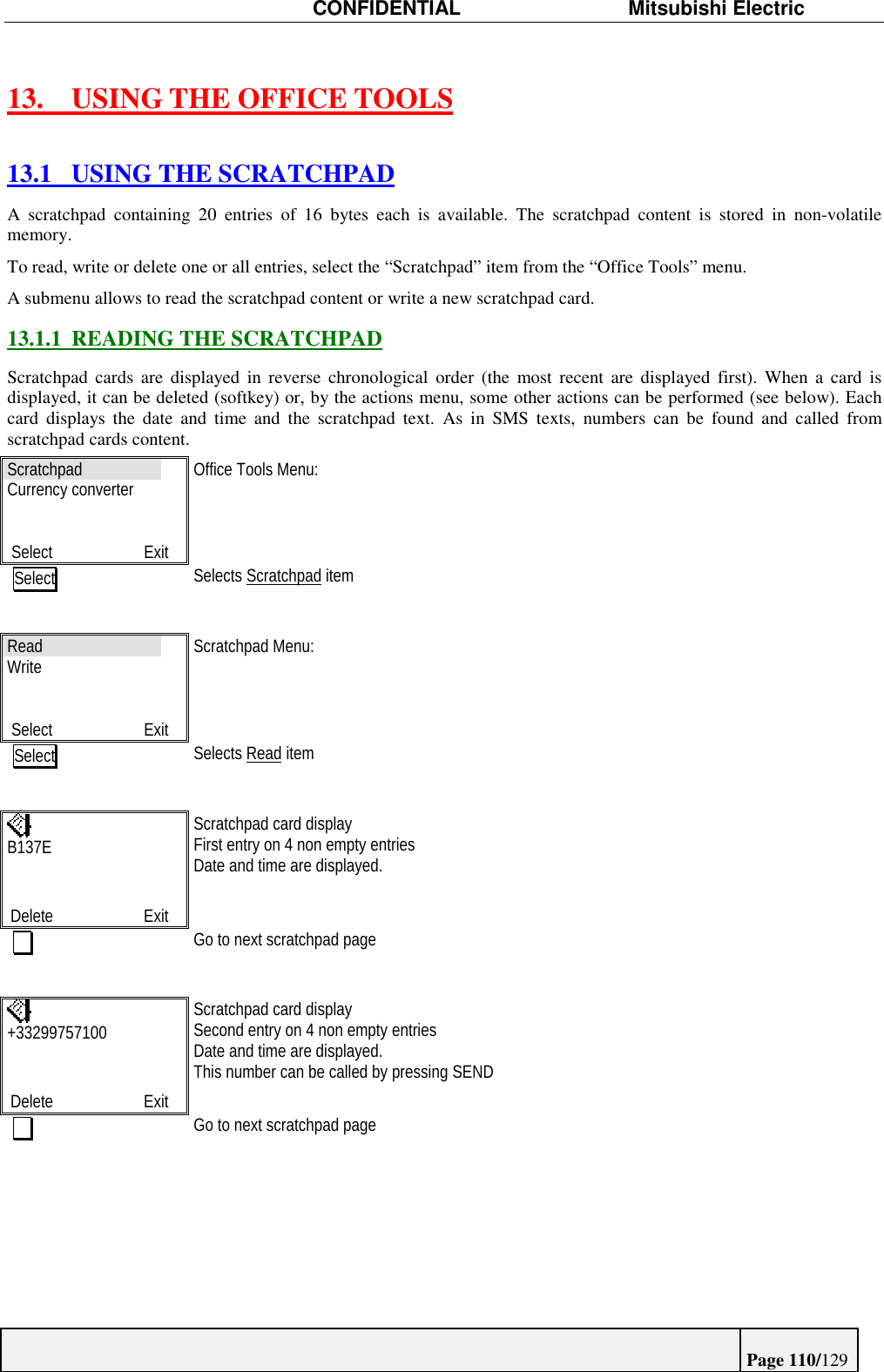

CONFIDENTIAL Mitsubishi ElectricPage 110/12913. USING THE OFFICE TOOLS13.1 USING THE SCRATCHPADA scratchpad containing 20 entries of 16 bytes each is available. The scratchpad content is stored in non-volatilememory.To read, write or delete one or all entries, select the “Scratchpad” item from the “Office Tools” menu.A submenu allows to read the scratchpad content or write a new scratchpad card.13.1.1 READING THE SCRATCHPADScratchpad cards are displayed in reverse chronological order (the most recent are displayed first). When a card isdisplayed, it can be deleted (softkey) or, by the actions menu, some other actions can be performed (see below). Eachcard displays the date and time and the scratchpad text. As in SMS texts, numbers can be found and called fromscratchpad cards content.ScratchpadCurrency converterSelect ExitOffice Tools Menu: Select Selects Scratchpad itemReadWriteSelect ExitScratchpad Menu: Select Selects Read itemB137EDelete ExitScratchpad card displayFirst entry on 4 non empty entriesDate and time are displayed. Go to next scratchpad page+33299757100Delete ExitScratchpad card displaySecond entry on 4 non empty entriesDate and time are displayed.This number can be called by pressing SEND Go to next scratchpad page

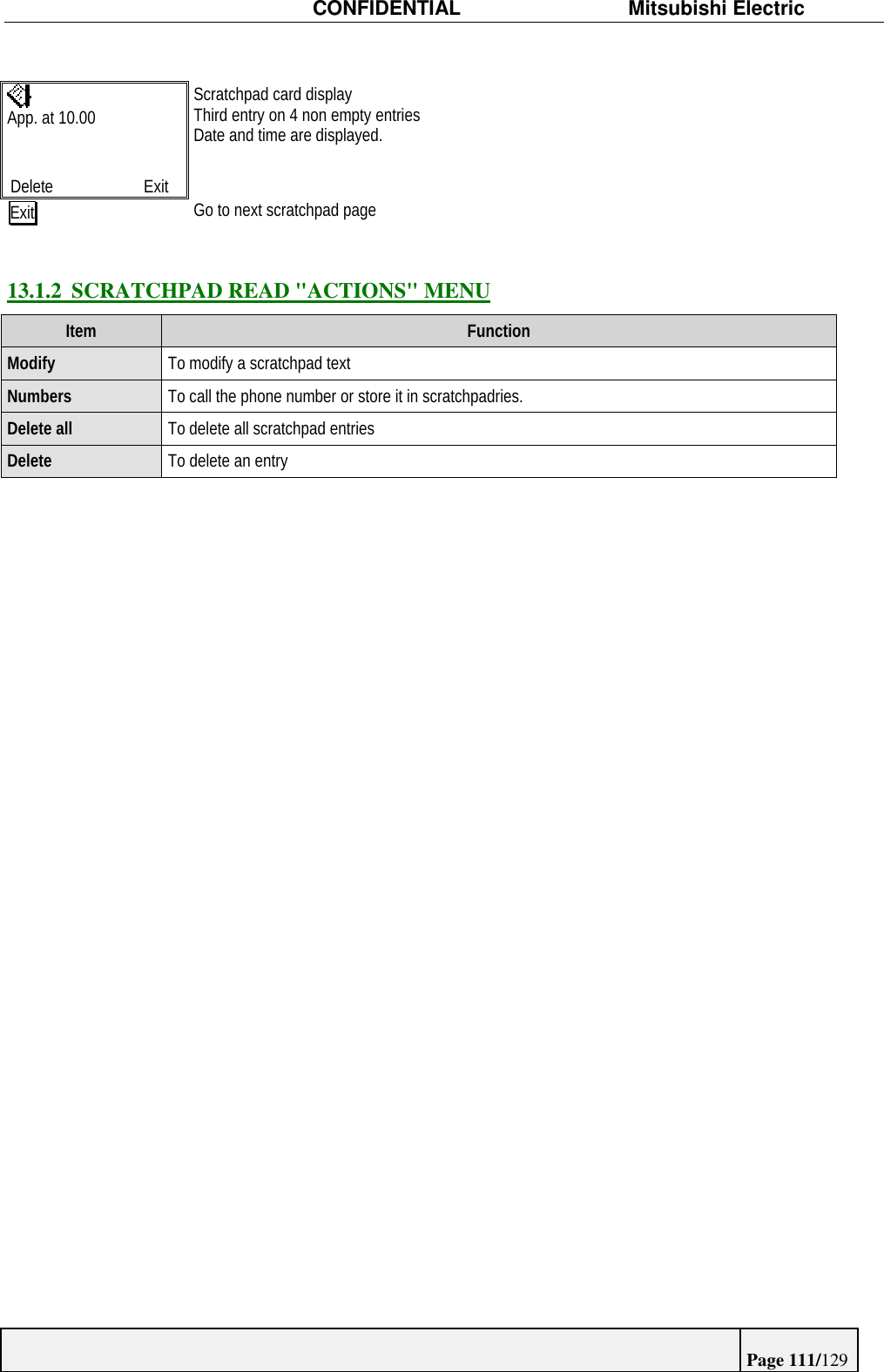

CONFIDENTIAL Mitsubishi ElectricPage 111/129App. at 10.00Delete ExitScratchpad card displayThird entry on 4 non empty entriesDate and time are displayed.Exit Go to next scratchpad page13.1.2 SCRATCHPAD READ "ACTIONS" MENUItem FunctionModify To modify a scratchpad textNumbers To call the phone number or store it in scratchpadries.Delete all To delete all scratchpad entriesDelete To delete an entry

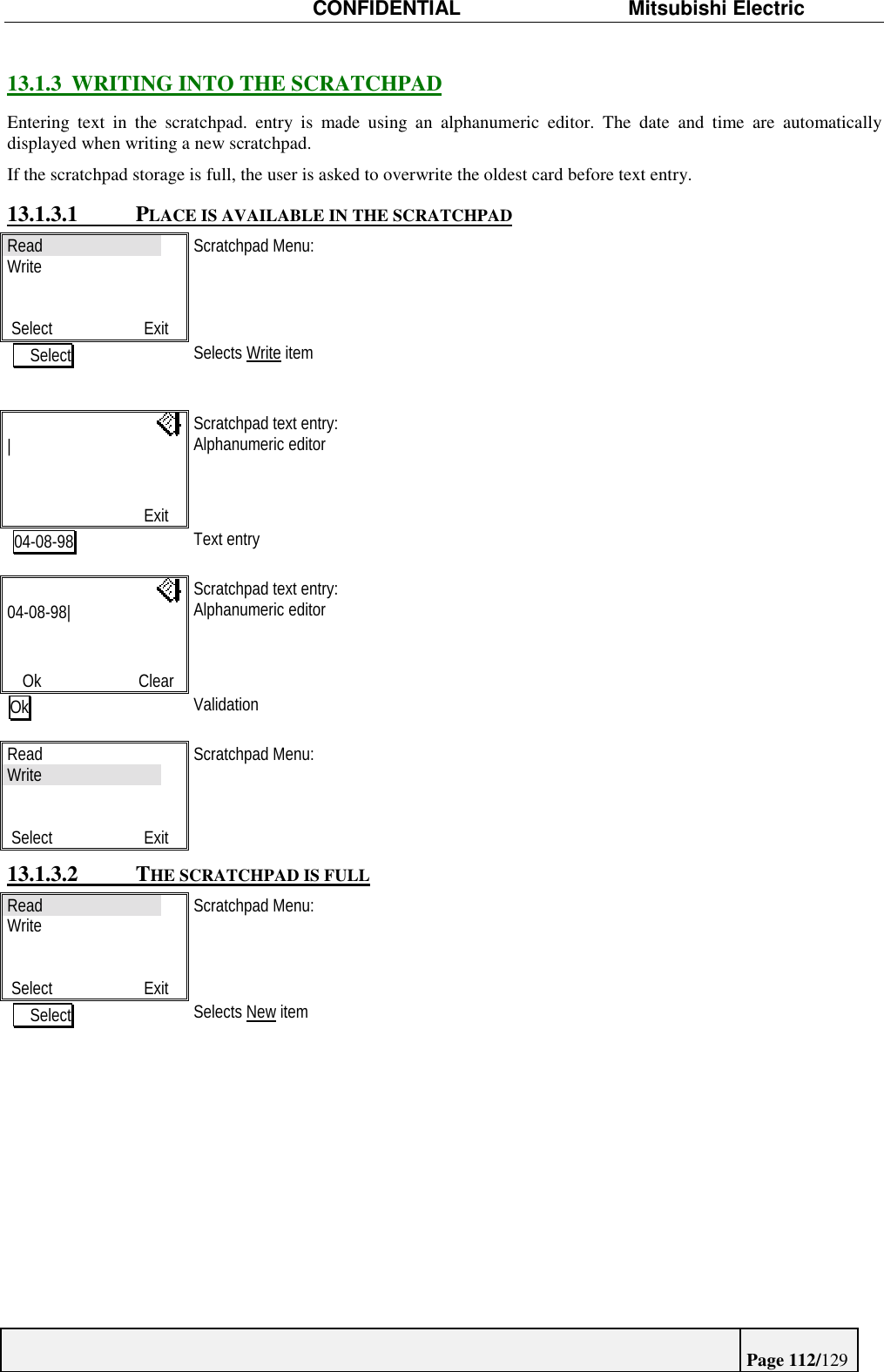

CONFIDENTIAL Mitsubishi ElectricPage 112/12913.1.3 WRITING INTO THE SCRATCHPADEntering text in the scratchpad. entry is made using an alphanumeric editor. The date and time are automaticallydisplayed when writing a new scratchpad.If the scratchpad storage is full, the user is asked to overwrite the oldest card before text entry.13.1.3.1 PLACE IS AVAILABLE IN THE SCRATCHPADReadWriteSelect ExitScratchpad Menu: Select Selects Write item |ExitScratchpad text entry:Alphanumeric editor 04-08-98 Text entry 04-08-98|Ok ClearScratchpad text entry:Alphanumeric editorOk ValidationReadWriteSelect ExitScratchpad Menu:13.1.3.2 THE SCRATCHPAD IS FULLReadWriteSelect ExitScratchpad Menu: Select Selects New item

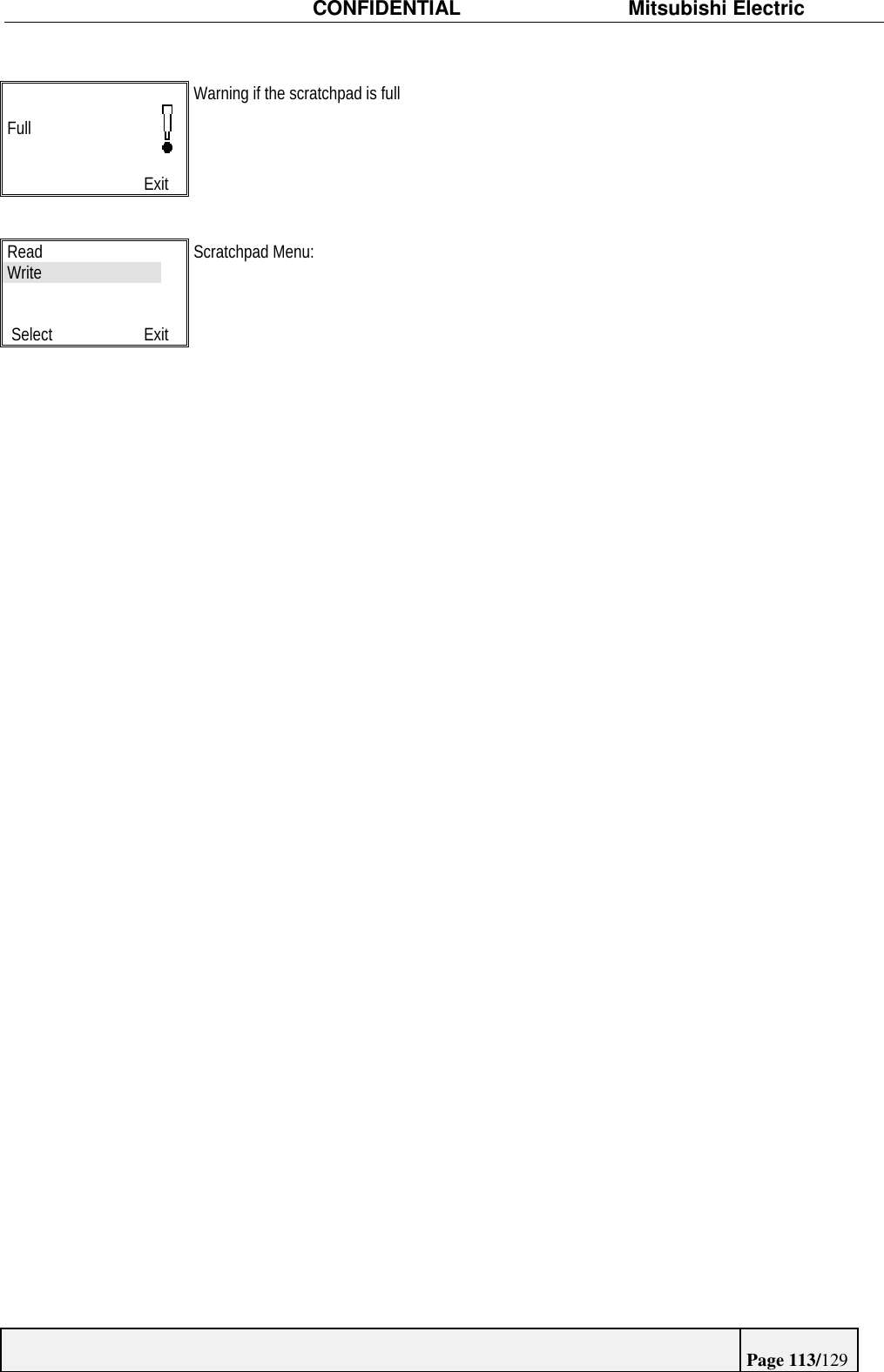

CONFIDENTIAL Mitsubishi ElectricPage 113/129FullExitWarning if the scratchpad is fullReadWriteSelect ExitScratchpad Menu:

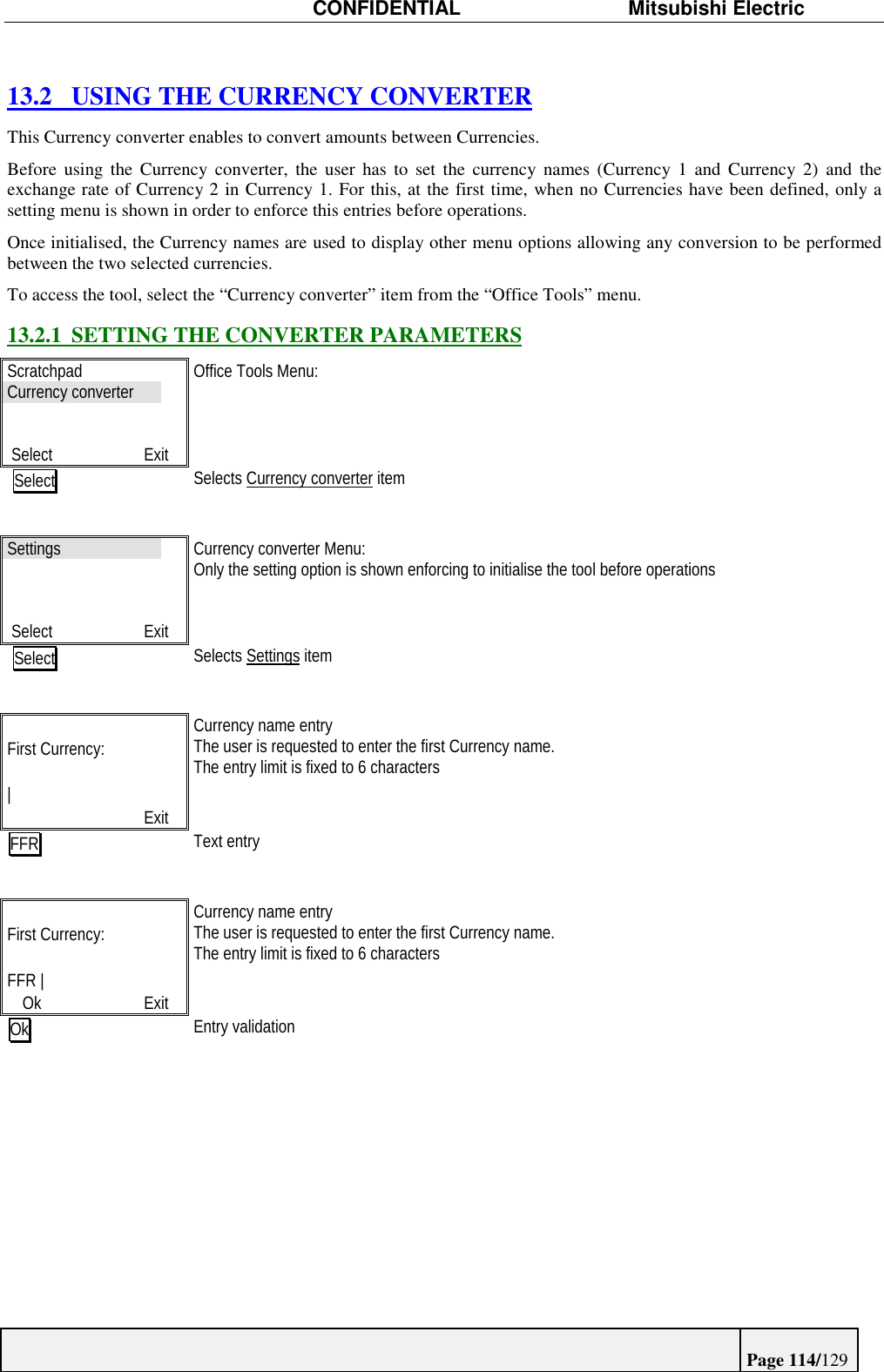

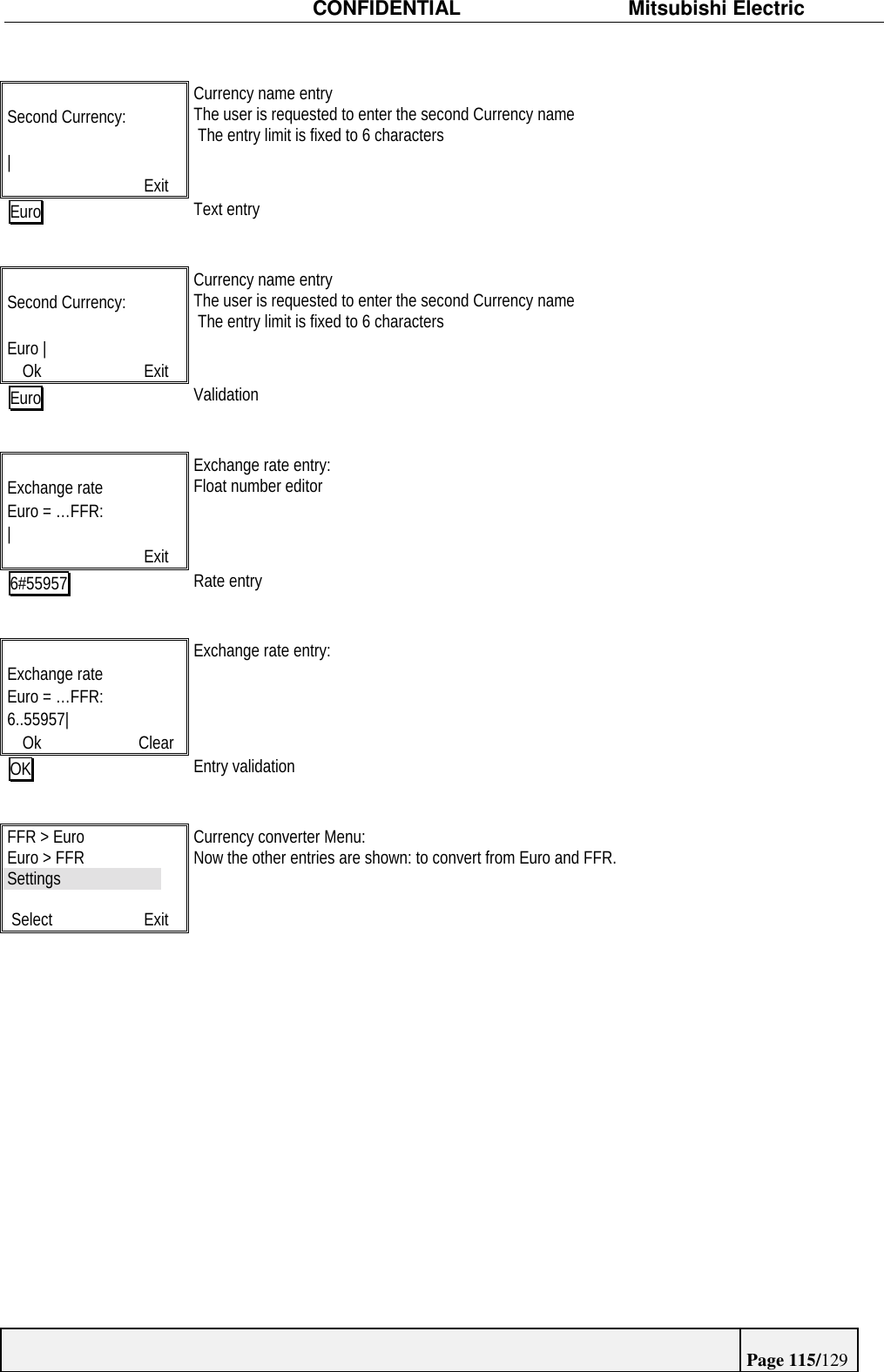

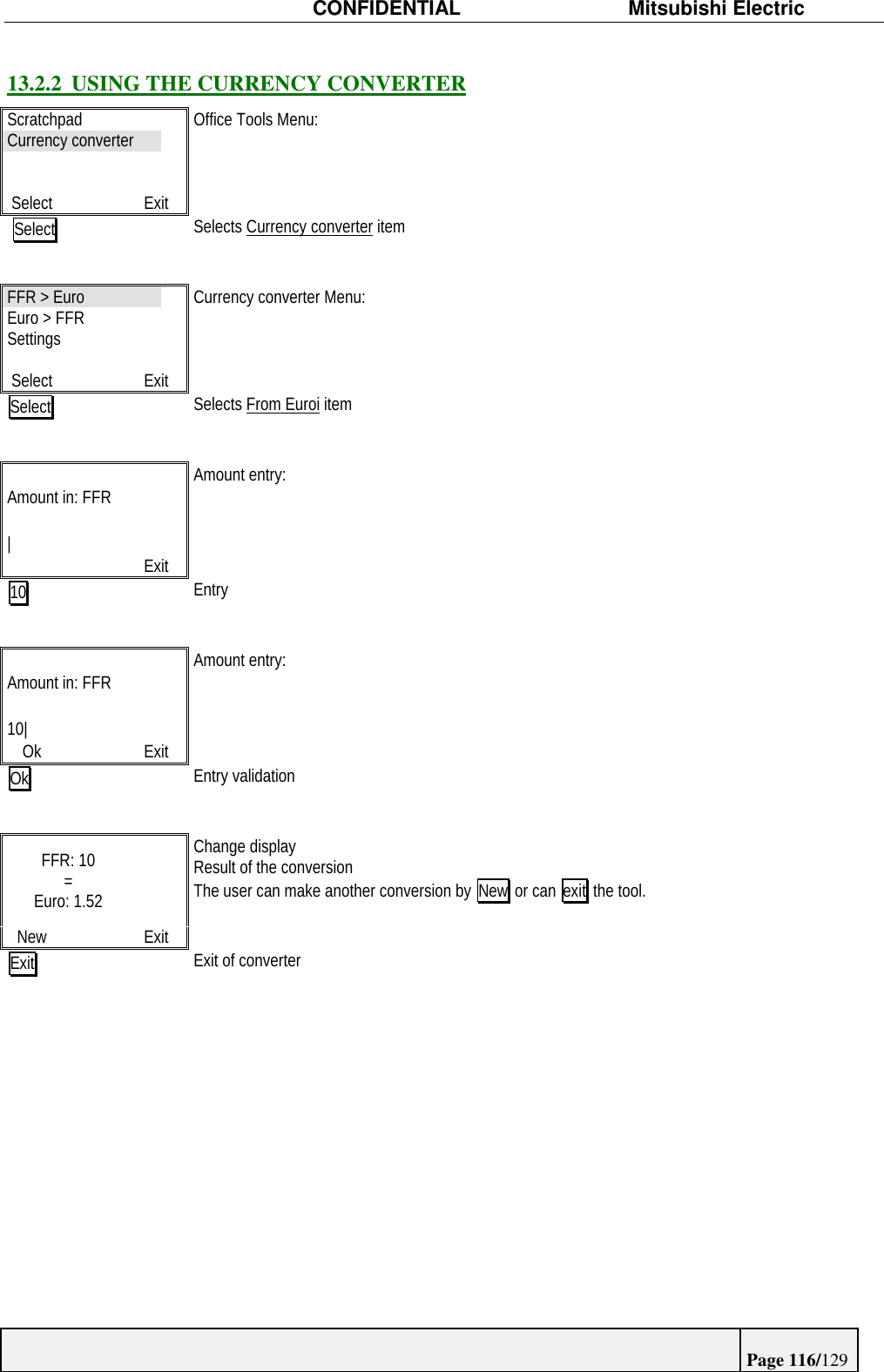

CONFIDENTIAL Mitsubishi ElectricPage 114/12913.2 USING THE CURRENCY CONVERTERThis Currency converter enables to convert amounts between Currencies.Before using the Currency converter, the user has to set the currency names (Currency 1 and Currency 2) and theexchange rate of Currency 2 in Currency 1. For this, at the first time, when no Currencies have been defined, only asetting menu is shown in order to enforce this entries before operations.Once initialised, the Currency names are used to display other menu options allowing any conversion to be performedbetween the two selected currencies.To access the tool, select the “Currency converter” item from the “Office Tools” menu.13.2.1 SETTING THE CONVERTER PARAMETERSScratchpadCurrency converterSelect ExitOffice Tools Menu: Select Selects Currency converter itemSettingsSelect ExitCurrency converter Menu:Only the setting option is shown enforcing to initialise the tool before operations Select Selects Settings itemFirst Currency:|ExitCurrency name entryThe user is requested to enter the first Currency name.The entry limit is fixed to 6 charactersFFR Text entryFirst Currency:FFR |Ok ExitCurrency name entryThe user is requested to enter the first Currency name.The entry limit is fixed to 6 charactersOk Entry validation
CONFIDENTIAL Mitsubishi ElectricPage 115/129Second Currency:|ExitCurrency name entryThe user is requested to enter the second Currency name The entry limit is fixed to 6 charactersEuro Text entrySecond Currency:Euro |Ok ExitCurrency name entryThe user is requested to enter the second Currency name The entry limit is fixed to 6 charactersEuro ValidationExchange rateEuro = …FFR:|ExitExchange rate entry:Float number editor6#55957 Rate entryExchange rateEuro = …FFR:6..55957|Ok ClearExchange rate entry:OK Entry validationFFR > EuroEuro > FFRSettingsSelect ExitCurrency converter Menu:Now the other entries are shown: to convert from Euro and FFR.
CONFIDENTIAL Mitsubishi ElectricPage 116/12913.2.2 USING THE CURRENCY CONVERTERScratchpadCurrency converterSelect ExitOffice Tools Menu: Select Selects Currency converter itemFFR > EuroEuro > FFRSettingsSelect ExitCurrency converter Menu:Select Selects From Euroi itemAmount in: FFR|ExitAmount entry:10 EntryAmount in: FFR10|Ok ExitAmount entry:Ok Entry validationFFR: 10=Euro: 1.52New ExitChange displayResult of the conversionThe user can make another conversion by New or can exit the tool.Exit Exit of converter

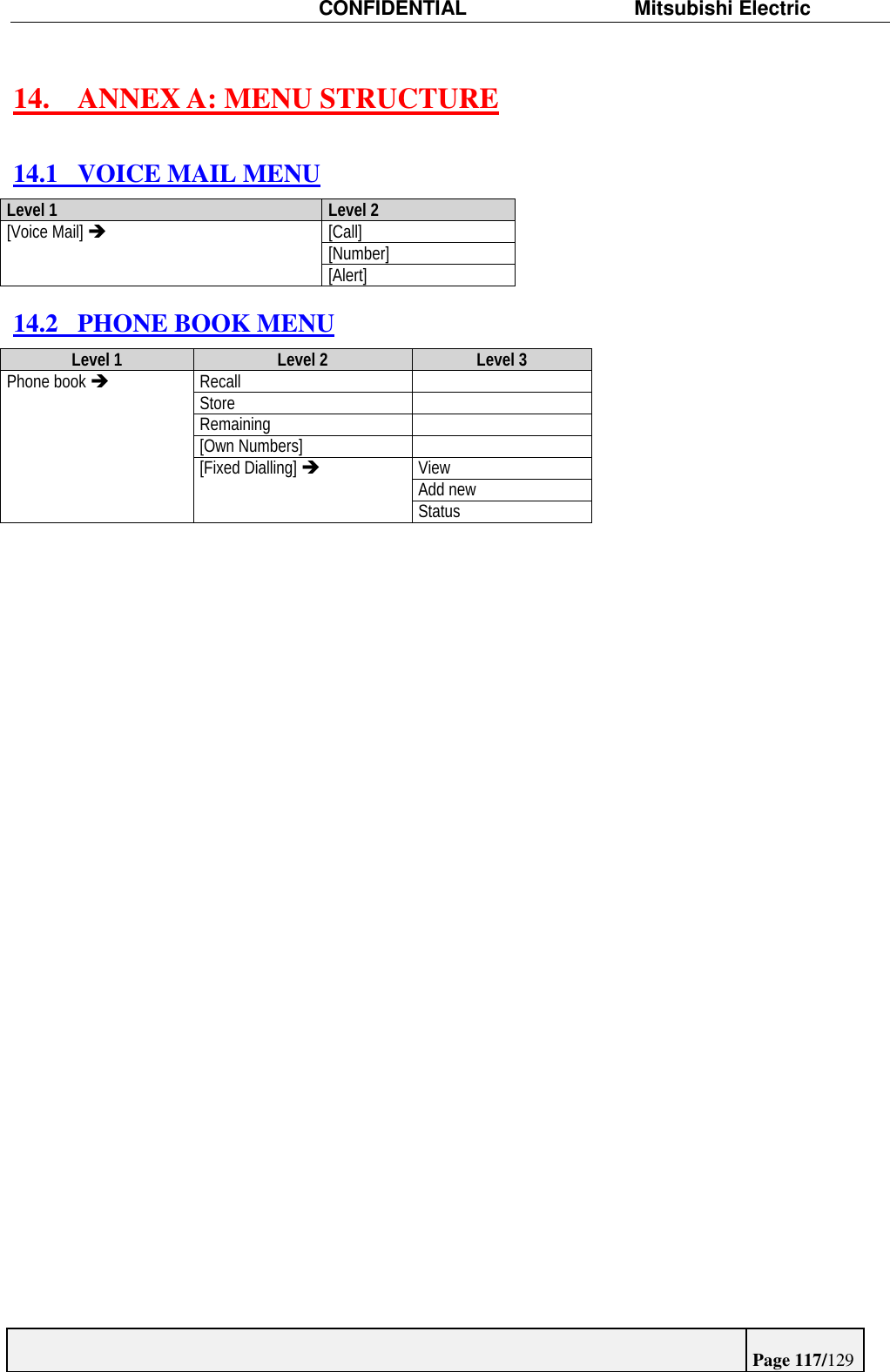

CONFIDENTIAL Mitsubishi ElectricPage 117/12914. ANNEX A: MENU STRUCTURE14.1 VOICE MAIL MENULevel 1 Level 2[Voice Mail] è[Call][Number][Alert]14.2 PHONE BOOK MENULevel 1 Level 2 Level 3Phone book èRecallStoreRemaining[Own Numbers][Fixed Dialling] èViewAdd newStatus

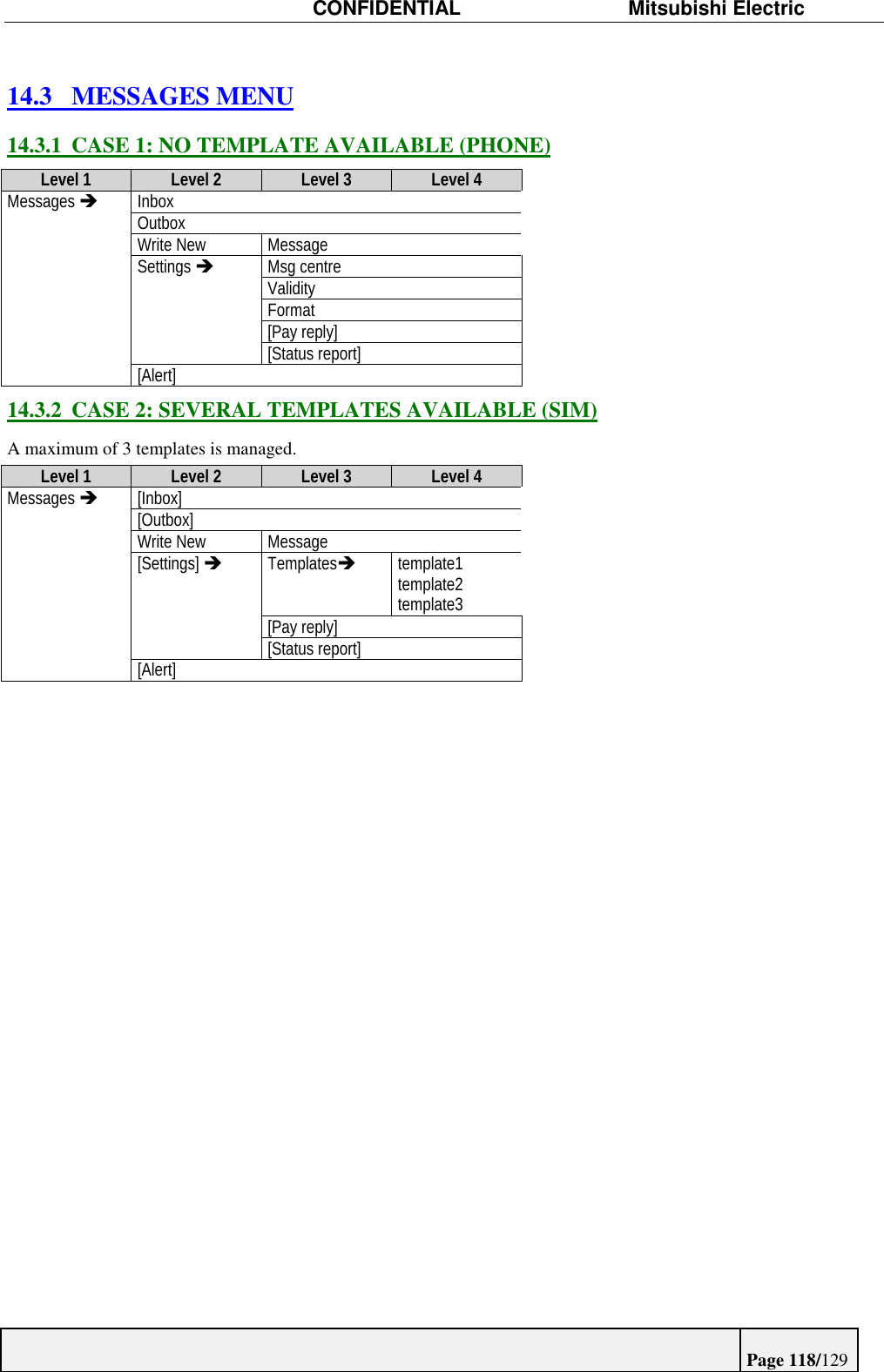

CONFIDENTIAL Mitsubishi ElectricPage 118/12914.3 MESSAGES MENU14.3.1 CASE 1: NO TEMPLATE AVAILABLE (PHONE)Level 1 Level 2 Level 3 Level 4Messages èInboxOutboxWrite New MessageSettings èMsg centreValidityFormat[Pay reply][Status report][Alert]14.3.2 CASE 2: SEVERAL TEMPLATES AVAILABLE (SIM)A maximum of 3 templates is managed.Level 1 Level 2 Level 3 Level 4Messages è[Inbox][Outbox]Write New Message[Settings] èTemplatesètemplate1template2template3[Pay reply][Status report][Alert]

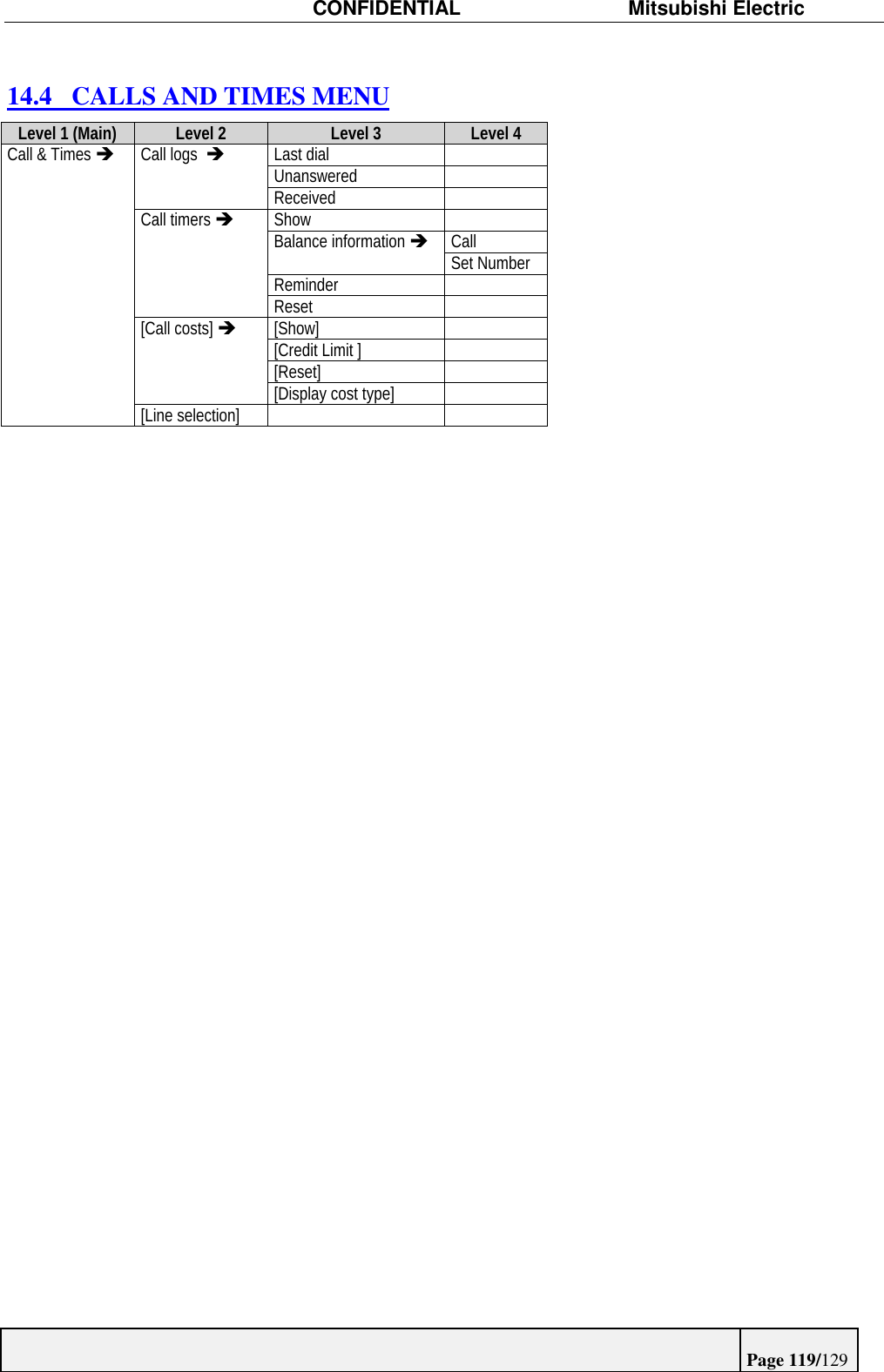

CONFIDENTIAL Mitsubishi ElectricPage 119/12914.4 CALLS AND TIMES MENULevel 1 (Main) Level 2 Level 3 Level 4Call & Times èCall logs èLast dialUnansweredReceivedCall timers èShowBalance information èCallSet NumberReminderReset[Call costs] è[Show][Credit Limit ][Reset][Display cost type][Line selection]
CONFIDENTIAL Mitsubishi ElectricPage 120/12914.5 GSM SERVICES MENULevel 1 Level 2 Level 3 Level 4 Level 5GSM Servicesè[Call Voice è[Always] èActivateDiverting] èCancelStatus[When not reachable] èActivateCancelStatus[On no reply] èActivateCancelStatus[When Busy] èActivateCancelStatus[All conditions] èActivateCancelStatus[Fax] Same tree as above (for fax calls only)[Data] Same tree as above (for data calls only)Cancel All
CONFIDENTIAL Mitsubishi ElectricPage 121/129Level 1 Level 2 Level 3 Level 4 Level 5GSM Servicesè[Call Waiting] èActivate(continued) CancelStatus[Send my ID] èStatusMy settingsè[Hide ID][Show ID][Preset][Receiving caller ID]Network è[Search] èAutomaticManualPreferred listForbiddenHomeNetwork

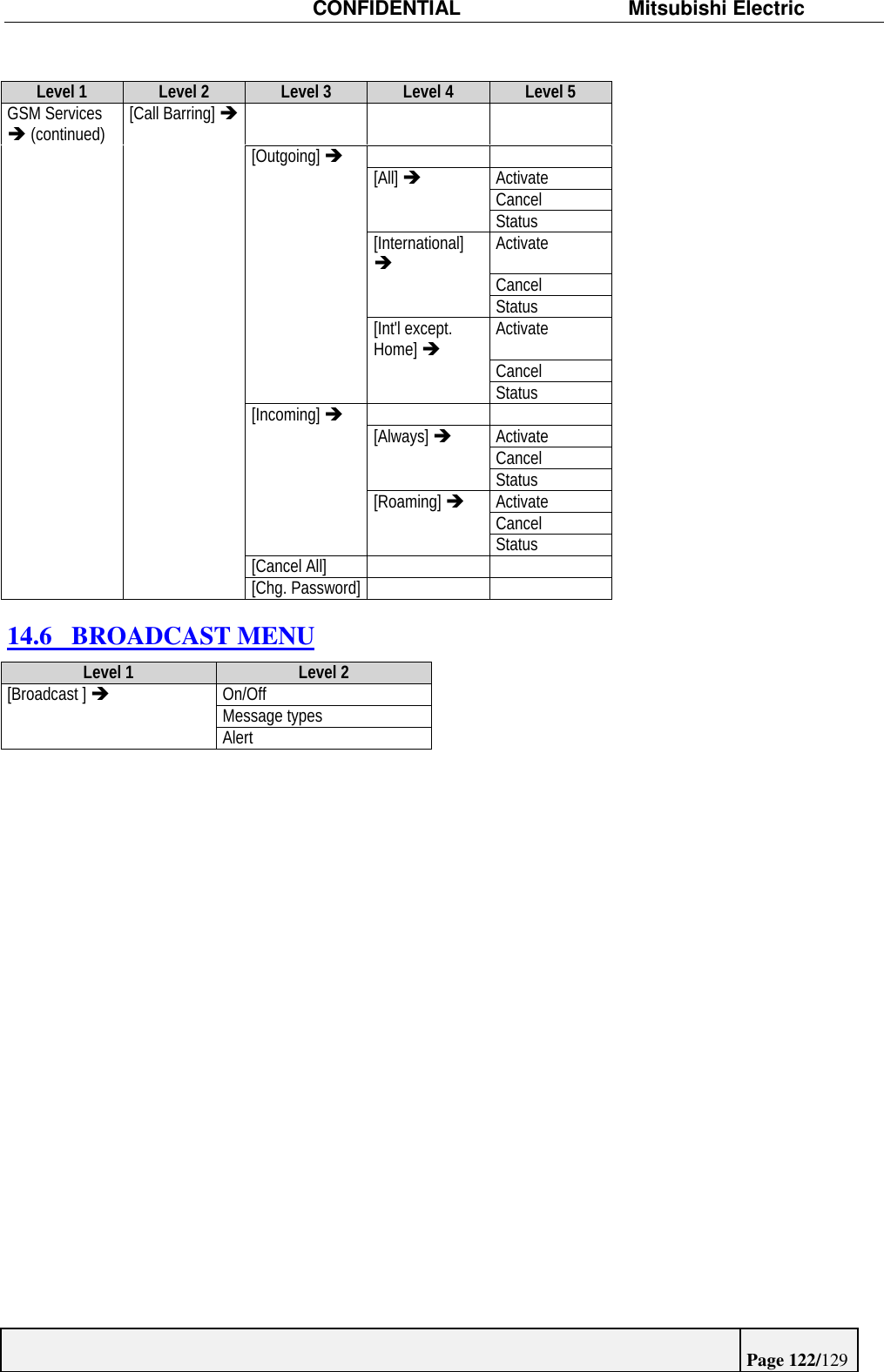

CONFIDENTIAL Mitsubishi ElectricPage 122/129Level 1 Level 2 Level 3 Level 4 Level 5GSM Servicesè (continued) [Call Barring] è[Outgoing] è[All] èActivateCancelStatus[International]èActivateCancelStatus[Int'l except.Home] èActivateCancelStatus[Incoming] è[Always] èActivateCancelStatus[Roaming] èActivateCancelStatus[Cancel All][Chg. Password]14.6 BROADCAST MENULevel 1 Level 2[Broadcast ] èOn/OffMessage typesAlert
CONFIDENTIAL Mitsubishi ElectricPage 123/12914.7 SETTINGS MENULevel 1 Level 2 Level 3 Level 4Settings èKeypad lockLanguageTonesèAlert tonesèRingSilenceRing toneVolumesèRingRampingKeysConversationDisplayèBacklightContrastKeysèAny key answerHotkey programmingSpeed diallingAuto featuresèAuto-answerAuto-retrySecurityèPIN [enable | disable][PIN change]PIN2 changePhone lockDefault settings

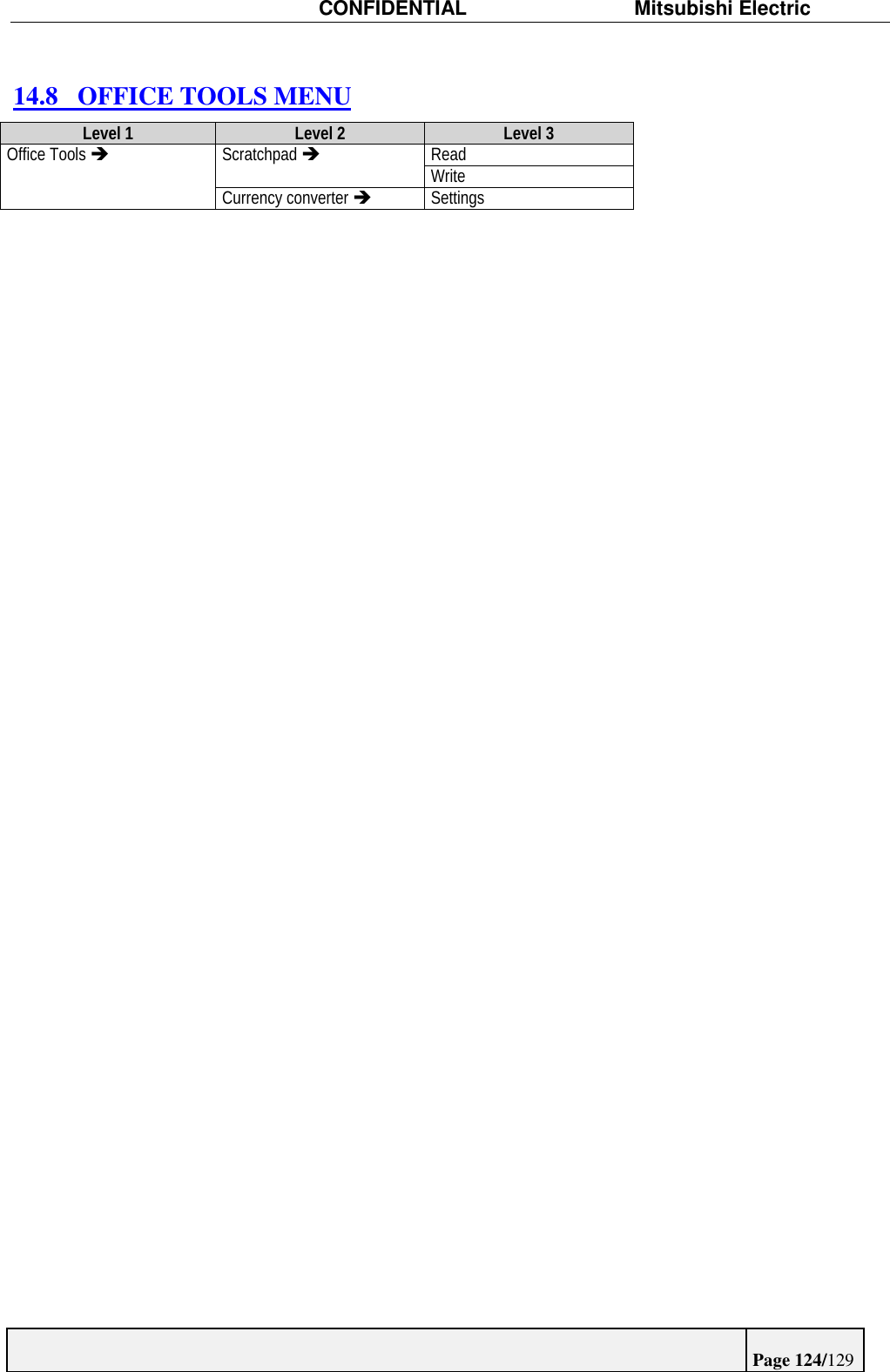

CONFIDENTIAL Mitsubishi ElectricPage 124/12914.8 OFFICE TOOLS MENULevel 1 Level 2 Level 3Office Tools èScratchpad èReadWriteCurrency converter èSettings

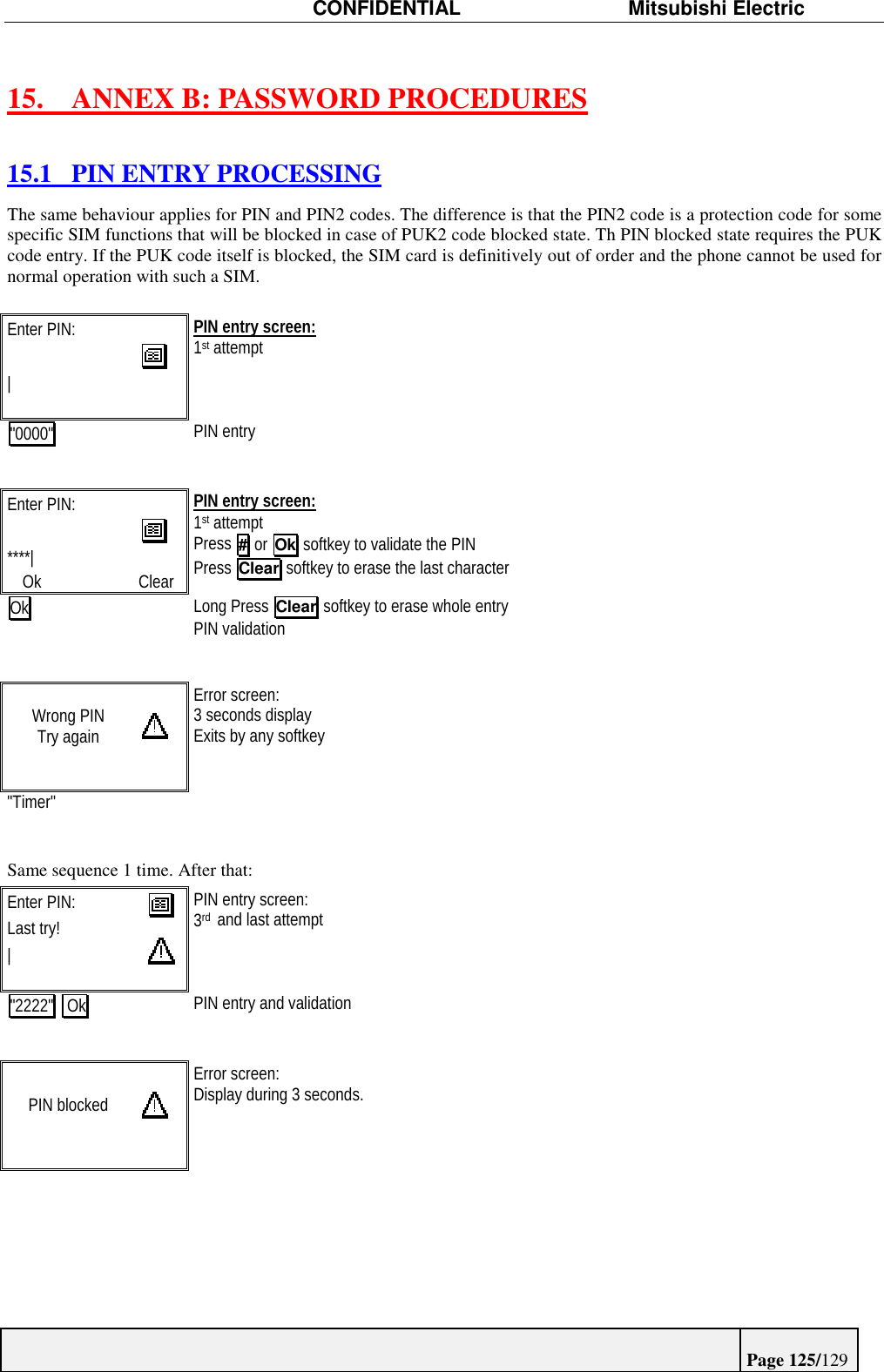

CONFIDENTIAL Mitsubishi ElectricPage 125/12915. ANNEX B: PASSWORD PROCEDURES15.1 PIN ENTRY PROCESSINGThe same behaviour applies for PIN and PIN2 codes. The difference is that the PIN2 code is a protection code for somespecific SIM functions that will be blocked in case of PUK2 code blocked state. Th PIN blocked state requires the PUKcode entry. If the PUK code itself is blocked, the SIM card is definitively out of order and the phone cannot be used fornormal operation with such a SIM.Enter PIN:|PIN entry screen:1st attempt"0000" PIN entryEnter PIN:****|Ok ClearPIN entry screen:1st attemptPress # or Ok softkey to validate the PINPress Clear softkey to erase the last characterOk Long Press Clear softkey to erase whole entryPIN validationWrong PINTry againError screen:3 seconds displayExits by any softkey"Timer"Same sequence 1 time. After that:Enter PIN:Last try!|PIN entry screen:3rd and last attempt"2222" Ok PIN entry and validationPIN blockedError screen:Display during 3 seconds.

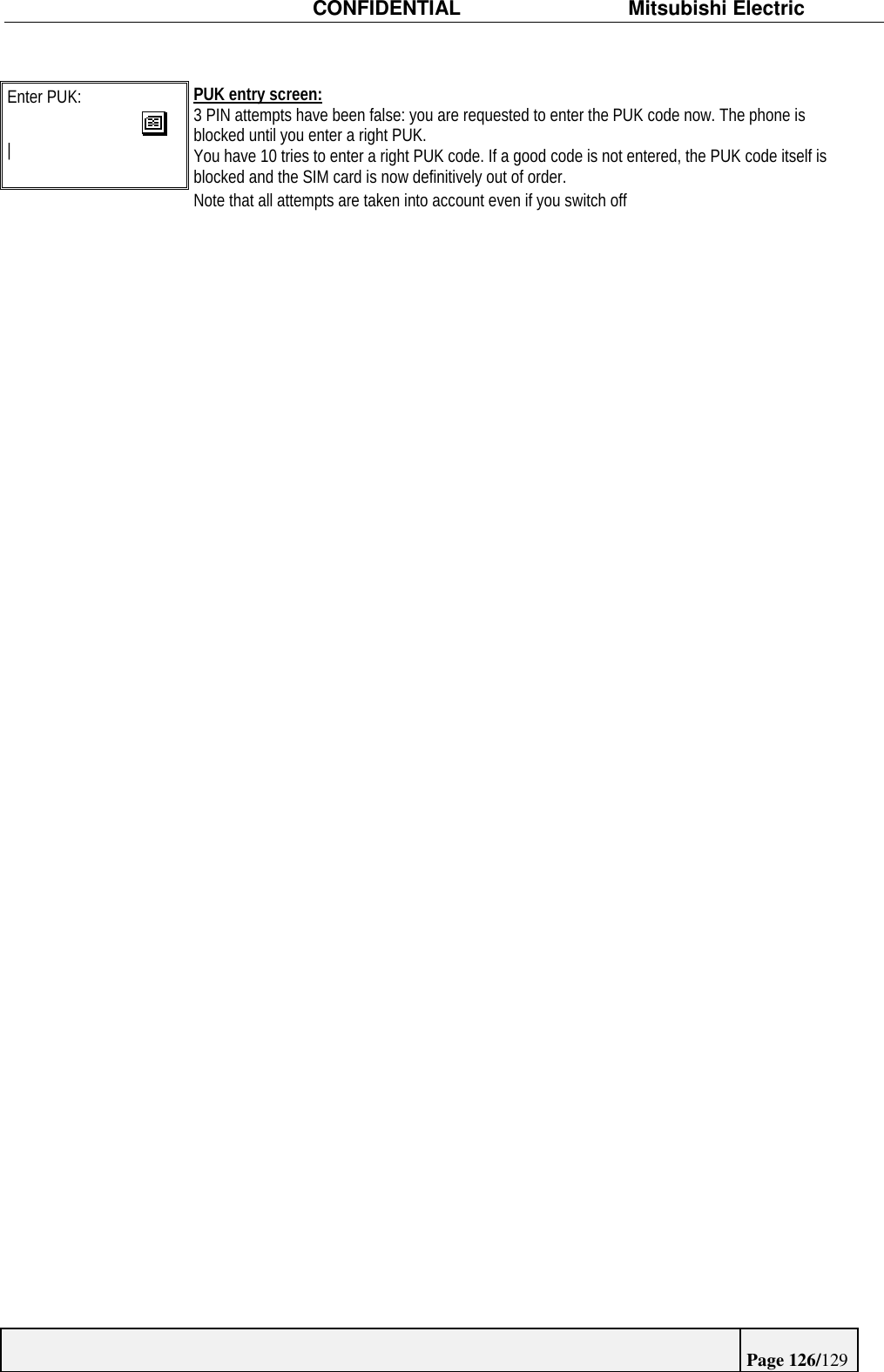

CONFIDENTIAL Mitsubishi ElectricPage 126/129Enter PUK:|PUK entry screen:3 PIN attempts have been false: you are requested to enter the PUK code now. The phone isblocked until you enter a right PUK.You have 10 tries to enter a right PUK code. If a good code is not entered, the PUK code itself isblocked and the SIM card is now definitively out of order.Note that all attempts are taken into account even if you switch off

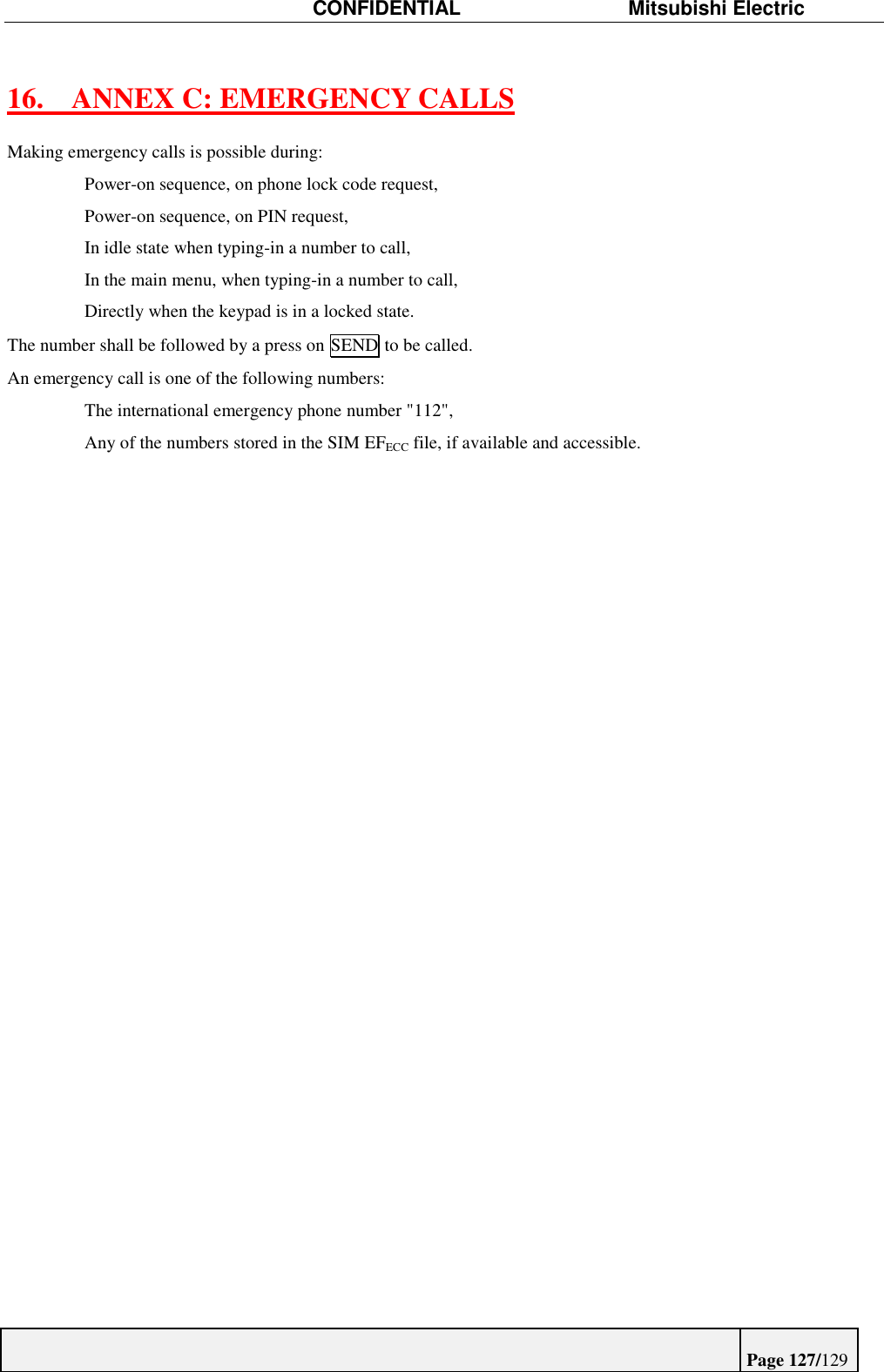

CONFIDENTIAL Mitsubishi ElectricPage 127/12916. ANNEX C: EMERGENCY CALLSMaking emergency calls is possible during: Power-on sequence, on phone lock code request, Power-on sequence, on PIN request, In idle state when typing-in a number to call, In the main menu, when typing-in a number to call, Directly when the keypad is in a locked state.The number shall be followed by a press on SEND to be called.An emergency call is one of the following numbers: The international emergency phone number "112", Any of the numbers stored in the SIM EFECC file, if available and accessible.

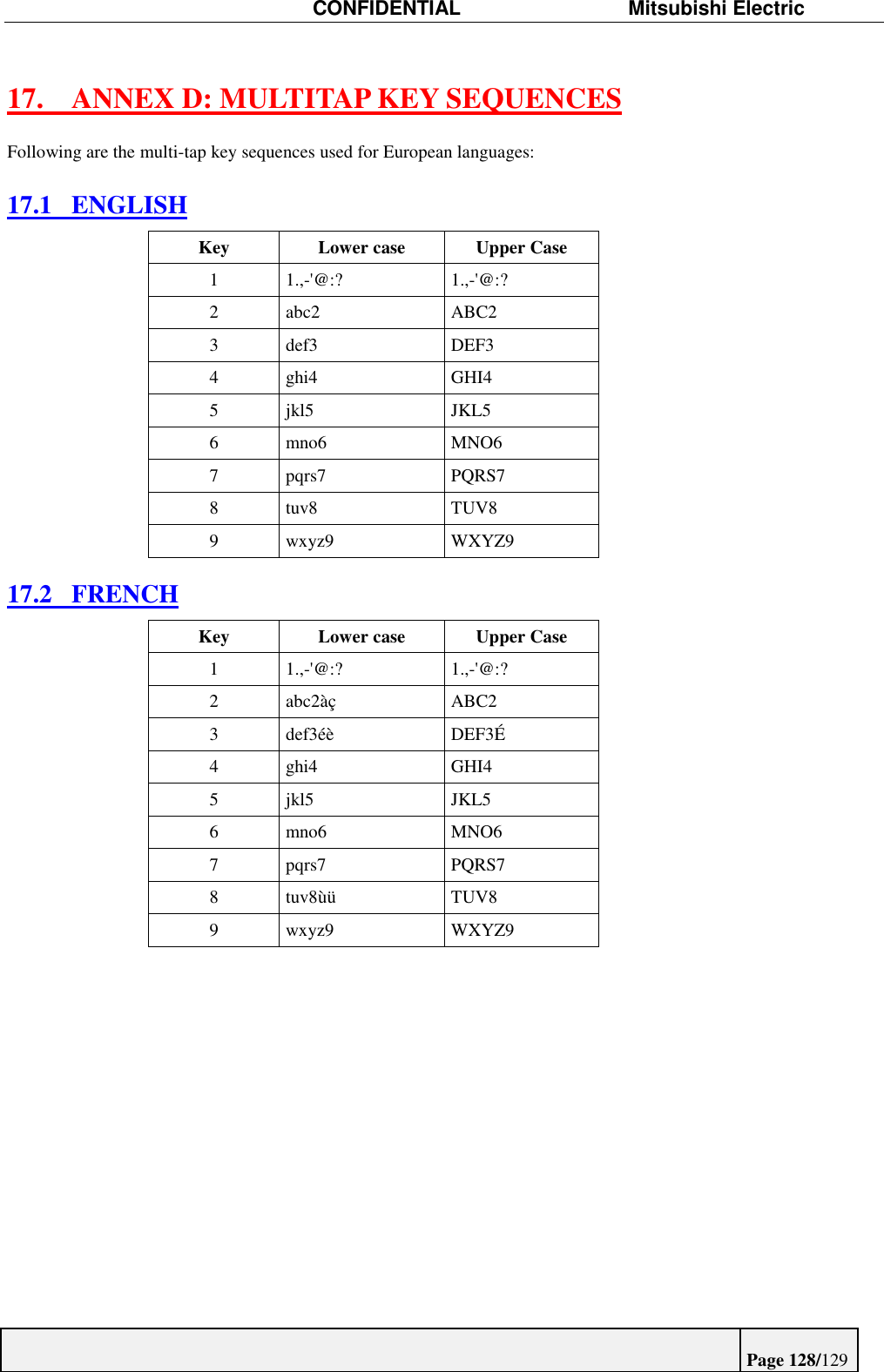

CONFIDENTIAL Mitsubishi ElectricPage 128/12917. ANNEX D: MULTITAP KEY SEQUENCESFollowing are the multi-tap key sequences used for European languages:17.1 ENGLISHKey Lower case Upper Case1 1.,-'@:? 1.,-'@:?2abc2 ABC23def3 DEF34 ghi4 GHI45jkl5 JKL56 mno6 MNO67 pqrs7 PQRS78 tuv8 TUV89 wxyz9 WXYZ917.2 FRENCHKey Lower case Upper Case1 1.,-'@:? 1.,-'@:?2 abc2àç ABC23 def3éè DEF3É4 ghi4 GHI45jkl5 JKL56 mno6 MNO67 pqrs7 PQRS78 tuv8ùü TUV89 wxyz9 WXYZ9
CONFIDENTIAL Mitsubishi ElectricPage 129/12917.3 SPANISHKey Lower case Upper Case1 1.,¿?-@: 1.,¿?-@:2abc2 ABC23def3é DEF3É4 ghi4 GHI45jkl5 JKL56 mno6ñ MNO6Ñ7 pqrs7 PQRS78 tuv8ü TUV8Ü9 wxyz9 WXYZ9
