Install RS232C Interface Board
INSTALL RS-232C INTERFACE BOARD
ACCESSORIES : screw x 3 , Installation manual
NOTE :
• Voltage is supplied to some parts even when the POWER switch
is turned off. To prevent electric shocks, be sure to turn off the
VCR and unplug the power cord when installing the RS-232C
interface PCB.
• Read the warnings stamped or labeled in various locations on
the VCR and its parts.

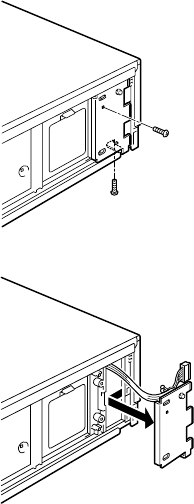

1. Remove the two screws securing
the cover plate.
( Need not remove the top cover.)
2. To remove the cover plate, slide it to
the left side and then pull it towards
you.

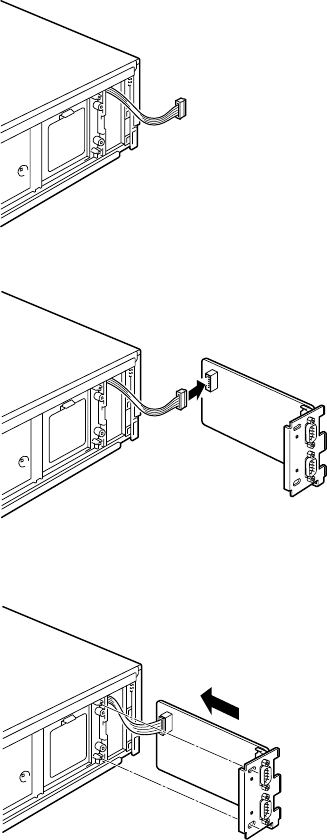

3. Remove the cable from the cover
plate.
4. Connect the cable terminal on the
VCR(PCB) to the connector RE
on the RS-232C PCB.
5. Insert the RS-232C PCB into the
rear of VCR, as shown.
6. Slide the RS-232C PCB in the
direction of the arrow.
7. On the rear of VCR, tighten the
three screws that secure the RS-
232C PCB in place.
For US only
NOTE:
FCC ID:BGBR-9000RS
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received including interference that may
cuase undesired operation.
NOTE:
This equipment has been tested and found to comply with the limita for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television re-
ception, which can be determined by turning the equipment off and on, the
use is encouraged to try to correct the interference by one or more of the
following measures:
- Raorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For CANADA only
INFORMATION
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-
003. INFORMATION
CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA
NORME NMB-003 DU CANADA.
