This guide describes the operation of the dual band GSM telephones

Trium 110.

Edition 1, 2002. © Mitsubishi Electric Telecom Europe, 2002

Whilst every effort has been made to ensure the accuracy of the instructions contained in this

guide, Mitsubishi Electric reserves the right to make improvements and changes to the product

described in this guide and/or to the guide itself, without prior notice.

english

Table of contents

2

1. Introduction ................. 3

SAR ...................................... 3

General safety ...................... 4

Vehicle safety ....................... 4

Emergency calls ................... 5

Care and maintenance ......... 5

AC/DC adaptor chargers ...... 6

Battery use ........................... 6

Your responsibility ............... 6

Security codes ...................... 6

Disposing of waste

packaging ......................... 7

The phone at a glance ......... 8

Graphic display .................... 9

Understanding the icons ...... 9

2. Getting started .......... 10

Preparing to make your

first call ........................... 10

Making your first call ......... 10

Battery ............................... 12

SIM card ............................ 14

3. Using your phone ...... 15

Standby display ................. 15

Important icons ................. 15

Dialling from memory ........ 16

Last dialled numbers .......... 16

Speed dialling .................... 16

Silent and vibrate alert

modes ............................. 17

Hands free features ........... 17

Muting ............................... 17

Volume adjustment ........... 17

Sending DTMF tones .......... 17

Pause feature ..................... 18

Holding and retrieving a

call .................................. 18

4. The menu .................... 20

Access to the menus .......... 20

Menu map ......................... 20

Entering text ...................... 20

Network services ................ 22

Phone book ....................... 22

Messages (SMS) ................. 26

EMS .................................. 29

Calls & Times ..................... 29

Settings - customising

your phone ..................... 32

Using the office tools ........ 44

Games ............................... 46

Currency-converter ............ 47

Internet/Wireless

Application Protocol

(WAP™) ........................... 47

GSM man machine

interface codes ................ 50

5. Accessories ................. 51

Using the headset .............. 51

6. Appendix .................... 52

Glossary ............................. 52

Trouble shooting ............... 53

Error messages .................. 54

7. Declaration of

compliance ................. 58

3

Introduction

Introduction

Thank you for purchasing the Trium 110

dual band mobile telephone. The phone

version you have bought is either the

Trium 110, the Trium 110 m or the Tri-

um 110 p. Please check the version on

the box label. The mobile telephone de-

scribed in this guide is approved for use

on all GSM 900/1800 networks. Some

services and messages may be different

according to your subscription type

and/or service provider.

As with all types of radio transceivers

this mobile telephone emits electro-

magnetic waves and conforms to inter-

national regulations when it is used

under normal conditions and in accord-

ance with the safety and warning mes-

sages given below and on page 4.

SAR

THIS TRIUM 110, TRIUM 110 m OR TRI-

UM 110 p PHONE MEETS THE EU RE-

QUIREMENTS FOR EXPOSURE TO RADIO

WAVES.

Before a mobile phone is available for

sale to the public, compliance with the

European R&TTE directive (1999/5/CE)

must be shown. This directive includes

as one essential requirement the pro-

tection of the health and the safety for

the user and any other person.

Your mobile phone is a radio transmitter

and receiver. It is designed and manufac-

tured not to exceed the limits for expo-

sure to radiofrequency (RF) energy

recommended by The Council of the Eu-

ropean Union

1

. These limits are part of

comprehensive guidelines and establish

permitted levels of RF energy for the

general population. The guidelines were

developed by independent scientific or-

ganisations through periodic and thor-

ough evaluation of scientific studies. The

limits include a substantial safety margin

designed to assure the safety of all per-

sons, regardless of age and health.

The exposure standard for mobile

phones (CENELEC standard EN 50360:

2000) employs a unit of measurement

known as the Specific Absorption Rate,

or SAR. The SAR limit

2

recommended by

The Council of the European Union is

2.0 W/kg. Tests for SAR have been con-

ducted using standard operating posi-

tions (with reference to CENELEC

standard EN 50361: 2000) with the

phone transmitting at its highest certi-

fied power level in all tested frequency

bands

3

. Although the SAR is determined

at the highest certified power level, the

actual SAR level of the phone while op-

erating can be well below the maximum

value. This is because the phone is de-

signed to operate at multiple power lev-

els so as to use only the power required

to reach the network. In general, the

closer you are to a base station antenna,

the lower the power output.

The highest SAR value for this Trium

110, Trium 110 m or Trium 110 p model

when tested for compliance against the

standard was 0.746 W/kg. While there

may be differences between the SAR

levels of various phones and at various

positions, they all meet the EU require-

ments for RF exposure.

1. European recommendation 1999/519/CE

2. The SAR limit for mobile phones used by the

public is 2.0 watts/kilogram (W/kg) averaged

over ten grams of tissue. The limit incorpora-

tes a substantial margin of safety to give

additional protection for the public and to

account for any variations in measurements

3. The maximum level of GSM emitted power is

250mW at 900 MHz and 125 mW at

1800MHz according to the GSM standard.

4

There are a number of independent

sources of information available to us-

ers including:

Royal Society of Canada: www.rsc.ca

The International Commission on Non-

Ionizing Radiation Protection (ICNIRP):

www.icnirp.de

The US Food and Drug Administration:

www.fda.gov/cdrh/ocd/mobil-

phone.html

The World Health Organization:

www.who.int/emf

Mitsubishi Electric belongs to the MMF,

an international association of radio

equipment manufacturers.

The MMF produces information such as

this in accordance with its purpose of

developing and presenting industry po-

sitions to independent research organi-

sations, government and other research

bodies.

Mobile Manufacturers Forum

Diamant Building, 80 Blvd. A. Reyers

B-1030 Brussels Belgium

www.mmfai.org

General safety

It is important to follow any special reg-

ulations regarding the use of radio

equipment, due to the possibility of ra-

dio frequency, interference.

Please follow the safety advice given be-

low.

Vehicle safety

Respect national regulations on the use

of mobile telephones in vehicles.

Road safety always comes first! Always

give your full attention to driving.

•Do not use a hand-held phone while

driving. If you do not have a ‘hands

free’ car kit, stop and park your vehi-

cle safely before using your phone.

•If equipped with a correctly installed

vehicle kit allowing ‘hands free’ oper-

ation and you need to make or

receive a call, ensure that it is done

sensibly and safely. Use pre-pro-

grammed numbers where possible

and keep calls short and routine.

Switch off phone and remove

the battery when in an aircraft.

The use of mobile telephones in

an aircraft may endanger the

operation of the aircraft, disrupt

the cellular mobile phone net-

work and is illegal. Failure to ob-

serve this instruction may lead

to suspension or denial of mo-

bile telephone services to the of-

fender, or legal action, or both.

Switch off phone when at any

refuelling point or near inflam-

mable material.

Switch off phone in hospitals

and any other place where med-

ical equipment may be in use.

Respect restrictions on the use

of radio equipment in fuel de-

pots, chemical plants or where

blasting operations are in

progress.

There may be a hazard associat-

ed with the operation of phones

close to inadequately protected

personal medical devices such as

hearing aids and pacemakers.

Consult your doctor or the man-

ufacturers of the medical device

to determine if it is adequately

protected.

Operation of phone close to oth-

er electronic equipment may

also cause interference if the

equipment is inadequately pro-

tected. Observe any warning

signs and manufacturers recom-

mendations.

5

Introduction

•If incorrectly installed in a vehicle the

operation of mobile telephones can

interfere with the correct operation

of the vehicle electronics, such as

ABS anti-lock brakes or air bags. To

avoid such problems ensure that only

qualified personnel carry out the

installation. Verification of the pro-

tection and operation of the vehicle

electronics should form part of the

installation. If in doubt consult the

manufacturer.

•Do not place the phone on the pas-

senger seat or where it could break

loose during sudden breaking or a

collision. Always use the holder.

•The use of an alert device to operate

a vehicle's lights or horn on public

roads is not permitted.

Emergency calls

In Europe, provided the phone has GSM

service, emergency calls can be made

using the European standard emergen-

cy number, 112, even if you do not

have a SIM in the phone. Emergency

calls can even be made if the phone is

PIN or electronically locked or call

barred. In some countries local emer-

gency numbers can still be used for

emergency purposes but the phone

may have to contain a valid SIM card.

When making an emergency call re-

member to give all the necessary infor-

mation as accurately as possible. The

phone may be the only means of com-

munication at the scene of an emergen-

cy therefore do not cut off the call until

told to do so.

Care and maintenance

This mobile telephone is the product of

advanced engineering, design and

craftsmanship and should be treated

with care. The suggestions below can

help you to enjoy this product for many

years.

•Do not expose the phone to any

extreme environment where the tem-

perature or humidity is high.

•Do not expose or store in cold tem-

peratures. When the phone warms up

after switch on, to its normal temper-

ature, moisture can form inside which

can damage the electrical parts.

•Do not attempt to disassemble the

phone. There are no user serviceable

parts inside.

•Do not expose the phone to water,

rain or spilt beverages. It is not

waterproof.

•Do not abuse this phone by drop-

ping, knocking or violent shaking.

Rough handling can damage it.

•Do not clean the phone with strong

chemicals or solvents. Wipe it only

with a soft, slightly dampened cloth.

•Do not place the telephone alongside

computer discs, credit or travel cards

or other magnetic media. The infor-

mation contained on discs or cards

may be affected by the phone.

•Do not connect incompatible prod-

ucts. The use of third party equip-

ment or accessories, not made or

authorised by Mitsubishi Electric,

invalidates the warranty of your

phone and can be a safety risk.

•Do not remove the labels. The num-

bers on it are important for aftersale

service and other related purposes.

•Do contact an authorised service cen-

tre in the unlikely event of a fault.

Mobile phones rely on wireless and landline net-

works which cannot be guaranteed in all condi-

tions. Therefore you should never rely solely on

wireless phones for essential emergency commu-

nications.

6

AC/DC adaptor chargers

This apparatus is intended for use only

when supplied with power from AC/DC

adaptor chargers (FZ14130070,

FZ14130060, FZ14130050,

FZ14130080, FZ14130090 or

FZ14130100). Use of any other charger

or adaptors will invalidate any approval

given to this apparatus and may be

dangerous.

Battery use

You can charge a battery hundreds of

times but gradually it wears out. When

the operating time (stand-by and talk

time) is noticeably shorter than normal

it is time to buy a new battery.

•Do not leave batteries connected to a

charger longer than necessary. Over-

charging shortens battery life.

•Disconnect battery chargers from the

power source when not in use.

•Do not expose batteries to high tem-

peratures or humidity.

•Do not dispose of the batteries in

fire. They can explode.

•Avoid putting the batteries into con-

tact with metal objects which can

short circuit the battery terminals

(e.g. keys, paper clips, coins, chains

etc.).

•Do not drop or subject the batteries

to strong physical shocks.

•Do not try to disassemble any of the

battery packs.

•Use only the recommended battery

chargers (see page6).

•If the battery terminals become

soiled, clean them with a soft cloth.

•It is normal for batteries to become

warm during charging.

Battery disposal

Your responsibility

This GSM mobile telephone is your re-

sponsibility. Please treat it with care re-

specting all local regulations. It is not a

toy; please keep it in a safe place at all

times and out of the reach of children.

Become familiar with and use the secu-

rity features to block unauthorised use

if your phone and/or SIM card are lost

or stolen. Call your service provider im-

mediately to prevent illegal use.

When not in use lock, turn off the

phone and remove the battery.

Security codes

The phone and SIM card are delivered

to you pre-programmed with codes

that protect the phone and SIM card

against unauthorised use. A short de-

scription of each follows. See page 36

to change your PIN and phonelock

codes.

PIN and PIN2 codes (4-8 digits)

All SIM cards have a PIN (Personal

Identity Number). It protects the

card against unauthorised use.

Some SIM cards also have a PIN2

code that protects specific features

such as fixed dialling numbers.

Entering the wrong PIN code three

times in succession disables the SIM

card and the message SIM Blocked.

Enter PUK: appears. To unblock the

SIM you need the PUK (PIN Unblock

In compliance with European environ-

mental protection directives, used

batteries must be returned to the

place of sale, where they are collected

free of charge.

Don't throw away your batteries in

your household waste.

7

Introduction

Key) code, obtainable only from

your service provider.

PUK and PUK2 codes (8 digits)

Obtain the PUK code from your

service provider. Use it to unblock a

disabled SIM card (see page 37).

The PUK2 code is required to un-

block the PIN2 code (see above).

Call barring password (4 digits)

This password is used to bar various

types of calls, made or received,

from the phone (see page 42).

Phonelock code (4 digits)

This code is set to all zeros on deliv-

ery. You can change it. Once

changed it cannot be identified by

the manufacturer over the phone.

Please refer to page 36 for more de-

tails.

You must remember and make yourself

familiar with the purpose and operation

of these codes.

Disposing of waste packaging

The packaging used for this phone is

made of recyclable materials and as

such should be disposed of in accord-

ance with your national legislation on

the protection of the environment.

Please take care to separate the card-

board and plastic elements and to dis-

pose of them in the correct manner.

8

The phone at a glance

Graphic display

Telephone

numbers, menus,

messages, etc. are

displayed here.

On/Off, END key

( ). Hold down to

turn the phone on/off.

Press to end a call or

return to stand-by.

Alphanumeric keys,

- , , .

To enter numbers,

characters and

punctuation marks.

Press and hold to

call the voice mail

number. Press and

hold to keys to

dial preferred

numbers. Press and

hold to enter

international code +

prefix, 'P' symbol or '_'

underscore wildcard. .

Press and hold to

activate the keypad

lock feature.

Battery cover

(at the back of

the phone)

See page 10

for further

details.

Microphone

Programmable

softkeys ( )

The function of

the softkey appears

in the graphic

display above the key.

Cursor key

Navigates

around the

memories and

menus.

on the cursor

key: press to scroll

up menus (while in

the menu). In stand-by,

press to access the

volume control.

on the cursor key.

Press to scroll down

menus (while in the

menu). In stand-by,

press to access the

alert mode (ring, silent,

vibrate, etc.)

on the cursor key.

Press to access the

main menu or select a

menu option.

on the cursor key.

Press to access

the phone book or

return to the

previous display.

Call/SEND key ( ).

Press to make/answer a

call. In stand-by, press

to display the last

dialled numbers list.

Earpiece

Headset, accessories

and AC/DC charger

socket

9

Introduction

Graphic display

The display shows

icons, alphabet

characters, num-

bers, menu list

and instructions

to the user. Use

the cursor keys to navigate to the

phone book, Internet/WAP™ and the

menu. The rest of this guide gives you

the procedures to access these func-

tions. Icons in the display are described

on page9.

Understanding the icons

Icons in the display have the following

meaning:

SIM memory in use

Phone memory in use.

When you enter a name and ad-

dress you can choose the icon you

want to go with them.

Roaming. Displayed when the

phone is logged on to a network

different from its home network.

Short message service (SMS). Dis-

played when you have one or

more messages to read. It flashes

when the SMS message bank is

full and cannot store new messag-

es. Delete one or more old mes-

sages to make space. The

availability of this feature is net-

work dependent.

This icon will also be displayed if

you receive an EMS on Trium 110

m.

Unanswered call. Displayed when

an incoming call is unanswered.

Arrow keys. Displayed during

menu operation to indicate that

more items in the menu can be

displayed if or are pressed.

Voice mail. Displayed when you

have a voice mail message to

read.

The availability of this feature is

network dependent.

Battery level indicator. Perma-

nently displayed to indicate the

current charge level of the bat-

tery. Three levels are shown.

low, medium, full. It flash-

es when the battery is almost

empty.

Line 2. Indicates the second line is

in use.

The availability of this feature is

network dependent.

Signal strength level. It indicates

the strength of the received sig-

nal. The more bars the stronger

the signal. If no network is availa-

ble the display remains blank.

Keypad lock. Indicates whether

keypad lock is on or off.

Alarm clock icon.

Vibrator alert icon.

Ring tone off. All tones are off.

Mute icon.

Predictive text mode icon.

WAP™ 'live' connection icon.

WAP™ 'live' connection in security

mode icon.

Auto-switch function activated

icon.

10

Getting started

In order to become familiar with the

phone quickly, follow these simple

steps.

Preparing to make your first

call

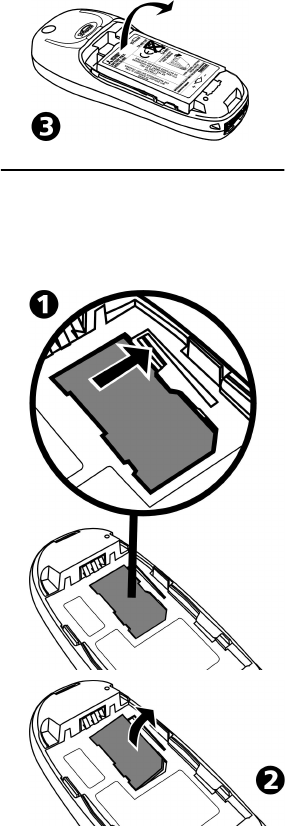

Inserting the SIM card

Unpack the phone and insert the

SIM card into the holder, as shown

below, with the gold contacts fac-

ing down.

Fitting the battery

Connect the battery as shown be-

low.

Placing the battery cover

Place the battery cover as shown

below.

Making your first call

Turning on the phone

If there is not enough charge in the battery to

power the phone, follow the instructions for battery

charging on page 13.

Press and hold down for

two seconds. If this is the first

time you use the phone or

you remove and

1

Getting started

11

Stand-by display

From the stand-by display:

See page 37 to set the time and

date.

Holding your phone

Making a call

The phone can make and receive

calls only when it is switched on,

unlocked (see page15), has a valid

SIM card inserted and has GSM net-

work service coverage. If the phone

cannot find a valid network the dis-

play remains blank.

replace the battery, the

phone prompts you for the

date and time.

If you insert the SIM card

incorrectly, the error message

Check SIM! appears. Remove

the cover and battery and

make sure the SIM is inserted

with the gold contacts facing

down.

If the mobile is locked, Code:

appears.

Enter the 4digit phonelock

code and press OK . The

default is 4zeros, e.g. 0000.

If your SIM is PIN protected,

Enter PIN: appears.

Enter the PIN code and press

OK . An animated screen

icon appears, then the stand-

by display.

See page 35 to change your PIN and lock codes!

Press... to...

enter phone menu.

directly access to numbers

stored in phone books.

access volume control.

access alert tones.

access the last dialled

numbers list.

stop the dialling or end a

call.

-

enter numbers in the dis-

play (see also "Speed dial-

ling", page 16).

2

3

Please be warned that you should not, when using

the hands free mode, put the phone to your ear.

Enter the desired telephone

number using the numeric keys

( - ). You can enter a maxi-

mum of 46 digits. Correct any

mistakes by pressing Clear .

Hold down this key or press

to clear the whole display.

1

How to hold

the phone

Avoid

covering

the upper

back half of

the phone so as

to allow maxi-

mum emission

and reception

quality.

12

The phone rings and the call con-

nects like a normal telephone. A call

timer appears.

You can also get the following mes-

sages if the call does not connect or

you use the second line:

If the dialled number matches one

stored in the phone book then the

name of the called person appears

in the display.

Receiving a call

The phone rings (or vibrates, see

page 32 to set) when it receives a

call. See page 33 to set the incom-

ing ring tone. See page 34 to set the

backlight.

Answering the call

No ring

Pressing No ring stops the

sound of the ring tone, which al-

lows you to, for example, go out

of a room before pressing.

Service number presentation

If you have the service number

presentation your phone displays

the following information.

If you have a second line, ap-

pears when the call has been re-

ceived on your line 2 number (see

page 18 for details).

Rejecting the call

To reject, or return a busy signal

to the caller:

Ending a call

The phone stores the caller's

number, if available, in the received

calls log (see page 29).

Turning off the phone

The mobile turns off.

Battery

Low battery warning

When the battery power falls to its

lowest level the message Low Bat-

tery! appears and a low battery

To dial (send) the number press

.

You can prefix international calls with 00 or +. To

enter the + symbol before a number press and

hold down .

Your phone

displays... if the...

Busy called party is en-

gaged.

Not allowed

(fixed dial-

ling)

number dialled is

not authorised by

the FDN list (see

page 25).

call is made using

the second line

(see page 32).

Press .

If the ring tone volume is set to zero (off) or if the

phone has been set to 'Vibrate' mode, no sound is

heard.

2

Your phone dis-

plays...

if the

number

is...

Unknown number,

then Call1 when

connected

unavaila-

ble.

the caller’s number

available

but not in

phone

books.

Withheld number,

then Call1 when

connected

withheld.

Press .

Press . The call timer stops and

disappears.

Waiting a few seconds or pressing the Exit softkey

returns the phone to the stand-by display.

Press and hold down .

Getting started

13

warning tone sounds.

If you are on a call, terminate the

call and turn off the phone by

pressing and holding down .

Recharge the battery as shown be-

low or swap it for a charged one.

Do not turn off the phone by

removing the battery, data can

be lost.

Charging the battery

To ensure a long life for your bat-

tery, re-charge it only when the

Low Battery! warning appears and

the 'low battery' tone is heard.

Connect the charger to the phone

as shown.

Plug the charger into the wall sock-

et and turn on the mains. The bat-

tery starts to charge. The phone can

be used while charging but this in-

creases the charging time.

Charging indicators when the mo-

bile is off:

During charging Charging... ap-

pears. When charging is finished,

Battery full appears.

It is normal for the battery to get

warm during charging.

Charging indicators when the mo-

bile is on:

During charging the icon flashes

1-2-3 bars continuously. When

charging completes the battery in-

dicator shows three solid bars.

Disconnecting the charger

At the end of charging, disconnect

the charger from the phone (see be-

low), switch off and remove the

plug from the mains.

Typical charging times using the

AC/DC adaptors (FZ14130070,

FZ14130060, FZ14130050,

FZ14130080, FZ14130090 or

FZ14130100)

Removing the battery

Remove the battery as shown blow.

While inserting the plug in the phone AC/DC

connector, make sure the Trium logo ()

appears on top.

Battery type Typical charg-

ing time

Standard

battery

(FZ14240010)

2 hours 10

minutes

14

SIM card

Inserting the SIM card

Please refer to page 10.

Removing the SIM card

Remove the SIM card as shown be-

low.

15

Using your phone

Using your phone

For turning on/off the mobile and mak-

ing/receiving calls, see pages 10 to 12.

Please note that all setting instructions

described in this user guide are to be

followed from the idle screen.

Standby display

Keypad lock

To prevent accidental operation of

the phone, turn on keypad lock.

You can still answer calls by press-

ing . When you end a call, the

keypad lock reactivates automati-

cally.

To turn keypad lock on:

To turn keypad lock off:

You can also use the menu:

Internet/Wireless Application Pro-

tocol (WAP™)

Press Internet in the stand-by

display to access the internet main

menu and access your home page

or any WAP™ portal. You can con-

figure up to 5WAP™ profiles and

10bookmarks. See page 47 for

more information.

Messages (SMS)

Press SMS in the stand-by dis-

play to access the short messages

menu. You can also access it from

the main menu. See page 26 for

more details.

Backlight operation

The backlight is normally off. When

a key is pressed the display and key-

pad backlight turns on for 10 sec-

onds. If an incoming call is received

the backlight turns on and remains

on for 10 seconds after the call is

answered.

Important icons

• is displayed when you do not

answer one or more calls. Press

Read to view the callers' numbers

if available and the date and time the

call was received. Press to call the

number. The phone stores unan-

swered call numbers in the unan-

swered calls log (see page 29 for

details).

• appears when you receive one or

several voice messages. Press Read

to view the message or press

to speed dial your voice mail mes-

sage centre (see pages 9 and 35 for

more details).

• appears when you receive one or

several SMS messages. Press Read

to view the SMS inbox message.

If flashes, your inbox is full. Delete

one or more old messages to make

space for one or more new messages

(see page 26 for more details).

The display shows the number and type

of messages:

Press and hold down .

appears.

Press Unlock plus or press

and hold .

Press . Select Settings.

Select Phone settings. Select

Keypad lock to turn keypad

lock on.

Press Unlock plus to

turn keypad lock off or press

and hold .

1

2

3

Pre-programmed softkeys can be accessed from

the stand-by display. These can be for instance

Internet/Wap or SMS. The softkeys may be pro-

grammable according to your servce provider.

16

Press Read to select the type of mes-

sage you want to read. Press Select

or to view the message.

Dialling from memory

You can dial any number stored in the

SIM, or the phone memory. To do this:

from the phone book

from the calls log memory list

The phone stores the last 10 num-

bers dialled, the last 10 unanswered

call numbers (if available) and the

last 10 received answered numbers.

Last dialled numbers

Quick access to the last 10 dialled num-

bers can also be obtained by

pressing.

Speed dialling

You can assign any key to any tele-

phone number stored in the SIM and

phone memory. To dial such a number:

By default, is always allocated to

the voice mail number (see

page38). See page 35 to allocate

numbers to the speed dialling keys.

International Country Codes

Your phone allows quick access to

pre-programmed International

Country Codes

When one indicator is displayed the date is tempo-

rarily cleared. When two or three indicators are

displayed both the time and date are temporarily

cleared.

Press to enter the phone

book list.

Use or to scroll to the

required name or type the

first letter of the required

name and use or if nec-

essary.

Press .

In case of a SIM memory

contact or of a phone

memory contact with one

number assigned, the

phone dials the number.In

case of a phone memory

contact with many num-

bers assigned, use or

to scroll to the number

required and press . The

phone dials the number.

See page 22.

1

2

3

Press . Select Calls & Times.

Select Calls log.

Select Last dial, Unan-

swered or Received.

Use or to scroll to the

number required.

Press to dial the number.

See page 29.

In the stand-by mode press-

ing displays a list of the

last dialled numbers.

Use or to scroll to the

number required.

Press to dial the number.

The phone stores the last dialled numbers in the

phone memory, not in the SIM.

Press and hold down the key ( -

). The number appears and

attempts to connect.

Press and hold the '+' key

until the '+' symbol is dis-

played.

Select Codes to display the

list of countries.

1

2

3

4

5

1

2

3

1

2

17

Using your phone

Silent and vibrate alert modes

To avoid disturbing others you can si-

lence the incoming ring and alert tones.

Turning on

is displayed when the silent

alert mode feature is activated.

is displayed when the Vibrate or

Vibrate then Ring features are

activated.

Turning off

Hands free features

When you want to share your call with

an audience, or you are in your car, use

the “hands free” feature.

Turning the hands free feature on

When making a call:

When receiving a call:

Turning the hands free feature off

Muting

You can mute the microphone during a

call, e.g. when you want to talk to

someone nearby without the person on

the phone hearing.

Turning the microphone off

Turning the microphone on

Volume adjustment

To adjust the volume:

Sending DTMF tones

Some remote access services require

DTMF tones. These tones are used by

regular telephones when you dial and

when you answer questions from an

automated voice service. If you are in a

conversation and manually entering the

numbers, no extra configuration is nec-

essary. If, however, you want to send a

number stored in memory, you must set

DTMF to automatic.

Manually

To send individual DTMF tones di-

rectly from the keypad during a

conversation:

The tones are heard in the ear-

Use and and select one

of the countries. The '+' sym-

bol and the country code (e.g

+31 for the Netherlands) are

displayed. It is then possible

to enter the phone number

and store it into one of the

phonebooks (Phone names /

SIM names) or delete it.

Press .

Select Silent, Vibrate or

Vibrate then Ring.

Press .

Select Ring or Vibrate &

Ring.

If the ring tone volume is set to 0 a warning mes-

sage appears in the display.

Press Speak.on to turn the

hands free feature on during the

calling process.

Press Speak.on to accept the

incoming call.

Press Speak.off .

3

1

2

1

2

Press Options .

Select Mute and select Yes. A

warning message appears in

the display. also appears.

Press Options .

Select Unmute. A warning

message appears in the dis-

play. disappears.

A new call restores the microphone to on.

Use or to increase or

decrease the volume and

press OK .

Press Exit or wait 2 sec-

onds to return to the previous

display.

See also page 33.

Press the required keys.

1

2

1

2

1

2

18

piece and sent immediately.

Automatically

To send a consecutive string of

DTMF tones during a conversation:

Pause feature

You can enter and store telephone

numbers and a sequence of DTMF tones

together as long as you separate them

by a 'pause'. To enter a pause between

numbers, press and hold down . The

letter p appears. The phone can store

several pauses together for a maximum

of 20-46 characters (dependent upon

the SIM and the phone memory capaci-

ty).

Holding and retrieving a call

To put a call on hold during a con-

versation:

To retrieve a call:

To make a second call when one call

is on hold:

Alternatively, use Options to

display a menu of the actions de-

scribed above. Scroll to the re-

quired option and press Select

or (see also Multi-party or con-

ference calls (network depend-

ent), page19).Call waiting,

swapping and multi-party confer-

ence calls

Call waiting (network dependent)

Use call waiting, a network feature,

to receive a second incoming call

when already engaged in a call. This

puts an existing call 'on hold' while

you answer or make a second call.

To turn the call waiting service on

or off:

Press Options .

Select Auto DTMF.

Enter the DTMF numbers into

the display either directly

using the keypad or from a

number stored in the phone

book (under Names ).

Press OK . The phone sends

the tones and then shows the

normal conversation display.

DTMF tones cannot be sent when a call is on hold.

Press .

Press .

Enter a number in the display.

Press to dial the number.

After the second call has been

established press to swap

between the two calls.

1

2

3

4

1

2

To end either the current call

or the held call select End

active or End held in the

Options menu. The remain-

ing call is automatically

retrieved

Press to end the remaining

call.

Both calls can be ended at the same time by press-

ing .

Press . Select Settings.

Select GSM Services.

Select Call waiting.

Select Activate or Cancel.

The network confirms your

request. The confirmation can

take several seconds.

Press and hold Exit or

to return to the standby dis-

play.

3

4

1

2

3

4

19

Using your phone

Action when receiving a second call

You hear a 'double beep' when your

phone receives a second call. An an-

imated phone icon and the tele-

phone number (if available) also

appear.

To accept the second call

To reject the second call:

To swap between the two connect-

ed calls:

Multi-party or conference calls (net-

work dependent)

Use this feature to make or receive

between 2 to 5calls at the same

time with all parties being able to

hear and talk with each other.

* These items in the Options menu

appear if more than 2 calls are

joined in the conference call.

Throughout the conference call the

display shows the actions you se-

lected from the options menu.

Press . This answers the second

call and puts the first call on hold.

Press Reject . This returns a

busy signal to the second caller.

Press .

Make and establish a call in

the normal way and press .

Enter another number into

the display and press . The

first call is put on hold when

the second call becomes

active.

Press Options for the fol-

lowing menu:

1

2

3

Option Description

Auto

DTMF

to enter a DTMF string

to the active call only

Swap Swaps between active

and call on hold

Join

Joins active and call on

hold to make a multi-

party or conference call

Mute/

Unmute

Turns on or off the mi-

crophone

End held Ends the call on hold

End ac-

tive

Ends the active call and

connects with the call

on hold

End all Ends all the calls

* Private

with

Allows you to select

and have a private con-

versation with one of

the conference callers

while putting all the

other calls on hold

Hold/Re-

trieve

Holds or retrieves the

conference call

* End one

Allows you to select

and end one of the

conference call partici-

pants

For alternate line service (ALS), you cannot make

subscribers conference calls between Line 1 and

Line 2.

20

The menu

Use the round cursor key to access the

menu system. Your menu options can

vary. Some may not appear. This de-

pends on your network operator and

your subscription, plus on the phone

version you have (check on box label).

Access to the menus

Press to view all stored telephone

numbers.

Press to enter the main menu.

Hold down Exit or press to exit

the menus (if no call is in progress).

Menu map

Items in italics depend on your sub-

scription and your network operator.

* Available on Trium 110 m only

** Available on Trium 110 p only

Entering text

To add names to the phone books (see

page 22) and write text messages (see

page26) you must enter text. The

phone displays in lower case mode

and in upper case mode when you

can enter text. Use the keypad to enter/

edit text.

You can enter text/numbers using T9

Currency

Games

Office Tools

Settings

Internet

Calls & Times

Network

Server

Phone Book

Messages

Menu Sub-menu

Internet

Home page

Inbox

Bookmarks

Other site

Profile list

Settings

Push parameters

Network

Server

Information

Services

Phone Book

Recall

Store

Remaining

Own numbers

Fixed dialling

Phone Book tones

Messages

SMS*

Inbox

Outbox

Write new

Settings

Draft texts

Alert

Storage

EMS*

Inbox*

My Services*

Settings*

Service Registration*

Calls & Times Calls log

Call timers

Settings

Phone settings

Voice mail

GSM Services

Broadcast

Office Tools

Scratchpad

Alarm clock

Auto-switch

Calculator

Games

Reshape

Push

Options

Exen Games**

Currency Settings

The menu

21

text entry or Multitap text entry.Press

to swap between T9 text entry and the

Multitap method.

To enter text with T9:

Tips and operation

Example

To enter Card in the display:

•Press and select Messages.

•Select Write new.

•Press : appears.

•Press . A appears.

•Press . Ca appears.

•Press . Car appears.

•Press . Case appears.

If the displayed word is not the

one you want, press as many

times as necessary to view Card.

•Press to exit from this example

and return to the stand-by display.

Multitap text entry

Press on to swap between T9 text

entry and the Multitap method.

To enter text with multitap:

The following table displays the

available English characters. Other

languages display different charac-

ter sets.

Press the key with the re-

quired letter only once.

Do not be put off if the char-

acter you want is not immedi-

ately displayed.

The ‘active’ word changes as

you type, so type to the end

of the word.

If your word is not displayed,

press for other matching

words.

If your word is not recog-

nised, press to swap to the

Multitap method to complete

the word.

Use or to locate the cur-

sor in the text to insert char-

acters or make corrections.

1. T9 may not be available in all languages.

2. During number and name entry a short press on

Clear deletes the last character. A long press clears

the whole display.

Key Action

Shift - upper/lower

case on next letter.

Caps lock/unlock if

you press and hold it.

Clear Clear or backspace

Press and

hold Numbers

Space

Special character ta-

ble appears if you

press and hold it.

Another matching

word

Smart punctuation

Swap between T9 and

Multitap method

1

2

3

4

5

Press the key with the

required letter. If it is not the

first letter, press key repeat-

edly until the letter appears.

See the table that follows for

a key to character corre-

spondence.

Enter the next character. If

two characters are on the

same key, wait for the display

at the top of the screen to

clear or press before press-

ing the same key again.

To

access

special

charac-

ters (23

availa-

ble),

hold down . A table

appears. Press the key that

corresponds to the character.

Press Clear briefly to cor-

rect back one letter. Hold

down to clear all text.

Press or to move the cur-

sor in the text to insert char-

acters or make corrections.

1

2

3

4

5

22

Example

To enter Card in the display:

•Press and select Messages.

•Select Write new.

•Press and hold until

appears. Press briefly three

times, C appears.

•Wait for the available characters

to go from the display, press and

hold until appears. Press

briefly once, a appears.

•Press briefly three times, r

appears.

•Press briefly once, d appears.

The word Card appears.

•Press to exit from this example

and return to the stand-by dis-

play.

Network services

Your network operator provides value

added services and contact phone num-

bers. Depending on your operator’s im-

plementation Applications, Services,

and/or Information appears in the dis-

play. Press and select Network Serv-

ices to access these menus.

Phone book

The phone book stores data, usually

names and telephone numbers, in the

phone or SIM memory.

•The phone can store up to 100

‘phone book cards’ which can con-

tain: family name, first name, icon,

home phone number, work phone

number, cellular phone number and

a note.

•SIMs can store up to 255 ‘SIM phone

book cards’. Actual numbers and

capacity depends on your SIM. SIM

phone book cards only contain the

name and number.

Both the SIM and the phone memories

are searched when you use the phone

book.

Storing names and telephone num-

bers

You can enter the names and num-

bers in the phone book manually or

copy them from SMS messages,

scratchpad or last dialled number

lists, etc. You can store the charac-

ters *, +, P (pause), # and _ togeth-

er with numbers. See page 20 to

learn how to enter text.

Store numbers in international

format using the '+' prefix (or

00) before the country code

followed by the telephone

Key Character

Lower case Upper case

1 . , - ' @ : ?

a b c 2 A B C 2

d e f 3 D E F 3

g h i 4 G H I 4

j k l 5 J K L 5

m n o 6 M N O 6

p q r s 7 P Q R S 7

t u v 8 T U V 8

w x y z 9 W X Y Z 9

0 0

Short press swaps next letter

between upper or lower case.

Long press swaps all next let-

ters between upper or lower

case.

Short press

enters space.

Long press gives access to

special characters.

( ) % ! ; " _ @ § + # *

/ & = < > ¥ $ £ ¡ ¿ €

Short press moves the cursor

through the text one place.

Swap between Multitap and

T9.

The menu

23

number. This ensures that the

number can also be dialled

from abroad.

There are several ways to store

numbers into the phone or SIM

memory:

Phone memory

•Directly from the stand-by dis-

play:

•Using the menu:

•From last dialled, received and

unanswered lists:

SIM phone book memory

You can enter the SIM memory

from the stand-by display, menu

or other locations.

•Directly from the stand-by display:

Enter the number. Press

Store .

Select Phone names.

A list appears.

Select the item corresponding

to the number you entered:

home, work or cellular.

The following fields appear:

Field Purpose

Family name Family or last

name

First name First name

Enter the requested data.

Confirm each entry by press-

ing OK

.

Select

an icon.

The

icons

corre-

spond

to -

keys on the keypad. Press

the key corresponding to the

required icon.

In this example pressing

selects .

The following fields appear:

Field Purpose

Phone number

(Home) Home phone

number

Phone number

(Work)

Work phone

number

Phone number

(Cellular)

Cellular phone

number

Note

Note or com-

ments for this

card

1

2

3

4

5

6

7

Enter the requested data.

Press OK

.

Confirmation and number of

free locations appear.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Phone Book.

Select Store. Select Phone

names.

Follow the steps in the previ-

ous procedure (“Directly from

the stand-by display”) start-

ing with step .

Display a number from one of

the above, then press

Options .

Select Store. Select Phone

names.

Follow the steps in the

“Directly from the stand-by

display” procedure starting

with step .

During number and name entry a short press on

Clear clears the last character. A long press clears

the whole display.

Enter the number. Press

Store .

Select SIM names. Press

OK .

Modify or confirm the number

and press OK .

Enter the name. Press OK .

Confirmation and number of

free locations appear.

Press and hold Exit or to

return to the stand-by display.

8

9

1

2

3

4

1

2

3

3

1

2

3

4

5

24

•Using the menu:

•From other stored locations

Numbers stored in the last dialled,

received, unanswered, scratchpad

and SMS message locations can all

be stored in the phone book:

A warning message appears when

selecting the phone book when the

SIM or phone memory is full.

Free space in the phone book

To see the remaining free space in

the SIM or phone:

Viewing and calling numbers in the

phone book

You can edit, delete, copy, move or

access phone book entries stored in

the phone or SIM. There are two

ways to view and call numbers in

the phone book:

•Directly from the stand-by display:

•Using the menu:

Pressing or scrolls through

the phone book. To go directly to

another entry press the corre-

sponding alphabet key. For exam-

ple to go directly to entries

starting with 'N' press twice.

If you did not enter any initials,

the phone book displays the first

entry.

Pressing Options displays the

following menu choices:

Press . Select Phone Book.

Select Store. Select SIM

names.

Enter the number and press

OK . Enter the name and

press OK . Confirmation

and number of remaining

locations appears.

Press and hold Exit or

to return to the stand-by dis-

play.

Display a number from one of

the above then press

Options .

Follow the steps from the

previous procedure “Using

the menu” starting with step

.

During number and name entry a short press on

Clear clears the last character. A long press clears

the whole display.

Press . Select Phone Book.

Select Remaining and use

or to display the remaining

memory spaces in the phone

or SIM.

Press and hold Exit or

to return to the stand-by dis-

play.

If available, the free memories in the FDN list also

appears.

1

2

3

4

1

2

2

1

2

3

Press to display the phone book

list.

Press and select Phone

Book.

Select Recall.

Either press OK or enter up

to the first 3 initials of the

name required and then press

OK .

Press to dial the number. If

there is a choice of numbers

for the phone book entry,

these appear. Select the one

that corresponds and press

.

Item Function

Edit Edits the name and

number entry

Delete Deletes the entry

Send SMS Sends SMS message

Copy

Copies the entry to the

SIM or the phone or

vice versa. You can

edit before copying

Move

Moves the entry to an-

other position. You

can edit before mov-

ing

Call Calls the number dis-

played

1

2

3

4

The menu

25

Own number

You can store your main 'Line 1'

voice mobile number, your voice

mobile number for Line 2 (Alternate

Line Service) and your data and fax

numbers into the SIM card. You can

enter them manually and name

them (e.g: Line 1 'Office'.

To view, name and edit your own

display number(s):

Fixed dialling numbers (FDN)

Fixed dialling only allows you to call

a group of numbers. All other num-

bers are rejected. FDN also prevents

call diverting and sending SMS mes-

sages to numbers not in the FDN

list. You can use wildcards to define

the groups. As this is a SIM depend-

ent feature, some SIM cards might

not support it. SIM capacity deter-

mines the maximum number of

FDN numbers you can store. To ac-

tivate/deactivate FDN you must

have the PIN2 code.

To turn on or off FDN operation:

To view the numbers in the list:

To enter, edit or delete numbers in

the FDN list:

Phone book tones

30 pre-set ring tones are available,

10 with polyphonic (tri-tones) and

20 with mono-tones. Storage of up

to 40 ring tones is possible. That is,

you can add one self-composed

ring tone and 9 other ring tones

you download in addition to the ex-

isting 30 ring tones. If you want,

you can replace any of these ring

tones except the Trium ring tone.

To have different tones for incom-

ing calls where the identities are

known in the SIM or phone memo-

ry:

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Phone Book.

Select Own numbers. The

mobile number for Line 1

appears.

Use or to view line 2,

data and fax numbers.

To add or edit a name or

number press Edit .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Phone Book.

Select Fixed Dialling. Select

Status.

Select On or Off. Enter the

PIN2 number.

5

1

2

3

4

5

1

2

3

Press OK to confirm the

setting.

Press . Select Phone Book.

Select Fixed Dialling.

Select View and use or

to scroll through the entries.

Press Options to edit,

delete and copy numbers to

the phone or SIM.

Press . Select Phone Book.

Select Fixed Dialling.

Select Add new. Enter the

PIN2 number if asked. Add,

edit, delete or copy new

numbers to the phone or

SIM.

You can use wild card spaces with numbers stored

in the FDN list. For example the number

+441707 278_ _ 9 allows you to call all num-

bers between 278009 to 278999.

Press . Select Phone Book.

Select Phone Book Tones.

Select Phone names or SIM

names. Press Select .

Select the tone you want and

press Select . The phone

stores your selection.

4

1

2

3

1

2

3

1

2

3

4

26

Messages (SMS)

You can exchange short text messages

of up to 160 characters with other mo-

bile phones with SMS. You can also

store, edit and forward messages and

save any of the numbers they contain.

Reading a received SMS message

When the phone receives an SMS

message a new SMS alert tone

sounds and appears. The SIM

stores the message. If flashes

there is no more space in the SIM to

store new messages. Delete previ-

ous messages to make space for

new ones.

Reading stored SMS messages

You can now read all stored mes-

sages. For a given message,

shows the message is new.

shows you have already read the

message.

Managing received and stored SMS

messages

After reading the SMS message

press Options for the following

menu:

Turning on or off the message alert

tone

Each time a message is received the

SMS alert tone sounds. To turn on

or off this tone:

Preparing the phone to send SMS

messages

You can write and send text mes-

sages. To use SMS, check that the

number for the message centre is

configured:

If a number appears do nothing.

If empty, enter the number man-

ually (in international format) or

from a stored memory. If you do

Press Read to read all received

messages (Inbox).

Press . Select Messages

(then SMS on Trium 110 m).

Select Inbox to display the

first message header.

Use and to select the

message.

Press or select Options /

Read text to read the mes-

sage text.

1

2

3

4

Item Function

Read text Displays the remain-

der of the text

Delete Deletes the message

Reply Replies to the sender

of the message

Reply

(+ text)

Replies to the sender

of the message with

the initial text

Forward Forwards the mes-

sage to another user

Forward

to n

Forwards a set of sev-

eral (5 maximum)

messages to 5 differ-

ent addressees

Numbers

Stores or calls the

number(s) contained

in the SMS header or

text

The items of this menu depend on the type of mes-

sage received.

Press . Select Messages.

Select Alert. Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Settings.

Select Message centre.

1

2

3

1

2

3

The menu

27

not have this number, ask your

service provider for it.

If required you can also choose the

validity period, format, paid reply

request and request a delivery re-

port. Default settings are assumed

if not set.

Creating a draft text

Parts of a message are often the

same, such as the greeting or signa-

ture. To save time, you can create a

draft text for these parts. Then

when you want to write a message,

you access the draft text and only

write the specific part of the mes-

sage. You can set up to 10 message

drafts, which can hold up to 48

characters each. The mobile memo-

ry stores the drafts.

To create a draft text:

Editing a draft text

Sending a new SMS message to

one addressee

Sending a new SMS message to

many addressees

Press and hold Exit or

to return to the stand-by dis-

play.

Option Description Default

Validity

Period

Time held at

message

centre.

12hours,

1day, 2

days or

Maximum

(defined by

operator)

Maxi-

mum

Format

Selects for-

mat of mes-

sage, text,

voice, fax or

pager

Text

Paid

Reply to

Reply re-

quested Off

Status

report to

Delivery re-

port Off

Press . Select Messages.

Select Draft texts.

Choose any blank template

([...]) and press Edit .

4

1

2

3

Enter the draft text and press

OK .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Draft texts.

Select the draft text to modify

and press Edit .

Edit the text and press OK .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Write new.

You can either choose a draft

text (if you set one up) or

enter the message text and

press OK .

Select Send.

Choose a message template

(if you have stored 2 or more

templates) and then enter the

destination number or select

Names to choose a

number from a phone book

entry. Press to validate your

choice. Press OK . Sending

and sent confirmation

appears for each addressee.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Write new.

You can either choose a draft

text (if you set one up) or

enter the message text and

press OK .

Select Multicast.

4

5

1

2

3

4

5

1

2

3

4

5

6

1

2

3

4

28

Storing a new SMS message

Modifying and re-sending messag-

es in the outbox

The outbox contains unsent draft

messages, stored sent messages

and sent but undelivered messages.

You can modify and re-send these

as new messages.

To select an outbox message:

Status request on sent messages

If you request the status of a deliv-

ered message the delivery date and

time appears. If you request the sta-

tus of a sent message the network

sends a status report (if this feature

is supported). Press OK to ac-

knowledge the report.

To act upon a received status report

and its related message:

Re-usable message templates

The Msg templates menu option

appears in the Messages - Settings

menu if your SIM supports this fea-

ture. Message templates are sets of

message parameters and are stored

in SIM memory. You can name and

select the templates when needed.

To create a message template:

Default settings for pay reply and

status are assumed 'off' unless set

and are common to all templates. If

you set one template only the

Choose a message template

(if you have stored 2 or more

templates).

Enter up to 5 destination

numbers or select Names

to choose up to 5 numbers in

the phone book.

Press to validate your

choice. Press OK .

Sent confirmation appears.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Write new.

You can either choose a draft

text or enter the message text

and press OK .

Select Store.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Messages.

Select Outbox and use or

to scroll to the desired

message. Messages are either

“transmitted” ( ) or “to be

sent” ( ).

Press Options to read,

delete, request a status

report, send (or re-send) to

one addressee, edit a sent

message and send (or re-

send) to many addressees.

Follow the instructions dis-

played on the screen.

5

6

1

2

3

4

5

1

2

3

4

Press Options . The follow-

ing menu appears:

Item Action

Delete

message

Deletes the corre-

sponding sent SMS

message and the sta-

tus report

Clear

To acknowledge the

status report and

clear the display

Associ-

ated

message

Displays the corre-

sponding sent SMS

message

Send

again

Sends the same mes-

sage again

Select the action required and

press OK .

Press . Select Messages.

Select Settings.

Select Msg templates.

Choose any blank template

([...]).

Enter the template Name,

Message centre number,

Validity period and Format.

1

2

1

2

3

The menu

29

phone uses it by default. Otherwise

select the template you want when

sending a message.

Storage consumption

To consult the memory used by

SMS:

EMS 1

EMS stands for Enhanced Message Se-

vice. This feature allows to receive mes-

sages with text, melodies, images and

animated icons. These messages are

sent via the Internet; they may bear pro-

motional information or commercial of-

fers.

The use of this feature is registration de-

pendent and may not be available in all

areas.

EMS Menu

Inbox

To read or delete stored messages

My services

To reach the list of registered services

Settings

To reset or delete the EMS contents

Service Registration

To enter the address of the service sites.

Reading a received EMS message

When the phone receives an EMS

message a new alert tone sounds

and appears. The phone stores

the message. If flashes there is no

more space in the phone to store

new messages. Delete previous

messages to make space for new

ones.

Reading stored EMS messages

You can now read all stored mes-

sages. For a given message,

shows the message is new.

shows you have already read the

message.

Calls & Times

Access the Calls & Times menu to check

the details of individual incoming and

outgoing calls, the duration of the last

call or the total time for all previous

calls.

Calls log

Calls log stores the identity, time,

date and call duration of the last

10numbers dialled, the last 10 re-

ceived unanswered calls and the

last 10received calls. The call logs

are common for both Line 1 and

Line 2.

Press . Select Messages.

Select Storage.

Use or to view all the

SMS storage information

(SMS storage, SMS outbox

and SMS inbox).

Press and hold Exit or

to return to the stand-by dis-

play.

1. Available on Trium 110 m only

Press . Select Messages

Select EMS.

Select the menu item you

want to access.

Press Cancel or to

return to the stand-by display.

1

2

3

4

1

2

3

4

Press Read to read all received

messages (Inbox).

Press . Select Messages.

Select EMS.

Select Inbox.

Use and to select the

message.

Press or select OK to read

the message text or delete

the message.

Press . Select Calls & Times.

Select Calls Log.

Select Last dial, Unan-

swered or Received.

1

2

3

4

5

1

2

3

30

If the caller’s number is not availa-

ble, Unknown number appears

(unanswered and received lists).

Pressing while on a displayed

number calls that number.

Pressing Options accesses the

following menu:

Use or to select the required

option and follow the display

prompts.

Press and hold Exit or to re-

turn to the stand-by display.

Call times

Call times stores the duration of the

last call, total accumulated time of

all calls and total time for Line 1 and

Line 2. The Details sub-menu

stores times for calls made and re-

ceived through the subscription

network and through other (nation-

al and international) networks.

The call type and the accumulat-

ed times of outgoing and incom-

ing calls appears.

Balance information (subscription

service only)

Some networks provide your call

time balance. You have to call a

specific number (given by your net-

work operator) in order to get this

information.

Contact your service provider for

availability and details.

Use or to scroll through

the list.

Item Action

Store Stores the number in

the phone book

Delete Deletes the entry

Delete

all Deletes all the entries

Edit Edits the displayed

number

Details

Views the details -

name, number, time

and date and call dura-

tion of the highlighted

number

Call Makes a call to the

number

Send

SMS

Sends SMS message

Press when in stand-by display to access the

last 10 dialled calls.

Press . Select Calls & Times.

Select Call timers.

4

1

2

Select Show.

Use or to view all the

timer information.

Press Details to display

details on My network,

National roaming and

Int’nal roaming calls.

Press or Exit to return to

the previous display.

Press and hold Exit or

to return to the stand-by dis-

play.

If Line 2 is subscribed to 'All Calls' for Line 1 and

Line 2 appear separately.

Press . Select Calls & Times.

Select Call timers.

Select Balance information.

Select Set number (only nec-

essary the first time you use

this service) to check that the

balance information centre

number is set. If not, enter

the number provided by your

service provider and press

OK .

Select Call. The phone calls the

centre. Press when you

want to end the call.

3

4

5

6

1

2

3

4

5

The menu

31

Reminder - Call duration

You can set a call duration reminder

in multiples of 1 minute (1 - 59

min.) intervals. It beeps at the set

intervals.

Call timer - reset

To reset all the call timers, you need

the 4 digit phone lock code.

Call costs management (subscrip-

tion service only)

An Advice of Charge (AoC) subscrip-

tion service shows the cost of the

last call made, the accumulated to-

tal cost of all calls and the remain-

ing balance in units or currency of

any 'cost limit' you set. Check with

your service provider to see if they

offer this feature.Select the curren-

cy and cost per unit; otherwise call

costs display in generic units.

To set currency and cost per unit:

To set call cost type to units:

Setting the credit limit - in units or

currency

You can set a credit limit in units or

currency. The phone prevents mak-

ing and receiving all chargeable

calls when the phones reaches the

credit limit. You can still make

emergency calls.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Calls & Times.

Select Call timers.

Select Reminder.

Select On (or Off).

Select the period (between 1

and 59 mins).

Press OK .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Calls & Times.

Select Call timers.

Select Reset.

Select Yes or No.

Enter the phone lock code

and press OK .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Calls & Times.

6

1

2

3

4

5

6

7

1

2

3

4

5

6

1

Select Call costs.

Select Display cost type.

Select Currency. The present

currency settings appears.

Press Edit . Enter the PIN 2

code and press OK .

Enter the abbreviated letters

of the currency. Press OK .

Enter the cost per unit in the

selected currency. Press

OK .

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Calls & Times.

Select Call costs.

Select Display cost type.

Select Units.

Press and hold Exit or to

return to the stand-by display.

When you set the cost type to units the credit limit

and the remaining credit appear in units.

Press . Select Calls & Times.

Select Call costs.

Select Credit Limit. The

present credit limit setting

appears.

Press Edit . Enter the PIN 2

code and press OK .

Enter the credit limit (use

to enter a decimal point).

Press OK to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

When you enter a credit limit the selection from the

'Credit Limit' displays Edit or Set No Limit.

2

3

4

5

6

7

8

1

2

3

4

5

1

2

3

4

5

6

32

Show costs

Call costs - resetting all costs to

zero

To reset all the call costs to zero you

need the PIN 2 code.

Alternate line service - selecting

Line 2 (subscription service)

Some GSM 1800 operators support

the use of a second line for users.

You can have two mobile phone

numbers, e.g. a business and per-

sonal line. To select the line for out-

going calls:

Settings - customising

your phone

Phone settings

Keypad lock

See page 15 for more informa-

tion.

Language selection

To select the language of your

choice:

Tones - Alert mode

To turn on or off the audible in-

coming ring tone, alert and alarm

tones:

•Using the menu:

Press . Select Calls & Times.

Select Call costs.

Select Show.

Use or to display the

cost of the Last Call, All Calls

and the Remaining credits.

Press and hold Exit or

to return to the stand-by dis-

play.

The Cost Type menu units or currency setting deter-

mines whether the remaining credit displays units

or currency.

Press . Select Calls & Times.

Select Call costs.

Select Reset.

Select Yes to reset the costs

or No to exit.

If you select Yes, enter the

PIN 2 number and press

OK . All Costs Reset

appears briefly.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Calls & Times.

Select Line selection.

The current line selection

appears.

Use or to scroll to the

line required and press

Select or to validate

your choice.

1

2

3

4

5

1

2

3

4

5

1

2

3

Press and hold Exit or

to return to the stand-by dis-

play.

You can assign names to Line 1 and Line 2, e.g.

Office and Home. See page 25 for details. You

must select the line to make outgoing calls. You

can receive calls from either line.

Press . Select Settings.

Select Phone settings. Select

Language.

Use or to select a lan-

guage from the displayed list.

Press Select to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

To reset the phone to the language of the SIM

enter *#0000#.

To reset the phone language to English enter

*#0044#.

Press . Select Settings.

Select Phone settings. Select

Tones.

Select Alert tones.

Select Ring, Vibrate, Vibrate

& ring or Vibrate then ring.

Press and hold Exit or

to return to the stand-by dis-

play.

4

1

2

3

4

1

2

3

4

5

The menu

33

•Directly from the stand-by dis-

play:

Ring tone selection

To choose an incoming ring tone:

Volume adjustments

To individually adjust the volume

level of the ring tone, key tones,

alarm tones and incoming audio

from the stand-by display, press .

Alternatively, access Volume con-

trol from the

Settings

menu:

The display confirms the selec-

tion, naming the volume to be

adjusted.

During a call, you can adjust the

conversation volume by using

or .

Automatic ramping

Your phone was designed with an

automatic ramping feature.

When your phone rings, the vol-

ume level is lower than the vol-

ume level you have set.

Adjustment is made from low or

medium volume level to the vol-

ume level you have set (see “Vol-

ume adjustments”, page33).

This feature is a default setting

and cannot be deactivated. Ram-

ping and Automatic Ramping are

compatible; both will work if

Ramping is activated.

Ramping

Ramping causes the incoming

ring tone to increase step by step

to the maximum volume level.

Press displays Ring, Silent,

Vibrate, Vibrate & ring or

Vibrate then ring.

Scroll to the desired setting.

Press Select to validate your

choice. (If any of the vibrate

options are selected the

phone briefly vibrates).

appears.

1. If you select Ring but the ring tone volume is off

the icon appears.

2. appears if you select Vibrate, Vibrate & ring or

Vibrate then ring. It takes precedence over .

3. When the phone is connected to either the Desk

Top Charger, HF kit, CLA or AC adaptor the phone

rings instead of vibrates.

4. If you choose the 'Vibrate' or 'Vibrate then ring'

option, the vibrating action replaces all the alert

and alarm tones.

Press . Select Settings.

Select Phone settings. Select

Tones.

Select Melodies.

To help you identify incoming

calls you can give the Stand-

ard/Line 1, Phone names,

SIM names and Line 2 calls

and Alarm different ring

tones.

Use or to highlight the

required call type and press

to select it.

Use or to listen to the

different ring tones. Press

to select the current tone.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

1

2

1

2

3

4

5

6

1

Select Phone settings. Select

Tones.

Select Volume.

Select Ring, Keys, Conversa-

tion or Alarm.

Use or to adjust the set-

ting.

Press OK to validate the

setting.

Press and hold Exit or

to return to the stand-by dis-

play.

If the ring tone volume level is set to 0 displays.

2

3

4

5

6

7

34

Backlight - setting

To set the backlight during key

entry or incoming ring tone, you

have two options:

•On for 10 sec.: the display and

key backlight stays on for

10seconds after the last key

press or incoming call.

•Off: the backlight stays off

except on incoming call.

Display contrast

To modify the display contrast be-

cause of bad light conditions:

Menu graphics

Choose from a set of graphics to

personalise your main menu im-

ages and icons. There are 3 menu

themes.

To change the menu graphics:

Any key answer

To enable any key (except and

No ring ) to be pressed to an-

swer an incoming call:

Softkeys - programming the

softkeys

You can change the function of

the softkeys. There are two ways:

•Directly from the stand-by dis-

play:

•Using the menu:

Press . Select Settings.

Select Phone settings. Select

Tones.

Select Volume.

Select Ramping.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

When turned on the volume of the incoming ring

tone starts from the selected ringer volume (just

after the automatic ramping) and rises to the max-

imum volume.

Press Select. Select Settings.

Select Phone settings. Select

Display.

Select Backlight.

Select one of the two set-

tings. Press to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Phone settings. Select

Display.

Select Contrast.

Adjust the contrast using

or .

Press OK to validate the

setting.

Press and hold Exit or

to return to the stand-by dis-

play.

1

2

3

4

5

6

1

2

3

4

5

1

2

3

4

5

6

Press . Select Settings.

Select Phone settings. Select

Menu graphics.

Use or to scroll the sets of

menu graphics and press

Select to validate your

choice.

Press and hold Exit or to

return to the stand-by display.

Press . Select Settings.

Select Phone settings. Select

Keys.

Select Any key answer.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

Press and hold down the left

or right .

Use or to scroll through

the choice of softkey options.

Press Select to validate

your choice.

The screen confirms your

selection and returns to the

stand-by display showing

your new softkey function.

Press . Select Settings.

1

2

3

4

1

2

3

4

5

1

2

3

4

1

The menu

35

Speed dialling

You can assign phone book num-

bers to keys - . Hold down

the key to dial the number. The

phone reserves exclusively for

the voice mail number. The phone

automatically assigns this key to

the voice mail number if stored

(see “Voice mail”, page38).

You can select any stored

number.

To assign phone book numbers to

the speed dialling keys:

Auto answer

This feature only works when you

connect the phone to a hands

free car kit or headset. The phone

automatically answers an incom-

ing call after approximately 5 sec-

onds.

Auto-retry

To automatically retry the

number of a failed call (up to

10times):

When activated, Auto-retry and a

countdown timer to the next call

attempt appears. An auto-retry

warning tone sounds each time

the phone attempts a new retry.

If successful, proceed with the

call as normal. Press Exit or

any key during the retrying proc-

ess to cancel auto-retry and end

the dialling process for that call.

Security features

The security features described in

this section protects your phone

from unauthorised use.

For all codes

When requested, enter the code,

which appears as asterisks (*) and

press OK .

If you make a mistake press

Clear and enter the correct

digit(s) before pressing OK .

Select Phone settings. Select

Keys.

Select Softkeys functions.

Select Left softkey or Right

softkey.

Press Select on the softkey

option of your choice.

Press and hold Exit or

to return to the stand-by dis-

play.

(......) in the display means that a previously SIM

dependent or subscription service assigned to that

softkey is no longer available. For example Line 2

selection.

Press . Select Settings.

Select Phone settings. Select

Keys.

Select Speed Dial.

Use or to scroll to the

next key.

Select Names to choose

the phone book entry and

press Select to validate

your choice.

Press and hold Exit or

to return to the stand-by dis-

play.

If you delete the number from the phone book this

also deletes it from the associated key.

2

3

4

5

6

1

2

3

4

5

6

Press . Select Settings.

Select Phone settings. Select

Auto features.

Select Auto-answer.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Phone settings. Select

Auto features.

Select Auto-retry.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

1

2

3

4

5

1

2

3

4

5

36

KEEP A RECORD OF YOUR CODES

AND KEEP THEM IN A SAFE

PLACE. FAILURE TO DO SO CAN

CAUSE YOU CONSIDERABLE IN-

CONVENIENCE.

Phone lock code

A phone lock code prevents unau-

thorised access to the phone and

WAP™ settings. You also need it

to reset the call timers. The facto-

ry setting is 0000. Reset this code

and keep it in a safe place, sepa-

rate from the phone. When ena-

bled the phone asks for the code

each time the phone is turned on.

To change the phone lock code:

To turn on or off the phone lock

code:

PIN code

The 4-8 digit PIN code for the SIM

protects it from unauthorised

use. When enabled the phone re-

quests the PIN code each time the

phone is turned on. If you enter

the wrong PIN code three times in

succession your SIM card is

blocked and you need the 8 digit

PUK code from your service pro-

vider (see page 37). To turn on

and off the PIN:

To change the PIN code (PIN must

first be enabled):

PIN2 code

The PIN2 code prevents unau-

thorised access to FDN opera-

tions, modifying the FDN phone

book, setting calls costs to zero,

modifying the costs display fea-

tures. You can change it but you

Avoid using codes similar to emergency numbers

such as 999 or 112 to prevent accidental dialling

of these numbers.

Press . Select Settings.

Select Phone settings. Select

Security.

Select Phone lock.

Select Change code and fol-

low the display prompts.

Press OK to validate the

new code.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Phone settings. Select

Security.

Select Phone lock.

Select On or Off.

The phone requests the

phone lock code to authorise

your selection.

Press and hold Exit or

to return to the stand-by dis-

play.

Phone lock still enables you to make emergency

calls.

1

2

3

4

5

6

1

2

3

4

5

6

Press . Select Settings.

Select Phone settings. Select

Security.

If already off, PIN enable

appears.

If already on, PIN disable

and PIN change appear.

Press Select and follow

the displayed prompts.

Press OK to validate your

entry. PIN enabled or PIN

disabled appear briefly to

confirm your action.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Phone settings. Select

Security.

Select PIN change and follow

the displayed prompts.

Press OK to validate your

new PIN.

Press and hold Exit or

to return to the stand-by dis-

play.

1

2

3

4

5

1

2

3

4

5

The menu

37

can not turn it on or off.

To change the PIN2 code:

PUK code

Only your service provider can

give you the 8 digit PUK (PIN un-

block key). Use it to 'unblock' a

PIN whose code has been entered

incorrectly three times. A PUK

code cannot be changed.

Enter the PUK code and press

OK . Enter a new PIN code by

following the displayed prompts.

PUK2 code

Only your service provider can

give you the 8 digit PUK2. Use it

to unblock a PIN2 whose code has

been entered incorrectly three

times. You cannot change the

PUK2 code.

Enter the PUK2 code. Enter a new

PIN2 code by following the dis-

played prompts.

Time & date setting

To set the current time and/or

date:

Default (factory) settings

Use the Settings menu to return

to the factory settings. This does

not affect the phone book en-

tries, phone lock code or SIM.

The following are the factory de-

fault settings:

Press . Select Settings.

Select Phone settings. Select

Security.

Select PIN2 change and fol-

low the display prompts.

Press OK to validate your

new PIN2 code.

Press and hold Exit or

to return to the stand-by dis-

play.

If you enter the wrong PUK code 10 times in suc-

cession your SIM card cannot be used again. Con-

tact your service provider for a new card.

If you enter the wrong PUK2 code 10 times in suc-

cession you are unable to use the features requir-

ing the PIN2 code. Contact your service provider for

a new card.

Press . Select Settings.

Select Phone settings. Select

Time & date.

1

2

3

4

5

1

2

Select Set time or Set date.

Enter the time (in 24 hour

format) or date in the format

shown. (If required use

and )

Press OK to validate your

entry.

Press and hold Exit or

to return to the stand-by dis-

play.

1. An error message appears if you make a wrong

entry.

2. The time/date are displayed when the phone is

on. It does not show the year.

3. You may have to re-enter the time and date if

the battery was taken out.

Press . Select Settings.

Select Phone settings. Select

Default settings.

Select Yes or No.

Press and hold Exit or

to return to the stand-by dis-

play.

Feature Factory setting

Alert Tones Ring

Ring Tones Trium

Volumes,

Ring, Key,

Speech and

Alarm.

Mid values

Backlight and

Contrast

On for 10 sec. and

mid value

Any Key,

Auto-Retry

and Auto An-

swer fea-

tures.

Off

Ramping Off

Menu graph-

ics Trium

3

4

5

6

1

2

3

4

38

Melody download

You can also download melodies

from the Trium web site

(www.mitsubishi-telecom.com).

This site downloads the melodies

to your phone using SMS. When

the download completes,

Voice mail

Voice mail operates like an answer-

ing machine. Contact your service

provider for details.

Storing a voice mail centre number

If your SIM does not automatical-

ly include the voice mail centre

number, you must manually set

it:

Turning on/off the voice mail alert

tone

To turn on/off the voice mail alert

tone:

Calling the voice mail centre to

check for messages

There are two ways:

•To dial the voice mail centre

directly after the receipt of a

message:

•Or from the menu:

Dialling proceeds as for a normal

call.

GSM services

The services described hereafter

are a non-exhaustive list of GSM

services. Please contact your op-

erator/service provider for more

information.

Press Options and then select

Play to play the melody.

Press Options and then select

Install to store the melody.

Press . Select Settings.

Select Voice Mail.

Select Number. When

prompted enter the number

manually or from a stored

memory.

Press OK to validate your

entry.

Press and hold Exit or

to return to the stand-by dis-

play.

If you subscribe to the 'Line 2' service, store the

voice mail centre number separately for that line.

The phone automatically assigns the voice mail

number to speed dial location number 1 (see

Speed dialling on page 35).

Press . Select Settings.

Select Voice Mail.

Select Alert. Select On or Off.

1

2

3

4

5

1

2

3

Press and hold Exit or

to return to the stand-by dis-

play.

Press and hold down .

Press . Select Settings.

Select Voice Mail.

Select Call.

If a voice mail number is not stored when you

select Call, the phone asks you to enter the voice

mail number. Proceed as described in Storing a

voice mail centre number, page 38.

4

1

2

3

The menu

39

Diverting incoming calls (network

service)

Call diverting diverts incoming

calls, whether voice, fax or data,

to another number.

To turn on call divert:

To turn off or check the status of

call divert:

To cancel all (multiple) diverts:

Caller Line Identity - showing/hiding

your mobile number

Most networks allow the Caller

Line Identity feature (CLI) i.e.

showing the incoming number

(ID) while receiving a call. Select-

Press . Select Settings.

Select GSM Services.

Select Call diverting to access

the following menu:

Divert op-

tions Action

Always

Diverts all incom-

ing voice calls un-

conditionally

When not

reachable

Diverts all voice

calls when the

phone cannot be

reached, i.e. out

of service

On no reply

Diverts all voice

calls when the

phone does not

answer

When busy

Diverts all voice

calls when the

phone is busy

All conditions

Diverts all voice

calls when Not

Reachable, No Re-

ply and When

Busy

Cancel all Cancels all diverts

All FAX calls

Diverts uncondi-

tionally all incom-

ing fax calls

All DATA calls

Diverts uncondi-

tionally all incom-

ing data calls

Use or to select the

divert condition and validate

by pressing Select or .

Select Activate.

Use or to choose

between Voice Mail, Names

or Number.

1

2

3

4

5

Press Select or to vali-

date your selection.

The display confirms your

request.

Press and hold Exit or

to return to the stand-by dis-

play.

1. If you select 'On no reply' option you must also

enter a delay period of 5, 15 or 30 seconds.

2. Call diverts for both Line 1 and Line 2 must be

set individually. Select the out-going line before

following the above procedure. To carry out a call

divert on the other line you must select this other

line first (menu Calls & Times - Line selection).

Press . Select Settings.

Select GSM Services. Select

Call diverting.

Select from the divert options

and press .

Select Cancel or Status.

The phone confirms your

selection.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Call diverting.

Select Cancel all. The phone

confirms your selection.

Press and hold Exit or

to return to the stand-by dis-

play.

This action cancels all voice diverts (for voice, faxes

and data calls) for the line currently in use. To can-

cel call diverts for the other line you must select this

other line first (menu Calls & Times - Line selec-

tion).

6

7

1

2

3

4

5

1

2

3

4

40

ing Receiving caller ID allows

you to check its availability from

the network.

Receiving caller ID

To find out whether a network

presents the ID of incoming calls:

To hide your number, on a call by

call basis, add #31# before the

number you are calling. Alterna-

tively you can ask your service op-

erator to always disable the

sending of your mobile number.

In this case to reveal your

number, on a call by call basis,

add *31# before the number you

wish to call.

Standard network setting

To reset the standard network

setting for sending your mobile

ID:

Hiding or showing your number

Finding out your current ID set-

ting

Network

When turned on, the phone auto-

matically searches for the last net-

work it was registered on. If this is

not available, the phone auto-

matically searches and, if able

and allowed, selects a network.

Editing the preferred list

You can change the order and

names in the preferred networks

list stored in your SIM by choos-

ing from the list in your phone.

This is useful while roaming if you

know a network provider that is

more economical than another.

Press . Select Settings.

Select GSM Services. Select

Receiving caller ID.

The network returns either

Presentation available or

Presentation unavailable.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Sending my ID.

Select My settings.

Select Preset. The phone

resets to the network setting

agreed with your service pro-

vider.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Sending my ID.

Select My settings.

1

2

3

1

2

3

4

5

1

2

3

Select Hide my ID or Show

my ID.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Sending my ID.

Select Status.

The phone displays your cur-

rent setting, taking into

account both network and

phone settings.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Network.

Select Preferred list. A list of

networks appears.

Use or to view the list.

Press Options to change it.

The following items appear:

4

5

1

2

3

4

1

2

3

4

5

The menu

41

Your SIM may contain a forbid-

den list of networks which cannot

be used. To view the forbidden

list or show the home network:

Selecting manual search

To select a specific network, e.g.

one which provides better cover-

age in your current location:

Selecting automatic search (normal

default setting)

To perform an automatic search

from the preferred list:

Option Description

Modify by list

Displays the gener-

al list of all known

networks con-

tained in the

phone in alphabet-

ical order

Modify by

code

Edits or enters a

network number

(MCC MNC) if you

know this informa-

tion.

Delete Deletes an entry

Press Select to confirm the

selection.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Network.

Select either Forbidden or

Home network.

A list of the forbidden net-

works or the home network

appears.

Press to return to the

stand-by display.

Press . Select Settings.

Select GSM Services. Select

Network.

Select Search.

Select Manual. A confirma-

tion screen and Scanning for

networks... appears.

Use or to select a net-

work from the list shown.

6

7

1

2

3

4

1

2

3

4

5

Press Select to confirm the

selection.

Requesting... followed by

the name of the network

appears. The phone then

returns to the stand-by dis-

play.

You cannot delete a network from the forbidden

list. This list is automatically updated when you

perform the manual network selection.

Press . Select Settings.

Select GSM Services. Select

Network.

Select Search.

Select Automatic.

Press and hold Exit or

to return to the stand-by dis-

play.

6

1

2

3

4

5

42

Call barring (network service)

To stop different types of calls be-

ing made and received on the

phone, you need a call barring

password available only from

your service provider.

Call barring password

Use the call barring password to

select the call barring levels out-

lined in the GSM Services - Call

barring menu (see page 42). Your

service provider gives you the ini-

tial password. To change the

password:

Summary of code/password entry

chart

To cancel or check the status of a

call bar:

Press . Select Settings.

Select GSM Services. Select

Call barring.

Select Outgoing calls or

Incoming calls. Choose:

Select Meaning

Outgoing

- All outgoing

Bars all outgo-

ing calls

Outgoing

- Int'nal calls

Bars only all

outgoing in-

ternational

calls

Outgoing

- Int'nal excl.

home

Bars all outgo-

ing interna-

tional calls

except for oth-

er subscribers

within the us-

ers home net-

work

Incoming

- All incoming

Bars all incom-

ing calls

Incoming

- Roaming only

Bars all incom-

ing calls when

not on the

home network

Select the option using or

. Press Select .

Select Activate. Enter the

password and press OK .

The network confirms the

selection.

Press and hold Exit or

to return to the stand-by dis-

play.

1

2

3

4

5

6

Press . Select Settings.

Select GSM Services. Select

Call barring.

Select Change password and

follow the displayed prompts.

Press OK to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

Pass-

word Length

Number

of trials

allowed

If

blocked

or

forgot-

ten

Phone

unlock

code 4 digits Unlimited

Return

phone to

manufac-

turer

PIN 4-8

digits 3 tries

Un-

blocked

by use of

PUK code

PIN2 4-8

digits 3 tries

Un-

blocked

by use of

PUK2

code

PUK 8 digits 10 tries

Contact

your serv-

ice pro-

vider

PUK2 8 digits 10 tries

Contact

your serv-

ice pro-

vider

Call

bar-

ring

pass-

word

4 digits Network

deter-

mined

Contact

your serv-

ice pro-

vider

Press . Select Settings.

Select GSM Services. Select

Call barring.

Use or to select the bar

1

2

3

4

5

1

2

3

The menu

43

To change the password:

Broadcast - cell broadcast messag-

es (Network Service)

Networks can broadcast messages

to all GSM users that can give infor-

mation about local area dialling

codes, weather reports, traffic news

etc. You can decide what type of in-

formation to receive by choosing

the corresponding number. You

can program to receive up to 5 dif-

ferent types of messages.

You can select from a list of 16

standard message types. New mes-

sage types can be programmed into

the selection list using the 3 digit

cell broadcast type number. Con-

tact your service provider for more

details.

Enter at least one message type into

the selection list or you cannot acti-

vate the service.

To enter a message type in the se-

lection list

You can enter up to 5 different

message types.

To turn on or off the broadcast

service

Reading broadcast messages

Broadcast messages appear in the

stand-by display only. The phone

suppresses them during conver-

sation or menu operation. A mes-

sage can be up to 93 characters in

length and cover several pages.

Pages scroll automatically about

every five seconds. To scroll

down, press.

Options during message display

Press on Exit to clear the mes-

sage currently displayed. Press

to dial the number displayed in

the message.

Pressing Options displays the

following menu:

to cancel or check the status

and press .

You must have the password

to cancel a call bar.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select GSM Services. Select

Call barring.

Select Change password.

Enter the old password once

and the new password twice

when prompted. The phone

confirms the change.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

4

1

2

3

4

1

Select Broadcast.

Select Message types. Press

Options .

Select Modify by list (or Mod-

ify by code if type number is

known).

Scroll to the message type

required. Press Select to

validate your selection. The

display confirms your choice.

Press Options again to

select more message types

from the list, enter a message

type number if known, or

delete a message type.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Broadcast.

Select On/Off.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

2

3

4

5

6

7

1

2

3

4

5

44

Turning the broadcast alert tone on

or off

To turn on or off the alert tone

the phone gives when a broad-

cast message arrives:

Deleting or editing a message type

from the list

To delete or edit a message type:

Broadcast language

To select the broadcast language:

Using the office tools

The Office Tools menu contains a

scratchpad, an alarm clock, an auto-

switch feature and a calculator.

Scratchpad

You can store up to 5 separate en-

tries of 36 characters in the scratch-

pad.

Press Options when reading en-

tries to access the following menu:

Alarm clock

To set a daily 'Reminder Alarm':

Option Action

Delete To delete the cur-

rent message

Delete All To delete all mes-

sages stored in

the queue

Numbers To display all

phone numbers

found in the mes-

sage text. This al-

lows dialling or

storing them in

the scratchpad if

required

Broadcast

Off To turns off cell

broadcast

Press . Select Settings.

Select Broadcast.

Select Alert.

Select On or Off.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Broadcast.

Select Message types. Press

Options .

Select Modify by list or Mod-

ify by code.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Settings.

Select Broadcast.

Select Language.

1

2

3

4

5

1

2

3

4

5

1

2

3

Use or to select a lan-

guage from the displayed list.

Press to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Office Tools.

Select Scratchpad.

Select Read Notes. Use or

to scroll through the

entries.

Select Write Notes to make a

new scratchpad entry.

Item Action

Store Save a number to

the phone book

Edit Modify an entry

Delete Delete an entry

Delete all Delete all entries

Call

Call the number

displayed in the

entry

When 'on' the alarm activates at the same time

every day until turned off.

Press . Select Office Tools.

Select Alarm clock.

Select On and enter the alarm

time (in 24 hour format) or

press OK to accept the dis-

played time.

Confirmation appears.

4

5

1

2

3

1

2

3

The menu

45

The alarm sounds for up to

1minute. Alarm clock and a vibrat-

ing bell symbol appear with the cur-

rent time and the softkeys,

Valid. and No ring . During a

call, the alarm also sounds.

To stop the alarm:

To use as a Reminder or Snooze

Alarm:

You can repeat the snooze for up to

15 minutes, after which the phone

returns to its previous state, either

off or on stand-by.

To turn off the alarm:

Auto-switch

You can set your phone to switch

on and off automatically. Turning it

off helps to conserve battery life.

Please note that during auto-switch

on, you must re-enter your PIN

code. The phone does not go into

power saving mode until you enter

your code. To activate the auto-

switch:

To turn off the auto-switch:

Calculator

To access and use the calculator:

Press Select or to return to

the stand-by display.

appears.

Press Valid. .

Press No ring , or any other key

(except Valid. ) to stop the

alarm. The alarm icon remain on

the display and the alarm rings

again 3 minutes later.

Press . Select Office Tools.

Select Alarm clock.

Select Off. Confirmation

appears.

Press and hold Exit or

to return to the stand-by dis-

play.

Caution - Please remember to

turn off the alarm feature when

boarding an aircraft where the

use of a mobile phone is not

permitted and is illegal. Alterna-

tively, you can remove the bat-

tery after turning off the phone.

See the General safety warnings

on page 4.

4

1

2

3

4

Press . Select Office Tools.

Select Auto-switch.

Select Auto-switch-on.

Select On.

Enter the time you want the

phone to turn on and

press OK . Confirmation

appears.

Select Auto-switch-off.

Select On.

Enter the time you want the

phone to turn off and

press OK .

Press and hold Exit or

to return to the stand-by dis-

play. The icon appears in

the stand-by display.

Press . Select Office Tools.

Select Auto-switch.

Select Auto-switch-on.

Select Off. Stored appears.

Select Auto-switch-off.

Select Off. Stored appears.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Office Tools.

Select Calculator.

Enter a number and press

several times to choose +, -,

* or / or to enter a ,.

Enter the second number and

either repeat step or select

= to compute. Select

Clear to correct any mis-

takes or clear the display.

Press to return to the

stand-by display.

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

1

2

3

4

3

5

46

Games

The availability and appearance of the

games depend on your network opera-

tor and on your mobile phone version

(Reshape and Push games are available

on Trium 110 and Trium 110 m only).

Reshape and Push:

Game instructions appear when

you select the game.

Select sound effects from the menu

item Options.

To select a game:

When in the game,

Reshape and Push have skill levels.

When you win a level, you go to the

next level. After successfully playing

'X' number of levels the game gives

you a code to enable you to re-enter

the game from your previously at-

tained skill level. The game can

record player names and scores. If

you receive a call while playing, an-

swer in the normal way. To exit

from the games menu press Exit

or press to return to the stand-by

display.

Trium 110 p games

The Trium 110 p Games menu al-

lows the downloading of new

games onto your mobile. Up to 2

games can be stored in the phone.

One is a default one. You cannot

delete or replace this game.

The second game may not have

been downloaded in your phone; if

not, you can download it by choos-

ing it from the Catalogue menu.

You can replace the second game

by another one from the catalogue

as many times as you want. The

Catalogue allows you to get the list

and description of the games you

can download. If the contents of

the catalogue is not available on the

phone it can also be downloaded.

All information related to games

downloading is available in the In-

structions menu.

The Trium 110 p games menu is

made of the following sub-men-

us: Catalogue, News, Settings

and Instructions in addition to

the available game(s) name(s).

Press . Select Games.

Choose the game (Push or

Reshape) and press Select

or .

Item Action

Play Select Play to

start the game

(from the lowest

level).

Help Select Help for

instructions and

controls.

Code If you have

already played

the game and

reached a certain

skill level, select

Code to enter the

level code and

play the game

from that level.

1

2

Receiving an incoming call while playing may not

allow you to resume the current game.

This phone version does not bear the Reshape and

Push games.

The menu

47

Currency-converter

To use the converter, set the curren-

cies and the exchange rate:

To calculate the conversion be-

tween the chosen currencies:

Internet/Wireless Application

Protocol (WAP™)

Your phone has a WAP™ internet

browser to access services, such as

stock buying, news, sports, weather, TV

listings etc., supplied by your operator

and/or your internet provider. The

types of services offered depend

on the internet provider and net-

work operator.

You must have a DATA subscription to

access these services.

Either your phone is pre-programmed

with the settings or you must enter

them.

See below to enter the settings. If you

cannot access the settings, they are pre-

programmed.

Storing/editing connection settings

(operator provided)

You can enter up to 5 different pro-

files.

Item Action

Catalogue

Select Catalogue

to see and/or

download games

available on the

network.

News

Select News to

get information

on new games

availability.

Settings

Select Settings to

access the sound,

backlight... set-

tings common to

all games.

Instructions

Select Instruc-

tions for all infor-

mation related to

games download-

ing.

Receiving an incoming call while playing may not

allow you to resume the current game.

Press . Select Currency.

Select Settings.

Enter the first currency name

(e.g. Dollar). Press OK .

Enter the second currency

name (e.g. Yen). Press OK .

Enter the exchange rate using

to enter a comma.

Press OK to validate the

entry.

Press and hold Exit or

to return to the stand-by dis-

play.

To use your Currency-converter as a Euro converter

for participating currencies in the European Mone-

tary Union (“Euroland currencies”), please enter

the complete Euro exchange rate with six signifi-

cant figures. For example: 1 Euro = £ 0.61871.

Press . Select Currency.

1

2

3

4

5

1

Select one of the two first

options.

In our example: either Dollar-

>Yen or Yen->Dollar.

Enter the amount to be con-

verted. Press to insert a

comma, if needed. Press

OK . The converted amount

appears.

Press and hold Exit or

to return to the stand-by dis-

play.

Conversion from one Euroland currency to another,

or to non-Euroland currencies, normally follows

"triangulation" rules (i.e. conversion of local cur-

rency to Euro and then Euro to other local cur-

rency). Your Currency-converter does not provide

this possibility. Accordingly, your result is only a

close approximation.

Access to the connection settings depend upon

whether the settings have been pre-programmed

prior to shipment from the factory. In some cases

and to avoid errors these settings are 'locked' and

are not user programmable.

2

3

4

48

To enter and store the profile de-

tails:

Personalising your connection set-

tings

Optimise the behaviour of your

phone while connected to the inter-

net with the following settings: Going online

To go online:

Once connected, your provider spe-

cific menu options appear. The

icon indicates a 'live' circuit connec-

tion. By default the connection is

not secure.

To have a secure connection, set

’Security on’. The icon indicates

Press . Select Internet.

Select Profile list.

Select an empty profile ([...])

and press Options .

Select Edit.

Enter the 4 digit phone lock

code (default code 0000) and

press OK .

Enter all settings (the settings

depend on your operator).

To activate the required pro-

file, use or to select it

from the displayed list.

Press Options and select

Select to validate.

Press and hold Exit or

to return to the stand-by dis-

play.

1. You can also access the Internet menu directly by

pressing the Internet softkey from the stand-by dis-

play (provided you have not personalised the left

softkey).

2.If the phone number, login names and pass-

word, Home page http address and IP address are

not predefined, get these from your network opera-

tor and/or internet provider.

Press . Select Internet.

Select Settings.

Scroll to the following items

and turn on or off as

required:

1

2

3

4

5

6

7

1

2

3

Option Action

Clear cache

Clears the memo-

ry used to store

information that

you downloaded.

To clear this mem-

ory, select the Yes

option.

Download

pictures

Select the Off op-

tion to reject pic-

ture

downloading.

This decreases the

page download-

ing time.

Scripting

Used to allow or

forbid the execu-

tion of scripts

within a page.

Auto-

disconnect

Disconnects the

mobile from the

internet after a

set period of inac-

tivity. Enter the

period (0 - 60

minutes) and

press OK .

0 deactivates the

auto-disconnect

function.

Press and hold Exit or

to return to the stand-by dis-

play.

Press . Select Internet.

Select Home page.

Connecting to followed by

your proxy name appears.

Then the word Loading... (of

the home page) appears.

4

1

2

3

The menu

49

a 'live' secure circuit connection.

Using while online

Press while online presents the

following options:

The appearance of these items de-

pends on the operator and/or val-

ues in the Settings menu.

Ending the online connection

To end the online connection:

Creating bookmarks

To revisit specific cards more quick-

ly, use bookmarks to store the card

address. This function depends on

your provider. You can create a

maximum of 10bookmarks. Create

bookmarks from the stand-by dis-

play or while viewing a page.

During a live connection while

viewing page:

Using bookmarks

Bookmarks can be used from the

stand-by display or while browsing.

•Directly from the stand-by dis-

play:

•While browsing the internet:

Other site

You can enter another internet ad-

dress directly by using the Other

Item Action

Back Returns to the

previous page

Zoom +/-

Increases or de-

creases the dis-

played text size

Add book-

marks

Adds a current

card to the list of

bookmarks

Go to

bookmarks

Goes to a book-

mark

Reload Reloads the cur-

rent page

Home page Reloads the home

page

Other Site Enter a different

site

Disconnect

Disconnects the

browser from the

network but

leaves the current

page locally active

Close session

Disconnects the

phone from the

internet

Press .

You can also select Close session item under the

options menu.

Press . Select Internet.

Select Bookmarks.

Press Options , select Mod-

ify and enter the following:

Option Action

Alias

Name you wish to

give to your book-

mark

Address Home page address

Press OK to validate each

entry.

Press and hold Exit or

to return to the stand-by dis-

play.

Press to display the

options menu.

Select Add bookmark, enter

the Alias name and press

OK .

Bookmarks can only be Edited or Deleted from the

Bookmarks item under the Internet menu options

while offline.

Press . Select Internet.

Select Bookmarks.

Select the bookmark name

you require.

To access the Internet directly use the Internet soft-

key (if not personalised).

Press to display the

options menu.

Select Go to bookmarks.

Select the bookmark name

you require.

1

2

3

4

5

1

2

1

2

3

1

2

3

50

site option from the Internet

menu. Addresses are not stored and

must be entered each time.

GSM man machine interface

codes

The phone supports the standard

GSM key sequences using the * and

# characters sent directly from the

keypad to the network. These se-

quences are used to activate all the

supplementary services provided by

the network. Consult your service

provider for a complete list.

51

Accessories

Accessories

Using the headset

Connecting the headset

Using the headset

Disconnecting the headset

Insert the headset plug in the

phone headset connector as

shown:

While inserting the headset plug in the phone

headset connector make sure the Trium logo

() appears on top. Otherwise the headset

does not work properly.

Place the headset earpiece in your

ear.

The headset microphone is then

at a convenient level for

operation.

You can answer, reject and end

calls using or (see page 11).

Adjust the earpiece volume level

using or .

Tilt the headset plug down as

shown:

Earpiece

Microphone

52

Appendix

Glossary

Expression Meaning

AC/DC charger Alternating Current/Di-

rect Current charger

Active call The call currently in con-

versation

ALS Alternate Line (Line 2)

Service

AoC Advise of Charge - sub-

scription service

CB Cell Broadcast

CLI

Caller Line Identity - dis-

plays callers telephone

number

Conversation

mode

When the phone is mak-

ing or receiving a call

DES Data Encryption stand-

ard

Diverting

Diverts incoming calls to

the phone to another

number

DTC Desk Top Charger

EMS Enhanced Message

Service

DTMF Dual Tone Multifre-

quency Tones

FDN Fixed Dialling Number

GSM Global System for Mo-

bile communications

http HyperText Transfer Pro-

tocol

IN Information Numbers of

your operator

IP Internet Protocol

LCD Liquid Crystal Display

MMI Man machine Interface

Expression Meaning

PIN/PIN2

Personal Identification

Number. Supplied by

your network/service

provider

PPP Point to Point Protocol

PUK/PUK2

PIN Unblocking Key.

Used to unlock PIN and

PIN2. Supplied by your

network/service provid-

er

Roaming (Rm)

The ability to use your

telephone at home or

abroad.

SDN

Service Dialling

Number. Of your opera-

tor or service provider

SIM

Subscriber Identity

Module. Supplied by

your network/service

provider

SMS Short Message Service

SPN Service Provider Name

SR Status Report - relates

to SMS messages

Stand-by mode

When the phone is on,

registered onto a net-

work but not making or

receiving a call

URL Uniform Resource Loca-

tor

WAE Wireless Application En-

vironment

WAP™ Wireless Application

Protocol

WSP Wireless Session Proto-

col

WTP Wireless Transport Pro-

tocol

53

Appendix

Trouble shooting

Problem Possible cause and solu-

tion

Phone will not

switch on

Check that the battery is

fully charged and correctly

connected to the phone.

No flashing

battery icon

while charg-

ing

There may be no mains

supply. Try a different elec-

trical socket.

The AC/DC charger may be

faulty. Return to your deal-

er and try substitution

with another Mitsubishi

adaptor. If faulty contact

your dealer.

Short stand-

by and talk

times

Cell broadcast is perma-

nently on, using more bat-

tery power.

Phone is in a poor signal

area and therefore always

on full power.

Incorrect charging and dis-

charging. Always charge

and discharge your battery

fully.

The battery is wearing out.

Replace the battery.

Numbers can-

not be en-

tered

Keypad lock is on ( ap-

pears). Press Unlock

and to turn off.

Calls cannot

be made or

received

Check at least one signal

strength bar ( ) is dis-

played. Try a stronger sig-

nal strength area.

If no network name is dis-

played, check registration

and area coverage with

your service/network pro-

vider and check the SIM is

correctly inserted.

Call barring option is on.

Deactivate it (see page42).

Call cost limit is reached

(see page 31).

Problem Possible cause and so-

lution

Stored tele-

phone num-

bers cannot

be recalled

Fixed Dialled Number or

Call Barring features are

turned on. Check features

and turn them off (see

pages25 and42).

Phone

switches on

but there is

no display

Display contrast is turned

down too low. Reset con-

trast (see page 34).

Battery icon

not flash-

ing 1-2-3

during charg-

ing

May indicate a charging

or battery problem. Turn

the charger off and dis-

connect it. Reconnect and

try again.

May also indicate the bat-

tery is full and does not

need more charging.

Flashing

There is not enough mem-

ory to store another SMS

message. You must delete

one or more of the exist-

ing stored messages (see

page 26).

(......)

softkey

Function no longer availa-

ble in the SIM or was sub-

scription dependent.

Reprogram the softkey

(see page 34).

54

Error messages

Problem Possible cause and

solution

Allowed cred-

it reached!

You are trying to place

an outgoing call and the

allowed credit is already

reached.

The allowed credit limit

is reached during an

outgoing call (the call is

then aborted).

Busy

You are trying to make a

call and the call fails be-

cause the destination

number is already en-

gaged in conversation.

Call failed

The user is unreachable.

The outgoing call fails

due to:

the network cannot

take the call due to sys-

tem busy or

the number is out of or-

der or

the number is unreacha-

ble or

the network does not

answer or

the option to hide your

phone number when

calling is not supported

by the network

Control the ability to

hide your ID when mak-

ing a call (service availa-

bility in network).

Cancelled. No

type selected

Cell broadcast activa-

tion has been requested

but no message type

has been selected.

Problem Possible cause and

solution

Cannot exe-

cute com-

mand

You have made a re-

quest which is impossi-

ble to be executed in

the current call situa-

tion.

Can't display

message

The short message text

cannot be displayed

(characters not recog-

nised, incorrect format

etc.)

Check SIM!

There is no SIM present

or the SIM is incorrectly

inserted. See page 10

for more details.

Check your

password

You changed the call

barring password or

You changed the call

barring service status.

The entered password

seems to be wrong or

incorrect.

Check your

request

You made a request for

a service that seems to

be impossible to fulfil.

Check your

subscription

You tried to activate a

GSM service. You are re-

quested to check your

subscription regarding

the related service

rights of use/access.

Error!

The network cannot

perform your request

and generates an error

result.

Failed

An SMS sending process

failed (the short mes-

sage cannot be sent).

Incorrect en-

try

You entered a character

string with a syntax er-

ror.

55

Appendix

Problem Possible cause and

solution

Invalid

number

You tried to make a call

and the call is rejected

by the network be-

cause the network

does not recognise the

phone number struc-

ture or

you tried to store a

phone number that is

too long to be stored in

the selected location or

you tried to move a

phone entry to a loca-

tion that is unable to

receive the phone

number (phone

number too long)

Keypad locked

"Unlock" # to

unlock

A press on any key is

made with keypad

locked.

Low battery!

This text appears when

the battery becomes

too low and the mobile

soon switches off auto-

matically.

Network busy

You tried to make a

call. The call is rejected

by the network due to

congestion problems.

Network not

allowed

When selecting net-

work manual search,

you have selected a

network that rejects

the connection.

New PIN in-

correct. Try

again

Changing PIN: the new

PIN code values differ

(value control).

New PIN2 in-

correct. Try

again

Changing PIN2: the

new PIN2 code values

differ (value control).

Problem Possible cause and

solution

No action per-

formed

When a copy/move op-

eration is made on

memories but no con-

ditions have been

changed (same memo-

ry, number and name).

No response

You made a call to a re-

mote user and no re-

sponse has been

received.

Not allowed Your number/charac-

ter entry is not allowed.

Not allowed

(fixed dial-

ling)

A call is tried, but can-

celled due to fixed dial-

ling control (the

number dialled does

not match with one of

the fixed dialling num-

bers in memory).

Not Available There is no more SIM

storage.

Number

changed

The called number has

changed.

PIN blocked A wrong PIN code has

been entered 3 times.

PIN2 blocked A wrong PIN2 code has

been entered 3 times.

PUK2 blocked

A wrong PUK2 code

has been entered 10

times.

The SIM services pro-

tected by the PIN2 code

have now been perma-

nently disabled.

Ring volume

Off

The ring volume is set

to 0 (no volume)

Reaching al-

lowed credit!

The cost limit is about

to be reached. The con-

nected call ends auto-

matically when the

limit is reached.

56

Problem Possible cause and

solution

Service not

available

Activating some GSM

services that are not

available on the net-

work

SIM blocked.

Contact pro-

vider

A wrong PUK has been

entered 10 times.

The SIM card has been

permanently disabled

and needs to be re-

placed by a new one.

SIM blocked.

Enter PUK:

A wrong PIN code has

been entered 3 times.

Enter the PUK code to

unblock the SIM card.

SIM fixed full

SIM names

full

Phone names

full

The corresponding

memory is full.

SMS memory

locations are

full

The storage of new

messages (when writ-

ing a new SMS) is im-

possible.

Wrong code.

Try again

A wrong phone lock

code has been entered.

Wrong new

code. Try

again

The new phone lock

codes do not match

(value control).

Wrong PIN,

try again

Wrong PIN2,

try again

Wrong PUK,

try again

Wrong PUK2,

try again

The wrong code has

been entered.

Message not

sent

The handset may be

out of the network

range or the network is

temporarily overload-

ed.

Problem Possible cause and

solution

Internal fault

An unrecoverable error

has occurred. Switch

the handset off and

back on again. It may

be necessary to reset

the EMS system (Set-

tings menu). Beware:

all services and EMS

messages will then be

erased.

Invalid Serv-

ice Menu

An invalid service menu

has been sent to the

handset. The invalid

service menu is ig-

nored, no further ac-

tion necessary.

Registration

required

You have not regis-

tered to any service. Go

to the Service registra-

tion menu.

Menu limit

reached

A new service menu

item has been received

but the remaining stor-

age space is not suffi-

cient to store it. Delete

one or more registered

menu items (My Servic-

es menu) and accept

the new menu or dis-

card the new menu.

Server limit

reached

A new service has been

received but the re-

maining storage space

is not sufficient to store

it. Delete one or more

registered service(s) -

Settings menu - and ac-

cept the new service or

discard the new serv-

ice.

57

Appendix

Guarantee

Pan European Service

Should you experience any difficulty then

please contact your nearest MITSUBISHI

location listed below for information on

other service centres.

To obtain Warranty Service, you will re-

quire your original equipment purchase

invoice or irrefutable proof of purchase.

Please see warranty terms and conditions

for in warranty service.

Pan-european GSM End-user Guar-

antee Conditions

1.You can benefit from this guarantee only if

you are the original end-user purchaser.

2.MITSUBISHI guarantees that for a period of

twelve (12) months from the date of pur-

chase from your dealer, the Product shall

be free from defects in materials and work-

manship. Subject to the conditions below,

Mitsubishi will indemnify you against all

cost of parts and labour for repairs to or re-

placement of the product or parts (which

may include equipment of similar type)

where conducted by an authorised MIT-

SUBISHI GSM service centre. MITSUBISHI

shall be entitled to retain product which

has been replaced.

3.Any claims must be made to an authorised

MITSUBISHI GSM service centre in the

countries mentioned in the service card en-

closed with the product. In case of difficul-

ty you can contact the Mitsubishi

companies listed in the service card to ob-

tain details of your nearest authorised MIT-

SUBISHI GSM service centre. As a condition

of this guarantee, the date of your pur-

chase must be confirmed by producing

your original invoice from your supplier or

your sales receipt, showing the serial

number, together with the service card. Fi-

nal determination of guarantee claim eligi-

bility shall be made by MITSUBISHI.

MITSUBISHI shall not be liable for ship-

ment costs to and from an authorised GSM

MITSUBISHI service centre; the product

travels at your risk.

4.This guarantee does not cover:

a)battery defects of any nature;

b)non-compliance with directions for use;

c)installation or removal charges where

the product is installed in a vehicle;

d)defects or failures caused by accident,

misuse, improper installation or improp-

er repair by an unauthorized repairer, al-

teration or modification, neglect, failure

to use for normal purpose, Acts of God,

water ingress, use in adverse environ-

mental conditions (humidity or tempera-

ture);

e)cost of or performance of modifications

to product to adapt or adjust to conform

to national or local safety laws, where

such safety laws go beyond harmonised

European Union standards;

f)loss of use of the product or consequen-

tial loss of any nature;

g)loss of use of air-time, loss of use of any

loaned equipment or ancillary equip-

ment;

h)provision of incorrect or insufficient sig-

nal on air-time network, upgrading of

product software to changes in network

operating parameters, mains supply

voltage fluctuations, incorrect SIM card

(memory card) parameters for connec-

tion to airtime retailer;

i)damage caused by non-MITSUBISHI ac-

cessories.

5.Any guarantee claim or service does not

extend the original guarantee period un-

less so required by prevailing national law.

6.This guarantee is valid only if the product

is purchased and used in the European Un-

ion, Norway, Iceland or Switzerland.

THIS GUARANTEE DOES NOT AFFECT YOUR

STATUTORY RIGHTS.

UNITED KINGDOM

Tel: (0800) 912 00 20 ESPAÑA

Tel: (902) 11 68 58

FRANCE

Tel: (0825) 86 82 83 ITALIA

Tel: (800) 27 59 02

DEUTSCHLAND

Tel: (01803) 33 71 84 IRELAND

Tel: (1800) 92 70 12

BELGIUM

Tel: (0800) 75733 SWITZERLAND

Tel: 032 843 65 11

AUSTRIA

Tel: (0800) 292716 FINLAND

Tel: (0800) 116 975

PORTUGAL

Tel: (0800) 880 264 SWEDEN

Tel: (0200) 214 715

THE NETHERLANDS

Tel: (0800) 0223825

58

Declaration of compliance

DECLARATION OF COMPLIANCE

9th of January 2002,

Viet Mailam

Managing Director

Name : Mitsubishi Electric Telecom Europe S.A.

RCS Nanterre B 307 593 129

Address : 25, boulevard des Bouvets

Town : Nanterre Cedex

Postal code : 92741

Identification of the product

Nature : Mobile Cell Telephone

Type : Dual band GSM 900/DCS 1800

Sales reference : MT-360

Declares under its entire responsibility that the product described above complies with the

following basic applicable requirements (and in particular those in the 1999/5/CE directive):

Article 3.1a: (health protection and user safety)

73/23/CEE, Cenelec EN 50361

Article 3.1b: (protection requirements concerning electromagnetic compatibility)

89/336/CEE, ETS 300 342-1

Article 3.2: (proper use of the radio-electric spectrum so as to avoid damaging interference)

EN 301 511

To this effect, declares that all the radio test series have been carried out.

59

Index

Index

A

Access to the menus ................. 20

Alarm

Clock .................................. 44

Alert mode ................................ 32

Alert tone

Turning on/off .................... 26

Any key answer ......................... 34

AutoAnswer ............................... 35

Retry .................................. 35

Auto-disconnect ........................ 48

Automatic ramping ................... 33

Automatic search ...................... 41

Auto-switch ............................... 45

B

Backlight ............................. 15, 34

Balance information .................. 30

Barring password

Call ..................................... 42

Basic operations

SMS ................................... 15

Unanswered call ................. 15

Voice mail .......................... 15

Battery ...................................... 10

Alarm volume .................... 33

Charging ............................ 12

Disposal ............................... 6

Fitting ................................ 12

Low battery warning .......... 12

Removing ........................... 12

Safety information ............... 6

Use ....................................... 6

Battery cover

Replacing ........................... 10

Bookmarks

Creating ............................. 49

Deleting ............................. 49

Using ................................. 49

Broadcast .................................. 43

Alert ................................... 44

Language ........................... 44

Message types ............. 43, 44

On/Off ................................ 43

C

Cache memory

Clearing .............................. 48

Calculator .................................. 45

Call Conference ......................... 19

Duration ............................. 31

Holding .............................. 18

Multi-party ......................... 19

Reminder ........................... 31

Retrieving ........................... 18

Times ................................. 30

Waiting .............................. 18

Call barring ............................... 42

Password .............................. 7

Call costs

Reset .................................. 32

Call timer

Reset .................................. 31

Caller line identity ..................... 39

Calling ....................................... 11

Calls & Times ............................. 29

Call costs ...................... 31, 32

Call timers .................... 30, 31

Calls log ............................. 29

Costs .................................. 31

Line selection ..................... 32

Calls Log .................................... 29

Care and maintenance ................ 5

CB ............................................. 43

CB messages

Deleting ............................. 44

Editing ............................... 44

Reading .............................. 43

Cell broadcast ........................... 43

CLI ............................................. 39

Conference call .......................... 19

Connection profile ..................... 47

Cost management ..................... 31

Country Codes ........................... 16

Creating a draft text .................. 27

Credit limit ................................ 31

Currency-converter .................... 47

D

Date setting ............................... 37

Default settings ......................... 37

Dialling

Calls Log memory ............... 16

Phonebook ......................... 16

Dialling from memory ............... 16

Display contrast ......................... 34

Diverting ................................... 39

Draft text

Creating ............................. 27

Editing ............................... 27

DTMF tones ............................... 17

E

Emergency calls ........................... 5

EMS ........................................... 29

Ending a call .............................. 12

Error messages .......................... 54

F

FDN ........................................... 25

Fixed dialling numbers .............. 25

G

General

Safety ................................... 4

Getting started .......................... 10

Glossary ..................................... 52

GSM man machine

interface codes ...................... 50

GSM Services ............................. 38

Call barring .................. 42, 43

Call diverting ...................... 39

Network ....................... 40, 41

Receiving caller ID .............. 40

Sending my ID .................... 40

H

Handsfree features .................... 17

Headset

Use ..................................... 51

Holding a call ............................ 18

I

Incoming Calls

Diverting ............................ 39

International Country Codes ...... 16

Internet ............................... 15, 47

Bookmarks ......................... 49

Going online ...................... 48

Home page ........................ 48

Other site ........................... 49

Personalising ...................... 48

Profile list ........................... 48

Settings ........................ 47, 48

K

Keypad lock ......................... 15, 32

L

Language selection .................... 32

Last dialled numbers ................. 16

Line 1 ................ 25, 29, 30, 32, 39

Line 2 .......... 25, 29, 30, 32, 38, 39

60

M

Making a call ............................. 11

Managing SMS messages .......... 26

Melodies ................................... 33

Melody download ..................... 38

Menu ........................................ 20

Access ................................ 20

Menu graphics .......................... 34

Menu map ................................ 20

Message templates ................... 28

Messages ............................ 15, 26

Alert ................................... 26

Draft texts .......................... 27

Inbox .................................. 26

Msg. Templates .................. 28

Outbox ............................... 28

Rich Messages .................... 29

Settings .............................. 26

Storage .............................. 29

Write new .................... 27, 28

Mobile number

Hiding ................................ 39

Showing ............................. 39

Multi-party call .......................... 19

Muting ...................................... 17

N

Network .................................... 40

Network services ....................... 22

O

Office Tools

Alarm clock ........................ 45

Scratchpad ......................... 44

Office tools ................................ 44

Online connection ..................... 48

Bookmarks ......................... 49

Ending ............................... 49

Personalising ...................... 48

Outbox ...................................... 28

Own number ............................. 25

P

Pause feature ............................ 18

Phone

Customising ....................... 32

Phone Book

Calling numbers ................. 24

Fixed Dialling ..................... 25

Free space .......................... 24

Own numbers .................... 25

Recall ................................. 24

Remaining .......................... 24

Store ............................ 23, 24

Viewing numbers ............... 24

Phone lock ................................ 36

Code .............................. 7, 36

Phone settings .......................... 32

Phonebook ................................ 22

PIN code .................................... 36

PIN/PIN2 codes ............................ 6

PIN2 code .................................. 36

Problems ....................... 54, 55, 56

Programmable

Softkeys ............................. 34

Speed dialling .................... 16

PUK code ................................... 37

PUK/PUK2 Codes ......................... 7

PUK2 code ................................. 37

R

Ramping .................................... 33

Reading an SMS message .... 26, 29

Receiving a call .......................... 12

Reminder - call time .................. 31

Responsibility .............................. 6

Retrieving a call ......................... 18

Ring ........................................... 33

Ring tone .................................. 33

S

Safety information ...................... 4

Battery ................................. 6

Care and maintenance ......... 4

Emergency calls .................... 4

Responsibility ....................... 4

Security codes ...................... 4

Vehicle safety ....................... 4

Scratchpad ................................ 44

Scripting .................................... 48

Second call ................................ 19

Security ..................................... 35

Codes ................................... 6

Features ............................. 35

Sending an SMS message .......... 27

Settings ..................................... 32

Auto features ..................... 35

Broadcast ..................... 43, 44

Default settings .................. 37

Display ............................... 34

GSM Services 39, 40, 41, 42, 43

Internet .............................. 47

Keypad lock ........................ 15

Keys ............................. 34, 35

Language ........................... 32

Menu graphics ................... 34

Phone settings ....... 15, 32, 33

34, 35, 36, 37

Security ........................ 36, 37

Time & date ........................ 37

Tones ..................... 32, 33, 34

Voice Mail .......................... 38

Show costs ................................ 32

Silent ......................................... 33

Silent alert mode ....................... 17

SIM Card ................................... 10

SIM card .................................... 14

SMS ..................................... 15, 26

SMS messages

Managing .......................... 26

Preparing your phone ........ 26

Reading ........................ 26, 29

Sending .............................. 27

Storing ............................... 28

Softkey programming ............... 34

Solutions ................. 53, 54, 55, 56

Speed dialling ...................... 16, 35

Standby display ......................... 11

Storage consumption ................ 29

Storing an SMS message ........... 28

Storing names and numbers ..... 22

T

T9 .............................................. 20

T9 text entry .............................. 21

Time & date ............................... 37

Time settings ............................. 37

Trouble shooting ....................... 53

Turning

Off ..................................... 12

On ...................................... 10

V

Vehicle safety .............................. 4

Vibrate ...................................... 33

Vibrate & ring ............................ 33

Vibrate alert modes ................... 17

Vibrate then ring ....................... 33

Voice Mail

Alert ................................... 38

Call ..................................... 38

Number .............................. 38

Voice mail ................................. 38

Volume ...................................... 17

Adjustment ........................ 17

Alert mode ......................... 33

Conversation ...................... 33

Keys tones .......................... 33

Ring tone ........................... 33

W

WAP™ ....................................... 47

www.mitsubishi-telecom.com

Austria

0800 292716 Germany

0800 1808133 Netherlands

0800 0223825

Belgium

0800 75733 Greece

00800 44131247 Portugal

0800 880264

Denmark

8088 1816 Ireland

1800 927012 Spain

9009 34497

Finland

0800 116975 Italy

800 791029 Sweden

0200 214715

France

0800 913080 Luxembourg

800 23 552 UK

0800 9120020

FA9M078910-A
