Mitsumi Electric WML-C29XX Bluetooth Module User Manual Antenna Plecament Application Note
Mitsumi Electric Co., Ltd. Bluetooth Module Antenna Plecament Application Note
Users Manual
Page 1 of 10
WML-C29_User_Manual
25th Oct 2004
WML- 29### User Manual
The purpose of this manual is to explain correct way how to integrate module WML- 29### to the end
product. It includes procedures that shall assist you to avoid unforeseen problems.
This manual presents information that shows how module and OEM product, where module integrated,
complies with regulations in certain regions. Any modifications, not expressly approved by the
manufacturer could void the authority to operate in these regions.
Content
1.General
2. Module design application.
3. Regulatory and Safety Compliance. European Union.
3.1 Declaration about performed tests.
3.2. Labelling
4. FCC Regulatory Information
4.1 Labelling.
4.2 Antenna implementation notes.
5. Other regulatory notes for OEM.
6. A separate approval.
1. General
This Bluetooth radio module has to be installed and used in accordance with the technical
description/installation instructions provided by the manufacturer.
This Bluetooth radio module is intended to be placed on the market in all States, where
the Bluetooth™ technology and the used frequency band is released.
For detail information concerning type approval of this module (e.g. where this module is
already pre-approved) please contact the authorised local distributor or the manufacturer.
The system may only be implemented in the configuration that was authorized.
Note that any changes or modifications to this equipment not expressly approved by
the manufacturer could void the user’s authority to operate this equipment.
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 2 of 10
WML-C29_User_Manual
25th Oct 2004

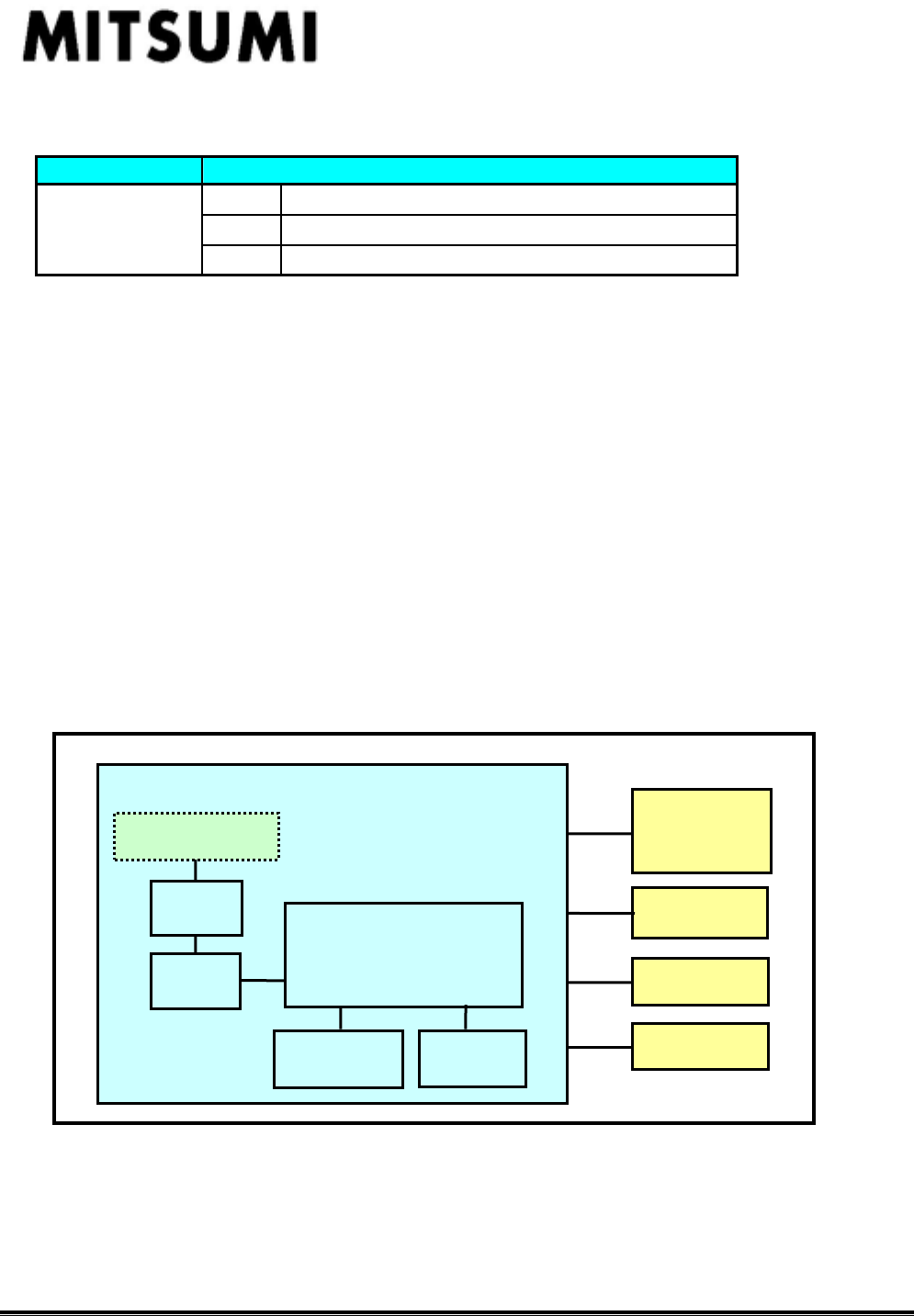

2. Module design application.
2.1 Model Number
Model number Contents
1st # N : without Antenna , A : with Antenna
2nd # B : BCSP , H : UART
WML-C29###
3rd # N : without Regulator
2.2 Hardware: Version 1
This document describes the reference design for application as follows.
2.3 FEATURES
1 ) Wireless communication module conforming to Bluetooth Ver.1.2.
2 ) Small and thin size achieved through use of high density mounting technology.
WML-C29N## : 11.8 x 12.6 x 1.9mm
WML-C29A## : 11.8 x 17.6 x 1.9mm
3 ) High sensitivity: -82dBm.
4 ) UART and PCMIF interfaces enable wide range of applications.
5 ) Conforms to FCC, CE and other countries’ EMI standards.
6 ) Supports Bluetooth Class2.
7 ) Built-in Link controller and Link Manager Protocol.
8 ) HCI interface over UART
2.4 APPLICATIONS
Notebook PCs, mobile phones, digital cameras, PC peripherals, PDA, Car
Bluetooth Chip
RF+BB (BC2 External)
Flash ROM
WML-C29###
Crystal
Balun
BPF
VDD (3.3V)
VDD (1.8V)
PIO
PCM
UART
Chip Antenna
WML-C29### has Bluetooth chip, Flash ROM and Crystal inside.
UART HCI interface and PCM interface are used for customer’s application.
Following figure shows Software Stack for WML-C29### and customer’s
application as example.
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 3 of 10
WML-C29_User_Manual
25th Oct 2004
2.5 Terminal functions
Symbol I/O Description Terminal
Numbers
ANT I/O RF input/output or N.C.* 31
AIO [0] I/O Programmable I/O line 21
AIO [1] I/O Programmable I/O line 4
GND Ground 1
GND Ground 10
GND Ground 20
GND Ground 30
GND Ground 32
PCM_CLK I/O Synchronous PCM data clock 15
PCM_IN I Synchronous PCM data input 16
PCM_SYNC I/O Synchronous data strobe 17
PCM_OUT O Synchronous PCM data out 18
PIO [2] I/O Programmable I/O line 23
PIO [3] I/O Programmable I/O line 26
PIO [4] I/O Programmable I/O line 28
PIO [5] I/O Programmable I/O line 24
PIO [6] I/O Programmable I/O line 25
PIO [7] I/O Programmable I/O line 29
PIO [8] I/O Programmable I/O line 27
PIO [9] I/O Programmable I/O line 22
RST I Reset if high 3
SPI_MISO O Synchronous Serial Interface data output 5 (N.C.*)
SPI_CSB I Chip select for Synchronous Serial Interface 6 (N.C.*)
SPI_CLK I Synchronous Serial Interface Clock 7 (N.C.*)
SPI_MOSI I Synchronous Serial Interface data input 8 (N.C.*)
UART_CTS I Asynchronous serial data CTS 11
UART_RTS O Asynchronous serial data RTS 12
UART_TX O Asynchronous serial data output 13
UART_RX I Asynchronous serial data input 14
VDD1 Supply voltage 1.8V 2
VDD2 Supply voltage 3.3V
(For Memory and AIO) 9
VDD3 Supply voltage 3.3V
(For PIO & PADS) 19
* N.C. = Open
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 4 of 10
WML-C29_User_Manual
25th Oct 2004

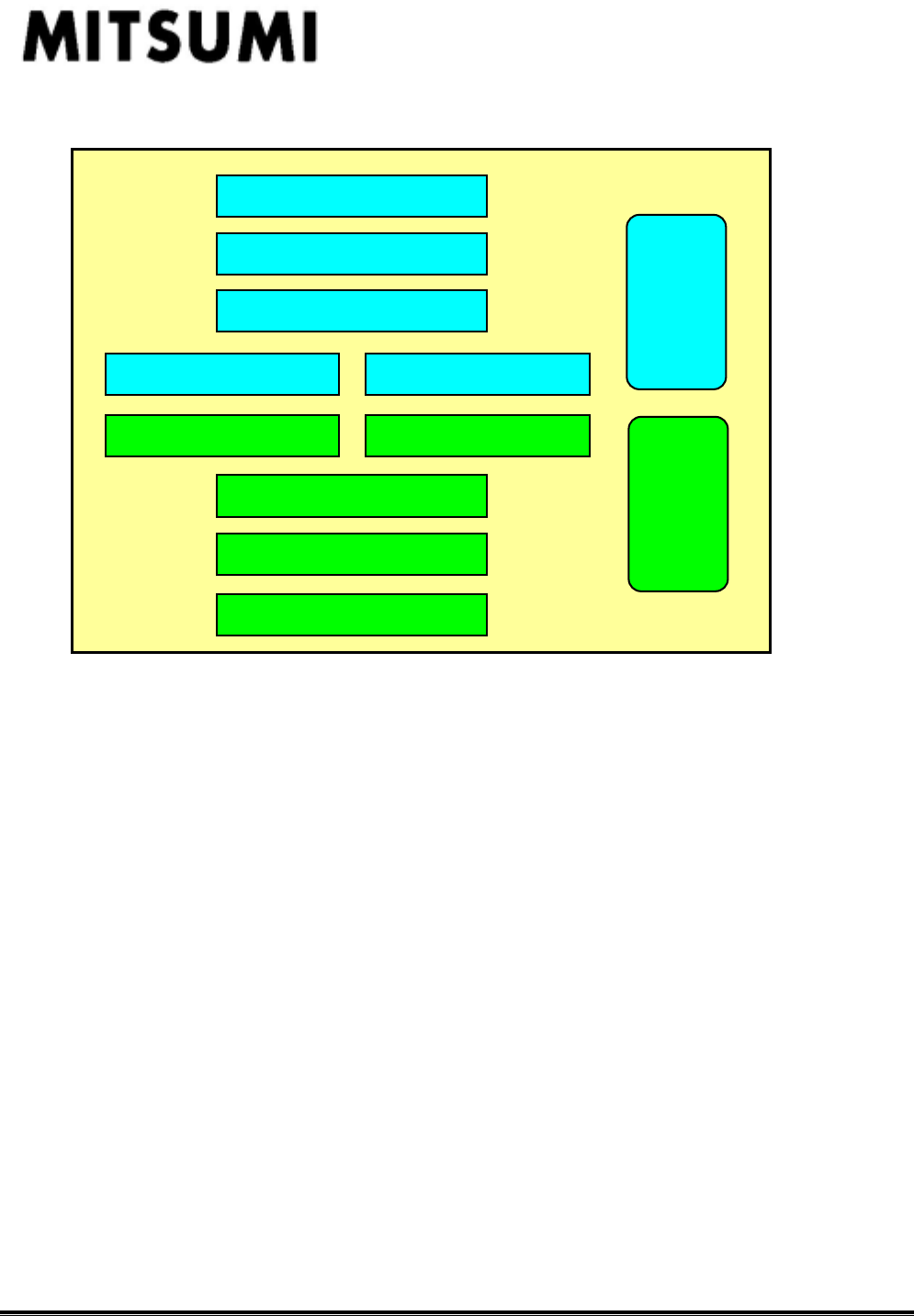

2.6 Software Stack for module and customer side example
Module
Stack
Customer
Stack
Baseband / RF
Link manager
LMP
HCI UART port driver HCI USB port driver
UART port driver
USB port driver
RFCOMM/SDP
L2CAP
API
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 5 of 10
WML-C29_User_Manual
25th Oct 2004
3. Regulatory and Safety Compliance . European Union.
3.1 Declaration about performed tests.
The Mitsumi module WML-C29### is wireless data transmission system. This ‘Bluetooth’
module can be integrated into various end products.
MITSUMI declares that The Mitsumi module WML-C29### complys with the following
directive and standards:
Directive 1999/5/EG (R&TTE Directive):
EN 300328-2 V1.2.1 (11-2001), Radio Equipment and Systems (RES); Wideband
transmission systems; Technical characteristics and test conditions for data transmission
equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques. Part 2: Harmonized EN covering essential requirements under article 3(2) of the
R&TTE directive.
EN 301489-01 V1.3.1 (09/2001), Electromagnetic Compatibility and radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
EN 301489-17 V1.1.1 (09-2000), Electromagnetic Compatibility and radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for wideband data Hiperlan equipment
We hereby declare that the human exposure of the Mitsumi module WML-C29### is below
the SAR limits specified in the EU recommendation 1999/519/EC (the applicable limits are
specified in table 1 with 2W/kg).
The technical documentation as required by the Conformity Assessment procedure is kept at the
following address :
2-11-2,TSURUMAKI,TAMA-SHI,TOKYO,206-8567 JAPAN.
MITSUMI ELECTRIC CO.,LTD.
ACCESS DEVICE ENGINEERING DEPT.
INTERFACE EQUIPMENT BUSINESS DIVISION
COMPONENT DEVICES BUSINESS HQ
TEL:+81-42-310-5829
FAX:+81-42-310-5582
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 6 of 10
WML-C29_User_Manual
25th Oct 2004
3.2 Labelling
CE conformity marking for product.
OEM product / application, where this radio module is integrated/ installed in , has to be labelled in
accordance to R&TTE directive, Article 12. An auxiliary label is included in the packaging to the
radio module, which can be used for that purpose and has to be permanently affixed to the OEM
product/ application, otherwise OEM product must be approved separately.
Regulatory information on the OEM devise should contain labelling that:
Approved in accordance to R&TTE directive transmitter module marked by CE,
manufactured by MITSUMI incorporated to OEM product.
More detail information present below in chapter 5.
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 7 of 10
WML-C29_User_Manual
25th Oct 2004
4. FCC Regulatory Information
The Federal Communication Commission Radio Frequency Interference Statement
includes the following paragraph:
This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and radiates radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio / TV technician for help.
Not Authorized modification could void authority to use this equipment.

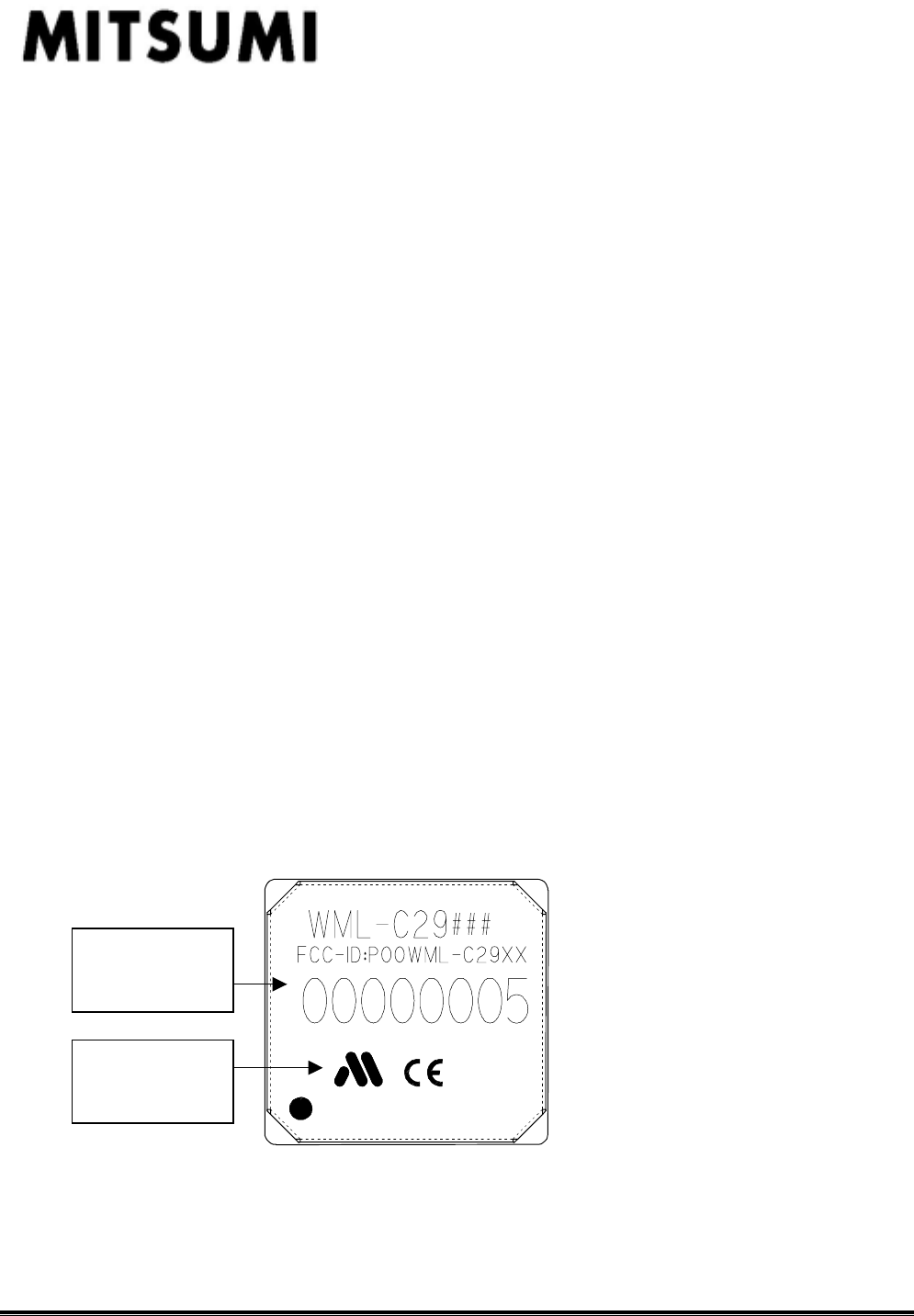

4.1 Labelling.
MITSUMI module WML 29### labelled as below.

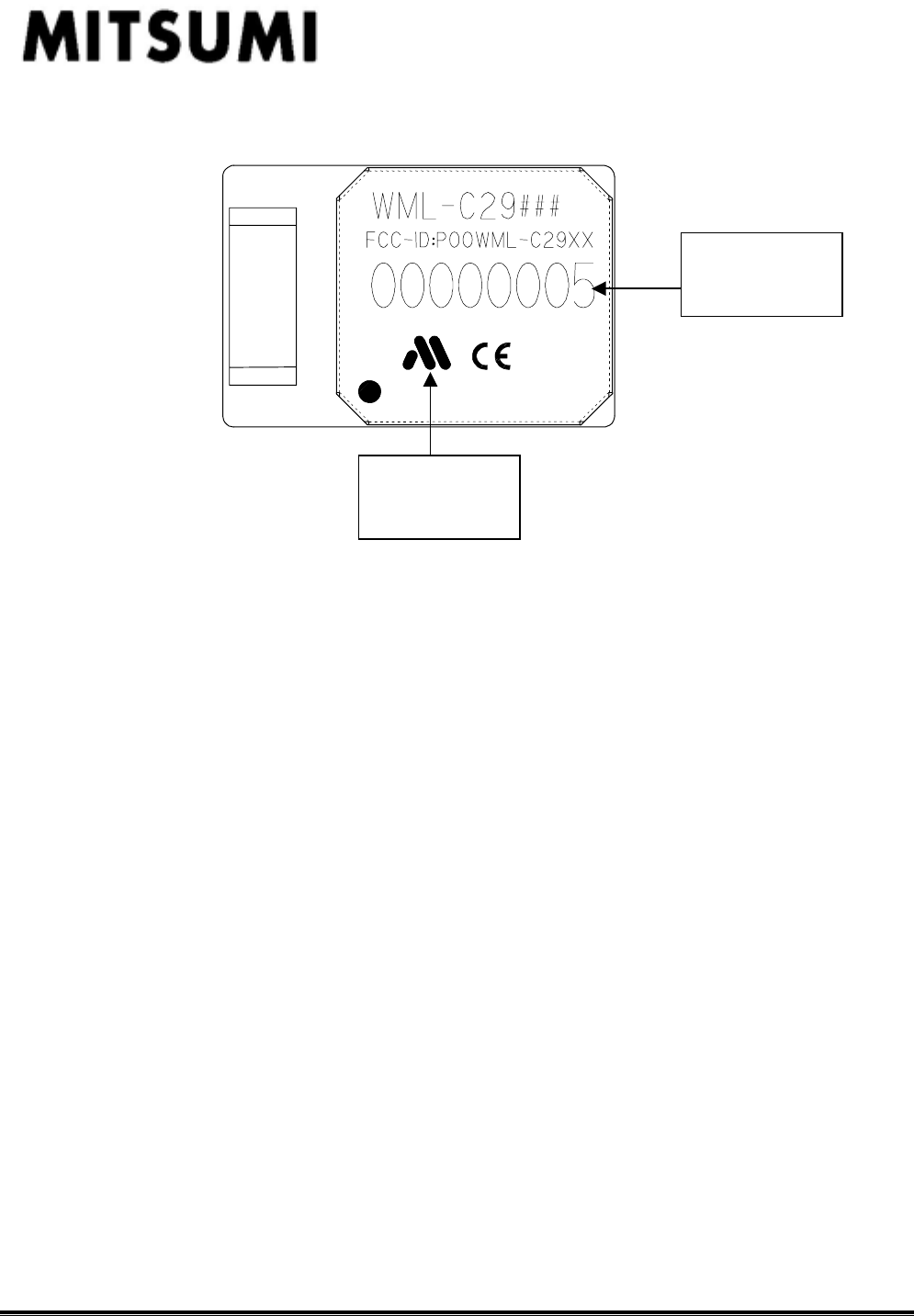

Module without antenna
Module’s Serial
N
umbe
r
MITSUMI
Company Logo
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 8 of 10
WML-C29_User_Manual
25th Oct 2004
Module without antenna
Module’s Serial
N
umb
e
r
MITSUMI
Company Logo
FCC Regulatory information. OEM devise should contain labelling that:
Approved in accordance to FCC rules transmitter module marked by FCC-ID POOWML-C29XX label,
manufactured by MITSUMI incorporated to OEM product. When its not possible, in user manual
should be included such information.
For example :
“This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.” This device contains
FCC-ID POOWML-C29XX
This label will be placed on the final product, clearly visible to all persons exposed to the
transmitter. The specific location on the final product will be consistent with each same final
product, but will vary in location across various final products, and in any case will always be
clearly visible to all persons exposed to the transmitter. The physical size of the label and font size
of the lettering will be dependent on the size of the final product, but in any case will always be
clearly visible to all persons exposed to the transmitter.
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 9 of 10
WML-C29_User_Manual
25th Oct 2004
4.2 Antenna implementation notes.
Any antenna of a similar type witch listed in antenna declaration may be used without retesting.
Use of an antenna of a different type than the tested antenna or one that exceeds the gain of a
tested antenna would require retesting and new approval by either a Telecommunication
Certification Body or the Commission. Manufacturers OEM would be expected to supply a list of
acceptable antenna types with applications for equipment authorization.
The external antennas are described as following.
Model Name Manufacturer Max. Gain [dBi]
HAN8030B2R4GT TDK 2.14
DA095S-2450M NEC TOKIN 2.14
KIA1003 KYOCERA 2.14
AHD1403-244ST01 Mitsubishi Materials 2.14
AHD1206-244ST01 Mitsubishi Materials 2.14
YCE-5223 Yokowo -1
Radio module WML- 29### can be incorporated into many different devices. The modules
generally consist of a completely self-contained radiofrequency transmitter missing only an input
and a power source to make it functional. Once the modules are authorized by the Commission
under our certification procedure, they may be incorporated into a number of host devices such as,
PCs or PDAs, which have been separately authorized. The completed product generally is not
subject to requirements for further certification by the FCC.
More detail information present below in chapter 5.
5. Other regulatory notes for OEM.
Modular transmitters save manufacturers the time and any related expenses that would be incurred if
a new equipment authorization were needed for the same transmitter when it is installed in a new
device. This means that it can be integrated into end products without further testing or approval
listing. The manufacturer must state the MITSUMI part number and product reference in his literature
in order to meet the requirements of the Bluetooth and regulatory. This should be clearly indicated in
the OEM manuals.
The purchaser / integrator ( developer) must satisfy all relevant FCC, SAR, EMC and Radio regulations
which apply to their finished product. We believe such parties have the technical competence to ensure
that the systems they deploy continue to comply with all those rules.
Further information and guidance on this subject and other equipment authorization matters can be
found under
-Regarding FCC regulatory information on the FCC’s website at:
www.fcc.gov/oet/info/database/letters/.
- Regarding R&TTE directive
http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
Page 10 of 10
WML-C29_User_Manual
25th Oct 2004
6. A separate approval.
A separate approval of the device into which the module is incorporated is only required when it cannot
be insured that the conditions on the module grant will be met. The purchaser must satisfy all relevant
FCC, EMC and Radio regulations R&TTE directive which apply to their finished product.
COMMERCIAL IN CONFIDENCE
This material may not in whole or part be copied, stored electronically or communicated to third parties
without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing.
