Mobile Appliance BMWDAS ADAS User Manual
Mobile Appliance, Inc. ADAS
User Manual
Original
BMW Accessories
Operating Instructions
Sheer Driving Pleasure
Driver Advice System
5
Driver Advice System Operating
Instructions
Contents
General instructions 6
Symbols used 6
Safety instructions 7
Product description 7
BMW Driver Advice System
7 BMW Driver Advice Display
8 BMW Head-Up Screen 9
Installation commissioning 13
Pairing a smartphone with the BMW Driver Advice System 13
Settings 13
Updates
15 Operation with an incoming call
15
Technical data 15
BMW Driver Advice Assistant Functions 16
Collision warning 16
Lane departure warning 16
Distance information 17
Traffic sign recognition 18
LANGUAGECODE.EN
6
Alertness assistant 18
High-beam assistant
19 Disposing of electrical equipment (WEEE
Directive) 20
Service 21
© 2015 BMW AG, Munich/Germany
Reprints, even in excerpt form, are
permitted only with the written consent of
BMW AG, Munich. Printed in Germany
on environmentally friendly paper
(chlorine-free bleach, recyclable).
Subject to printing errors, mistakes and changes.
7
General instructions
BMW recommends only using parts and
accessories that have been tested and
approved by BMW in relation to their
safety, function and sustainability.
If you have any questions regarding the use of
your BMW Driver Advice System, please
contact your BMW Partner.
Please read these operating instructions
carefully before using your BMW Driver Advice
System.
The BMW Driver Advice System is a product
that supports driving safety and comfort by
displaying important vehicle and navigation
information within your range of vision and, if
necessary, providing audible warnings.
Symbols used
Denotes warnings that you must
observe.
Denotes instructions that draw your
attention to special features.
Denotes the end of the instruction.
8
Safety instructions
The BMW Driver Advice System
displays distance information,
collision and lane departure
warnings and assists with traffic
sign recognition, wandering
attention and the use of high
beams.
The BMW Driver Advice System does
not actively intervene in your vehicle; it
merely offers audible and visual
assistance.
The failure of one or more BMW Driver
Advice System assistants will have no
impact on the vehicle's function.
Product description
The BMW Driver Advice System is a
product that has a modular structure and
can also be used as such.
The main system comprises a camera and
visual display with the associated BMW
Driver Advice App.
Alternatively, the additional BMW Driver Advice
Display or the BMW Head-Up Screen can be
purchased for the display.
BMW Driver Advice System
The camera is installed and
connected in the vehicle by the BMW
dealer.
Please do not use your smartphone
while driving. To ensure you are not
distracted while driving, settings on the
BMW Driver Advice System can only
be carried out when the vehicle is
stationary.
Please note that additional roaming
charges may be incurred abroad if you
have enabled data roaming on your
smartphone.
The camera is switched on when the ignition is
switched on and switched off when the ignition
is switched off.
The camera can also be switched on and off
manually at the press of a button. The status
is displayed by the ring-shaped LEDs around
the push button.
Audio signals
A speaker on the camera serves as the
source for the audible signals. The
various sounds act as information or as
LANGUAGECODE.DE
9
a warning.
The BMW Driver Advice System
issues warning signals when:
–there is a collision warning for objects
(at 10 km/h up to 250 km/h) and
pedestrians (up to 65 km/h)
–there is a lane departure warning
(from 70 km/h)
–there is a safe distance warning
(at 40 km/h up to 250 km/h)
10
The BMW Driver Advice System can also
issue information signals for:
–Alertness warnings
–Recommendations to switch off the
high beam headlights
Visual signals
The image source in the main system
is the BMW Driver Advice App, which
can be extended and / or replaced by
the BMW Driver Advice Display and
BMW Head-Up Screen.
The BMW Driver Advice System displays:
–Collision warnings for objects (at 10 km/h
up to 250 km/h) and pedestrians
(up to 65 km/h)
–there is a lane departure warning
(from 70 km/h)
–there is a safe distance warning
(at 40 km/h up to 250 km/h)
The BMW Driver Advice System can also
issue information signals for:
–Alertness warnings
–Recommendations to switch off the
high beam headlights
BMW Driver Advice Display
If you have also purchased the BMW Driver
Advice Display in addition to the BMW Driver
Advice System, this display can be used to
indicate functions.
The display can be adjusted by rotating it to the
achieve the perfect viewing angle. To do this,
release the positioning screw behind the
display, move it to the desired position and
tighten the screw again.
11
The settings for the display are adjusted
using the turn-and-push button. To call up
the settings, push the button. To select the
functions, turn it. Pushing the button again
activates the highlighted function. The
various options are explained in “About the
App” and are identical.
1 Controller for optimising the display
position
2 Push-and-turn button for selecting and
confirming the relevant functions
3 Collision warning for objects (at 10 km/h
up to 250 km/h) and pedestrians (up to
65 km/h): the display lights up red in the
event of a hazard for 3 seconds.
4 Lane departure warning for the left and
right-hand lane (from 70 km/h): The
corresponding lane marking flashes in
the event of a hazard.
5 Safe distance information (at 40 km/h
up to 250 km/h): the four bars light up
green to red, depending on the
situation.
6 Alertness assistant: the display lights
up for 30 seconds in the event of
fatigue being detected.
7 High beam assistant: the display lights up
for 3 seconds in the event a warning.
The notifications and warnings are (in
some cases) represented in colour from
GREEN (good), YELLOW (acceptable /
dangerous) to RED (critical). Especially
critical situations are also emphasised
by flashing notifications.
12
Display brightness
The BMW Driver Advice System Display’s
brightness is adjusted automatically
according to the brightness of the dashboard
illumination in the car. It can also be adjusted
manually via the dashboard illumination
controls in the car or in the system settings of
the
BMW Driver Advice System.
Please take care not to set the display
so bright that you are dazzled in dark
conditions.
Cleaning
To clean the BMW Driver Advice System
Display, we recommend using a soft, dry
cloth. Do not use any other types of cleaning
agent, since these can damage the product.
For more stubborn dirt, we recommend
moistening the cloth with a little water.

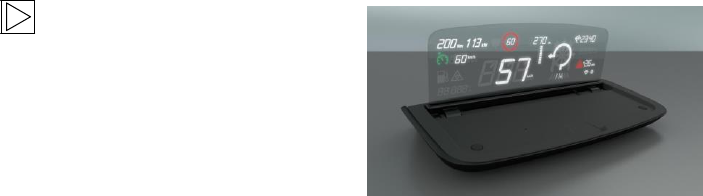

BMW Head-Up Screen
The alternative to the BMW Driver Advice
System Display is the BMW Head-Up Screen
(BMW HUS). If you have purchased this in
addition to the BMW Driver Advice System,
these two products can be linked.
The BMW Driver Advice System
complements the functions of the BMW
Head-Up Screen.
1 Procedure for opening up the screen
2 Reset button: The Head-Up Screen can be
reset to its factory settings with a paper
clip. You then simply need to sign back in
using the factory WLAN access data
3 NFC (Near Field Communication)
contact point: near field communication
is an international transmission standard
for the contactless exchange of data via
radio technology across short distances
of just a few centimetres. On
smartphones that support NFC, you can
launch the “Head-Up Screen” App
LANGUAGECODE.EN
13
automatically.
14
Functions of the Head-Up Screen
and pairing
The vehicle data is displayed automatically
as soon as the ignition is switched on. All
other data is displayed as soon as
navigation begins. The following system
requirements are necessary to use the
smartphone functions:
–iPhone 5S or later (BT 4.0 -
Bluetooth Low Energy required)
–Android 4.4 or later (BT 4.0 -
Bluetooth Low Energy required)
On your smartphone, install the free
BMW "Head-Up Screen" App. You will
find it in your respective App Store:
iTunes (iOS) or Google Playstore (Android).
Once installation of the “Head-up Screen”
App is complete, you must connect your
smartphone to the Head-Up Screen
(WLAN). Switch your car's ignition on and
fold the screen of the Head-Up Screen
upwards. Under "WLAN" settings in your
smartphone, find the WLAN access point
with the SSID "Head-Up Screen" and
connect to it. The default password is:
“1234567890”. A pure WLAN connection
will not be displayed; only if the smartphone
is communicating with the HUS via a
TCP/IP connection also. To do this, the
HUS App must be launched and
communication with the HUS must be active.
If your smartphone does not connect
automatically to the Head-Up Screen, switch
your smartphone's screen on briefly after you
have switched on your car's ignition.
15

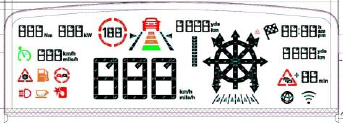

Head-Up Screen display
1 Torque (Nm)
2 Power (kW)
3 Cruise control including set speed
4 Refuel warning, illuminates for 30
seconds from a range of 50 km or 29 mi
5 Black ice warning, illuminates for 30
seconds at temperatures below 3°C or
37°F
6 Speed limit
7 Distance until the next
turning manoeuvre
8 Route and turning instructions
9 Navigation device lane assistant
10 Estimated time of arrival or remaining
journey time
11 Distance to destination
12 Delay caused by traffic
13 WLAN connection to
the smartphone /
navigation device
14 Connection to live services
(picture shows example)
15 High-beam headlight assistant,
illuminates for 3 seconds if low beam is
recommended
16 Alertness assistant, illuminates for
30 seconds if a break is recommended
17 Speed camera warning
18 Distance information
19 Lane departure and collision warning
16

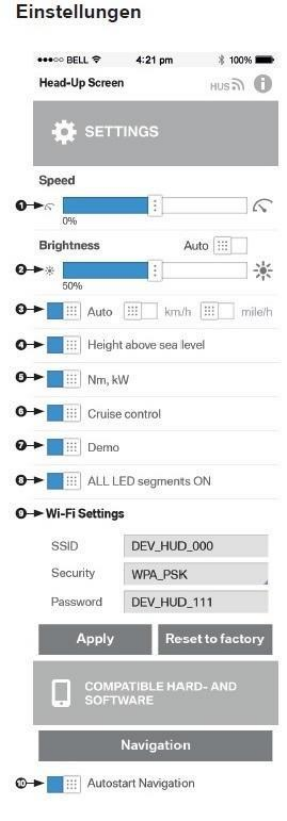

Settings with the Head-Up Screen
App
Various settings can be modified using the
"Head-Up Screen" App (see figure).
1 Speed adjustment: Fine-tuning of the
speed display in the car. Depending on
the vehicle type, it may be necessary to
adapt the digital display on the Head-Up
Screen to the behaviour of the
speedometer's analogue pointer display
2 Adapting the brightness of the screen: In
“Auto” mode, your Head-Up Screen adapts
to the settings of the car's dashboard
illumination. The brightness can also be
customised here. Removing the tick next to
"Auto" allows the display to be controlled
completely independently of the car.
Ensure that you are not dazzled in dark
conditions:
- Changes to the brightness of the Head-
Up Screen via the dashboard
illumination control (will only take effect
if the daytime driving light or low beam
headlights are switched on). To
coordinate the control range for the
display brightness as effectively as
possible, BMW recommends not
setting the dashboard illumination to
maximum, but rather to just slightly
below it. To control the dashboard
illumination, please see the instructions
in your BMW Owner's Manual. Please
take care not to set the display so
bright that you are dazzled in dark
conditions
- It is possible, if required, to apply the
enclosed black rubber film onto the
LANGUAGECODE.EN
17
side of the screen
facing the front
windscreen and thereby
rule out any possible
dazzle effect caused by
the headlights of
oncoming traffic. The
film can be removed
and re-applied as often
as necessary
3 Units: Select your desired
setting
4 Switching on/off the Nm,
kW display
5 Switching on/off the
cruise control display
6 Switching on/off demo
mode
18
7 Displaying all LED segments (test mode)
8 WLAN settings: Here you can modify
your Head-Up Screen's WLAN settings.
For security reasons, we
recommend assigning a new password.
Please note that you must then re-connect
to the Head-Up Screen.
9 Starting the navigation system – Starting
the navigation system manually. It is
possible that your personal settings have
been reset to the factory settings following
an update to the "Head-Up Screen" App
HUS operating temperature
If the Head-Up Screen exceeds the
permissible operating temperature, your
Head-Up Screen will only switch on when
the ignition is switched on once the
permitted internal temperature has been
reached. This may take up to a few
minutes under certain circumstances.
Cleaning and care of the HUS
To clean the Head-Up Screen, we recommend
using a soft, dry cloth. A suitable microfibre
cloth is included in the supplied package. Do
not use any other types of cleaning agent, since
these can damage the product. For more
stubborn dirt, we recommend moistening the
cloth with a little water.
Technical data for the HUS
Technical data for the HUS
–Transparent OLED display
–Screen dimensions: 125 mm x 42 mm
–Light density: Around
800 cd/m² (max. 1,100 cd/m²)
–Screen transparency: Around 55%
(max. 65%)
–Operating temperature: -40°C ~ +95°C
–Ambient humidity: up to 90%
19
Installation Commissioning
The BMW Driver Advice System is
activated automatically when the
ignition is switched on. As soon as the
ignition is switched on, settings can be
made to the BMW Driver Advice
System while the car is stationary.
The following system requirements are
necessary to use the smartphone functions:
– iPhone 5S or later (BT 4.0 -
Bluetooth Low Energy required)
– Android 4.4 or later (BT 4.0 -
Bluetooth Low Energy required)
Install the free BMW Driver Advice
System App on your smartphone
You will find it in the appropriate App
Store: iTunes (iOS) or Google
Playstore (Android).
Pairing a smartphone with the BMW
Driver Advice System
Once the BMW Driver Advice System App has
been installed successfully, you must pair your
smartphone with the BMW Driver Advice
System via Bluetooth.
Switch your vehicle's ignition on. Enable
“Bluetooth” on your smartphone and
launch the BMW Driver Advice System
App. If your smartphone does not connect
to the BMW Driver Advice System
automatically, click on “BMW DAS” in the
list. You will then see the start screen.
Settings
The settings can be made via the BMW Driver
Advice System App and via the BMW Driver
Advice System Display.
LANGUAGECODE.EN
20

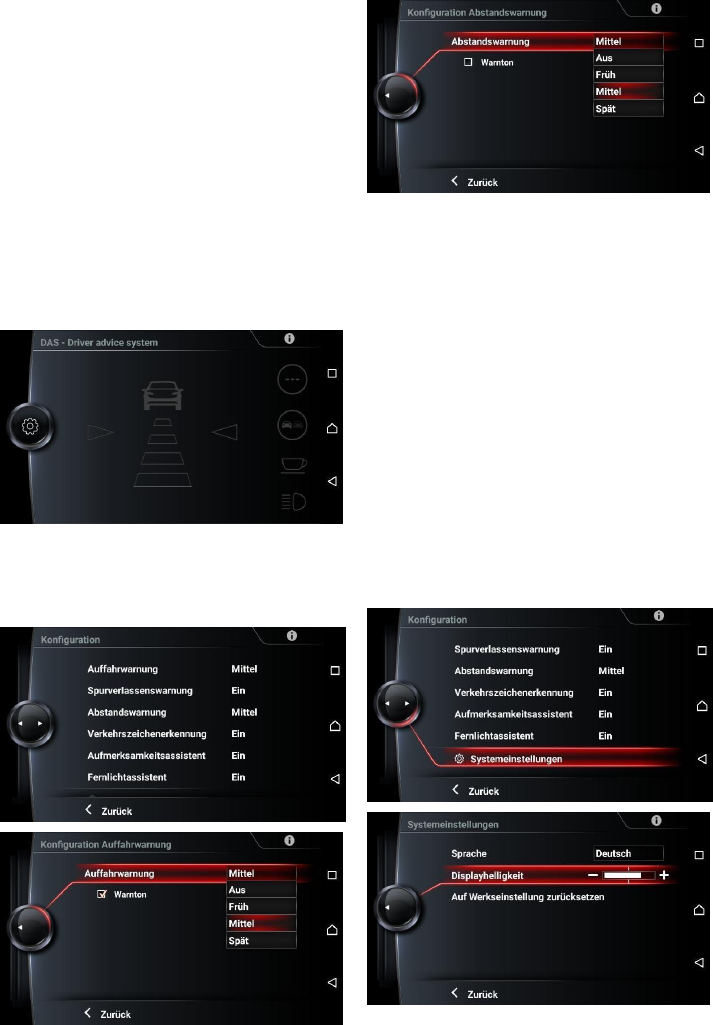

About the App
The Settings selector button on the left-hand
side takes you to the Settings level for the
individual functions.
For all functions (other than traffic sign
recognition), the warning sound can be
switched ON or OFF by placing a tick
next to it. - Collision warning: Select the level of
sensitivity you wish to have: EARLY,
MEDIUM, LATE or OFF
– Lane departure warning: Select the
level of sensitivity you wish to have:
EARLY, MEDIUM, LATE or OFF
– Distance warning: ON/OFF
– Alertness assistant: ON/OFF
– High beam assistant: ON/OFF
– System settings: Select your
21
preferred language, adjust the
brightness of the screen, restore
factory settings
22
About the display
The settings for the display are adjusted
using the turn-and-push button. To call up
the settings, push the button. To select the
functions, turn it. Pushing the button again
activates the highlighted function. The
individual options have already been
explained in “About the App” and are
identical.
Updates
If the firmware is enhanced in the future and an
update becomes available, you will receive a
message on your smartphone as soon as you
connect. If you wish to install the update,
confirm with “OK”. This process can take up to
8 minutes.
Before an update of the BMW
Driver Advice System App is
carried out, the smartphone must
be set to Flight mode, since
otherwise incoming calls would
interfere with or interrupt the
update.
Operation with an incoming call
Please do not use your smartphone
while driving.
If a call comes in, your mobile telephone
will automatically switch to the “incoming
call” display. The BMW Driver Advice
System App will remain active in the
background. Switching to the BMW Driver
Advice System
– App during the call is only possible
through manual intervention and does not
occur automatically. When the call is
finished, your mobile phone automatically
switches back to the BMW Driver Advice
System App.
Technical data
- Camera: 1/3” 1,280 x 720 p
– Processor: 2 x 500 MHz
– Connection: BT 4.0 – Bluetooth Low Energy
– Vehicle connection: CAN
– Sound output: Buzzer
– Operating voltage: 12 V
– Operating temperature: -40°C ~ +80°C
It is possible that your personal
settings have been reset to the
factory settings following an update
LANGUAGECODE.DE
23
to the BMW Driver Advice System
App.
BMW recommends checking the
settings to ensure they are
displaying the information and audio
signals you want after every update.
24
BMW Driver Advice Assistant
functions
Collision warning
The collision warning helps to minimise the
risk of collision accidents and reduce the
consequences of accidents. If there is a risk of
collision, the driver will be warned in good time
with visible and audible signals. The multi-
function camera mounted to the front
windscreen in the area of the rear-view mirror
can recognise vehicles and objects that cut
into view and whose distance reduces
significantly. Up to a speed of 65 km/h,
standing objects and crossing pedestrians are
detected.
The collision warning is a tool that
cannot definitively detect complex
traffic situations and may issue a
warning too late. As a result, the
driver must always be attentive and
ready to apply the brakes. If the
Assistant issues a warning, the
driver must brake or swerve
immediately if it is not dangerous to
do so.
The driver must not rely exclusively
on the display, but instead always be
aware of his or her surroundings.
The collision warning function is
limited when
– visibility is poor (e.g. in poor road
lighting, snow, heavy rain, fog and
spray)
– there is glare from oncoming headlights,
direct sunlight and bright reflections
– the camera is dirty, damaged or
covered
– vehicles are unlit
– there are fast-moving pedestrians
– pedestrians are wearing certain clothing
and objects that hinder detection
25
– there are pedestrians that are
concealed by other objects
– there are pedestrians whose shape is
difficult to discern from the background
The assistant may generate false alerts
in the following situations:
– oncoming traffic
– crossing traffic
– on bends
– at traffic islands
Pedestrians are detected based on
typical body contours and posture.
The collision warning will not react to:
– small people (children)
– animals
– oncoming traffic
– crossing traffic and bends
Lane departure warning
The multi-function camera mounted to
the front windscreen in the area of the
area of the rear-view mirror monitors
the area in front of the car and
recognises lane markings. If the vehicle
drifts out of the current lane, a warning
is sounded.
26
The lane departure warning is a tool
that cannot intervene in the vehicle.
The driver maintains full responsibility
for steering the car, must keep their
hands on the wheel at all times and
must adjust the speed and distance
from the car in front accordingly. Lane
departure warning cannot take
account of road and weather
conditions and cannot always assess
traffic situations correctly. The driver
must adjust their driving style
independently.
The driver must not rely exclusively
on the display, but instead always be
aware of his or her surroundings.
To ensure the function of the lane departure
warning,
– the area around the camera must be kept
clean
– the camera’s line of sight must be kept
clear
– the front windscreen in the area of the
camera must be regularly checked for
damage.
The lane departure warning cannot
recognise all road markings and has only
been developed for driving on asphalted
roads. Where road markings and the road structure
are poor, or if there are objects on the road, mis-
detections may occur. In this situation, the lane
departure warning may sound an alert
inappropriately or, incorrectly, not at all.
The driver must not rely exclusively on the
display, but instead always be aware of his or
her surroundings.
27
The lane departure warning
function is limited when
–visibility is poor (e.g. in poor
road lighting, snow, heavy
rain, fog and spray)
–there is glare from oncoming
headlights, direct sunlight
and bright reflections
–the camera is dirty, damaged
or covered
–there are no, multiple or
unclear road markings
–there are tight bends
–there are alternating lane
markings (e.g.: diversions
and crossroads)
There is no warning
–when the indicators are used
Distance information
The distance information
helps to maintain a suitable
distance from the vehicle in
front and warns the driver if
they are getting too close.
The distance information
minimises the risk of
accident and reduces the
consequences of an
accident.
The multi-function camera mounted on the
front windscreen in the area of the rear-view
mirror can detect the vehicle in front from a
speed of 40 km/h if the distance is too short
over a period of several seconds. The
assistant provides optical information about
the current distance to the vehicle in front,
prompting the driver to adjust their distance.
In critical situations, it also emits a signal (if
activated) to warn the driver to brake the car
immediately or to swerve if the situation
allows it.
LANGUAGECODE.DE
28
The distance information is a tool
but should not be relied on
exclusively. The driver must
monitor their surroundings at all
times and adjust their distance
independently. The assistant will
not intervene in the vehicle. It is
the driver's responsibility to
maintain a safe distance from
other vehicles.
The sensitivity of the distance
information depends on the
environmental and weather conditions.
In heavy rain and snow, as well as in
low temperatures and darkness, the
assistant is more sensitive and
recommends maintaining a greater
distance.
The distance information function is
limited when
–visibility is poor (e.g. in poor road
lighting, snow, heavy rain, fog and
spray)
–there is glare from oncoming headlights,
direct sunlight and bright reflections
–the camera is dirty, damaged or
covered
The distance information does not react:
–to people or animals
–to oncoming traffic
–to crossing traffic
–on bends
In complex traffic situations, the distance
information may
–issue a warning although there is no
danger
–not issue a warning although there is a
danger
29
Traffic sign recognition
Traffic sign recognition displays the
maximum permitted speed and
when overtaking is prohibited.
Traffic sign recognition is a tool
that may recognise traffic signs
incorrectly. The traffic signs on
the roads always take priority if
there is a discrepancy with the
display and must be observed at
all times.
The driver must not rely
exclusively on the display, but
instead always be aware of his
or her surroundings and interpret
traffic signs independently.
The road sign recognition function is
limited when
– visibility is poor (e.g. in poor road
lighting, snow, heavy rain, fog and
spray)
– there is glare from oncoming
headlights, direct sunlight and bright
reflections
– the camera is dirty, damaged or
covered
– the road signs are difficult to read
– there is inadequate lighting of
road signs
– there are signs with multiple
meanings (e.g. on construction
sites)
Alertness assistant
The alertness assistant helps the driver
on long, tedious journeys,
especially when driving on the motorway. The
assistant analyses the driving behaviour,
journey length and time of day to offer
recommendations about taking regular breaks.
A warning is issued via a symbol on the display
and possibly with a warning sound.
30
The alertness assistant is merely a
tool and cannot (always) detect signs
of illness, form on the day or
tiredness. The driver is solely
responsible for taking suitable breaks.
The assistant's algorithm is designed
exclusively for journeys on well-
asphalted roads, as well as on
motorways.
The assistant’s function is limited when
– driving for less than 60 minutes
– driving in a sporty style
– speeds are maintained below 60 km/h
and over 200 km/h
– the driver is very distracted
The alertness assistant is unable to
detect momentary nodding-off.
The alertness assistant detects a break
if
– the engine is switched off for a
period of more than 15 minutes
When a break is detected, the assistant is
reset to zero and restarts the analysis.
High beam assistant
The high beam assistant recommends the
timely lowering of high beams when there is
oncoming traffic. The multi-function camera
mounted to the front windscreen in the area of
the rear-view mirror can recognise oncoming
vehicles and vehicles in front of the car and
measures the distance from them. This means
that a recommendation to lower the high beams
can be issued in good time so that the
oncoming traffic is not dazzled. The assistant
also recommends lowering the high beam in
well-lit areas, such as towns or cities.
The high beam assistant is only
active when the high beams are
switched on.
The high beams do not react to:
– unlit road users (pedestrians)
– poorly-lit road users (cyclists)
– road users whose lighting is concealed
(crash barrier, narrow bends)
The high beam assistant is a tool
that offers recommendations on how
to use the headlights. In rare cases,
other road users who have their own
lighting will not be recognised and
LANGUAGECODE.EN
31
the lowering of the high
beams will not be
(expressly)
recommended. There is a
risk of accident! Correct
vehicle lighting is the
responsibility of the driver,
who should not rely solely
on the display but is
instead obliged to make
his or her own
assessment of the
lighting, visibility and
traffic situations.
32
The high beam assistant’s function is
limited when
–visibility is poor (e.g.: in snow, heavy
rain, fog and spray)
–there are bright reflections
–the camera is dirty, damaged or
covered
Disposing of electronic
equipment (WEEE
Directive)
This symbol on the product or packaging
indicates that the the product must not
be disposed of in household waste. In
agreement with the EU Directive
2002/96/EC on electrical and electronic
waste (WEEE), this electrical device
must not be disposed of as unsorted
domestic refuse. Dispose of this product
by returning it to the place you bought it,
or to a local authority recycling facility
near you.

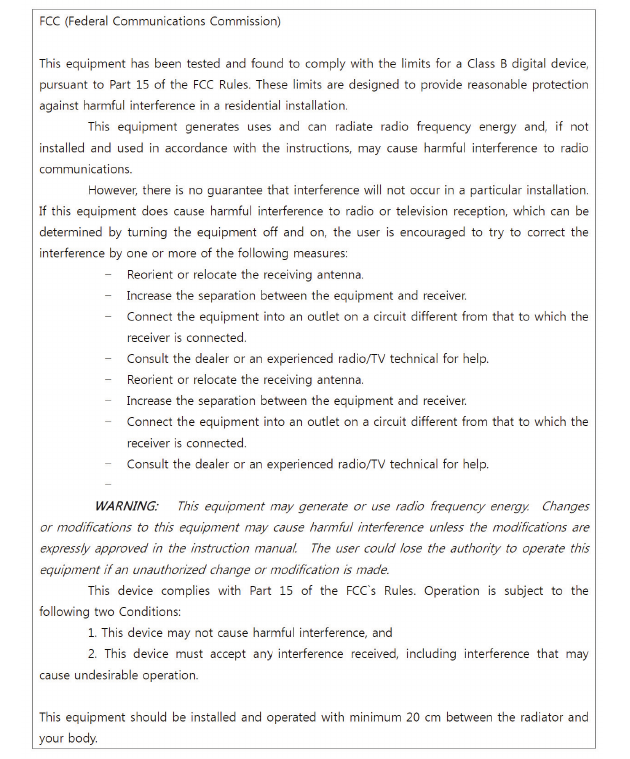

66HUYLFH
)RUPRUHLQIRUPDWLRQRULI\RXKDYHDQ\
TXHVWLRQVDERXWXVLQJ\RXU%0:'ULYHU
$GYLFH6\VWHPSOHDVHFRQWDFW\RXU%0:
3DUWQHU
/$1*8$*(&2'(((1
